# Generalization Second Order Macroscopic Traffic Models via Relative Velocity of the Congestion Propagation

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Generalized Model

#### 2.1. Relative Velocity of the Congestion Propagation

#### 2.2. Model Equations

**Theorem**

**1.**

**Remark**

**1.**

- First, we can define the relative velocity of the congestion propagation by using equilibrium velocity, as was carried out in ([8]), $c\left(\rho \right)=\rho \frac{\partial V\left(\rho \right)}{\partial \rho}$. The function for equilibrium velocity $V\left(\rho \right)$ (fundamental diagram) can be empirically set using traffic detector data for a long period of time for each segment of the road.
- Second, we can do this without using equilibrium velocity or any form of a fundamental diagram. We approximate the value of the relative velocity of the congestion propagation using traffic density and velocity measured at the current time instant:$$c\left(\rho \right)=\frac{{\rho}_{in}+{\rho}_{out}}{2}\left(\frac{{v}_{out}-{v}_{in}}{{\rho}_{out}-{\rho}_{in}}\right)$$

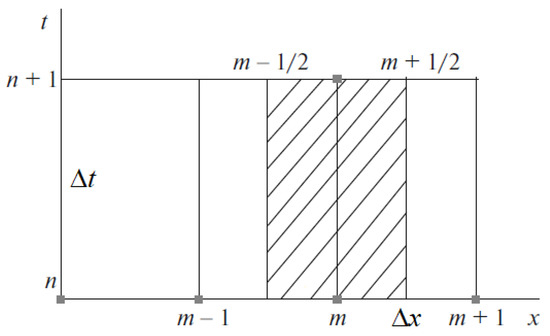

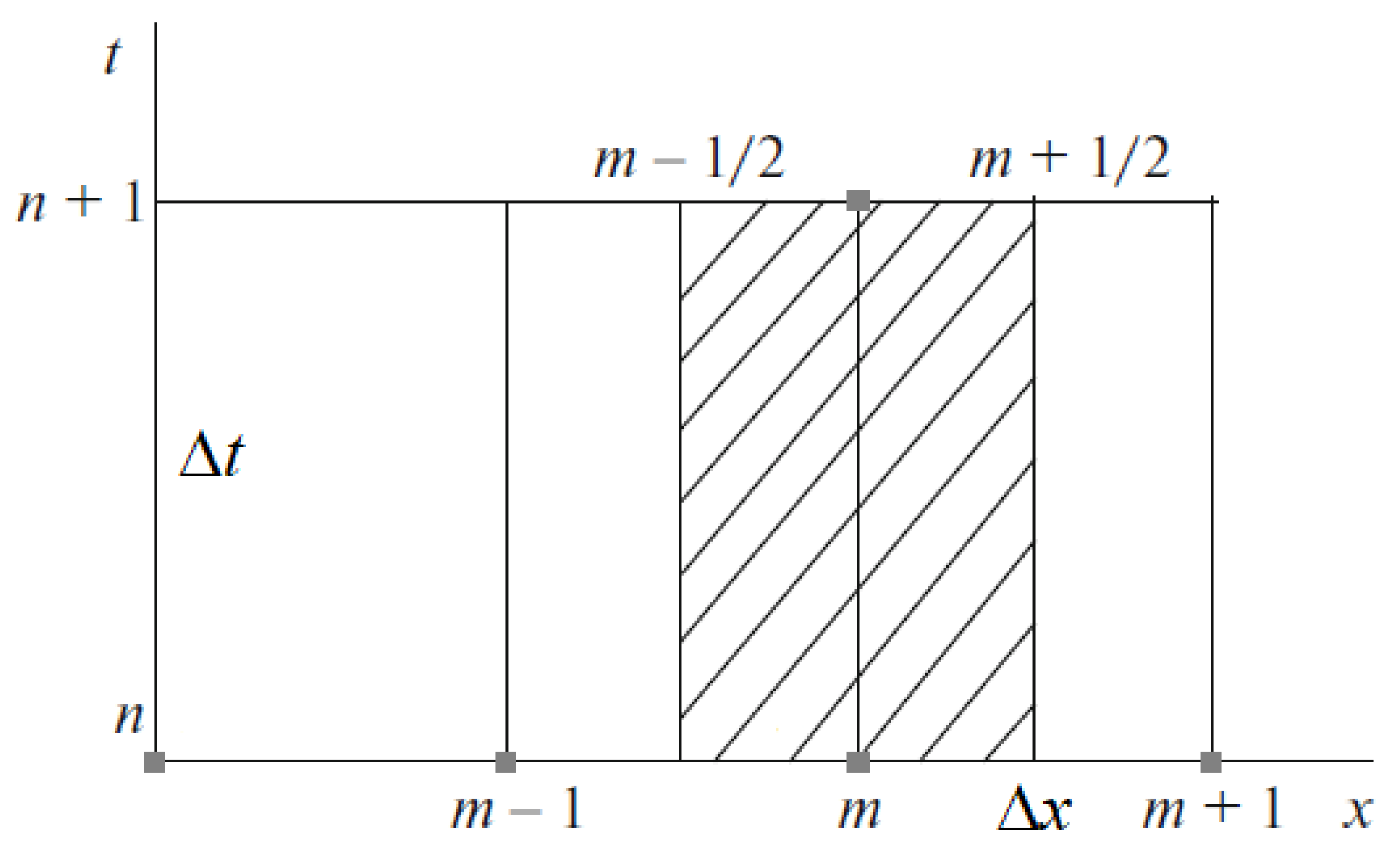

## 3. Computational Method

## 4. Numerical Results

- Free flow: $0\le \rho <{\rho}_{1}$
- Synchronized flow: ${\rho}_{1}\le \rho <{\rho}_{2}$
- Wide moving jam: ${\rho}_{2}\le \rho \le {\rho}_{max}$

- Free flow: $\left\{\begin{array}{c}V\left(\rho \right)={\alpha}_{2}\rho +{\alpha}_{1}\hfill \\ c\left(\rho \right)={\alpha}_{2}\rho \hfill \end{array}\right.0\le \rho <{\rho}_{1}$
- Synchronized flow: $\left\{\begin{array}{cc}& V\left(\rho \right)={\beta}_{2}\rho +{\beta}_{1}+\frac{{\beta}_{0}}{\rho}\hfill \\ & c\left(\rho \right)={\beta}_{2}\rho -\frac{{\beta}_{0}}{\rho}\hfill \end{array}\right.,{\rho}_{1}\le \rho <{\rho}_{2}$
- Wide moving jam: $\left\{\begin{array}{cc}& V\left(\rho \right)={c}_{*}\left(\frac{{\rho}_{max}}{\rho}-1\right)\hfill \\ & c\left(\rho \right)=-\frac{{c}_{*}{\rho}_{max}}{\rho}\hfill \end{array}\right.,{\rho}_{2}\le \rho \le {\rho}_{max}$

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- PeMS. 2017. Available online: http://pems.dot.ca.gov (accessed on 17 June 2021).
- Lighthill, M.J.; Whitham, G.B. On kinematic waves II. A theory of traffic flow on long crowded roads. Proc. R. Soc. London. Ser. Math. Phys. Sci.
**1955**, 229, 317–345. [Google Scholar] [CrossRef] - Richards, P.I. Shock Waves on the Highway. Oper. Res.
**1956**, 4, 42–51. [Google Scholar] [CrossRef] - Payne, H.J. Model of Freeway Traffic and Control; Simulation Councils, Inc.: San Diego, CA, USA, 1971; pp. 51–61. [Google Scholar]
- Daganzo, C.F. Requiem for second-order fluid approximations of traffic flow. Transp. Res. Part Methodol.
**1995**, 29, 277–286. [Google Scholar] [CrossRef] - Papageorgiou, M. Some remarks on macroscopic traffic flow modelling. Transp. Res. Part Policy Pract.
**1998**, 32, 323–329. [Google Scholar] [CrossRef] - Aw, A.; Rascle, M. Resurrection of “Second Order” Models of Traffic Flow. SIAM J. Appl. Math.
**2000**, 60, 916–938. [Google Scholar] [CrossRef] - Zhang, H. A non-equilibrium traffic model devoid of gas-like behavior. Transp. Res. Part Methodol.
**2002**, 36, 275–290. [Google Scholar] [CrossRef] - Zhang, H. Anisotropic property revisited––Does it hold in multi-lane traffic? Transp. Res. Part Methodol.
**2003**, 37, 561–577. [Google Scholar] [CrossRef] - Siebel, F.; Mauser, W. On the Fundamental Diagram of Traffic Flow. SIAM J. Appl. Math.
**2006**, 66, 1150–1162. [Google Scholar] [CrossRef] [Green Version] - Siebel, F.; Mauser, W. Synchronized flow and wide moving jams from balanced vehicular traffic. Phys. Rev. E
**2006**, 73. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Alekseenko, A.; Kholodov, Y.; Kholodov, A.; Chekhovich, Y.; Starozhilets, V. Adaptive Traffic Light Control on Highway Entrances. In Proceedings of the 2017 IEEE 20th International Conference on Intelligent Transportation Systems (ITSC), Yokohama, Japan, 16–19 October 2017; pp. 1–6. [Google Scholar] [CrossRef]
- Whitham, G. Linear and Nonlinear Waves; John Wiley & Sons Inc.: New York, NY, USA, 1974. [Google Scholar]
- Godunov, S.K.; Romenskii, E.I. Elements of Continuum Mechanics and Conservation Laws; Springer US: New York, NY, USA, 2003. [Google Scholar] [CrossRef] [Green Version]
- Helbing, D. Traffic and related self-driven many-particle systems. Rev. Mod. Phys.
**2001**, 73, 1067–1141. [Google Scholar] [CrossRef] [Green Version] - Magomedov, K.; Kholodov, A. The construction of difference schemes for hyperbolic equations based on characteristic relations. USSR Comput. Math. Math. Phys.
**1969**, 9, 158–176. [Google Scholar] [CrossRef] - Kerner, B.S. Introduction to Modern Traffic Flow Theory and Control; Springer: Berlin/Heidelberg, Germany, 2009. [Google Scholar] [CrossRef]

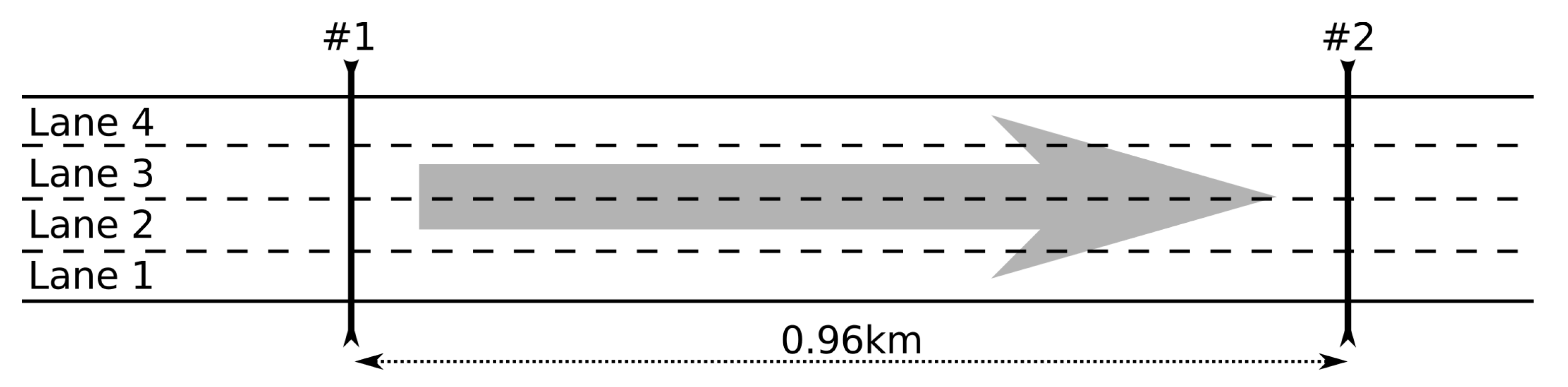

**Figure 2.**Traffic detectors $\#1$ and $\#2$ chosen in the segment of the I-580 freeway in California, USA. Data from detector $\#1$ were used as a left boundary condition for modeling, and data from the downstream detector $\#2$ were used for the verification of modeling results.

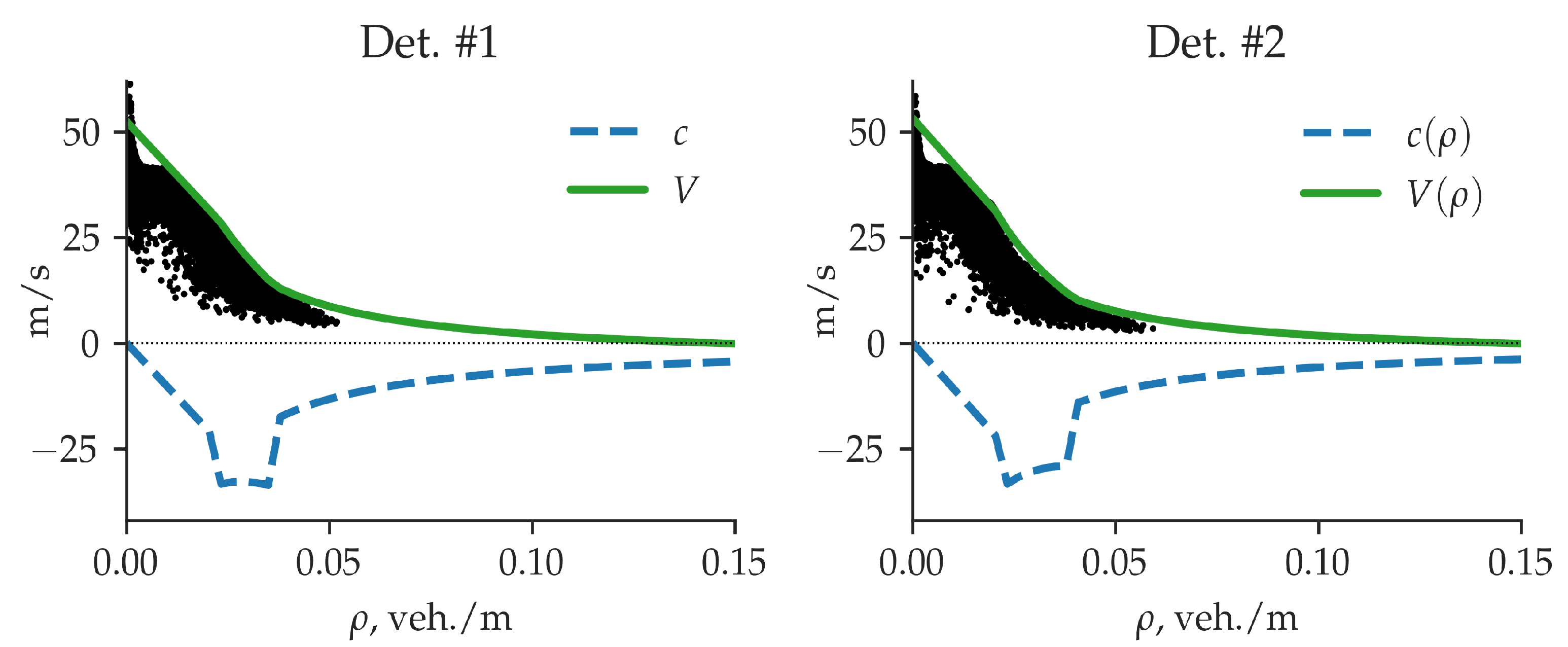

**Figure 3.**Equilibrium speed $V\left(\rho \right)$ (solid green line) and relative velocity of the congestion propagation $c\left(\rho \right)=\rho \frac{\partial V\left(\rho \right)}{\partial \rho}$ (dashed blue line) as the functions of density for the first lane of I-580 together with the historic data for the one-year period. Left: detector $\#1$, right: detector $\#2$.

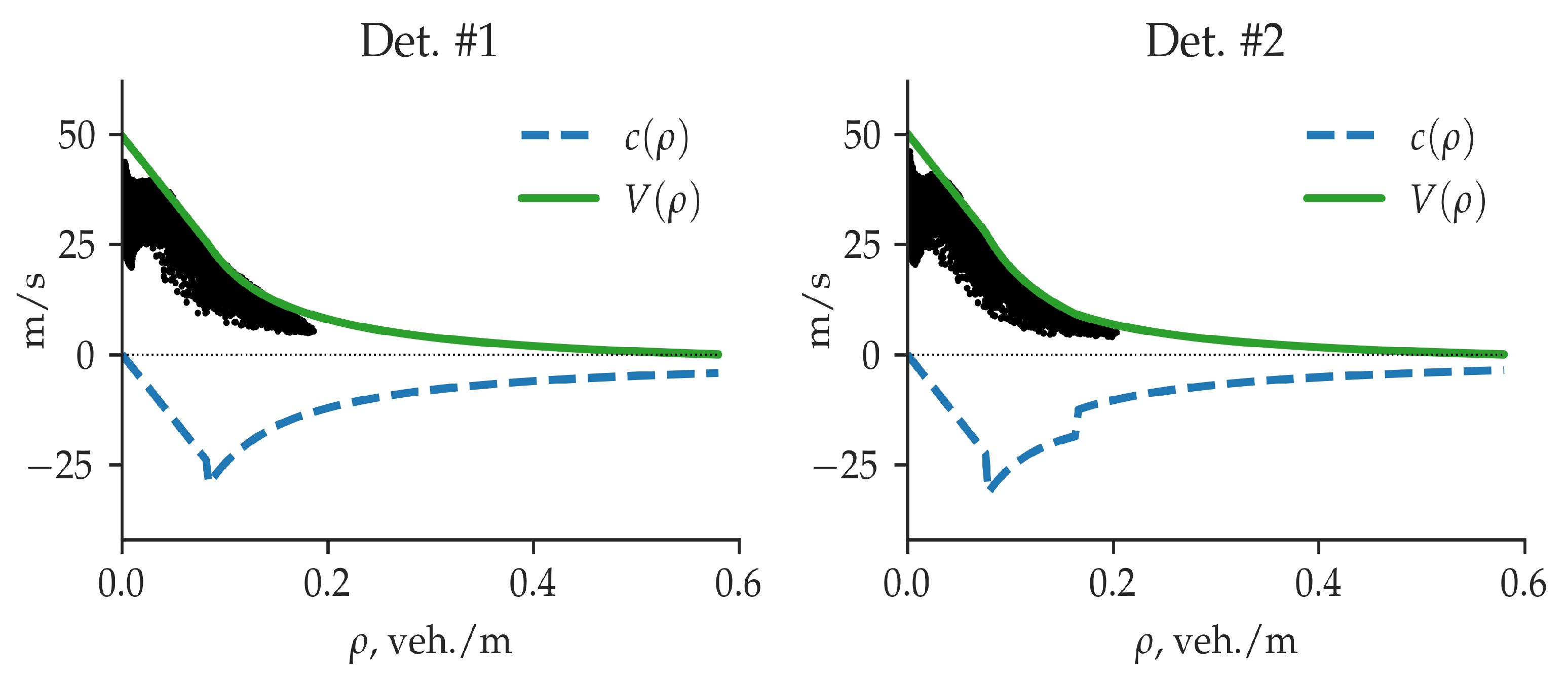

**Figure 4.**Equilibrium speed $V\left(\rho \right)$ (solid green line) and relative velocity of the congestion propagation $c\left(\rho \right)=\rho \frac{\partial V\left(\rho \right)}{\partial \rho}$ (dashed blue line) as functions of density aggregated over four lanes of I-580, together with the historic data for the one-year period. Left: detector $\#1$, right: detector $\#2$.

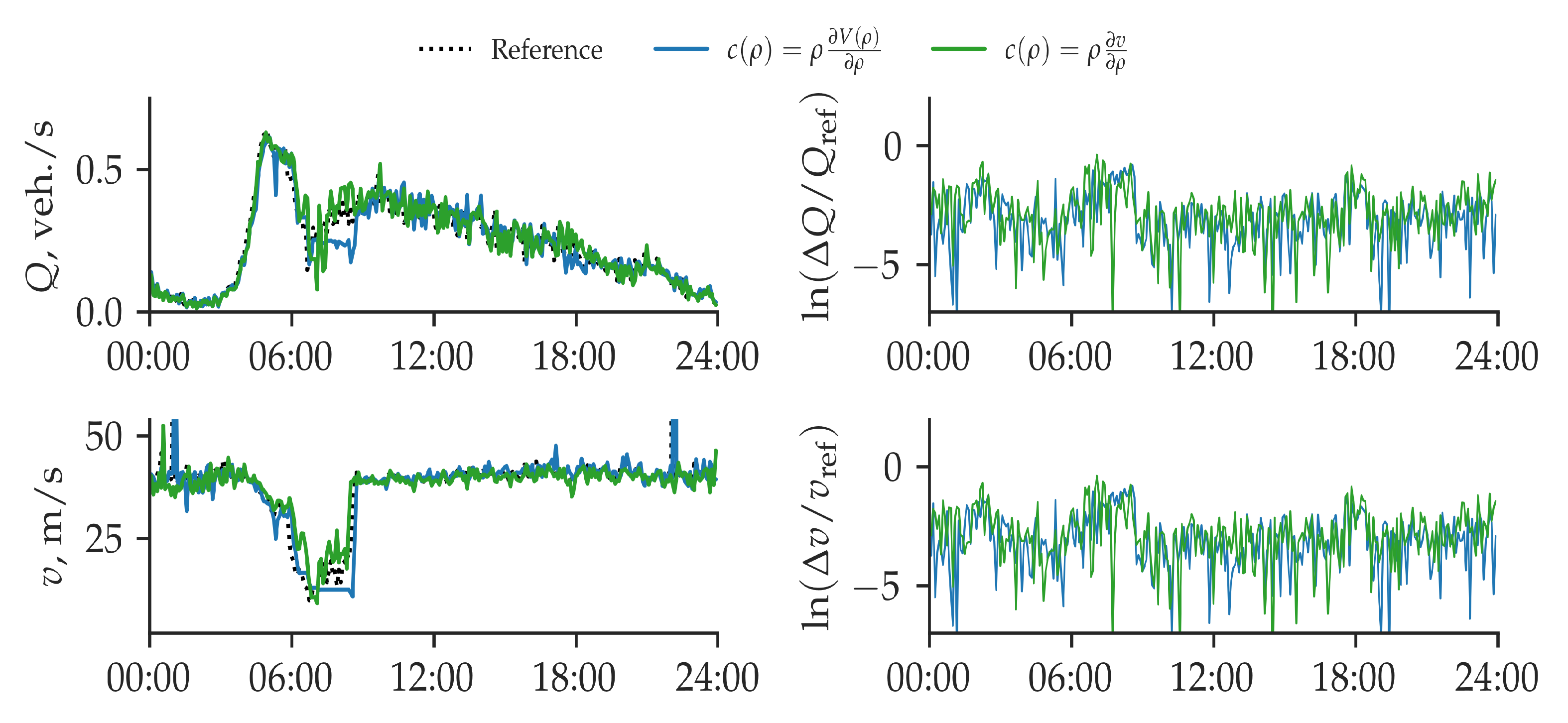

**Figure 5.**The comparison of calculated flows (top) and velocities (bottom) from the first lane of I-580 and observed values from detector $\#2$ (dashed grey lines). On the right, flow (top) and velocity (bottom) relative errors in logarithmic scale. The simulation results obtained with a different expression for the relative velocity of the congestion propagation, $c\left(\rho \right)$, are shown in different colors: green, model (with $c\left(\rho \right)=\rho \frac{\partial v\left(\rho \right)}{\partial \rho}$ from (29); blue, the same model (15) with $c\left(\rho \right)=\rho \frac{\partial V\left(\rho \right)}{\partial \rho}$ as an empirical function of density.

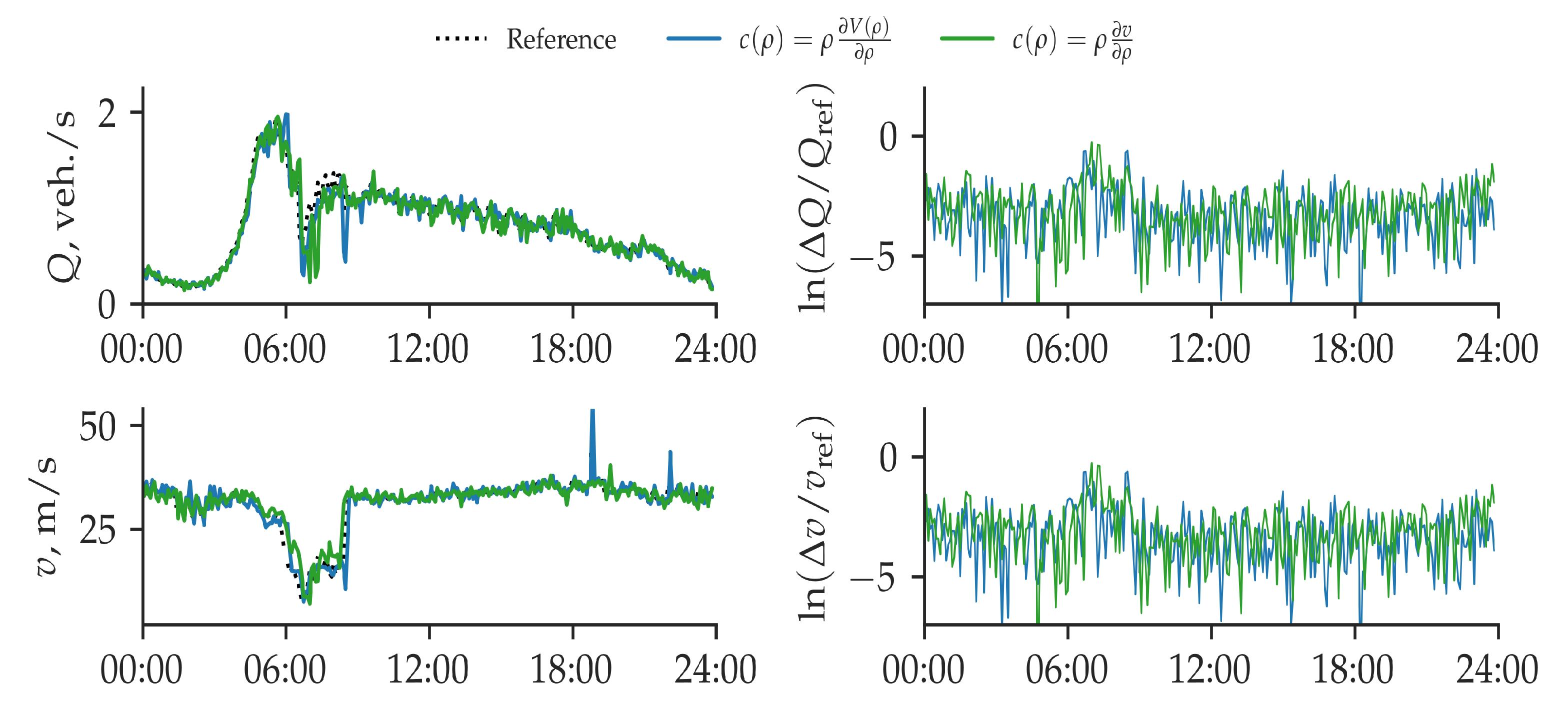

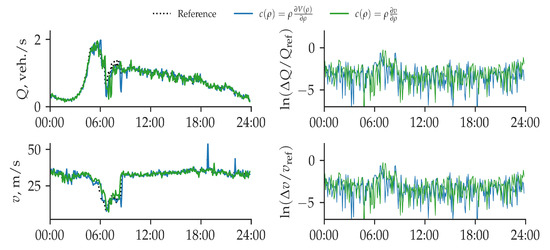

**Figure 6.**The comparison of calculated flows (top) and velocities (bottom) aggregated over four lanes of I-580 and observed values from detector $\#2$ (dashed grey lines). On the right, flow (top) and velocity (bottom) relative errors in logarithmic scale. The simulation results obtained with a different expression for the relative velocity of the congestion propagation, $c\left(\rho \right)$, are shown in different colors: green, model (with $c\left(\rho \right)=\rho \frac{\partial v\left(\rho \right)}{\partial \rho}$ from (29); blue, the same model (15) with $c\left(\rho \right)=\rho \frac{\partial V\left(\rho \right)}{\partial \rho}$ as an empirical function of density.
