1. Introduction
Over the last few decades, the topic of improving heat transfer in industrial applications has been of great relevance. The majority of applications use pure fluids, such as water, oil, and ethylene, as cooling liquids. However, these fluids have low heat transfer rates. To improve heat transfer rates, nanometer-sized particles are scattered into the base fluid to improve its thermal performance and rate of heat transfer [
1]. Choi and Eastman were the first to refer to this combination as nanofluid [
2]. The addition of nanoparticles into the base fluid significantly improves the heat transfer and thermal conductivity of these fluids. Since this research, nanofluids have been extensively employed in heating and cooling systems, nuclear applications, power generation, medicine, electronics, automobiles, and other applications [
3,
4,
5,
6]. Consequently, numerous numerical and experimental studies have been performed to investigate the nanofluids’ properties and behaviors in various aspects [
7,
8,
9,
10,
11,
12,
13]. Sajjadi et al. [
14] scrutinized the MHD natural convection flow of a nanofluid in a 3-D cavity where the sinusoidal temperature is distributed on a side wall. They concluded that the augmentation of the volumetric fraction of nanoparticles accelerates the rate of heat transfer. Afterwards, Atashafrooz et al. [
15] studied the entropy generation due to an inclined step using two types of nanofluids. According to the predictions, they found that the Al
2O
3/water nanofluid is better suited for the hydrothermal system’s ideal design.
The boundary layer flow originated from a stretching sheet is of great significance as a result of its critical role in industry and engineering. Crane [
16] was the pioneer in investigating the 2D boundary layer flow brought on by a stretching sheet. Furthermore, Gupta and Gupta [
17] extended earlier research by considering the case of stretching surfaces under the effect of suction or blowing. Since then, several authors have been working to solve the boundary layer flow issue with respect to a stretching surface by considering various nanofluids under varied physical conditions, such as Sharma et al. [
18], Zokri et al. [
19], Kho et al. [
20], Daniel et al. [
21], Ahmed et al. [
22], Kho et al. [
23], and Ibrahim and Negera [
24]. Numerical solutions of MHD Maxwell nanofluid flow induced by stretching surface was scrutinized by Prasannakumara [
25]. He reported that the surface drag force is enhanced by increasing the volume fraction. Hazarika et al. [
26] used a numerical method to resolve the stretching sheet problem for three different types of nanoparticles, including Ferrous Ferric Oxide
, Silver
and Copper
. They claimed that
-water nanofluid always overshoots the velocity, followed by
and
-water nanofluid, although the temperature profiles exhibit the opposite behaviours.
Furthermore, the horizontal and vertical positions of the flat plate have been utilized in numerous research studies. The inclined flat plate, on the other hand, has received less attention. Thus, it is beneficial to examine the fluid flow induced by an inclined flat plate at diverse angles as are used in many engineering processes. In addition, Gupta et al. [
27] examined the radiation and chemical reactions on the laminar magnetohydrodynamics (MHD) stagnation point flow, including heat transfer in a non-Newtonian nanofluid caused by an inclined stretching surface. Usman et al. [
28] investigated the combination effects of thermal and velocity slips on Casson nanofluid flow past a permeable inclined stretching cylinder. They discovered that the thermophoresis and Brownian motion impacts play a prominent role in the concentration and thermal boundary layers. Moreover, the unsteady MHD flow using Eyring-Powell nanofluid due to an inclined permeable stretching surface was numerically examined by Kumar and Srinivas [
29]. They considered the influences of Joule heating and thermal radiation. Afterwards, a numerical computation of MHD hybrid nanofluid flow driven by an inclined sheet was scrutinized by Soomro et al. [
30] who found that Al
2O
3-
/water hybrid nanofluid increased the heat transfer rate in contrast to the basic
/water nanofluid.
Many scholars have recently become interested in problems with unsteady boundary layers because of their significant role in a variety of engineering issues. Start-up processes, for instance, denote the motions at rest in transit between one steady flow and another, as well as periodic working fluid motion [
31]. Because of the extra time-based factors that impeded the separation of boundary layer and fluid motion pattern, unsteady boundary layer flow activity seems to behave differently than a steady flow [
32,
33]. The unsteady mixed convection flow, as well as heat transfer caused by a stretching vertical sheet, were examined by Ishak et al. [
34]. Moreover, Ishak et al. [
35] then looked at how MHD affected the unsteady flow, as well as heat transfer past a stretching surface, and deduced that the rate of heat transfer rises with a rise of the unsteadiness parameter. In contrast, an increment in the magnetic parameter results in a decrease in the heat transfer rate. Daniel et al. [
36] performed an investigation on the unsteady MHD natural convection flow problem with respect to a viscous nanofluid due to a permeable shrinking surface which took into account the influences of chemical reaction, electric field, thermal radiation, and viscous dissipation. Dzulkifli et al. [
37] also looked at the effect of slip on the unsteady stagnation-point flow and heat transfer caused by a porous exponentially shrinking/stretching surface. They claimed that there are dual solutions and noted that discovering the dual solutions in the case of suction is much simpler than in the case of injection. In addition, Waini et al. [
1] examined the 2D unsteady heat transfer and hybrid nanofluid flow numerically concerning a shrinking/stretching surface. Dual solutions were found for a given range of the unsteadiness parameter. Thereafter, Waini et al. [
38] employed a hybrid
-
/water nanofluid produced by a permeable rigid sheet to conduct a temporal stability analysis of an unsteady stagnation point flow. A numerical analysis of the unsteady hybrid nanofluid flow brought on by a permeable stretching/shrinking cylinder was also carried out by Zainal et al. [
39]. They stated that including the unsteadiness parameter significantly aided in the heat transfer deterioration.
Given the vital uses in industry and engineering--for instance, paper manufacture, polymer and foodstuff processing, wire thinning, crystal growth, and so on--the thin film flow has recently been a demanding research issue. A thin layer of liquid flows past a solid surface because of an external force acting on it, such as gravity, shear stress, or other factors known as film flow. For example, Wang [
40] was the first to investigate the thin film flow problem due to an unsteady stretching surface. Later, Andersson et al. [
41] improved the previous work by considering the analysis of heat transfer. In addition, Khan et al. [
42] provided an analytical solution to the heat transfer problem and the second-grade fluid’s thin film flow across a stretched surface in a porous medium. The effect of film thickness was explored, and it was discovered that, when film thickness decreases, the skin friction coefficient increases. In addition, Naganthran [
43] reported the impacts of injection and thermocapillarity on the Carreau thin film flow, including heat transfer in relation to an unsteady stretching surface. It has been demonstrated that increasing the injection intensity and unsteadiness parameter reduces the film thickness, resulting in a rise in the convective heat transfer rate and skin friction coefficient. Afterwards, Naganthran [
44] performed an investigation on the flow of the Carreau thin hybrid nanofluid film caused by an accelerating surface together with the melting heat transfer influence. They concluded that melting heat transfer slows the pace of heat transfer rate while having no effect on the liquid film thickness. Moreover, Ali et al. [
45] utilized Al
2O
3 nanofluid past a stretching sheet with convective boundary conditions in examining the unsteady thin film flow dynamic and heat transfer.
A fair amount of substantial analysis on the thin film flow due to a stretching sheet has been carried out by researchers. However, the thin film flow on an inclined stretching plate is rarely examined, motivating the current research to investigate the thin film flow on an inclined stretching surface. Under the multi-shape nanoparticles’ effect, the primary goal of this research is to investigate the unsteady thin film flow as well as heat transfer with respect to the inclined stretching sheet in Al2O3/water nanofluid. Moreover, the convective boundary conditions and buoyancy force effects have also been considered. By employing the similarity transformation, the provided system is transformed to a system of ordinary differential equations (ODEs) which are later numerically solved using the boundary value problem solver (bvp4c) available in Matlab software. This research has investigated the impacts of the distinct factors with regard to the temperature fields as well as the velocity fields. In addition, the acquired numerical findings and the published results available in the literature have been compared for the purpose of validation. The above literature review reveals that no studies of this kind have been performed by any other researchers.
2. Mathematical Formulation
Consider a thin film flow and heat transfer in a nanofluid across an unsteady stretching sheet. Here, the matching physical model is portrayed in

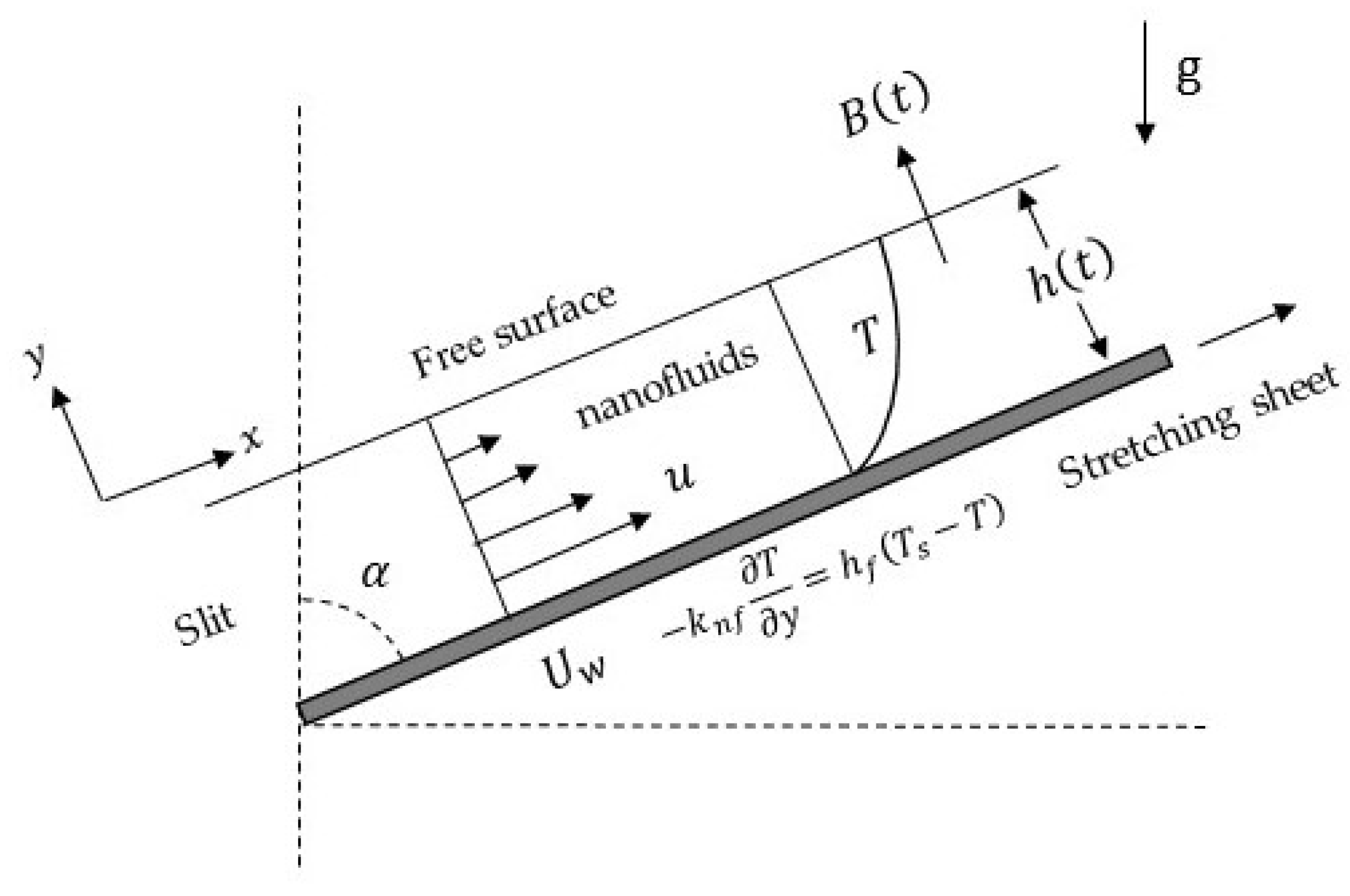

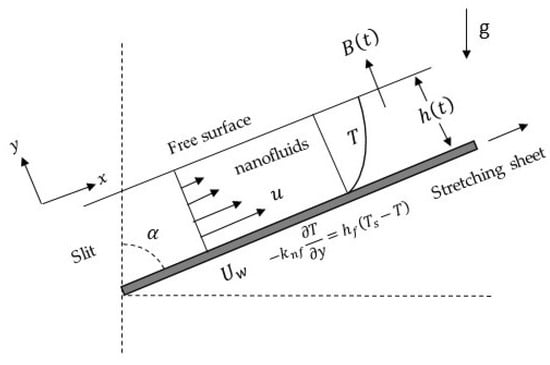

Figure 1, with the
-axis parallel to the plate and the
-axis perpendicular to it. Also, the current study examines the effects of four different nanoparticle shapes, including the platelet, cylinder, brick, and sphere-shaped nanoparticles. It is assumed that the base fluid and the multi-shape nanoparticles are in thermal equilibrium. Further,
represents the stretching surface velocity in the
direction, where
is time and
are dimensional constants. The uniform magnetic field is assumed as
and the temperature distribution at the wall is represented by
, where
and
are ambient temperature and constant reference temperature, see Ref. [
45].
From all of the considerations above and using the nanofluid model introduced by Tiwari and Das [
46], the boundary layer governing equations for the present problem are given by [
45,
47].
subject to the boundary conditions [
45].
Here, the nanofluid velocity components along
and
directions are represented by
and
, respectively. Moreover,
is the fluid temperature,
is the gravitational acceleration,
is the inclination angle,
is the thickness of the film,
represent the velocity slip factor with constant
and
denotes the convective heat transfer with
being constant. Furthermore,
,
,
,
,
and
denote the density, dynamic viscosity, electrical conductivity, diffusivity, thermal expansion coefficient, thermal conductivity, and the heat capacity of the nanofluid, respectively, which are defined as the following [
45,
48]:
where
is the volume fraction of the nanoparticle, and the viscosity enhancement heat capacitance coefficients are symbolized by
and
. Meanwhile, the base fluid, nanofluid and nanoparticles are signified as the subscripts
,
and
, respectively, while
implies the shape factor. Furthermore, it is important to note that the convective heat transfer property of nanofluids depends on the thermophysical characteristics of the suspended particles and the base fluid; the flow structure and pattern; the dimensions and shape of nanoparticles; and the volumetric fraction of nanoparticles. The thermophysical properties, shape factor of various geometry in this study, and coefficients of viscosity for Al
2O
3 nanoparticles along with water are presented in
Table 1 and
Table 2 [
49,
50,
51].
Next, the following similarity transformations are employed [
45]:
where
indicates the stream function which is defined as
, and
,
denotes the kinematic viscosity and
is the dimensionless film thickness, expressed as
which will eventually result in
implying that in the similarity variables (6) in Equations (1)–(4), Equation (1) is identically fulfilled while the remaining equations become
with the transformed boundary conditions:
Here,
is the magnetic parameter,
is the unsteadiness parameter,
is the Prandtl number,
is the slip parameter,
is the Biot number, and
is the buoyancy or mixed convection parameter, which are defined as
where
and
represent, respectively, the Grashof number and the local Reynold number [
52]. Notice that
and
respectively refer to the assisting and opposing flows. Further,
and
are constants and are given by
The skin friction coefficient and the Nusselt number are the physical quantities of interest which can be respectively expressed as
where
By using (5) and inserting (15) into (14), the following relations are obtained:
4. Findings and Discussion
The boundary value problem solver (bvp4c) in Matlab software was applied in solving the mathematical model given in Equations (9)–(11) numerically for the chosen values of the inclination angle parameter
magnetic parameter
, slip parameter
, mixed convection parameter
, and Biot number
. It is essential to note that the range with respect to multi-shape nanoparticles in a thin film past a stretching surface of
/water nanofluid affects both temperature profiles and velocity. The parameters’ impact is depicted in tables and graphs. A comparative study of the results obtained by Abel et al. [
54] and Ali et al. [
45] are given in
Table 3. The outcome shows a favorable agreement and ensures that the bvp4c scheme is highly accurate and effective. Moreover, the skin friction coefficient
for multi-shape nanoparticles is depicted in
Table 4. The table demonstrates that, as the mixed convection parameter
and slip parameter
increase, the skin friction
decreases. However, when the volume fraction parameter
and magnetic parameter
increase, the skin friction
increases. In addition, the heat transfer rate
is determined and presented in
Table 5. Furthermore, it may also be noted that
rises with the rising values of the inclination angle, Biot number, and mixed convection parameters. Meanwhile, the rising values of the slip and magnetic parameters tend to reduce the values of Nusselt number
.

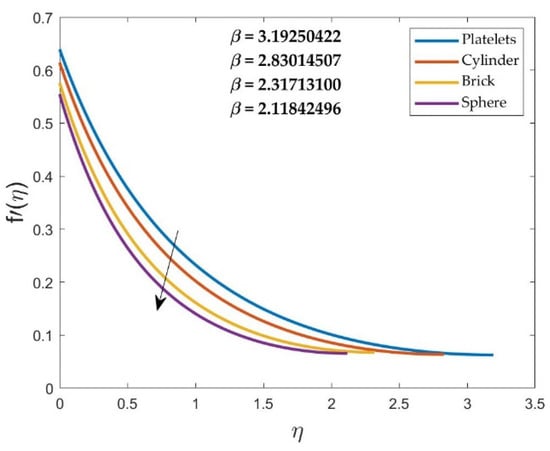

Figure 2 illustrates the effect of multi-shape nanoparticles with respect to the film thickness
of
nanofluids. In this case, the remaining physical parameters remain constant. Provided that the nanoparticles’ shape changes, the film thickness also drastically changes. Furthermore, the velocity profile
and film thickness
accelerate for the platelet-shaped nanoparticles and decelerate for the brick, cylinder, and sphere-shaped nanoparticles.

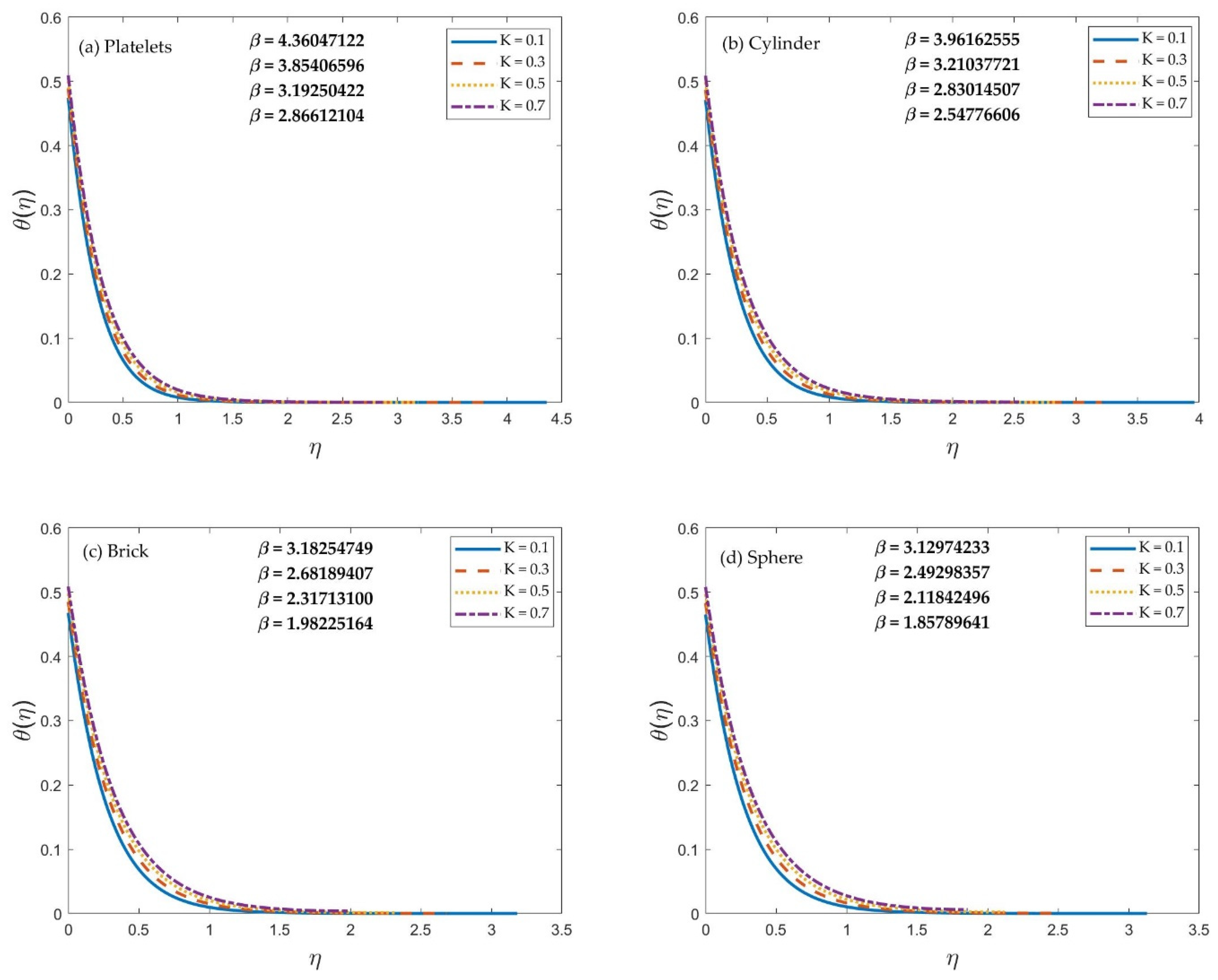

Figure 3 shows the impact of the slip parameter
on the temperature profile
for multi-shape nanoparticles. The temperature profile
for each multi-shape nanoparticle increases as the slip parameter
rises. The enhancement of the slip parameter has resulted in acceleration of the fluid within the boundary layer. Additionally, the current study’s reflection of the convective heating effect, which controls the temperature of the stretched surface, may have contributed to this phenomenon. In reality, increased convection causes higher surface temperatures, allowing the thermal impact to go deeper into the nanofluid. Next,

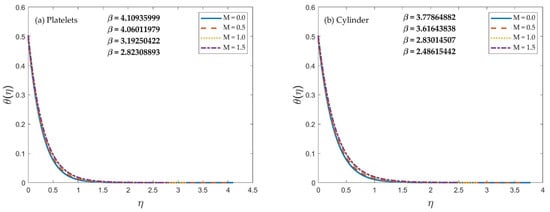

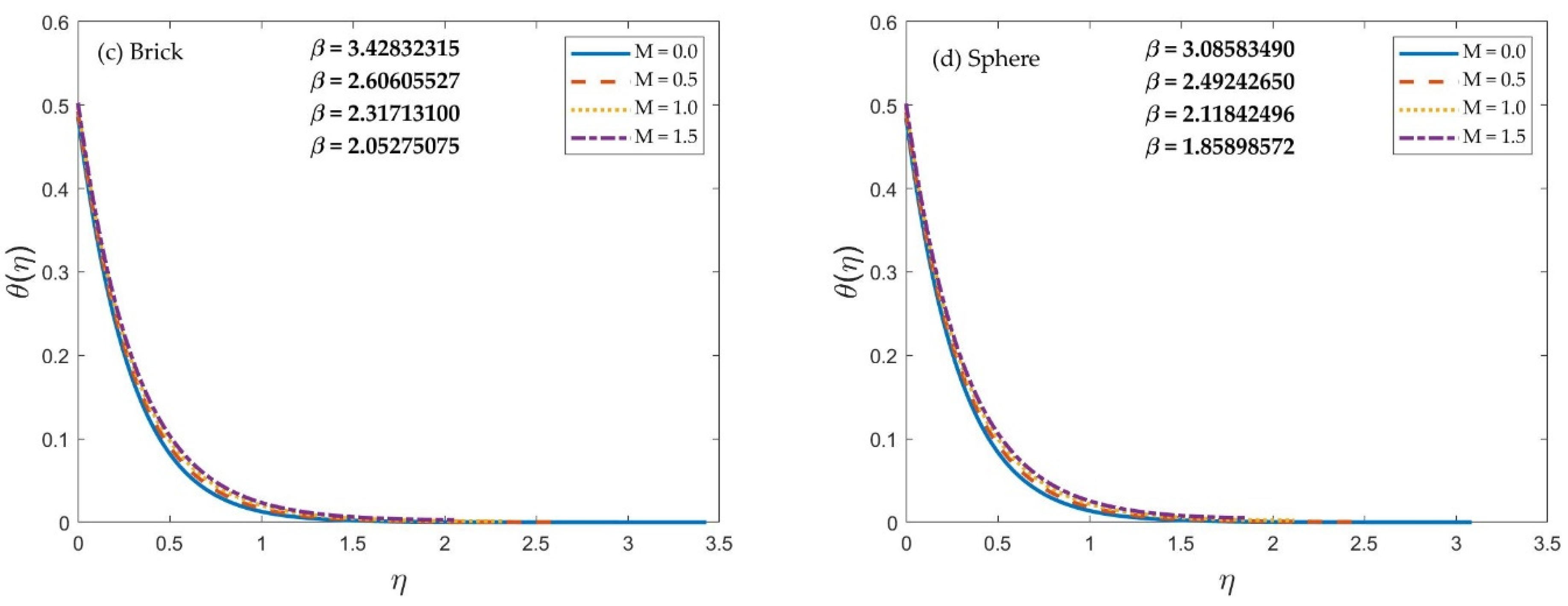

Figure 4 illustrates the magnetic parameter
effect on the temperature profile
. Having higher levels of the magnetic parameter
, the temperature
becomes greater for all types of nanoparticle shapes. The Lorentz force, which acts as a reverse force when magnetic effect is present, causes this. This force increases the fluid’s friction by opposing the fluid’s motion. It is a resistive force; hence, fluid friction causes the temperature to rise.

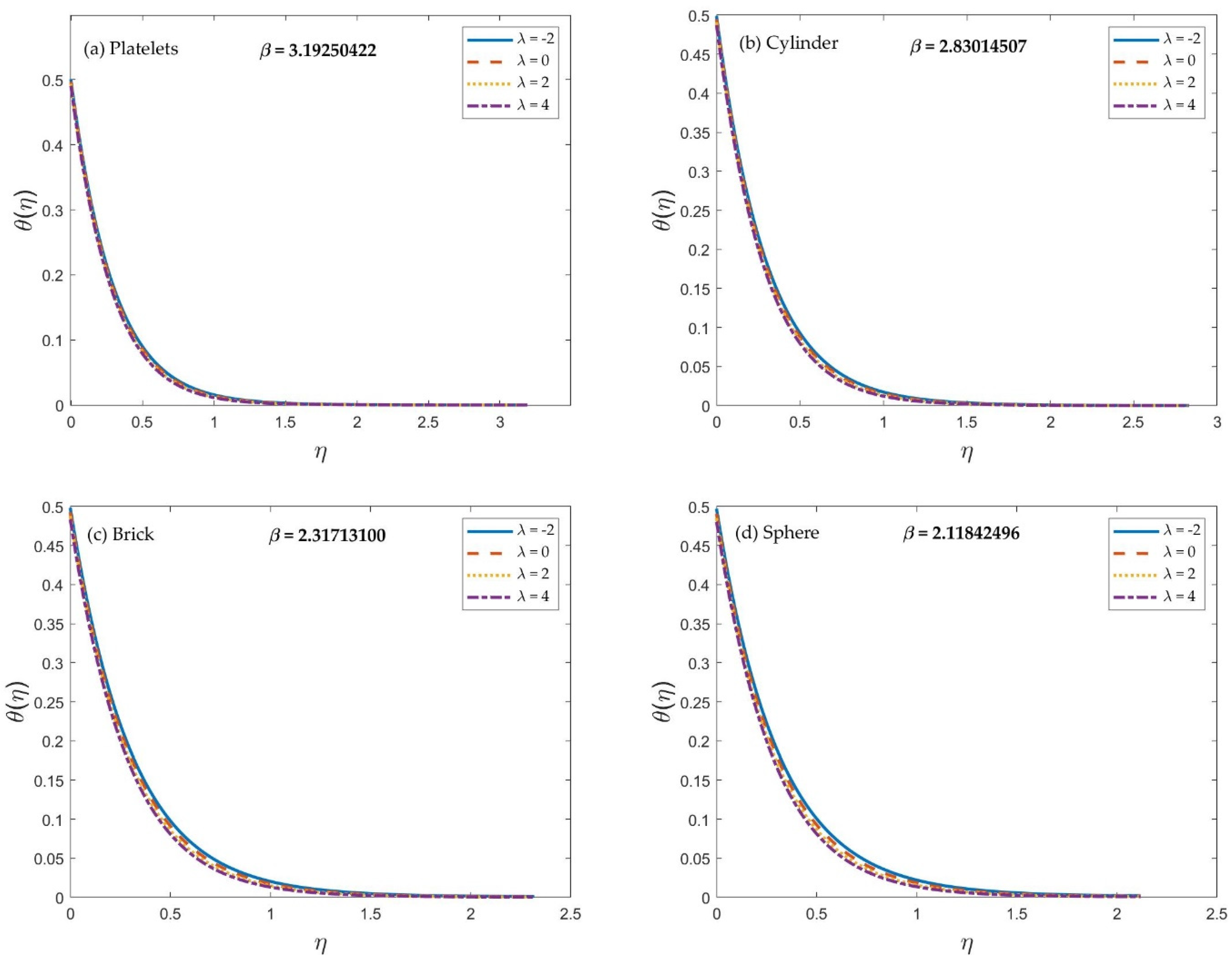

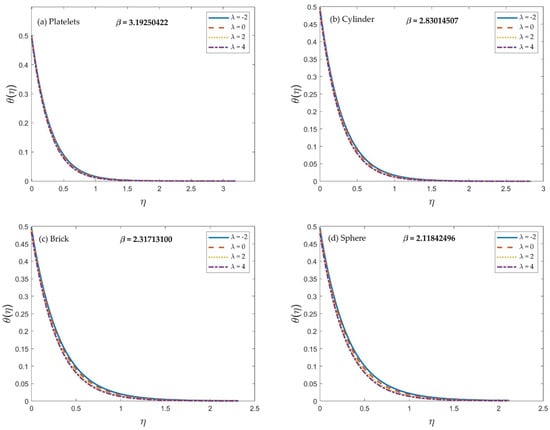

Figure 5 illustrates the effect with respect to the mixed convection parameter
towards the temperature profile
. Furthermore, note that the temperature
reduces provided the buoyancy parameter boosts (from opposing to assisting). However, it is important to point out that, for platelet and cylinder shapes, the temperature receives less impact. Near the wall, the assisting flow has a lower temperature than the opposing flow. The assisting flow, in theory, transfers heat from the hot plate to the cool fluid, eventually bringing the wall temperature down.
The temperature profile
behavior for different inclination angle parameters
values are shown in

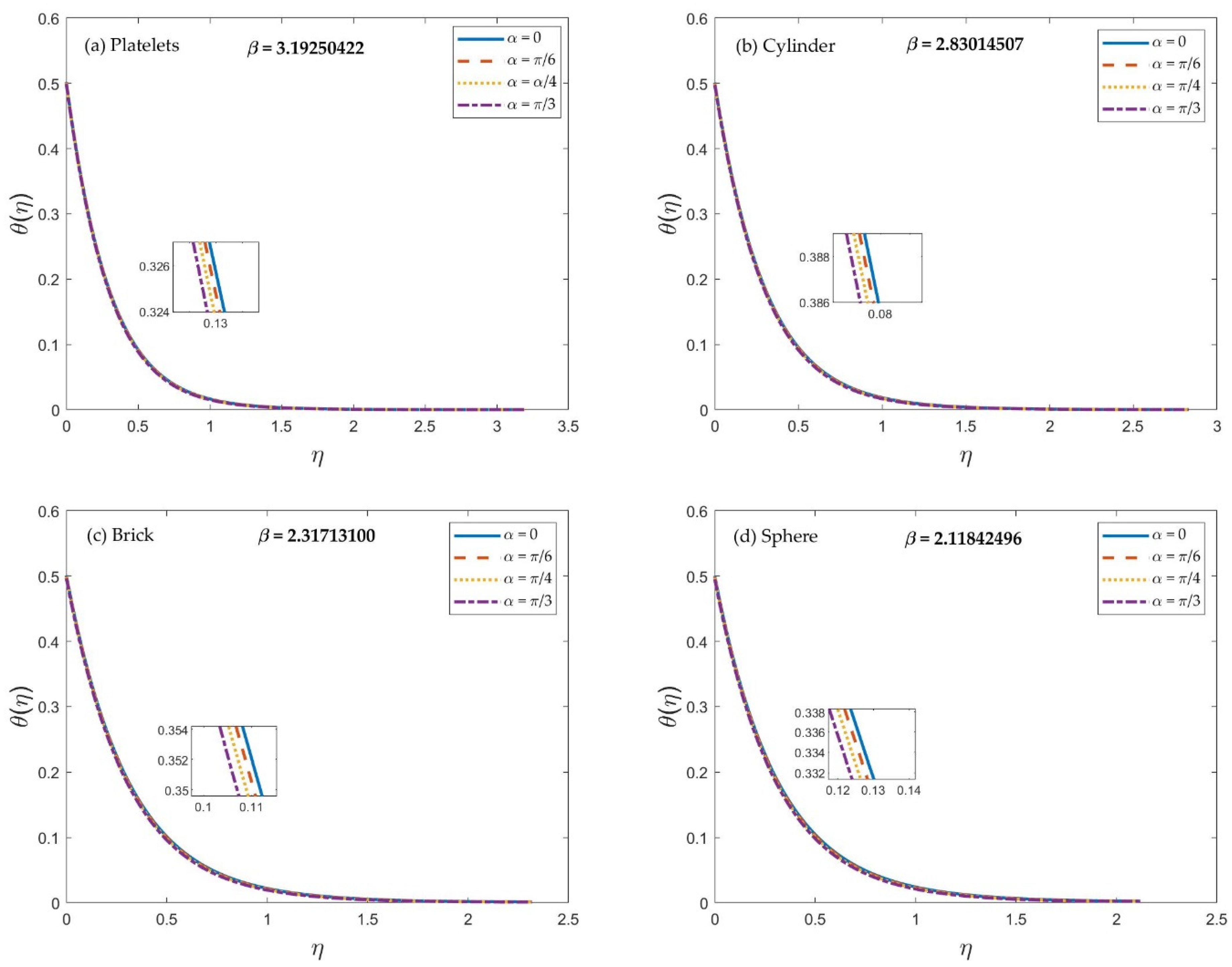

Figure 6. It is discovered that, as the angle of inclination parameter
increases, the temperature
for all multi-shape nanosize particles decreases. The buoyancy force increases when the inclination to the horizontal increases. Physically, when the sheet is oriented vertically, the strongest gravitational forces have an impact on the flow. However, if the plate is turned from vertical to horizontal (and as the value of
increases), the buoyancy force increases. Thus, the thermal boundary layer reduces. It is noticed that the problem is reduced to the vertical plate if
, whereas when
the problem is lowered to the horizontal plate. It is noted that for
, the problem reduces to the inclined plate.

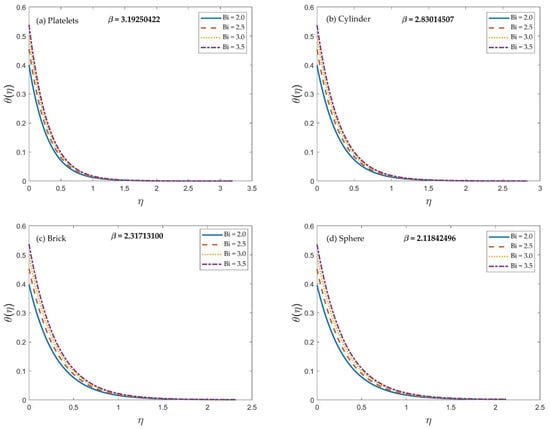

Figure 7 shows the Biot number
effect on the temperature profile
. Moreover, it is discovered that raising
increases the fluid temperature. Additionally,
is calculated by dividing convection at the surface by conduction inside the body surface. Convection will become more potent near the surface as a consequence of the increase in
, leading to an increase in the thickness of the thermal boundary layer. Additionally, as illustrated in

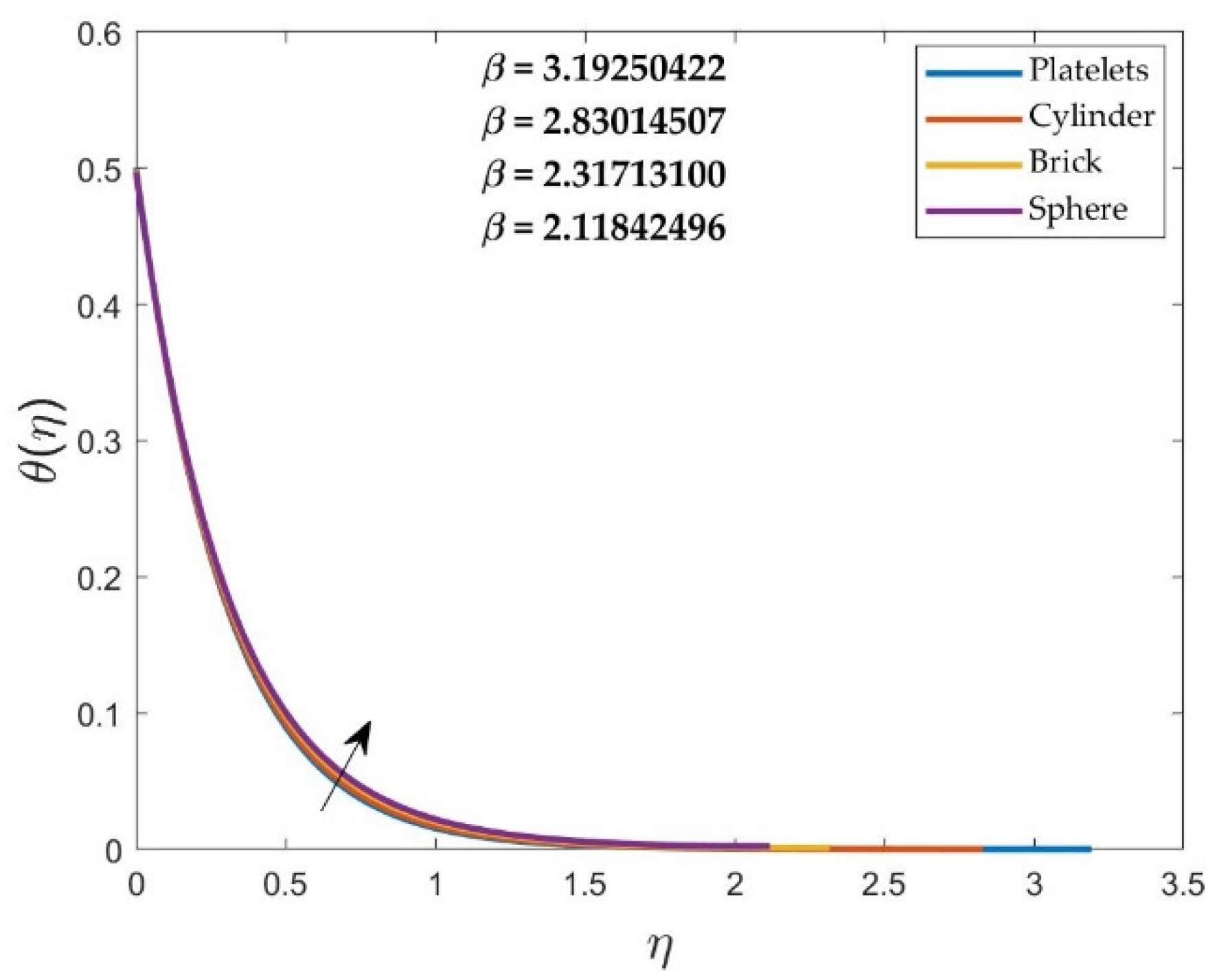

Figure 8, the temperature rises as the film’s thickness reduces as the shape of the nanoparticles shifts from platelet to spherical. It should be noted that the shape factor has a greater impact on platelet shape than other factors. In

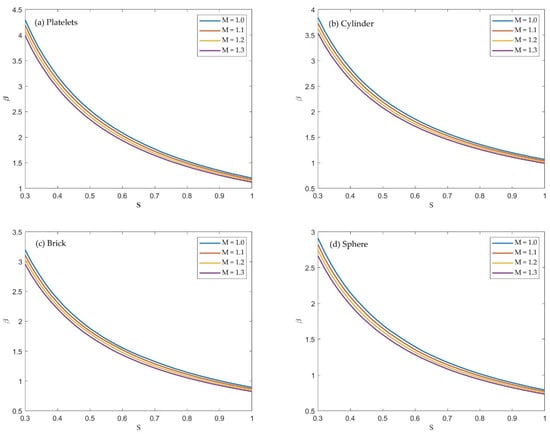

Figure 9, the magnetic parameter
and unsteadiness parameter
impacts on the film thickness
are depicted. The decreasing trends in film thickness
are shown in this figure for every multi-shape nanoparticle when the unsteadiness parameter
increases, coupled with a rise in the magnetic parameter
. Also, when
as shown in
Figure 9, it represents the liquid film thickness of an infinite thickness
. For the particular values
of
, no solutions can be obtained, while
represents the case of an infinitesimal thick fluid layer
.
