Synchronization of Nonlinear Complex Spatiotemporal Networks Based on PIDEs with Multiple Time Delays: A P-sD Method

Abstract

This paper studies the synchronization control of nonlinear multiple time-delayed complex spatiotemporal networks (MTDCSNs) based on partial integro-differential equations. Firstly, dealing with an MTDCSN with time-invariant delays, P-sD control is employed and the synchronization criteria are obtained in terms of LMIs. Secondly, this control method is further used in an MTDCSN with time-varying delays. An example illustrates the effectiveness of the proposed methods.

1. Introduction

As a typical collective behavior in nature, the synchronization of complex networks has attracted a great deal of attention during the last few decades [1,2,3]. It has been widely applied to engineering fields, such as secure communication [4,5], deception attacks [6,7,8], the design of pseudorandom number generators [9], and image encryption [10].

In fact, many phenomena rely not only on time but also on space [11,12,13]. As a result, many researchers have studied complex spatiotemporal networks (CSNs), owing to many phenomena relating not only to time but also to space. Kanakov et al. studied the cluster synchronization of the CSNs of oscillatory and excitable Luo–Rudy cells [14]. Kakmeni and Baptista proposed synchronization and information transmission in CSNs under a substrate Remoissenet–Peyrard potential [15]. Rybalova et al. investigated complete synchronization under the condition of spatio-temporal chaos with the Henon map and Lozi map [16]. Yang et al. studied the guaranteed cost boundary control of nonlinear CSNs with a community structure [17] and the boundary control of CSNs modeled by partial differential equations–ordinary differential Equations (PDE-ODEs) [18].

Owing to the extensive existence of time delays, it is important to research time-delayed networks [19,20,21,22]. Yao et al. studied the passive stability and synchronization of switching CSNs with time delays in terms of appropriate algebraic inequalities [23,24]. Zhou et al. proposed two methods—matrix invertibility and an adaptive law—for the topology identification and finite-time topology identification of time-delayed complex spatiotemporal networks (TDCSNs) [25,26]. Sheng et al. studied the exponential synchronization of TDCSNs with Dirichlet boundary conditions and hybrid time delays via impulsive control [27]. Lu et al. studied generalized sampled-data intermittent control for the exponential synchronization of TDCSNs [28]. Yang et al. proposed the synchronization of nonlinear complex spatio-temporal networks with multiple time-invariant delays and multiple time-varying delays [29]. Zhang et al. proposed fuzzy time sampled-data control and fuzzy time–space sampled-data control for the synchronization of T–S fuzzy TDCSNs with additive time-varying delays [30].

On the whole, most of the mentioned literature assumes that nodes are modeled by partial differential equations, PDEs, or PDE-ODEs. Few studies consider models based on partial integro-differential Equations (PIDEs). PIDEs have been applied to spread and traveling waves [31], pricing models [32], biology [33], pattern formation [34], secure communication [5], and medical science [35]. Many dynamical behaviors of PIDEs have been studied [36,37,38]. However, there are still some technical difficulties in the synchronization of multiple time-delayed TDCSNs based on PIDEs, such as communication among nodes and controller design, which is the motivation for this paper.

Notations: I means an identity matrix with proper order; $P<0$ is a negative definite matrix, while $P>0$ is positive definite; `*’ is an ellipsis of transpose blocks in symmetric matrices.

2. Problem Formulation

This paper studies a class of nonlinear MTDCSNs based on PIDEs:

$$\begin{array}{ccc}\hfill \frac{\partial y_i(\zeta ,t)}{\partial t}& =& {\Theta }_1\frac{{\partial }^2{y}_i(\zeta ,t)}{\partial {\zeta }^2}+{\Theta }_2\frac{\partial y_i(\zeta ,t)}{\partial \zeta }+A{y}_i(\zeta ,t-{\tau }_1\left(t\right))+f\left(y_i(\zeta ,t-{\tau }_2\left(t\right))\right)\hfill \\ \hfill & & +B{\int }_0^{\zeta }{y}_i(z,t-{\tau }_3\left(t\right))dz+c\sum _{j=1}^N{h}_{ij}\Gamma y_j(\zeta ,t-{\tau }_4\left(t\right))+u_i(\zeta ,t),\hfill \\ \hfill \frac{\partial y_i(0,t)}{\partial \zeta }& =& 0,\frac{\partial y_i(L,t)}{\partial \zeta }=0,\hfill \\ \hfill y_i(\zeta ,t)& =& y_i^0(\zeta ,t),(\zeta ,t)\in [0,L]\times [-\tau ,0],\hfill \end{array}$$

(1)

where $(\zeta ,t)\in [0,L]\times [0,\infty )$. Here, $y_i(\zeta ,t),u_i(\zeta ,t)\in {\mathbb{R}}^n$ are the respective state and control inputs, $i\in \{1,2,\cdots ,N\}$. ${\Theta }_1\in {\mathbb{R}}^{n\times n}$ is the diffusion coefficient matrix. ${\Theta }_2\in {\mathbb{R}}^{n\times n}$ is the convection coefficient matrix. $A\in {\mathbb{R}}^{n\times n}$ and $B\in {\mathbb{R}}^{n\times n}$ are the connection matrices. $0<\Gamma \in {\mathbb{R}}^{n\times n}$ is the inner coupling matrix. The coupling strength c is a positive real number. The coupling connection $H={\left(h_{ij}\right)}_{N\times N}$ is defined as $h_{ij}>0(i\ne j)$ if the agent j connects to i and $h_{ii}=-{\displaystyle \sum _{j\ne i}}{h}_{ij}$. $f(·)$ is a nonlinear function that varies over time and space. $0<{\tau }_1\left(t\right),{\tau }_2\left(t\right),{\tau }_3\left(t\right),{\tau }_4\left(t\right)\le \tau$, ${\dot{\tau }}_1\left(t\right)⩽{\mu }_1$, ${\dot{\tau }}_2\left(t\right)⩽{\mu }_2$, ${\dot{\tau }}_3\left(t\right)⩽{\mu }_3$, and ${\dot{\tau }}_4\left(t\right)⩽{\mu }_4$.

The isolated node is supposed to be:

$$\begin{array}{ccc}\hfill \frac{\partial s(\zeta ,t)}{\partial t}& =& {\Theta }_1\frac{{\partial }^{2}s(\zeta ,t)}{\partial {\zeta }^2}+{\Theta }_2\frac{\partial s(\zeta ,t)}{\partial \zeta }+As(\zeta ,t-{\tau }_1\left(t\right))+f\left(s(\zeta ,t-{\tau }_2\left(t\right))\right)\hfill \\ \hfill & & +B{\int }_0^{\zeta }s(z,t-{\tau }_3\left(t\right))dz,\hfill \\ \hfill \frac{\partial s(0,t)}{\partial \zeta }& =& 0,\frac{\partial s(L,t)}{\partial \zeta }=0,\hfill \\ \hfill s(\zeta ,t)& =& s^0(\zeta ,t),(\zeta ,t)\in [0,L]\times [-\tau ,0].\hfill \end{array}$$

(2)

We denote the synchronization error as ${ϵ}_i(\zeta ,t)\stackrel{\Delta }{=}{y}_i(\zeta ,t)-s(\zeta ,t)$. The P-sD controller is designed as

$$u_i(\zeta ,t)=-K_{Pi}{ϵ}_i(\zeta ,t)-K_{Di}\frac{\partial {ϵ}_i(\zeta ,t)}{\partial \zeta },$$

(3)

where $K_{Pi}$, $K_{Di}\in {\mathbb{R}}^{n\times n}$, $i\in \{1,2,\cdots ,N\}$, need to be determined. The controller structure in this paper is shown in Figure 1, where the notation “$\partial /\partial \zeta$” represents a first-order spatial differentiator. With (3), the error system of the MTDCSN (1) can be obtained as:

$$\begin{array}{ccc}\hfill \frac{\partial {ϵ}_i(\zeta ,t)}{\partial t}& =& {\Theta }_1\frac{{\partial }^2{ϵ}_i(\zeta ,t)}{\partial {\zeta }^2}+{\Theta }_2\frac{\partial {ϵ}_i(\zeta ,t)}{\partial \zeta }-K_{Di}\frac{\partial {ϵ}_i(\zeta ,t)}{\partial \zeta }-K_{Pi}{ϵ}_i(\zeta ,t)\hfill \\ \hfill & & +A{ϵ}_i(\zeta ,t-{\tau }_1\left(t\right))+F\left({ϵ}_i(\zeta ,t-{\tau }_2\left(t\right))\right)\hfill \\ & & +B{\int }_0^{\zeta }{ϵ}_i(s,t-{\tau }_3\left(t\right))ds+c\sum _{j=1}^N{h}_{ij}\Gamma {ϵ}_j(\zeta ,t-{\tau }_4\left(t\right)),\hfill \\ \hfill \frac{\partial {ϵ}_i(0,t)}{\partial \zeta }& =& 0,\frac{\partial {ϵ}_i(L,t)}{\partial \zeta }=0,\hfill \\ \hfill {ϵ}_i(\zeta ,t)& =& {ϵ}_i^0(\zeta ,t),(\zeta ,t)\in [0,L]\times [-\tau ,0],\hfill \end{array}$$

(4)

where $F\left({ϵ}_i(\zeta ,t-{\tau }_2\left(t\right))\right)\stackrel{\Delta }{=}f\left(y_i(\zeta ,t-{\tau }_2\left(t\right))\right)-f\left(s(\zeta ,t-{\tau }_2\left(t\right))\right)$, ${ϵ}_i^0\left(\zeta \right)\stackrel{\Delta }{=}{y}_i^0\left(\zeta \right)-s^0\left(\zeta \right)$.

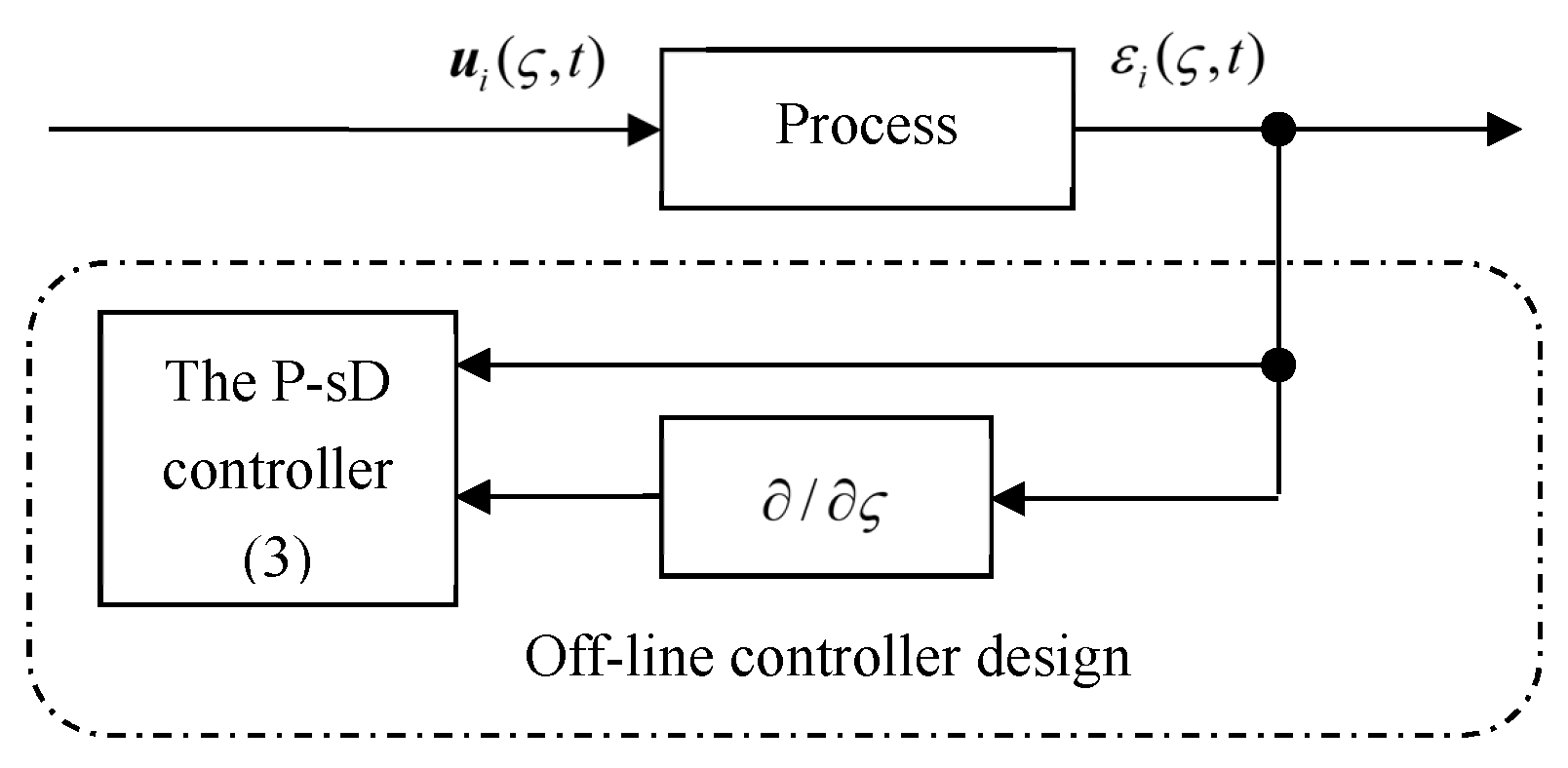

Figure 1. The structure of the P-sD controller (3).

Assumption 1.

For any $a,b$, assume there exists a scalar $\chi >0$ satisfying:

$$\left|f\left(a\right)-f\left(b\right)\right|⩽\chi \left|a-b\right|.$$

(5)

Lemma 1.

([39]) For any square integral vector ϵ with $ϵ\left(0\right)=0$ and $ϵ\left(L\right)=0$,

$${\int }_0^L{ϵ}^T\left(z\right)ϵ\left(z\right)dz\le L^2{\pi }^{-2}{\int }_0^L{\dot{ϵ}}^T\left(z\right)\dot{ϵ}\left(z\right)dz.$$

(6)

This paper aims to use the controller (3) to achieve the synchronization of the MTDCSN (1) with the isolated node (2).

3. Synchronization of the MTDCSN with Time-Invariant Delays

We firstly researched the MTDCSN (1) with time-invariant delays, whose error system yields:

$$\begin{array}{ccc}\hfill \frac{\partial {ϵ}_i(\zeta ,t)}{\partial t}& =& {\Theta }_1\frac{{\partial }^2{ϵ}_i(\zeta ,t)}{\partial {\zeta }^2}+{\Theta }_2\frac{\partial {ϵ}_i(\zeta ,t)}{\partial \zeta }-K_{Di}\frac{\partial {ϵ}_i(\zeta ,t)}{\partial \zeta }-K_{P_i}{ϵ}_i(\zeta ,t)\hfill \\ \hfill & & +A{ϵ}_i(\zeta ,t-{\tau }_1)+F\left({ϵ}_i(\zeta ,t-{\tau }_2)\right)\hfill \\ & & +B{\int }_0^{\zeta }{ϵ}_i(s,t-{\tau }_3)ds+c\sum _{j=1}^N{h}_{ij}\Gamma {ϵ}_j(\zeta ,t-{\tau }_4),\hfill \\ \hfill \frac{\partial {ϵ}_i(0,t)}{\partial \zeta }& =& 0,\frac{\partial {ϵ}_i(L,t)}{\partial \zeta }=0,\hfill \\ \hfill {ϵ}_i(\zeta ,t)& =& {ϵ}_i^0(\zeta ,t),(\zeta ,t)\in [0,L]\times [-\tau ,0].\hfill \end{array}$$

(7)

Theorem 1.

Given the MTDCSN (1) with time-invariant delays, the MTDCSN (1) synchronizes with the isolated node (2) under the control (3) if there are scalars ${\alpha }_i>0$, $M_{Pi}$, $M_{Di}\in {\mathbb{R}}^{n\times n}$ and symmetric positive definite matrices $R_i$, $S_i$$\in {\mathbb{R}}^{n\times n}$ satisfying the following LMIs:

$$\begin{array}{ccc}\hfill & & {\Psi }_1\triangleq \left[\begin{array}{cccc}{\Psi }_{11}& (I_N\otimes {\Theta }_2)\overline{R}-{\overline{M}}_D& (I_N\otimes A)\overline{R}& (cH\otimes \Gamma )\overline{R}\\ *& -[(I_N\otimes {\Theta }_1)\overline{R}+*]& 0& 0\\ *& *& -\overline{S}& 0\\ *& *& *& -\overline{S}\end{array}\right]<0\hfill \end{array}$$

(8)

$$\begin{array}{ccc}\hfill & & {\Psi }_2\triangleq \left[\begin{array}{cc}-\overline{S}& \overline{R}\\ *& -{\chi }^{-2}\overline{\alpha }\otimes I_n\end{array}\right]<0,\hfill \end{array}$$

(9)

$$\begin{array}{ccc}\hfill & & {\Psi }_3\triangleq \left[\begin{array}{cc}-\overline{S}& \overline{R}\\ *& -L^{-2}{\pi }^2\overline{\alpha }\otimes I_n\end{array}\right]<0,\hfill \end{array}$$

(10)

where ${\Psi }_{11}\triangleq -[{\overline{M}}_P+*]+\overline{\alpha }\otimes I_n+\overline{\alpha }\otimes B{B}^T+4\overline{S}$, $\overline{\alpha }=diag\{{\alpha }_1,{\alpha }_2,\cdots ,{\alpha }_N\}$, $\overline{P}=diag\{P_1,P_2,$$\cdots ,P_N\}$, $\overline{Q}\triangleq diag\{Q_1,Q_2,\cdots ,Q_N\}$, ${\overline{M}}_P\triangleq diag\{M_{P1},M_{P2},\cdots ,M_{PN}\}$, and ${\overline{M}}_D\triangleq diag$$\{M_{D1},M_{D2},\cdots ,M_{DN}\}$. In this case, $K_{Pi}=M_{Pi}{R}_i^{-1}$ and $K_{Di}=M_{Di}{R}_i^{-1}$.

Proof.

We choose the Lyapunov functional candidate as:

$$V\left(t\right)=V_1\left(t\right)+V_2\left(t\right),$$

(11)

where:

$$\begin{array}{cc}\hfill V_1\left(t\right)=& {\int }_0^L{ϵ}^T(\zeta ,t)\overline{P}ϵ(\zeta ,t)d\zeta ,\hfill \\ \hfill V_2\left(t\right)=& {\int }_0^L{\int }_{t-{\tau }_1}^t{ϵ}^T(\zeta ,\rho )\overline{Q}ϵ(\zeta ,\rho )d\rho d\zeta \hfill \\ \hfill & +{\int }_0^L{\int }_{t-{\tau }_2}^t{ϵ}^T(\zeta ,\rho )\overline{Q}ϵ(\zeta ,\rho )d\rho d\zeta \hfill \\ \hfill & +{\int }_0^L{\int }_{t-{\tau }_3}^t{ϵ}^T(\zeta ,\rho )\overline{Q}ϵ(\zeta ,\rho )d\rho d\zeta \hfill \\ \hfill & +{\int }_0^L{\int }_{t-{\tau }_4}^t{ϵ}^T(\zeta ,\rho )\overline{Q}ϵ(\zeta ,\rho )d\rho d\zeta ,\hfill \end{array}$$

(12)

in which $ϵ(\zeta ,t)\stackrel{\Delta }{=}$${[{ϵ}_1^T(\zeta ,t),{ϵ}_2^T(\zeta ,t),\cdots ,{ϵ}_N^T(\zeta ,t)]}^T$.

Taking the time derivative of $V_1\left(t\right)$:

$$\begin{array}{cc}\hfill {\dot{V}}_1\left(t\right)=& 2{\int }_0^L{ϵ}^T(\zeta ,t)\frac{\partial ϵ(\zeta ,t)}{\partial t}d\zeta \hfill \\ \hfill =& 2{\int }_0^L{ϵ}^T(\zeta ,t)\overline{P}(I_N\otimes {\Theta }_1)\frac{{\partial }^2ϵ(\zeta ,t)}{\partial {\zeta }^2}d\zeta \hfill \\ \hfill & +2{\int }_0^L{ϵ}^T(\zeta ,t)\overline{P}(I_N\otimes {\Theta }_2)\frac{\partial ϵ(\zeta ,t)}{\partial \zeta }d\zeta \hfill \\ \hfill & -2{\int }_0^L{ϵ}^T(\zeta ,t)\overline{P}{\overline{K}}_D\frac{\partial ϵ(\zeta ,t)}{\partial \zeta }d\zeta \hfill \\ \hfill & -2{\int }_0^L{ϵ}^T(\zeta ,t)\overline{P}{\overline{K}}_Pϵ(\zeta ,t)d\zeta \hfill \\ \hfill & +2{\int }_0^L{ϵ}^T(\zeta ,t)\overline{P}(I_N\otimes A)ϵ(\zeta ,t-{\tau }_1)d\zeta \hfill \\ \hfill & +2{\int }_0^L{ϵ}^T(\zeta ,t)\overline{P}(cH\otimes \Gamma )ϵ(\zeta ,t-{\tau }_4)d\zeta \hfill \\ \hfill & +2{\int }_0^L{ϵ}^T(\zeta ,t)\overline{P}F\left(ϵ(\zeta ,t-{\tau }_2)\right)d\zeta \hfill \\ \hfill & +2{\int }_0^L{ϵ}^T(\zeta ,t)\overline{P}(I_N\otimes B){\int }_0^{\zeta }ϵ(z,t-{\tau }_3)dzd\zeta .\hfill \end{array}$$

(13)

By integrating by parts:

$$\begin{array}{cc}\hfill & 2{\int }_0^L{ϵ}^T(\zeta ,t)\overline{P}(I_N\otimes {\Theta }_1)\frac{{\partial }^2ϵ(\zeta ,t)}{\partial {\zeta }^2}d\zeta \hfill \\ \hfill =& -{\int }_0^L\frac{\partial ϵ(\zeta ,t)}{\partial \zeta }[\overline{P}(I_N\otimes {\Theta }_1)+*]\frac{\partial ϵ(\zeta ,t)}{\partial \zeta }d\zeta .\hfill \end{array}$$

(14)

Using Assumption 1, for any ${\alpha }_i>0$:

$$\begin{array}{cc}\hfill & 2{\int }_0^L{ϵ}^T(\zeta ,t)\overline{P}F\left(ϵ(\zeta ,t-{\tau }_2)\right)d\zeta \hfill \\ \hfill ⩽& \sum _{i=1}^N{\alpha }_i{\int }_0^L{ϵ}_i^T(\zeta ,t)P_i{P}_i{ϵ}_i(\zeta ,t)d\zeta \hfill \\ \hfill & +\sum _{i=1}^N{\alpha }_i^{-1}{\int }_0^L{F}^T({ϵ}_i(\zeta ,t-{\tau }_2)F\left({ϵ}_i(\zeta ,t-{\tau }_2)\right)d\zeta \hfill \\ \hfill ⩽& \sum _{i=1}^N{\alpha }_i{\int }_0^L{ϵ}_i^T(\zeta ,t){\overline{P}}_i{\overline{P}}_i{ϵ}_i(\zeta ,t)d\zeta \hfill \\ \hfill & +\sum _{i=1}^N{\alpha }_i^{-1}{\chi }^2{\int }_0^L{ϵ}_i^T(\zeta ,t-{\tau }_2){ϵ}_i(\zeta ,t-{\tau }_2)d\zeta .\hfill \end{array}$$

(15)

Using Lemma 1, for any ${\alpha }_i>0$:

$$\begin{array}{cc}\hfill & 2{\int }_0^L{ϵ}^T(\zeta ,t)\overline{P}(I_N\otimes B){\int }_0^{\zeta }ϵ(z,t-{\tau }_3)dzd\zeta \hfill \\ \hfill ⩽& \sum _{i=1}^N{\alpha }_i{\int }_0^L{ϵ}_i^T(\zeta ,t){\overline{P}}_{i}B{B}^T{\overline{P}}_i{ϵ}_i(\zeta ,t)d\zeta \hfill \\ \hfill & +\sum _{i=1}^N{\alpha }_i^{-1}{\int }_0^L{\int }_0^{\zeta }{ϵ}_i^T(z,t-{\tau }_3)dz{\int }_0^{\zeta }{ϵ}_i(z,t-{\tau }_3)dzd\zeta \hfill \\ \hfill ⩽& \sum _{i=1}^N{\alpha }_i{\int }_0^L{ϵ}_i^T(\zeta ,t)P_{i}B{B}^T{P}_i{ϵ}_i(\zeta ,t)d\zeta \hfill \\ \hfill & +L^2{\pi }^{-2}\sum _{i=1}^N{\alpha }_i^{-1}{\int }_0^L{ϵ}_i^T(\zeta ,t-{\tau }_3){ϵ}_i(\zeta ,t-{\tau }_3)d\zeta .\hfill \end{array}$$

(16)

Taking the time derivative of $V_2\left(t\right)$:

$$\begin{array}{cc}\hfill {\dot{V}}_2\left(t\right)=& 4{\int }_0^L{ϵ}^T(\zeta ,t)\overline{Q}ϵ(\zeta ,t)d\zeta \hfill \\ \hfill & -{\int }_0^L{ϵ}^T(\zeta ,t-{\tau }_1)\overline{Q}ϵ(\zeta ,t-{\tau }_1)d\zeta \hfill \\ \hfill & -{\int }_0^L{ϵ}^T(\zeta ,t-{\tau }_2)\overline{Q}ϵ(\zeta ,t-{\tau }_2)d\zeta \hfill \\ \hfill & -{\int }_0^L{ϵ}^T(\zeta ,t-{\tau }_3)\overline{Q}ϵ(\zeta ,t-{\tau }_3)d\zeta \hfill \\ \hfill & -{\int }_0^L{ϵ}^T(\zeta ,t-{\tau }_4)\overline{Q}ϵ(\zeta ,t-{\tau }_4)d\zeta .\hfill \end{array}$$

(17)

Substituting (13)–(17) into the time derivative of $V\left(t\right)$ yields:

$$\begin{array}{cc}\hfill \dot{V}\left(t\right)⩽& {\int }_0^L{\widetilde{ϵ}}^T(\zeta ,t)\overline{\Psi }\widetilde{ϵ}(\zeta ,t)d\zeta +{\int }_0^L{ϵ}^T(\zeta ,t-{\tau }_2){\overline{\Psi }}_1ϵ(\zeta ,t-{\tau }_2)d\zeta \hfill \\ & +{\int }_0^L{ϵ}^T(\zeta ,t-{\tau }_3){\overline{\Psi }}_2ϵ(\zeta ,t-{\tau }_3)d\zeta ,\hfill \end{array}$$

(18)

where $\widetilde{ϵ}(\zeta ,t)\triangleq {[{ϵ}^T(\zeta ,t),\frac{\partial {ϵ}^T(\zeta ,t)}{\partial \zeta },{ϵ}^T(\zeta ,t-{\tau }_1),{ϵ}^T(\zeta ,t-{\tau }_4)]}^T$, and:

$$\begin{array}{ccc}\hfill & & {\overline{\Psi }}_1\triangleq \left[\begin{array}{cccc}{\overline{\Psi }}_{11}& \overline{P}(I_N\otimes {\Theta }_2)-K_D\overline{P}& \overline{P}\left(I_N\otimes A\right)& c\overline{P}\left(H\otimes \Gamma \right)\\ *& -\overline{P}[I_N\otimes {\Theta }_1+*]& 0& 0\\ *& *& -\overline{Q}& 0\\ *& *& *& -\overline{Q}\end{array}\right],\hfill \end{array}$$

(19)

$$\begin{array}{ccc}\hfill & & {\overline{\Psi }}_2\triangleq -\overline{Q}+{\chi }^2({\overline{\alpha }}^{-1}\otimes I_n),\hfill \end{array}$$

(20)

$$\begin{array}{ccc}\hfill & & {\overline{\Psi }}_3\triangleq -\overline{Q}+L^2{\pi }^{-2}({\overline{\alpha }}^{-1}\otimes I_n),\hfill \end{array}$$

(21)

in which

$$\begin{array}{cc}\hfill & {\Psi }_{11}\triangleq -[\overline{P}{\overline{K}}_P+*]+\overline{P}\left(\overline{\alpha }\otimes I_n\right)\overline{P}+\overline{P}\left(\overline{\alpha }\otimes B{B}^T\right)\overline{P}+4\overline{Q}.\hfill \end{array}$$

Pre- and post-multiplying (19) by $diag\{P^{-1},{\overline{P}}^{-1},{\overline{P}}^{-1},{\overline{P}}^{-1}\}$, (20) by ${\overline{P}}^{-1}$, and (21) by ${\overline{P}}^{-1}$, respectively, one has:

$$\begin{array}{ccc}\hfill & & {\widehat{\Psi }}_1\triangleq \left[\begin{array}{cccc}{\widehat{\Psi }}_{11}& {\widehat{\Psi }}_{12}& (I_N\otimes A){\overline{P}}^{-1}& (cH\otimes \Gamma ){\overline{P}}^{-1}\\ *& -[(I_N\otimes {\Theta }_1){\overline{P}}^{-1}+*]& 0& 0\\ *& *& -{\overline{P}}^{-1}\overline{Q}{\overline{P}}^{-1}& 0\\ *& *& *& -{\overline{P}}^{-1}\overline{Q}{\overline{P}}^{-1}\end{array}\right],\hfill \end{array}$$

(22)

$$\begin{array}{ccc}\hfill & & {\widehat{\Psi }}_2\triangleq -{\overline{P}}^{-1}\overline{Q}{P}^{-1}+{\chi }^2{\overline{P}}^{-1}\left({\overline{\alpha }}^{-1}\otimes I_n\right){\overline{P}}^{-1},\hfill \end{array}$$

(23)

$$\begin{array}{ccc}\hfill & & {\widehat{\Psi }}_3\triangleq -{\overline{P}}^{-1}\overline{Q}{\overline{P}}^{-1}+L^2{\pi }^{-2}{\overline{P}}^{-1}\left({\overline{\alpha }}^{-1}\otimes I_n\right){\overline{P}}^{-1},\hfill \end{array}$$

(24)

in which:

$$\begin{array}{cc}\hfill & {\widehat{\Psi }}_{11}\triangleq -[{\overline{K}}_P{\overline{P}}^{-1}+*]+\overline{\alpha }\otimes I_n+\overline{\alpha }\otimes B{B}^T+4P^{-1}\overline{Q}{\overline{P}}^{-1},\hfill \\ \hfill & {\widehat{\Psi }}_{12}\triangleq (I_N\otimes {\Theta }_2){\overline{P}}^{-1}-{\overline{K}}_D{\overline{P}}^{-1}.\hfill \end{array}$$

Setting $P_i^{-1}=R_i,K_{Di}{P}_i^{-1}=M_{Di},K_{Pi}{P}_i^{-1}=M_{Pi},P_i^{-1}{Q}_i{P}_i^{-1}=S_i,$ one has $\left(22\right)<0$ if and only if $\left(8\right)<0$, $\left(23\right)<0$ if and only if $\left(9\right)<0$, and $\left(24\right)<0$ if and only if $\left(10\right)<0$. Since $\left(8\right)$–$\left(10\right)$ hold, $\dot{V}\left(t\right)\le -\kappa \left|\right|\widetilde{ϵ}(·,t)\left|\right|\le -\kappa \left|\right|ϵ(·,t)\left|\right|$ for all non-zero $ϵ(·,t)$, where $\kappa$ is the minimal eigenvalue of $-\Psi$, which ensures the synchronization of the MTDCSN (1) with the isolated node (2). □

4. Synchronization of the MTDCSN with Time-Varying Delays

Theorem 2.

Given the MTDCSN (1) with time-varying delays, the MTDCSN (1) synchronizes with the isolated node (2) under the controller (3), if there are scalars ${\alpha }_i>0$, matrices $M_{Pi}$, $M_{Di}\in {\mathbb{R}}^{n\times n}$, and symmetric positive definite matrices $R_i$, $S_i$$\in {\mathbb{R}}^{n\times n}$ satisfying the following LMIs:

$$\begin{array}{ccc}\hfill & & {\Xi }_1\triangleq \left[\begin{array}{cccc}{\Xi }_{11}& {\Xi }_{12}& (I_N\otimes A)\overline{R}& (cH\otimes \Gamma )\overline{R}\\ *& -[(I_N\otimes {\Theta }_1)\overline{R}+*]& 0& 0\\ *& *& -(1-{\mu }_1)\overline{S}& 0\\ *& *& *& -(1-{\mu }_4)\overline{S}\end{array}\right]<0,\hfill \end{array}$$

(25)

$$\begin{array}{ccc}\hfill & & {\Xi }_2\triangleq \left[\begin{array}{cc}-(1-{\mu }_2)\overline{S}& \overline{R}\\ *& -{\chi }^{-2}\overline{\alpha }\otimes I_n\end{array}\right]<0,\hfill \end{array}$$

(26)

$$\begin{array}{ccc}\hfill & & {\Xi }_3\triangleq \left[\begin{array}{cc}-(1-{\mu }_3)\overline{S}& \overline{R}\\ *& -L^{-2}{\pi }^2\overline{\alpha }\otimes I_n\end{array}\right]<0,\hfill \end{array}$$

(27)

where ${\Xi }_{11}\triangleq -[{\overline{M}}_P+*]+\overline{\alpha }\otimes I_n+\overline{\alpha }\otimes B{B}^T+4\overline{S}$, ${\Xi }_{12}\triangleq (I_N\otimes {\Theta }_2)\overline{R}-{\overline{M}}_D$, $\overline{\alpha }=diag\{{\alpha }_1,{\alpha }_2,$$\cdots ,{\alpha }_N\}$, $\overline{P}=diag\{P_1,P_2,\cdots ,P_N\}$, $\overline{Q}\triangleq diag\{Q_1,Q_2,\cdots ,Q_N\}$, ${\overline{M}}_P\triangleq diag\{M_{P1},M_{P2},\cdots ,$$M_{PN}\}$, and ${\overline{M}}_D\triangleq diag\{M_{D1},M_{D2},\cdots ,M_{DN}\}$. In this case, $K_{Pi}=M_{Pi}{R}_i^{-1}$, $K_{Di}=M_{Di}{R}_i^{-1}$.

Proof.

We choose the Lyapunov functional candidate as:

$$V\left(t\right)=V_1\left(t\right)+V_3\left(t\right),$$

(28)

where:

$$\begin{array}{cc}\hfill V_3\left(t\right)=& {\int }_0^L{\int }_{t-{\tau }_1\left(t\right)}^t{ϵ}^T(\zeta ,\rho )\overline{Q}ϵ(\zeta ,\rho )d\rho d\zeta \hfill \\ \hfill & +{\int }_0^L{\int }_{t-{\tau }_2\left(t\right)}^t{ϵ}^T(\zeta ,\rho )\overline{Q}ϵ(\zeta ,\rho )d\rho d\zeta \hfill \\ \hfill & +{\int }_0^L{\int }_{t-{\tau }_3\left(t\right)}^t{ϵ}^T(\zeta ,\rho )\overline{Q}ϵ(\zeta ,\rho )d\rho d\zeta \hfill \\ \hfill & +{\int }_0^L{\int }_{t-{\tau }_4\left(t\right)}^t{ϵ}^T(\zeta ,\rho )\overline{Q}ϵ(\zeta ,\rho )d\rho d\zeta .\hfill \end{array}$$

(29)

Taking the time derivative of $V_3\left(t\right)$:

$$\begin{array}{ccc}\hfill {\dot{V}}_3\left(t\right)& =& 4{\int }_0^L{ϵ}^T(\zeta ,t)\overline{Q}ϵ(\zeta ,t)d\zeta \hfill \\ \hfill & & -(1-{\dot{\tau }}_1\left(t\right)){\int }_0^L{ϵ}^T(\zeta ,t-{\tau }_1\left(t\right))\overline{Q}ϵ(\zeta ,t-{\tau }_1\left(t\right))d\zeta \hfill \\ \hfill & & -(1-{\dot{\tau }}_2\left(t\right)){\int }_0^L{ϵ}^T(\zeta ,t-{\tau }_2\left(t\right))\overline{Q}ϵ(\zeta ,t-{\tau }_2\left(t\right))d\zeta \hfill \\ \hfill & & -(1-{\dot{\tau }}_3\left(t\right)){\int }_0^L{ϵ}^T(\zeta ,t-{\tau }_3\left(t\right))\overline{Q}ϵ(\zeta ,t-{\tau }_3\left(t\right))d\zeta \hfill \\ \hfill & & -(1-{\dot{\tau }}_4\left(t\right)){\int }_0^L{ϵ}^T(\zeta ,t-{\tau }_3\left(t\right))\overline{Q}ϵ(\zeta ,t-{\tau }_4\left(t\right))d\zeta \hfill \\ & ⩽& 4{\int }_0^L{ϵ}^T(\zeta ,t)\overline{Q}ϵ(\zeta ,t)d\zeta \hfill \\ \hfill & & -(1-{\mu }_1){\int }_0^L{ϵ}^T(\zeta ,t-{\tau }_1\left(t\right))\overline{Q}ϵ(\zeta ,t-{\tau }_1\left(t\right))d\zeta \hfill \\ \hfill & & -(1-{\mu }_2){\int }_0^L{ϵ}^T(\zeta ,t-{\tau }_2\left(t\right))\overline{Q}ϵ(\zeta ,t-{\tau }_2\left(t\right))d\zeta \hfill \\ \hfill & & -(1-{\mu }_3){\int }_0^L{ϵ}^T(\zeta ,t-{\tau }_3\left(t\right))\overline{Q}ϵ(\zeta ,t-{\tau }_3\left(t\right))d\zeta \hfill \\ \hfill & & -(1-{\mu }_4){\int }_0^L{ϵ}^T(\zeta ,t-{\tau }_3\left(t\right))\overline{Q}ϵ(\zeta ,t-{\tau }_4\left(t\right))d\zeta .\hfill \end{array}$$

(30)

The latter part of this proof is similar to that of Theorem 1 and so is omitted. □

Remark 1.

It is obvious that Theorem 2 is suitable only for situations where there is no quickly increasing time delay, since LMIs (25)–(27) imply ${\mu }_1<1,{\mu }_2<1,{\mu }_3<1,{\mu }_4<1$, i.e., ${\dot{\tau }}_1\left(t\right)<1,{\dot{\tau }}_2\left(t\right)<1,{\dot{\tau }}_3\left(t\right)<1,{\dot{\tau }}_4\left(t\right)<1$.

Remark 2.

Different from the synchronization for TDCSNs [23,24,25,26,27,28,29,30] modeled by PDEs, the MTDCSNs studied in this paper are modeled by PIDEs.

Remark 3.

Different from the SPID control for the exponential stabilization of complex PIDE networks with a single time delay [40], this paper deals with the synchronization of the MTDCSN based on PIDEs with multiple time delays existing in the state, communication, nonlinear term, and integral term.

5. Numerical Simulation

Example 1.

Consider the MTDCSN (1) with random initial conditions and the following parameters:

$$\begin{array}{ccc}\hfill & & {\Theta }_1=\left[\begin{array}{cc}1& 0\\ 0& 4\end{array}\right],{\Theta }_2=\left[\begin{array}{cc}1& 0\\ 0& 1.2\end{array}\right],A=\left[\begin{array}{cc}2.2& -0.2\\ 0.5& 1\end{array}\right],\hfill \\ \hfill & & B=\left[\begin{array}{cc}2& 0\\ 0& 2\end{array}\right],L=1,c=0.2,\hfill \\ & & {\tau }_1=1,{\tau }_2=2,{\tau }_3=1,{\tau }_4=2,\hfill \\ \hfill & & H=\left[\begin{array}{cccc}-3& 1& 1& 1\\ 2& -6& 2& 2\\ 1& 1& -4& 2\\ 1& 2& 2& -5\end{array}\right].\hfill \end{array}$$

(31)

It is obvious that $\tau =max\{{\tau }_1,{\tau }_2,{\tau }_3,{\tau }_4\}=2$ and $\chi =1$. From Figure 2, it can be seen that the MTDCSN (1) cannot achieve synchronization without control. According to Theorem 1, solving LMIs (8)–(10) with Matlab, we can obtain: ${\alpha }_1={\alpha }_2={\alpha }_3={\alpha }_4=11.8915$, and

$$\begin{array}{cc}\hfill & R1=\left[\begin{array}{cc}1.0943& -0.0033\\ -0.0033& 0.8875\end{array}\right],R2=\left[\begin{array}{cc}1.0894& -0.0033\\ -0.0033& 0.8864\end{array}\right],\hfill \\ \hfill & R3=\left[\begin{array}{cc}1.0925& -0.0033\\ -0.0033& 0.8871\end{array}\right],R4=\left[\begin{array}{cc}1.0909& -0.0033\\ -0.0033& 0.8867\end{array}\right],\hfill \\ \hfill & S1=\left[\begin{array}{cc}1.0943& -0.0033\\ -0.0033& 0.8875\end{array}\right],S2=\left[\begin{array}{cc}1.0894& -0.0033\\ -0.0033& 0.8864\end{array}\right],\hfill \\ \hfill & S3=\left[\begin{array}{cc}1.0925& -0.0033\\ -0.0033& 0.8871\end{array}\right],S4=\left[\begin{array}{cc}1.0909& -0.0033\\ -0.0033& 0.8867\end{array}\right].\hfill \end{array}$$

(32)

Therefore, the control gains $K_{Pi}$ and $K_{Di}$ are obtained as:

$$\begin{array}{cc}\hfill & K_{P1}=\left[\begin{array}{cc}16.7885& 0.0621\\ 0.0621& 20.7015\end{array}\right],K_{P2}=\left[\begin{array}{cc}16.8639& 0.0622\\ 0.0622& 20.7267\end{array}\right],\hfill \\ \hfill & K_{P3}=\left[\begin{array}{cc}16.8164& 0.0621\\ 0.0621& 20.7108\end{array}\right],K_{P4}=\left[\begin{array}{cc}16.8416& 0.0622\\ 0.0622& 20.7192\end{array}\right],\hfill \\ \hfill & K_{D1}=\left[\begin{array}{cc}1.0000& -0.0004\\ 0.0003& 1.2000\end{array}\right],K_{D2}=\left[\begin{array}{cc}1.0000& -0.0004\\ 0.0003& 1.2000\end{array}\right],\hfill \\ \hfill & K_{D3}=\left[\begin{array}{cc}1.0000& -0.0004\\ 0.0003& 1.2000\end{array}\right],K_{D4}=\left[\begin{array}{cc}1.0000& -0.0004\\ 0.0003& 1.2000\end{array}\right].\hfill \end{array}$$

(33)

It is shown in Figure 3 that the MTDCSN (1) achieves synchronization with the isolated node (2) under control with the gains (33). The controller is shown in Figure 4.

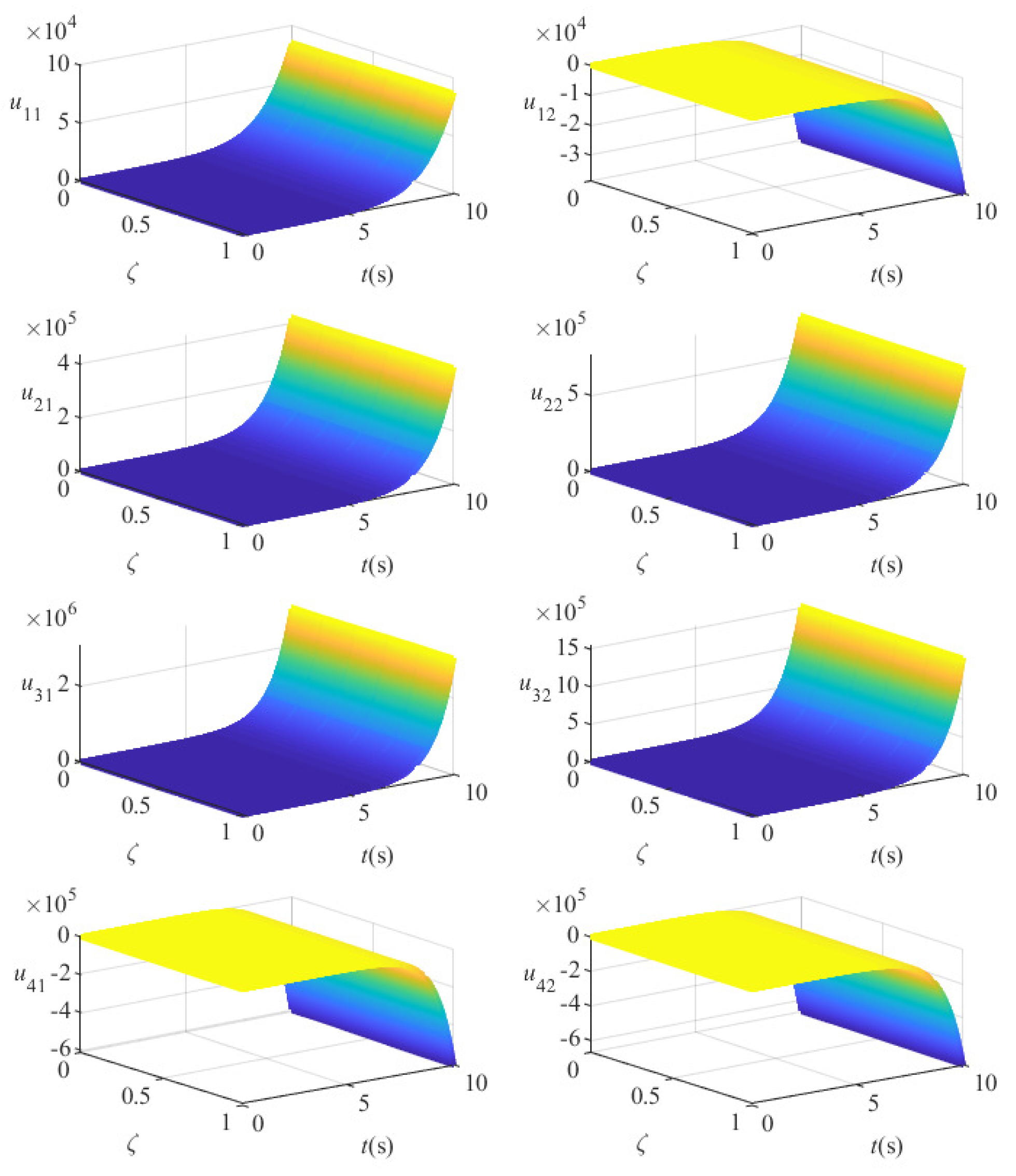

Figure 2. ${ϵ}_i(\zeta ,t)$ of the multiple time-delayed complex spatiotemporal network (MTDCSN) without control in Example 1.

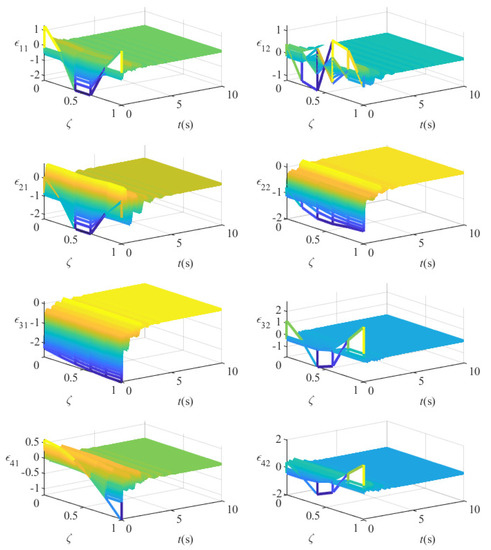

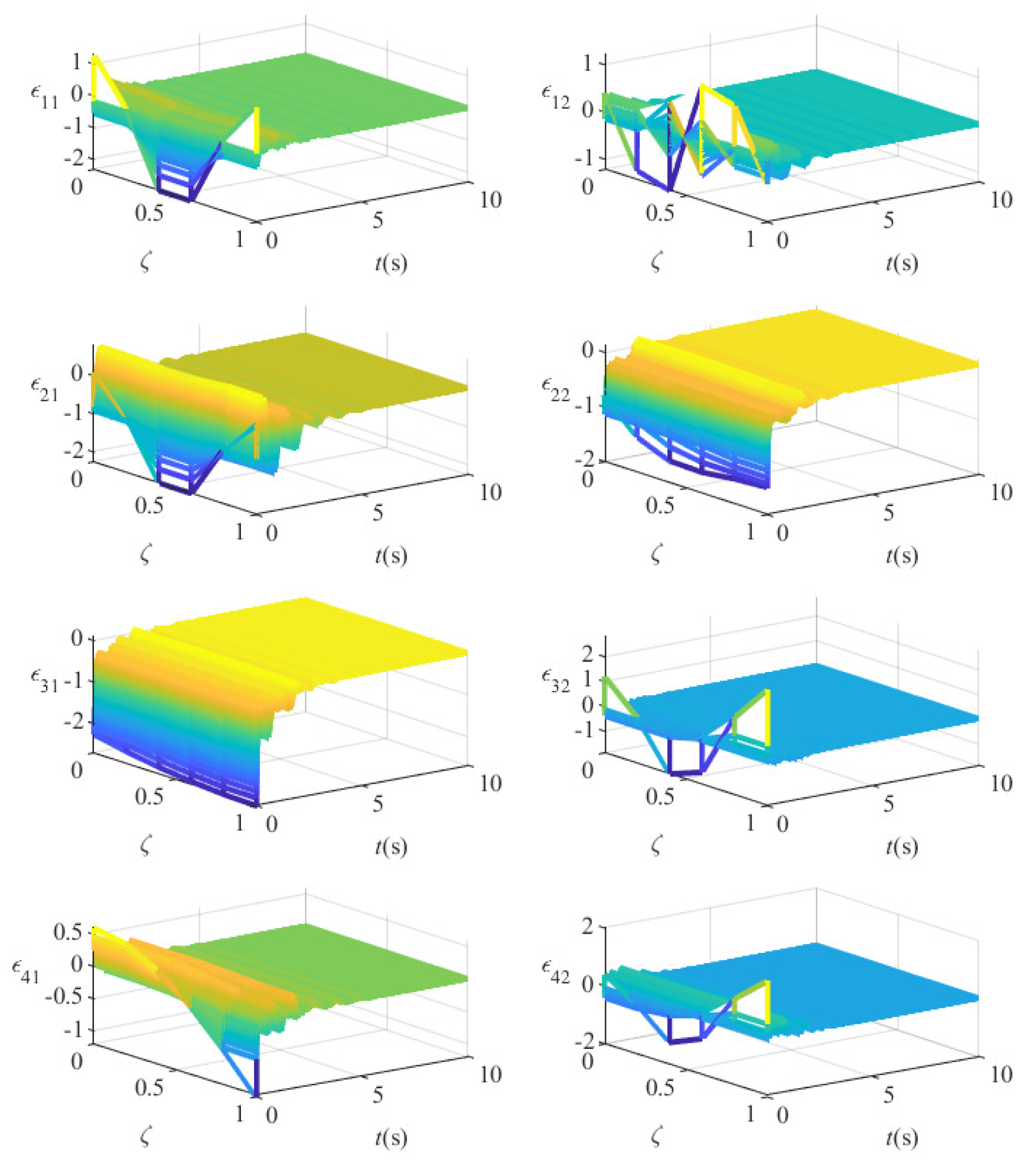

Figure 3. ${ϵ}_i(\zeta ,t)$ of the MTDCSN with control in Example 1.

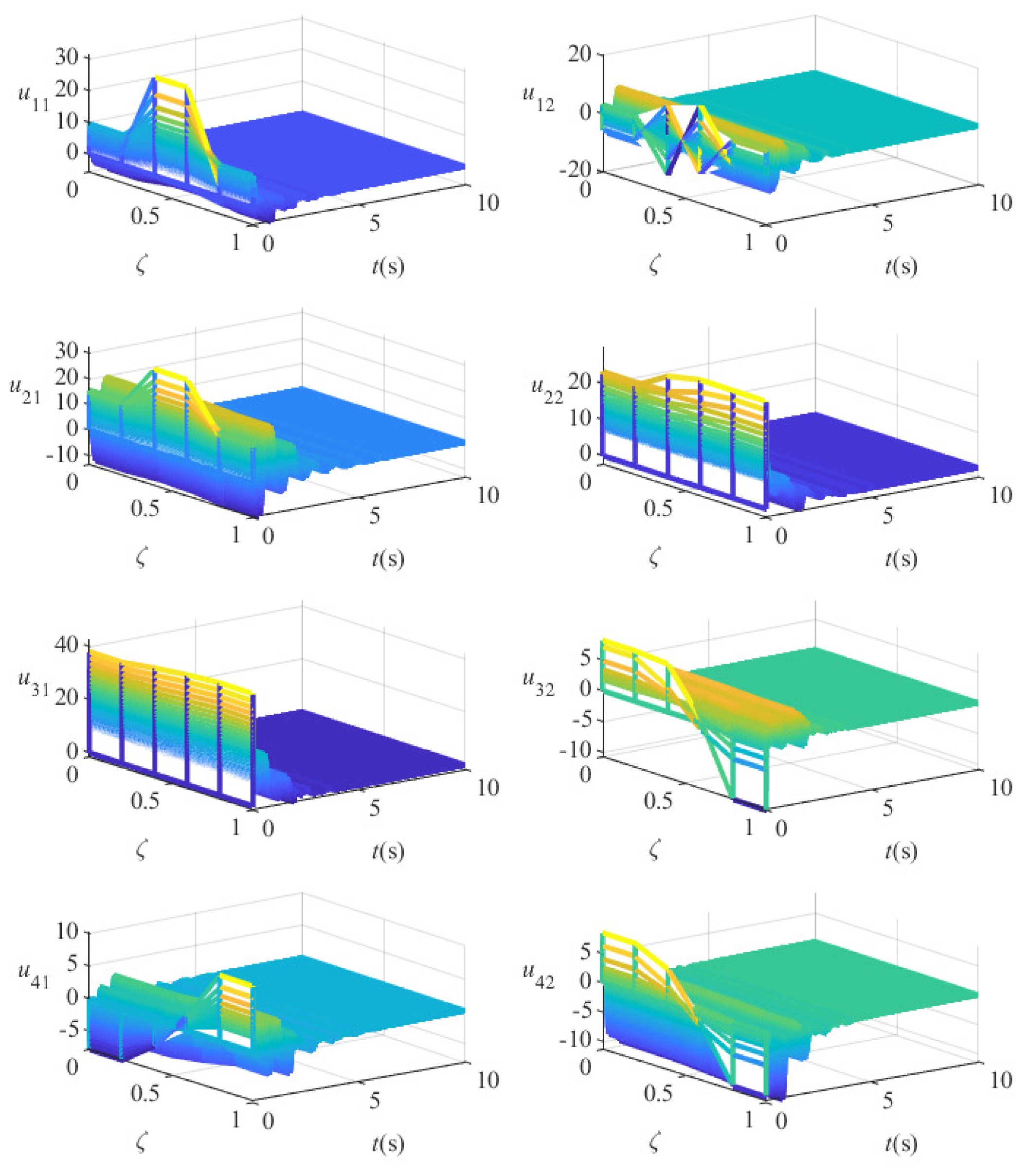

Figure 4. The controller $u_i(\zeta ,t)$ in Example 1.

Example 2.

We consider the MTDCSN (1) with random initial conditions and the same parameters as those in Theorem 1, except:

$$\begin{array}{cc}\hfill & {\tau }_1\left(t\right)=2+sin\left(0.25\pi t\right),{\tau }_2\left(t\right)=1+0.3cos(\pi t+\pi /4),\hfill \\ \hfill & {\tau }_3\left(t\right)=2-exp\left(-t/2\right),{\tau }_4\left(t\right)=2+0.8arctan\left(t\right).\hfill \end{array}$$

(34)

We take $max\{{\tau }_1\left(t\right),{\tau }_2\left(t\right),{\tau }_3\left(t\right),{\tau }_4\left(t\right)\}\le \tau =3$ and $\chi =1$. From (34), it is obvious that ${\mu }_1=0.25\pi$, ${\mu }_2=0.3\pi$, ${\mu }_3=0.5$, ${\mu }_4=0.8$.

From Figure 5, it can be seen that the MTDCSN (1) cannot achieve synchronization without control. According to Theorem 2, solving LMIs (25)–(27) with Matlab, we can obtain: ${\alpha }_1={\alpha }_2={\alpha }_3={\alpha }_4=6.8606$, and

$$\begin{array}{cc}\hfill & R1=\left[\begin{array}{cc}0.9737& -0.0029\\ -0.0029& 0.7897\end{array}\right],R2=\left[\begin{array}{cc}0.9694& -0.0029\\ -0.0029& 0.7887\end{array}\right],\hfill \\ \hfill & R3=\left[\begin{array}{cc}0.9721& -0.0029\\ -0.0029& 0.7893\end{array}\right],R4=\left[\begin{array}{cc}0.9707& -0.0029\\ -0.0029& 0.7890\end{array}\right],\hfill \\ \hfill & S1=\left[\begin{array}{cc}0.9737& -0.0029\\ -0.0029& 0.7897\end{array}\right],S2=\left[\begin{array}{cc}0.9694& -0.0029\\ -0.0029& 0.7887\end{array}\right],\hfill \\ \hfill & S3=\left[\begin{array}{cc}0.9721& -0.0029\\ -0.0029& 0.7893\end{array}\right],S4=\left[\begin{array}{cc}0.9707& -0.0029\\ -0.0029& 0.7890\end{array}\right].\hfill \end{array}$$

(35)

Therefore, the control gains $K_{Pi}$ and $K_{Di}$ are obtained as:

$$\begin{array}{cc}\hfill & K_{P1}=\left[\begin{array}{cc}40.3444& 0.1801\\ 0.1511& 47.6124\end{array}\right],K_{P2}=\left[\begin{array}{cc}40.3914& 0.1813\\ 0.1523& 47.6637\end{array}\right],\hfill \\ \hfill & K_{P3}=\left[\begin{array}{cc}40.3605& 0.1806\\ 0.1516& 47.6307\end{array}\right],K_{P4}=\left[\begin{array}{cc}40.3762& 0.1810\\ 0.1520& 47.6478\end{array}\right],\hfill \\ \hfill & K_{D1}=\left[\begin{array}{cc}1.0000& -0.0002\\ 0.0000& 1.2000\end{array}\right],K_{D2}=\left[\begin{array}{cc}1.0000& -0.0002\\ 0.0000& 1.2000\end{array}\right],\hfill \\ \hfill & K_{D3}=\left[\begin{array}{cc}1.0000& -0.0002\\ 0.0000& 1.2000\end{array}\right],K_{D4}=\left[\begin{array}{cc}1.0000& -0.0002\\ 0.0000& 1.2000\end{array}\right],\hfill \end{array}$$

(36)

It is shown in Figure 6 that the MTDCSN (1) achieves synchronization with the isolated node (2) under control with the gains (36). The controller is shown in Figure 7.

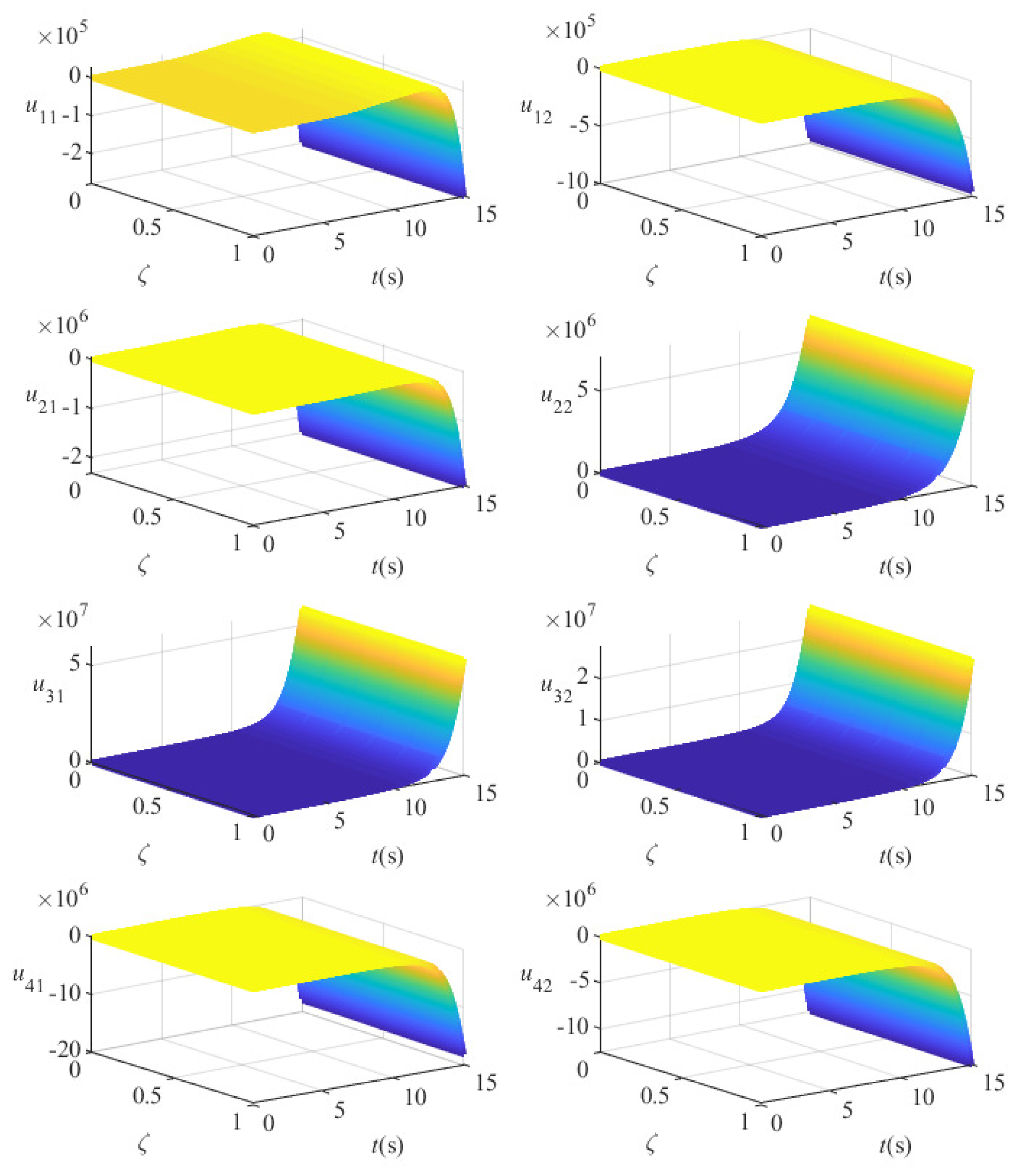

Figure 5. ${ϵ}_i(\zeta ,t)$ of the MTDCSN without control in Example 2.

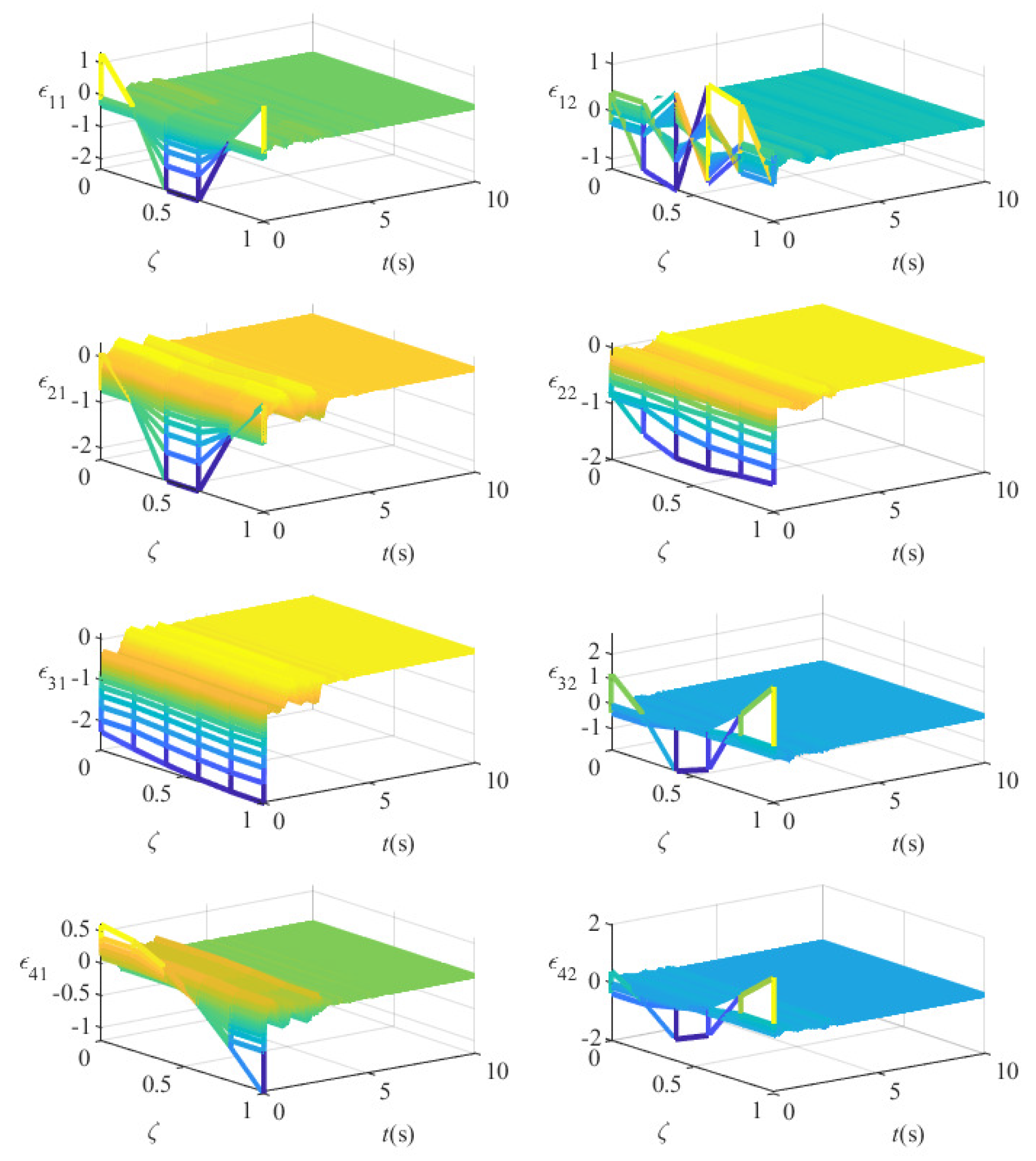

Figure 6. ${ϵ}_i(\zeta ,t)$ of the MTDCSN with control in Example 2.

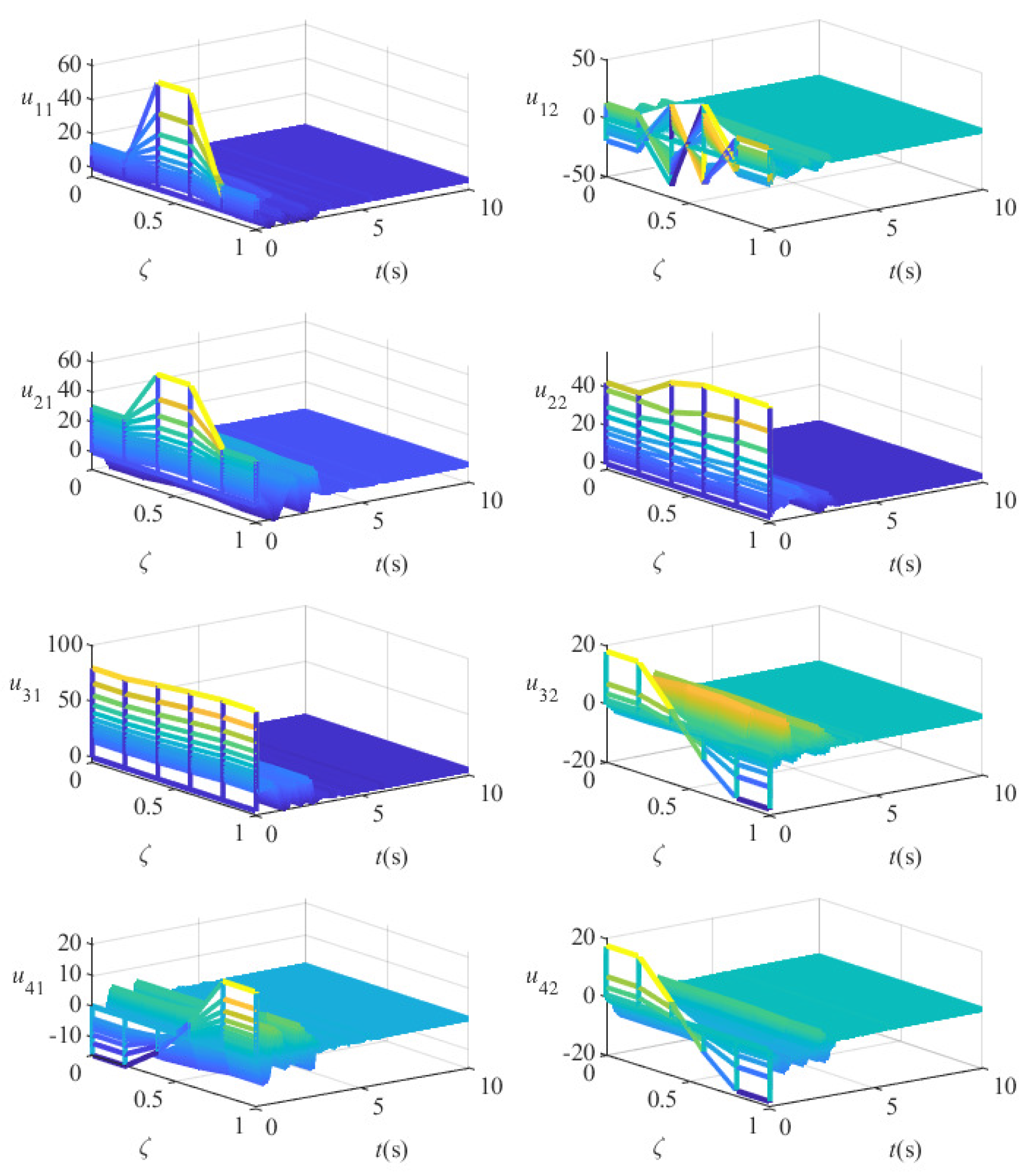

Figure 7. The controller $u_i(\zeta ,t)$ in Example 2.

6. Conclusions

This paper aimed to study the synchronization of a class of nonlinear MTDCSNs. The model was established using coupled semi-linear parabolic PIDEs. P-sD control was employed for the MTDCSN with time-invariant delays and was further used for the MTDCSN with time-varying delays. The synchronization criteria were obtained in terms of LMIs for time-invariant delays and time-varying delays, respectively. An example was used to illustrate the effectiveness of the proposed methods. Compared with other methods, this method not only considers multiple time-invariant and time-varying delays but also deals with PIDE-based complex spatiotemporal networks. In future work, the pinning synchronization of MTDCSNs will be studied.
