# Fluid–Structure Interaction Modeling of Structural Loads and Fatigue Life Analysis of Tidal Stream Turbine

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

_{p}) and thrust coefficient (C

_{t}) are small, but the effects on wake are large. Ahmadi et al. [13] and others studied the evolution of the wake characteristics of horizontal-axis tidal-energy turbines experimentally, followed by numerical simulations of the flow field, using a combination of Large Eddy Simulation (LES) and Augmented Lagrangian Method (ALM) to partition the turbine wake into different regions, suggesting that to study the characteristics of the turbine wake, it is necessary to understand the variation of flow characteristics in the transition zone.

## 2. Basic Theory

## 3. Computational Model

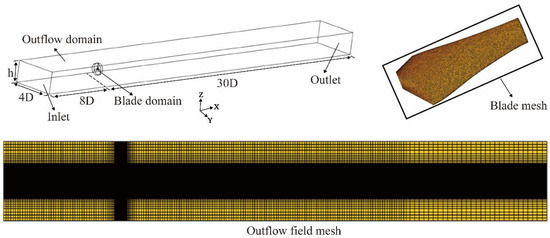

#### 3.1. Numerical Calculation Model

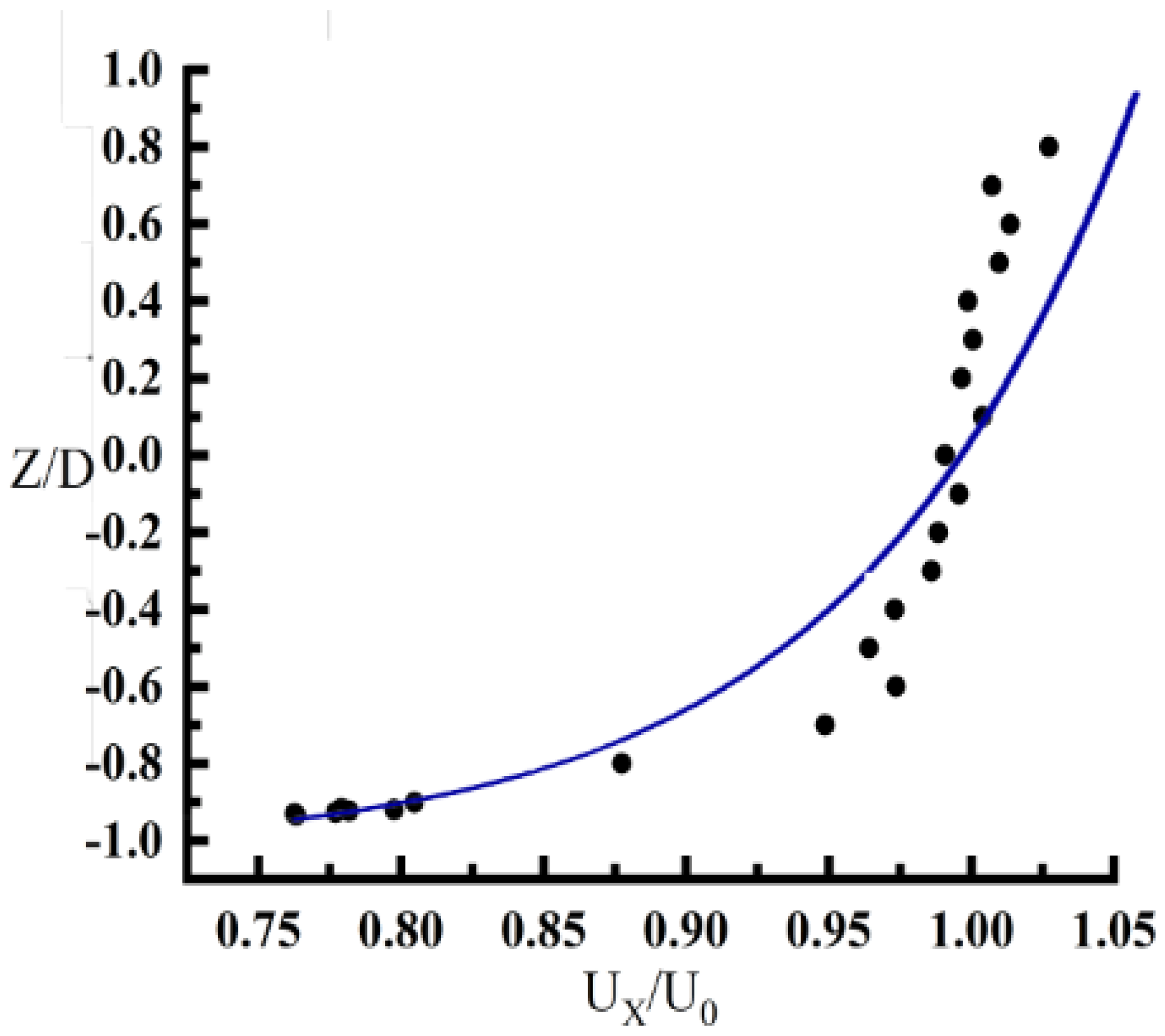

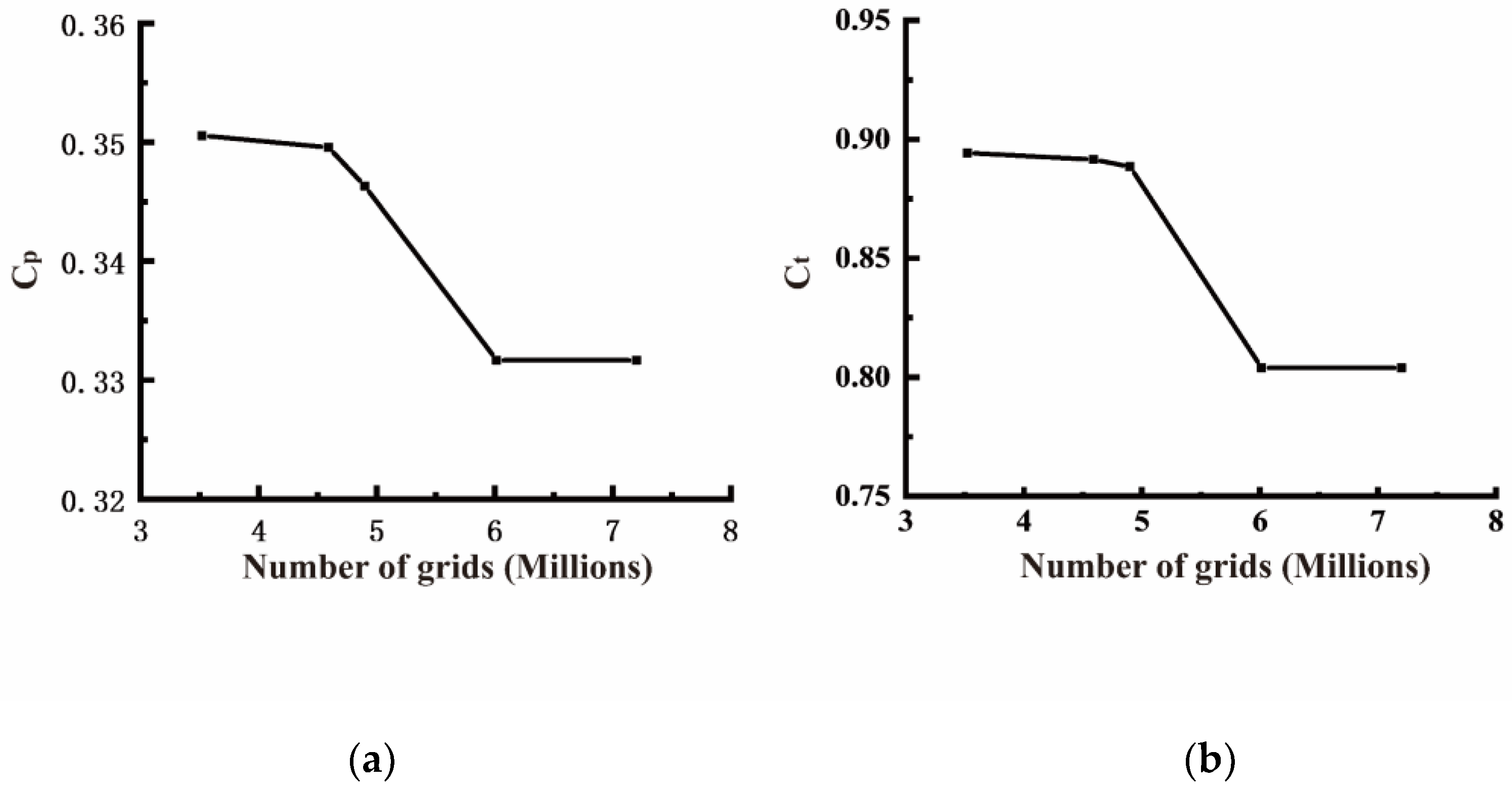

#### 3.2. Grid-Independence Verification

_{p}and C

_{t}values quickly decrease from 4.5 to 6 million grids, and then asymptote with numbers over 6 million. The maximum deformation and stress increases with grid reduction and converges with sizes less than 4 mm. Consequently, using a grid size of 3 mm for the solid and 6 million grids for the fluid saves computational resource without sacrificing accuracy level (<0.1%). The bidirectional fluid–solid coupling simulation was conducted by a computer with 32-cores AMD CPU. The final computation time for each case is 132 h.

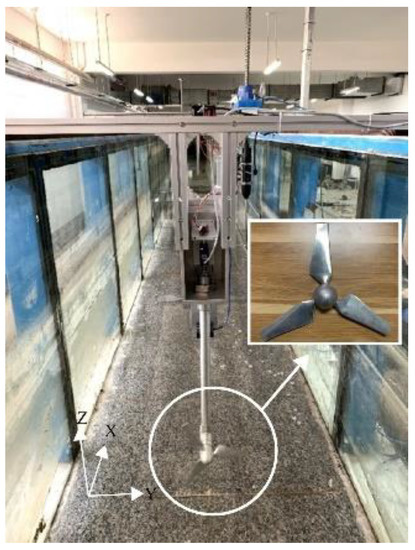

#### 3.3. Model Test Validation

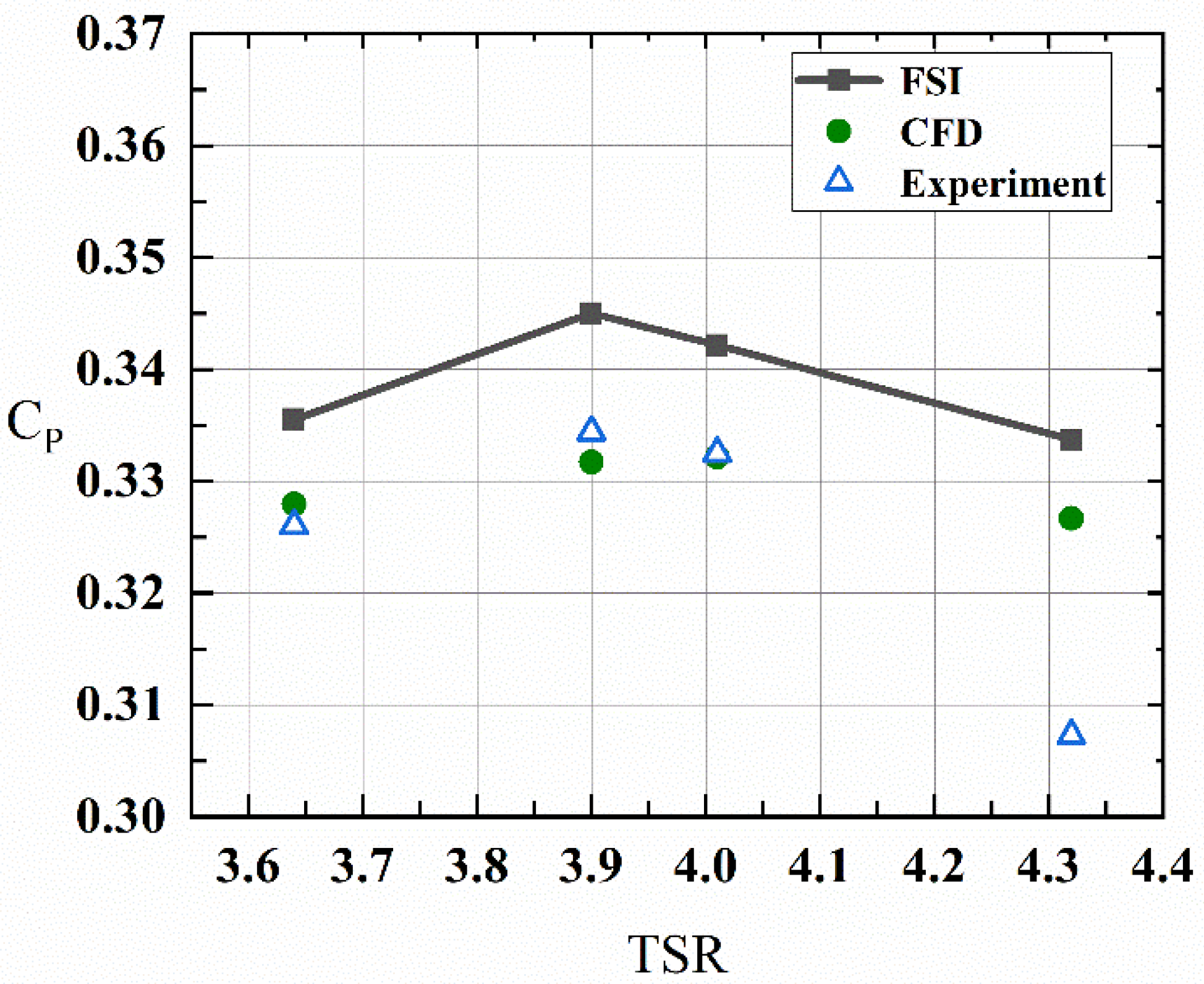

_{p}= 0.332–0.345. In general, the FSI simulations deviate more from the measurements than the CFD’s do due to the non-optimal initial twist blade angle and deformation consideration; however, the error is less than 4.01% for the contemplated study’s range (TSR = 3.64–4.32).

## 4. Results Analysis

#### 4.1. Hydrodynamic Performance of Blades

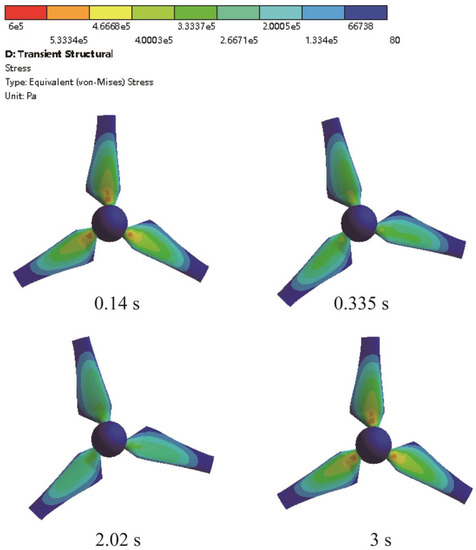

#### 4.2. Blade Structural Stress Analysis

#### 4.3. Blade-Fatigue-Life Analysis

## 5. Conclusions

- (1)
- The difference between the calculated hydraulic turbine power coefficients with and without fluid–structure coupling conditions is not significant, and the deformation of the blade under the bidirectional fluid–structure coupling calculation will have a certain impact on the pressure difference on the blade’s surface.
- (2)

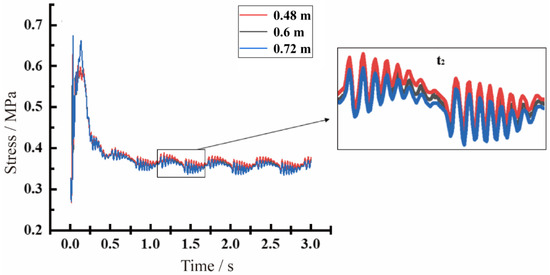

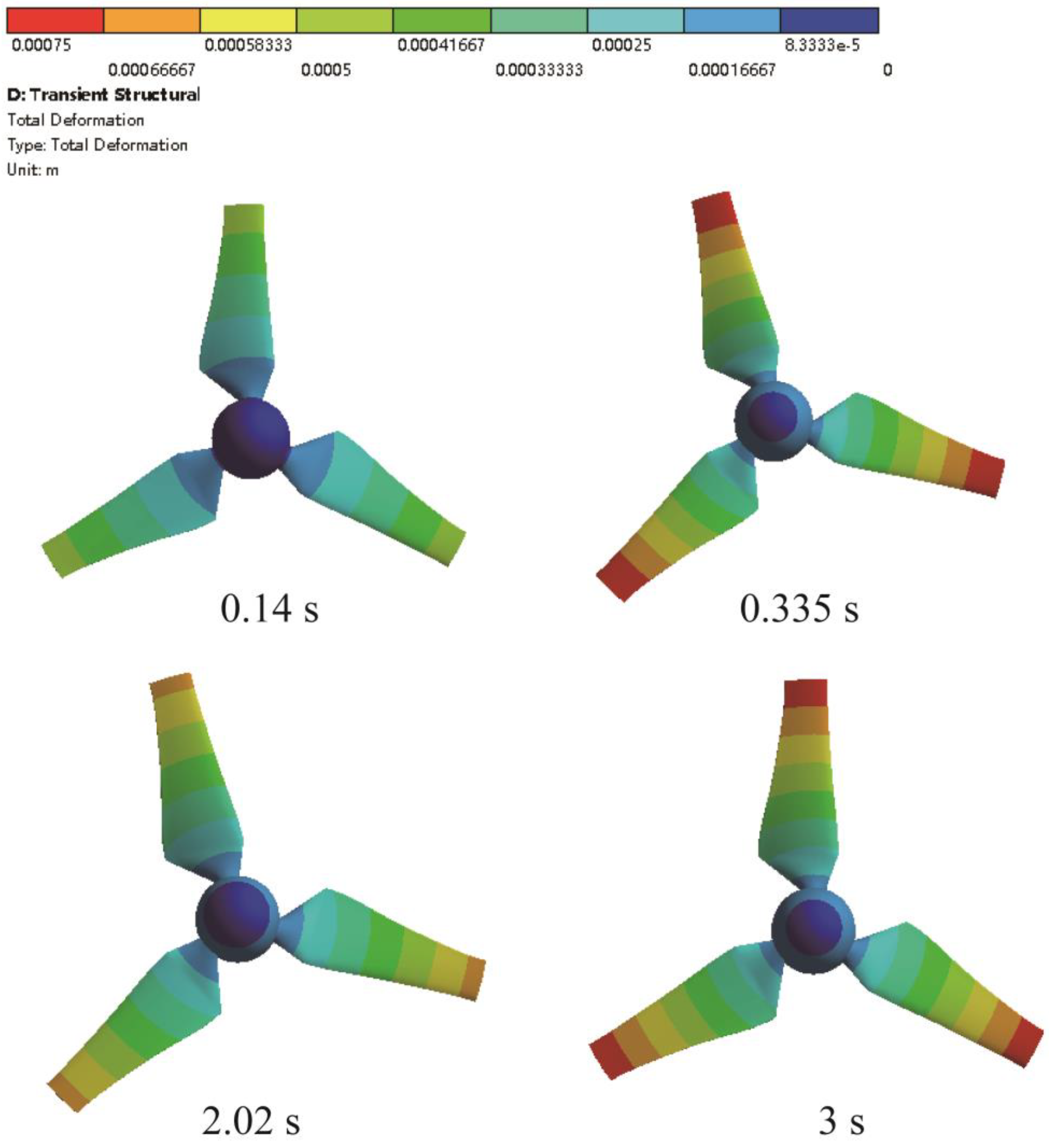

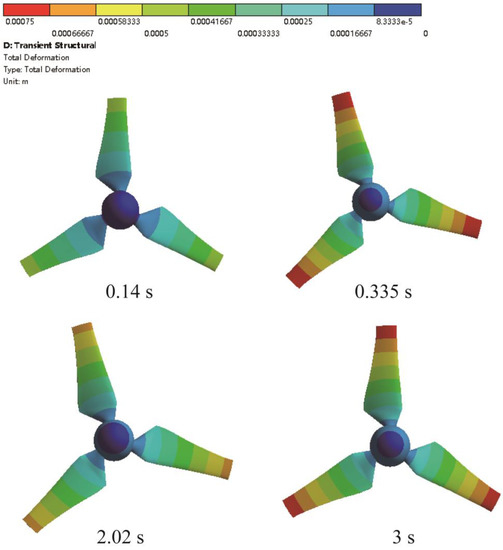

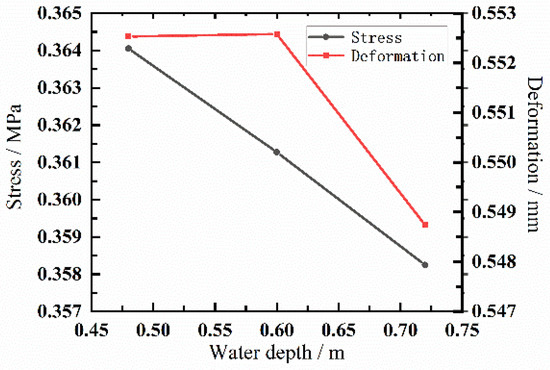

- As a cantilever beam structure, the blade has its maximum stress concentrated in the root of the leaf, and its maximum deformation is located near the tip of the leaf. The change of water depth has little influence on the stress and deformation of the blade, but the change of rotation speed has the most significant influence on it. The blade will be subjected to abrupt load when it is first started, and the increase of rotation speed will increase the abrupt load.
- (3)

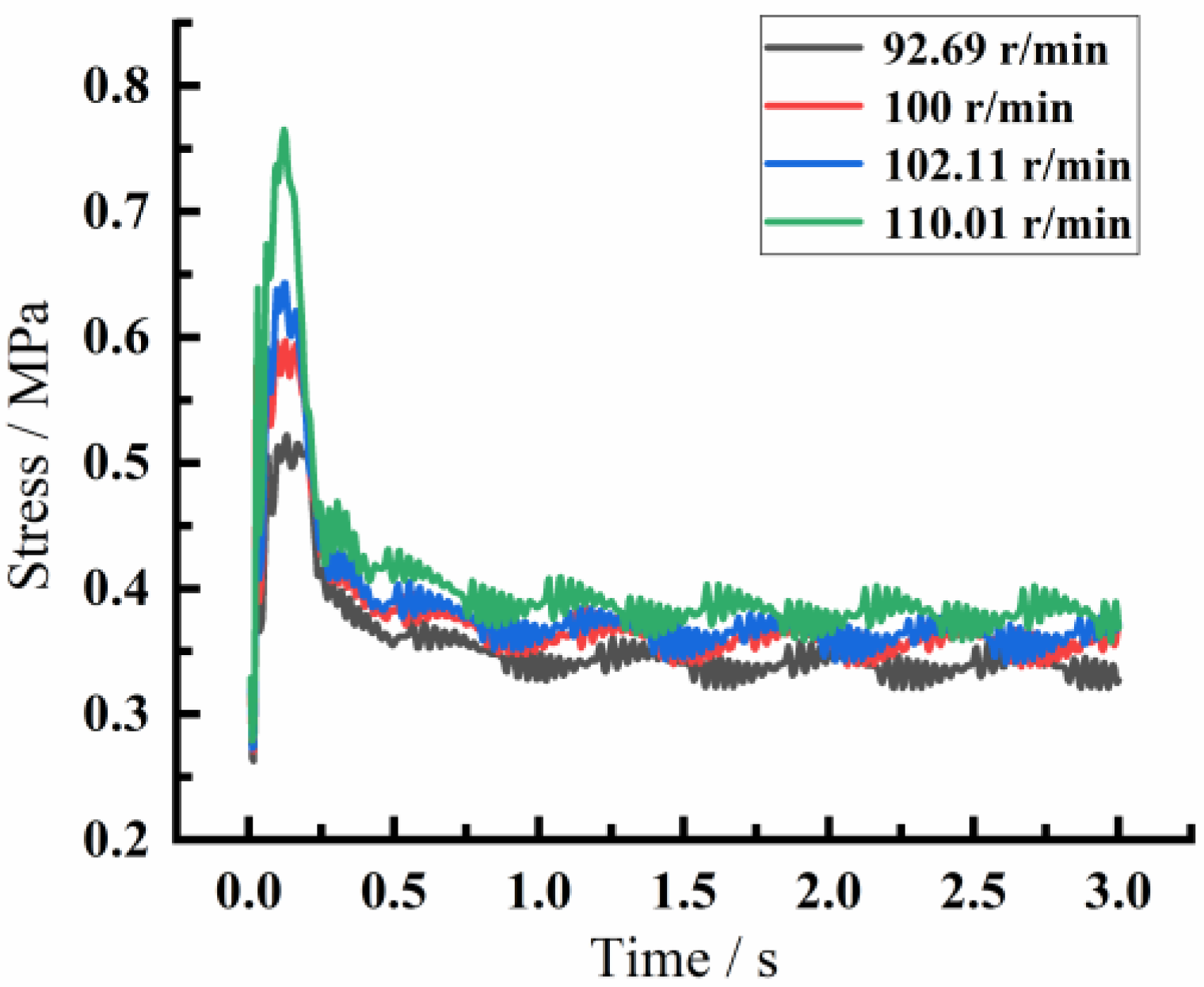

- The fatigue-life prediction of the blade of the tidal-energy turbine was carried out. Similar to the blade stress variation, the lower safety factor of the blade is located near the root of the blade, and the blade’s rotation-speed variation has a more significant effect than water depth. The number of stress cycles of the blade at different rotational speeds is within the safety range.
- (4)
- During the design process of the blade, not only the hydraulic performance but also the strength of the blade situation should be taken into consideration.
- (5)
- These results represent an excellent initial step toward the wider use of the coupled fluid structure model due to high computational accuracy and resource efficiency; and toward further testing in more complex situations, such as incoming waves and currents, and floating turbine systems.

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Zang, W.; Zheng, Y.; Zhang, Y.; Zhang, J.; Fernandez-Rodriguez, E. Experiments on the mean and integral characteristics of tidal turbine wake in the linear waves propagating with the current. Ocean Eng.
**2019**, 173, 1–11. [Google Scholar] [CrossRef] - Gaurier, B.; Ikhennicheu, M.; Germain, G.; Druault, P. Experimental study of bathymetry generated turbulence on tidal turbine behaviour. Renew. Energy
**2020**, 156, 1158–1170. [Google Scholar] [CrossRef] - Gaurier, B.; Carlier, C.; Germain, G.; Pinon, G.; Rivoalen, E. Three tidal turbines in interaction: An experimental study of turbulence intensity effects on wakes and turbine performance. Renew. Energy
**2020**, 148, 1150–1164. [Google Scholar] [CrossRef] - Derakhshan, S.; Ashoori, M.; Salemi, A. Experimental and numerical study of a vertical axis tidal turbine performance. Ocean Eng.
**2017**, 137, 59–67. [Google Scholar] [CrossRef] [Green Version] - Gaurier, B.; Druault, P.; Ikhennicheu, M.; Germain, G. Experimental analysis of the shear flow effect on tidal turbine blade root force from three-dimensional mean flow reconstruction. Philos. Trans. R. Soc. A
**2020**, 378, 20200001. [Google Scholar] [CrossRef] - Zhang, Y.; Zhang, J.; Lin, X.; Wang, R.; Zhang, C.; Zhao, J. Experimental investigation into downstream field of a horizontal axis tidal stream turbine supported by a mono pile. Appl. Ocean Res.
**2020**, 101, 102257. [Google Scholar] [CrossRef] - Zhang, Y.; Zhang, Z.; Zheng, J.; Zhang, J.; Zheng, Y.; Zang, W.; Lin, X.; Fernandez-Rodriguez, E. Experimental investigation into effects of boundary proximity and blockage on horizontal-axis tidal turbine wake. Ocean Eng.
**2021**, 225, 108829. [Google Scholar] [CrossRef] - Allmark, M.; Ellis, R.; Ebdon, T.; Lloyd, C.; Ordonez-Sanchez, S.; Martinez, R.; Mason-Jones, A.; Johnstone, C.; O’Doherty, T. A detailed study of tidal turbine power production and dynamic loading under grid generated turbulence and turbine wake operation. Renew. Energy
**2020**, 169, 1422–1439. [Google Scholar] [CrossRef] - Myers, L.; Bahaj, A.S. Wake studies of a 1/30th scale horizontal axis marine current turbine. Ocean. Eng.
**2005**, 34, 758–762. [Google Scholar] [CrossRef] - Zhang, Y.; Zang, W.; Zheng, J.; Cappietti, L.; Zhang, J.; Zheng, Y.; Fernandez-Rodriguez, E. The influence of waves propagating with the current on the wake of a tidal stream turbine. Appl. Energy
**2021**, 290, 116729. [Google Scholar] [CrossRef] - Peng, B.; Zhang, Y.; Zheng, Y.; Wang, R.; Fernandez-Rodriguez, E.; Tang, Q.; Zhang, Z.; Zang, W. The effects of surge motion on the dynamics and wake characteristics of a floating tidal stream turbine under free surface condition. Energy Convers. Manag.
**2022**, 266, 115816. [Google Scholar] [CrossRef] - Tian, W.; VanZwieten, J.H.; Pyakurel, P.; Li, Y. Influences of yaw angle and turbulence intensity on the performance of a 20 kW in-stream hydrokinetic turbine. Energy
**2016**, 111, 104–116. [Google Scholar] [CrossRef] [Green Version] - Ahmadim, H.B.; Yang, Z. The evolution of turbulence characteristics in the wake of a horizontal axis tidal stream turbine. Renew. Energy
**2020**, 151, 1008–1015. [Google Scholar] [CrossRef] - Yazicioglu, H.; Tunc, K.M.; Ozbek, M.; Kara, T. Simulation of electricity generation by marine current turbines at Istanbul Bosphorus Strait. Energy
**2016**, 95, 41–50. [Google Scholar] [CrossRef] - Gonabadi, H.; Oila, A.; Yadav, A.; Bull, S. Fatigue life prediction of composite tidal turbine blades. Ocean Eng.
**2022**, 260, 111903. [Google Scholar] [CrossRef] - Finnegan, W.; Fagan, E.; Flanagan, T.; Doyle, A.; Goggins, J. Operational fatigue loading on tidal turbine blades using computational fluid dynamics. Renew. Energy
**2020**, 152, 430–440. [Google Scholar] [CrossRef] - Mullings, H.; Stallard, T. Assessment of Dependency of Unsteady Onset Flow and Resultant Tidal Turbine Fatigue Loads on Measurement Position at a Tidal Site. Energies
**2021**, 14, 5470. [Google Scholar] [CrossRef] - Bahaj, A.S.; Myers, L.E. Fundamentals applicable to the utilisation of marine current turbines for energy production. Renew. Energy
**2003**, 28, 2205–2211. [Google Scholar] [CrossRef] - Badshah, M.; Badshah, S.; Jan, S. Comparison of computational fluid dynamics and fluid structure interaction models for the performance prediction of tidal current turbines. J. Ocean Eng. Sci.
**2020**, 5, 164–172. [Google Scholar] [CrossRef] - Hafeez, N.; Badshah, S.; Badshah, M.; Khalil, S.J. Effect of velocity shear on the performance and structural response of a small-scale horizontal axis tidal turbine. Mar. Syst. Ocean Technol.
**2019**, 14, 51–58. [Google Scholar] [CrossRef] - Liu, X.F.; Wang, J.B.; Tian, M.L.; Tang, Z.B. Efficiency and Performance Analysis of Tidal Current Energy Turbine Basing on the Unidirectional Fluid-Structure Interaction. Appl. Mech. Mater.
**2014**, 672, 386–391. [Google Scholar] [CrossRef] - Ullah, H.; Hussain, M.; Abbas, N.; Ahmad, H.; Amer, M.; Noman, M. Numerical investigation of modal and fatigue performance of a horizontal axis tidal current turbine using fluid–structure interaction. J. Ocean Eng. Sci.
**2019**, 4, 328–337. [Google Scholar] [CrossRef] - Li, C.; Zheng, Y.; Zhang, Y.; Kan, K.; Xue, X.; Fernandez-Rodriguez, E. Stability Optimization and Analysis of a Bidirectional Shaft Extension Pump. J. Fluids Eng.
**2020**, 142. [Google Scholar] [CrossRef] - Khalid, S.-S.; Zhang, L.; Zhang, X.-W.; Sun, K. Three-dimensional numerical simulation of a vertical axis tidal turbine using the two-way fluid structure interaction approach. J. Zhejiang Univ. Sci. Appl. Phys. Eng.
**2013**, 14, 574–582. [Google Scholar] [CrossRef] - Badshah, M.; Badshah, S.; VanZwieten, J.; Jan, S.; Amir, M.; Malik, S.A. Coupled Fluid-Structure Interaction Modelling of Loads Variation and Fatigue Life of a Full-Scale Tidal Turbine under the Effect of Velocity Profile. Energies
**2019**, 12, 2217. [Google Scholar] [CrossRef] [Green Version] - Nicholls-Lee, R.F.; Turnock, S.R.; Boyd, S.W. Application of bend-twist coupled blades for horizontal axis tidal turbines. Renew. Energy
**2013**, 50, 541–550. [Google Scholar] [CrossRef] - Badshah, M.; Badshah, S.; Kadir, K. Fluid Structure Interaction Modelling of Tidal Turbine Performance and Structural Loads in a Velocity Shear Environment. Energies
**2018**, 11, 1837. [Google Scholar] [CrossRef] [Green Version] - Tatum, S.C.; Frost, C.H.; Allmark, M.; O’doherty, D.M.; Mason-Jones, A.; Prickett, P.W.; Grosvenor, R.I.; Byrne, C.B.; O’Doherty, T. Wave–current interaction effects on tidal stream turbine performance and loading characteristics. Int. J. Mar. Energy
**2016**, 14, 161–179. [Google Scholar] [CrossRef]

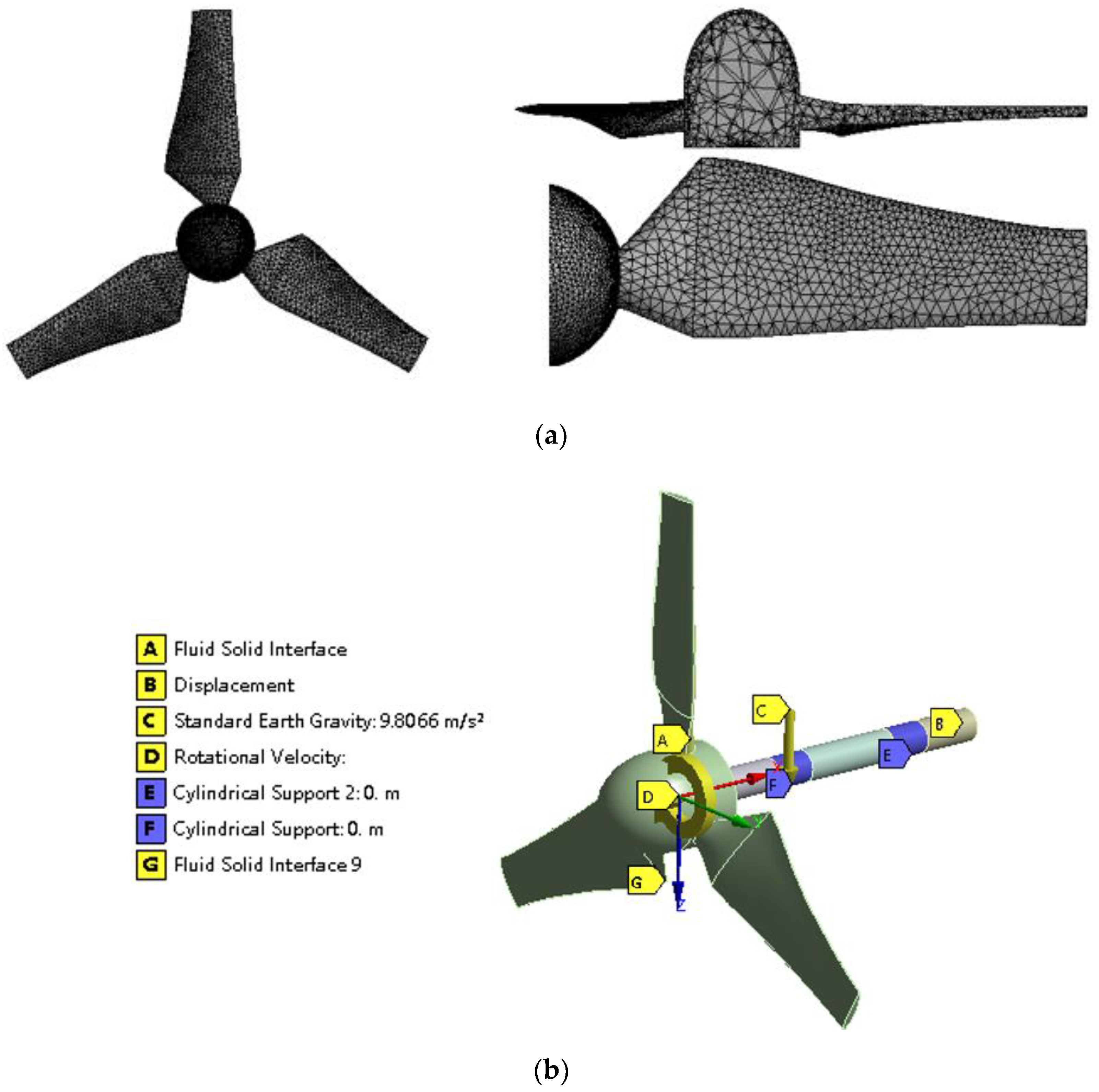

**Figure 3.**Mesh division and constraint setting of solid domain model: (

**a**) mesh of solid domain and (

**b**) constraints on solid domain.

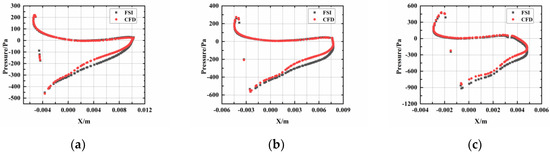

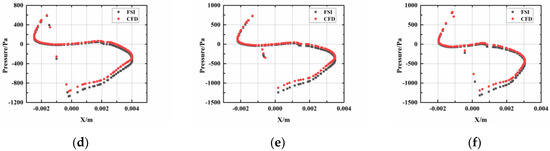

**Figure 7.**Pressure distribution of different blade sections: (

**a**) span = 20%, (

**b**) span = 40%, (

**c**) span = 50%, (

**d**) span = 60%, (

**e**) span = 70%, and (

**f**) span = 80%.

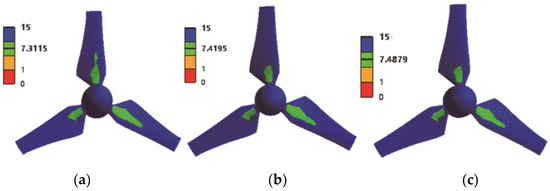

**Figure 13.**Blade safety factor at different water depths: (

**a**) water depth of 0.48 m, (

**b**) water depth of 0.6 m, and (

**c**) water depth of 0.72 m.

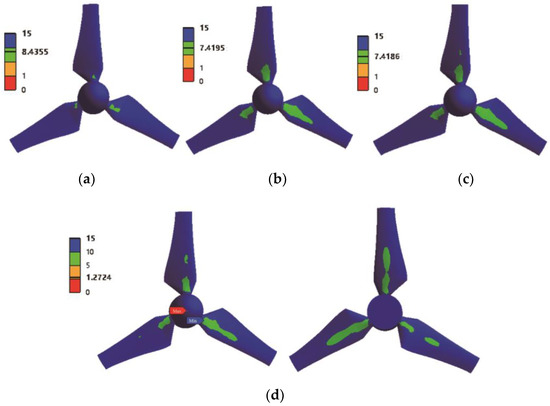

**Figure 14.**Blade safety factor at different rotational speeds: (

**a**) 92.69 r/min, (

**b**) 100 r/min, (

**c**) 102.11 r/min, and (

**d**) 110.01 r/min.

Material | Density (kg·m^{−3}) | Young’s Modulus (Pa) | Poisson’s Ratio |
---|---|---|---|

Aluminum 6061 | 2750 | 7e + 10 | 0.33 |

Segmentation Scheme | Grid Size (mm) | Number of Grids | Maximum Deformation (m) | Maximum Stress (MPa) |
---|---|---|---|---|

1 | 6 | 4187 | 0.012049 | 979.2 |

2 | 5 | 6409 | 0.012191 | 984.68 |

3 | 4 | 9616 | 0.012376 | 1122.3 |

4 | 3 | 15,337 | 0.012614 | 1307.5 |

5 | 2 | 43,382 | 0.012691 | 1337 |

Rotational Speed (r/min) | Average Stress (MPa) | Average Deformation (mm) |
---|---|---|

92.69 | 0.339 | 0.543 |

100 | 0.361 | 0.550 |

102.11 | 0.364 | 0.551 |

110.007 | 0.38 | 0.544 |
