# Evaluation of Sonic Boom Shock Wave Generation with CFD Methods

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

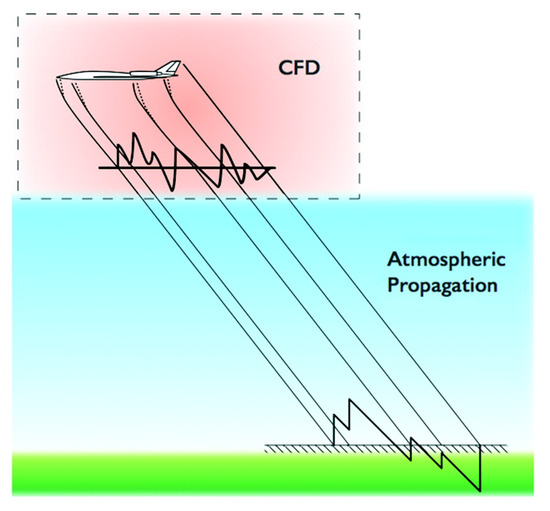

#### 2.1. CFD Approach

#### 2.2. Computational Domain

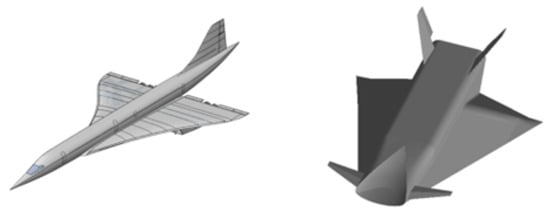

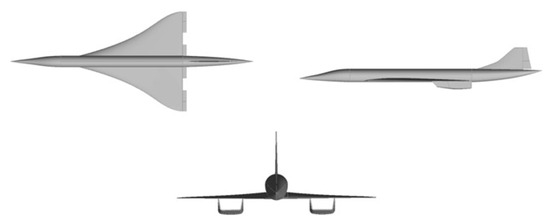

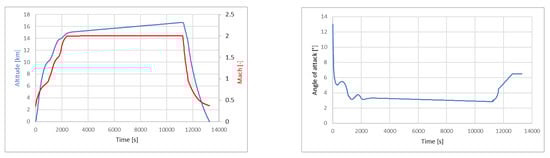

#### 2.3. CS1 Test Case

- Range $\ge 7200$ km;
- Passengers $\ge 120$;
- MTOW ≤ 200,000 kg;
- Cruise @ Mach 2.

#### Computational Grid

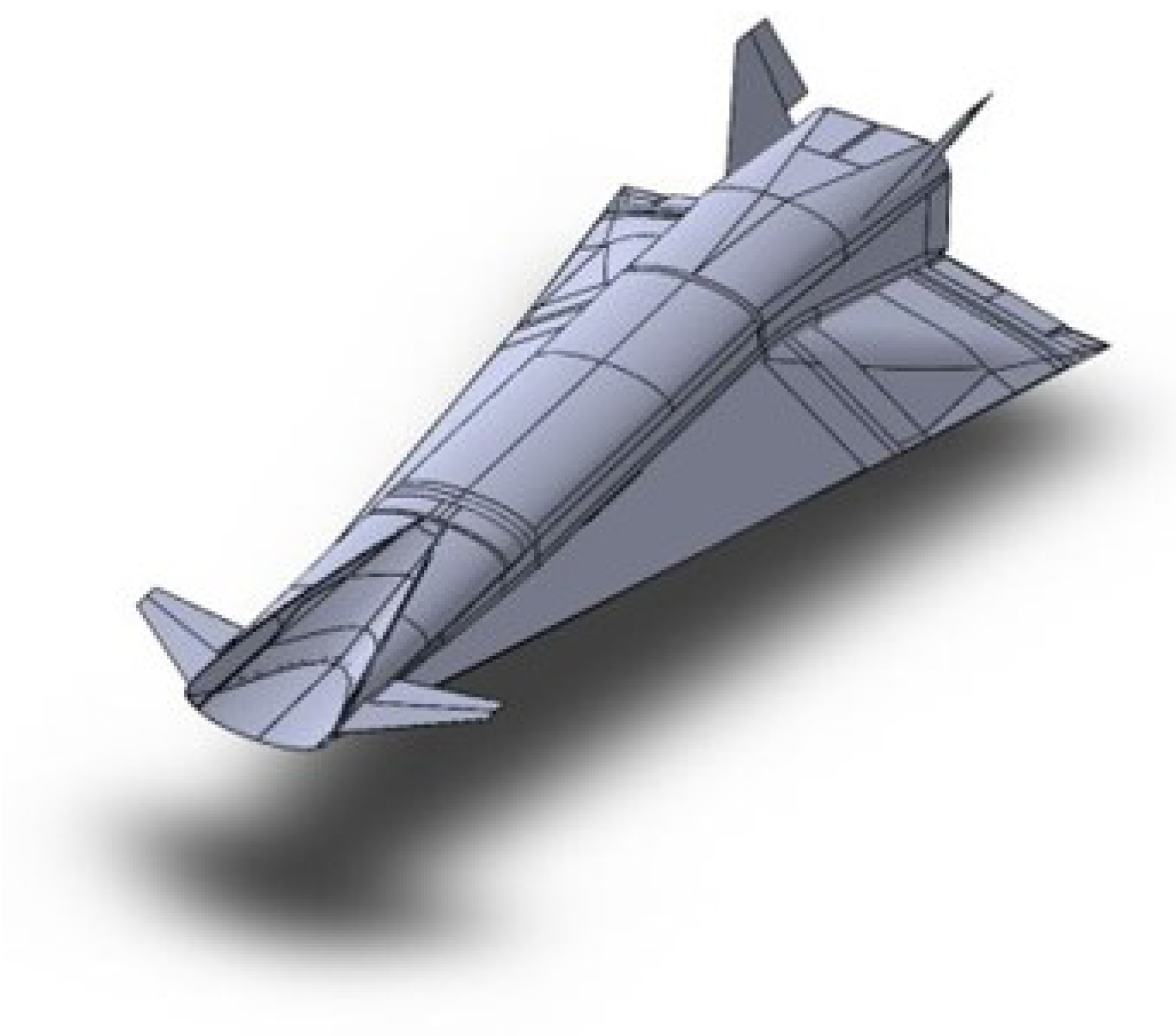

#### 2.4. CS3 Test Case

#### Computational Grid

#### 2.5. Solver Setup

## 3. Results

#### 3.1. CS1 Noise Performances

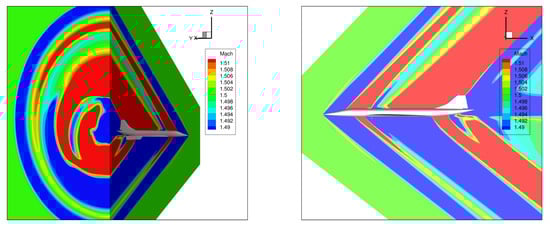

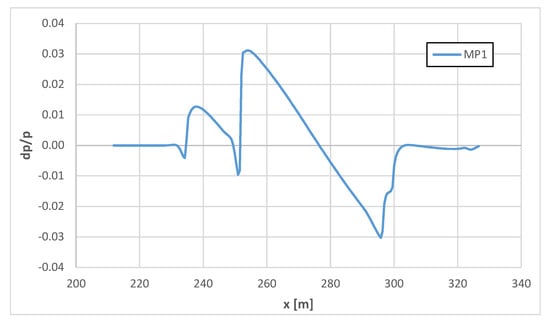

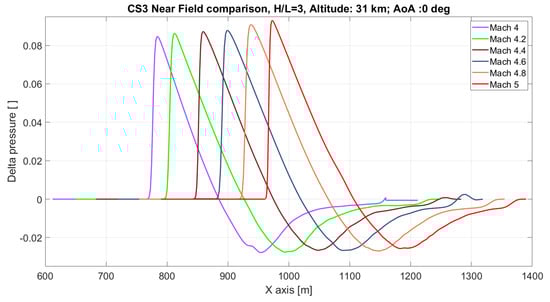

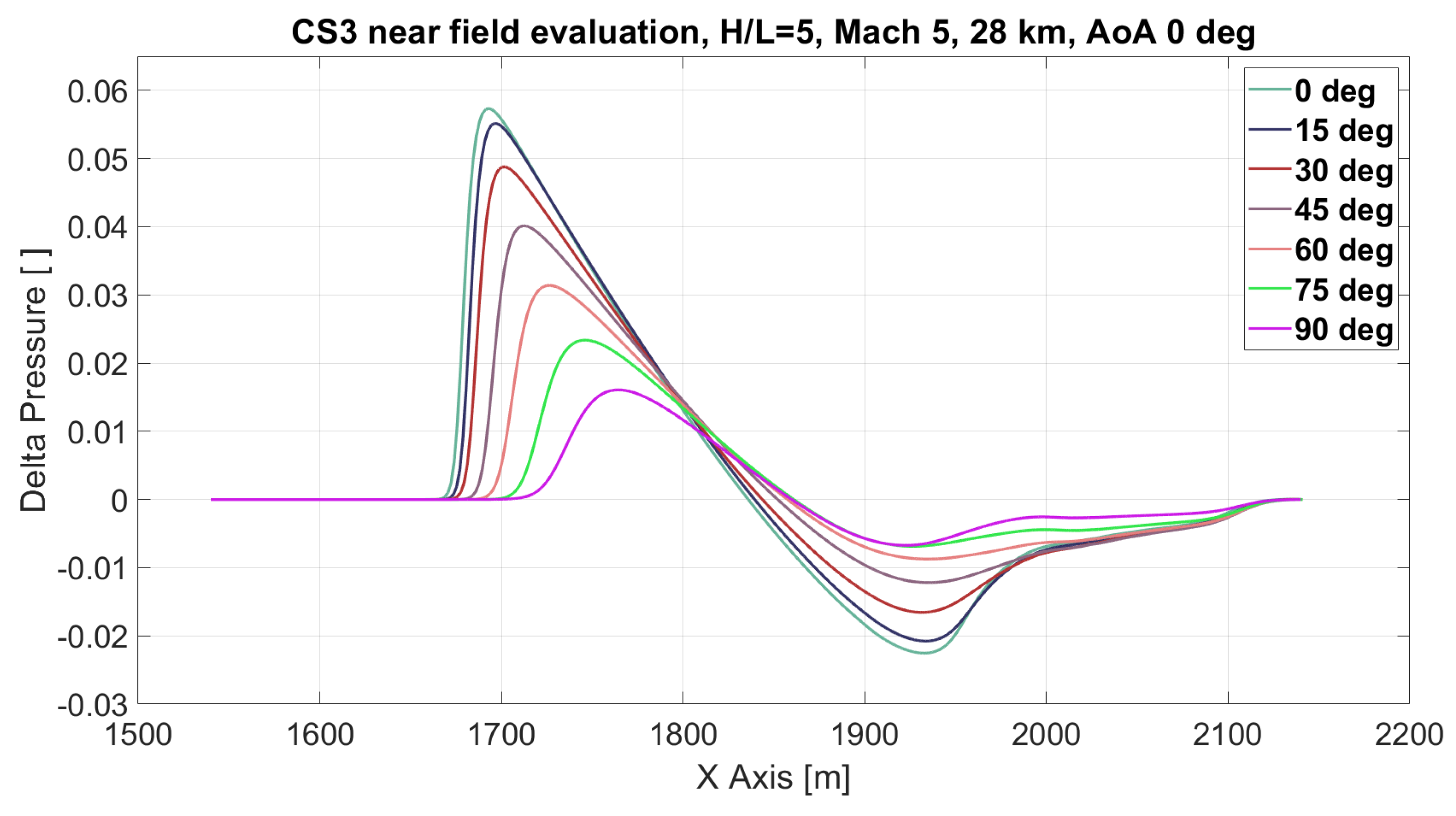

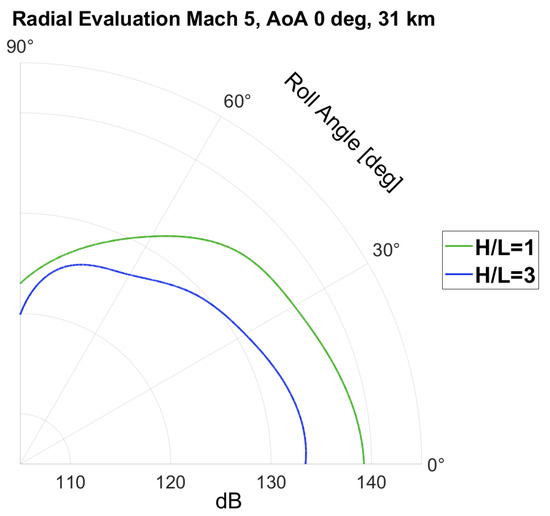

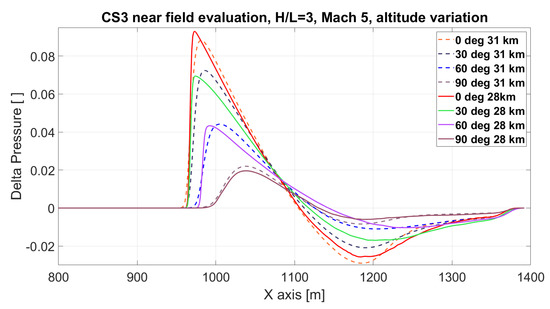

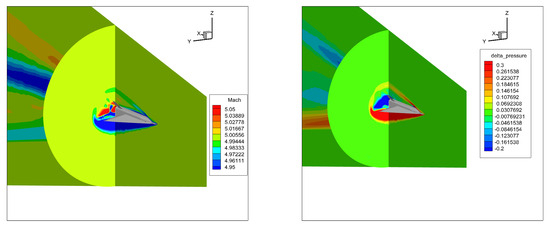

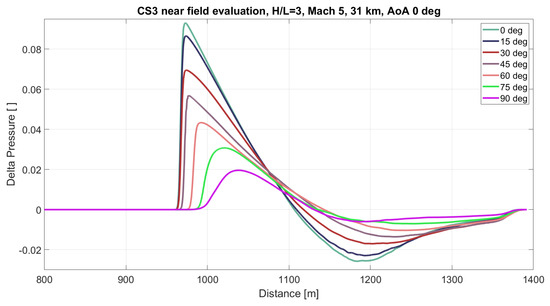

#### 3.2. CS3 Noise Performances

#### 3.3. Comparison

## 4. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

NASA | National Aeronautics and Space Administration |

$\mu $ | Mach angle |

$\theta $ | Misalignment angle |

ICAO | International Civil Aviation Organization |

MORE&LESS | MDO and REgulations for Low-boom and Environmentally Sustainable Supersonic Aviation |

CFD | Computational Fluid Dynamic |

ISA | subscript for International Standard Atmosphere |

SPL | Sound Pressure Level |

PLdb | Perceived Noise Level |

a | Speed of sound, m/s |

$H/L$ | Height over length ratio for extraction |

${C}_{L}$ | Lift coefficient |

${C}_{D}$ | Drag coefficient |

M | Mach number |

${p}_{s}$ | Static Pressure |

${p}_{0}$ | Free-stream pressure condition |

$\alpha $ | Angle of attack, deg |

## References

- Liebhardt, B.; Lütjens, K. An Analysis of the Market Environment for Supersonic Business Jets. In Proceedings of the DLRK Tagungsband 2011: 60. Deutscher Luft- und Raumfahrtkongress, Bremen, Deutschland, 27–29 September 2011. [Google Scholar]
- Alkaya, C.; Alex Sam, A.; Pesyridis, A. Conceptual Advanced Transport Aircraft Design Configuration for Sustained Hypersonic Flight. Aerospace
**2018**, 5, 91. [Google Scholar] [CrossRef] - Aronstein, D.C.; Schueler, K.L. Two Supersonic Business Aircraft Conceptual Designs With and Without Sonic Boom Constraint. J. Aircr.
**2005**, 42, 775–786. [Google Scholar] [CrossRef] - Furukawa, T.; Makino, Y. Conceptual Design and Aerodynamic Optimization of Silent Supersonic Aircraft at JAXA. In Proceedings of the 25th AIAA Applied Aerodynamics Conference, Miami, FL, USA, 25–28 June 2007. [Google Scholar] [CrossRef]
- Rötger, T.; Eyers, C.; Fusaro, R. A Review of the Current Regulatory Framework for Supersonic Civil Aircraft: Noise and Emissions Regulations. Aerospace
**2024**, 11, 19. [Google Scholar] [CrossRef] - Marulo, F. Aircraft Community Noise: The Revenge of a Neglected Problem. Aerotec. Missili Spaz.
**2015**, 94, 184–194. [Google Scholar] [CrossRef] - Maglieri, D.J.; Bobbitt, P.J.; Plotkin, K.J.; Shepherd, K.P.; Coen, P.G.; Richwine, D.M. Sonic Boom: Six Decades of Research. 2014. Available online: https://ntrs.nasa.gov/citations/20150006843 (accessed on 4 March 2024).
- Sun, Y.; Smith, H. Review and prospect of supersonic business jet design. Prog. Aerosp. Sci.
**2017**, 90, 12–38. [Google Scholar] [CrossRef] - Seebass, R. Sonic boom theory. J. Aircr.
**1969**, 6, 177–184. [Google Scholar] [CrossRef] - Rathsam, J.; Coen, P.; Loubeau, A.; Ozoroski, L.; Shah, G. Scope and goals of NASA’s Quesst Community Test Campaign with the X-59 aircraft. In Proceedings of the 14th ICBEN Congress on Noise as a Public Health Problem, Belgrade, Serbia, 18–22 June 2023. [Google Scholar]
- Stevens, S.S. Perceived Level of Noise by Mark VII and Decibels (E). J. Acoust. Soc. Am.
**1972**, 51, 575–601. [Google Scholar] [CrossRef] - Doebler, W.; Wilson, S.; Loubeau, A.; Sparrow, V. Five-year simulation study of NASA’s X-59 low-boom carpets across the contiguous United States of America. In Proceedings of the eForum Acusticum 2020, Lyon, France, 20–24 April 2020; pp. 1001–1008. [Google Scholar] [CrossRef]
- Loubeau, A.; Naka, Y.; Cook, B.G.; Sparrow, V.W.; Morgenstern, J.M. A new evaluation of noise metrics for sonic booms using existing data. AIP Conf. Proc.
**2015**, 1685, 090015. [Google Scholar] [CrossRef] - Yamashita, R.; Makino, Y.; Roe, P.L. Fast Full-Field Simulation of Sonic Boom Using a Space Marching Method. AIAA J.
**2022**, 60, 4103–4112. [Google Scholar] [CrossRef] - Yamashita, R.; Nikiforakis, N. Three-dimensional full-field simulation of sonic boom emanating from complex geometries over buildings. Shock Waves
**2023**, 33, 1–19. [Google Scholar] [CrossRef] - Ishikawa, H.; Makino, Y.; Ito, T.; Kuroda, F. Sonic Boom Prediction Using Multi-Block Structured Grids CFD Code Considering Jet-On Effects. In Proceedings of the 27th AIAA Applied Aerodynamics Conference, San Antonio, TX, USA, 22–25 June 2009. [Google Scholar] [CrossRef]
- Wintzer, M.; Kroo, I. Optimization and Adjoint-Based CFD for the Conceptual Design of Low Sonic Boom Aircraft. In Proceedings of the 50th AIAA Aerospace Sciences Meeting including the New Horizons Forum and Aerospace Exposition, Nashville, TN, USA, 9–12 January 2012. [Google Scholar] [CrossRef]
- Emmanuelli, A.; Dragna, D.; Ollivier, S.; Blanc-Benon, P. Sonic boom propagation over real topography. J. Acoust. Soc. Am.
**2023**, 154, 16–27. [Google Scholar] [CrossRef] - Dragna, D.; Emmanuelli, A.; Ollivier, S.; Blanc-Benon, P. Sonic boom reflection over urban areas. J. Acoust. Soc. Am.
**2022**, 152 6, 3323. [Google Scholar] [CrossRef] - Park, M.; Morgenstern, J. Summary and Statistical Analysis of the First AIAA Sonic Boom Prediction Workshop. J. Aircr.
**2016**, 53, 578–598. [Google Scholar] [CrossRef] - Park, M.A.; Nemec, M. Nearfield Summary and Statistical Analysis of the Second AIAA Sonic Boom Prediction Workshop. J. Aircr.
**2019**, 56, 851–875. [Google Scholar] [CrossRef] - Park, M.A.; Carter, M.B. Nearfield Summary and Analysis of the Third AIAA Sonic Boom Prediction Workshop C608 Low Boom Demonstrator. In Proceedings of the AIAA Scitech 2021 Forum, Virtual Event, 11–15 January 2021. [Google Scholar] [CrossRef]
- Glorioso, A.; Petrosino, F.; Aprovitola, A.; Barbarino, M.; Pezzella, G. Sonic Boom generation using open source CFD approach. In Proceedings of the AIAA AVIATION 2023 Forum, San Diego, CA, USA, 12–16 June 2023. [Google Scholar] [CrossRef]
- Horizon2020. MDO and REgulations for Low-Boom and Environmentally Sustainable Supersonic Aviation. Grant Agreement ID: 101006856, CORDIS European Community Research Results 2021. Available online: https://cordis.europa.eu/project/id/101006856 (accessed on 29 April 2024).
- Viola, N.; Fusaro, R.; Ferretto, D.; Gori, O.; Saracoglu, B.; Ispir, A.C.; Schram, C.; Grewe, V.; Plezer, J.F.; Martinez, J.; et al. H2020 STRATOFLY project: From Europe to Australi in less than 3 hours. In Proceedings of the ICAS 2021 the 32nd Congress of the International Council of the Aeronautical Sciences, Shanghai, China, 6–10 September 2021. [Google Scholar]
- Viola, N.; Fusaro, R.; Ferretto, D.; Gori, O.; Saracoglu, B.; Ispir, A.C.; Schram, C.; Grewe, V.; Plezer, J.; Martinez, J.; et al. Main Achievements of the H2020 STRATOFLY Project. In Titolo Volume Non Avvalorato; European Space Agency: Paris, France, 2022; pp. 1–12. [Google Scholar]
- Viola, N.; Fusaro, R.; Saracoglu, B.; Schram, C.; Grewe, V.; Martinez, J.; Marini, M.; Hernandez, S.; Lammers, K.; Vincent, A.; et al. Main challenges and goals of the H2020 STRATOFLY project. Aerotec. Missili Spaz.
**2021**, 100, 95–110. [Google Scholar] [CrossRef] - Cleveland, R.O.; Hamilton, M.F.; Blackstock, D.T. Time-domain modeling of finite–amplitude sound in relaxing fluids. J. Acoust. Soc. Am.
**1996**, 98, 2865. [Google Scholar] [CrossRef] - Rallabhandi, S.K. Advanced Sonic Boom Prediction Using the Augmented Burgers Equation. J. Aircr.
**2011**, 48, 1245–1253. [Google Scholar] [CrossRef] - Park, M.A.; Aftosmis, M.J.; Campbell, R.L.; Carter, M.B.; Cliff, S.E.; Bangert, L.S. Summary of the 2008 NASA Fundamental Aeronautics Program Sonic Boom Prediction Workshop. J. Aircr.
**2014**, 51, 987–1001. [Google Scholar] [CrossRef] - Ansys Fluent Fluid Simulation Software. ANSYS, Inc. 2018. Available online: https://www.ansys.com/products/fluids/ansys-fluent (accessed on 29 April 2024).
- Economon, T.D.; Palacios, F.; Copel, S.R.; Lukaczyk, T.W.; Alonso, J.J. SU2: An Open-Source Suite for Multiphysics Simulation and Design. AIAA J.
**2016**, 54, 828–846. [Google Scholar] [CrossRef] - Potapkin, A.; Korotaeva, T.; Moskvichev, D.; Shashkin, A.; Maslov, A.; Silkey, J.; Roos, F. An Advanced Approach for Far-Field Sonic Boom Prediction. In Proceedings of the 47th AIAA Aerospace Sciences Meeting including the New Horizons Forum and Aerospace Exposition, Orlando, FL, USA, 5–8 January 2009. [Google Scholar]
- Siclari, M.J.; Darden, C.M. Euler code prediction of near-field to midfield sonic boom pressure signatures. J. Aircr.
**1993**, 30, 911–917. [Google Scholar] [CrossRef] - Ozcer, I. Sonic Boom Prediction Using Euler / Full Potential Methodology. In Proceedings of the 45th AIAA Aerospace Sciences Meeting and Exhibit, Reno, NV, USA, 8–11 January 2007. [Google Scholar] [CrossRef]
- Roe, P. Approximate Riemann solvers, parameter vectors, and difference schemes. J. Comput. Phys.
**1981**, 43, 357–372. [Google Scholar] [CrossRef] - Roe, P.L. Characteristic-Based Schemes for the Euler Equations. Annu. Rev. Fluid Mech.
**1986**, 18, 337–365. [Google Scholar] [CrossRef] - Dagrau, F.; Loseille, A.; Din, I.S.E. Computational and Experimental Assessment of Models for the First AIAA Sonic Boom Prediction Workshop Using Adaptive High Fidelity CFD methods. In Proceedings of the 32nd AIAA Applied Aerodynamics Conference, Atlanta, GA, USA, 16–20 June 2014. [Google Scholar] [CrossRef]
- Yamashita, R.; Suzuki, K. Full-Field Sonic Boom Simulation in Real Atmosphere. In Proceedings of the 32nd AIAA Applied Aerodynamics Conference, Atlanta, GA, USA, 16–20 June 2014. [Google Scholar] [CrossRef]
- Luquet, D.; Marchiano, R.; Coulouvrat, F.; Din, I.S.E.; Loseille, A. Sonic Boom Assessment of a Hypersonic Transport Vehicle with Advanced Numerical Methods. In Proceedings of the 21st AIAA/CEAS Aeroacoustics Conference, Dallas, TX, USA, 22–26 June 2015. [Google Scholar] [CrossRef]
- Park, M.A.; Campbell, R.L.; Elmiligui, A.A.; Cliff, S.E.; Nayani, S. Specialized CFD Grid Generation Methods for Near-Field Sonic Boom Prediction. In Proceedings of the 52nd Aerospace Sciences Meeting, National Harbor, MD, USA, 13–17 January 2014. [Google Scholar] [CrossRef]
- Anderson, G.R.; Aftosmis, M.J.; Nemec, M. Cart3D Simulations for the Second AIAA Sonic Boom Prediction Workshop. J. Aircr.
**2019**, 56, 896–911. [Google Scholar] [CrossRef] - Moschetta, J.M.; Gressier, J. The sonic point glitch problem: A numerical solution. In Proceedings of the Sixteenth International Conference on Numerical Methods in Fluid Dynamics, Arcachon, France, 6–10 July 1998; Bruneau, C.H., Ed.; Springer: Berlin/Heidelberg, Germany, 1998; pp. 403–408. [Google Scholar]
- Graziani, S.; Viola, N.; Petrosino, F.; Jäschke, J. Comparison between simplified approach and CFD & Propagation tool for sonic boom estimation. In Proceedings of the AIAA AVIATION 2023 Forum, San Diego, CA, USA, 12–16 June 2023. [Google Scholar] [CrossRef]
- Roncioni, P.; Marini, M.; Gori, O.; Fusaro, R.; Viola, N. Aerodatabase Development and Integration and Mission Analysis of a Mach 2 Supersonic Civil Aircraft. Aerospace
**2024**, 11, 111. [Google Scholar] [CrossRef] - Pezzella, G.; Viviani, A. Analysis of Subsonic/Hypersonic Aerodynamics of a High-Speed Aircraft. Aerotec. Missili Spaz.
**2024**. [Google Scholar] [CrossRef] - Viviani, A.; Pezzella, G. Aerodynamic performance analysis of three different vehicle concepts. Aerotec. Missili Spaz.
**2017**, 96, 16–31. [Google Scholar] [CrossRef] - Gori, O.; Borio, V.; Viola, N.; Roncioni, P.; Marini, M.; Pepelea, D.; Stoican, M.G. From conceptual to preliminary design: Aerodynamic characterization of MR5 civil high-speed aircraft. In Proceedings of the 25th AIAA International Space Planes and Hypersonic Systems and Technologies Conference, Bengaluru, India, 28 May–1 June 2023. [Google Scholar] [CrossRef]
- Wintzer, M.; Nemec, M.; Aftosmis, M. Adjoint-Based Adaptive Mesh Refinement for Sonic Boom Prediction. In Proceedings of the 26th AIAA Applied Aerodynamics Conference, Honolulu, HI, USA, 18–21 August 2008. [Google Scholar] [CrossRef]

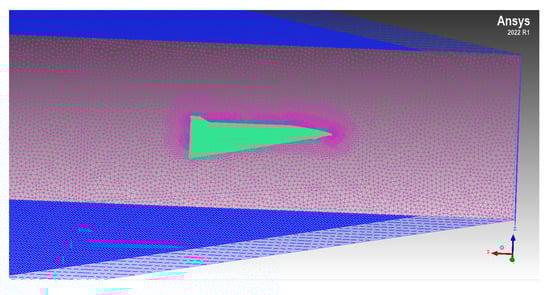

**Figure 3.**Hybrid grid approach: inner unstructured mesh (pink) and outer structured inclined mesh (blue).

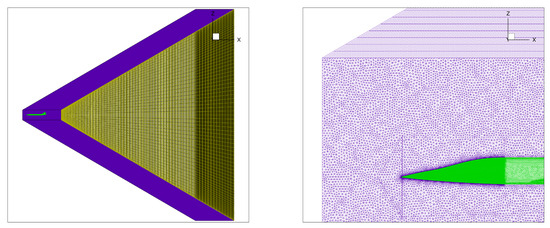

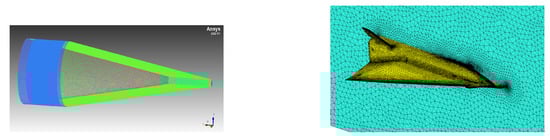

**Figure 6.**CS1 computational grid, overall grid domain (

**left**), and particular cells around the aircraft (

**right**).

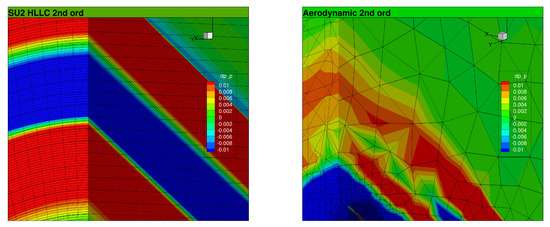

**Figure 7.**CS1 mesh grid, comparison between aeroacoustic (

**left**) and aerodynamic (

**right**) mesh construction approaches.

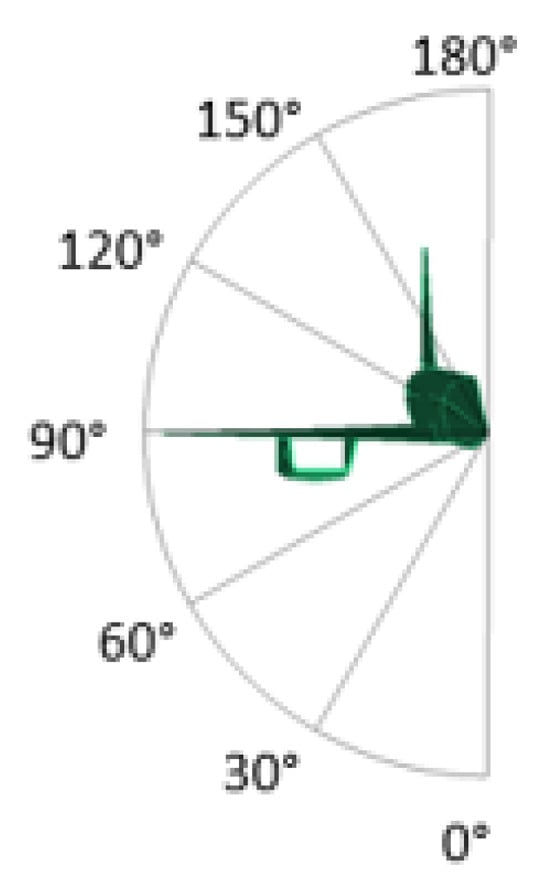

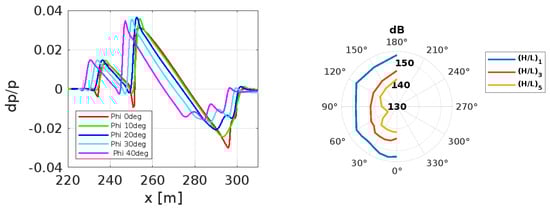

**Figure 14.**CS1 pressure signature in radial position around the aircraft at $H/L=3$ on the left, values in dB on the right, for mission point 1.

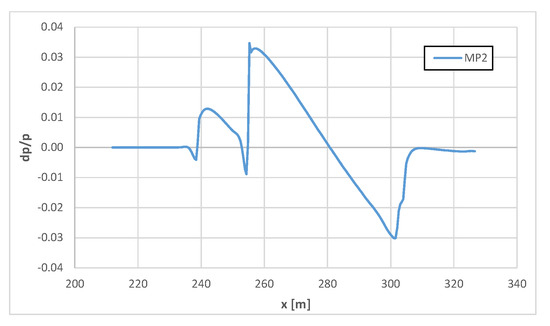

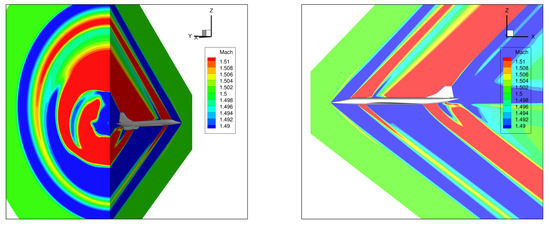

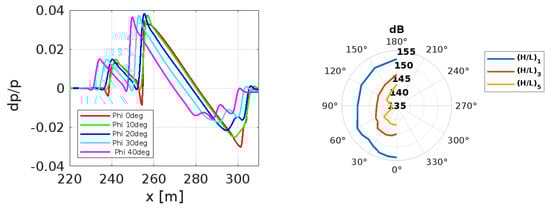

**Figure 17.**CS1 pressure signature in radial position around the aircraft at $H/L=3$ on the left, values in dB on the right, for mission point 2.

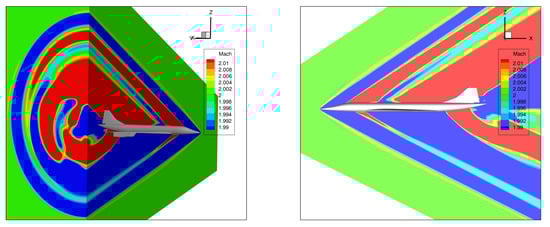

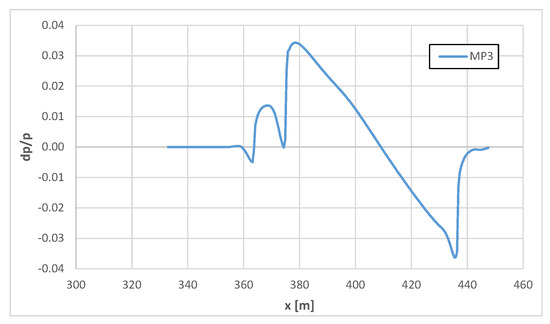

**Figure 19.**CS1 pressure signature at $H/L=3$ for mission point 3, Mach 2.0, AoA 3.5, altitude 18,500 m.

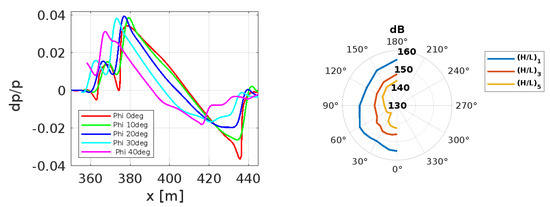

**Figure 20.**CS1 pressure signature in radial position around the aircraft at $H/L=3$ on the left, values in dB on the right, for mission point 3.

Characteristic | Value |
---|---|

Design GTO Mass [kg] | 179,849 |

OEW [kg] | 79,460 |

Design fuel weight [kg] | 85,289 |

Design Payload weight | 15,200 |

Wing Surface [m^{2}] | 358 |

Aircraft Length [m] | 61.7 |

Wingspan [m] | 25.6 |

Design Range [km] | 6500 |

Cruise Altitude [m] | 18,000 |

Thrust to weight ratio (dry at TO) | 0.4 |

Wing Loading [kg/m^{2}] | 494 |

Lift over drag ratio | 7 |

Max Mach | 2.2 |

Required Runway Length [m] | 3400 |

Operating Conditions | Mission Point 1 | Mission Point 2 | Mission Point 3 |
---|---|---|---|

Mach number | 1.5 | 1.5 | 2.0 |

Angle of attack [deg] | 4.0 | 4.5 | 3.5 |

Altitude [m] | 17,500 | 15,000 | 18,500 |

Pressure [Pa] | 8120.51 | 12,044.6 | 6935.86 |

Temperature [K] | 216.6 | 216.6 | 216.6 |

Characteristic | Value |
---|---|

Overall length [m] | 75.16 |

Wingspan [m] | 41.0 |

Reference lifting surface [m^{2}] | 2000 |

Internal Volume Arrangement [m^{3}] | 8000 |

Available fuel volume [m^{3}] | 1582 |

Payload capacity [kg] | 26,400 |

Reference Range [km] | 19,000 |

MTOW [kg] | 288,400 |

OEW [kg] | 150,000 |

Available fuel mass [kg] | 112,000 |

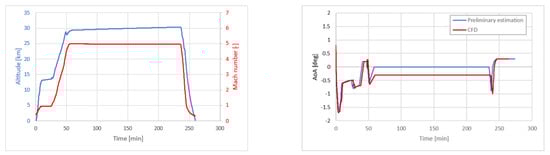

Mach Number | Altitude [km] | Pressure [Pa] | Temperature [K] | Mission Point |
---|---|---|---|---|

4.0 | 31.0 | 1008.23 | 227.650 | 1 |

4.2 | 31.0 | 1008.23 | 227.650 | 2 |

4.4 | 31.0 | 1008.23 | 227.650 | 3 |

4.6 | 31.0 | 1008.23 | 227.650 | 4 |

4.8 | 31.0 | 1008.23 | 227.650 | 5 |

5.0 | 31.0 | 1008.23 | 227.650 | 6 |

5.0 | 28.0 | 1586.29 | 224.650 | 7 |

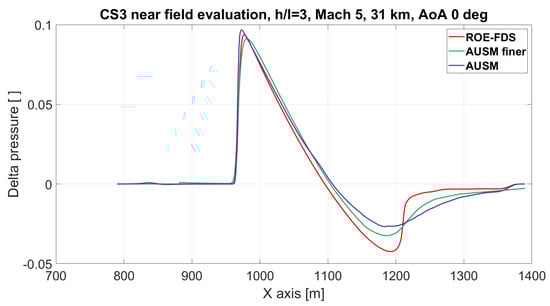

Scheme | ${\mathit{C}}_{\mathit{L}}$ | ${\mathit{C}}_{\mathit{D}}$ |
---|---|---|

AUSM | 0.05690 | 0.01129 |

ROE-FDs | 0.05704 | 0.01136 |

AUSM Finer Grid | 0.05690 | 0.01132 |

Aerodynamic | 0.05674 | 0.01121 |
