Extreme Precipitation Events During the Wet Season of the South America Monsoon: A Historical Analysis over Three Major Brazilian Watersheds

by
Aline Araújo de Freitas
*,
Vanessa Silveira Barreto Carvalho
and
Michelle Simões Reboita
Institute of Natural Resources, Federal University of Itajubá (UNIFEI), Itajubá 37500-903, Brazil
*
Author to whom correspondence should be addressed.
Climate 2024, 12(11), 188; https://doi.org/10.3390/cli12110188
Submission received: 2 October 2024 / Revised: 8 November 2024 / Accepted: 13 November 2024 / Published: 15 November 2024
(This article belongs to the Special Issue Impacts of Extreme Weather on Hydrological Process, Water Quality and Ecosystem in Agricultural and Forested Watersheds under the Changing Climate)
Browse Figures
Versions Notes

Abstract

:
Most of South America, particularly the region between the southern Amazon and southeastern Brazil, as well as a large part of the La Plata Basin, has its climate regulated by the South American Monsoon System. Extreme weather and climate events in these areas have significant socioeconomic impacts. The Madeira, São Francisco, and Paraná river basins, three major watersheds in Brazil, are especially vulnerable to wet and drought periods due to their importance as freshwater ecosystems and sources of water for consumption, energy generation, and agriculture. The scarcity of surface meteorological stations in these basins makes meteorological studies challenging, often using reanalysis and satellite data. This study aims to identify extreme weather (wet) and climate (wet and drought) events during the extended wet season (October to March) from 1980 to 2022 and evaluate the performance of two gridded datasets (CPC and ERA5) to determine which best captures the observed patterns in the Madeira, São Francisco, and Paraná river basins. Wet weather events were identified using the 95th percentile, and wet and drought periods were identified using the Standardized Precipitation Index (SPI) on a 6-month scale. In general, CPC data showed slightly superior performance compared to ERA5 in reproducing statistical measures. For extreme day precipitation, both datasets captured the time series pattern, but CPC better reproduced extreme values and trends. The results also indicate a decrease in wet periods and an increase in drought events. Both datasets performed well, showing they can be used in the absence of station data.

1. Introduction

Most of South America, between the southern Amazon and southeastern Brazil and a large part of the La Plata Basin, has its climate regulated by a combination of systems and processes that are named the South America Monsoon System (SAMS) [1,2,3,4,5,6]. The lifecycle of the SAMS is also influenced by several factors such as the complex topography and land uses of the region and the variability in different time scales over the Pacific and Atlantic Oceans, among others [4].
The occurrence of extreme rainfall events leading to floods and rainfall deficits causing droughts has been extensively reported in the SAMS region [7,8,9,10,11,12], where watersheds are extremely vulnerable to its impacts. Since the present study focuses on extreme events, it is helpful to define what extreme weather and climate events are. Extreme weather events are rare events in a specific location and time of year and extreme climate events are occurrences where a climate variable value exceeds a threshold near the upper or lower limits of observed values and persists for an extended period, such as prolonged droughts or heavy rainfall throughout the season [13].
In Brazil, major watersheds such as the Madeira, São Francisco, and Paraná river basins are extremely vulnerable to extreme weather (wet) and climate (wet and drought) events because of their relevance as freshwater ecosystems and as water sources for human consumption, energy generation, and agriculture [11,12,14]. Extreme precipitation events, on a weather scale, can lead to flash floods and river flooding [15], while on a climate scale, seasonal meteorological droughts can cause hydrological droughts, which can impact the water supply, energy production, the transportation sector, and water quality [16]. The north of Brazil has been suffering from a lack of rainfall, especially in the Amazon, which has faced drought episodes in recent years, notably in 2005, 2010, 2015–2016, and most recently in 2023/2024 [17,18].
It is also important to highlight that, in areas of South America, meteorological surface stations are scarce [19,20], which leaves important gaps in defining extreme precipitation thresholds, frequency, and patterns. Hence, products such as reanalysis and estimated satellite data are commonly used to provide such information [20], but with no previous validation with some existing stations.
Since extreme precipitation events on both a weather and climate scale can be responsible for biodiversity and economic losses, such as failures in the supply of energy and water for agriculture and navigation, it is important to study the frequency, duration, and intensity of such events. In this framework, the main objective of this study is to describe the occurrence and trends of extreme weather (wet) and climate (wet/drought) events in the Madeira, São Francisco, and Paraná river basins during the extended rainy season of South America (October to March) through observed and grid point datasets: the Climate Prediction Center (CPC) precipitation analysis and ERA5 reanalysis. We also aim to highlight the grid dataset that better represents the observations in the SAMS region. This study is part of the project “Combinando Modelagem Numérica Climática e uso de Aprendizado de Máquina na detecção de extremos climáticos em horizontes subsazonais, sazonais e multi-decadais”, project 88887.688971/2022-00, funded by the Coordination for the Improvement of Higher Education Personnel (CAPES).

2. Materials and Methods

2.1. Study Area

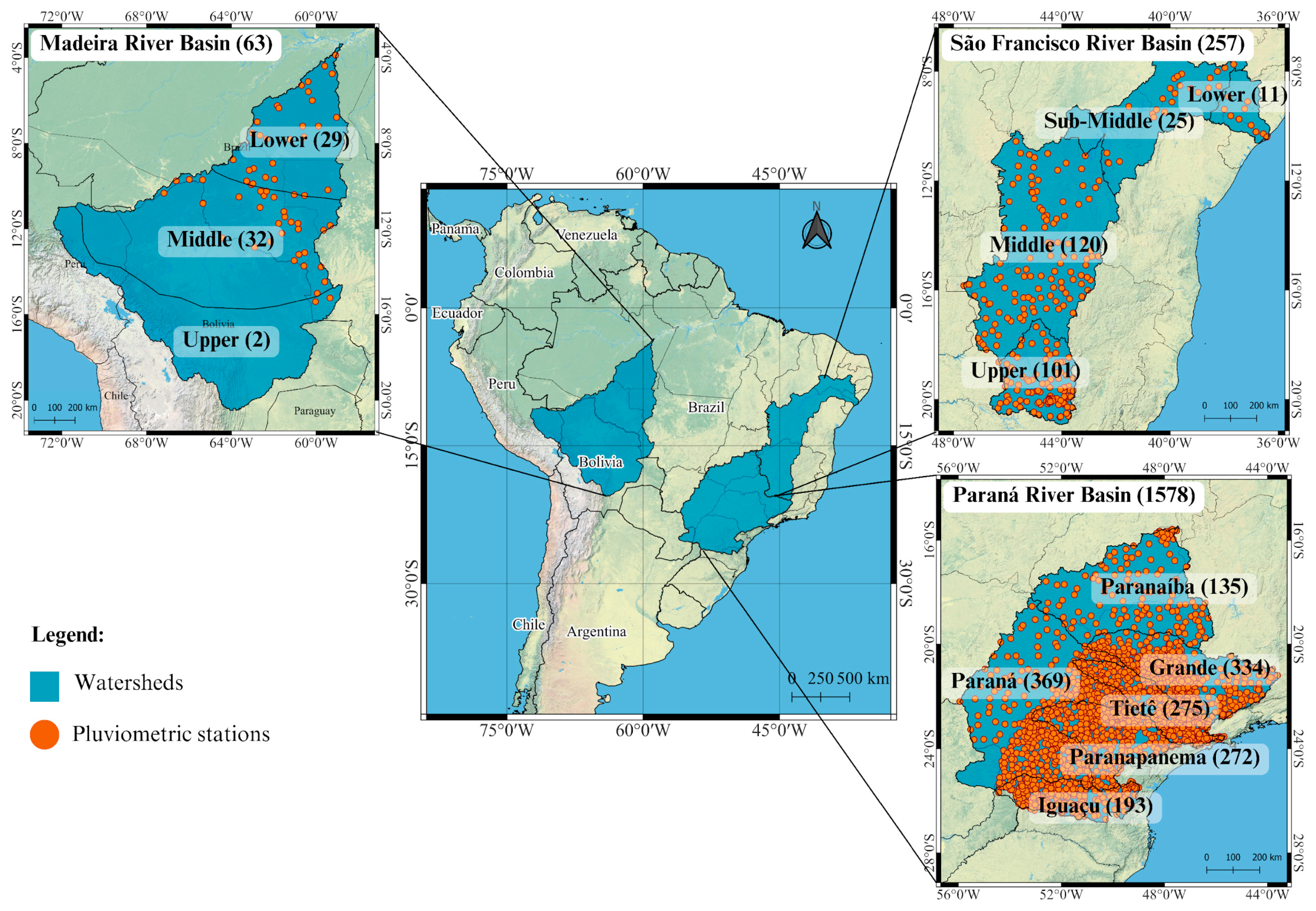

This study focuses on three socio-economically important river basins located in the SAMS region [21,22,23]: the Madeira River Basin (MRB), the Paraná River Basin (PRB), and the São Francisco River Basin (SFRB) (Figure 1).

2.1.1. Madeira River Basin

The MRB is mainly composed of the Madeira River, which is one of the five rivers with the highest water flow in the world, the longest and most significant tributary of the Amazon River, and one of the main Brazilian rivers [23]. With a hydrographic basin of approximately 1.25 million km², the river runs 3315 km, covering Bolivia (51%), Brazil (42%), and Peru (7%), and is the 17th longest river in the world [23,24]. Originating from the Beni, Mamoré, and Madre de Dios rivers, the river crosses Rondônia and flows into the Amazon [25,26]. The MRB is divided into three regions: Upper, Middle, and Lower Madeira (Figure 1).
Its importance ranges from the subsistence of riverside populations to the regional economy, through the use of its water in agriculture, fishing, industry, waterway transport, and energy production [23,24,25]. The MRB has a hydroelectric complex, which includes the Jirau and Santo Antônio plants, generating around 3500 MW of energy each, which is subsequently distributed to the Center-West and Southeast regions of Brazil [25,27,28]. The MRB is located in the Amazon biome and features a diverse range of vegetation, including areas of campinaranas, swamps, grasslands, savannas, and upland and floodplain forests [29,30]. The climate present in the basin is equatorial, being hot and humid, with an average precipitation of 1940 mm year−1 and temperatures between 24 and 26 °C [31,32], influenced mainly by the SAMS [2,4,6].

2.1.2. Paraná River Basin

The PRB occupies around 10% of the national territory, covering six Brazilian states and the Federal District, with an area of approximately 879,873 km2 [22,33]. The PRB is divided into six regions: Paranaíba, Grande, Tietê, Paraná, Paranapanema, and Iguaçu (Figure 1). Located in the most economically developed region of the country, the PRB meets 32% of the national water demand, mainly for irrigation, industrial, and urban use [33,34]. With a population of around 61.4 million inhabitants, the PRB contains 36% of the urban population and produces 45% of the country’s GDP [33,34]. It houses important metropolitan regions such as São Paulo, Brasília, and Curitiba [22,33,35]. Furthermore, this region includes the Itaipu Hydroelectric Plant, the largest generator of clean and renewable energy in the world [36,37].
In this basin, the predominant biomes are the Atlantic Forest and the Cerrado [38] and the climatic parameters vary spatially and temporally, affecting water availability in the region. The dominant climate is tropical, except in Paraná and Santa Catarina, where a temperate subtropical climate prevails [33,35]. The SACZ is the main system responsible for rainfall in summer [39,40].

2.1.3. São Francisco River Basin

The SFRB contains an important river, the São Francisco, also known as the National Integration River, which extends for 2863 km from latitude 7°00′ S to 21°00′ S, crossing six Brazilian states [22,41,42]. The SFRB covers 638,466 km2, around 7.5% of the Brazilian territory, and is home to more than 14 million inhabitants [22,34]. The SFRB is divided into four regions [21], Upper, Middle, Sub-Middle, and Lower São Francisco (Figure 1), and stands out for its energy generation potential, with hydroelectric plants such as Três Marias, Sobradinho, Paulo Afonso, Itaparica, and Xingó, and its water supply for the population, navigation, fishing, agriculture, and basic sanitation [43].
Fragments of biomes such as Cerrado, Caatinga, and Atlantic Forest are found in this basin. Furthermore, due to its territorial extension, its climate varies from hot and humid tropical to semi-arid, influenced by systems such as SACZ [39,40,44] in tUpper and Middle São Francisco and the Intertropical Convergence Zone (ITCZ) [45] in Sub-Middle and Lower São Francisco.

2.2. Data

Daily rainfall data registered between 1980 and 2022 from 1898 pluviometric stations of the National Water and Basic Sanitation Agency (ANA; https://www.snirh.gov.br/hidroweb/serieshistoricas, accessed on 10 June 2024) and located in the MRB, PRB, and SFRB were used in this study (Figure 1). However, only sites with at least 7300 days of valid observations (approximately 20 years of data) were considered. ANA data were classified according to consistency: level 1 included pre-analyzed data, used in this study, while level 2 comprised raw data.
Daily rainfall data from the Gauge-Based Analysis of Global Daily Precipitation (CPC) [46,47] generated by the National Oceanic and Atmospheric Administration/Climate Prediction Center (NOAA/CPC) and reanalysis data from ERA5 [48], provided by the European Center for Medium-Range Weather Forecasts (ECMWF), from 1980 to 2022, were also used. CPC analysis has a horizontal spatial resolution of 0.5° and combines data from surface observations of approximately 30,000 sites from around the world, creating a unified, high-quality dataset. ERA5 reanalysis has a 0.25° horizontal spatial resolution and combines model data and global observations to create a complete and consistent dataset, based on the laws of physics.

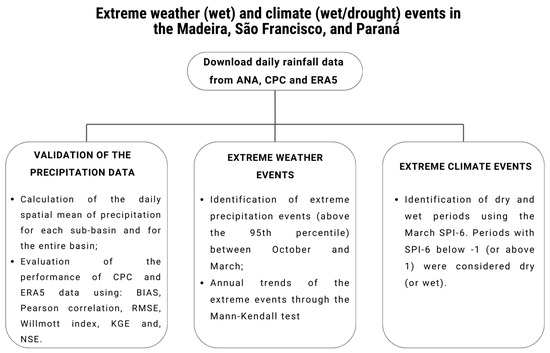

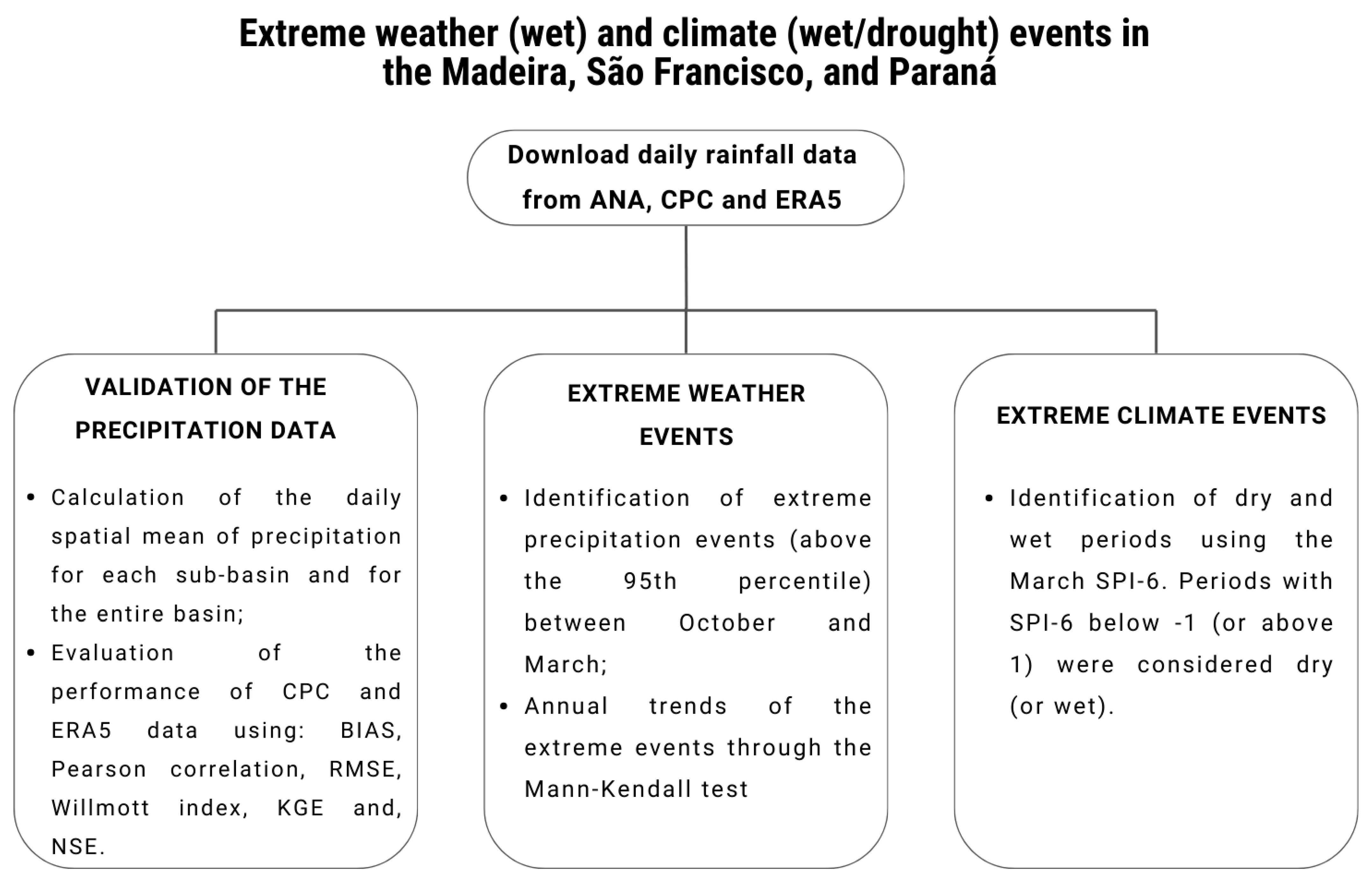

The flowchart below summarizes all the analyses performed (Figure 2), which will be described in more detail in the following sections.

2.3. Validation of the Precipitation Data

Since we aimed to conduct an integrated study of each sub-basin and the basins as a whole, the precipitation spatial average for each sub-basin and the entire basin was initially calculated for each day of the study period and each dataset (CPC, ERA5, and rain-gauge stations). To delimitate the sub-basin and basin areas, the shapefiles provided by ANA were used. Then, to evaluate the performance of CPC analysis and ERA5 reanalysis in the study region, we compared the daily time series obtained with the averaged area with those from rain-gauge stations through a set of statistical measures: mean error (BIAS) [49], Pearson correlation coefficient [50,51], root mean square error (RMSE) [49,51,52], Willmott Index [53,54], Kling–Gupta efficiency coefficient (KGE) [55,56], and Nash–Sutcliffe efficiency (NSE) [57,58].

2.4. Extreme Weather Events

The time series (ANA, CPC, and ERA5) obtained with the methodology from Section 2.3 were used to identify extreme weather events. Daily rainfall extremes occur when the daily precipitation values exceed the 95th percentile (P95), calculated considering only rainfall values above 1 mm within the months of the extended rainy season (from October to March). The number of days per year with precipitation values over the threshold of the 95th percentile was calculated. Following this, the Sun’s slope was computed and the Mann–Kendall test [51] was applied to verify the statistical significance (at 0.05 level) of the trends related to the frequency of occurrence of precipitation extremes.

2.5. Extreme Climate Events

Drought and wet periods were identified through the Standardized Precipitation Index (SPI), calculated considering the average time series of the entire basins for all datasets (ANA, CPC, and ERA5). The SPI is an index that only uses historical precipitation series to identify drought and wet periods [59]. It was developed by Mckee et al. [60] and has the advantage of being able to be calculated for different time scales, and it is recommended by WMO [61]. In this study, the SPI-6 from March, which refers to precipitation between October (of the previous year) to March, was analyzed. The choice of the March SPI-6 was made based on the desire to evaluate the extended rainy season of South America, in order to check seasonal drought and wet events in the basins during the rainiest months, and to verify which database (CPC or ERA5) has more similarity with observations. Periods in which the March SPI-6 was less (more) than −1 (1) were considered as drought (wet) episodes, the value at which a drought (wet) event begins, according to the SPI classification developed by Mckee et al. [60].

3. Results and Discussion

3.1. Basic Statistical Analysis

Although our main focus is on the representation of extreme weather and climate events by CPC and ERA5, here we also present the performance of these grid datasets in reproducing the basic climatology of each subbasin. For the MRB, both datasets (CPC and ERA5) indicate higher precipitation volumes in the northern portion of the basin, where the Lower Madeira (III) region is located, which includes the Madeira river hydroelectric complex, comprising the Jirau and Santo Antônio plants. Higher rainfall is also observed in the western region, near the borders of the Upper (I) and Middle Madeira (II) regions (Figure 3a,b). The southern part of the basin, particularly in the Upper Madeira (I) region, shows lower accumulated rainfall rates, consistent with Vergasta et al. [62], and this subregion presents the greatest discrepancies between the CPC and ERA5, with the CPC indicating low precipitation accumulations throughout the region, while ERA5 shows low values only in the southern part, with some areas in the north accumulating more than 2000 mm. Regarding monthly averages, while CPC tends to underestimate the ANA observations, particularly during the rainy season, ERA5 shows more subtle differences when compared to observations (Figure 3d). This pattern shifts during the driest periods, with CPC data aligning more closely with observations, while ERA5 tends to overestimate precipitation in the basin, as also observed by Liu et al. [63], who identified this same tendency for overestimation in relation to monthly precipitation in the Amazon basin region. The statistical results calculated from daily precipitation data revealed smaller bias for ERA5; however, there were no large differences in other statistical parameters computed for CPC and ERA5, respectively (Figure 3c).

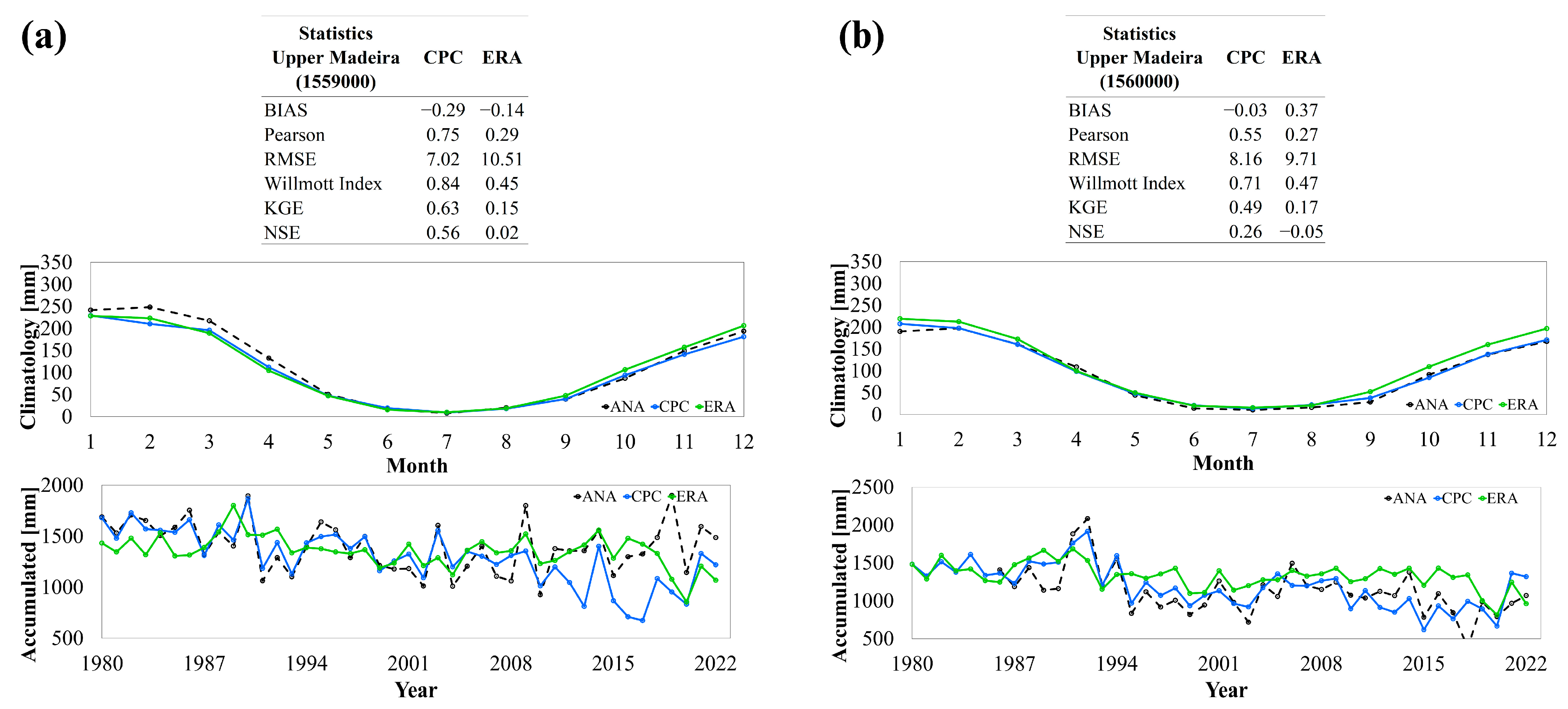

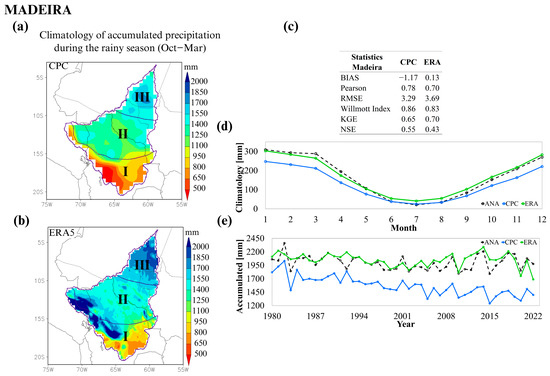

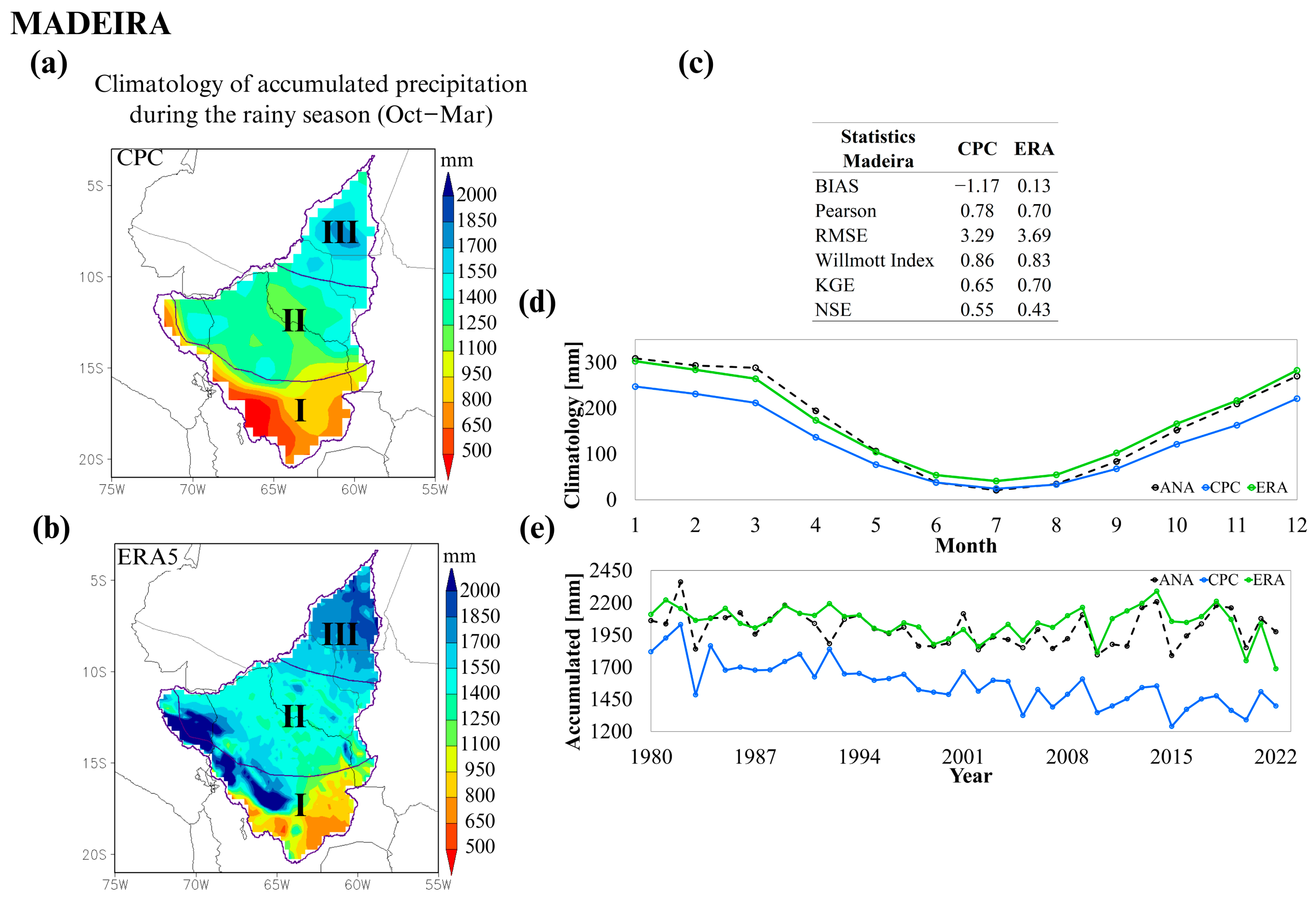

To improve understanding, especially in the Upper Madeira region, where there are few meteorological stations available, two-point comparisons were added (Figure 4). The results show that the CPC model outperforms ERA in both locations in Upper Madeira (1559000 and 1560000). CPC presents lower errors (BIAS and RMSE) and better correlations (Pearson), in addition to greater agreement with observations, reflected in metrics such as the Willmott Index, KGE, and NSE. The monthly climatology and annual accumulated precipitation curves indicate that CPC more accurately captures the seasonal and interannual variability of precipitation, while ERA presents greater deviations, especially in correlation and mean square error.

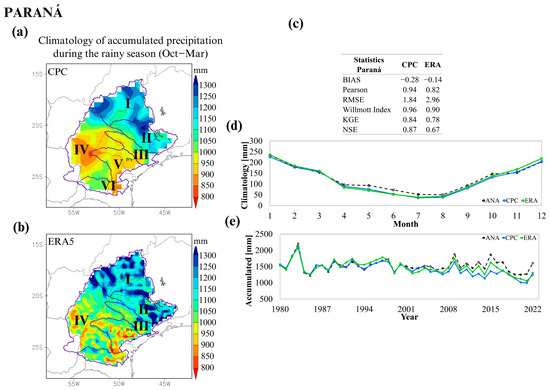

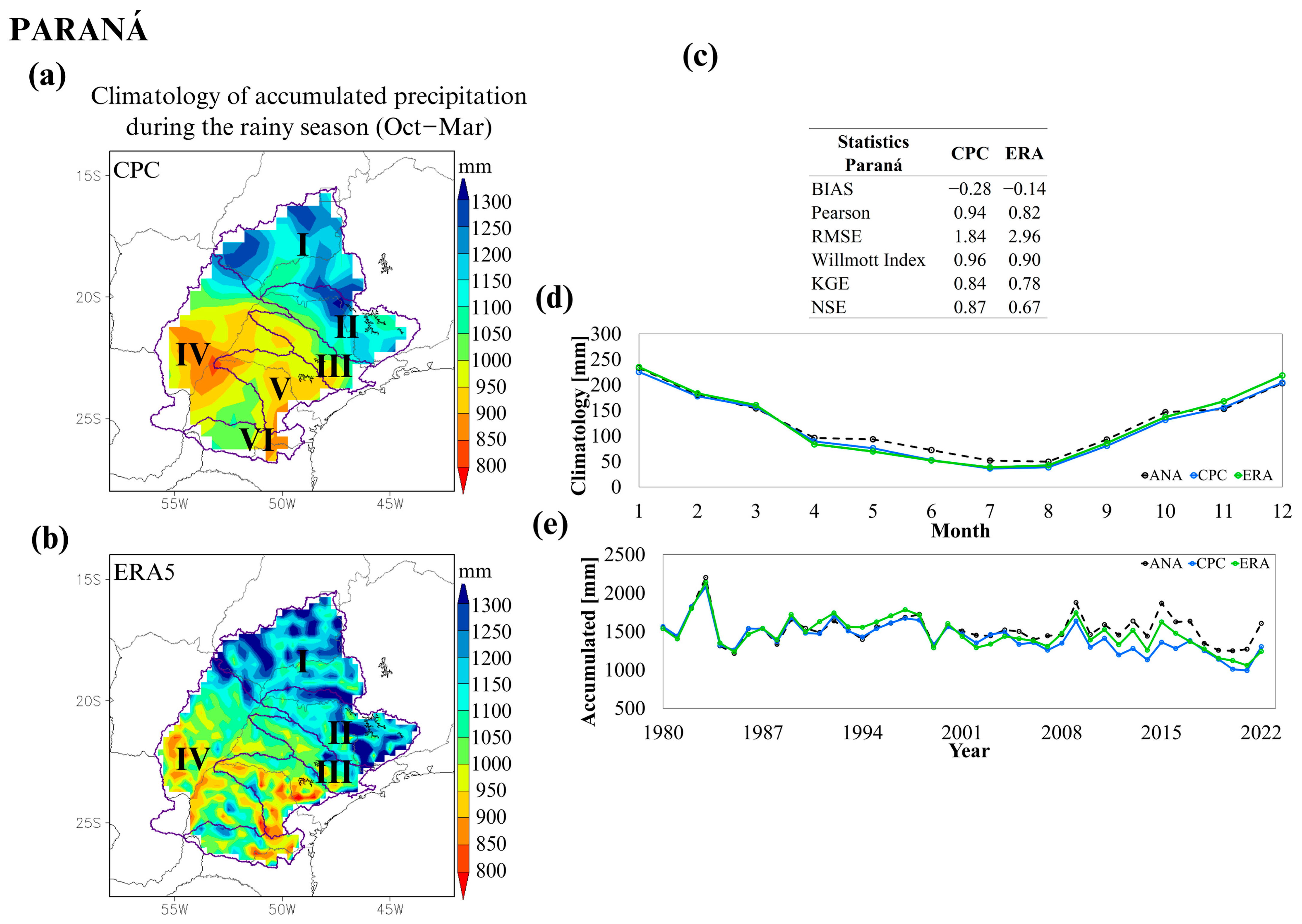

The spatial patterns of precipitation provided by CPC and ERA5 are similar in the PRB (Figure 5a,b). The highest rainfall values are concentrated in the northern (I and II) and southern (VI) extremities of the basin, as also shown by Rafee et al. [64] and Freitas et al. [12]. In the southern part of the region (VI), the Itaipu Power Plant is present—the largest global generator of clean and renewable energy [65]. Despite CPC slightly underestimating precipitation data (negative bias), the results indicate that CPC performs better than ERA5 across this entire basin (Figure 5c). This good performance, albeit with a slight underestimation of the CPC data, was also observed by Cardoso and Quadro [66], who evaluated precipitation in the southern region of Brazil, where a large part of the basin is located.

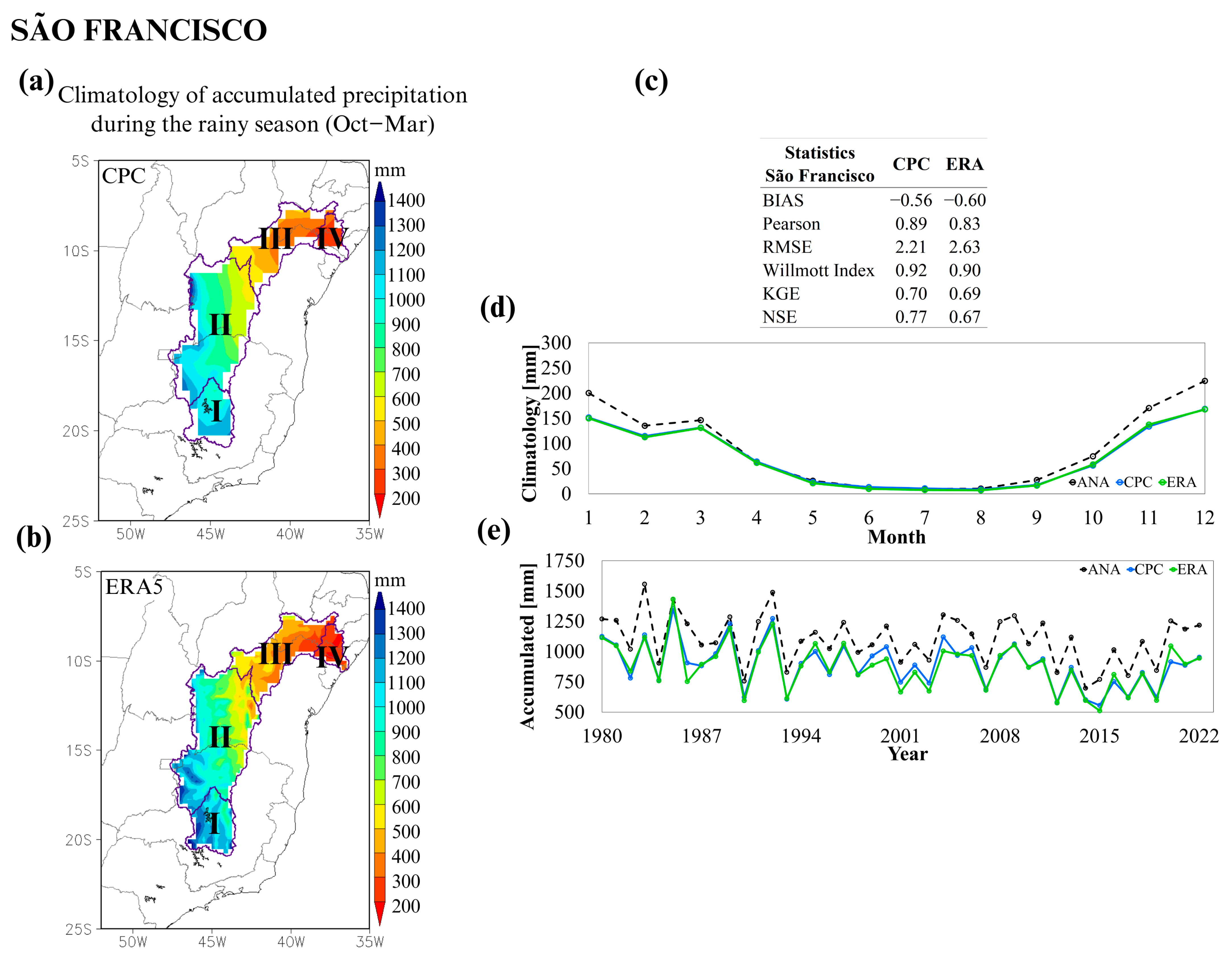

Due to its vast latitudinal extension, precipitation in the SFRB exhibits higher rainfall values concentrated in the southern sector of the basin (I and II) and lower rainfall values in the Sub-Middle (III) to Lower (IV) São Francisco regions (Figure 6a,b), as also shown by Freitas et al. [11]. The Brazilian semi-arid region is located in subregions III and IV, and the water demand here is greater than the supply, which generates socioeconomic impacts [67,68]. CPC and ERA5 indicate that the monthly and annual average have similar patterns to the observation, although both datasets underestimate precipitation values (Figure 6d,e). The statistical analysis shows that, although closely matched, CPC has superior performance (Figure 6c). Overall, both datasets exhibit high correlation and low bias, with agreement with ANA, especially notable for the CPC database. Torres et al. [69], when evaluating different databases with regard to the SFRB, also identified good performance of CPC data in this region.
In general, for the three basins, both datasets show strong correlation coefficients, low error (RMSE), and high agreement values with the ANA data, indicating good performance (Willmott Index, KGE, and NSE). However, the CPC results stand out, especially in the PRB, demonstrating superior performance compared to the other datasets.

3.2. Extreme Daily Precipitation Events and Trend Analysis

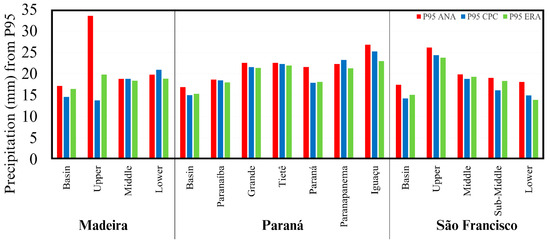

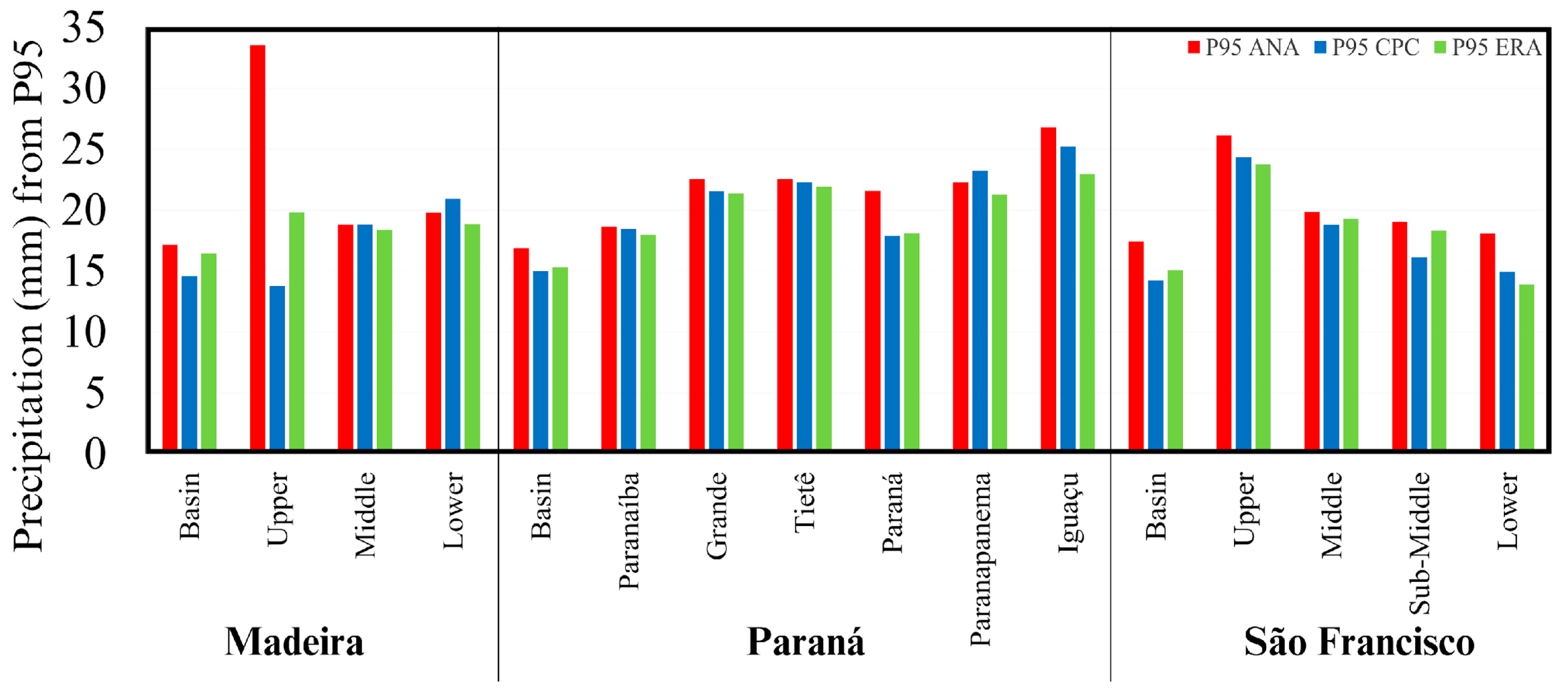

The occurrence of extreme rainfall events was assessed by comparing daily precipitation data (averaged within each subregion of the basin) during the extended rainy season with the 95th percentile values obtained from the time series (ANA, CPC, and ERA5). Except for the Upper Madeira region, which had a limited number of stations available, all other regions showed consistent P95 values across the different datasets (Figure 7), with observations presenting a slightly higher value.

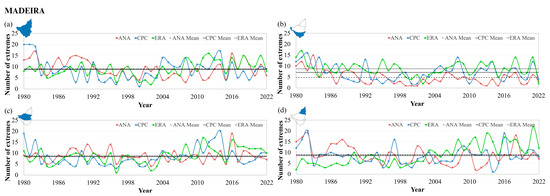

The occurrence of extreme events in the MRB (Figure 8a) exhibits a similar average across the analyzed period (1980–2022) in most subregions, except for Upper Madeira, which has only two rain gauges. In the Upper Madeira region, the CPC underestimates the number of extreme events, whereas ERA5 overestimates it. For instance, the years 2007 and 2008 were marked by flood events in this region, leading to significant economic impacts and numerous fatalities [70]. During these years, both CPC and ERA5 recorded extreme precipitation events above the average (Figure 8d). However, ANA data did not indicate a trend, likely due to the limited number of rain gauges in this region. Overall, in the MRB, ANA indicates a decreasing trend in the number of days with extreme rainfall events across the entire basin, with statistical significance in almost every region except Middle Madeira (Table 1). The CPC results corroborate those obtained from ANA data, although they do not show statistical significance. On the other hand, ERA5 indicates a significant increasing trend in the number of occurrences in almost the entire basin. Espinoza et al. [71] also identified a downward trend in the annual frequency of rainy days (precipitation greater than 10 mm) in the period from 1981 to 2009 in the region where the MRB is located, more specifically in the Bolivian Amazon, in the south of the Brazilian Amazon, and in the border area between Peru, Colombia, and Brazil.

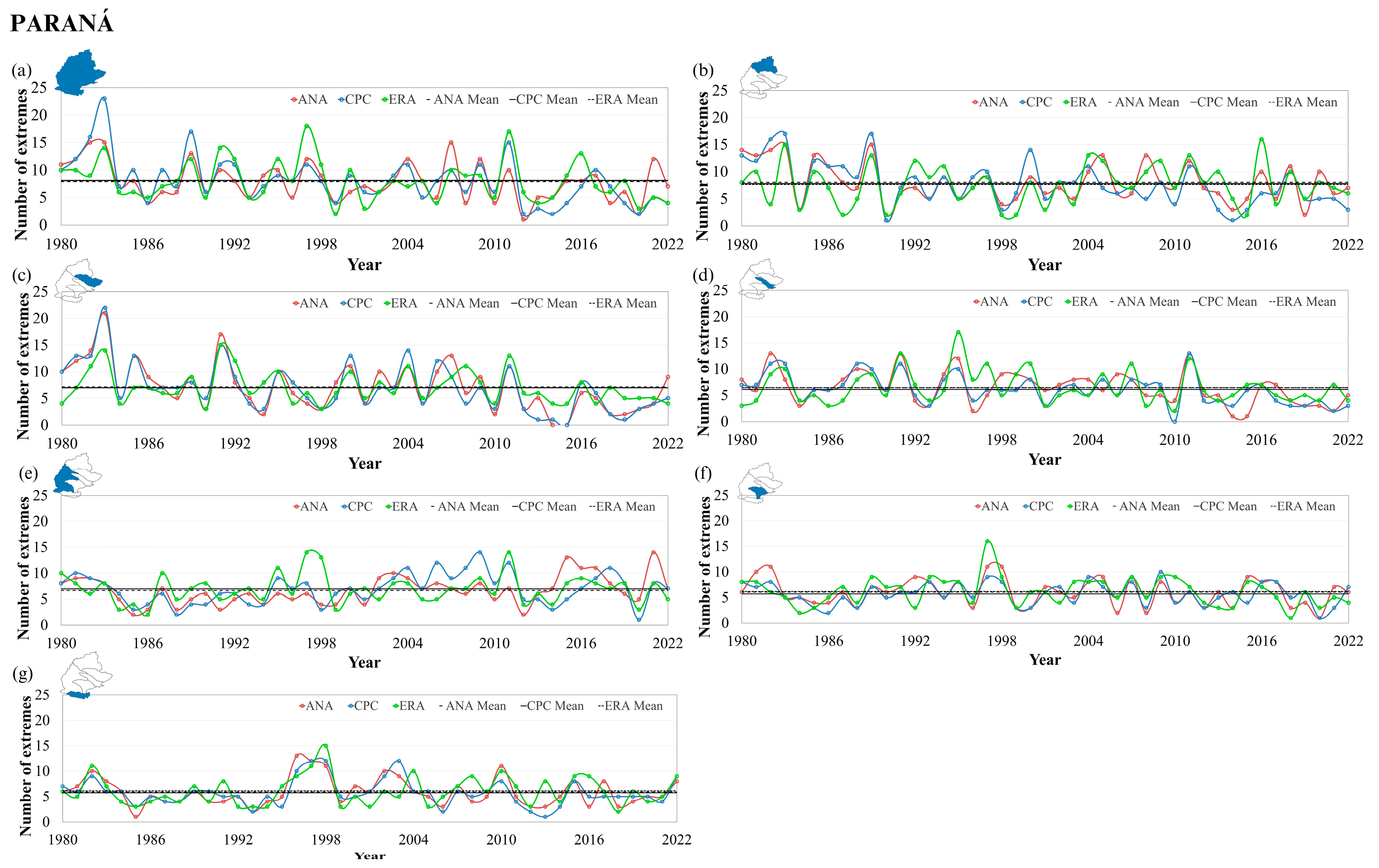

The average number of extreme events identified through the CPC and ERA5 in the PRB was closely aligned (Figure 9a). Additionally, the evolution in the frequency of extreme rainfall events over the years follows a consistent pattern, albeit with occasional discrepancies where ANA data were either underestimated or overestimated. Across most areas of the basin, notable peaks occurred during the years 1982/1983 and 1997/1998, marked by above-average values which resulted in economic and social losses due to floods [72]. Strong El Niño events, associated with the movement of the SACZ to the southeast of Brazil, where most of the PRB is located, were detected in both periods, as identified by Valverde and Marengo [72]. However, during the 2020/2021 period, many subregions experienced values below the average, coinciding with severe drought conditions affecting parts of the basin [12]. Overall, the observations also indicated a decreasing trend in the annual occurrence of extreme rainfall events across almost the entire PRB (Table 1). The northern and northeastern portions (Grande and Tietê) showed a statistically significant decrease (Table 1). However, in the central part of the basin, in the Paraná region, there was a significant increase in the annual occurrence of rainfall events. The CPC trends were found to be very similar to those from ANA, indicating a statistically significant decrease in the number of events both for the basin as a whole and in the northern and northeastern portions (Paranaíba, Grande, and Tietê). However, the ERA5 results showed some differences, with an increase in the number of events in more areas, but without statistical significance. The results from ANA and CPC are consistent with previous studies that analyzed the trend of extremes in the PRB region, which also indicate negative trends in the occurrence of extreme rainfall events in the northern and northeastern portions and positive trends in the central and southern parts of the basin [64,73].

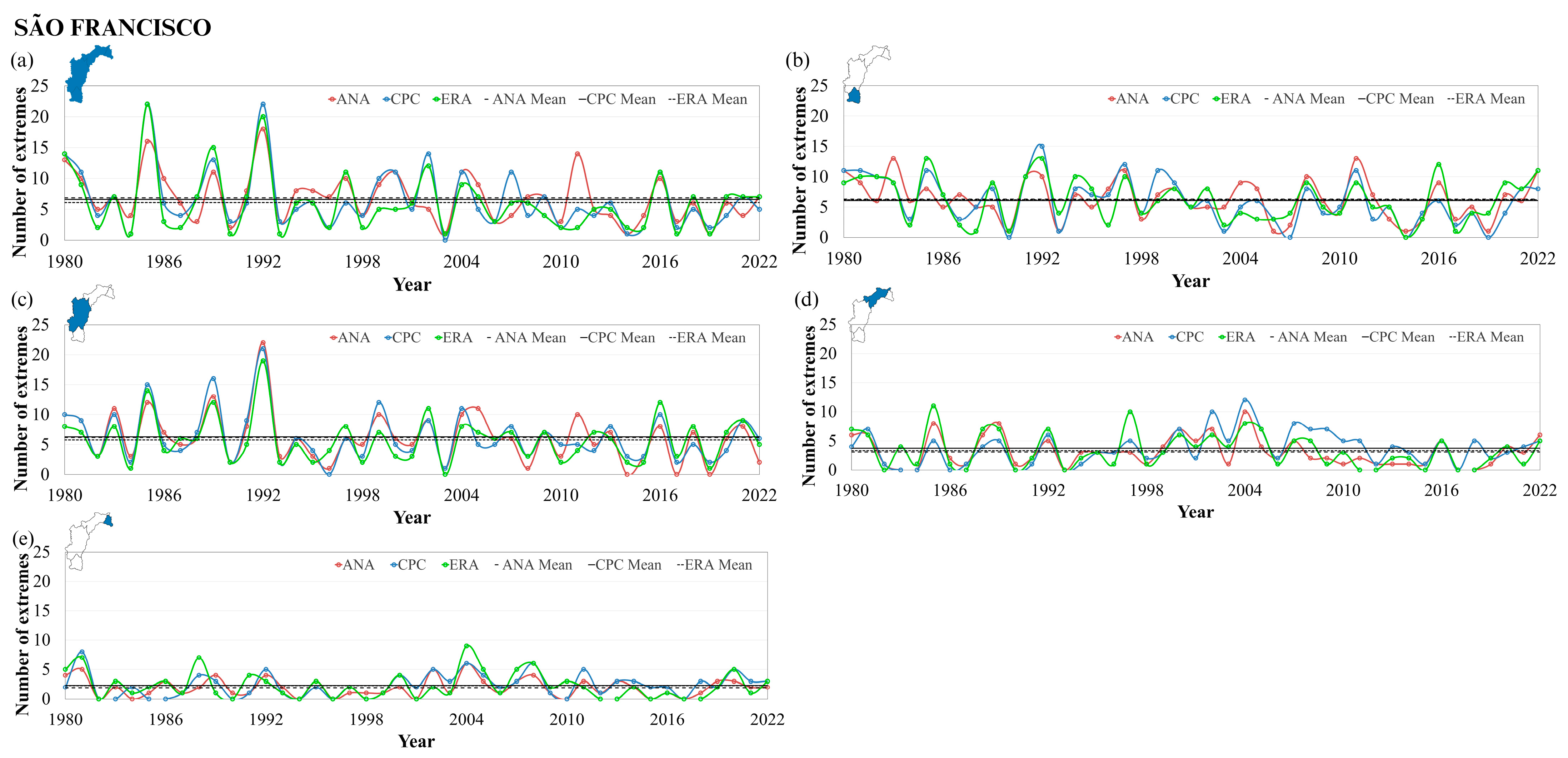

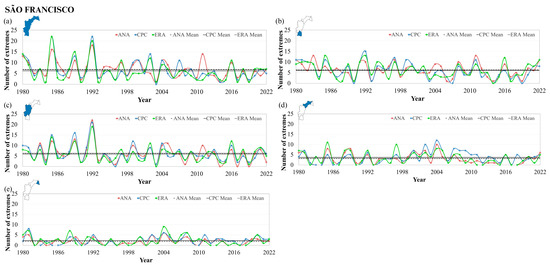

In the SFRB, the average results of extreme rainfall events were consistently similar across all datasets, with minimal variation over time (Figure 10a). The middle São Francisco region exhibited a more uniform pattern in the frequency of extreme events compared to the other subregions analyzed. For example, 1992 presented the highest number of extreme rainfall events recorded (Figure 10c), coinciding with one of the major floods in the basin [72,74]. Conversely, the SFRB presented the highest number of years without extreme events compared to the MRB and PRB. Specifically, the period 2014/2015 experienced a number of extreme events which was below the average, coinciding with one of the severest droughts in the region [11,75,76]. Overall, ANA data indicated a decreasing trend in the number of extreme rainfall events, with significant decreases across the basin as a whole (Table 1). ERA5 presented results similar to ANA, indicating a decreasing trend in events, but without statistical significance. On the contrary, CPC trends were different, with two regions (Sub-Middle and Lower) showing an increase in the number of extreme events, though not statistically significant. Additionally, the CPC for the Upper São Francisco region, located in southeastern Brazil where the river’s source is found, showed a significant decrease in the number of rainfall events. Santos et al. [77] also identified in their study on the semi-arid region of Brazil—where a large part of the SFRB is concentrated—a negative trend in the frequency of extreme events in a large part of the area analyzed in the period from 2001 to 2020.

3.3. Extreme Climate Events

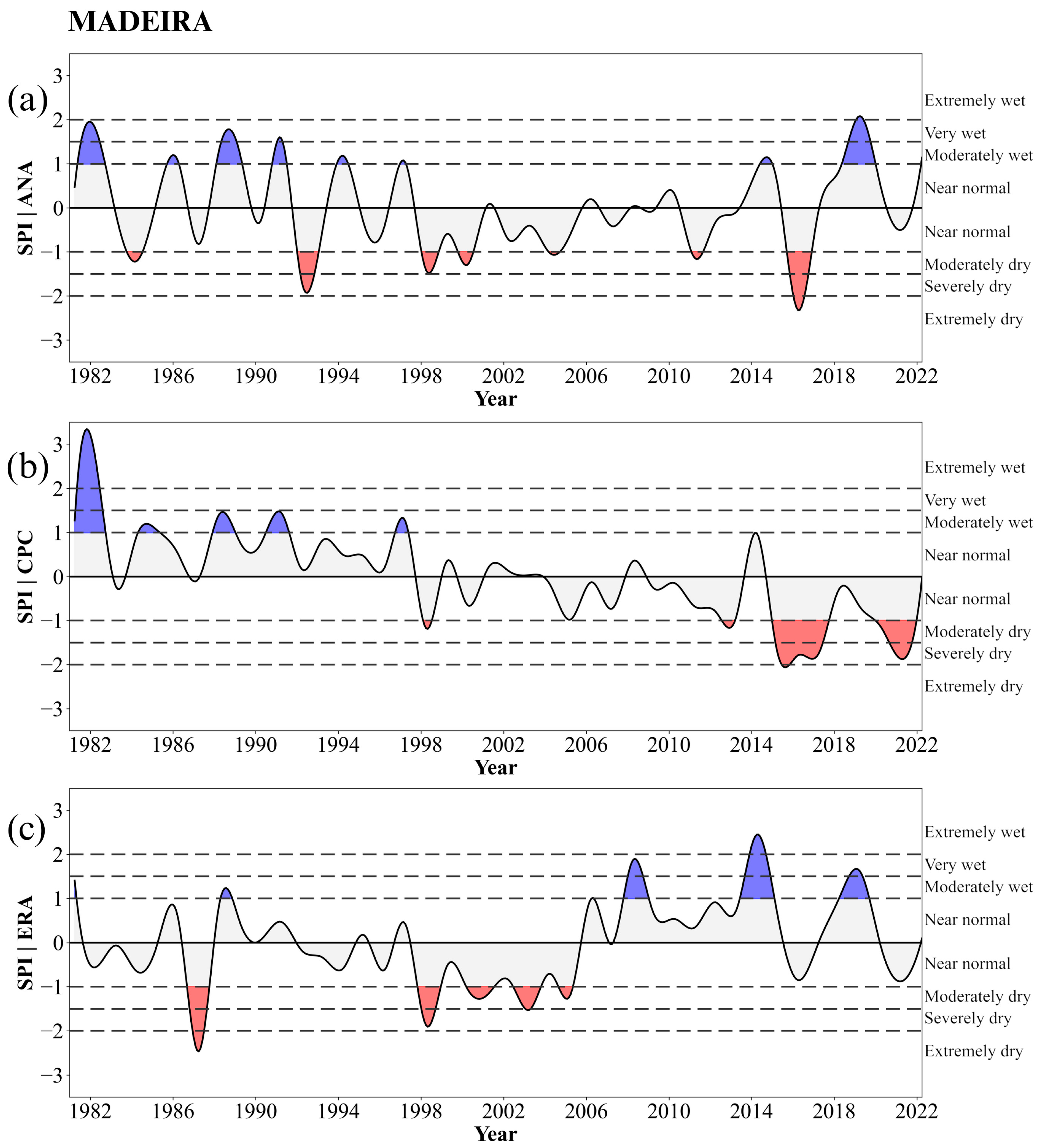

Climate-related extreme wet and drought events were identified using the SPI-6 from March, which stored the information regarding the extended rainy season. The results revealed a shift in the patterns of occurrence of extreme events across the basin, evident in both datasets (Figure 11). Above-average rainfall events have become less frequent, while drought events have become increasingly common. In the MRB, ANA recorded seven drought episodes and eight wet episodes (Figure 11a). The CPC, in turn, captured six droughts and six wet events, while ERA5 identified six droughts and only five wet periods (Figure 11b,c). Some of the wetter events recorded by ANA are associated with flood years in Porto Velho, a municipality belonging to the MRB, such as 1982, 1984, 1988 and 1997 [78], and these events were more effectively captured by the CPC data (Figure 11b). The year 2014 stands out as a period of unprecedented flooding in both the Brazilian and Peruvian parts of the basin, which was reflected in the wet conditions observed in the SPI, especially in ERA5 (Figure 11c) [79]. Regarding drought episodes, the literature highlights the years 2005, 2010, 2016, 2020, and 2022 [9,80,81]. The year 2005 was identified as dry by ANA and ERA5, but not by CPC. However, the droughts of 2016, 2020, and 2022 were effectively captured by CPC. The year 2010 was not captured by any dataset, corroborating the observations of Molina-Carpio et al. [82], who also did not identify this period as dry. In general, the ANA and CPC datasets show a similar variation pattern, with more wet episodes at the beginning of the series and more dry episodes at the end. However, ERA5 exhibits an inverse behavior, with an increase in wet events in more recent years.

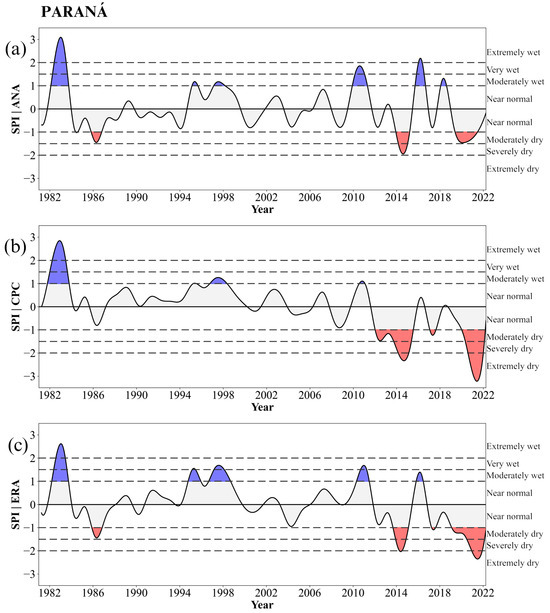

In the case of the PRB, four dry periods and eight wet periods were identified using SPI-6 calculated with ANA data (Figure 12a). Using CPC data, seven dry and five wet episodes were identified, while ERA5 indicated six dry and seven wet periods (Figure 12b,c). In general, the wettest periods occurred at the beginning of the series of all datasets, coinciding with several flood episodes in the basin, mainly between 1983/1984 and during the 1990s [83,84]. The SPI-6 results indicate that the most recent years have been drier in the basin, which is in line with previous findings in the literature [12,85]. Overall, both datasets present consistent SPI results, demonstrating similar behavior throughout the analyzed period.

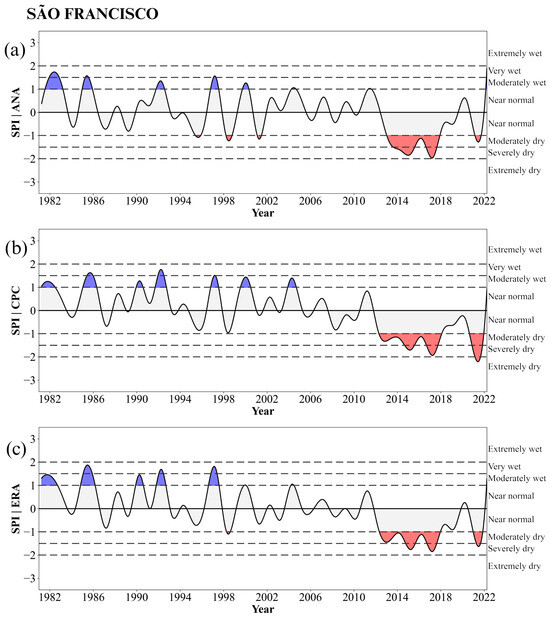

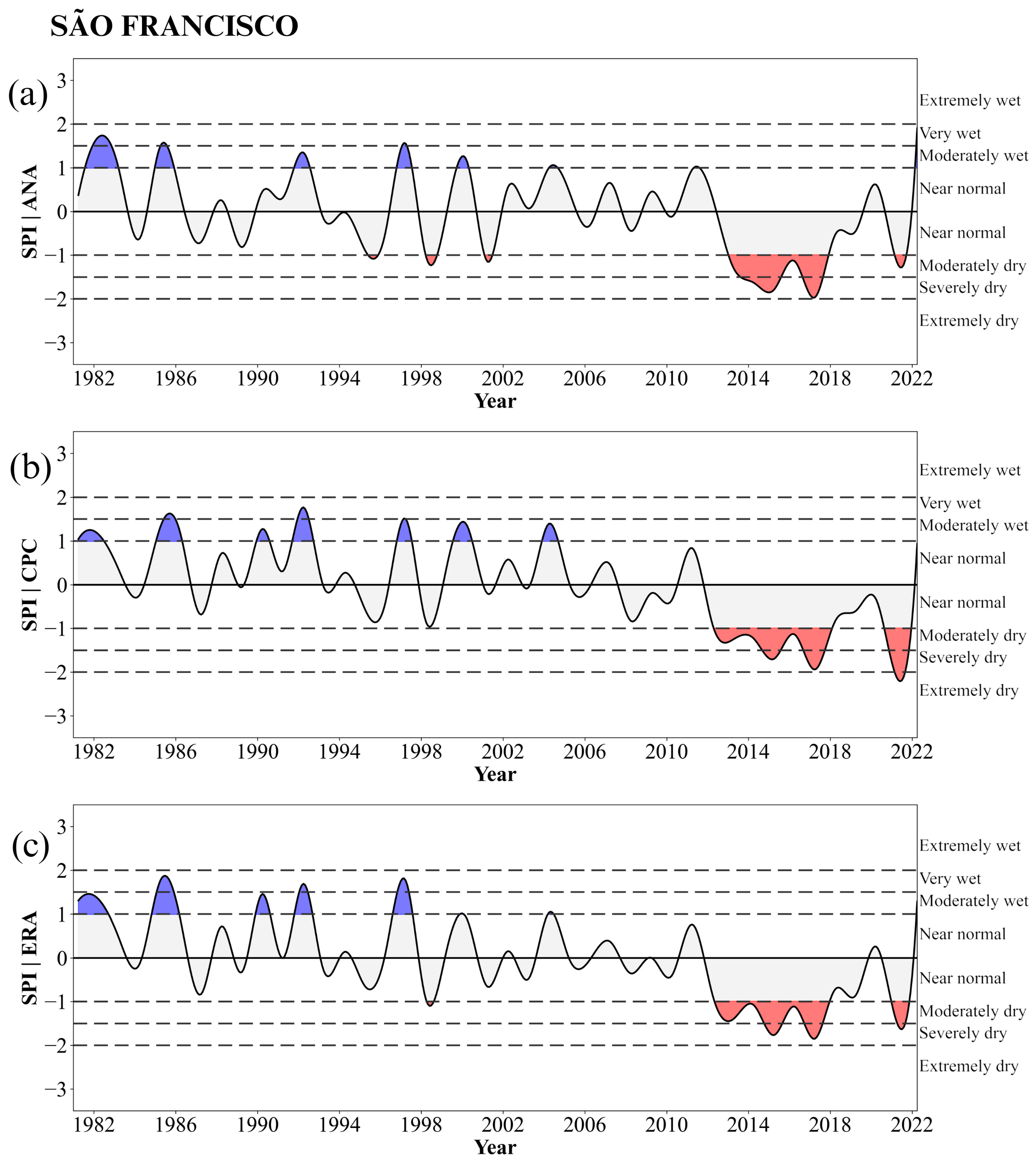

In total, the SPI-6 data from ANA indicate the occurrence of eight dry and seven wet episodes in the SFRB (Figure 13a). The CPC identified six dry and nine wet periods, while ERA5 showed six dry and eight wet periods (Figure 13b,c). As in the PRB, the wettest periods in the SFRB were recorded early in the series in both datasets, coinciding with flood episodes in the basin, such as in 1983, 1992, and 2004 [84,86]. Since 2013, the SFRB has experienced prolonged periods of below-average precipitation, as indicated by the SPI-6 of the analyzed databases, which is in line with reports in the literature [11,76]. Overall, the CPC and ERA5 data effectively identified the behavior of the SPI-6 series in the SFRB during the period from 1980 to 2022.
In general, in the past, drought events in the Amazon region were mainly associated with the warm phase of the El Niño-Southern Oscillation and/or the positive phase of the North Atlantic Oscillation (NAO). The NAO affects the transport of atmospheric moisture to the Amazon, impacting annual rainfall variability [87,88]. In addition, increased deforestation and land use changes in the North and Central regions of Brazil have aggravated these effects, altering local climate dynamics and intensifying the occurrence of dry events in the study areas, especially in the MRB and PRB [89,90]. In the case of the SFRB, the tendency towards desertification is one of the main problems, affecting the hydrological cycle and making the region more arid and susceptible to extreme events [91,92].

4. Conclusions

In this study, an analysis of extreme weather and climate precipitation events during the rainy season was conducted in the MRB, PRB, and SFRB, which belong to the SAMS region. Additionally, the performance of CPC and ERA5 data in identifying the occurrence of these events was evaluated. Statistical analysis of the daily data revealed that the CPC set performed better in all basins analyzed.
The analysis of extreme weather rainfall events showed similar patterns for both datasets in most subregions of the basins. In general, with the exception of Upper Madeira, both datasets captured the pattern of the time series, but CPC better reproduces the extreme values as well as the trend of the data. In the MRB, episodes such as the 2014 flood, which caused losses, were recorded as above-average extreme events by both datasets. In the PRB, CPC and ERA5 records of extremes were aligned, with notable peaks in 1982/1983 and 1997/1998 due to floods that resulted in economic and social losses, and below-average values in 2020/2021 due to a severe drought affecting parts of the basin. In the SFRB, the results were also consistent, with peaks in 1992 coinciding with one of the largest floods in the basin, and periods of low occurrence of extreme events during the severe drought of 2014/2015. Most of the subregions also showed a decreasing trend in the number of identified extreme weather rainfall events between 1980 and 2022.
According to the SPI-6 results, the pattern of extreme climate rainfall and drought events in the basins has changed, with a decrease in the frequency of above-average rainfall events and an increase in droughts. This change has been observed since the mid-1990s in the MRB and PRB and since 2010 in the SFRB. Overall, this change in the pattern of occurrence of extreme weather events was effectively reproduced by both datasets (CPC and ERA5). In the MRB, the extreme drought of 2010 was well represented by the SPI-6 from the datasets. In the PRB, recent SPI-6 data from both datasets indicate an intensification of droughts starting from 2020/2021. In the SFRB, the region has been experiencing prolonged periods of drought since 2013, which are also identified in both datasets. The increase in the occurrence of droughts in recent decades may have significant implications for water availability, agriculture, and biodiversity in the studied basins.
The trends observed in the study basins are expected to persist under climate change scenarios. Studies such as that by [93] indicate drier conditions in the North and Northeast regions of Brazil. In the Amazon, Llopart et al. [94] highlighted that the hydrological cycle is partially affected by the reduction in moisture convergence in the region. These studies serve as important warnings for decision-makers, who need to prepare for problems that are already underway and that may intensify in the future, such as water scarcity and increased occurrence of fires [95,96].

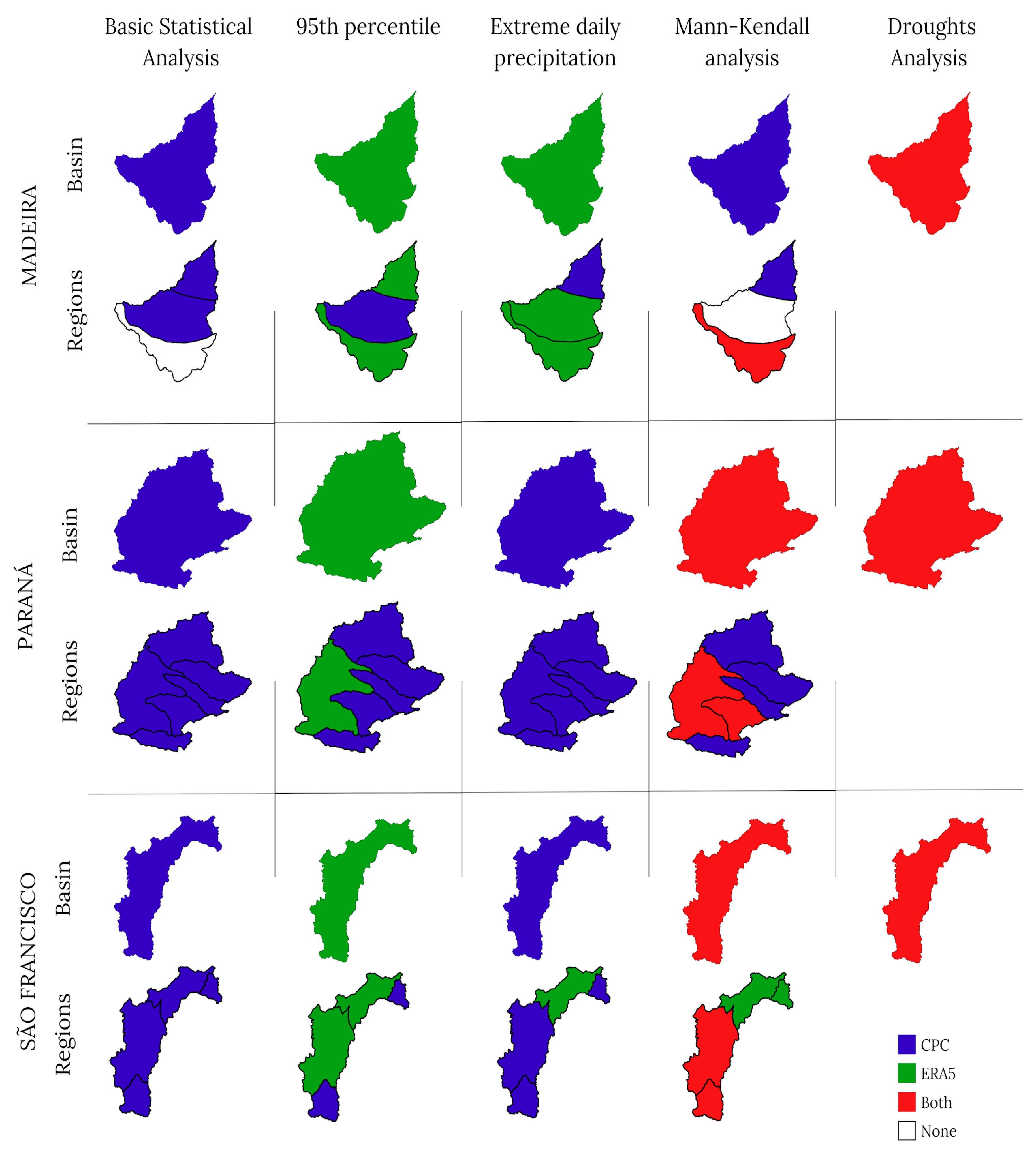

Figure 14 summarizes all analyses performed, indicating which dataset performed best. Overall, the CPC data presented the best statistical results for all basins. Regarding extreme precipitation events, although ERA5 performed better in percentage values, the CPC data identified precipitation extremes better, except for the MRB. For the analysis of drought events and Mann–Kendall trends, both datasets performed well. The lack of meteorological stations in the Upper Madeira region may have negatively influenced the results of the comparison between the datasets. Overall, both datasets performed well, indicating that they can be considered in the absence of station data. It is important to note the differences in the spatial resolutions of the data, with the CPC having a resolution of 0.5°, while ERA5 has a finer resolution of 0.25°. Furthermore, it is also worth mentioning some limitations of this study, in addition to highlighting the difficulties faced by Latin American researchers, which are mainly associated with the low density of meteorological stations, the quality of the data, which often presents inconsistencies and precision limitations, and the use of interpolation techniques to fill areas with little station coverage, which can result in information that does not always accurately represent real conditions [20].

Author Contributions

Conceptualization, A.A.d.F., V.S.B.C. and M.S.R.; methodology, A.A.d.F., V.S.B.C. and M.S.R.; software, A.A.d.F.; validation, A.A.d.F., V.S.B.C. and M.S.R.; formal analysis, A.A.d.F., V.S.B.C. and M.S.R.; investigation, A.A.d.F., V.S.B.C. and M.S.R.; writing—original draft preparation, A.A.d.F., V.S.B.C. and M.S.R.; writing—review and editing, A.A.d.F., V.S.B.C. and M.S.R.; visualization, A.A.d.F., V.S.B.C. and M.S.R.; supervision, A.A.d.F., V.S.B.C. and M.S.R.; project administration, A.A.d.F., V.S.B.C. and M.S.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Coordination for the Improvement of Higher Education Personnel (CAPES), grant number 88887.921175/2023-00.

Data Availability Statement

Data are contained within the article.

Acknowledgments

The authors would like to thank the Coordination for the Improvement of Higher Education Personnel (CAPES). We would like to thank ECMWF, CPC, and ANA for providing the data. The authors would like to thank the editor and the anonymous reviewers.

Conflicts of Interest

The authors declare no conflicts of interest.
