Identification of Candidate Genes for Rind Color and Bloom Formation in Watermelon Fruits Based on a Quantitative Trait Locus-Seq

by
Siyoung Lee
1,
Gaeun Jang
1,
Yunseo Choi
1,
Girim Park
1,
Seoyeon Park
1,
Gibeom Kwon
2,
Byoungil Je
1,* and
Younghoon Park
1,*
1
Department of Horticultural Bioscience, Pusan National University, Miryang 50463, Korea
2
Partner Seeds Co., Ltd., Gimje 54324, Korea
*
Authors to whom correspondence should be addressed.
Plants 2022, 11(20), 2739; https://doi.org/10.3390/plants11202739
Submission received: 15 September 2022 / Revised: 4 October 2022 / Accepted: 7 October 2022 / Published: 17 October 2022
(This article belongs to the Special Issue Molecular Markers and Molecular Breeding in Horticultural Plants)
Browse Figures
Review Reports Versions Notes

Abstract

:
Watermelon fruit rind color (RC) and bloom formation (BF) affect product value and consumer preference. However, information on the candidate gene(s) for additional loci involved in dark green (DG) RC and the genetic control of BF and its major chemical components is lacking. Therefore, this study aimed to identify loci controlling RC and BF using QTL-seq of the F2 population derived by crossing ‘FD061129’ with light-green rind and bloom and ‘SIT55616RN’ with DG rind and bloomless. Phenotypic evaluation of the F1 and 219 F2 plants indicated the genetic control of two complementary dominant loci, G1 and G2, for DG and a dominant locus, Bf, for BF. QTL-seq identified a genomic region on Chr.6 for G1, Chr.8 for G2, and Chr.1 for Bf. G1 and G2 helped determine RC with possible environmental effects. Chlorophyll a-b binding protein gene-based CAPS (RC-m5) at G1 matched the highest with the RC phenotype. In the 1.4 cM Bf map interval, two additional gene-based CAPS markers were designed, and the CAPS for a nonsynonymous SNP in Cla97C01G020050, encoding a CSC1-like protein, cosegregated with the BF trait in 219 F2 plants. Bloom powder showed a high Ca2+ concentration (16,358 mg·kg−1), indicating that the CSC1-like protein gene is possibly responsible for BF. Our findings provide valuable information for marker-assisted selection for RC and BF and insights into the functional characterization of genes governing these watermelon-fruit-related traits.

1. Introduction

Watermelon is an economically important fruit belonging to the genus Citrullus Schrad. Ex Eckl and Zeyn of the Cucurbitaceae family. The cultivation area and production volume of watermelon (C. lanatus var. lanatus (Thumb)) accounted for 11,972 ha and 475,815 tons in Korea and 3,084,217 ha and 100,414,933 tons worldwide in 2019, respectively [1,2]. Watermelon (2n = 2x = 22) is native to South Africa and is generally classified into the cultivated-type species Citrullus lanatus var. lanatus (Thumb); ancient storage melon type C. lanatus var. citroides commonly grown in South Africa; perennial C. colocynthis growing in the sandy regions of North Africa, Southwest Asia, and the Mediterranean; perennial wild species C. ecirrhosus Cogn; and annual wild species C. rehmii De Winter [2,3]. The recent genome assembly of jubilee-type Chinese cultivar ‘97,103’ and crimson-type U.S. cultivar ‘Charleston Gray’ revealed the genome size of approximately 410 Mb and number of genes to be 22,571 [4,5].
Rind color (RC) is the main morphological trait for watermelon fruit, along with fruit shape, flesh color, and rind stripe pattern. Modern watermelon cultivars are characterized by various RCs, including gray, yellow, and different shades of green (light, medium, and dark) [6]. Inheritance of RC is difficult to explain due to the unclarified description in terminology for RC and inconsistency in gene expression depending on the genetic background used in different studies. Porter suggested the complete dominance of dark green (DG) rind over light green (LG) (described as yellowish white) and incomplete dominance over yellowish green [7]. Weetman reported that RC (LG vs. DG) and foreground stripe pattern were controlled by three alleles (dominant allele D for DG, recessive allele d for LG, and ds for rind stripe dominant to d and recessive to D) at a single locus D [8], which was renamed as G by Poole [9], or by two tightly linked different genes [6]. In contrast, Kumar and Wehner reported that two loci showing duplicate dominant epistasis were involved in formations of LG (gray) versus solid DG rind [10]. Recently, Li et al. identified the gene ClCG08G017810 (ClCGMenG), encoding a 2-phytyl-1,4-beta-naphthoquinone methyltransferase protein, as a candidate gene that controls the complete dominance of DG color over the LG [11,12]. However, information on the candidate gene(s) for additional loci involved in DG RC is lacking.
Bloom is a white powder or outer wax layer of the epidermis of leaves and fruits, such as blueberries, plums, grapes, cucumbers, and pumpkins [13,14,15]. Bloom is mainly called fruit powder when it is found on the fruit surface, and it affects the appearance and product value of the fruit by preventing abiotic stresses such as drought and pathogen invasion into the fruit surface [13,16,17,18]. The bloom chemical composition differs depending on the crop species. The bloom of grapes mainly comprises aliphatic compounds, including alkanes and alkenes such as octadecane (C18H38) and eicosane (C20H42) [18]; meanwhile, silicon is the major component of cucumber and pumpkin bloom [19]. Various watermelon cultivars show variations in bloom or white powder formation on the fruit surface as well as the absence of bloom. However, the genetic control of bloom formation (BF) and its major chemical components is unknown.
Quantitative trait locus sequencing (QTL-seq) combines whole genome resequencing (WGRS) based on bulked segregant analysis (BSA) and next generation sequencing (NGS) to discover the QTL of a target trait [20]. In BSA, genotype differences are analyzed by pooling the DNA of progeny individuals showing extreme phenotypes for target traits in a segregation population obtained through crossbreeding. DNA bulk between different individuals in the target trait is effective in QTL research, because the genotype differs only at the locus related to the target trait [21]. WGRS can comprehensively reveal genetic variation between individuals by analyzing DNA sequences of the whole genome. Therefore, it is possible to analyze the exon region as well as the intron and untranslated regions and obtain a large number of nucleotide sequence variations [22,23]. QTL-seq does not require the development of molecular markers or the genotyping process for each individual in a segregated population for creating a genetic map, thereby remarkably reducing time and cost. QTL-seq has already been successfully applied to the study of agriculturally important traits of various crops [24,25,26], including the detection of candidate genes for semi-dwarfism and white-green flesh, and QTLs for Fusarium wilt resistance in watermelon [27,28,29].
In this study, we aimed to analyze the genetic inheritance of the RC (DG vs. LG) and BF (bloom vs. bloomless) traits of watermelon and identify the QTL and candidate genes for each trait based on QTL-seq. In addition, we developed molecular markers from the QTLs and candidate genes that can be used for marker-assisted selection (MAS) of these fruit-related traits. Phenotypic evaluation of the F1 and 219 F2 plants indicated the genetic control of two complementary dominant loci (G1 and G2) for DG and a dominant locus (Bf) for BF. QTL-seq identified a genomic region on Chr.6 for G1, Chr.8 for G2, and Chr.1 for Bf. The cleaved amplified polymorphic sequence (CAPS) for a nonsynonymous SNP in Cla97C01G020050 cosegregated with the BF trait in 219 F2 plants. The high Ca2+ concentration of bloom powder indicated that the CSC1-like protein gene is possibly responsible for BF. Our findings provide insights into the functional characterization of genes governing these watermelon-fruit-related traits.

2. Results

2.1. Mode of Genetic Inheritance

The RC of all five F1 plants was slightly paler DG (intermediate DG, IDG) than that of ‘SIT55616RN’, indicating an incomplete dominance of DG. In F2, nine LG and 210 DG, including IDG, colors were observed (Table S1, Figure 1). The separation ratio of the phenotypes of DG (210 individuals) and LG (9 individuals) was 15:1 (χ2(0.05, 1) = 1.17, p-value = 0.19), indicating that the DG of ‘SIT55616RN’ is controlled by two complementary gene reactions.
The bloom was evident in ‘SIT55616RN’ and F1, showing complete dominance. In F2, 165 individuals showed bloom (B), whereas 53 were bloomless (BL) (Table S2, Figure 1), which was consistent with the Mendel’s ratio of 3:1 (χ2(0.05, 1) = 0.07, p-value = 0.78), indicating that BF is regulated by a single dominant gene (Figure 1).

2.2. WGRS and Single Nucleotide Polymorphism (SNP) Detection

The NGS of DNA samples produced short reads covering a genome size more than 16 times larger than the reference genome sequence (97103 v.2, 425 Mb) in both parents and approximately 44 times larger in each F2-bulk (DG-, LG-, B-, and BL-bulk) (Table S3). After preprocessing the sequences, filtering the reads, and comparing the read numbers between the bulks, the genome coverage for DG- and LG-bulk was approximately 34.5× and that for B- and BL-bulk was approximately 33.8× (Table S3). The proportion of bases with a Phred score of 30 or higher (Q30) was 93% or higher for all DNA samples, indicating the reliability of base calling in NGS.
We obtained 156,919 SNPs from DG-bulk, 145,161 from LG-bulk, 157,055 from B-bulk, and 156,557 from Bl-bulk. Among them, 157,756 SNPs were comparable for RC and 159,692 for BF (Table S4). Although the distribution of SNPs for each chromosome was slightly different between chromosomes, 6000–27,000 SNPs were obtained for each chromosome, thereby achieving a generally evenly distributed SNP.

2.3. QTL-Seq

The candidate QTL of the RC trait was detected at the ends of chromosomes 6 and 8 with 99% confidence interval (Figure 2a). The candidate QTL on chromosome (Chr.) 6 (RC-QTL-C6) was located at 0.270 Mb section (27,560,000–27,830,000 bp) and had 146 polymorphic SNPs and 22 genes. The candidate QTL region on Chr.8 (RC-QTL-C8) was detected in the 1.370 Mb section (26,830,000–28,200,000 bp), which harbored 441 polymorphic SNPs and 77 genes (Table 1 and Table S5).
The SNP index of the QTL in Chr.6 was 0.21 in LG-bulk and 0.67 or higher in DG-bulk, and the delta SNP index value was −0.68 at the lowest, 0.84 at the highest, and above 0.47 on average. The SNP index of the QTL in Chr.8 was 0.15 in LG-bulk and 0.68 or higher in DG-bulk, and the average delta SNP index was over 0.54. In this QTL, 22 genes and 144 polymorphic SNPs were located, of which three SNPs were located in the coding region, but all were synonymous (Table 1). The genes carrying these three SNPs in the coding region were pentatricopeptide repeat-containing protein (Cla97C06G125670), expansin (Cla97C06G125700), and chlorophyll a-b binding protein (CAB protein, Cla97C06G125710). For CAB protein gene, three SNPs in a putative promoter region were additionally found. The candidate gene ClCG08G017810 (Cla97C08G161570) of Chr.8 and its SNPs (C/G) reported by Li et al. were also found in the QTL region (27,994,152 bp) in this study [12] (Table S5).
For BF, a single genomic region at the end of Chr.1 (BF-QTL-C1) was significantly associated with BF at a 99% confidence interval (Figure 2b). This genomic region was located in the 1.410 Mb section (32,100,000–33,510,000 bp). The average SNP indexes of BL-bulk and B-bulk were 0.96 and 0.38 or higher, respectively. The average delta SNP index was 0.58, with 674 polymorphic SNPs and 217 genes in this region (Table 1). Twenty-eight nonsynonymous SNPs were detected in the coding sequences, including genes for the trafficking protein particle complex subunit-like protein (Cla97C01G020540) and CSC1-like protein (Table 1 and Table S6).

2.4. Cleaved Amplified Polymorphic Sequence Development and Genetic Mapping

2.4.1. Rind Color

Nine CAPS markers were designed based on the SNPs in the genic regions, including four CAPS markers (RC-m3, RC-m4, RC-m5, and RC-m6) within RC-QTL-C6 and five (RC-m1 and RC-m2 from the upstream flanking region and RC-m7, RC-m8, and RC-m9 from the downstream flanking region) from the two flanking regions of RC-QTL-C6 (Table 2). For RC-QTL-C8, the CAPS marker RC-1D reported by Li et al. from the candidate gene (Cla97C08G161570) was directly used, and no other markers were designed [12].
A total of 219 F2 individuals were genotyped using all CAPS markers, and the results were compared with that of RC (Table S1). Among the four CAPS developed within the RC-QTL-C6, Rc-m3, Rc-m4, and Rc-m5 (Figure 3a) cosegregated but recombined with the RC-m6 marker in two F2 plants. Higher recombination frequencies were observed between the three cosegregating markers and markers flanking RC-QTL-C6. Comparing marker genotypes with RC, the best fit was confirmed for the three cosegregating markers, including the chlorophyll a-b binding protein (CAB)-based marker, which was named locus G1 in this study.
Among 210 F2 plants with DG or IDG, 171 showed the marker genotype for ‘SIT55616RN’ (G1G1) or heterozygosity (G1g1), whereas the remaining 39 showed the marker genotype for ‘FD06112’ (g1g1). All nine F2 plants with LG RC showed marker genotype for ‘FD06112’ (g1g1). However, the RC-m6 marker genotype for the two recombinant F2 plants did not match the RC phenotype. In addition, the mismatch rate between the marker genotype and phenotype increased in the markers flanking RC-QTL-C6. The results implied that the gene for DG is the most tightly linked to the three cosegregating markers (RC-m3, RC-m4, and RC-m5) within RC-QTL-C6. Similarly, for the marker RC-1D in RC-QTL-C8, 163 F2 plants with DG or IDG showed the marker genotype for ‘SIT55616RN’ (G2G2) or heterozygosity (G2g2), whereas the remaining 47 showed the marker genotype for ‘FD06112’ (g2g2). All nine F2 plants with LG showed the marker genotype for ‘FD06112’ (g2g2). When the marker genotypes at G1 and G2 were combined, a high correlation existed between the intensity of the background green color (LG, IDG, DG) and the number of the dominant alleles. All F2 plants’ dominant homozygous for both loci (G1G1G2G2) showed the DG of ‘SIT55616RN’, whereas all F2 plants’ recessive homozygous (g1g1g2g2) showed LG of ‘FD061129’. Other F2 plants in the heterozygous state for at least one locus (G1_G2_) were DG of different intensity (DG or IDG), indicating that DG requires at least one dominant allele of the two loci (Table 3, Figure 3b).

2.4.2. Bloom Formation

Eight CAPS markers were designed based on the SNPs in the genic region of BF-QTL-C1 (Table 2). All F2 plants were genotyped using these markers (Table S2), and a genetic linkage map was constructed. As a result, a single locus for BF (Bf) was mapped between the markers BF-m3 and BF-m4, which showed a physical distance of 229,697 bp (Figure 4a). In this linkage group, Bf was linked to BF-m3 by 0.9 cM (two recombinant F2 plants) and BF-m4 by 0.5 cM (one recombinant F2 plant). In this flanking genomic region, 29 genes and 169 SNPs were observed within the gene (including the promoter). Among these SNPs, six SNPs were located in the exons of six genes (Cla97C01G019850, Cla97C01G019900, Cla97C01G019940, Cla97C01G020050, Cla97C01G020060, and Cla97C01G020110), of which three were nonsynonymous SNPs that alternate the genetic codons of amino acids (Figure 4a). Among these three SNPs, two CAPS markers, BF-m019900 and BF-m020050, were developed for SNPs located on genes Cla97C01G019900 and Cla97C01G020050 and used to genotype the 219 F2 plants (Table S2). As a result, phenotype and genotype mismatch was found in one F2 plant with BF for BF-m019900 (Figure 4b), whereas the perfect phenotype–genotype match in all F2 plants was observed for BF-m020050, a marker for the gene Cla97C01G020050 encoding a CSC1-like protein.

2.5. Determination of Bloom Powder Composition

The mean Ca2+ concentration in the bloom powder was 16,358 mg·kg−1, whereas that of Si concentration was 0.01 mg·kg−1, indicating that the major component of the bloom powder was Ca.

3. Discussion

The variation in fruit RC and BF in watermelon is important to consumers. However, selecting the intended trait can be challenging for breeders, because the expression of the trait is affected by the environment and the phenotype screen is only possible when the fruits are fully mature. The difficulties in selection based on phenotype can be circumvented by selection using molecular markers tightly linked to loci controlling fruit-related traits. In this study, we identified genomic segments harboring loci for DG RC and BF based on QTL-seq and developed CAPS makers that can be useful for MAS.
For RC, because the phenotype of F1 individuals was slightly lighter (IDG) than that of ‘SIT55616RN’ (DG), and the segregation ratio (15:1) of DG and IDG and LG was observed in the F2 population, we proposed an incomplete dominance inheritance for DG rind by two complementary loci (G1 and G2, named in this study). Our QTL-seq identified the two complementary loci at the terminal regions of Chr.6 and 8. These observations are similar to those reported by Kumar and Wehner, that the DG rind of ‘Mountain Hoosier’ and ‘Early Arizona’ was regulated by duplicate dominant epistasis of two loci (G−1 and G−2) [10]. However, the DG rind was completely dominant to LG, and no intermate DG rind was observed in F2 progeny.
Herein, we reported a novel locus (G1) on Chr.6 and its putative candidate gene Cla97C06G125710 (CAB protein) responsible for the different shades of green RC in watermelon. The Cla97C06G125710 gene encoding CAB was identified in the QTL region on Chr.6 (RC-QTL-C6) for the locus G1. Light-harvesting CAB protein (LHCP), an apoprotein found in major light-harvesting complexes of photosystem II (LHCII) in plants, is an important functional component in chloroplasts [30]. CABs are involved in light uptake, energy transmission to the reaction center of two photosystems (PS I and PS II), adjusting the distribution of the excitation energy between them, and maintaining the structure of the thylakoid membrane. CAB gene expression is affected by environmental conditions such as light intensity, temperature, and biotic or abiotic stresses [31,32]. Mutations in CAB are responsible for foliage albinism, reduced chlorophyll content, and aberrant chloroplast structures under high light intensity in tea (C. sinensis) [33,34]. Although little is known about the CAB genes in watermelon, our results and those of previous studies imply that mutations in CAB may be associated with green RC variations in watermelon. Further studies on the functional characteristics of the CAB gene and its possible interaction with G2 are necessary to understand the coloration of the watermelon rind.
The ClCG08G017810 (ClCGMenG) gene on Chr.8 is the first candidate gene reported for DG RC [12]. In our study, this gene was located within the QTL region of Chr.8 (RC-QTL-C8) on the locus G2. The genotyping using ClCG08G017810 gene-based marker RC-D1 [12] and WGRS data confirmed that the SNP in this gene reported by Li et al. existed between ‘SIT55616RN’ and ‘FD061129’, indicating that this gene corresponds to the locus G2 [12]. ClCG08G017810 is an ortholog of the MenG gene in Arabidopsis thaliana, which encodes a 2-phytyl-1,4-beta-naphthoquinone methyltransferase protein involved in phylloquinone (vitamin K1) biosynthesis [35]. Phylloquinone is synthesized in plants, green algae, and some cyanobacteria and acts as a major electron transporter in photosystem I [36].
Bloom affects the drought resistance of sorghum [16] and acts as a barrier against pathogen invasion through the plant surface in several crops [13,14,15,16,17,18]. Sobic.001G269200 (GDSL-like lipase/acylhydrolase) involved in the synthesis of fatty acids, a bloom component, is a candidate gene involved in the production and accumulation of bloom in sorghum [37]. In contrast, BF on cucumber is responsible for reducing its marketability by making the surface shine and skin color appear pale. The main component of cucumber bloom is Si [38,39]. Bloomless cucumbers are mainly produced using pumpkin graft stocks, which have limited Si absorption from the roots [38]. Many studies have been conducted on Si absorption and movement in rice [40,41,42]. In rice, the Lsi1 gene located on Chr.2 is involved in Si absorption, whereas its movement (transport) from the root to the vascular tissue is controlled by Lsi2 on Chr.3. The Lsi6 on Chr.6, which is expressed in parenchymal cells of rice leaves, is involved in Si migration to the aboveground plant parts [43,44]. In pumpkin and cucumber, the CmLsi1 and CsLsi1 genes, homologs of the Lsi1 in rice [40,41,42], are responsible for Si accumulation and BF [38,40]. However, little is known about the components of bloom and the genetic control of its formation in watermelon.
In our study, BF in ‘FD061129’ was conferred by a single dominant locus named Bf. QTL-seq and genetic mapping indicated the Bf is located within the 230 kb region at the end of Chr.1. Among the 28 genes in this region, no Lsi homologs were found, implying that Si is not a major bloom component in watermelon fruits. In contrast, three nonsynonymous SNPs in the gene encoding CSC1-like protein cosegregated with the Bf. The CSC1-like protein is an osmosensitive Ca-permeable cation channel in eukaryotes, which causes temporary changes in the number of Ca ions by osmotic stress [45]. In plants, CSC1-like protein is believed to be related to the signaling pathway underlying Marssonina blotch resistance in apples [46]. The expression level of CSC1-like protein increases under heat stress in maize [47]. In animals, CSC1 protein has been studied as a novel substructure of the Aurora B kinase complex, which regulates chromosome and cytoplasmic division in C. elegans [48]. When the CSC1-like protein gene in Arabidopsis thaliana (AtCSC) was expressed in the ovarian cells of Chinese hamsters, Ca ions increased, reaching a peak within a few seconds after hyperosmotic shock, and rapidly decreased within 1 min after treatment [45]. Ca-permeable activity activated by hypertonic stress has been reported in Xenopus oocytes [49], which was previously unknown in eukaryotes [50]. The powder analysis collected from the fruit surface of ‘FD061129’ revealed a remarkably high Ca2+ concentration (16,358 mg kg−1), whereas Si concentration was close to 0.0. The CSC1-like protein as a candidate gene for Bf and high Ca2+ concentration imply that Ca was the major bloom powder component in watermelon. Functional analysis of the CSC1-like protein gene through CRISPR/Cas9 will be a useful approach to elucidate the role of BF in watermelon fruits.
In conclusion, the DG RC of watermelon is controlled by two complementary loci (G1 and G2), which display incomplete dominance with possible environmental effects. The homozygous recessive genotype for both loci (g1g1g2g2) results in LG RC. QTL-seq identified Cla97C06G125710 on Chr.6 and ClCG08G017810 on Chr.8 as candidate genes for G1 and G2, respectively. BF is controlled by a single dominant locus, Bf. QTL-seq and genetic linkage mapping identified the Cla97C01G020050 gene encoding CSC1-like protein as a candidate gene for Bf, which may be involved in Ca accumulation as a white powder on the fruit surface. The CAPS markers developed based on these three genes will be useful for MAS of DG vs. LG RC and bloom vs. bloomless watermelon fruits. Functional analysis of these genes is necessary to elucidate their direct association with the phenotype.

4. Materials and Methods

4.1. Plant Material

For the genetic analysis of the RC and BF traits using QTL-seq, the inbred line ‘FD061129’ producing fruits with light-green RC and bloom and ‘SIT55616RN’ with dark-green RC and bloomless fruit were used as maternal and paternal parents, respectively. F1 progeny was created through artificial crossing between these lines, and F2 generation was created by self-pollination of five F1 individuals and combining the seeds produced from these plants (Figure 5).

4.2. Phenotyping and Genetic Inheritance Analysis

Phenotypic investigations of ‘FD06112’ and ‘SIT55616RN’ and their F1 and 219 F2 individuals were conducted in October 2020. After sowing in the nursery, all seedlings were grafted onto the gourd rootstock at half of the true leaf and planted in the soil at 20 cm intervals in a greenhouse located at Gimje, Korea. For phenotypic analysis, a single fruit from each individual was harvested 45 d after self-pollination, and RC and the presence or absence of bloom were visually examined. The RC was determined after wiping the fruit surface and classified into LG, DG, and IDG based on the parental lines and F1. BF on the rind surface was classified by the presence (B) or absence (BL) of a white powder.
To analyze the genetic inheritance of the two traits, a chi-square test was performed for the significance test (p < 0.05) of the Mendelian separation ratio in the F2 population using the Excel program (Microsoft, Inc., Redmond, WA, USA).

4.3. QTL-Seq

4.3.1. Genomic DNA Extraction

Genomic DNA was extracted using two methods according to the purpose of experiments using young leaf samples stored at −80 °C after collection. For WGRS, leaf samples were frozen with liquid nitrogen and ground using a mortar, and then DNA was extracted using the GenEx™ Plant kit (Geneall, Seoul, Korea) following the manufacturer’s protocol. The quantity and quality of the extracted DNA was analyzed using 1% agarose gel electrophoresis (200 V, 45 min) and a Nanodrop1000 spectrometer (Thermo Fisher Scientific, Waltham, MA, USA). The final DNA concentration was diluted to 100 ng∙µL−1 for NGS.
The DNA samples used for CAPS genotyping was extracted using SDS. The collected fresh leaf samples were added to 600 µL SDS buffer, ground with Tissue Lyser II (Retsch, Haan, Germany), and placed in a water bath at 65 °C for 45 min. Further, 200 µL ammonium acetate was added, and the DNA was treated in an icebox for 20 min. After centrifugation at 13,000 rpm (13,475× g) at 4 °C, 600 µL of the supernatant was mixed with 600 µL isopropanol and 2.5 µL glycogen (10 mg·mL−1) and centrifuged under the same conditions. After discarding the supernatant, the pellets were washed with 200 µL 70% EtOH and centrifuged under the same conditions. The supernatant was removed, dried, and resuspended in 150 µL Tris-EDTA (TE) buffer. The concentration of the extracted DNA was measured using Nanodrop1000 and diluted to 10 ng∙µL−1.

4.3.2. WGRS

WGRS was performed on each parental line and four F2-bulk DNA samples. For F2-bulk, DNA samples from F2 individuals showing phenotypes of the parental lines were bulked independently for the two traits. The DNA samples of nine plants of LG (LG-bulk), 40 of DG (DG-bulk), 40 of bloom (B-bulk), and 40 of bloomless (BL-bulk) were pooled in the same amount. Sequencing of these six DNA samples was performed using the Hiseq2000 and Nextseq NGS platform (Illumina, San Diego, CA, USA) using the paired-end sequencing (2×, 100–150 bp) method.

4.3.3. QTL-Seq

High-quality short-read sequence data for QTL-seq were obtained uniformly from all DNA samples through sequence pre-processing using QTL-seq v.1.4.4 and FASTX-Toolkit v.0.0.13. The cleaned reads of ‘FD061129’ were aligned with the watermelon reference genome 97103 v.2 (CuGenDB, http://cucurbitgenomics.org) using the Burrows–Wheeler aligner (BWA; 0.6.1-r104) program, and the alignment product was converted into a sequence alignment and map (SAM)/binary alignment and map (BAM) file using the SAMtools v.0.1.16 program. Then, the reference sequence of ‘FD061129’ was prepared by replacing the nucleotide sequence of the SNP locus obtained through the SNP search and filtering process using the Coval v.1.4 programs. The cleaned reads of four bulk samples were aligned with the ‘FD061129’ reference sequence using the BWA (0.6.1-r104) program, and the alignment product was converted into a SAM/BAM file using the SAMtools program.
SNPs with a minimum read depth of 3 and a maximum of 75 were used to calculate the SNP index. The delta SNP index was calculated by comparing the SNP index values of the bulk sample at the same SNP position. SNPs with a read depth of 3 or more and an SNP index of 0.3 or more and 1 or less were used in both samples. A scatterplot of the entire chromosome was prepared by applying sliding window analysis (1 Mb window size and 10 kb increment) to the calculated delta SNP index value, and the QTL candidate region was searched at p-value < 0.01. SNPs and genes present in the QTL region were searched, and the syn/nonsynonymous status of each SNP was analyzed.

4.4. Genetic Linkage Mapping

4.4.1. CAPS Marker Genotyping Analysis

The CAPS markers were designed to genotype the F2 population. The following SNP selection criteria were used for designing CAPS marker: (1) SNPs present in the QTL region and located on the gene and preferably within the exon region; (2) SNPs existing as evenly spaced as possible on the QTL region; and (3) possibly nonsynonymous SNPs. PCR primer for CAPS was designed using Primer3 v.0.4.0 and NEB cutter v.2.0.

4.4.2. PCR and Electrophoresis

The PCR mixture (10 µL) was prepared using 10–20 ng genomic DNA, 1 µL 10× PCR buffer, 0.2 mM dNTP, 0.5 µL 10 pmol forward primer, 0.5 µL 10 pmol reverse primer, 0.5 U Taq polymerase (Solgent, Daejeon, Korea), and distilled water. PCR conditions were as follows: one cycle at 95 °C for 5 min, 35 cycles of denaturation at 94 °C for 30 s, annealing at TM of each primer for 30 s, extension at 72 °C for 1 min, and one cycle of final extension at 72 °C for 7 min. The restriction enzyme was added to the PCR amplicons according to the manufacturer’s instructions and then electrophoresed. Electrophoresis of the PCR product was performed using a 3% agarose gel (Philekorea, Seoul, Korea) containing 3 µL of ethidium bromide per 100 mL at 200 V for 1 h under UV light (Davinchi imaging system, Davinchi-K, Inc., Seoul, Korea).

4.4.3. Genetic Linkage Map Construction

Genetic linkage maps for bloom traits were created at LOD 2.0, using the Kosambi map function in JoinMap v.4.1 (Kyazma, Wageningen, The Netherlands). Determining whether the bloom-trait phenotype was heterozygous in the F2 group in the matrix preparation of the program was not possible. Hence, ‘A’ indicates the genotype followed the maternal line or was heterozygous, ‘B’ indicates the genotype followed the paternal line, and ‘-’ indicates the genotype was missing.

4.5. Determination of Bloom Powder Composition

The bloom powder on the surface of the ‘SIT55616RN’ fruit rind was collected by gently scraping using a razor blade, washed with distilled water, and oven dried at 70 °C for 72 h. The bloom powder (2 g) was placed into a 100 mL glass flack and digested using 20 mL of ternary solution (HNO3/H2SO4/HClO4, 10:1:4, v/v) at 300 °C for 4 h for Ca and Si analysis. Ca and Si were quantified in four replicates using an atomic absorption spectrophotometer (AAS, AA-7000; Shimadzu, Tokyo, Japan), maintaining a very high accuracy, with detection limits of <0.002 and 0.001 mg·L−1 for Ca and Si, respectively.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants11202739/s1, Table S1: The results of phenotyping and marker genotyping for watermelon-fruit rind color (dark green vs. light green) in an F2 population derived from ‘FD061129’ × ‘SIT55616RN;’ Table S2: The results of phenotyping and marker genotyping for watermelon-fruit bloom formation (bloom vs. bloomless) in an F2 population derived from ‘FD061129’ × ‘SIT55616RN;’ Table S3: Statistics of sequencing data of raw read and genome coverage of trimmed read after equalizing; Table S4: Statistics of single nucleotide polymorphism calling for bulked DNA samples; Table S5: The genes, SNPs, and delta SNP index information of the QTL region, RC-QTL-C6 and RC-QTL-C8, for watermelon-fruit rind color (dark green vs. light green); Table S6: The gene, SNPs, and delta SNP index information of the QTL region, BF-QTL-C1, for watermelon-fruit bloom formation (bloom vs. bloomless).

Author Contributions

Conceptualization, Y.P. and B.J.; methodology, Y.P., S.L. and G.K.; software, S.L., G.P. and G.J.; investigation, S.L., G.J., G.P., Y.C. and S.P.; resources; G.K. and Y.P.; writing—original draft preparation, S.L.; writing—review and editing, Y.P. and B.J.; visualization, S.L. and S.P.; supervision, Y.P.; project administration, Y.P.; funding acquisition, Y.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIT) (No. 2020R1F1A1070136).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. KOSTAT (2020) Statistics Korea. 2020, Version: September 2021. Available online: https://kosis.kr/statHtml/statHtml.do?orgId=101&tblId=DT_1ET0027&conn_path=I2ancor (accessed on 24 August 2022).
  2. FAOSTAT (2020) FAOSTAT. Food and Agriculture Organization of the United Nations. Production: Crops: 2020. Available online: https://www.fao.org/faostat/en/#data/QCLancor (accessed on 26 August 2020).
  3. Levi, A.; Thomas, C.E.; Keinath, A.P.; Wehner, T.C. Genetic diversity among watermelon (Citrullus lanatus and Citrullus colocynthis) accessions. Genet. Resour. Crop Evol. 2001, 48, 559–566. [Google Scholar] [CrossRef]
  4. Guo, S.; Zhang, J.; Sun, H.; Salse, J.; Lucas, W.J.; Zhang, H.; Zheng, Y.; Mao, L.; Ren, Y.; Wang, Z.; et al. The draft genome of watermelon (Citrullus lanatus) and resequencing of 20 diverse accessions. Nat. Genet. 2013, 45, 51–58. [Google Scholar] [CrossRef] [Green Version]
  5. Wu, S.; Wang, X.; Reddy, U.; Sun, H.; Bao, K.; Gao, L.; Mao, L.; Patel, T.; Ortiz, C.; Abburi, V.L.; et al. Genome of ‘Charleston Gray’, the principal American watermelon cultivar, and genetic characterization of 1365 accessions in the US National Plant Germplasm System watermelon collection. Plant Biotechnol. J. 2019, 17, 2246–2258. [Google Scholar] [CrossRef] [Green Version]
  6. Gusmini, G.; Wehner, T.C. Genes determining rind pattern inheritance in watermelon: A review. HortScience 2005, 40, 1928–1930. [Google Scholar] [CrossRef] [Green Version]
  7. Porter, D. Inheritance of certain fruit and seed characters in watermelons. Hilgardia 1937, 10, 489–509. [Google Scholar] [CrossRef] [Green Version]
  8. Weetman, L. Inheritance and correlation of shape, size and color in the watermelon, Citrullus vulgaris Schrad. Res. Bull. 1937, 228, 224–256. [Google Scholar]
  9. Poole, C. Genetics of cultivated cucurbits. J. Hered. 1944, 35, 122–128. [Google Scholar] [CrossRef]
  10. Kumar, R.; Wehner, T.C. Discovery of second gene for solid dark green versus light green rind pattern in watermelon. J. Hered. 2011, 102, 489–493. [Google Scholar] [CrossRef] [Green Version]
  11. Li, B.; Lu, X.; Dou, J.; Aslam, A.; Gao, L.; Zhao, S.; He, N.; Liu, W. Construction of a high-density genetic map and mapping of fruit traits in watermelon (Citrullus lanatus L.) based on whole-genome resequencing. Int. J. Mol. Sci. 2018, 19, 3268. [Google Scholar] [CrossRef] [Green Version]
  12. Li, B.; Zhao, S.; Dou, J.; Ali, A.; Gebremeskel, H.; Gao, L.; He, N.; Lu, X.; Liu, W. Genetic mapping and development of molecular markers for a candidate gene locus controlling rind color in watermelon. Theor. Appl. Genet. 2019, 132, 2741–2753. [Google Scholar] [CrossRef]
  13. Barthlott, W.; Neinhuis, C. Purity of the sacred lotus, or escape from contamination in biological surfaces. Planta 1997, 202, 1–8. [Google Scholar] [CrossRef]
  14. Hayashi, T.; Suzuki, T.; Oosawa, K. Correlation between occurrence of bloom on cucumber fruit and air temperature in a plastic film greenhouse. Acta Hortic. 2002, 588, 29–33. [Google Scholar] [CrossRef]
  15. Burow, G.; Franks, C.; Xin, Z. Genetic and physiological analysis of an irradiated bloomless mutant (epicuticular wax mutant) of sorghum. Crop Sci. 2008, 48, 41–48. [Google Scholar] [CrossRef] [Green Version]
  16. Ebercon, A.; Blum, A.; Jordan, W. A rapid colorimetric method for epicuticular wax contest of sorghum leaves 1. Crop Sci. 1977, 17, 179–180. [Google Scholar] [CrossRef] [Green Version]
  17. Alkio, M.; Jonas, U.; Sprink, T.; van Nocker, S.; Knoche, M. Identification of putative candidate genes involved in cuticle formation in Prunus avium (sweet cherry) fruit. Ann. Bot. 2012, 110, 101–112. [Google Scholar] [CrossRef] [Green Version]
  18. Shin, K.; Park, H.; Lee, C.; Yun, S.; Choi, I. Morphological Structure and Chemical Composition in Epicuticular Wax of Fruits in Four Kinds of Grape Cultivars. Korean J. Hortic. Sci. Technol. 2009, 27, 353–358. [Google Scholar]
  19. Sakata, Y.; Ohara, T.; Sugiyama, M. The history of melon and cucumber grafting in Japan. Acta Hortic. 2008, 767, 217–228. [Google Scholar] [CrossRef]
  20. Das, S.; Upadhyaya, H.D.; Bajaj, D.; Kujur, A.; Badoni, S.; Kumar, V.; Tripathi, S.; Gowda, C.L.; Sharma, S.; Singh, S.; et al. Deploying QTL-seq for rapid delineation of a potential candidate gene underlying major trait-associated QTL in chickpea. DNA Res. 2015, 22, 193–203. [Google Scholar] [CrossRef]
  21. Hormaza, J.; Dollo, L.; Polito, V. Identification of a RAPD marker linked to sex determination in Pistacia vera using bulked segregant analysis. Theor. Appl. Genet. 1994, 89, 9–13. [Google Scholar] [CrossRef]
  22. Meuwissen, T.; Goddard, M. Accurate prediction of genetic values for complex traits by whole-genome resequencing. Genetics 2010, 185, 623–631. [Google Scholar] [CrossRef] [Green Version]
  23. Saidi, A.; Hajibarat, Z. Application of Next Generation Sequencing, GWAS, RNA seq, WGRS, for genetic improvement of potato (Solanum tuberosum L.) under drought stress. Biocatal. Agric. Biotechnol. 2020, 29, 101801. [Google Scholar] [CrossRef]
  24. Singh, V.K.; Khan, A.W.; Jaganathan, D.; Thudi, M.; Roorkiwal, M.; Takagi, H.; Garg, V.; Kumar, V.; Chitikineni, A.; Gaur, P.M.; et al. QTL-seq for rapid identification of candidate genes for 100-seed weight and root/total plant dry weight ratio under rainfed conditions in chickpea. Plant Biotechnol. J. 2016, 14, 2110–2119. [Google Scholar] [CrossRef] [PubMed]
  25. Pandey, M.K.; Khan, A.W.; Singh, V.K.; Vishwakarma, M.K.; Shasidhar, Y.; Kumar, V.; Garg, V.; Bhat, R.S.; Chitikineni, A.; Janila, P.; et al. QTL-seq approach identified genomic regions and diagnostic markers for rust and late leaf spot resistance in groundnut (Arachis hypogaea L.). Plant Biotechnol. J. 2017, 15, 927–941. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Wen, J.; Jiang, F.; Weng, Y.; Sun, M.; Shi, X.; Zhou, Y.; Yu, L.; Wu, Z. Identification of heat-tolerance QTLs and high-temperature stress-responsive genes through conventional QTL mapping, QTL-seq and RNA-seq in tomato. BMC Plant Biol. 2019, 19, 398. [Google Scholar] [CrossRef] [PubMed]
  27. Branham, S.E.; Patrick Wechter, W.; Lambel, S.; Massey, L.; Ma, M.; Fauve, J.; Farnham, M.W.; Levi, A. QTL-seq and marker development for resistance to Fusarium oxysporum f. sp. niveum race 1 in cultivated watermelon. Mol. Breed. 2018, 38, 139. [Google Scholar] [CrossRef]
  28. Cho, Y.; Lee, S.; Park, J.; Kwon, S.; Park, G.; Kim, H.; Park, Y. Identification of a candidate gene controlling semi-dwarfism in watermelon, Citrullus lanatus, using a combination of genetic linkage mapping and QTL-seq. Hortic. Environ. Biotechnol. 2021, 62, 447–459. [Google Scholar] [CrossRef]
  29. Pei, S.; Liu, Z.; Wang, X.; Luan, F.; Dai, Z.; Yang, Z.; Zhang, Q.; Liu, S. Quantitative trait loci and candidate genes responsible for pale green flesh colour in watermelon (Citrullus lanatus). Plant Breed. 2021, 140, 349–359. [Google Scholar] [CrossRef]
  30. Jansson, S.; Stefánsson, H.; Nyström, U.; Gustafsson, P.; Albertsson, P.Å. Antenna protein composition of PS I and PS II in thylakoid sub-domains. Biochim. Biophys. Acta (BBA)-Bioenerg. 1997, 1320, 297–309. [Google Scholar] [CrossRef] [Green Version]
  31. Humbeck, K.; Krupinska, K. The abundance of minor chlorophyll a/b-binding proteins CP29 and LHCI of barley (Hordeum vulgare L.) during leaf senescence is controlled by light. J. Exp. Bot. 2003, 54, 375–383. [Google Scholar] [CrossRef]
  32. Caffarri, S.; Frigerio, S.; Olivieri, E.; Righetti, P.G.; Bassi, R. Differential accumulation of Lhcb gene products in thylakoid membranes of Zea mays plants grown under contrasting light and temperature conditions. Proteomics 2005, 5, 758–768. [Google Scholar] [CrossRef]
  33. Cheng, H.; Chen, M.; Yu, F.-L. The variation of pigment-protein complexes in the albescent stage of tea. Plant Physiol. Commun. 2000, 36, 300–304. [Google Scholar]
  34. Ma, C.-L.; Chen, L.; Wang, X.-C.; Jin, J.Q.; Ma, J.Q.; Yao, M.Z.; Wang, Z.L. Differential expression analysis of different albescent stages of ‘Anji Baicha’ (Camellia sinensis (L.) O. Kuntze) using cDNA microarray. Sci. Hortic. 2012, 148, 246–254. [Google Scholar] [CrossRef]
  35. Van Oostende, C.; Widhalm, J.R.; Furt, F.; Ducluzeau, A.L.; Basset, G.J. Vitamin K1 (phylloquinone): Function, enzymes and genes. Adv. Bot. Res. 2011, 59, 229–261. [Google Scholar] [CrossRef]
  36. Basset, G.J.; Latimer, S.; Fatihi, A.; Soubeyrand, E.; Block, A. Phylloquinone (Vitamin K1): Occurrence, biosynthesis and functions. Mini Rev. Med. Chem. 2017, 17, 1028–1038. [Google Scholar] [CrossRef] [PubMed]
  37. Uttam, G.A.; Praveen, M.; Rao, Y.V.; Tonapi, V.A.; Madhusudhana, R. Molecular mapping and candidate gene analysis of a new epicuticular wax locus in sorghum (Sorghum bicolor L. Moench). Theor. Appl. Genet. 2017, 130, 2109–2125. [Google Scholar] [CrossRef] [PubMed]
  38. Jung, J.; Kim, J.; Jin, B.; Choi, Y.; Hong, C.O.; Lee, H.H.; Choi, Y.; Kang, J.; Park, Y. Characterization of the Lsi1 homologs in Cucurbita moschata and C. ficifolia for breeding of stock cultivars used for bloomless cucumber production. Hortic. Sci. Technol. 2017, 35, 333–343. [Google Scholar] [CrossRef] [Green Version]
  39. Choi, E.; Kim, B.; Hwang, U.; Do, H.W.; Suh, D.H. Characterization of Blooming on Cucumber Fruits. Korean J. Hortic. Sci. Technol. 2013, 31, 159–164. [Google Scholar] [CrossRef] [Green Version]
  40. Ma, J.F.; Tamai, K.; Yamaji, N.; Mitani, N.; Konishi, S.; Katsuhara, M.; Ishiguro, M.; Murata, Y.; Yano, M. A silicon transporter in rice. Nature 2006, 440, 688–691. [Google Scholar] [CrossRef]
  41. Ma, J.F.; Yamaji, N.; Mitani, N.; Tamai, K.; Konishi, S.; Fujiwara, T.; Katsuhara, M.; Yano, M. An efflux transporter of silicon in rice. Nature 2007, 448, 209–212. [Google Scholar] [CrossRef]
  42. Yamaji, N.; Ma, J.F. Further characterization of a rice silicon efflux transporter, Lsi2. Soil Sci. Plant Nutr. 2011, 57, 259–264. [Google Scholar] [CrossRef]
  43. Kaur, H.; Greger, M. A review on Si uptake and transport system. Plants 2019, 8, 81. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Yu, Y.; Woo, M.O.; Rihua, P.; Koh, H.J. The DROOPING LEAF (DR) gene encoding GDSL esterase is involved in silica deposition in rice (Oryza sativa L.). PLoS ONE 2020, 15, e0238887. [Google Scholar] [CrossRef] [PubMed]
  45. Hou, C.; Tian, W.; Kleist, T.; He, K.; Garcia, V.; Bai, F.; Hao, Y.; Luan, S.; Li, L. DUF221 proteins are a family of osmosensitive calcium-permeable cation channels conserved across eukaryotes. Cell Res. 2014, 24, 632–635. [Google Scholar] [CrossRef] [PubMed]
  46. Noh, J.; Do, Y.S.; Kim, G.H.; Choi, C. A genome-wide association study for the detection of genes related to apple Marssonina blotch disease resistance in apples. Sci. Hortic. 2020, 262, 108986. [Google Scholar] [CrossRef]
  47. Zhao, Y.; Liu, Y.; Ji, X.; Sun, J.; Lv, S.; Yang, H.; Zhao, X.; Hu, X. Physiological and proteomic analyses reveal cAMP-regulated key factors in maize root tolerance to heat stress. Food Energy Secur. 2021, 10, e309. [Google Scholar] [CrossRef]
  48. Romano, A.; Guse, A.; Krascenicova, I.; Schnabel, H.; Schnabel, R.; Glotzer, M. CSC-1: A subunit of the Aurora B kinase complex that binds to the survivin-like protein BIR-1 and the incenp-like protein ICP-1. J. Cell Biol. 2003, 161, 229–236. [Google Scholar] [CrossRef]
  49. Tang, R.-J.; Luan, S. Regulation of calcium and magnesium homeostasis in plants: From transporters to signaling network. Curr. Opin. Plant Biol. 2017, 39, 97–105. [Google Scholar] [CrossRef]
  50. Nongpiur, R.C.; Singla-Pareek, S.L.; Pareek, A. The quest for osmosensors in plants. J. Exp. Bot. 2020, 71, 595–607. [Google Scholar] [CrossRef]
Plants 11 02739 g001 550
Figure 1. Watermelon fruit images of six F2 plants showing variations in the rind color (RC) and bloom formation (BF). (a) Light green rind (LG); (b,c) intermediate dark green rind (IDG); (d) dark green rind (DG); (e) bloom (B), and (f) bloomless (BL).
Figure 1. Watermelon fruit images of six F2 plants showing variations in the rind color (RC) and bloom formation (BF). (a) Light green rind (LG); (b,c) intermediate dark green rind (IDG); (d) dark green rind (DG); (e) bloom (B), and (f) bloomless (BL).
Plants 11 02739 g001
Plants 11 02739 g002 550

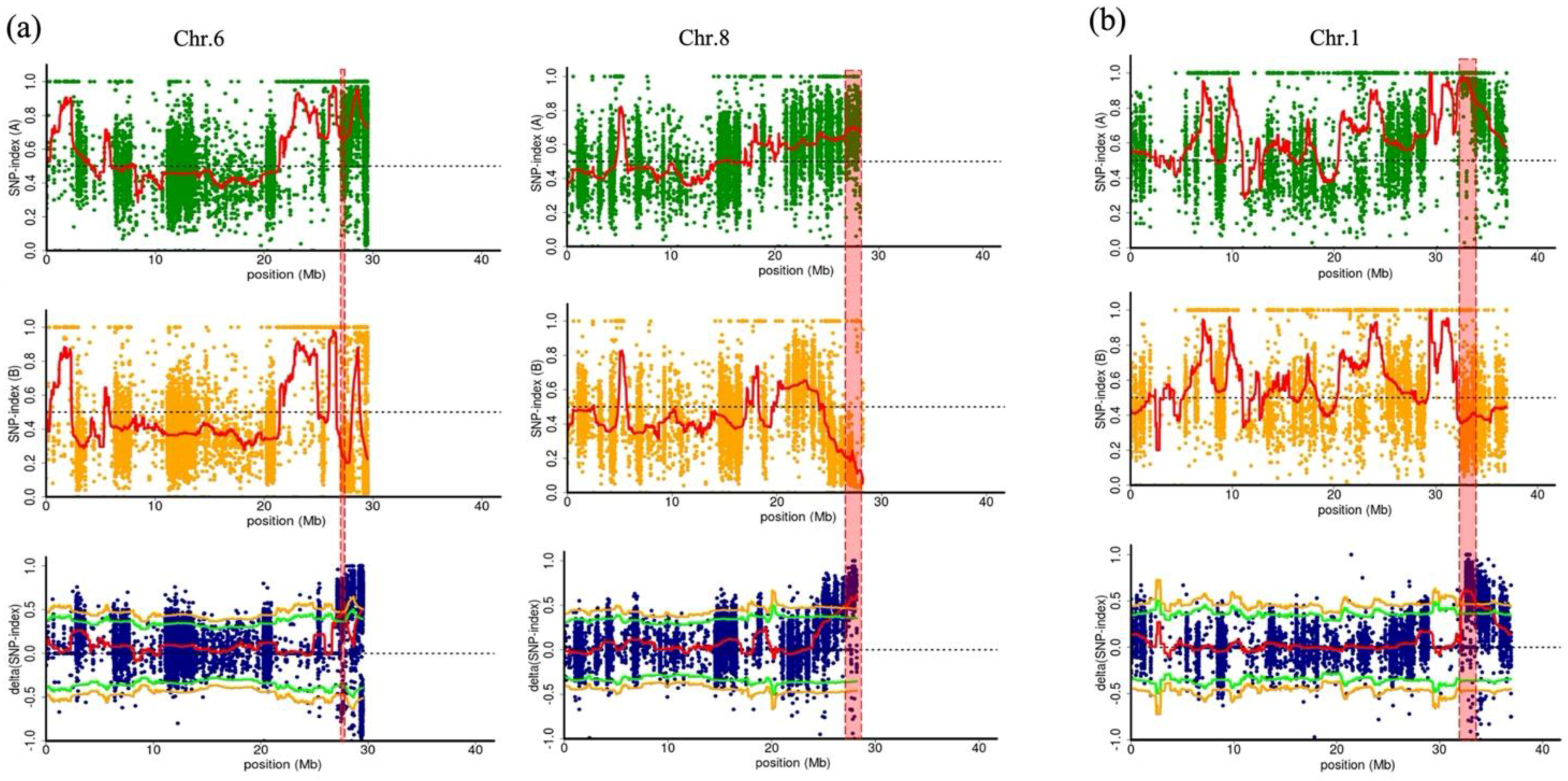

Figure 2. (a) Delta single nucleotide polymorphism (SNP)-index plots between dark green (DG)- and light green (LG)-bulk for rind color (RC) in chromosomes (Chr.) 6 and 8; (b) Delta SNP-index plots between bloom (B)- and bloomless (BL)-bulk for bloom formation (BF) in Chr.1. Each spot indicates an SNP. The green line indicates a probability value of <0.05, and the yellow line indicates a probability value of <0.01. The significant genomic regions (RC-QTL-C6 and RC-QTL-C8) are highlighted in red.
Figure 2. (a) Delta single nucleotide polymorphism (SNP)-index plots between dark green (DG)- and light green (LG)-bulk for rind color (RC) in chromosomes (Chr.) 6 and 8; (b) Delta SNP-index plots between bloom (B)- and bloomless (BL)-bulk for bloom formation (BF) in Chr.1. Each spot indicates an SNP. The green line indicates a probability value of <0.05, and the yellow line indicates a probability value of <0.01. The significant genomic regions (RC-QTL-C6 and RC-QTL-C8) are highlighted in red.
Plants 11 02739 g002
Plants 11 02739 g003 550

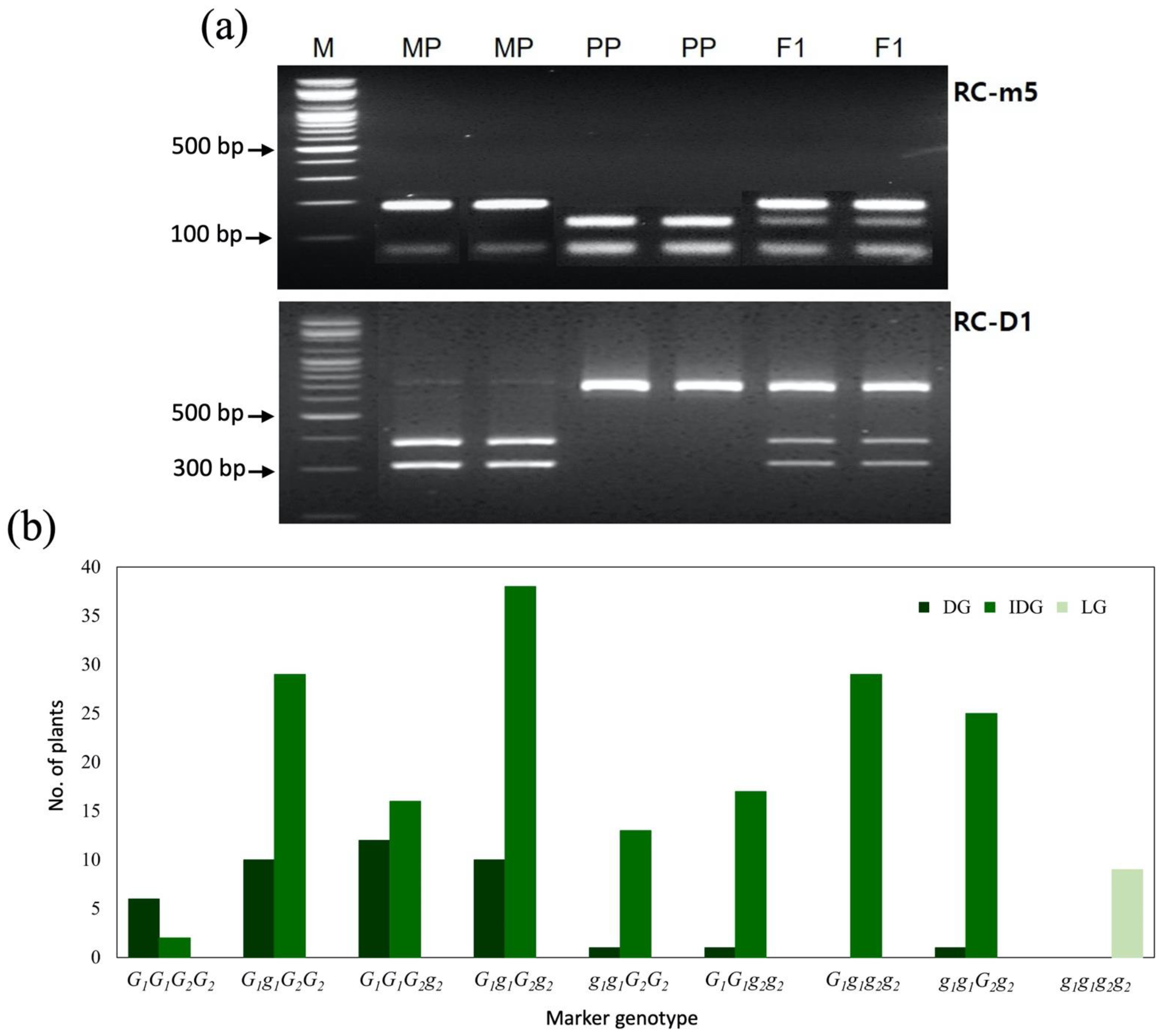

Figure 3. (a) Agarose gel image of CAPS marker RC-m5 at G1 (RC-QTL-C6) and RC-D1 at G2 (RC-QTL-C8) for the rind color of watermelon fruit. M, 100 bp size marker; MP, maternal parent ‘FD061129’; PP, paternal parent ‘SIT55616RN’; F1, progeny from the cross between MP and PP; (b) Distribution of F2 plants for rind color based on the classification of marker genotypes of RC-m5 and RC-D1. G1 and g1, allele for dark green and light green rind color, respectively, at the locus RC-QTL-C6; G2 and g2, allele for dark green and light green rind color, respectively, at the locus RC-QTL-C8.
Figure 3. (a) Agarose gel image of CAPS marker RC-m5 at G1 (RC-QTL-C6) and RC-D1 at G2 (RC-QTL-C8) for the rind color of watermelon fruit. M, 100 bp size marker; MP, maternal parent ‘FD061129’; PP, paternal parent ‘SIT55616RN’; F1, progeny from the cross between MP and PP; (b) Distribution of F2 plants for rind color based on the classification of marker genotypes of RC-m5 and RC-D1. G1 and g1, allele for dark green and light green rind color, respectively, at the locus RC-QTL-C6; G2 and g2, allele for dark green and light green rind color, respectively, at the locus RC-QTL-C8.
Plants 11 02739 g003
Plants 11 02739 g004 550

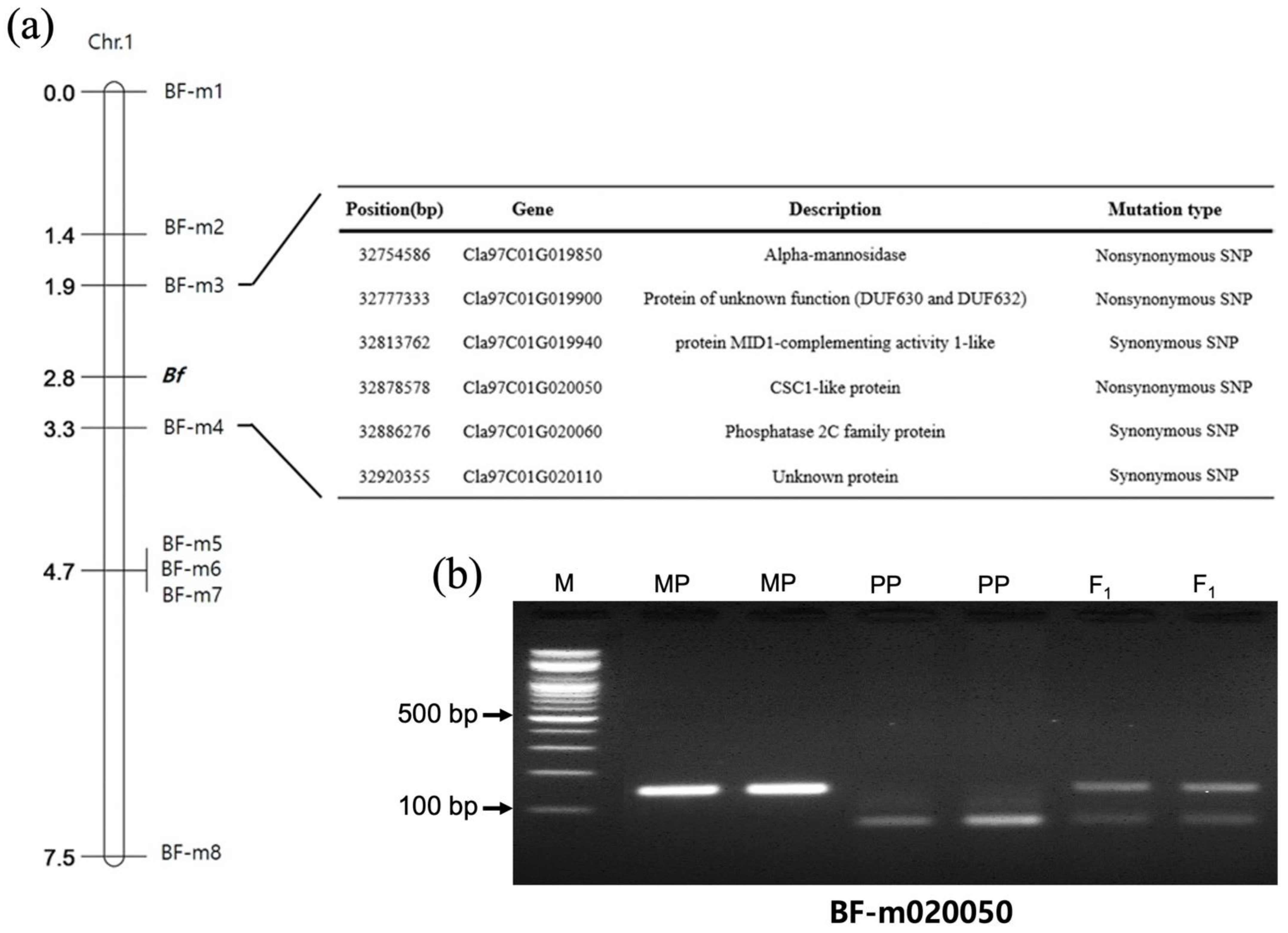

Figure 4. (a) A genetic linkage map showing the location of the locus (Bf) for bloom formation and gene annotation information and SNPs in coding sequences between the two cleaved amplified polymorphic sequence (CAPS) markers (BF-m3 and BF-m4) flanking Bf. (b) From the three nonsynonymous SNPs, two CAPS markers BF-m019900 and BF-m020050 were developed for SNPs located on genes Cla97C01G019900 and Cla97C01G020050 and used to genotype the 219 F2 plant SNPs. BF-m020050 cosegregated with Bf in this F2 population.
Figure 4. (a) A genetic linkage map showing the location of the locus (Bf) for bloom formation and gene annotation information and SNPs in coding sequences between the two cleaved amplified polymorphic sequence (CAPS) markers (BF-m3 and BF-m4) flanking Bf. (b) From the three nonsynonymous SNPs, two CAPS markers BF-m019900 and BF-m020050 were developed for SNPs located on genes Cla97C01G019900 and Cla97C01G020050 and used to genotype the 219 F2 plant SNPs. BF-m020050 cosegregated with Bf in this F2 population.
Plants 11 02739 g004
Plants 11 02739 g005 550

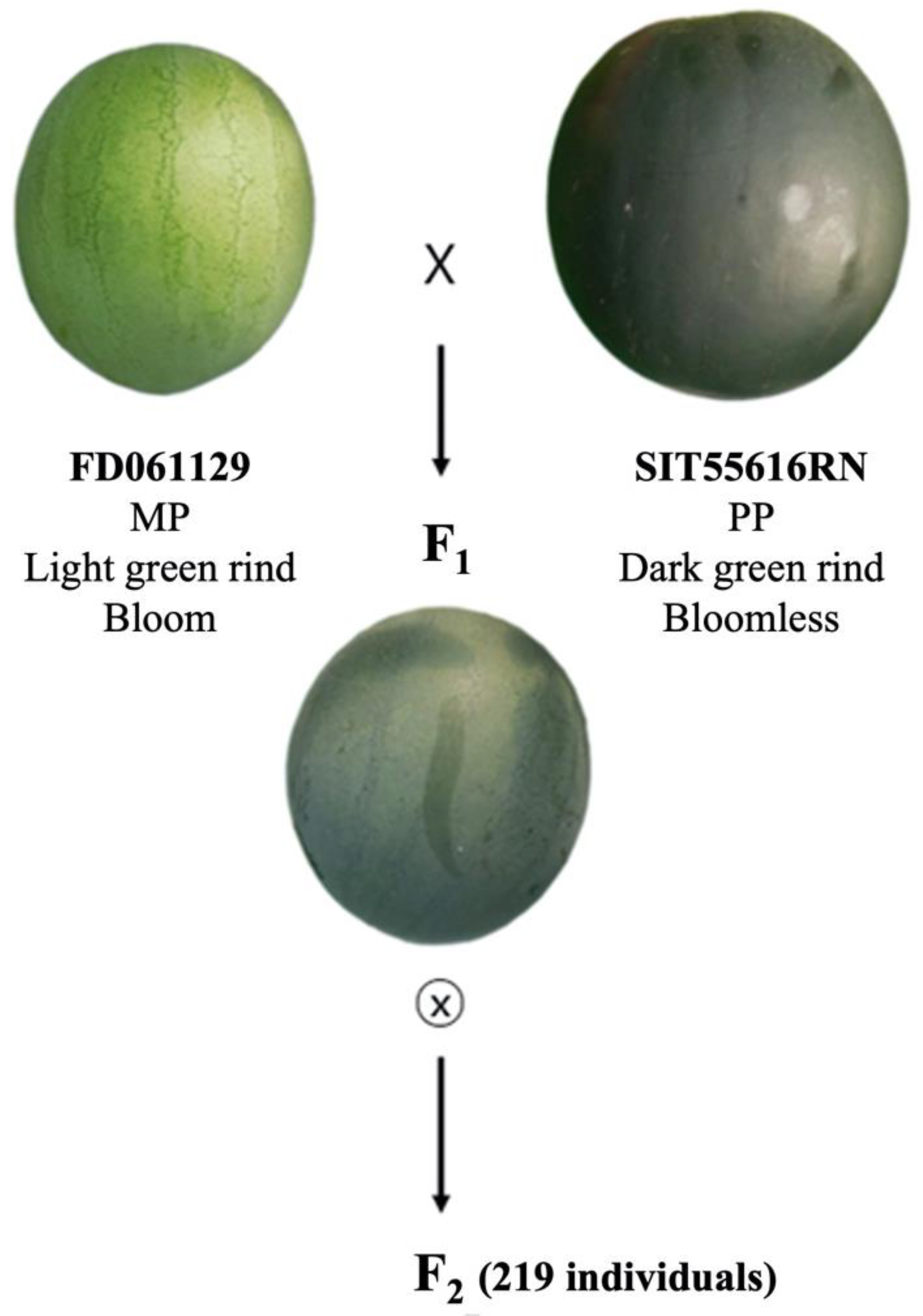

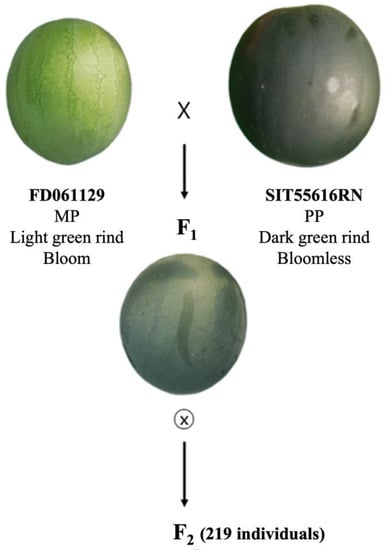

Figure 5. Watermelon-fruit images of maternal parent (MP) ‘FD061129’, paternal parent (PP) ‘SIT55616RN’, their F1 progeny, and the process used for the development of an F2 population.
Figure 5. Watermelon-fruit images of maternal parent (MP) ‘FD061129’, paternal parent (PP) ‘SIT55616RN’, their F1 progeny, and the process used for the development of an F2 population.
Plants 11 02739 g005
Table
Table 1. List of quantitative trait loci (QTLs) for rind color (RC) (dark green vs. light green) and bloom formation (BF) (bloom vs. bloomless) in watermelon fruit identified by QTL-seq. The number of genes, single nucleotide polymorphisms (SNPs), and insertion/deletion (InDel) in the QTL regions.
Table 1. List of quantitative trait loci (QTLs) for rind color (RC) (dark green vs. light green) and bloom formation (BF) (bloom vs. bloomless) in watermelon fruit identified by QTL-seq. The number of genes, single nucleotide polymorphisms (SNPs), and insertion/deletion (InDel) in the QTL regions.
TraitQTLGenomic LocationNo. of GenesNo. of SNPNonsynonymousSynonymousNo. of InDel
TotalGenicSNPSNPTotalGenic
RCRC-QTL-C6Chr.6: 27.56–27.8322144303260
RC-QTL-C8Chr.8: 26.83–28.2077433182161793
BFBF-QTL-C1Chr.1: 32.10–33.51217674512823321
Table
Table 2. List of cleaved amplified polymorphic sequence (CAPS) markers developed from single nucleotide polymorphisms (SNPs) located on RC-QTL-C6 and BF-QTL-C1.
Table 2. List of cleaved amplified polymorphic sequence (CAPS) markers developed from single nucleotide polymorphisms (SNPs) located on RC-QTL-C6 and BF-QTL-C1.
MarkerGene IDGene FunctionSNP LocationForward Primer (5′→3′)Restriction EnzymeExpected Amplicon Size (PP/MP)z(bp)
RC-m1Cla97C06G119680dnaJ homolog subfamily C GRV220,950,898F: TCCTCTCTGCTGCTTTGGTTHpy166II186, 210, 35/396,35
R: CATCCCACAAATGCCATGTA
RC-m2Cla97C06G123140protein SMAX1-LIKE 4-like25,477,052GAGCCTATCGAGGCAATCAAMspI157, 280/437
CTTCCTTTCCGCTCAAACAC
RC-m3Cla97C06G125670Pentatricopeptide repeat-containing protein27,617,100ACATGAATTACGCTGTTGTTGTTTTMluCI5, 80, 67, 37, 10, 22/5, 147, 37, 10, 22
TAACTGCTTTCCCAACATAATTGAAC
RC-m4Cla97C06G125700Expansin27,636,308ACTTCAATTTAGTTCTTGTAACCAACGHpyCH4V116, 126, 47/242, 47
AAAAACTCTGTTCCGTTTTGTTGTT
RC-m5Cla97C06G125710Chlorophyll a-b binding protein, chloroplastic27,640,473GTTTTTGGGAGGCGAGTTATTAGTTMluCI47, 56, 118/47, 174
AATGTGCTGCAATAGGTTGTCAAAT
RC-m6Cla97C06G125790RWP-RK domain-containing protein27,678,509TGTAGGCTCATCAACTTCCTATGAGBccI35, 232/35, 116, 112
GATGGTGGAGGAAATGAAGAAAATAGA
RC-m7Cla97C06G125810promoter27,691,376TTGTTGATAGAGAGTGACATTTTGTTMfeI 226, 206/432
CCCTTTAAACGCAGTAAACCA
RC-m8Cla97C06G125840promoter27,722,575AACATGTTGTATTTCGTTGCATTHpyCH4V19, 152, 254/425
TTTGTGCCTATTTATGGTTGAA
RC-m9Cla97C06G127750gamma carbonic anhydrase-like 2, mitochondrial29,181,220AAATGGCAGCTGTAGCTCGTBtgI272, 241/513
AAAATTGCGAGTGCAGGAAT
BF-m1Cla97C01G0196502OG-Fe(II) oxygenase family oxidoreductase32,548,234TTGTTTCCACCTGTTGTTTGTCTAABstNI253/72, 181
TACTCATTCAACCGACAACAAAGAA
BF-m2Cla97C01G01984026S proteasome non-ATPase regulatory subunit 4 homolog32,731,607ATTCTTCAATGGAGGAAATGGAGTCHaeIII195, 104/299
GACCTATCTAGAGAGCCCATGATTG
BF-m3Cla97C01G01984026S proteasome non-ATPase regulatory subunit 4 homolog32,741,354TTGATTGTTATTCTGGGTTGTCAGTRsaI177/103, 74
ATGCTTTTAATTCCAGAAACTCACCG
BF-m019900Cla97C01G019900 Protein of unknown function (DUF630 and DUF632)32,777,333CTATGGGTTGCTGTTACTCGAGATHindIII97, 91/188
AATGTAGGTCTCTGCATTGGAAAAC
BF-m020050Cla97C01G020050CSC1-like protein32,878,578TCTTTTGCTCTCCTCCAAATATACCFokI13, 75, 59, 107/13, 135, 107
TCTTTTGCTCTCCTCCAAATATACC
BF-m4Cla97C01G020120Phospholipase D32,925,042AGCAAAATAAGAGCGAAGGAAAGATAciI74, 135/209
GTCCATCACATTCGGTAATGGATAC
BF-m5Cla97C01G020220Regulator of Vps4 activity in the MVB pathway protein32,971,051GTTGGTTAGGGTAGAATTAGCAGGAHpy188I260/168, 92
GAGCAAGCAGCAGTATTTTCATTTA
BF-m6Cla97C01G020540Trafficking protein particle complex subunit-like protein33,148,668TGAGGTTAAAGTAAATCTGGGCAACRsaI88, 45, 42/133, 42
ATCGAAGTTATTGCAGGAAATCAAG
BF-m7Cla97C01G020540Trafficking protein particle complex subunit-like protein33,155,492ATCAGGGGTTCCTCTCAAAATTAACMluCI18, 81, 45, 5, 26/18, 126, 5
ATTGCAGTGGCAACTTAATCTGAAT
BF-m8Cla97C01G020630promoter33,210,953TGCTCAATACATTTACAGCCTAATCAMluCI73, 27, 155, 41/73, 182, 41
TGAGGGGTGAATCGATATTTACATTAT
Table
Table 3. Phenotypic distribution of F2 plants based on the CAPS marker genotypes for two loci G1 and G2 controlling the rind color of watermelon fruits.
Table 3. Phenotypic distribution of F2 plants based on the CAPS marker genotypes for two loci G1 and G2 controlling the rind color of watermelon fruits.
Genotype aNumber of F2 Plants b Number of G AllelePercentage of DG (%)
DGIDGLGTotal
G1G1G2G26208475.0
G1g1G2G21029039325.6
G1G1G2g21216028342.9
G1g1G2g21038048220.8
g1g1G2G211301427.1
G1G1g2g211701825.6
G1g1g2g202902910.0
g1g1G2g212502613.8
g1g1g2g2009900.0
Total411699219
aG1 and g1, alleles for dark green and light green rind color, respectively, at the locus RC-QTL-C6; G2 and g2, alleles for dark green and light green rind color, respectively, at the locus RC-QTL-C8. b DG, dark green; IDG, intermediate dark green; LG, light green.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lee, S.; Jang, G.; Choi, Y.; Park, G.; Park, S.; Kwon, G.; Je, B.; Park, Y. Identification of Candidate Genes for Rind Color and Bloom Formation in Watermelon Fruits Based on a Quantitative Trait Locus-Seq. Plants 2022, 11, 2739. https://doi.org/10.3390/plants11202739

AMA Style

Lee S, Jang G, Choi Y, Park G, Park S, Kwon G, Je B, Park Y. Identification of Candidate Genes for Rind Color and Bloom Formation in Watermelon Fruits Based on a Quantitative Trait Locus-Seq. Plants. 2022; 11(20):2739. https://doi.org/10.3390/plants11202739

Chicago/Turabian Style

Lee, Siyoung, Gaeun Jang, Yunseo Choi, Girim Park, Seoyeon Park, Gibeom Kwon, Byoungil Je, and Younghoon Park. 2022. "Identification of Candidate Genes for Rind Color and Bloom Formation in Watermelon Fruits Based on a Quantitative Trait Locus-Seq" Plants 11, no. 20: 2739. https://doi.org/10.3390/plants11202739

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
