Visualization of 3D Survey Data for Strata Titles

1
Department of Geodetic Engineering, Faculty of Engineering, Universitas Gadjah Mada, Jl. Grafika No. 2, Yogyakarta 55281, Indonesia
2
IT Department, PT. ECC (Engineering Career Centre), Jl. Kenari No. 5, Yogyakarta 55166, Indonesia
*
Author to whom correspondence should be addressed.
ISPRS Int. J. Geo-Inf. 2020, 9(5), 310; https://doi.org/10.3390/ijgi9050310
Received: 5 April 2020 / Revised: 27 April 2020 / Accepted: 5 May 2020 / Published: 7 May 2020
(This article belongs to the Special Issue Applications of GIScience for Land Administration)

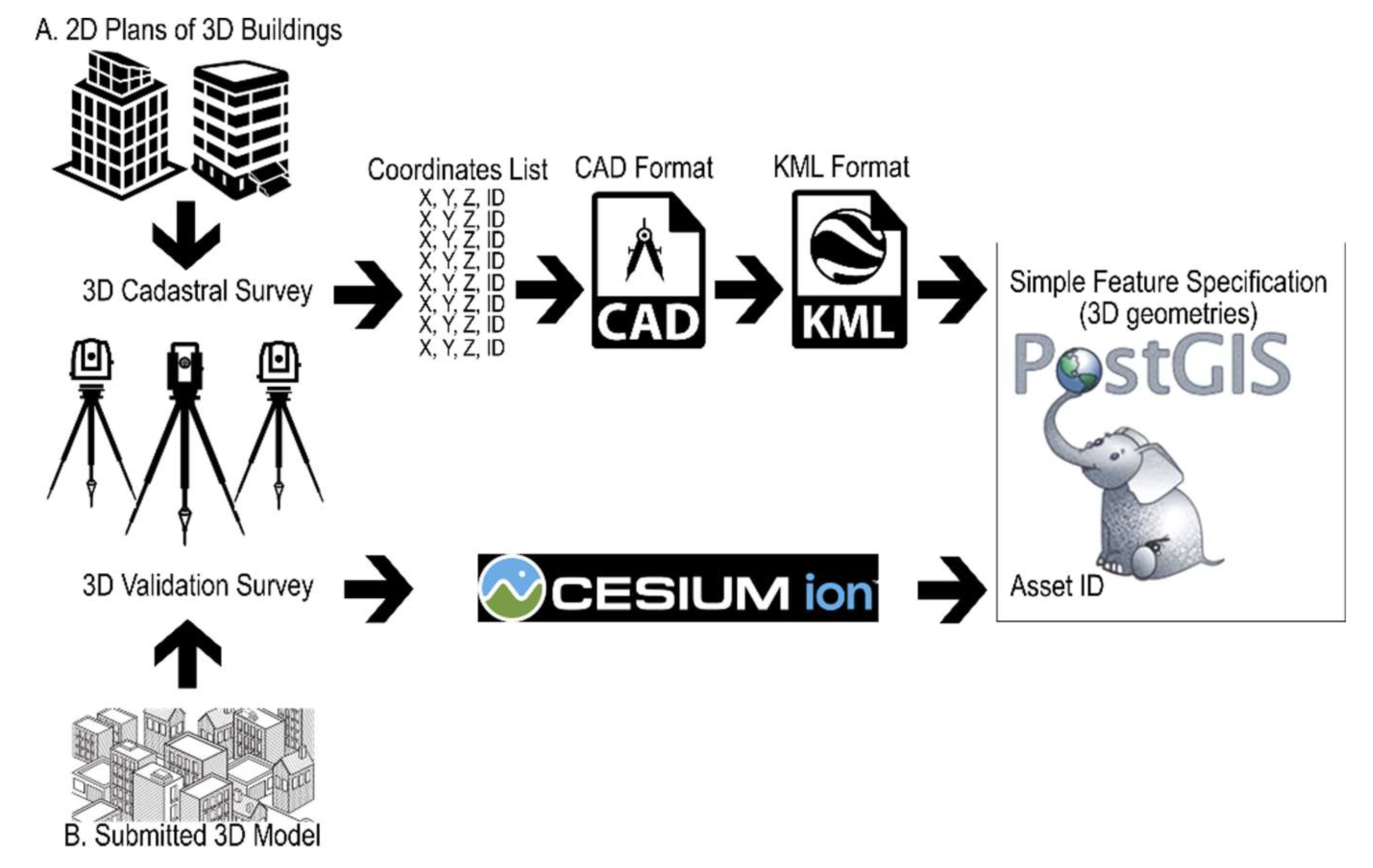

Major cities and urban areas are beginning to develop and use 3D properties and public facilities. Consequently, 3D cadastral surveys are increasingly being employed for strata unit ownership registration as a part of land administration services. At present, most national land information systems do not support 2D and 3D cadastral visualizations. A field survey or validation survey is required to determine the geometry of 3D spatial units for property registration. However, the results of 3D surveys and mapping are not stored in the land information system. This work aims to integrate 2D and 3D geospatial data of property units collected from cadastral surveys with their corresponding legal data. It reviews the workflow for the use of 3D survey data for first-titling of 3D properties in Indonesia. A scenario of use and a prototype were developed based on existing practices and the possibility of extending Indonesia’s Land Administration Domain Model (LADM) to represent 3D units. Data submitted to the prototype as 3D geometries was survey data from 3D cadastral surveys or validation surveys utilizing terrestrial survey methods. The prototype used PostGIS and Cesium Ion to store 3D geometries of data from six 3D surveys. Registrars in local land offices could use the prototype to undertake strata unit registration that establishes a relationship among geospatial features and their survey documents and legal documents. Cesium JS was used as a 3D browser, customized as a web application, to manage and visualize 3D survey data to support strata title registration. The results demonstrate that the first titling of 3D cadaster objects could be conducted and properly visualized in Indonesia by extending the existing LADM with more support for 3D spatial representations and survey documents. View Full-Text
Keywords: 3D survey; 3D visualization; 3D cadastral registration; land information systems; spatial databases; strata titles 3D survey; 3D visualization; 3D cadastral registration; land information systems; spatial databases; strata titles
