Open AccessEditor’s ChoiceArticle

A Method for 3D Reconstruction of the Ming and Qing Official-Style Roof Using a Decorative Components Template Library

by 1,2,3,4, 1,2, 1,2,*, 5, 1,2 and 6
1
School of Geomatics and Urban Spatial Informatics, Beijing University of Civil Engineering and Architecture, Beijing 100044, China
2
Key Laboratory for Architectural Heritage Fine Reconstruction & Health Monitoring, Beijing 100044, China
3
Beijing Institute of Surveying and Mapping, Beijing 100038, China
4
Beijing Key Laboratory of Urban Spatial Information Engineering, Beijing 100038, China
5
School of Civil and Transportation Engineering, Beijing University of Civil Engineering and Architecture, Beijing 100044, China
6
Department of Civil Engineering, Ryerson University, Toronto, ON M5B 2K3, Canada
*
Author to whom correspondence should be addressed.
ISPRS Int. J. Geo-Inf. 2020, 9(10), 570; https://doi.org/10.3390/ijgi9100570
Received: 9 August 2020 / Revised: 19 September 2020 / Accepted: 28 September 2020 / Published: 29 September 2020
(This article belongs to the Special Issue BIM for Cultural Heritage (HBIM))

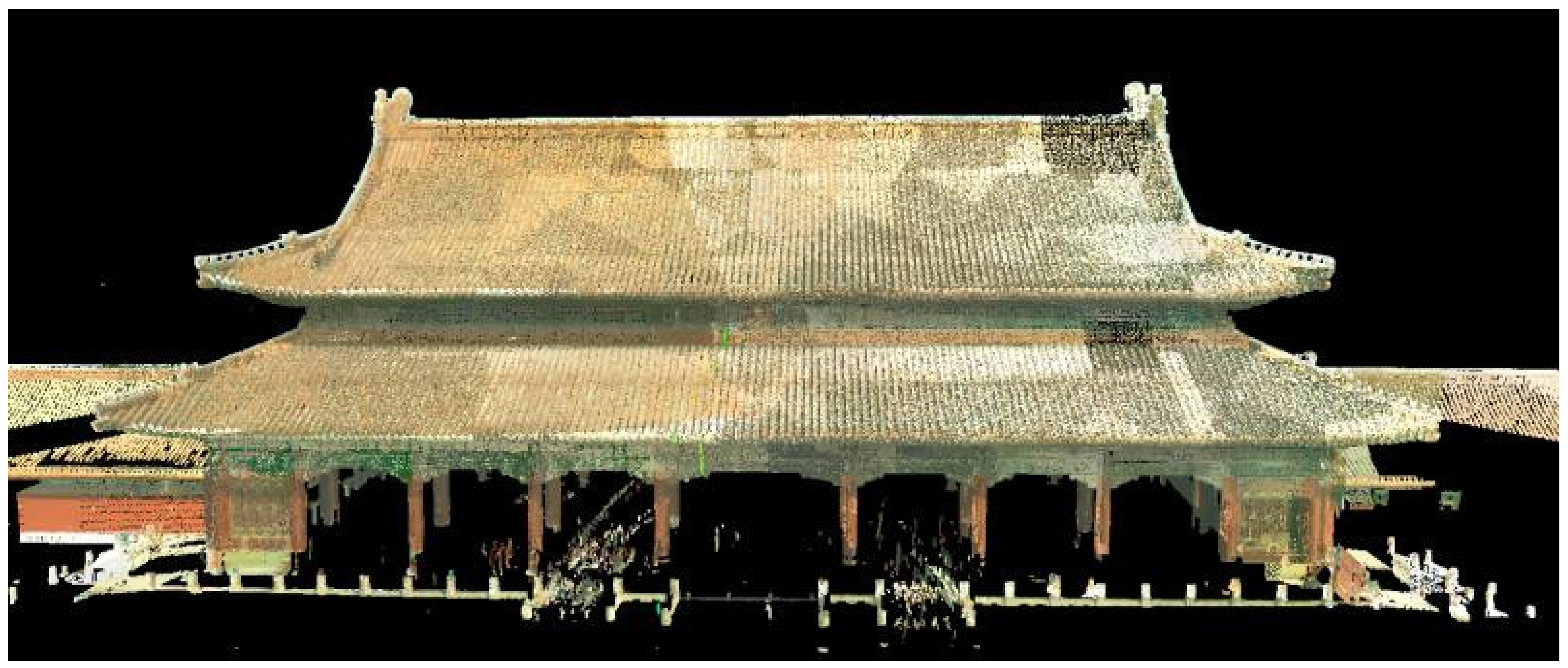

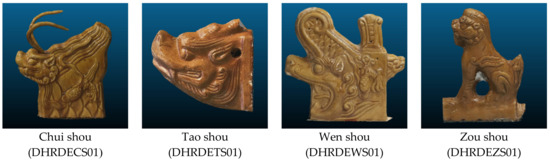

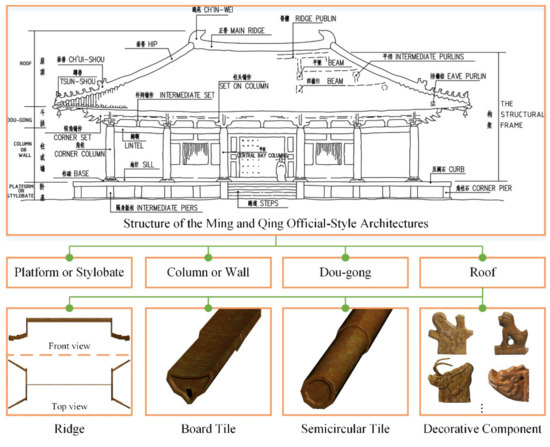

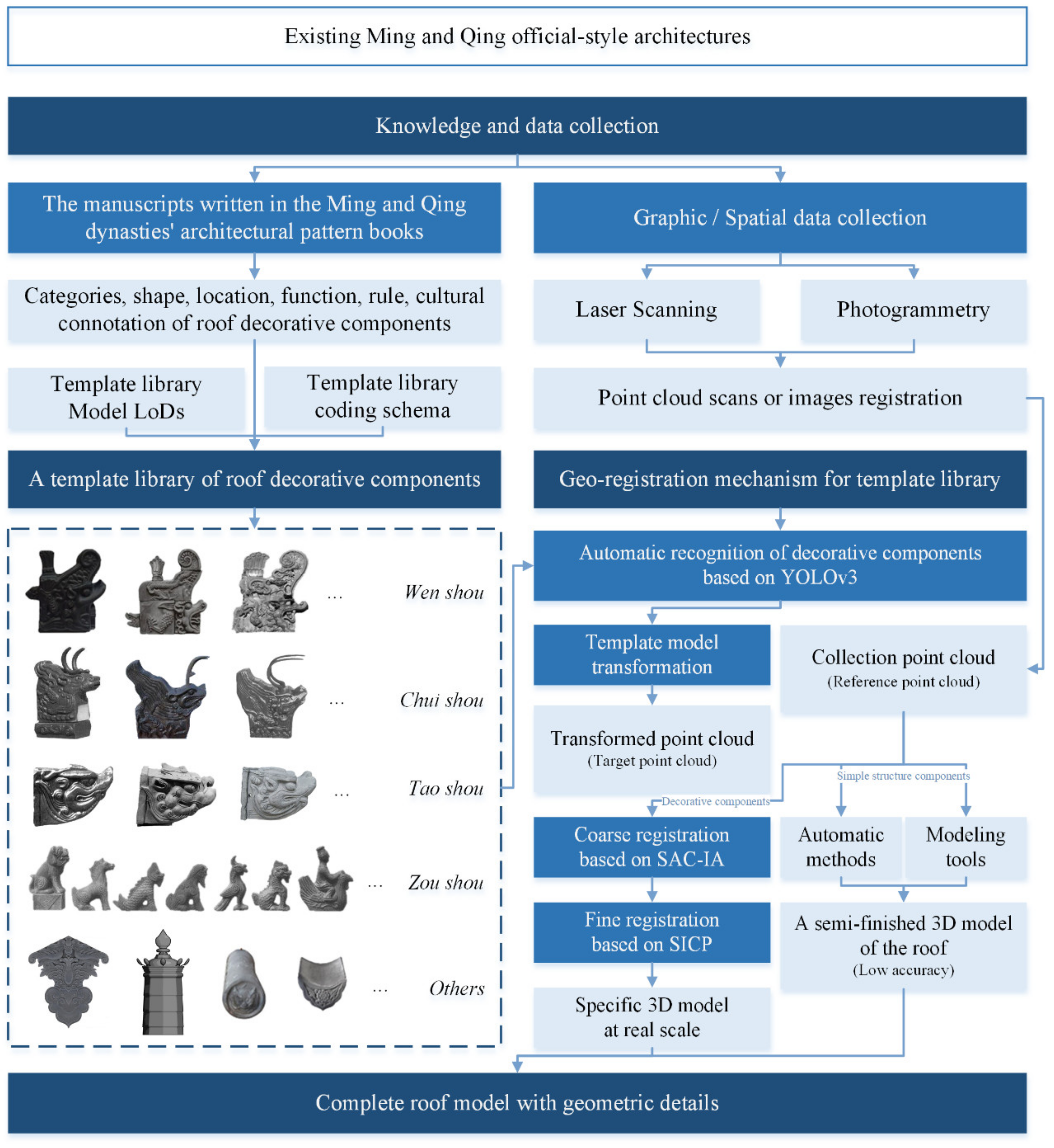

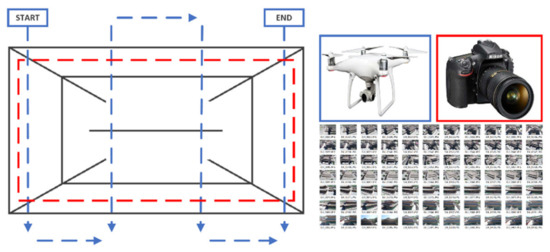

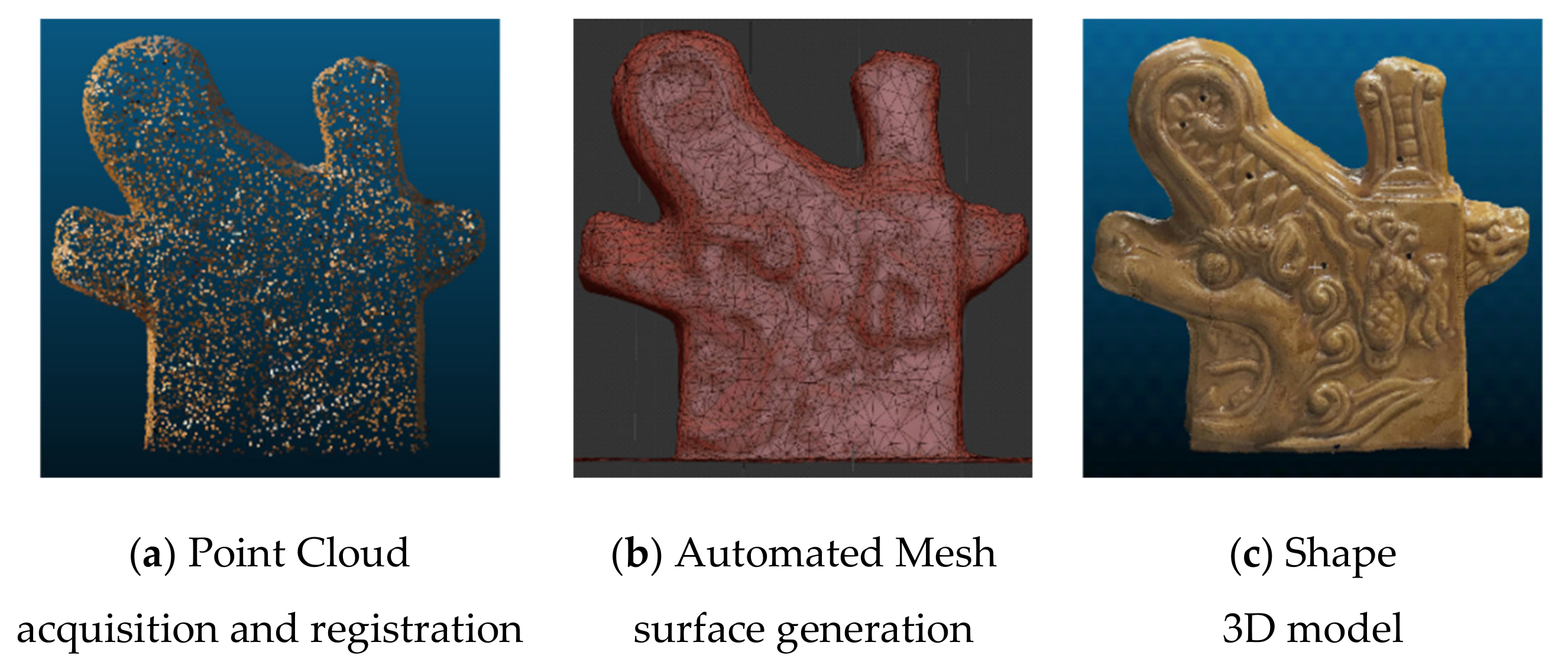

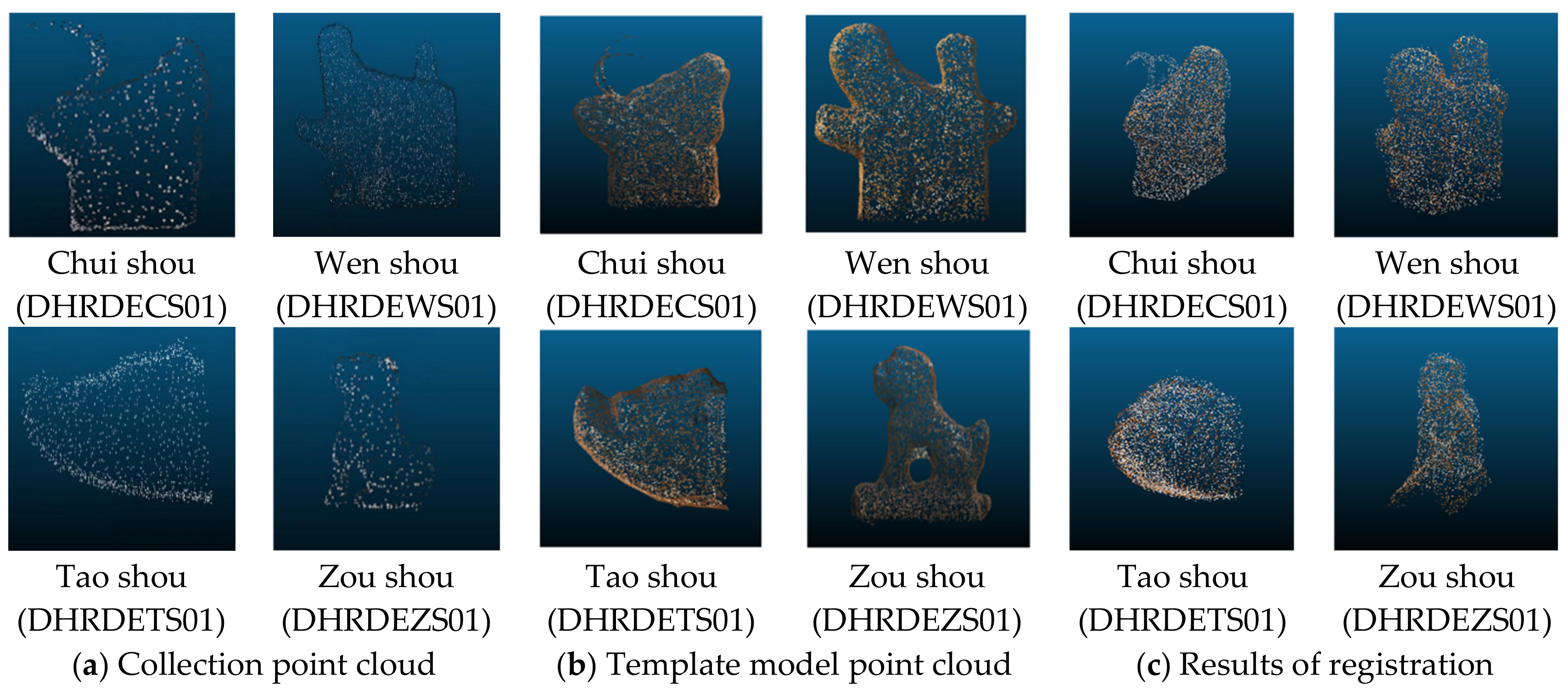

The ancient roof decorative components of the official-style architectures from the Ming and Qing dynasties in China hold both physical and symbolic significance. These roof structures are the essential objects in three-dimensional (3D) modeling of ancient architectures for traditional Chinese cultural preservation. Although ancient architectures can be surveyed by a 3D laser scanner, the complex geometry and diverse pattern of their roof decorative components make the 3D point cloud reconstruction challenging, or at some points, nearly impossible in a fully automated manner. In this paper, we propose a method to ensure that the 3D shape of each roof decorative component is accurately modeled. First, we establish a decorative components template library (or “template library” in short hereafter), which is the first of its kind for the roofs of Ming and Qing official-style architectures. The process of establishing the decorative components template library begins with a remote collection of survey data using a terrestrial laser scanner and digital camera. The next stage involves the design and construction of different 3D decorative components in the template library with reference to the manuscripts written in the Ming and Qing dynasties’ architectural pattern books. With the point cloud data collected on any Ming and Qing official-style architecture, we further propose a geo-registration mechanism to search for an optimal fitting of the decorative components from the template library on the collected point cloud automatically. Based on the experimental results, the accuracy of point cloud registration yields less than 0.02 m, which meets the accuracy of the 3D model at LoD 300 level. Time consumption is less than 5s and stable, for large volume computing capacity has good robustness. The proposed strategy provides a new way for the 3D modeling of large and clustered historical architectures, particularly with complex structures. View Full-Text

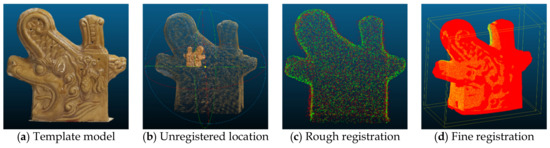

Keywords: official-style architecture; decorative components; template library; point cloud registration; level of details; BIM; 3D modeling official-style architecture; decorative components; template library; point cloud registration; level of details; BIM; 3D modeling
Show Figures

Figure 1
