# Typification for Façade Structures Based on User Perception

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. A User Survey for Typification

#### 2.1. Constraints of Typification

- keeping the area covered by windows,
- keeping the ratio between the height and the width of the windows,
- keeping the distances between windows,
- keeping the distances between windows and the outline of the façade,
- keeping windows distributed in the tendency direction.

#### 2.2. User Survey and the Results

## 3. Verification of the User Survey Using ARG and NEMD Algorithm

_{i}|1 ≤ I ≤ n} and R = {r

_{ij}|1 ≤ I ≤ n, 1 ≤ j ≤ n}. V is the set of n nodes and each v

_{i}represents a window in the façade. R is an $n\times n$ matrix and each r

_{ij}is the relationship between the window v

_{i}and v

_{j}. In this application the node contains attributes about the window such as width and height and the relationship between nodes will represent the spatial and topological relations between the windows on the façade.

_{inner}, in which every element is generated from Equation (1). For example, the D

_{inner}of node v

_{1}in G and v’

_{1}in G’ (v

_{i}and v’

_{i’}) is given in Equation (3), in which the 1st row and 2nd column of inner matrix D

_{inner}, Δ

_{inner}(1, 2) can be calculated with Equation (2).

_{node}(v

_{1}, v’

_{2}) = |0.8 − 0.3| = 0.5, Δ

_{relation}(r

_{11},r’

_{12}) = |0 − 0.2| = 0.2, α = 0.5. Therefore, Δ

_{inner}(1, 2) = 0.35. Similarly, we can calculate all Δ

_{inner}(j, j’) and compose the D

_{inner}for the node pair v

_{1}and v’

_{1}as shown in Equation (3). Based on that, the inner EMD of node v

_{1}in G and v’

_{1}in G’ is 0.1 + 0.3 + 0.35 = 0.75 (the minimum sum of minimum value in each column or row).

_{outer}of G and G’ is also given in Equation (3), in which the first element is 0.75 according to previous calculation. The EMD between G and G’ is 0 based on the D

_{outer}, because G’ is the sub graph of G. But in our application, not only partial but also overall difference between ARGs should be considered. Therefore, the difference between two ARGs is the maximum sum of the minimum value in each column or row of the D

_{outer}, e.g., 0.05 for G and G’ in Figure 4.

#### 3.1. ARG Generation

_{i}= (w

_{i}, h

_{i}) in which is v

_{i}represent the i-th window in the façade; w

_{i}and h

_{i}are the width and height of the window. The relationship between two windows is set to the ratio of the distance between two polygons of the windows and their area sum. However, absolute distance alone is not sufficient to reflect the visual relationship between two windows on the façade since two large windows would look more similar to each other than two smaller ones even if they have same distance.

#### 3.2. Distance Definition

_{node}is composed by two parts: shape distance Δ

_{shape}and area distance Δ

_{area}. Assuming v

_{i}and v

_{j}are two nodes, Δ

_{node}can be calculated as follows:

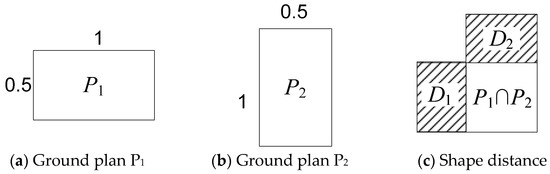

_{shape}equals the sum area of D

_{1}and D

_{2}(the shaded part in Figure 5c). Since rectangle P

_{1}and P

_{2}are normalized to the rectangle with 1 as their longest edge, Δ

_{shape}is a value between 0 (means exactly the same) and 1 (completely different). In Equation (8), ${W}_{i}$ and ${H}_{i}$ are the total width and length of the façade which contains ${v}_{i}$, so are ${W}_{i}$ and ${H}_{i}$. Δ

_{area}is the normalized area difference. α is a number between 0 and 1 which gives the weight of the shape and area distance in final node distance.

_{ij}and Δ

_{pq}indicate respectively the node distance between ${v}_{i}$ and ${v}_{j}$ and the node distance between v

_{p}and v

_{q}. The combined distance is the same as Equation (1), ${\Delta}_{inner}=\alpha \xb7{\Delta}_{node}+(1-\alpha )\xb7{\Delta}_{relationship}$, where α is a number between 0 and 1 and gives the weight of the node and relationship distance. In our implementation, α is set to 0.5 in Equation (10) because the importance of shape and area are considered to be the same. For the combined distance in Equation (1), α is set to 10/17 according to the value in Table 2, in which the importance value is 10 for the windows and 7 for the relationship between windows. Therefore, the weight for node is set to 10/(10 + 7) and weight for relationship is set to 7/(10 + 7). If there is not apredefined weight, the default weights for the NEMD calculation are identical in the process, e.g., α = 0.5 in Equation (10). Otherwise, the weights are generated to reflect the rational, e.g., α = 10/17 in Equation (1).

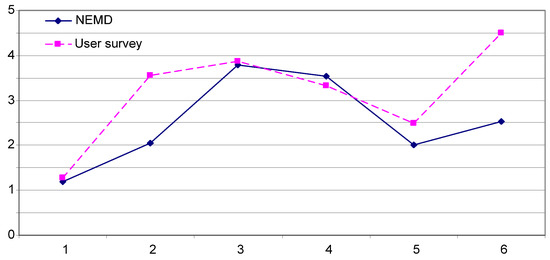

#### 3.3. Similarity Values

## 4. The Automatic Approach of Typification

#### 4.1. Typical Distribution of Windows on a Façade

#### 4.2. The Process of Typification

- (1)
- The initial step: let the constraint significances equal one. Then the sides of window can be set initially according to the change of distances among windows: ${a}_{2}={a}_{1}\xb7\frac{\mathrm{min}\left\{{c}_{2},{d}_{2}\right\}}{\mathrm{min}\left\{{c}_{1},{d}_{1}\right\}}$, and ${b}_{2}={b}_{1}\xb7\frac{\mathrm{min}\left\{{c}_{2},{d}_{2}\right\}}{\mathrm{min}\left\{{c}_{1},{d}_{1}\right\}}$.
- (2)
- Put the initial values into Equations (17) and (18), and the number of windows in row and column can be then calculated by:$${M}_{2}=({c}_{2}+{L}_{h2}-2{f}_{2})/({a}_{2}+{c}_{2})$$$${N}_{2}=({d}_{2}+{L}_{v2}-2{e}_{2})/({a}_{2}+{d}_{2})$$
- (3)
- ${M}_{2}$ and ${N}_{2}$ are rounded to the nearest integer. The differences between the calculated values ${M}_{2}$, ${N}_{2}$ and their nearest integer can be utilized to judge whether the process should terminate or not. In our work $\left|round({M}_{2})-{M}_{2}\right|<0.25$ and $\left|round({N}_{2})-{N}_{2}\right|<0.25$ were set as the thresholds below which the process will be terminated.
- (4)
- If the threshold is not yet reached, ${\kappa}_{1}$ will be increased by 0.01, i.e., ${\kappa}_{1}={\kappa}_{1}+0.01$. Then the new ${M}_{2}$ and ${N}_{2}$ will be calculated. If the threshold is reached, the process will terminate; otherwise it will go on to the subsequent step.
- (5)
- ${\kappa}_{2}$ will be increased by 0.01, i.e., ${\kappa}_{2}={\kappa}_{2}+0.01$. Then the new ${M}_{2}$ and ${N}_{2}$ will be calculated. If the threshold is reached, the process will terminate, otherwise it will go on to the subsequent step.
- (6)
- $\tau $ will be increased by 0.01, i.e., $\tau =\tau +0.01$. Then the new ${M}_{2}$ and ${N}_{2}$ will be calculated. If the threshold is reached, the process will terminate, otherwise it will go back to step 4.

## 5. Experiments and Evaluation

## 6. Conclusions and Further Works

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Staufenbiel, W. Zur Automation der Generalisierung Topographischer Karten Mit Besonderer Berücksichtigung Großmaßstäbiger Gebäudedarstellungen. Ph.D. Thesis, Wissenschaftliche Arbeiten der Fachrichtung Vermessungswesen der Universität Hannover (51), Hannover, Gemany, 1973. [Google Scholar]
- Lamy, S.; Ruas, A.; Demazeau, Y.; Jackson, M.; Mackaness, W.; Weibel, R. The application of agents in automated map generalization. In Proceedings of the 19th International Cartographic Conference of the ICA, Ottawa, ON, Canada, 14–21 August 1999.
- Rainsford, D.; Mackaness, W. Template matching in support of generalization of rural buildings. In Proceedings of the Joint International Symposium on “Geospatial Theory, Processing and Applications” (ISPRS Commission IV SDH2002), Ottawa, ON, Canada, 8–12 July 2002.
- Regnauld, N. Contextual building typification in automated map generalization. Algorithmica
**2001**, 30, 312–333. [Google Scholar] [CrossRef] - Van Kreveld, M. Smooth generalization for continuous zooming. In Proceedings of the ICC, Beijing, China, 6–10 August 2001.
- Sester, M. Generalization based on least squares adjustment. In International Archives of Photogrammetry and Remote Sensing; ISPRS: Amsterdam, The Netherlands, 2000; pp. 931–938. [Google Scholar]
- Meyer, U. Generalisierung der Siedlungsdarstellung in Digitalen Situationsmodellen. Ph.D. Thesis, Wissenschaftliche Arbeiten der Fachrichtung Vermessungswesen der Universität Hannover, Hannover, Gemany, 1989. [Google Scholar]
- Lal, J.; Meng, L. Rules and constraints for 3D generalization of urban area. J. Geogr. Sci.
**2001**, 11, 17–28. [Google Scholar] [CrossRef] - Kada, M. Automatic generalization of 3D building models. In Proceedings of the Joint International Symposium on Geospatial Theory, Processing and Applications, Ottawa, ON, Canada, 9–12 July 2002.
- Ribelles, J.; Hechbert, P.S.; Garland, M.; Stahovich, T.F. Finding and removing features from polyhedra. In Proceedings of DETC’01, ASME Design Engineering Technical Conference, Pittsburgh, PA, USA, 9–12 September 2001.
- Thiemann, F. Generalization of 3D building data. In The International Archives of the Photogrammetry, Remote Sensing and Spatial Information Science; International Archives Of Photogrammetry Remote Sensing and Spatial Information Sciences: Göttingen, Germany, 2002; pp. 286–290. [Google Scholar]
- Thiemann, F.; Sester, M. Segmentation of buildings for 3D generalization. In Proceedings of the ICA Workshop on Generalisation and Multiple Representation, Leicester, UK, 20–21 August 2004.
- Kada, M. 3D building generalization based on half-space modeling. In Proceedings of the ISPRS Workshop on Multiple Representation and Interoperability of Spatial Data, Hannover, Germany, 22–24 February 2006.
- Kada, M. 3D building generalization by roof simplification and typification. In Proceedings of the 23rd International Cartographic Conference, Moscow, Russia, 4–10 August 2007.
- Sester, M. 3D visualization and generalization. In Photogrammetric Week 07; Wichmann: Stuttgart, Germany, 2007; pp. 285–295. [Google Scholar]
- Meng, L.; Forberg, A. 3D building generalization. In Challenges in the Portrayal of Geographic Information: Issue of Generalization and Multi Scale Representation; Mackaness, W., Ruas, A., Sarjakoski, T., Eds.; Elsevier Science Ltd.: Amsterdam, The Netherlands, 2007; pp. 211–232. [Google Scholar]
- Sester, M.; Brenner, C. Continuous generalization for visualization on small mobile devices. In Developments in Spatial Data Handling; Springer: Berlin/Heidelberg, Germany, 2004; pp. 469–480. [Google Scholar]
- Burghardt, D.; Cecconi, A. Mesh simplification for building typification. Int. J. Geogr. Inf. Sci.
**2007**, 21, 283–298. [Google Scholar] [CrossRef] - Follin, J.M.; Bouju, A.; Bertrand, F.; Boursier, P. Visualization of multi-resolution spatial data in mobile system. In Proceedings of 1st International Workshop on Ubiquitous GIS, Gävle, Sweden, 7–9 June 2004.
- Li, Z.; Yan, H.; Ai, T.; Chen, J. Automated building generalization based on urban morphology and Gestalt theory. Int. J. Geogr. Inf. Sci.
**2004**, 18, 513–534. [Google Scholar] [CrossRef] - Li, H.; Guo, Q.; Liu, J. Rapid algorithm of building typification in web mapping. In Proceedings of the International Symposium on Spatio-Temporal Modelling, Spatial Reasoning, Analysis, Data Mining and Data Fusion, Beijing, China, 27–29 August 2005.
- Li, Z. Algorithm Foundation of Multi-Scale Spatial Representation; CRC Press of Taylor & Francis Group: Boca Raton, FL, USA; London, UK; New York, NY, USA, 2007. [Google Scholar]
- Töpfer, F.; Pillewizer, W. The principles of selection. Cartogr. J.
**1966**, 3, 10–16. [Google Scholar] [CrossRef] - Anders, K.H. Level of detail generation of 3D building groups by aggregation and typification. In Proceedings of the XXII International Cartographic Conference 2005, A Coruňa, Spain, 11–16 July 2005.
- Luyten, K.; Creemers, B.; Coninx, K. Multi-Device Layout Management for Mobile Computing Devices; Technical Report TR-LUC-EDM-0301; Limburgs Univeristair Centrum-Expertise Centre for Digital Media: Hasselt, Belgium, 2003. [Google Scholar]
- Kim, D.H.; Yun, I.D.; Uk Lee, S. A new attributed relational graph matching algorithm using the nested structure of earth mover’s distance. In Proceedings of the 17th International Conference on Pattern Recognition (ICPR’04), Cambridge UK, 23–26 August 2004.
- Barrow, H.G.; Popplestone, R.J. Relational descriptions in picture processing. Mach. Intell.
**1971**, 6, 377–396. [Google Scholar] - Gold, S.; Rangarajan, A. A graduated assignment algorithm for graph matching. IEEE Trans. Pattern Anal. Mach. Intell.
**1996**, 18, 377–388. [Google Scholar] [CrossRef] - Wyk, M.A.; Clark, J. An algorithm for approximate least-squares attributed graph matching. In Problems in Applied Mathematics and Computational Intelligence; World Scientific and Engineering Society Press: London, UK, 2000; pp. 67–72. [Google Scholar]
- Mao, B.; Fan, H.; Harrie, L.; Ban, Y.; Meng, L. City model generalization quality assessment using nested structure of earth mover’s distance. In Proceedings of the 13th Workshop of the ICA Commission on Generalisation and Multiple Representation, Zurich, Switzerland, 12–13 September 2010.
- Ripperda, N.; Brenner, C. Reconstruction of facade structures using a formal grammar and RjMCMC. In Proceedings of the 28th Annual Symposium of the Geman-Association-for-Pattern-Recognition, Berlin, Germany, 12–14 September 2006.
- Becker, S. Generation and application of rules for quality dependent facade reconstruction. ISPRS J. Photogramm. Remote Sens.
**2009**, 64, 640–653. [Google Scholar] [CrossRef]

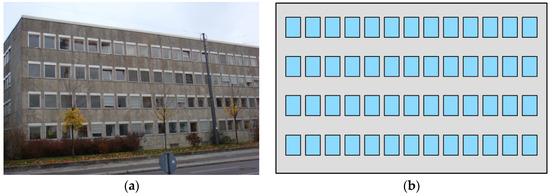

**Figure 1.**An example façade and its vector representation: (

**a**) Example façade of the building located in Arnulfstrasse 53, Munich; (

**b**) Windows extracted from the image.

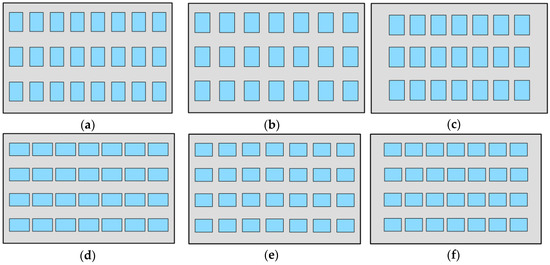

**Figure 2.**Six different options of typification of the example façade in Figure 1: (

**a**) Option 1: constraints 2, 3 and 4; (

**b**) Option 2: constraints 1, 2 and 4; (

**c**) Option 3: constraints 1, 2 and 3; (

**d**) Option 4: constraints 3, 4 and 5; (

**e**) Option 5: constraints 1, 4 and 5; (

**f**) Option 6: constraints 1, 3 and 5.

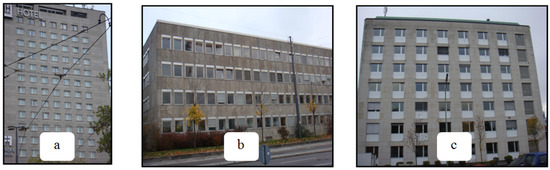

**Figure 3.**Three different façades with regularly distributed windows. With the (

**a**) is a façade of NH hotel in Munich, (

**b**) and (

**c**) are façades of two normal buildings on Nymphenburg street in Munich.

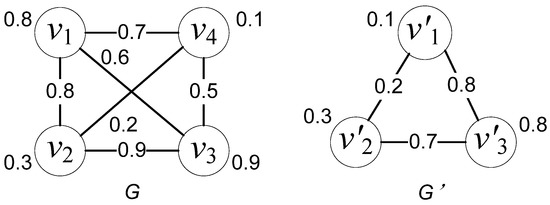

**Figure 4.**An example of ARG matching ([26]).

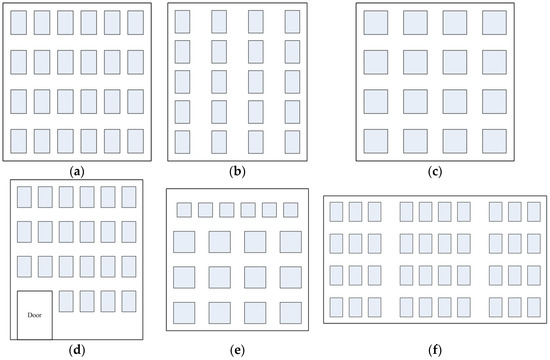

**Figure 7.**Typical distribution of windows on a façade: (

**a**) tendency is in horizontal direction; (

**b**) tendency is in vertical direction; (

**c**) no tendency; (

**d**) regularity is disturbed by a door; (

**e**) windows are not equally-sized; (

**f**) the façade is composed of three regular patterns.

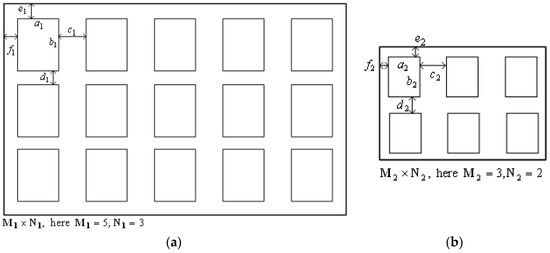

**Figure 8.**Distribution of windows: (

**a**) original distribution; (

**b**) possible distribution after the typification.

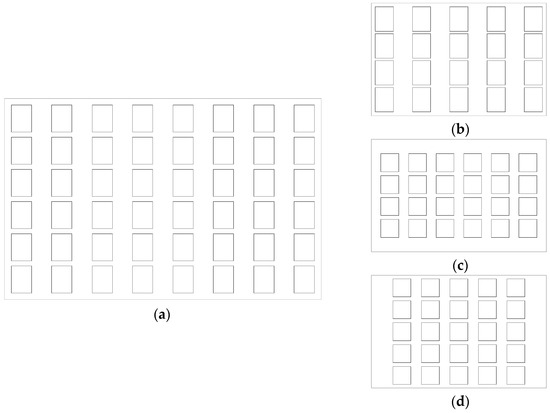

**Figure 9.**Typification for a regularly distributed façade at two different scales: (

**a**) original distribution; (

**b**) for scale reduced by 2×; (

**c**) manual typification; (

**d**) manual typification.

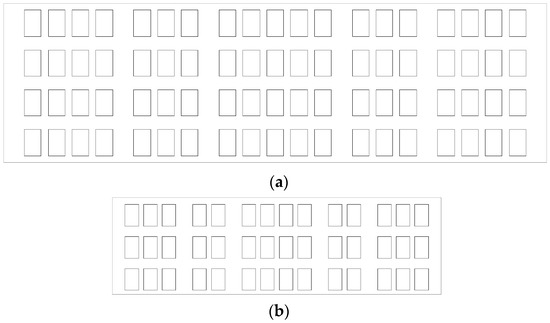

**Figure 10.**Typifying a façade whose windows are not evenly distributed in both directions: (

**a**) original façade which can be composed of several segments; (

**b**) Typified for scale reduced by 2×.

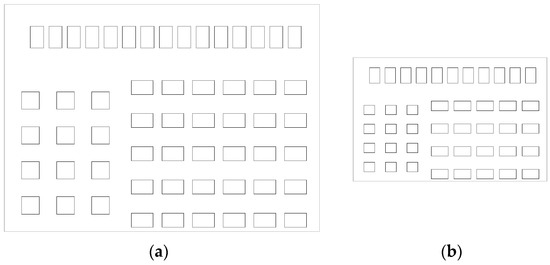

**Figure 11.**Typifying a façade, in which the windows are distributed irregularly: (
