# Investigation of Cyclicity of Kinematic Resolution Methods for Serial and Parallel Planar Manipulators

^{1}

^{2}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

- Null space methods: A particular solution $\dot{\mathbf{q}}$ of (2) is determined by adding a vector in the null-space of the Jacobian. The latter is usually the gradient of a scalar objective function that is to be maximized (or minimized).
- Task augmentation methods: Redundancy is eliminated by adding r auxiliary tasks, in order to make the overall system non-redundant.

## 2. Redundancy Resolution Methods

- PGMThe PGM exploits the fact that a general solution of the differential kinematics can be substituted to Equation (4) when a desired joint rate vector $\mathbf{v}$ is projected into the null space of $\mathbf{J}$:$$\dot{\mathbf{q}}={\mathbf{J}}^{\#}({\dot{\mathbf{p}}}_{d}+\mathbf{G}\mathbf{e})-\mathbf{P}\mathbf{v},$$
- AJMA different approach is followed in the AJM. An additional constraint task is imposed to the original task of the EE. Following [7,12], the objective function $h\left(\mathbf{q}\right)$ is projected onto the null space of $\mathbf{J}$ and imposed to be zero. Formally we can write:$$\mathbf{g}\left(\mathbf{q}\right)={\mathbf{Z}}^{T}\mathbf{v}=\mathbf{0}.$$$\mathbf{Z}\in {\mathbb{R}}^{n\times r}$ is an orthonormal basis for the null space of $\mathbf{J}$ and $\mathbf{v}$ is the gradient of $h\left(\mathbf{q}\right)$ with respect to the joint variables as in the previous method. Therefore, Equation (6) yields r independent constraints keeping $h\left(\mathbf{q}\right)$ at the extreme at each time of the trajectory starting from the initial configuration ${\mathbf{q}}_{0}$.The added Jacobian ${\mathbf{J}}_{a}\in {\mathbb{R}}^{r\times n}$ can simply obtained as$${\mathbf{J}}_{a}=\frac{\partial \mathbf{g}\left(\mathbf{q}\right)}{\partial \mathbf{q}},$$$$\dot{\mathbf{q}}={\mathbf{J}}_{aug}^{-1}(\left[\begin{array}{c}{\dot{\mathbf{p}}}_{d}\\ \mathbf{0}\end{array}\right]+\left[\begin{array}{cc}\mathbf{G}& \mathbf{0}\\ \mathbf{0}& \mathbf{0}\end{array}\right]\left[\begin{array}{c}\mathbf{e}\\ \mathbf{0}\end{array}\right]),\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{\mathbf{J}}_{aug}=\left[\begin{array}{c}\mathbf{J}\\ {\mathbf{J}}_{a}\end{array}\right].$$

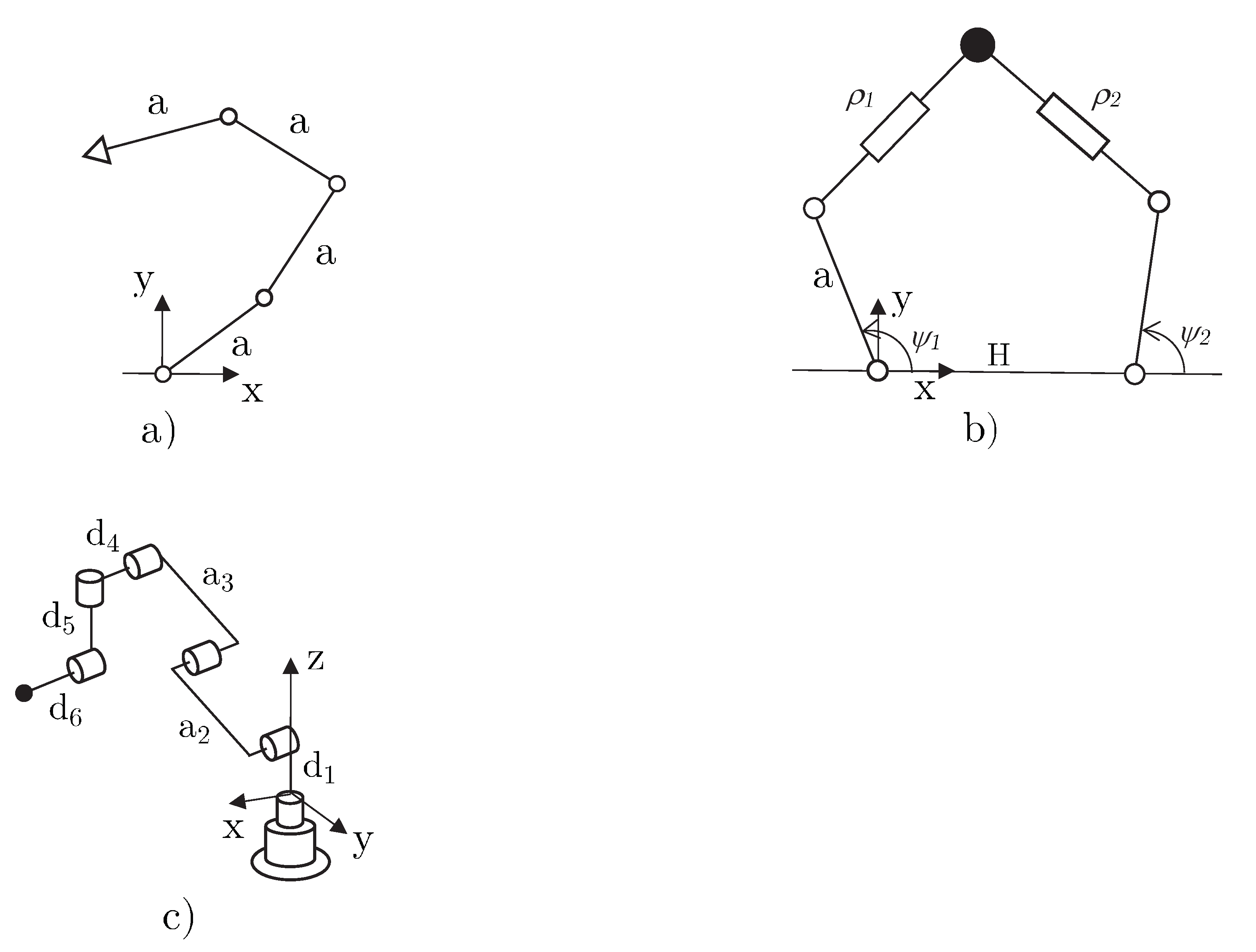

## 3. Numerical Simulations

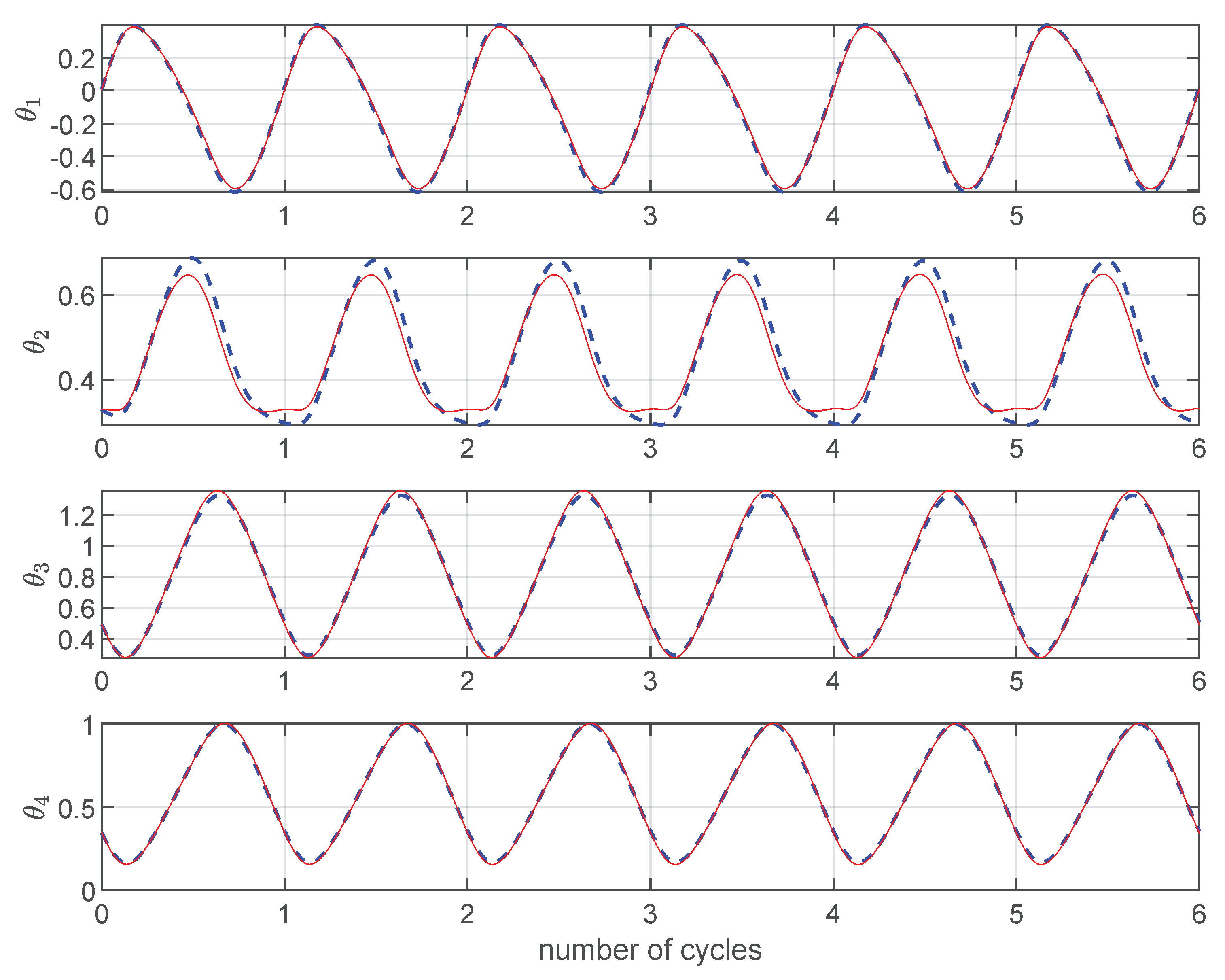

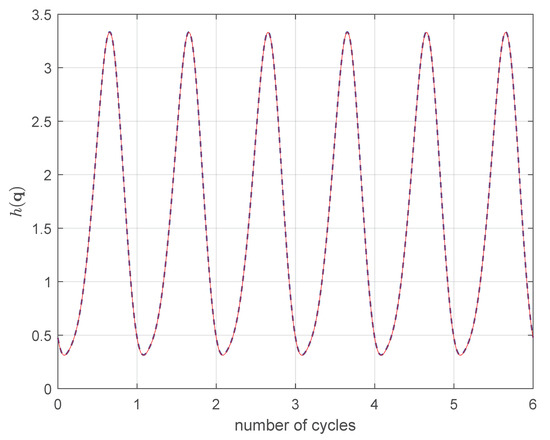

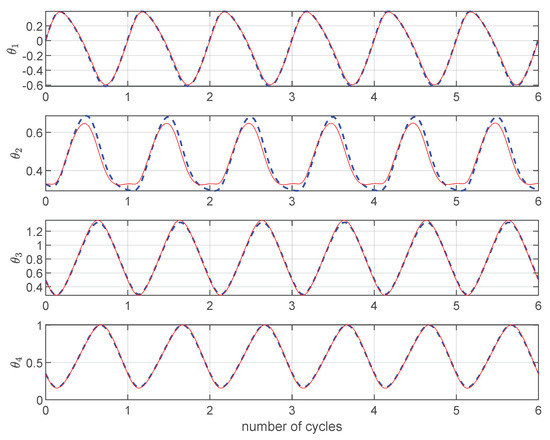

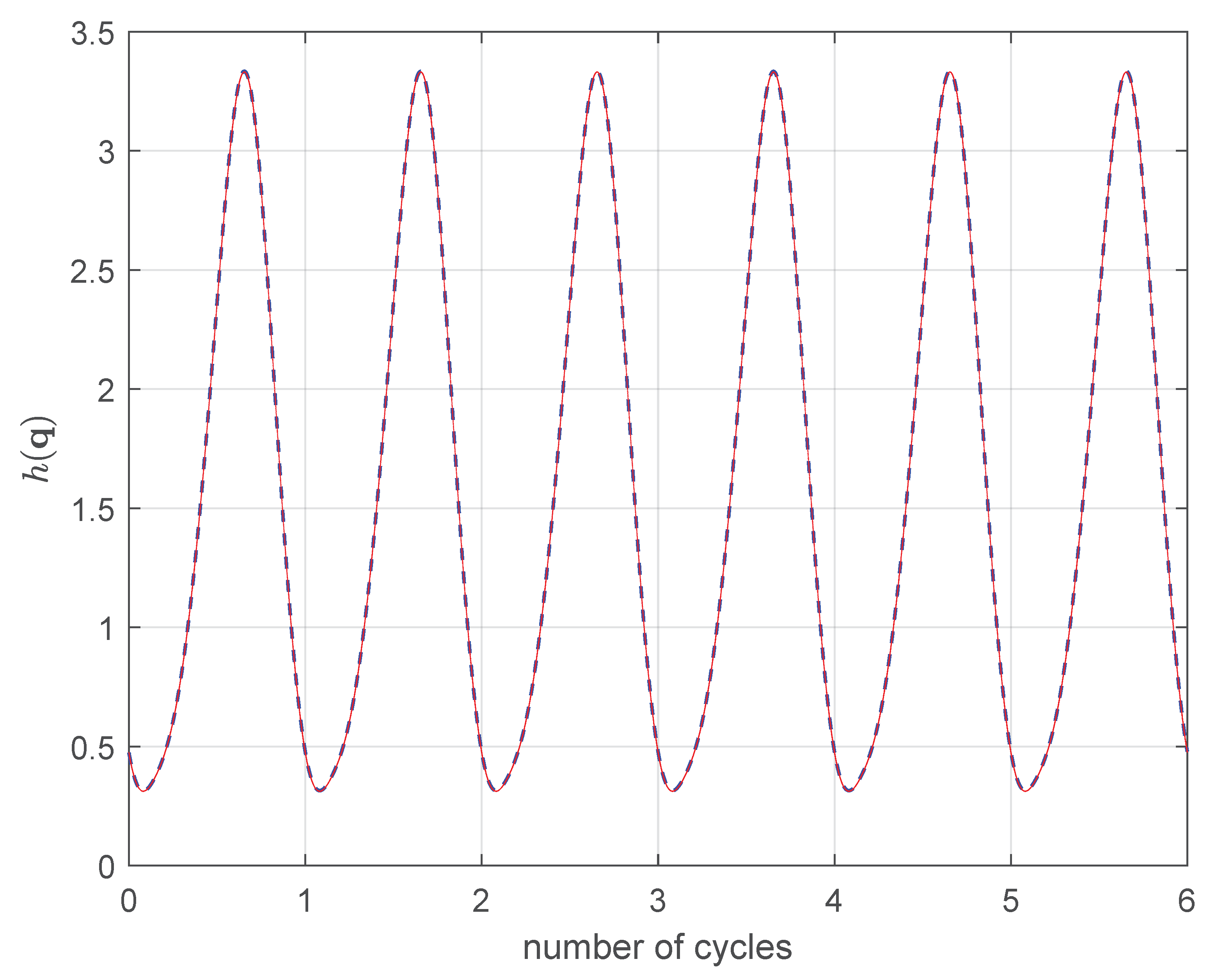

#### 3.1. Serial 4R

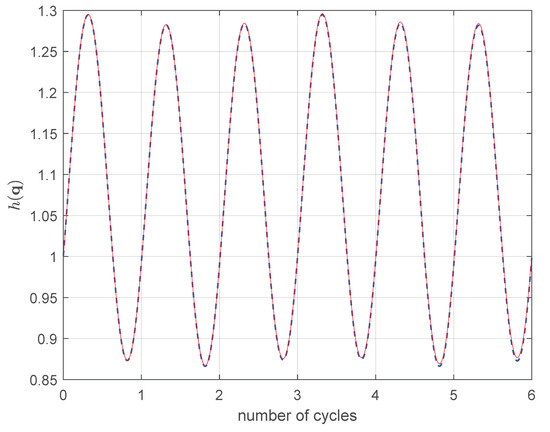

#### 3.2. Parallel 2RRP

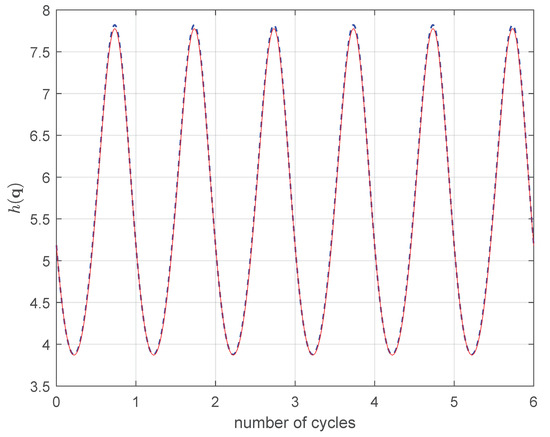

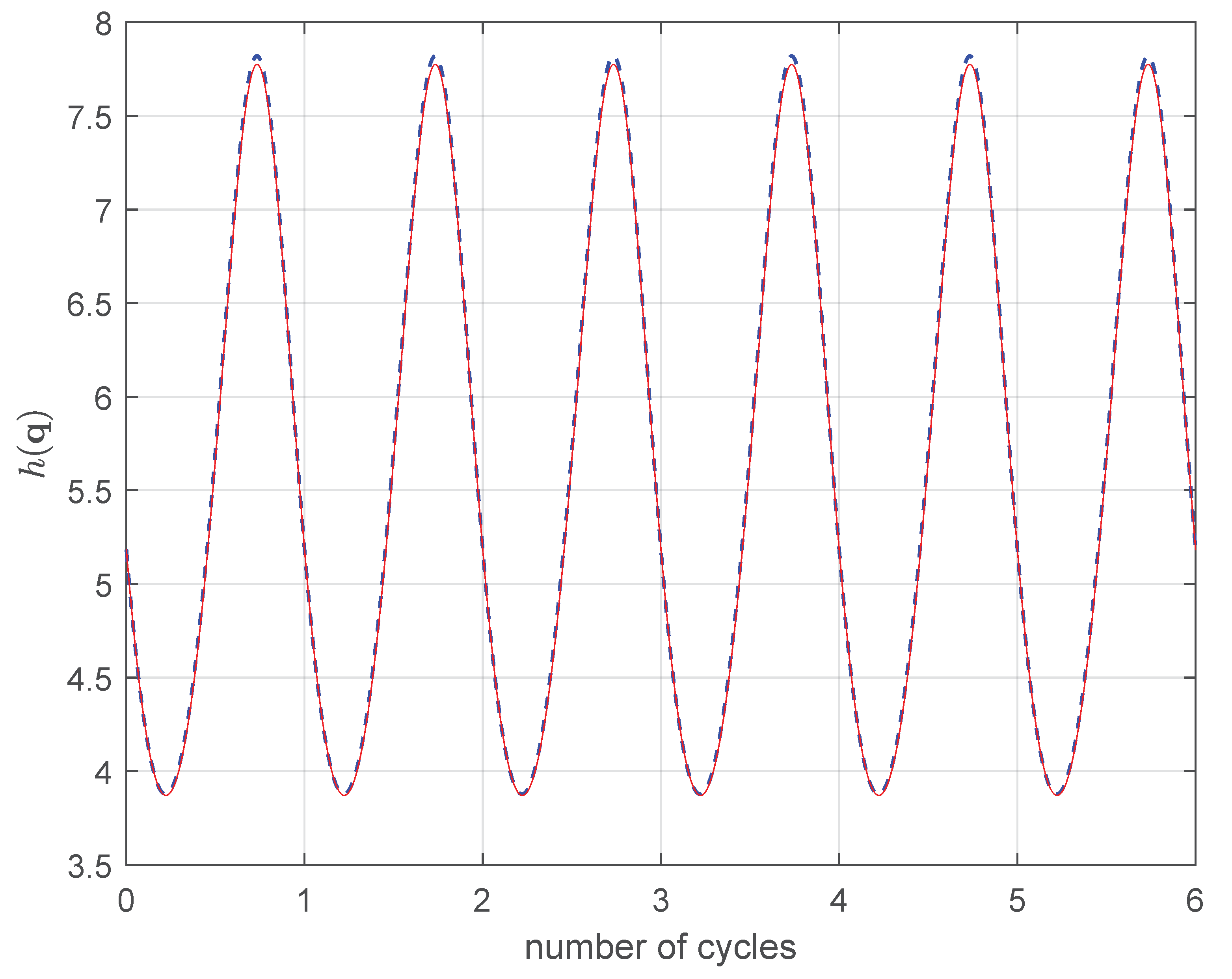

#### 3.3. Serial 6R

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Nenchev, D.N. Redundancy Resolution through Local Optimization: A Review. J. Robot. Syst.
**1989**, 6, 769–798. [Google Scholar] [CrossRef] - Siciliano, B. Kinematic Control of Redundant Robot Manipulators: A Tutorial. J. Lntelligent Robot. Syst.
**1990**, 3, 201–212. [Google Scholar] [CrossRef] - Shamir, T.; Yomdin, Y. Repeatability of Redundant Manipulators: Mathematical Solution of the Problem. IEEE Trans. Autom. Control
**1988**, 33, 1004–1009. [Google Scholar] [CrossRef] - Klein, C.A.; Kee, K.B. The nature of drift in pseudo-inverse control of kinematically redundant manipulators. IEEE Trans. Robot. Automat.
**1989**, RA-5, 231–234. [Google Scholar] [CrossRef] - Luo, S.; Ahmad, S. Predicting the Drift Motion for Kinematically Redundant Robots. IEEE Trans. Syst. Man Cybern.
**1992**, 22, 717–728. [Google Scholar] [CrossRef] - De Luca, A.; Lanari, L.; Oriolo, G. Control of Redundat Robots on Cyclic Trajectories. In Proceedings of the IEEE International Conference on Robotics and Automation, Nice, France, 12–14 May 1992; pp. 500–506. [Google Scholar]
- Baillieul, J. Kinematic programming alternatives for redundant manipulators. In Proceedings of the IEEE International Conference on Robot and Automation, St. Louis, MO, USA, 25–28 March 1985; pp. 772–778. [Google Scholar]
- Simas, H.; Di Gregorio, R. A Technique Based on Adaptive Extended Jacobians for Improving the Robustness of the Inverse Numerical Kinematics of Redundant Robots. J. Mech. Robot.
**2019**, 11, 020913. [Google Scholar] [CrossRef] - Chembuly, V.V.M.J.S.; Voruganti, H.K. An Efficient Approach for Inverse Kinematics and Redundancy Resolution Scheme of Hyper-Redundant Manipulators. AIP Conf. Proc.
**2018**, 1943, 020019. [Google Scholar] - Yahya, S.; Moghavvemi, M.; Mohamed, H.A.F. Geometrical Approach of Planar Hyper-Redundant Manipulators: Inverse Kinematics, Path Planning and Workspace. Simul. Modell. Pract. Theory
**2011**, 19, 406–422. [Google Scholar] [CrossRef] - Perrusquía, A.; Yu, W.; Li, X. Multi-agent reinforcement learning for redundant robot control in task-space. Int. J. Mach. Learn. Cybern.
**2020**. [Google Scholar] [CrossRef] - Chang, P.H. A closed-form solution for inverse kinematics of robot manipulators. IEEE J. Robot. Automat.
**1987**, 3, 393–403. [Google Scholar] [CrossRef] - Boothby, W.M. An Introduction to Differentiable Manifolds and Riemannian Geometry; Academic Press: Cambridge, MA, USA, 2003. [Google Scholar]
- Klein, C.A.; Chu-Jenq, C.; Ahmed, S. A New Formulation of the Extended Jacobian Method and its Use in Mapping Algorithmic Singularities for Kinematically Redundant Manipulators. IEEE Trans. Robot. Autom.
**1995**, 11, 50–55. [Google Scholar] [CrossRef] - Gosselin, C.; Angeles, J. Singularity Analysis of Closed-Loop Kinematic Chains. IEEE Trans. Robot. Autom.
**1990**, 6, 281–290. [Google Scholar] [CrossRef]

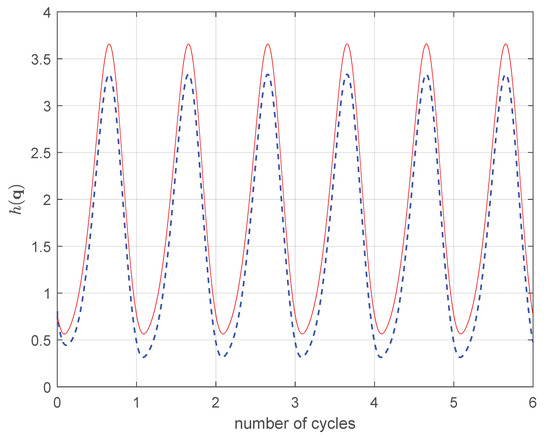

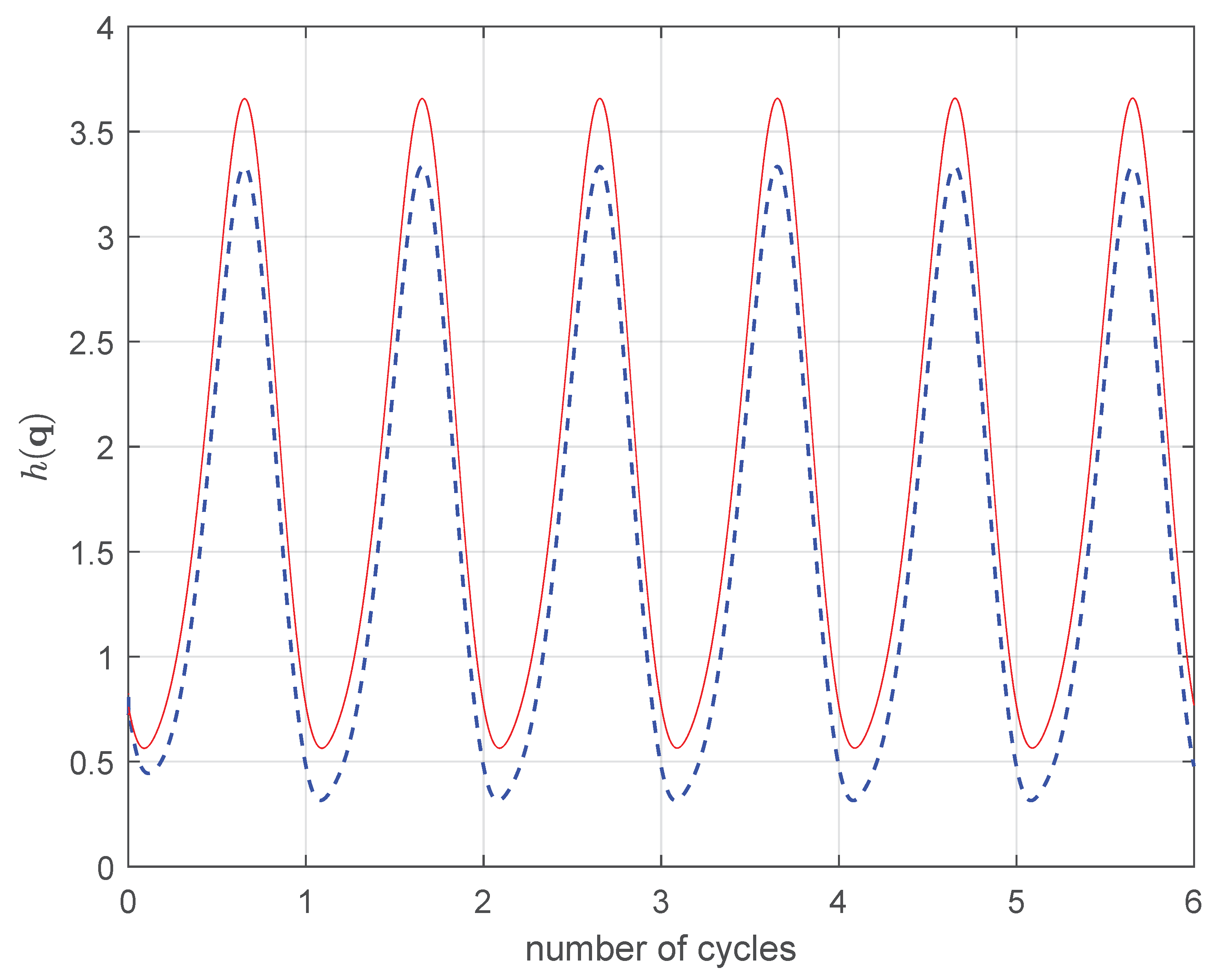

**Figure 4.**$h\left(\mathbf{q}\right)$ in 4R with $\u03f5=0.3$. PGM: − (red line), AJM: $--$ (blue line).

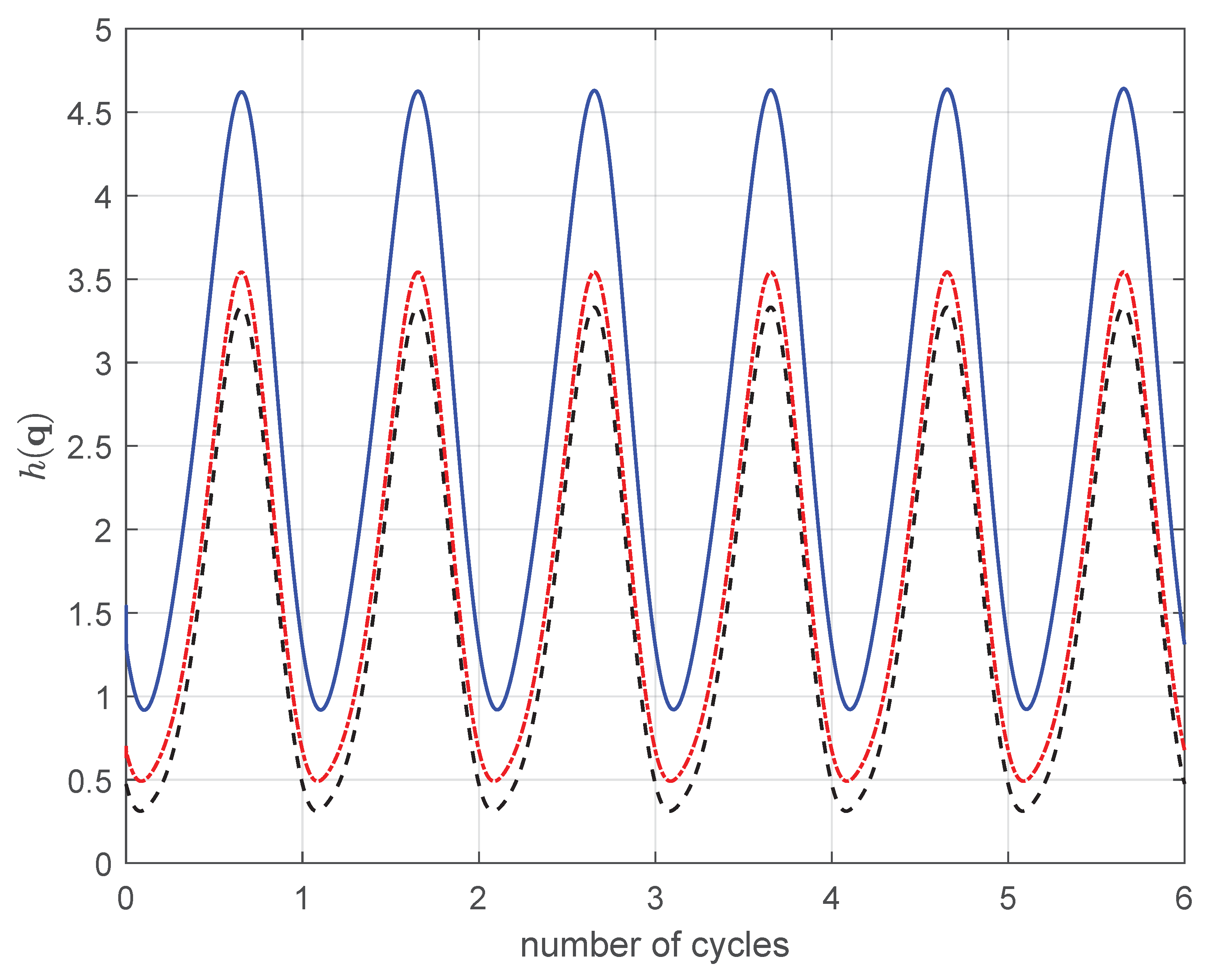

**Figure 5.**AJM: $h\left(\mathbf{q}\right)$ in 4R. $\u03f5=0$: $--$ (black line), $\u03f5=0.25$: $-.-$ (red line), $\u03f5=0.5$: − (blue line).

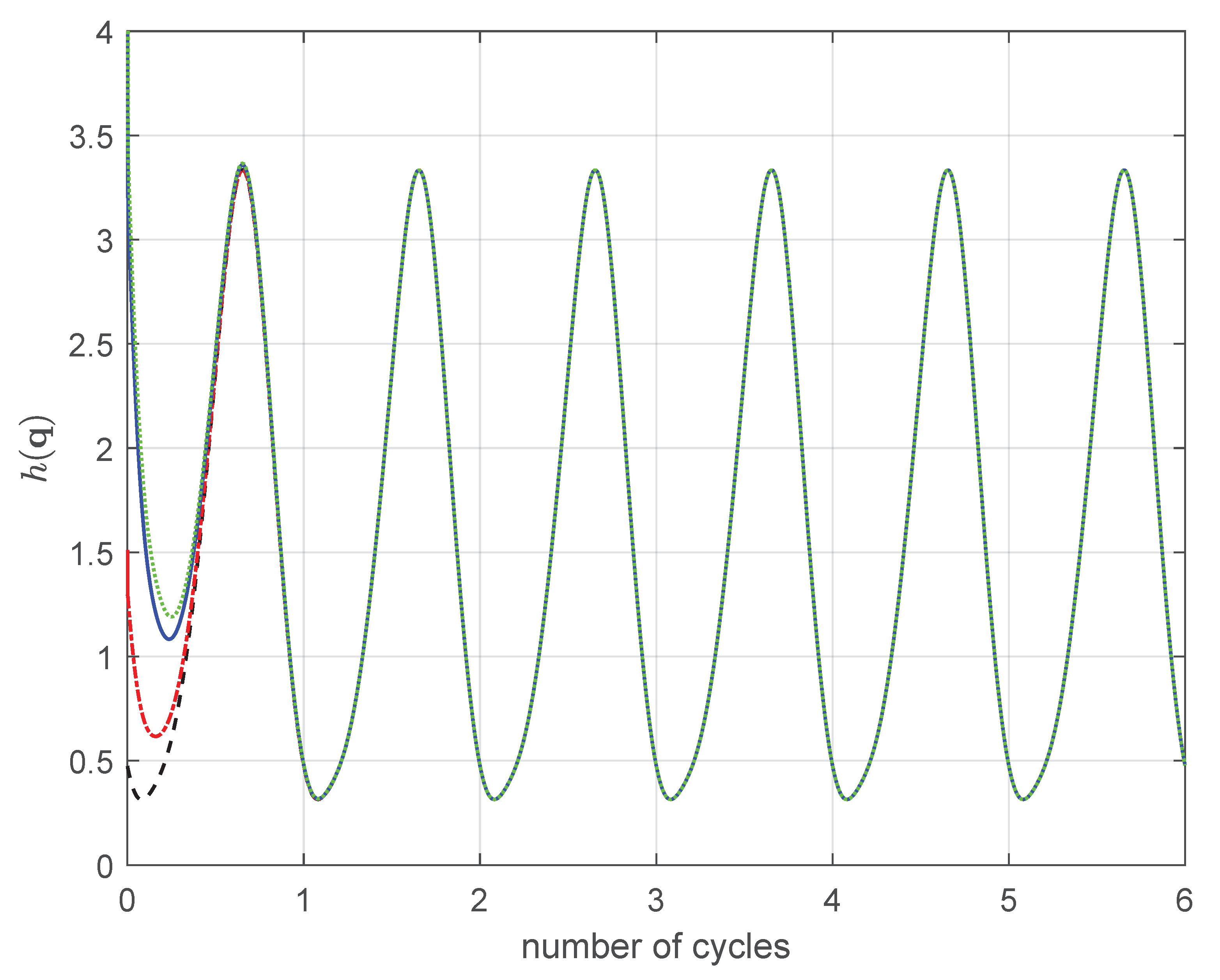

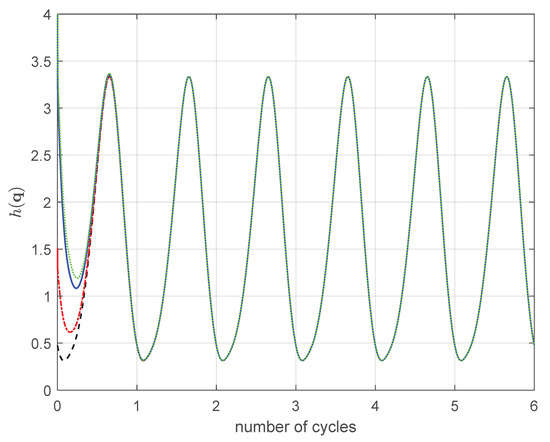

**Figure 6.**PGM: $h\left(\mathbf{q}\right)$ in 4R. $\u03f5=0$: $--$ (black line), $\u03f5=0.5$: $-.-$ (red line), $\u03f5=1.0$: − (blue line), $\u03f5=1.5$: ⋯ (green line).

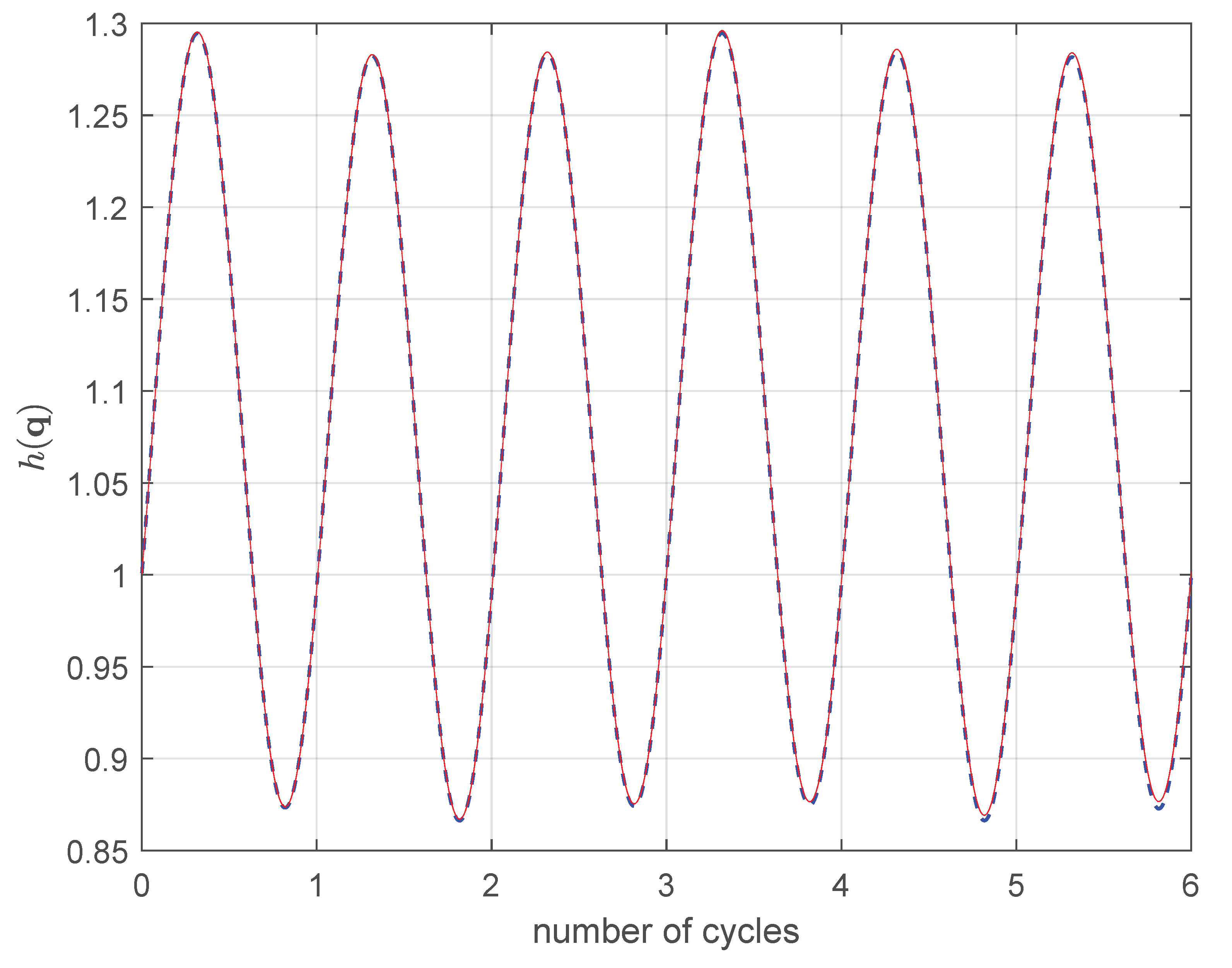

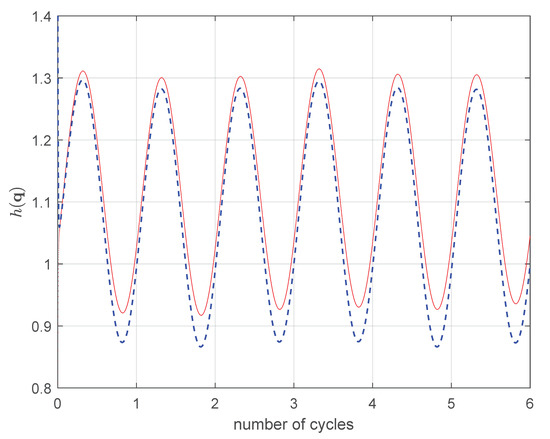

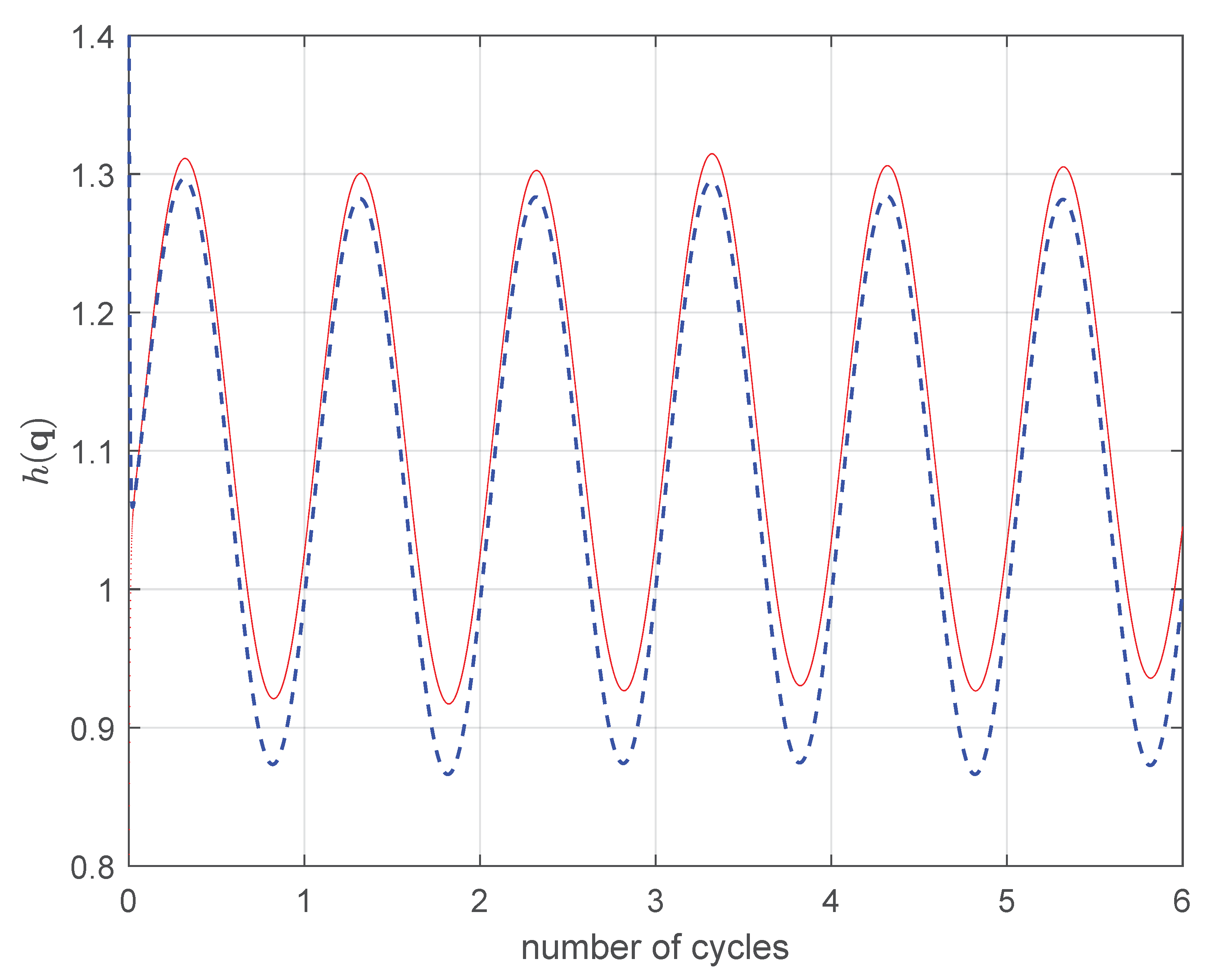

**Figure 8.**$h\left(\mathbf{q}\right)$ in 2RRP with $\u03f5=0.15$. PGM: − (red line), AJM: $--$ (blue line).

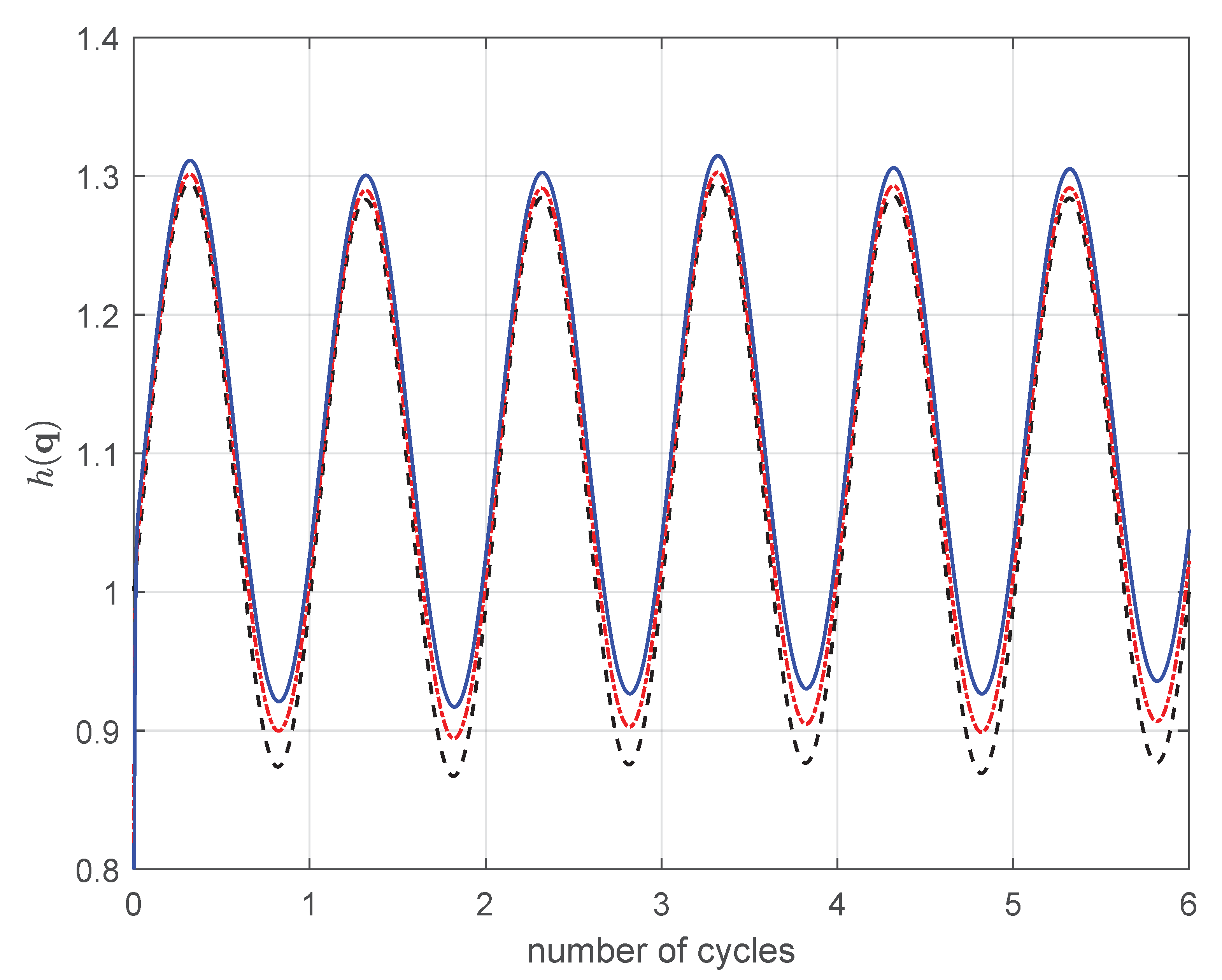

**Figure 9.**AJM: $h\left(\mathbf{q}\right)$ in 2RRP. $\u03f5=0$: $--$ (black line), $\u03f5=0.1$: $-.-$ (red line), $\u03f5=0.15$: − (blue line).

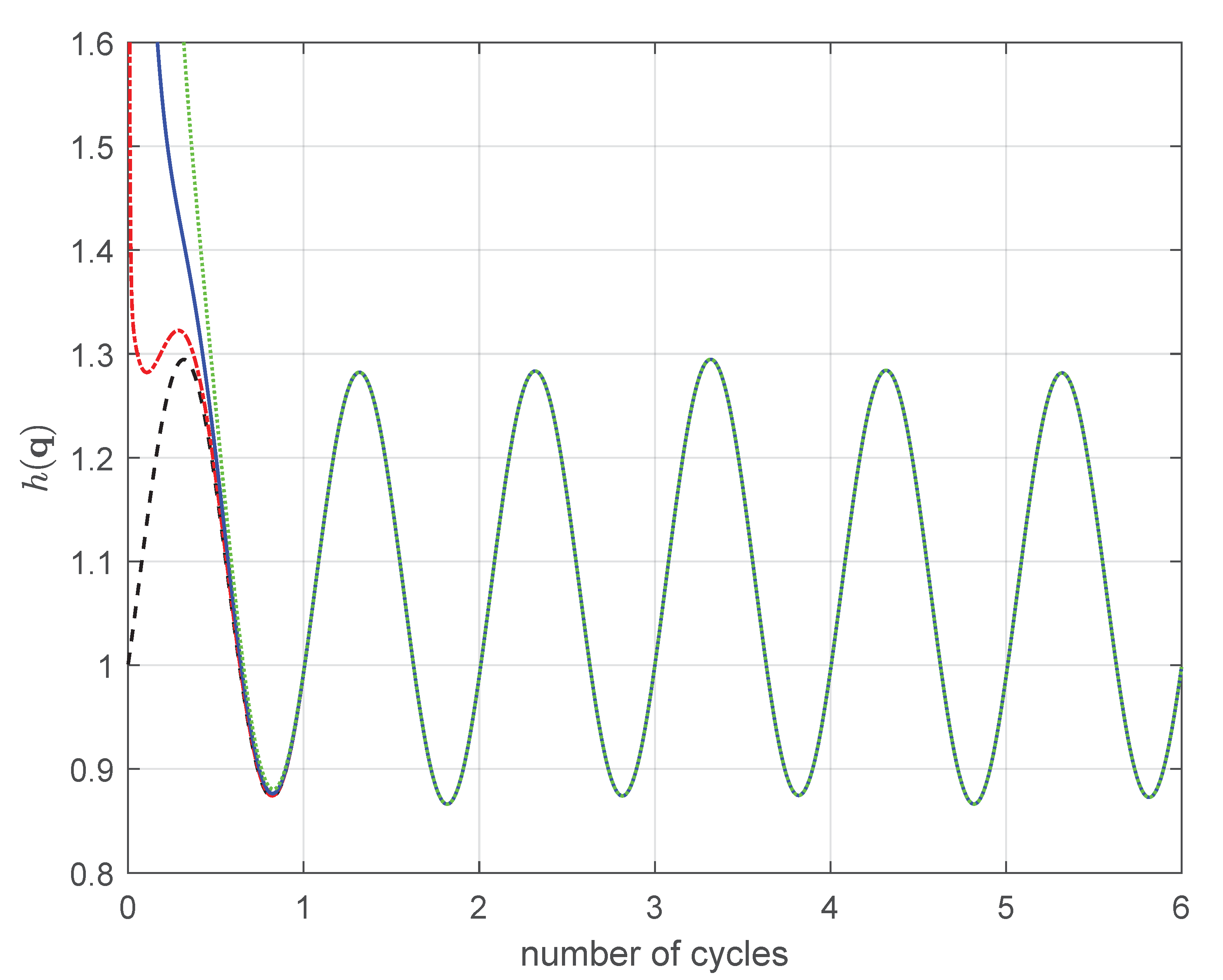

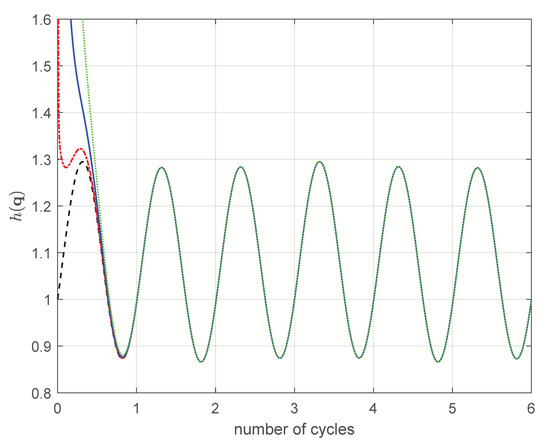

**Figure 10.**PGM: $h\left(\mathbf{q}\right)$ in 2RRP. $\u03f5=0$: $--$ (black line), $\u03f5=0.5$: $-.-$ (red line), $\u03f5=1.0$: − (blue line), $\u03f5=1.5$: ⋯ (green line).

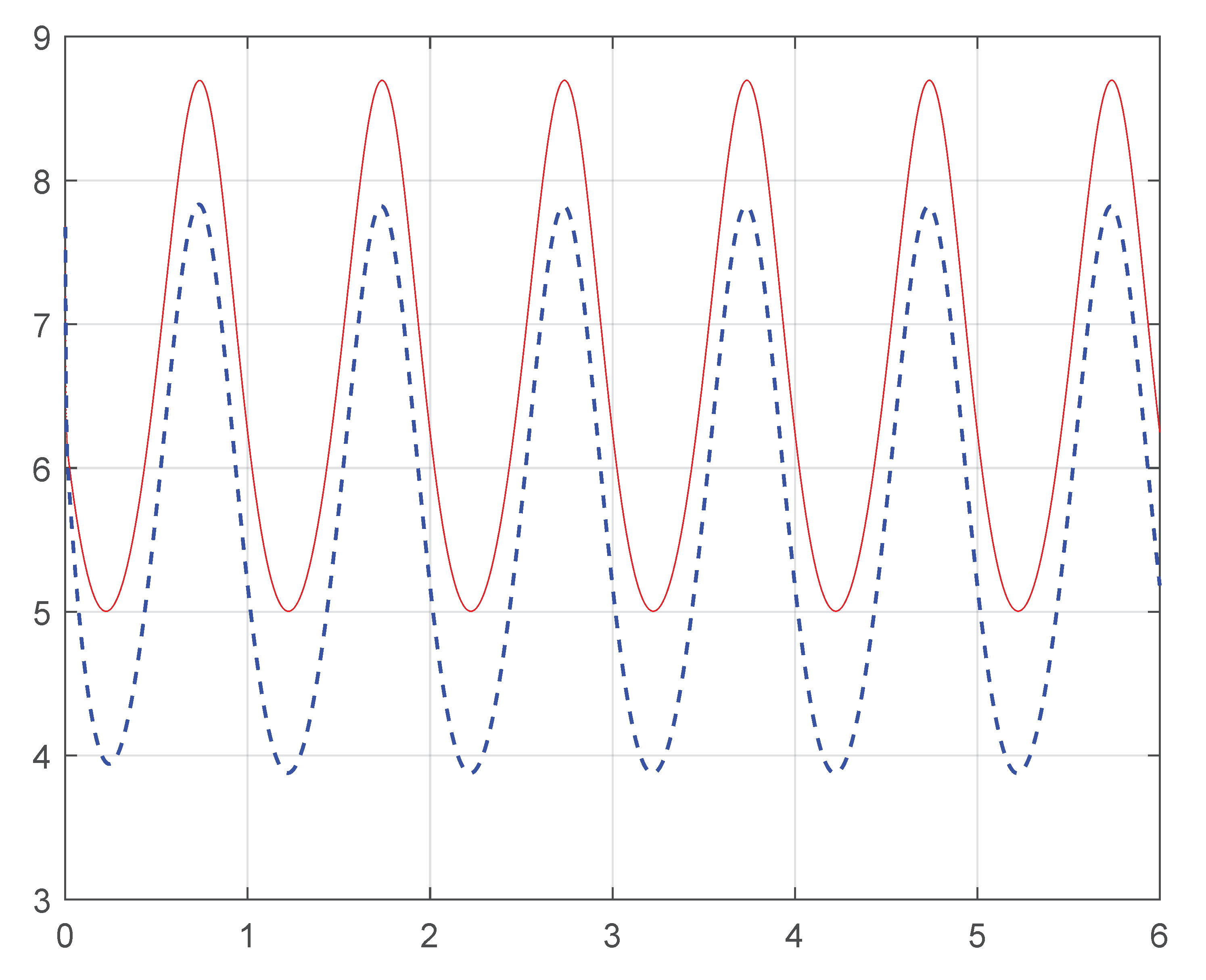

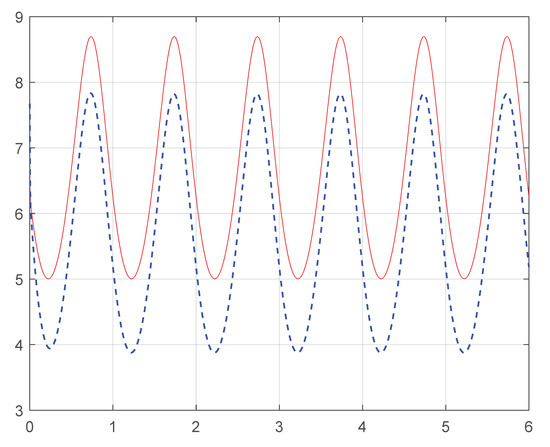

**Figure 12.**$h\left(\mathbf{q}\right)$ in 6R with $\u03f5=0.5$. PGM: − (red line), AJM: $--$ (blue line).

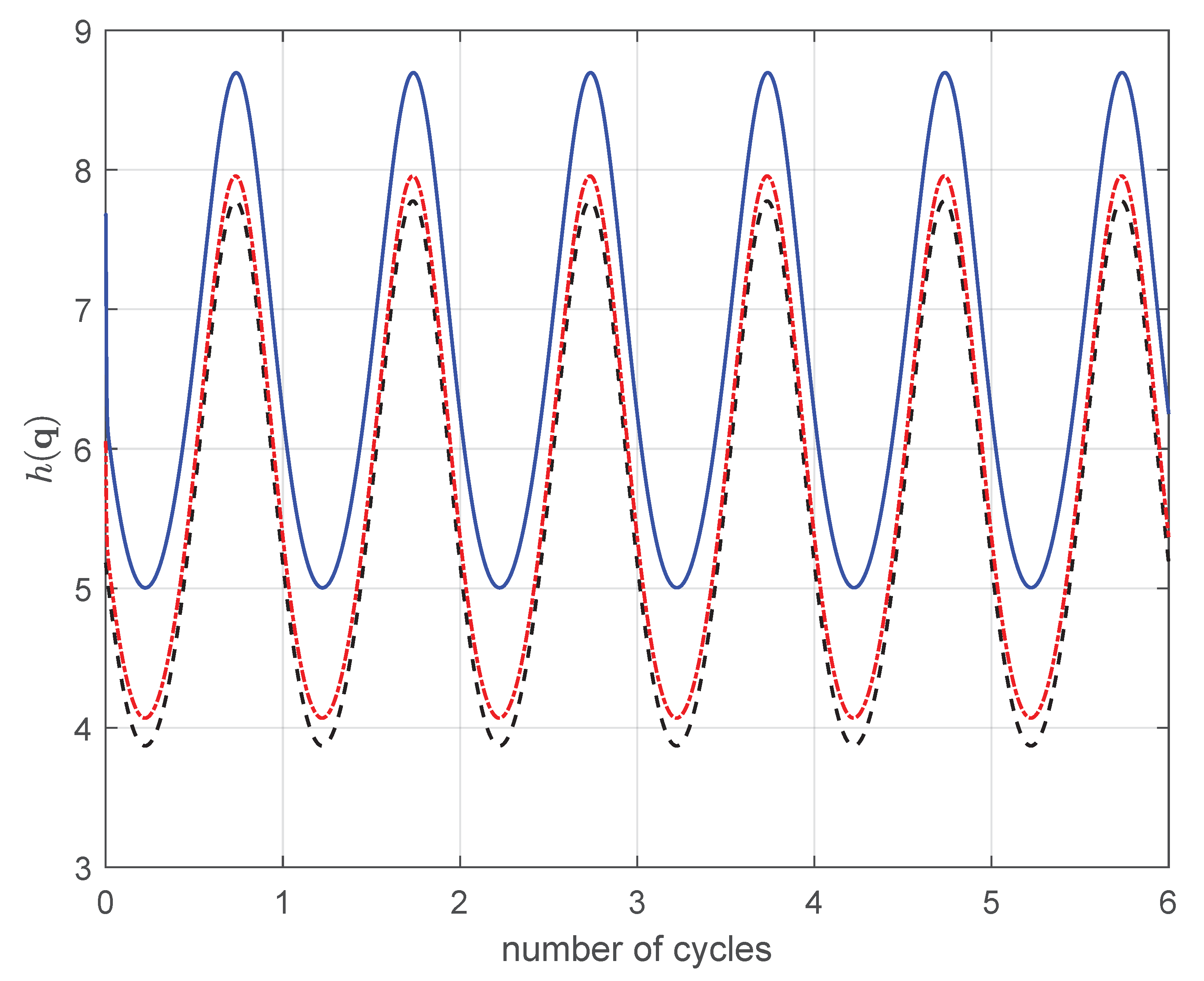

**Figure 13.**AJM: $h\left(\mathbf{q}\right)$ in 6R. $\u03f5=0$: $--$ (black line), $\u03f5=0.25$: $-.-$ (red line), $\u03f5=0.5$: − (blue line).

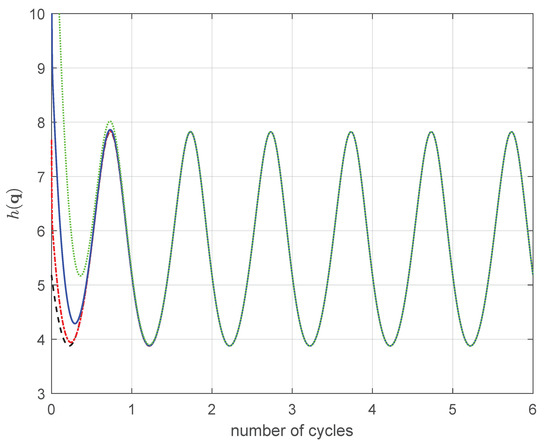

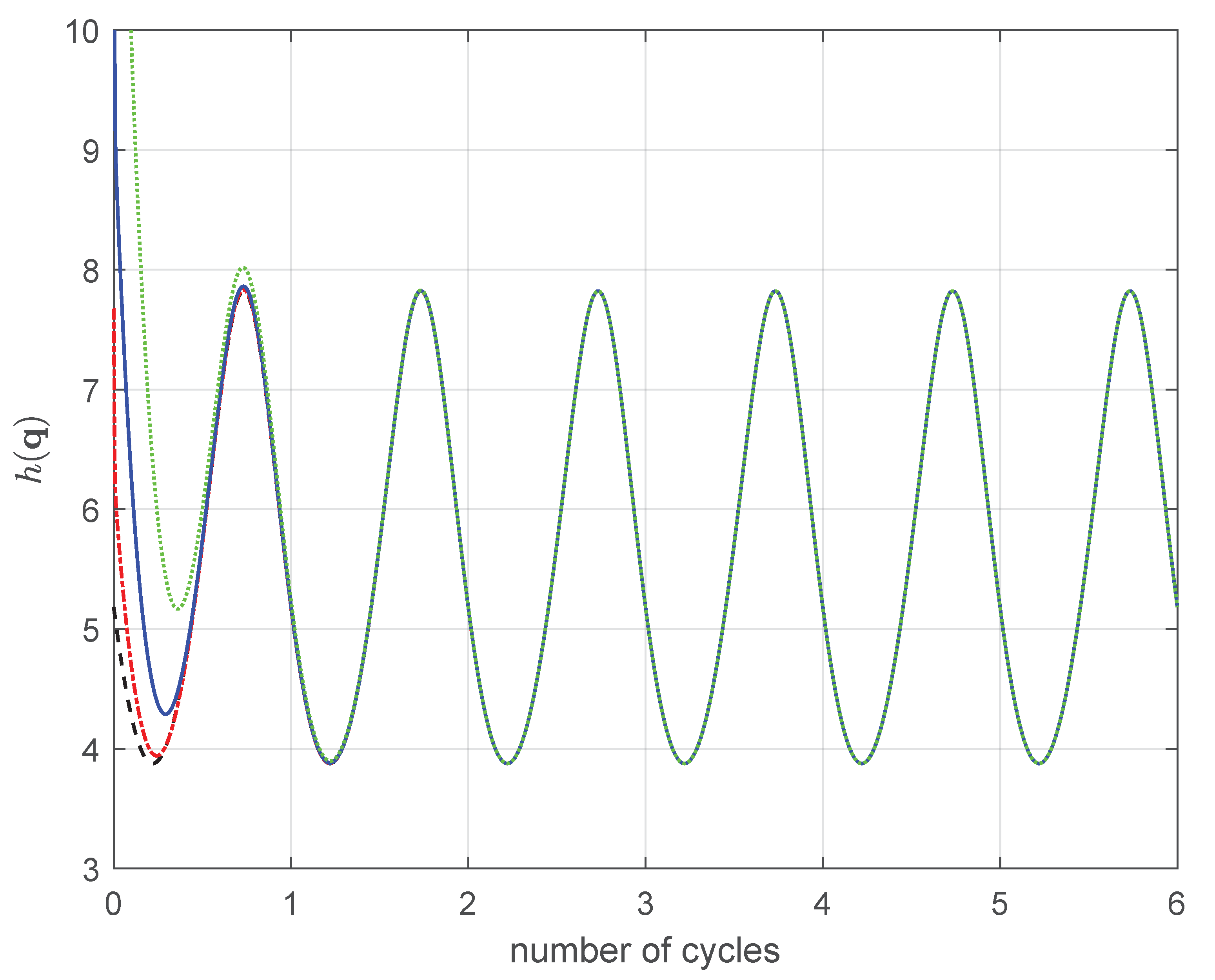

**Figure 14.**PGM: $h\left(\mathbf{q}\right)$ in 6R. $\u03f5=0$: $--$ (black line), $\u03f5=0.5$: $-.-$ (red line), $\u03f5=1.0$: − (blue line), $\u03f5=1.5$: ⋯ (green line).

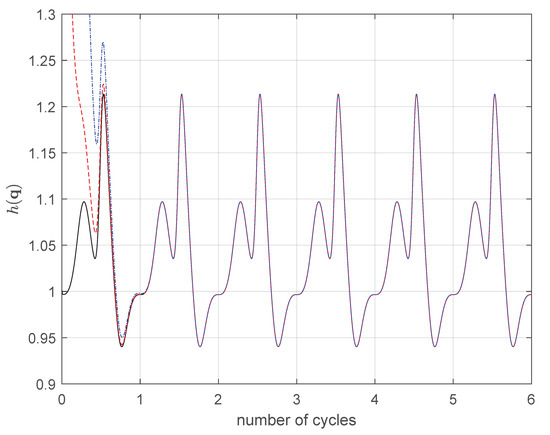

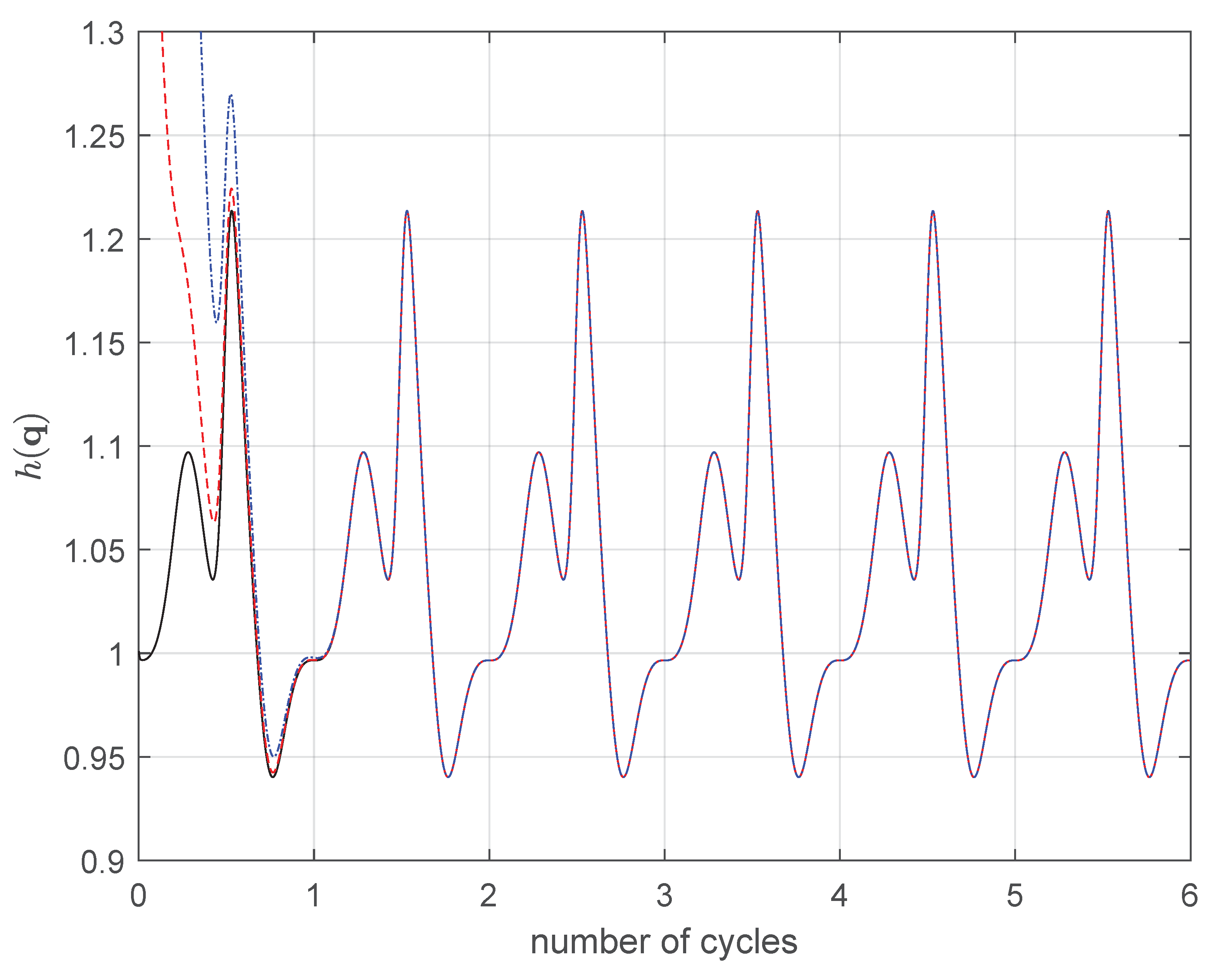

**Figure 15.**PGM with v and ∞-trajectory: $h\left(\mathbf{q}\right)$ in 2RRP. $\u03f5=0$: − (black line), $\u03f5=0.75$: $--$ (red line), $\u03f5=1.5$: $-.$ (blue line).

**Table 1.**4R. a: links length; (${x}_{0},{y}_{0}$), R: coordinates of the centre and radius of the EE trajectory.

a = 0.5 m | ${x}_{0}$ = 1.0 m | ${y}_{0}$ = 1.0 m | R = 0.5 m |

**Table 2.**2RRP. a: links length; H: base width, (${x}_{0},{y}_{0}$), R: coordinates of the centre and radius of the EE trajectory.

a = 0.2 m | H = 1 m | ${x}_{0}$ = 0.5 m | ${y}_{0}$ = 0.5 m | R = 0.1 m |

**Table 3.**6R. (${x}_{0},{y}_{0},{z}_{0}$), R: coordinates of the centre and radius of the EE trajectory. EE trajectory on the plane $y=-0.256$ m. ${d}_{1},{a}_{2},{a}_{3},{d}_{4},{d}_{5},{d}_{6}$: Denavit-Hartenberg geometrical parameters.

${x}_{0}$ = 0.572 m | ${y}_{0}=-0.256$ m | ${z}_{0}$ = 0.496 m | R = 0.153 m | ${d}_{1}$ = 0.127 m |

${a}_{2}$ = 0.612 m | ${a}_{3}$ = 0.572 m | ${d}_{4}$ = 0.164 m | ${d}_{5}$ = 0.116 m | ${d}_{6}$ = 0.092 m |
