Driver’s Social Relationship Based Clustering and Transmission in Vehicle Ad Hoc Networks (VANETs)
Previous Article in Journal
An Improved Retrieval Method for Multi-Transaction Mode Consortium Blockchain
Open AccessArticle

Usefulness of Acoustic Sounds from 3D Printers in an Eavesdropping Process and Reconstruction of Printed Shapes

Electromagnetic Compatibility Department, Military Communication Institute, Warszawska 22A St., Zegrze Poludniowe 05-130, Poland
*
Author to whom correspondence should be addressed.
Electronics 2020, 9(2), 297; https://doi.org/10.3390/electronics9020297
Received: 16 January 2020 / Revised: 3 February 2020 / Accepted: 5 February 2020 / Published: 9 February 2020
(This article belongs to the Section Microwave and Wireless Communications)

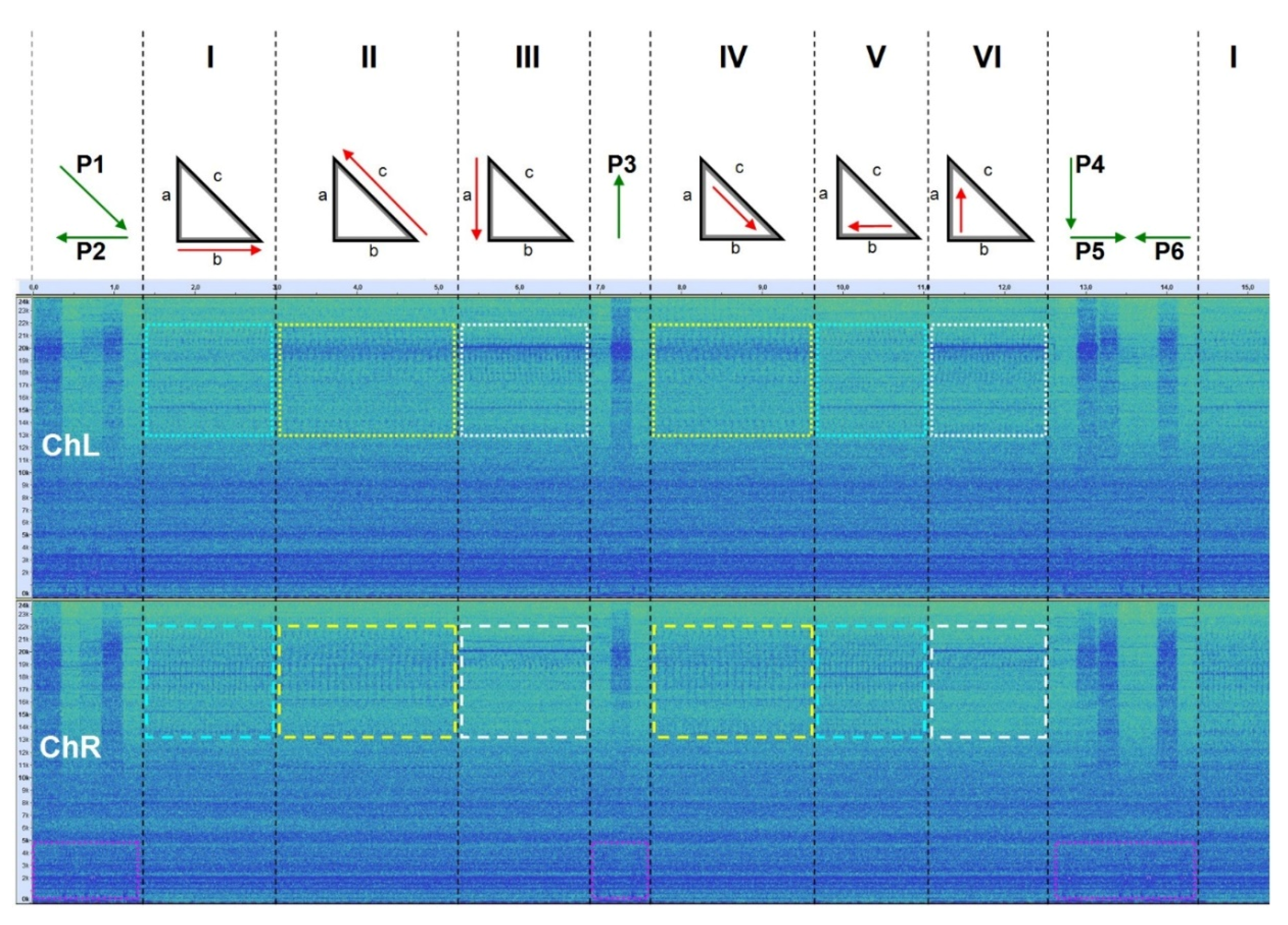

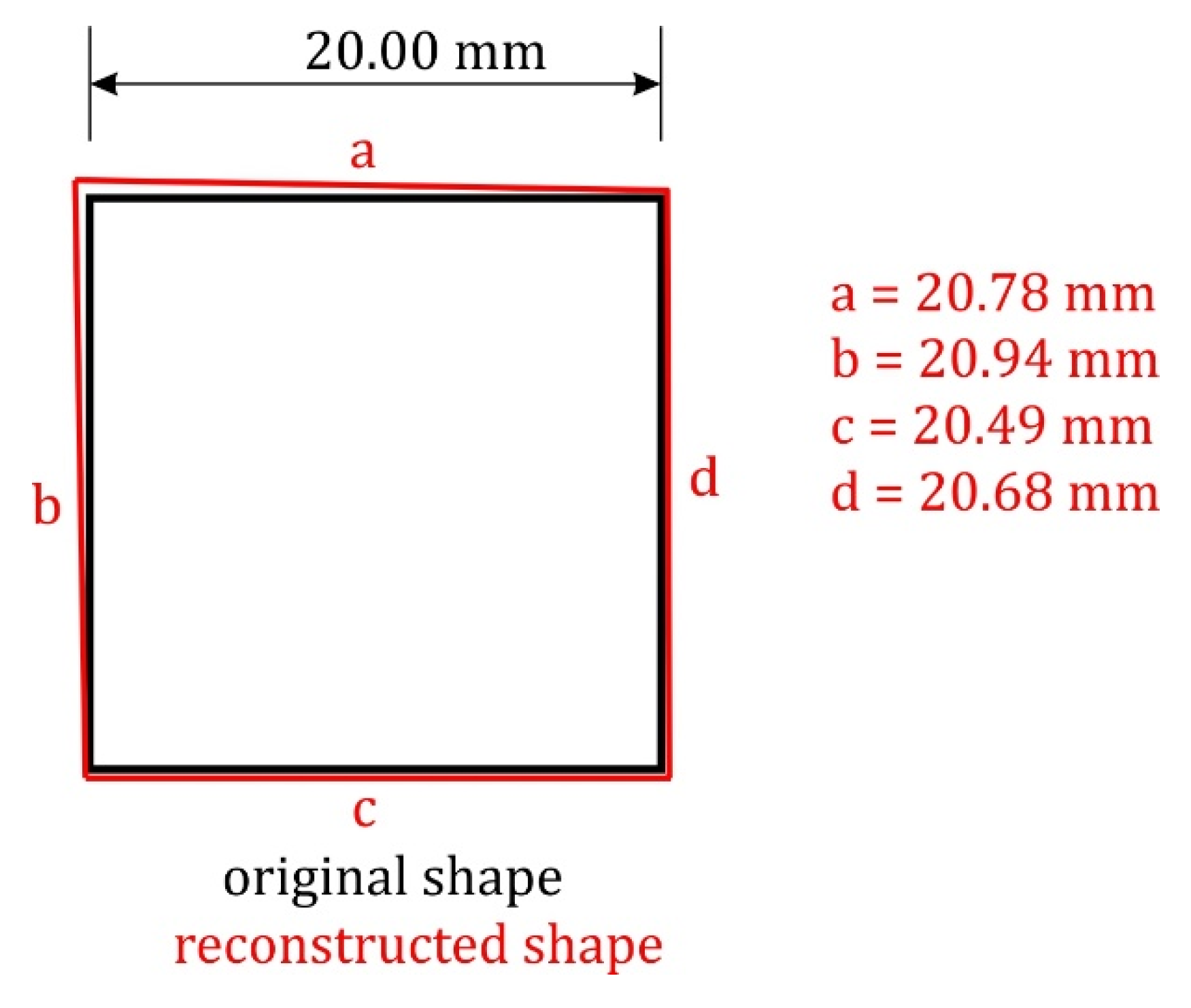

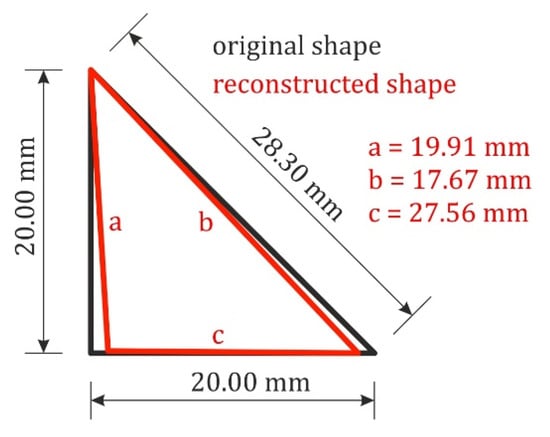

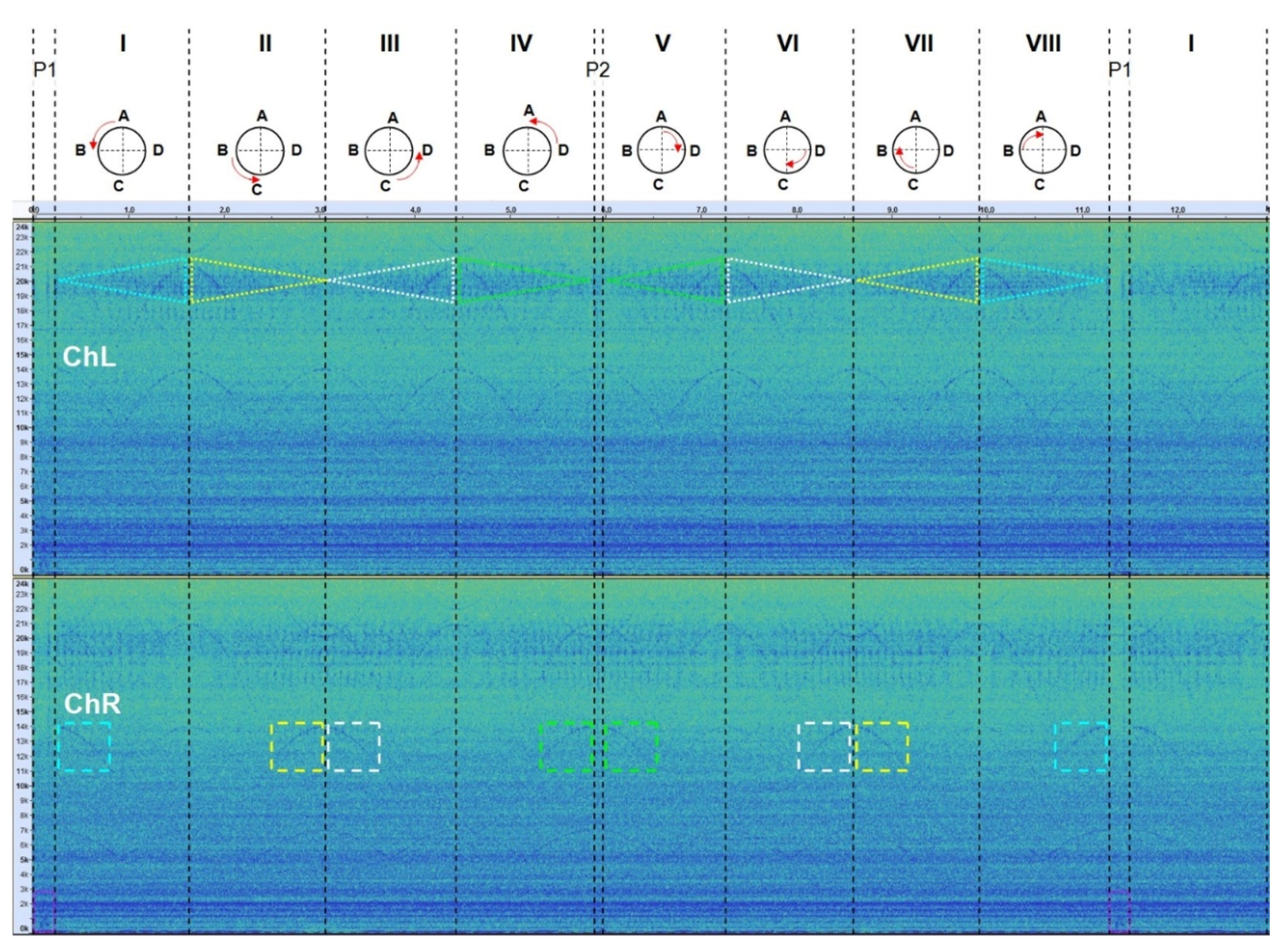

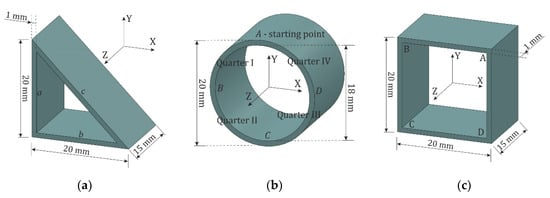

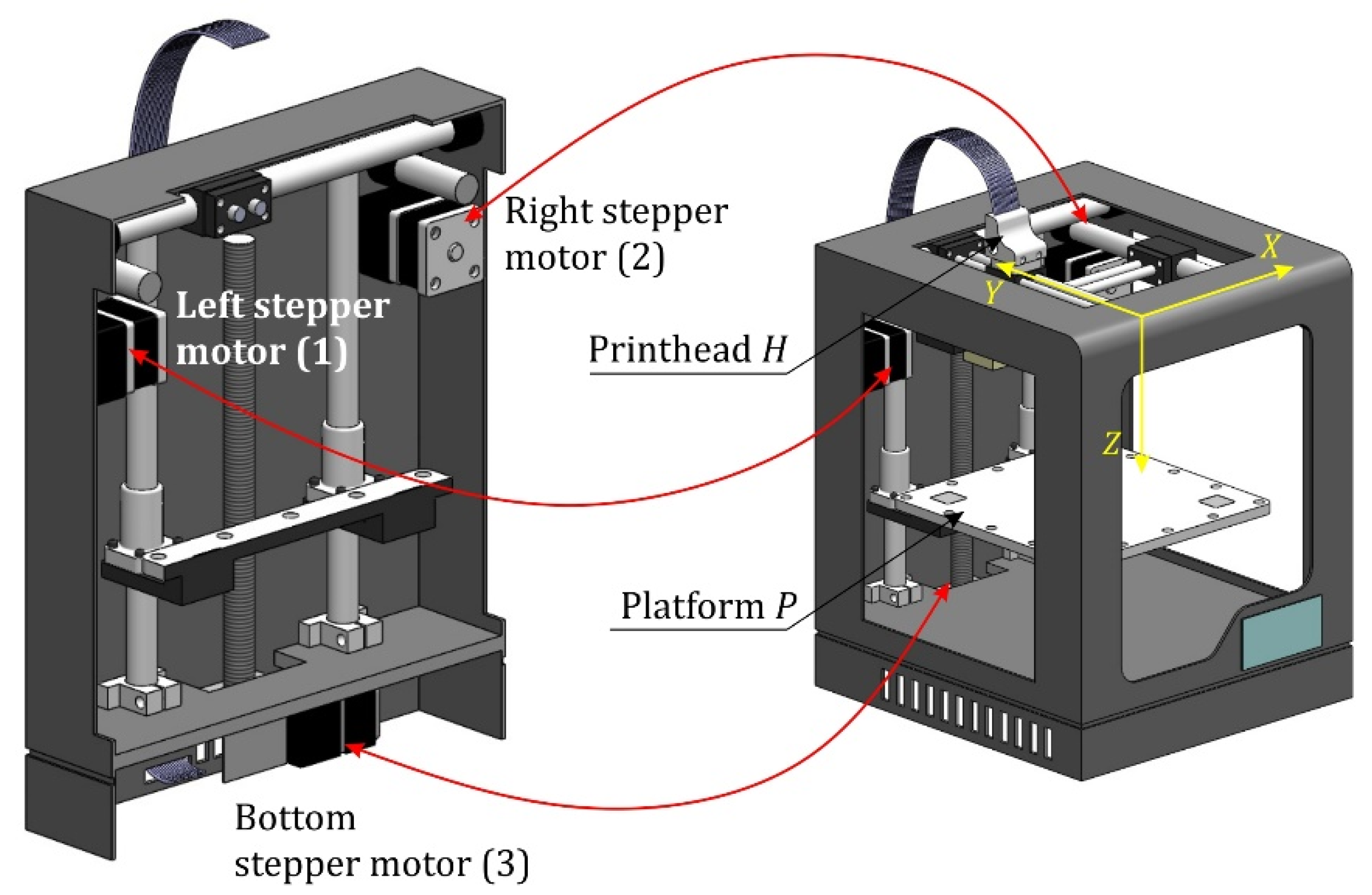

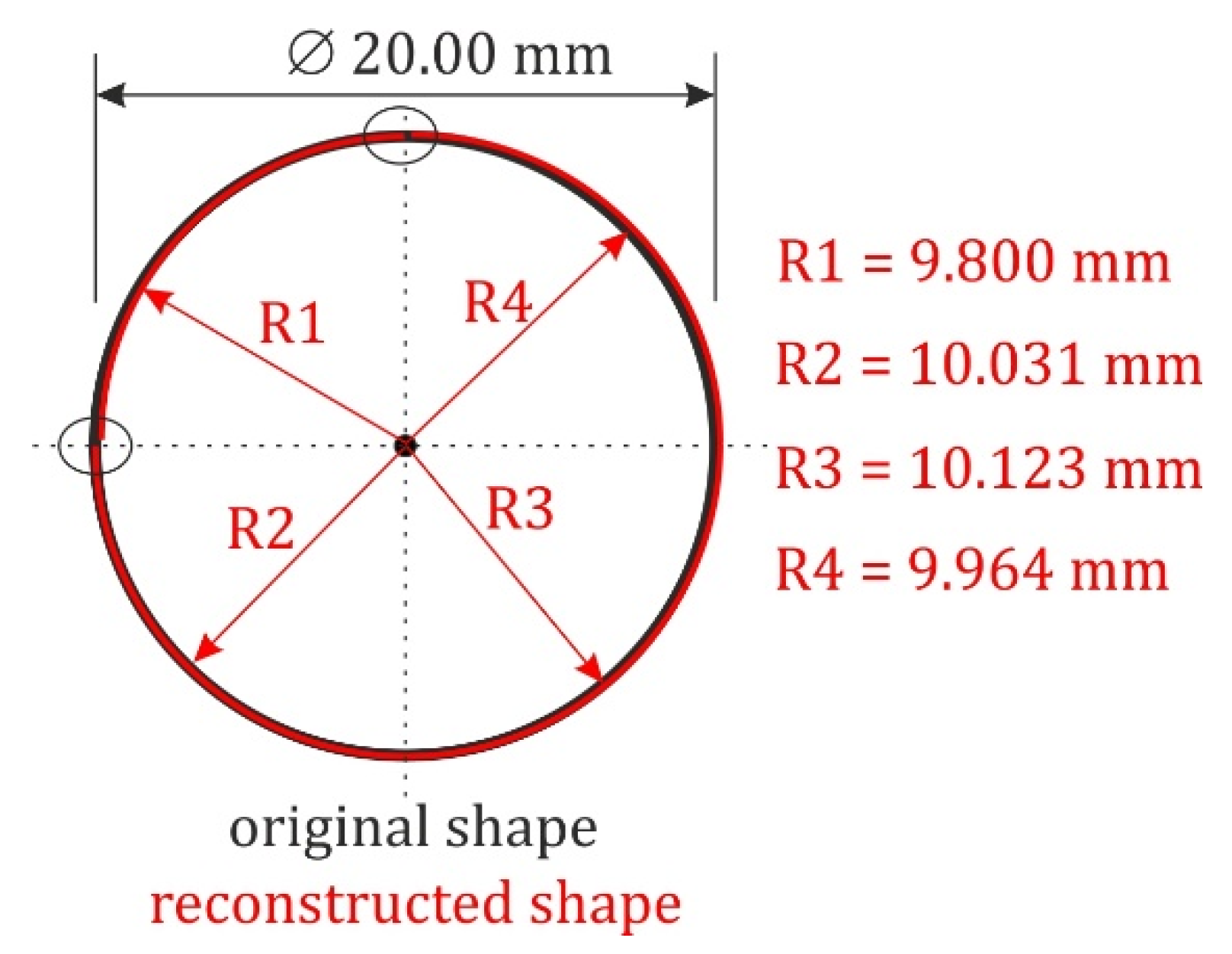

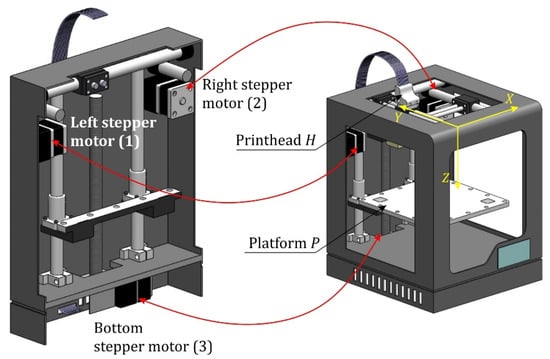

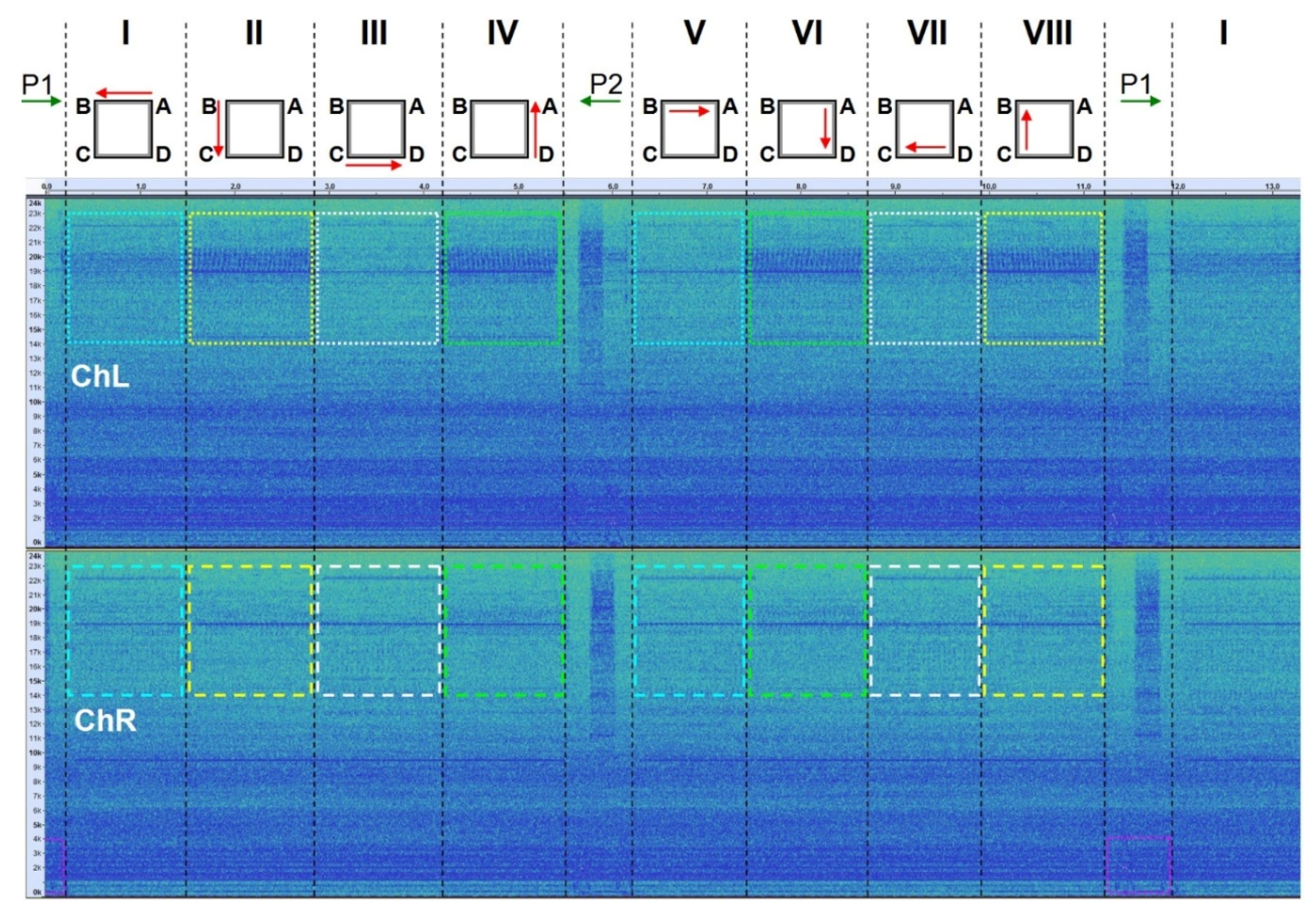

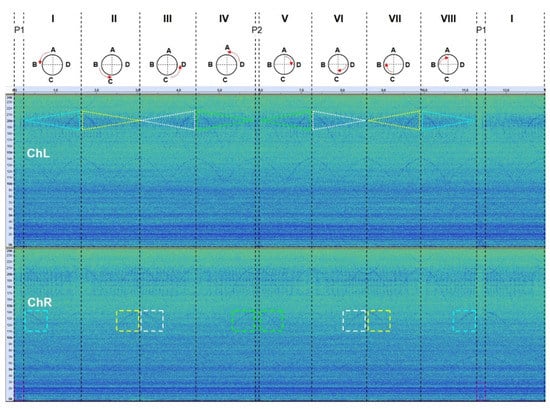

Information protection is an essential safety issue in many human activity fields. The development of computerisation (informatisation) brings new challenges in the area of non-invasive information processing in information technology (IT) systems. The known fact is that VGA, DVI/HDMI interfaces, for example, or formatter systems of laser printers that process video signals are sources of effective disclosing electromagnetic emission. Emission safety of the more and more common three-dimensional (3D) printers is less known. The selected 3D printer with the ME3DP (Material Extrusion 3D Printing) technology was tested to analyse the existing risk. Simple objects were printed during its operation to identify the stepping motor operation that are emission sources in the secondary channels. The analysis carried out focused on finding the correlation between the registered emissions and the printer head (printhead) movements when printing an object. It was shown that the analysis of the registered sensitive signal runtimes and their spectrograms allows us to recreate the printed object shape. The studies focused on measuring the acoustic signals that came from the stepping motors. The analysis of the possibilities of identifying the shapes of printed objects was based on the visual method. The article presents the study results and their analyses. View Full-Text
Keywords: protection of information; electromagnetic infiltration; acoustic infiltration; 3D printer; data acquisition; reconstruction of shapes protection of information; electromagnetic infiltration; acoustic infiltration; 3D printer; data acquisition; reconstruction of shapes
Show Figures

Figure 1

MDPI and ACS Style

Kubiak, I.; Przybysz, A.; Stańczak, A. Usefulness of Acoustic Sounds from 3D Printers in an Eavesdropping Process and Reconstruction of Printed Shapes. Electronics 2020, 9, 297.
