# Application of L1 Trend Filtering Technology on the Current Time Domain Spectroscopy of Dielectrics

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Basic Theory of L1 Trend Filtering

## 3. Test of the Current Time Domain Spectrum

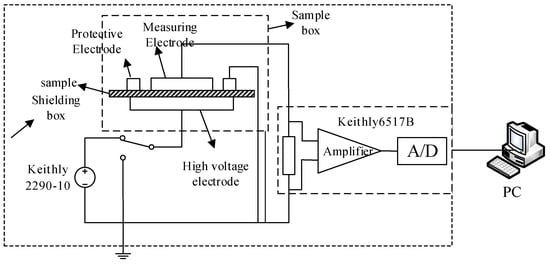

#### 3.1. The System of Measurement of the Current Time Domain Spectrum

#### 3.2. Test Results of the Current Time Domain Spectrum

## 4. Filtering Results and Analysis

#### 4.1. The Filtering Results with L1 Trend Filtering Algorithms

#### 4.2. Filtering Results with Several Common Filtering Algorithms

#### 4.2.1. Filtering Results with Sliding Mean Filtering

#### 4.2.2. Filtering Results with Savitzky–Golay

#### 4.2.3. Filtering Results with Wavelet Transform

#### 4.3. Analysis and Discussion

## 5. Comprehensive Performance Analysis of L1 Trend Filtering

#### 5.1. Robustness Analysis of L1 Trend Filtering

#### 5.2. Time Complexity Analysis of L1 Trend Filtering

## 6. The Effects of L1 Trend Filtering on the Acquisition of the Trap Distribution

## 7. Conclusions

- Due to the wide range of the polarization currents in the whole test time, the commonly filtering algorithms such as sliding average filtering and Savoitzky–Golay smoothing filtering cannot take into account the filtering effects of the whole time period. If the filtering effects of the initial stage of the currents are good, then the filtering effects of the last stage are poor. If the filtering effects of the last stage of the currents are good, then the initial stage of the filtering curve will be distorted.
- For L1 trend filtering, with the increase of the λ value, the polarization current curve after filtering becomes smoother, but the filtering results will be distorted at the beginning of a period of time when λ exceeds a certain value. For the polarization currents in this paper, when λ is in the range of 1600–24,000, the filtering curve of the polarization currents by L1 trend filtering is smooth and undistorted in the whole test time, and the λ has little influence on the filtering effects.
- For the time series under noises with different SNR, the L1 trend filter can accurately extract the trend items, and the relative error between the given SNR and SNR obtained by L1 trend filtering is about 1%. The execution time obtained by the simulation experiment is also lower than 176.67 s when the number of tested points is no more than 20,000. This result show that L1 trend filtering has great robustness, and L1 trend filter technology can be applied to the filtering of the time domain current spectrum of dielectrics.
- For the effects of L1 trend filtering on the acquisition of the trap distribution, when I(t) is the virtual tested polarization absorption current which is filtered by L1 trend filtering, the I(t)·t ~ log(t) curve obvious overlaps with the I(t)·t ~ log(t) curve when I(t) is the given ideal trend time without any noise. By contrast, due to the noise in the tested polarization current, both the number and position of the peak in the I(t)·t ~ log(t) curve are misjudged, which leads to an incorrect judgment about the trap distribution of dielectrics. The results indicate that the L1 trend filtering of polarization absorption current play an important role in the trap distribution acquisition of dielectrics.

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Appendix A

D=zeros(7200); |

n=7200; |

for i=1:1:n |

D(i,i)=1; |

D(i,i+1)=-2; |

D(i,i+2)=1; |

end |

cvx_begin |

variable x(7202) |

minimize( 0.5*sum((y-x).^2)+10,000*norm(D*x,1)) |

subject to |

x>=0 |

cvx_end |

## References

- Zaengl, W. Applications of dielectric spectroscopy in time and frequency domain for HV power equipment. IEEE Electr. Insul. Mag.
**2003**, 19, 9–22. [Google Scholar] [CrossRef] - Mishra, D.; Haque, N.; Baral, A.; Chakravorti, S. Assessment of interfacial charge accumulation in oil-paper interface in transformer insulation from polarization-depolarization current measurements. IEEE Trans. Dielectr. Electr. Insul.
**2017**, 24, 1665–1673. [Google Scholar] [CrossRef] - Jamail, N.A.M.; Piah, M.A.M.; Muhamad, N.A. Conductivity Variation Observed by Polarization and Depolarization Current Measurements of High-Voltage Equipment Insulation System. Jpn. J. Appl. Phys.
**2012**, 51, 9. [Google Scholar] [CrossRef] - Cole, R.H. Time-domain spectroscopy of dielectric materials. IEEE Trans. Instrum. Meas.
**1976**, 371–375. [Google Scholar] [CrossRef] - Jonscher, A.K. REVIEW ARTICLE: Dielectric relaxation in solids. J. Phys. D Appl. Phys.
**1999**, 32, R57–R70. [Google Scholar] [CrossRef] - Ezquerra, T.; Liu, F.; Boyd, R.; Hsiao, B. Crystallization of poly(aryl ether ketone) polymers as revealed by time domain dielectric spectroscopy. Polymer
**1997**, 38, 5793–5800. [Google Scholar] [CrossRef] - Hedvig, P. Study of physical (structural) agjng of polymeric solids by dielectric depolarization spectroscopy. J. Polym. Sci. Polym. Symp.
**2010**, 42, 1271–1274. [Google Scholar] [CrossRef] - Veena, M.G.; Renukappa, N.M.; Meghala, D.; Ranganathaiah, C.; Rajan, J.S. Influence of nanopores on molecular polarizability and polarization currents in epoxy nanocomposites. IEEE Trans. Dielectr. Electr. Insul.
**2014**, 21, 1166–1174. [Google Scholar] [CrossRef] - Gao, J.; Liao, R.; Wang, Y.; Yang, L.; Hao, J.; Liu, R.; Xiao, Z. Ageing characteristic quantities of oil-paper insulation for transformers based on extended debye model. Trans. Chin. Electrotech. Soc.
**2016**, 31, 211–217. (In Chinese) [Google Scholar] - Ariffin, A.M.; Sulaiman, S.; Yahya, A.Z.C.; Ghani, A.B.A. Analysis of cable insulation condition using dielectric spectroscopy and polarization/depolarization current techniques. In Proceedings of the IEEE International Conference on Condition Monitoring and Diagnosis, Bali, Indonesia, 23–27 September 2012; pp. 145–148. [Google Scholar]
- Flora, S.D.; Rajan, J.S. Assessment of paper-oil insulation under copper corrosion using polarization and depolarization current measurements. IEEE Trans. Dielectr. Electr. Insul.
**2016**, 23, 1523–1533. [Google Scholar] [CrossRef] - Ye, G.; Li, H.; Lin, F.; Tong, J.; Wu, X.; Huang, Z. Condition assessment of XLPE insulated cables based on polarization/depolarization current method. IEEE Trans. Dielectr. Electr. Insul.
**2016**, 23, 721–729. [Google Scholar] [CrossRef] - Yu, X.; Song, Z.; Chen, Z. Study on the time domain dielectric properties of oil-impregnated paper with non-uniform aging based on the modified Debye model. In Proceedings of the IEEE International Conference on High Voltage Engineering and Application, Chengdu, China, 19–22 September 2016; pp. 1–4. [Google Scholar]
- Hao, J.; Liao, R.; Chen, G.; Ma, Z.; Yang, L. Quantitative analysis ageing status of natural ester-paper insulation and mineral oil-paper insulation by polarization/depolarization current. IEEE Trans. Dielectr. Electr. Insul.
**2012**, 19, 188–199. [Google Scholar] - Li, Y. Digital filtering technology. J. Chifeng. Univ. (Nat. Sci. Ed.)
**2005**, 6, 75–77. (In Chinese) [Google Scholar] - Yang, K.; Zhou, L.; Zhao, Y.; Liu, S. A kind of improved digital filtering method. J. Daqing Pet. Inst.
**2003**, 27, 45–46. (In Chinese) [Google Scholar] - Zhang, Y.-S.; Cui, J. Study of digital filter measures in the data collects system. J. Henan Mech. Electr. Eng. Coll.
**2007**, 15, 23–25. (In Chinese) [Google Scholar] - Kim, S.J.; Koh, K.; Boyd, S.; Gorinevsky, D. ℓ
_{1}trend filtering. SIAM Rev.**2009**, 51, 339–360. [Google Scholar] [CrossRef] - She, L. Research on Key Technologies of T-wave alternans detection in Electrocardiogram. Ph.D. Thesis, Northeastern University, Shenyang, China, 2015; pp. 73–76. (In Chinese). [Google Scholar]
- Tan, L.; Tang, D. Wavelet signal denoising technique based on matlab. J. Hunan Univ. of Sci. Technol. (Nat. Sci. Ed.)
**2014**, 29, 84–87. (In Chinese) [Google Scholar] - Zaengl, W. Dielectric spectroscopy in time and frequency domain for HV power equipment. I. Theoretical considerations. IEEE Electr. Insul. Mag.
**2003**, 19, 5–19. [Google Scholar] [CrossRef] - Xia, G.; Wu, G. Quantitative assessment of moisture content in transformer oil-paper insulation based on extended Debye model and PDC. In Proceedings of the IEEE China International Conference on Electricity Distribution (CICED 2016), Xian, China, 10–13 August 2016; pp. 1–5. [Google Scholar]
- Zeng, S.; Zhang, Y.; Wang, Z.; Yin, Y. Condition diagnosis of oil-paper insulation during the accelerated electrical aging test based on polarization and depolarization current. In Proceedings of the 2015 IEEE 11th International Conference on the Properties and Applications of Dielectric Materials (ICPADM 2015), Sydney, Australia, 19–22 July 2015; pp. 448–451. [Google Scholar]
- Das, S. Revisiting the Curie-Von Schweidler law for dielectric relaxation and derivation of distribution function for relaxation rates as zipf’s power law and manifestation of fractional differential equation for capacitor. J. Mod. Phys.
**2017**, 8, 1988–2012. [Google Scholar] [CrossRef] - Schweidler, E.R.V. Studien über die Anomalien im Verhalten der Dielektrika. Ann. Phys.
**1907**, 329, 711–770. [Google Scholar] [CrossRef] - Haque, N.; Dalai, S.; Chatterjee, B.; Chakravorti, S. Study on charge de-trapping and dipolar relaxation properties of epoxy resin from discharging current measurements. IEEE Trans. Dielectr. Electr. Insul.
**2017**, 24, 3811–3820. [Google Scholar] [CrossRef] - Geng, S. Image Denoising Based on Mathematical Morphology. Master’s Thesis, Shandong Normal University, Jinan, China, 2015; pp. 73–76. (In Chinese). [Google Scholar]
- Wei, J.L.; Zhang, G.-J.; Xu, H.; Peng, H.-D.; Wang, S.-Q.; Dong, M. Novel characteristic parameters for oil-paper insulation assessment from differential time-domain spectroscopy based on polarization and depolarization current measurement. IEEE Trans. Dielectr. Electr. Insul.
**2011**, 18, 1918–1928. [Google Scholar] [CrossRef] - Phloymuk, N.; Nimsanong, P.; Phumipunepon, N.; Kittiratsatcha, S.; Pattanadech, N. Dielectric properties analysis of gas turbine synchronous generator by polarization and depolarization current measurement. In Proceedings of the 2018 Condition Monitoring and Diagnosis (CMD 2018), Perth, Australia, 23–26 September 2018; pp. 1–4. [Google Scholar]
- Bhumiwat, S.A. On-site non-destructive diagnosis of in-service power cables by Polarization/Depolarization Current analysis. In Proceedings of the IEEE International Symposium on Electrical Insulation, San Diego, CA, USA, 6–9 June 2010; pp. 1–5. [Google Scholar]
- Cao, Y.; Wu, J.; Liu, S.; Wang, L.; Zhu, H.; Yin, Y. Isothermal relaxation current research of stator bar insulation in single factor aging experiments. Trans. Chin. Electrotech. Soc.
**2015**, 30, 242–248. (In Chinese) [Google Scholar] - Wu, J.; Yin, Y.; Wang, Y.; Xiao, D. The condition assessment system of XLPE cables using the isothermal relaxation current technique. In Proceedings of the IEEE 9th International Conference on the Properties and Applications of Dielectric Materials, Harbin, China, 19–23 July 2009; pp. 1114–1117. [Google Scholar]
- Liu, J.; Li, Z.; Han, Y.; Sun, Y. Study on polarization and depolarization characteristics of epoxy/BaTiO3 nano-composites. In Proceedings of the 2nd International Conference on Electrical Materials and Power Equipment (ICEMPE 2019), Guangzhou, China, 7–10 April 2019; pp. 305–308. [Google Scholar]
- Simmons, J.G.; Tam, M.C. Theory of Isothermal Currents and the Direct Determination of Trap Parameters in Semiconductors and Insulators Containing Arbitrary Trap Distributions. Phys. Rev. B
**1973**, 7, 3706–3713. [Google Scholar] [CrossRef]

**Figure 2.**The test results of 20% SiC/PE composite under electric field strength of 30 kV/mm. (

**a**) The test results of the polarization currents; and (

**b**) the test results of depolarization currents.

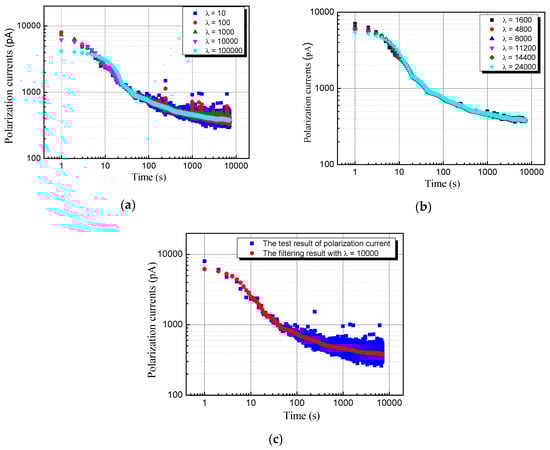

**Figure 3.**The diagram of L1 trend filtering result: (

**a**) The filtering results with λ value of 10–100,000; (

**b**) the filtering results with λ value of 1000–30,000; and (

**c**) the filtering results with λ = 10,000.

**Figure 4.**The effect diagram of moving average filtering with different adjacent numbers: (

**a**) the filtering results with m = 10; and (

**b**) the filtering results with m = 1000.

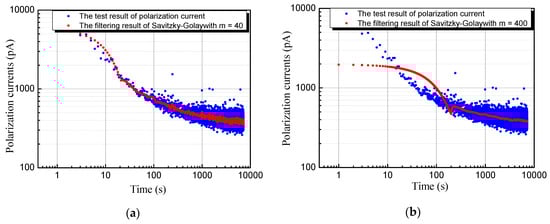

**Figure 5.**The effect diagram Savitzky–Golay smooth filtering with different window widths: (

**a**) The filtering result with m = 40; and (

**b**) the filtering result with m = 400.

**Figure 6.**The effect diagram of wavelet transform filtering with different decomposition levels: (

**a**) Filtering results with J = 3; and (

**b**) filtering results with J = 6.

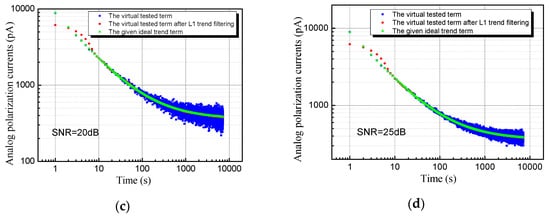

**Figure 7.**The effect diagram of L1 trend filtering for different degrees of noises with the ideal trend term produced by the extended Debye model: (

**a**) SNR = 10 dB; (

**b**) SNR = 15 dB; (

**c**) SNR = 20 dB; (

**d**) SNR = 25 dB.

**Figure 8.**The effect diagram of L1 trend filtering for different degrees of noises with the ideal trend term produced by the Curie formula: (

**a**) SNR = 10 dB; (

**b**) SNR = 15 dB; (

**c**) SNR = 20 dB; (

**d**) SNR = 25 dB.

**Figure 9.**The diagram the product of the polarization absorption current with time (I × t) with log10 t: (

**a**) The polarization absorption current with noise; (

**b**) the polarization absorption current filtered by L1 trend filtering; and (

**c**) the comparison of polarization absorption current filtered by L1 trend filtering and the given ideal trend time.

Signal-to-Noise Ratio of Given Interference (dB) | 10 | 15 | 20 | 25 |
---|---|---|---|---|

Signal to noise ratio after L1 trend filtering (dB) (λ = 10,000) | 9.99 | 14.88 | 19.81 | 24.64 |

The relative error (%) | 1% | 0.8% | 0.95% | 1.4% |

The Number of Points | 5000 | 10,000 | 20,000 | 30,000 | 40,000 | 50,000 |
---|---|---|---|---|---|---|

The execution time (seconds) (λ = 10,000) | 25.92 | 63.50 | 176.67 | 353.11 | 2512.81 | insufficient memory |
