Time Sequential Motion-to-Photon Latency Measurement System for Virtual Reality Head-Mounted Displays
Previous Article in Journal
Saliency Preprocessing Locality-Constrained Linear Coding for Remote Sensing Scene Classification
Article

Detection and Frequency Estimation of Frequency Hopping Spread Spectrum Signals Based on Channelized Modulated Wideband Converters

College of Electronic Science, National University of Defense Technology, Changsha 410073, China
*
Author to whom correspondence should be addressed.
Electronics 2018, 7(9), 170; https://doi.org/10.3390/electronics7090170
Received: 6 August 2018 / Revised: 24 August 2018 / Accepted: 27 August 2018 / Published: 30 August 2018

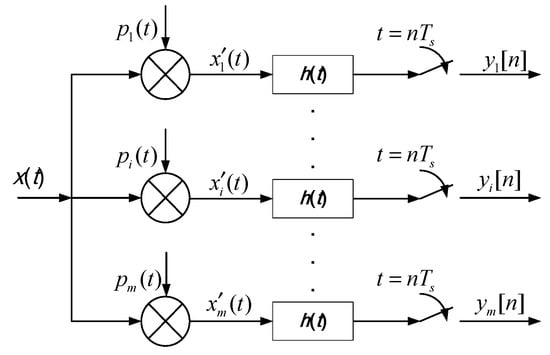

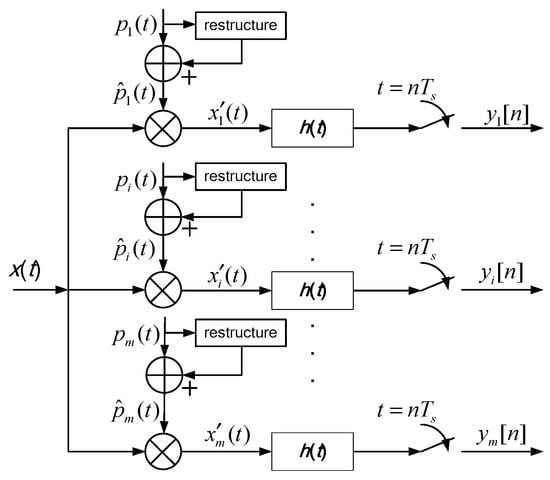

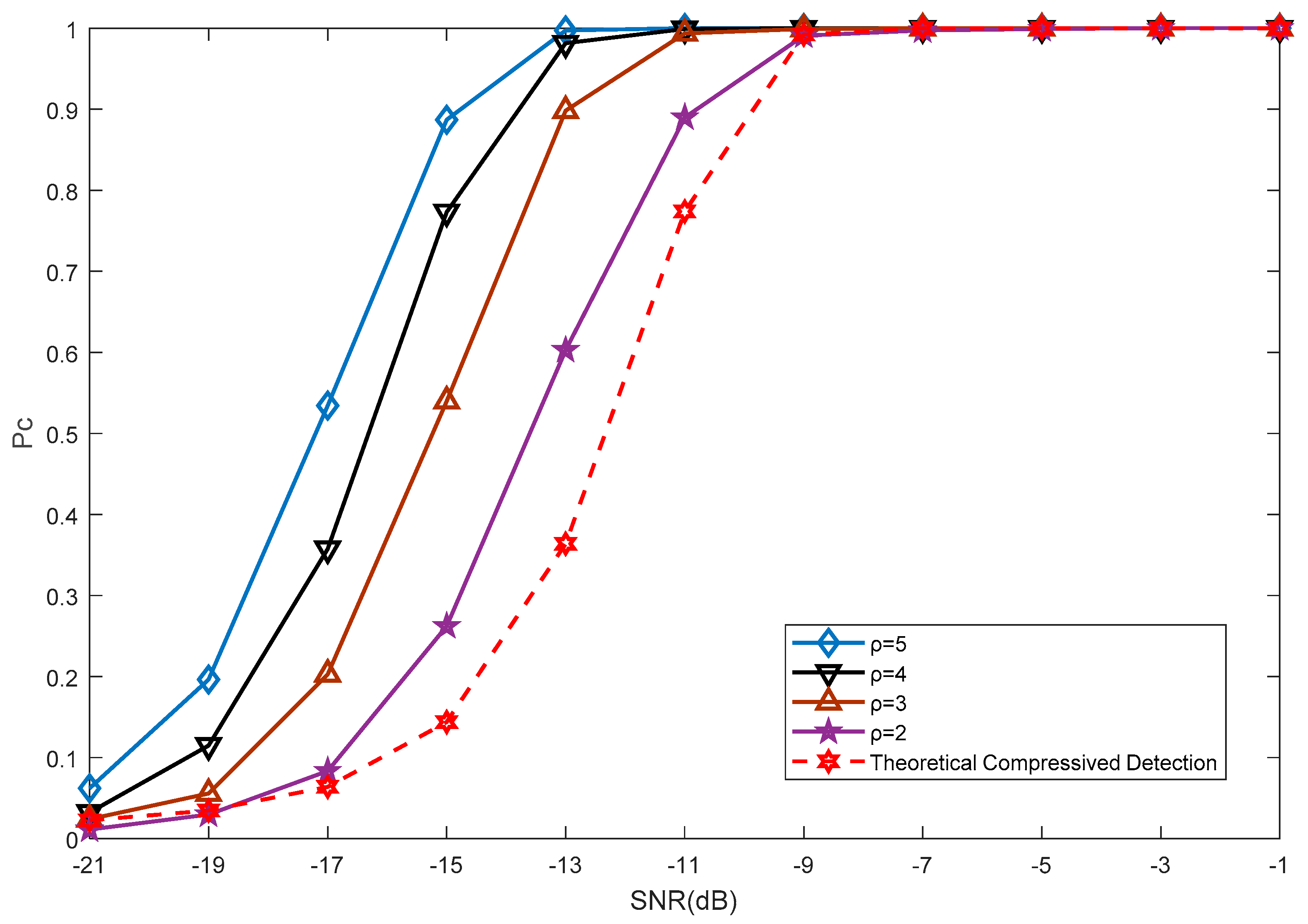

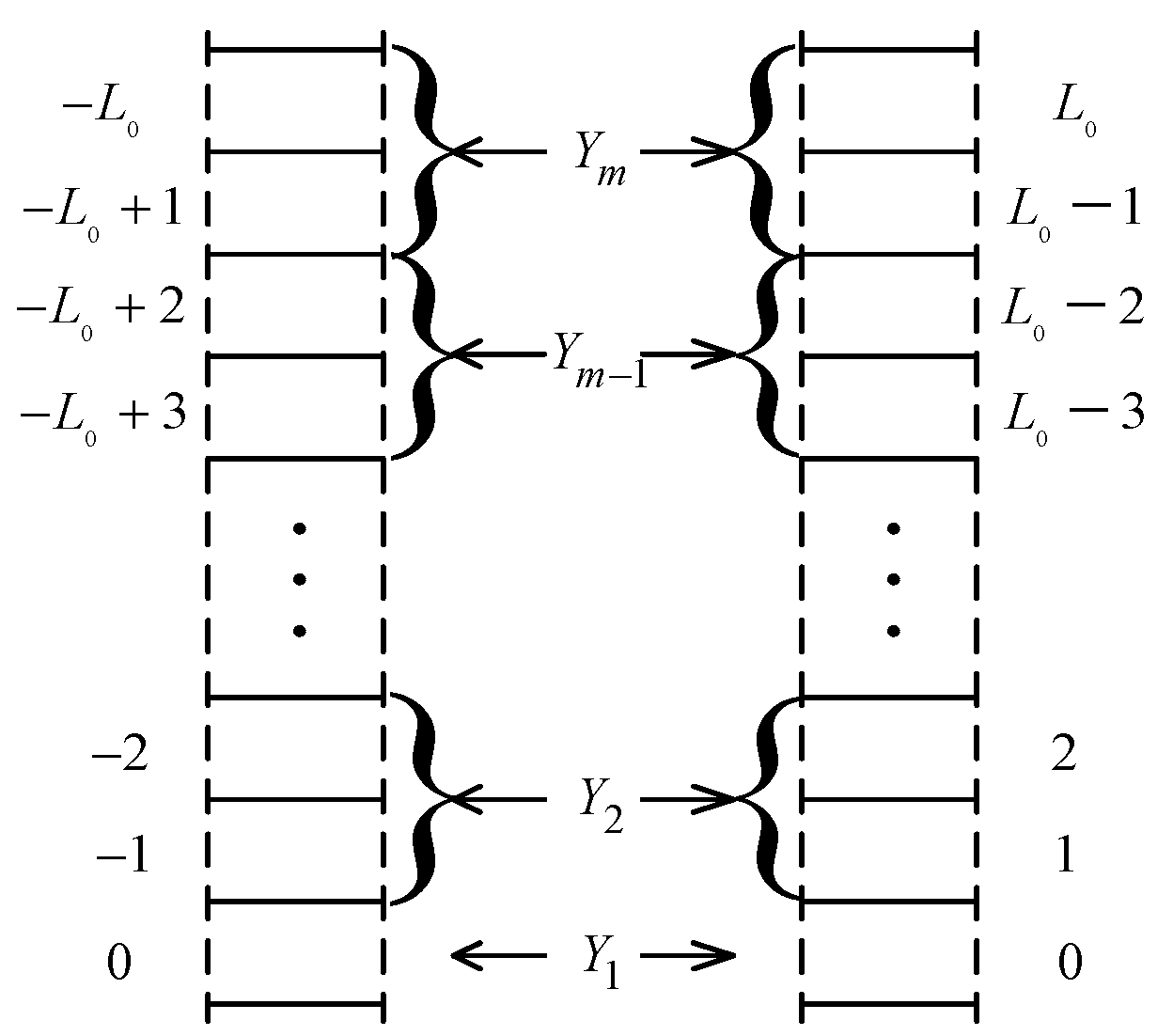

It is challenging to detect and track frequency hopping spread spectrum (FHSS) signals due to their wideband frequencies and the limitations of current hardware. In the implementation, there has been a trend of conducting compressive sensing for blind signal processing of FHSS signals. The modulated wideband converter (MWC) is a type of sub-Nyquist sampling system, which accomplishes the recovery of highly accurate broadband sparse signals by multichannel sub-Nyquist sampling sequences. However, it is difficult to adjust MWC to FHSS signals, because the support set and sparsity change with the hop. In this paper, we propose a channelized MWC scheme in order to solve these problems. First, the proposed method distributes the sub-bands to different channels. We can derive and refresh the frequency support set rapidly without recovery. Secondly, by reconstructing the low-pass filter and decimation, we reduced the computational cost to 1/m as the traditional m-channel MWC scheme, where m is the number of channels. Moreover, we propose a series of strategies to estimate carrier frequency. The numerical simulations show that our method can detect the channel, which contains FHSS signals in the case of a low signal-to-noise ratio. Furthermore, the estimation method leads to the successful estimation of the FHSS carrier frequency. This indicates that our method is also effective in the broadband non-cooperative spectrum sensing. View Full-Text
Keywords: frequency hopping spread spectrum signals; modulated wideband converter; detection; frequency estimation; channelized frequency hopping spread spectrum signals; modulated wideband converter; detection; frequency estimation; channelized
