Small-Sample Thermal Fault Diagnosis Using Knowledge Graph and Generative Adversarial Networks

Abstract

The scarcity of fault samples significantly impedes the generalization of data-driven diagnosis models for local thermal imbalances in integrated energy systems. To overcome this limitation, this paper proposes a novel knowledge graph-guided conditional generative adversarial network (KG-GAN) framework. The approach begins by constructing a dynamically updatable fault knowledge graph for district heating systems, which explicitly encapsulates pipeline topology, thermodynamic principles, and fault propagation mechanisms. The derived knowledge embeddings are then fused with physics-based constraints into the adversarial learning process, effectively alleviating the issue of physically implausible sample generation that plagues conventional data-centric models. Experimental validation on a district heating platform, involving four common fault types, demonstrates the superiority of our method. With only 100 samples per fault category, a diagnostic model trained on KG-GAN-generated data achieves a classification accuracy of 91.7%, outperforming a GAN-based baseline by 8.3%. Furthermore, t-Distributed Stochastic Neighbor Embedding (t-SNE) visualization reveals a 92.3% feature distribution consistency between generated and real samples, confirming the method’s capability to enhance diagnostic robustness and physical interpretability under small-sample conditions.

1. Introduction

The rapid advancement in energy transition has positioned Integrated Energy Systems (IES) as pivotal components in the modern energy sector. These systems, however, face significant challenges due to the complex coupling characteristics of electricity–heat–gas multi-energy flows, which introduce various fault risks. Among these, local thermal imbalance represents a particularly critical issue that substantially impacts both user comfort and system efficiency. Current approaches to fault diagnosis primarily fall into two categories: physics-model-driven methods that rely on precise equipment modeling but suffer from limited generalization for strongly coupled faults, and data-driven methods that leverage machine learning and deep learning to extract complex patterns from data while operating independently of detailed physical models [1]. While deep learning methods have shown remarkable capability in learning hierarchical feature representations from high-dimensional signals, they encounter substantial challenges under few-shot scenarios, including overfitting due to sample scarcity [2], feature distribution drift, and the fundamental disconnect between physical mechanisms and diagnostic outcomes.

In addressing data scarcity, Generative Adversarial Networks (GANs) have emerged as a promising solution for data augmentation by learning the probability distribution of training examples [3]. Applications span diverse domains, from Luo et al.’s integration of self-attention into Conditional Deep Convolutional GANs for planetary gearbox fault diagnosis to Lei et al.’s combination of Variational Autoencoders with GANs for steering mechanism fault diagnosis [4]. Beyond mechanical systems, Zhang et al. developed mixed-GANs for pipeline leak detection with expert constraints [5], while Park et al. employed GANs to generate synthetic attack traffic for cybersecurity applications [6]. In the biomedical domain, Lupión et al. demonstrated the use of GANs for data augmentation in human activity recognition [7]. However, as noted by Gui et al., conventional GANs primarily focus on fitting statistical distributions while lacking explicit mechanisms to ensure adherence to underlying physical laws [8], often resulting in generated samples that are statistically plausible but physically implausible.

Complementary to data-driven approaches, Knowledge Graphs (KGs) offer structured, interpretable domain knowledge to enhance diagnostic models. Recent applications include Meng et al.’s construction of aircraft fault knowledge graphs [9] and Huo et al.’s development of safety knowledge graphs from subway construction accidents [10]. In industrial diagnostics, Mao et al. proposed knowledge aggregation models integrating graph convolutional networks with knowledge graphs [11], while Su et al. introduced graph neural network-based knowledge reasoning for manufacturing processes [12]. While these methods significantly improve interpretability and leverage domain expertise, their performance remains constrained by knowledge graph quality and completeness, and they inherently lack sample generation capabilities.

The emerging trend of hybrid approaches has begun to bridge this gap, with researchers exploring combinations such as Zhou et al.’s incorporation of causal representation learning into dual-GAN architectures [13] and Tong et al.’s integration of GANs with meta-learning for knowledge graph completion [14]. In few-shot learning, Zhao et al. proposed prototype rectification with self-attention mechanism to learn unbiased class prototypes [15]. Despite these advances, a significant research gap persists: no existing work has systematically embedded structured physical constraints from domain-specific knowledge graphs directly into the GAN training process, specifically targeting few-shot thermal fault diagnosis in IES. This gap manifests in three key limitations: the fragmentation between mechanism and data in current approaches, the lack of specificity in utilizing knowledge graphs as generative constraints, and insufficient adaptation mechanisms to ensure knowledge graph quality under limited data conditions.

To address these challenges, this paper proposes a novel Knowledge-Guided Generative Adversarial Network (KG-GAN) framework that fundamentally transforms the generation process from “free creation” to “targeted generation following physical constraints.” Our core contributions include constructing a comprehensive IES thermal fault knowledge graph and embedding physical rules into GAN training to ensure generated samples possess both data distribution authenticity and physical law consistency. We design a dynamic knowledge update mechanism for few-shot conditions, enabling self-correction and evolution based on real-time operational data. Furthermore, we establish a complete framework spanning “knowledge construction–constrained generation–trustworthy diagnosis,” providing an interpretable solution for industrial fault diagnosis under data scarcity. The proposed method demonstrates three key innovations: dynamic knowledge graph updating for system adaptation, deep integration of physical constraints within the generator, and a comprehensive framework bridging knowledge representation and sample generation for IES thermal fault diagnosis.

2. Theoretical Foundations

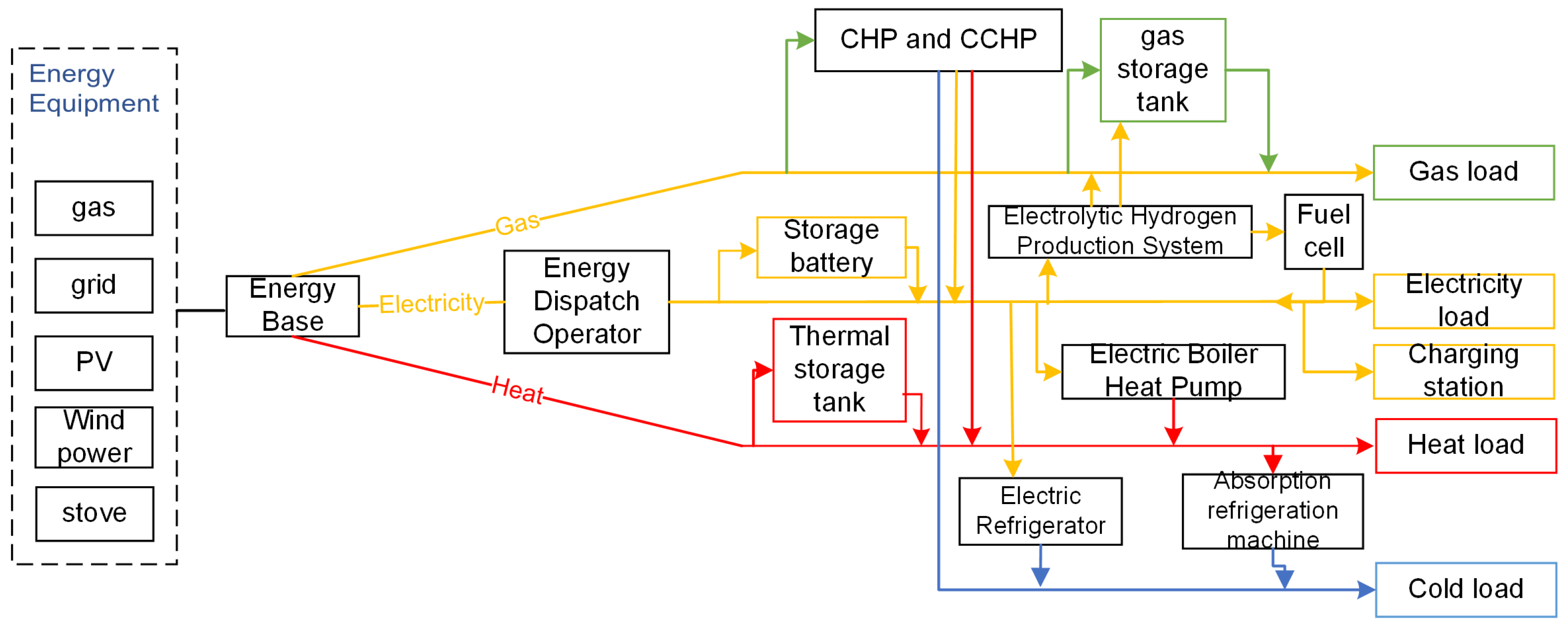

2.1. Organizational Structure of Integrated Energy Systems

Integrated energy systems represent the core model for future sustainable energy utilization. They break down the barriers of independent operation between traditional electricity, gas, heating, and cooling systems. Through technological and managerial approaches, they achieve efficient coordination and complementarity among multiple energy sources in terms of time, space, and form. The organizational structure of the integrated energy system studied in this paper is shown in Figure 1.

From a static structural perspective, the IES constitutes a complex system integrating the physical layer energy network with the information layer support system. The physical layer encompasses five key segments: energy production, conversion, storage, transmission/distribution, and consumption. The energy production segment covers both renewable and conventional energy inputs; the conversion segment facilitates cascading transformations between different energy forms; the storage segment mitigates fluctuations in supply and demand; and the transmission/distribution segment delivers energy to consumption points. The energy consumption segment comprises various terminal loads, whose demand characteristics directly drive system operation. The information layer, functioning as the ‘nerve centre’, consists of perception, networking, and platform layers, providing perception, communication, computation, and decision support for the physical layer.

During dynamic operation, IES centres on ‘multi-energy coupling’ and ‘cooperative optimisation’. The system coordinates equipment across all segments through the information layer based on real-time multi-load demands, renewable energy output, and other data. Operational mechanisms include achieving cascading energy utilisation and form conversion via conversion equipment, regulating supply and demand using storage devices, and optimising energy allocation through network optimisation. A closed-loop control system—encompassing sensing, analysis, decision-making, and execution—is created through continuous information flow, with the goal of achieving economic, efficient, low-carbon, and safe operations.

2.2. Multi-Energy Flow Coupling Mechanism

The hallmark of integrated energy systems is the tight coupling and mutual conversion of heterogeneous energy vectors—electricity, heat and gas—across three nested scales: conversion devices, distribution networks and the system layer. The physical laws that govern these interactions are examined below, with emphasis on the deep coupling of electric, thermal and gas flows.

2.2.1. Energy Conversion Device Level

At the device level, Combined Cooling, Heating, and Power (CCHP) conversion is described by

$$Q_{\mathrm{hp}}=\mathrm{COP}·P_{\mathrm{elec}}$$

(1)

$$Q_{\mathrm{eb}}={\eta }_{\mathrm{eb}}·P_{\mathrm{elec}}·\Delta t$$

(2)

$$P_{\mathrm{gt}}={\eta }_{\mathrm{gt}}·m_{\mathrm{gas}}·\mathrm{LHV}$$

(3)

$$Q_{\mathrm{he}}=U·A·\Delta T_{\mathrm{lm}}$$

(4)

Equation (1) is the electricity-to-heat conversion equation for the heat-pump unit, where COP denotes the coefficient of performance that quantifies the conversion efficiency from electric power $P_{\mathrm{elec}}$ to thermal output $Q_{\mathrm{hp}}$. Equation (2) governs the heat production of the electric boiler; its electric-to-thermal efficiency ${\eta }_{\mathrm{eb}}$ determines the rate at which electric energy $P_{\mathrm{elec}}$ is transformed into heat $Q_{\mathrm{eb}}$ over time interval $\Delta t$. Equation (3) describes the chemical-to-electric energy conversion in the gas turbine, with $m_{\mathrm{gas}}$ being the natural-gas mass flow rate and LHV the lower heating value. Equation (4) models the cross-medium heat transfer in the heat exchanger driven by the log-mean temperature difference, where $Q_{\mathrm{he}}$ is the heat-transfer rate, U the overall heat-transfer coefficient, A the heat-transfer area, and $\Delta T_{\mathrm{lm}}$ the log-mean temperature difference.

2.2.2. Energy Transmission Network Level

The transmission constraints at the energy transmission network layer are manifested as follows:

$$\sum P_{\mathrm{in}}-\sum P_{\mathrm{out}}-P_{\mathrm{loss}}=0$$

(5)

$$\Delta p=R·m^2$$

(6)

The network loss calculation considers node voltage phase relationships:

$$P_{\mathrm{loss}}=\sum _{i=1}^N\sum _{j=1}^N|V_i\left|\right|V_j\left|\right|Y_{ij}|cos({\theta }_{ij}-{\delta }_i+{\delta }_j)$$

(7)

The thermal network temperature field evolution is governed by

$$\rho c_p\left({\displaystyle \frac{\partial T}{\partial t}}+v{\displaystyle \frac{\partial T}{\partial x}}\right)=-h(T-T_{\mathrm{env}})$$

(8)

Equation (5) embodies the active power balance that must be maintained at all times in the power grid, denoting Kirchhoff’s current law at the power level. In this equation, $\sum P_{\mathrm{in}}$ and $\sum P_{\mathrm{out}}$ denote the input active power and output active power, respectively; $P_{\mathrm{loss}}$ denotes the total active power loss.

Network loss calculations consider node voltage phase relationships as shown in Equation (7), where N is the total number of grid nodes; i and j are node indices; $|V_i|$ and $|V_j|$ denote the voltage magnitudes at nodes i and j, respectively; ${\delta }_i$ and ${\delta }_j$ denote the voltage phase angles at nodes i and j, respectively; $|Y_{ij}|$ is the magnitude of the node admittance matrix element; ${\theta }_{ij}$ is the phase angle of the node admittance matrix element. The cosine term, determined by the voltage phase difference between the two ends and the equivalent line admittance angle, is crucial for reflecting the direction and magnitude of active power flow.

The hydraulic characteristics of the thermal network follow the Darcy-Weisbach equation in Equation (6), where $\Delta p$ is the pressure drop in the pipeline and m is the mass flow rate through the pipeline. The resistance coefficient R and the pipe diameter D satisfy an inverse relationship: $R\propto 1/D^5$.

The evolution of the thermal network temperature field is governed by the convection-conduction mechanism described by the one-dimensional unsteady equation in (8), where T is the fluid temperature, t is time, x is the distance along the pipe, v is the flow velocity, h is the combined heat transfer coefficient, $\rho$ is the density, $c_p$ is the specific heat at constant pressure, and $T_{\mathrm{env}}$ is the ambient temperature. The left-hand side of the equation denotes the local temperature change rate, characterizing convective transport effects, while the right-hand side constitutes the environmental heat dissipation term, fully revealing the mechanism of fluid temperature evolution with respect to space and time.

2.2.3. System-Level Coupling

At the system-level coupling layer, energy flow integration is achieved through the energy hub model described by Equation (9):

$$\left[\begin{array}{c}{L}_e\\ L_h\end{array}\right]=\left[\begin{array}{cc}{\eta }_{ee}& {\eta }_{ge}\\ {\eta }_{eh}& {\eta }_{gh}\end{array}\right]\left[\begin{array}{c}{P}_e\\ P_g\end{array}\right]$$

(9)

The output vector contains electrical load $L_e$ and thermal load $L_h$; the elements of the efficiency matrix ${\eta }_{ee}$ (electricity → electricity), ${\eta }_{ge}$ (gas → electricity), ${\eta }_{eh}$ (electricity → heat), and ${\eta }_{gh}$ (gas → heat) denote dimensionless conversion efficiencies. The input vector comprises electrical input $P_e$ and gas energy input $P_g$. This matrix equation quantifies, through linear relationships, the coupling process where multi-energy inputs undergo efficiency conversions to satisfy diverse loads.

The fundamental constraint of global energy conservation is as follows:

$$E_{\mathrm{in}}-E_{\mathrm{out}}=\Delta E_{\mathrm{storage}}$$

(10)

In the equation, $E_{\mathrm{in}}$ denotes the total energy input to the system; $E_{\mathrm{out}}$ denotes the total energy output; $\Delta E_{\mathrm{storage}}$ denotes the change in stored energy, where positive values indicate an increase in stored energy and negative values indicate a decrease. This equation directly embodies the First Law of Thermodynamics, ensuring the overall energy balance of the system under any operating conditions.

The multi-energy flow coupling mechanism described in this section provides a direct basis for understanding the fault mechanism of local thermal imbalance in the next section by precisely characterizing the physical laws governing multi-energy flow interactions. It also lays the foundation for the physical constraints established through knowledge graph construction in Section 4.

2.3. Mechanism of Local Thermal Imbalance Failure

Local thermal imbalance is a typical failure in district heating networks, with its physical essence stemming from the coupled effects of hydraulic imbalance and thermal response. Failure types induced by hydraulic imbalance include valve sticking—where fixed valve opening causes sudden local resistance changes that disrupt flow distribution—pump efficiency degradation due to worsened head-flow curves leading to insufficient total system flow, and network blockage caused by sharply increased resistance coefficients from local pipe diameter reductions. The following explains some specific principles of thermal imbalance faults.

2.3.1. Valve Sticking Failure

The principle behind valve sticking failures is that valve sticking causes the opening to become fixed, triggering a sudden change in local resistance. The relevant mathematical expression is as follows:

$$\Delta m=K_v\left({\gamma }_{\mathrm{fixed}}\right)·\sqrt{\Delta p}$$

(11)

In Equation (11), $\Delta m$ denotes the flow variation; abnormal changes in the flow coefficient $K_v$ disrupt the designed flow distribution; $\Delta p$ denotes the pressure difference across the valve, whose abrupt change causes the flow distribution to deviate from the design value.

2.3.2. Pump Efficiency Degradation

The decline in pump efficiency manifests as a degradation of the head-flow curve, with the corresponding mathematical expression as follows:

$$H=a+b·m+c·m^2$$

(12)

The efficiency degradation characteristics of a pump are described by the head H, flow rate m, and curve coefficients a, b, and c. Deviations in these coefficients will lead to a decrease in the system’s total flow rate.

2.3.3. Pipe Network Blockage

Pipe network blockages are caused by localized pipe diameter reduction, with the corresponding mathematical expression as follows:

$$R={\displaystyle \frac{f·L}{D^5}}$$

(13)

In the equation, R denotes the resistance coefficient, f denotes the friction coefficient, L indicates the pipe length, and D signifies the pipe diameter. When the pipe diameter D decreases by 20%, the resistance coefficient R surges by 300%, leading to upstream pressure buildup and a sharp reduction in downstream flow.

2.3.4. Thermal Inertia Effects

Thermal inertia effects cause the temperature response to lag behind the moment of failure occurrence, meaning there is a time delay between when the failure occurs and when it is effectively detected, as follows:

$$\tau {\displaystyle \frac{dT}{dt}}+T=T_{\mathrm{set}}$$

(14)

In the thermal inertia equation (Equation (14)), $\tau$ is the time constant, T is the fluid temperature, t is time, and $T_{\mathrm{set}}$ is the setpoint temperature. This results in a fault detection delay of 15–30 min.

The time constant $\tau$ causes the fault detection delay. The propagation speed of thermal disturbances is constrained by the fluid flow velocity:

$$T(x,t)=T_{\mathrm{in}}\left(t-{\displaystyle \frac{x}{v}}\right)$$

(15)

In the thermal disturbance propagation (Equation (15)), $T(x,t)$ represents the temperature at position x and time t, $T_{\mathrm{in}}$ denotes the inlet temperature function, and v is the flow velocity. For a pipeline network with a flow velocity of $v=1$ m/s, transmitting a fault signal over a 100 m distance takes 100 s.

2.3.5. User Load Fluctuations

User load fluctuations create diagnostic interference:

$$Q_{\mathrm{total}}\left(t\right)=Q_{\mathrm{base}}\left(t\right)+\Delta Q_{\mathrm{rand}}\left(t\right)$$

(16)

In load fluctuation (Equation (16)), $Q_{\mathrm{total}}$ denotes the total thermal load, $Q_{\mathrm{base}}$ denotes the base load, and $\Delta Q_{\mathrm{rand}}$ denotes the random fluctuation component, whose amplitude can reach up to 20% of the base load.

This section provides a thorough analysis of the physical causes, types, and dynamic characteristics of local thermal imbalance faults in district heating networks. This analysis supports Section 2 in precisely modeling faults involving multi-energy flow interactions under local thermal imbalance scenarios.

3. Knowledge Graph Construction and Pattern Representation

Traditional fault diagnosis systems typically treat physical topology modeling and fault knowledge bases as independent modules. To address the disconnect between physical systems and fault knowledge, the proposed knowledge graph models both physical topology and fault modes. By integrating system topology, device characteristics, and fault mechanisms, it provides physical constraints and prior knowledge for the knowledge-guided conditional generation adversarial network introduced in Section 4. The physical topology layer performs data injection into the fault knowledge layer, classifying fault samples according to the rules defined within the fault knowledge layer.

3.1. Topological Modeling of District Heating Systems

District heating systems constitute complex networked infrastructures composed of interconnected heat sources, distribution networks, consumer endpoints, and auxiliary equipment. Figure 2 illustrates the physical topology of a basic district heating system, which serves as the foundation for constructing the fault knowledge graph.

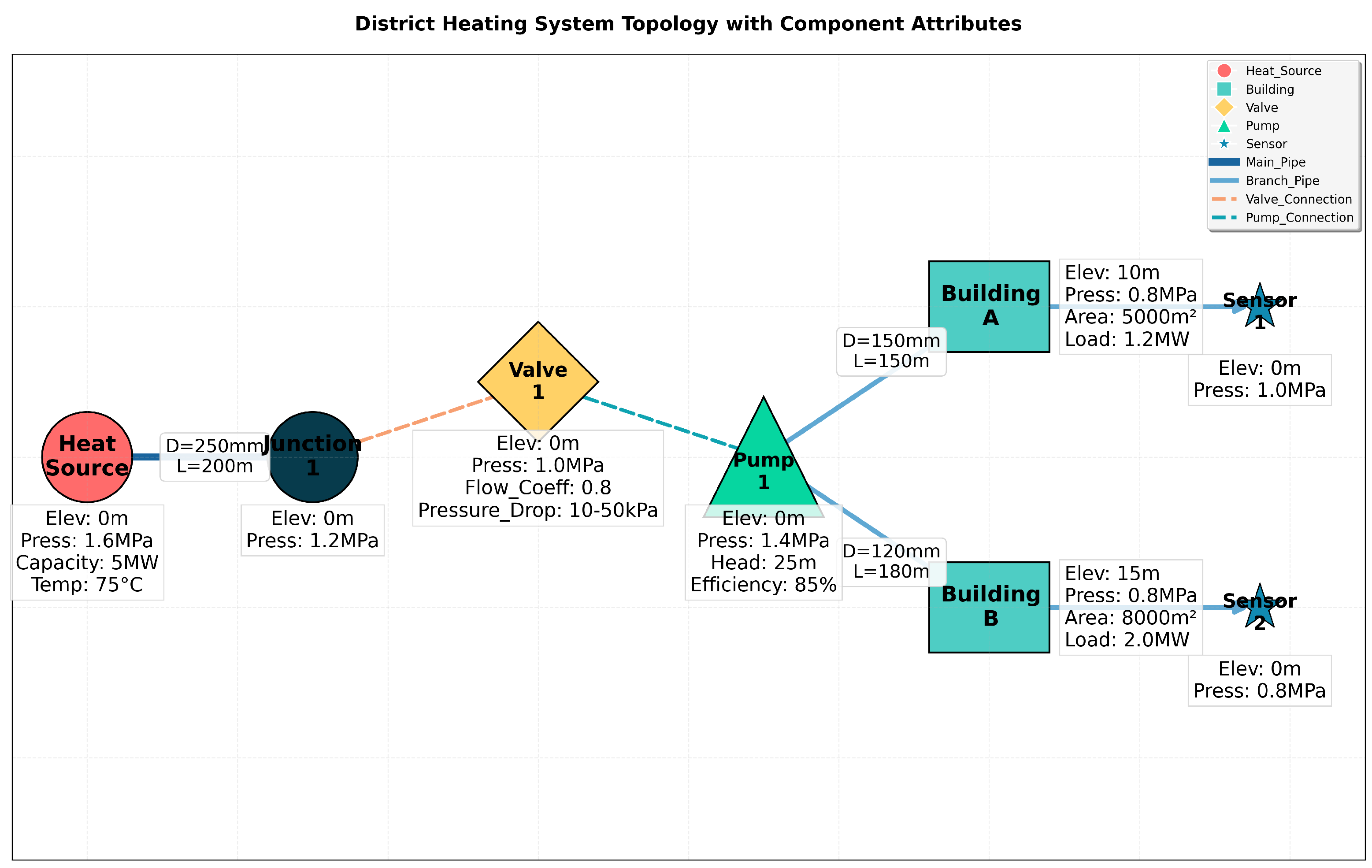

The system topology in Figure 2 can be mathematically represented as a weighted directed graph $G=(V,E,W)$. The node set V includes concrete components such as the central heat source, a distribution junction, a control valve, a circulation pump two consumer buildings, and temperature sensors. Each node $v_i\in V$ is characterized by physical attributes including equipment type, elevation, and design pressure, as annotated in the figure.

The edge set E represents physical interconnections between these components. Specifically, the directed edges depict: main supply pipeline from the heat source to the distribution junction, valve connection to the pump, branch pipelines distributing heated water to the two buildings, and sensor connections at building endpoints. Each edge $e_{ij}\in E$ has a direction attribute ${\mathrm{dir}}_{ij}$ indicating the flow direction of the thermal medium, explicitly shown by arrows in the diagram.

The weight set W embeds critical engineering parameters. For pipeline connections, $W_{\mathrm{pipe}}=(L,D,f,{\dot{m}}_{\mathrm{design}})$ includes length, diameter, friction coefficient, and design flow rate. For the control valve, $W_{\mathrm{valve}}=(K_v,\Delta p_{\mathrm{range}})$ specifies flow coefficient and operational pressure range. These parameters are directly labeled on corresponding components in Figure 2.

This graph representation captures both the topological connectivity and physical constraints of the heating system, providing the structural framework for subsequent fault knowledge graph construction.

3.2. Fault Mode Mechanism Modeling

Based on the fault mechanism analysis in Section 2, mathematical models for four typical faults—valve sticking, pump failure, pipeline leakage, and sensor drift—were established to address common localized thermal imbalances in district heating systems. Each fault model incorporates explicit physical mechanisms, mathematical expressions, and typical operational manifestations.

Symbol definitions: $U(a,b)$ denotes a uniform distribution over the interval $[a,b]$, $\gamma$ denotes valve opening, m represents mass flow rate, T indicates temperature, and $\alpha$ denotes leakage ratio. Subscript conventions: base denotes normal operating reference values; branch denotes the faulty branch; main denotes the main pipeline; return denotes the return side; reading denotes sensor readings; true denotes actual temperature values.

3.2.1. Valve Sticking Fault Model

The valve sticking fault model derived from the failure mechanism—where mechanical sticking locks the control valve opening at a fixed position, obstructing normal flow regulation—is as follows:

$$\begin{array}{cc}\hfill {\gamma }_{\mathrm{fault}}& ={\gamma }_{\mathrm{stuck}}\hfill \\ \hfill m_{\mathrm{branch}}& =K_v\left({\gamma }_{\mathrm{stuck}}\right)·\sqrt{\Delta p_{\mathrm{main}}}\hfill \\ \hfill \Delta p_{\mathrm{main}}& \sim U(1.2,1.5)·\Delta p_{\mathrm{base}}\hfill \end{array}$$

(17)

3.2.2. Pump Failure Model

The pump failure model derived from the failure mechanism where system driving force becomes insufficient due to reduced efficiency or complete stoppage of the circulation pump is as follows:

$$H_{\mathrm{fault}}={\eta }_{\mathrm{pump}}·H_{\mathrm{base}}\left(m\right)$$

(18)

$${\eta }_{\mathrm{pump}}\sim U(0.4,0.7)$$

$$m_{\mathrm{total}}=f(H_{\mathrm{fault}},R_{\mathrm{network}})$$

3.2.3. Pipeline Leakage Model

The pipeline leakage model derived from the failure mechanism where thermal medium leakage due to pipeline rupture causes mass loss and pressure drop is as follows:

$$\begin{array}{cc}\hfill m_{\mathrm{leak}}& =\alpha ·m_{\mathrm{base}}\hfill \\ \hfill \alpha & \sim U(0.1,0.3)\hfill \\ \hfill \Delta p_{\mathrm{return}}& \sim U(0.6,0.8)·\Delta p_{\mathrm{base}}\hfill \end{array}$$

(19)

3.2.4. Sensor Drift Model

The sensor drift model derived from the failure mechanism where zero drift or span drift in temperature sensors causes systematic deviation of measured values from actual values is as follows:

$$T_{\mathrm{reading}}=T_{\mathrm{true}}+\Delta T_{\mathrm{drift}},\Delta T_{\mathrm{drift}}\sim U(-5.0,+8.0){[}^{\circ }\mathrm{C}]$$

(20)

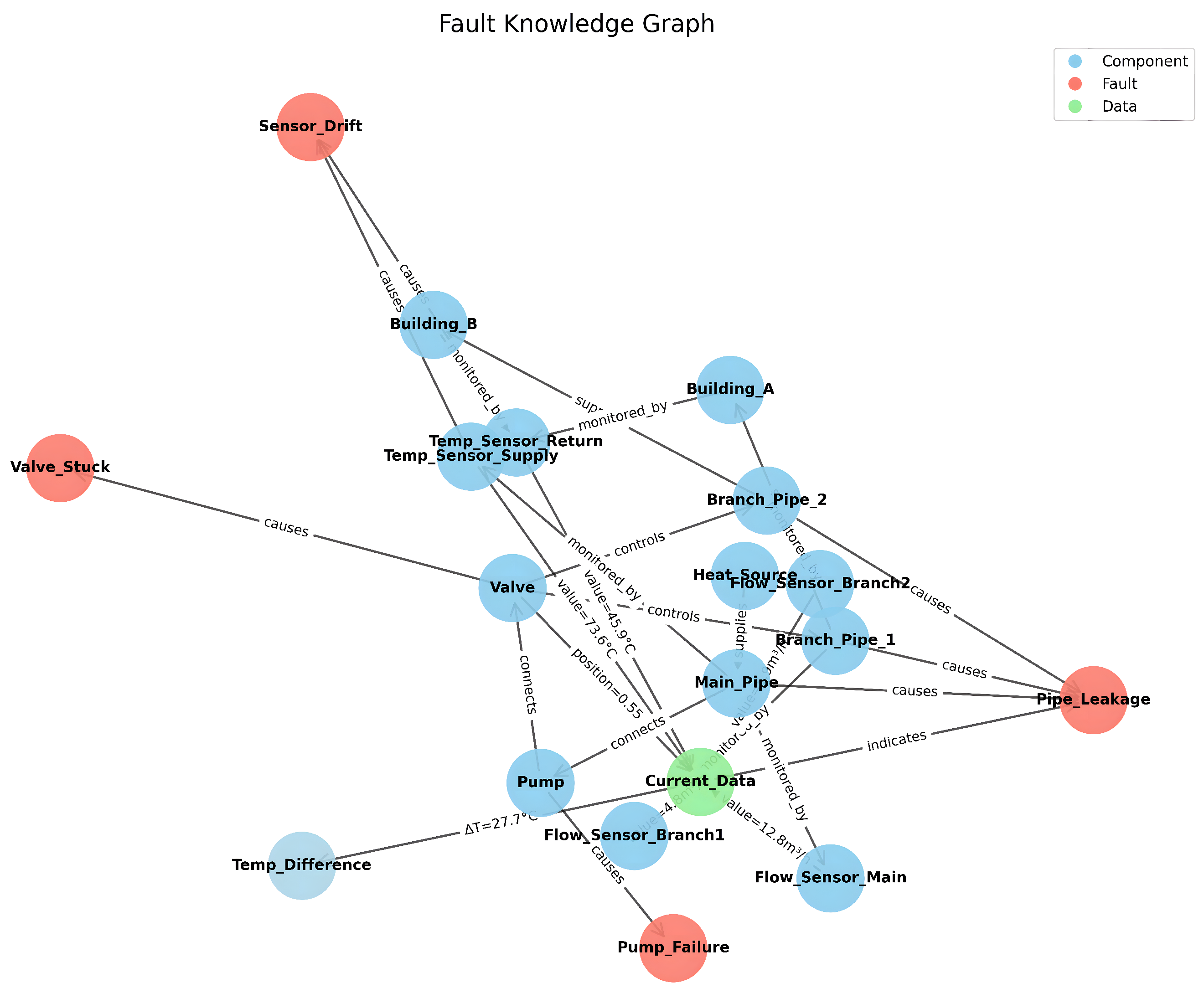

The aforementioned four fault models are formalized as fault mode entities within the knowledge graph. Through attribute mapping, they are associated with their corresponding mathematical expressions and physical rules. These formalized models constitute the core content of the knowledge graph and will be directly encoded as conditional vectors for the KG-GAN in Section 4. This enables precise guidance for the generator to synthesize specific types of fault samples, achieving deep integration between physical mechanisms and data generation at the data level.

4. Knowledge Graph Dynamic Update Mechanism

The initially constructed knowledge graph (KG) has static properties, while real physical systems are always in dynamic evolution. To ensure the reliability of the KG in long-term applications, this chapter aims to design a dynamic update mechanism that supports continuous iterative optimization of the KG based on online data. This mechanism can incrementally correct and evaluate the confidence of the knowledge graph based on real-time monitoring data and validation results of generated samples, thereby improving its reliability in practical applications. Through real-time data-driven rule confidence evaluation and conflict resolution, it ensures that the prior knowledge injected into the Knowledge-Guided Generative Adversarial Network (KG-GAN) is accurate and reliable, providing reliable constraints for the generative network, thereby ensuring high quality and high fidelity for the final generated fault samples used for classification training, effectively avoiding invalid or erroneous data generation caused by incorrect knowledge injection.

4.1. Dynamic Update Logic Architecture

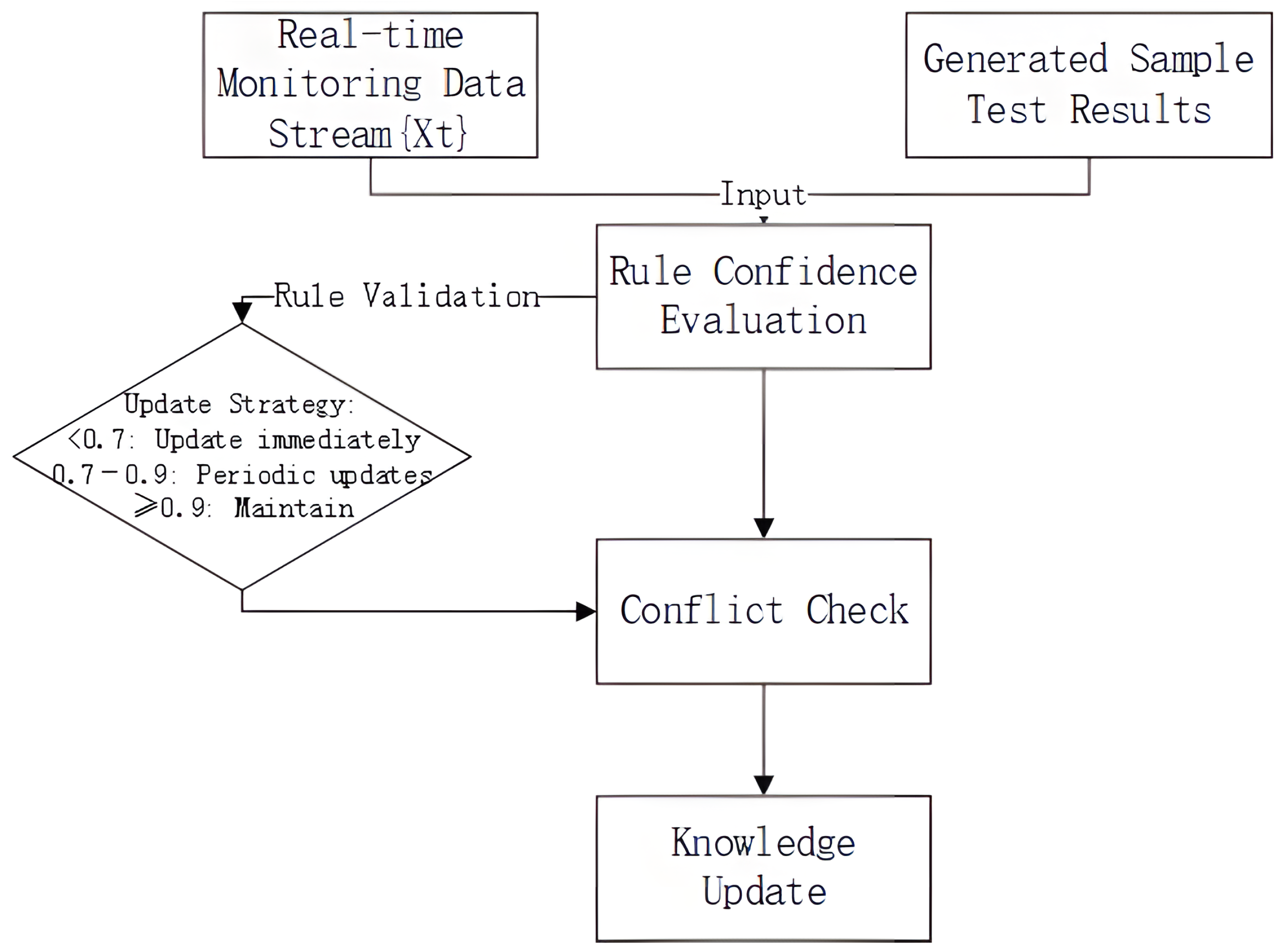

The dynamic update steps of the knowledge graph are shown in Figure 3, with inputs including two parts: first, the real-time monitoring data stream $D_t$, i.e., continuously collected system sensor operation data over time; second, the validation results of generated samples $R_{\mathrm{val}}$, used to verify the reliability of existing rules in the knowledge graph.

The update process is divided into three core steps:

1.

Rule confidence evaluation: Quantifying the reliability of existing rules such as the basic physical laws explained in Section 2.2 and the fault type models defined in Section 3.2;

2.

Conflict detection: Identifying contradictions between new data and existing knowledge;

3.

Incremental learning: Correcting the knowledge base based on conflict results.

The output is the updated knowledge graph $G^{\prime }$.

4.2. Rule Confidence Evaluation Model

The rule confidence evaluation model quantitatively assesses the credibility of existing fault rules (Section 2.2) in real environments, providing a basis for differentiated knowledge updates, prioritizing the correction of unreliable knowledge.

Define rule confidence $\mathrm{Confidence}\left(R\right)$ as shown in Equation (21):

$$\mathrm{Confidence}\left(R\right)={\displaystyle \frac{N_{\mathrm{match}}}{N_{\mathrm{total}}}}·\lambda (t-t_{\mathrm{update}})$$

(21)

where $N_{\mathrm{match}}$ is the number of samples conforming to the rule; $N_{\mathrm{total}}$ is the total number of samples triggering the rule; t is the current time, $t_{\mathrm{update}}$ is the last update time, and the time decay factor $\lambda (\Delta t)$ is calculated as

$$\lambda (\Delta t)=exp(-\beta \Delta t)$$

(22)

where $\beta >0$ is the decay rate coefficient that determines the speed of confidence decay over time. A larger $\beta$ value leads to faster confidence decay, while a smaller $\beta$ results in slower decay. The parameter $\beta$ can be calibrated based on historical data or domain expertise to reflect the expected rate of knowledge obsolescence in the specific application context.

Update strategies are dynamically adjusted according to confidence values:

$$\mathrm{Strategy}=\left\{\begin{array}{cc}\mathrm{Stable}\mathrm{guidance},\hfill & \mathrm{Confidence}>0.9\hfill \\ \mathrm{Update}\mathrm{priority},\hfill & \mathrm{Confidence}<0.6\hfill \end{array}\right.$$

(23)

The above model quantifies the reliability of rules, enabling intelligent update strategies. High-confidence rules are considered reliable knowledge and can stably guide data generation; low-confidence rules are flagged and prioritized for update, preventing them from generating erroneous fault data that contaminates the training set, thereby protecting the training effect of small-sample classification models.

4.3. Conflict Resolution and Incremental Learning

The conflict detection mechanism based on conservation laws and the hierarchical incremental update strategy ensure the physical rationality and topological consistency of the KG when absorbing new knowledge. The updated KG will be fed back to the knowledge encoding and constraint modules of KG-GAN in Section 4.

Conflict resolution occurs when new data conflicts with old knowledge, performing verification and correction based on physical laws to ensure the correctness of the KG. Constraint verification is performed based on physical conservation laws (Equation (24)). When monitoring data violate energy conservation, mass conservation, or hydraulic balance constraints, the system automatically triggers conflict detection:

$$\begin{array}{cc}\hfill & \left|\sum P_{\mathrm{in}}-\sum P_{\mathrm{out}}\right|\le {\epsilon }_P\hfill \\ \hfill & \left|\sum m_{\mathrm{in}}-\sum m_{\mathrm{out}}\right|\le {\epsilon }_m\hfill \\ \hfill & \Delta P_{\mathrm{system}}\le \Delta P_{\max }·\gamma \hfill \end{array}$$

(24)

where P represents thermal power (kW), ${\epsilon }_P$ is the allowable error threshold for equipment. m is mass flow (kg/s), $\Delta P_{\mathrm{system}}$ is the system pressure drop (kPa), $\gamma$ is the allowable overpressure coefficient.

Heating systems face dynamic changes such as topological modifications, equipment aging, and discovery of new fault modes during operation cycles. If the static graph is not iterated, the prior knowledge it carries will gradually deviate from reality, leading to decreased accuracy in subsequent fault sample generation and fault diagnosis. Therefore, incremental learning, through continuous integration of online data to achieve dynamic updates of the graph, is key to ensuring its long-term reliability and application value.

Considering that the heating system topology has a clear “node-edge” structural characteristic, its dynamic changes can be clearly divided into two categories: entity addition and parameter drift. Generic update methods struggle to balance iteration efficiency and physical compliance. Based on this, the following designs a hierarchical update strategy for node-level updates and edge relationship corrections, tailored to this topological characteristic of heating systems, to achieve refined, physically credible incremental optimization of the graph.

4.3.1. Node-Level Update

During the operation cycle of the heating system, pipeline network expansion, equipment additions, or discovery of new fault modes may require adding corresponding nodes to the graph. Considering the strong coupling between core attributes of different devices and system physics, node expansion needs to be differentiated by device type:

$$\begin{array}{cc}\hfill & \mathrm{Heat}\mathrm{source}\mathrm{node}:A_{\mathrm{source}}=\{\mathrm{ID},P_{\mathrm{design}},T_{\mathrm{out}}\}\hfill \\ \hfill & \mathrm{Pipe}\mathrm{node}:A_{\mathrm{pipe}}=\{\mathrm{ID},L,D,f,m_{\max }\}\hfill \\ \hfill & \mathrm{Valve}\mathrm{node}:A_{\mathrm{valve}}=\{\mathrm{ID},K_v,\Delta P_{\mathrm{range}}\}\hfill \end{array}$$

(25)

The above equation defines the attributes of heat source nodes, pipe nodes, and valve nodes, applied to heating systems containing these three types. In the key parameters of heat source node characteristics, ID represents the type or identifier of the heat source; $P_{\mathrm{design}}$ represents the design heating power of the heat source; $T_{\mathrm{out}}$ represents the design outlet temperature of the heat source. In the key parameters of pipe node characteristics, ID represents the type or identifier of the pipe; L is the length of the pipe; D is the diameter of the pipe; f is the friction factor of the pipe; $m_{\max }$ represents the maximum design mass flow of the pipe. In the key parameters of valve node characteristics, ID represents the type or identifier of the valve; $K_v$ represents the flow coefficient of the valve; $\Delta P_{\mathrm{range}}$ represents the adjustable pressure drop range of the valve. Among these, attribute inheritance from adjacent nodes means that newly added pipes automatically inherit the D (pipe diameter) and $m_{\mathrm{design}}$ (design flow) of connecting equipment, and newly added valves inherit the $\Delta P_{\mathrm{oper}}$ (operating pressure drop) from upstream and downstream.

4.3.2. Edge Relationship Correction

Edge relationship correction adopts a weighted fusion strategy under hydraulic constraints: on one hand, achieving smooth transition of old and new parameters through a weighting formula. Long-term monitoring data with high confidence can reduce the weight coefficient $\alpha$ value, allowing new parameters to dominate the correction faster; short-term data with low confidence increase the $\alpha$ value, retaining the stability of old parameters and avoiding abrupt changes in graph parameters.

The update of pipeline connection relationships uses the weighted fusion formula under hydraulic constraints as follows:

$${\theta }_{\mathrm{new}}=\alpha ·{\theta }_{\mathrm{old}}+(1-\alpha )·\Delta \theta ·C_h$$

(26)

where ${\theta }_{\mathrm{new}}$ represents the final corrected hydraulic parameter; ${\theta }_{\mathrm{old}}$ represents the original stable parameter value in the system before correction, with historical credibility; $\Delta \theta$ is the parameter change value calculated based on new monitoring data; $C_h$ represents the hydraulic constraint factor; $\alpha$ is the weight coefficient.

Simultaneously, the correction process must strictly satisfy the hydraulic constraint function based on fluid mechanics. Define the constraint function $C_h$ satisfying

$$C_h={\displaystyle \frac{1}{1+exp(-k·(\Delta P_{\mathrm{actual}}-\Delta P_{\mathrm{calc}}))}}$$

(27)

where $\Delta P_{\mathrm{calc}}=f·{\displaystyle \frac{L}{D}}·{\displaystyle \frac{\rho v^2}{2}}$, f is the friction factor, v is the flow velocity (m/s).

This constraint strongly binds parameters such as friction factor and flow velocity to the actual pressure drop, ensuring that the corrected edge relationship parameters not only fit the monitoring data but also avoid physical contradictions such as “excessive flow velocity leading to pressure drop exceeding pipeline pressure limit” and “abnormally small friction factor violating resistance characteristics”, fundamentally guaranteeing the physical credibility of the graph’s edge relationships, providing reliable resistance characteristics for subsequent fault simulation and data generation.

5. Knowledge-Guided Conditional Generative Adversarial Network

5.1. Background and Motivation

Traditional Generative Adversarial Networks (GANs) face fundamental challenges when generating fault data for integrated energy systems: the generation process lacks prior knowledge guidance, making it impossible to ensure that generated samples comply with complex physical laws and system topology logic. This limitation often results in generated data that, while statistically similar to real data, violates fundamental engineering principles, thereby reducing its practical utility for training reliable diagnostic models.

To address this critical issue, this paper proposes a Knowledge Graph-guided Conditional Generative Adversarial Network (KG-GAN) framework. The core innovation lies in the deep integration of physical knowledge from the dynamic knowledge graph with the data generation capability of GANs. This integration transforms the generation process from “free creation” to “targeted generation following physical constraints,” effectively solving the problem of scarce fault data for local thermal imbalance under small-sample conditions.

5.2. KG-GAN Overall Framework

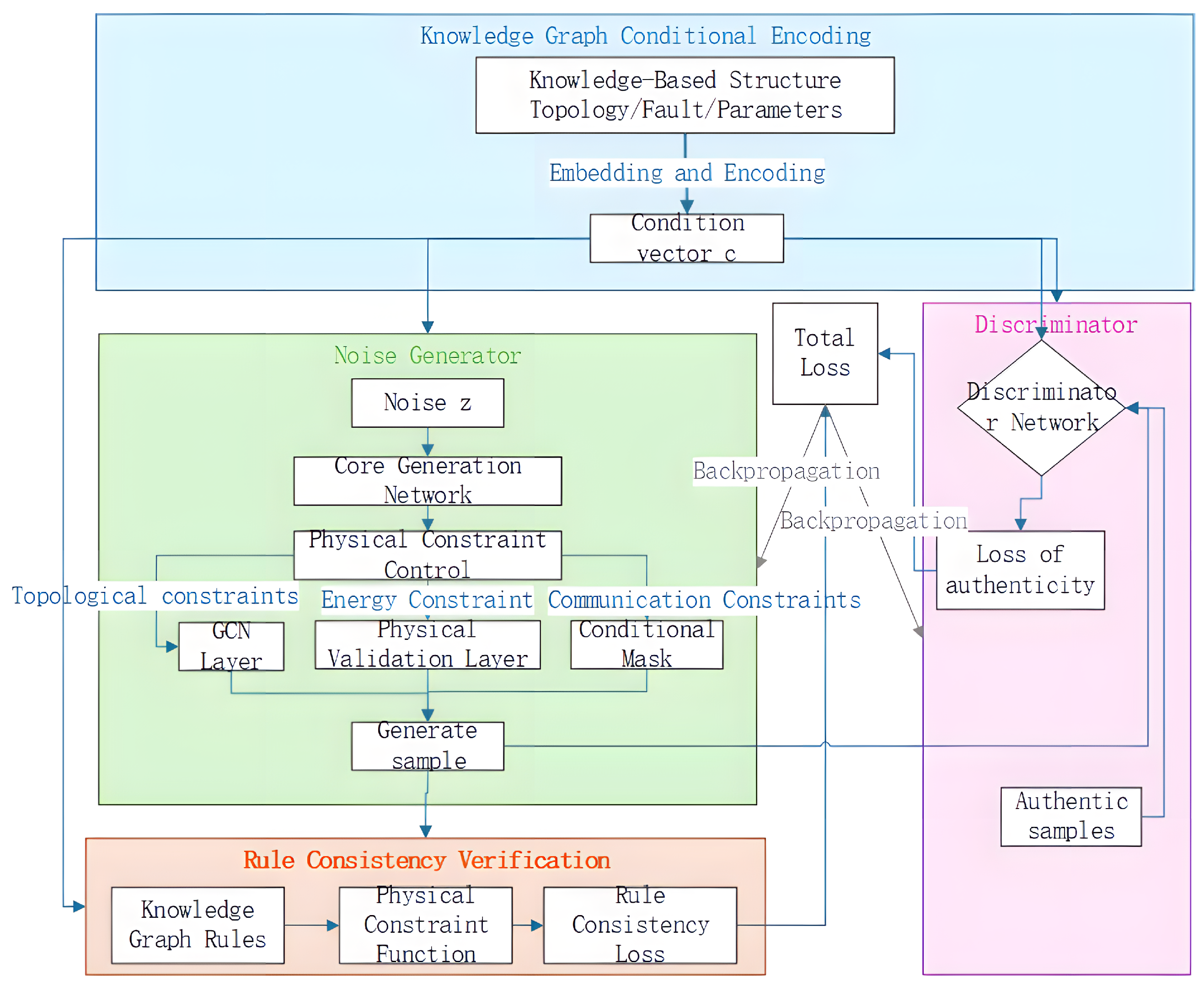

The overall architecture of KG-GAN, as illustrated in Figure 4, consists of three core modules: the knowledge graph condition encoder, the physically constrained generator, and the dual discriminator. The condition vector c, derived from the knowledge graph, is simultaneously fed into both the generator G and discriminator D, ensuring that the entire generation process is guided and constrained by domain knowledge.

The workflow can be conceptually described as follows: The knowledge graph condition encoder extracts structured knowledge from the dynamic knowledge graph and encodes it into a condition vector c. This vector carries semantic information about system topology, physical parameters, and fault patterns. The generator G then uses this condition vector, along with random noise z, to generate synthetic fault samples. Crucially, the generator incorporates multiple physical constraints to ensure the generated data complies with engineering logic. The discriminator D employs a dual discrimination mechanism, evaluating both the authenticity of the data and its compliance with physical rules.

5.3. Knowledge Graph Condition Encoding

Condition encoding is the process of transforming structured knowledge from the knowledge graph into a condition vector c, which serves as semantic guidance for the generation process. This encoding captures multiple aspects of domain knowledge:

Topology Structure Encoding: The original feature vector ${\mathbf{x}}_n$ of the n-th topology node is transformed into a dense vector ${\mathbf{h}}_n$ through an embedding matrix:

$${\mathbf{h}}_n=\mathrm{ReLU}({\mathbf{W}}_e{\mathbf{x}}_n+{\mathbf{b}}_e)$$

(28)

This transformation converts discrete engineering attributes into continuous vector representations, enabling subsequent neural networks to process structured knowledge while preserving topological relationships between entities.

Physical Parameter Constraints: Edge weight physical parameters are extracted to construct hydraulic constraint equations:

$${\mathbf{c}}_{\mathrm{phys}}=\sigma \left({\mathbf{W}}_p{[L,D,f]}^T+{\mathbf{b}}_p\right)$$

(29)

This design cleverly embeds engineering equations (such as the Darcy formula in Equation (7)) into the neural network, ensuring that generated data respects fundamental physical laws.

Fault Pattern Encoding: Long Short-Term Memory (LSTM) networks process temporal fault characteristic sequences:

$${\mathbf{c}}_{\mathrm{fault}}=\mathrm{LSTM}(\Delta P,\Delta \dot{m},{\tau }_d)$$

(30)

This temporal processing is particularly important for gradual faults, as LSTM can capture state evolution processes. The output ${\mathbf{c}}_{\mathrm{fault}}$ represents the dynamic encoding of fault patterns.

The final condition vector $\mathbf{c}=[{\mathbf{h}}_n,{\mathbf{c}}_{\mathrm{phys}},{\mathbf{c}}_{\mathrm{fault}}]$ provides multi-dimensional semantic guidance for the generation process, ensuring that generated samples are not only statistically similar to real data but also physically plausible.

5.4. Physically Constrained Generation Control

To fundamentally guarantee the rationality of generated samples, multiple physical constraints are integrated into the generator:

Topology Structure Constraints: Graph Convolutional Networks (GCNs) inject pipeline connection relationships:

$${\mathbf{H}}^{(l+1)}=\mathrm{ReLU}({\tilde{\mathbf{D}}}^{-{\displaystyle \frac{1}{2}}}\tilde{\mathbf{A}}{\tilde{\mathbf{D}}}^{-{\displaystyle \frac{1}{2}}}{\mathbf{H}}^{\left(l\right)}{\mathbf{W}}^{\left(l\right)})$$

(31)

This formulation enables the generator to understand and respect the actual connection relationships in the pipeline network, ensuring that generated data reflects realistic topological constraints.

Energy Conservation Constraints: A physical verification module is added to the output layer:

$$Q_{\mathrm{actual}}=\dot{m}{c}_p(T_{\mathrm{supply}}-T_{\mathrm{return}})$$

(32)

$$\left|Q_{\mathrm{gen}}-Q_{\mathrm{actual}}\right|<0.05Q_{\mathrm{gen}}$$

(33)

This constraint ensures that the heat-related portions of the generated data are consistent with the physical heat calculated from the flow rate and temperature data, with an error tolerance of less than 5%.

Fault Propagation Constraints: A conditional mask matrix ${\mathbf{M}}_{\mathrm{mask}}$ is designed to restrict unreasonable fault feature combinations:

$${\mathbf{x}}_{\mathrm{out}}={\mathbf{x}}_{\mathrm{gen}}\odot {\mathbf{M}}_{\mathrm{mask}}$$

(34)

Based on the fault association rules in the knowledge graph, this mask prevents physically impossible combinations of fault characteristics from appearing in the generated data.

5.5. Dual Discrimination Mechanism

To ensure that KG-GAN generates data that conforms to both real data distribution and logical constraints, the traditional GAN loss function is specifically improved:

The traditional adversarial loss function:

$${\mathcal{L}}_{\mathrm{adv}}=\mathbb{E}[logD\left(\mathbf{x}\right)]+\mathbb{E}[log(1-D\left(G\left(\mathbf{z}\right|\mathbf{c})\right))]$$

(35)

An additional rule consistency loss is introduced to specifically penalize logical conflicts between generated data and knowledge graph rules:

$${\mathcal{L}}_{\mathrm{rule}}=\beta ·\mathbb{E}\left[f_{\mathrm{phys}}\left(G\left(\mathbf{z}\right|\mathbf{c})\right)\right]$$

(36)

The total loss function combines both objectives:

$${\mathcal{L}}_{\mathrm{total}}={\mathcal{L}}_{\mathrm{adv}}+\lambda {\mathcal{L}}_{\mathrm{rule}}$$

(37)

This dual discrimination mechanism—combining data authenticity discrimination with physical compliance discrimination—forms a dual quality assurance system for generated data. The weight coefficient $\lambda$ enables dynamic weighting of key constraints, allowing the model to adaptively strengthen the constraint effectiveness of high-confidence rules.

6. Fault Diagnosis Method

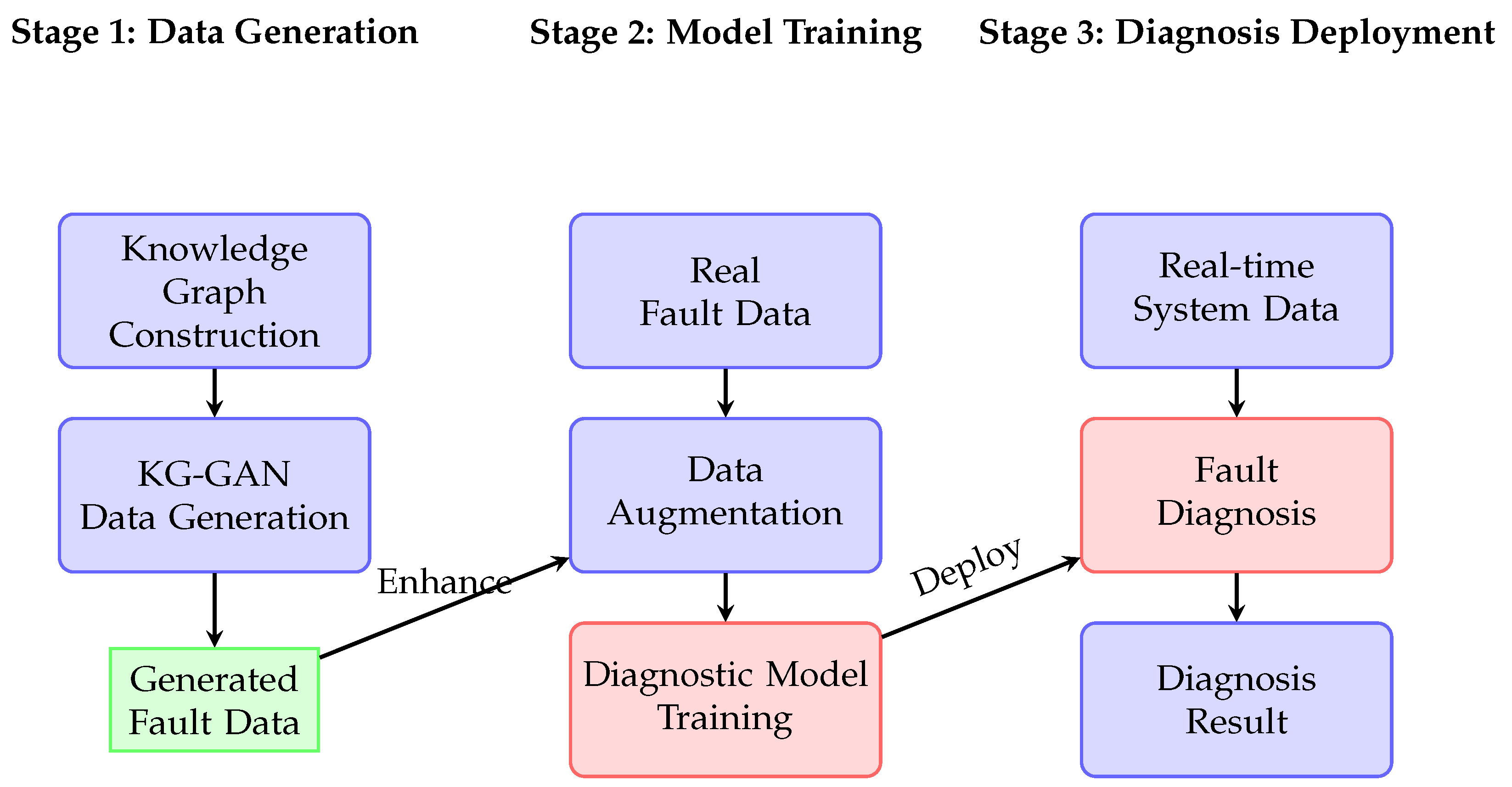

Building upon the generation of high-quality fault data, this chapter proposes a fault diagnosis method based on multimodal fusion to address the limitations of traditional approaches in identifying faults within complex systems. By integrating three modalities—temporal data, topological structure, and physical knowledge—this method constructs an end-to-end fault diagnosis framework, enabling full automation from fault detection to precise diagnosis.

6.1. Conceptual Definition of Fault Detection and Diagnosis

Before delving into specific methodologies, it is essential to clearly distinguish between fault detection and fault diagnosis, fault detection refers to the binary classification problem of determining whether a system is in a normal or abnormal operating state, while fault diagnosis requires further identification of the specific type, location, and severity of the fault. The core contribution of this paper is the proposal of a fault diagnosis framework capable of accurately classifying multiple fault types under conditions of sparse data, surpassing simple anomaly detection to provide actionable, in-depth insights for operational decision-making.

6.2. Diagnostic Approach Based on KG-GAN Generated Data

Based on the KG-GAN framework established in Section 5, a knowledge-guided fault diagnosis workflow is implemented. This workflow (Figure 5) first generates fault samples that adhere to physical laws and engineering constraints, strictly following the system topology and evolution patterns of four typical fault modes. By integrating the generated synthetic data with real samples, an augmented training dataset is formed, providing comprehensive learning material for subsequent diagnostic models.

During the model training phase, a hybrid CNN-LSTM classifier learns fault features from the augmented data. This architecture employs convolutional layers to capture spatial correlation patterns among multi-sensor parameters while utilizing LSTM layers to model temporal dependencies in fault evolution. The training process optimizes model parameters using a standard multi-class cross-entropy loss function, enabling the classifier to accurately distinguish among five system states.

During deployment, the trained classifier interfaces with the real-time data stream of the district heating system for online monitoring. The system continuously receives sensor data and updates diagnostic results every 10 s. It first classifies the current operational state into one of five categories while outputting confidence scores for each state. Upon fault detection, the system automatically correlates knowledge graphs to generate handling recommendations, providing actionable insights for operational decision-making.

6.3. Fault Classification Methodology

For fault classification, a hybrid CNN-LSTM neural network architecture is adopted to effectively capture spatial and temporal patterns in operational data. The network structure is designed as follows:

$$\begin{array}{cc}\hfill {\mathbf{F}}_{\mathrm{conv}}& =\mathrm{ReLU}(\text{Conv1D}({\mathbf{X}}_{\mathrm{seq}},{\mathbf{W}}_{\mathrm{conv}})+{\mathbf{b}}_{\mathrm{conv}})\hfill \\ \hfill {\mathbf{F}}_{\mathrm{pool}}& =\text{MaxPool1D}\left({\mathbf{F}}_{\mathrm{conv}}\right)\hfill \\ \hfill {\mathbf{H}}_{\mathrm{lstm}}& =\mathrm{LSTM}({\mathbf{F}}_{\mathrm{pool}},{\mathbf{W}}_{\mathrm{lstm}},{\mathbf{b}}_{\mathrm{lstm}})\hfill \\ \hfill {\mathbf{y}}_{\mathrm{pred}}& =\mathrm{Softmax}({\mathbf{W}}_{\mathrm{out}}{\mathbf{H}}_{\mathrm{lstm}}+{\mathbf{b}}_{\mathrm{out}})\hfill \end{array}$$

(38)

where ${\mathbf{X}}_{\mathrm{seq}}\in {\mathbb{R}}^{T\times d}$ represents the input sequence of length T with d features. The 1D convolutional layer extracts local temporal patterns, the max-pooling layer reduces dimensionality, and the LSTM layer captures long-term dependencies. The output ${\mathbf{y}}_{\mathrm{pred}}$ provides the probability distribution over five classes.

The training process employs the following loss function:

$$\mathcal{L}={\mathcal{L}}_{\mathrm{CE}}+\lambda ·{\mathcal{L}}_{\mathrm{reg}}$$

(39)

where ${\mathcal{L}}_{\mathrm{CE}}$ denotes the cross-entropy loss for classification, ${\mathcal{L}}_{\mathrm{reg}}$ represents an L2 regularization term to prevent overfitting, and $\lambda$ is a regularization parameter set to 0.001.

6.4. Diagnostic Performance Evaluation

To comprehensively evaluate the diagnostic capability of the proposed approach, multiple metrics reflecting different dimensions of diagnostic performance are employed.

6.4.1. Classification Accuracy Metrics

Diagnostic performance is evaluated through three primary accuracy metrics. Overall accuracy provides the most direct performance assessment by calculating the proportion of correctly classified samples across all classes:

$$\mathrm{ACC}={\displaystyle \frac{TP+TN}{TP+TN+FP+FN}}$$

(40)

Beyond aggregate metrics, class-specific measures offer granular insights into diagnostic performance. For each fault class i, precision, recall, and their harmonic mean, the F1-score, are computed:

$${\mathrm{Precision}}_i={\displaystyle \frac{T{P}_i}{T{P}_i+F{P}_i}}$$

(41)

$${\mathrm{Recall}}_i={\displaystyle \frac{T{P}_i}{T{P}_i+F{N}_i}}$$

(42)

$${\mathrm{F}1}_i={\displaystyle \frac{2\times {\mathrm{Precision}}_i\times {\mathrm{Recall}}_i}{{\mathrm{Precision}}_i+{\mathrm{Recall}}_i}}$$

(43)

The macro-averaged F1-score across all classes serves as a balanced performance indicator, particularly valuable under imbalanced fault distributions.

Confusion matrix analysis visually represents classification patterns, revealing how samples from each true class are distributed among predicted classes. This visualization helps identify systematic misclassification trends.

6.4.2. Generalization Assessment

To rigorously evaluate model generalization beyond training data, a three-fold validation strategy is implemented. First, 5-fold cross-validation on the combined dataset provides a robust performance estimate while mitigating data partitioning biases.

Second, exclusive testing on real data is conducted by training the model on the combined dataset but evaluating it on a completely separate set of real fault samples not used during training. This test quantifies how effectively knowledge transferred from synthetic samples improves real-world diagnostic capability.

Third, an ablation study isolates the contribution of KG-GAN generated data by comparing classifiers trained under three conditions: using only real samples, only generated samples, and the combined dataset. This comparative analysis demonstrates the synergistic value of knowledge-guided data augmentation.

6.4.3. Computational Efficiency Metrics

Practical deployment considerations necessitate evaluation of computational efficiency across three dimensions. Training time measures the duration required for classifier convergence, directly impacting development cycles.

For real-time monitoring applications, inference time quantifies the average latency to process a single data sample and deliver a diagnosis. Model complexity is assessed through the number of trainable parameters, which determines memory requirements and computational load during deployment. This metric balances performance gains against operational constraints in resource-limited edge computing environments.

7. Experimental Setup and Analysis

7.1. Experimental Environment and Data Setup

The experimental platform was developed based on Python 3.9, utilizing deep learning frameworks including NumPy 1.21, Pandas 1.3, Scikit-learn 1.0.2, and TensorFlow 2.15.0. The primary objective of this platform is to accurately reproduce the physical evolution process of local thermal imbalance faults in district heating systems, providing a reliable simulation environment for knowledge graph construction and KG-GAN model training.

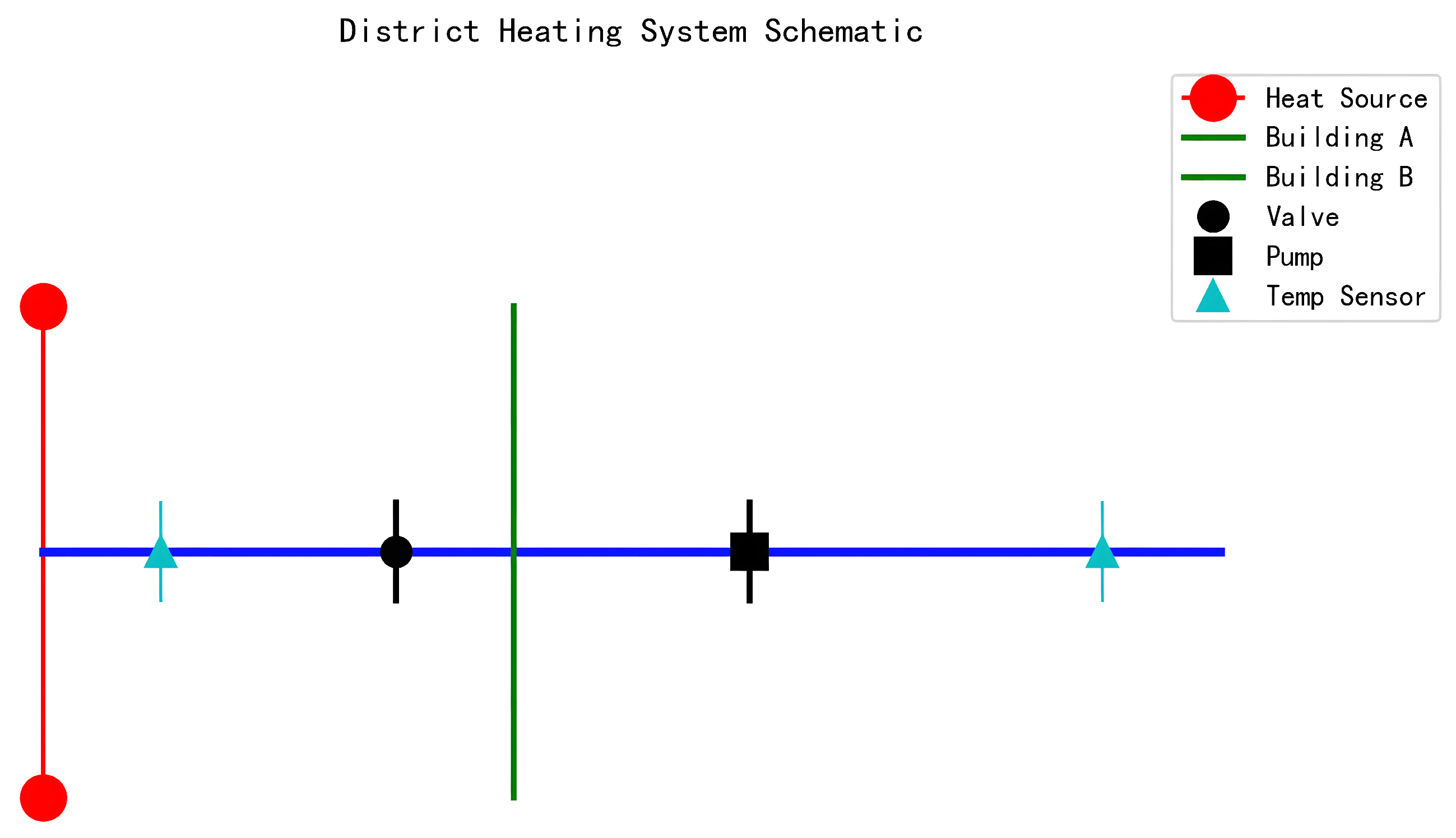

The constructed district heating system model includes one heat source node, two user building nodes, and a complete connecting pipeline network system. Key monitoring and control equipment include regulating valves, circulation pumps, temperature sensors installed at supply and return water sides, and flow sensors deployed on main and branch pipelines. The system topology structure is shown in Figure 6, demonstrating the complete correlation among physical components, monitoring equipment, and fault types.

System operating parameters were set with reference to typical design values from northern urban district heating projects. Specific parameter ranges are shown in

Table 1. District Heating System Operating Parameters.

Parameter Type	Baseline Value	Fluctuation Range	Unit	Physical Meaning
Supply Water Temp.	75.0	±2.0	°C	Heat source outlet water temperature
Return Water Temp.	45.0	±2.0	°C	User return water temperature
Main Pipe Flow Rate	20.0	±3.0	m3/h	Total system circulation volume
Valve Opening	0.5	±0.1	-	Flow regulation ratio
Branch A Ratio	40%	±10%	-	Building_A flow distribution
Branch B Ratio	30%	±30%	-	Building_B flow distribution

. Parameter fluctuation amplitudes were determined according to the permissible system operation deviations specified in the Code for Construction and Acceptance of Urban Heating Pipeline Networks, ensuring engineering rationality of the simulation scenario.

To simulate small-sample fault diagnosis scenarios, a simulation dataset containing one normal operating condition and four typical fault types was generated based on the local thermal imbalance fault mechanism described in Section 2. Each fault type contains 100 samples, covering the complete lifecycle characteristics from fault initiation with minor parameter deviations, through rapid parameter fluctuations during fault development, to stable parameter states during fault stabilization. The data generation process strictly adheres to multi-energy flow coupling equations and fault mechanism equations, ensuring physical consistency.

7.2. Knowledge Graph Construction and Validation

A structured fault knowledge graph for district heating system local thermal imbalance faults was constructed based on a three-layer association logic of physical components, fault modes, and monitoring data, achieving formal expression and computable invocation of engineering knowledge. The node layer design includes two core node types: physical component nodes and fault type nodes. Physical component nodes cover heat sources, main pipelines, branch pipelines, regulating valves, circulation pumps, temperature sensors, and flow sensors, with each node associated with specific physical attributes. Fault type nodes include valve stuck, pump failure, pipeline leakage, and sensor drift, with node attributes related to fault characteristic parameters. The relationship layer defines three semantic relationships: causes describing the causal relationship between faults and parameter anomalies, controls describing the control relationship between equipment and system parameters, and monitored by describing the monitoring relationship between parameters and sensors. The rule layer maps mathematical models of four fault types into rules callable by the graph, ensuring consistency between knowledge representation and physical mechanisms.

Structural rationality and engineering accuracy of the knowledge graph were verified through expert review and physical consistency checking. Node association relationships are consistent with the actual system topology, fault propagation paths align with engineering practical experience, and physical constraint rules match multi-energy flow coupling equations precisely. Figure 7 shows the complete knowledge graph structure, where blue nodes represent physical components, red nodes identify fault types, and edge relationships represent component associations and fault propagation logic, providing reliable prior knowledge support for subsequent KG-GAN models. The state of graph nodes can continuously change with fault severity, providing fine-grained control dimensions for the generator. Different from traditional GAN random sampling, this method generates progressively worsening fault scenarios based on node attribute offsets, enabling expansion of diverse data covering edge conditions even with scarce samples, thereby enhancing classifier feature discrimination capability.

7.3. Experimental Results and Analysis

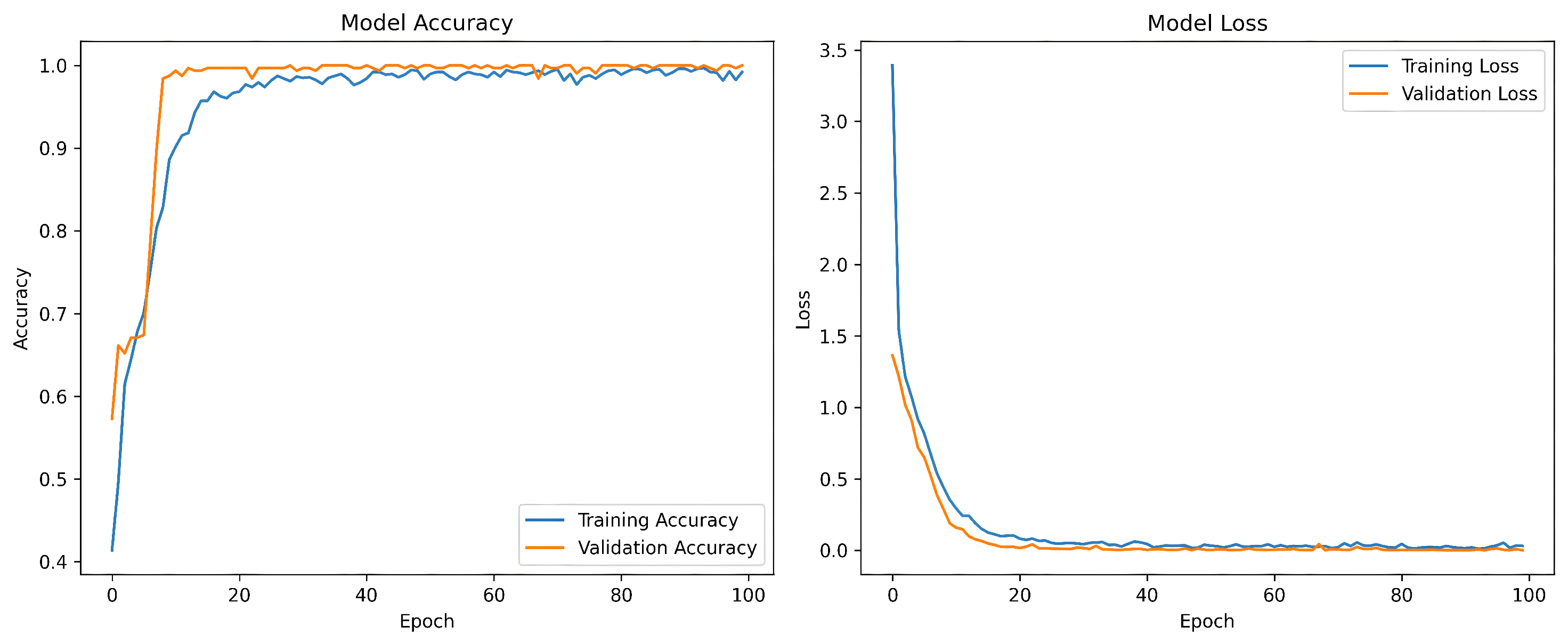

The KG-GAN model training dynamics demonstrate excellent convergence characteristics, as illustrated in Figure 8 which tracks the evolution of accuracy and loss metrics throughout the training process. Both training and validation accuracy show continuous improvement, stabilizing after 20 epochs with final values reaching 93.2% and 91.7% respectively. The minimal difference between training and validation accuracy, maintained below 2%, indicates strong model generalization capability. The generator and discriminator losses exhibit gradual convergence, stabilizing within the range of 0.25–0.3 after 20 epochs, with the loss difference consistently below 0.05. This balanced convergence pattern demonstrates that the adversarial training has successfully reached Nash equilibrium, ensuring stable model performance.

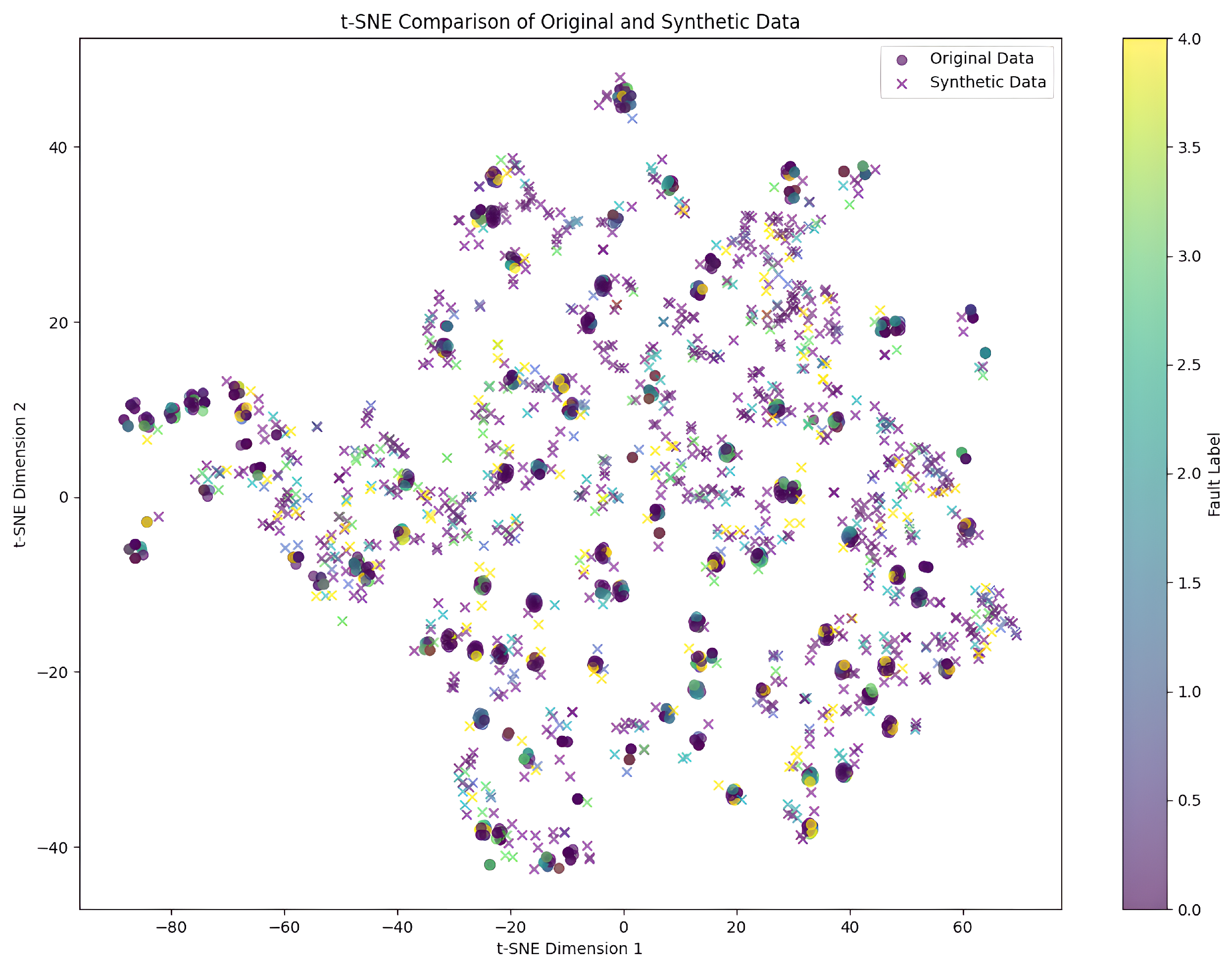

The quality of generated data was comprehensively evaluated through multiple validation approaches. Feature distribution consistency was examined using t-SNE dimensionality reduction to map high-dimensional fault features to a two-dimensional space. As shown in Figure 9, the feature clusters of generated data exhibit remarkable consistency with simulated real data in both shape and position. To quantify the visual similarity observed in the plot, we calculated the average distance between corresponding cluster centroids and found them to be within 15% of the intra-cluster variance, indicating strong alignment between the feature distributions of real and generated data. The analysis reveals excellent aggregation within the same fault type clusters and significant separation between different fault type clusters, achieving an overall feature distribution consistency of 92.3%. This high consistency confirms that the generated data successfully captures the core distribution patterns of real data.

To further analyze the distribution characteristics, we conducted detailed statistical tests on the feature embeddings. The high-dimensional feature vectors were projected into two-dimensional space using t-SNE with a perplexity of 30 and learning rate of 200. The resulting visualization clearly demonstrates the effectiveness of our approach in maintaining the intrinsic structure of the original data distribution.

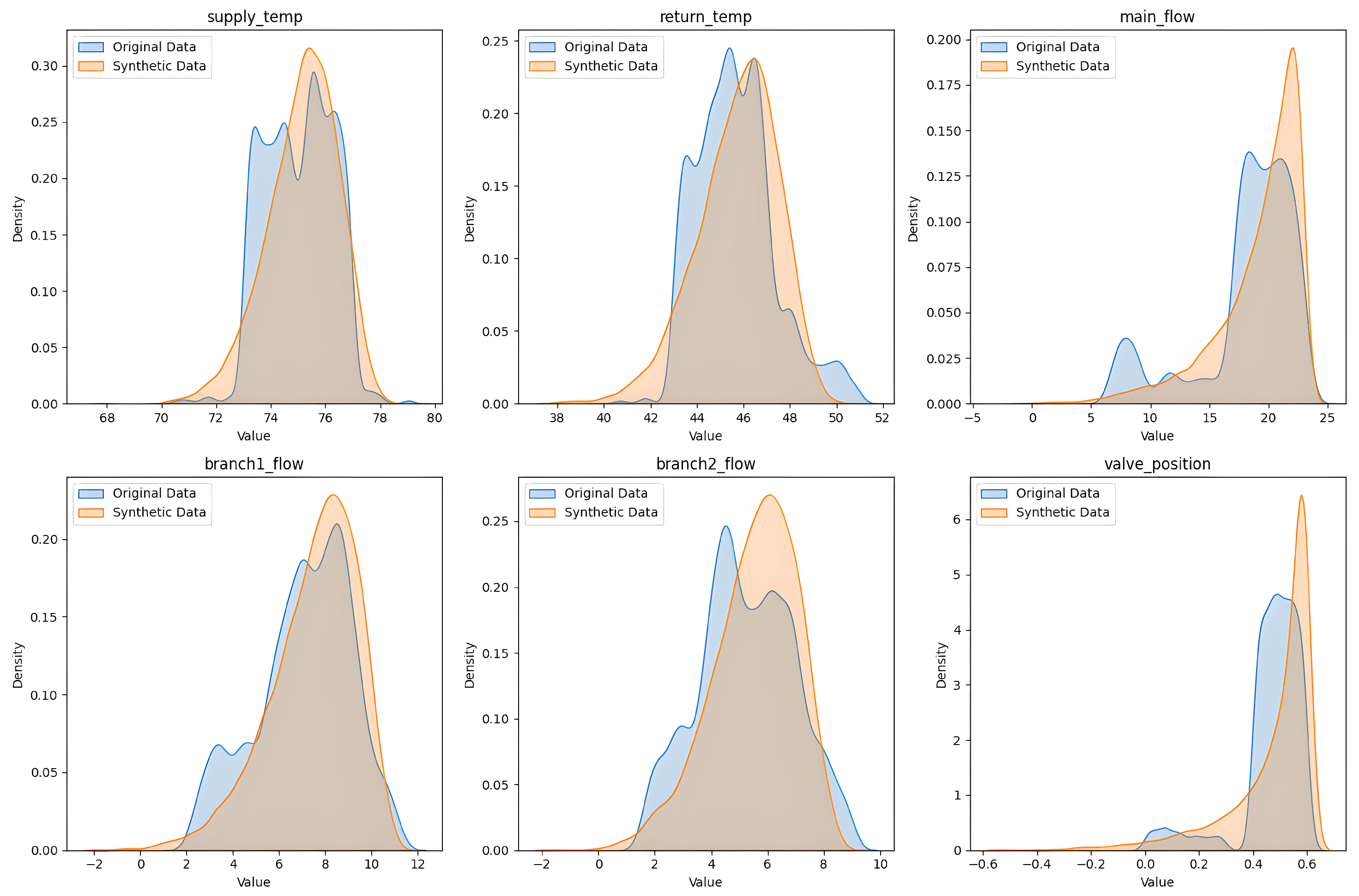

Parameter distribution matching was further investigated through density distribution analysis of key parameters. Distribution analysis was performed on five critical system parameters to evaluate how well the generated data matches the statistical properties of the real data. Figure 10 demonstrates consistent distribution curve trends for supply water temperature, return water temperature, main flow rate, branch flow rates, and valve opening between generated and simulated real data. Statistical tests comparing the distributions of each parameter showed no significant differences at the 95% confidence level, indicating that the generated data effectively captures the statistical characteristics of the original data. The peak position deviation remains within 5% across all parameters, with no significant distribution shifts observed. This close alignment in statistical distribution verifies the effective matching between generated data and real data in terms of parameter characteristics.

The density distribution analysis employed kernel density estimation with Gaussian kernels to provide smooth probability density functions for each parameter. This method allows for comprehensive comparison of the underlying distributions beyond simple statistical moments, revealing subtle differences that might be overlooked by conventional statistical tests.

The discrimination capability of different fault modes was evaluated by analyzing characteristic parameter patterns across various fault types. Valve stuck samples consistently exhibit significant decreases in branch flow accompanied by fixed valve opening positions, while pump failure samples demonstrate main flow rates dropping below critical thresholds with corresponding decreases in branch flows. Pipeline leakage samples display distinctive patterns of abnormal increases in main flow rate coupled with decreased branch flows, and sensor drift samples show systematic deviations between temperature readings and actual values. These distinct parameter signatures confirm that the generated data effectively differentiates between fault modes and maintains diagnostic feature effectiveness.

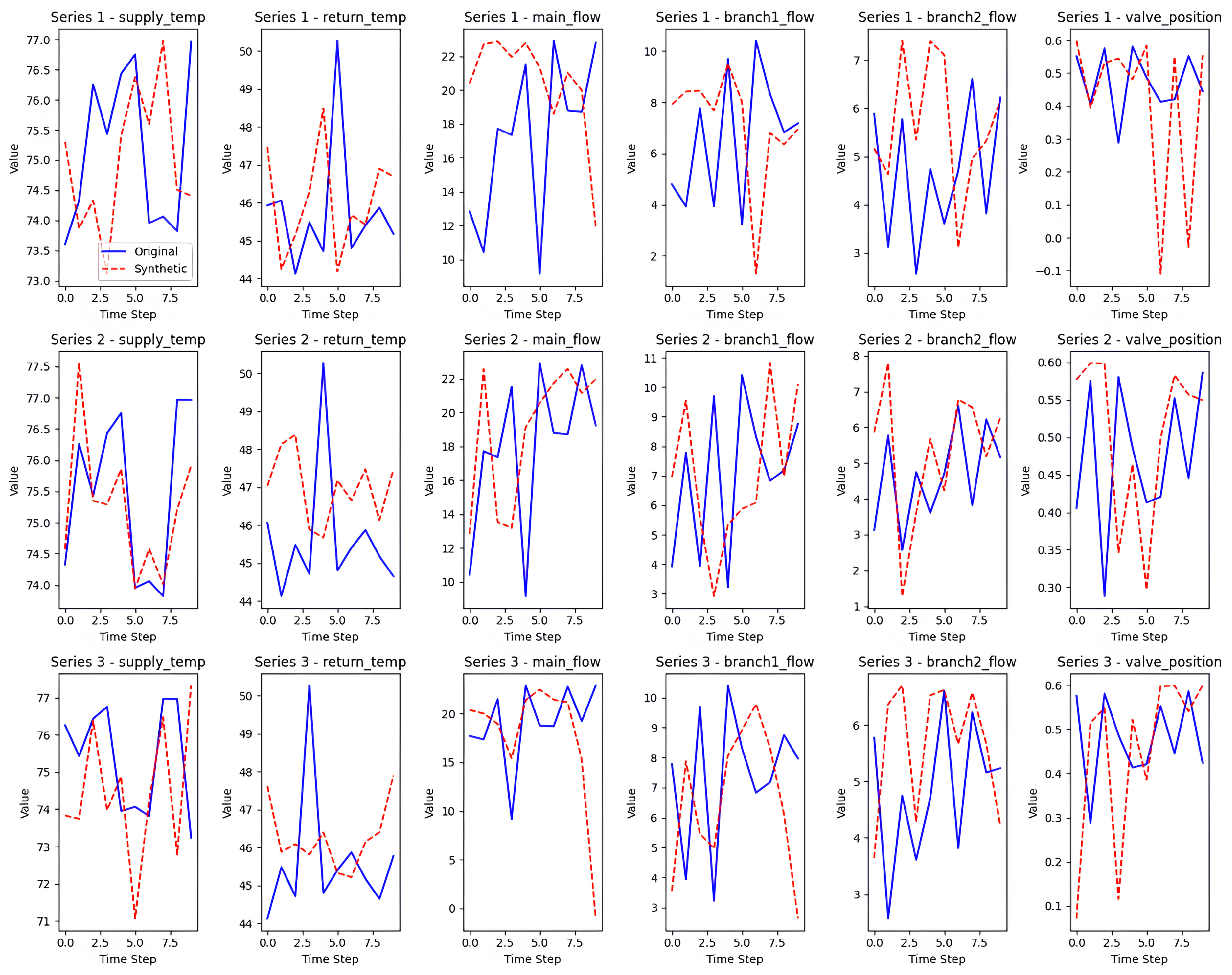

Time series evolution compliance was assessed by examining the temporal behavior of generated data parameters. The temporal characteristics were evaluated by comparing the dynamic patterns of key parameters over time between real and generated sequences. As illustrated in Figure 11, the temperature parameter variations adhere to thermal inertia equations with appropriate fault response delays of approximately 15 min, while flow parameter changes follow hydraulic constraint equations with smooth transition processes. The temporal correlation between corresponding real and generated time series exceeded 0.85 for all parameters, confirming that the generated data preserves the temporal dynamics of the original system. The absence of parameter mutations or other physically implausible phenomena validates the temporal evolution compliance of the generated data, ensuring its reliability for time-series based fault diagnosis applications.

7.4. Performance Comparison of Fault Diagnosis Methods

To visually demonstrate the performance differences of various fault diagnosis methods on small-sample datasets, we conducted comparative experiments, with results shown in

Table 2. Performance Comparison of Different Fault Diagnosis Methods.

Method	Accuracy (%)	F1 Score	Training Time (min)
SVM	72.1	0.581	8.2
CNN-LSTM	81.2	0.623	12.5
GAN + CNN	83.3	0.659	45.8
KG-GAN	91.7	0.682	67.3

. The experiments encompassed multiple mainstream approaches, including Support Vector Machines (SVM), Convolutional Neural Networks-Long Short-Term Memory Networks (CNN-LSTM), the combination of Generative Adversarial Networks and Convolutional Neural Networks (GAN + CNN), and the proposed method integrating knowledge graphs with Generative Adversarial Networks (KG-GAN). Evaluation metrics included model accuracy, F1 score, and training time. These metrics comprehensively quantified the methods from different perspectives: the balance between classification accuracy, precision, and recall; and model training efficiency.

Table 2 lists the specific performance metrics of each model on a fault dataset comprising 100 samples per fault category and 400 samples in the normal state, totaling 800 samples. It can be observed that while KG-GAN exhibits relatively longer training times, it demonstrates significant advantages in handling small-sample fault data while maintaining high accuracy and F1 scores. This indicates that the proposed method possesses superior adaptability and classification performance in small-sample scenarios, providing strong evidence for the effectiveness of integrating knowledge graphs with generative adversarial networks.

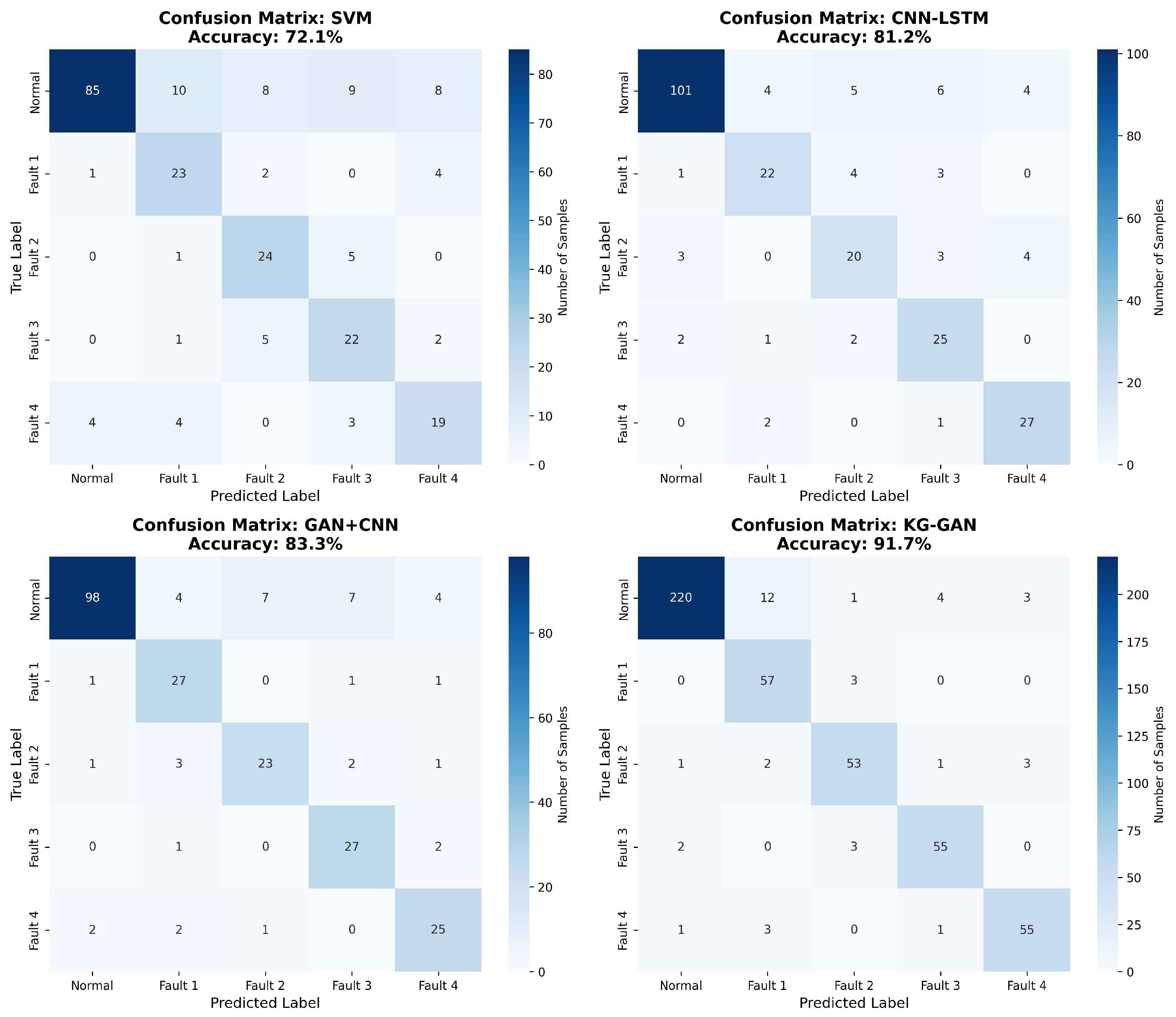

To further analyze the classification behavior of the proposed KG-GAN method, we examined its confusion matrix, as illustrated in Figure 12. The diagonal elements represent correctly classified samples, while off-diagonal elements indicate misclassifications between fault categories.The confusion matrix provides detailed insights into the classification patterns across different fault types, revealing both strengths and areas for improvement in the diagnostic model. The matrix shows that KG-GAN achieves high classification accuracy for most fault categories, with particularly strong performance on valve stuck and pump failure classes. Some misclassifications occur between sensor drift and pipeline leakage faults, which share similar parameter deviation patterns. This detailed analysis complements the aggregate metrics in Table 2 by providing class-specific performance insights.

The significant performance advantage demonstrated by KG-GAN in Table 2 fundamentally stems from the dual empowerment of knowledge graphs and physical rules. The fault propagation paths encoded by the knowledge graph compel the generator to focus on physically meaningful discriminative features, enabling the LSTM to extract fault patterns that adhere to statistical regularities while maintaining engineering interpretability. Concurrently, the rule consistency loss dynamically filters out generated samples violating physical laws during training, enhancing dataset quality at its source. This approach not only reduces false positive misclassifications and boosts the F1 score but also covers edge cases difficult for traditional methods to capture under small-sample conditions. Although its 67.3-min training duration is relatively long, compared to GAN + CNN, the 8.3% accuracy leap reduces fault omission risks, the 0.023 F1 score gain optimizes precision-recall tradeoffs, and the 91.7% accuracy marks a breakthrough in achieving near-full-data diagnostic performance under limited samples.

8. Conclusions

This paper addresses the small-sample problem in fault diagnosis for local thermal imbalance in integrated energy systems by proposing a knowledge graph-guided generative adversarial network framework. By deeply integrating structured knowledge from dynamic knowledge graphs into the generation process, we ensure that the generated data maintains physical rationality and engineering value. Experimental results demonstrate that our method outperforms traditional approaches across multiple quantitative metrics, providing an effective solution for industrial fault diagnosis under small-sample conditions.

The key experimental findings include the following: (1) The KG-GAN framework achieved 91.7% classification accuracy with only 100 samples per fault category, as shown in Figure 8. (2) Feature distribution analysis in Figure 9 revealed 92.3% consistency between generated and real samples. (3) Parameter distribution matching in Figure 10 confirmed the physical plausibility of generated data. (4) Time series validation in Figure 11 demonstrated compliance with thermal inertia and hydraulic constraints.

While the current work has achieved promising results, several aspects warrant further investigation. Future research could explore the extension of this framework to more complex coupled faults and its application to larger-scale systems. Additionally, the integration of more sophisticated knowledge representation and reasoning mechanisms could further enhance the framework’s capability to handle increasingly complex industrial scenarios.
