# Nonlinear Modeling and Control Strategy Based on Type-II T-S Fuzzy in Bi-Directional DC-AC Converter

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

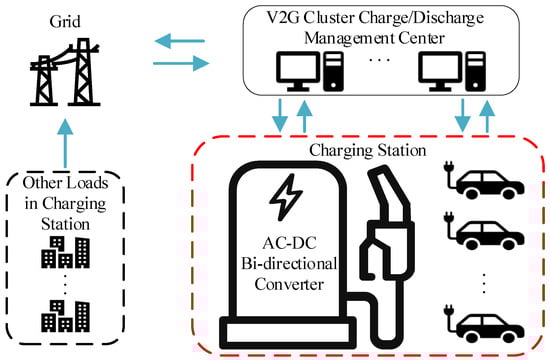

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Mathematical Modeling of Dual-Buck Bi-Directional Converter

_{g}is the voltage at the grid terminal and U

_{in}is the DC bus voltage. The circuit is topologically equivalent to a collection of two buck circuits: U

_{in}passes through the regulator filter capacitor C

_{d}, diodes D

_{1}, inductor L

_{1}and power switches S

_{1}and S

_{4}to form the first buck circuit, and diodes D

_{2}, inductor L

_{2}and power switches S

_{2}and S

_{3}to form the other buck circuit. S

_{1}and S

_{2}are high-frequency MOS power switches and S

_{3}and S

_{4}are two industrial-frequency (50 Hz) power switches that can be designed as zero-current switches. In addition, the operation modes of the bi-directional converter can be categorized into rectifier and inverter. The bi-directional converter judges the operation mode according to the bus voltage state, achieving bi-directional flow of power and power factor correction in the rectifier mode and reliable grid-connected operation in the inverter mode. When the converter is in rectifier mode, it is divided into four modes, as shown in Table 1, in a complete industrial frequency sinusoidal waveform. The circuit is symmetrical and equivalent to a dual-boost circuit under positive and negative half-cycle of AC voltage input. Its boost equivalent circuit for positive half-cycle is shown in Figure 2b. When the converter is in inverter mode, it is divided into four modes, as shown in Table 2. With the grid operating at positive and negative voltage half-cycles, the circuit loop is symmetrical and equivalent to a buck circuit. The buck equivalent circuit for positive half-cycle is shown in Figure 2c.

_{L}and the circuit output voltage u

_{o}(U

_{d}in rectifier and u

_{g}in inverter) are used as state vectors.

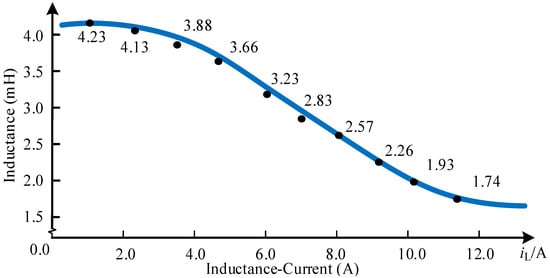

#### 2.2. Nonlinear Inductor Modeling

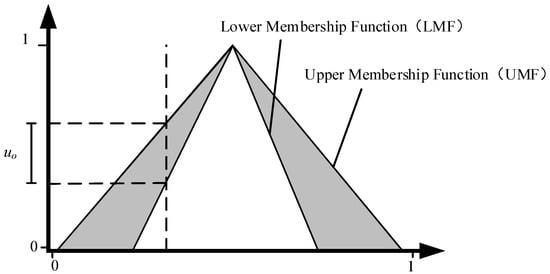

#### 2.3. Type-II T-S Fuzzy Modeling

_{L}is ${i}_{L}\in [{I}_{L\mathrm{min}},{I}_{L\mathrm{max}}]$.

## 3. Control Strategy for Dual-Buck Bi-Directional Converter

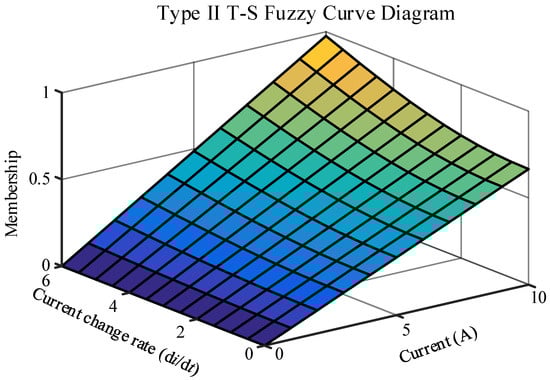

#### 3.1. Type-II T-S Fuzzy Controller Design

^{i}:

- Rule
^{1}: if i_{L}= I_{Lmin}, then

- Rule
^{2}: if i_{L}= I_{Lmax}, then

_{1}is the control parameter when the current is set to the minimum value under the fuzzy rule, and K

_{2}is the control parameter of the system when the inductor current increases to a certain degree and the inductor change tends to level off. When the system runs, the inductor current in the circuit is between the set maximum and minimum values, through the membership function of type-II T-S fuzzy, to determine the current value; the size of the weights of each sub-controller, at this point, the circuit control parameters are:

_{o}is U

_{d}and u

_{i}is u

_{g}) is:

_{o}is u

_{g}and u

_{i}is U

_{d}), the algorithmic expression is:

#### 3.2. Voltage Outer Loop Design

_{g}is a sinusoidal AC current with frequency 50 Hz and amplitude Gu

_{g}. The instantaneous input power at the grid side of the converter is:

_{o}is the output power. For the secondary ripple of the system at 100 Hz, the controller of the voltage loop is designed to traverse a frequency of 1/10 twice the industrial frequency: fc = 10 Hz. Equation (26) can then be obtained.

_{up}= 0.0169 and K

_{ui}= 1.0619 can be obtained, and in order to be applied to the digital embedded system, the incremental PI controller is discretized with Equation (27):

## 4. Results

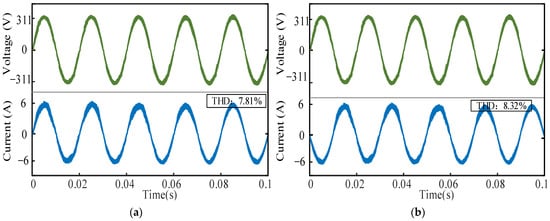

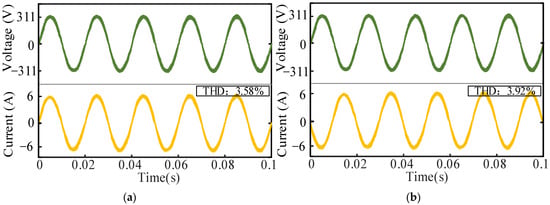

#### 4.1. Simulation Analysis

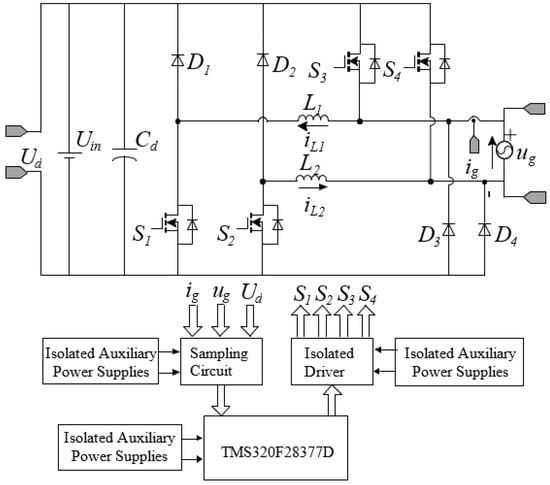

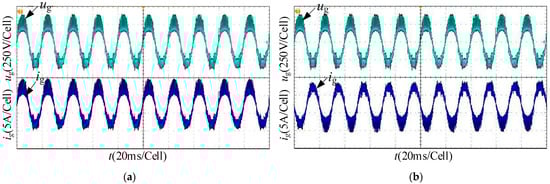

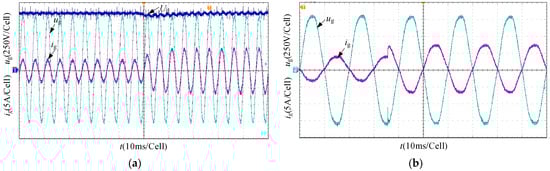

#### 4.2. Experimental Validation

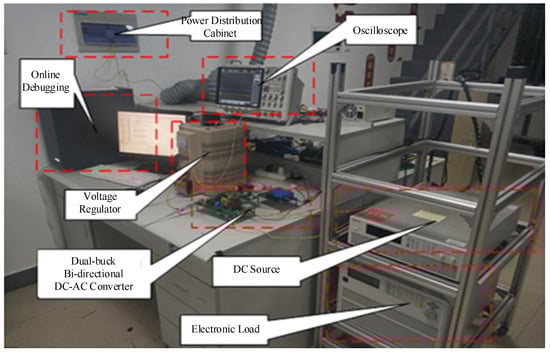

_{g}, host computer, voltage regulator, dual-buck bi-directional converter, DC source, electronic load to simulate half-load, full-load, and non-linear loads, and an oscilloscope for observing and recording experimental results.

_{3}and S

_{4}are off and S

_{1}and S

_{2}are in the positive and negative half-cycle of the high-frequency operation, respectively. When S

_{1}is on and S

_{2}is off, withstand-voltage switch U

_{S1}and diode U

_{D4}is 0. In the inverter state, as shown in Figure 13b,d,f, the switches S

_{1}and S

_{2}are working at high frequency to ensure the sinusoidalizing of the current, and S

_{3}and S

_{4}are switches under the control of the PWM frequency to form a connected circuit loop. When switches S

_{2}and S

_{3}are on and switches S

_{1}and S

_{4}are off, withstand-voltage switch U

_{S4}and diode U

_{D4}are 0, which is in accordance with the operation principle of the dual-buck bi-directional DC-AC circuits.

## 5. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Yang, Y.; Pan, J.Y.; Wen, H.Q.; Fan, M.D.; Chen, R.; He, L.Q.; Xie, M.X.; Norambuena, M.; Xu, L.Y.; Rodriguez, J. Model Predictive Current Control with Low Complexity for Single-Phase Four-Level Hybrid-Clamped Converters. IEEE Trans. Transp. Electrif.
**2021**, 7, 983–999. [Google Scholar] [CrossRef] - Habib, S.; Khan, M.M.; Abbas, F.; Sang, L.; Shahid, M.U.; Tang, H. A Comprehensive Study of Implemented International Standards, Technical Challenges, Impacts and Prospects for Electric Vehicles. IEEE Access
**2018**, 6, 13866–13890. [Google Scholar] [CrossRef] - Zhang, R.Q.; Cheng, X.; Yang, L.Q. Flexible Energy Management Protocol for Cooperative EV-to-EV Charging. IEEE Trans. Intell. Transp. Syst.
**2019**, 20, 172–184. [Google Scholar] [CrossRef] - Bibak, B.; Tekiner-Mogulkoc, H. Influences of Vehicle to Grid (V2G) On Power Grid: An Analysis by Considering Associated Stochastic Parameters Explicitly. Sustain. Energy Grids Netw.
**2021**, 26, 100429. [Google Scholar] [CrossRef] - Chen, Y.W.; Jiang, Z.Y.; Wei, L.Q.; Feng, W.; Zhang, Y.J.; Jiang, J.H. An Asymmetric Full-bridge Bidirectional DC-AC Converter with Power Decoupling and Common-mode Current Suppression for V2G Application. IEEE J. Emerg. Sel. Top. Power Electron. 2024; early access. [Google Scholar] [CrossRef]
- Yang, F.; Ge, H.G.; Yu, Z.L.; Li, Y.; Wu, H.F. Topology and Control of Four-Quadrant Dual-DC-Port Dual-Buck Inverters for Semi-Two-Stage DC–AC Power Conversion. IEEE Trans. Ind. Electron.
**2021**, 68, 10718–10729. [Google Scholar] [CrossRef] - Le, T.-T.; Lee, J.; Choi, S. Single-Stage Totem-Pole AC–DC Converter Based on Boost Half-Bridge Structure for Battery Chargers. IEEE Trans. Power Electron.
**2024**, 39, 1060–1073. [Google Scholar] [CrossRef] - Koushki, B.; Jain, P.; Bakhshai, A. Half-Bridge Full-Bridge AC–DC Resonant Converter for Bi-Directional EV Charger. IEEE Access
**2023**, 11, 78737–78753. [Google Scholar] [CrossRef] - Santis, V.D.; Francesco, A.D.; D’Aloia, A.G. A Numerical Comparison between Preisach, J-A and D-D-D Hysteresis Models in Computational Electromagnetics. Appl. Sci.
**2023**, 13, 5181. [Google Scholar] [CrossRef] - Oliveri, A.; Lodi, M.; Storace, M. Nonlinear Models of Power Inductors: A Survey. Int. J. Circuit Theory Appl.
**2022**, 50, 2–34. [Google Scholar] [CrossRef] - Scirè, D.; Lullo, G.; Vitale, G. Assessment of the Current for a Non-Linear Power Inductor Including Temperature in DC-DC Converters. Electronics
**2023**, 12, 579. [Google Scholar] [CrossRef] - Safamehr, H.; Najafabadi, T.A.; Salmasi, F.R. Enhanced Control of Grid-Connected Inverters with Non-Linear Inductor in LCL Filter. IET Power Electron.
**2016**, 9, 2111–2120. [Google Scholar] [CrossRef] - Sgrò, D.; Correia, W.B.; Leão, R.P.S.; Tofoli, F.L.; Tibúrcio, S.A.S. Nonlinear Current Control Strategy for Grid-Connected Voltage Source Converters. Int. J. Electr. Power Energy Syst.
**2022**, 142, 108349. [Google Scholar] [CrossRef] - Yao, Z.G.; Lan, H.G.; He, X.Y.; Deng, F.; Wang, C.S.; Lu, S.; Tang, Y. Nonlinear Inductor-Based Single Sensor Current Balancing Method for Interleaved DC–DC Converters. IEEE Trans. Power Electron.
**2024**, 39, 3996–4000. [Google Scholar] [CrossRef] - Yin, L.; Chen, Z.F.; Liu, J. Nonlinear Behavior Mechanism and Modeling Method of Wound SMD Inductor. Int. J. Numer. Model.
**2023**, 36, 1. [Google Scholar] [CrossRef] - Molina-Santana, E.; Gonzalez-Montañez, F.; Liceaga-Castro, J.U.; Jimenez-Mondragon, V.M.; Siller-Alcala, I. Modeling and Control of a DC-DC Buck–Boost Converter with Non-Linear Power Inductor Operating in Saturation Region Considering Electrical Losses. Mathematics
**2023**, 11, 4617. [Google Scholar] [CrossRef] - Divac, S.; Rosić, M.; Zurek, S.; Koprivica, B.; Chwastek, K.; Vesković, M. A Methodology for Calculating the R-L Parameters of a Nonlinear Hysteretic Inductor Model in the Time Domain. Energies
**2023**, 16, 5167. [Google Scholar] [CrossRef] - Yang, X.; Yang, J.F.; Fan, J.; Wang, B.; Li, D.Z. A Position-Insensitive Nonlinear Inductive Power Transfer System Employing Saturable Inductor. Energies
**2023**, 16, 2430. [Google Scholar] [CrossRef] - Hong, F.; Liu, J.; Ji, B.J.; Zhou, Y.F.; Wang, J.H.; Wang, C.H. Single Inductor Dual Buck Full-Bridge Inverter. IEEE Trans. Ind. Electron.
**2015**, 62, 4869–4877. [Google Scholar] [CrossRef] - Viana, C.C.D.; Soong, T.; Lehn, P.W. Single-Input Space Vector Based Control System for Ripple Mitigation on Single-Phase Converters. IEEE Trans. Power Electron.
**2019**, 34, 3765–3774. [Google Scholar] [CrossRef] - Liu, B.; Zhang, Z.G.; Li, G.J.; He, D.Q.; Chen, Y.M.; Zhang, Z.R.; Li, G.; Song, S.J. Integration of Power Decoupling Buffer and Grid-Tied Photovoltaic Inverter with Single-Inductor Dual-Buck Topology and Single-Loop Direct Input Current Ripple Control Method. Int. J. Electr. Power Energy Syst.
**2021**, 125, 106423. [Google Scholar] [CrossRef] - Castillo, O.; Melin, P. A Review on Interval Type-2 Fuzzy Logic Applications in Intelligent Control. Inf. Sci.
**2014**, 279, 615–631. [Google Scholar] [CrossRef] - Rong, N.N.; Wang, Z.S.; Zhang, H.G. Finite-Time Stabilization for Discontinuous Interconnected Delayed Systems via Interval Type-2 T–S Fuzzy Model Approach. IEEE Trans. Fuzzy Syst.
**2019**, 27, 249–261. [Google Scholar] [CrossRef] - Yang, X.Z.; Lam, H.K.; Wu, L.G. Membership-Dependent Stability Conditions for Type-1 And Interval Type-2 T–S Fuzzy Systems. Fuzzy Sets Syst.
**2019**, 356, 44–62. [Google Scholar] [CrossRef] - Zhao, J.; Xiao, Y.; Liang, Z.C.; Wong, P.K.; Xie, Z.C.; Ma, X.G. Adaptive Event-Triggered Interval Type-2 T-S Fuzzy Control for Lateral Dynamic Stabilization of AEVs With Intermittent Measurements and Actuator Failure. IEEE Trans. Transp. Electrif.
**2023**, 9, 254–265. [Google Scholar] [CrossRef] - Liu, C.; Wu, J.X.; Yang, W.D. Robust Control for Interval Type-2 T-S Fuzzy Discrete Systems with Input Delays and Cyber Attacks. J. Syst. Sci. Complex.
**2023**, 36, 1443–1462. [Google Scholar] [CrossRef] - Cui, Y.L.; Wang, Y.F.; Ma, X.Y. Parameters Design and Optimization of a High Frequency, Interleaved, Dual-Buck, Bidirectional, Grid-Connected Converter. Electronics
**2019**, 8, 973. [Google Scholar] [CrossRef] - Yousef, M.Y.; Mosa, M.A.; Ali, A.A.; Ghany, A.M.A.; Ghany, M.A.A. Load Frequency Control for Power System Considering Parameters Variation Using Parallel Distributed Compensator Based on Takagi-Sugino Fuzzy. Electr. Power Syst. Res.
**2023**, 220, 109352. [Google Scholar] [CrossRef]

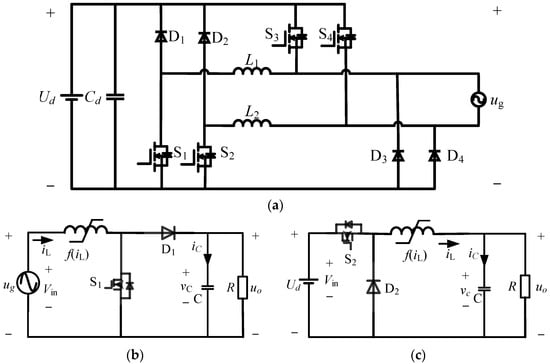

**Figure 2.**Converter circuit topology. (

**a**) Dual-buck bi-directional converter; (

**b**) positive half-circle rectifier equivalent circuit; (

**c**) positive half-circle inverter equivalent circuit.

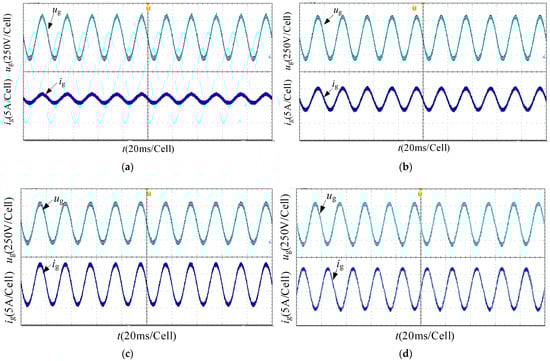

**Figure 11.**Type-II T-S fuzzy single-cycle control waveform under different power. (

**a**) Light-load (200 W) rectified waveforms, THDi = 4.0%; (

**b**) half-load (500 W) rectified waveform, THDi = 2.2%; (

**c**,

**d**) full-load (1000 W) rectified/inverter waveform, THDi = 2.6%/THDi = 2.7%, respectively.

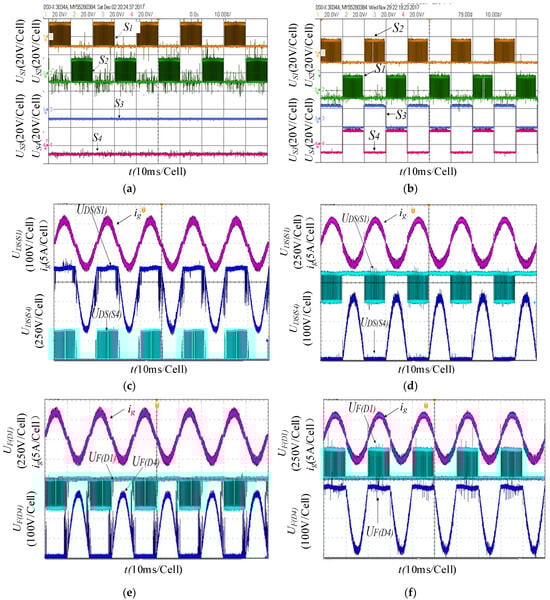

**Figure 13.**Rectifier/inverter grid-connected experiment steady state waveforms. (
