# Tube-Based Event-Triggered Path Tracking for AUV against Disturbances and Parametric Uncertainties

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

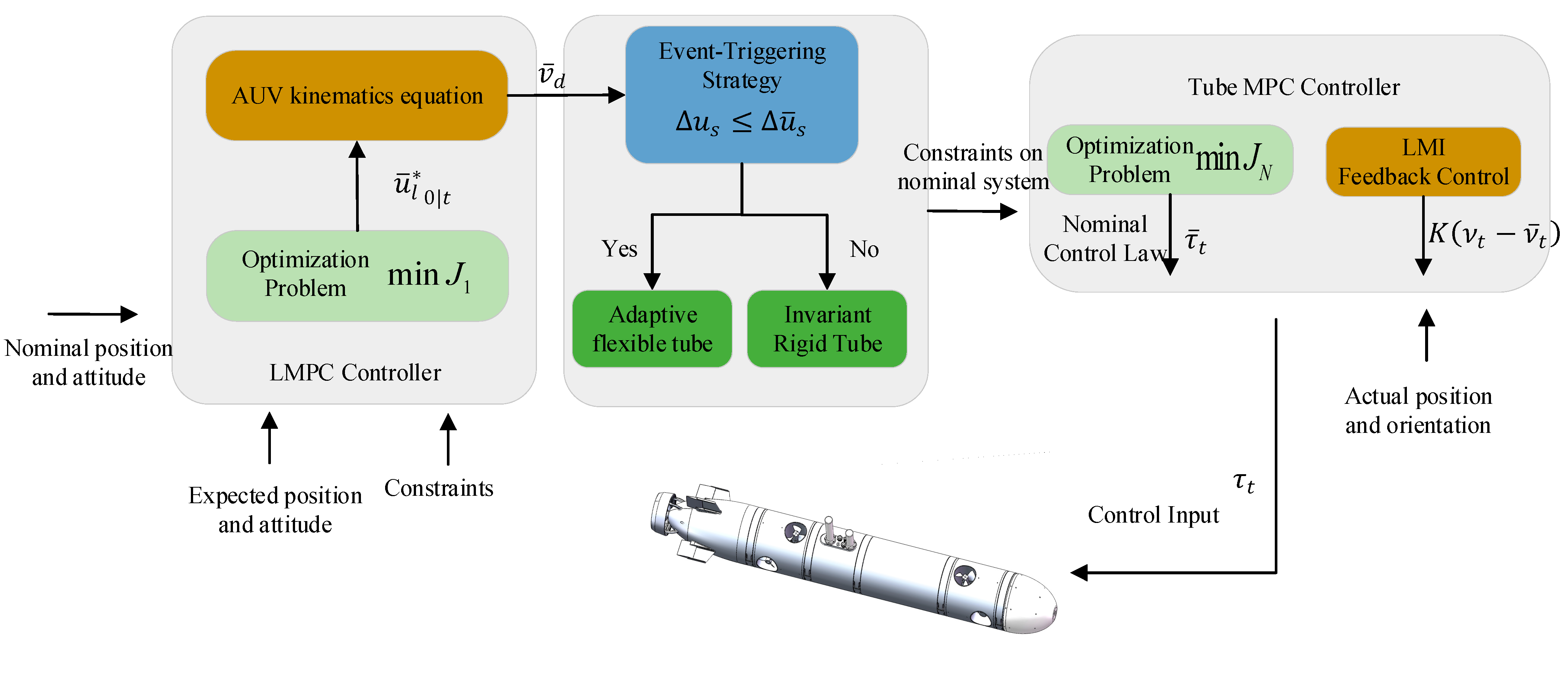

- A tube-based event-triggered path-tracking strategy, which consists of a LMPC controller and a tube MPC controller, is proposed to enhance the robustness against disturbances and parametric uncertainties. The LMPC controller is used to calculate the speed control law to converge the path-tracking deviation, and the tube MPC controller is used to track the speed control law.
- In the tube MPC controller, with nonlinear characteristics of AUV hydrodynamic force considered, tight constraints in the nominal control law and the feedback matrix in the feedback control law are obtained by formulating two LMIs. To achieve real-time performance, these linear matrix inequalities are all calculated offline.
- To overcome control performance degradation brought by conservative tight constraints calculated offline, an event-triggering mechanism is used to dynamically adjust these constraints in the nominal control law according to the surge speed change command. Compared with conservative tight constraints, better path tracking can be achieved, and the real-time performance is also satisfied.

## 2. Preliminaries

**Definition 1.**

## 3. AUV Motion Model and Problem Formulation

#### 3.1. AUV Motion Model

#### 3.2. Model Decoupling

- 1.
- Surge speed nominal control model:

- 2.
- Heading nominal control model:

- 3.
- Depth nominal control model:

#### 3.3. Problem Statement

**Problem 1.**

**Problem 2.**

## 4. Methodology

#### 4.1. LMPC Controller

#### 4.2. Tube MPC Controller

**Assumption 1.**

**Lemma**

**1**

**.**For a Lipschitz nonlinear system (1), there exists a positive definite matrix $X\in {R}^{n\times n}$, a matrix $Y\in {R}^{m\times n}$, and scalars ${\lambda}_{0}>\lambda >0$ and $\mu >0$ such that:

**Lemma**

**2**

**.**Suppose the LDI of nominal system (6) is given by (33), and the constraints of nominal system (6) are obtained by (11) and (31). There exist matrices $0<{W}_{1}\in {R}^{n\times n}$ and ${W}_{2}\in {R}^{m\times n}$ such that:

#### 4.3. Implementation of the Proposed Strategy

Algorithm 1 Offline strategy |

1. Define nominal cost function (7); choose state and control input constraints (2) |

2. Choose appropriate parameters $\lambda \text{}$and$\text{}L$ to solve LMI (31) |

3. Obtain feedback matrix $K$ and RPI set $\mathsf{\Omega}$ (32) |

4. Calculate invariant rigid tube (11) |

5. Choose appropriate weight matrices $Q\text{}\mathrm{a}\mathrm{n}\mathrm{d}\text{}R$ to solve optimal control problem (37) 6. Obtain terminal feasible set ${X}_{f}$ |

Algorithm 2 Online AUV path-tracking algorithm |

1. Measure AUV’s actual state ${\eta}_{t},{\nu}_{t}$, and nominal state ${\overline{\eta}}_{t},{\overline{\nu}}_{t}$ |

2. Solve optimal control problem (29) to obtain the speed control law ${\overline{\nu}}_{{d}_{t}}$ |

3. If $\u2206{{u}_{s}}_{t}\le \text{}\u2206{\overline{u}}_{s}$: 4. Based on these decoupling models (19–20,22), separately formulate optimal control problem (38) to obtain nominal control vector ${\overline{\tau}}_{t}={\left({{\overline{F}}_{x}}_{t},{{\overline{\delta}}_{r}}_{t},{{\overline{\delta}}_{s}}_{t}\right)}^{T}$ 5. Otherwise: 6. Based on these decoupling models (19–20,22), separately formulate optimal control problem (14) to obtain nominal control vector ${\overline{\tau}}_{t}={\left({{\overline{F}}_{x}}_{t},{{\overline{\delta}}_{r}}_{t},{{\overline{\delta}}_{s}}_{t}\right)}^{T}$ 7. End |

8. Calculate the AUV’s control vector ${\tau}_{t}={\overline{\tau}}_{t}+K\left({\nu}_{t}-{\overline{\nu}}_{t}\right)$ |

9. Set $t=t+1$, and go back to 1 |

## 5. Numerical Simulation

#### 5.1. Parameters Set

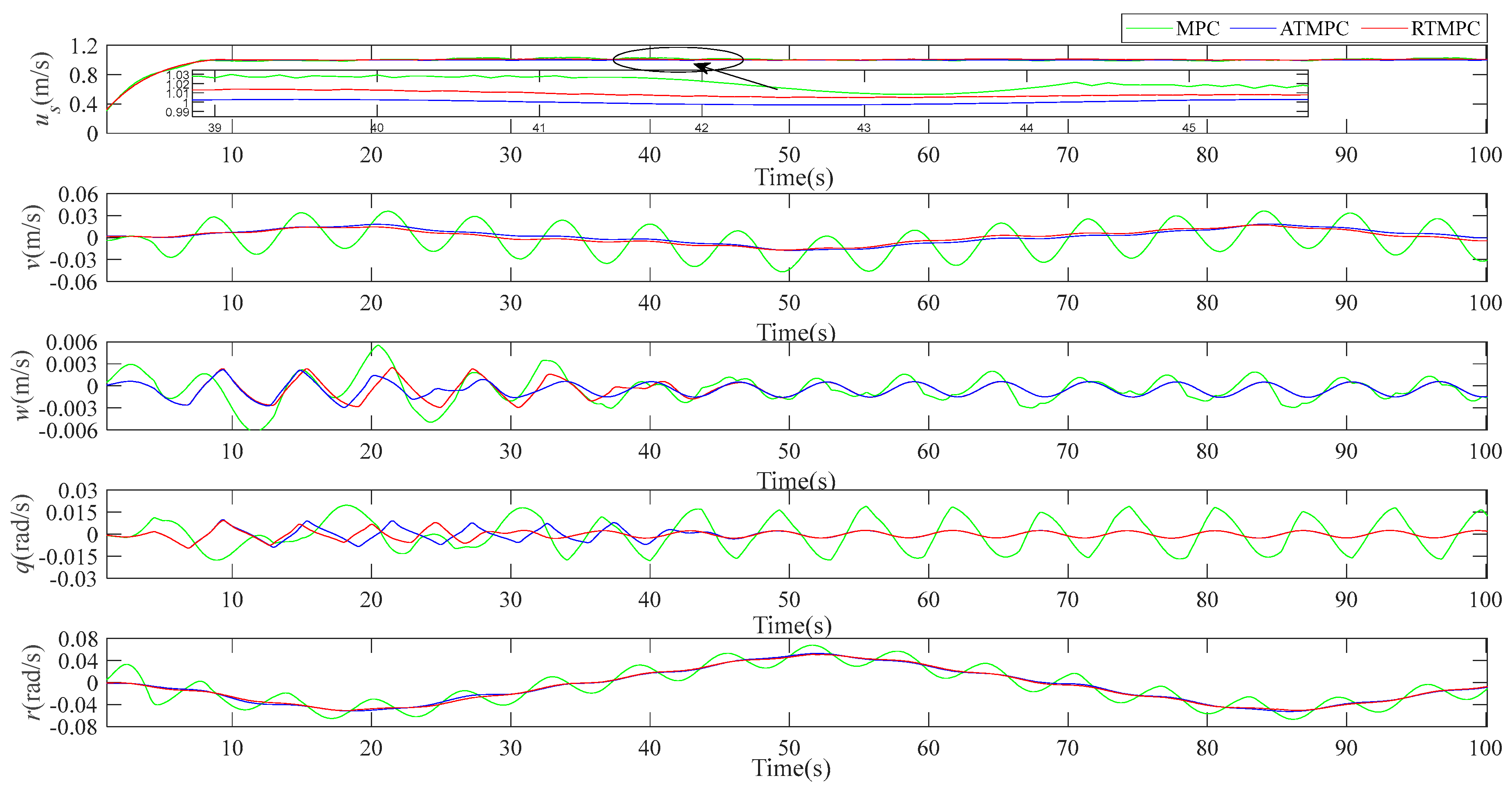

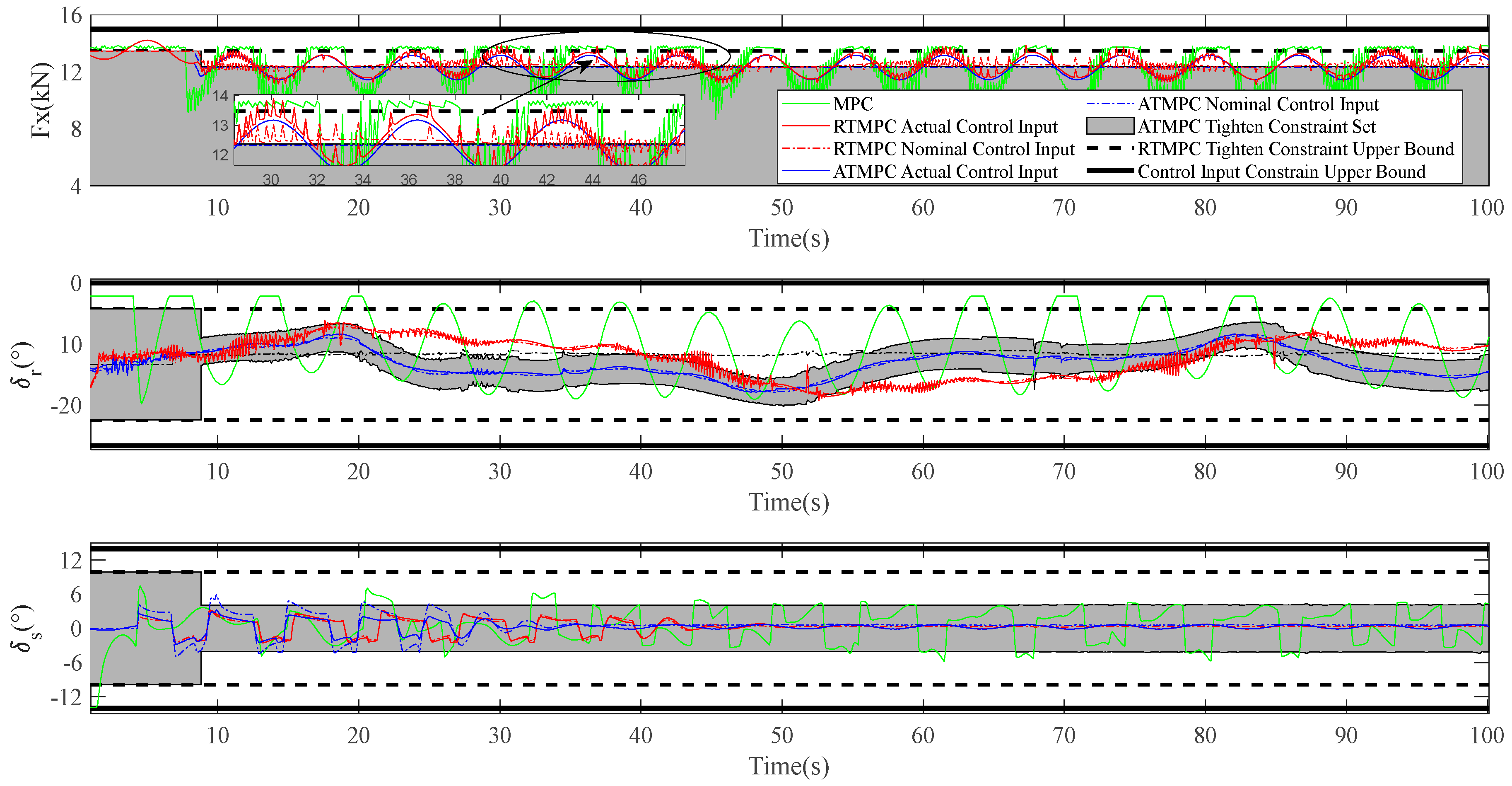

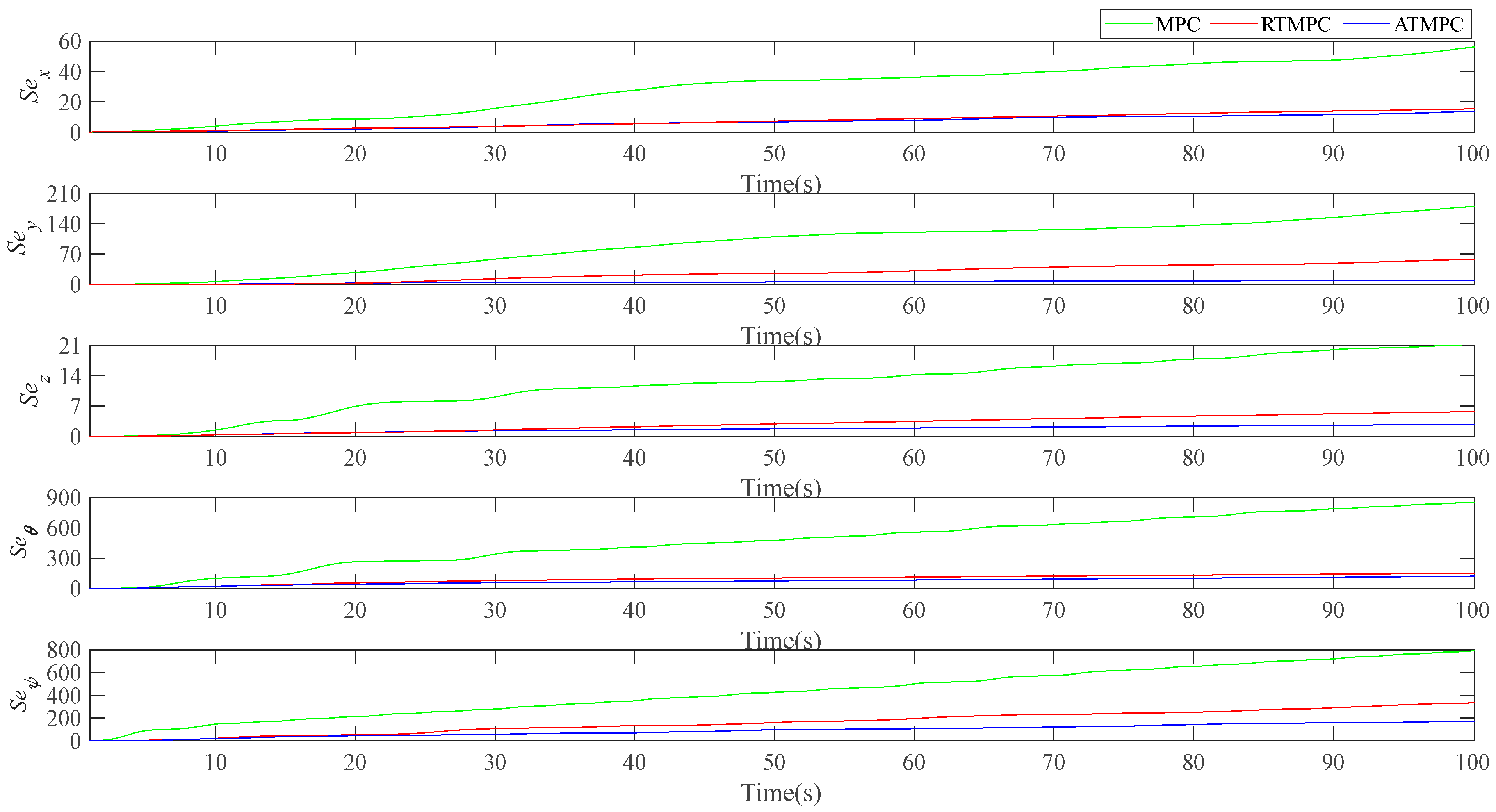

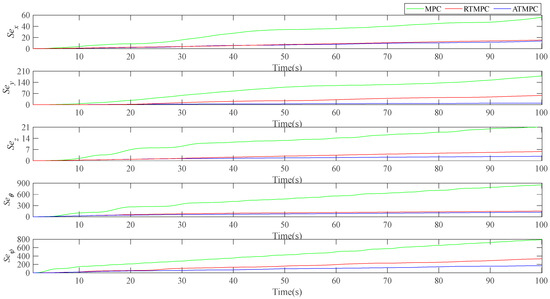

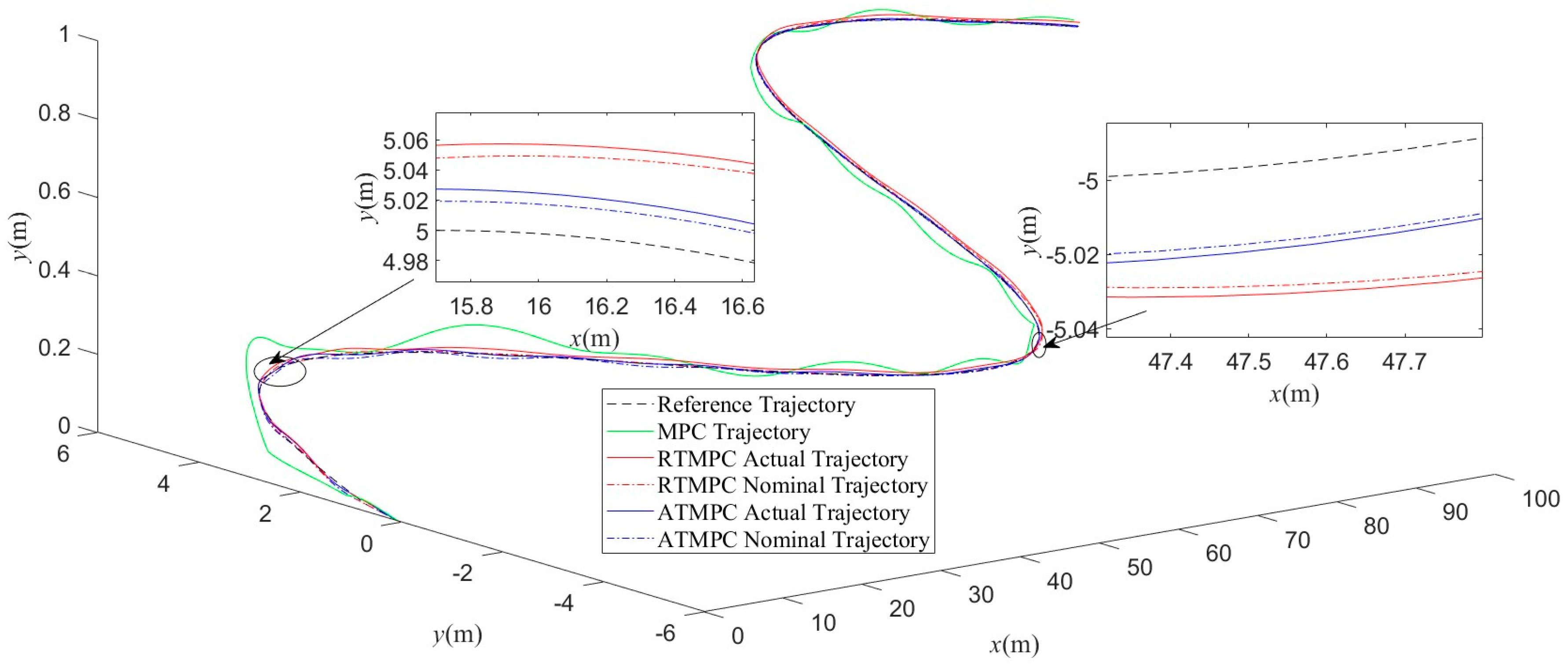

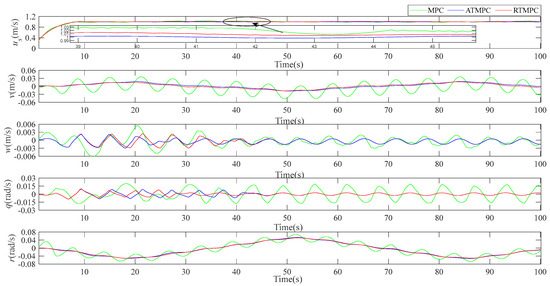

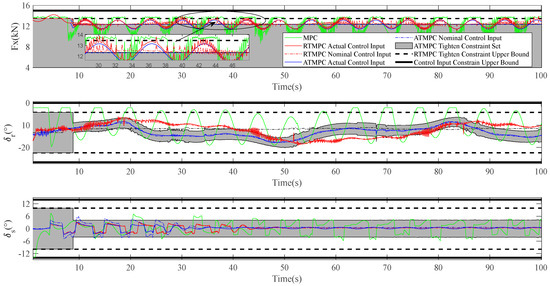

#### 5.2. Analysis and Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Nomenclature

$\u229d$ | Pontryagin difference, $\mathit{A}\u229d\mathit{B}=\left\{\mathit{x}|\mathit{x}+\mathit{y}\mathit{\u03f5}\mathit{A},\mathit{y}\mathit{\u03f5}\mathit{B}\right\}$ | ${\mathit{I}}_{\mathit{n}}$ | n-dimensional identity matrix |

${\mathit{\alpha}}_{\mathbf{m}\mathbf{i}\mathbf{n}}\left(\xb7\right)$(${\mathit{\alpha}}_{\mathbf{m}\mathbf{a}\mathbf{x}}\left(\xb7\right)$) | the smallest (largest) real part of eigenvalues of a matrix | ${\mathit{R}}^{\mathit{m}\times \mathit{n}}$ | A matrix with m rows and n columns |

$\mathbb{w}$ | bounded external disturbance | ${\mathit{c}}_{\mathit{\omega}}$ | disturbance upper bound |

$\mathit{Q},\mathit{R},\mathit{P}$ | positive weight matrix | ${\Vert \xb7\Vert}_{\mathit{Q}}^{2}$ | quadratic norm of a vector with positive weight matrix $\mathit{Q}$ |

$\mathit{g}\left(\xb7\right)$ | Lipschitz nonlinear function | $\mathit{L}$ | Lipschitz constant |

$\overline{\mathit{x}},\overline{\mathit{u}}$ | nominal state and control input | $\mathit{x},\mathit{u}$ | actual state and control input |

${\mathit{J}}_{\mathit{N}},{\mathit{J}}_{1}$ | cost function | $\mathit{K}$ | feedback matrix |

${\mathit{X}}_{\mathit{f}}$ | terminal feasible set | $\mathsf{\Omega}$ | robust positively invariant (RPI) set |

$\mathit{h}\left(\xb7\right)<0$ | inequality constraint | $\mathit{M}$ | constraint set |

${\mathit{f}}_{\mathit{d}}\left(\xb7\right)$ | state transition function | ${\mathit{N}}_{\mathit{T}},{\mathit{N}}_{\mathit{l}}$ | predictive horizon |

$\mathsf{\Theta}\left(\xb7\right)$ | linear differential inclusion function | $\mathbf{C}\mathbf{o}\mathsf{\Theta}\left(\xb7\right)$ | minimum convex polytope |

$\mathbf{d}\mathbf{e}\mathbf{t}\left(\xb7\right)$ | determinant calculation | ${\mathit{\alpha}}_{\mathit{w}}\left(\xb7\right)$ | polynomial function |

${\mathbb{K}}_{{\mathit{N}}_{1}:{\mathit{N}}_{2}}$ | set $\left\{{\mathit{N}}_{1},{\mathit{N}}_{1}+1,\cdots ,{\mathit{N}}_{2}-1,{\mathit{N}}_{2}\right\}$ |

## References

- Bibuli, M.; Zereik, E.; De Palma, D.; Ingrosso, R.; Indiveri, G. Analysis of an Unmanned Underwater Vehicle Propulsion Model for Motion Control. J. Guid. Control Dyn.
**2022**, 45, 1046–1059. [Google Scholar] [CrossRef] - Guerrero, J.; Torres, J.; Creuze, V.; Chemori, A.; Campos, E. Saturation based nonlinear PID control for underwater vehicles: Design, stability analysis and experiments. Mechatronics
**2019**, 61, 96–105. [Google Scholar] [CrossRef] - Petritoli, E.; Bartoletti, C.; Leccese, F. Preliminary Study for AUV: Longitudinal Stabilization Method Based on Takagi-Sugeno Fuzzy Inference System. Sensors
**2021**, 21, 1866. [Google Scholar] [CrossRef] [PubMed] - Sedghi, F.; Arefi, M.M.; Abooee, A.; Kaynak, O. Adaptive Robust Finite-Time Nonlinear Control of a Typical Autonomous Underwater Vehicle with Saturated Inputs and Uncertainties. IEEE/ASME Trans. Mechatron.
**2021**, 26, 2517–2527. [Google Scholar] [CrossRef] - Yang, X.; Yan, J.; Hua, C.C.; Guan, X.P. Trajectory Tracking Control of Autonomous Underwater Vehicle with Unknown Parameters and External Disturbances. IEEE Trans. Syst. Man Cybern. Syst.
**2021**, 51, 1054–1063. [Google Scholar] [CrossRef] - Jia, Z.; Qiao, L.; Zhang, W. Adaptive tracking control of unmanned underwater vehicles with compensation for external perturbations and uncertainties using Port-Hamiltonian theory. Ocean Eng.
**2020**, 209, 107402. [Google Scholar] [CrossRef] - Kou, L.; He, S.; Li, Y.; Xiang, J. Constrained Control Allocation of a Quadrotor-Like Autonomous Underwater Vehicle. J. Guid. Control Dyn.
**2021**, 44, 659–666. [Google Scholar] [CrossRef] - Shen, C.; Shi, Y.; Buckham, B. Trajectory Tracking Control of an Autonomous Underwater Vehicle Using Lyapunov-Based Model Predictive Control. IEEE Trans. Ind. Electron.
**2018**, 65, 5796–5805. [Google Scholar] [CrossRef] - Li, S.; Li, Z.; Yu, Z.; Zhang, B.; Zhang, N. Dynamic Trajectory Planning and Tracking for Autonomous Vehicle with Obstacle Avoidance Based on Model Predictive Control. IEEE Access
**2019**, 7, 132074–132086. [Google Scholar] [CrossRef] - Long, C.; Hu, M.; Qin, X.; Bian, Y. Hierarchical trajectory tracking control for ROVs subject to disturbances and parametric uncertainties. Ocean Eng.
**2022**, 266, 112733. [Google Scholar] [CrossRef] - Li, H.; Swartz, C.L.E. Robust model predictive control via multi-scenario reference trajectory optimization with closed-loop prediction. J. Process Control
**2021**, 100, 80–92. [Google Scholar] [CrossRef] - Wang, W.; Yan, J.; Wang, H.; Ge, H.; Zhu, Z.; Yang, G. Adaptive MPC trajectory tracking for AUV based on Laguerre function. Ocean Eng.
**2022**, 261, 111870. [Google Scholar] [CrossRef] - Zhang, Y.; Liu, X.; Luo, M.; Yang, C. MPC-based 3-D trajectory tracking for an autonomous underwater vehicle with constraints in complex ocean environments. Ocean Eng.
**2019**, 189, 106309. [Google Scholar] [CrossRef] - Yan, Z.; Gong, P.; Zhang, W.; Wu, W. Model predictive control of autonomous underwater vehicles for trajectory tracking with external disturbances. Ocean Eng.
**2020**, 217, 107884. [Google Scholar] [CrossRef] - Gong, P.; Yan, Z.; Zhang, W.; Tang, J. Trajectory tracking control for autonomous underwater vehicles based on dual closed-loop of MPC with uncertain dynamics. Ocean Eng.
**2022**, 265, 112697. [Google Scholar] [CrossRef] - Dai, L.; Lu, Y.; Xie, H.; Sun, Z.; Xia, Y. Robust Tracking Model Predictive Control with Quadratic Robustness Constraint for Mobile Robots with Incremental Input Constraints. IEEE Trans. Ind. Electron.
**2021**, 68, 9789–9799. [Google Scholar] [CrossRef] - Long, C.Q.; Qin, X.H.; Bian, Y.G.; Hu, M.J. Trajectory tracking control of ROVs considering external disturbances and measurement noises using ESKF-based MPC. Ocean Eng.
**2021**, 241, 109991. [Google Scholar] [CrossRef] - Nikou, A.; Verginis, C.K.; Heshmati-alamdari, S.; Dimarogonas, D.V. A robust non-linear MPC framework for control of underwater vehicle manipulator systems under high-level tasks. Iet Control Theory Appl.
**2021**, 15, 323–337. [Google Scholar] [CrossRef] - Vu, Q.V.; Dinh, T.A.; Nguyen, T.V.; Tran, H.V.; Le, H.X.; Pham, H.V.; Nguyen, L. An Adaptive Hierarchical Sliding Mode Controller for Autonomous Underwater Vehicles. Electronics
**2021**, 10, 2316. [Google Scholar] [CrossRef] - Blanchini, F. Control synthesis for discrete time systems with control and state bounds in the presence of disturbances. J. Optim. Theory Appl.
**1990**, 65, 29–40. [Google Scholar] [CrossRef] - Rakovic, S.V.; Kerrigan, E.C.; Kouramas, K.I.; Mayne, D.Q. Invariant approximations of the minimal robust positively Invariant set. IEEE Trans. Autom. Control
**2005**, 50, 406–410. [Google Scholar] [CrossRef] - Chryssochoos, I.; Raković, S.; Mayne, D.Q. Robust model predictive control using tubes. Automatica
**2004**, 40, 125–133. [Google Scholar] - Yu, S.; Maier, C.; Chen, H.; Allgöwer, F. Tube MPC scheme based on robust control invariant set with application to Lipschitz nonlinear systems. Syst. Control Lett.
**2013**, 62, 194–200. [Google Scholar] [CrossRef] - Chen, Y.; Bian, Y.; Cui, Q.; Dong, L.; Xu, B.; Hu, M. LTVMPC for Dynamic Positioning of An Autonomous Underwater Vehicle. In Proceedings of the 2021 5th CAA International Conference on Vehicular Control and Intelligence (CVCI), Tianjin, China, 29–31 October 2021; pp. 1–5. [Google Scholar]
- Chen, W.H.; O’Reilly, J.; Ballance, D.J. On the terminal region of model predictive control for non-linear systems with input/state constraints. Int. J. Adapt. Control Signal Process.
**2003**, 17, 195–207. [Google Scholar] [CrossRef] - Cox, W.; While, L.; Reynolds, M. A Review of Methods to Compute Minkowski Operations for Geometric Overlap Detection. IEEE Trans. Vis. Comput. Graph.
**2021**, 27, 3377–3396. [Google Scholar] [CrossRef]

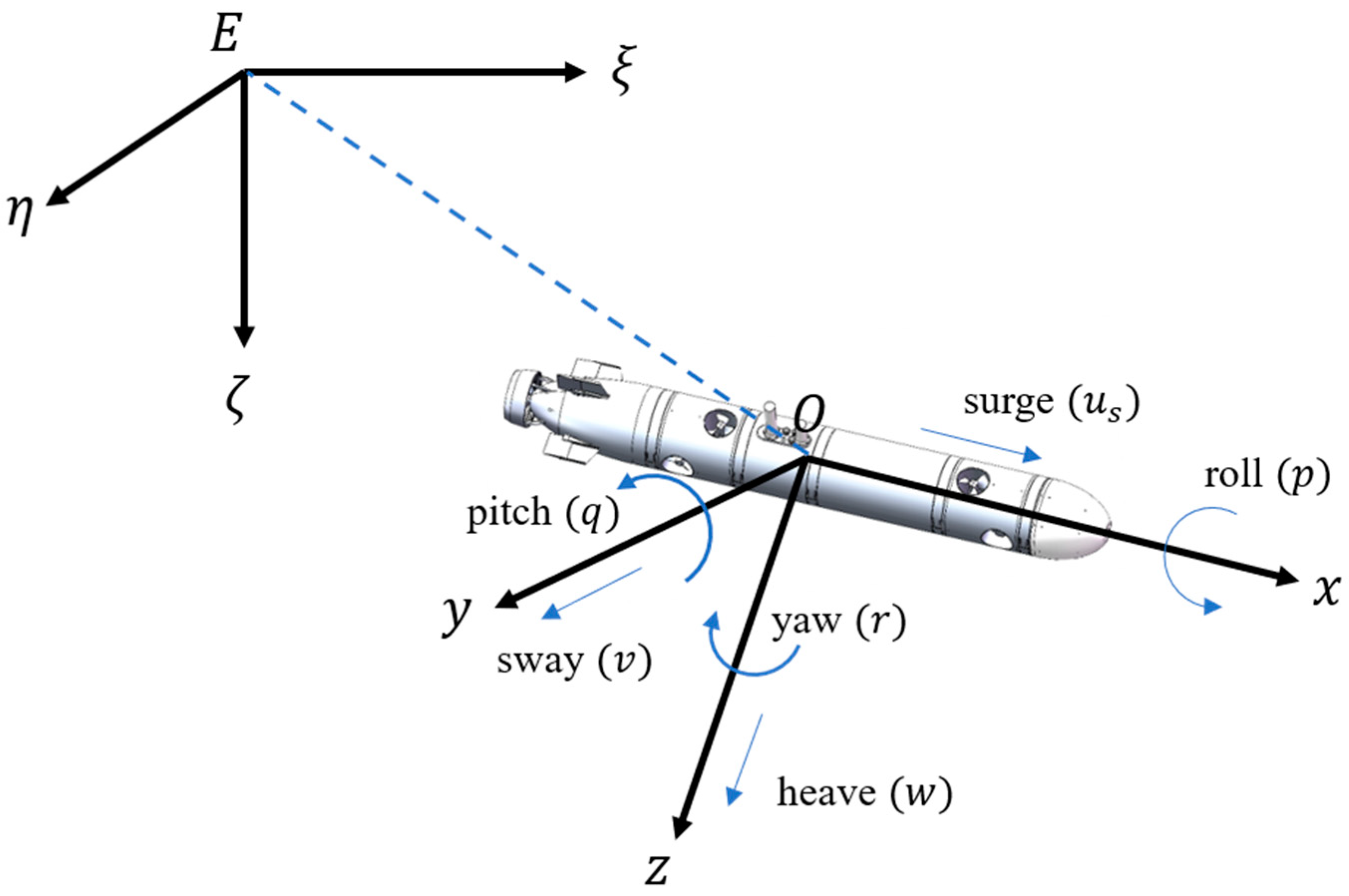

**Figure 1.**AUV coordinate system [24].

Parameter | Value | Parameter | Value | Parameter | Value |
---|---|---|---|---|---|

${Q}_{\eta}$ | $\mathrm{d}\mathrm{i}\mathrm{a}\mathrm{g}\{\mathrm{4.4,19.2,5.2},$ $\mathrm{20.5,25.5}\}$ | ${P}_{\eta}$ | $\mathrm{d}\mathrm{i}\mathrm{a}\mathrm{g}\{\mathrm{4.4,19.2,5.2}$ $,\mathrm{20.5,25.5}\}$ | ${\overline{\nu}}_{min}$ | $\begin{array}{c}-[0;0.06;0.01;\\ 0.03;0.08]\end{array}$ |

${Q}_{\nu}$ | $25.5$ | ${P}_{\nu}$ | $25.5$ | ${N}_{l}$ | 4 |

${R}_{\nu}$ | $\mathrm{d}\mathrm{i}\mathrm{a}\mathrm{g}\{\mathrm{2,0.3,5},\mathrm{2,0.1}\}$ | ${{\overline{u}}_{l}}_{max}$ | $\begin{array}{c}[0.2;0.01;0.01;\\ 0.03;0.05]\end{array}$ | ${\overline{\nu}}_{max}$ | $\begin{array}{c}[1.2;0.06;0.01;\\ 0.03;0.08]\end{array}$ |

Parameter | Value | Parameter | Value | Parameter | Value | Parameter | Value |
---|---|---|---|---|---|---|---|

${Q}_{T}$ | $20.5$ | ${R}_{T}$ | $50.5$ | ${P}_{T}$ | $138.8$ | ${N}_{T}$ | $5$ |

$T$ | $0.05$ | ${P}_{\mathit{v}}$ | $25.5$ | $\text{}\lambda $ | $2.7$ | ${P}_{R}$ | $2.3$ |

$\mathcal{X}$ | $\left\{{u}_{s}|0\le {u}_{s}\le 1.2\right\}$ | $\mathcal{U}$ | $\left\{\left({F}_{x},\u2206{F}_{x}\right)|\left|{F}_{x}\right|\le 15,\left|\u2206{F}_{x}\right|\le 2\right\}$ | ${c}_{\omega}$ | $0.12$ | $\mu $ | $1.7$ |

$K$ | $-182.38$ | $\overline{w}$ | $5$ | ${c}_{\delta ,u}$ | $0.01$ | $\rho $ | $0.5$ |

$l$ | $3$ | ${a}_{1}$ | $0.2$ | ${a}_{2}$ | $0.1$ | ${a}_{3}$ | $0.05$ |

Parameter | Value | Parameter | Value | Parameter | Value | Parameter | Value |
---|---|---|---|---|---|---|---|

${Q}_{T}$ | $\begin{array}{c}diag\{190.5,\\ 180.5\}\end{array}$ | ${R}_{T}$ | $50$ | ${P}_{T}$ | $[\mathrm{6462.1,215.8};$ $\mathrm{215.8,3688.3}]$ | ${N}_{T}$ | $9$ |

$T$ | $0.05$ | $\overline{s}$ | $5\xb0$ | $\text{}\lambda $ | $0.6$ | ${P}_{R}$ | $\mathrm{d}\mathrm{i}\mathrm{a}\mathrm{g}\{0.91,$ $0.61$ |

$\mathcal{X}$ | $\left\{(\nu ,r)|\left|\nu \right|\le 0.01,\left|r\right|\le 0.05\right\}$ | $\mathcal{U}$ | $\left\{\left({\delta}_{r},\u2206{\delta}_{r}\right)|\left|{\delta}_{r}\right|\le 20\xb0,\left|\u2206{\delta}_{r}\right|\le 5\xb0\right\}$ | ${c}_{\omega}$ | $0.07$ | $\mu $ | $2.6$ |

$K$ | $[-28.29;11.54]$ | $\overline{w}$ | $10\xb0$ | ${c}_{\delta ,u}$ | $0.01$ | $\rho $ | $0.5$ |

$l$ | $3$ | ${a}_{1}$ | $0.2$ | ${a}_{2}$ | $0.1$ | ${a}_{3}$ | $0.05$ |

Parameter | Value | Parameter | Value | Parameter | Value | Parameter | Value |
---|---|---|---|---|---|---|---|

${Q}_{T}$ | $\begin{array}{c}diag\{2.5,\\ 5.5\}\end{array}$ | ${R}_{T}$ | $5$ | ${P}_{T}$ | $[\mathrm{199.5,25.6};$ $\mathrm{25.6,103.9}]$ | ${N}_{T}$ | $9$ |

$T$ | $0.05$ | $\overline{s}$ | $5\xb0$ | $\text{}\lambda $ | $1.8$ | ${P}_{R}$ | $\mathrm{d}\mathrm{i}\mathrm{a}\mathrm{g}\{0.29,$ $0.59$ |

$\mathcal{X}$ | $\left\{(w,q)|\left|w\right|\le 0.02,\left|q\right|\le 0.07\right\}$ | $\mathcal{U}$ | $\left\{\left({\delta}_{s},\u2206{\delta}_{s}\right)|\left|{\delta}_{s}\right|\le 14\xb0,\left|\u2206{\delta}_{s}\right|\le 5\xb0\right\}$ | ${c}_{\omega}$ | $0.05$ | $\mu $ | $2.9$ |

$K$ | $[-28.29;11.54]$ | $\overline{w}$ | $10\xb0$ | ${c}_{\delta ,u}$ | $0.01$ | $\rho $ | $0.5$ |

$l$ | $3$ | ${a}_{1}$ | $0.2$ | ${a}_{2}$ | $0.1$ | ${a}_{3}$ | $0.05$ |

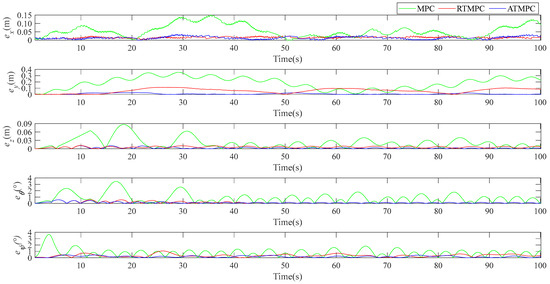

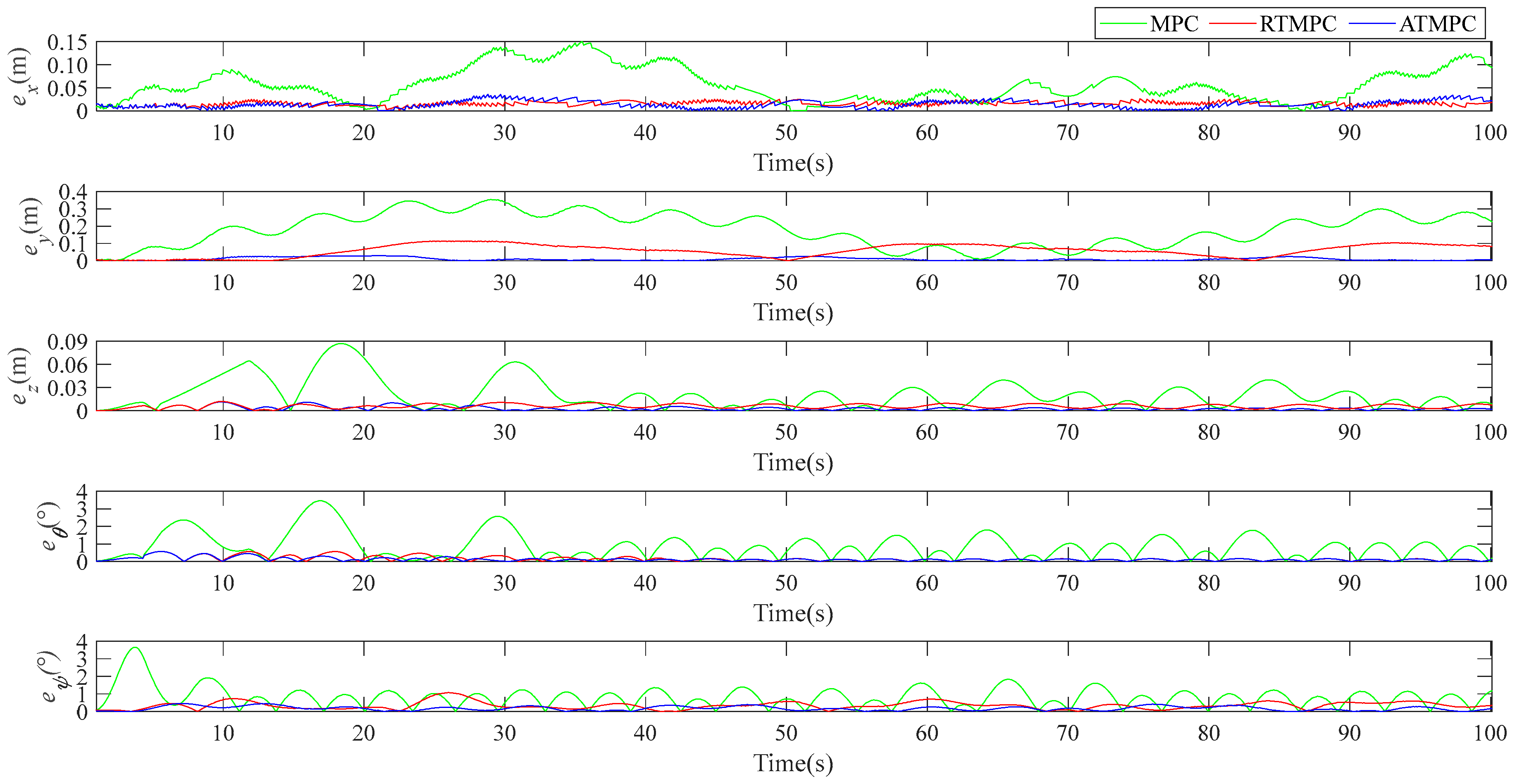

Method | Max Position Deviation (m) | Max Pitch Angle Deviation (°) | Max Yaw Angle Deviation (°) |
---|---|---|---|

MPC | 0.38 | 3.45 | 3.45 |

RTMPC | 0.12 | 0.58 | 1.07 |

ATMPC | 0.04 | 0.57 | 0.45 |

Method | Max Time Consumption (ms) | Average Time Consumption (ms) |
---|---|---|

MPC | 7.25 | 7.27 |

RTMPC | 7.88 | 7.34 |

ATMPC | 11.35 | 10.25 |
