# A Multi-Parameter Comprehensive Optimized Algorithm for MPTCP Networks

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Path Management, Congestion Control and Buffer Configuration

#### 2.1. Path Management Algorithms

#### 2.2. Congestion Control Algorithms

#### 2.3. Buffer Function and Configuration

## 3. MPCOA Algorithm

- TOP: = [Site Name, Internet Service Provider, Bandwidth], a topology structure information set of heterogeneous transmission network;
- PM: = {PCDC, FullMesh}, a set of path management policies, an enumerated value;
- CC: = {Cubic, OLIA, Hybla, Reno, Scalable, Vegas}, a set of congestion control algorithms, an enumerated value.

- OTP: = the relative maximum throughput, which is the main constraint of this algorithm;
- OBS: = the relative minimum buffer size;
- OCC: = the suitable CC algorithm, one of CC;
- OPM: = the suitable PM policy, one of PM.
- These four parameters are output simultaneously.

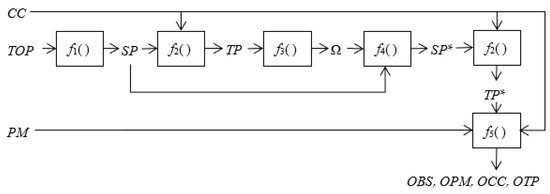

_{1}, …, f

_{5}, which can be seen in Equations (3)–(8) respectively. The corresponding algorithm execution steps are illustrated in Figure 2.

- According to the topology of the MPTCP network, the available subflow’s set is obtained,$$\begin{array}{l}sp={f}_{1}\left(top\right),sp\in SP,top\in TOP\\ SP=\left\{s{p}_{1},\cdots ,s{p}_{i},\cdots ,s{p}_{N}\right\},N={N}_{s}\times {M}_{r}\end{array}$$
_{s}is the number of interfaces at the sending side (i.e., the number of local ISPs); M_{r}is the number of interfaces at the receiving side (i.e., the number of remote ISPs). Actually, this available subflows of SP are all used for transmission in FullMesh policy; - Based on the set of input parameters, the throughput TP of each available subflow can be measured,$$\begin{array}{l}tp={f}_{2}\left(sp,cc\right),tp\in TP,cc\in CC\\ TP=\left\{T{P}_{1},\cdots ,T{P}_{i},\cdots \right\},i=1,2,\cdots ,N\end{array}$$
- With the obtained TP, the IF value Ω of all available subflows are calculated by:$${\Omega}_{i}={f}_{3}\left(tp\right)=1-\frac{{\displaystyle \sum _{t=T+1}^{2T}T{P}_{i}\left(t\right)}}{{\displaystyle \sum _{t=0}^{T}T{P}_{0}\left(t\right)}}$$
_{i}is the IF value of i-th subflow, TP_{0}(t) is the total throughput at the time t, TP_{i}(t) is the throughput at time t when the i-th subflow does not participate in transmission, and T is the transmission time, see Figure 3. In Figure 3, from time 0 to time T, all subflows participate in transmission, and the throughput TP_{0}(t) at each time is calculated, which is a function of time t (t$\in $[0, T]). From time T to time 2T, the i-th subflow (i$\in $[1, N]) does not participate in the transmission, other subflows continue to transmit data, and the throughput TP_{i}(t) is calculated which is also a function of time t (t$\in $[T, 2T]). Then the IF value Ω can be calculated by Equation (5); - Using IF value, the available subflow set SP is divided into optional subflow subset SP* and standby subflow subset. The optional subflow SP* is used for transmission in PCDC,$$\begin{array}{l}osp={f}_{4}\left(s{p}_{i},{\Omega}_{i}\right),osp\in SP\ast \\ SP\ast =\left\{s{p}_{1},\cdots ,s{p}_{i},\cdots s{p}_{N}\right\}\backslash \left\{s{p}_{i}|{\Omega}_{i}<0\right\}\end{array}$$
- According to the SP* sets obtained in Step 4 and CC, remeasure the throughput to obtain TP* (for FullMesh, throughput does not need to remeasure, TP is TP*),$$rtp={f}_{2}\left(osp,cc\right),rtp\in TP\ast $$
- Based on the result of Step 5, taking the input parameter set CC, PM, TP* and BS as input, a prediction model between buffer size BS and throughput TP, which varies with CC and PM, can be established by using multiple regression analysis method through a scikit-learn tool [26]. The model shows like function f
_{5}, see Equation (8). When the most essential two criteria values of prediction model after N times run: once R-Squarer and p-value have reached the idea range (R-Square ≥ 0.90 (interval [0, 1]) and p-value ≤ 0.05), which means that this prediction model is a commonly accepted in statistical society. The detail of model construction can be seen in [4],$$\begin{array}{c}tp={\phi \left(bs,pm,cc\right)|}_{\begin{array}{l}pm=P{M}_{i}\\ cc=C{C}_{j}\end{array}}={{f}_{5}\left(bs\right)|}_{\left(P{M}_{i},C{C}_{j}\right)}\\ P{M}_{i}\in PM\left(i=1,2\right),C{C}_{j}\in CC\left(j=1,2,\cdots ,6\right)\end{array}$$ - Obtain the comprehensive optimized outputs. The final goal of this algorithm is to find the minimum buffer size BS when maximizing the throughput TP, and determine the corresponding PM and CC accordingly,$$\{\begin{array}{l}{{f}_{5}|}_{\left(P{M}_{i},C{C}_{j}\right)}:BS\to TP\\ \begin{array}{cc}s.t.& bs\in BS\left(BS=\left\{0.5,1.0,1.5,\cdots ,30.0\right\}\right),tp\in TP,\end{array}\\ \underset{bs}{\mathrm{min}}\left(\mathrm{arg}\mathrm{max}\left({{f}_{5}|}_{\left(P{M}_{i},C{C}_{j}\right)}\right)\right)\end{array}$$

Algorithm 1:MPCOA | |

1: | Inputs: CC = {Cubic,OLIA,Hybla,Reno,Scalable,Vegas}, PM = {PCDC, FullMesh}, TOP = [Site Name, ISP, Bandwidth] |

2: | Outputs: OTP, OBS, OCC, OPM |

3: | Initialize: BS = {0.5,1.0,1.5,…,30.0}, SP* = {}, δ = 0.07 |

4: | Start: |

5: | Obtain SP from TOP |

6: | For cc in CC do |

7: | For pm in PM do |

8: | If pm is PCDC then |

9: | Calculate TP_{i} for each subflow sp_{i} in SP, then obtain Ω_{i} |

10: | ${\Omega}_{i}=1-\frac{{\displaystyle {\sum}_{t=T+1}^{2T}T{P}_{i}\left(t\right)}}{{\displaystyle {\sum}_{t=0}^{T}T{P}_{0}\left(t\right)}}$ |

11: | If Ω_{i} > 0 then |

12: | SP* = SP* + sp_{i} |

13: | End If |

14: | Else If pm is FullMesh then |

15: | SP* = SP |

16: | End If |

17: | End For |

18: | Measure and obtain the throughput TP* |

19: | Using sklearn.LinearRegression(BS,PM,TP*), get the regression model |

20: | $tp={f}_{5}\left(bs\right)$ |

21: | Calculate the maximum tp_{cc} of TP |

22: | Calculate the minimum bs_{cc} in [(1-δ)tp_{cc,} tp_{cc}] according to the inverse function ${f}_{5}^{-1}$ |

23: | End For |

24: | bs_{min} = min(bs_{cc}) |

25: | OBS = bs_{min} |

26: | Making use of OBS and the function ${f}_{5}$, obtain OTP, OCC and OPM |

27: | Outputs: OTP, OBS, OCC, OPM |

## 4. Measurement Scenario

- Ubuntu Linux 16.04 “Xenial Xerus” LTS with Linux kernel version 4.19.128;
- Linux MPTCP version 0.95;
- Buffer size limit set to 30 MiB, unless otherwise specified, to prevent throughput limitations by lack of buffer space [2].

## 5. Result Analysis

- An inter-continental setup (between Norway and China) in Section 5.1;
- A regional setup (between two cities in Norway) in Section 5.2;
- A trans-continental setup (between two cities in different countries of Europe) in Section 5.3.

#### 5.1. SRL to HU

_{1}= 1, CC

_{2}= CC

_{3}= CC

_{4}= CC

_{5}= CC

_{6}= 0, then tp = 3.49 + 4.85bs−0.15bs

^{2}).

_{max}= 80.27 Mbit/s, and the corresponding BS is bs = 18.12 MiB, PM is PCDC and CC is Hybla. Considering Equation (10), with sacrificing δ = 7% the throughput, the throughput is 74.65 Mbit/s, and the corresponding buffer size is 12.36 MiB. 7% is the empirical value obtained through many experiments. Since buffer resources are more precious, we can reduce the waste of buffer resources by sacrificing a little throughput without affecting network performance. Therefore, the final output of the MPCOA algorithm is OBS = 12.36 MiB, OPM = PCDC, OCC = Hybla, and OTP = 74.65 Mbit/s.

#### 5.2. UNIS to HiN

_{max}= 286.73 Mbit/s, and the corresponding BS is bs = 17.83 MiB when PM is PCDC and CC is Cubic. Considering Equation (10), by sacrificing δ = 7% throughput, the final output of the MPCOA algorithm is OBS = 9.22 MiB, OPM = PCDC, OCC = Cubic and OTP = 266.66 Mbit/s. Figure 7 presents the throughput test results on NorNet Core testbed for both path managers and all CC algorithms without considering MPCOA algorithm, where the buffer size is set to be 30 MiB. The test results show that the combination of PCDC and Cubic with the maximum throughput of 274.2 Mbit/s is the best choice, which is consistent with the MPCOA output.

#### 5.3. UiT to HAW

_{max}= 0.87 Mbit/s, and the corresponding BS is bs = 30 MiB when CC is Scalable, and PM could be either FullMesh or PCDC. Actually, from Table 1, we can see that the two ISPs of UiT almost have the same bandwidth, and therefore the networks between UiT and HAW are homogeneous networks, where the IFs of all subflows are positive, see Table 2. In this case, PCDC is equivalent to FullMesh. In other words, both PM algorithms can achieve almost the same performance. Since PCDC is more complicated than FullMesh, we can directly choose to use FullMesh in a homogeneous network. According to Table 4, when bs decreases, tp does not change too much. Therefore, considering Equation (10), by sacrificing δ = 7% throughput, the final output of MPCOA algorithm is OBS = 0.5 MiB, OPM = FullMesh, OCC = Scalable and OTP = 0.81 Mbit/s. Comparing BS = 30 MiB and OBS = 0.5 MiB, it can be seen that a lot of buffer resource is saved by using Equation (10).

#### 5.4. Optimized Solutions

## 6. Conclusions and Outlook

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Ford, A.; Raiciu, C.; Handley, M.; Bonaventure, O. TCP Extensions for Multipath Operation with Multiple Addresses. IETF, RFC 6824. January 2013. Available online: https://datatracker.ietf.org/doc/rfc6824/ (accessed on 18 June 2021).
- Zhou, F.; Dreibholz, T.; Zhou, X.; Fu, F.; Tan, Y.; Gan, Q. The Performance Impact of Buffer Sizes for Multi-Path TCP in Internet Setups. In Proceedings of the IEEE International Conference on Advanced Information Networking and Applications (AINA), Taipei, Taiwan, 27–29 March 2017; pp. 9–16. [Google Scholar]
- Postel, J.B. Transmission Control Protocol. IETF, Standards Track RFC 793. September 1981. Available online: https://datatracker.ietf.org/doc/rfc793/ (accessed on 18 June 2021).
- Tan, Q.; Yang, X.; Zhao, L.; Zhou, X.; Dreibholz, T. A Statistic Procedure to Find Formulae for Buffer Size in MPTCP. In Proceedings of the 3rd IEEE Advanced Information Technology, Electronic and Automation Control Conference (IAEAC), Chongqing, China, 12–14 October 2018; pp. 900–907. [Google Scholar]
- Wang, K.; Dreibholz, T.; Zhou, X.; Fu, F.; Tan, Y.; Cheng, X.; Tan, Q. On the Path Management of Multi-Path TCP in Internet Scenarios based on the NorNet Testbed. In Proceedings of the IEEE International Conference on Advanced Information Networking and Applications (AINA), Taipei, Taiwan, 27–29 March 2017; pp. 1–8. [Google Scholar]
- Chen, M.; Dreibholz, T.; Zhou, X.; Yang, X. Improvement and Implementation of a Multi-Path Management Algorithm Based on MPTCP. In Proceedings of the 45th IEEE Conference on Local Computer Networks (LCN), Sydney, New South Wales, Australia, 16–19 November 2020; pp. 134–143. [Google Scholar]
- Dreibholz, T. Evaluation and Optimisation of Multi-Path Transport using the Stream Control Transmission Protocol. Habilitation Treatise, University of Duisburg-Essen, Faculty of Economics, Institute for Computer Science and Business Information Systems. March 2012. Available online: https://www.simula.no/publications/evaluation-and-optimisation-multi-path-transport-using-stream-control-transmission (accessed on 18 June 2021).
- Rhee, I.; Xu, L.; Ha, S.; Zimmermann, A.; Eggert, L.; Scheffenegger, R. CUBIC for Fast Long-Distance Networks. IETF, Informational RFC 8312. February 2018. Available online: https://datatracker.ietf.org/doc/rfc8312/ (accessed on 18 June 2021).
- Ha, S.; Rhee, I.; Xu, L. CUBIC: A New TCP-friendly High-Speed TCP Variant. ACM SIGOPS Oper. Syst. Rev.
**2008**, 42, 64–74. [Google Scholar] [CrossRef] - Firrincieli, C. TCP Hybla: A TCP Enhancement for Heterogeneous Networks. Int. J. Satell. Commun. Netw.
**2005**, 22, 547–566. [Google Scholar] - Khalili, R.; Gast, N.G.; Popovic, M.; Boudec, J.Y.L. Opportunistic Linked-Increases Congestion Control Algorithm for MPTCP. IETF, Individual Submission, Internet Draft Draft-Khalili-Mptcp-Congestion-Control-05. July 2014. Available online: https://datatracker.ietf.org/doc/html/draft-khalili-mptcp-congestion-control (accessed on 18 June 2021).
- Allman, M.; Paxson, V.; Blanton, E. TCP Congestion Control. IETF, Standards Track RFC 5681. September 2009. Available online: https://datatracker.ietf.org/doc/rfc5681/ (accessed on 18 June 2021).
- Kelly, T. Scalable TCP: Improving Performance in Highspeed Wide Area Networks. SIGCOMM Comput. Commun. Rev.
**2003**, 33, 83–91. [Google Scholar] [CrossRef] - Brakmo, L.S.; O’Malley, S.W.; Peterson, L.L. TCP Vegas: New Techniques for Congestion Detection and Avoidance. In Proceedings of the ACM SIGCOMM Conference, London, UK, 31 August–2 September 1994; pp. 24–35. [Google Scholar]
- Becke, M.; Adhari, H.; Rathgeb, E.P.; Fu, F.; Yang, X.; Zhou, X. Comparison of Multipath TCP and CMT-SCTP based on Intercontinental Measurements. In Proceedings of the IEEE Global Communications Conference (GLOBECOM), Atlanta, GA, USA, 9–13 December 2013; pp. 1360–1366. [Google Scholar]
- Raiciu, C.; Handley, M.; Wischik, D. Coupled Congestion Control for Multipath Transport Protocols. IETF, RFC 6356. October 2011. Available online: https://datatracker.ietf.org/doc/rfc6356/ (accessed on 18 June 2021).
- Dreibholz, T.; Rüngeler, I.; Seggelmann, R.; Tüxen, M.; Rathgeb, E.P.; Stewart, R.R. Stream Control Transmission Protocol: Past, Current, and Future Standardization Activities. IEEE Commun. Mag.
**2011**, 49, 82–88. [Google Scholar] [CrossRef] - Adhari, H.; Dreibholz, T.; Becke, M.; Rathgeb, E.P.; Tüxen, M. Evaluation of Concurrent Multipath Transfer over Dissimilar Paths. In Proceedings of the 1st International Workshop on Protocols and Applications with Multi-Homing Support (PAMS), Singapore, 22–25 March 2011; pp. 708–714. [Google Scholar]
- Dreibholz, T.; Becke, M.; Rathgeb, E.P.; Tüxen, M. On the Use of Concurrent Multipath Transfer over Asymmetric Paths. In Proceedings of the IEEE Global Communications Conference (GLOBECOM), Miami, FL, USA, 6–10 December 2010; pp. 1–6. [Google Scholar]
- Natarajan, P.; Ekiz, N.; Yilmaz, E.; Amer, P.D.; Iyengar, J.R. Non-Renegable Selective Acknowledgments (NR-SACKs) for SCTP. In Proceedings of the 16th IEEE International Conference on Network Protocols (ICNP), Orlando, FL, USA, 19–22 October 2008; pp. 187–196. [Google Scholar]
- Deng, Z. Non-Renegable Selective Acknowledgements (NR-SACKs) for MPTCP. IETF, Individual Submission, Internet Draft Draft-Deng-Mptcp-Nrsack-00. December 2013. Available online: https://datatracker.ietf.org/doc/html/draft-deng-mptcp-nrsack-00 (accessed on 18 June 2021).
- Raiciu, C.; Paasch, C.; Barré, S.; Ford, A.; Honda, M.; Duchêne, F.; Bonaventure, O.; Handley, M. How Hard Can It Be? Designing and Implementing a Deployable Multipath TCP. In Proceedings of the 9th USENIX Conference on Networked Systems Design and Implementation (NSDI), San Jose, CA, USA, 25–27 April 2012; pp. 1–14. [Google Scholar]
- Ferlin, S.; Dreibholz, T.; Alay, Ö. Tackling the Challenge of Bufferbloat in Multi-Path Transport over Heterogeneous Wireless Networks. In Proceedings of the IEEE/ACM International Symposium on Quality of Service (IWQoS), Hong Kong, China, 26–27 May 2014; pp. 123–128. [Google Scholar]
- Hu, Q.; Zhou, R.; Zhou, L. Forward Prediction Data Scheduling Mechanism for MPTCP. Appl. Res. Comput.
**2013**, 30, 560–561. [Google Scholar] - Ferlin, S.; Dreibholz, T.; Alay, Ö.; Kvalbein, A. Measuring the QoS Characteristics of Operational 3G Mobile Broadband Networks. In Proceedings of the 4th International Workshop on Protocols and Applications with Multi-Homing Support (PAMS), Victoria, BC, Canada, 13–16 May 2014; pp. 753–758. [Google Scholar]
- Scikit-Learn. Available online: https://scikit-learn.org/stable/supervised_learning.html#supervised-learning (accessed on 22 June 2021).
- Dreibholz, T. HiPerConTracer–A Versatile Tool for IP Connectivity Tracing in Multi-Path Setups. In Proceedings of the 28th IEEE International Conference on Software, Telecommunications and Computer Networks (SoftCOM), Split, Croatia, 17–19 September 2020; pp. 1–6. [Google Scholar]
- Dreibholz, T. NorNet at Hainan University in 2021: From Simulations to RealWorld Internet Measurements for Multi-Path Transport Research–A Remote Presentation. Keynote Talk at Hainan University, College of Information Science and Technology (CIST), Haikou, Hainan, China. January 2021. Available online: https://www.uni-due.de/~be0001/mptcp/ (accessed on 18 June 2021).
- Gran, E.G.; Dreibholz, T.; Kvalbein, A. NorNet Core–A Multi-Homed Research Testbed. Comput. Netw.
**2014**, 61, 75–87. [Google Scholar] [CrossRef][Green Version] - Golkar, F.; Dreibholz, T.; Kvalbein, A. Measuring and Comparing Internet Path Stability in IPv4 and IPv6. In Proceedings of the 5th IEEE International Conference on the Network of the Future (NoF), Paris, France, 3–5 December 2014; pp. 1–5. [Google Scholar]
- Dreibholz, T.; Becke, M.; Adhari, H.; Rathgeb, E.P. Evaluation of a New Multipath Congestion Control Scheme using the NetPerfMeter Tool-Chain. In Proceedings of the 19th IEEE International Conference on Software, Telecommunications and Computer Networks (SoftCOM), Split, Croatia, 15–17 September 2011; pp. 1–6. [Google Scholar]
- Dreibholz, T. NetPerfMeter: A Network Performance Metering Tool. Multipath TCP Blog. Available online: http://blog.multipath-tcp.org/blog/html/2015/09/07/netperfmeter.html (accessed on 18 June 2021).
- Fu, F.; Zhou, X.; Dreibholz, T.; Wang, K.; Zhou, F.; Gan, Q. Performance Comparison of Congestion Control Strategies for Multi-Path TCP in the NorNet Testbed. In Proceedings of the 4th IEEE/CIC International Conference on Communications in China (ICCC), Shenzhen, Guangdong, China, 2–4 November 2015; pp. 607–612. [Google Scholar]
- Dreibholz, T.; Zhou, X.; Fu, F. Multi-Path TCP in Real-World Setups–An Evaluation in the NorNet Core Testbed. In Proceedings of the 5th International Workshop on Protocols and Applications with Multi-Homing Support (PAMS), Gwangju, Korea, 24–27 March 2015; pp. 617–622. [Google Scholar]
- Becke, M.; Dreibholz, T.; Adhari, H.; Rathgeb, E.P. On the Fairness of Transport Protocols in a Multi-Path Environment. In Proceedings of the IEEE International Conference on Communications (ICC), Ottawa, ON, Canada, 10–15 June 2012; pp. 2666–2672. [Google Scholar]
- Cerf, V.; Jacobson, V.; Weaver, N.; Gettys, J. BufferBloat: What’s Wrong with the Internet? ACM Queue
**2011**, 9, 10–20. [Google Scholar] [CrossRef] - Gettys, J. Bufferbloat: Dark Buffers in the Internet. IEEE Internet Comput.
**2011**, 15, 95–96. [Google Scholar] [CrossRef][Green Version]

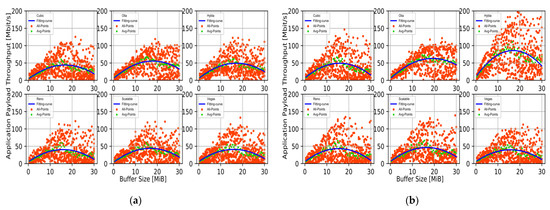

**Figure 5.**Relationship between buffer size and throughput for SRL to HU with: (

**a**) FullMesh; (

**b**) PCDC.

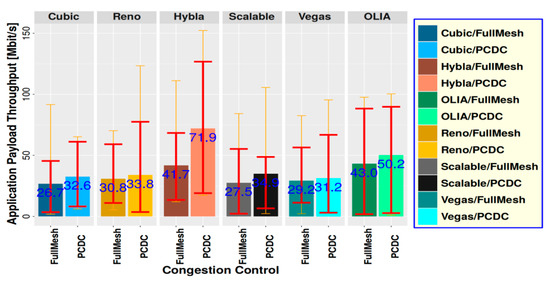

**Figure 6.**Throughput test results on NorNet Core testbed for SRL to HU with different PM and CC, without MPCOA.

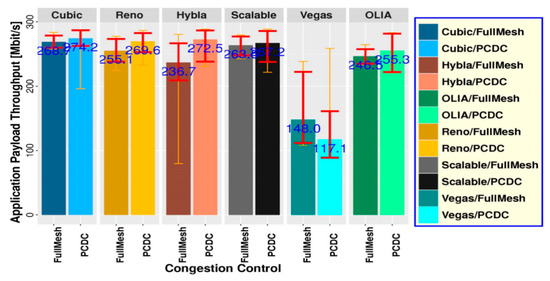

**Figure 7.**Throughput test results on NorNet Core testbed for UNIS to HiN with different PM and CC, without MPCOA.

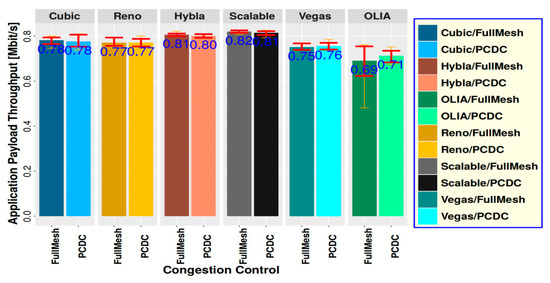

**Figure 8.**Throughput test results on NorNet Core testbed for UiT to HAW with different PM and CC, without MPCOA.

Site | Location (City, Province, Country) | Internet Service Provider (ISP) | Bandwidth (Down/Up) Kbit/s |
---|---|---|---|

Simula Research Laboratory (SRL) | Fornebu, Viken, Norway | Uninett (U) | 100,000/100,000 |

Kvantel (K) | 1,000,000/1,000,000 | ||

PowerTech (P) | 6000/256 | ||

Telenor (T) | 3000/768 | ||

Hainan University (HU) | Haikou, Hainan, China | CERNET (C) | 100,000/100,000 |

CnUnicom (CU) | 20,000/20,000 | ||

Universitetet på Svalbard (UNIS) | Longyearbyen, Svalbard, Norway | Uninett (U) | 100,000/100,000 |

Telenor (T) | 10,000/10,000 | ||

Høgskolen i Narvik (HiN) | Narvik, Nordland, Norway | Uninett (U) | 100,000/100,000 |

PowerTech (P) | 6000/512 | ||

Broadnet (B) | 16,000/768 | ||

Universitetet i Tromsø (UiT) | Tromsø, Troms, Norway | PowerTech (P) | 6000/512 |

Telenor (T) | 2000/384 | ||

Hochschule Hamburg (HAW) | Hamburg, Hamburg, Germany | DFN (D) | 100,000/100,000 |

Scenario | From ISP | To ISP | Subflow | Ω | |||||
---|---|---|---|---|---|---|---|---|---|

Cubic | OLIA | Hybla | Reno | Scalable | Vegas | ||||

SRL-HU | Kvantel | CERNET | K-C | 0.496 | 0.376 | 0.396 | 0.469 | 0.292 | 0.356 |

Kvantel | CnUnicom | K-CU | 0.248 | 0.359 | 0.174 | −0.027 | 0.19 | 0.135 | |

PowerTech | CERNET | P-C | −0.313 | 0.098 | −23.667 | 0.174 | −0.324 | 0.086 | |

PowerTech | CnUnicom | P-CU | 0.184 | 0.172 | −0.366 | −0.496 | 0.24 | 0.077 | |

Telenor | CERNET | T-C | 0.032 | −0.54 | −40.713 | 0.14 | 0.057 | 0.08 | |

Telenor | CnUnicom | T-CU | 0.046 | 0.105 | −13.235 | 0.085 | 0.02 | 0.057 | |

Uninett | CERNET | U-C | 0.239 | 0.305 | 0.209 | 0.235 | 0.301 | 0.325 | |

Uninett | CnUnicom | U-CU | 0.063 | 0.113 | 0.258 | 0.165 | 0.072 | 0.189 | |

UNIS-HiN | Telenor | Broadnet | T-B | −0.014 | 0.017 | −0.019 | 0.061 | −0.154 | 0.014 |

Telenor | PowerTech | T-P | −0.063 | 0.002 | 0.001 | 0.028 | −0.03 | −0.004 | |

Telenor | Uninett | T-U | −0.011 | −0.047 | −0.013 | −0.034 | 0.036 | 0.027 | |

Uninett | Broadnet | U-B | −0.046 | 0.025 | −0.025 | 0.02 | −0.008 | 0.094 | |

Uninett | PowerTech | U-P | −0.075 | 0.054 | −0.003 | −0.001 | 0.004 | −0.13 | |

Uninett | Uninett | U-U | 0.897 | 0.916 | 0.921 | 0.92 | 0.923 | 0.852 | |

UiT-HAW | PowerTech | DFN | P-D | 0.59 | 0.61 | 0.55 | 0.57 | 0.61 | 0.58 |

Telenor | DFN | T-D | 0.44 | 0.46 | 0.44 | 0.43 | 0.45 | 0.44 |

CC | Optional Subflow Subset | ||
---|---|---|---|

SRL-HU | UNIS-HiN | UiT-HAW | |

Cubic | {K-C, K-CU, P-CU, T-C, T-CU, U-C, U-CU} | {U-U} | {P-D, T-D} |

OLIA | {K-C, K-CU, P-C, P-CU, T-CU, U-C, U-CU} | {T-B, T-P, U-B, U-P, U-U} | {P-D, T-D} |

Hybla | {K-C, K-CU, U-C, U-CU} | {T-P, U-U} | {P-D, T-D} |

Reno | {K-C, P-C, T-C, T-CU, U-C, U-CU} | {T-B, T-P, U-B, U-U} | {P-D, T-D} |

Scalable | {K-C, K-CU, P-CU, T-C, T-CU, U-C, U-CU} | {T-U, U-P, U-U} | {P-D, T-D} |

Vegas | {K-C, K-CU, P-C, P-CU, T-C, T-CU, U-C, U-CU} | {T-B, T-U, U-B, U-U} | {P-D, T-D} |

**Table 4.**Maximum throughput calculation with different PM and CC for SRL to HU, UNIS to HiN, and UiT to HAW.

Scenario | Relationship among Different Congestion Control (CC), Path Management (PM), Throughput and Buffer Size Obtained from the Prediction Models | R and P | Calculation Results | ||
---|---|---|---|---|---|

CC | PM | ||||

FullMesh | PCDC | ||||

SRL-HU | Cubic | tp = 3.49 + 4.85bs − 0.15bs^{2} | tp = 6.31 + 5.45bs − 0.17bs^{2} | R-square = 0.80 p-value < 0.00001 | tp_{max} = 80.27bs = 18.12 |

OLIA | tp = 7.01 + 5.26bs − 0.15bs^{2} | tp = 2.41 + 6.51bs − 0.17bs^{2} | |||

Hybla | tp = 5.91 + 5.00bs − 0.15bs^{2} | tp = 24.49 + 6.16bs − 0.17bs^{2} | |||

Reno | tp = 4.47 + 4.59bs − 0.15bs^{2} | tp = 3.49 + 5.30bs − 0.17bs^{2} | |||

Scalable | tp = 3.49 + 4.85bs − 0.15bs^{2} | tp = 1.99 + 5.64bs − 0.17bs^{2} | |||

Vegas | tp = 4.67 + 4.63bs − 0.15bs^{2} | tp = 0.47 + 5.38bs − 0.17bs^{2} | |||

UNIS-HiN | Cubic | tp = 171.62 + 11.08bs − 0.29bs^{2} | tp = 200.82 + 9.63bs − 0.27bs^{2} | R-square = 0.94 p-value < 0.00001 | tp_{max} = 286.73bs = 17.83 |

OLIA | tp = 102.04 + 13.16bs − 0.29bs^{2} | tp = 118.6 + 12.25bs − 0.27bs^{2} | |||

Hybla | tp = 109 + 13.48bs − 0.29bs^{2} | tp = 159.5 + 11.42bs − 0.27bs^{2} | |||

Reno | tp = 111.74 + 13.54bs − 0.29bs^{2} | tp = 138.3 + 12.17bs − 0.27bs^{2} | |||

Scalable | tp = 130.48 + 12.95bs − 0.29bs^{2} | tp = 178.56 + 10.74bs − 0.27bs^{2} | |||

Vegas | tp = 55.28 + 9.85bs − 0.29bs^{2} | tp = 66.8 + 7.77bs − 0.27bs^{2} | |||

UiT-HAW | Cubic | tp = 0.763 + 0.002bs | tp = 0.764 + 0.002bs | R-square = 0.95 p-value < 0.00001 | tp_{max} = 0.87bs = 30 |

OLIA | tp = 0.675 + 0.004bs | tp = 0.68 + 0.003bs | |||

Hybla | tp = 0.795 + 0.002bs | tp = 0.796 + 0.002bs | |||

Reno | tp = 0.753 + 0.002bs | tp = 0.754 + 0.002bs | |||

Scalable | tp = 0.807 + 0.002bs | tp = 0.808 + 0.002bs | |||

Vegas | tp = 0.743 + 0.002bs | tp = 0.744 + 0.002bs |

Scenario | Optimized Solutions | Traditional Solutions of BS |
---|---|---|

SRL-HU | OPM = PCDC, OCC = Hybla, OBS = 12.36 MiB, OTP = 74.65 Mbit/s | B ≥ 329 MiB (RTT_{max} = 1.800 s, RTO _{max} = 2.000 s) |

UNIS-HiN | OPM = PCDC, OCC = Cubic, OBS = 9.22 MiB, OTP = 266.66 Mbit/s | B ≥ 54 MiB (RTT_{max} = 0.020 s,RTO _{max} = 1.000 s) |

UiT-HAW | OPM = FullMesh, OCC = Scalabale, OBS = 0.50 MiB, OTP = 0.81 Mbit/s | B ≥ 1.22 MiB (RTT_{max} = 1.800 s,RTO _{max} = 2.000 s) |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Chen, M.; Raza, M.W.; Zhou, X.; Dreibholz, T.; Tan, Y.
A Multi-Parameter Comprehensive Optimized Algorithm for MPTCP Networks. *Electronics* **2021**, *10*, 1942.
https://doi.org/10.3390/electronics10161942

**AMA Style**

Chen M, Raza MW, Zhou X, Dreibholz T, Tan Y.
A Multi-Parameter Comprehensive Optimized Algorithm for MPTCP Networks. *Electronics*. 2021; 10(16):1942.
https://doi.org/10.3390/electronics10161942

**Chicago/Turabian Style**

Chen, Min, Muhammad Waleed Raza, Xing Zhou, Thomas Dreibholz, and Yuyin Tan.
2021. "A Multi-Parameter Comprehensive Optimized Algorithm for MPTCP Networks" *Electronics* 10, no. 16: 1942.
https://doi.org/10.3390/electronics10161942
