3.1. Coating Morphology and Structure
Cross-sectional morphology of films and their multilayer structure were studied by SEM analysis.

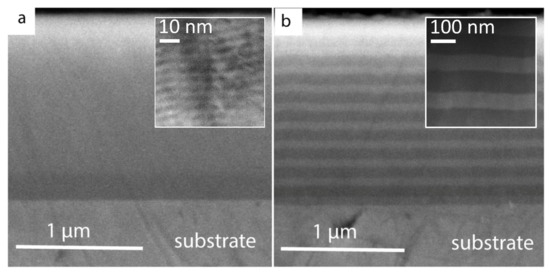

Figure 1 shows selected images of the TiN/CrN multilayer with the bilayer periods of 4.5 nm (a) and 150 nm (b) and nearly equal total thicknesses of about 1.5 µm. Due to the extremely small layer thickness in the multilayer coating with Λ = 4.5 nm, layer arrangements cannot be observed in SEM image of
Figure 1a. Therefore, an inset picture (placed in the top right side of
Figure 1a) taken by TEM is used to demonstrate the layered structure. Meanwhile, multilayer structure of the coating with Λ = 150 nm can easily be seen in SEM image of
Figure 1b, in which bright and dark areas represent CrN and TiN layers, respectively. Due to different rates of cathode evaporation and nitride formation, TiN layers are slightly thicker than CrN layers, which is more evident in the samples with larger bilayer periods.
Structural investigation of multilayers was carried out with XRD analysis and patterns are presented in
Figure 2. An XRD pattern of Custom 450 steel is included as the bottom graph in
Figure 2, in order to highlight the 2θ position of the substrate reflections in the XRD patterns of our CrN/TiN multilayers. In addition, XRD patterns of our monolithic CrN and TiN films allow one to track the peak shift (the observed main peak (220) for CrN is not shown here). The XRD patterns of CrN/TiN multilayer coatings with increasing bilayer period are arranged from bottom to top. All of the thin films reveal a face-centered cubic (c) structure with highly oriented (111) growth. Due to the presence of compressive residual stress in PVD coatings caused by thermal expansion coefficient difference between metallic substrate and ceramic layers, cumulative main peaks have shifted towards lower 2θ values as compared to diffraction patterns acquired from the (stress-free) powders of c-TiN (ICDD 00-038-1420) and c-CrN (ICDD 01-083-5612). Coatings with bilayer periods of 4.5, 7.5, and 15 nm show negative and positive satellite peaks being indicative of a superlattice structure. The superlattice structure cannot be observed for the films with bilayer period of 1.5 nm, when a solid solution of c-TiN and c-CrN is assumed to form, and exceeding 37.5 nm, when c-TiN and c-CrN layers are much less mutually affected as reflected in clearly separated (111) reflections, see
Figure 2.

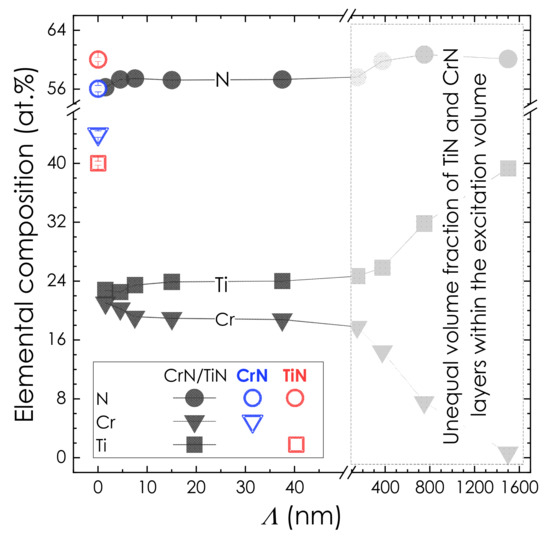

EDX analysis of TiN and CrN monolithic coatings carried out on three different spots on the surface close to both edges and in the middle reveals uniform distribution of the elements (see the errors bars in
Figure 3). Moreover, EDX analysis also reveals superstoichiometry in all coatings (see
Figure 3). Accordingly, N content in monolithic CrN was found to be 56 at.%, even higher in monolithic TiN, namely 60 at.%, while it was about 57 at.% in multilayer coatings CrN/TiN. Such a high concentration of nitrogen in B1 structured CrN and TiN might be directly related to the low deposition temperature [
34]. In fact, superstoichiometry was observed in many earlier studies on TiN [
35,
36,
37,
38] and CrN [
39] coatings deposited at low temperatures by means of magnetron sputtering. It is also worth mentioning that elemental composition in the referenced studies was determined by more reliable techniques, e.g., RBS [
38] or AES [
36]. According to the earlier first-principle calculations, superstoichiometric B1-CrN
x (
x > 1) energetically prefers to form through the generation of metal vacancies and incorporation of nitrogen into the anti-sites rather than through incorporation of nitrogen into the interstitial sites [
40]. Additionally, superstoichiometry might also be caused by excessive nitrogen at grain boundaries, since a high nitrogen-to-total-pressure ratio was used during all depositions [
35].
3.2. Mechanical Properties

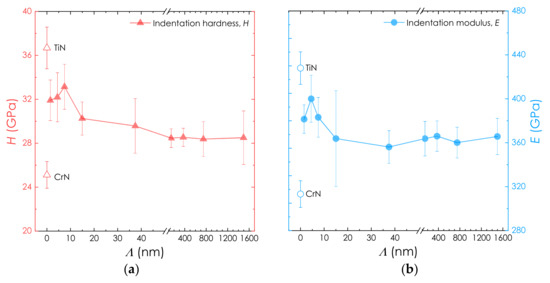

The results of nanoindentation tests show that TiN/CrN multilayer coatings exhibit the hardness values between that of binary TiN (36.7 ± 1.8 GPa) and CrN (25.1 ± 1.2 GPa) independent of bilayer period, see
Figure 4a. However, bilayer period plays a crucial role in the hardness of TiN/CrN multilayer coatings. The highest hardness was 33.1 ± 2.0 GPa for the bilayer period of 7.5 nm (see
Figure 4a). According to the XRD investigations shown in
Figure 2, such bilayer period results in the most pronounced superlattice structure as well.
With increasing bilayer period, indentation hardness of TiN/CrN multilayers decreases noticeably to 29.5 ± 2.4 GPa (Λ = 37.5 nm) and to 28.4 ± 0.8 GPa (Λ = 150 nm) but remains slightly above 28 GPa with further Λ increase up to 1500 nm. Hardness decrease in TiN/CrN multilayers with increasing bilayer period can be associated with decreasing volume fraction of the interlayer interfaces and hence facilitation of dislocation propagation into the adjacent layers. Larger bilayer periods also allow the formation of larger grains, and hence provide a lower volume fraction of the grain boundaries. Accordingly, dislocation movement is less impeded.
At the same time, smaller bilayer periods also result in lower hardness values of the multilayer coatings, compare 32.1 ± 2.2 GPa (Λ = 4.5 nm) and to 31.9 ± 1.8 GPa (Λ = 1.5 nm). According to XRD analysis, the smaller Λ is, the less pronounced the superlattice structure becomes and the more such multilayers tend to form a (Ti,Cr)N solid solution. This in turn leads to the loss of barrier properties possessed by multilayer structures.
The indentation modulus of TiN/CrN multilayer coatings shows a similar trend as indentation hardness and lays between
E values of binary TiN (427 ± 14 GPa) and CrN (313 ± 12 GPa) independent of bilayer period, see
Figure 4b. However, indentation modulus peaks in the
E–Λ curve (showing 399 ± 21 GPa) for a lower Λ = 4.5 nm. With increasing bilayer period, indentation modulus of TiN/CrN multilayers decreases noticeably to 383 ± 18 GPa (Λ = 7.5 nm) and to 364 ± 35 GPa (Λ = 15 nm) but remains about 360 GPa with further
Λ increase up to 1500 nm. Similarly, smaller bilayer periods also result in lower indentation modulus of the multilayer coatings, compared with 381 ± 12 GPa (Λ = 1.5 nm).
3.3. Fracture Investigation
Cracking and deformation mechanics were observed after high-load indentations performed with a cube-corner indenter. After examination of the residual imprints via SEM, all of our multilayer coatings show similar patterns without radial cracks initiated on the imprint edges or blister area due to buckling, which is common for many PVD hard coatings with huge residual stresses [
28].
High-magnification SEM (HMSEM) examination of the residual imprints made at loads ≤100 mN suggests that no cracks could be generated in the multilayer coatings. This is furthermore supported by the continuous load-displacement curves and testifies to a high cohesive strength preventing the initiation of surface cracks caused by high bending tensile stress around the indenter. Since cracking is not a relevant mechanism to address the plastic deformation of the coatings at such loads and considering columnar structure of the coatings, grain sliding could be the major reason (see the discussion of the TEM investigations).

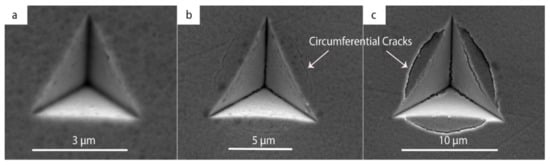

However, if higher loads are applied, HMSEM observations reveal circumferential cracks around the indent region with differences in radius and distribution depending on the loading level but also bilayer period of multilayers, see
Figure 5. By increasing the load to 300 mN and consequently increasing the bending tensile stress at the coating surface, surface cracks emerge and form the circumferential cracks around indent zone as shown in
Figure 5b. Crack may propagate downward to the coating-substrate interface or deflect at the interlayers interface. Load-displacement curve reveals a pop-in at the load about 130 mN. According to previous studies [
33,
41], this plateau is related to the local delamination of the coating due to high lateral pressure (which can be used to quantitatively estimate apparent fracture toughness of the coatings). Upon further increase of the load, based on the toughness and buckling resistance of the delaminated area, second circumferential crack forms outside the first one. As soon as the second crack propagates completely downward to the interface, another plateau will appear in the load-displacement curve. Since we observe only one plateau in the load-displacement curve of each coating, there is only one crack completely propagated to the substrate and initiated coatings delamination.

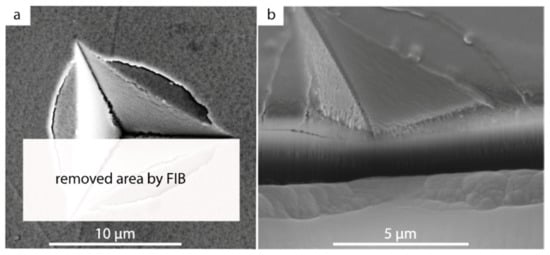

For a better understanding of the fracture events, especially those at the coating-substrate interface, as well as investigation of second and third circumferential cracks and their correlation with structural properties, cross-sectional studies of the residual imprints were carried out by means of SEM. For this purpose, one half of the imprint was removed in a FIB milling process leaving the cross-section of the remaining area for investigations (see
Figure 6). The cross-section in
Figure 6b elucidates the major fracture events, namely surface-initiated cracks, as well as coating-substrate interface delamination.

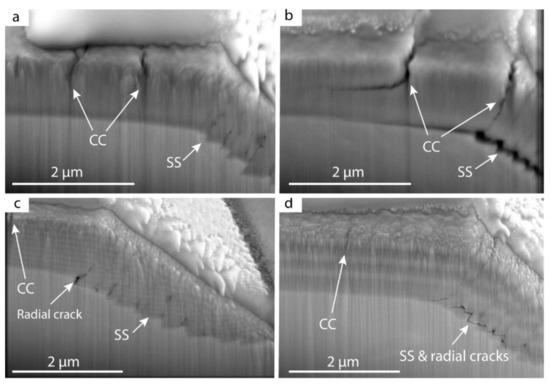

Based on the bilayer period, different cracking mechanisms can be observed in the multilayer coatings as revealed by the cross-sectional SEM investigations shown in
Figure 7. These include circumferential cracks (CC), shear steps (SS), and interfacial cracking (IC) or delamination. Due to the presence of the columnar structure as well as layered configuration in the multilayer coatings, a complex combination of the deformation mechanisms occurs. Based on the generated stresses beneath and around the indenter, deformation behavior of the multilayer coatings can be divided into two regimes: compressive and tensile. As the indenter approaches the coating surface and pushes down the whole system, high compressive stress arises directly beneath the indenter which forces the columns to slide alongside each other producing shear steps. The required shear stress to initiate the column sliding depends mainly on the size and distribution of the columns as well as the number of the interlayer interfaces. By increasing the number of the interlayer interfaces (hence decreasing the bilayer period), additional barriers appear hindering the columns glide. Coatings with bilayer periods of 150 and 375 nm produce wider steps (
Figure 7c,d), whilst the superlattice coating with Λ = 4.5 nm produces steps with a narrow width. Larger bilayer periods can ease the deformation process due to less interface barriers and smaller number of the grains. On the contrary, a higher number of the interlayer interfaces and grains requires more energy to activate columnar glide. Therefore, coatings with larger bilayer periods tend to deform by local shear sliding, while with smaller bilayer periods in the more slid areas. Accordingly, only small cracks are observed for the coatings with Λ = 150 and 375 nm, while circumferential cracks can be clearly seen for Λ = 4.5 nm.
Furthermore, in the first stages of loading with small displacement of the indenter, maximum tensile principal stress will be produced in the coating-substrate interface and then be expanded to the middle of the coatings [
26,
42]. Whenever sufficient principal stress arises at the coating-substrate interface, coatings with weaker column boundaries and wider shear steps are prone to generate the radial cracks caused by opening of the two adjacent steps (
Figure 7c,d). Multilayer effect can play a major role in the propagation and growth path of the radial cracks towards the coating’s surface. Radial cracks can be observed in
Figure 7 for multilayer coatings with bilayer period of 1.5, 150, and 375 nm, which indicates that after formation of the shear steps at the coating-substrate interface, these coatings become less resistant to the upward crack growth. However, these types of cracks are not obvious for the coating with Λ = 4.5 nm indicating that superlattice structure has a significant resistance against radial crack growth as compared to other multilayer coatings.
After increasing the load and consequently increasing the indenter penetration into the coating, bending tensile stress will be generated in the coatings’ top layers around the indenter, producing the maximum tensile principal stress. In this stage, mentioned area of the coatings acts as a beam and surface cracks start forming circumferential cracks. Focusing on first and second circumferential cracks in
Figure 7 presented by CC marks, it can be seen that the first crack is formed at the end of the indent zone for the coatings with the superlattice structure (e.g., Λ = 4.5 nm in
Figure 7b), whilst for other multilayer coatings it is generated a little far away from the indentation edge. This might result from a higher amount of energy released through the shear steps and radial cracks in solid solutions (
Figure 7a) and multilayers with significantly larger bilayer periods (
Figure 7c,d) as compared to superlattices. Furthermore, consumed energy in shear steps will reduce the total work of the indenter and consequently maximum generated stress at the coating’s surface will be decreased and shifted far off the indent zone. Therefore, the formation of the circumferential cracks for superlattice structures is faster than in other systems, which is also an indicator of the higher hardness and elastic properties, which is in line with the results of the nanoindentation measurements.
Once first circumferential cracking occurs, followed by the column glides under the indenter contact area, local delamination in the coating-substrate interface takes place and upon further increase of the indenter load, interfacial cracks grow up. In
Figure 7b, directly under the first circumferential crack, delamination occurred and expanded to the larger areas. Because of the high elastic recovery of the superlattice coatings during unloading stage and spring-back effect of the system (showed by high elastic modulus obtained with nanoindentation tests), the delaminated area becomes more obvious. For coatings with larger bilayer periods, delamination happens due to the coalescence of the separate cracks induced by shear steps. (Interfacial cracks or delamination effects will be manifested as a plateau in the load-displacement curve.)
Another significant observation in the cross-sections of the residual imprints (see
Figure 7) are the second circumferential cracks around the indent area. These second circumferential cracks are more pronounced for multilayer coatings with superlattice structures, which also show horizontally deflected path, while other multilayer systems demonstrate non-deflected growth path for second circumferential cracks. Crack deflection can in turn lengthen the propagation length and therefore increases the apparent fracture toughness. Hence, when multilayer coatings deform as a beam, surface cracks induced by high bending tensile stress represent different growth paths. Previous studies on the fracture investigations on the free-standing multilayer coatings, prepared as a single cantilever beam and subjected to bending loads, reveal improved fracture toughness for coatings with superlattice structures [
16,
17,
43].
As discussed above, the combination of various mechanisms in the tension and compression state of the overall stress induced in the multilayer coatings happens during general fracture of the system. In order to quantify the fracture investigations, plateau portions of the load-displacement curves for all multilayer coatings are analyzed. In
Figure 8, plateau section of the loading curve is magnified for a better measurement of the required parameters. Once load reaches
F1 at the displacement
h1, a sudden jump of the indenter in the displacement caused by delamination of the coating induces a step in the curve, ending at the load
F2 and the corresponding displacement
h2. This step is an indication of the energy dissipated during fracture,
U. At the absence of the cracking and delamination in the system, load-displacement behavior of the curve from
h1 to
h2 follows the red line in
Figure 8, resulting in
F3 in the displacement of

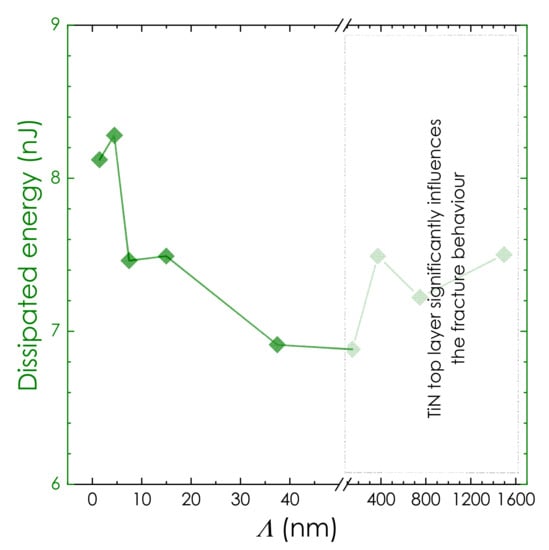

h2. The obtained area between the extrapolated red line and experimental green line and limited by the black curve represents the energy dissipated during the fracture. (Here, the black curve is a result of extrapolation of the unloading curve acquired at 100 mN, i.e., without steps, up to the intersection point with the red line). The calculated dissipated energy for the multilayer system with Λ = 4.5 nm has the maximum value implying the highest energy required for cracking activation and consequently toughness. It should be noted that obtained energy is the resultant of all mechanisms of absorption of the deformation energy, however, the cracking mechanism is predominant. Fracture energy decreases with increasing bilayer periods up to 200 nm but increases again with larger bilayer periods, see
Figure 9. This result is in accordance with previous studies [
16,
17], indicating that the effect of a multilayer structure on cracking resistance is more dominant than shear sliding of the granular structure effect. The increase in dissipated energy for bilayer periods larger than 150 nm can be attributed to the relatively large TiN top layer dominating the fracture process. The resulting apparent fracture toughness can be calculated as follows:
Here,
E and ν are indentation modulus and Poisson’s ratio of the coating, respectively [
28]. A can be expressed as
A = 2π∙
CR∙
t, where, 2π∙
CR is the crack length in the coating plane,
CR is the radius of circumferential through-thickness crack formed around the indenter, and
t is the coating thickness. The apparent fracture toughness of our multilayers follows the trend given by the dissipated energy. Due to the significant influence of the top TiN layer on the fracture toughness values for multilayer coatings with bilayer periods larger than 150 nm, obtained values cannot be purely related to the multilayer system. Additionally, the right side of the
Figure 9 representing the fracture energies for coatings with Λ > 150 nm, is blurred. Summarized results are listed in
Table 2.
3.4. TEM Investigations
Cross-sectional TEM as well as STEM observations allow us to provide deeper insights into the deformation events in multilayer coatings with Λ = 4.5 (with the most pronounced superlattice structure,
Figure 10) and 150 nm (
Figure 11) after indentation with a cube-corner indenter at 100 mN. Four shear steps on each side of the residual imprint in superlattice coating with Λ = 4.5 nm can clearly be observed in the cross-sectional STEM-HAADF image, see
Figure 10a. This illustrates that columnar glide is the main deformation mechanism when applying indentation loads ≤100 mN. Selected Area Electron Diffraction (SAED) patterns of the three regions: “1” for area beneath the indenter tip, “2” for indented edge region and “3” for regions far away the indented zone; are shown in
Figure 10b–d, respectively. All of the SAEDs represent intense diffraction ring in <111> direction with discrete ring spots indicating the mostly regular distribution of grains. Due to high deformation under indenter and indented edge area, their patterns turn to more blurry spot rings, compared to those for un-deformed area (region “3”). Additionally, a bright-field image reveals continuous columns growing parallel to each other and though a high number of the layers (
Figure 10e). It can be seen clearly that the shear steps are initiated along the large columns glide direction and continued directly to the coating-substrate interface without any deflection (see
Figure 10f,g). By imposing more constraint and confinement against the columnar glide from the substrate in the coating-substrate interface, the gap between two adjacent steps can generate a radial crack. As loading increases, the number of steps also increases and interaction between increased number of the radial cracks and compressive stresses holding columns in contact causes interfacial delamination (see
Figure 7b). The bright-field image of the near-surface area (marked “4” in
Figure 10a) shows that beside the long columns glide line, short inclined glide line induced by smaller grains can be observed (see
Figure 10f). Hence, though high compressive stresses generated in the contact area of the coatings directly beneath the indenter can also activate the glide movement of the smaller grain, their sliding line will be confined by the glide line of the longer columns. Layers configurations and deformed shape of the layers in the near-radial-cracks area are represented in the STEM-HAADF image in
Figure 10h. Due to the small thickness of each layer as well as strong interlayers interfacial strength, deformation mechanisms like dislocation movement cannot occur inside the layers, and grain sliding of long columns is the main factor for coating’s plastic deformation.
Unlike the coating with Λ = 4.5 nm, no long sliding line through the entire coating can be observed in our CrN/TiN multilayer coating with Λ = 150 nm after indentation with a cube-corner indenter at 100 mN, see a STEM-HAADF image of the indentation cross-section in
Figure 11a. This implies the absence of the long columns growing through many layers. The number of the generated steps is lower, but the steps are wider than in superlattice coating with Λ = 4.5 nm. In addition to radial cracks, median cracks can also be observed. Furthermore, SAED pattern of the coating far region from the indented zone is shown in
Figure 11b. Compared to
Figure 10d, the diffraction spot rings are blurrier demonstrate the existence of the dispersed grown columns. It can be also seen that in addition to intense <111> diffraction ring, <220> ring (main diffraction peak for CrN in XRD analysis) has a significant intensity which means both TiN and CrN layers have their own growing directions, leading to more irregularity in grain formation to be caused. Moreover, SAED rings would be blurrier in the deformed areas, as can be seen in
Figure 11c,b. Unlike the long-grown columns in (
Figure 10e), grains forming columns have dispersed distribution and a short length, see
Figure 11e. As a result, whenever a sliding between two adjacent layers at the near-surface region happens, it will be extended to a short distance, not to the bottom surface of the coating. Furthermore, due to dispersed distribution of the columns, median cracks induced by grain sliding in the middle planes can grow when tensile stresses reach their critical value.
Individual layers and surrounded grains can be clearly identified at a higher magnification as shown in the bright-field image in
Figure 11f. It can be seen that a grain is confined by four layers. Therefore, an inclination or rotation in the grain boundaries orientation caused by applied stresses deforms the layer alignment in the surrounding layers, as pushing down the CrN layer (darker layer) by downward motion of the grain causes a deflection in the layer. A higher number of the dispersed grains in the coatings with lager bilayer periods can hence absorb the energy of external work in the form of grain rotation and boundary grain sliding and consequently increase the energy needed for crack initiation and propagation. Therefore, plastic deformation of CrN/TiN multilayer coatings at the indentation load of the 100 mN could be explained based on the columnar sliding in the coatings with smaller bilayer period, and a combination of grain rotation and sliding of dispersed columns for higher the coatings with larger bilayer periods. Similar results were suggested in former works [
25,
44].
