Next Article in Journal
A New Assistant Method for Characterizing Ablation Resistance of ZrC-SiC Dispersive Biphasic Coating on C/C Composites
Previous Article in Journal
Influence of Polymer Composition and Substrate on the Performance of Bioinspired Coatings with Antibacterial Activity
Open AccessArticle

Tribological Properties of Mo2N Films at Elevated Temperature

School of Materials Science and Engineering, Jiangsu University of Science and Technology, Mengxi Road 2, Zhenjiang 212003, China
*
Author to whom correspondence should be addressed.
Coatings 2019, 9(11), 734; https://doi.org/10.3390/coatings9110734
Received: 14 September 2019 / Revised: 18 October 2019 / Accepted: 23 October 2019 / Published: 6 November 2019
(This article belongs to the Section Surface Characterization, Deposition and Modification)

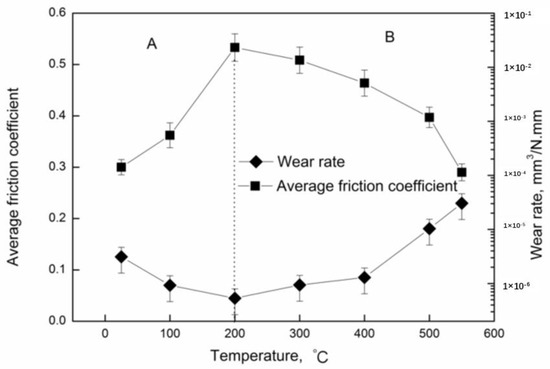

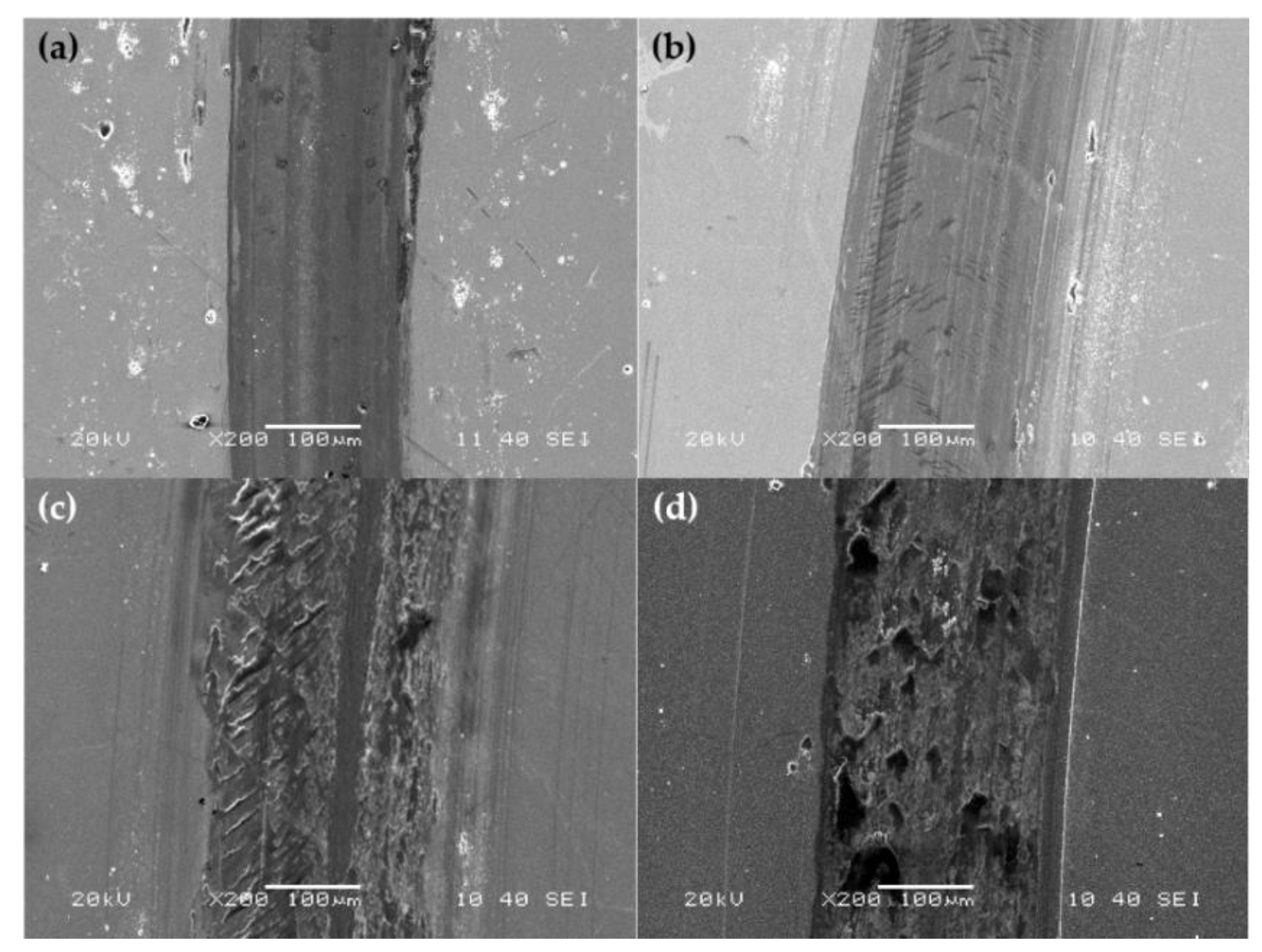

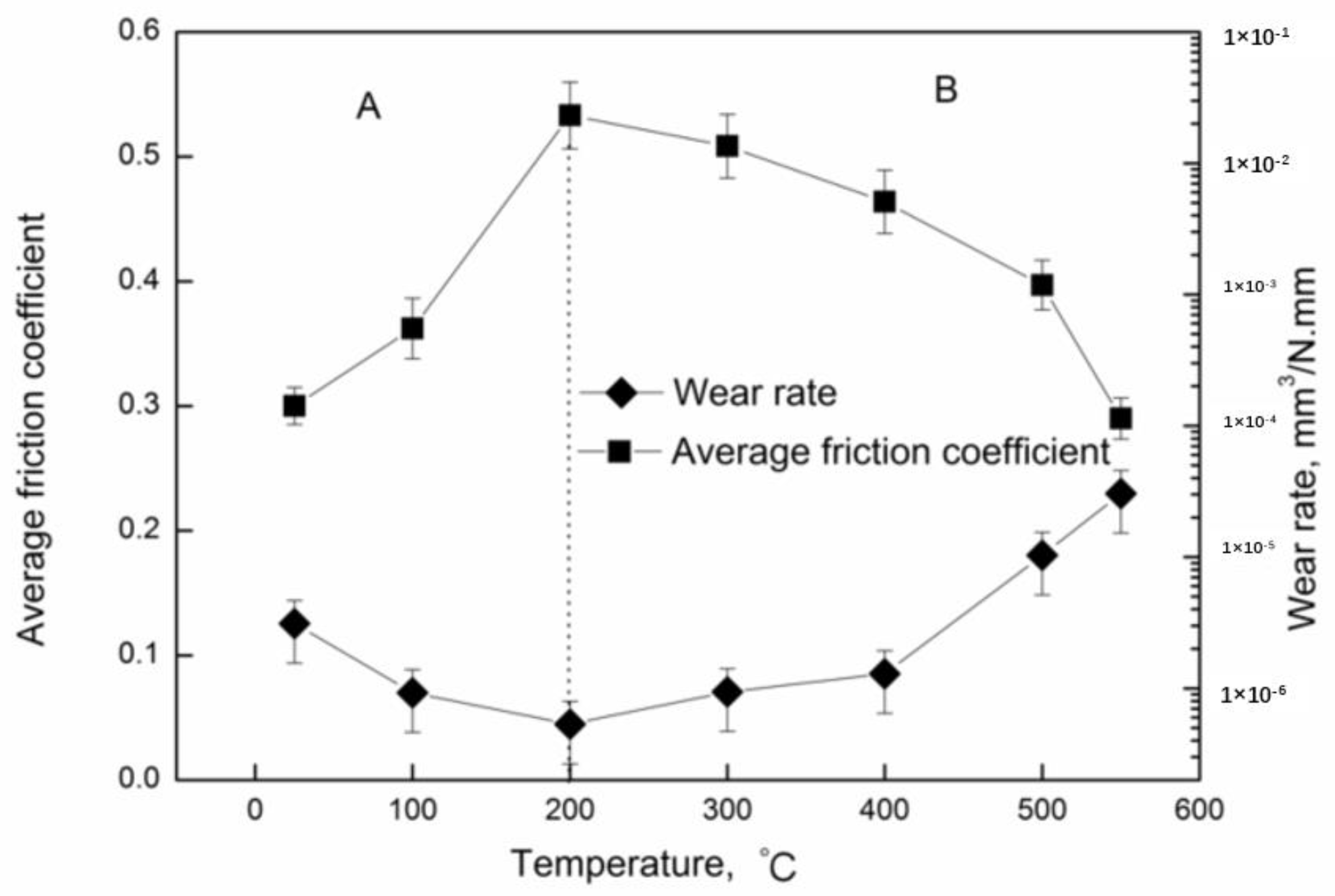

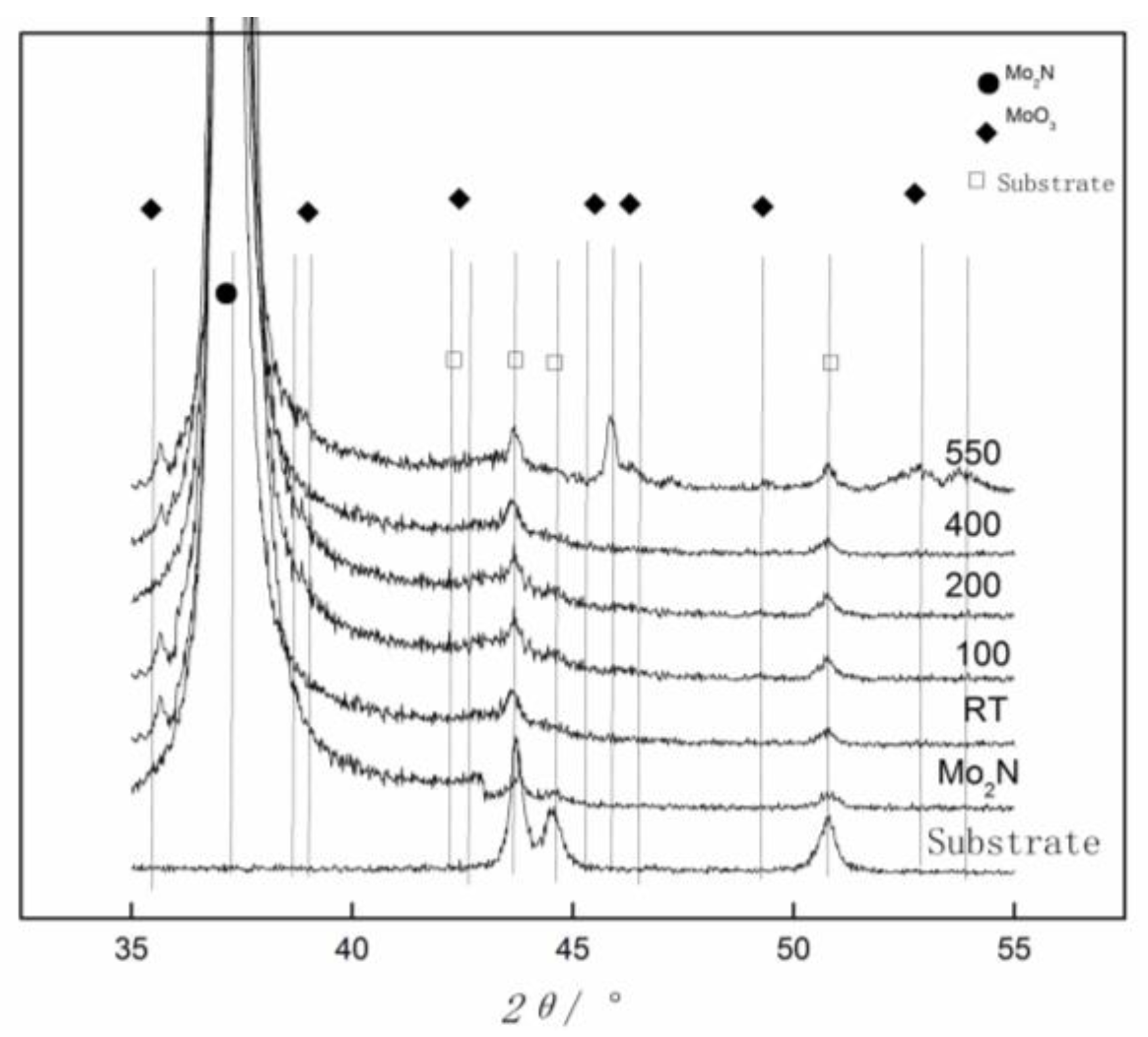

Mo2N films were synthesized using the reactive magnetron sputtering system in a mixture of argon and nitrogen, and the tribological properties were investigated at different testing temperatures against an Al2O3 counterpart. The relative intensity ratio (RIR) method was used to calculate the weight fraction of the tribo-film (MoO3) on the wear tracks of the films. The results showed that the average friction coefficient first increased from 0.30 at 25 °C to 0.53 at 200 °C, and then decreased to 0.29 at 550 °C, while the wear rate decreased from 2.1 × 10−6 mm3/Nmm at 25 °C to 5.3 × 10−7 mm3/Nmm at 200 °C and then increased to 3.1 × 10−5 mm3/Nmm at 550 °C. The weight fraction of tribo-film was mainly attributed to changes in the average friction coefficient and the wear rate. Besides this, the relative humidity also influenced the tribological properties at 25–200 °C. View Full-Text
Keywords: reactive magnetron sputtering; Mo2N films; elevated temperature; tribological properties reactive magnetron sputtering; Mo2N films; elevated temperature; tribological properties
Show Figures

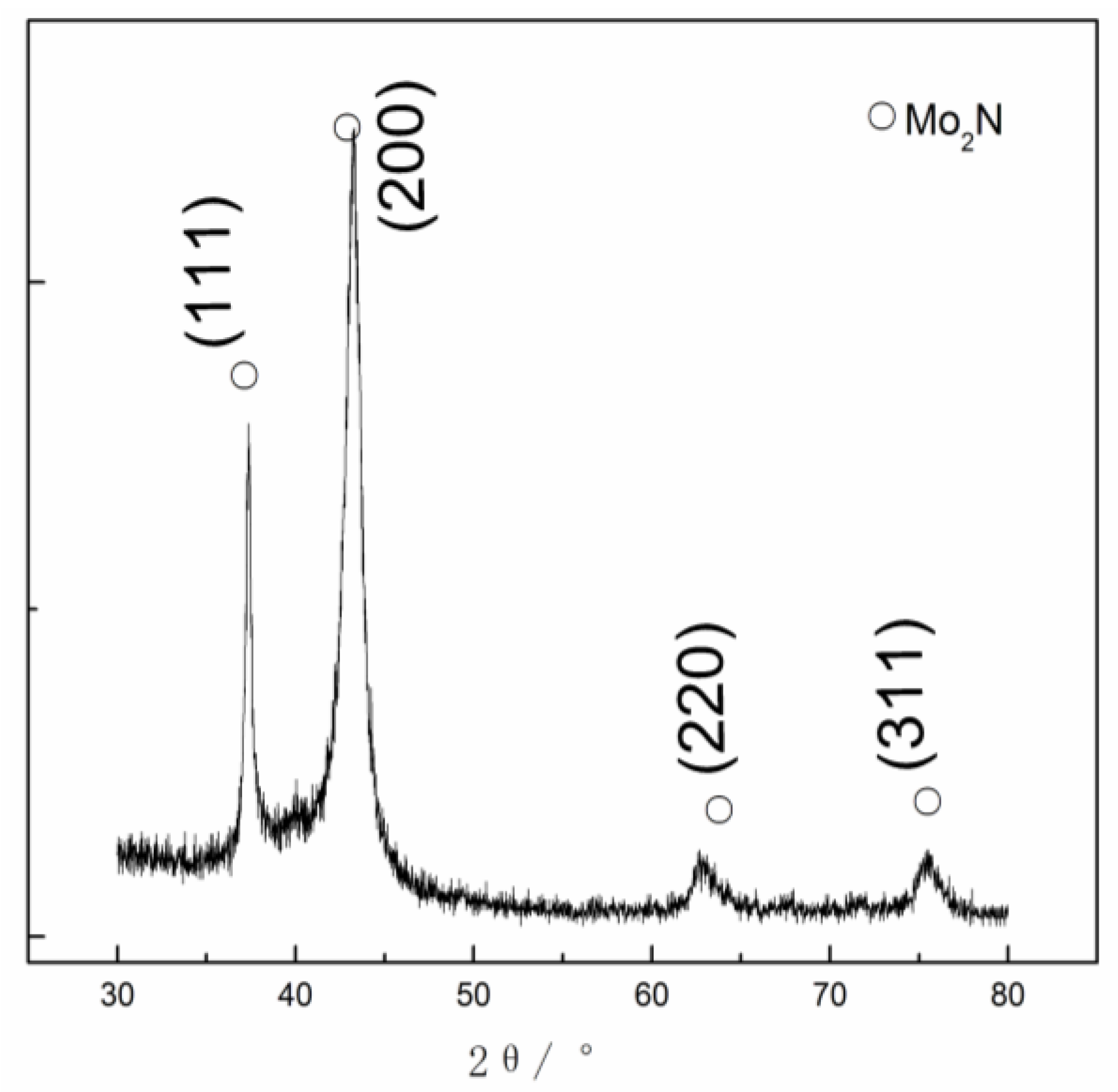

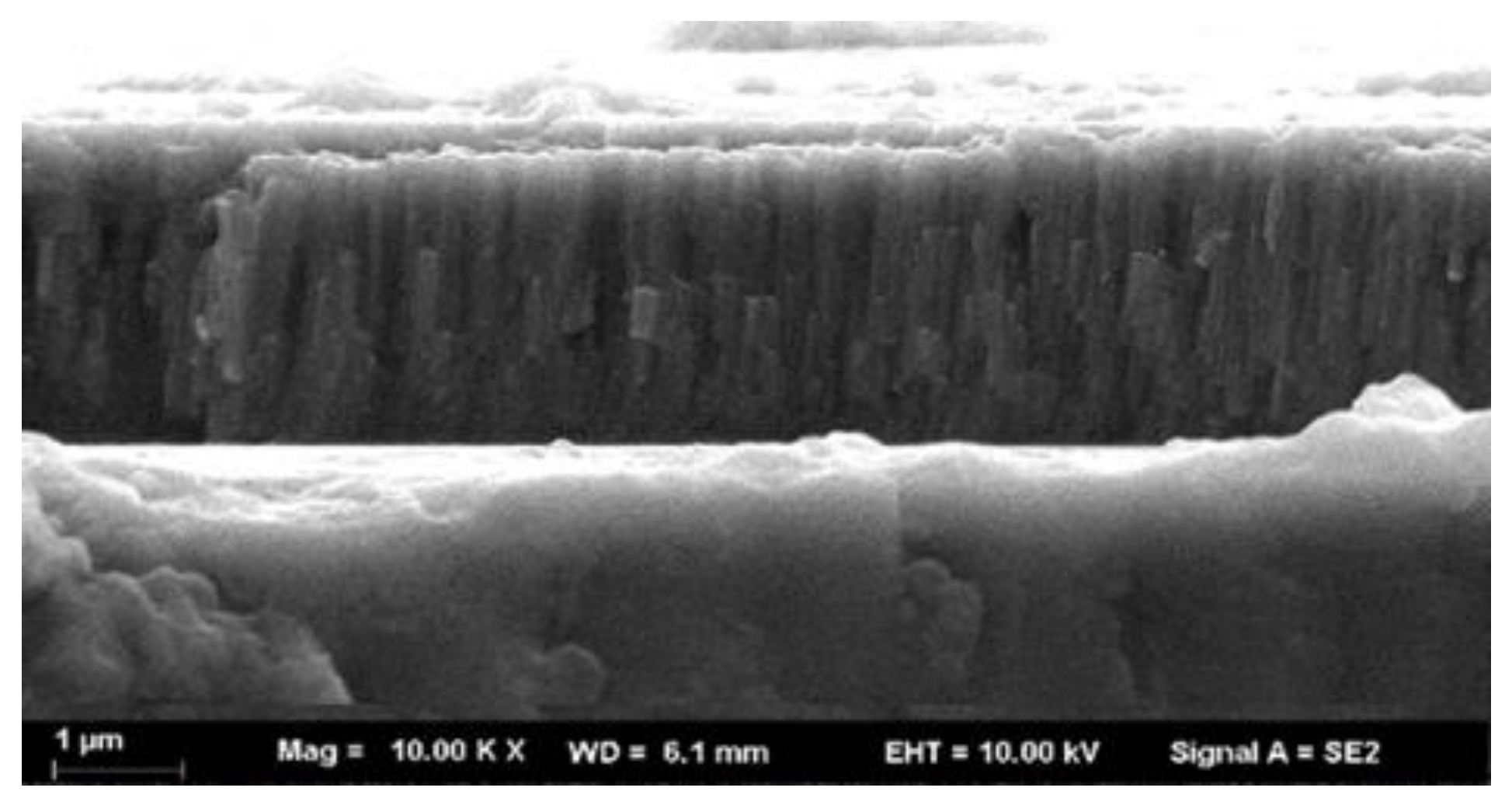

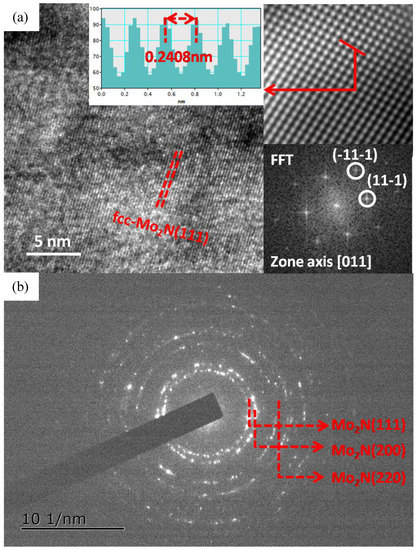

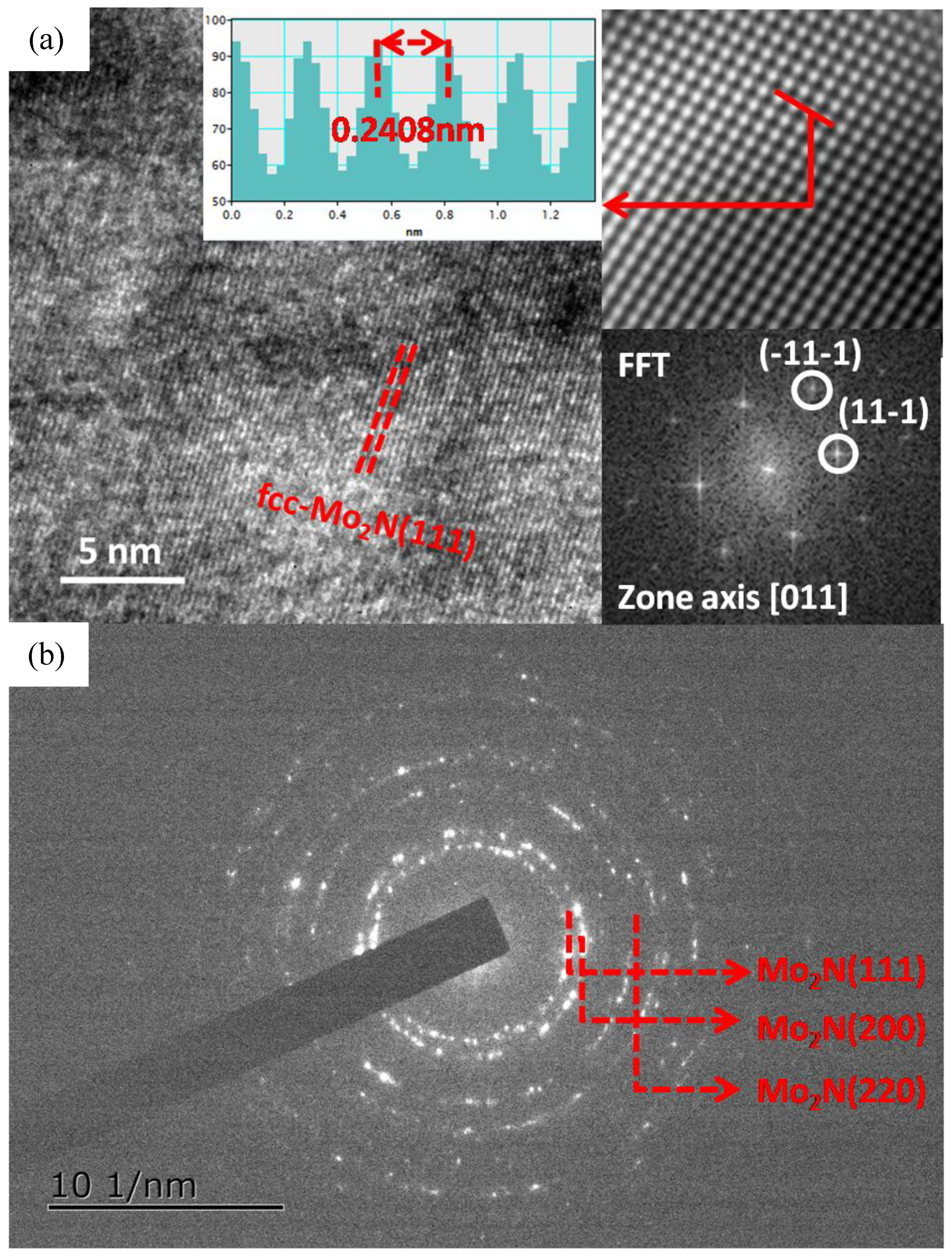

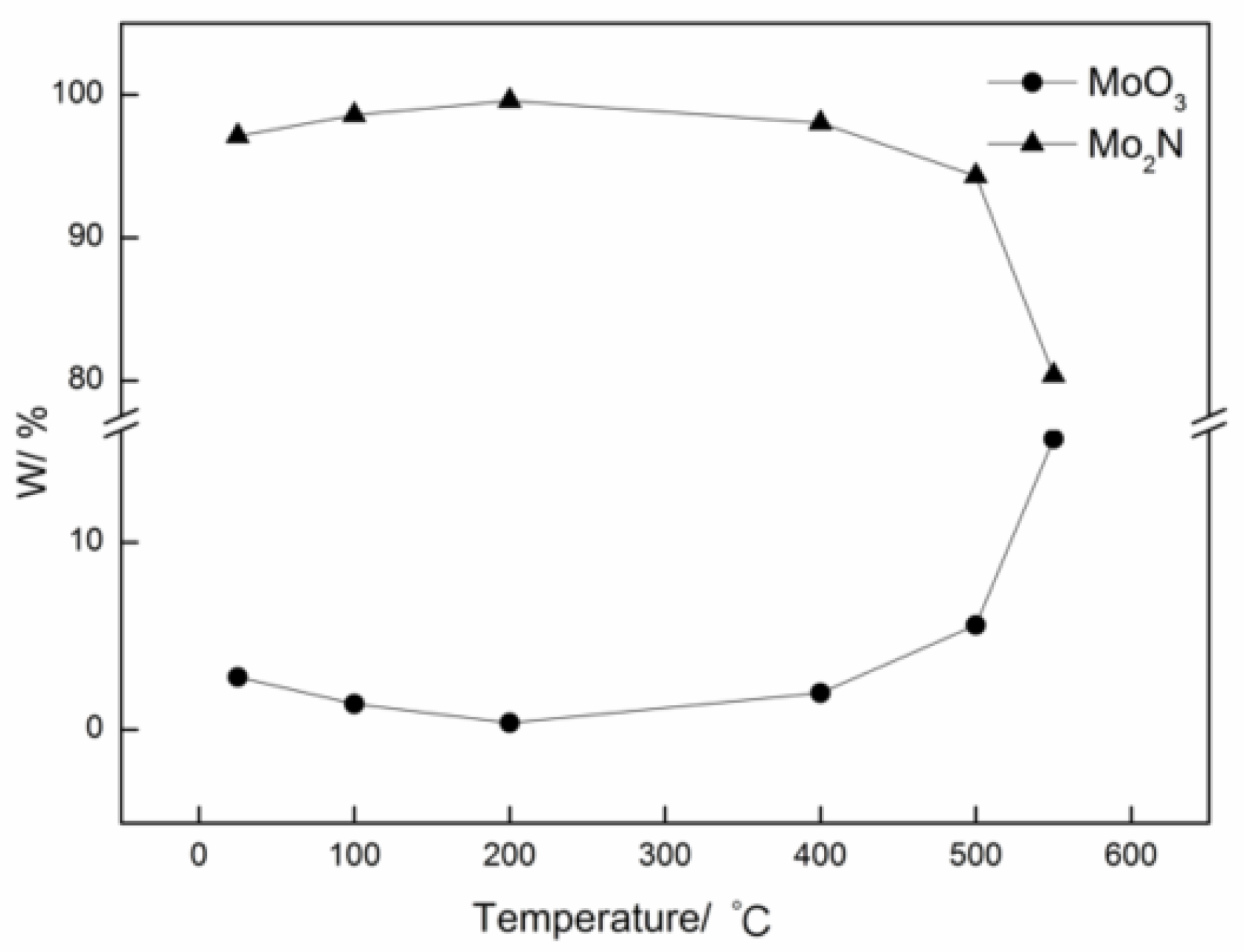

Figure 1

MDPI and ACS Style

Liu, C.; Ju, H.; Yu, L.; Xu, J.; Geng, Y.; He, W.; Jiao, J. Tribological Properties of Mo2N Films at Elevated Temperature. Coatings 2019, 9, 734.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
