Next Article in Journal
Fatigue and Mechanical Behavior of Ti-6Al-4V Alloy with CrN and TiN Coating Deposited by Magnetic Filtered Cathodic Vacuum Arc Process
Next Article in Special Issue
Water Saving in CSP Plants by a Novel Hydrophilic Anti-Soiling Coating for Solar Reflectors
Previous Article in Journal
Effect of Pulse Current Mode on Microstructure, Composition and Corrosion Performance of the Coatings Produced by Plasma Electrolytic Oxidation on AZ31 Mg Alloy
Previous Article in Special Issue
The Synthesis of a Superhydrophobic and Thermal Stable Silica Coating via Sol-Gel Process
Open AccessArticle

Scale Formation and Degradation of Diffusion Coatings Deposited on 9% Cr Steel in Molten Solar Salt

DECHEMA-Forschungsinstitut, Theodor-Heuss-Allee 25 60486 Frankfurt (Main), Germany
*
Author to whom correspondence should be addressed.
Coatings 2019, 9(10), 687; https://doi.org/10.3390/coatings9100687
Received: 27 September 2019 / Revised: 16 October 2019 / Accepted: 18 October 2019 / Published: 22 October 2019
(This article belongs to the Special Issue Surfaces and Interfaces for Renewable Energy)

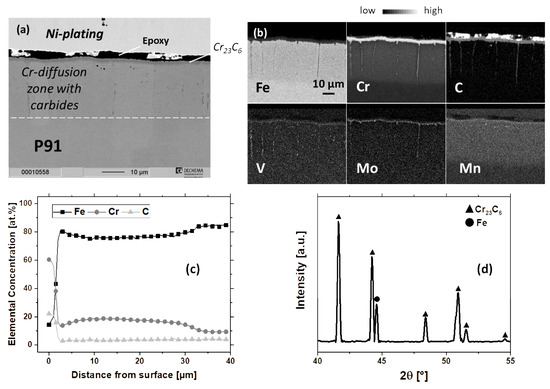

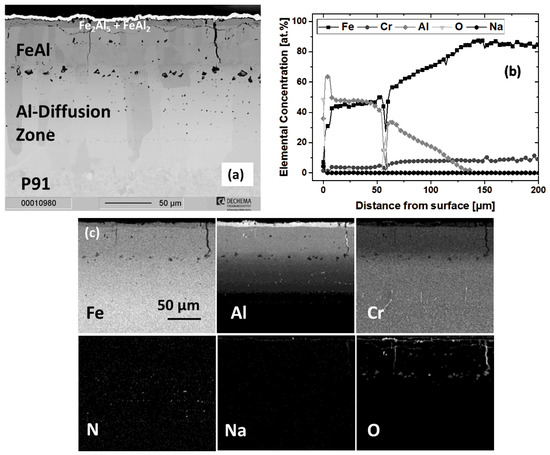

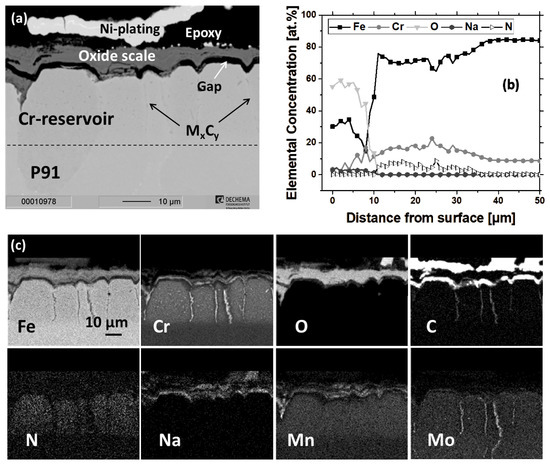

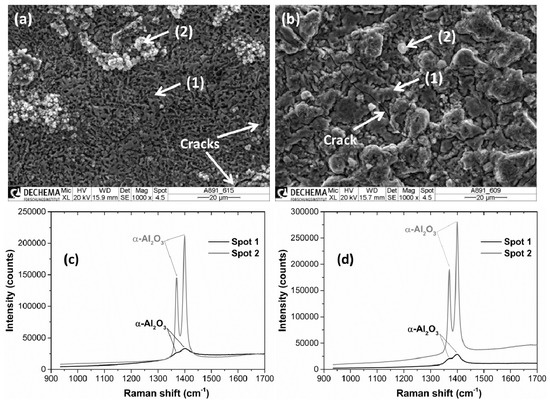

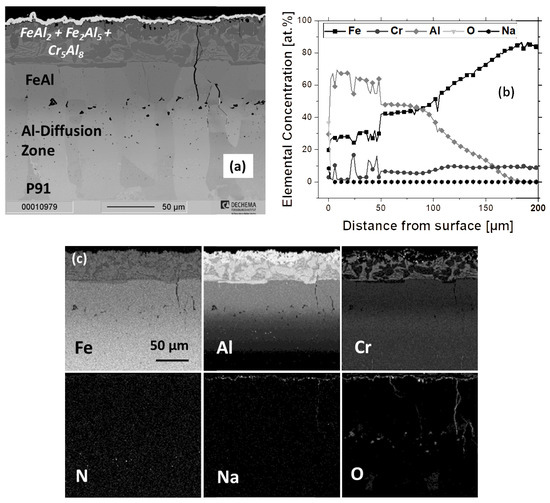

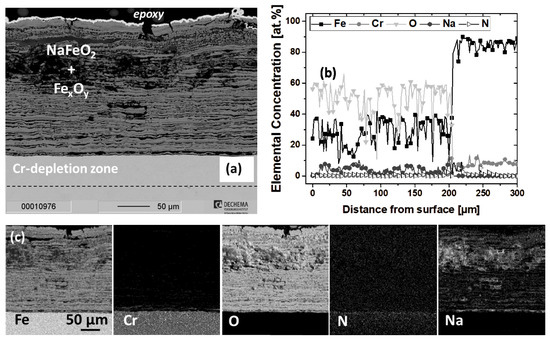

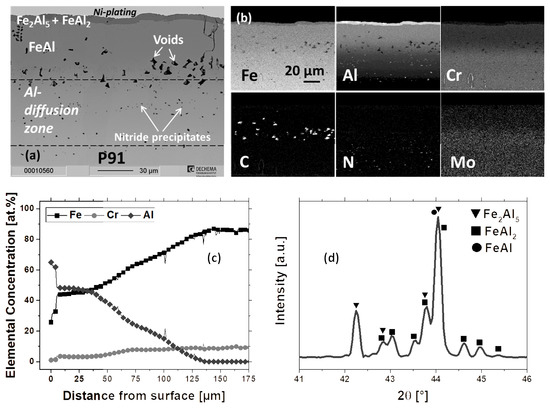

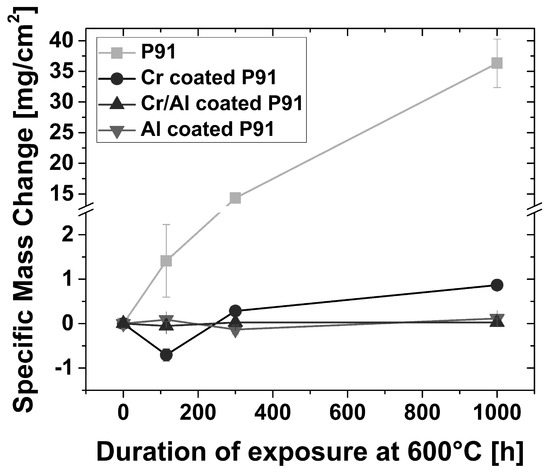

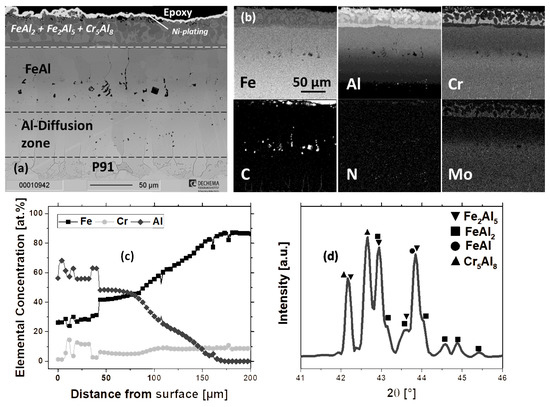

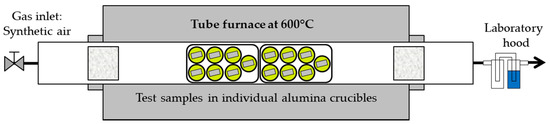

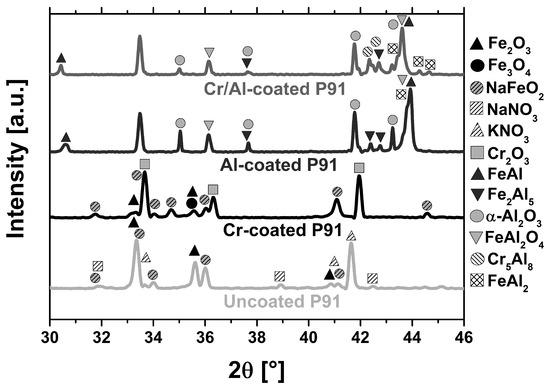

The employment of ferritic-martensitic steels e.g., P91, as structural materials in concentrated solar power (CSP) plants can significantly increase cost-efficiency. However, their application is strongly restricted by their lower corrosion resistance in molten nitrates, compared to austenitic steels or Ni-based alloys. In this study, Cr-, Al-, and Cr/Al-diffusion coatings were deposited on P91 via pack cementation in order to improve its scaling behavior in molten solar salt (MSS). The corrosion behavior of coated specimens was investigated with respect to uncoated P91 in MSS at 600 °C for up to 1000 h. The exposure in MSS resulted in a thick, highly porous, and multi-layered oxide scale on uncoated P91 consisting of hematite, magnetite, and sodium ferrite. On the other hand, the scale grown on the chromized P91 comprised of a thin Cr-rich inner layer, which shifted breakaway to prolonged exposure durations. The aluminized specimens both formed very thin, highly protective alumina scales with localized protrusions. View Full-Text
Keywords: concentrated solar power; grade 91 steel; Cr-diffusion coating; Al-diffusion coating; pack cementation; molten nitrate corrosion; X-ray diffraction; Raman spectroscopy; third element effect concentrated solar power; grade 91 steel; Cr-diffusion coating; Al-diffusion coating; pack cementation; molten nitrate corrosion; X-ray diffraction; Raman spectroscopy; third element effect
Show Figures

Figure 1

MDPI and ACS Style

Oskay, C.; Meißner, T.M.; Dobler, C.; Grégoire, B.; Galetz, M.C. Scale Formation and Degradation of Diffusion Coatings Deposited on 9% Cr Steel in Molten Solar Salt. Coatings 2019, 9, 687. https://doi.org/10.3390/coatings9100687

AMA Style

Oskay C, Meißner TM, Dobler C, Grégoire B, Galetz MC. Scale Formation and Degradation of Diffusion Coatings Deposited on 9% Cr Steel in Molten Solar Salt. Coatings. 2019; 9(10):687. https://doi.org/10.3390/coatings9100687

Chicago/Turabian Style

Oskay, Ceyhun; Meißner, Tobias M.; Dobler, Carmen; Grégoire, Benjamin; Galetz, Mathias C. 2019. "Scale Formation and Degradation of Diffusion Coatings Deposited on 9% Cr Steel in Molten Solar Salt" Coatings 9, no. 10: 687. https://doi.org/10.3390/coatings9100687

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
