Next Article in Journal
Multi-Walled Carbon Nanotube Coating on Alkali Treated TiO2 Nanotubes Surface for Improvement of Biocompatibility
Next Article in Special Issue
Bonding Characteristics and Chemical Inertness of Zr–Si–N Coatings with a High Si Content in Glass Molding
Previous Article in Journal
Synthesis of Polydimethylsiloxane-Modified Polyurethane and the Structure and Properties of Its Antifouling Coatings
Article Menu
Issue 5 (May) cover image

Export Article

Open AccessArticle
Coatings 2018, 8(5), 158; https://doi.org/10.3390/coatings8050158

Study on Modified Water Glass Used in High Temperature Protective Glass Coating for Ti-6Al-4V Titanium Alloy

1
College of Materials Science and Engineering, Sichuan University, Chengdu 610064, China
2
Southwest Institute of Technical Physics, Chengdu 610041, China
*
Author to whom correspondence should be addressed.
Received: 27 February 2018 / Revised: 3 April 2018 / Accepted: 19 April 2018 / Published: 26 April 2018
(This article belongs to the Special Issue Coatings for Dies and Molds)
Full-Text   |   PDF [2302 KB, uploaded 24 May 2018]   |

Abstract

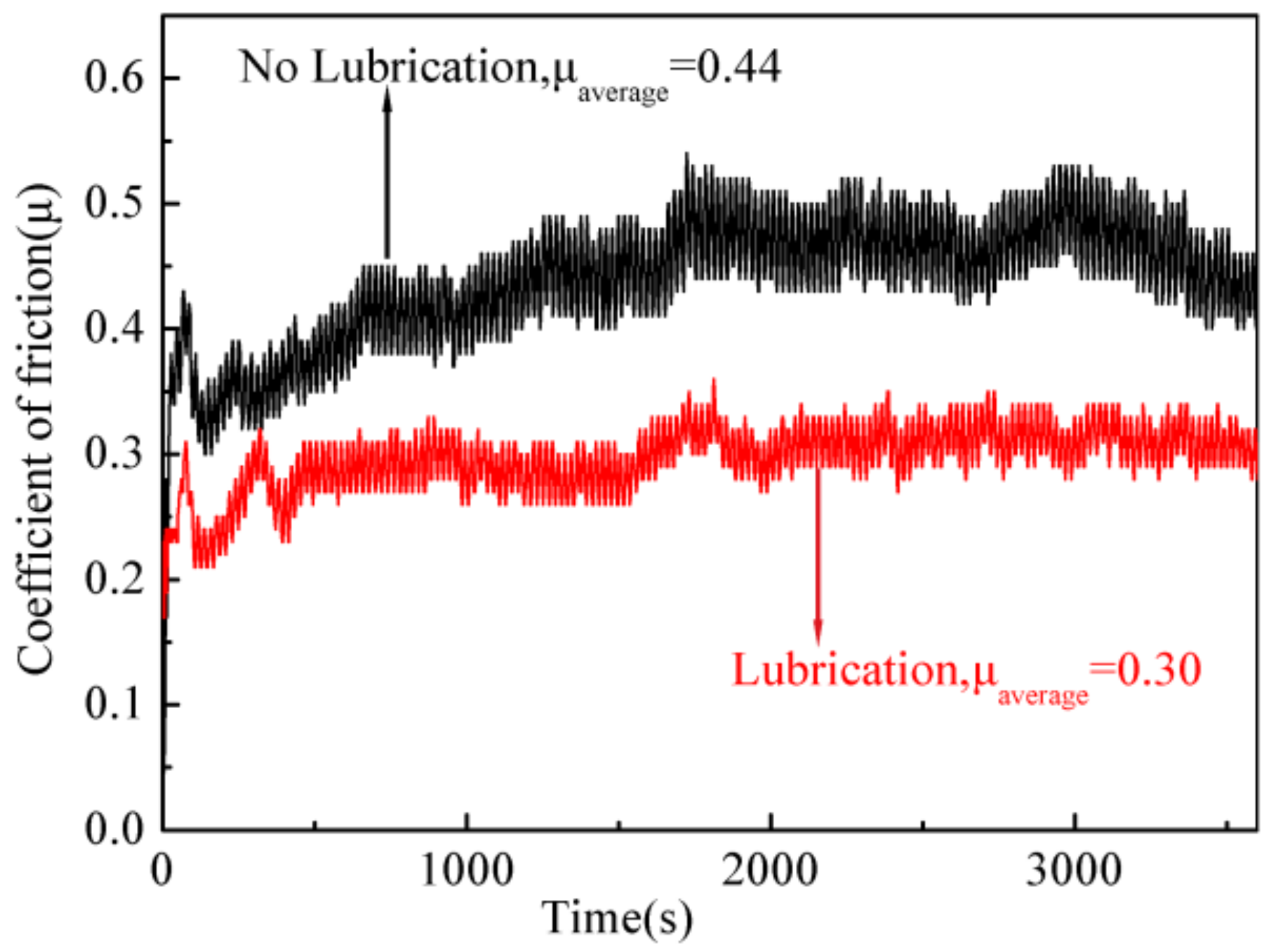

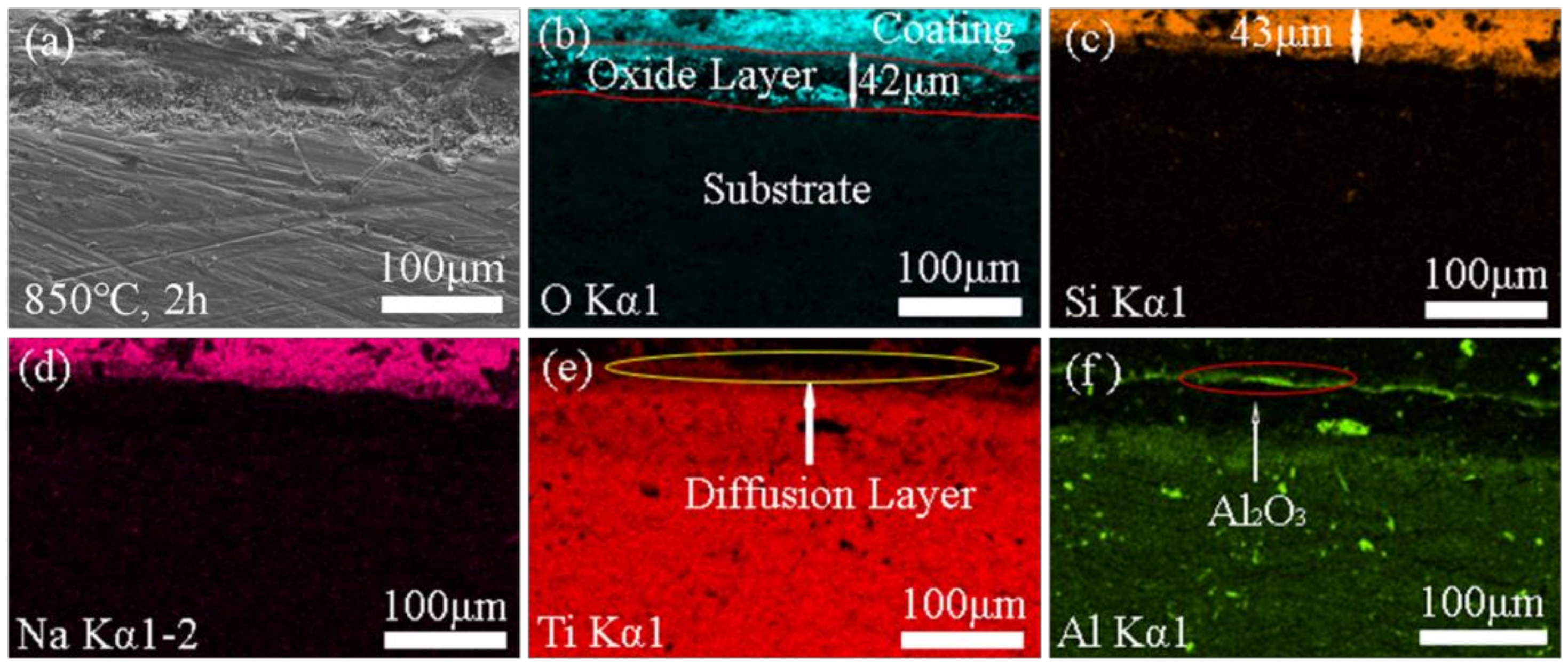

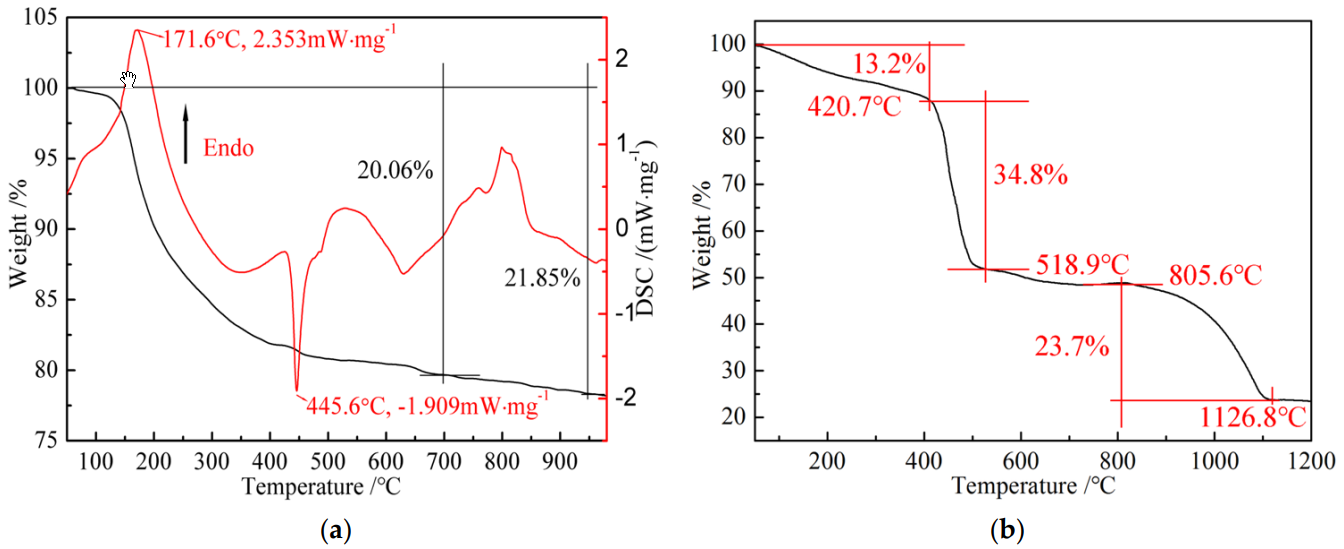

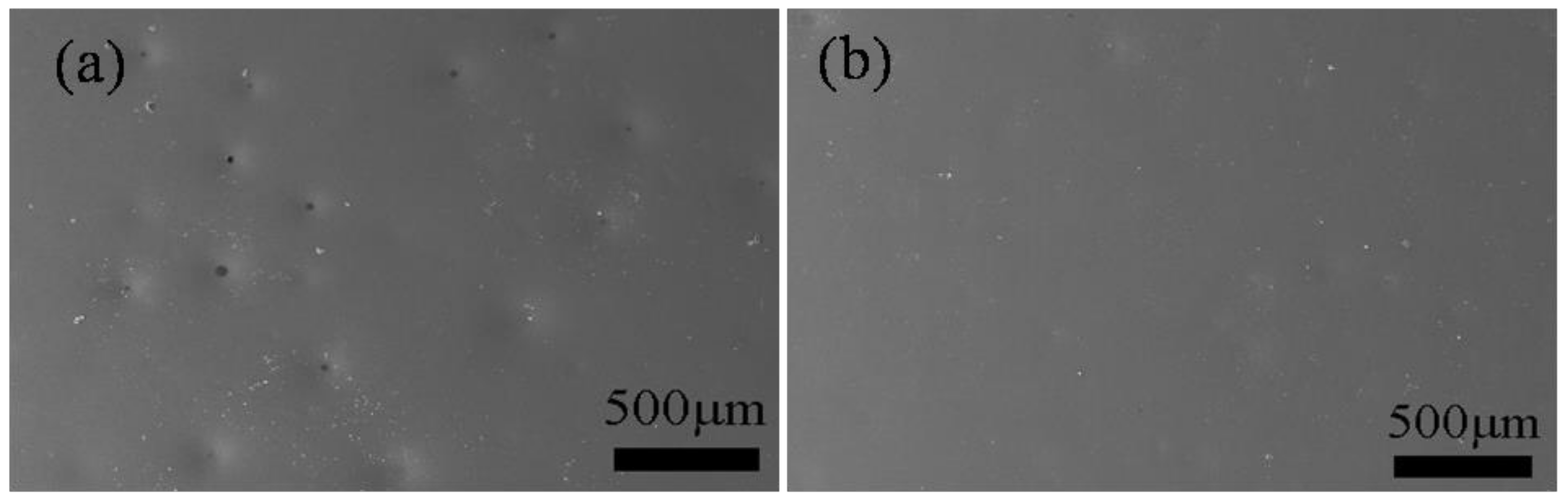

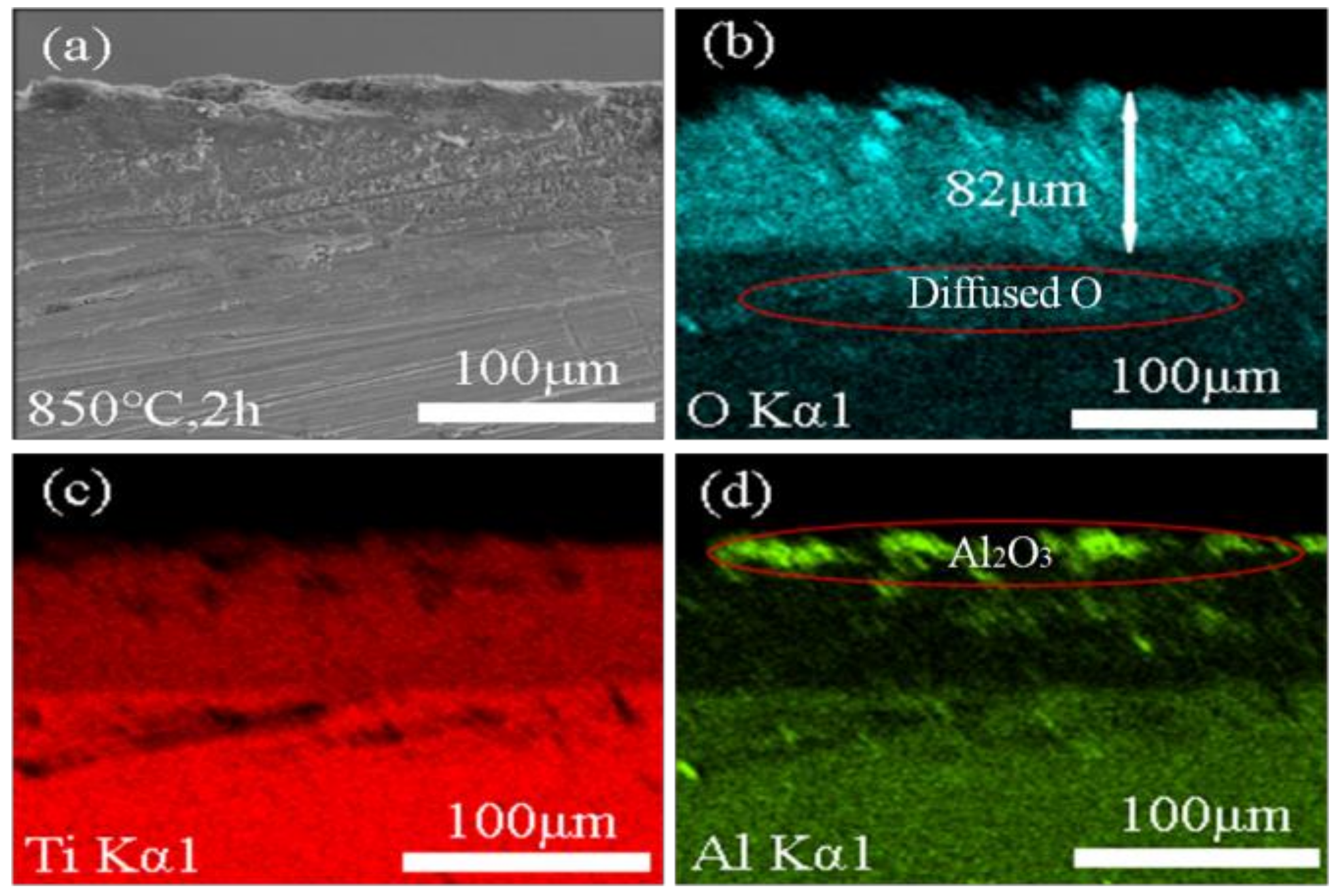

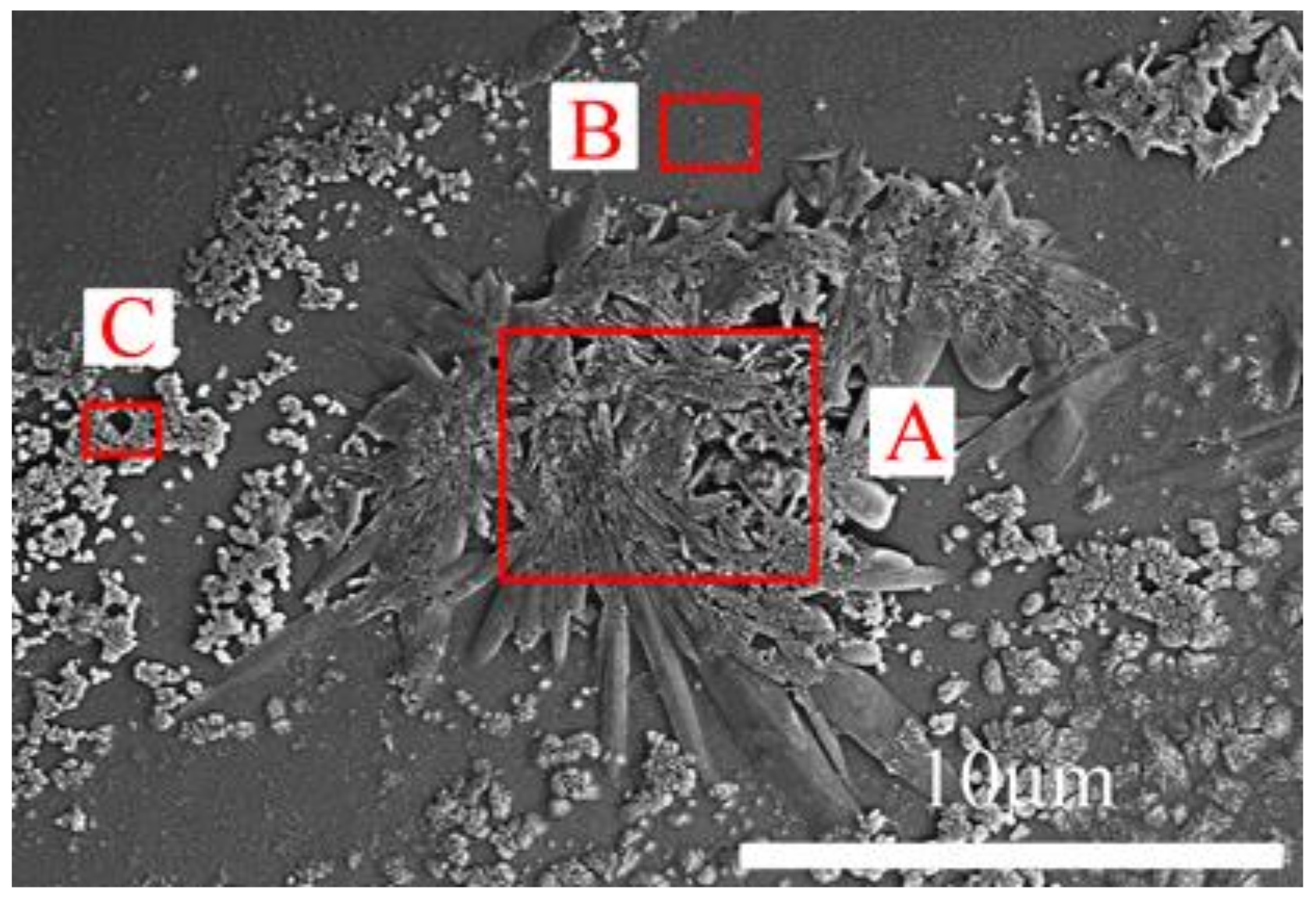

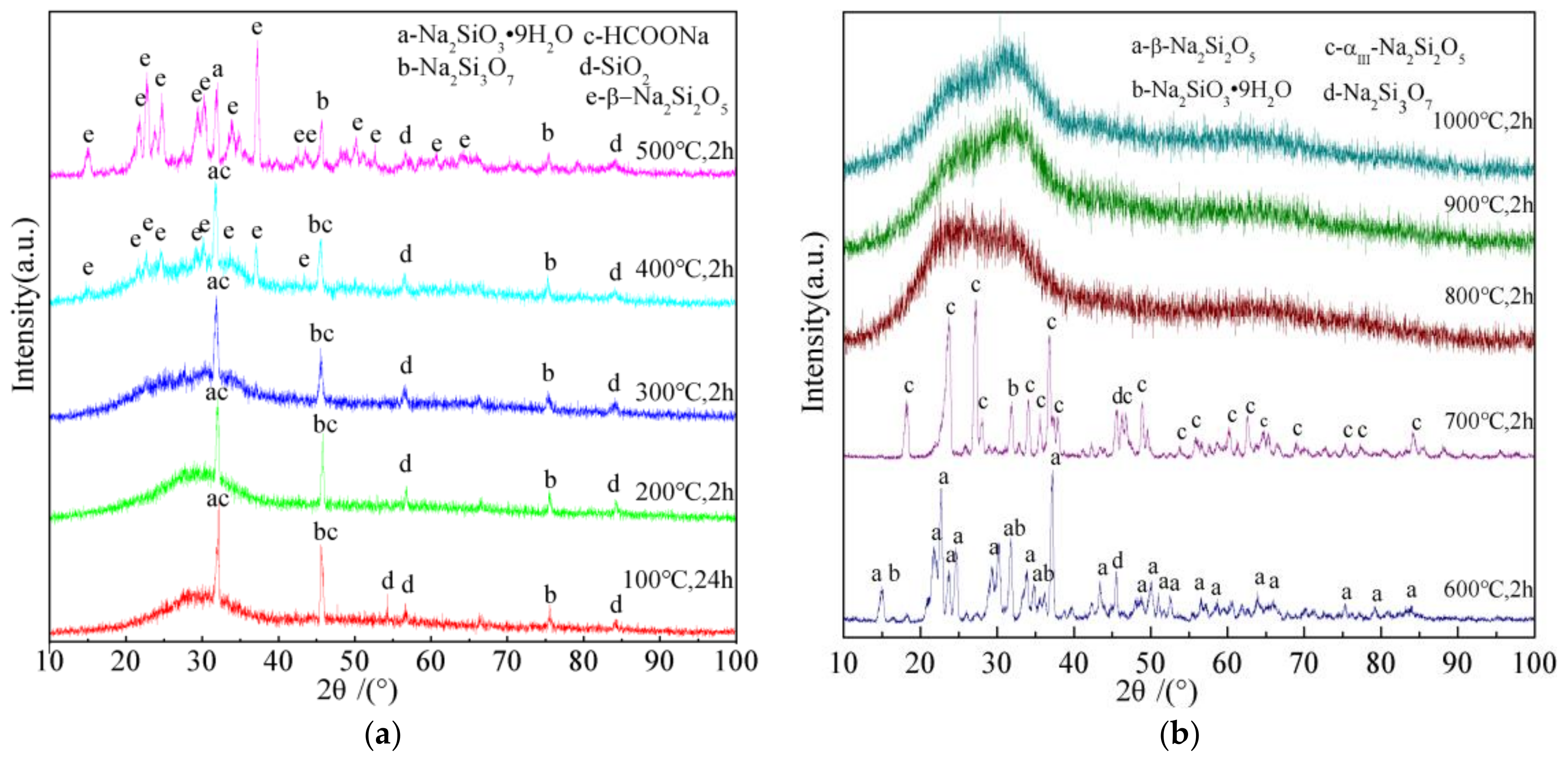

Sodium silicate water glass was modified with sodium polyacrylate as the binder, the composite slurry used for high-temperature oxidation-resistant coating was prepared by mixing glass powder with good lubrication properties in the binder. The properties of the modified binder and high-temperature oxidation resistance of Ti-6Al-4V titanium alloy coated with composite glass coating were studied by XRD, SEM, EDS, TG-DSC and so on. Results showed that sodium polyacrylate modified water glass could obviously improve the suspension stability of the binder, the pyrolytic carbon in the binder at high temperature could increase the surface tension in the molten glass system, and the composite glass coating could be smooth and dense after heating. Pyrolytic carbon diffused and combined with oxygen in the coating under the heating process to protect the titanium alloy from oxidation. The thickness of the oxide layer was reduced 51% after applying the high-temperature oxidation-resistant coating. The coating also showed a nearly 30% reduction in friction coefficient due to the boundary lubricant regime. During cooling, the coating could be peeled off easily because of the mismatched CTE between the coating and substrate. View Full-Text
Keywords: sodium silicate water glass; sodium polyacrylate; titanium alloy; coating; oxidation resistant; lubricant sodium silicate water glass; sodium polyacrylate; titanium alloy; coating; oxidation resistant; lubricant
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Yang, S.; Zhou, D.; Zhou, J.; Yang, L.; Fan, Q.; Yao, Q.; Yang, Y. Study on Modified Water Glass Used in High Temperature Protective Glass Coating for Ti-6Al-4V Titanium Alloy. Coatings 2018, 8, 158.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
