Electrical and Optical Properties of Fluorine Doped Tin Oxide Thin Films Prepared by Magnetron Sputtering
Abstract
:1. Introduction
2. Experimental Section
Powder target ID | Compound powder target mass (g) | |
---|---|---|
Tin oxide | Tin fluoride | |
SnO2 | 60.0 | 0 |
SnO2:F1 | 57.5 | 2.5 |
SnO2:F2 | 52.7 | 7.3 |
SnO2:F3 | 46.1 | 13.9 |
SnO2:F4 | 43.2 | 16.8 |
3. Results and Discussion

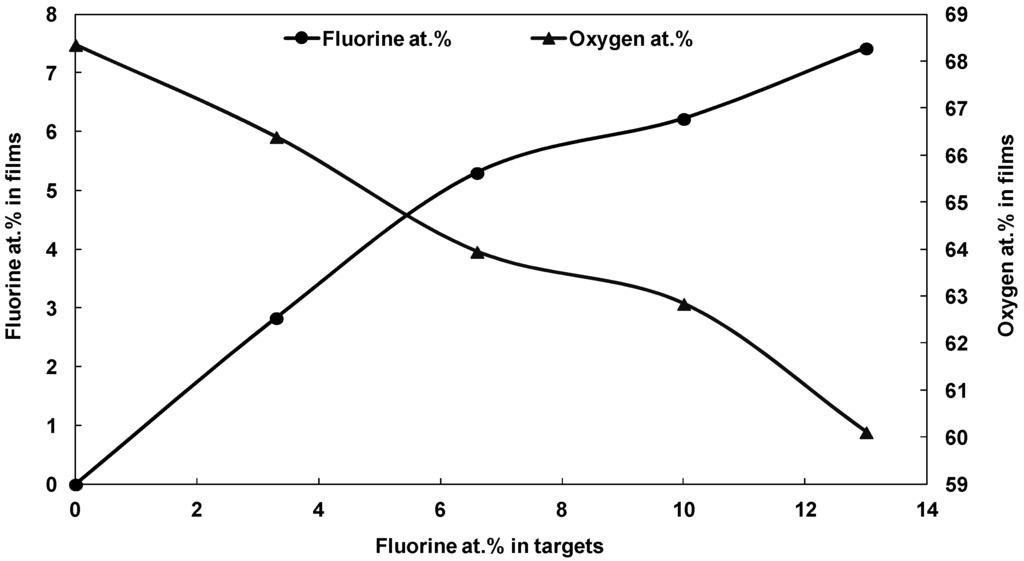

3.1. Elemental Analysis
Sample ID | Element at.% in targets | Element at.% in films | Film thickness (nm) | ||||
---|---|---|---|---|---|---|---|
O | F | Sn | O | F | Sn | ||
SnO2 | 66.7 | 0.0 | 33.4 | 68.4 | 0.0 | 31.7 | 403 |
SnO2:F1 | 63.3 | 3.3 | 33.3 | 66.4 | 2.8 | 30.8 | 410 |
SnO2:F2 | 60.0 | 6.6 | 33.3 | 64.0 | 5.3 | 30.7 | 405 |
SnO2:F3 | 56.7 | 10.0 | 33.2 | 62.8 | 6.2 | 30.9 | 415 |
SnO2:F4 | 53.4 | 13.0 | 33.3 | 60.1 | 7.4 | 32.5 | 395 |

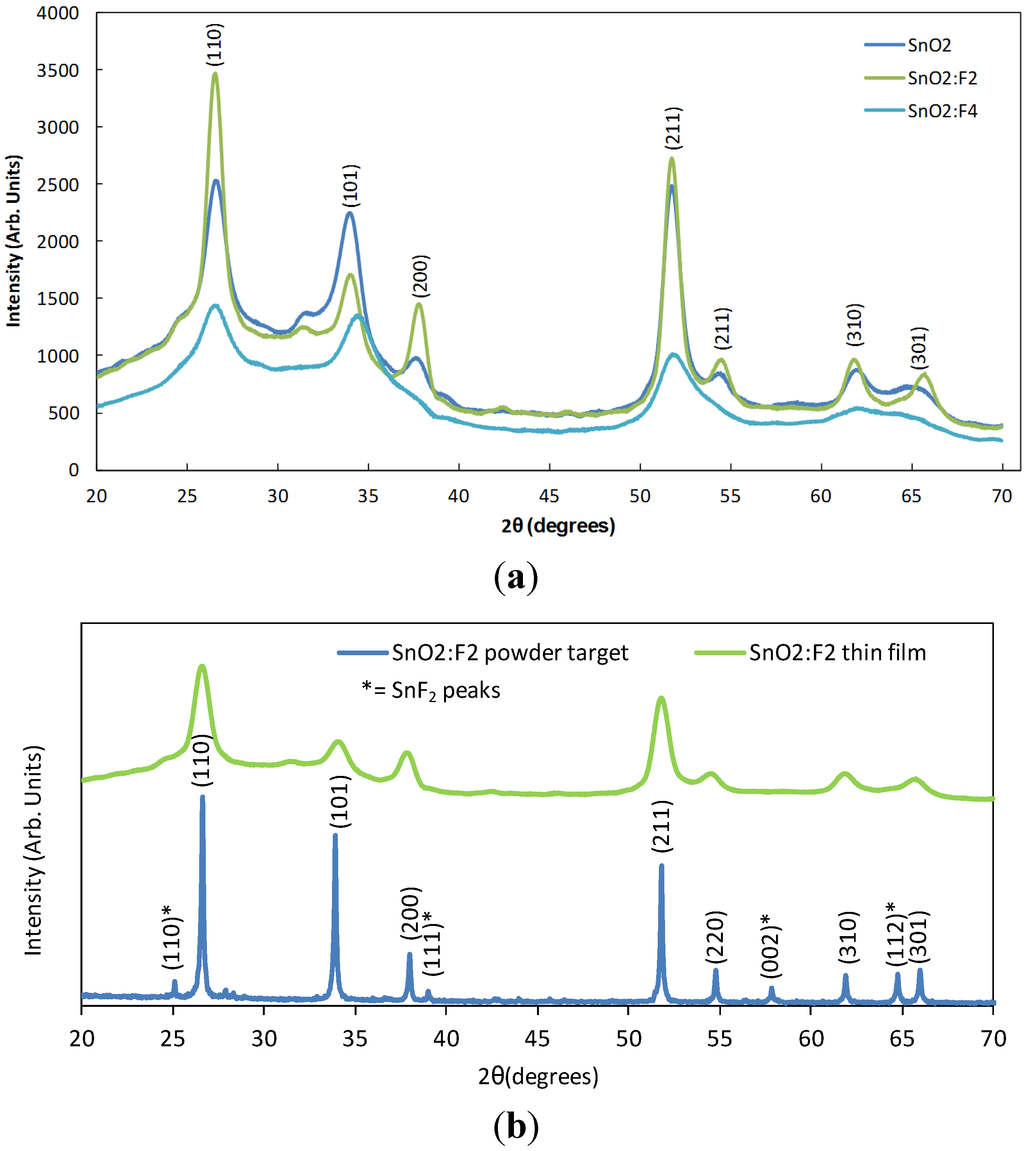

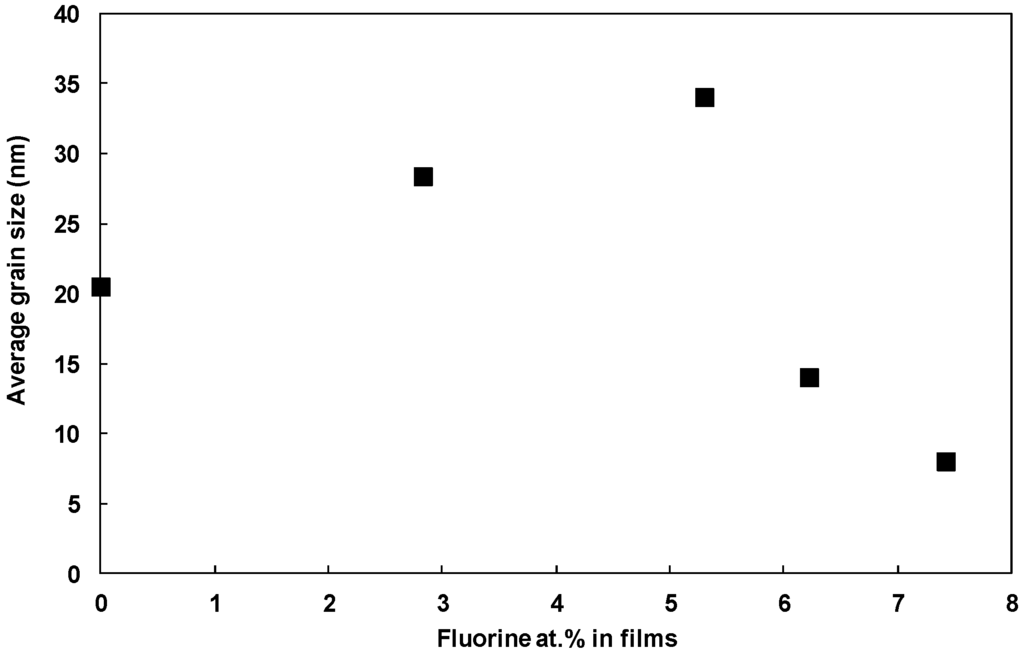

3.2. Structural Properties
Sample ID | 2θ (°) | Peak | Lattice parameters | Grain size D | Texture coefficient P | |
---|---|---|---|---|---|---|
(hkl) | a (Å) | c (Å) | (nm) | |||
SnO2 | 26.6 | 110 | 4.74 | 3.35 | 15 | 0.48 |
37.7 | 200 | 4.75 | 2.37 | 24 | 0.42 | |
51.7 | 211 | 4.32 | 1.77 | 22 | 1.27 | |
SnO2:F1 | 26.5 | 110 | 4.79 | 3.39 | 28 | 0.73 |
37.8 | 200 | 4.77 | 2.38 | 23 | 0.95 | |
51.6 | 211 | 4.34 | 1.77 | 34 | 1.48 | |
SnO2:F2 | 26.5 | 110 | 4.79 | 3.38 | 31 | 0.77 |
37.8 | 200 | 4.81 | 2.4 | 38 | 1.11 | |
51.7 | 211 | 4.32 | 1.77 | 33 | 1.31 | |
SnO2:F3 | 26.6 | 110 | 4.77 | 3.38 | 13 | 0.47 |
37.7 | 200 | 4.78 | 2.39 | 14 | 0.6 | |
51.6 | 211 | 4.34 | 1.77 | 15 | 1.01 | |
SnO2:F4 | 26.6 | 110 | 4.81 | 3.4 | 9 | 0.3 |
51.4 | 211 | 4.35 | 1.78 | 7 | 0.49 |

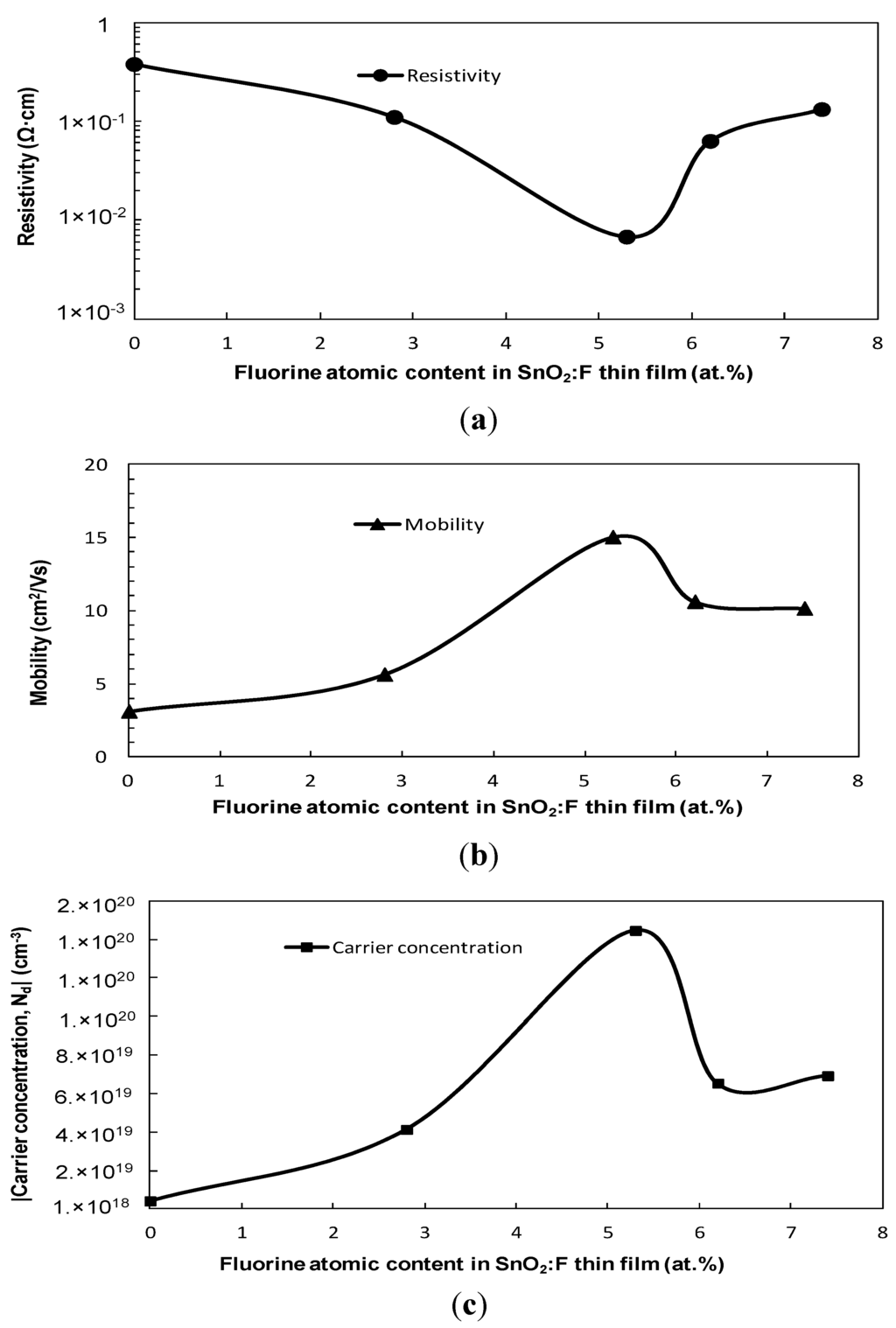

3.3. Electrical Properties

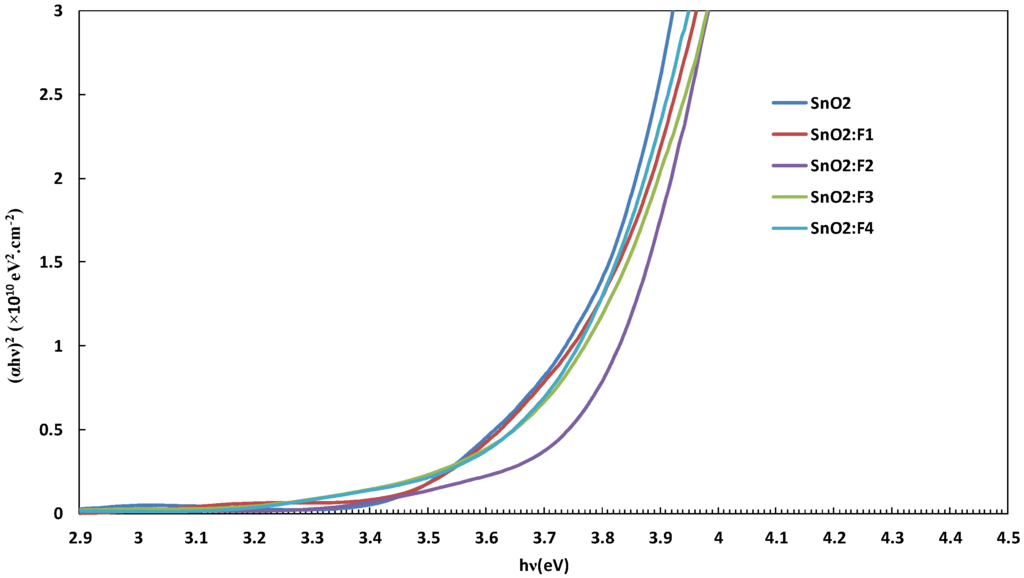

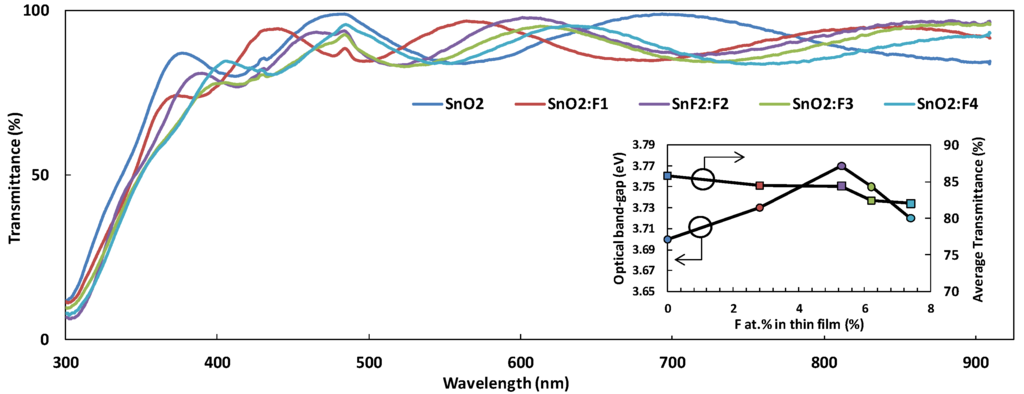

3.4. Optical Properties

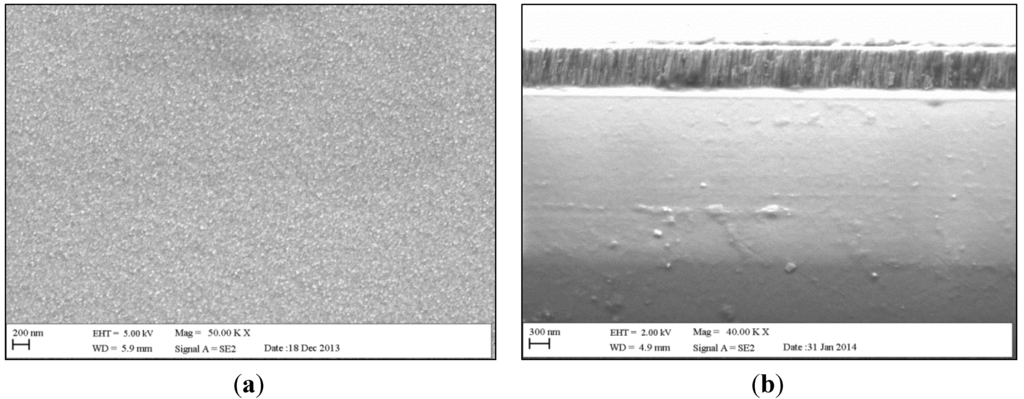

3.5. Morphological Properties
4. Conclusions
