Abrasive Wear and Physical Properties of In-Situ Nano-TiCx Reinforced Cu–Cr–Zr Composites

1
School of Mechanical Engineering, Northeast Electric Power University, No. 169 Changchun Road, Jilin 132012, China
2
Gongqing Institute of Science and Technology, No. 1 Gongqing Road, Gongqing 332020, China
*
Authors to whom correspondence should be addressed.
Coatings 2023, 13(7), 1263; https://doi.org/10.3390/coatings13071263
Submission received: 10 June 2023 / Revised: 3 July 2023 / Accepted: 12 July 2023 / Published: 18 July 2023

Abstract

:
Cu–Cr–Zr alloys reinforced in situ with TiCx nanoparticles were prepared via combustion synthesis and electromagnetic stirring casting. The microstructure of TiCx/Cu-Cr-Zr composites with various contents was analyzed. The microhardness and Brinell hardness of the composites were determined; the average volumetric abrasive wear rate and worn surface of the composites were investigated; and the electrical, thermal conductivity and thermal expansion coefficients of the materials were discussed. The results indicated that the addition of TiCx particles transformed the Cu–Cr–Zr matrix alloy microstructure from a dendritic to an equiaxed crystal, and the grain size was significantly refined as the amount added was increased. The composites with high TiCx content possessed higher hardness and abrasive wear resistance. The addition of TiCx particles reduced the electrical and thermal conductivity and thermal expansion coefficients of the materials.

1. Introduction

With the rapid development of the automotive, electronics, and machinery manufacturing industries [1,2,3], higher performance requirements have been put forward for Cu; that is, to ensure that Cu has good electrical and thermal conductivity on the basis of high strength, high wear resistance, especially with good high-temperature mechanical properties, and high temperature resistance to melt corrosion [4,5,6]. Adding alloying elements to a metal enables the physical and mechanical characteristics of the material to be improved, which expands the range of applications for metal materials [7,8]. For example, the electrode materials used in spot welding robots in passenger car manufacturing are Cu-based alloys, such as Cu–Cr–Zr, Cu–Cr and Cu–Zr, which have good electrical and thermal conductivities [9,10]. However, Cu alloys present many shortcomings in terms of strength and wear resistance, especially as electrode materials, due to the harsh working conditions and poor oxidation resistance, low strength and wear resistance, softening and deformation at temperatures above 500 °C, and melt corrosion problems, which result in large contact resistance, rise in conductive temperature, and serious loss of the electrode [11,12]. Existing spot welding electrodes have a very short service life of around only 500 cycles. Therefore, it is imperative to obtain a Cu alloy material with high strength, good wear resistance, and good thermal and electrical conductivity simultaneously [13,14].
It is known that the strength and wear resistance of composites can be effectively improved by incorporating nano-sized particles into the metal matrix [15]. Furthermore, ceramic particle morphology significantly impacts the mechanical and physical properties of the materials [16,17,18]. Cubic TiCx particles added in situ can enhance both electrical conductivity and the compression strength and yield strength of the materials. Nevertheless, the concentrated stresses and shear effects at the sharp corners of cubic TiCx particles substantially reduce the fracture strain of the composite materials. Compared with cubic TiCx, the addition of spherical TiCx particles enhances the strength of the material and avoids the reduction in fracture strain caused by the sharp corners of cubic TiCx. Combustion synthesis is usually used to prepare spherical TiCx nanoparticle-reinforced Cu matrix composites with regular morphology and uniform size [19,20,21]. However, low-content TiCx particle-reinforced Cu matrix composites cannot be prepared by combustion synthesis owing to the limitations of combustion synthesis thermodynamic conditions [22,23]. Excessive TiCx content would substantially reduce electrical and thermal conductivity as well as the plasticity of the Cu matrix, making Cu worthless for its applications. Therefore, there is an urgent needed to develop a new method for manufacturing Cu matrix composites strengthened with a low content of TiCx particles. The application of casting methods makes it possible to add small amounts of reinforcing phases and alloying elements into the melt [24,25,26]. Therefore, low-content, spherical TiCx nanoparticle in situ-strengthened Cu–Cr–Zr-based composites can be fabricated organically via the combination of combustion synthesis method with stir casting.
In this paper, TiCx/Cu master alloys with a reinforcing particle size of about 100 nm and spherical particle shape were prepared by combustion synthesis; the TiCx/Cu master alloys were then added and dispersed into the Cu–Cr–Zr melt using electromagnetic stirring casting to fabricate low-content TiCx/Cu–Cr–Zr composites. The experiments focused on the impact on microstructure, abrasive wear resistance, electrical and thermal conductivity, and thermal expansion coefficients of the composites with various contents of TiCx nanoparticles. The mechanism responsible for the effect of the in situ incorporation of spherical TiCx nanoparticles on the variation of microstructure, abrasive wear resistance, and the above-mentioned physical properties of the composites was revealed. A new method of preparing TiCx/Cu–Cr–Zr composites is presented in this paper. Furthermore, the results will provide the experimental foundation and theoretical guidance for further investigation of both the microstructure and properties of TiCx ceramic particle-reinforced Cu-based alloys.

2. Materials and Methods

Cu powders with an average size of 45 μm, Ti powders with an average size of 25 μm, and CNTs with a length of 15–80 μm and a diameter of 10–20 nm were used to fabricate TiCx/Cu master alloys by the combustion synthesis method. The TiCx/Cu–Cr–Zr composites were manufactured via the method of combustion synthesis assisted by electromagnetic stirring casting; details of the process flow are shown in Figure 1. The experimental powder was configured with a CNT-Ti molar ratio of 1.0 and a Cu content of 70 vol.%. After applying the ball mill to mix the configured powder, the resulting mixed powder was cold-pressed at 100 MPa into a cylindrical compact measuring 30 mm in diameter and 30 mm in height. The resulting compact was placed in graphite mold in a homemade vacuum furnace, which was evacuated to below 100 Pa and heated. According to the vacuum gauge indication, heating was stopped after the combustion synthesis reaction, which resulted in the TiCx/Cu master alloy. Manufacturers of Ti, Cu, CNTs, and Cu–Cr–Zr alloy are shown in Table 1. The chemical composition of the Cu–Cr–Zr alloy is illustrated in Table 2. The Cu–Cr–Zr alloy was heated to a molten state in the graphite crucible of an electromagnetic induction furnace for incorporation of the TiCx/Cu master alloy into the molten state Cu–Cr–Zr. During electromagnetic stirring, mechanical stirring was used as an aid for dispersion of the TiCx/Cu master alloy. After the master alloy was completely dispersed, it was held at this temperature for 3 min and then cast into the prepared mold. Successful TiCx/Cu–Cr–Zr composites were fabricated by cooling to room temperature.
TiCx/Cu master alloy phase composition was analyzed on a Rigaku D/Max 2500PC X-ray diffraction (XRD, Rigaku D/Max 2500PC, Tokyo, Japan) with Cu-Kα radiation. Morphologies of microstructure and extracted TiCx were investigated using a field emission scanning electron microscope (FESEM, JSM 6700, Tokyo, Japan). Observation of the grain of TiCx/Cu–Cr–Zr composites was performed using an Olympus optical microscope (XJZ-6, Tokyo, Japan). Determination of the microhardness for materials using a Vickers hardness tester (1600-5122VD, New Troy, MI, USA) with 50 gf load and 15 s duration time. Measurement of the Brinell hardness was performed using a Brinell hardness tester (HB-3000C, Kunshan, China) with 9807 N load and a duration time of 30 s. Both microhardness and Brinell hardness measurements were collected 5 times and averaged. Tests of abrasive wear were performed using a pin-disc machine with Al2O3 abrasive paper under a load of 5 N with a wear distance of 24.78 m at room temperature. The samples were 4 mm in length, 4 mm in width, and 12 mm in height. The worn surfaces of the composites were observed by a scanning electron microscope (SEM, Evo18, Carl Zeiss, Jena, Germany). A digital eddy current conductivity meter (Sigma 2008b, Kanagawa, Japan) was employed to determine the electrical conductivity; the results were measured 5 times and averaged. A laser thermal conductivity meter (LFA427, Selb, Germany) was employed to measure the thermal diffusivity at the temperature of 25 °C, 50 °C, 75 °C, and 100 °C. Coefficient of thermal conductivity was defined as the product of thermal diffusivity, density, and specific heat. The coefficient of thermal expansion was tested using a dilatometer (NETZSCH DIL402C, Selb, Germany) in argon at the temperatures of 50 °C, 100 °C,150 °C, 200 °C, 250 °C, 300 °C, 350 °C, and 400 °C.

3. Results and Discussion

The X-ray diffraction pattern of TiCx/Cu master alloy prepared through combustion synthesis is illustrated in Figure 2a. The diffraction peaks belonging to Cu and TiCx were clearly visible, demonstrating that the TiCx/Cu master alloy was successfully manufactured. The morphology of TiCx nanoparticles extracted from the TiCx/Cu master alloy is depicted in Figure 2b. As indicated, the extracted TiCx particles from the TiCx/Cu master alloy, which possess an average dimension of 100 nm, are uniform and spherical in shape.
The microstructures of Cu–Cr–Zr matrix alloy and TiCx/Cu–Cr–Zr composite materials are illustrated in Figure 3. Dendrites are a dominant morphological feature of the Cu–Cr–Zr matrix alloy, manifested by coarse grains and uneven grain size, as shown in Figure 3a, whereas those TiCx/Cu–Cr–Zr composites containing 2 wt.% and 4 wt.% TiCx have an equiaxed grain morphology with a uniform dimensional distribution, as shown in Figure 3b,c. In comparison with the matrix alloy, the composites have more uniform and denser structures. With increasing TiCx content, the grain morphologies of the composites transform from dendritic into equiaxial grain, with grain sizes refined considerably. Both the change in the grain morphology and the reduction in the grain size are related to the in situ addition of TiCx particles.
Figure 4 is the microstructure of Cu–Cr–Zr alloy, 2 wt.% and 4 wt.% TiCx/Cu–Cr–Zr composites. As shown in Figure 4a, grain shape is not obvious and the grain boundary range is relatively large. Whereas the TiCx/Cu–Cr–Zr composites have an obvious microstructure and grain boundaries with a relatively uniform grain dimension. Furthermore, the grain dimensions of the composites with a TiCx content of 4 wt.% are smaller than those of 2 wt.%. A large amount of chained particulate matter near the grain boundaries and a large distribution of particles are visible in the grains of the 4 wt.% TiCx/Cu–Cr–Zr composites, as illustrated in Figure 4d.
The binary phase diagram of Cu–Zr shows an approximate maximum solubility of Zr in Cu of 0.12 wt.% (927 °C), which is only about 0.01 wt.% at room temperature. During the solidification process, a large amount of Zr element and a considerable amount of Cu9Zr2 compound were precipitated. In addition, according to the binary phase diagram of Cu–Cr, the approximate maximum solubility of Cr in Cu is 0.7 wt.% (1076 °C), while it is only 0.03 wt.% at room temperature. Therefore, Cr elements were constantly precipitated with the decrease in the temperature in the solidification process. Some of the precipitated Cr elements were pushed to the grain boundary and gathered during the grain growth process, which showed the morphology of chain particles, as presented in Figure 4.
In order to explore the reason for the grain refinement phenomenon, lattice misfit (δ) was utilized to determine the likelihood of heterogeneous nuclei, which was calculated via a mathematical model [27].
δ ( h k l ) n ( h k l ) s = 1 3 i = 1 3 d [ u v w ] s i cos θ d [ u v w ] n i d [ u v w ] n i × 100 %
where ( h k l ) s and ( h k l ) n are the low index crystal face; [ u v w ] s and [ u v w ] n are the low index crystal orientation in the ( h k l ) s and ( h k l ) n ; d [ u v w ] s and d [ u v w ] n are the atom spacings along the direction of the [ u v w ] s and [ u v w ] n ; θ is the angle between [ u v w ] s and [ u v w ] n .
According to the results of the calculations, the lattice misfit of (111)Cu and (111)TiCx is 19.8%, which means that TiCx is less likely to be a heterogeneous nucleus of the Cu alloy. However, the lattice misfit of (010)Cu3Ti and (111)Cu is 1.9%, and the lattice misfit of (100)Cu3Ti and (100)TiCx is 1.2%. Therefore, it is speculated that the addition of TiCx changes the nucleation conditions of grains, and at the surface of the TiCx or TiCx clusters, a layer of Cu3Ti forms that acts as heterogeneous nuclei for the grains. We speculated that heterogeneous nuclei are the main reason of changes in grain morphologies.
Figure 5 presents the microhardness and Brinell hardness of the Cu–Cr–Zr alloy and the TiCx/Cu–Cr–Zr composites. The microhardness of matrix alloy composites with TiCx contents of 2 wt.% and 4 wt.% is 97.1 HV, 114.9 HV, and 119.7 HV, respectively, and the Brinell hardness is 75.1 HB, 84.1 HB, and 86.8 HB, respectively. The addition of TiCx nanoparticles effectively improves the hardness of the matrix alloy. Compared to the Cu–Cr–Zr alloy, the microhardness and Brinell hardness of 2 wt.% and 4 wt.% composites increase by 18.3% and 12.0%, 23.3% and 15.6%, respectively, with increasing TiCx content. It may be attributable to diffusely distributed TiCx particles within the composites, which can prevent the occurrence of plastic deformation. Based on load transfer strengthening, TiCx nanoparticles act as reinforcement, which indirectly bear the load applied on the materials. Moreover, the increasing number of TiCx particles lead to an increase in the amount of TiCx particles to bear the load; thus, the bearing capacity of the composite is enhanced. Meanwhile, fine grain strengthening also enhances the hardness of the composites. Consequently, an improvement in the hardness of composites is observed as the TiCx content increases.
Figure 6a–c shows the worn surface morphology of the Cu–Cr–Zr alloy and TiCx/Cu–Cr–Zr composites with different TiCx contents with a 6.5 µm abrasive particle size and a 5 N load. An abrasive worn surface on the Cu–Cr–Zr alloy can be seen to be rough, with deep and wide surface furrows as shown in Figure 6a. With increasing TiCx content, abrasive worn surfaces of the composites become smooth, surface furrows become shallow and narrow, and the number of furrow ridges caused by plastic deformation decreases (Figure 6b,c). Figure 6d shows the abrasive wear rates for the Cu–Cr–Zr alloy and different TiCx content composites. The abrasive wear rates of Cu–Cr–Zr alloy, 2 wt.% and 4 wt.% TiCx content composites are 1.48, 1.35, and 1.31 (10−10 m3/m), respectively. In comparison to the Cu–Cr–Zr alloy, the composites showed a significant decrease in abrasive wear rate, which indicates that the incorporation of TiCx nanoparticles obviously improves the abrasive wear resistance of the Cu–Cr–Zr alloy. The addition of TiCx particles refines the microstructure, improving the hardness of the materials, which can reduce the depth of abrasive particle penetration into the materials and weaken the “plough and cut” phenomenon of the abrasive particles. Meanwhile, the nanoparticles act as reinforcement pinning in the matrix, which hinders the ploughing behavior of abrasive particles, preventing the deformation of materials. Therefore, the composites with 4 wt.% TiCx content exhibit the best abrasive wear resistance among the three materials.
It is believed that the increase in wear resistance and hardness for copper matrix composites is due to both the introduction of nano-TiCx particles and the Orowan mechanism. Moreover, nano-TiCx particles play a role as barriers during the dislocation movement process, which enhances the strength of the copper matrix composite. In contrast, the coefficient of thermal expansion mismatch and Taylor strengthening by modulus mismatch between the matrix and particle are also attributed to the strengthening of the composites’ wear resistance [28].
The schematic diagram of the abrasive wear process for TiCx/Cu−Cr−Zr composites with various TiCx contents is presented in Figure 7. During the abrasive wear process, as a consequence of abrasion and loads, the Cu−Cr−Zr alloy undergoes significant plastic deformation, which appears in the form of deep and wide furrows, as illustrated in Figure 7b. Shallower and narrower furrows on the worn surface of 2 wt.% TiCx composites are observed at identical abrasive and load conditions compared with the Cu−Cr−Zr alloy, as presented in Figure 7d. Composites with TiCx content of 4 wt.%, among the three materials, show the flattest worn surface under the same conditions, as shown in Figure 7f. TiCx nanoparticles, acting as the core of the heterogeneous nuclei, refine the grain size. Consequently, the grain morphology transformed from dendrite to equiaxial grain (Figure 7a,c,e). Grain refinement can improve the hardness of materials, which weakens the ploughing behavior of the abrasive particles by reducing their depth of penetration into the materials; therefore, the abrasive wear resistance of the composites is improved, as shown in Figure 7b,d,f. Moreover, the TiCx nanoparticles being added to the matrix alloy that are located at both grain boundaries and inside the grains corresponding to Figure 7 areas A and B, act as particle reinforcement, which fixes dislocations and prevents dislocation movement. The above reasons also contribute to the improvement of material. Thus, hardness and wear resistance were effectively improved by the addition of TiCx particles.
Figure 8 presents the electrical conductivity of Cu–Cr–Zr alloy, TiCx/Cu–Cr–Zr composites with different TiCx contents. As indicated, the conductivity of the Cu–Cr–Zr alloy, 2 wt.% and 4 wt.% TiCx composites are 64.71%, 56.77%, and 52.93%, respectively (IACS). The incorporation of nanoparticles obviously refined the grain dimensions. The refined grain raises the quantity of grain boundaries and the scattering effect of the material on electrons is increased. In contrast, the incorporation of TiCx particles inhibits the migration of free electrons. The interface between the particle and matrix also enhances electron scattering, resulting in a reduction of 12.27% and 18.20% in electrical conductivity for composites with TiCx content of 2 wt.% and 4 wt.%, respectively, compared with the matrix alloy.
Thermal conductivity curves for TiCx/Cu–Cr–Zr composites with various TiCx contents from 25 °C to 100 °C can be observed in Figure 9. It shows a gradual decrease in the thermal conductivity for the composite with increasing TiCx content at the same temperature. The coefficient of thermal conductivity of TiCx particles was significantly less than that of pure Cu. Therefore, the thermal conductivity of the material decreases as the rule Cu content decreases. Meanwhile, incorporating TiCx particles increased the bonding interface between the particles and matrix, enhancing the scattering effect by the interface upon heating in the composite, which is not conducive to heat conduction. In contrast, the thermal conductivity coefficient of composites drops as the temperature rises. The higher the temperature, the worse the thermal conductivity. Therefore, the thermal conductivity of the composite materials decreases gradually with the increase in temperature.
Figure 10 presents the thermal expansion coefficient curves of the TiCx/Cu–Cr–Zr composites with different TiCx contents from 25 °C to 400 °C. As shown, the thermal expansion coefficients of the materials gradual increase with increasing temperature for the three materials. The thermal expansion coefficients of the three materials are sensitive to TiCx content at the same temperature, with the sequence showing that the higher the TiCx content, the smaller the thermal expansion coefficient. It is indisputable that the thermal expansion coefficients of materials are determined by different external temperatures, the thermal expansion coefficient of the matrix metal, and the restraining effect of the reinforcing particles on the matrix. With the increase in temperature, the thermal expansion coefficients of all the three materials follow a similar trend; that is, as the temperature increases, the thermal expansion coefficients of the materials becomes larger. The higher the number of TiCx particles, the stronger the restraining effect on the matrix, causing the thermal expansion coefficient to decrease with the addition of TiCx particles.

4. Conclusions

In this work, the microstructure evolution, abrasive wear, electrical conductivity, thermal conductivity, and thermal expansion coefficient of TiCx/Cu–Cr–Zr composites with reinforced in situ with different TiCx nanoparticle contents were investigated.
  • The in situ addition of TiCx nanoparticles transformed the microstructure of matrix alloy from dendrites to equiaxed crystal and refined the grain size.
  • Hardness and abrasive wear resistance were enhanced in the matrix alloy by adding TiCx particles. Microhardness and Brinell hardness of 4 wt.% TiCx/Cu–Cr–Zr composites are 23.3% and 15.6% higher, respectively, compared to the matrix alloy.
  • The 4 wt.% TiCx/Cu–Cr–Zr composite had the lowest abrasive wear rate (1.31 × 10−10 m3/m) with the shallowest and narrowest surface furrows.
  • The thermal expansion coefficient, thermal conductivity, and electrical conductivity of the composites decreased with the increasing TiCx content. Electrical conductivity of 2 wt.% and 4 wt.% TiCx/Cu–Cr–Zr composites was reduced by 12.27% and 18.20%, respectively, compared with the matrix alloy.

Author Contributions

Conceptualization, D.Z. and Y.G.; methodology, P.L.; resources, Y.G.; data curation, D.Z. and Y.G.; writing—original draft preparation, D.Z.; writing—review and editing, D.Z. and X.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by the Science and Technology Project of Jilin Provincial Education Department (JJKH20220098KJ).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work is supported by Northeastern Electric Power University.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Barros, L.Y.; Poletto, J.C.; Neis, P.D.; Ferreira, N.F.; Pereira, C.H.S. Influence of copper on automotive brake performance. Wear 2019, 426–427, 741–749. [Google Scholar] [CrossRef]
  2. Li, G.; Meng, F.Y.; Zhang, W.K. Effect of Heating-Assisted Ultrasonic Rolling on Surface Properties of Ti-6Al-4V Alloy. JOM 2023, 75, 1739–1749. [Google Scholar] [CrossRef]
  3. Wang, F.; Wang, H.; Zhou, X.; Fu, R. A driving fatigue feature detection method based on multifractal theory. IEEE Sens. J. 2022, 22, 19046–19059. [Google Scholar] [CrossRef]
  4. Liu, Q.; He, X.-B.; Ren, S.-B.; Liu, T.-T.; Kang, Q.-P.; Qu, X.-H. Fabrication and thermal conductivity of copper matrix composites reinforced with Mo2C or TiC coated graphite fibers. Mater. Res. Bull. 2013, 48, 4811–4817. [Google Scholar] [CrossRef]
  5. Jamroziak, K.; Roik, T.; Gavrish, O.; Vitsiuk, I.; Lesiuk, G.; Correia, J.A.F.O.; De Jesus, A. Improved manufacturing performance of a new antifriction composite parts based on copper. Eng. Fail. Anal. 2018, 91, 225–233. [Google Scholar] [CrossRef]
  6. Zhao, Z.; Xiao, Z.; Li, Z.; Qiu, W.; Jiang, H.; Lei, Q.; Jiang, Y.; Zhang, S. Microstructure and properties of a Cu–Ni–Si–Co–Cr alloy with high strength and high conductivity. Mater. Sci. Eng. A 2019, 759, 396–403. [Google Scholar] [CrossRef]
  7. Liu, S.; Wang, Y.; Muthuramalingam, T.; Anbuchezhiyan, G. Effect of B4C and MOS2 reinforcement on micro structure and wear properties of aluminum hybrid composite for automotive applications. Compos. Part B 2019, 176, 107329. [Google Scholar] [CrossRef]
  8. Xue, N.; Liu, W.; Zhu, L.; Muthuramalingam, T. Effect of Scandium in Al–Sc and Al–Sc–Zr Alloys Under Precipitation Strengthening Mechanism at 350 °C Aging. Met. Mater. Int. 2020, 27, 5145–5153. [Google Scholar]
  9. Sun, L.; Tao, N.; Lu, K. A high strength and high electrical conductivity bulk CuCrZr alloy with nanotwins. Scr. Mater. 2015, 99, 73–76. [Google Scholar] [CrossRef]
  10. Kulczyk, M.; Pachla, W.; Godek, J.; Smalc-Koziorowska, J.; Skiba, J.; Przybysz, S.; Wróblewska, M.; Przybysz, M. Improved compromise between the electrical conductivity and hardness of the thermo-mechanically treated CuCrZr alloy. Mater. Sci. Eng. A 2018, 724, 45–52. [Google Scholar] [CrossRef]
  11. Ertek Emre, H.; Bozkurt, B. Effect of Cr-Ni coated Cu-Cr-Zr electrodes on the mechanical properties and failure modes of TRIP800 spot weldments. Eng. Fail. Anal. 2020, 110, 104439. [Google Scholar] [CrossRef]
  12. Zhang, X.; Cui, T.; Liu, Q.; Done, Z.; Man, C. Effect of Nd addition on the microstructure, mechanical properties, shape memory effect and corrosion behaviour of Cu–Al–Ni high-temperature shape memory alloys. J. Alloys Compd. 2021, 858, 157685. [Google Scholar] [CrossRef]
  13. Huang, Y.; Li, X.; Zha, Y.; Zhou, X.; Peng, D.; Hua, N.; Chen, W. Fabrication and high temperature tribological properties of WC reinforced W-Cu composites. Mater. Today Commun. 2021, 28, 102550. [Google Scholar] [CrossRef]
  14. Wang, Y.D.; Liu, M.; Yu, B.H.; Wu, L.H.; Xue, P.; Ni, D.R.; Ma, Z.Y. Enhanced combination of mechanical properties and electrical conductivity of a hard state Cu-Cr-Zr alloy via one-step friction stir processing. J. Mater. Process. Technol. 2021, 288, 116880. [Google Scholar] [CrossRef]
  15. Gao, Y.; Tong, Y.; Guohui, L.; Lu, P.; Zhang, D. Microstructure and Mechanical Properties of Ni-Based Alloy Composite Coating on Cr12MoV by Laser Cladding. Coatings 2022, 12, 1632. [Google Scholar] [CrossRef]
  16. Sadeghi, N.; Aghajani, H.; Akbarpour, M.R. Microstructure and tribological properties of in-situ TiC-C/Cu nanocomposites synthesized using different carbon sources (graphite, carbon nanotube and graphene) in the Cu-Ti-C system. Ceram. Int. 2018, 44, 22059–22067. [Google Scholar] [CrossRef]
  17. Dong, B.X.; Yang, H.Y.; Qiu, F.; Li, Q.; Shu, S.L.; Zhang, B.Q.; Jiang, Q.C. Design of TiCx nanoparticles and their morphology manipulating mechanisms by stoichiometric ratios: Experiment and first-principle calculation. Mater. Des. 2019, 181, 107951. [Google Scholar] [CrossRef]
  18. Guo, L.; Yang, Y.; Wen, X.; Gao, H.; Wang, Z.; Guo, Z. Synthesis of Cu-based TiCx composites via in-situ reaction between CuxTi melt and dissolvable solid carbon. Powder Technol. 2020, 362, 375–385. [Google Scholar] [CrossRef]
  19. Lu, J.; Shu, S.; Qiu, F.; Wang, Y.; Jiang, Q. Compression properties and abrasive wear behavior of high volume fraction TiCx-TiB2/Cu composites fabricated by combustion synthesis and hot press consolidation. Mater. Des. 2012, 40, 157–162. [Google Scholar] [CrossRef]
  20. Liang, Y.; Han, Z.; Li, X.; Zhang, Z.; Ren, L. Study on the reaction mechanism of self-propagating high-temperature synthesis of TiC in the Cu-Ti-C system. Mater. Chem. Phys. 2012, 137, 200–206. [Google Scholar] [CrossRef]
  21. Gao, Y.Y.; Qiu, F.; Zou, Q.; Chu, J.G.; Dong, B.X.; Han, X.; Yang, H.Y.; Jiang, B.; Jiang, Q.C. Controlling the sizes of in-situ TiC nanoparticles for high-performance TiC/Al–Cu nanocomposites. Ceram. Int. 2021, 47, 28584–28595. [Google Scholar] [CrossRef]
  22. Rathod, S.; Modi, O.P.; Prasad, B.K.; Chrysanthou, A.; Vallauri, D.; Deshmukh, V.P.; Shah, A.K. Cast in situ Cu–TiC composites: Synthesis by SHS route and characterization. Mater. Sci. Eng. A 2009, 502, 91–98. [Google Scholar] [CrossRef]
  23. Liang, Y.; Zhao, Q.; Han, Z.; Zhang, Z.; Li, X.; Ren, L. Reaction behavior of TiC/Cu composite via thermal explosion reaction (TE) under Ar and air atmosphere. Corros. Sci. 2015, 93, 283–292. [Google Scholar] [CrossRef]
  24. Wang, X.; Ding, H.; Qi, F.; Liu, Q.; Fan, X.; Shi, Y. Mechanism of in situ synthesis of TiC in Cu melts and its microstructures. J. Alloys Compd. 2017, 695, 3410–3418. [Google Scholar] [CrossRef]
  25. Yang, H.; Gao, T.; Wu, Y.; Zhang, H.; Nie, J.; Liu, X. Microstructure and mechanical properties at both room and high temperature of in-situ TiC reinforced Al–4.5Cu matrix nanocomposite. J. Alloys Compd. 2018, 767, 606–616. [Google Scholar] [CrossRef]
  26. Xu, X.; Li, W.; Wang, Y.; Dong, G.; Jing, S.; Wang, Q.; Feng, Y.; Fan, X.; Ding, H. Study of the preparation of Cu-TiC composites by reaction of soluble Ti and ball-milled carbon coating TiC. Results Phys. 2018, 9, 486–492. [Google Scholar] [CrossRef]
  27. Zhenming, X.; Gaofei, L.; Qingfeng, G.; Qichuan, J. TiC as heterogeneous nuclei of the (Fe, Mn) 3C and austenite intergrowth eutectic in austenite steel matrix wear resistant composite. Mater. Res. Bull. 2004, 39, 457–463. [Google Scholar] [CrossRef]
  28. Piasecki, A.; Paczos, P.; Tuliński, M.; Kotkowiak, M.; Popławski, M.; Jakubowicz, M.; Boncel, S.; Marek, A.A.; Buchwald, T.; Gapiński, B.; et al. Microstructure, mechanical properties and tribological behavior of Cu-nano TiO2-MWCNTs composite sintered materials. Wear 2023, 522, 204834. [Google Scholar] [CrossRef]

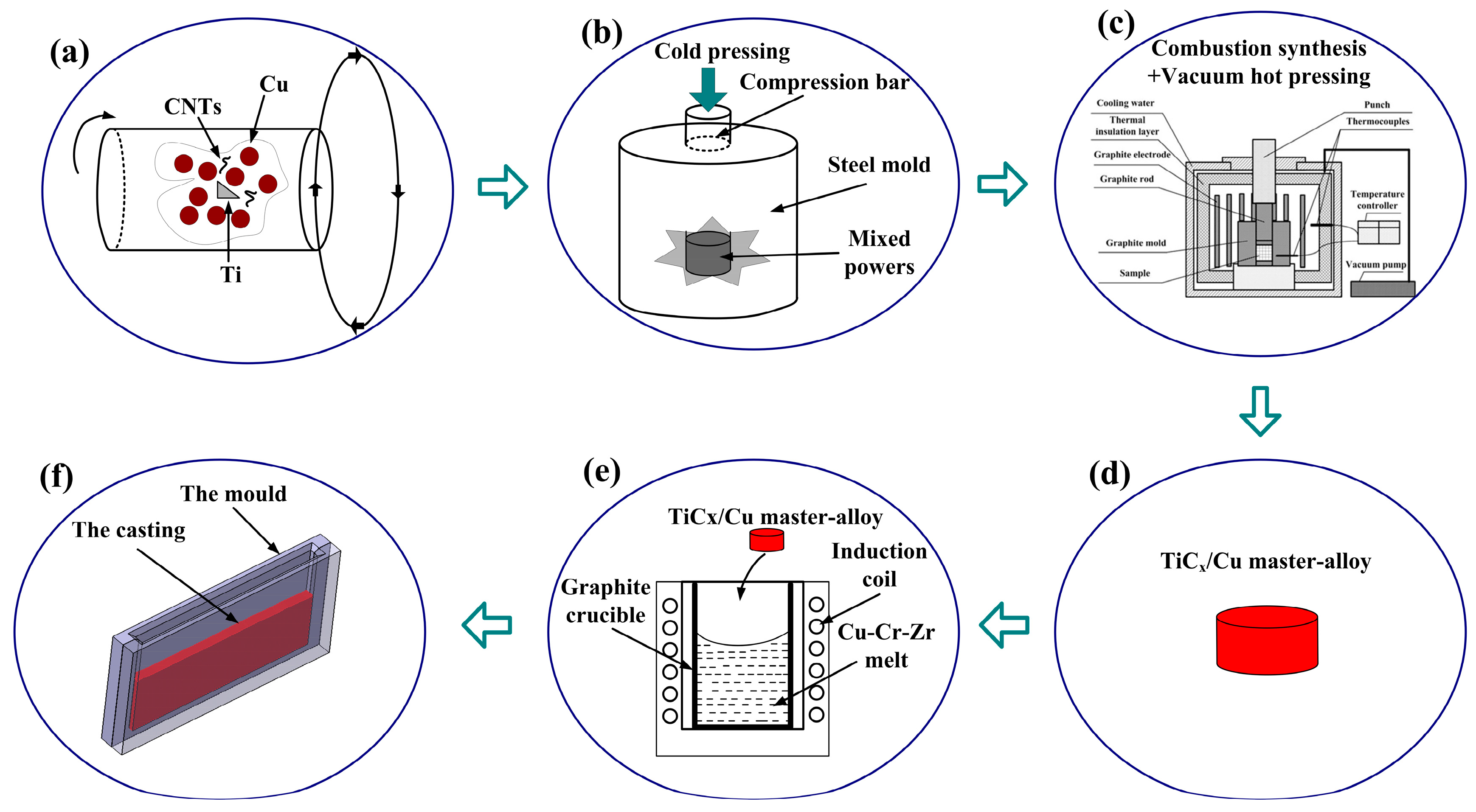

Figure 1. Flow chart for the preparation of TiCx/Cu–Cr–Zr composites utilizing combustion synthesis-assisted stir casting. (a) ball milling (b) cold pressing (c) combustion synthesis + hot press (d) master-alloy (e) casting process (f) casting.
Figure 1. Flow chart for the preparation of TiCx/Cu–Cr–Zr composites utilizing combustion synthesis-assisted stir casting. (a) ball milling (b) cold pressing (c) combustion synthesis + hot press (d) master-alloy (e) casting process (f) casting.
Coatings 13 01263 g001

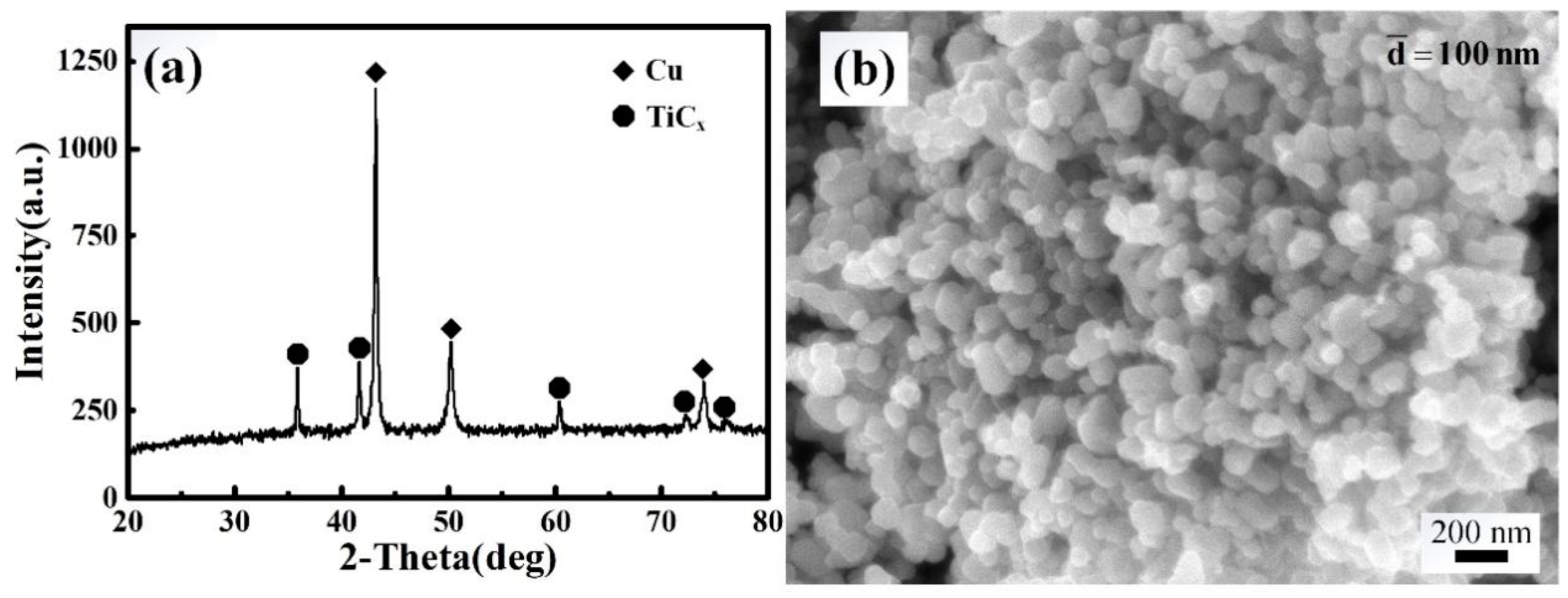

Figure 2. (a) XRD pattern of the TiCx/Cu master alloy, (b) extracted TiCx particles from TiCx/Cu master alloy.
Figure 2. (a) XRD pattern of the TiCx/Cu master alloy, (b) extracted TiCx particles from TiCx/Cu master alloy.
Coatings 13 01263 g002

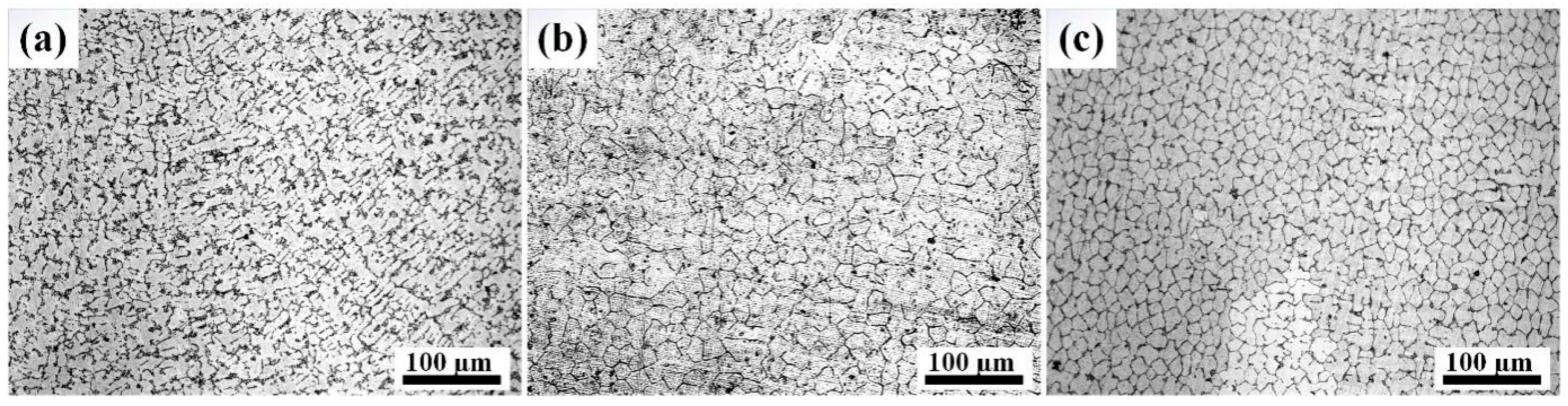

Figure 3. Grain morphology in the (a) Cu–Cr–Zr matrix alloy, (b) 2 wt.%, (c) 4 wt.% TiCx/Cu–Cr–Zr composites.
Figure 3. Grain morphology in the (a) Cu–Cr–Zr matrix alloy, (b) 2 wt.%, (c) 4 wt.% TiCx/Cu–Cr–Zr composites.
Coatings 13 01263 g003

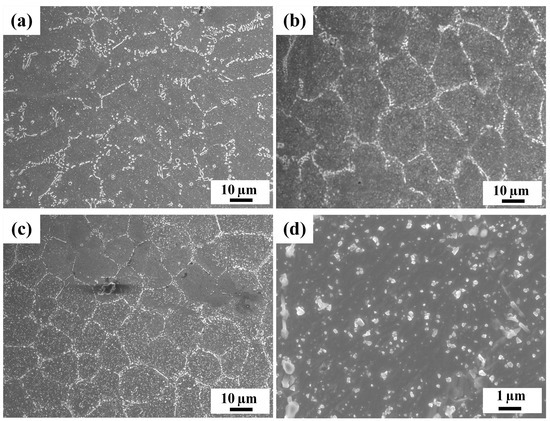

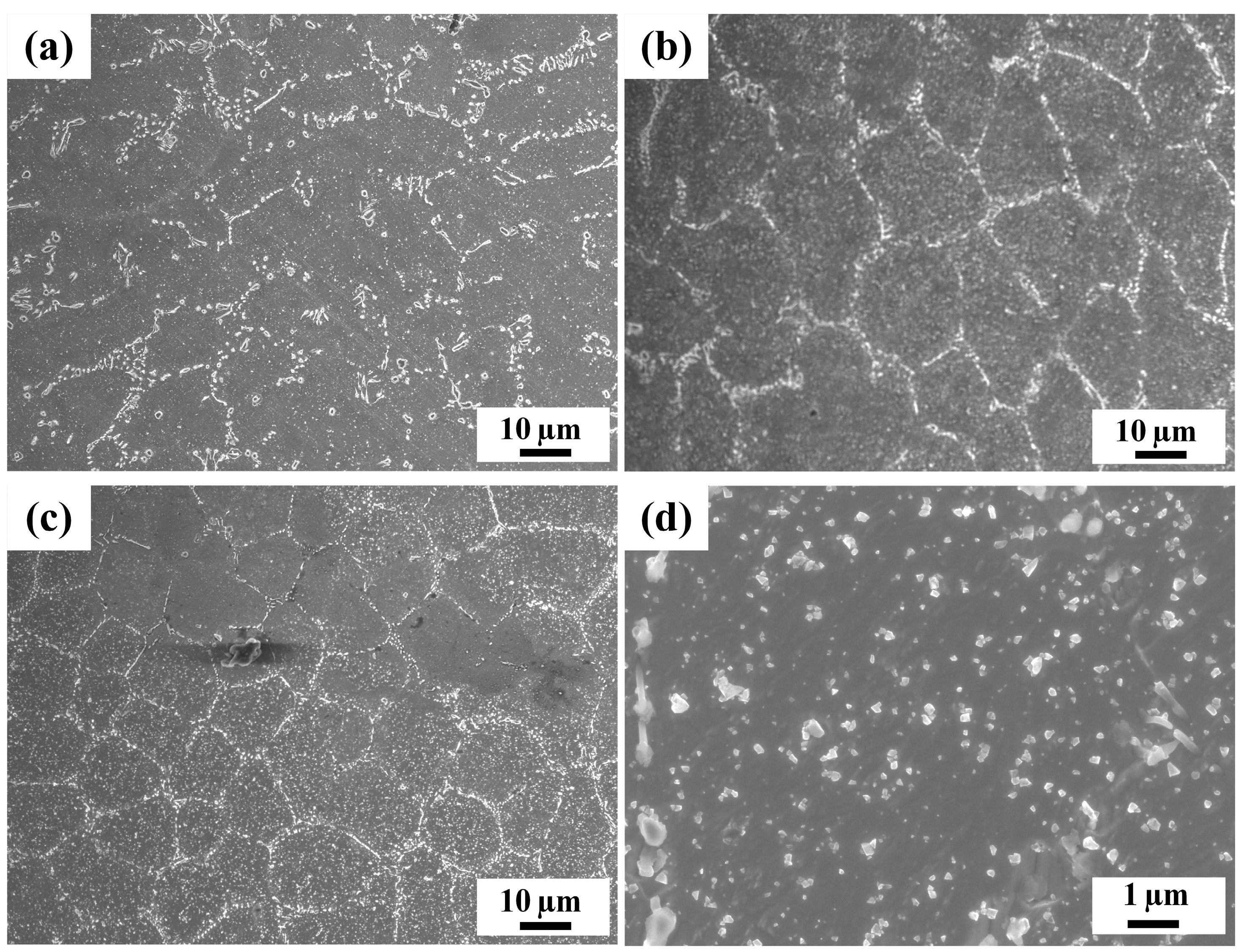

Figure 4. Microstructure of (a) Cu–Cr–Zr alloy, (b) 2 wt.% TiCx/Cu–Cr–Zr composites, (c) 4 wt.% TiCx/Cu–Cr–Zr composites, and (d) enlarged image of (c).
Figure 4. Microstructure of (a) Cu–Cr–Zr alloy, (b) 2 wt.% TiCx/Cu–Cr–Zr composites, (c) 4 wt.% TiCx/Cu–Cr–Zr composites, and (d) enlarged image of (c).
Coatings 13 01263 g004

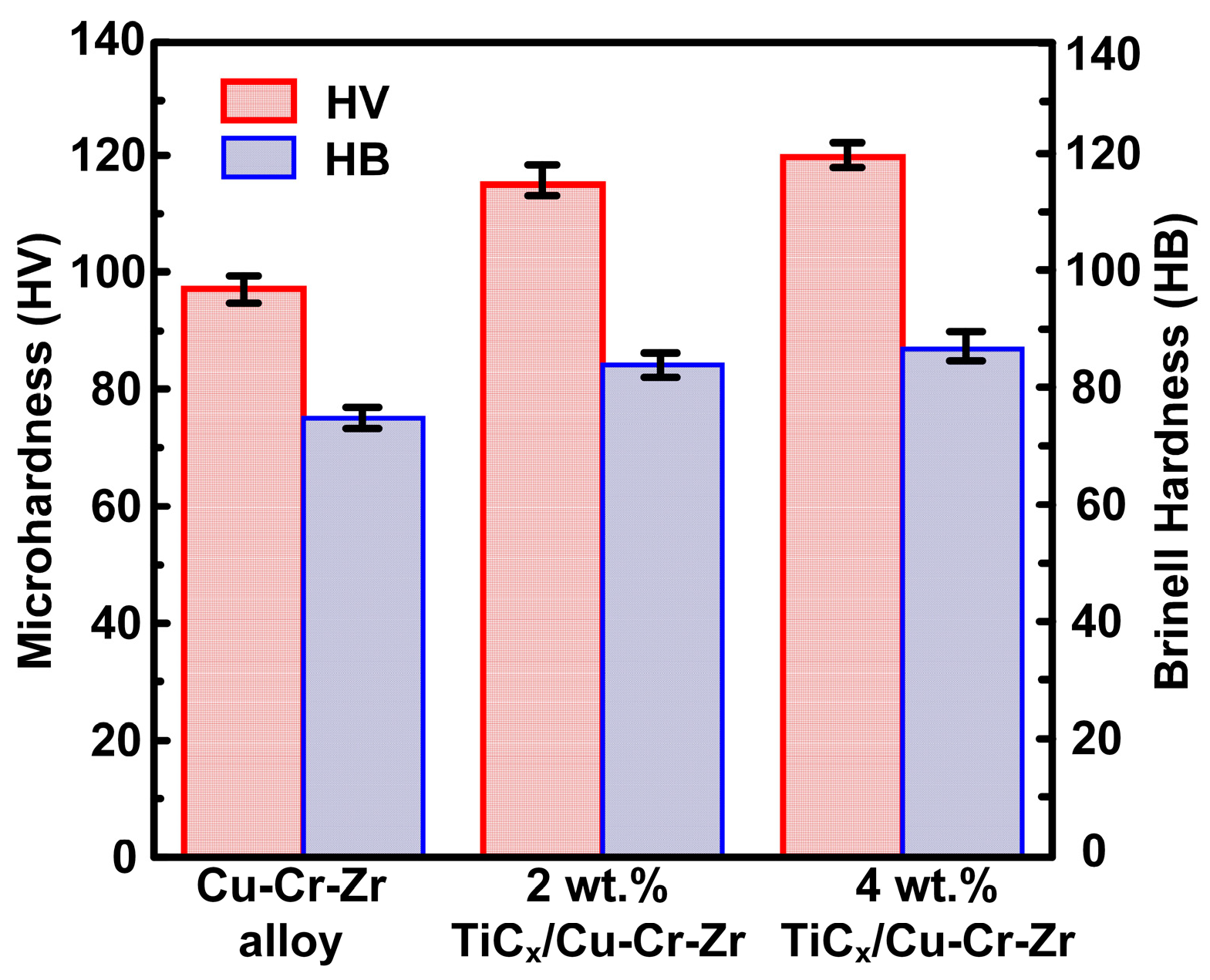

Figure 5. Microhardness and Brinell hardness of TiCx/Cu–Cr–Zr composites with various TiCx contents.
Figure 5. Microhardness and Brinell hardness of TiCx/Cu–Cr–Zr composites with various TiCx contents.
Coatings 13 01263 g005

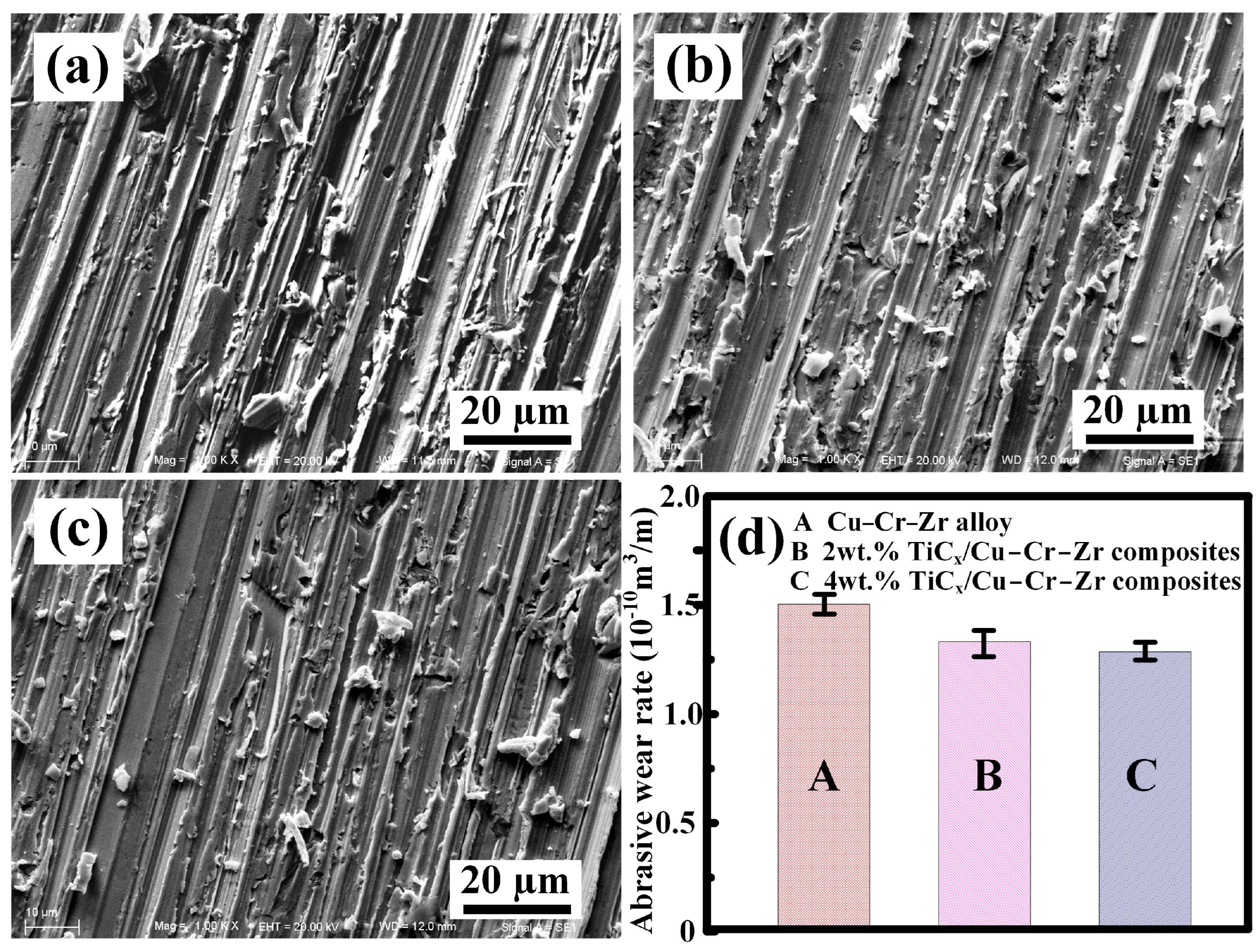

Figure 6. Worn surface of (a) Cu−Cr−Zr alloy, (b), 2 wt.% and (c) 4 wt.% TiCx/Cu−Cr−Zr, (d) abrasive wear rate of corresponding materials.
Figure 6. Worn surface of (a) Cu−Cr−Zr alloy, (b), 2 wt.% and (c) 4 wt.% TiCx/Cu−Cr−Zr, (d) abrasive wear rate of corresponding materials.
Coatings 13 01263 g006

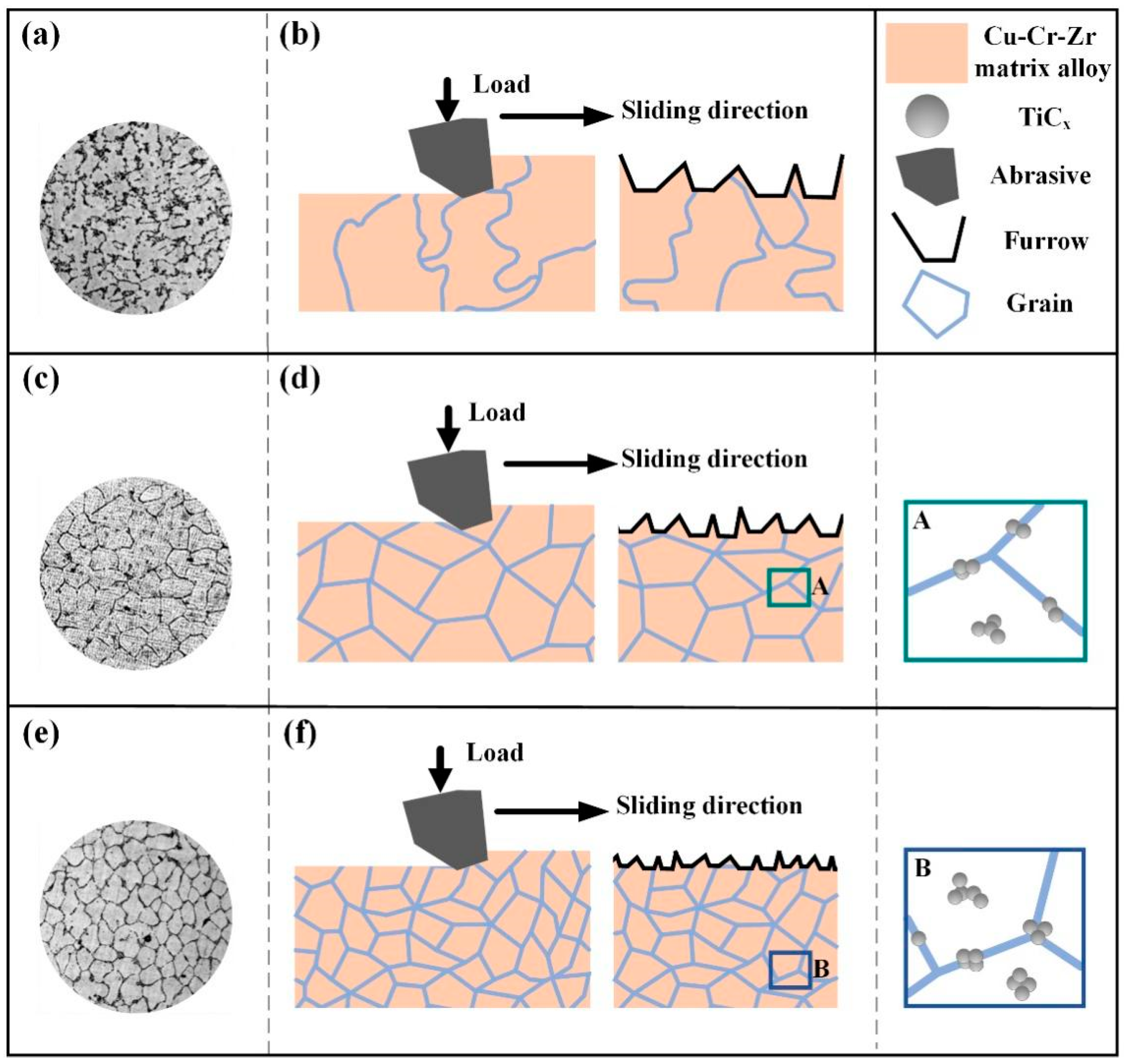

Figure 7. Schematic diagram of abrasive wear process for TiCx/Cu–Cr–Zr composites with various TiCx contents. (a) metallographic morphology of Cu–Cr–Zr alloy (b) wear process of Cu–Cr–Zr alloy (c) metallographic morphology of 2 wt.% TiCx/Cu–Cr–Zr composites (d) wear process of 2 wt.% TiCx/Cu–Cr–Zr composites (e) metallographic morphology of 4 wt.% TiCx/Cu–Cr–Zr composites (f) wear process of 4 wt.% TiCx/Cu–Cr–Zr composites.
Figure 7. Schematic diagram of abrasive wear process for TiCx/Cu–Cr–Zr composites with various TiCx contents. (a) metallographic morphology of Cu–Cr–Zr alloy (b) wear process of Cu–Cr–Zr alloy (c) metallographic morphology of 2 wt.% TiCx/Cu–Cr–Zr composites (d) wear process of 2 wt.% TiCx/Cu–Cr–Zr composites (e) metallographic morphology of 4 wt.% TiCx/Cu–Cr–Zr composites (f) wear process of 4 wt.% TiCx/Cu–Cr–Zr composites.
Coatings 13 01263 g007

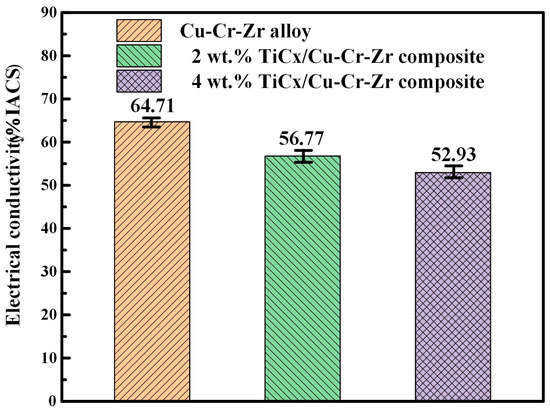

Figure 8. Electrical conductivity at various mass fractions of TiCx/Cu–Cr–Zr composites.
Figure 8. Electrical conductivity at various mass fractions of TiCx/Cu–Cr–Zr composites.
Coatings 13 01263 g008

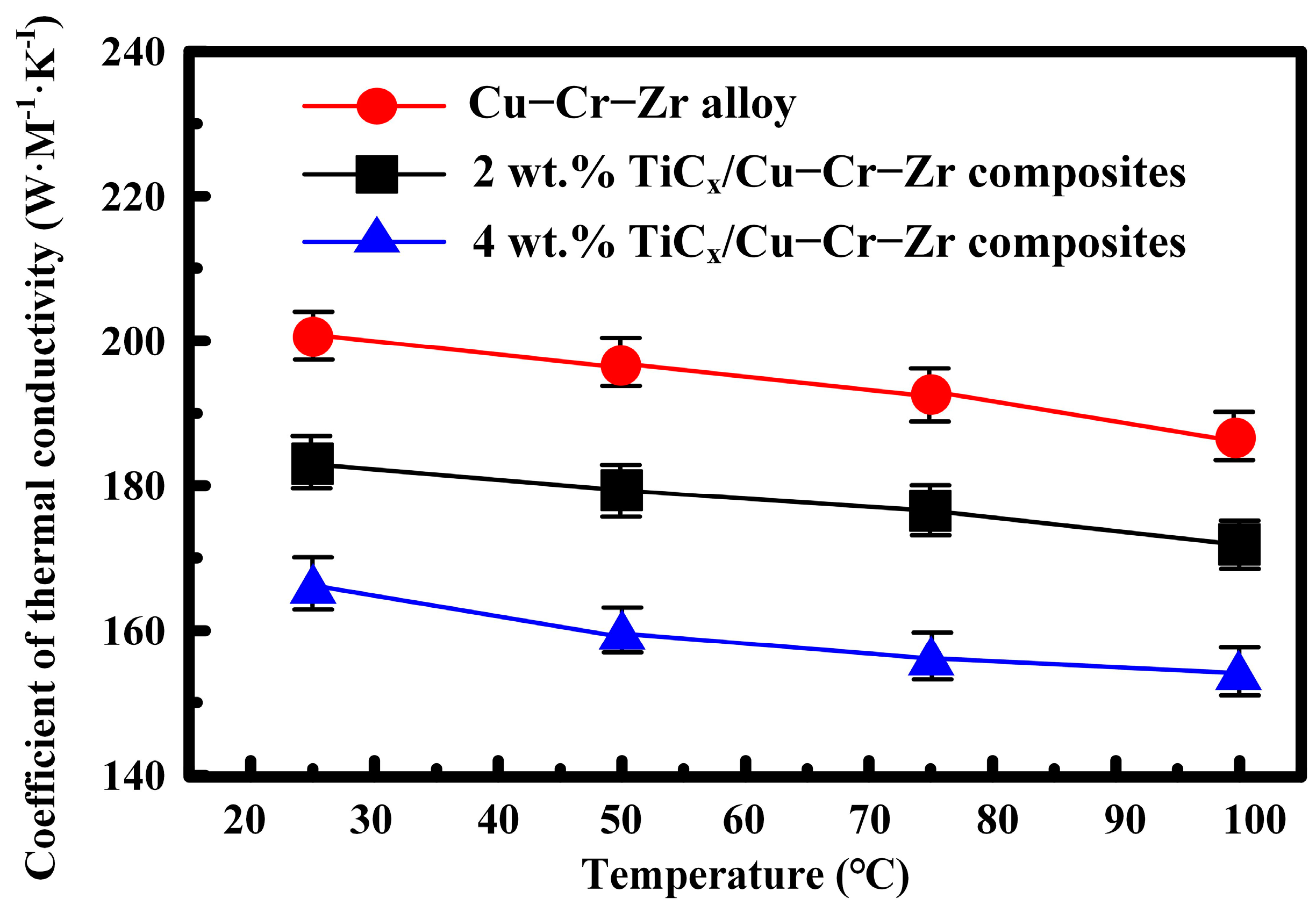

Figure 9. Coefficient of thermal conductivity for TiCx/Cu–Cr–Zr composites with various TiCx contents at different temperatures.
Figure 9. Coefficient of thermal conductivity for TiCx/Cu–Cr–Zr composites with various TiCx contents at different temperatures.
Coatings 13 01263 g009

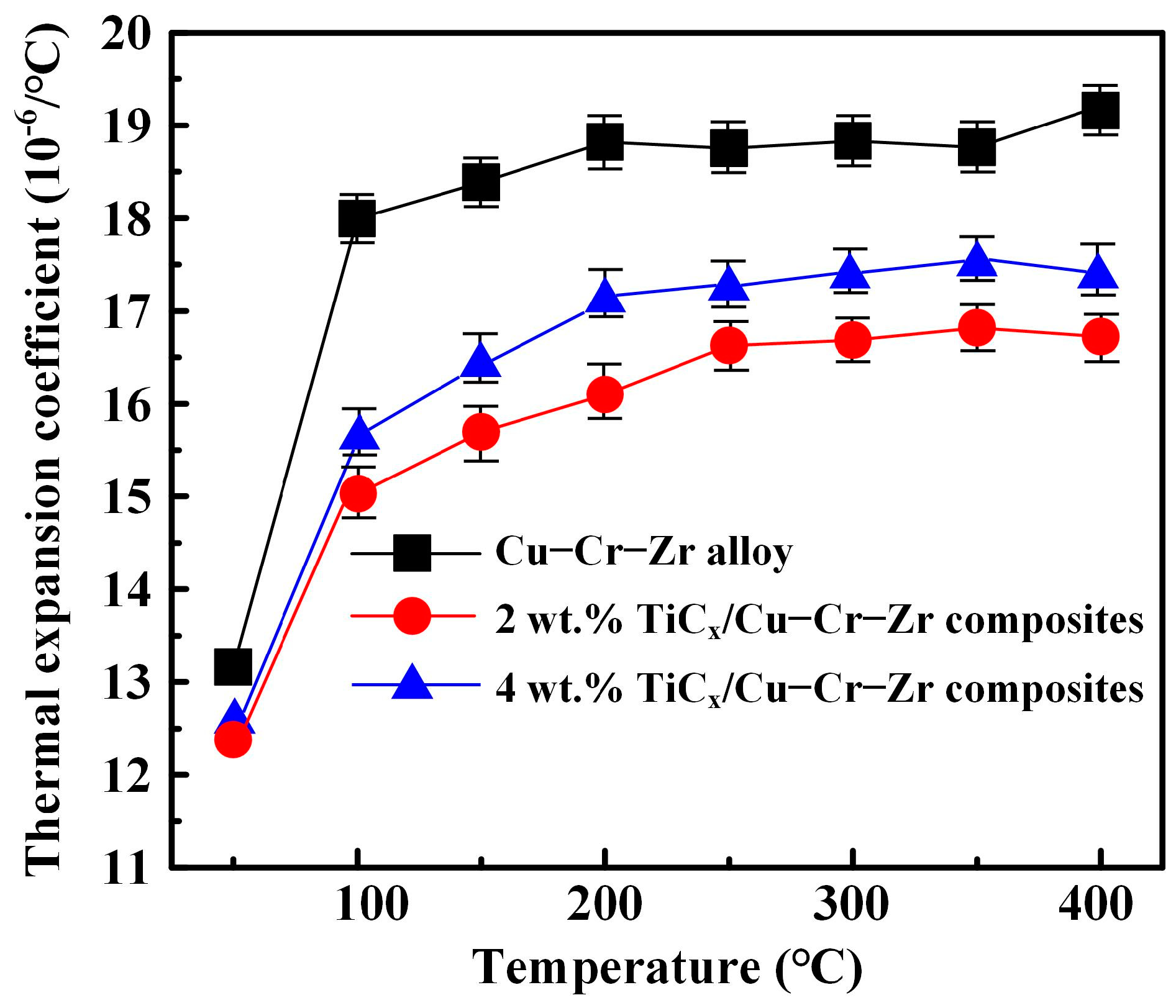

Figure 10. Thermal expansion coefficient at different temperatures for TiCx/Cu−Cr−Zr composites with various TiCx contents.
