Thickness-Dependent Terahertz Permittivity of Epitaxially Grown PbTe Thin Films

Abstract

The exceptional thermoelectric properties of PbTe are believed to be associated with the incipient ferroelectricity of this material, which is caused by strong electron–phonon coupling that connects phononic and electronic dynamics. Here, we have used terahertz time-domain spectroscopy measurements to generate complex permittivity spectra for a set of epitaxially grown PbTe thin films with thicknesses between 100 nm and 500 nm at temperatures from 10 $\mathrm{K}$ to 300 $\mathrm{K}$. Using a Drude–Lorentz model, we retrieved the physical parameters of both the phononic and electronic contributions to the THz permittivity. We observed a strong decrease, or softening, of the transverse optical phonon mode frequency with decreasing temperature, determining a thickness-independent negative ferroelectric-transition critical temperature, while we found a thickness-dependent anharmonic phonon decay lifetime. The electronic contribution to the permittivity was larger in thinner films, and both the carrier density and mobility increased with decreasing temperature in all films. Finally, we detected a thickness-dependent longitudinal optical phonon mode frequency, indicating the presence of plasmon–phonon coupling.

1. Introduction

To provide insight into the excellent thermoelectric properties of lead telluride (PbTe), much attention has been recently paid to its phononic properties [1,2,3]. It has long been known that PbTe, along with some other IV–VI compounds, exhibits a structural phase transition, from the rock salt to the rhombohedral structure [4], accompanied by an increasing ferroelectric instability with decreasing temperature [5], a property shared by good thermoelectric materials [6]. At finite temperatures, PbTe is in a paraelectric phase, characterized by a substantial temperature dependence of its static dielectric constant, concomitant with a softening of the transverse optical (TO) phonon mode with decreasing temperature. Giant anharmonic coupling of this TO phonon mode with heat-carrying longitudinal acoustic (LA) phonons is believed to be related to the low thermal conductivity of PbTe [7,8,9,10].

Even though a paraelectric-to-ferroelectric phase transition does not occur in PbTe at a finite temperature, being energetically close to the transition to a non-centrosymmetric structure (with a presumed negative critical temperature), makes the crystal lattice highly susceptible to external perturbations [11]. For instance, recent measurements of PbTe thin films subject to high magnetic fields indicated field-induced morphic changes in crystal symmetries, observed through the chirality of circularly polarized phonons [12]. The magnetic moment of these chiral phonons can be controlled by electron–phonon coupling [13,14], and evidence for plasmon–phonon coupling has recently been reported for the longitudinal optical (LO) phonon mode in PbTe under photogeneration of free carriers [15]. Therefore, it should be insightful to study free-carrier dynamics, in addition to phonon dynamics, as well as their interplay. Furthermore, chalcogenide materials including the alloy family of tellurium display a phase-changing phenomena that can be exploited for active terahertz (THz) photonic applications [16,17,18,19,20,21].

The relatively low frequency of the soft TO phonon mode in PbTe, slightly below 1 THz at room temperature, makes it suitable for being probed through terahertz spectroscopy techniques, as this mode is infrared (IR) active. In this work, we performed THz time-domain spectroscopy (THz-TDS) [22] measurements to simultaneously determine the real and imaginary parts of the complex permittivity (dielectric function) in PbTe thin films. By investigating samples with different film thicknesses, we showed temperature- and thickness-dependent modifications of the dielectric response. The comparison of these observations with adequate physical models allowed us to study the phononic and electronic components in the same measurement. As a result, the data displayed the softening of the TO phonon mode with a thickness-independent ferroelectric-transition critical temperature, but with a thickness-dependent anharmonic phonon decay lifetime. On the other hand, larger electronic contributions to the permittivity were found in thinner films and an increase of the carrier density and mobility was determined as the temperature of the film decreased. Finally, from the analysis of the inferred LO phonon mode frequency, we conclude that our observations suggests the presence of phonon–plasmon coupling.

2. Samples and Methods

We studied three samples of single-crystalline PbTe thin films (with thicknesses of 100 nm, 300 nm, and 500 nm), epitaxially grown on $\left(111\right)$ barium fluoride (BaF₂) substrates. The lattice mismatch between BaF₂ and PbTe is 4% and the linear thermal expansion coefficient of both materials are very close (2.0 × 10⁻⁵ ${\mathrm{K}}^{-1}$ for PbTe and 1.8 × 10⁻⁵ ${\mathrm{K}}^{-1}$ for BaF₂). Barium fluoride is also transparent to radiation from the ultraviolet (0.2 $\mathsf{\mu }\mathrm{m}$) to the infrared (10 $\mathsf{\mu }\mathrm{m}$) and it has good transmittance in the THz spectral range [23]. These properties make BaF₂ a suitable substrate for the epitaxial growth of PbTe and also for optical characterization at low temperatures. The epitaxy of PbTe on (111) BaF₂ is well established in the literature [24,25,26]. The PbTe films were grown by molecular beam epitaxy (MBE) on fresh (111)-oriented BaF₂ substrates, cleaved from 15 mm × 15 mm crystal bars acquired from Korth Krystalle GmbH, in a RIBER 32P MBE system. The 1-mmthick BaF₂ slices were glued to a molybdenum block using a Ga-In eutectic alloy and introduced in the MBE load-lock chamber. For this experiment we used one effusion cell charged with a metal rich source (Pb_0.505Te_0.495) and two extra tellurium cells to account for Te loss during deposition. Before and after growth, the beam equivalent pressure (BEP) of each cell was measured separately in a Bayert-Alpert ion gauge placed at the substrate position. Before growth, the substrate was degassed at 150 $°\mathrm{C}$ for 30 $\min$ in the preparation chamber and thermal cleaned at 500 $°\mathrm{C}$ for 10 $\min$ in the main chamber. For all growths, the substrate temperature was kept at 240 $°\mathrm{C}$ and the BEP values of PbTe and both Te effusion cells were 1.0 × 10⁻⁶ Torr and 6.0 × 10⁻⁸ Torr, respectively. These conditions lead to a growth rate of approximately 0.13 nm/$\mathrm{s}$. Reflection high-energy electron diffraction (RHEED) system with an electron gun set to 16 keV was used to evaluate in situ the deposition conditions. Prior to growth, the RHEED pattern of the bare BaF₂ showed diffraction points lying on a semicircle, characteristic of a pristine flat substrate surface. As deposition begins, the RHEED pattern changes immediately to fixed spots on the screen, typical of a transmission pattern, showing that the deposition starts with the nucleation of islands. After 6 $\min$ of deposition (∼50 nm), the RHEED pattern slowly switches to elongated spots on a semicircle, indicating that the islands coalesce and a step-flow growth mode takes place, which remains until the end of growth. As reported in ref. [26], for a 2 $\mathsf{\mu }\mathrm{m}$-thick film of PbTe/BaF₂ epitaxially grown in our MBE system under the same conditions used here, the X-ray diffraction curves measured around the (222) Bragg point exhibit only the (222) peaks of film and substrate with a full width at half maximum (FWHM) of around 100 arcsec. Thus, both RHEED and X-ray diffraction results demonstrate that single-crystalline PbTe films result from MBE growth on (111) BaF₂ substrates.

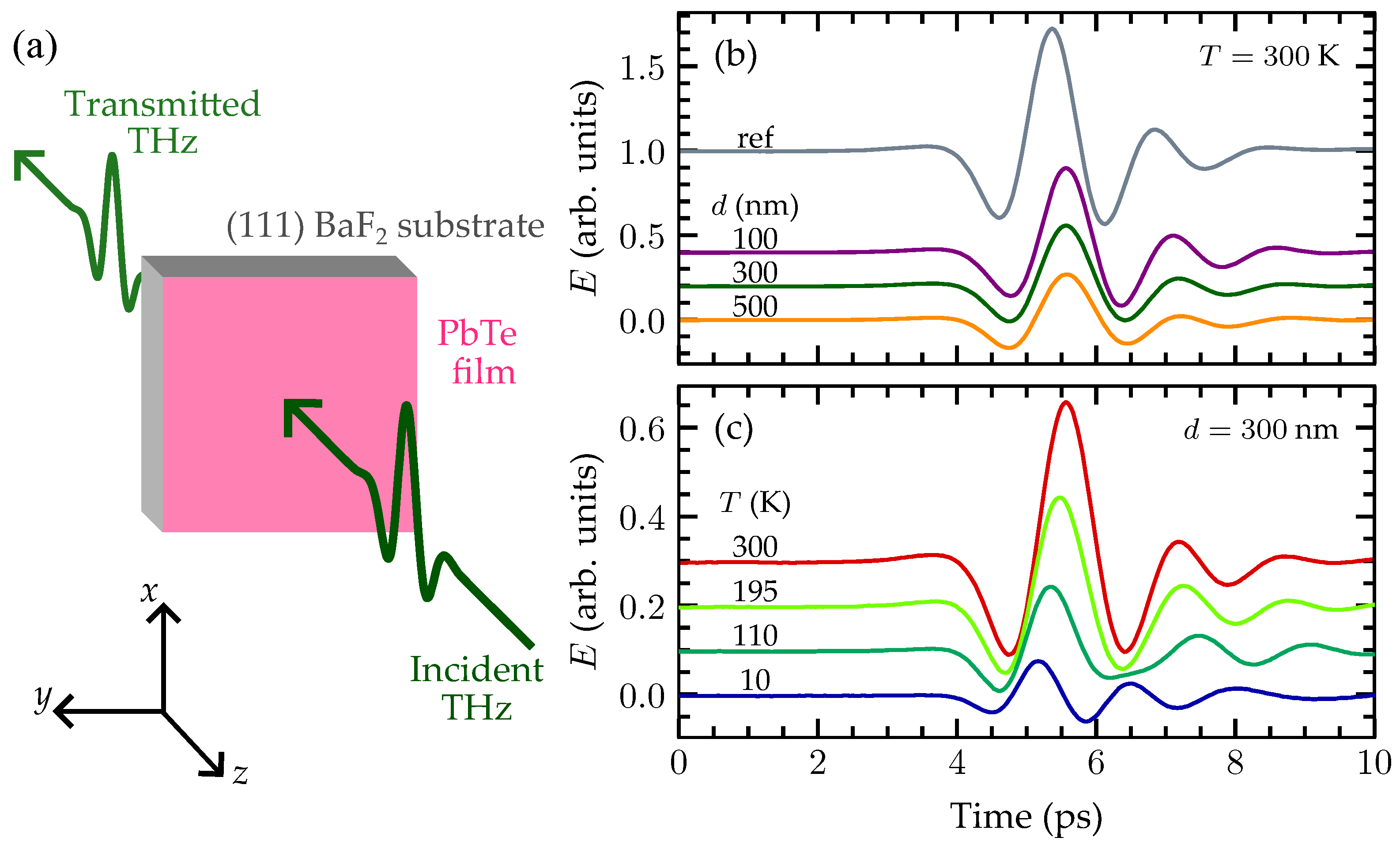

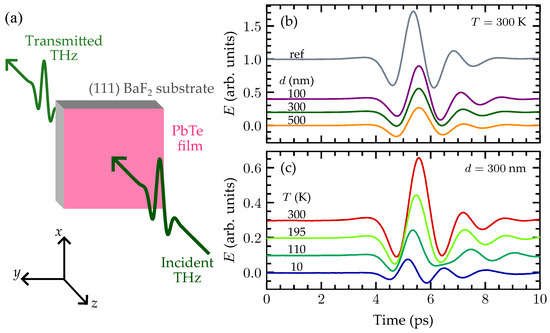

We used THz-TDS in a transmission geometry, as shown in Figure 1a. THz radiation was generated with a biased photoconductive antenna (PCA) pumped by pulses from a mode-locked Ti:sapphire laser oscillator tuned to 780 nm, with a pulse duration of 130 fs and a repetition rate of 76 MHz. The THz beam was focused onto the sample with a 3 mm spot diameter, incident onto the film-coated face. The transmitted beam leaving the back of the substrate was collected and probed by another optically gated PCA, allowing recording of the THz electric field in the time domain. Low-temperature measurements were enabled by mounting the sample inside a cold finger cryocooler equipped with polytetrafluoroethylene windows.

We retrieved time-domain data at temperatures T between 10 K to 300 K, not only for each sample with a particular film thickness d, but also for a substrate-only sample as a reference. Figure 1b shows the detected time-domain signals for all samples at room temperature ($T=300 \mathrm{K}$), truncated in a 10 ps time window, including a trace for the reference sample. Additionally, Figure 1c shows transmitted THz waveforms for the $d=300$ nm sample at various T.

As a measurement with the THz-TDS technique outputs the transient electric field of a THz pulse, the gathered time-domain data were Fourier transformed for the retrieval of both the amplitude and phase components of the frequency-dependent THz electric fields, which contain the spectral response of the whole transmission system. Hence, for each sample containing a PbTe film of thickness d, at a given temperature T, the film contribution may be isolated through the determination of the complex transmission coefficient

$${\mathcal{T}}_{d,T}\left(\nu \right)=\frac{E_{d,T}\left(\nu \right)}{E_{\mathrm{ref},T}\left(\nu \right)}exp\left[\frac{2\pi i\nu }{c}(1-n)\Delta L\right]$$

(1)

where $E_{d,T}\left(\nu \right)$ and $E_{\mathrm{ref},T}\left(\nu \right)$ are, respectively, the frequency ($\nu$)-dependent sample and reference electric fields, c is the speed of light in vacuum, n is the BaF₂ substrate refractive index, and $\Delta L$ is the small thickness difference between sample and reference substrates.

The frequency-dependent complex permittivity $ϵ\left(\nu \right)={ϵ}_1\left(\nu \right)+i{ϵ}_2\left(\nu \right)$ of a film with thickness d at temperature T can be determined through

$${ϵ}_{d,T}\left(\nu \right)=i(1+n)\left[\frac{1}{{\mathcal{T}}_{d,T}\left(\nu \right)}-1\right]\frac{c}{2\pi \nu d}-n$$

(2)

where ${\mathcal{T}}_{d,T}\left(\nu \right)$ is the complex transmission coefficient given by Equation (1). Equation (2) can be derived using conventional transmission models in the thin film limit [27,28].

3. Results

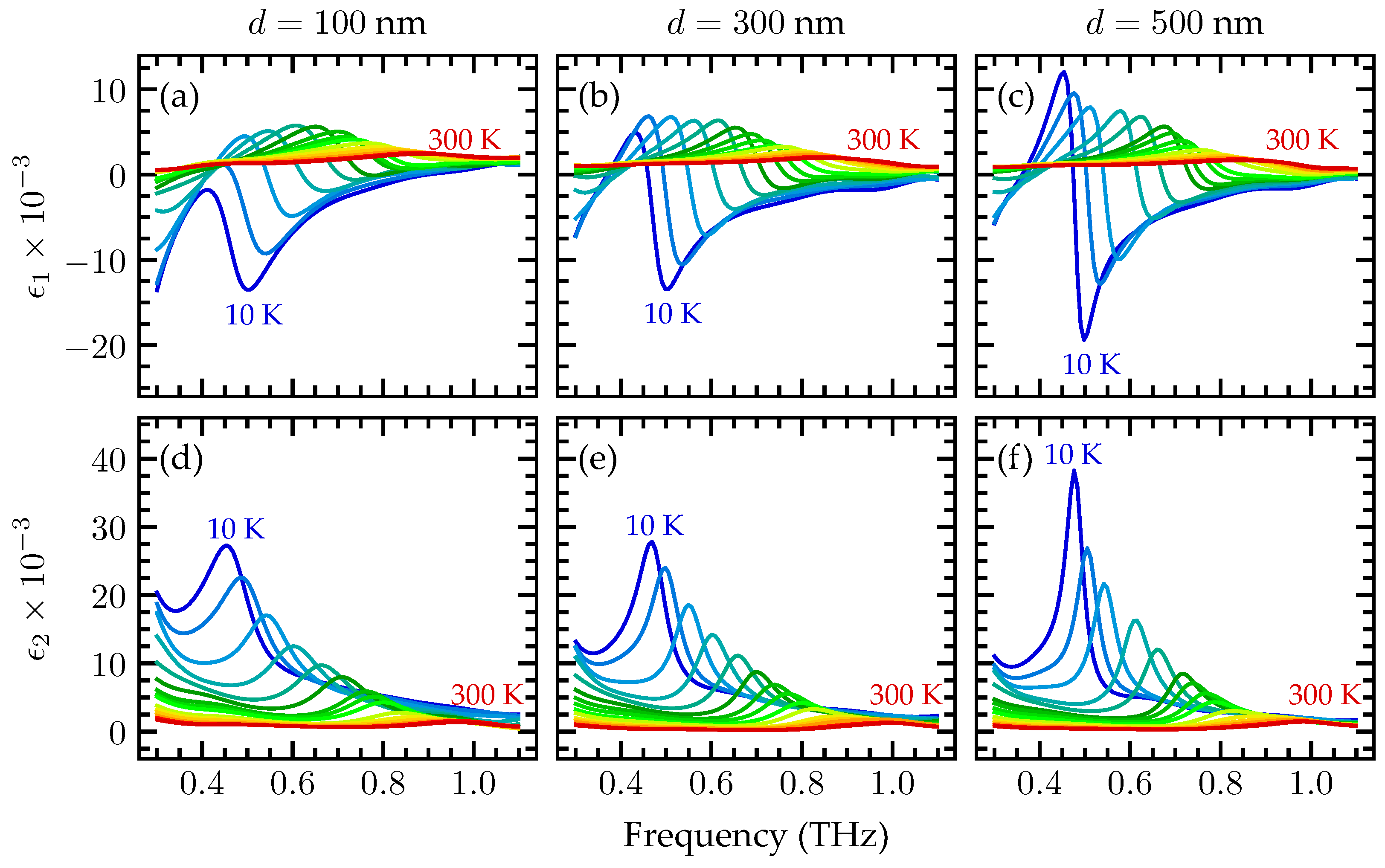

Figure 2 shows a summary of the real (top row) and imaginary (bottom row) parts of the complex permittivity extracted from the THz-TDS measurements of the PbTe thin films using Equation (2) for several temperatures. A prominent resonance feature is observed, which becomes stronger and sharper, and shifts toward lower frequencies, as the temperature decreases from 300 $\mathrm{K}$ (red curves) to 10 $\mathrm{K}$ (blue curves). This strongly temperature-dependent resonance has been previously attributed to the soft TO phonon mode in PbTe, which is in turn associated with the ferroelectric instability in the crystal structure [5]. Further, the lineshape of this resonance is notably asymmetric, suggesting that an additional non-negligible free-carrier component must be accounted for when describing the dynamics of the system.

To separate the phononic and electronic contributions to the permittivity curves presented in Figure 2, we used a model that treats the TO phonon as a damped Lorentz oscillator with an addition of a free-carrier permittivity correction within the Drude model. Namely, we employed the following equation to fit the experimental curves [4]:

$$ϵ\left(\nu \right)={ϵ}_{\infty }+\frac{({ϵ}_{\mathrm{s}}-{ϵ}_{\infty }){\nu }_{\mathrm{TO}}^2}{{\nu }_{\mathrm{TO}}^2-{\nu }^2-i\nu {\Gamma }_{\mathrm{TO}}}-\frac{{\nu }_{\mathrm{p}}^2}{{\nu }^2+i\nu \gamma }$$

(3)

where ${ϵ}_{\infty }$ and ${ϵ}_{\mathrm{s}}$ are the high-frequency and static dielectric constants, ${\nu }_{\mathrm{TO}}$ and ${\Gamma }_{\mathrm{TO}}$ are the TO phonon central frequency and linewidth, $\gamma$ is the carrier collision rate, and ${\nu }_{\mathrm{p}}$ is the plasma frequency [29].

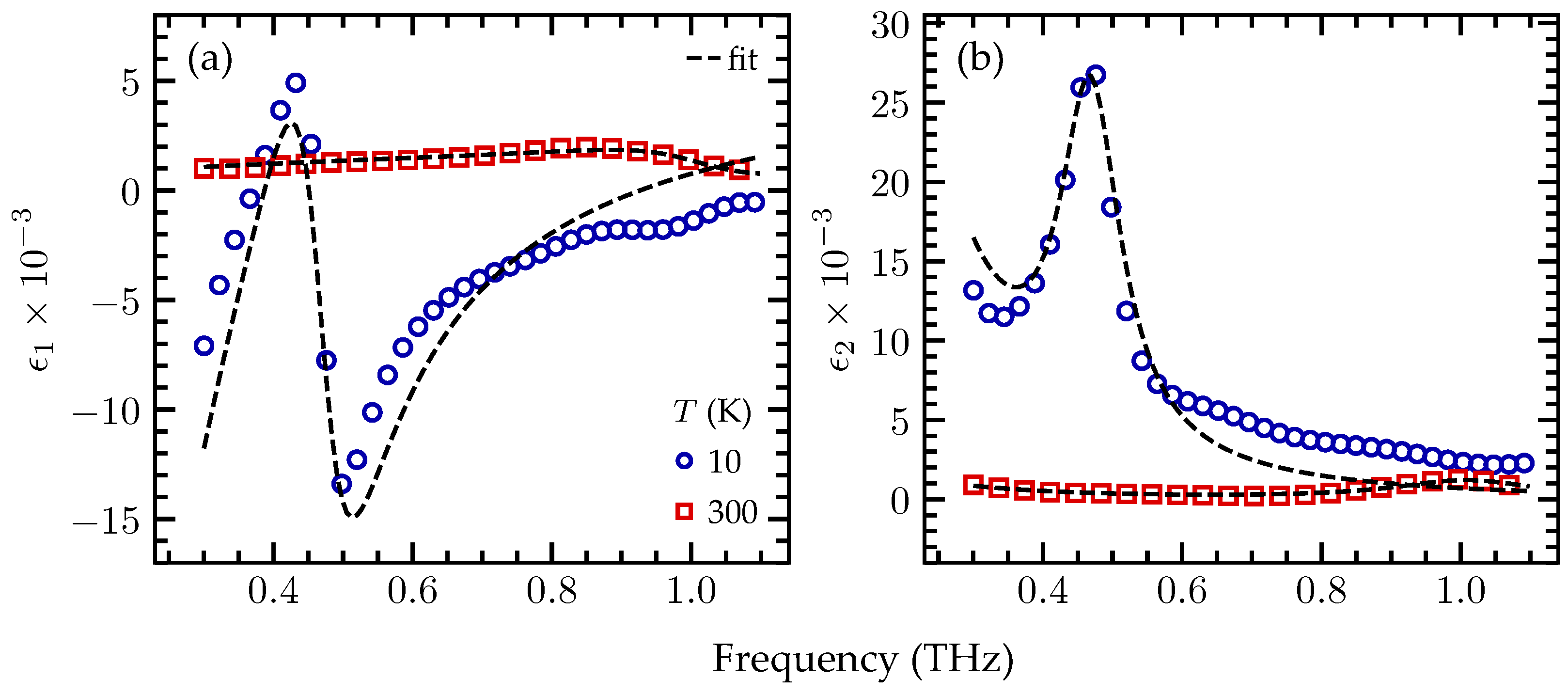

In the optimization process, we varied all parameters in Equation (3) to find optimal simultaneous fits to both the real and imaginary parts of the complex permittivity data. As an example, Figure 3 shows, separately for ${ϵ}_1$ and ${ϵ}_2$, how the fitted curves (black dashed lines) compare with the experimental permittivity for the 300 nm PbTe thin film at 10 $\mathrm{K}$ (blue circles) and 300 $\mathrm{K}$ (red squares). Finally, Figure 4 presents the temperature dependence of the optimal parameters resulting from the fitting process. For all samples, data points are represented as purple circles for $d=100$ nm, green squares for $d=300$ nm, and orange triangles for $d=500$ nm.

4. Discussion

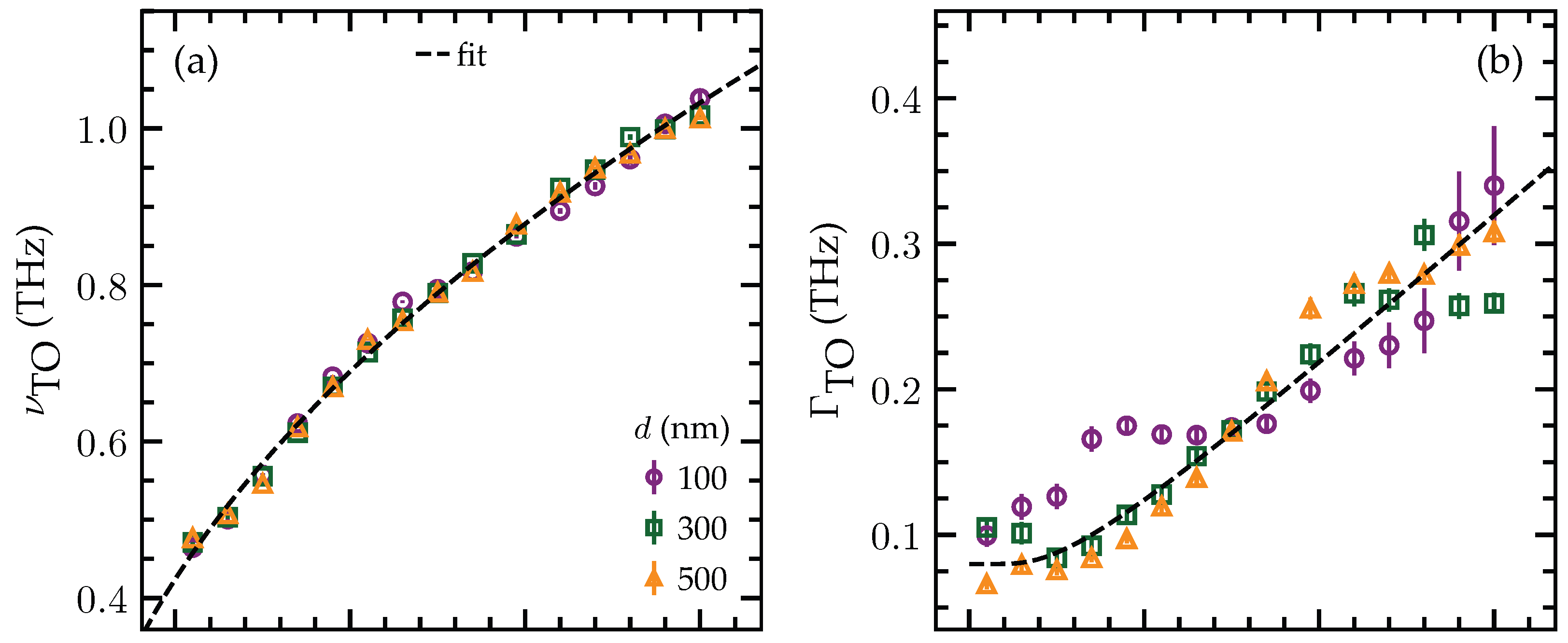

Let us first consider the TO phonon central frequency ${\nu }_{\mathrm{TO}}$, as displayed in Figure 4a, where the same well-behaved temperature dependence was obtained for all samples under investigation, regardless of the film thickness. As each film was cooled down from 300 K to 10 $\mathrm{K}$, a decrease in ${\nu }_{\mathrm{TO}}$ from around 1.04 THz to 0.47 THz was observed, which is compatible with the frequency shift of the resonances in the permittivity curves shown in Figure 2. If we assume that the PbTe films are in a paraelectric phase for the temperature range of the experiments, the static dielectric constant should obey a Curie-Weiss law of the form [30]

$${ϵ}_{\mathrm{s}}\left(T\right)\propto {(T-T_{\mathrm{c}})}^{-1}$$

(4)

which is equivalent to the expected temperature dependence of the TO phonon central frequency given by [31,32]

$${\nu }_{\mathrm{TO}}\left(T\right)\propto \sqrt{T-T_{\mathrm{c}}}$$

(5)

where $T_{\mathrm{c}}$ is the Curie temperature for the ferroelectric phase transition. Equations (4) and (5) are connected through the Lyddane–Sachs–Teller relation (LST) [33,34]

$$\frac{{\nu }_{\mathrm{LO}}^2}{{\nu }_{\mathrm{TO}}^2}=\frac{{ϵ}_{\mathrm{s}}}{{ϵ}_{\infty }}$$

(6)

thus leading to the product of the LO phonon frequency ${\nu }_{\mathrm{LO}}$ with the high-frequency dielectric constant not depending on the temperature.

Simultaneous fits of Equation (5) to all data points collected for all samples, shown in Figure 4a (black dashed line), are in excellent agreement with the observations, therefore corroborating the ferroelectric instability of the crystal structure originating from the reported softening of ${\nu }_{\mathrm{TO}}$. As a result, a Curie temperature of $T_{\mathrm{c}}=(-60\pm 2) \mathrm{K}$ was obtained for this system, independent of the film thickness.

The temperature dependence of the TO phonon linewidth ${\Gamma }_{\mathrm{TO}}$ shown in Figure 4b is consistent with the sharpening of the resonance with decreasing T shown in Figure 2. Additionally, because the TO phonon linewidth can be considered the inverse of its lifetime (assuming that it is homogeneously broadened), we can interpret the behavior in Figure 4b as a faster decay with increasing T, in agreement with what is expected for an anharmonic decay of an optical phonon into two acoustic phonons with finite momentum [12,35]. Overall, TO phonon lifetimes on the order of few picoseconds are shown to increase with d at $T<150 \mathrm{K}$, with an average increase of 50% in its value as the film thickness is increased from 100 nm to 500 nm. Conversely, at higher T, this behavior seems to revert, displaying a lifetime that decreases with d, roughly dropping to 85% of its value in the same film thickness increment considered above.

Concerning the free carrier contribution to the permittivity, let us first analyze the behavior of the plasma frequency

$${\nu }_{\mathrm{p}}=\frac{1}{2\pi }\sqrt{\frac{N{e}^2}{{ϵ}_0{m}^{*}}}$$

(7)

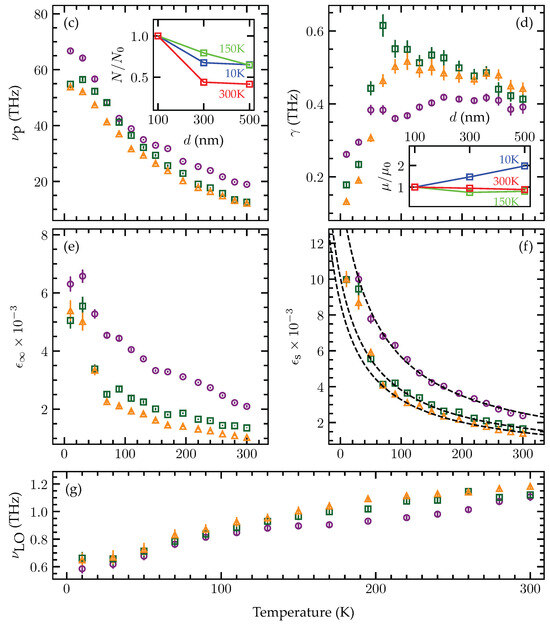

where e is the electron charge, ${ϵ}_0$ is the vacuum permittivity, and $m^{*}$ is the T-dependent carrier effective mass [36]. As can be seen in Figure 4c, the value of ${\nu }_{\mathrm{p}}$ more than triples as T decreases from 300 K to 10 $\mathrm{K}$, while it decreases with d. Independently of the T dependence of $m^{*}$, our results indicate that N decreases with increasing T or d. On average, N was observed to increase by over 50% upon decreasing d from 500 nm to 100 nm, as illustrated in the inset to Figure 4c, where $N_0\left(T\right)=N(T,d=100 nm)$ is defined as the carrier density of the 100 nm-thick film at each T. We estimate $N_0(10 \mathrm{K})\approx 2.2\times {10}^{18}{\mathrm{cm}}^{-3}$ and $N_0(300 \mathrm{K})\approx 0.6\times {10}^{18}{\mathrm{cm}}^{-3}$, using values for $m^{*}$ from ref. [36].

Figure 4d shows the extracted carrier collision rate $\gamma$. The mean free time, on the order of a few picoseconds, decreases as T is increased from 10 $\mathrm{K}$ to around 100 $\mathrm{K}$ but saturates for $T>100 \mathrm{K}$. Since the carrier mobility depends on $\gamma$ through

$$\mu =\frac{e}{\gamma m^{*}}$$

(8)

the mobility increases with decreasing T in the low-T range but saturates for $T>100 \mathrm{K}$. At the lowest temperatures, $\mu$ increases as with increasing d, which is in agreement with the literature for zero-T carrier mobility extracted from resistivity measurements [37]. The inset to Figure 4d shows the d dependence of $\mu /{\mu }_0$ for a few temperatures, where ${\mu }_0\left(T\right)\equiv \mu (T,d=100\mathrm{nm})$ is the carrier mobility for the 100 nm-thick film at each T. We estimate ${\mu }_0(10 \mathrm{K})\approx 16\times {10}^4{\mathrm{cm}}^2/\mathrm{Vs}$ and ${\mu }_0(300 \mathrm{K})\approx 3\times {10}^4{\mathrm{cm}}^2/\mathrm{Vs}$, using values for $m^{*}$ from ref. [36]. Considering the observed d dependence, these values for both N and $\mu$ are compatible with results of transport measurements in 1.6 $\mathsf{\mu }$m-thick PbTe films [38].

Finally, the extracted behaviors for the high-frequency and static dielectric constants are presented in Figure 4e,f, respectively, with values on the order of ${10}^3$ that matches the high values of permittivity shown in Figure 2, for all samples, even outside the resonances. Overall, both ${ϵ}_{\infty }$ and ${ϵ}_{\mathrm{s}}$ exhibit a similar dependence on d, i.e., increasing with decreasing d throughout the T range of the experiments. As d decreases from 500 nm to 100 nm, the high-frequency dielectric constant was observed to double, while the static dielectric constant experienced an increase of 70%. Additionally, there is a clear T dependence for both parameters, which are discussed separately as follows.

Starting from the high-frequency side, ${ϵ}_{\infty }$ is shown in Figure 4e to increase with decreasing T for all values of d, a behavior which resembles that reported previously for Ni-doped PbTe crystals [39], where the increase in ${ϵ}_{\infty }$ was associated with the increase in N. Here, by comparing (c) and (e) in Figure 4, we can see that ${ϵ}_{\infty }$ follows the increase in N, either with decreasing T or d. Likewise in Figure 4f, the static dielectric constant ${ϵ}_{\mathrm{s}}$ exhibits an increase as T goes down. In this case, its behavior is predicted by Equation (4), once the above analysis on the soft TO phonon frequency ${\nu }_{\mathrm{TO}}$ corroborates the paraelectricity of the examined PbTe films. In fact, the fitting of Equation (4) to each data set in Figure 4f was made with the Curie temperature fixed to $T_{\mathrm{c}}=-60 \mathrm{K}$, as found above, and the resulting optimized curves depicted by the black dashed lines ended up describing well the observed T dependence of ${ϵ}_{\mathrm{s}}$.

Since our observations for ${ϵ}_{\mathrm{s}}$ and ${\nu }_{\mathrm{TO}}$ are in agreement with Equations (4) and (5), respectively, the LST relation (6) suggests that the carrier-induced T dependence retrieved for ${ϵ}_{\infty }$ should influence the behavior of the LO phonon frequency. In this sense, Figure 4g presents ${\nu }_{\mathrm{LO}}$, determined from the data of each sample. As one can see, ${\nu }_{\mathrm{LO}}$ also decreases as T is decreased from 300 K to 10 $\mathrm{K}$, but differently from what was observed for the TO mode; i.e., ${\nu }_{\mathrm{LO}}$ exhibits a d dependence with higher values for the thicker films. Those changes in ${\nu }_{\mathrm{LO}}$ imply that the free-carrier plasmon mode ${\nu }_{\mathrm{p}}/\sqrt{{ϵ}_{\infty }}$ influences the LO mode, which might cause the appearance of LO phonon–plasmon coupled (LOPC) modes, as reported in other studies [15,39,40,41]. Moreover, the retrieved ${\nu }_{\mathrm{LO}}$ values are much smaller than the value of (∼3.4 THz) that can be found in the literature for PbTe [32,42]. Further investigations are needed to clarify the relation between our observations and the lower branch of the LOPC.

5. Conclusions

We conducted temperature-dependent THz-TDS measurements on PbTe thin films with different thicknesses, which enabled the determination of the frequency-dependent complex permittivity of the films. As characteristic features of phononic and free-carrier terms appeared on the retrieved permittivity curves, we used a model that consider these contributions to extract the dependence of typical parameters on both temperature and film thickness. Analyses of the extracted TO phonon central frequency and static dielectric constant agreed with the temperature behavior expected in the paraelectric phase of PbTe in a ferroelectric instability of the crystal structure, with a Curie temperature of (−60 ± 2) $\mathrm{K}$ that does not depend on the thickness of the film. Further, this soft phonon was shown to indicate anharmonic decays into two acoustic phonons with finite momentum, with a film thickness dependence that seems to act oppositely in different temperature ranges. Along with the softening of the TO phonon, we report an increase in the carrier density as the temperature of the film is lowered. This behavior is suggested by the temperature dependences of both the extracted plasma frequency and high-frequency dielectric constant. Also, the analysis of the extracted carrier collision rate indicates a carrier mobility that is quite stable for temperatures greater than 100 $\mathrm{K}$ but increases for decreasing temperature in the lower range. Contrary to the lack of a film thickness dependence in the TO phonon central frequency, not only the carrier density but also the static and high-frequency dielectric constants were shown to increase with decreasing thickness in a similar behavior. Moreover, the behavior of the LO phonon mode was also determined from the extracted parameters, increasing in frequency either with increasing temperature or film thickness, which suggests the presence of LO phonon–plasmon coupling.
