Article

Exploring the Effect of Pt Addition on the Fracture Behavior of CrN Coatings by Finite Element Simulation

by 1,†, 1,†, 1,*, 1, 2,* and 1
1
Liaoning Key Laboratory of Complex Workpiece Surface Special Machining, University of Science and Technology Liaoning, Anshan 114051, China
2
Equipment Manufacturing Department, Anshan Vocational and Technical College, Anshan 114020, China
*
Authors to whom correspondence should be addressed.
The authors contributed equally to this work.
Academic Editor: Yeau-Ren Jeng
Coatings 2022, 12(8), 1131; https://doi.org/10.3390/coatings12081131
Received: 14 July 2022 / Revised: 30 July 2022 / Accepted: 1 August 2022 / Published: 5 August 2022

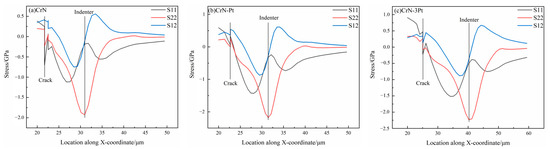

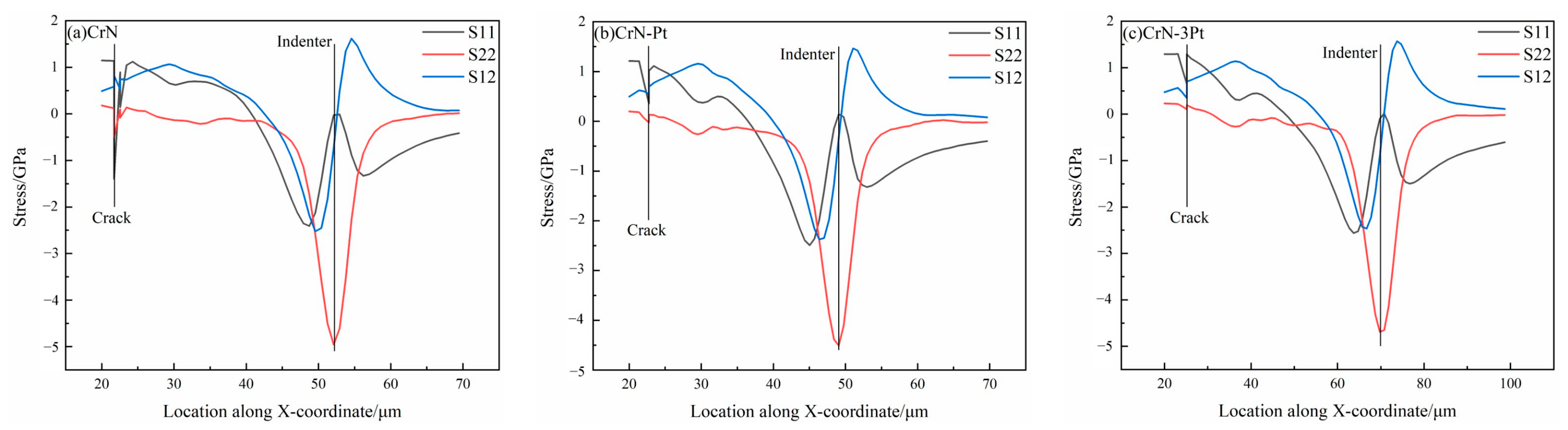

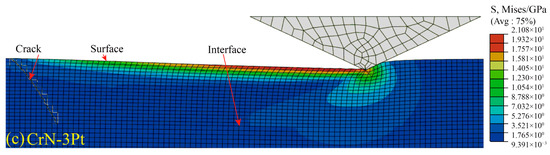

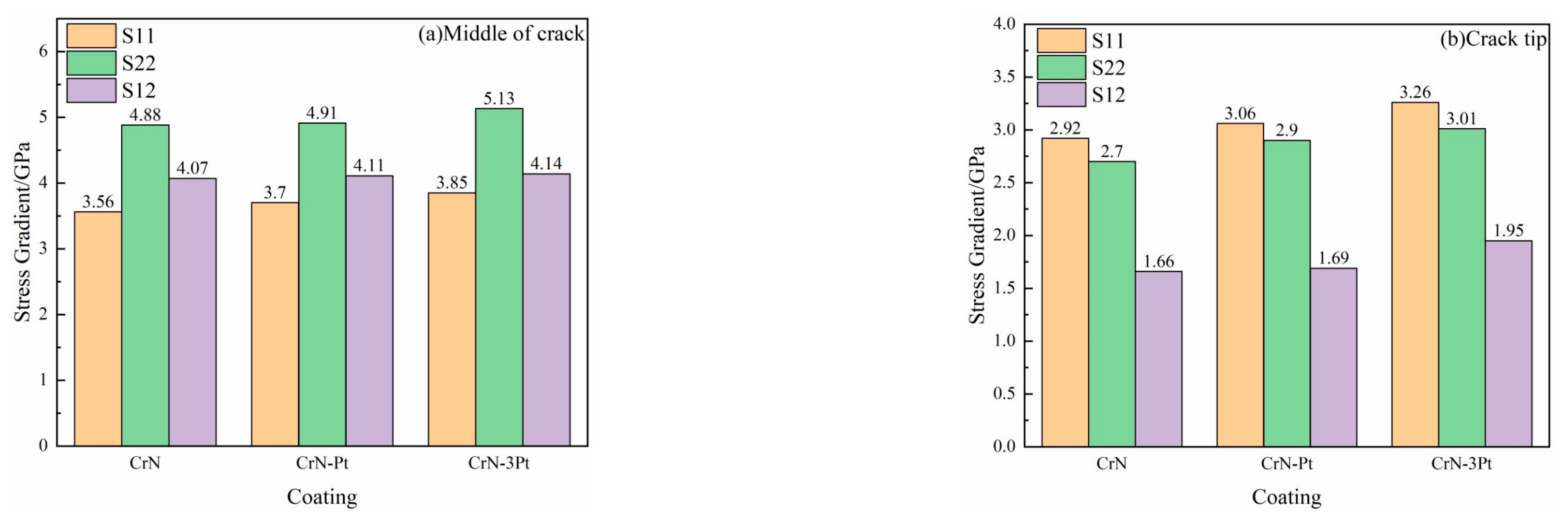

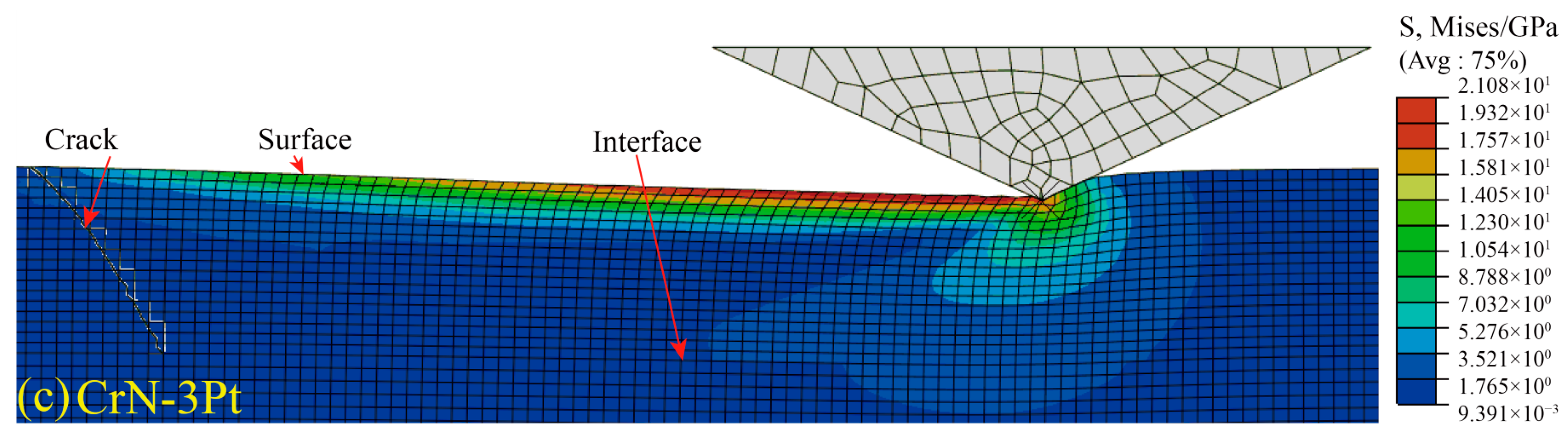

Previous research confirmed that Pt addition induced a prominent refinement effect of CrN coating, resulting in an enhanced conductivity and corrosion resistance. In this work, a detailed finite element simulation and scratch test were employed to calculate and characterize the fracture failure behaviors (stress distribution, crack damage process, critical coating load, and coating–substrate adhesion energy) of CrN coatings with different Pt contents. Simulation results showed that the synergistic action of dynamic scratch load and extrusion load induced the fracture of the coatings. S11 and S22 caused transverse cracks in the CrN coating, S11 caused longitudinal cracks in the CrN-Pt coating and CrN-3Pt coatings, S22 led to the inclined propagation of cracks in these coatings, and S11 and S22 jointly induced the separation of the coating from the substrate. The doping Pt element in the CrN coating will make the coating easier to fracture and reduce the adhesion strength between the coating and substrate. Scratch test results revealed that adding Pt into the CrN coating will make this coating easier to fracture and cause more serious damage; the simulation results are in good accordance with the scratch test characterizations. The current founding provided a comprehensive understanding for the fracture damage mechanism of Pt-doped nitride coatings. View Full-Text
Keywords: CrN coating; Pt elements; fracture behavior; adhesion strength; finite element simulation CrN coating; Pt elements; fracture behavior; adhesion strength; finite element simulation
Show Figures

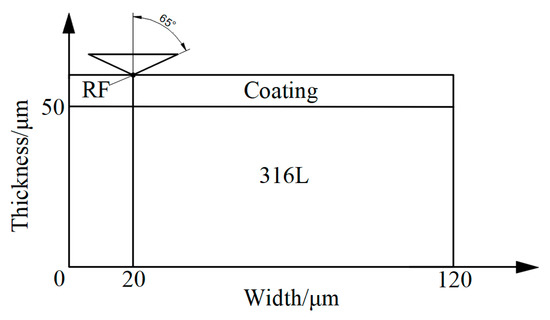

Figure 1
