Improved Cycling Performance and High Rate Capacity of LiNi_0.8Co_0.1Mn_0.1O₂ Cathode Achieved by Al(PO₃)₃ Modification via Dry Coating Ball Milling

Abstract

LiNi_0.8Co_0.1Mn_0.1O₂ (NCM811) has attracted extensive attention as a promising cathode of lithium-ion batteries (LIBs) in next-generation electric vehicles, as the NCM811 sample possesses a high energy density and a price advantage. In this work, NCM811 was modified with an Al(PO₃)₃ precursor using the dry ball milling method followed by heat treatment to enable commercial development both at room temperature and a higher temperature. Compared with the unmodified NCM811 sample with the capacity retention of 68.70%, after Al(PO₃)₃ modification, the NCM811 sample heated to 500 °C exhibited a super capacity retention ratio of 93.88% after 200 charging–discharging cycles with the initial discharge capacity of 178.1 mAh g⁻¹ at 1 C. Additionally, after Al(PO₃)₃ modification, the NCM811 sample heated to 500 °C showed much improved rate performance compared to bare NCM811 at the current density of 5 C. The enhanced electrochemical performance after cycling was due to the decreased charge transfer resistance and increased Li⁺ transmission, which were confirmed via electrochemical impedance spectra (EIS). The NCM electrodes showed improved structural stability as layered structures after Al(PO₃)₃ modification, consistent with the improved cycling performance. This work revealed that LiNi_0.8Co_0.1Mn_0.1O₂ material with phosphide coating can be constructed using a simple ball milling method, which is feasible for obtaining high-performance electrode materials.

1. Introduction

The use of new energy vehicles is rising worldwide, and lithium-ion batteries (LIBs) are widely applied as a power system to provide energy to these types of vehicles [1]. With the improvement of the quality of electric vehicles, more requirements with regard to electric vehicle mileage are made apparent, such as a high specific capacity, long life span for charge–discharge, and high energy density. The cathode material used in LIBs is the key material that restricts the endurance mileage of electric vehicles. To improve the electrochemical performance of cathode materials used in LIBs, researchers have focused on layered cathode materials of LiNi_xCo_yMn_zO₂ with higher nickel content (NCM, x + y + z = 1, x > 0.6) due to their high discharge capacity and price advantage [2]. With the increase in nickel content, the energy density increases in cathode materials in LIBs. The NCM811 cathode material has attracted attention due to its high capacity of more than 200 mAh g⁻¹ between the charging–discharging window of 3.0–4.3 V, and it is expected to achieve a high energy density of 300 Wh kg⁻¹ in the near future as a LIB cathode material [3]. Nevertheless, there are still a few intrinsic issues that need to be settled with regard to the NCM811 material. Firstly, during the synthesis and cycling process, Ni²⁺ can easily migrate into the lithium layer as the ion radii of Ni²⁺ (0.69 Å) is similar to that of Li⁺ (0.76 Å). Lithium–nickel ion mixing leads to an undesirable transformation between the layered structure and the rock salt phase, further causing capacity decay and a decrease in voltage [4]. Secondly, the surface nickel becomes a high-valent state with high activity during the charging process, which is prone to side reactions with the electrolyte, resulting in a decrease in capacity and an aggravation of polarization. [5]. Thirdly, the surface alkali content for high-nickel cathode materials is high, and it easily reacts with moisture and carbon dioxide in the air. A high alkaline content can aggravate a side reaction with the electrolyte and seriously affect the electrochemical properties of the high-nickel samples [6].

Intensive investigations have proved that element doping and surface modification are effective ways to solve the mentioned shortcomings of NCM811 [7,8,9,10]. Substantial efforts have been made to suppress the phase transition and cation disorder. Element doping with the use of elements such as Al, Mg, Ti, Cr, and Zr has previously been adopted in investigations involving the NCM811 material, which proved that element doping is effective in the alleviation of the cation disorder and in the improvement of cycling stability [11,12,13,14]. Surface coating is another effective strategy that can be used to suppress the side reaction with the electrolyte. Various coating layers, including metal fluorides such as MgF₂ [15], AlF₃ [16], CaF₂ [17], and LaF₃ [18], metal oxides such as Y₂O₃ [19], Al₂O₃ [20], MgO [21], and ZrO₂ [22], and metal phosphates such as Li(PO₄)₃ [23], Ni₃(PO₄)₂ [24], AlPO₄ [25], MnPO₄ [26], and LaPO₄ [27] have been reported as suitable coating materials, which can effectively reduce direct contact with electrolytes and improve the long cycling process of the host material [23,24]. Feng et al. [28] elaborately obtained the Al(PO₃)₃-AlPO₄-Li₃PO₄-coated NCM811 sample, and the modified sample demonstrated enhanced electrochemical properties, delivering a capacity retention of 85.4% after 50 cycles, which was much higher than the unmodified sample. In addition, Yue et al. reported that the electrochemical properties of Y(PO₃)₃-coated LiNi_0.6Co_0.1Mn_0.3O₂ were greatly enhanced and found that the Y(PO₃)₃-modified NCM613 sample presented a higher discharge capacity of 181.3 mAh g⁻¹ at 1 C under room temperature, and it showed a capacity retention rate of 87.2% after 100 charge–discharge cycles, which was higher than the unmodified sample [29].

Among the coating materials, metal phosphate coatings show a positive effect on the electrochemical performance of NCM materials. In a previous report, the phosphate structural unit had a strong binding force with metal ions, which was able to enhance the thermal stability of the matrix sample [27]. The large tetrahedral PO₄³⁻ polyanions showed higher electronegativity than O²⁻ anions. The PO₄³⁻ polyanion groups were doped into layered cathode materials to minimize local structural changes during charge–discharge cycles, and the cathode material maintained the original layered structure during long cycling [30]. Moreover, metal phosphates such as AlPO₄ showed strong P=O bonds and good ionic conductivity, which could facilitate the diffusion of lithium ions [27].

Coating methods are divided into wet coating and dry coating. In recent reports, wet coating with the NCM cathode material has been the main method of choice [26,31]. Gao et al. adopted a wet grinding procedure to treat a mixture of NCM613 using NaH₂PO₂ as the phosphorus precursor [31]. In the work of Chen et al., continuous nanocoating of NCM was successfully realized using a simple wet chemical method with NH₄H₂PO₄ as the phosphorus precursor [26]. Coatings obtained via the wet method are continuous and uniform, however the preparation process is complex, the raw material is expensive, and the preparation process produces waste liquid, so it is difficult to achieve mass production via wet coating. Dry coating is a better choice to achieve coating materials on a matrix surface due to the price advantage, the simple process, and easy industrialization. Lee et al. studied a Li(Ni_0.8Co_0.15Al_0.05)O₂ sample after Ni₃(PO₄)₂ coating via the ball milling method, which showed improved cycling performance at 55 °C [24]. Similarly, a bio-waste-derived, CaO-coated NCM 811 sample was obtained via the dry method, which demonstrated improved reversibility and retention [32]. However, compared with the modified product obtained via the wet coating method, the electrochemical performances of the dry-coated cathode samples were still lower in comparison. Hence, it is necessary to explore suitable coating compositions and optimal coating processes.

In this study, coating using metal phosphates was investigated as a coating material utilizing Al(PO₃)₃ as the precursor of the cladding layer via the dry method of ball milling, followed by the calcination process (400 °C, 500 °C, and 600 °C). We used Al(PO₃)₃ as the coating precursor due to the cost advantage of the raw material, the high structural stability, and the easy combination with the residual alkali on the matrix material. The effects of the Al(PO₃)₃ calcination temperature on the microstructures, electrochemical performance, and electrochemical boosting mechanism of the NCM811 sample were systematically studied. The Al(PO₃)₃-modified NCM811 material demonstrated superior electrochemical performance, especially at the heated temperature of 500 °C.

2. Materials and Methods

2.1. Material Preparation

NCM811 powders were purchased from Dongguan East sunshine Scientific Research development Co. LTD, Dongguan, China and nano-scale Al(PO₃)₃ powders were purchased from Shanghai Pacific Technology Co., LTD (Shanghai, China). The matrix materials and precursors were obtained directly from the market with no additional pre-treatment. To prepare the Al(PO₃)₃-modified NCM811 sample, 0.4 g of the Al(PO₃)₃ sample was mixed with 20 g of NCM811 powders via dry ball milling with a milling speed of 100 rpm for 10 h, and the Al(PO₃)₃-modified powder was annealed for 5 h in air flow at temperatures of 400 °C, 500 °C, and 600 °C. The schematic diagram of the preparation process for Al(PO₃)₃-modified samples is displayed in Figure 1a. The samples heated at 400 °C, 500 °C, and 600 °C are marked as NCM@ALP400, NCM@ALP500, and NCM@ALP600, respectively. Feng et al. have investigated the effect of Al(PO₃)₃ coating on the electrochemical performance of NCM811 material with various coating amounts of 1, 2 and 3 wt.% and found that the Al(PO₃)₃ coated sample with 2 wt.% amount showed better electrochemical performance [28].

2.2. Material Characterizations

X-ray diffraction (XRD) examinations were conducted on the NCM811 sample and Al (PO₃)₃-modified NCM811 samples for phase analysis by using the X’Pert-PRO instrument (Cu-Kα radiation) in the scanning range of 10–80°. The cell parameters of the samples were obtained utilizing the JADE software (Jade 6), shown in

Table 1. Lattice parameters of bare and Al(PO₃)₃-coated LiNi_0.8Co_0.1Mn_0.1O₂ samples.

Samples	a (Å)	c (Å)	c/a	I (003)/I (104)
NCM811	2.863	14.098	4.924	1.508
NCM811@ALP400	2.859	14.155	4.951	1.396
NCM811@ALP500	2.861	14.091	4.925	1.549
NCM811@ALP600	2.858	14.107	4.936	1.378

. Additionally, XRD patterns were obtained for the electrodes after cycling to analyze the phase change of the samples. To analyze the morphology and the chemical composition of the bare and modified NCM811 samples, scanning electronic microscopy (SEM, Quanta 450 FEG, FEI, Hillsboro, OR, USA) was conducted, combined with energy-dispersive X-ray detection (EDX, Oxford, UK). To inspect the structural features of the original and modified samples, high-resolution transmission electron microscopy (HRTEM, FEI, Hillsboro, OR, USA) and transmission electron microscopy (TEM, FEI, Hillsboro, OR, USA) examinations were conducted using a Talos F200X instrument. The samples were tested using X-ray photoelectron spectroscopy (XPS, ESCALAB 250xi, Waltham, MA, USA) to analyze the surface valence change of the sample surface.

2.3. Electrochemical Measurement

The electrode slurry was dispersed in N-methyl-2-pyrrolidinone by mixing the cathode material, polyvinylidene fluoride, and acetylene black with a mass ratio of 8:1:1. The slurry was spread on Al foil uniformly and was heated at 120 °C for 12 h via vacuum drying, and it was then rolled and punched into disks. The mass load of the electroactive material for each disk was about 2–2.5 mg cm⁻². The CR2032-type half-coin cells were assembled with the prepared electrode as the cathode, Celgard 2500 as the separator, and lithium metal as the anode. The electrolyte was added into the coin cells with the formula of 1 M LiPF₆ in an EMC:DMC:EC = 1:1:1 volume ratio. Electrochemical performances of the samples were conducted on a Land CT2001A battery test system (1 C = 200 mAg⁻¹) in the voltage range of 2.8–4.3 V (vs. Li/Li⁺) at 30 °C and 60 °C. The cyclic voltammetry (CV) curves with the scan range of 2.8–4.5 V and the scan rate of 0.1 mV s⁻¹ in the first three cycles and the electrochemical impedance spectroscopy (EIS) curves (frequency range, 0.01 Hz to 100 kHz) after 200 cycles were conducted using the electrochemical station (CHI660C, Shanghai, China) to evaluate the electrode reaction process of the NCM811 sample and Al (PO₃)₃-modified NCM811 samples.

3. Results

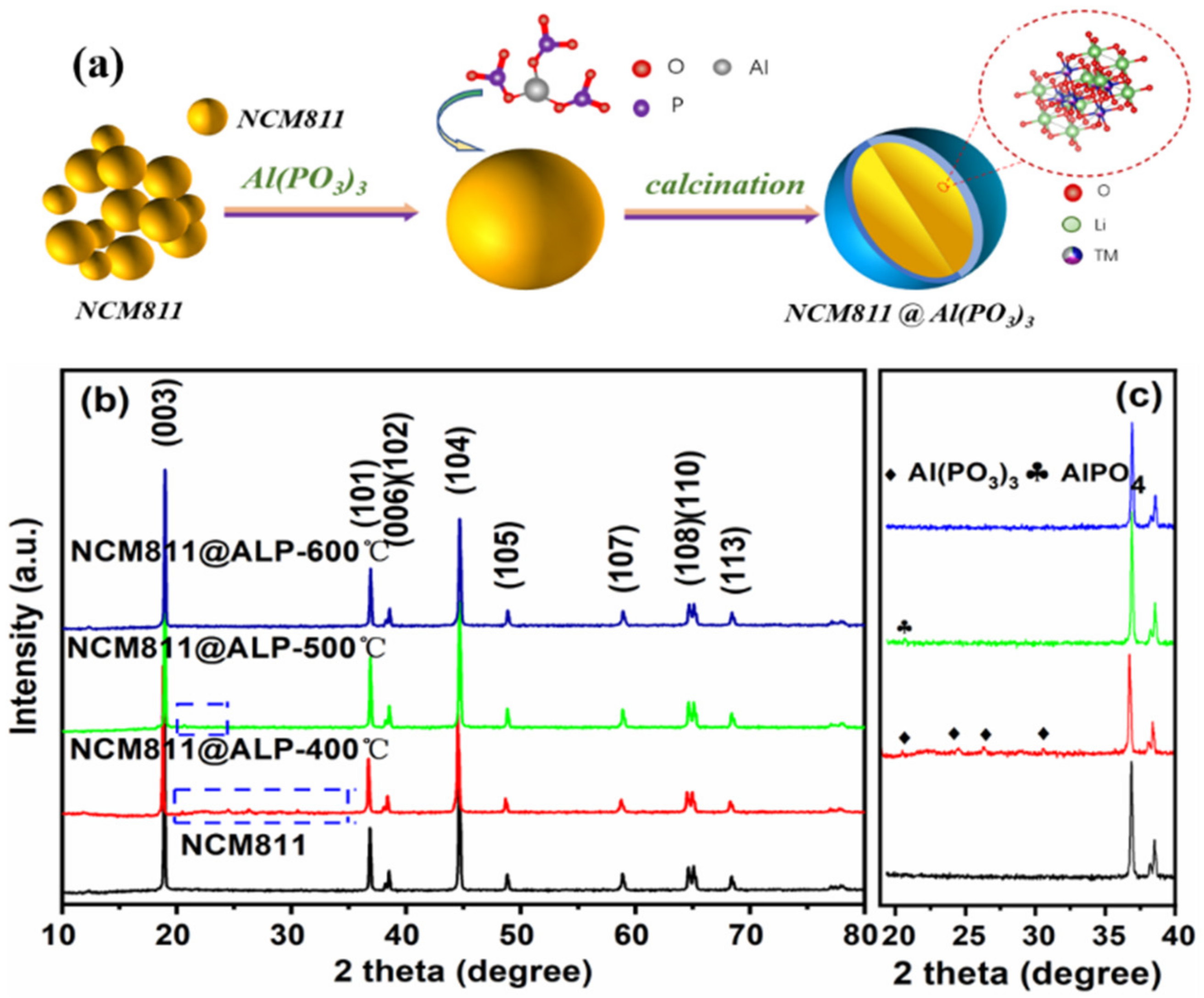

The XRD patterns and the enlarged patterns of pure NCM811 and Al(PO₃)₃-modified NCM811 are displayed in Figure 1b,c. The lattice parameters of the bare and Al(PO₃)₃-modified NCM811 samples are shown in Table 1. The main XRD peaks for the pure NCM811 and the modified materials exhibited the NaFeO₂-type, hexagonal-layered structure belonging to the R3m space group, which corresponded well with the PDF card #87-1562. The (108)/(110) and (006)/(102) peaks showed obvious cleavage, implying that pure NCM811 and Al(PO₃)₃-modified NCM811 maintained a well-developed layered structure [33]. The XRD pattern of NCM811 before and after ball milling is shown in the supporting information of Figure S1. The XRD pattern remains the same before milling and after milling, indicating that ball milling does not affect the purity of the material. Shown in Table 1, the intensity ratios of I(003)/I(004) for all the samples were 1.508, 1.396, 1.549, and 1.378, which are much higher than 1.20, confirming a well-ordered layer structure with low cation mixing [34]. If the value of I (003/004) is less than 1.2 in the XRD pattern, this usually indicates the cation mixing appearance as a result of the similar radii of Ni²⁺ (0.69 Å) and Li⁺ (0.76 Å) [35]. The results indicate that Al(PO₃)₃ modification did not change the main phase structure of the NCM811 material.

To analyze the tiny changes of the phase structure, the zoomed-in XRD patterns are shown in Figure 1c. It is worth noting that the diffraction peaks of Al(PO₃)₃ (PDF card of #13-0264) impurity appeared when heated to 400 °C. When heated to 500 °C, the diffraction peaks of Al(PO₃)₃ disappeared, and the minor diffraction peaks of AlPO₄ appeared (PDF card of #47-0168), which implies that the Al(PO₃)₃ precursor probably reacted with the lithium-containing compounds on the surface of NCM811 to form AlPO₄. According to the previous study [28,29], Al(PO₃)₃ reacted with residual lithium on the NCM811 surface, and the probable reactions are listed as Equations (1) and (2). However, the diffraction peaks of Li₃PO₄ were not detected in the XRD pattern, which may be due to the low content of Li₃PO₄ on the sample surface. The diffraction peaks of AlPO₄ disappeared at 600 °C, which may be related with the small amount of AlPO₄ that diffused from the surface into the bulk, accelerated by the increased temperature.

$$6\mathrm{LiOH}+\mathrm{Al}{({\mathrm{PO}}_3)}_3\to {\mathrm{AlPO}}_4+2{\mathrm{Li}}_3{\mathrm{PO}}_4+3{\mathrm{H}}_2\mathrm{O}$$

(1)

$$3{\mathrm{Li}}_2{\mathrm{CO}}_3+\mathrm{Al}{({\mathrm{PO}}_3)}_3\to {\mathrm{AlPO}}_4+2{\mathrm{Li}}_3{\mathrm{PO}}_4+3{\mathrm{CO}}_2$$

(2)

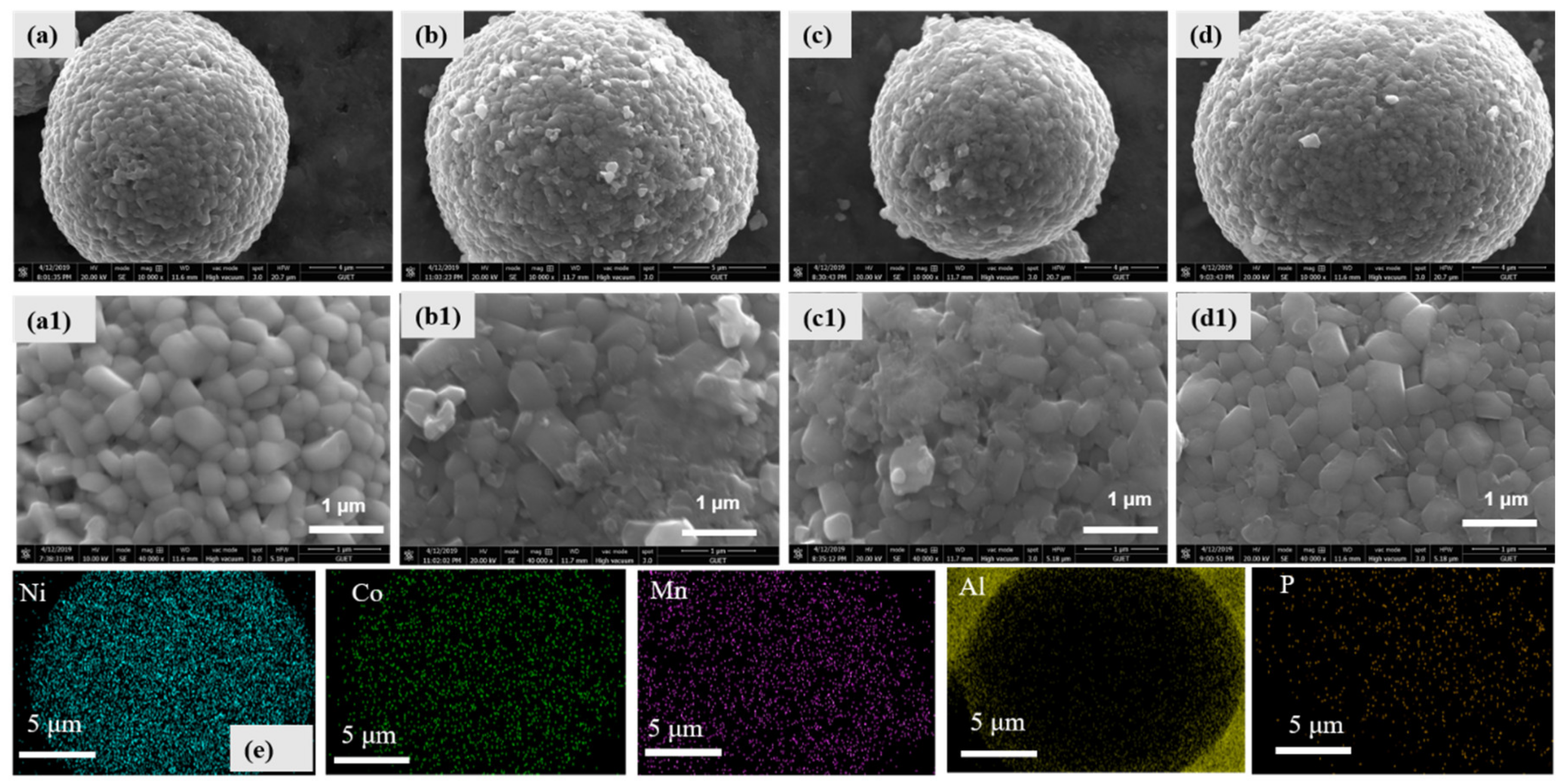

SEM images are shown in Figure 2a–d to observe the coating layer on the original NCM811 surface. It can be seen from Figure 2a–d that samples showed a similar spherical appearance with diameter sizes of 10–20 um. Regular quasi-spherical particles were composed of small, packed primary particles with particle sizes of 300–500 nm. All of the samples with spherical morphology aided tight packing between the active material and acetylene black, and this could improve the tap density of lithium-ion batteries. Meanwhile, a spherical appearance was beneficial to electrode processing due to the high ductility and low friction. Enlarged SEM images are shown in Figure 2a1–d1. The original NCM811 sample presented a relatively smooth surface, while Al(PO₃)₃-coated NCM811 samples heated to 400 °C and 500 °C displayed rough surfaces with a few fragments and folds. With regard to the bare particles of NCM811, there were gaps between the primary particles, while the gaps between the primary particles almost disappeared for the modified samples, indicating that the primary particles became compact and dense after modification. The disappearing gaps may be ascribed to the formation of the Al(PO₃)₃-based coating distributed in the voids, which was beneficial in reducing the corrosion of the active material by the electrolyte, further restraining the detrimental reactions [36].

Notably, the sample surface of the Al(PO₃)₃-coated NCM811 heated to 600 °C became as smooth as the bare sample, which may due to the Al(PO₃)₃ coating diffusing into the inner grain boundary among the primary particles. To further study the elemental distribution of the coating, EDS testing was conducted on the surface of NCM@ALP500, as shown in Figure 2e. As can be seen, Ni, Co, and Mn elements were clearly observed as the major components of NCM811. In addition, P and Al were distributed in the NCM@ALP500 sample, which confirms that NCM811 was successfully coated with the Al(PO₃)₃ coating. It is worth mentioning that a clear distribution of Al was observed around the spherical particles as the test particles were stuck to the aluminum foil.

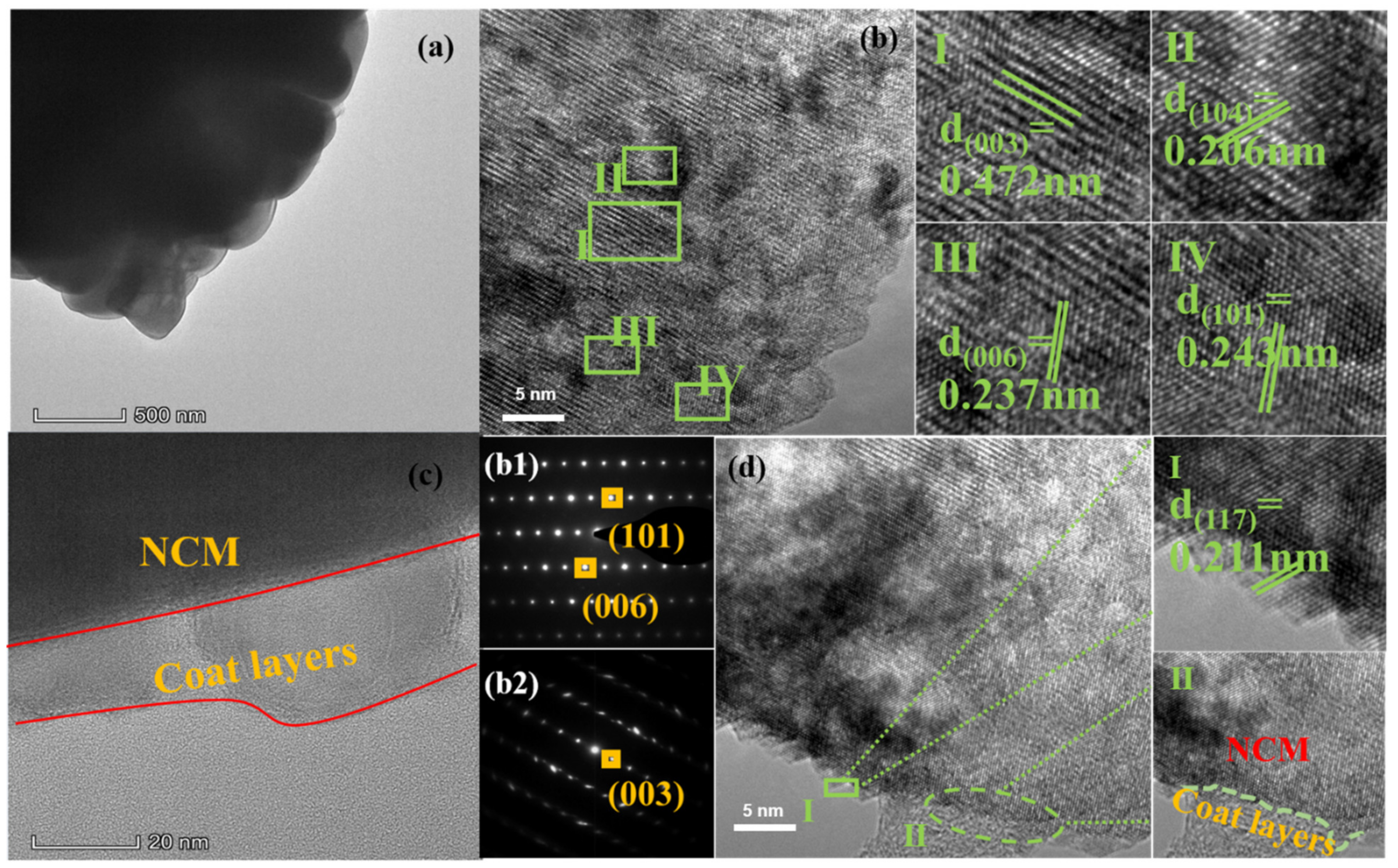

HRTEM and TEM measurements were conducted in order to analyze the microstructures of the NCM811 and NCM@ALP500 sample, as shown in Figure 3. As shown in Figure 3a,b, the NCM811 sample had a bare surface with clear lattice fringes of 0.472 nm, 0.237 nm, 0.206 nm, and 0.243 nm, which agreed with the (003), (006), (104), and (101) planes of NCM811 [37]. The corresponding FFT patterns of bare NCM811 are shown in Figure 3b1,b2, indicating a well-ordered layered phase with the R3m space group with no impurity phase. The TEM and HRTEM images of Figure 3c,d clearly show the coating thickness and the lattice fringe of the coating material NCM@ALP500. As seen in Figure 3c, the cladding layer was continuous and tightly combined with the substrate of NCM811, indicating that the coating structure and the host structure possessed good structural compatibility, which is crucial to enhance the long cycling stability of the NCM cathode [38,39]. Nevertheless, the thickness of the coating layer was not very uniform with the thickness range of 10–20 nm, which may be related to the dry-coating process via the ball milling method. As seen from the HRTEM image in Figure 3c,d, the distinct lattice fringe on the coated layer was 0.211 nm, which agreed well with the (117) interplanar spacing of AlPO₄, corresponding well with results in the literature [40]. Combined with the XRD, SEM, and TEM results, it can be concluded that the AlPO₄ coating was successfully attached to the NCM811 substrate for the NCM@ALP500 sample, although the AlPO₄ coating was low in content, inferred from the XRD pattern.

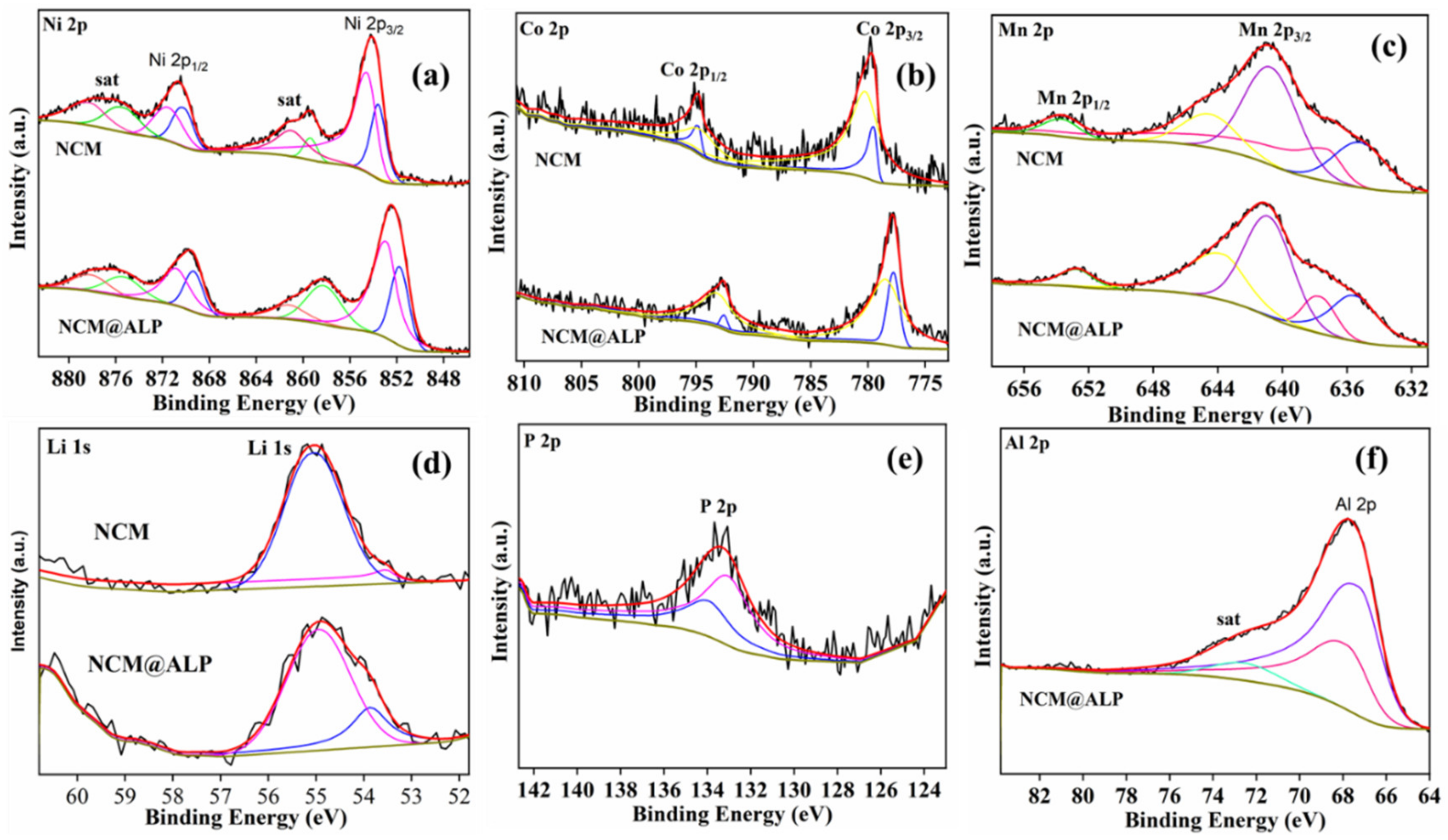

The surface chemical properties of bare NCM811 and NCM811@ALP500 samples were analyzed by using XPS measurements, displayed in Figure 4a–f. As seen in Figure 4a, the binding energy peaks of the original sample and Al(PO₃)₃-modified sample were located at ~872.8 eV (Ni 2p_1/2) and ~855.4 eV (Ni 2p_3/2), corresponding the coexistence of bivalent Ni and trivalent Ni [41]. As seen in Figure 4b, two binding energy peaks for the Co 2p spectra were displayed at 779.7 eV (Co 2p_3/2) and 794.5 eV (Co 2p_1/2), indicating that Co was mostly presented as a trivalent state in the bare sample and Al(PO₃)₃-modified sample [42]. In Figure 4c, two binding energy peaks for the Mn 2p spectra are displayed at 653.9 eV (Mn 2p_1/2) and 641.7 eV (Mn 2p_3/2), implying that Mn was mostly tetravalent in the samples [43]. Through the above analysis, it can be seen the Al(PO₃)₃ coating and heat treatment had little effect on the valence state of the original NCM sample. In addition, the Al XPS spectrum displayed in Figure 4d was only found for the NCM811@ALP500 sample, which is ascribed to the existence of the AlPO₄ coating [28]. Meanwhile, the P2p XPS spectrum with one binding energy peak at 133.5 eV was only detected for the NCM811@ALP500 sample, belonging to the tetrahedral PO₄ [44], which indicates the existence of PO4³⁻ in the coating layer. XPS spectra of Al and P further indicate that the AlPO₄ coating layer was successfully coated on the NCM811@ALP500 surface.

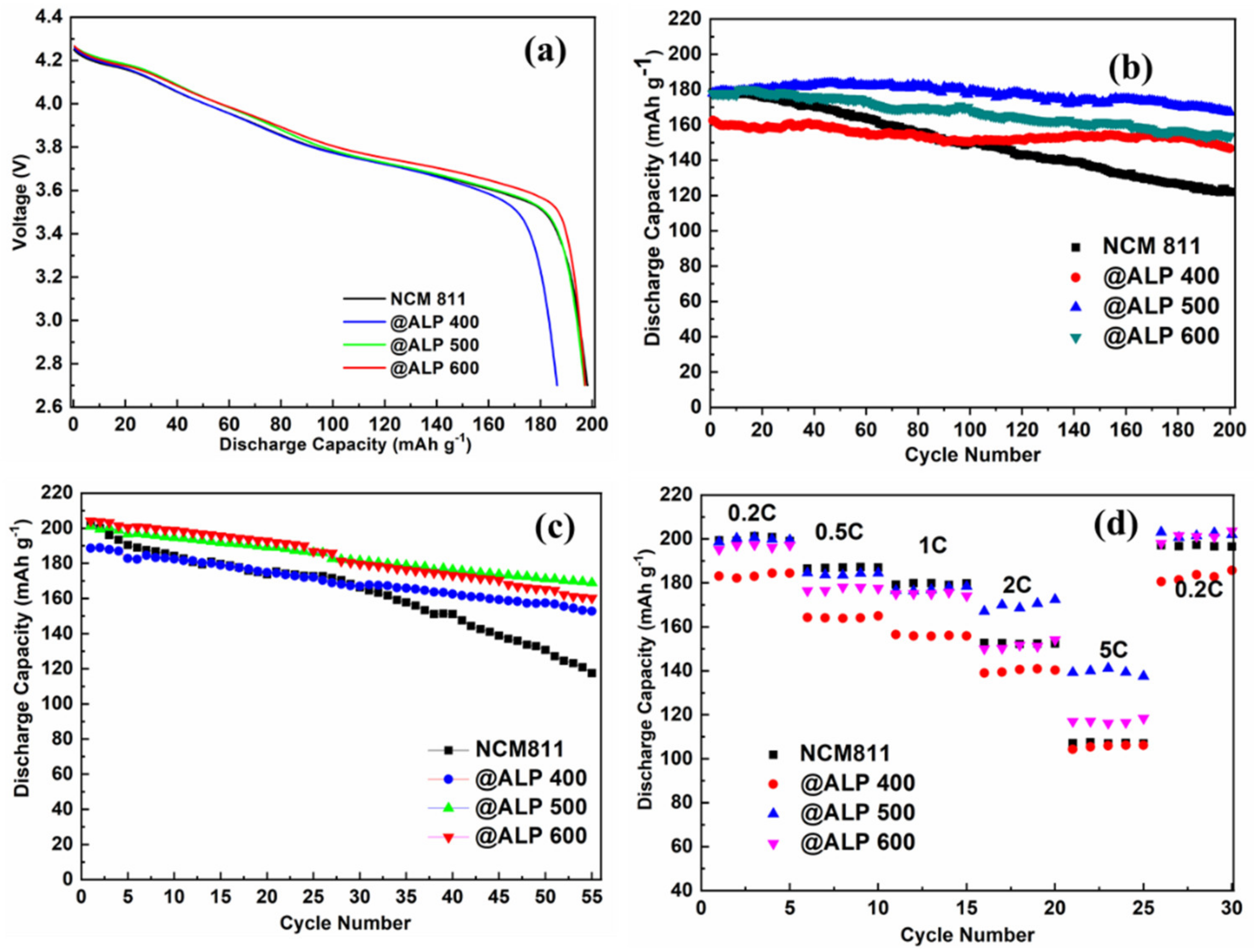

The initial galvanostatic discharging data of the unmodified NCM811, NCM811@ ALP400, NCM811@ ALP500, and NCM811@600 electrodes at 0.2 C (1 C = 200 mA g⁻¹) at 30 °C are shown in Figure 5a. The coated samples exhibited similar discharge platforms compared with the bare NCM811, indicating that the Al(PO₃)₃ coating did not alter the charging and discharging reaction. However, the initial discharge capacities showed a slight downward trend after Al(PO₃)₃ coating. The pristine NCM811 sample demonstrated the discharge capacity of 200.4 mAh g⁻¹, while the modified samples exhibited the discharge capacities of 185.6 mAh g⁻¹, 196.5 mAh g⁻¹, and 197.1 mAh g⁻¹ for ALP400, ALP500, and ALP 600, respectively. The decrease in discharge capacity can be attributed to the fact that the Al(PO₃)₃/AlPO₄ coating layer was inactive and did not contribute capacity. The cycling performances of the samples at 1 C (activated after five cycles at 0.2 C) are demonstrated in Figure 5b in the voltage range of 2.7–4.3 V, and the corresponding electrochemical parameters are listed in

Table 2. Electrochemical performance of the pristine and Al(PO₃)₃-coated LiNi_0.8Co_0.1Mn_0.1O₂ samples.

Systems	Initial Discharge Capacity (mAh g−1, 0.2 C)	1st Discharge Capacity (mAh g−1, 1 C)	200th Discharge Capacity (mAh g−1, 1 C)	Capacity Retention (%)
Original	200.4	178.3	122.5	68.70
NCM811@ALP400	185.6	162.5	146.7	90.28
NCM811@ALP500	196.5	178.1	167.2	93.88
NCM811@ALP600	197.1	177.6	153.6	86.49

. The modified NCM electrodes showed remarkable enhancement in the cyclability after Al(PO₃)₃ modification, especially for the NCM811@ALP500 sample. Under a charge–discharge current of 1 C, the capacity of the bare NCM decreased from 178.3 mAh g⁻¹ to 122.5 mAh g⁻¹ after 200 charging–discharging cycles with a capacity retention ratio of 68.70%. The capacity retention increased to 90.28% (ALP400), 93.88% (ALP500), and 86.49% (ALP600) after Al(PO₃)₃ modification. It was found that the NCM811@ ALP500 sample demonstrated a superior discharge capacity of 167.2 mAh g⁻¹ even after 200 charge–discharge cycles. The significantly improved capacity retention of the NCM811@ ALP500 electrode can be attributed to the AlPO₄ coating layer, which may have inhibited harmful reactions at the interface between the electrolytes and active materials and improved the stability of the crystal structure, thereby enhancing the cycle stability of the materials [45]. This deduction was consistent with the XRD pattern (Figure 1b) that showed the NCM811@ ALP500 sample demonstrated the lowest Li⁺/Ni²⁺ mixing rate with the higher I(003)/I(104) value of 1.549. For the ALP400 sample, the capacity retention was basically satisfactory, however the initial capacity was low (162.5 mAh g⁻¹), which was due to the fact that the formed Al(PO₃)₃ coating at 400 °C was thick and uneven. For the ALP600 sample, the capacity retention declined, which could be attributed to the fact that the coating was applied in too low a content to resist the electrolyte attack.

In order to evaluate the electrochemical properties of the samples at elevated temperature, the cycling performances at 60 °C of the samples at 1 C are displayed in Figure 5c. Compared with the bare sample with the capacity retention of 57.91%, the capacity retentions of the modified samples were 81.01% (ALP400), 83.99% (ALP500), and 78.89% (ALP600) after 55 cycles. At the higher temperature of 60 °C, the capacity retention ratio decayed faster than that at 30 °C, however the capacity retention ratio of the sample was significantly improved after Al(PO₃)₃ modification, indicating that the Al(PO₃)₃/AlPO₄ coating on the NCM surface aided the inhibition of direct contact with the electrolyte, further suppressing HF attack and oxygen release. Moreover, the Al(PO₃)₃/AlPO₄ surface coating was extremely helpful in improving the structure stability and electrochemical stability of the material, especially at higher temperatures. The rate properties of NCM811 and Al(PO₃)₃-coated samples were tested in 2.8–4.3 V at 30 °C, as shown in Figure 5d. At a lower current density of 0.2 C–1 C, the discharge capacities of the ALP400, ALP500, and ALP600 samples were close to the original sample or slightly lower than that of the original sample. At a larger current density of 5 C, the discharge capacity of the ALP500 sample was significantly improved compared to the original sample. According to Equation (1), when AlPO₄ is generated, Li₃PO₄ is generated at the same time. According to the XRD and TEM results, AlPO₄ was indeed formed on the NCM 811 surface after being heated to 500 °C. However, Li₃PO₄ was not observed, which may have been due to the low content. It was previously reported that Li₃PO₄ has good Li⁺ transfer characteristics, and at the same time, Li₃PO₄ consumes residual lithium compounds on the surface of a sample that is not conducive to Li⁺ conduction [46], so the rate performance of the ALP500 sample was improved.

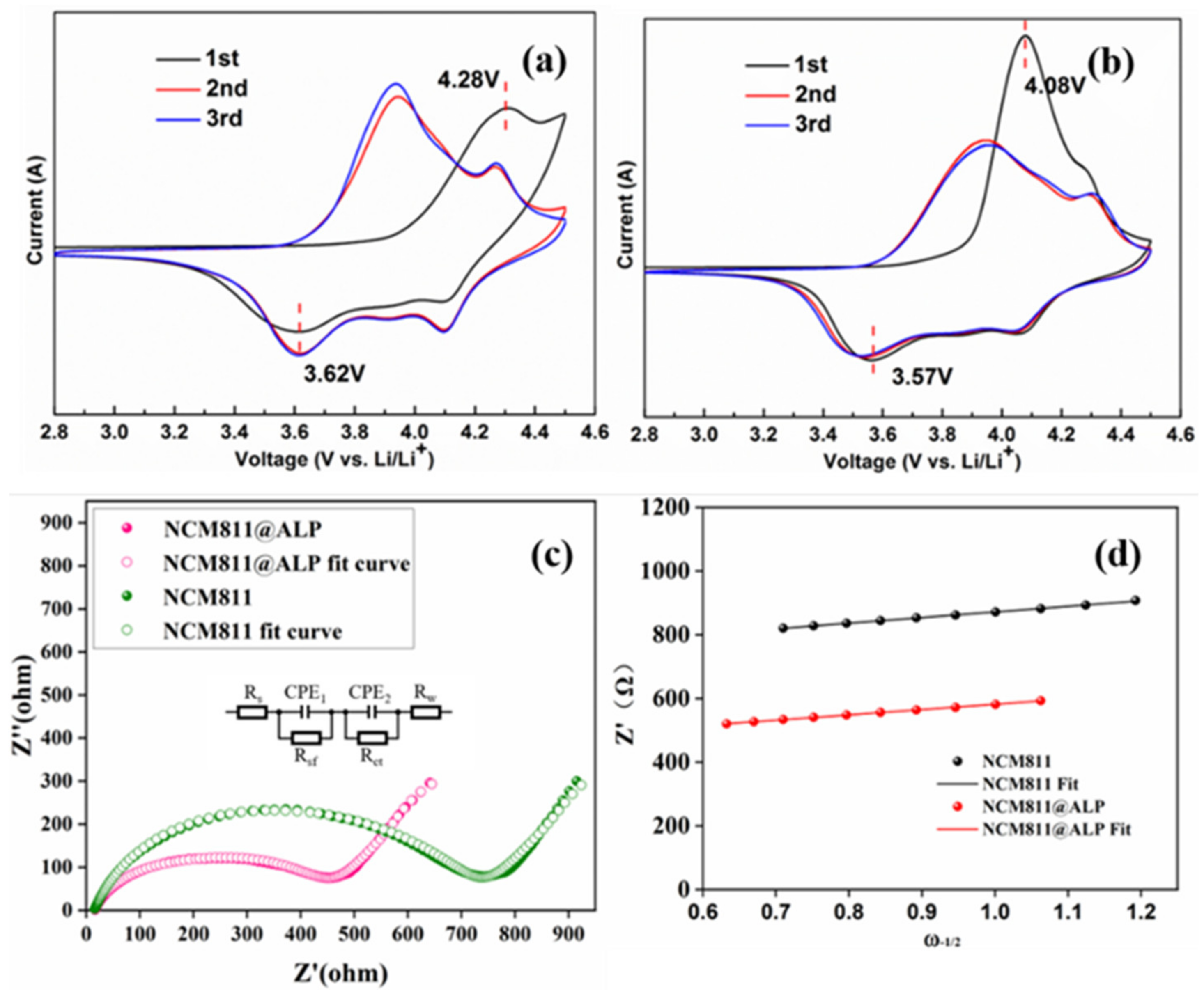

The cyclic voltammetry (CV) curves were conducted on bare NCM811 and the ALP500 sample to further study the electrochemical performance, shown in Figure 6a,b. The CV curves of the bare NCM811 and NCM811@ALP500 sample exhibited a similar trend, implying that the Al(PO₃)₃ coating did not alter the electrochemical reaction. As can be seen in Figure 6a,b, a couple of redox peaks occurred that corresponded to the transition of Ni²⁺ to Ni⁴⁺ during the delithiation/intercalation process in the range of 2.8–4.3 V [29]. The difference between the oxidation potential and reduction potential (Eoxidation-Ereduction) is usually adopted to evaluate the electrochemical polarization reaction [47]. The difference in ΔE was small, indicating that polarization was not severe. From the first CV curves, the ΔV value of NCM811 was 0.66 V, which was higher than that of the ALP500 sample (0.51 V). The shrinking of the ALP500 sample confirmed that the AlPO₄ coating decreased the polarization phenomenon of NCM811, which was beneficial for the electrochemical reactions under high current density, consistent with the high rate performance. In the second cycle, the redox peaks of NCM811 were located at 3.92 V/3.60 V and 4.30 V/4.09 V, corresponding to the transition of Ni²⁺/Ni³⁺ and Ni³⁺/Ni⁴⁺. The redox peaks of the ALP500 sample were located at 3.92 V/3.62 V and 4.29 V/4.10 V. The differences of ΔE became smaller during cycling. Moreover, the ALP500 sample exhibited highly overlapping reduction peaks in comparison to bare NCM811 in the first three cycles, revealing that the NCM811@ALP500 sample showed less irreversible capacity, which was conducive to suppressing detrimental reactions in the interface between electrolytes and electrodes. Hence, the NCM811@ALP500 sample demonstrated long-term cycling stability after 200 cycles.

To explore the electrochemical inner kinetic performances of the improved cycling life after Al(PO₃)₃ modification, the EIS of the pristine NCM811 and NCM811@ALP500 electrodes were conducted after 200 charge–discharge cycles. Figure 6c demonstrates the Nyquist plots, including a semicircle at high frequency and a quasi-straight line at low frequency. Usually, the quasi-straight line stands for the Warburg impedance (Zw), corresponding well with lithium-ion diffusion in the matrix NCM electrode [48]. By fitting the EIS curves, the equivalent circuit is shown in Figure 6c (embedded part). To analyze the fitting results of the contribution of CPE1 and CPE2 and the goodness of fitting factor, the fitting parameters are provided in the supporting information (Figure S2). The equivalent circuit consists of Re, Rsf, and Rct, which represent the internal resistance, surface film resistance, and charge transfer resistance, respectively [49,50]. The fitted values of Re, Rsf, and Rct are shown in

Table 3. The fitted values of Rs, Rsf, and Rct and the calculated values of D_Li⁺ of the pristine and Al(PO₃)₃-coated LiNi_0.8Co_0.1Mn_0.1O₂ samples before and after cycling.

Electrode	Rs (Ω)	Rsf (Ω)	Rct (Ω)	DLi+ (cm2 s−1)
NCM811	15.9	197.9	720.2	1.28 × 10−14
NCM811@ALP500	16.5	166.9	437.1	1.44 × 10−14

. Obviously, Rsf was much smaller than Rct for both NCM811 and the coated sample, indicating that Rct was the major factor affecting the electrochemical reaction. It is noted that the Rct value of the NCM811@ALP500 electrode was comparatively smaller compared to the original NCM811 after 200 cycles, indicating that optional amount of AlPO₄ coat layer could decrease the charge transfer resistance after long cycles. These results further verify our conclusion that the AlPO₄ coating on the NCM 811 surface can suppress side reactions and enhance the structural stability of the active material.

The Li⁺ diffusion coefficients (D_Li⁺) were calculated using Equation (3). In Equation (3), these parameters (R, T, C, F, A, and n) were widely reported in the previous literature and were treated with fixed values [49,51]. The σ value played the decisive role, which represents the Warburg coefficient [49]. The σ value could be obtained from the slope of the linear fitting of resistance (Z′) vs. the reciprocal square roots of the frequency (ω^−1/2) [51]. The fitted line of Z′ vs. ω^−1/2 is displayed in Figure 6d. The obtained D_Li⁺ is listed in Table 3 according to Equation (3).

$$D_{{\mathrm{Li}}^{+}}=\frac{R^2{T}^2}{2A^2{n}^4{F}^4{C}^2{\mathsf{\sigma }}^2}$$

(3)

For the pristine NCM811 electrode, the calculated D_Li⁺ value was 1.28 × 10⁻¹⁴ cm² s⁻¹ after 200 cycles, while the D_Li⁺ value increased to 1.44 × 10⁻¹⁴ cm² s⁻¹ for NCM811@ALP500, indicating that the AlPO₄ coating aided the suppression of side effects and was beneficial for the electron transfer during charge–discharge, subsequently reducing the interfacial resistance and enhancing the electrode kinetics, consistent with the electrochemical performance after cycling in Figure 5b.

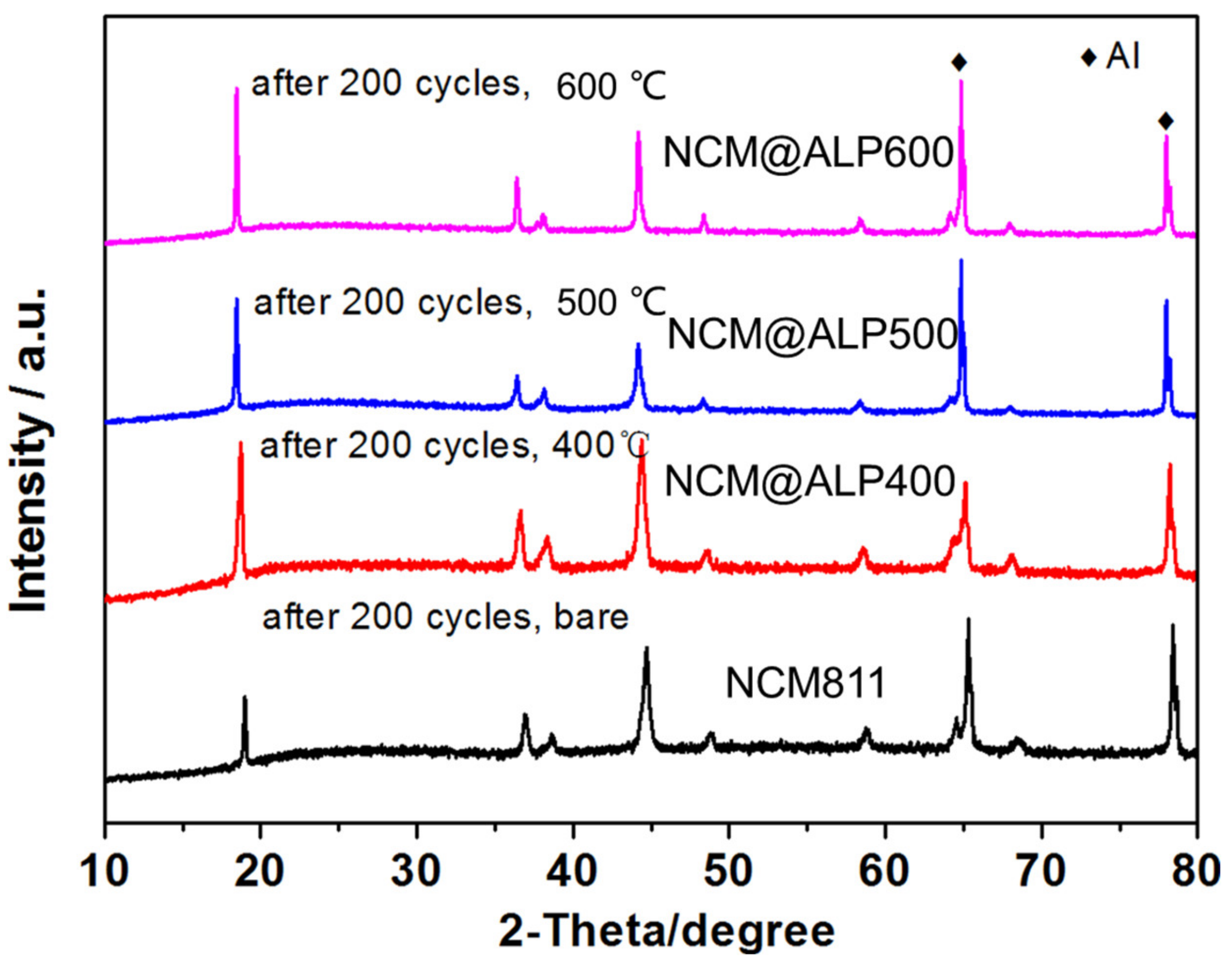

To explore the effect of Al(PO₃)₃ modification on the structure of LiNi_0.8Co_0.1Mn_0.1O₂ after 200 cycles, XRD tests were utilized for the bare NCM811 and NCM811@ALP500, as shown in Figure 7. In general, NCM811 and NCM811@ALP500 cathodes preserved the original layered structure. Compared with Figure 1b, the intensities of all diffraction peaks for the bare NCM811 and NCM811@ALP500 became weaker during 200 charge–discharge cycles, which indicates that the main phase structures suffered from a certain degree of damage. For the bare NCM811 cathodes, the peak intensity ratio of I (003)/(104) planes decreased to 0.81, which was much lower than 1.2, after 200 cycles, indicating severe Li/Ni cation mixing. The peak intensity ratio of I (003)/(104) planes remained 1.41 for the NCM811@ALP500 cathode, with lower Li/Ni cation mixing after cycling, ensuring the smooth transfer of lithium ions. It is worth noting that the splitting peaks of (006)/(102) could still be clearly preserved for NCM811@ALP500 and NCM811@ALP600, while the splitting peaks of (006)/(102) were almost invisible for bare NCM811. These findings further confirm that Al(PO₃)₃ modification with suitable heat treatment is helpful in stabilizing the layered structure of the NCM811 electrode during a long cycle. The XRD results correspond well with the electrochemical properties in Figure 5b, which shows NCM811@ALP500 demonstrates good capacity retention due to the modified structure after AlPO₄ coating.

4. Conclusions

To enhance the electrochemical properties of NCM811 and inhabit the interfacial detrimental reactions in contact with the electrolyte, NCM811 was modified with an Al(PO₃)₃ precursor via dry ball milling followed by heat treatment. Combined with the XRD, SEM, and XPS characterization, the Al(PO₃)₃ coating layer was obtained on the sample surface at the lower sintering temperature of 400 °C, while AlPO₄ coating was adapted on the NCM811 sample at the higher sintering temperature of 500 °C. The long cycle performance was substantially enhanced after Al(PO₃)₃ modification, with a slight decrease in the initial discharge capacity. The NCM811@ALP500 sample maintained a capacity retention of 93.88% after 200 cycles, with an initial discharge capacity of 178.1 mAh g⁻¹ in 2.7–4.3 V at 1 C at 30 °C, which was much higher than the capacity retention of the bare NCM811 electrode (68.70% with the initial capacity of 178.3 mAh g⁻¹). In addition, NCM811@ALP500 showed a much-improved rate performance compared to the bare NCM811 at 5 C. Confirmed by the EIS analysis, the value of transfer resistance (Rct) for the NCM811@ALP500 sample decreased, and the D_Li⁺ value increased compared with the bare NCM811 after 200 cycles. It can be concluded that improved electrochemical properties can be achieved via Al(PO₃)₃ modification, which can be ascribed to the generated AlPO₄ coating, inhibiting side reactions and slowing down structural deterioration, further stabilizing the layered structure of NCM811.
