Effect of Deformation on the Microstructure of Cold-Rolled TA2 Alloy after Low-Temperature Nitriding

Abstract

In order to improve the low hardness and poor wear resistance of TA2, this paper proposes a composite process of cold-rolling and low-temperature plasma nitriding with recrystallization. This composite modification process can effectively achieve the dual goals of modifying the matrix structure and surface of TA2 alloy simultaneously. The cold-rolling experimental results indicate that when the deformation rate increases, the small-sized grains in the sample increase significantly, and the grain orientation changes from TD (transverse direction) to RD (rolling direction) and then to TD. The nitriding experimental results indicate that the {0001} basal surface texture deflected from the TD direction to the RD direction, {10-10} cylindrical texture components gradually increased, and the special orientation phenomenon of cylindrical and conical texture disappeared, it can be seen that an increase in the deformation rate promotes recrystallization. The XRD test results indicate that after low-temperature nitriding, metastable nitriding phase TiN0.26 is formed on the surface of TA2. The SEM morphology of the cross-section shows that a relatively special nitrided zone is formed, and mechanical performance test results indicate the wear resistance and hardness of the alloy increased.

1. Introduction

Titanium and its alloys have attracted great attention in the fields of scientific research and industrial production due to their outstanding advantages, such as excellent heat resistance, corrosion resistance, biocompatibility, and high specific strength [1,2,3]. However, the low surface hardness and poor wear resistance of titanium alloys greatly limit its application. The TA2 titanium alloy in this paper belongs to α-type titanium alloy [4,5,6], and this type of alloy cannot be strengthened by a heat treatment process, so in practice, the strength is average in the annealed state [4,7].

Rolling deformation is a commonly used forming technology for TA2 industrial titanium alloy sheets [8,9]. Gurao et al. [10] studied the evolution characteristics of the texture and microstructure of industrial pure titanium alloys under different rolling paths through experiments and self-consistent simulations. S.K. Sahoo et al. [11] studied the texture and microstructure evolution of high-deformation hot-rolled industrial pure titanium under a specific rolling method. The experimental results indicate that the basal surface texture in the alloy sample does not change with the rolling type and the deformation reduction.

After deformation, the hardness increases and plastic toughness decrease for the metal material, which is not conducive to subsequent mechanical processing [11,12]. To facilitate processing, it is usually to anneal and recrystallize the deformed metal to soften the material. With the increase of time and temperature, the annealing recrystallization process is often divided into three stages: recovery, recrystallization, and grain growth [13].

Researchers have continued to deepen the research on densely packed hexagonal metals [14,15,16,17]. However, there are a few studies on the recrystallization of hexagonal metals, such as titanium. R. J. Contieri et al. [18] studied the recrystallization behavior of cold-rolled titanium plates. Experimental data indicate that the dislocation density of titanium plates increases significantly after cold rolling. When the recrystallization annealing temperature is 650–670 °C, the average recrystallization activation energy is about 156.8 KJ/mol. Hayama et al. [19,20] studied the annealing behavior of cold-rolled titanium alloys and found that 50% and 70% deformation rate specimens can be annealed at 700 and 800 °C for 15 min to achieve an equiaxed crystalline state.

In recent years, the modification of the mechanical properties of titanium alloys has been a research hotspot in the field of materials. Nitriding is one of the important surface modification technologies for metal materials. Nitriding gives metal materials higher surface hardness and strength without shape and size changes. However, in engineering applications, the nitriding temperature of titanium alloys is usually between 800 and 900 °C. At this temperature, coarse grains, severe high-temperature oxidation, and deep hydrogen diffusion occur. In order to avoid these problems, a lower nitriding temperature is a hopeful solution; therefore, researchers have investigated promoting penetration. H. Kovacl et al. [21,22] studied shot peening as a nitriding promotion process for AISI4140 steel by the comparison experiments of shot peening with different densities. The experimental results indicate that shot peening forms finer crystal grains on the surface of the sample, and the increase of the surface dislocation density accelerates the diffusion of nitrogen atoms. The thickness of the infiltration layer of the sample treated by the shot peening and plasma composite process is almost twice the nitriding treatment alone, and the surface hardness also significantly increases. Liu Rui-Liang et al. [7,23] studied the rare earth infiltration process and found that the surface phase structure of the 17-4PH martensitic stainless steel after the rare-earth carbonitriding does not change significantly, mainly due to the expansion of martensite containing C and N Body α’N, γ’-Fe4N, and CrN are equal in composition. However, after adding rare earth, the structure of the infiltrated layer is denser, and the thickness of the infiltrated layer increases by nearly 50%, also the hardness of the infiltrated layer is increased by about 100 HV and the wear resistance is also significantly improved. In M50NiL steel, the surface hardness increases by 143 HV0.1 because of the addition of rare-earth atoms and the thickness of the nitrocarburized layer increases by 39 μm. As a pretreatment method to accelerate the nitriding process, cold-rolling deformation can theoretically not only refine the substructure of the surface layer of the metal material but also increase the dislocation density inside the metal material and increase the storage distortion energy, thereby reducing the N diffusion activation energy of the atom infiltration. At present, the research on deformation promotion technology is still in the experimental stage, and the materials are mostly steel. However, the research papers on the deformation promotion of hexagonal close-packed metals are rarely reported.

Based on the research in the past few years [24,25,26], we figured that low-temperature (≤550 °C) plasma-nitriding treatment could be used as the preferred surface modification process for titanium alloy, and cold-rolling deformation can promote plasma nitriding. In this paper, a treatment process of cold-rolling deformation and low-temperature nitriding at 450 °C, causing simultaneous recrystallizations, was designed to perform compound modification treatment on TA2 industrial pure titanium alloy. Under cold deformation conditions, a large number of defects (such as point defects and dislocations) are generated, and the lattice distortion energy stored in the polycrystalline metal continuously increases; these promote the diffusion and migration of N atoms during the low-temperature ion nitriding process. The temperature of the nitriding was designed within the recrystallization temperature of TA2 to achieve the effect of low-temperature nitriding composite recrystallization. This process can not only realize the control of the alloy matrix structure but also effectively improve the wear resistance of the alloy. In this paper, the evolution of the microstructure after cold rolling, the impact of deformations on the recrystallization, the evolution of the recrystallized matrix under different deformations, the surface phase structure, and wear resistance after low-temperature nitriding are investigated.

2. Materials and Methods

The TA2 alloy used in this paper belongs to commercial titanium, and its chemical composition (wt%) is 0.106% Fe, 0.0155% C, 0.0135% N, 0.0005% H, 0.1165% O, and the balance is Ti. The metallographic structure is composed of fully annealed recrystallized phases. Plastic deformation occurs at room temperature, and the sample size is 15 × 15 × X mm. The length of the sample is parallel to the rolling direction (RD), and the sample height X is 20 mm (0% deformation rate), 16 mm (20%), 12 mm (40%), 8 mm (60%), and 4 mm (80%), respectively. The incoming TA2 samples with a thickness of 20 mm were rolled several times at room temperature, but the maximum reduction did not exceed 0.2 mm/time. After cold rolling, the plasma nitriding was performed at 450 °C for 16 h in a pulsed plasma furnace with a voltage setting of 650 V, and the atmosphere‘s ratio of H2 and N2 is 5:7.

The experimental samples were mechanically polished in order with 400, 800, 1500, and 2000 sandpaper and ultrasonically cleaned and then placed in the furnace. The nitrided samples were polished and ultrasonically cleaned. The samples used for OM\SEM\EBSD have been chemically corroded (corrosive solution HF:HNO₃:H₂O = 2:1:17) after mechanically polishing. The specimens for EBSD characterization were electro-polished in an electrolyte consisting of 6 mL perchloric acid, 34 mL n-butanol, and 60 mL methanol with a direct current of 1 A for 1 min. An OLYMPUS-PM3 (OLYMPUS, Fukuoka, Japan) metallographic microscope was used to observe the microstructure of the initial and cold-rolled samples. A JEOL JSM-6480A scanning electron microscope (SEM, Thermo Fisher Scientific, JEOL, Tokyo, Japan) equipped with an energy spectrum analyzer (EDS) was used to analyze the micro-area composition. The acceleration voltage of the EDS test was 20 kV. An X-Pert Pro XRD analyzer (Rigaku, Japan) was used to study the phase composition of the nitride layer, and a copper target continuous scan mode was used, where the scan rate was 5°/min and the range of 2θ was 20 to 80°. The original microstructure, cold-rolled microstructure, and recrystallized microstructure were measured using TESCAN MAIA3 ultra-high-resolution field emission scanning electron microscope (EBSD) (TESCAN, Brno, Czech Republic), the acceleration voltage of EBSD test was 20 kV, scanning step sizes of 1.6 and 0.6 μm were adopted for deformed and nitrided samples, respectively. The test data is analyzed with Channel 5 software. By analyzing the data collected in the experiment, the crystal grain size, shape characteristics, grain boundary distribution, and orientation of the crystal can be obtained. The indentation hardness is measured by the HVS-1000 hardness tester (Times Mountain, Beijing, China) with the load setting of 50 g and a dwell time of 15 s. Five measurements were performed for each test sample, and the values were read 10 times. The abrasion test was carried out by a Pin-On-Disk-1-Auto testing machine (Zhongke Kaihua, Lanzhou, China) with GCr15 grinding ball material. It was set under a load of 5 N, a wear rate of 200 r/min, and a wear time of 20 min.

3. Results and Discussion

3.1. Initial Microstructure of TA2 Alloy

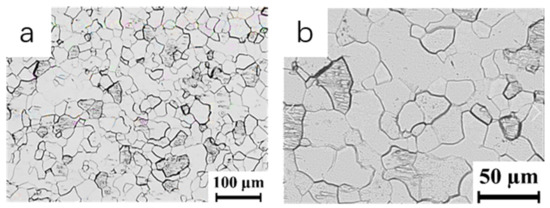

As shown in Figure 1, the initial microstructure of the TA2 alloy sheet before cold deformation is listed with the magnifications of 200 and 500 times, respectively. The initial material is a fully annealed recrystallized structure, without deformed or twin structures, and the grain size is uniform with an average value of about 22 μm.

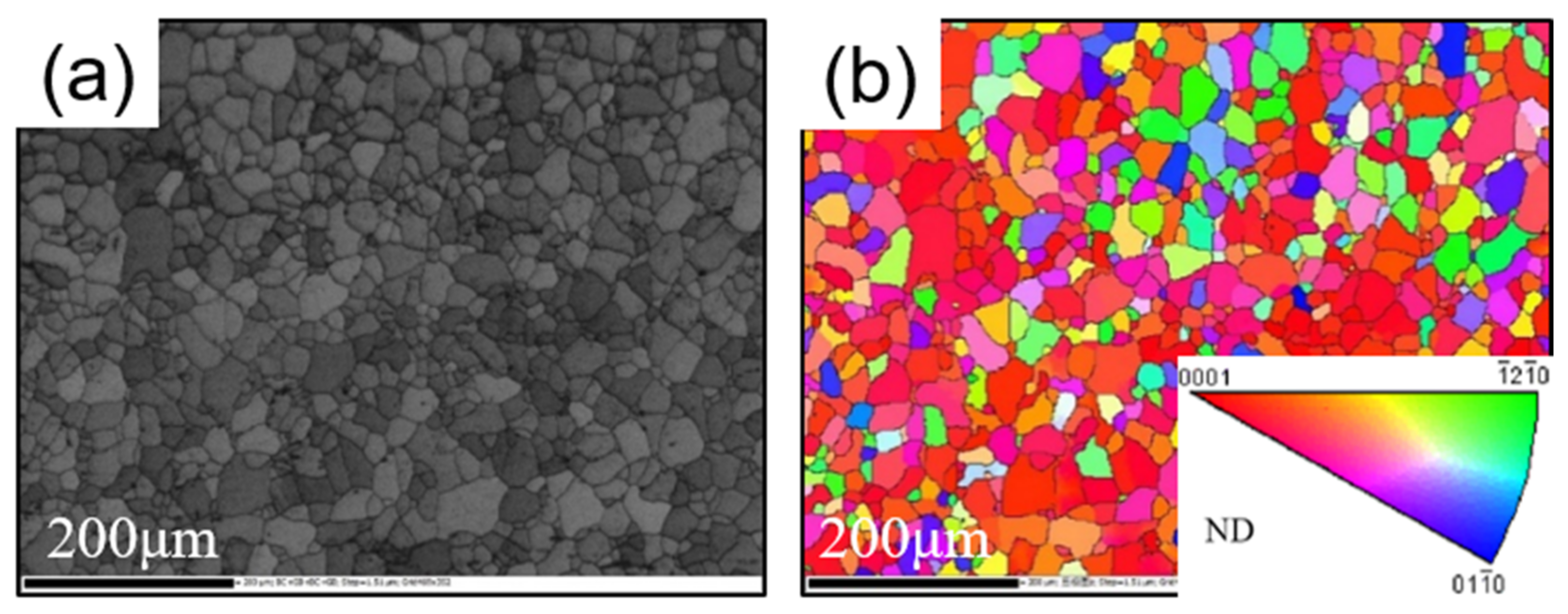

In Figure 2, the surface shown is the rolling surface, and the horizontal direction is the rolling direction, as well as the vertical direction, is the normal direction of the rolling plane. Figure 2a is the contrast map of the initial state TA2 alloy sheet. The initial structure in Figure 2a belongs to the typical annealed equiaxed structure, and there is no lamellar twin structure. This is consistent with the observation of the microstructure. In Figure 2b, {0001}∥ND crystal grains account for a relatively high proportion; the transition color crystal grains account for the largest proportion, indicating that the c-axis of most crystal grains deviates from the ND direction.

3.2. Microstructure of Cold-Rolled TA2

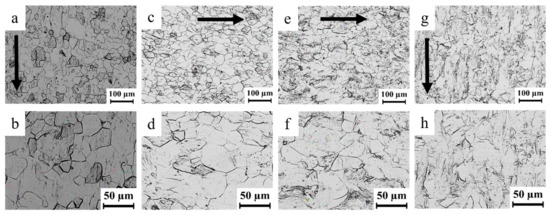

The microstructure of TA2 alloy sheets with different cold-rolling deformation (20%, 40%, 60%, and 80%) is shown in Figure 3, and the magnifications are 200 times and 500 times, respectively. Through these, the evolution of the alloy microstructure caused by the degree of deformation is investigated. Compared with the undeformed microstructure in Figure 1, the increase in the deformation rate makes the grains elongated in the rolling direction, and the unevenness of the microstructure is gradually increased. For the 20% deformed sample, as shown in Figure 3a,b, due to its low degree of deformation, there is not much change compared with the initial sample; only a small part of the deformed structure exists, and the grain distribution is relatively even. Among them, the 20% and 40% deformed samples have a smaller degree of grain boundary damage, and the percentage of complete grains is higher than that of the bigger deformed samples. When the deformation rate increases to 40%, the deformation degree of the grains increases significantly. When the deformation exceeds 40%, as shown in Figure 3e–h, the grain boundaries are severely broken, and almost no complete grains are observed, so the degree of grain fragmentation and refinement increases significantly, when deformation reaches the rolling limit state, as shown in Figure 3g,h, a typical cold-rolled deformation microstructure forms.

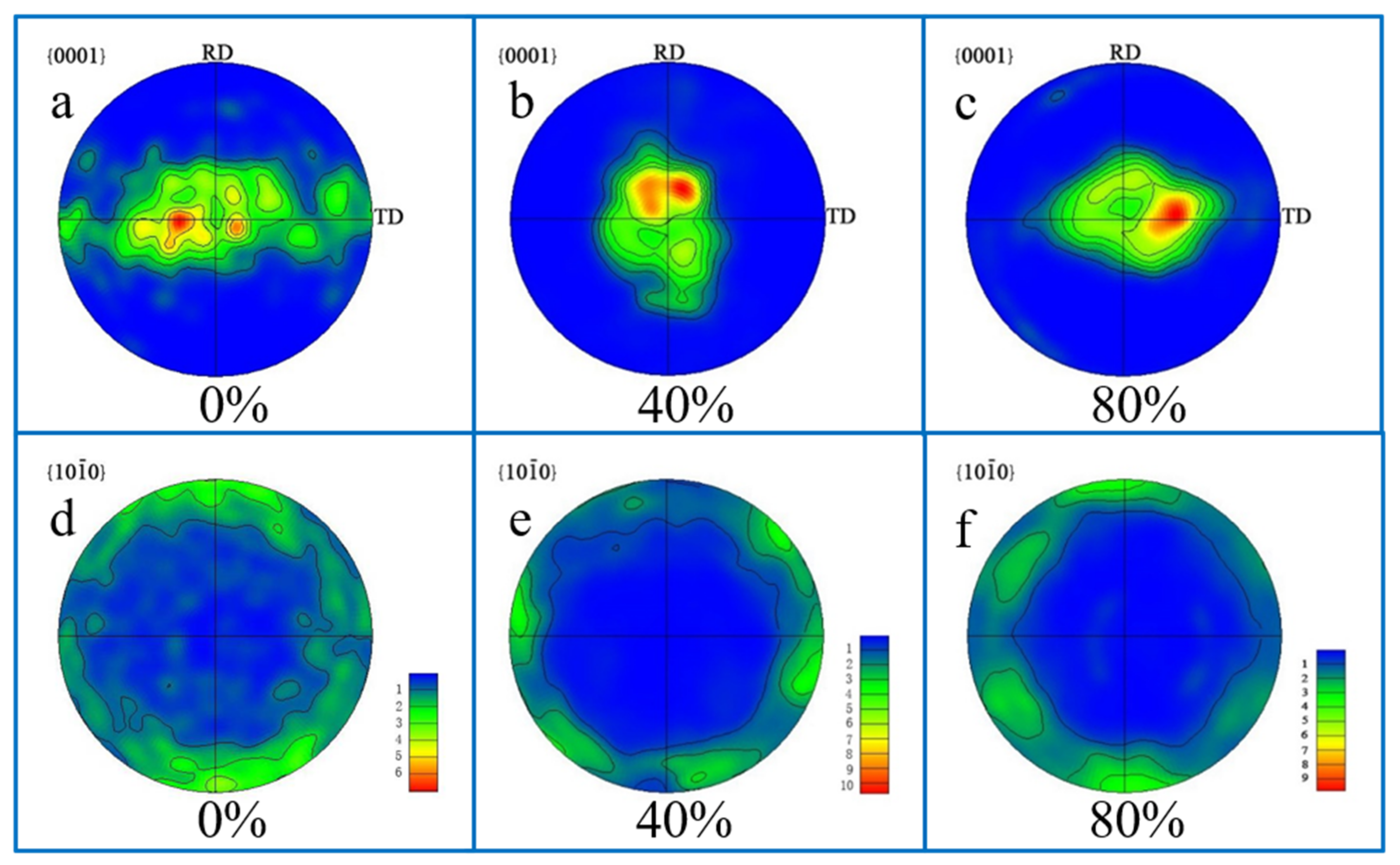

The EBSD pole figures of the 0%, 40%, and 80% deformed samples are shown in Figure 4. Basically, the cold-rolled deformed titanium alloy still maintains a typical bimodal distribution. When the deformation reaches 40%, the basal surface texture deflects by 90° from the TD to the RD direction, resulting in a significant orientation change. In addition, almost no basal texture component forms in the ND direction. When the deformation rate increases to 80%, the texture orientation changes 90° from RD to TD, and the concentration of texture distribution is significant.

Compared with the 0% deformed samples, the strength of the cold-deformed texture structure significantly increases, and the texture strengths of the 40% and 80% deformed samples are 10 and 9.9, respectively. In the {10-10} pole figure, the intensity of the texture component in the {10-10}∥RD direction presents an increasing trend with the increase of the deformation rate. Compared with the undeformed samples, the degree of “stray” of the cylindrical texture and cone texture distribution of the 40% and 80% deformed samples significantly reduces, indicating a preferred orientation.

3.3. Characterization of Microstructure after Deformation and Nitriding

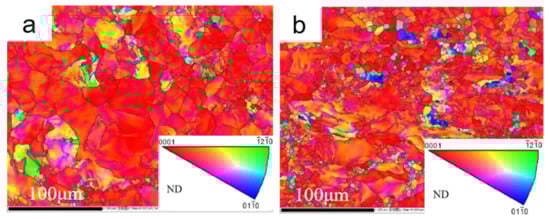

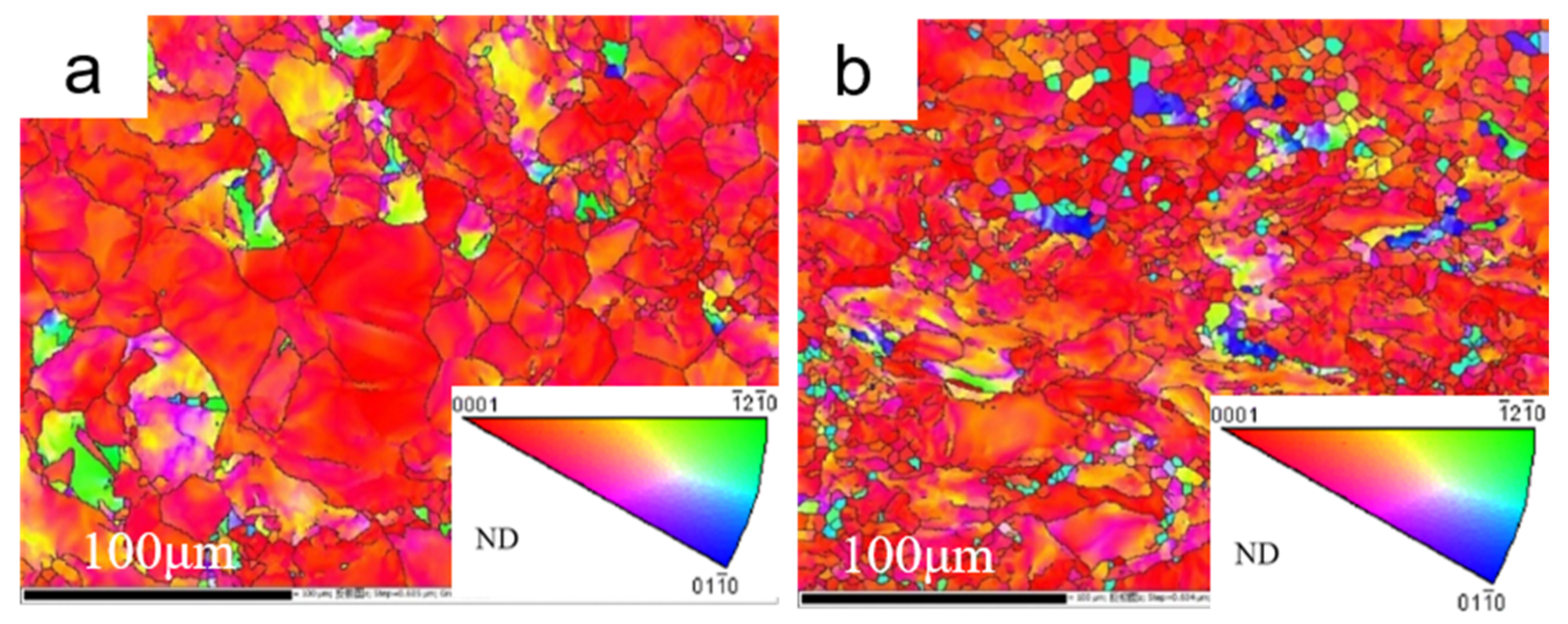

Conventional nitriding will cause the crystal grains of the titanium alloy to coarsen and cannot form a good matrix structure [27,28]. Next, we studied the microstructure changes of the matrix after cold rolling and low-temperature nitriding. Figure 5 shows the grain orientation map of TA2 alloy with different degrees of cold rolling. Figure 6 shows the grain orientation map and reverse pole map of 40% and 80% deformed samples after nitriding treatment (450 °C × 16 h). In Figure 6a, the proportion of grains in the {0001} direction (red color) significantly reduces compared to Figure 5a, while the number of green and blue grains slightly increases. In addition, the number of transition color grains (as shown by the blue arrow in Figure 5a) increases significantly. This indicates that grain orientation rotates from the {0001} direction to the {01-10} direction, which is an obvious recrystallization state but with a low crystallization nucleation rate. In addition to the change in the orientation of grains, the elongation of the grains in the structure is significant, which is consistent with the changes in the grain size in the upper section. Figure 6b presents the grain orientation map and the inverse pole map of the 80% deformed sample after nitriding. The number of complete fine grains in Figure 6b significantly increases compared to Figure 5b and Figure 6a, and the transition color grains significantly reduce, indicating the alloy structure has a higher degree of recrystallization, and the structure in the blue box is completely equiaxed. In addition, the number of grains in the {0001} direction significantly reduces, and the deformed structure and substructures along the arrow direction still exist but are significantly reduced compared to the 40% nitriding sample.

3.4. The Influence of Nitriding on Texture

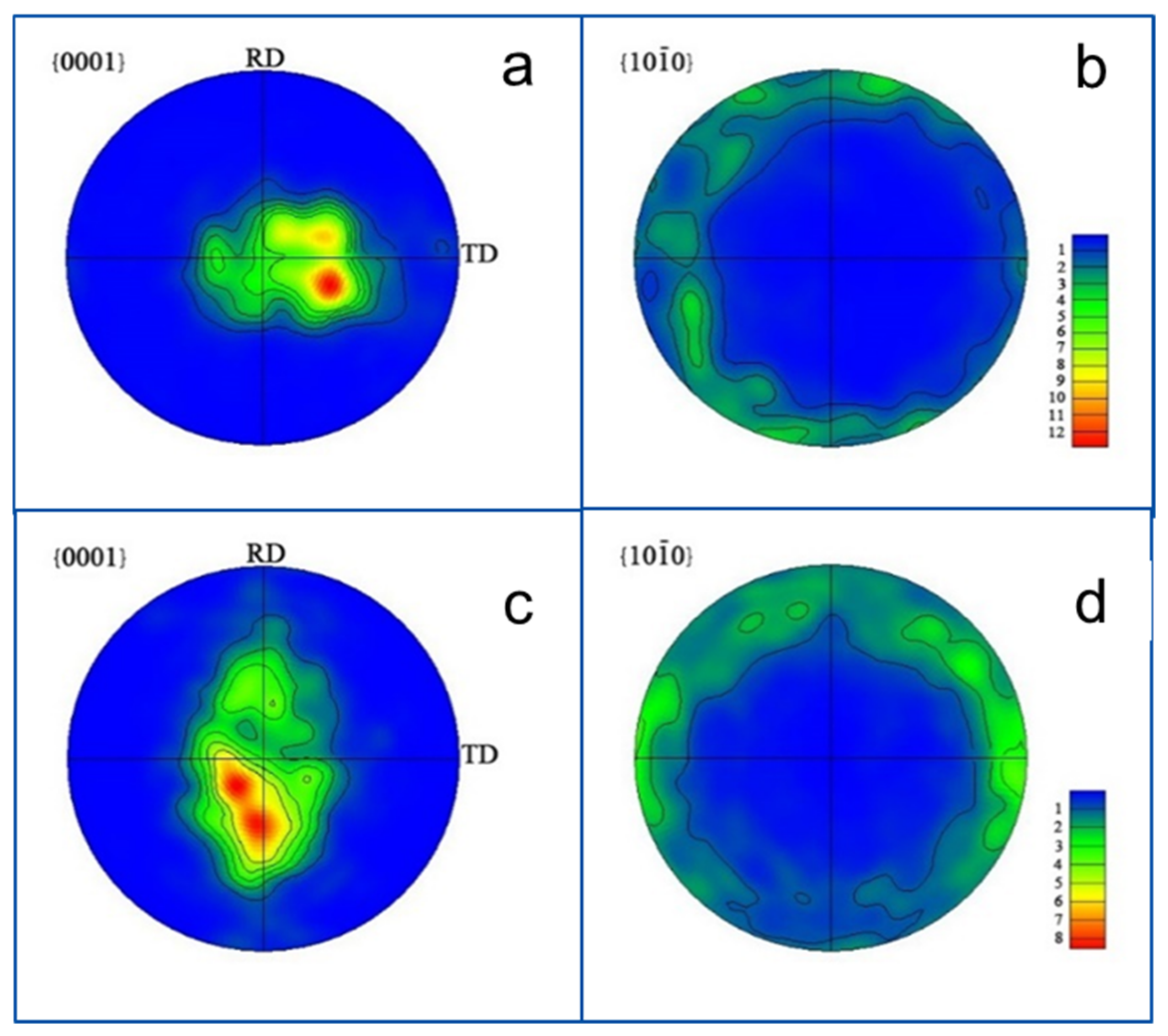

Figure 7 shows the pole figures of cold-rolled deformed TA2 alloy after nitriding. Compared with Figure 4b,c,e,f, it can be seen that after the 40% deformed sample undergoes nitriding treatment, the {0001} texture parallel to the RD direction has undergone a significant orientation change, from being parallel to the RD direction to being parallel to the TD direction, and the position of the maximum pole density is also approximately rotated by 90°. Only a few crystal grains on the TD-ND plane have a c-axis perpendicular to the RD direction, and most of the crystal grains on this plane have a c-axis deviated from the ND direction by 45–90°, {10-10} the degree of dispersion of the cylindrical texture in the RD-TD plane increases, and the texture changes along the ND direction are relatively subtle; the basal texture {0001} of the 80% deformed sample after nitriding treatment showed double peaks in the RD-TD plane, but the highest strength of the texture was reduced from 9.87 to 8.55 compared with the cold-rolled state. In addition, the divergence of the cylindrical texture {10-10} has increased significantly, and the texture of {10-10}∥RD that originally existed at the extreme position of the RD direction is almost nonexistent, and the texture of the special angle orientation is greatly reduced, and the new texture appears at the pole position in the TD direction. Compared with the 40% deformed sample after nitriding, the {10-10} cylindrical texture component in the ND direction gradually increases.

3.5. The Phase Composition after Low-Temperature Nitriding

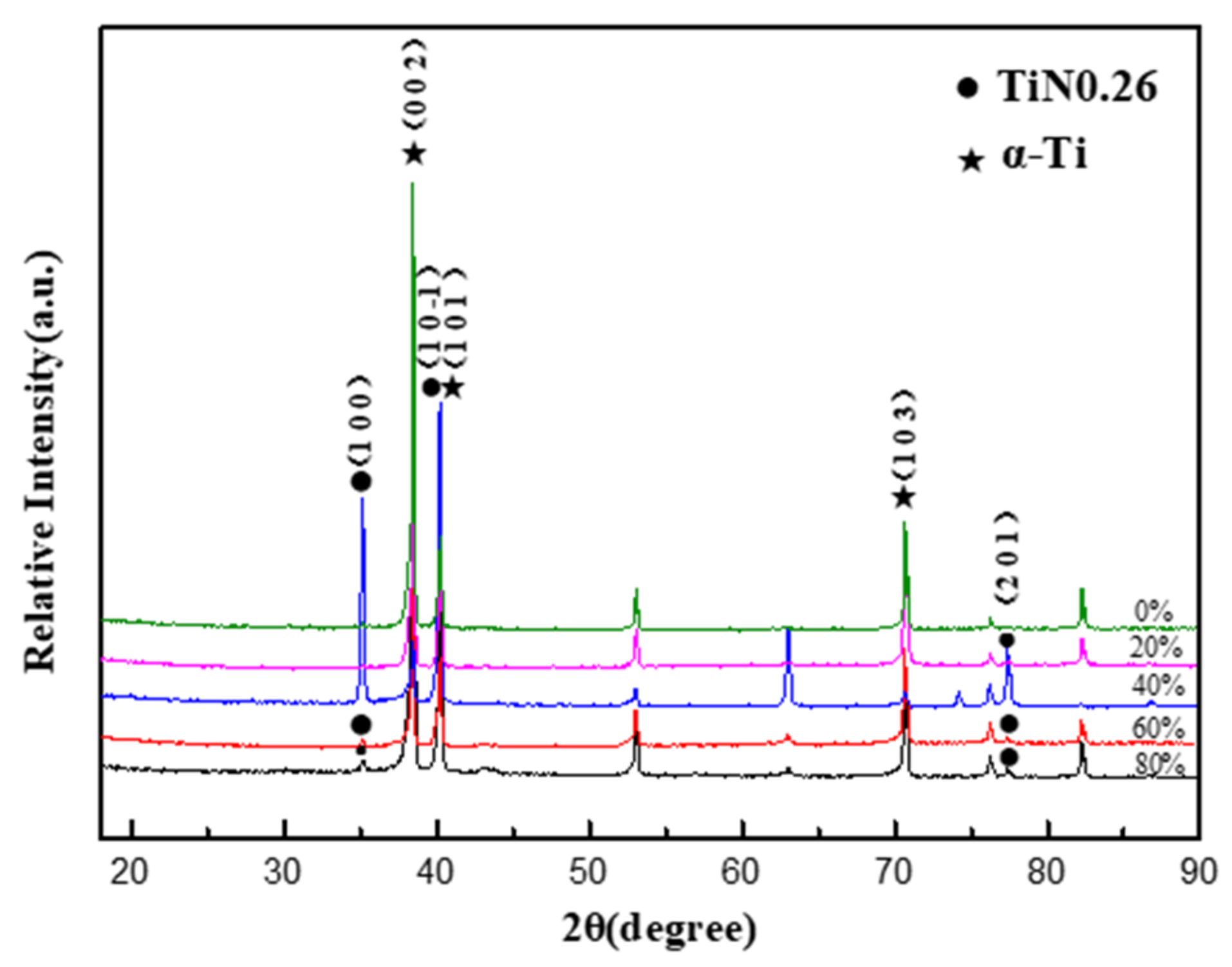

Figure 8 shows the surface XRD pattern of different deformation rate samples after nitriding at 450 °C for 16 h. In Figure 8 that the main phases contained in the surface layer of the TA2 sample after nitriding for 16 h are α-Ti and TiN0.26. This is similar to F.S. Braz’s research results [29], who also obtained the same compound in the 450 °C nitridation experiment. Of course, the surface may actually contain steady-state nitride, but it was not detected because of its small content. After nitriding, the metastable titanium nitride compound phase TiN0.26 forms on the surface of the 40%, 60%, and 80% deformed samples. The TiN0.26 phase peak of the 20% deformed sample is almost as weak as the 0% deformed sample. The reason is that the small deformation does not produce enough defects inside the sample, resulting in a poor nitriding effect. Different samples of other deformation rates, the α-Ti’s peak positions of the 40% deformed sample shift to near 35 and 63°. In the process of low-temperature nitriding of cold-rolled alloy samples, the orientation of the {0001} basal plane texture changes, and the c-axis direction of the grains shifts. According to the Bragg equation (2dsinθ = nλ), the change of interplanar spacing (d) will affect the change of “θ” angle; these are the reasons for the peak position shift.

In Figure 9, the EDS point analysis of the chemical composition of the 0%, 20%, 40%, 60%, and 80% deformed samples after 450 °C for 16 h nitriding treatment are listed. The point scanning positions are marked in each sub-picture, where spherical particulate matter exists. The element content in the scanning area is shown in

Table 1. EDS Energy Spectrum Test Data of Special Points After Nitriding Series of Deformed Alloys.

Deformation	Element (N)		Element (Ti)
	W (t)%	A (t)%	W (t)%	A (t)%
0%	25.8	54.3	74.3	45.8
20%	30.0	59.5	70.0	40.5
40%	29.3	58.6	70.7	41.4
60%	48.2	76.0	51.8	23.9
80%	23.8	51.6	76.3	48.4

. In Table 1, it indicates that with the increase of the deformation rate of TA2 samples, the mass percentage of N element first increases and then decreases, and the nitrogen-titanium atomic ratio also indicates, at first, an increasing and then decreasing trend. After the deformation rate exceeds 40%, the nitrogen atom content of the white spherical particulate matter decreases because the increase in defect density and the weakening of the interaction force between atoms accelerates the diffusion of active nitrogen atoms, and more N on the surface diffuses into the inside. The 60% sample has the highest surface nitrogen atom content of 76.07%, and the nitrogen-titanium atom ratio is about 3:1. In addition, the bigger the size of the white particles selected at special points is, the higher the N element content is.

3.6. Morphology of TA2 Alloy Samples under Different Degrees of Cold Deformation

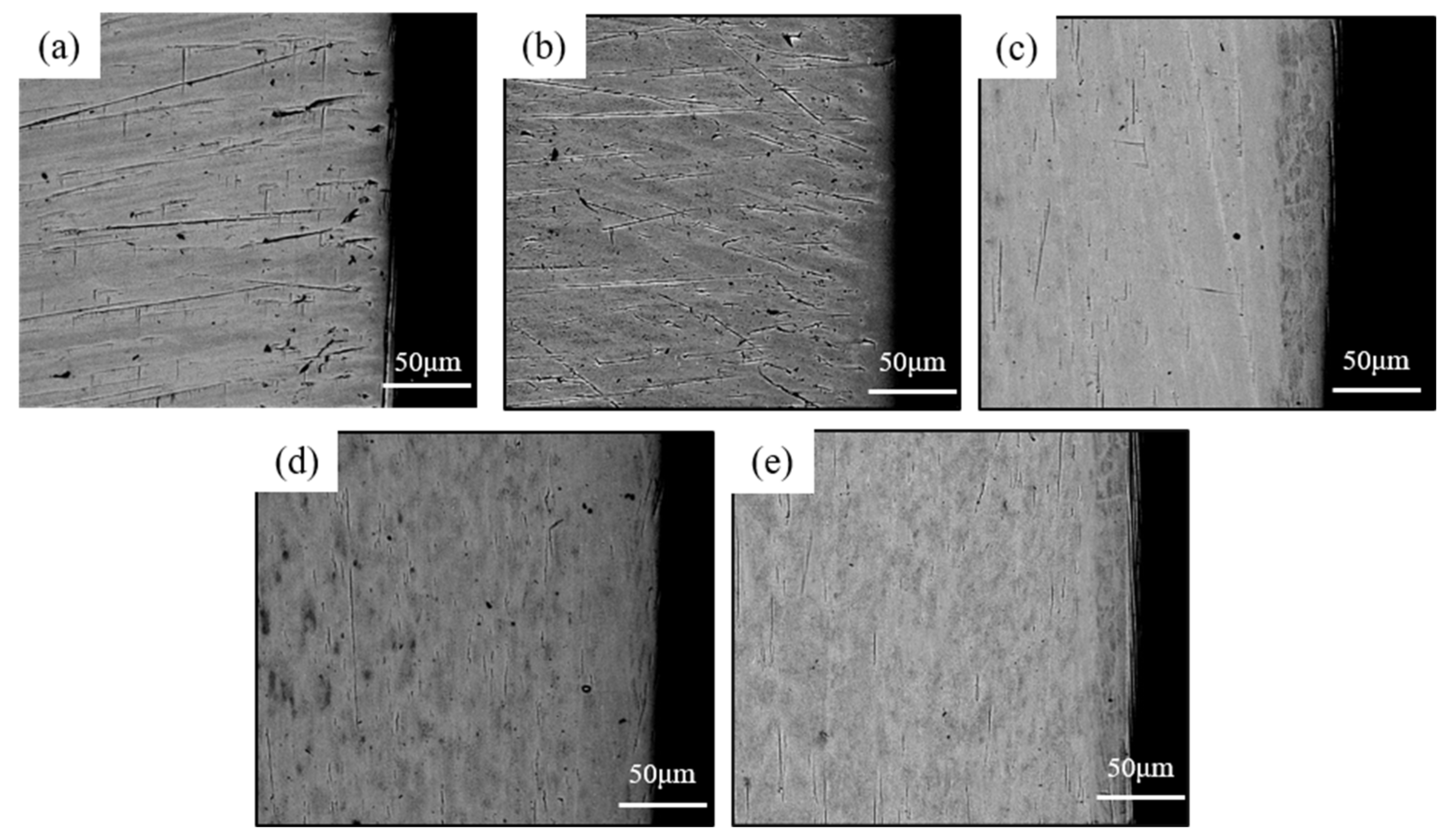

In the traditional high-temperature nitriding process, a brighter color compound layer will be observed in the cross-sectional morphology of the nitriding sample, and continuous nitrides will be distributed near the surface [30]. This article describes a new nitriding process for the recrystallization of TA2 alloy low-temperature nitriding composite matrix. Under the influence of low-temperature conditions and pre-deformation, a nitriding microstructure different from the traditional nitriding process may appear. Figure 10 shows the SEM morphology of the cross-section of TA2 alloy samples after low-temperature nitriding; it can be seen from the figure that there is no bright white nitride layer under various deformations. Combining the XRD and EDS data in Section 3.5, it can be inferred that a single metastable nitride phase should only be formed near the surface. In addition, we speculate that a nitriding zone with a gradient distribution of N elements is formed in the area below the surface because, at lower temperatures, active N atoms can diffuse into the depth of the matrix through defect channels generated by pre-deformation. Finally, the nitriding microstructure generated by the nitriding process described in this article should be a gradient nitriding region, and there is no obvious nitriding layer, but the N element is distributed in a gradient from the surface to the core.

3.7. Research on Mechanical Properties after Low-Temperature Nitriding

Figure 11 shows the friction coefficient curves of alloy samples with different deformation degrees after cold rolling and after nitriding. As Figure 11a shows, after cold rolling, the friction coefficient value of the undeformed sample is stable at about 0.71, which is the maximum value of all the test samples. The minimum coefficient of friction of the deformed sample is 0.48, which is 31.5% lower than that of the undeformed sample. Among them, the friction values of the 40% and 60% deformed samples are stable at about 0.5.

As Figure 11b shows, after the nitriding process, the stable friction coefficient indicates a decreasing trend with the increase of the deformation rate. The friction coefficient curve changes at 0%, 20%, and 40% deformation are similar. The stable value of the friction coefficient of the 20% deformed sample has a small difference compared with the 0% deformed sample, which is stable at about 0.7; the stable friction coefficient of the 40% deformed sample is about 0.53. The stable friction coefficient of the 60% deformed sample and the 40% deformed sample are almost the same; the stable friction coefficient of the 80% deformed sample is about 0.5. Both 20% and 40% deformed samples have obvious wear stages with low friction coefficients after nitriding treatment, which are stable at about 0.25 and 0.15, respectively, the duration of this process is about 7 min, while the 0% deformed samples show a steady state at the same time. There is an upward trend, and there is no declining trend after 7 min. When the deformation rate exceeds 40%, the low friction coefficient wear stage takes longer, and the time required for 80% deformed samples reaches 10 min, while the friction coefficient values of the 40%, 60%, and 80% of deformed samples at this stage have little difference, stable at about 0.14. In addition, the friction coefficient of the 20% deformed sample after 14 min of the friction test is the same as that of the 0% deformed sample, which is stable at about 0.7; the friction coefficient of the 40% deformed sample at the same stage is about 0.57, which is 18.6% lower than the 0% deformed sample. The friction coefficient values of the 60% and 80% deformed samples still show an increasing trend after 14 min.

The low friction coefficient wear stage fully proves that the infiltration layer formed on the surface of the cold-rolled deformed alloy sample after the low-temperature nitriding treatment can effectively improve the wear resistance of the alloy, and the increase in the amount of cold-rolled deformation promotes the improvement of the wear resistance. Combining the analysis in the previous section, it can be seen that the reason for the short duration of the low friction coefficient wear stage should be that only a single metastable nitride is formed near the surface, and no continuous nitride region is formed below the surface.

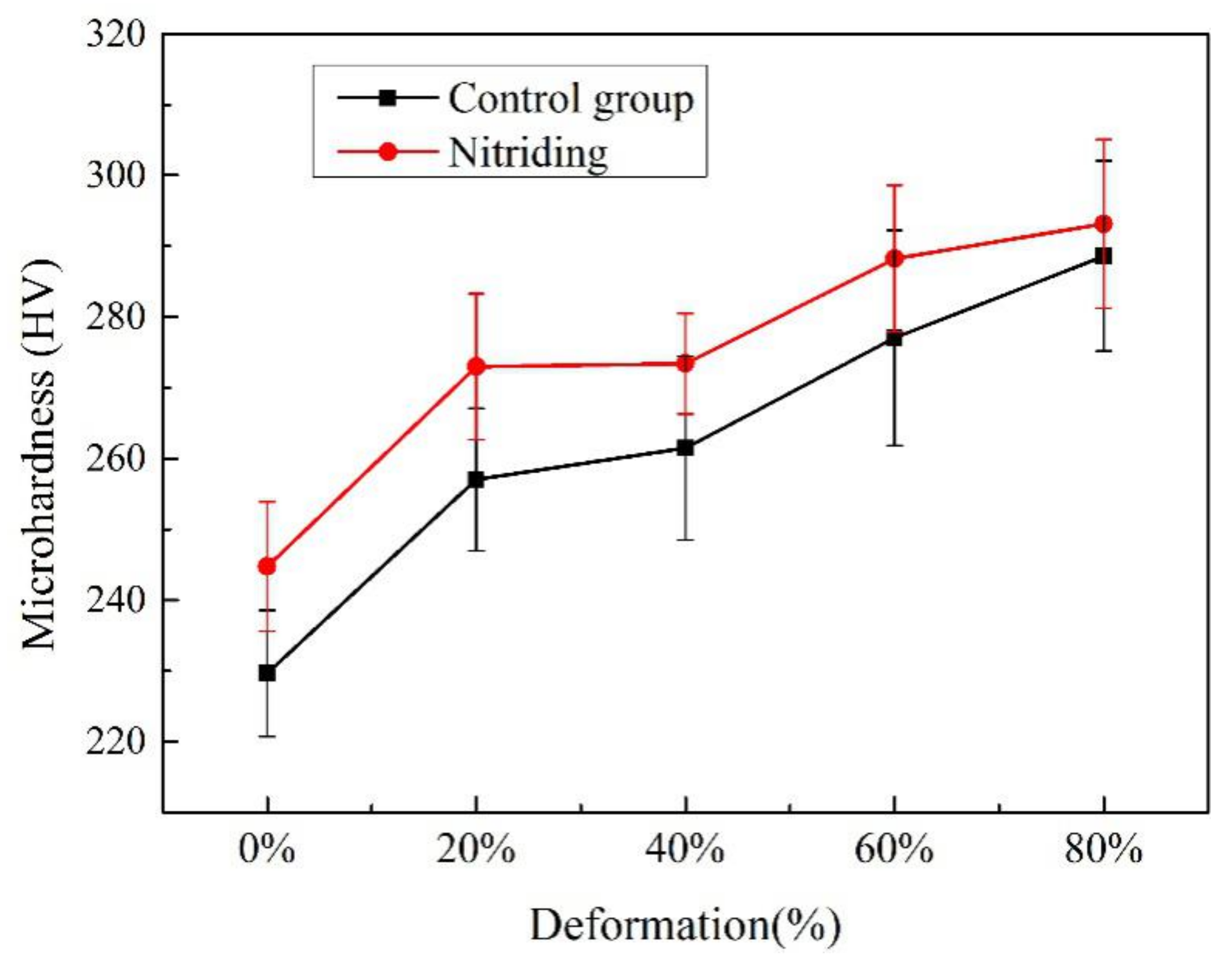

Figure 12 shows the microhardness values of cold-rolled deformed alloy samples before and after nitriding. As Figure 11 shows, after 16 h of nitriding treatment, the microhardness value of TA2 with deformation after low-temperature nitriding treatment is higher than that of the only deformed, of which the 80% deformed samples’ increase is the smallest at only 1.7%; the increase of microhardness of other deformation rate is around 8.3%. Comparing the hardness of different deformation rates after low-temperature plasma nitriding treatment, the hardness increases with the increase of the deformation rate. The hardness of the 80% deformed sample has a small increase. The reason is that the nitriding process is synchronized with the recrystallization treatment and the 80% deformed structure is more recrystallized, and the plasticity and toughness of the structure are significantly improved, which in turn causes the microhardness to decrease, this partly negates the effect of nitriding. Combined with the XRD results, the reason for the less increase in surface hardness after nitriding is also due to the formation of metastable nitrides with a lower hardness on the surface.

4. Conclusions

• As the cold-rolling deformation rate of TA2 alloy increases, obvious grain refinement occurs, and the grain orientation changes from TD to RD and then to TD. The {11-20} cylindrical texture component reduces, while the {0001} basal surface texture and {10-10} cone texture component increase, and the cone texture component is the largest.
• It can be seen from the grain characteristics that the deformed sample undergoes recrystallization during low-temperature nitriding. The higher the degree of cold-rolling deformation, the higher the degree of recrystallization, and the higher the degree of microstructure refinement. The comparison of texture characteristics before and after nitriding shows that the direction of {0001} basal texture is deflected from TD to RD, and {10-10} cylindrical texture components gradually increase; the c-axis of the TD-ND plane has 45–90° deflection in the ND direction. As the degree of recrystallization increases, the texture orientation of the special angle gradually disappears.
• After low-temperature plasma nitriding of the deformed alloy sample, the metastable nitriding phase TiN0.26 is formed on the surface. The surface N element content increases first and then decreases; this is because as the degree of deformation increases, the bonding force between atoms in the alloy matrix decreases and the defect density increases. Under different deformations, no obvious nitride layer is formed; this study may have formed a new type of nitrided zone. The composite process described in this article can significantly improve the wear resistance and hardness of deformed alloy samples.
• In this paper, the cold-rolling deformation and low-temperature plasma nitriding caused simultaneous recrystallization and composite modification processes that we can use to effectively achieve the dual goals of alloy matrix structure control and surface modification and is of great significance for obtaining TA2 alloy materials with a strong plastic ratio.
