Article

Fabry-Perot Interferometer Based on a Fiber-Tip Fixed-Supported Bridge for Fast Glucose Concentration Measurement

1
Guangdong Key Laboratory for Biomedical Measurements and Ultrasound Imaging, School of Biomedical Engineering Health Science Center, Shenzhen University, Shenzhen 518055, China
2
Shenzhen Key Laboratory of Photonic Devices and Sensing Systems for Internet of Things, Guangdong and Hong Kong Joint Research Centre for Optical Fiber Sensors, Shenzhen University, Shenzhen 518060, China
3
Key Laboratory of Optoelectronic Devices and Systems of the Ministry of Education and Guangdong Province, College of Physics and Optoelectronic Engineering, Shenzhen University, Shenzhen 518060, China
4
Base for International Science and Technology Cooperation: Carson Cancer Stem Cell Vaccines R&D Center, Shenzhen Key Laboratory of Synthetic Biology, Department of Physiology, School of Basic Medical Sciences Shenzhen University, Shenzhen 518055, China
5
Department of Civil Engineering, Guangdong Province Key Laboratory of Durability for Marine Civil Engineering, The Key Laboratory on Durability of Civil Engineering in Shenzhen, Shenzhen University, Shenzhen 518060, China
*
Authors to whom correspondence should be addressed.
Biosensors 2022, 12(6), 391; https://doi.org/10.3390/bios12060391
Submission received: 7 May 2022 / Revised: 31 May 2022 / Accepted: 2 June 2022 / Published: 6 June 2022
(This article belongs to the Section Biosensor and Bioelectronic Devices)

Abstract

:
Blood glucose concentration is important for metabolic homeostasis in humans and animals. Many diabetic patients need to detect blood glucose daily which burdens community hospitals and family healthcare. Optical fiber sensors are widely used in biomedical detection because of their compact structure, fast response, high sensitivity, low cost, and ease of operation. In this work, we constructed a Fabry-Perot (FP) cavity biosensor for the fast detection of glucose concentration in serum. The femtosecond laser micromachining was applied to fabricate the FP cavity by printing the fiber-tip fixed-supported bridge at the end face of the optical fiber. An additional hemisphere was printed at the center of the outer surface of the bridge to avoid multi-beam interference. The results demonstrated that the proposed biosensor had high refractive index (RI) detection sensitivity, roughly 1039 nm/RIU at a wavelength of 1590 nm, and the detection sensitivity for glucose was around 0.185 nm/ (mg/mL) at a wavelength of 1590 nm. Due to its high sensitivity, compact structure, and fast response, the FP cavity biosensor has great potential to be applied in family healthcare for glucose concentration detection of diabetic patients.

1. Introduction

It is well known that glucose is one of the most important sources of metabolic carbohydrate energy. Glucose concentration is also a useful indicator for various diseases, especially diabetes [1,2]. The global diabetes prevalence in 2019 was reported as high as 9.3% (463 million people) and would rise to 10.2% by 2030 [3,4]. As the number of diabetic patients continues to increase, the detection of blood glucose concentration has become more frequent in the community hospitals and family daily routine healthcare.
Generally, the blood glucose detection [5,6] included the electrochemical method and enzymatic method [7]. However, the sensitivity of the electrochemical method was limited by the comparatively slow kinetics of glucose electro-oxidation on conventional electrodes [8,9]. Although the enzyme-based method has improved the sensitivity and selectivity for glucose detection, the high cost and the complex immobilization process blocked the enzyme-based glucose sensors to enter families [10].
Due to their compact structure, high sensitivity, corrosion resistance, and electromagnetic immunity, optical fiber sensors have been widely investigated in the fields of food safety [11], environmental monitoring [12,13], and biomedicine [14,15]. In the past few years, various optical fiber sensors have been reported, such as fiber surface plasmon resonance (SPR) sensors [15,16] and fiber Bragg grating (FBG) sensors [17,18]. These sensors had excellent performance in refractive index RI detection of unlabeled biological samples. However, there are still several disadvantages of these widely reported sensors [19], e.g., the complex fabrication of SPR sensors, the cross-sensitivity towards temperature and RI of FBG sensors, etc. On the other hand, the optical fiber Fabry-Perot (FP) cavity sensor has the advantages of a simple detection principle, large detection range, and linear response [10,20,21], so it has wide applications in biosensing.
As reported by other research groups, fluorescent optical fiber sensors have the advantages of high specificity and high sensitivity in blood glucose detection, but their service life was short and the reaction time was long, about 1 h [22]. SPR fiber optic sensors have ultra-high detection sensitivity, but their fabrication and calibration are complicated [23]. Compared with other fiber optic sensors, our device responded fast and had a considerable sensitivity for glucose detection [24,25]. What is more, such a sensor did not undergo complex surface modification and specific labelling, which simplifies the fabrication of the device and improves reproducibility.
Two-photon printing (TPP) technology induced by a femtosecond laser is a new type of 3D microfabrication technology [26,27]. It has been applied in micro-instruments [28,29], microfluidics [11,30], etc. Due to the ultra-high printing accuracy of TPP technology (typical resolution is less than 100 nm), some functional microstructures that were difficult to fabricate by using conventional micromachining technology had been printed, such as micro-biomimetic or micro-magnetic driving mechanical structures [31,32,33]. By applying TPP technology, various new types of optical fiber sensors [21] have also been developed and reported in recent years. For example, Melissinaki et al. fabricated a micro FP cavity on the end face of an optical fiber as a vapor sensor [34]. Xiong et al. applied TPP to make a microcantilever for hydrogen detection [35]. Zou et al. printed a clamped-beam on the end face of the optical fiber for tiny-force measurements [36]. However, the above-mentioned optical fiber sensors were all implemented in a gas environment, while biomedical detections were mostly applied for liquid samples. Therefore, achieving stable and accurate detection in liquid environments was necessary for the development of biomedical sensors.
In this work, we proposed a novel “fiber laboratory” on the end-face of optical fiber by applying TPP technology for glucose detection (Figure 1). The polymer fixed-support bridge was printed on the end face of the single-mode fiber (SMF). A simple FP cavity was formed and it was sensitive to the refractive index changes of analytes. Then, the concentration of glucose in the solution was measured by the FP interferometer based on the fiber-tip fixed-supported bridge. The results demonstrated that the proposed compact sensor responded fast to the refractive index changes and had high sensitivity to the glucose concentrations, which provided a good alternative for easy-use glucose detection in both community hospitals and family routine healthcare.

2. Materials and Methods

2.1. Fabrication

The photoresist used in this work was prepared as in [37]: IGR-369 (Ciba-Geigy, Basel, Switzerland) was used as the photoinitiator. The trifunctional monomers SR444, SR368, and SR454 (from Sartomer, Exton, PE, USA) were mixed and dissolved in acetone. 4-hydroxyanisole (purchased from Sigma-Aldrich, St. Louis, MI, USA) was used as a polymerization inhibitor. Tetraethyl thiuram disulfide, purchased from Sigma-Aldrich, was used as an accelerator. The polymer material employed has a refractive index of ~1.53 [35].
To fabricate the fixed-supported bridge, an SMF (Corning SMF-28, 8.2 μm core diameter) was fixed on a glass slide and its tip was immersed into the photoresist, as shown in Figure 2a. The polymerization process of the micro FP cavity was adopted and shown in Figure 2b [35,36]. A two-photon polymerization 3D lithography machine (Altechna R&D WOP, FemtoLAB) was used to fabricate structures. A femtosecond laser with a pulse width of 250 fs, a center wavelength of 1026 nm, and a repetition frequency of 200 kHz was applied to perform TPP. A 63× magnification (NA = 1.4) oil-immersion objective lens was used to increase the fabrication accuracy and the smoothness of the microstructure. In this work, the real light spot size was about 0.5 μm and the focal depth was about 3 μm. To ensure the strength of the fabricated microstructure and minimize time cost, the laser power was set at 2 mW and the scanning speed was set at 500 μm/s, respectively. After the polymerization was completed, the microstructure was washed by washing solution (acetone: isopropanol, 1:4) to remove the residual photoresist (Figure 2c). After all the washing solution was evaporated, the microfabrication of the FP cavity was completed.

2.2. Optimization and Characterization

To achieve the best glucose sensing performance, a series of fiber-tip fixed-supported micro-bridge with different thicknesses and heights were fabricated and tested. The thickness of the fixed-supported micro-bridge was chosen to be 10 μm since the thinner bridge would easily bend due to the tension induced by the solution evaporation when changing the test samples. What is more, it was confirmed that the 10 μm thick micro-bridge did not deform after all the solution on it has evaporated by optical microscope and spectrum shift (Supplementary Materials, Figure S1).
Since the free spectral range (FSR) of interference reflection can be applied to calculate the effective cavity length of the FP cavity sensor, we measured the FSR of the fiber-tip FP interferometer (Figure 3). The reflection spectra of various FP interferometers showed that the FSRs were 50.18 nm, 25.38 nm, and 15.04 nm according to the different dip wavelength λ of 1383 nm, 1375 nm, and 1324.5 nm, respectively. There was a relationship with these parameters according to the formula:
F S R = λ 2 2 n L
where λ is the dip wavelength, n represents the average RI within the cavity, and L is the cavity length. Thus, the effective cavity length of the FP cavity sensor (L) was calculated to be 58.23, 37.25, and 19.06 μm, corresponding to the designed cavity length of 60, 40, and 20 μm, respectively. The machining precision was acceptable in this work. It was obvious that the shorter the cavity length was, the more light was reflected back to the fiber to participate in the interference, which will reduce the light loss and make the contrast higher. Herein, the FP interferometer with a cavity length of 20 μm had the best spectrum contrast. However, in practical terms, if the cavity length was small, e.g., 20 μm, it was difficult to wash the cavity or put the sample solution completely into the cavity. Thus, we optimized the parameters of the sensor as the following, FP cavity with a length of 35 μm, and a fixed-support micro-bridge with a length of 110 μm, a width of 20 μm, and a thickness of 10 μm.
The scanning electron microscope (SEM) images provided the details of the fixed-supported bridge (Figure 4). It was clear that the fixed-supported bridge structure was firmly printed on the flattened fiber end face. The contact surface between the fiber end-face and the air was defined as the reflective surface 1, and the contact surface between the air and the inner surface of the micro-bridge was defined as the reflective surface 2. Reflecting surfaces 1 and 2 formed a simple FP cavity. Moreover, to avoid multi-beam interference caused by the reflection of the light from the third surface (the outer surface of the beam), an additional hemisphere was polymerized at the center of the third surface. This hemisphere could reflect the light reaching the outer surface to the outside of the fiber core and eliminate the unnecessary interference (Supporting Information, Figure S2). Such design simplified the FP cavity as a double-beam optical interference. The reflected light intensity can be calculated as [38]:
I = I 1 + I 2 + 2 ( I 1 + I 2 ) c o s ( 2 π L n λ + Φ 0 )
where I1 and I2 are the reflected intensities from surfaces 1 and 2, and Φ0 is the initial phase of interference. According to Equation (2), it can be concluded that when the cosine term is equal to an odd multiple of π, the reflected light intensity reaches the minimum value, namely:
when   2 π L n λ + Φ 0 = ( 2 m + 1 ) π ,   I = I m i n = I 1 + I 2 2 ( I 1 + I 2 )
where m is an integer. When the cavity length is a constant, the corresponding relationship between the shift of the dip wavelength and the change of the average RI in the FP cavity is as follows:
d λ d n = Δ λ Δ n
Here, Δn is the effective RI variation of the medium in the microcavity and Δλ is the amount of shift in dip wavelength due to changes in the effective refractive index. However, due to the focal depth problem of two-photon laser polymerization, the designed polymer hemisphere was stretched along the z-axis and fabricated as a half ellipsoid. Fortunately, such distortion had no adverse effect on our device and the desired double beam interference could be obtained. The SEM images confirmed the smooth mess of the micro-bridge surface and the excellent parallelism between the fiber end-face and the bridge surface (Figure 4), which ensured both strong reflected light intensity and contrast of the device.

3. Results

3.1. RI Response Measurement

Before measuring blood glucose concentration, the sensor was calibrated using standard RI liquids (Cargille Labs, Cedar Grove, NJ, USA). The experiments were carried out in a cleanroom where temperature and humidity were stable. The fiber-tip was moved into a droplet of standard RI liquid on a clean glass slide by a three-axis displacement platform. The entire testing was monitored using optical microscopy to confirm the FP cavity was filled by the measured solution. The ethanol solution was used to remove the remaining RI liquid. To cover the RI range of the typical liquid biological sample, the RI of the standard liquids ranged from 1.32 to 1.35, with an interval step of 0.005.
Figure 5a showed the reflectance spectrum when the RI was increased at room temperature. As the RI was increased, the spectrum dip wavelength drifted steadily toward the long wavelength. At 1590 nm, when the RI changes from 1.32 to 1.35, the dip wavelength increased about 32 nm. The dip wavelength shift was plotted as a function of RI in Figure 5b, in which the curve was well fitted by a linear fitting (R2 = 0.9974). The RI sensitivity of the sensor was as high as 1039 nm/RIU.
The detection limit (DL) for the refractive index can be calculated using the theory proposed by I. M. White and X. Fan [39]:
D L = R S
where the S is the sensitivity of the sensor, and R is the sensor’s resolution. Typically, there were some factors that affect the sensor’s resolution including OSA resolution, the signal-to-noise ratio, and the width of the resonance. The numerical results can be approximated by R = 3 σ , where the standard deviation of the resulting spectral variation σ :
σ = Δ λ 4.5 ( S N R 0.25 )
where Δλ is the full-width at half-maximum (FWHM) of the fringe and SNR is the signal-noise ratio. SNR is in linear units in this expression (e.g., 60 dB = 106). In our refractive index sensing experiments, the measured value of FWHM was 6.9 nm. Assuming an SNR of 50 dB, the detection limit of this proposed sensor was 2.4 × 10−4 RIU, which was sensitive enough for most blood samples [8].

3.2. Blood Glucose Concentration Response Measurement

The typical samples for measuring the blood glucose concentration include whole blood, serum, and plasma. In this paper, we used serum as the test sample. A series of glucose solutions were prepared by dissolving glucose in fetal bovine serum (FBS, Gibco).
As shown in Figure 6, the sensor-tip was dipped in the glucose solution by a three-dimensional displacement platform. Figure 6a shows a glucose molecular diagram. Figure 6b shows our test schematic, a broadband light source was used as the transmitter and an optical spectrum analyzer was used to record the reflection spectrum. Figure 6c shows the reflection spectrum drift as a function of the measured glucose concentration. Once the FP cavity was filled with the glucose solution, the reflection spectrum drift was immediately recorded and the glucose concentration was calculated. Figure 7a shows the reflection spectrum as a function of glucose concentration. Around the wavelength of 1589 nm, when the glucose concentration changed from 1 mg/mL to 20 mg/mL, the reflection spectrum shifted to the long-wavelength by approximately 3.5 nm. Figure 7b shows the linear curve fitting of the dip wavelength shift as a function of glucose concentration, and it can be obtained that the glucose detection sensitivity of the sensor was 0.18473 nm/(mg/mL) (R2 = 0.9998). It can be calculated that the detection limit of the sensor for blood glucose was 0.4565 mg/mL, which was sufficient for glucose concentration detection of diabetic patients in family healthcare [8].

3.3. Temperature Measurement

In order to guarantee the stability of the sensor in daily monitoring, we analyzed the temperature response of the sensor. The sensor was placed into an air oven and we gradually increased the temperature from 25 °C to 65 °C, and the temperature was continuously maintained for 10 min in each step. The change in reflectance spectrum with temperature is shown in Figure 8a. The corresponding relationship between the dip wavelength shift of the Fabry-Perot interference spectrum and the temperature is as follows:
d λ d T = 2 k ( d n d T L + d L d T n )
where k is an integer representing the order of the interference spectrum and dn/dT and dL/dT are the thermo-optic coefficient and thermal expansion coefficient of the medium in the cavity, respectively. When the ambient temperature increases, the interference spectrum will shift due to the two main influencing factors, the thermo-optic effect and the thermal expansion effect. In this work, our temperature tests were performed in an air medium, where temperature variations had less effect on the refractive index of the air. Thus, we deduce that the cavity length changes were due to the thermal expansion of the fixed-supported bridge in this work. During the glucose detection, the experiments were performed in an ultra-clean studio with constant temperature and humidity. In a real house or hospital environment, the temperature would not change drastically when the test would be performed.
As shown in Figure 8, our sensor exhibited very good detection stability around room temperature. According to the structure of the FP cavity, we speculated that the inward expansion of the bridge was compensated by the outward expansion of the base, in which there was no change in the FP cavity length, from 25 °C to 40 °C. With the increase in temperature, the base expanded outward more than the bridge did inward and the cavity length increased. Thus, the dip wavelength of the spectrum showed a significant red shift. Figure 8b illustrated the linear fit of the dip wavelength versus temperature (35 °C to 65 °C), achieving a calibrated drift of ~260 pm/°C (R2 = 0.985). Since the sensor would be applied in community hospitals and family healthcare at room temperature, the small fluctuation of temperature response could be ignored under 35 °C. If the sensor is applied above 35 °C, the calibrated drift could be used to calibrate the data.

4. Conclusions

In this work, we fabricated a novel FP cavity optical fiber sensor for fast glucose concentration detection by using TPP to print a fixed-supported bridge on the fiber end face. The result demonstrated that the RI sensitivity of the proposed sensor was as high as 1039 nm/RIU. The detection sensitivity of glucose solution was 0.185 nm/(mg/mL), and the concentration detection resolution was 0.4565 mg/mL, which is sufficient for glucose concentration detection of diabetic patients. Thus, such an FP cavity sensor has great potential to be applied to community hospitals and family healthcare.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/bios12060391/s1, Figure S1: The comparison of the spectra and microscopy of the FP cavity structure with beam thickness of 3 μm (a), 5 μm (b), and 10μm (c). Scale bar: 125 μm; Figure S2: The comparison of the spectra and microscopy of the FP cavity structure without (a) and with hemisphere (b). Scale bar: 125 μm; Video S1: The process of solutions filling in FP cavity.

Author Contributions

Conceptualization, S.T. and C.Z.; Methodology, S.T. and M.Z.; Writing—original draft preparation, S.T.; Validation, Y.J., R.C. and Z.X., Investigation, C.Y., X.W., B.D., Y.W., C.L. and G.X.; Writing—review and editing, C.L. and G.X. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Natural Science Foundation of Guangdong Province (2021A1515012159&2019A1515012163), Guangdong Medical Science and Technology Research Funding (A2019359), Shenzhen Stability Support Program for Universities (20200812122708001) and Start-up Grant from Shenzhen University (2019136). We also thank the Instrument Analysis Centre of Shenzhen University for its assistance with spectrum analysis.

Institutional Review Board Statement

Ethical review and approval were waived for this study, since the experiments are almost completely safe, do not cause harm to the subject, and do not involve privacy and moral issues.

Informed Consent Statement

Written informed consent has been obtained from the subject to publish this paper.

Data Availability Statement

The experimental data is contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Spanakis, E.K.; Golden, S.H. Race/Ethnic Difference in Diabetes and Diabetic Complications. Curr. Diabetes Rep. 2013, 13, 814–823. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Harding, J.L.; Pavkov, M.E.; Magliano, D.J.; Shaw, J.E.; Gregg, E.W. Global trends in diabetes complications: A review of current evidence. Diabetologia 2019, 62, 3–16. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Rowley, W.R.; Bezold, C.; Arikan, Y.; Byrne, E.; Krohe, S. Diabetes 2030: Insights from Yesterday, Today, and Future Trends. Popul. Health Manag. 2017, 20, 6–12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Saeedi, P.; Petersohn, I.; Salpea, P.; Malanda, B.; Karuranga, S.; Unwin, N.; Colagiuri, S.; Guariguata, L.; Motala, A.A.; Ogurtsova, K.; et al. Global and regional diabetes prevalence estimates for 2019 and projections for 2030 and 2045: Results from the International Diabetes Federation Diabetes Atlas, 9th edition. Diabetes Res. Clin. Pract. 2019, 157, 107843. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Li, Y.; Yao, Z.; Yue, W.; Zhang, C.; Gao, S.; Wang, C. Reusable, Non-Invasive, and Ultrafast Radio Frequency Biosensor Based on Optimized Integrated Passive Device Fabrication Process for Quantitative Detection of Glucose Levels. Sensors 2020, 20, 1565. [Google Scholar] [CrossRef] [Green Version]
  6. Yue, W.; Kim, E.S.; Zhu, B.H.; Chen, J.; Liang, J.G.; Kim, N.Y. Permittivity-Inspired Microwave Resonator-Based Biosensor Based on Integrated Passive Device Technology for Glucose Identification. Biosensors 2021, 11, 508. [Google Scholar] [CrossRef]
  7. Wang, H.C.; Lee, A.R. Recent developments in blood glucose sensors. J. Food Drug Anal. 2015, 23, 191–200. [Google Scholar] [CrossRef] [Green Version]
  8. Chen, C.; Xie, Q.; Yang, D.; Xiao, H.; Fu, Y.; Tan, Y.; Yao, S. Recent advances in electrochemical glucose biosensors: A review. RSC Adv. 2013, 3, 4473–4491. [Google Scholar] [CrossRef]
  9. Zaidi, S.A.; Shin, J.H. Recent developments in nanostructure based electrochemical glucose sensors. Talanta 2016, 149, 30–42. [Google Scholar] [CrossRef]
  10. Bruen, D.; Delaney, C.; Florea, L.; Diamond, D. Glucose Sensing for Diabetes Monitoring: Recent Developments. Sensors 2017, 17, 1866. [Google Scholar] [CrossRef] [Green Version]
  11. Qi, W.; Zheng, L.; Wang, S.; Huang, F.; Liu, Y.; Jiang, H.; Lin, J. A microfluidic biosensor for rapid and automatic detection of Salmonella using metal-organic framework and Raspberry Pi. Biosens. Bioelectron. 2021, 178, 113020. [Google Scholar] [CrossRef] [PubMed]
  12. Rao, Y.-J.; Deng, M.; Duan, D.-W.; Zhu, T. In-line fiber Fabry-Perot refractive-index tip sensor based on endlessly photonic crystal fiber. Sens. Actuators A Phys. 2008, 148, 33–38. [Google Scholar] [CrossRef]
  13. Naqvi, T.K.; Bajpai, A.; Bharati, M.S.S.; Kulkarni, M.M.; Siddiqui, A.M.; Soma, V.R.; Dwivedi, P.K. Ultra-sensitive reusable SERS sensor for multiple hazardous materials detection on single platform. J. Hazard. Mater. 2021, 407, 124353. [Google Scholar] [CrossRef] [PubMed]
  14. Chen, C.; Wang, J. Optical biosensors: An exhaustive and comprehensive review. Analyst 2020, 145, 1605–1628. [Google Scholar] [CrossRef] [PubMed]
  15. Zhao, Y.; Tong, R.J.; Xia, F.; Peng, Y. Current status of optical fiber biosensor based on surface plasmon resonance. Biosens. Bioelectron. 2019, 142, 111505. [Google Scholar] [CrossRef] [PubMed]
  16. Gupta, B.D.; Kant, R. Recent advances in surface plasmon resonance based fiber optic chemical and biosensors utilizing bulk and nanostructures. Opt. Laser Technol. 2018, 101, 144–161. [Google Scholar] [CrossRef]
  17. Wang, J.; Lin, C.; Liao, C.; Gan, Z.; Li, Z.; Liu, S.; Xu, L.; Wang, Y.; He, J.; Wang, Y. Bragg resonance in microfiber realized by two-photon polymerization. Opt. Express 2018, 26, 3732–3737. [Google Scholar] [CrossRef] [PubMed]
  18. Maiti, S.; Singh, V. Comparative analysis of silica fiber Bragg grating and chalcogenide fiber Bragg grating. Mater. Today Proc. 2021, 47, 1557–1560. [Google Scholar] [CrossRef]
  19. You, K.E.; Uddin, N.; Kim, T.H.; Fan, Q.H.; Yoon, H.J. Highly sensitive detection of biological substances using microfluidic enhanced Fabry-Perot etalon-based optical biosensors. Sens. Actuators B Chem. 2018, 277, 62–68. [Google Scholar] [CrossRef]
  20. Xu, B.; Wang, C.; Wang, D.N.; Liu, Y.; Li, Y. Fiber-tip gas pressure sensor based on dual capillaries. Opt. Express 2015, 23, 23484–23492. [Google Scholar] [CrossRef]
  21. Wang, J.; Liu, B.; Wu, Y.; Mao, Y.; Zhao, L.; Sun, T.; Nan, T. A novel fiber in-line Michelson interferometer based on end face packaging for temperature and refractive index measurement. Optik 2019, 194, 163094. [Google Scholar] [CrossRef]
  22. Shen, P.; Xia, Y. Synthesis-modification integration: One-step fabrication of boronic acid functionalized carbon dots for fluorescent blood sugar sensing. Anal. Chem. 2014, 86, 5323–5329. [Google Scholar] [CrossRef]
  23. Perez, J.L.C.; Gutierrez-Gutierrez, J.; Mayoral, C.P.; Perez-Campos, E.L.; Canseco, M.D.S.P.; Carrillo, L.T.; Mayoral, L.P.; Trevino, M.V.; Apreza, E.L.; Laguna, R.R. Fiber Optic Sensors: A Review for Glucose Measurement. Biosensors 2021, 11, 61. [Google Scholar] [CrossRef] [PubMed]
  24. Lidiya, A.E.; Raja, R.V.J.; Pham, V.D.; Ngo, Q.M.; Vigneswaran, D. Detecting hemoglobin content blood glucose using surface plasmon resonance in D-shaped photonic crystal fiber. Opt. Fiber Technol. 2019, 50, 132–138. [Google Scholar] [CrossRef]
  25. Li, Y.; Ma, H.; Gan, L.; Liu, Q.; Yan, Z.; Liu, D.; Sun, Q. Immobilized optical fiber microprobe for selective and high sensitive glucose detection. Sens. Actuators B Chem. 2018, 255, 3004–3010. [Google Scholar] [CrossRef]
  26. Sun, H.-B.; Matsuo, S.; Misawa, H. Three-dimensional photonic crystal structures achieved with two-photon-absorption photopolymerization of resin. Appl. Phys. Lett. 1999, 74, 786–788. [Google Scholar] [CrossRef]
  27. Scrimgeour, J.; Sharp, D.N.; Blanford, C.F.; Roche, O.M.; Denning, R.G.; Turberfield, A.J. Three-Dimensional Optical Lithography for Photonic Microstructures. Adv. Mater. 2006, 18, 1557–1560. [Google Scholar] [CrossRef]
  28. Sun, Z.B.; Dong, X.Z.; Chen, W.Q.; Nakanishi, S.; Duan, X.M.; Kawata, S. Multicolor Polymer Nanocomposites: In Situ Synthesis and Fabrication of 3D Microstructures. Adv. Mater. 2008, 20, 914–919. [Google Scholar] [CrossRef]
  29. Power, M.; Thompson, A.J.; Anastasova, S.; Yang, G.Z. A Monolithic Force-Sensitive 3D Microgripper Fabricated on the Tip of an Optical Fiber Using 2-Photon Polymerization. Small 2018, 14, e1703964. [Google Scholar] [CrossRef] [Green Version]
  30. Li, Z.; Xu, Y.; Fang, W.; Tong, L.; Zhang, L. Ultra-sensitive nanofiber fluorescence detection in a microfluidic chip. Sensors 2015, 15, 4890–4898. [Google Scholar] [CrossRef] [Green Version]
  31. Villangca, M.J.; Palima, D.; Banas, A.R.; Gluckstad, J. Light-driven micro-tool equipped with a syringe function. Light Sci. Appl. 2016, 5, e16148. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Xiong, Z.; Zheng, C.; Jin, F.; Wei, R.; Zhao, Y.; Gao, X.; Xia, Y.; Dong, X.; Zheng, M.; Duan, X. Magnetic-field-driven ultra-small 3D hydrogel microstructures: Preparation of gel photoresist and two-photon polymerization microfabrication. Sens. Actuators B Chem. 2018, 274, 541–550. [Google Scholar] [CrossRef]
  33. Ma, Z.C.; Zhang, Y.L.; Han, B.; Hu, X.Y.; Li, C.H.; Chen, Q.D.; Sun, H.B. Femtosecond laser programmed artificial musculoskeletal systems. Nat. Commun. 2020, 11, 4536. [Google Scholar] [CrossRef] [PubMed]
  34. Melissinaki, V.; Farsari, M.; Pissadakis, S. A Fiber-Endface, Fabry–Perot Vapor Microsensor Fabricated by Multiphoton Polymerization. IEEE J. Sel. Top. Quantum Electron. 2015, 21, 344–353. [Google Scholar] [CrossRef]
  35. Xiong, C.; Zhou, J.; Liao, C.; Zhu, M.; Wang, Y.; Liu, S.; Li, C.; Zhang, Y.; Zhao, Y.; Gan, Z.; et al. Fiber-Tip Polymer Microcantilever for Fast and Highly Sensitive Hydrogen Measurement. ACS Appl. Mater. Interfaces 2020, 12, 33163–33172. [Google Scholar] [CrossRef]
  36. Zou, M.; Liao, C.; Liu, S.; Xiong, C.; Zhao, C.; Zhao, J.; Gan, Z.; Chen, Y.; Yang, K.; Liu, D.; et al. Fiber-tip polymer clamped-beam probe for high-sensitivity nanoforce measurements. Light Sci. Appl. 2021, 10, 171. [Google Scholar] [CrossRef]
  37. Li, C.; Liao, C.; Wang, J.; Gan, Z.; Wang, Y. Femtosecond Laser Microprinting of a Polymer Optical Fiber Interferometer for High-Sensitivity Temperature Measurement. Polymers 2018, 10, 1192. [Google Scholar] [CrossRef] [Green Version]
  38. Li, Z.; Liao, C.; Chen, D.; Song, J.; Jin, W.; Peng, G.D.; Zhu, F.; Wang, Y.; He, J.; Wang, Y. Label-free detection of bovine serum albumin based on an in-fiber Mach-Zehnder interferometric biosensor. Opt. Express 2017, 25, 17105–17113. [Google Scholar] [CrossRef] [Green Version]
  39. White, I.; Fan, X. On the performance quantification of resonant refractive index sensors. Opt. Express 2008, 16, 1020–1028. [Google Scholar] [CrossRef] [Green Version]

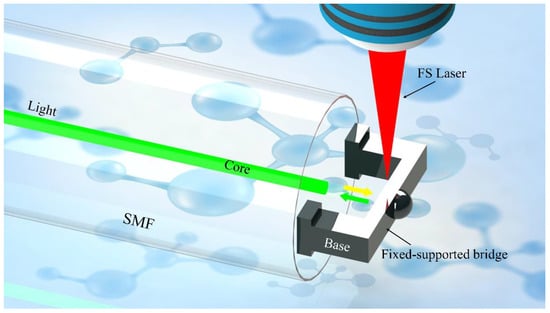

Figure 1. The schematic design of the all-fiber glucose sensor is based on the FP cavity.
Figure 1. The schematic design of the all-fiber glucose sensor is based on the FP cavity.
Biosensors 12 00391 g001

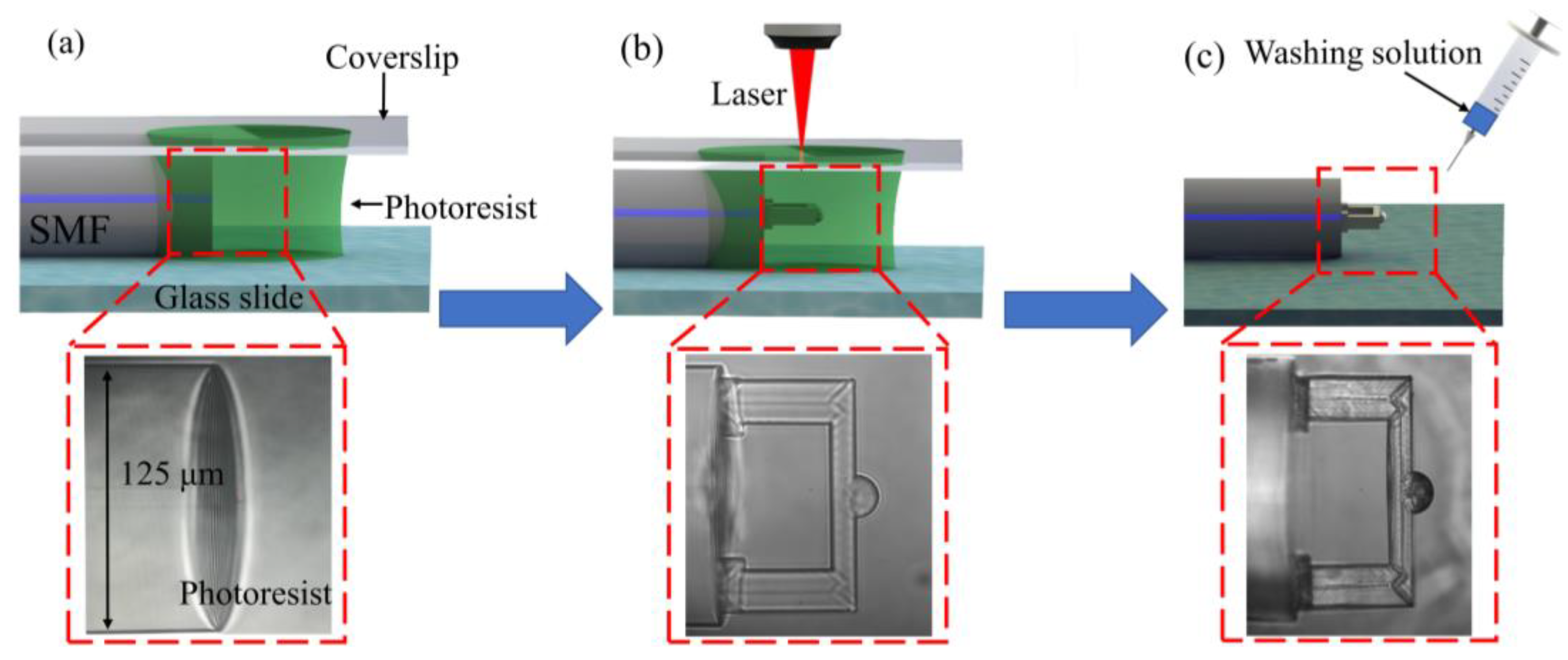

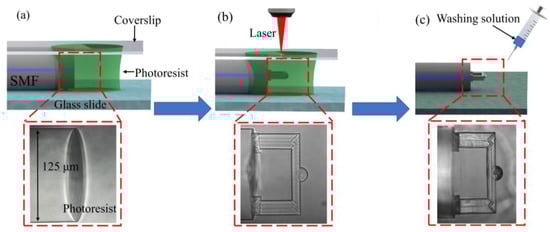

Figure 2. Process flow of fabricating the fiber-tip fixed-supported micro-bridge. (a) The fiber end face was cut to flat and immersed in the photoresist. A cover glass was set above the photoresist. (b) The fixed-supported bridge was printed on the end face of the optical fiber using TPP technology. (c) The cleaning solution was applied to wash off the remaining photoresist.
Figure 2. Process flow of fabricating the fiber-tip fixed-supported micro-bridge. (a) The fiber end face was cut to flat and immersed in the photoresist. A cover glass was set above the photoresist. (b) The fixed-supported bridge was printed on the end face of the optical fiber using TPP technology. (c) The cleaning solution was applied to wash off the remaining photoresist.
Biosensors 12 00391 g002

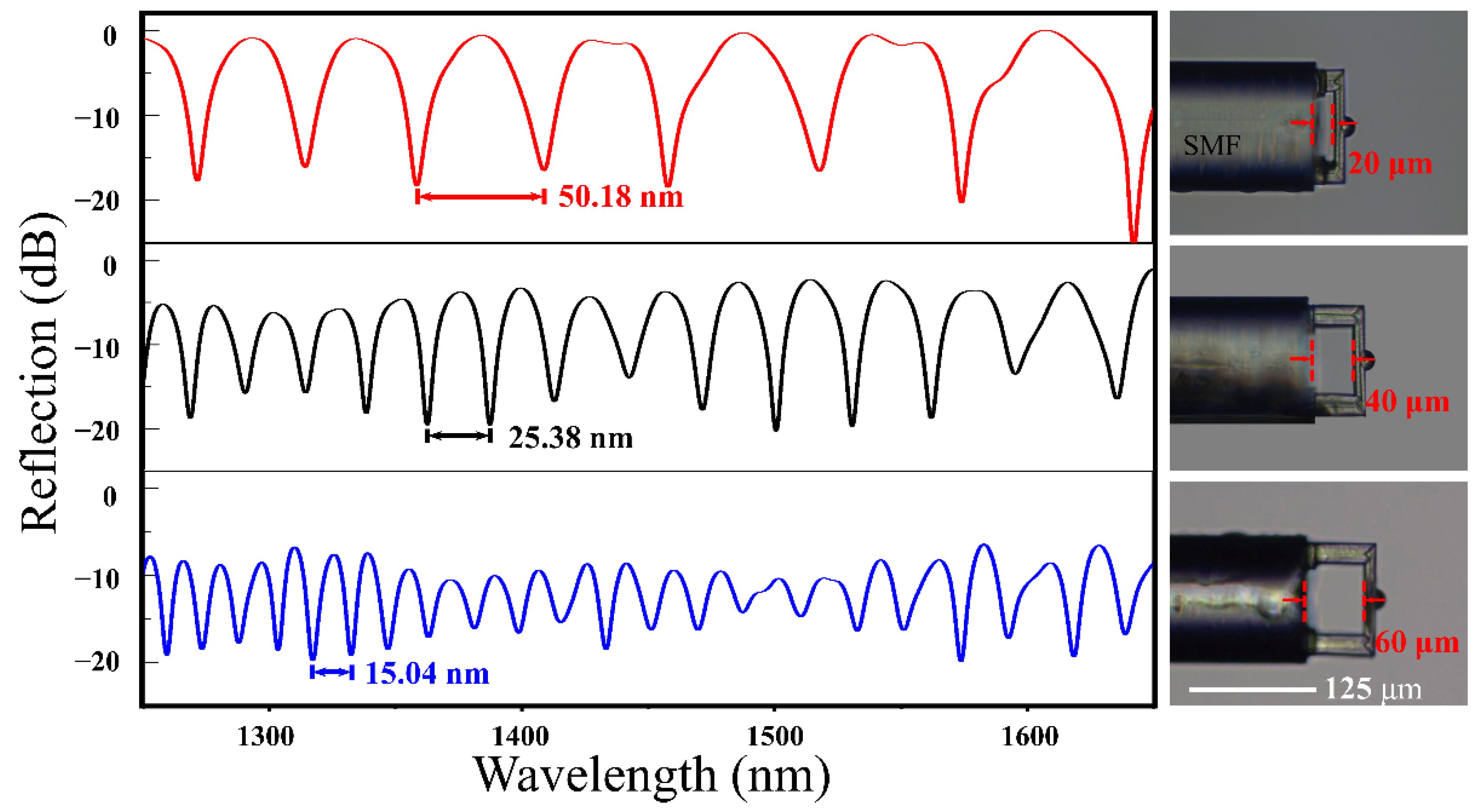

Figure 3. The typical reflection spectra of the FP interferometer and the optical microscopic images of the FP cavity with various cavity lengths. Scale bar: 125 μm.
Figure 3. The typical reflection spectra of the FP interferometer and the optical microscopic images of the FP cavity with various cavity lengths. Scale bar: 125 μm.
Biosensors 12 00391 g003

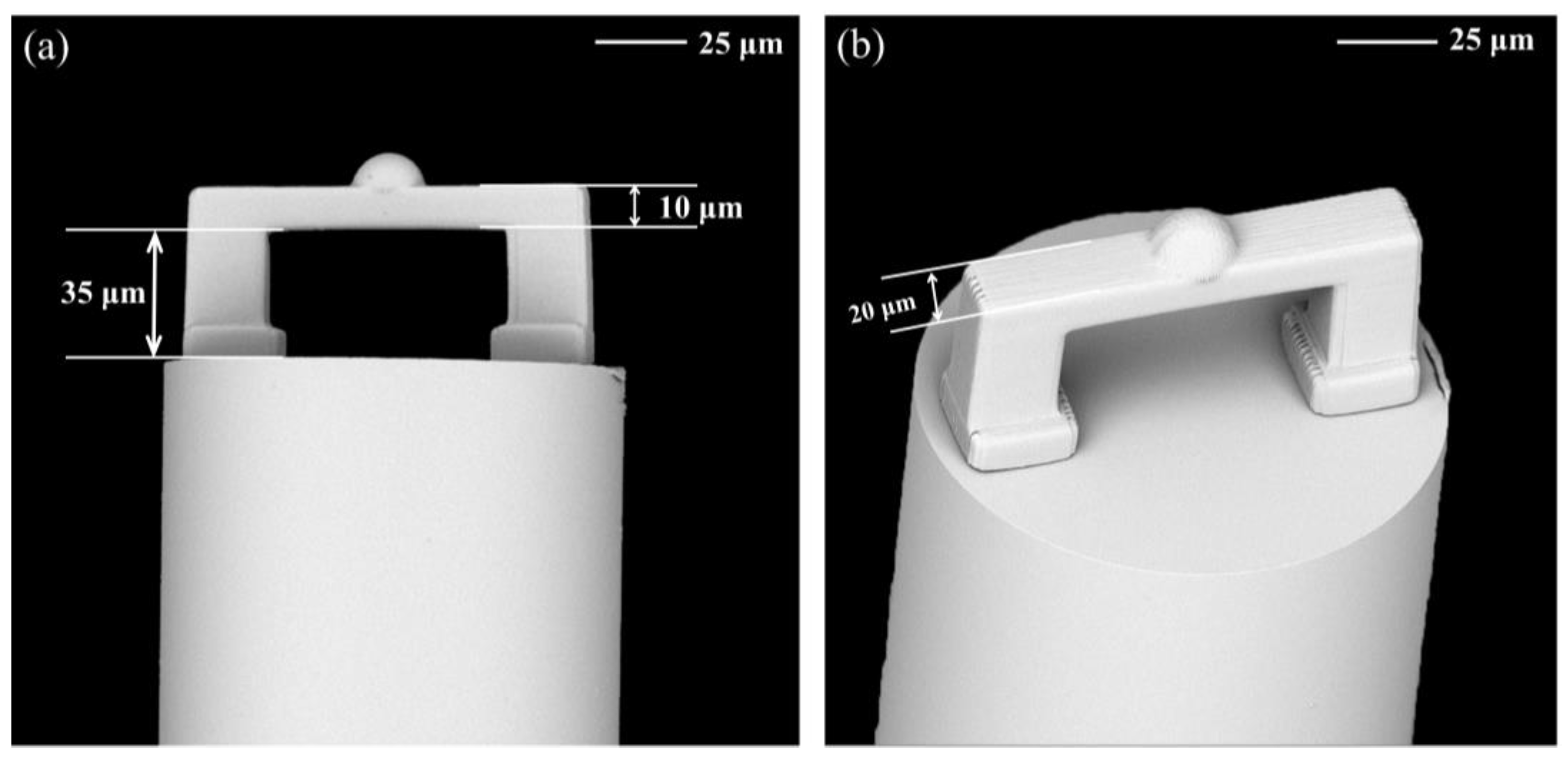

Figure 4. Typical SEM images of the microstructure on the end of the optical fiber manufactured using TPP technology. (a) Front view and (b) top view of the fixed-supported bridge. Scale bar: 25 μm.
Figure 4. Typical SEM images of the microstructure on the end of the optical fiber manufactured using TPP technology. (a) Front view and (b) top view of the fixed-supported bridge. Scale bar: 25 μm.
Biosensors 12 00391 g004

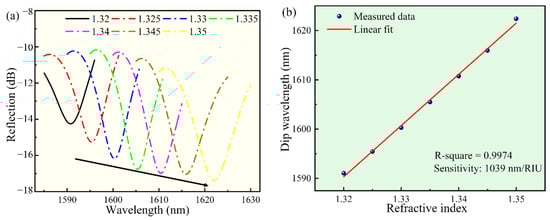

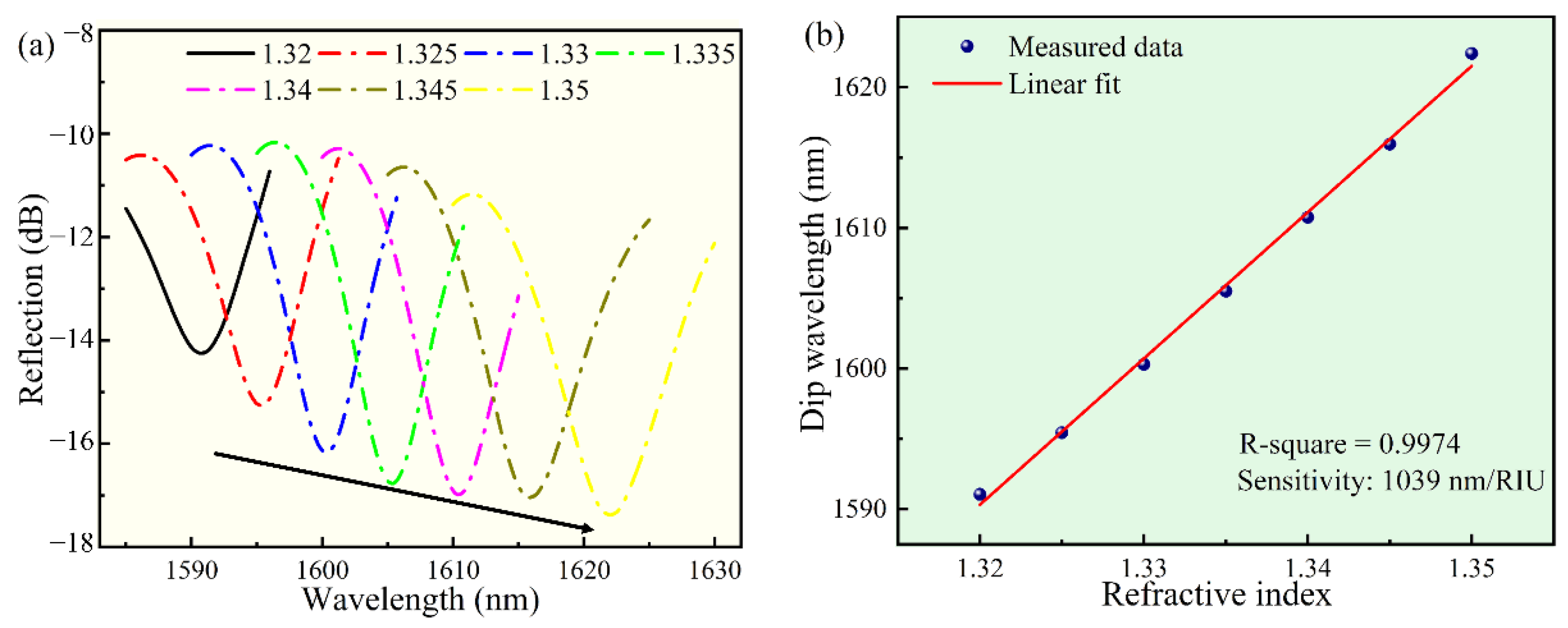

Figure 5. The response of the sensor to various RI solutions, in the wavelength range of 1585--1630 nm. (a) The dip wavelength shift of the reflectance spectrum of the sensor. (b) The corresponding relationship between the dip wavelength and the RI.
Figure 5. The response of the sensor to various RI solutions, in the wavelength range of 1585--1630 nm. (a) The dip wavelength shift of the reflectance spectrum of the sensor. (b) The corresponding relationship between the dip wavelength and the RI.
Biosensors 12 00391 g005

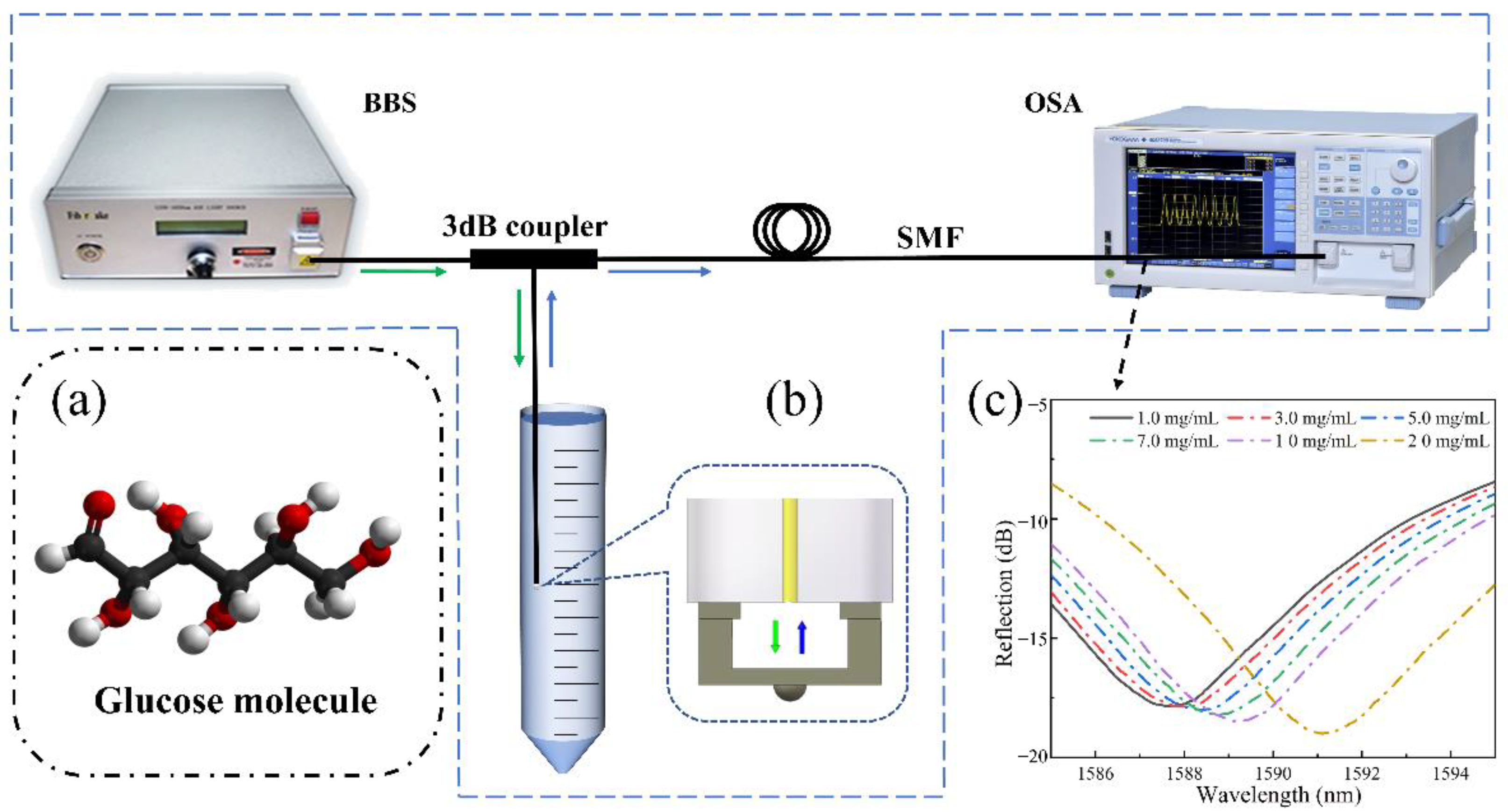

Figure 6. The sensing system is based on a fiber end-face fixed-supported bridge for measuring the glucose concentration: (a) A glucose molecular diagram. (b) A schematic diagram of the glucose solution detection system. (c) Reflection spectrum drift as a function of the measured glucose concentration.
Figure 6. The sensing system is based on a fiber end-face fixed-supported bridge for measuring the glucose concentration: (a) A glucose molecular diagram. (b) A schematic diagram of the glucose solution detection system. (c) Reflection spectrum drift as a function of the measured glucose concentration.
Biosensors 12 00391 g006

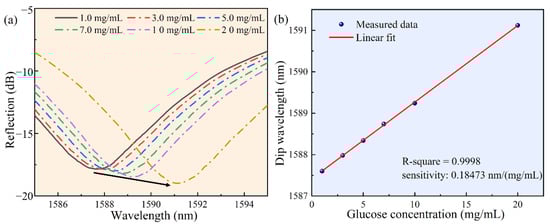

Figure 7. The results of measuring the glucose concentration in serum solution, under the wavelength ranging from 1580 to 1600 nm. (a) The reflectance spectrum as a function of glucose concentration. (b) The linear curve fitting of the dip wavelength and glucose concentration in serum.
Figure 7. The results of measuring the glucose concentration in serum solution, under the wavelength ranging from 1580 to 1600 nm. (a) The reflectance spectrum as a function of glucose concentration. (b) The linear curve fitting of the dip wavelength and glucose concentration in serum.
Biosensors 12 00391 g007

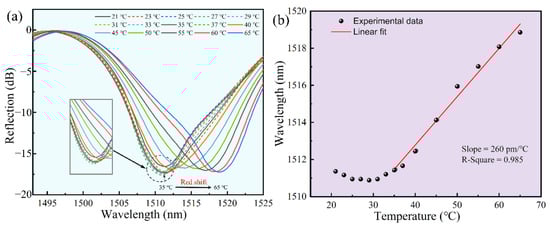

Figure 8. Temperature response of the polymer fixed-supported bridge (~1510 nm). (a) Reflection spectrum evolution of the polymer fixed-supported bridge while the temperature increases from 25 °C to 55 °C. (b) Data and a linear fit of the dip wavelength versus temperature from 35 °C to 65 °C.
Figure 8. Temperature response of the polymer fixed-supported bridge (~1510 nm). (a) Reflection spectrum evolution of the polymer fixed-supported bridge while the temperature increases from 25 °C to 55 °C. (b) Data and a linear fit of the dip wavelength versus temperature from 35 °C to 65 °C.
Biosensors 12 00391 g008
