Study on a Plasmonic Tilted Fiber Grating-Based Biosensor for Calmodulin Detection

Abstract

Tilted fiber Bragg grating, which has the advantages of both fiber Bragg grating and long-period fiber grating, has been widely studied for sensing in many fields, especially in the field of biochemistry. Calmodulin, which has a wide distribution in eukaryotes, can regulate several enzymes such as adenylate cyclase and guanylate cyclase and mediates several cellular processes such as cell proliferation and cyclic nucleotide metabolism. The abnormal levels of calmodulin in the body will result in serious effects from metabolism to nerve growth and memory. Therefore, it is important to measure the calmodulin concentration in the body. In this work, we propose and experimentally demonstrate a plasmonic tilted fiber Bragg grating-based biosensor for calmodulin detection. The biosensor was made using an 18° tilted fiber Bragg grating with a 50 nm-thick gold nanofilm coating the surface of the fiber, and transient receptor potential channels were bonded onto the surface of the gold nanofilm to serve as bio-detectors for calmodulin detection. Experimental results showed that the limit of detection using our biosensor was 0.44 nM. Furthermore, we also demonstrated that the interaction between calmodulin and transient receptor potential channels was quite weak without calcium in the solution, which agrees with the biology. Our proposed biosensor has a simple structure, is easy to manufacture, and is of small size, making it a good choice for real-time, label-free, and microliter-volume biomolecule detection.

1. Introduction

Because of many desirable advantages, such as small size, remote control, immunity from electromagnetic fields, and biocompatibility, fiber-optic sensors have been increasingly considered for real-time and label-free biochemical sensing in recent years [1,2]. Among all fiber-optic sensors, tilted fiber Bragg grating (TFBG), in which the refractive index modulation planes are angled by a few degrees relative to the propagation axis, has attracted great attention because it can measure small changes in the surrounding refractive index near the surface of the fiber while simultaneously measuring the temperature for calibrating the temperature-induced cross-sensitivity [3,4,5]. Moreover, TFBG is usually inscribed into the fiber core by using phase-mask or femtosecond laser techniques, which will not introduce any breaks in the structure of the fiber, making it more stable compared to other fiber sensors, such as D-shaped [6,7] and tapered fiber sensors [8,9,10]. Furthermore, owing to the tilt grating-induced break in the cylindrical symmetry of the fiber, some of the power propagating in the core of the fiber can be coupled to the fiber cladding, exciting hundreds of cladding modes traveling backward in the cladding [11]. The excited cladding modes can be observed as a high-density comb of narrowband spectral resonances (with a Q-factor of 10⁴ [12]) in the transmission spectrum, covering a wavelength band of tens of nanometers. The break in cylindrical symmetry also results in a strong polarization selectivity of the excited cladding modes, enabling the excitation of surface plasmon resonances (SPR) in a metallic nanofilm that coats the surface of the fiber. TFBG coated with a metallic nanofilm, also called plasmonic TFBG, has both the advantages of TFBG and SPR [13]. Compared to the conventional TFBG without a metallic nanofilm, the plasmonic TFBG has a great advantage in that the electromagnetic energy on the metallic surface is stronger, resulting in it being more sensitive to the surrounding refractive index [14]. In the past few years, TFBG has been widely studied for biochemical sensing, involving a non-enzymatic D-glucose biosensor (limit of detection (LOD) 10⁻⁸ M, detection range 10⁻⁸–10⁻² M) [15], a breast cancer biomarker biosensor (LOD 10⁻¹² g/mL) [16], a thrombin molecule biosensor (LOD 2.5 nM, 2.5–40 nM) [17], a circulating tumor cell detector (LOD 10 cancer cells/mL) [18], a cytokeratin biosensor (LOD 14 pM) [19], a mercury Ions detector (LOD 3.073 pM, dynamic range 10⁻¹¹–10⁻³ M) [20], a glucose detector (LOD 295 pM, dynamic range 1 nM–10 mM) [21], a small biomolecule biosensor (LOD 1 nM) [22], and a hydrogen sensor (LOD 180 ppm) [23]. In summary, the LOD of TFBG for biochemical sensing can reach the nanomole level or even the picomole level. Therefore, TFBG-based sensors can achieve the LOD required for biomedical and biochemical reactions [24,25,26], enabling single-point biomedical sensing in hard-to-reach spaces, such as in vivo, to be possible.

Calcium ions (Ca²⁺) affect almost all physiological activities, and calcium signaling is common for signaling either between cells or within cells [27]. Many proteins, such as troponin C, parvalbumin, calmodulin (CaM), and myosin light chains, can bind calcium, but calmodulin is the most common calcium-modulated protein, as it has a wide distribution in eukaryotes and mediates several cellular processes, including cell proliferation, gene expression, cyclic nucleotide metabolism, ion channel activities, protein phosphorylation and dephosphorylation, cell Ca²⁺ metabolism, and others [28,29,30]. In other words, the effects caused by calmodulin range from inflammation and metabolism to nerve growth and memory [31,32]. As calmodulin plays an important role in cell cycle regulation, either directly by regulating the function of cell cycle proteins or indirectly by activating calmodulin-dependent kinases and phosphatases crucial for cell cycle regulation [33], it is significant to monitor the calmodulin levels in the body.

In this work, we demonstrate a plasmonic TFBG biosensor, which was made by a 50 nm thick gold nanofilm coating the fiber surface, followed by bonding transient receptor potential (TRP) channels onto the surface of the gold nanofilm for acting as bio-receptors [34], for calmodulin detection. To simplify the implementation process, the sensor was designed as a reflective probe by depositing a gold mirror downstream of the TFBG. The LOD of the proposed biosensor was studied in this work, together with the interaction between CaM and TRP in solution with and without Ca²⁺.

2. Materials and Methods

2.1. Materials

All biomolecule-related materials, including CaM (1 mM), TRP (1 mM), and buffer solutions were provided by Yukun Cui, and they were purchased from Shanghai Macklin Biochemical Co., Ltd (Shanghai, China). All chemicals, including 11-mercaptoundecanoic acid, 1-ethyl-3-(3-dimethylaminopropyl) carbodiimide hydrochloride (EDC), and N-hydroxysuccinimide (NHS) were purchased from Wuhan Boster Biological Engineering Co., Ltd., Wuhan, China.

2.2. Fabrication of the TFBG-Based Biosensor

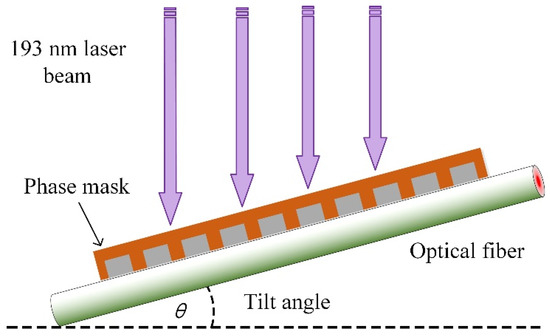

The TFBG used in the work was fabricated using the phase-mask technique (±1 diffraction order) [35], which can be seen in Figure 1. To increase the photosensitivity of the fiber core, a germanium-doped silica fiber, instead of a commercial single-mode fiber, was used for tilted grating inscription. An excimer laser with a wavelength of 193 nm, 3 mJ of power per pulse, and a frequency of 200 Hz, was used as the light source. The laser beam scanned the phase-mask during the inscription procedure to improve the quality of tilt grating. The TFBG transmission spectrum can be expressed as Equations (1) and (2) [4]:

$${\lambda }_i=\left(N_{eff}^{core}\left({\lambda }_i\right)+N_{eff}^i\left({\lambda }_i\right)\right)·\Lambda /\cos \theta$$

(1)

$$R_i={\tanh }^2\left({\kappa }_{i}L\right)$$

(2)

where ${\lambda }_i$ and $R_i$ represent the resonant wavelength and the strength of the resonance, respectively. $N_{eff}^{core}\left({\lambda }_i\right)$ and $N_{eff}^i\left({\lambda }_i\right)$ are the effective indices of the guided-mode in the core and the exciting cladding mode $i$ at the resonant wavelength ${\lambda }_i$, respectively; $\Lambda$ is the grating period, $\theta$ is the tilt angle; ${\kappa }_i$ is the coupling coefficient, and $L$ is the grating length. In this work, a TFBG with a tilt angle of 18° was selected for the experiments.

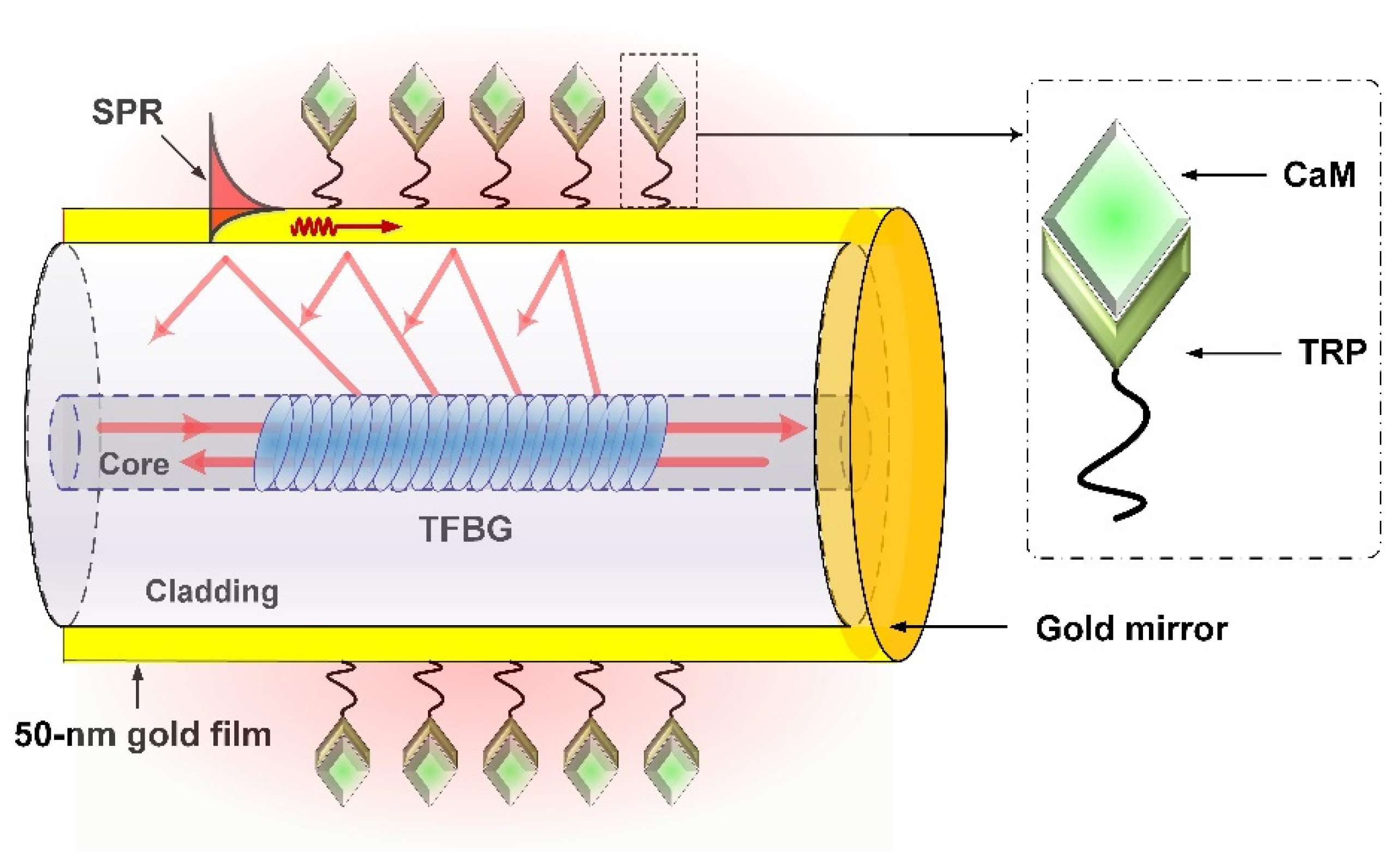

To excite SPR, a 50 nm-thick gold nanofilm was deposited on the surface of the fabricated TFBG (as shown in Figure 1) through the radio-frequency magnetron sputtered method [36]. As the fiber is a cylindrical structure, to obtain a more uniform film, the fiber was continually rotated about the fiber axis at a speed of 0.5 rad/s during the deposition process. Although we can determine the thickness of the gold deposited on the fiber surface by controlling the working time of the radio-frequency magnetron sputtered machine, we could not, one hundred percent, ensure that the gold thickness was 50 nm each time. What we could guarantee was that the gold thickness was approximately 50 nm according to our previous experience, and the SPR could be strongly excited. After that, a gold mirror was deposited, using the same method, downstream of the TFBG, making the plasmonic TFBG work as a reflection probe. The SPR excited by the TFBG can be understood when the propagation constants of the cladding modes are equal to those of the surface plasmon polaritons (SPPs), power coupling between the cladding modes and SPPs can occur, and this phenomenon is observed as a consequent reduction in the TFBG spectrum. Small changes near the metallic surface could be measured by monitoring the power changes of the cladding modes within the SPR absorption area.

In order to make a specific detection, surface functionalization for the plasmonic TFBG should be carried out. As the TRP can specifically interact with CaM, we used TRP as a bio-receptor and bonded it onto the metallic surface, as shown in Figure 2. The surface functionalization included several steps as follows:

(1)

The plasmonic TFBG was rinsed with ethanol and with Milli-Q water to remove unwanted contaminants on the metallic surface, and then was immersed in the 11-mercaptoundecanoic acid solution (~10 µM) for 2 h to allow the self-assembly of a monolayer of mercapto compounds on the metallic surface;

(2)

The plasmonic TFBG was again rinsed with ethanol and with Milli-Q water for removing the nonadherent 11-mercaptoundecanoic acid, and then was immersed in a mixed solution that contained 1.5 mL of EDC (50 mM) and 0.5 mL of NHS (50 mM) for 30 min to activate the carboxyl groups on the self-assembled monolayer;

(3)

The sensor was rinsed with the reaction buffer consisting of 50 mM Tris-HCl, 100 mM NaCl, 1 mM DTT, and 1 mM CaCl₂ at PH 7.5, for removing the nonadherent EDC and NHS;

(4)

The sensor was immersed in the TRP solution (10 µM) for 1 h to bind the TRP to the metallic surface. After that, the biosensor was ready for calmodulin detection.

2.3. Experimental Design

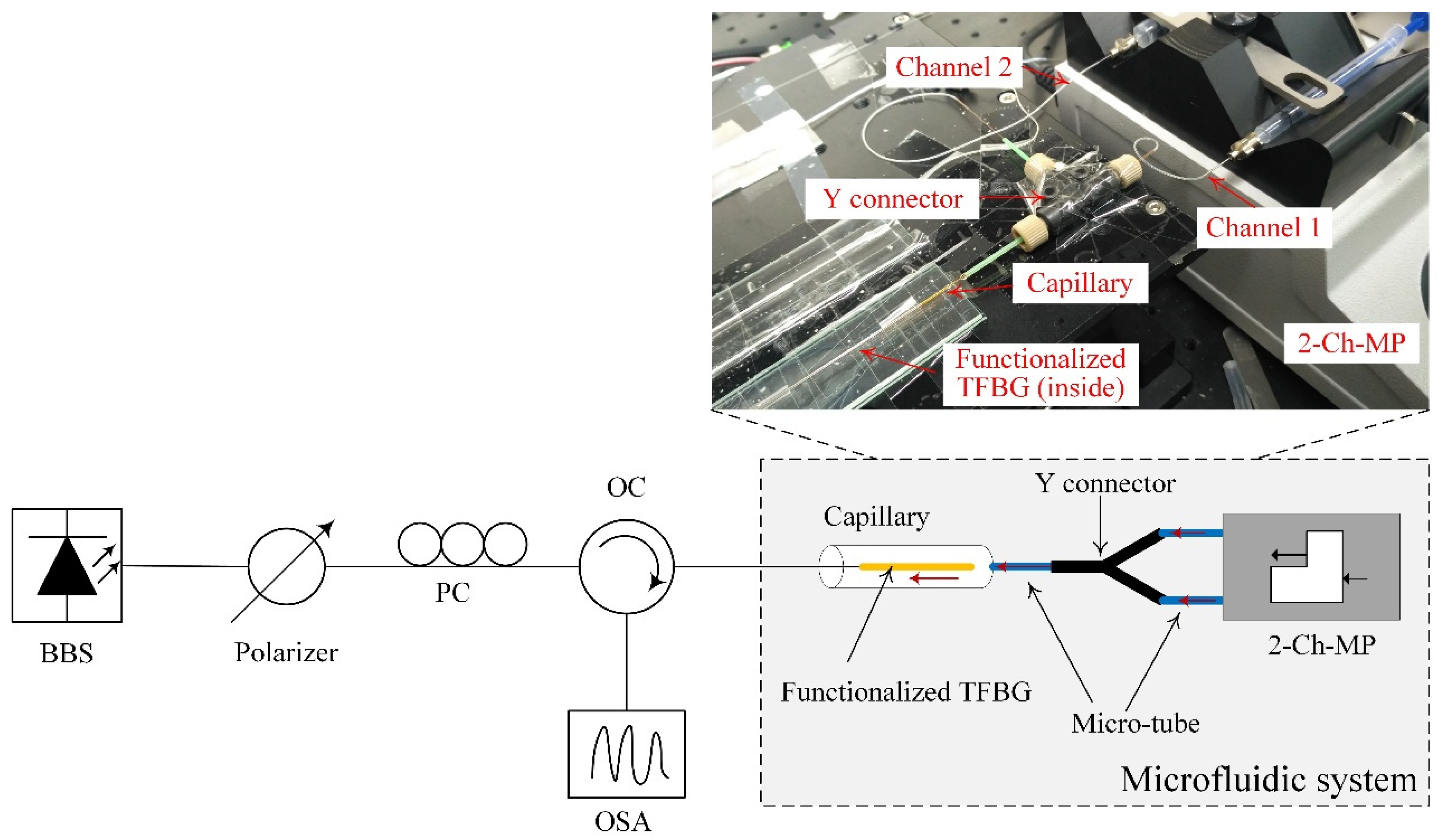

Figure 3 shows the block diagram of the experimental setup used in this work. A broadband source (1460–1560 nm) followed by an in-line fiber polarizer was the light source. A manual paddle fiber polarization controller was used to control the polarization state of the light launched into the TFBG. An optical circulator was applied to connect the TFBG to an optical spectrum analyzer, which was used to monitor and record the reflected spectra from the TFBG. The inset in Figure 2 shows the practical microfluidic system used in the experiment. The inner diameter of the micro-tube and the capillary (with a length of 5 cm) was 300 µM. Because of the custom-designed microfluidic system, the sample solution required for the experiment was only 20 µL. Additionally, a two-channel-pump was used to inject the buffer and sample solutions independently, thus making the implementation easier.

3. Results and Discussion

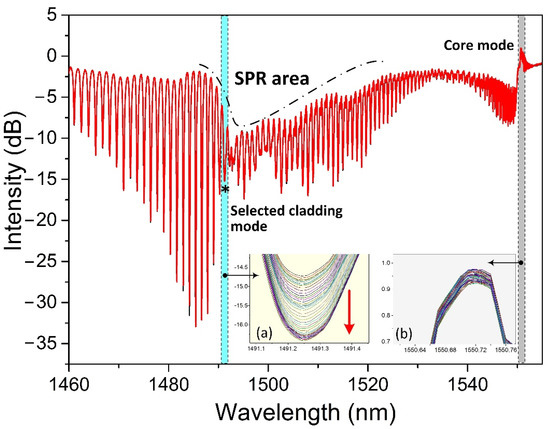

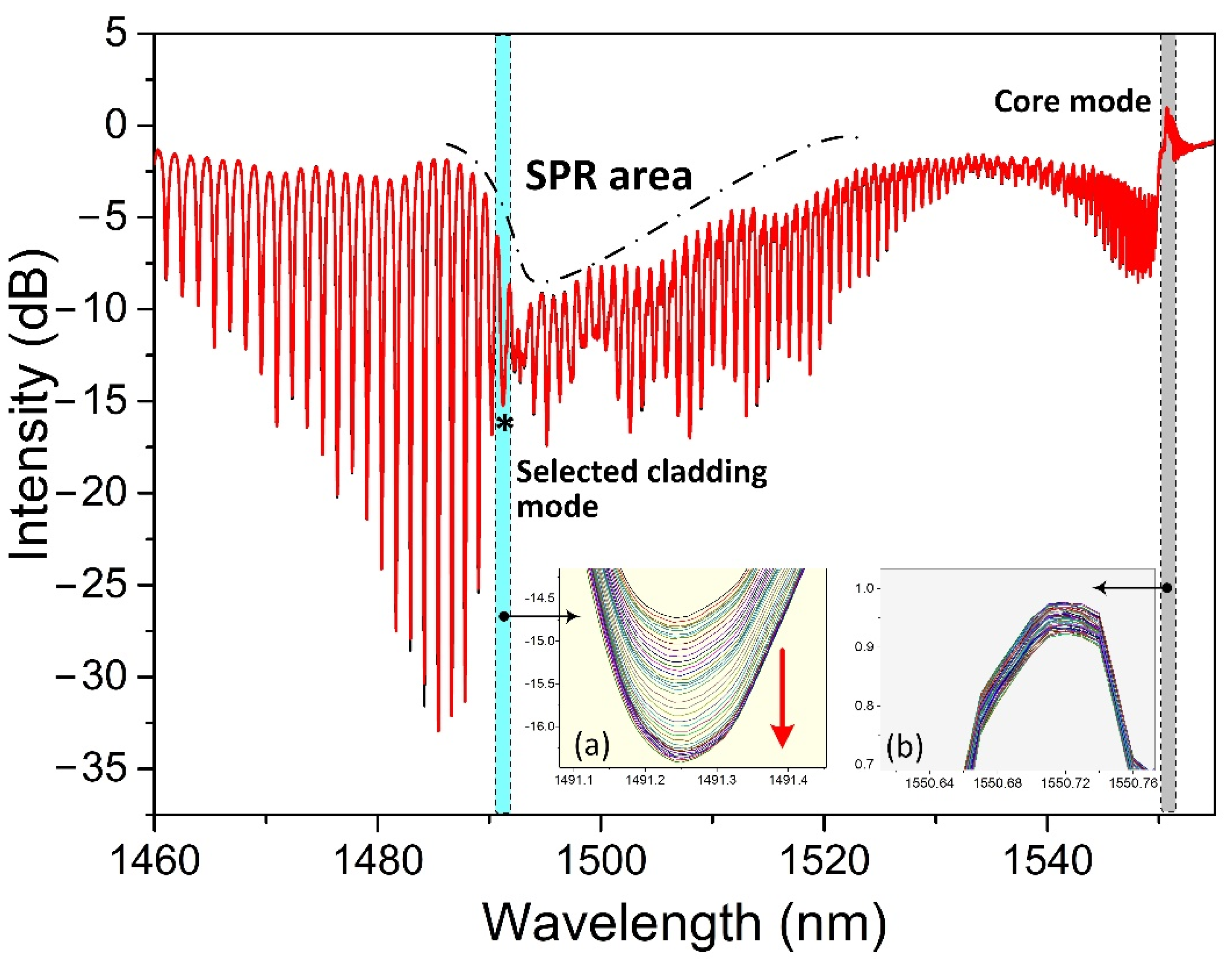

Figure 4 shows a measured spectrum of the proposed biosensor when it was immersed in a CaM solution. Based on this spectrum, we focused mainly on two spectral regions during the measuring procedure: one was the SPR absorption area, and the other was the core mode. The cladding modes within the SPR absorption area were sensitive to perturbations near the metallic surface, especially the cladding mode resonances adjacent to the center of the SPR absorption area. Therefore, we selected the first cladding mode resonance, indicated with a black star “*” on the left side next to the SPR center for monitoring the detection procedure. We should point out here that the TFBG amplitude spectrum to the right of the SPR area appeared quite noisy. This power fluctuation of some cladding modes was caused during the TFBG fabrication. However, the experimental tests in sensitivity and stability have demonstrated that it could provide performances as other TFBGs. Furthermore, as we select the first cladding mode to the left of the SPR center for demodulation, this “noise” to the right of the SPR area will not affect the demodulated result in this work. The core was used to calibrate the temperature-induced cross-sensitivity and light source-induced intensity fluctuation in this work. Insets (a) and (b) show, respectively, the responses of the selected cladding mode resonance and the core mode when the biosensor was immersed in a 1 μM CaM solution for 30 min. Note that the optical spectrum analyzer automatically recorded the spectrum every 30 s. The intensity of the selected cladding mode decreased with time and became stable after a certain time. The intensity fluctuation, based on the core mode shown in inset (b), was only ~0.05 dB, far smaller than the intensity change in the selected cladding mode (~1.7 dB). Therefore, we could ignore the power fluctuation-induced effect in the experiment. Furthermore, it was not necessary to calibrate the temperature-induced cross-sensitivity, as almost no wavelength shift occurred according to the core mode.

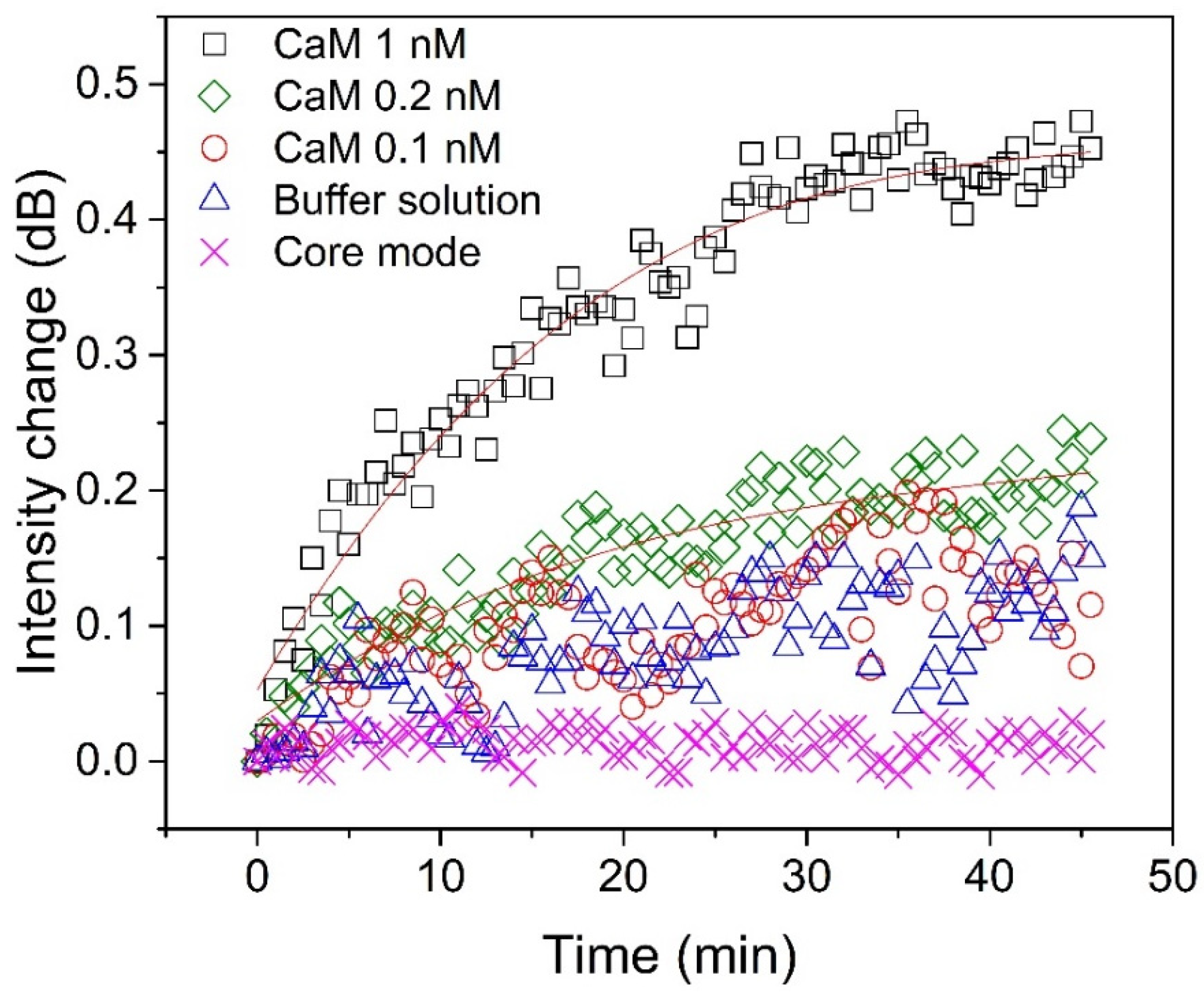

To evaluate the LOD of the proposed biosensor, several experiments were carried out for measuring CaM at different concentrations (Figure 5). As can be seen, the intensity change of the selected cladding mode was clear when the CaM concentration was 1 nM. The change in intensity increases quickly during the first 30 min, and then rises slowly and becomes almost saturated after 40 min, which means that the interaction between CaM and TRP channels reaches equilibrium. When the CaM concentration was 0.2 nM, the analytical signal can be distinguished from the background signal (buffer solution). Although the change in intensity in the selected cladding mode can also be observed when the CaM concentration is 0.1 nM (red hollow circles), it is difficult to distinguish it from that caused by the buffer solution (blue hollow triangles). To precisely calculate the actual LOD of our biosensor, we repeated the experiments ten times, and the results are shown in Figure 6. The LOD can be computed according to the following formulas [37]:

$$LOD=LOB+1.645\cdot S{D}_L$$

(3)

$$LOB=mea{n}_{blank}+1.645\cdot S{D}_{blank}$$

(4)

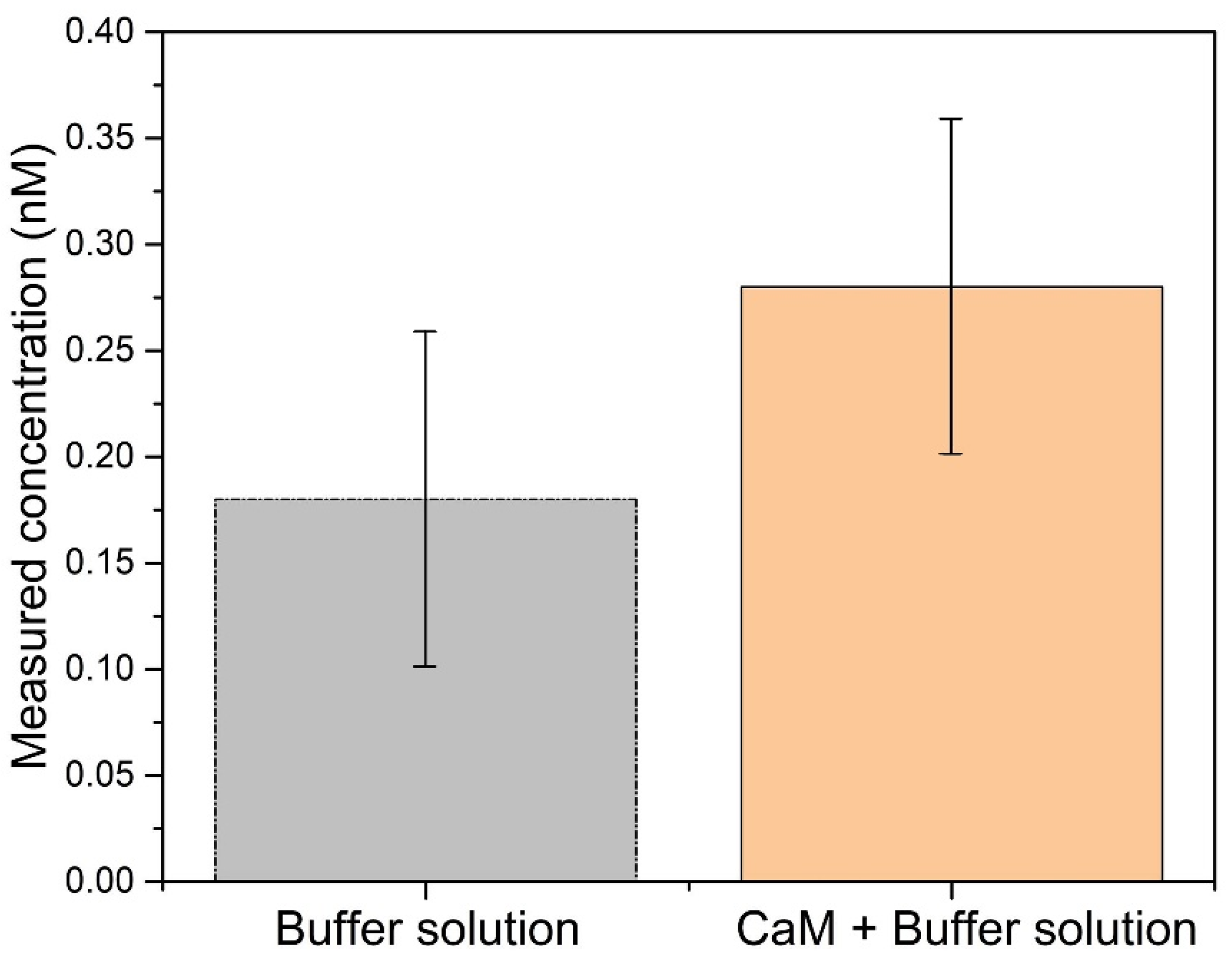

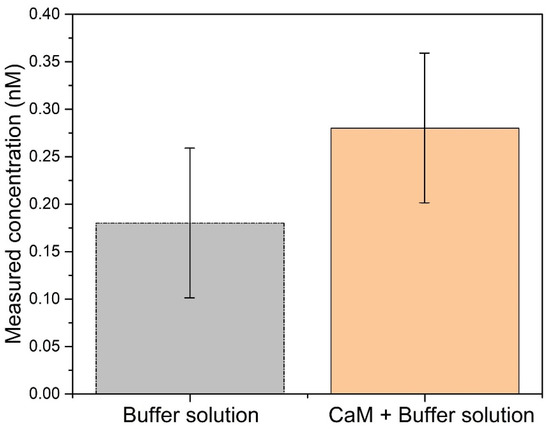

where LOB (limit of blank) is defined as the highest apparent analyte concentration expected to be found when replicates of a sample containing no analyte are tested. $S{D}_L$ and $S{D}_{blank}$ represent the standard deviations of the blank and the lowest concentration samples in a ten-time measurement, respectively. $mea{n}_{blank}$ is the mean result of the blank sample (buffer solution). According to Figure 6, it could be calculated that the LOD of our biosensor was 0.44 nM.

In addition, the power fluctuation from the core mode, indicated by the pink “X”, was only ~0.03 dB during the experiment; thus, we could ignore its induced effect. It needs to be highlighted that the buffer solutions used for diluting the CaM concentration or for stability testing contained 1 mM Ca²⁺, as it was required for the interaction between CaM and TRP.

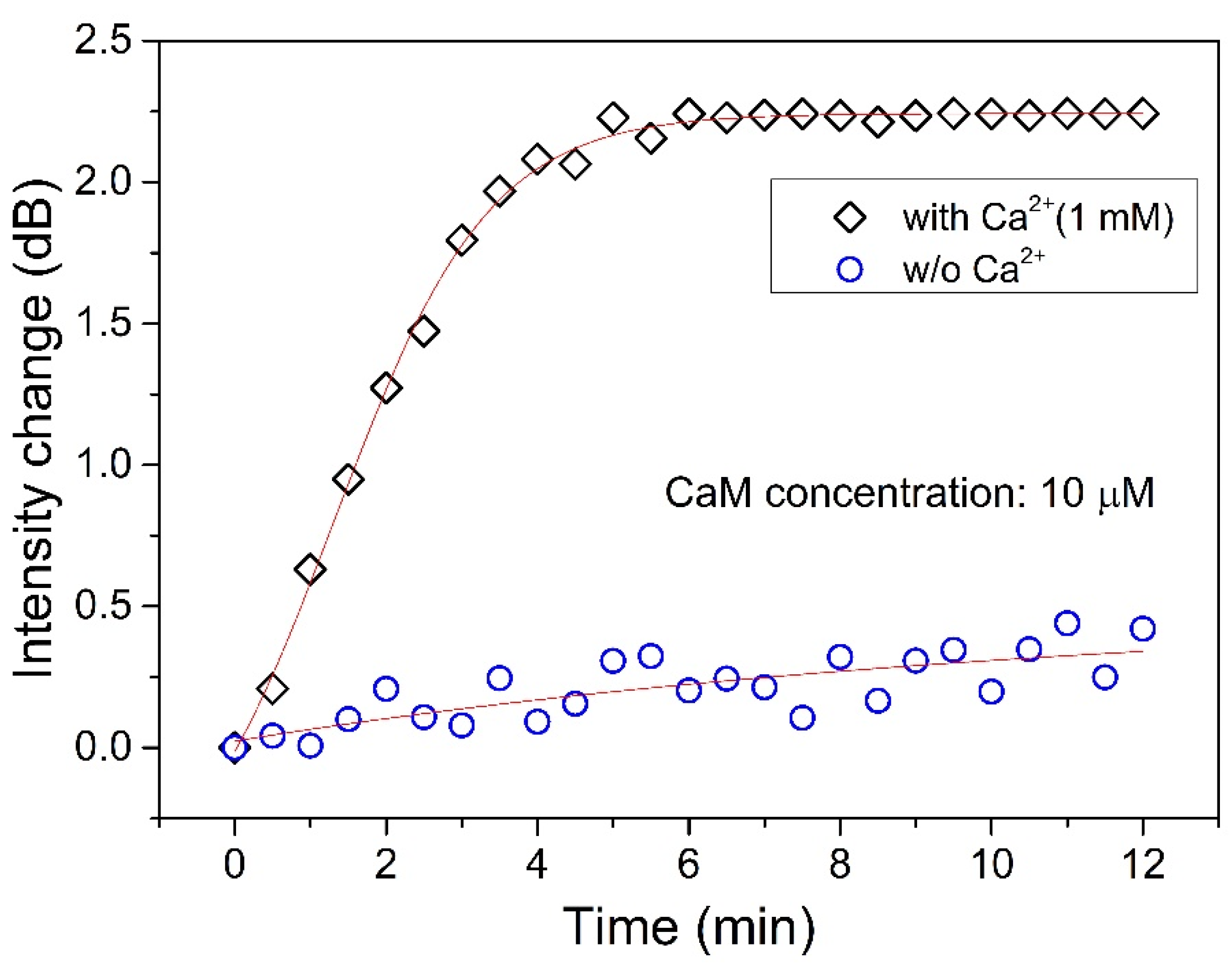

Finally, we also tested the interaction between CaM and TRP channels in solution with and without Ca²⁺ (Figure 7). Note that the Ca²⁺ concentration used in the experiment was 1 mM, as the Ca²⁺ concentration in the body is slightly higher than this value. We can see that even though the CaM concentration is 10 μM, the interaction between CaM and TRP was very weak (as the blue circles in Figure 5 show) if there is no Ca²⁺ in the solution. On the other hand, the interaction was very strong when the Ca²⁺ was present in the solution, as the black squares show. The change in intensity increased sharply in the first 4 min, and it reached saturation after 5 min, at which point the interaction reached equilibrium.

Because of the custom-design microfluidic system, bio-sample solutions can be automatedly injected into the capillary, which acts as a bio-sample cell in the system for measurements. It was easy to monitor in real-time the interaction between the targeted biomolecule and the bio-receptor on the sensor surface. Therefore, our proposed plasmonic TFBG, together with the microfluidic system, can not only be used for biomolecule detection but also for interaction monitoring between biomolecules.

4. Conclusions

A plasmonic TFBG-based biosensor, in which the TRP channels were bonded onto the metallic surface for acting as bio-receptors, was demonstrated for calmodulin detection in this work. Experimental results showed that the LOD of our biosensor was 0.44 nM, and the operating time was 40 min. Additionally, our proposed sensor combined with a microfluidic system can also be used for monitoring the interaction between CaM and TRP channels in real-time. Our proposed plasmonic TFBG sensor, together with the custom-designed microfluidic system, offers possibilities for practical biomolecule detection and biomolecule interaction monitoring in the future, owing to its characteristics of fast response, easy to manufacture, automatic control, and a microliter volume requirement for the bio-sample solution.
