Enhanced Oil Recovery by a Suspension of Core-Shell Polymeric Nanoparticles in Heterogeneous Low-Permeability Oil Reservoirs

by
Yunqian Long
1,2,*,
Renyi Wang
3,*,
Baikang Zhu
2,3,
Xiaohe Huang
3,
Zhe Leng
1,
Liqiao Chen
1 and
Fuquan Song
3
1
Institute of Innovation & Application, Zhejiang Ocean University, Zhoushan 316022, China
2
United National-Local Engineering Laboratory of Harbor Oil & Gas Storage and Transportation Technology, Zhejiang Ocean University, Zhoushan 316022, China
3
School of Petrochemical & Energy Engineering, Zhejiang Ocean University, Zhoushan 316022, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(4), 600; https://doi.org/10.3390/nano9040600
Submission received: 22 March 2019 / Revised: 7 April 2019 / Accepted: 10 April 2019 / Published: 11 April 2019
Browse Figures
Versions Notes

Abstract

:
Polymeric nanoparticle suspension is a newly developed oil-displacing agent for enhanced oil recovery (EOR) in low-permeability reservoirs. In this work, SiO2/P(MBAAm-co-AM) polymeric nanoparticles were successfully synthesized by a simple distillation–precipitation polymerization method. Due to the introduction of polymer, the SiO2/P(MBAAm-co-AM) nanoparticles show a favorable swelling performance in aqueous solution, and their particle sizes increase from 631 to 1258 nm as the swelling times increase from 24 to 120 h. The apparent viscosity of SiO2/P(MBAAm-co-AM) suspension increases with an increase of mass concentration and swelling time, whereas it decreases as the salinity and temperature increase. The SiO2/P(MBAAm-co-AM) suspension behaves like a non-Newtonian fluid at lower shear rates, yet like a Newtonian fluid at shear rates greater than 300 s−1. The EOR tests of the SiO2/P(MBAAm-co-AM) suspension in heterogeneous, low-permeability cores show that SiO2/P(MBAAm-co-AM) nanoparticles can effectively improve the sweep efficiency and recover more residual oils. A high permeability ratio can result in a high incremental oil recovery in parallel cores. With an increase of the permeability ratio of parallel cores from 1.40 to 15.49, the ratios of incremental oil recoveries (low permeability/high permeability) change from 7.69/4.61 to 23.61/8.46. This work demonstrates that this SiO2/P(MBAAm-co-AM) suspension is an excellent conformance control agent for EOR in heterogeneous, low-permeability reservoirs. The findings of this study can help to further the understanding of the mechanisms of EOR using SiO2/P(MBAAm-co-AM) suspension in heterogeneous, low-permeability reservoirs.

1. Introduction

In recent years, due to the severe heterogeneity of reservoir formations, serious water channeling has become a well-recognized problem in the development of low-permeability reservoirs, as the reservoirs enter into the middle or late stages of waterflooding development [1,2,3,4]. When a water flood is carried out in a heterogeneous reservoir, the injected water mainly flows into the high-permeability zones in the formation, leaving most of the low-permeability zones un-swept. This is the so-called conformance problem that is common in heterogeneous reservoirs [5,6,7,8]. Water channeling can lead to high water production, low oil recovery, rapid reaching of the economic limit, and high residual oil saturation in the low-permeability zones of the reservoir formations. Hence, water control is one of the most important goals for the further development of heterogeneous reservoirs [9,10,11,12]. In addition, after many oilfields have experienced water flood for a long period of time, the long-term erosion of the high-permeability zones, caused by water injection, can result in the increased heterogeneity of the reservoirs [13,14,15,16]. As a result, the injected water pours more easily into the producing wells along the high-permeability areas, which makes it more difficult to achieve good water control in the reservoir formations. Therefore, it is crucial to plug the high-permeability zones for the sake of recovering more residual oils from un-swept zones for EOR in heterogeneous reservoirs.
Many technologies have been used to control conformance for improving reservoir heterogeneity, reducing the fluidity of displacement fluid, enlarging the swept volume of displacing fluid, and improving oil recovery in heterogeneous reservoirs. Currently, conformance control technologies have been applied in oilfields, including gel treatment [17], polymer flooding [18,19,20], surfactant-polymer (SP) flooding [21], alkaline-surfactant-polymer (ASP) flooding [22,23], foam flooding [24], and emulsion flooding [25]. Compared with these technologies, it looks promising to use a polymeric nanoparticle suspension as a selective water-shutoff-plugging agent for conformance control treatments in heterogeneous reservoirs. Injecting a large volume of polymeric nanoparticle suspension to plug high-permeability zones and improve oil recovery has become an attractive technology in recent years [26,27,28,29,30]. Polymeric nanoparticle suspension is a system in which polymeric nanoparticles are dispersed in aqueous solution. Polymeric nanoparticles are synthesized by the induction of polymer on the surface of nanoparticles to form a more stable and highly efficient injectant, with a core of nanoparticles and a shell of polymer. There are unparalleled advantages in using polymeric nanoparticle suspension as a conformance control agent [31,32,33,34,35].
A number of polymeric nanoparticle suspensions have been prepared to improve oil recovery in heterogeneous reservoirs in recent years [36,37,38,39]. Lai et al. synthesized modified nano-SiO2/AA/AM copolymer (HPMNS) oil displacement agents by free-radical polymerization and carried out indoor displacement tests, and the results indicated that the copolymers can increase both the resistance factor and residual resistance factor in a medium-porous medium under a similar permeability, and they have a stronger mobility control capacity that can effectively improve the EOR [40]. Hu et al. formulated novel, aqueous, partially hydrolyzed, polyacrylamide-based SiO2 nanocomposites and found that the inclusion of silica nanoparticles significantly improves the viscosity and viscoelastic properties of partially hydrolyzed polyacrylamide especially under high temperatures and high salinities [41]. Ju et al. used two types of polysilicon nanoparticles in oil fields to improve oil recovery and enhance water injection and confirmed that polysilicon nanoparticles are effective agents for enhancing water injection capability or improving oil recovery [42]. Liu et al. fabricated a novel, star-like, hydrophobically associative polyacrylamide (SHPAM) used in EOR processes in harsh reservoir conditions, and core flooding tests revealed that SHPAM at a concentration of 1500 mg/L increases the oil recovery factor by 20% in sandstone cores [43].
It can be seen from the above references that these polymeric nanoparticle suspensions used in high-permeability reservoirs rely on high viscosity to improve the mobility ratio of fluids, which can realize conformance control to improve the EOR. However, they cannot be injected into or move through a porous medium in low-permeability reservoirs. The new direction in polymeric nanoparticle suspension is to develop a suspension of low viscosity, which mainly depends on plugging at pores to realize conformance control. Therefore, the application of polymeric nanoparticle suspensions can be expanded to low-permeability reservoirs. Compared with the polymeric nanoparticle suspensions reported in the literature, the polymeric nanoparticle suspension used in this study has a low bulk viscosity, similar to water, which can assure a good injectivity in low-permeability reservoirs. Simultaneously, the polymeric nanoparticles can swell from their original nano size to micron size in aqueous solution. As the swollen polymeric nanoparticles are injected into the formation, they can plug large pores to reduce the permeability of high-permeability zones, change the flow direction of water, and promote the sweep efficiency of injected water. Moreover, the polymeric nanoparticles can pass through small pores by elastic deformation to achieve deeper seepage in the formation, and they can more effectively reduce the formation permeability away from the water injection well.
In this present research, we tried to synthesize SiO2/P(MBAAm-co-AM) polymeric nanoparticles using a distillation–precipitation polymerization method. The morphology and microstructure of the obtained polymeric nanoparticles were studied via scanning electron microscopy (SEM), transmission electron microscopy (TEM), Fourier-transform infrared spectroscopy (FT-IR), and thermogravimetric analysis (TGA). We investigated the swelling performances of SiO2/P(MBAAm-co-AM) nanoparticles in aqueous solution using dynamic light scattering (DLS) and the rheological behavior of SiO2/P(MBAAm-co-AM) suspension using a viscometer. Finally, we investigated the efficiency of SiO2/P(MBAAm-co-AM) suspension in improving oil recovery in heterogeneous low-permeability reservoirs via parallel cores flooding tests. The general sketch of this present research is shown in Figure 1.
This article is organized as follows. First, materials and methods are presented. Later, the characterizations of SiO2 and SiO2/P(MBAAm-co-AM) nanoparticles are analyzed. Then, the swelling performances of SiO2/P(MBAAm-co-AM) nanoparticles in an aqueous solution as well as the rheological behaviors and the efficiency of SiO2/P(MBAAm-co-AM) suspension in EOR are discussed. Finally, the summary and conclusions are presented.

2. Materials and Methods

2.1. Materials

Tetraethyl orthosilicate (TEOS, 28.5%, Modern Oriental Fine Chemicals Co., Ltd., Beijing, China), acrylamide (AM, Sinopharm Chemical Reagent Co., Ltd., Beijing, China), N, N-methylene-bis-acrylamide (MBAA, Sinopharm Chemical Reagent Co., Ltd., Beijing, China), azodiisobutyronitrile (AIBN, Sinopharm Chemical Reagent Co., Ltd., Beijing, China), acetonitrile (Sinopharm Chemical Reagent Co., Ltd., Beijing, China), ethyl alcohol (Beihua Fine Chemicals Co., Ltd., Beijing, China), and ammonia (25%, Beihua Fine Chemicals Co., Ltd., Beijing, China) were purchased from a local supplier and were reagents of analytical grade. All the solutions were freshly prepared using deionized water. In addition, a crude oil sample with a density of 0.895 g/cm3 and a viscosity of 15.2 mPa·s (45 °C), and eight cores with lengths of 5.0 cm and diameters of 2.5 cm were obtained from a Daqing oil reservoir for the displacement experiments. The synthetic formation water used for the displacement experiments was a brine with a total dissolved solids (TDS) value of 5380 mg/L.

2.2. Synthesis of SiO2 Nanoparticles

SiO2 nanoparticles were synthesized by a Stӧber process [44]. Briefly, TEOS (11.2 mL), ethyl alcohol (84.1 mL), and deionized water (17.1 mL) were added into a 250 mL conical flask. After that, ammonia (4.76 mL) was poured into the above solution under continuous magnetic stirring. After the solution was allowed to react for 6 h under magnetic stirring, the SiO2 nanoparticles were obtained by being centrifuged, washed with ethanol, and dried at 70 °C for 8 h in a vacuum.

2.3. Synthesis of SiO2/P(MBAAm-co-AM) Polymeric Nanoparticles

SiO2/P(MBAAm-co-AM) polymeric nanoparticles were synthesized by a distillation– precipitation polymerization method [45]. Briefly, the as-prepared SiO2 nanoparticles (0.5 g) were suspended in acetonitrile (40 mL) in a 250 mL three-neck flask connected to a reflux condenser. MBAA (0.2 g) and AM (0.5 g) were dissolved in the above suspension and sonicated for 10 min at room temperature. Then, AIBN (0.1 g) was added into the above system and the mixture was sonicated for 5 min. After that, the above mixture was reacted at 90 °C for 15 min and then distilled at 115 °C for 90 min with a reflux ratio of 2 until all solvents were distilled out. The products were dissolved in ethyl alcohol and sonicated for 10 min. Finally, SiO2/P(MBAAm-co-AM) polymeric nanoparticles were obtained after being centrifuged, washed with deionized water, and dried at 50 °C for 12 h in a vacuum.

2.4. Characterization

Scanning electron microscopy (SEM, S-4500 Hitachi, Tokyo, Japan) and transmission electron microscopy (TEM, JEM-200CX JEOL, Tokyo, Japan) were employed to characterize the morphology of the samples. The functional groups of the products were characterized via Fourier-transform infrared spectroscopy (FT-IR, Nexus 670 Thermo Nicolet, Wisconsin, USA). The thermogravimetric analysis (TGA) of the products was performed on a thermogravimetric analyzer (SDT Q600 TA, New Castle, DE, USA) at a heating rate of 10 °C/min in nitrogen.

2.5. Particle Size Distribution Measurements

SiO2/P(MBAAm-co-AM) polymeric nanoparticles can mixed with water to form a suspension. In suspension, these polymeric nanoparticles can absorb water, and swell with their diameters increasing from their original nano size or submicron size to micron size. Thus, particle size distribution measurements were carried out by dynamic light scattering (DLS), using a laser particle size analyzer (Mastersizer 2000 Malvern, Worcestershire, UK). The particle size distribution curves of SiO2/P(MBAAm-co-AM) polymeric nanoparticles were determined at various swelling times in suspension with a salinity of 5.0 g/L at 40 °C. Medium diameters of polymeric nanoparticles at various swelling times were obtained by analyzing the particle size distribution curves. Then, the swelling property was quantificationally described by the swelling ratio, defined as follows:
Q = D 2 − D 1 D 1
where Q is the swelling ratio, D2 is the medium diameter of swollen polymeric nanoparticles at each time interval (μm), and D1 is the average particle diameter of initial dry composite nanoparticles (μm).

2.6. Viscosity Measurements

The viscosity measurements were carried out using a viscometer (LV-DV2T Brookfield, Middleboro, MA, USA). The apparent viscosities of the SiO2/P(MBAAm-co-AM) suspensions were measured at a shear rate of 7.34 s−1 to investigate the effect of mass concentration, temperature, salinity, and swelling time. The apparent viscosities of the SiO2/P(MBAAm-co-AM) suspensions versus shear rates were determined at mass concentrations of 0.05, 0.5, and 1.5 g/L, temperatures of 40, 60, and 80 °C, salinities of 2, 5, and 10 g/L, and swelling times of 24, 120, and 240 h.

2.7. Oil Displacement Experiments

Before starting the flooding experiments, cores were properly cleaned and dried at 150 °C for 72 h. Their porosity was measured using the weight method, and permeability measurements were conducted using Darcy’s law. In each flood test, the core was first saturated with brine, then mounted in hydrostatic core holders at a confining pressure of 3 MPa; finally, the samples were flooded with crude oil at a constant injection rate of 0.2 mL/min until the condition of irreducible water saturation was achieved in core. The flood experiments were carried out at 45 °C. The core was aged for 48 h to achieve the wettability state at 45 °C. After that, the core sample was flooded with brine at a flow rate of 0.2 mL/min until the water cut was about 98%. Subsequently, a chemical slug of suspension prepared by mixing 1.5 g SiO2/P(MBAAm-co-AM) polymeric nanoparticles with 1 L of water was injected at a constant injection rate of 0.2 mL/min, followed by an extended waterflood at the same flow rate until the oil production stopped. The recovered crude oil and brine were collected in fluid collectors, and the injection pressure data were recorded. The experimental set-up used for the core-flooding experiments is shown in Figure 2.

3. Results and Discussion

3.1. Characterization of SiO2/P(MBAAm-co-AM) Nanoparticles

The size, shape, and surface morphologies of SiO2 and SiO2/P(MBAAm-co-AM) nanoparticles were characterized by SEM and TEM, as shown in Figure 3. It was found from Figure 3a that SiO2 nanoparticles are spherical and uniform, and are approximately 200 nm in diameter. The TEM image (Figure 3b) indicates that SiO2/P(MBAAm-co-AM) nanoparticles still retain their spherical morphologies, and consist of a SiO2 core and a shell of polymer, with diameters ranging from 200 to 400 nm. The thickness of the polymer layer is in the range of 50–100 nm. Thus, it can be considered that SiO2/P(MBAAm-co-AM) nanoparticles were successfully synthesized.
Figure 3c shows the FT-IR spectra of SiO2 and SiO2/P(MBAAm-co-AM). The peaks at 3415, 1099, 957, 806, and 464 cm−1 are the characteristic peaks of SiO2 [46]. The peaks at 3732 and 1641 cm−1 may be due to the vibration of water molecules [47]. As seen in the spectrum of SiO2/P(MBAAm-co-AM), the peaks at 1099 and 949 cm−1 are assigned as the characteristic peaks of SiO2, and associated with the symmetric stretching vibration of the Si–O–Si bond and the stretching vibration of the Si–OH bond, respectively [48]. The peaks at 3399 and 1662 cm−1 are attributed to the stretching vibration of the N–H bond and the C=O bond in the amide group, respectively [49]. The peaks at 2930 and 1451 cm−1 are ascribed to the stretching vibration of the C–H bond and the bending vibration of the C–H bond in the saturated alkyl group, respectively [50]. Therefore, this spectrum demonstrates the successful preparation of SiO2/P(MBAAm-co-AM) nanoparticles as well.
Figure 3d shows the TGA curves of SiO2 and SiO2/P(MBAAm-co-AM). The weight losses of SiO2 and SiO2/P(MBAAm-co-AM) prior to reaching 458 K are attributed to the loss of adsorbed water [51]. SiO2 shows a small degradation (a loss of 4.26%) between 458 and 1050 K. The TGA curve of SiO2/P(MBAAm-co-AM) shows three steps. The first step occurs at 300–458 K due to a 6.02% loss, which is attributed to the loss of physisorbed water. The second and third steps are at 458–737 K and at 737–1050 K, with losses of 56.67% and 6.52%, respectively. These are ascribed to the loss from polymer pyrolysis and dehydroxylation from SiO2, respectively [52]. According to the total loss of SiO2/P(MBAAm-co-AM), about 56.67% of P(MBAAm-co-AM) was grafted on the surface of SiO2, and the residue is about 30.79% of SiO2. These results further demonstrate the successful preparation of P(MBAAm-co-AM) grafted on the surface of SiO2.

3.2. Swelling Performances of SiO2/P(MBAAm-co-AM) Nanoparticles in a Suspension

An SEM image of a SiO2/P(MBAAm-co-AM) suspension swollen for 24 h at 5000 mg/L is shown in Figure 4a. In this suspension, the size of the SiO2/P(MBAAm-co-AM) nanoparticles is obviously larger than that of their dry samples. The size of a single SiO2/P(MBAAm-co-AM) nanoparticle is between 250 and 1000 nm, and some nanoparticles are agglomerated in the high concentration of the SiO2/P(MBAAm-co-AM) suspension. The agglomerated nanoparticles range in size from 800 to 1500 nm. This result proves that SiO2/P(MBAAm-co-AM) nanoparticles can absorb water to swell in aqueous solution. In addition, a Mastersizer 2000 laser particle size analyzer was used in this study to provide more details about SiO2/P(MBAAm-co-AM) nanoparticles in a suspension.
The plot of the swelling ratio of the SiO2/P(MBAAm-co-AM) nanoparticles versus swelling time, at 1500 mg/L, is shown in Figure 4b. The swelling ratio of SiO2/P(MBAAm-co-AM) nanoparticles swiftly increases at the initial stage and then slows until the swelling reaches equilibrium. Under this experimental condition, the equilibrium swelling ratio of SiO2/P(MBAAm-co-AM) nanoparticles can reach up to about 2.
The particle size distribution curves of SiO2/P(MBAAm-co-AM) nanoparticles at swelling times of 24, 48, 72, and 120 h were determined, as shown in Figure 4c–f. It was found that the particle size distribution curves approximately match the normal distribution. A shift of particle size distributions to larger sizes occurs with an increase of swelling time, with a concomitant decrease of the height of the predominant peak in volume distribution. As swelling time increases from 24 to 120 h, the particle size with the largest distribution frequency increases from 631 to 1258 nm, with a decrease of distribution frequency from 16.24 to 12.32%. SEM images of SiO2/P(MBAAm-co-AM) suspension, shown as the insets in Figure 4c–f, qualitatively reflect both the swelling process and change regulation of SiO2/P(MBAAm-co-AM) nanoparticles in water.

3.3. Rheological Behaviors of SiO2/P(MBAAm-co-AM) Suspension

The apparent viscosity of the SiO2/P(MBAAm-co-AM) suspension versus mass concentration of SiO2/P(MBAAm-co-AM) nanoparticles is shown in Figure 5a. As shown, at a higher mass concentration, the SiO2/P(MBAAm-co-AM) suspension exhibits a larger apparent viscosity. This is because with increasing mass concentration, the number of SiO2/P(MBAAm-co-AM) nanoparticle collisions with water molecules increases, which results in an increase of apparent viscosity [53].
The apparent viscosity of the SiO2/P(MBAAm-co-AM) suspension versus temperature is shown in Figure 5b. According to Figure 5b, the apparent viscosity of the SiO2/P(MBAAm-co-AM) suspension decreases with increasing temperature. As the temperature rises, it reduces the intermolecular force, so the SiO2/P(MBAAm-co-AM) suspension moves more easily, leading to a decrease of apparent viscosity.
Figure 5c shows the apparent viscosity of the SiO2/P(MBAAm-co-AM) suspension as a function of the salinity. As shown in Figure 5c, the apparent viscosity of the SiO2/P(MBAAm-co-AM) suspension decreases with an increase of salinity. This means that with an increase of salinity, the particle size of the swollen nanoparticles decreases to reduce the number of nanoparticles collisions with water molecules, resulting in a decrease of apparent viscosity [54].
Figure 5d shows the apparent viscosity of the SiO2/P(MBAAm-co-AM) suspension as a function of the swelling time. The apparent viscosity of the SiO2/P(MBAAm-co-AM) suspension rapidly increases at the initial stage and then slowly increases until the apparent viscosity remains constant at swelling times greater than 200 h. With an increase of swelling time, SiO2/P(MBAAm-co-AM) nanoparticles swell to enlarge their particle sizes, so the number of nanoparticles that collide with water molecules increases, resulting in an increase of apparent viscosity. However, when the swelling reaches equilibrium, the particle size does not enlarge, and the number of collisions with water molecules does not increase, so the apparent viscosity remains constant.
The apparent viscosities of the SiO2/P(MBAAm-co-AM) suspension with respect to shear rate are presented in Figure 6 at various mass concentrations of SiO2/P(MBAAm-co-AM) nanoparticles, temperatures, salinities, and swelling times. Under all experimental conditions, the apparent viscosity of the SiO2/P(MBAAm-co-AM) suspension versus shear rate follows a similar trend. At lower shear rates, the apparent viscosity of the SiO2/P(MBAAm-co-AM) suspension decreases with an increase of shear rate, and we can consider the behavior of the SiO2/P(MBAAm-co-AM) suspension as non-Newtonian. At shear rates greater than 300 s−1, the constant apparent viscosity of the SiO2/P(MBAAm-co-AM) suspension after changing shear rate indicates that the apparent viscosity does not depend on shear rate and represents Newtonian fluid behavior.

3.4. EOR by a SiO2/P(MBAAm-co-AM) Suspension in Parallel Cores

SiO2/P(MBAAm-co-AM) composite nanoparticles were mixed with water to form a SiO2/P(MBAAm-co-AM) suspension. The concentration of SiO2/P(MBAAm-co-AM) composite nanoparticles was 1500 mg/L. Parallel cores flooding tests were carried out to investigate the efficiency of SiO2/P(MBAAm-co-AM) suspension in EOR in heterogeneous low-permeability reservoirs. Core parameters and test results are shown in Table 1. In four tests, the slug size of a SiO2/P(MBAAm-co-AM) suspension was 0.5 PV (pore volume) and the permeability ratio of parallel cores ranged from 1.40 to 15.49.

3.4.1. Effect of Permeability Ratio on Fractional Flows

The fractional flow curves of three flooding stages, which included an initial brine flood, a SiO2/P(MBAAm-co-AM) suspension slug injection, and an extended brine flood in four parallel cores tests, are plotted in Figure 7. As shown in Figure 7, the same changes of fractional flow curves are observed in four flooding tests of different permeability ratios. In the initial brine flood stage, the fractional flows in high-permeability cores increase with injection, while the fractional flows in low-permeability cores decrease with injection. Moreover, the difference of fractional flows in high- and low-permeability cores increase as brines are injected. After brine breaks through in high-permeability cores, brine flooding mainly passes through high-permeability cores. Therefore, at the end of brine flooding, the fractional flows in high-permeability cores are greater than 90%, and in low-permeability cores, less than 10%. As SiO2/P(MBAAm-co-AM) suspension slug is injected, the fractional flows in high-permeability cores sharply decrease and in those low-permeability cores rapidly increase. Then, the fractional flows in low-permeability cores exceed those in high-permeability cores. At the end of SiO2/P(MBAAm-co-AM) suspension slug injection, the fractional flows increase to more than 60% in low-permeability cores, and decrease to less than 40% in high-permeability cores. The above changes of fractional flows in high- and low-permeability cores confirm that SiO2/P(MBAAm-co-AM) nanoparticles can block water channels in high-permeability cores to produce fluid diversion and enlarge the swept volume in low-permeability cores [55]. As the extended brine flooding starts, the fractional flows in high- and low-permeability cores both fluctuate with the migration of SiO2/P(MBAAm-co-AM) nanoparticles [56]. The fractional flows in low-permeability cores are always higher than those of high-permeability cores throughout the extended brine flood. This indicates that most of the SiO2/P(MBAAm-co-AM) nanoparticles flow into high-permeability cores and increase the flow resistance of the following brine.
In addition, it can be seen from Figure 7 that the permeability ratio of parallel cores has a significant effect on fractional flows. During the brine flooding, with an increase of permeability ratio from 1.40 to 15.49, the initial difference of fractional flows in two cores increases from 10 to 60%, and the breakthrough time of brine in high-permeability core decreases from 2.0 PV to 1.0 PV. Thus, it is evident that brine flooding is less effective as the permeability ratio of two cores becomes larger. When extended brine flood finishes, the difference of fractional flows in parallel cores decreases from 70 to 40% as the permeability ratio increases from 1.40 to 15.49. The above results indicate that the greater the permeability ratio of two cores is, the more effective the profile control of the SiO2/P(MBAAm-co-AM) nanoparticles. When SiO2/P(MBAAm-co-AM) nanoparticles enter into cores, they can generate plugging at a pore throat, and some large nanoparticles are detained in pores. However, some nanoparticles can pass through pore throats by deformation under a driving pressure due to their ability to be elastic; then, the deformed nanoparticles can recover to their original shapes after entering into a larger pore. In addition, some nanoparticles break into smaller particles at the pore throat, which can pass through smaller pore throats. The plugging of these SiO2/P(MBAAm-co-AM) nanoparticles increases the flow resistance of blocked regions and diverts the fluid into low-resistance regions. Therefore, SiO2/P(MBAAm-co-AM) nanoparticles can effectively reduce the heterogeneity of reservoirs and improve the sweep efficiency.

3.4.2. Effect of Permeability Ratio on Pressure Drop

Pressure drop is defined as the pressure difference between the core inlet and outlet, which was determined by using pressure gauge [5]. The curves of pressure drop as a function of the pore volume of fluid injected under different permeability ratios are plotted in Figure 8. Each curve in Figure 8 reflects the similar variation of pressure drop with the pore volume of fluid injected. During the brine flooding, the pressure drop sharply rises in a very short time, and then falls. When brine breaks through into a high-permeability core, the pressure drop starts to remain almost constant. When the SiO2/P(MBAAm-co-AM) suspension slug injection starts, pressure drop raises rapidly, with tiny fluctuations. In the extended brine flood stage, the fluctuated pressure drop continues to rise until it reaches a maximum and then declines. These results indicate that the behaviors of SiO2/P(MBAAm-co-AM) nanoparticles at pore throats can result in a fluctuation of pressure drop. According to Darcy’s law, the fluctuated pressure drop can lead to a fluctuation of fractional flow, which is consistent with the experimental results of fractional flow. In addition, pressure drop in different parallel cores increases with increasing permeability ratios. During the extended brine flood, the maximum pressure drop rises from 0.26 MPa to 0.61 MPa when the permeability ratio increases from 1.40 to 15.49. As the permeability ratio of the parallel cores increases, the blockage of SiO2/P(MBAAm-co-AM) nanoparticles in the core becomes stronger so that a greater pressure drop is obtained. The fluid can enter into smaller pores, and its swept volume is enlarged. Hence, it can be concluded that SiO2/P(MBAAm-co-AM) nanoparticles have a better profile control effect for more heterogeneous media.

3.4.3. Effect of Permeability Ratio on EOR

The cumulative oil recoveries of four parallel core flooding tests are plotted as a function of the pore volume of fluid injected in Figure 9. Each of the diagrams in Figure 9 has two curves representing a high-permeability core and low-permeability core. The cumulative oil recovery includes all three flooding stages—initial brine flood, SiO2/P(MBAAm-co-AM) suspension slug injection, and extended brine flood. The results of four tests show that during the initial brine flooding, oil recoveries of low-permeability cores are less than those of high-permeability cores. Moreover, this difference increases with an increasing permeability ratio of parallel cores. When permeability ratios are 1.40, 4.36, 8.28, and 15.49, brine flood recovers 52.37%, 53.84%, 55.49%, and 56.69% of the initial oil in place (IOIP) of high-permeability cores, respectively, which are all higher than the cumulative oil recoveries of low-permeability cores in the same parallel cores: 46.70%, 29.79%, 22.99%, and 17.61% IOIP. The test results illustrate that a high permeability ratio can result in high residual oil saturation in low-permeability cores.
For the purpose of improving oil recovery in heterogeneous reservoirs, a slug of SiO2/P(MBAAm-co-AM) suspension was injected into parallel cores. As seen in Figure 9, in the slug injection stage, both oil recovery curves rise, and the curve of the high-permeability core rises much slower than that of the low-permeability core. This indicates that most SiO2/P(MBAAm-co-AM) composite nanoparticles enter into high-permeability cores to perform effective plugging at throats. Therefore, the flow resistance in high-permeability cores is increased, and the major flow passage in parallel cores can be diverted from the high-permeability core to the low-permeability core by the injected SiO2/P(MBAAm-co-AM) suspension. Because most of the injected SiO2/P(MBAAm-co-AM) composite nanoparticles are detained in high-permeability cores, the effect of enlarging the sweep volume continues during the extended brine flood. It can be seen from the oil recovery curves of the extended brine flood that the cumulative oil recoveries in low-permeability cores are 54.39%, 46.06%, 41.57%, and 41.22% IOIP for tests 1, 2, 3, and 4, respectively, which are still less than those of the high-permeability cores in the same parallel cores: 56.98%, 58.82%, 61.74%, and 65.15% IOIP for tests 1, 2, 3, and 4. However, compared with the test results of brine flood, the difference between the oil recovery of a high-permeability core and that of a low-permeability core in the same parallel cores reduces after the extended brine flood. Meanwhile, it can be noticed from Table 1 that the incremental oil recoveries in low-permeability cores, by SiO2/P(MBAAm-co-AM) suspension injection and the following extended brine flood, are much higher than those in high-permeability cores. The ratios of incremental oil recoveries (low permeability/high permeability) are 7.69/4.61, 16.27/4.98, 18.58/6.25, and 23.61/8.46 for tests 1, 2, 3, and 4, respectively. Thus, it is obvious that a high permeability ratio can result in a high incremental oil recovery in a low-permeability core. The above results illustrate that the injection of SiO2/P(MBAAm-co-AM) suspension can effectively improve the sweep efficiency and recover more residual oil in a heterogeneous, low-permeability reservoir. Moreover, the effect of SiO2/P(MBAAm-co-AM) suspension on enlarging the sweep efficiency becomes more noticeable in a more heterogeneous, low-permeability reservoir.
In order to investigate the relationship between pressure drop and EOR in four parallel core flooding tests, the incremental oil recoveries in high- and low-permeability cores were plotted as a function of the maximal pressure drop at each permeability ratio, as shown in Figure 10. The largest maximum pressure drop occurs at a higher permeability ratio. It can be observed that, with an increase of permeability ratio and maximal pressure drop, an improvement in EOR is denoted by an increase from 4.61 to 8.46% in high-permeability cores (Figure 10a) and from 7.69 to 23.61% in low-permeability cores (Figure 10b). This indicates that the SiO2/P(MBAAm-co-AM) suspension is appropriate to be applied to improve oil recovery in heterogeneous, low-permeability reservoirs.

4. Conclusions

In summary, SiO2/P(MBAAm-co-AM) composite nanoparticles have been successfully synthesized by a distillation–precipitation polymerization method. Their morphology and microstructure were ascertained by TEM, FT-IR, and TGA. The swelling performances of SiO2/P(MBAAm-co-AM) nanoparticles and the rheological behaviors and efficiency of SiO2/P(MBAAm-co-AM) suspension in EOR were investigated. The main results can be summarized as follows:
(1) SiO2/P(MBAAm-co-AM) nanoparticles exhibit a favorable swelling property in an aqueous solution and their particle sizes increase from 631 to 1258 nm as the swelling times increase from 24 to 120 h.
(2) The apparent viscosity of SiO2/P(MBAAm-co-AM) suspension increases with an increase of mass concentration and swelling time, whereas it decreases as salinity and temperature increase. The SiO2/P(MBAAm-co-AM) suspension behaves like a non-Newtonian fluid at lower shear rates, whereas it represents a Newtonian fluid behavior at shear rates greater than 300 s−1.
(3) SiO2/P(MBAAm-co-AM) nanoparticles can effectively reduce the heterogeneity of reservoirs and improve the sweep efficiency. A high permeability ratio can result in a high incremental oil recovery in parallel cores. When the permeability ratio increases from 1.40 to 15.49, the incremental oil recoveries rise from 4.61 to 8.46% and from 7.69 to 23.61% in high- and low-permeability cores, respectively.
Despite the fact that the SiO2/P(MBAAm-co-AM) suspension is appropriate to be applied to improve oil recovery in heterogeneous, low-permeability reservoirs, there are two major limitations in this study that could be addressed in future research. First, this study focused on the effect of permeability ratio on EOR, yet it did not discuss the influence of nanoparticle properties on EOR. Second, this study lacked core samples from representative blocks of low-permeability reservoirs.

Author Contributions

Y.L. designed the experiments; Y.L., Z.L., and X.H. performed the experiments; Y.L. and R.W. analyzed the data; B.Z., L.C., and F.S. assisted with the characterizations; Y.L. wrote, revised, and edited the paper.

Funding

This work was financially supported by the Natural Science Foundation of Zhejiang Province (Project No.: LY19A020004, LY19E010005), the National Natural Science Foundation of China (Project No.: 11602221, 11472246), the General Research Projects of Zhejiang Provincial Department of Education (Project No.: Y201840296), and the Cultivation Project of Zhejiang Ocean University (Project No.: 2015A13).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zeng, L.; Liu, H. Influence of fractures on the development of low-permeability sandstone reservoirs: A case study from the Taizhao district, Daqing Oilfield, China. J. Petrol. Sci. Eng. 2010, 72, 120–127. [Google Scholar] [CrossRef]
  2. Pu, C.; Jing, C.; He, Y.; Gu, X.; Zhang, Z.; Wei, J. Multistage interwell chemical tracing for step-by-step profile control of water channeling and flooding of fractured ultra-low permeability reservoirs. Petrol. Explor. Dev. 2016, 43, 679–688. [Google Scholar] [CrossRef]
  3. Wang, X.; Dang, H.; Gao, T. Method of moderate water injection and its application in ultra-low permeability oil reservoirs of Yanchang Oilfield, NW China. Petrol. Explor. Dev. 2018, 45, 1094–1102. [Google Scholar] [CrossRef]
  4. Zhao, X.; Zhang, J.; He, Q.; Tan, X. Experimental study and application of anti-salt polymer aqueous solutions prepared by produced water for low-permeability reservoirs. J. Petrol. Sci. Eng. 2019, 175, 480–488. [Google Scholar] [CrossRef]
  5. Sang, Q.; Li, S.; Yu, L.; Li, Z.; Dong, M. Enhanced oil recovery by branched-preformed particle gel injection in parallel-sandpack models. Fuel 2014, 136, 295–306. [Google Scholar] [CrossRef]
  6. Dejam, M. Advective-diffusive-reactive solute transport due to non-Newtonian fluid flows in a fracture surrounded by a tight porous medium. Int. J. Heat. Mass. Tran. 2019, 128, 1307–1321. [Google Scholar] [CrossRef]
  7. Zhang, L.; Kou, Z.; Wang, H.; Zhao, Y.; Dejam, M.; Guo, J.; Du, J. Performance analysis for a model of a multi-wing hydraulically fractured vertical well in a coalbed methane gas reservoir. J. Petrol. Sci. Eng. 2018, 166, 104–120. [Google Scholar] [CrossRef]
  8. Li, T.; Song, H.; Wang, J.; Wang, Y.; Killough, J. An analytical method for modeling and analysis gas-water relative permeability in nanoscale pores with interfacial effects. Int. J. Coal. Geol. 2016, 159, 71–81. [Google Scholar] [CrossRef]
  9. Yu, L.; Dong, M.; Ding, B.; Yuan, Y. Experimental study on the effect of interfacial tension on the conformance control of oil-in-water emulsions in heterogeneous oil sands reservoirs. Chem. Eng. Sci. 2018, 189, 165–178. [Google Scholar] [CrossRef]
  10. Dejam, M.; Hassanzadeh, H.; Chen, Z. Pre-Darcy flow in porous media. Water. Resour. Res. 2017, 53, 8187–8210. [Google Scholar] [CrossRef]
  11. Song, H.; Yu, M.; Zhu, W.; Wu, P.; Lou, Y.; Wang, Y.; Killough, J. Numerical investigation of gas flow rate in shale gas reservoirs with nanoporous media. Int. J. Heat. Mass. Tran. 2015, 80, 626–635. [Google Scholar] [CrossRef]
  12. Gu, M.; Chen, X.; Wu, C.; He, X.; Chu, H.; Liu, F. Effects of particle size distribution and oxygenconcentration on the propagation behavior of pulverized coal flames in O2/CO2 atmospheres. Energy Fuel 2017, 31, 5571–5580. [Google Scholar] [CrossRef]
  13. Soleimani, M. Well performance optimization for gas lift operation in a heterogeneous reservoir by fine zonation and different well type integration. J. Nat. Gas Sci. Eng. 2017, 40, 277–287. [Google Scholar] [CrossRef]
  14. He, L.; Mei, H.; Hu, X.; Dejam, M.; Kou, Z.; Zhang, M. Advanced flowing material balance to determine original gas-in-place of shale gas considering adsorption hysteresis. SPE Reserv. Eval. Eng. 2019. [CrossRef]
  15. Song, H.; Cao, Y.; Yu, M.; Wang, Y.; Killough, J.; Leung, J. Impact of permeability heterogeneity on production characteristics in water-bearing tight gas reservoirs with threshold pressure gradient. J. Nat. Gas Sci. Eng. 2015, 22, 172–181. [Google Scholar] [CrossRef]
  16. Xu, P.; Qiu, S.; Cai, J.; Li, C.; Liu, H. A novel analytical solution for gas diffusion in multi-scale fuel cell porous media. J. Power Sources 2017, 362, 73–79. [Google Scholar] [CrossRef]
  17. Brattekås, B.; Seright, R.S. Implications for improved polymer gel conformance control during low-salinity chase-floods in fractured carbonates. J. Petrol. Sci. Eng. 2018, 163, 661–670. [Google Scholar] [CrossRef]
  18. Wang, J.; Liu, H. A novel model and sensitivity analysis for viscoelastic polymer flooding in offshore oilfield. J. Ind. Eng. Chem. 2014, 20, 656–667. [Google Scholar] [CrossRef]
  19. Amirian, E.; Dejam, M.; Chen, Z. Performance forecasting for polymer flooding in heavy oil reservoirs. Fuel 2018, 216, 83–100. [Google Scholar] [CrossRef]
  20. Saboorian-Jooybari, H.; Dejam, M.; Chen, Z. Heavy oil polymer flooding from laboratory core floods to pilot tests and field applications: Half-century studies. J. Petrol. Sci. Eng. 2016, 142, 85–100. [Google Scholar] [CrossRef]
  21. Bahrami, P.; Kazemi, P.; Mahdavi, S.; Ghobadi, H. A novel approach for modeling and optimization of surfactant/polymer flooding based on Genetic Programming evolutionary algorithm. Fuel 2016, 179, 289–298. [Google Scholar] [CrossRef]
  22. Fu, L.; Zhang, G.; Ge, J.; Liao, K.; Pei, H.; Jiang, P.; Li, X. Study on organic alkali-surfactant-polymer flooding for enhanced ordinary heavy oil recovery. Colloids Surf. A 2016, 508, 230–239. [Google Scholar] [CrossRef]
  23. Mashayekhizadeh, V.; Kord, S.; Dejam, M. EOR potential within Iran. Spec. Top. Rev. Porous Media 2014, 5, 325–354. [Google Scholar] [CrossRef]
  24. Zhao, F.; Lv, C.; Hou, J.; Wang, Z. Formation adaptability of combining modified starch gel and nitrogen foam in profile modification and oil displacement. J. Energy Inst. 2016, 89, 536–543. [Google Scholar] [CrossRef]
  25. Karambeigi, M.S.; Abbassi, R.; Roayaei, E.; Emadi, M.A. Emulsion flooding for enhanced oil recovery: Interactive optimization of phase behavior, microvisual and core-flood experiments. J. Ind. Eng. Chem. 2015, 29, 382–391. [Google Scholar] [CrossRef]
  26. Olayiwola, S.O.; Dejam, M. A comprehensive review on interaction of nanoparticles with low salinity water and surfactant for enhanced oil recovery in sandstone and carbonate reservoirs. Fuel 2019, 241, 1045–1057. [Google Scholar] [CrossRef]
  27. Cheraghian, G. Evaluation of clay and fumed silica nanoparticles on adsorption of surfactant polymer during enhanced oil recovery. J. Jpn. Petrol. Inst. 2017, 60, 85–94. [Google Scholar] [CrossRef]
  28. Almahfood, M.; Bai, B. The synergistic effects of nanoparticle-surfactant nanofluids in EOR applications. J. Petrol. Sci. Eng. 2018, 171, 198–210. [Google Scholar] [CrossRef]
  29. Gbadamosi, A.O.; Junin, R.; Manan, M.A.; Yekeen, N.; Agi, A.; Oseh, J.O. Recent advances and prospects in polymeric nanofluids application for enhanced oil recovery. J. Ind. Eng. Chem. 2018, 66, 1–19. [Google Scholar] [CrossRef]
  30. Wei, B.; Li, Q.; Ning, J.; Wang, Y.; Sun, L.; Pu, W. Macro- and micro-scale observations of a surface-functionalized nanocellulose based aqueous nanofluids in chemical enhanced oil recovery (C-EOR). Fuel 2019, 236, 1321–1333. [Google Scholar] [CrossRef]
  31. Soleimani, H.; Baig, M.K.; Yahya, N.; Khodapanah, L.; Sabet, M.; Demiral, B.M.R.; Burda, M. Impact of carbon nanotubes based nanofluid on oil recovery efficiency using core flooding. Results Phys. 2018, 9, 39–48. [Google Scholar] [CrossRef]
  32. Olayiwola, S.O.; Dejam, M. Mathematical modelling of surface tension of nanoparticles in electrolyte solutions. Chem. Eng. Sci. 2019, 197, 345–356. [Google Scholar] [CrossRef]
  33. Cheraghian, G. Synthesis and properties of polyacrylamide by nanoparticles, effect nanoclay on stability polyacrylamide solution. Micro Nano Lett. 2016, 12, 40–44. [Google Scholar] [CrossRef]
  34. Sharma, T.; Sangwai, J.S. Silica nanofluids in polyacrylamide with and without surfactant: Viscosity, surface tension, and interfacial tension with liquid paraffin. J. Petrol. Sci. Eng. 2017, 152, 575–585. [Google Scholar] [CrossRef]
  35. Cheraghian, G. Thermal resistance and application of nanoclay on polymer flooding in heavy oil recovery. Petrol. Explor. Dev. 2015, 33, 1580–1586. [Google Scholar] [CrossRef]
  36. Chu, H.; Han, W.; Cao, W.; Gu, M.; Xu, G. Effect of methane addition to ethylene on the morphology and size distribution of soot in a laminar co-flow diffusion flame. Energy 2019, 166, 392–400. [Google Scholar] [CrossRef]
  37. Cheraghian, G. Application of nano-fumed silica in heavy oil recovery. Petrol. Explor. Dev. 2016, 34, 12–18. [Google Scholar] [CrossRef]
  38. Xu, P.; Li, C.; Qiu, S.; Sasmito, A.P. A fractal network model for fractured porous media. Fractals 2016, 24, 1650018. [Google Scholar] [CrossRef]
  39. Cheraghian, G. Effect of nano titanium dioxide on heavy oil recovery during polymer flooding. Petrol. Explor. Dev. 2016, 34, 633–641. [Google Scholar] [CrossRef]
  40. Lai, N.; Guo, X.; Zhou, N.; Xu, Q. Shear Resistance Properties of Modified Nano-SiO2/AA/AM Copolymer Oil Displacement Agent. Energies 2016, 9, 1037. [Google Scholar] [CrossRef]
  41. Hu, Z.; Haruna, M.; Gao, H.; Nourafkan, E.; Wen, D. Rheological properties of partially hydrolyzed polyacrylamide seeded by nanoparticles. Ind. Eng. Chem. Res. 2017, 56, 3456–3463. [Google Scholar] [CrossRef]
  42. Ju, B.; Fan, T. Experimental study and mathematical model of nanoparticle transport in porous media. Powder Technol. 2009, 192, 195–202. [Google Scholar] [CrossRef]
  43. Liu, R.; Pu, W.; Sheng, J.J.; Du, D. Star-like hydrophobically associative polyacrylamide for enhanced oil recovery: Comprehensive properties in harsh reservoir conditions. J. Taiwan. Inst. Chem. E 2017, 80, 639–649. [Google Scholar] [CrossRef]
  44. Caparrós, C.; Benelmekki, M.; Martins, P.M.; Xuriguera, E.; Silva, C.J.R.; Martinez, L.M. Hydrothermal assisted synthesis of iron oxide-based magnetic silica spheres and their performance in magnetophoretic water purification. Mater. Chem. Phys. 2012, 135, 510–517. [Google Scholar] [CrossRef]
  45. Effati, E.; Pourabbas, B. Synthesis of core-shell poly (N-isopropylacrylamide) grafted silica nanoparticles by distillation precipitation polymerization. Powder Technol. 2013, 246, 472–477. [Google Scholar] [CrossRef]
  46. Mauriello, F.; Garrone, E.; Musolino, M.G.; Pietropaolo, R.; Onida, B. Conversion of cis-2-butene-1,4-diol to hydrofurans on Pd/SiO2 and Pt/SiO2 catalysts under mild conditions: A FT-IR study. J. Mol. Catal. A Chem. 2010, 328, 27–34. [Google Scholar] [CrossRef]
  47. Kiviaho, J.; Niemelä, M.K.; Reinikainen, M.; Pakkanen, T.A. TPR and FT-IR studies on carbonyl cluster derived Co-Ru/SiO2 catalysts. Appl. Catal. A Gen. 1997, 149, 353–372. [Google Scholar] [CrossRef]
  48. Nagai, N.; Hashimoto, H. FT-IR-ATR study of depth profile of SiO2 ultra-thin films. Appl. Surf. Sci. 2001, 172, 307–311. [Google Scholar] [CrossRef]
  49. Rezaei, A.; Khangah, M.A.; Mohebbi, A.; Tatar, A.; Mohammadi, A.H. Using surface modified clay nanoparticles to improve rheological behavior of Hydrolized Polyacrylamid (HPAM) solution for enhanced oil recovery with polymer flooding. J. Mol. Liq. 2016, 222, 1148–1156. [Google Scholar] [CrossRef]
  50. El-hoshoudy, A.N. Synthesis of acryloylated starch-g-poly acrylates crosslinked polymer functionalized by emulsified vinyltrimethylsilane derivative as a novel EOR agent for severe polymer flooding strategy. Int. J. Biol. Macromol. 2019, 123, 124–132. [Google Scholar] [CrossRef]
  51. Frost, R.L.; Kloprogge, J.; Russell, S.C.; Szetu, J.L. Dehydroxylation and structure of alumina gels prepared from trisecbutoxyaluminium. Thermochim. Acta 1999, 329, 47–56. [Google Scholar] [CrossRef]
  52. Frost, R.L.; Erickson, K.L. Decomposition of the synthetic hydrotalcites mountkeithite and honessite—A high resolution thermogravimetric analysis and infrared emission spectroscopic study. Thermochim. Acta 2004, 421, 51–58. [Google Scholar] [CrossRef]
  53. Soltani, O.; Akbari, M. Effects of temperature and particles concentration on the dynamic viscosity of MgO-MWCNT/ethylene glycol hybrid nanofluid: Experimental study. Phys. E 2016, 84, 564–570. [Google Scholar] [CrossRef]
  54. Atashrouz, S.; Mozaffarian, M.; Pazuki, G. Viscosity and rheological properties of ethylene glycol+ water+ Fe3O4 nanofluids at various temperatures: Experimental and thermodynamics modeling. Korean J. Chem. Eng. 2016, 33, 2522–2529. [Google Scholar] [CrossRef]
  55. Yue, M.; Zhu, W.; Han, H.; Song, H.; Long, Y.; Lou, Y. Experimental research on remaining oil distribution and recovery performances after nano-micron polymer particles injection by direct visualization. Fuel 2018, 212, 506–514. [Google Scholar] [CrossRef]
  56. Esfe, M.H.; Raki, H.R.; Emami, M.R.S.; Afrand, M. Viscosity and rheological properties of antifreeze based nanofluid containing hybrid nano-powders of MWCNTs and TiO2 under different temperature conditions. Powder Technol. 2019, 342, 808–816. [Google Scholar] [CrossRef]
Nanomaterials 09 00600 g001 550

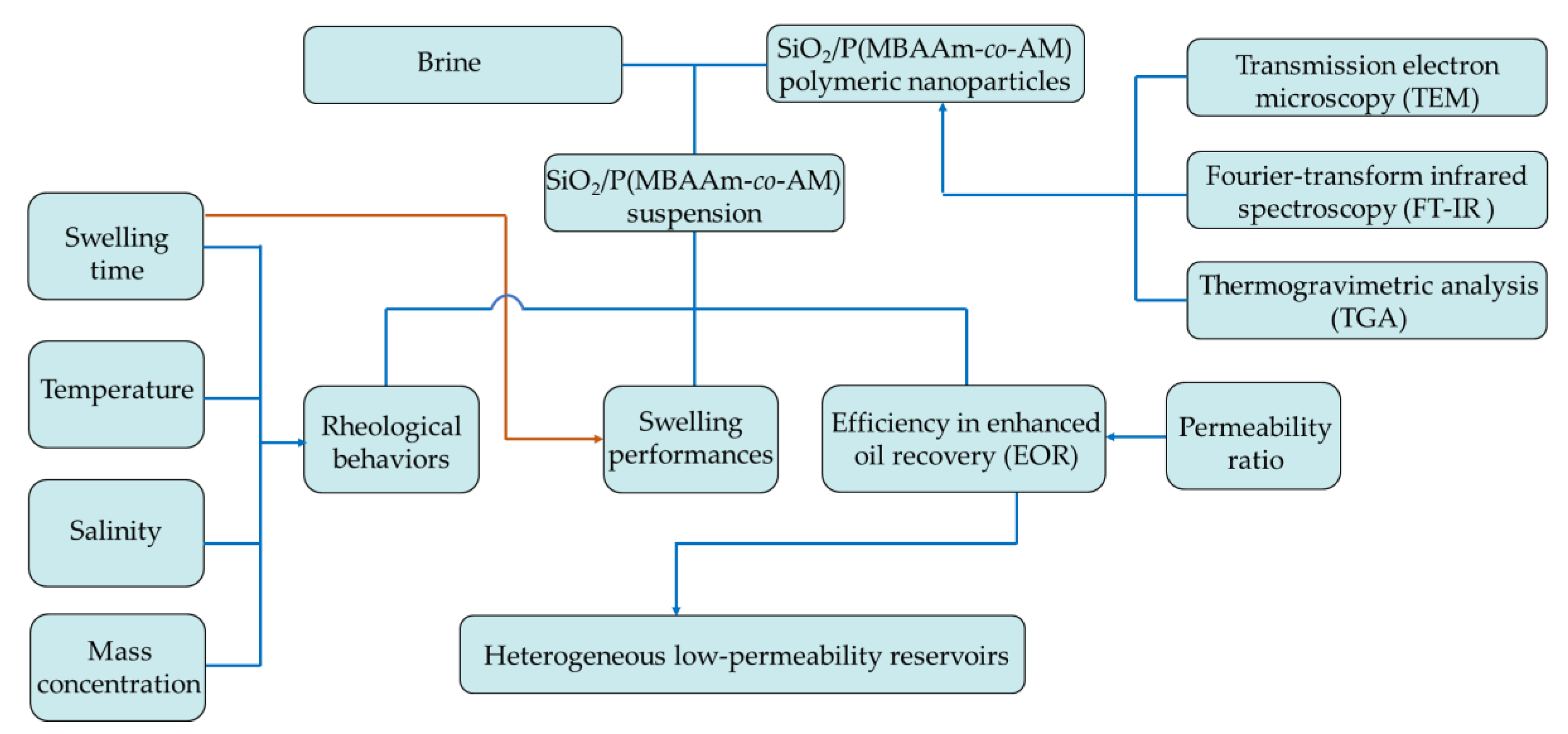

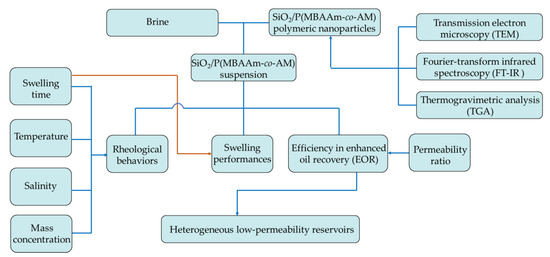

Figure 1. General sketch of this present research.
Figure 1. General sketch of this present research.
Nanomaterials 09 00600 g001
Nanomaterials 09 00600 g002 550

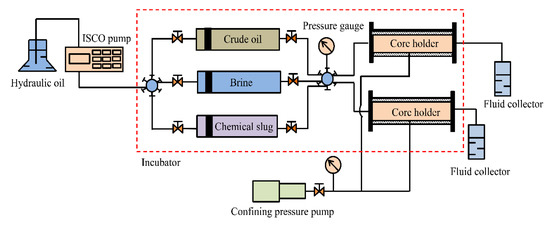

Figure 2. Schematic of the experimental set-up. The experimental set-up consisted of two hydrostatic core holders, a pump to maintain confining pressure, a displacement pump for the flooding agent, and two fluid accumulators for holding the collected oil sample, brine, and chemical slug.
Figure 2. Schematic of the experimental set-up. The experimental set-up consisted of two hydrostatic core holders, a pump to maintain confining pressure, a displacement pump for the flooding agent, and two fluid accumulators for holding the collected oil sample, brine, and chemical slug.
Nanomaterials 09 00600 g002
Nanomaterials 09 00600 g003 550

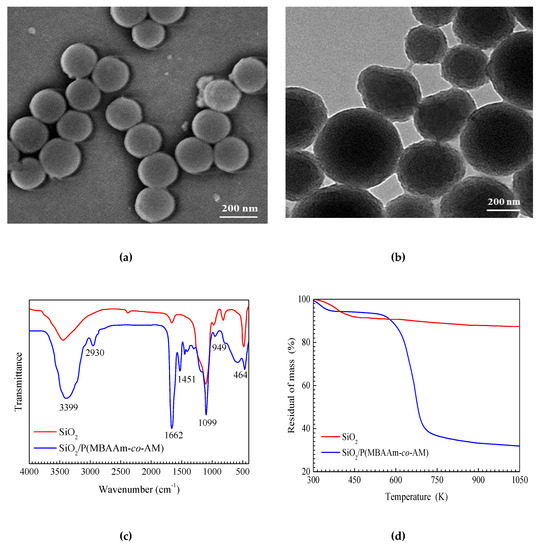

Figure 3. SEM image of SiO2 nanoparticles (a); TEM image of SiO2/P(MBAAm-co-AM) nanoparticles (b); and FT-IR spectra (c) and TGA curves (d) of SiO2, SiO2/P(MBAAm-co-AM).
Figure 3. SEM image of SiO2 nanoparticles (a); TEM image of SiO2/P(MBAAm-co-AM) nanoparticles (b); and FT-IR spectra (c) and TGA curves (d) of SiO2, SiO2/P(MBAAm-co-AM).
Nanomaterials 09 00600 g003
Nanomaterials 09 00600 g004a 550Nanomaterials 09 00600 g004b 550

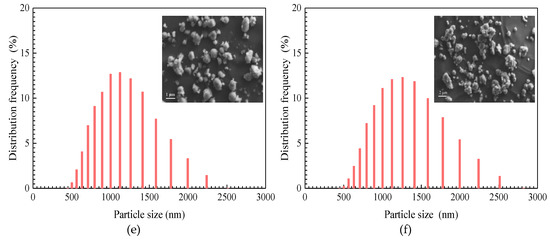

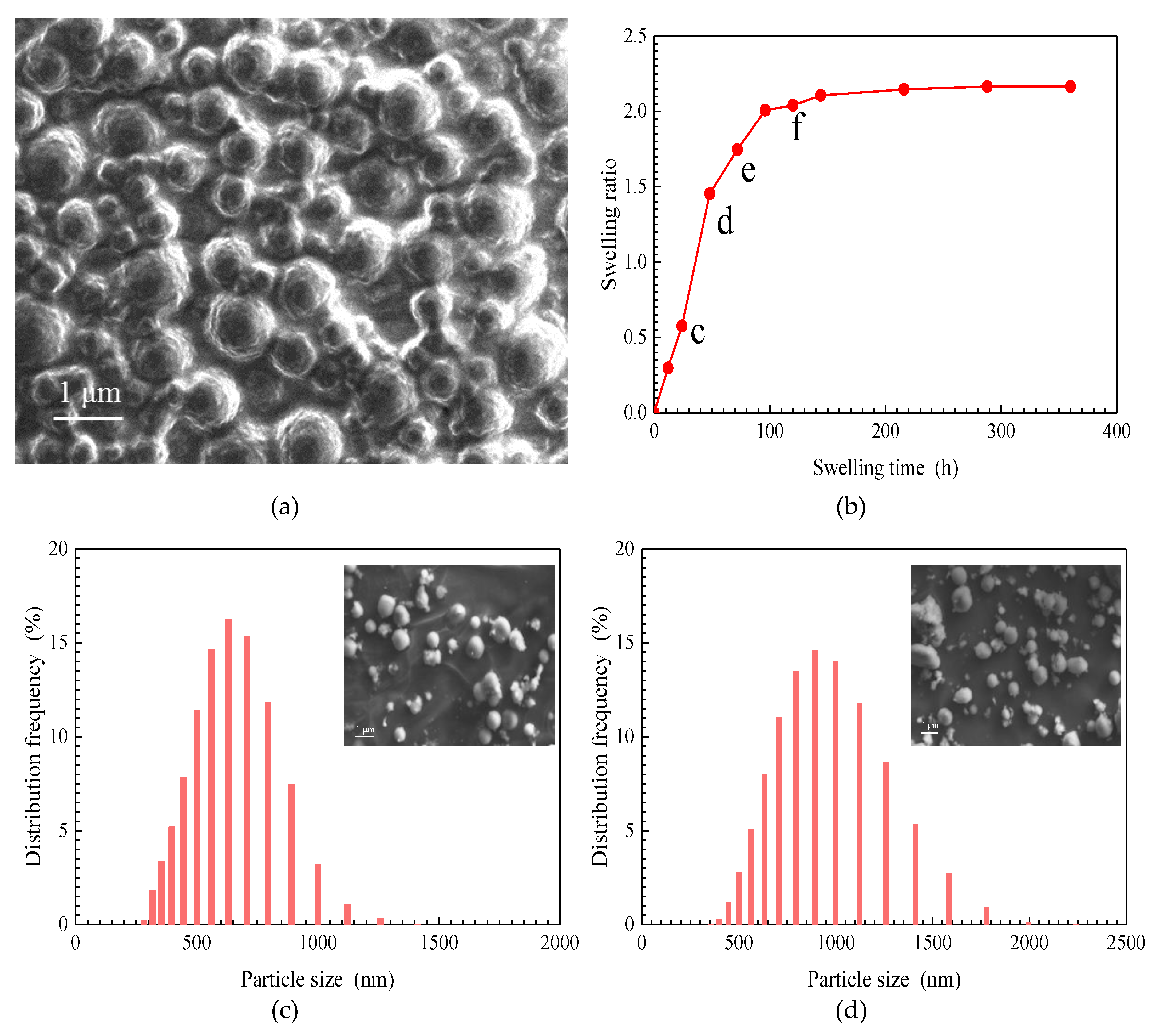

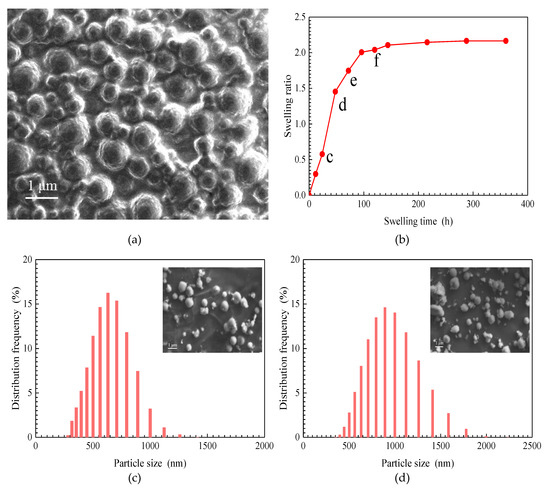

Figure 4. SEM image of SiO2/P(MBAAm-co-AM) suspension (a); the effect of swelling time on swelling ratio of SiO2/P(MBAAm-co-AM) nanoparticles (b, total dissolved solids (TDS) = 5 g/L, T = 40 °C); and particle size distribution curves of SiO2/P(MBAAm-co-AM) nanoparticles in suspension at swelling times of 24 h (c), 48 h (d), 72 h (e), and 120 h (f). Insets are the SEM images of SiO2/P(MBAAm-co-AM) suspension.
Figure 4. SEM image of SiO2/P(MBAAm-co-AM) suspension (a); the effect of swelling time on swelling ratio of SiO2/P(MBAAm-co-AM) nanoparticles (b, total dissolved solids (TDS) = 5 g/L, T = 40 °C); and particle size distribution curves of SiO2/P(MBAAm-co-AM) nanoparticles in suspension at swelling times of 24 h (c), 48 h (d), 72 h (e), and 120 h (f). Insets are the SEM images of SiO2/P(MBAAm-co-AM) suspension.
Nanomaterials 09 00600 g004aNanomaterials 09 00600 g004b
Nanomaterials 09 00600 g005 550

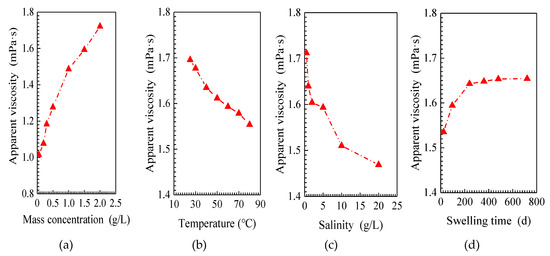

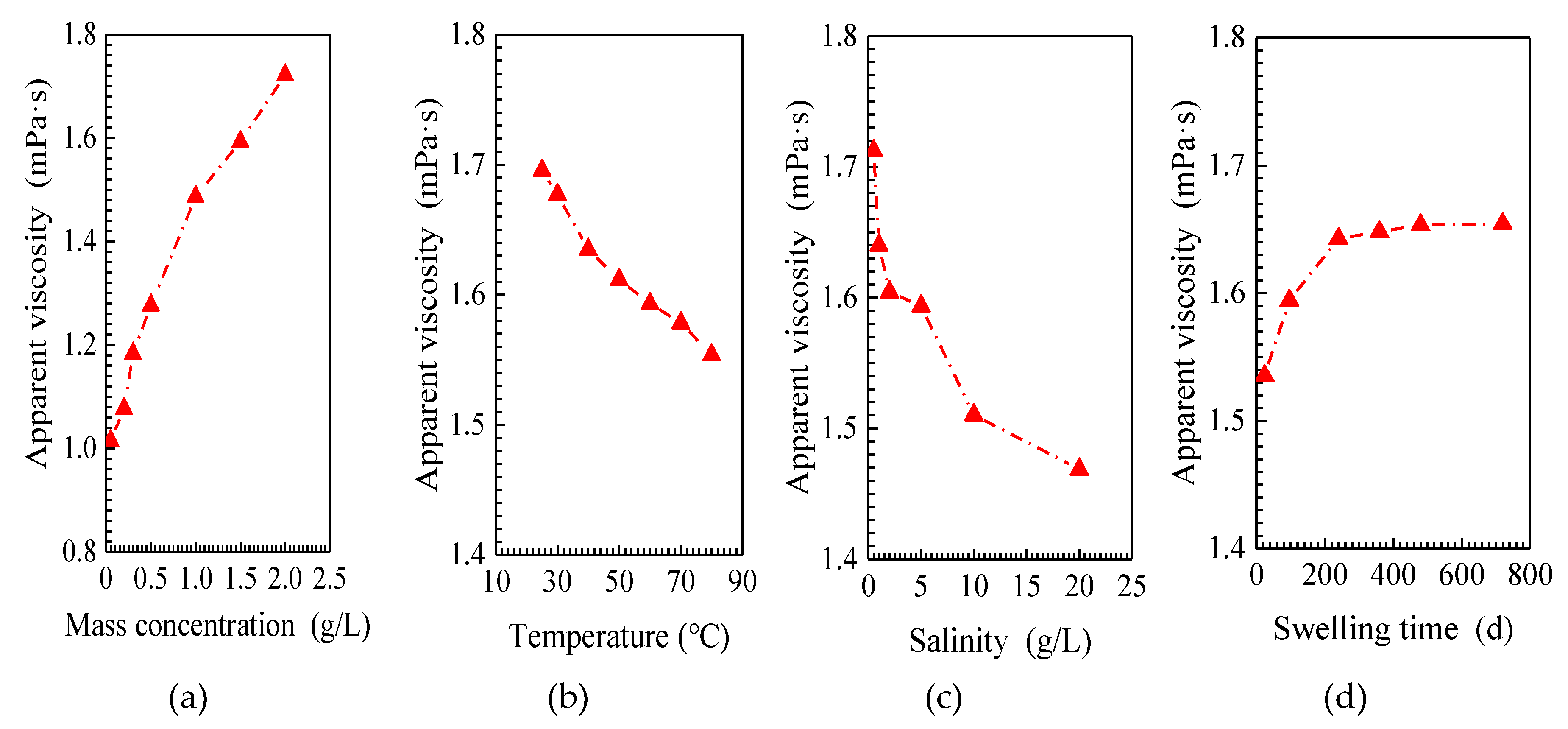

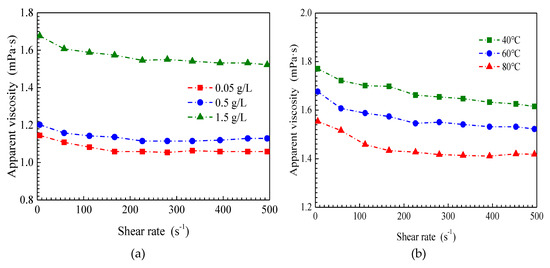

Figure 5. Effect of mass concentration (a, T = 60 °C, TDS = 5 g/L, and t = 120 h), temperature (b, C = 1.5 g/L, TDS = 5 g/L, and t = 120 h), salinity (c, T = 60 °C, C = 1.5 g/L, and t = 120 h), and swelling time (d, T = 60 °C, C = 1.5 g/L, and TDS = 5 g/L) on viscosity properties of SiO2/P(MBAAm-co-AM) suspension.
Figure 5. Effect of mass concentration (a, T = 60 °C, TDS = 5 g/L, and t = 120 h), temperature (b, C = 1.5 g/L, TDS = 5 g/L, and t = 120 h), salinity (c, T = 60 °C, C = 1.5 g/L, and t = 120 h), and swelling time (d, T = 60 °C, C = 1.5 g/L, and TDS = 5 g/L) on viscosity properties of SiO2/P(MBAAm-co-AM) suspension.
Nanomaterials 09 00600 g005
Nanomaterials 09 00600 g006a 550Nanomaterials 09 00600 g006b 550

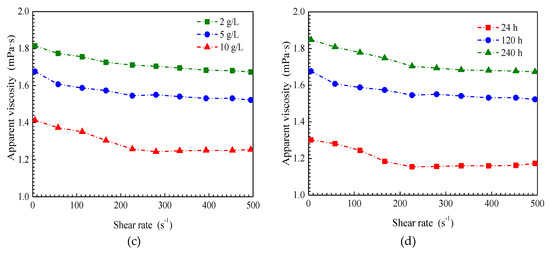

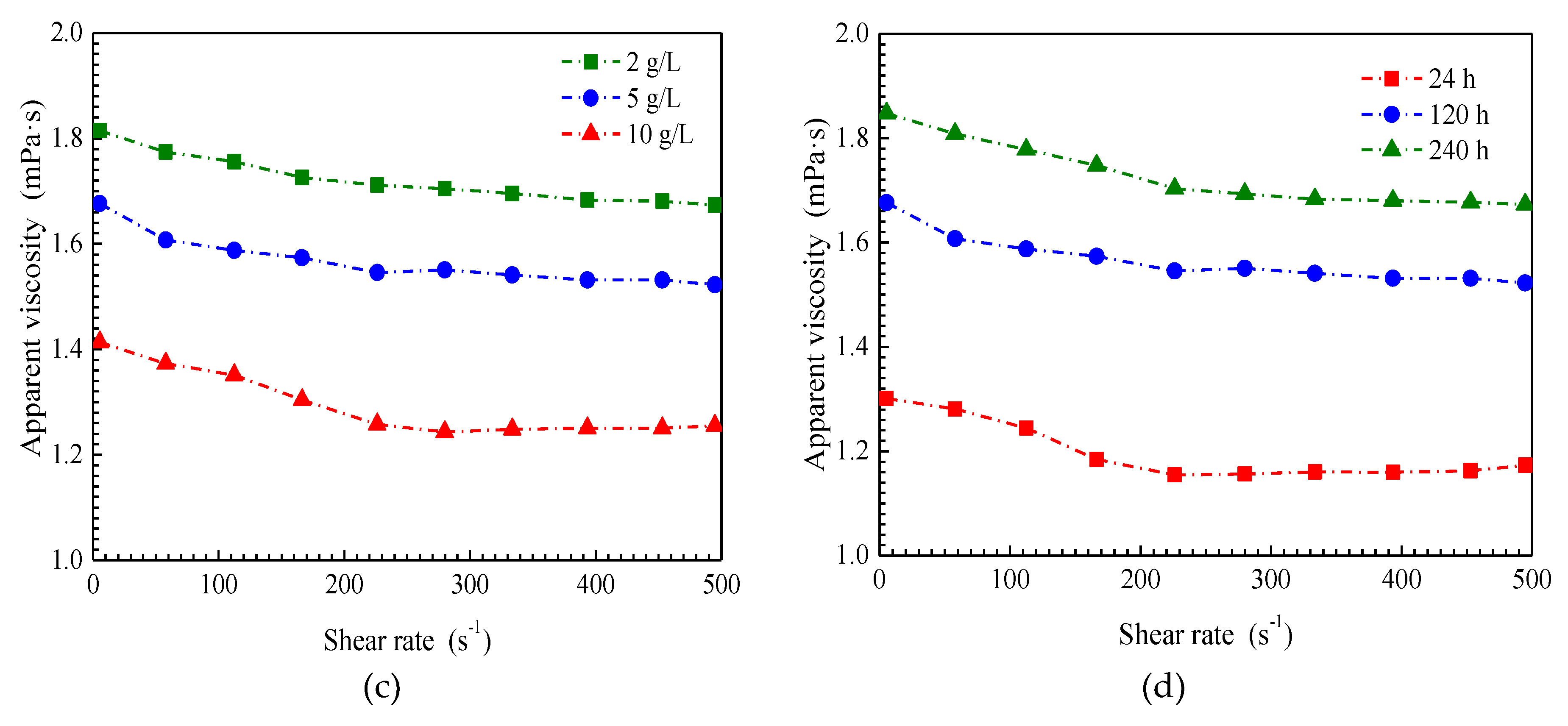

Figure 6. Effect of mass concentration (a, T = 60 °C, TDS = 5 g/L, and t = 120 h), temperature (b, C = 1.5 g/L, TDS = 5 g/L, and t = 120 h), salinity (c, T = 60 °C, C = 1.5 g/L, and t = 120 h), and swelling time (d, T = 60 °C, C = 1.5 g/L, and TDS = 5 g/L) on rheological properties of SiO2/P(MBAAm-co-AM) suspension.
Figure 6. Effect of mass concentration (a, T = 60 °C, TDS = 5 g/L, and t = 120 h), temperature (b, C = 1.5 g/L, TDS = 5 g/L, and t = 120 h), salinity (c, T = 60 °C, C = 1.5 g/L, and t = 120 h), and swelling time (d, T = 60 °C, C = 1.5 g/L, and TDS = 5 g/L) on rheological properties of SiO2/P(MBAAm-co-AM) suspension.
Nanomaterials 09 00600 g006aNanomaterials 09 00600 g006b
Nanomaterials 09 00600 g007 550

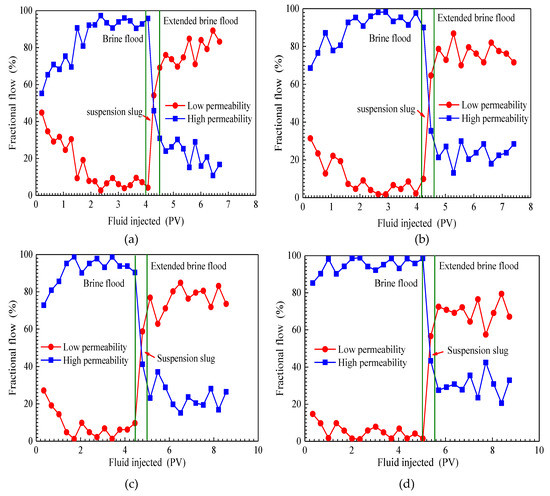

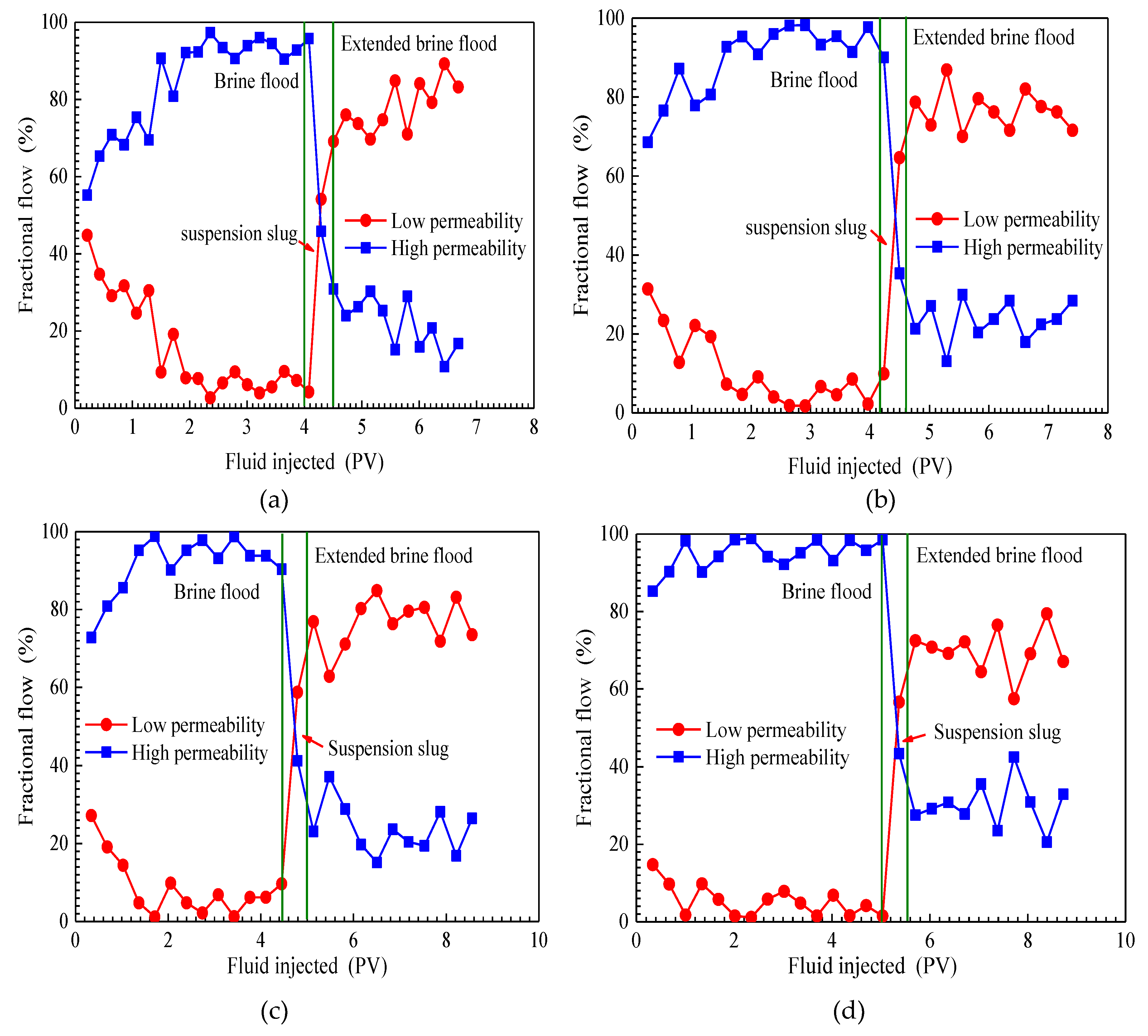

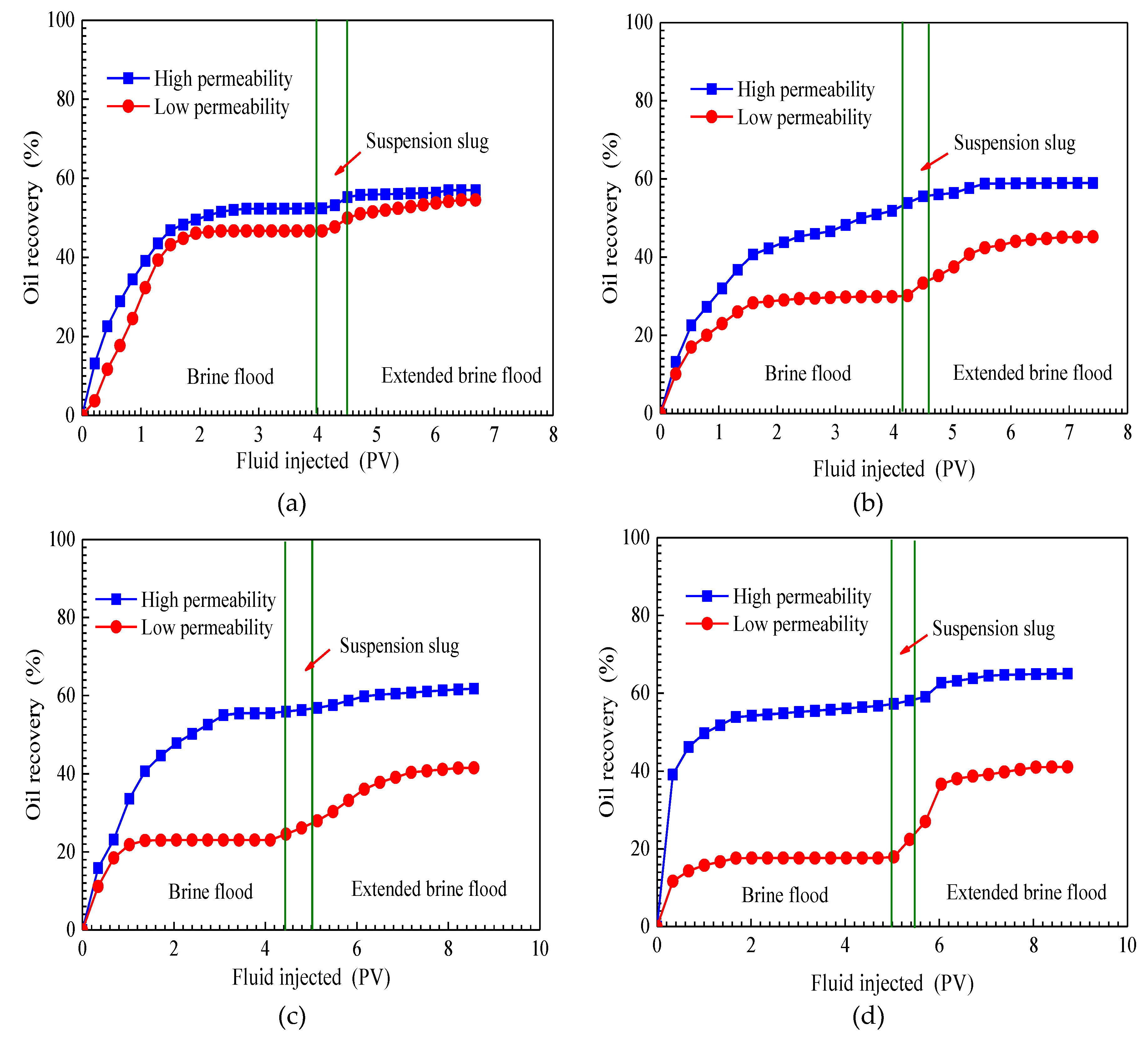

Figure 7. Fractional flow curves of four parallel cores flooding tests. Permeability ratio: (a) 1.40; (b) 4.36; (c) 8.28; (d) 15.49.
Figure 7. Fractional flow curves of four parallel cores flooding tests. Permeability ratio: (a) 1.40; (b) 4.36; (c) 8.28; (d) 15.49.
Nanomaterials 09 00600 g007
Nanomaterials 09 00600 g008 550

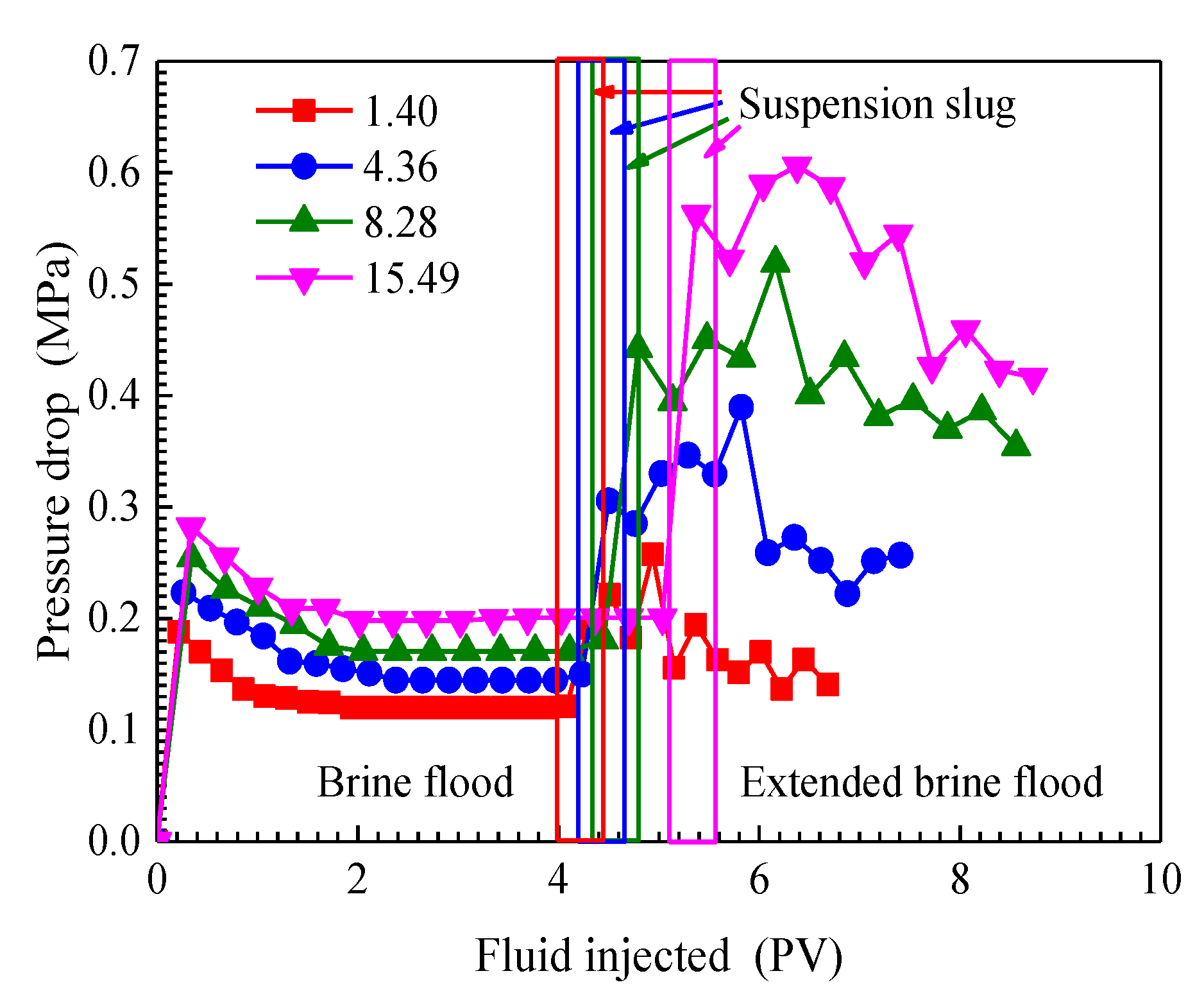

Figure 8. Curves of pressure drop as a function of the pore volume of fluid injected under different permeability ratios.
Figure 8. Curves of pressure drop as a function of the pore volume of fluid injected under different permeability ratios.
Nanomaterials 09 00600 g008
Nanomaterials 09 00600 g009 550

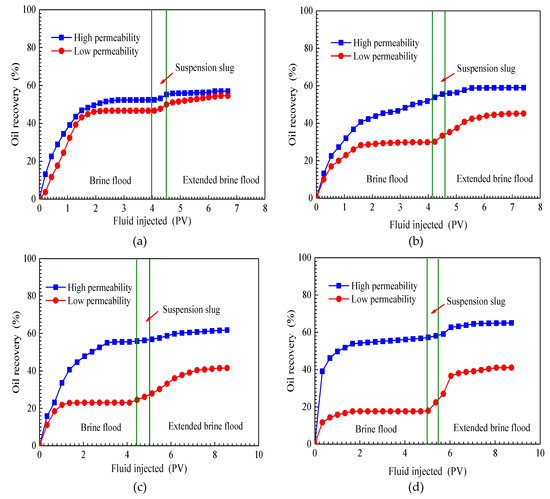

Figure 9. Cumulative oil recoveries of four parallel cores flooding tests. Permeability ratio: (a) 1.40; (b) 4.36; (c) 8.28; (d) 15.49.
Figure 9. Cumulative oil recoveries of four parallel cores flooding tests. Permeability ratio: (a) 1.40; (b) 4.36; (c) 8.28; (d) 15.49.
Nanomaterials 09 00600 g009
Nanomaterials 09 00600 g010 550

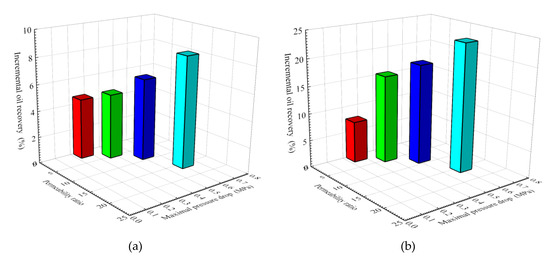

Figure 10. Effect of permeability ratio and maximal pressure drop on incremental oil recovery: (a) high-permeability cores; (b) low-permeability cores.
Figure 10. Effect of permeability ratio and maximal pressure drop on incremental oil recovery: (a) high-permeability cores; (b) low-permeability cores.
Nanomaterials 09 00600 g010
Table
Table 1. Efficiency of enhanced oil recovery (EOR) in heterogeneous parallel cores.
Table 1. Efficiency of enhanced oil recovery (EOR) in heterogeneous parallel cores.
TestPermeability (10−3 μm2)Permeability RatioRecovery of Brine Flood (%)Final Oil Recovery (%)Incremental Oil Recovery (%)
1High 20.281.4052.3756.984.61
Low 14.4746.7054.397.69
2High 75.824.3653.8458.824.98
Low 17.3929.7946.0616.27
3High 66.458.2855.4961.746.25
Low 8.0322.9941.5718.58
4High 64.7415.4956.6965.158.46
Low 4.1817.6141.2223.61

Share and Cite

MDPI and ACS Style

Long, Y.; Wang, R.; Zhu, B.; Huang, X.; Leng, Z.; Chen, L.; Song, F. Enhanced Oil Recovery by a Suspension of Core-Shell Polymeric Nanoparticles in Heterogeneous Low-Permeability Oil Reservoirs. Nanomaterials 2019, 9, 600. https://doi.org/10.3390/nano9040600

AMA Style

Long Y, Wang R, Zhu B, Huang X, Leng Z, Chen L, Song F. Enhanced Oil Recovery by a Suspension of Core-Shell Polymeric Nanoparticles in Heterogeneous Low-Permeability Oil Reservoirs. Nanomaterials. 2019; 9(4):600. https://doi.org/10.3390/nano9040600

Chicago/Turabian Style

Long, Yunqian, Renyi Wang, Baikang Zhu, Xiaohe Huang, Zhe Leng, Liqiao Chen, and Fuquan Song. 2019. "Enhanced Oil Recovery by a Suspension of Core-Shell Polymeric Nanoparticles in Heterogeneous Low-Permeability Oil Reservoirs" Nanomaterials 9, no. 4: 600. https://doi.org/10.3390/nano9040600

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
