Next Article in Journal
Low-Temperature Vapor-Phase Synthesis of Single-Crystalline Gold Nanostructures: Toward Exceptional Electrocatalytic Activity for Methanol Oxidation Reaction
Previous Article in Journal
Secretory Nanoparticles of Neospora caninum Profilin-Fused with the Transmembrane Domain of GP64 from Silkworm Hemolymph
Article

Piezoresistive Load Sensing and Percolation Phenomena in Portland Cement Composite Modified with In-Situ Synthesized Carbon Nanofibers

1
Building Materials, Department of Civil, Environmental and Natural Resources Engineering, Luleå University of Technology, 97187 Luleå, Sweden
2
The Institute of Engineering Materials and Biomaterials, Silesian University of Technology, 44-100 Gliwice, Poland
*
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(4), 594; https://doi.org/10.3390/nano9040594
Received: 6 March 2019 / Revised: 29 March 2019 / Accepted: 3 April 2019 / Published: 10 April 2019

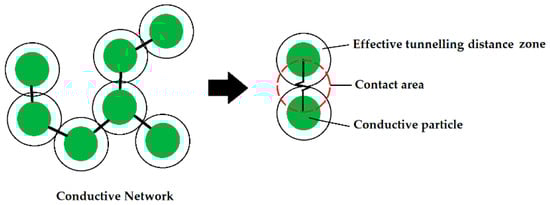

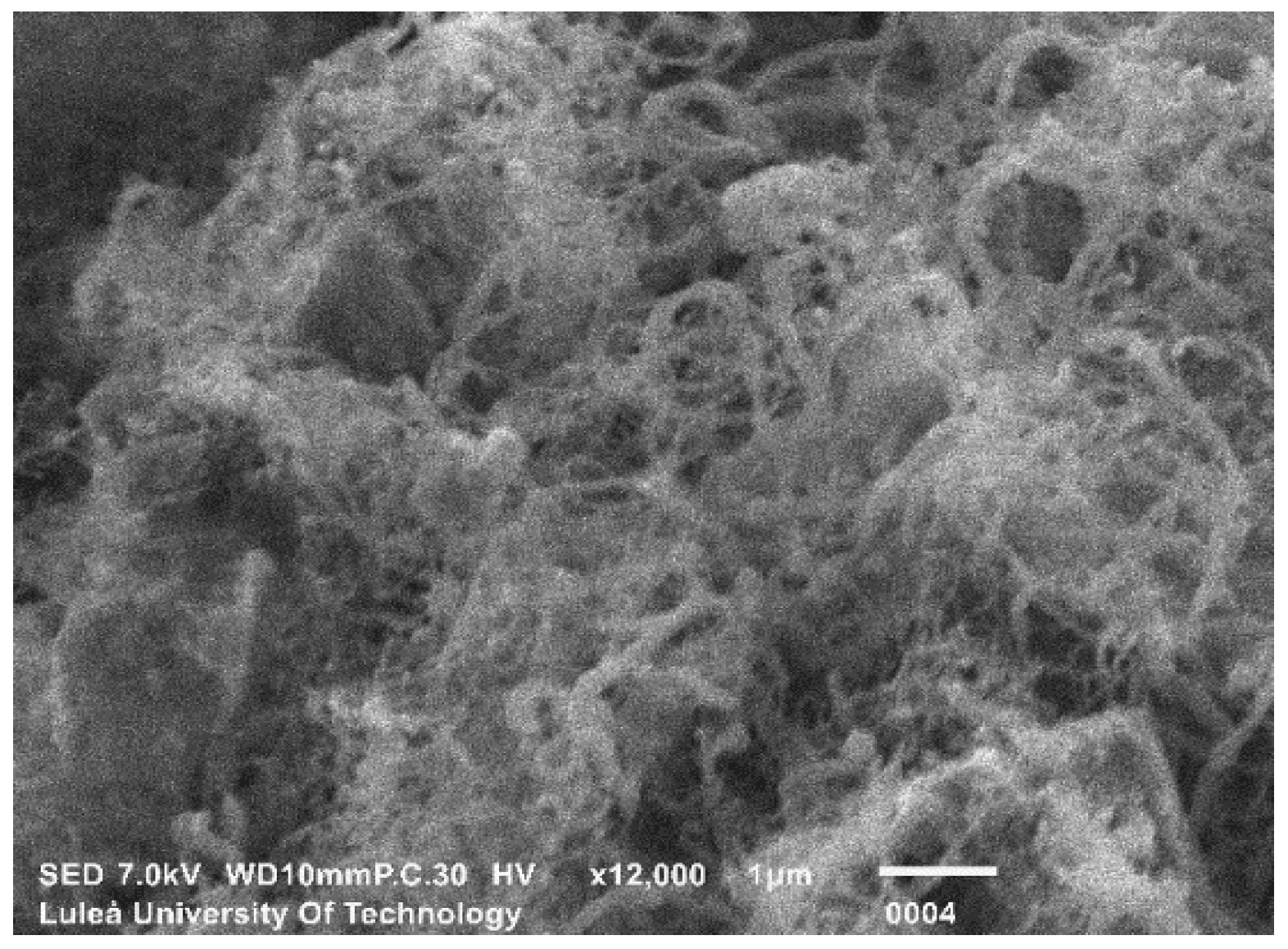

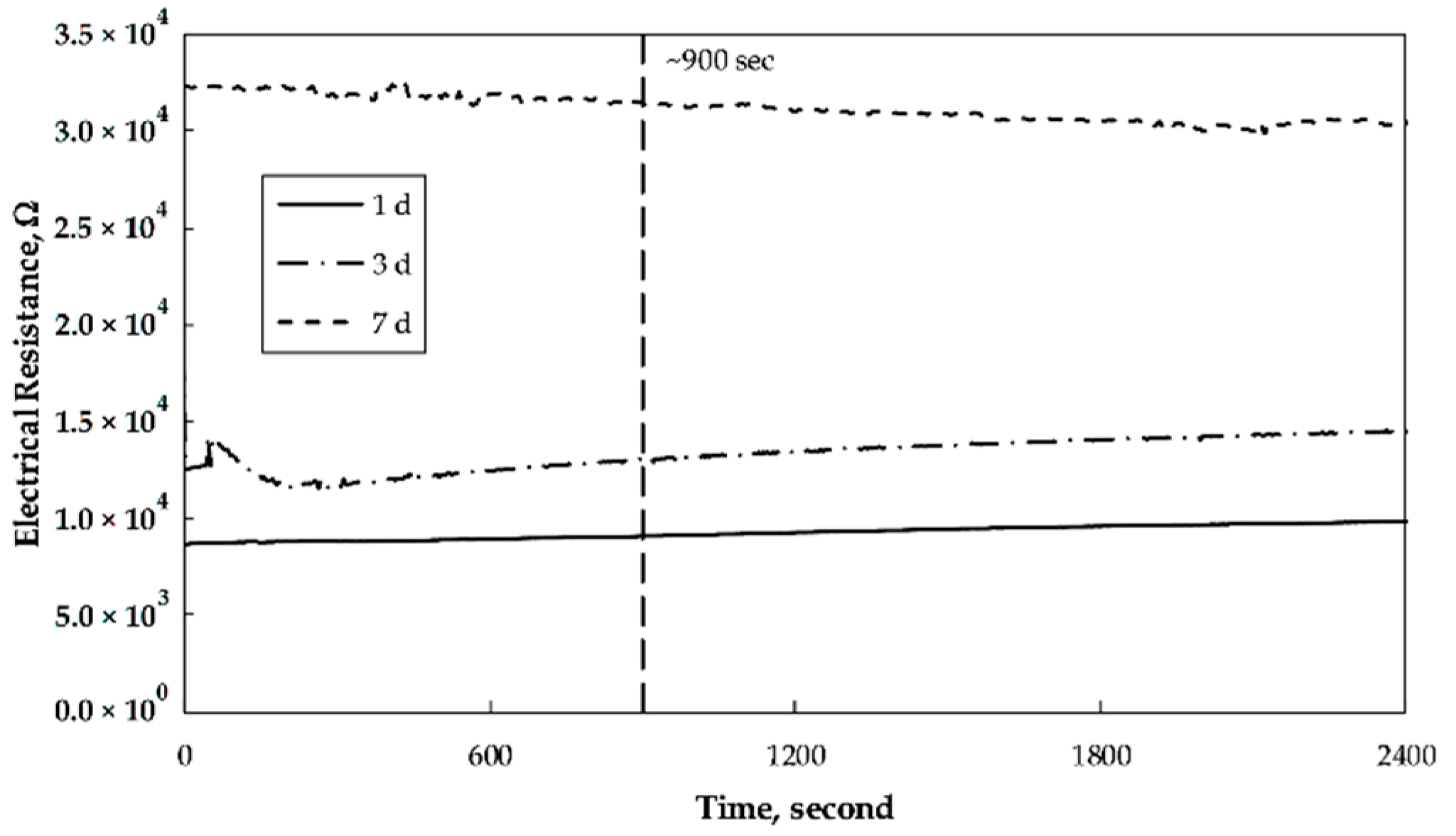

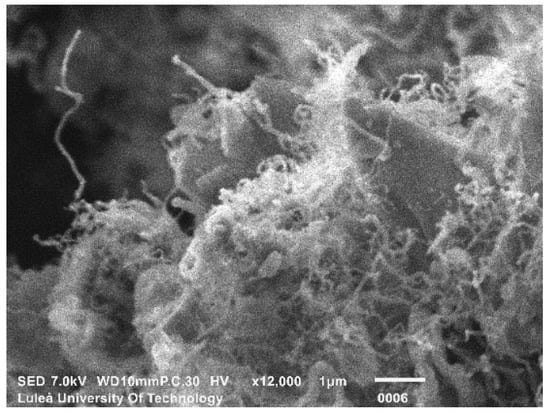

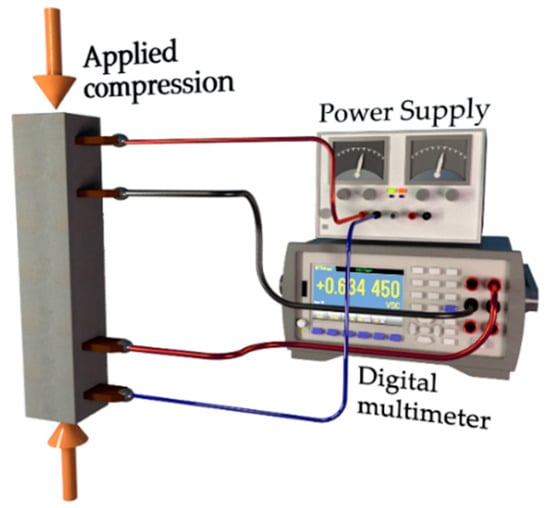

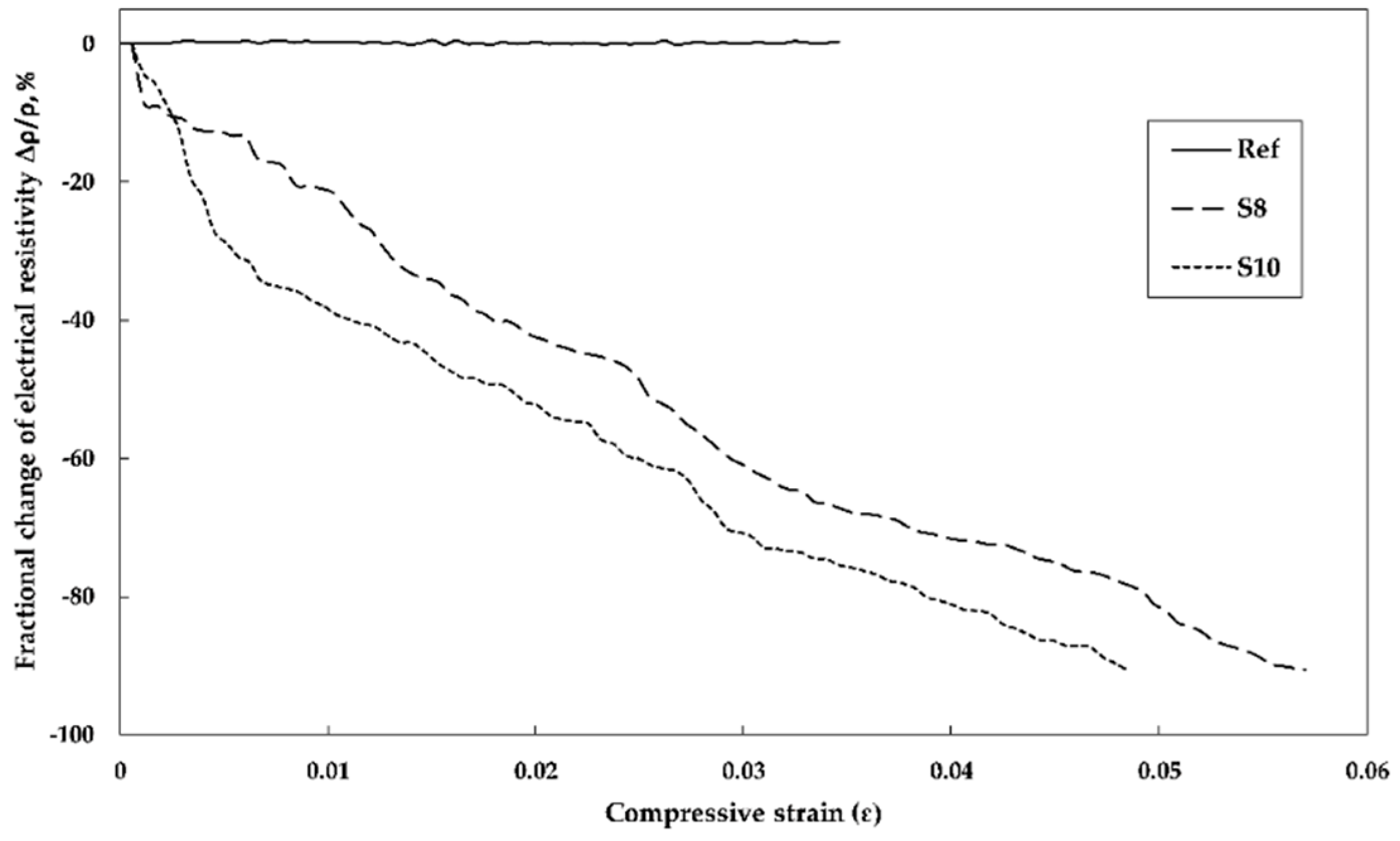

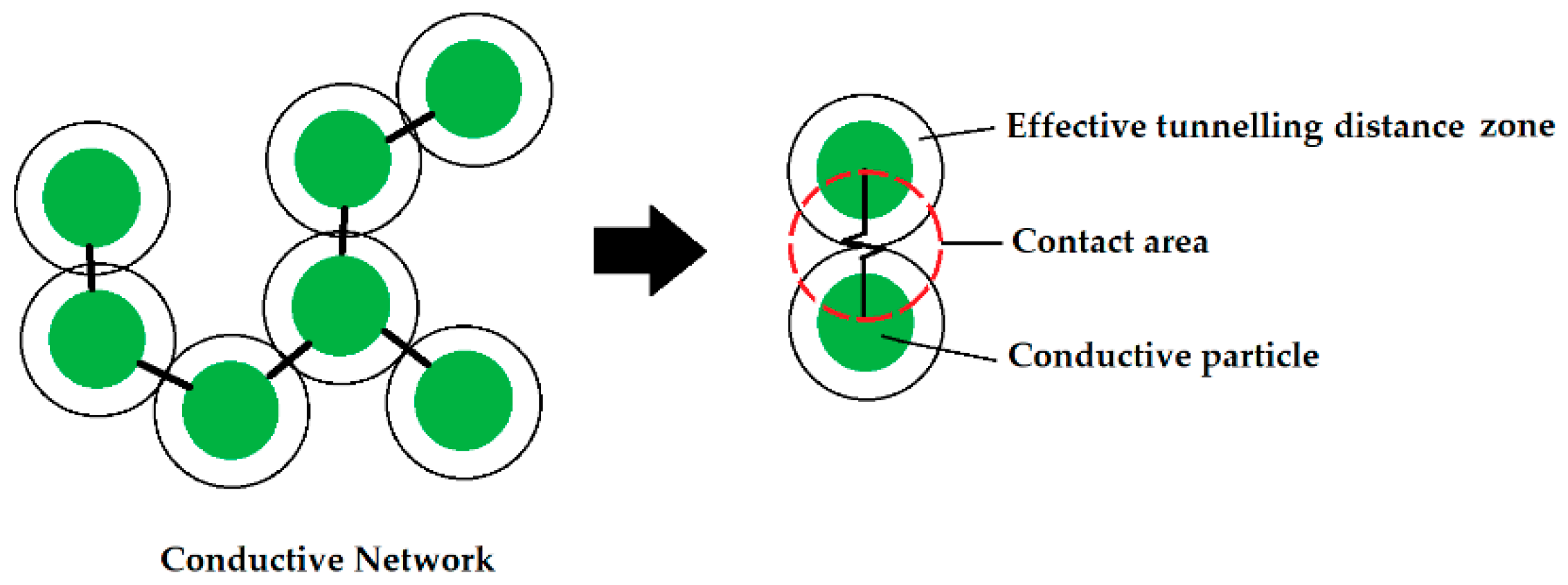

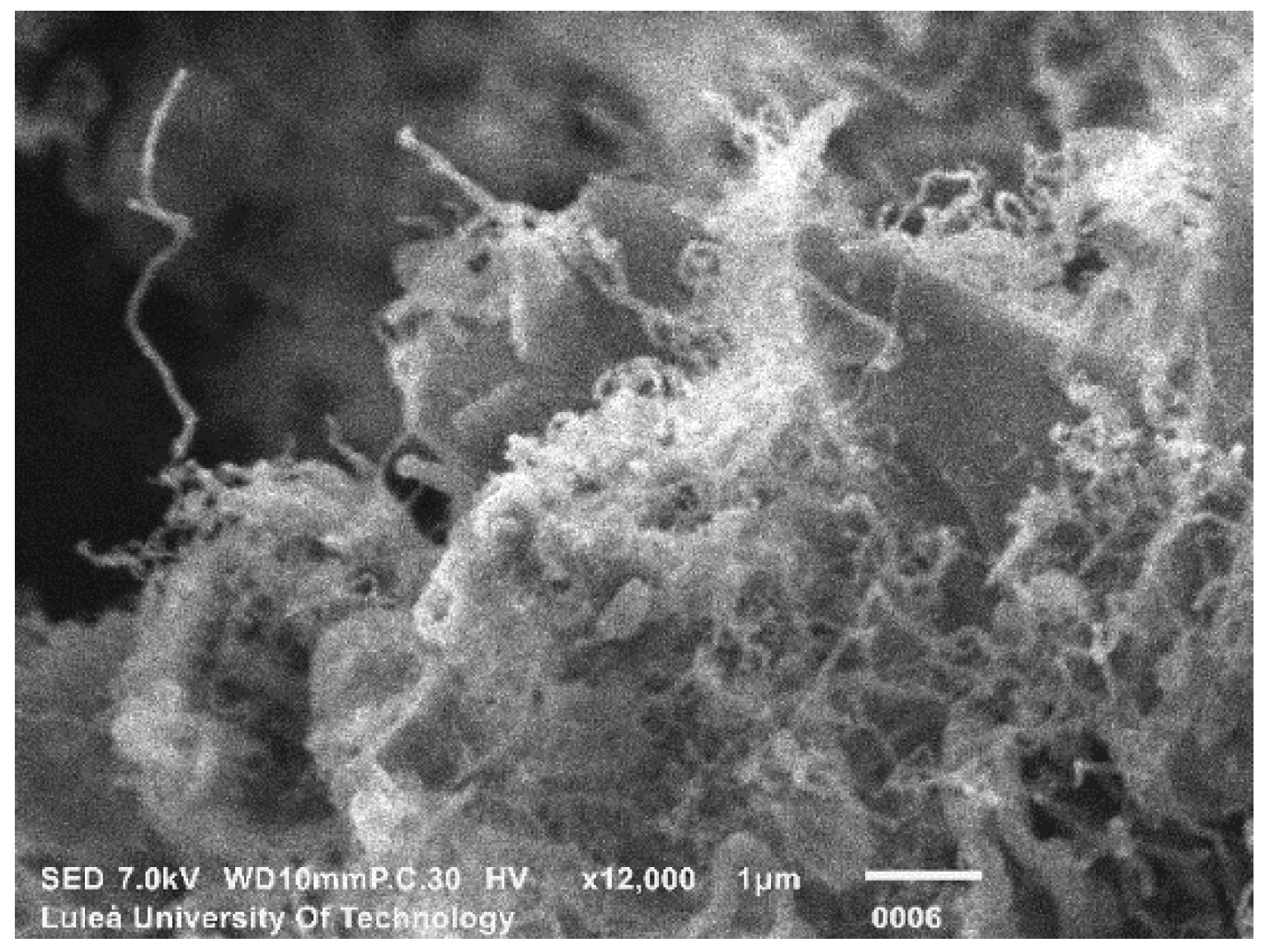

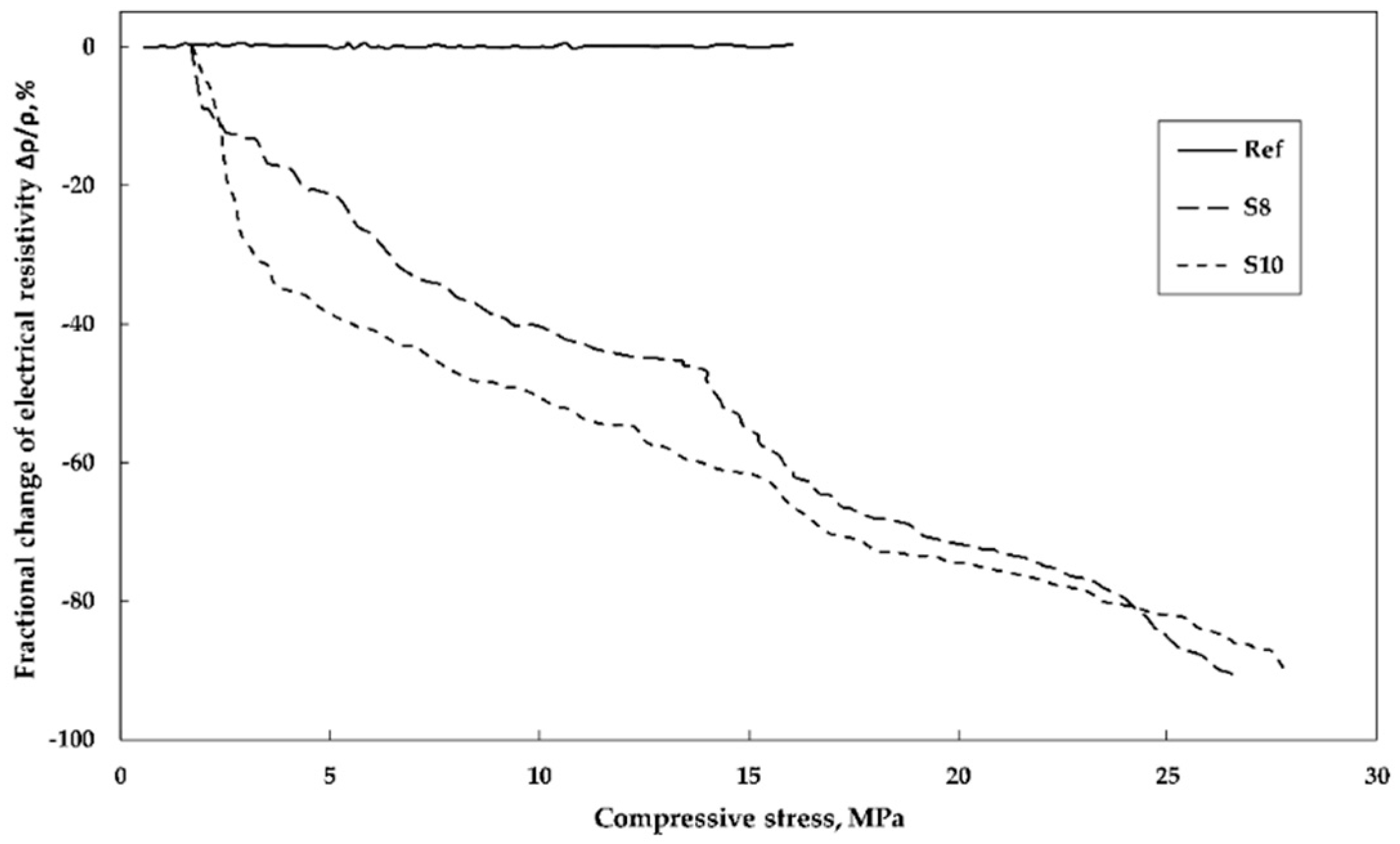

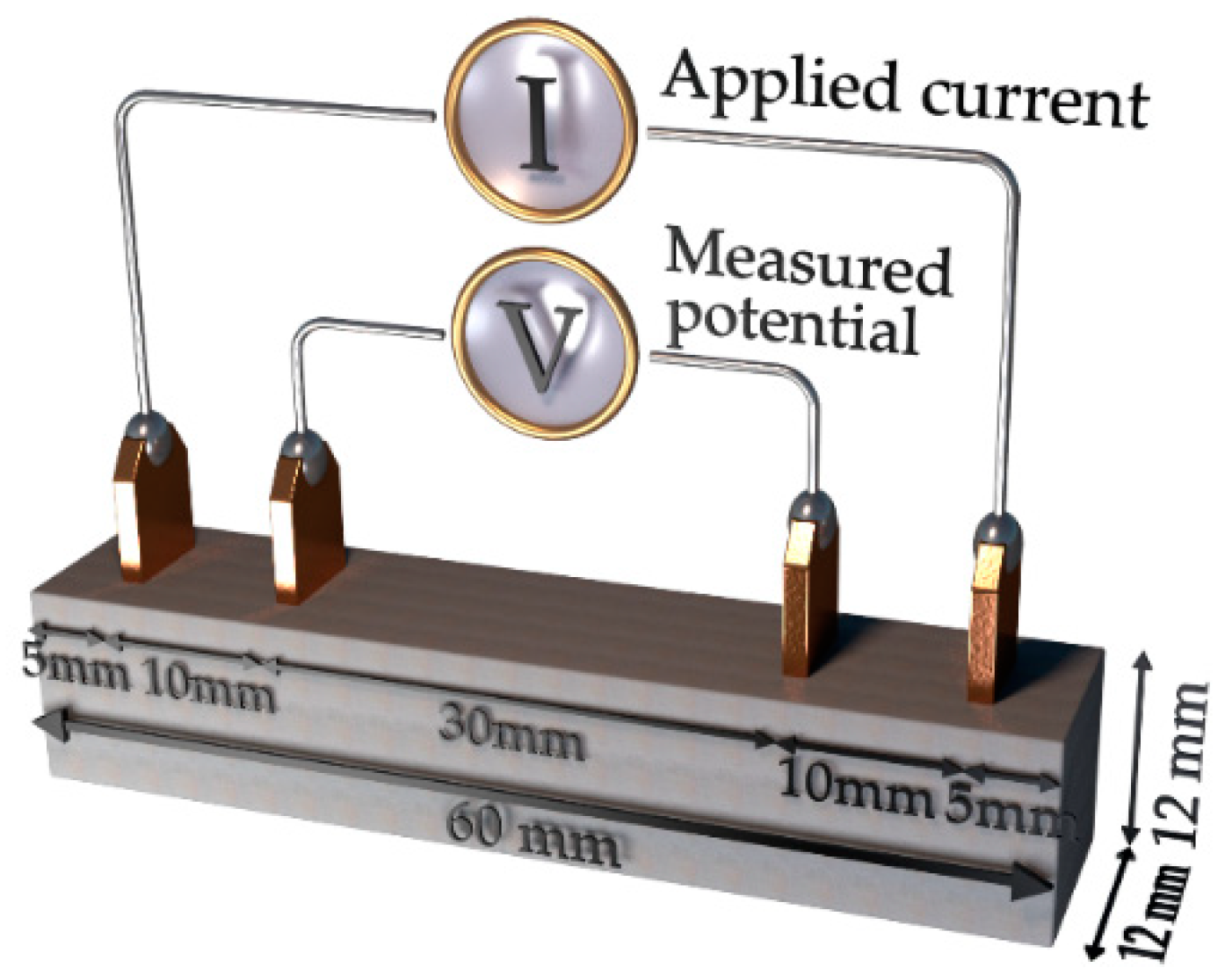

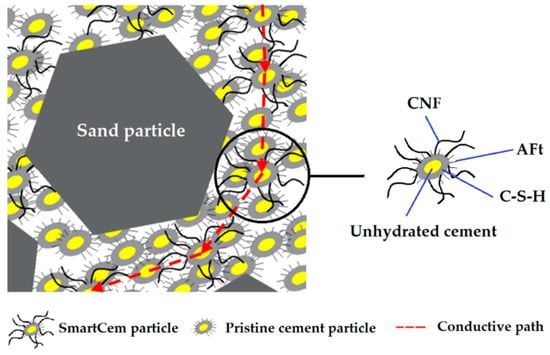

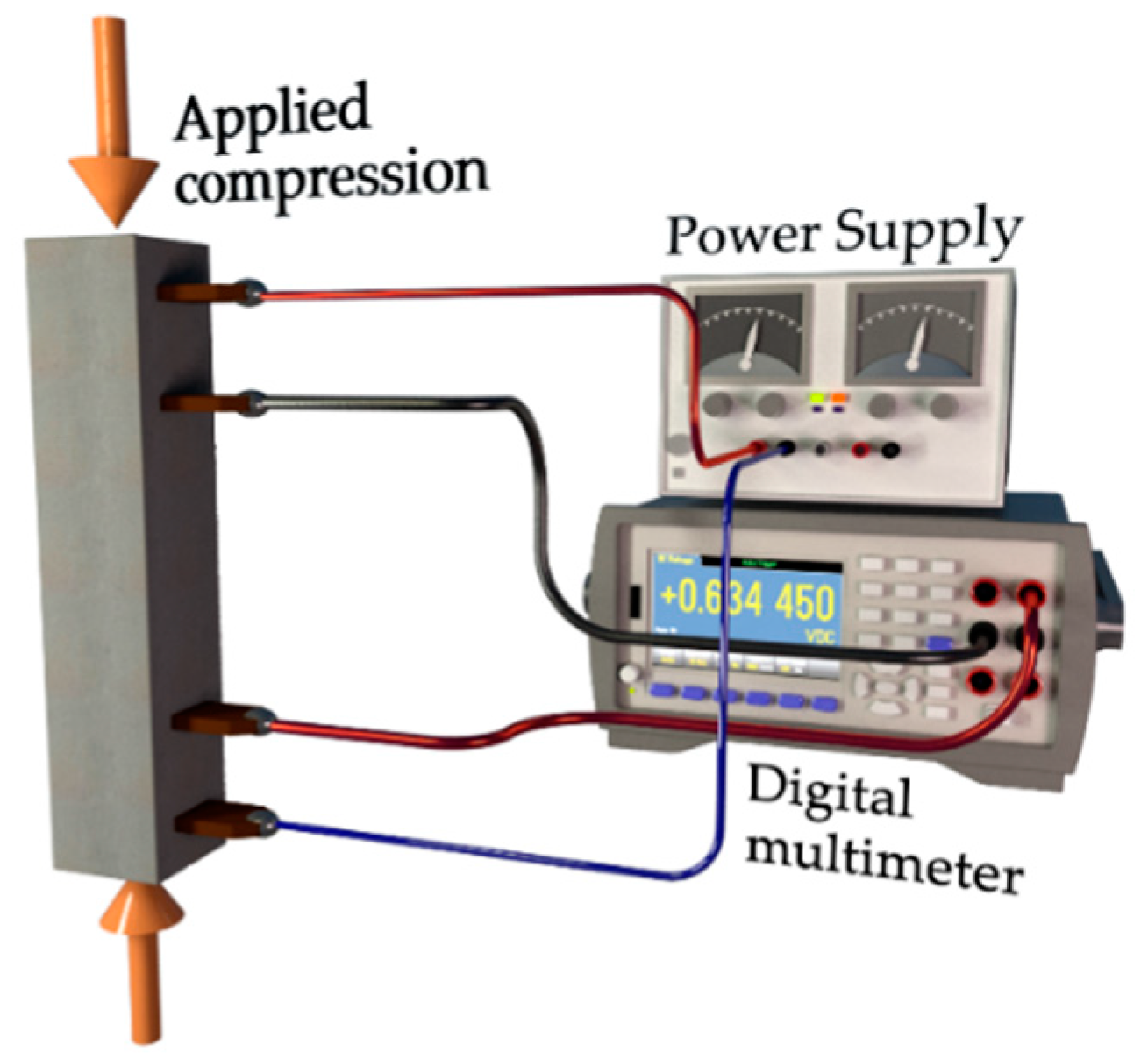

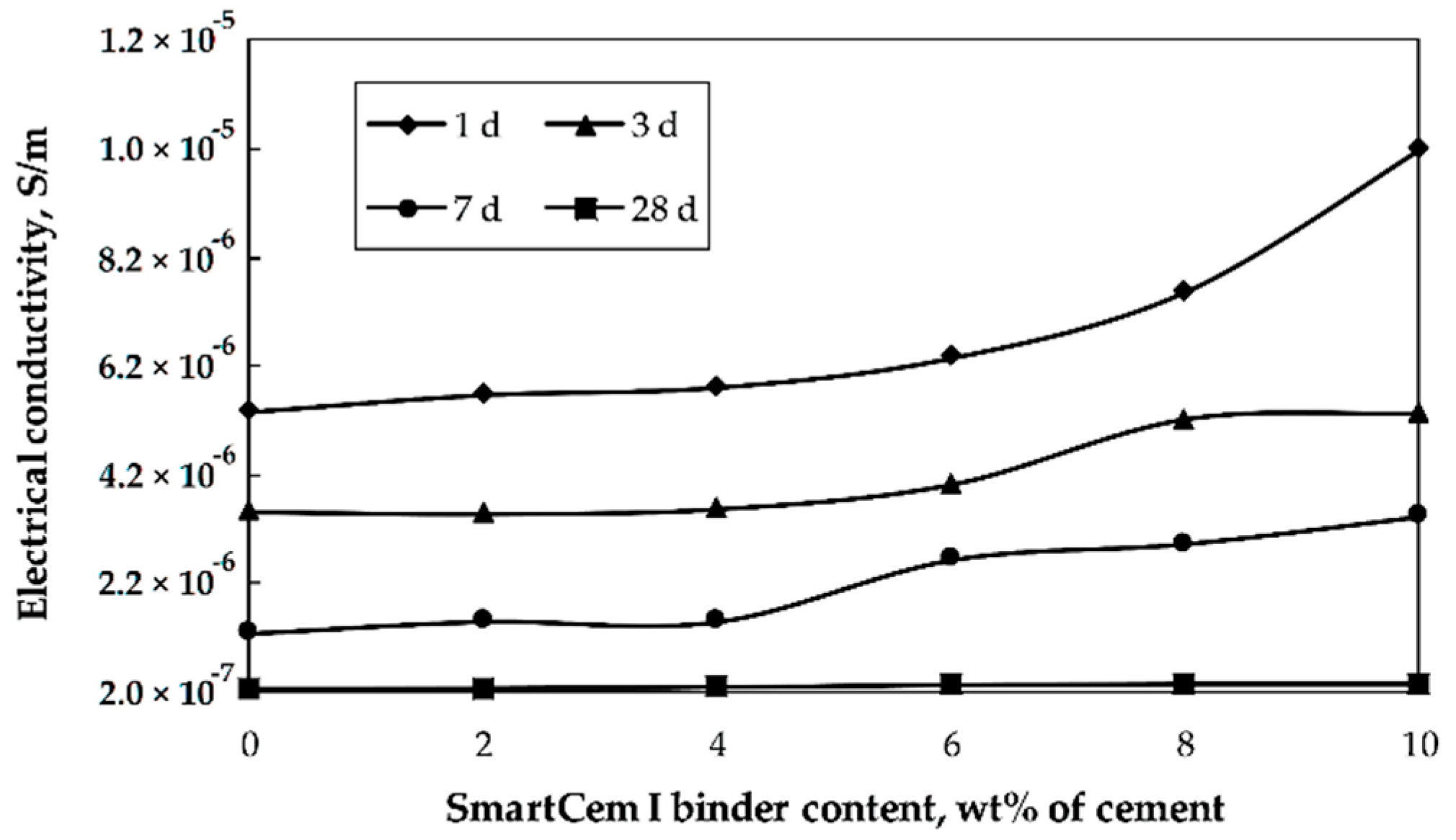

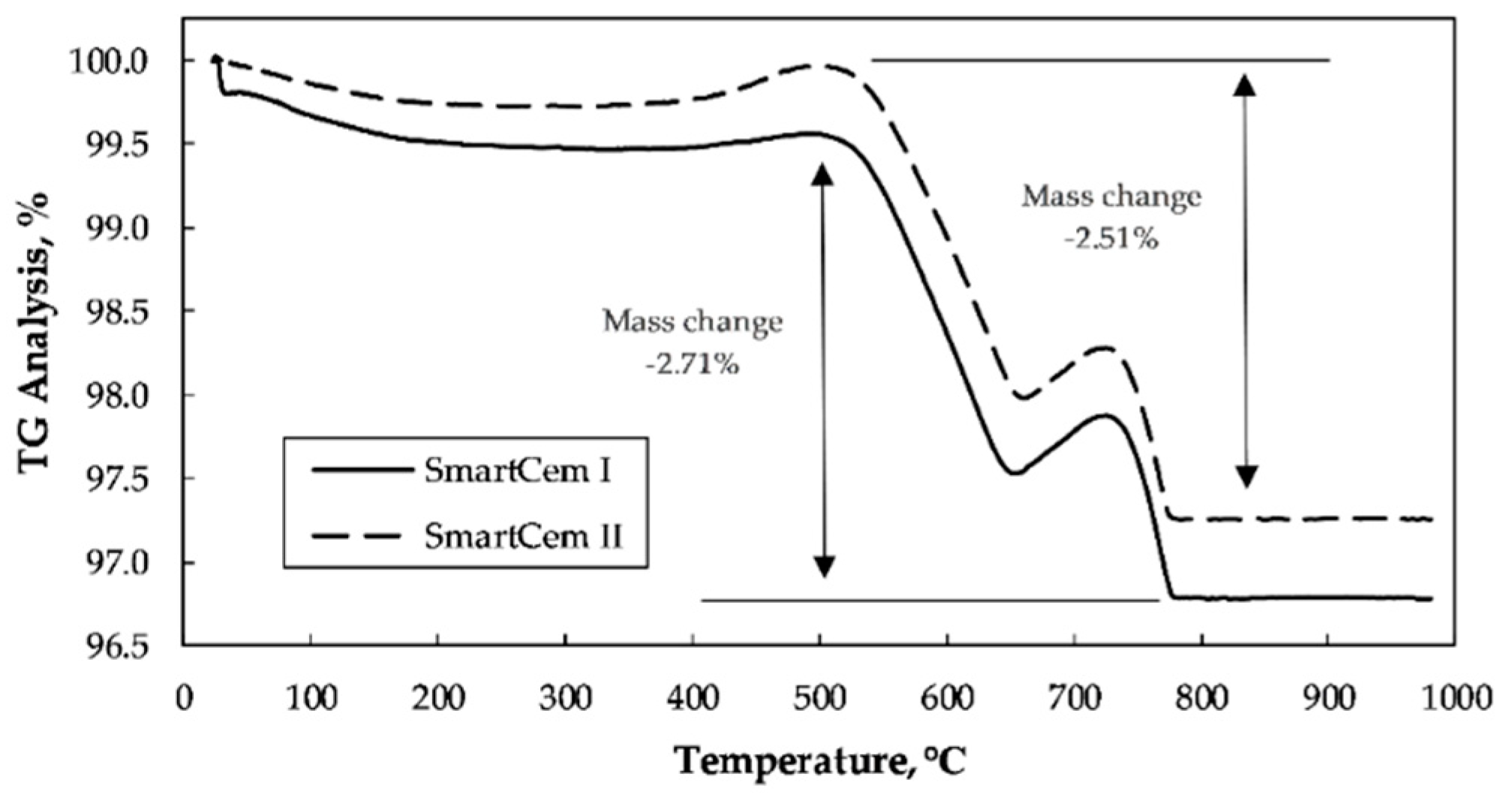

Carbon nanofibers (CNFs) were directly synthesized on Portland cement particles by chemical vapor deposition. The so-produced cements contained between 2.51–2.71 wt% of CNFs; depending on the production batch. Several mortar mixes containing between 0 and 10 wt% of the modified cement were produced and the electrical properties at various ages and the load sensing capabilities determined. The percolation threshold related to the electrical conductivity was detected and corresponded to the amount of the present CNFs, 0.271, 0.189, 0.135 and 0.108 wt%. The observed threshold depended on the degree of hydration of the Portland cement. The studied mortars showed a strong piezoresistive response to the applied compressive load reaching a 17% change of the electrical resistivity at an applied load of 3.5 MPa and 90% at 26 MPa. This initial study showed that the studied material is potentially suitable for future development of novel fully integrated monitoring systems for concrete structures. View Full-Text
Keywords: Carbon nanofibers; CVD; percolation; piezoresistive response; compressive load Carbon nanofibers; CVD; percolation; piezoresistive response; compressive load
Show Figures

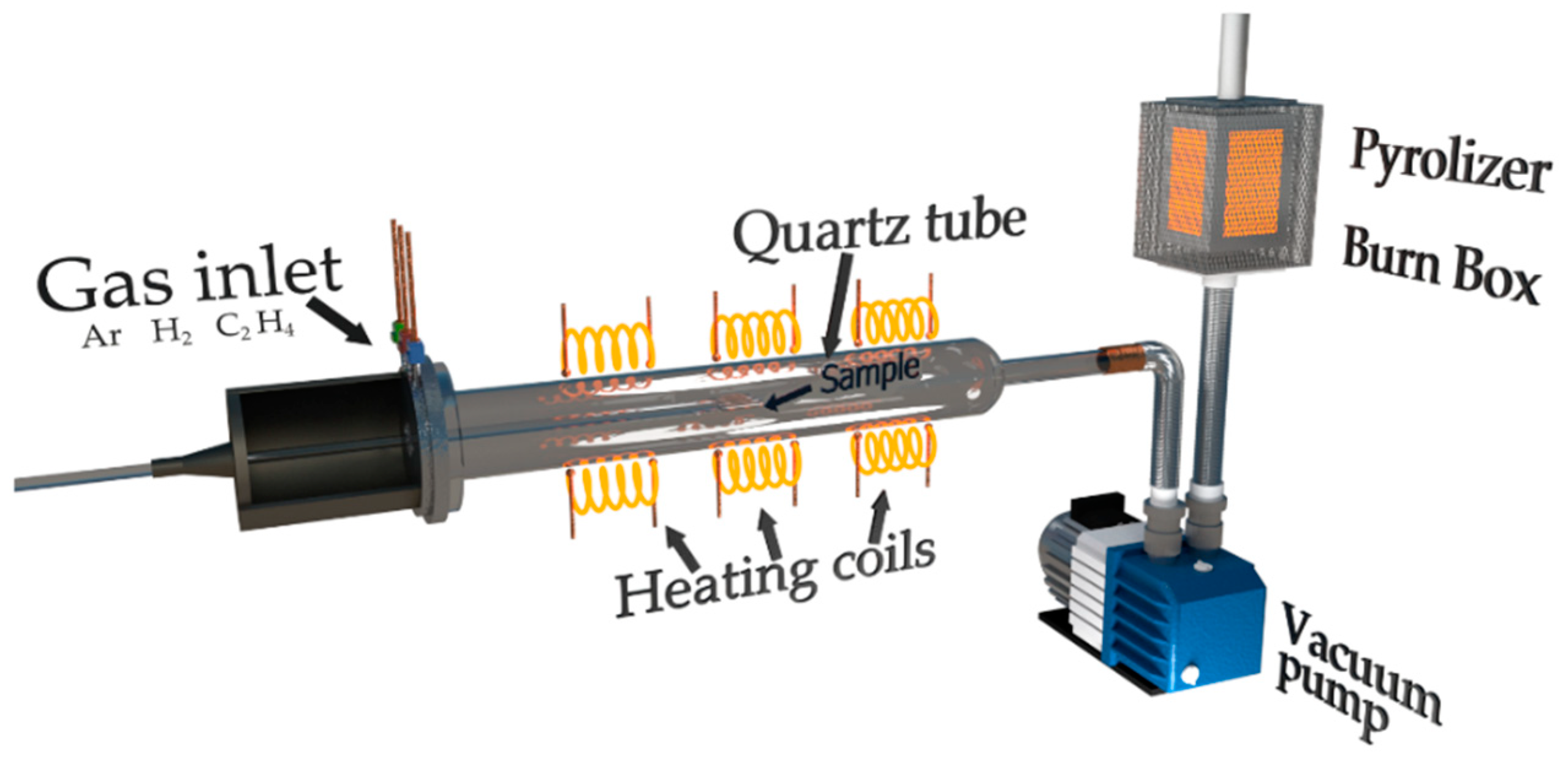

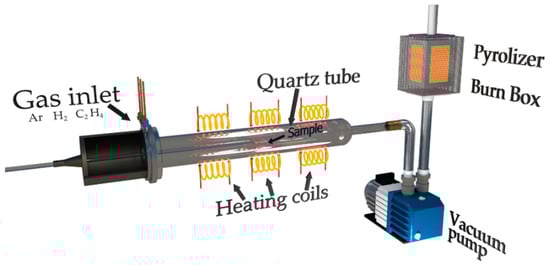

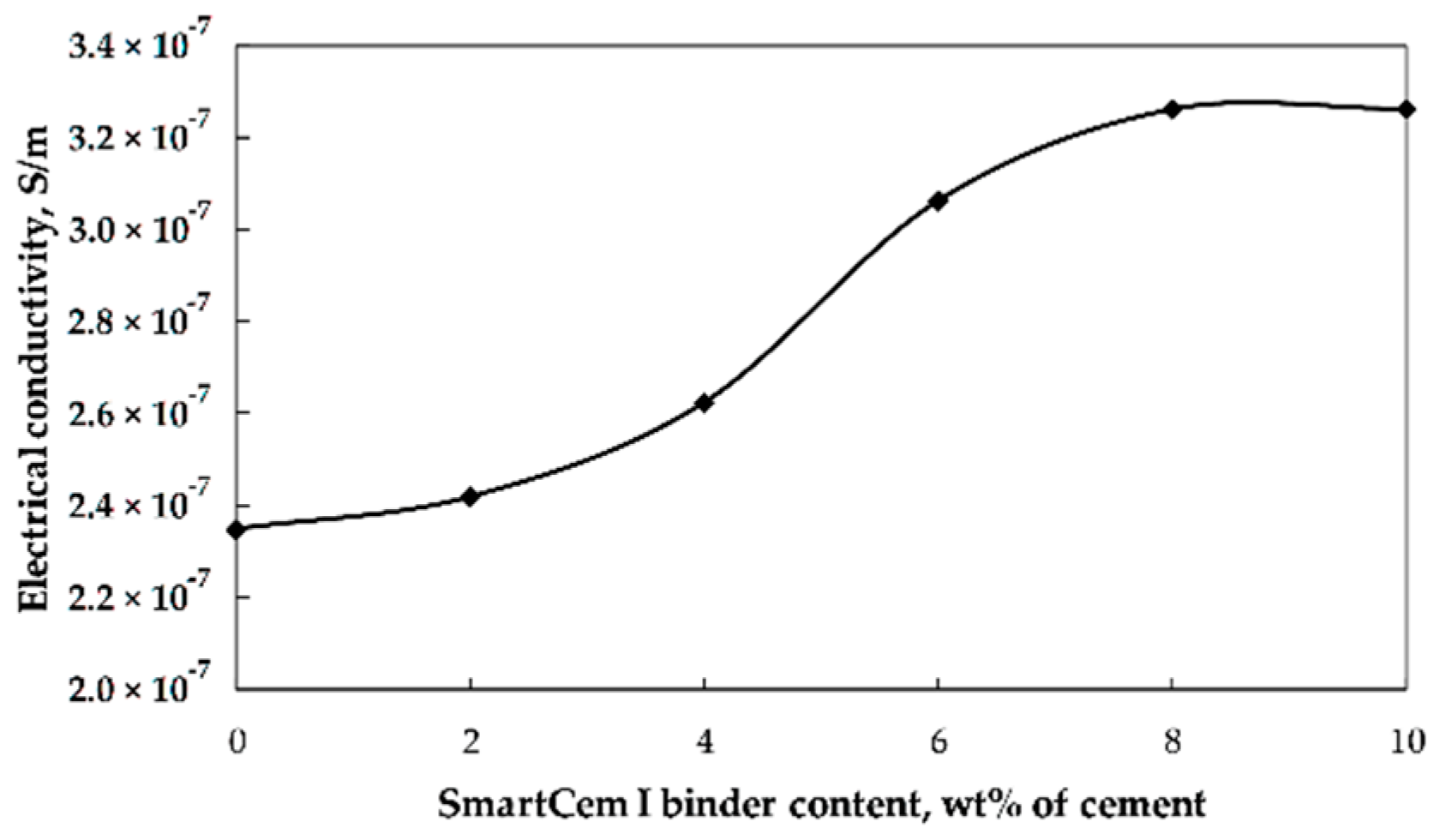

Figure 1

MDPI and ACS Style

Buasiri, T.; Habermehl-Cwirzen, K.; Krzeminski, L.; Cwirzen, A. Piezoresistive Load Sensing and Percolation Phenomena in Portland Cement Composite Modified with In-Situ Synthesized Carbon Nanofibers. Nanomaterials 2019, 9, 594. https://doi.org/10.3390/nano9040594

AMA Style

Buasiri T, Habermehl-Cwirzen K, Krzeminski L, Cwirzen A. Piezoresistive Load Sensing and Percolation Phenomena in Portland Cement Composite Modified with In-Situ Synthesized Carbon Nanofibers. Nanomaterials. 2019; 9(4):594. https://doi.org/10.3390/nano9040594

Chicago/Turabian Style

Buasiri, Thanyarat, Karin Habermehl-Cwirzen, Lukasz Krzeminski, and Andrzej Cwirzen. 2019. "Piezoresistive Load Sensing and Percolation Phenomena in Portland Cement Composite Modified with In-Situ Synthesized Carbon Nanofibers" Nanomaterials 9, no. 4: 594. https://doi.org/10.3390/nano9040594

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
