Open AccessArticle
Nanomaterials 2019, 9(4), 548; https://doi.org/10.3390/nano9040548

Impact of pH on Regulating Ion Encapsulation of Graphene Oxide Nanoscroll for Pressure Sensing

Key Laboratory of Flexible Electronics (KLOFE) & Institute of Advanced Materials (IAM), Nanjing Tech University, 30 South Puzhu Road, Nanjing 211816, China
*
Author to whom correspondence should be addressed.
Received: 2 March 2019 / Revised: 21 March 2019 / Accepted: 23 March 2019 / Published: 4 April 2019
(This article belongs to the Special Issue Layered Nano-Sheets: Synthesis and Applications)
  |
PDF [2198 KB, uploaded 4 April 2019]
  |

Abstract

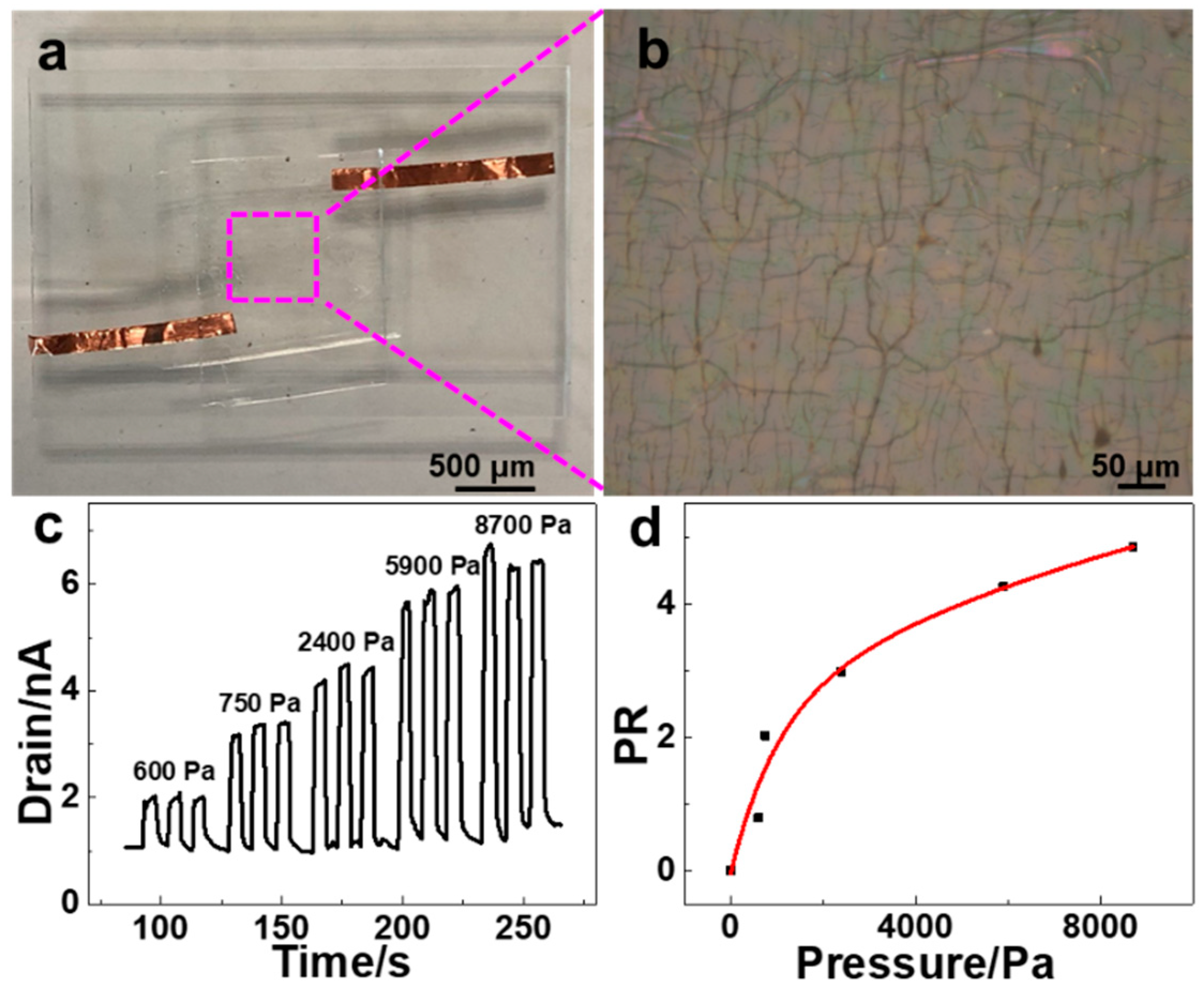

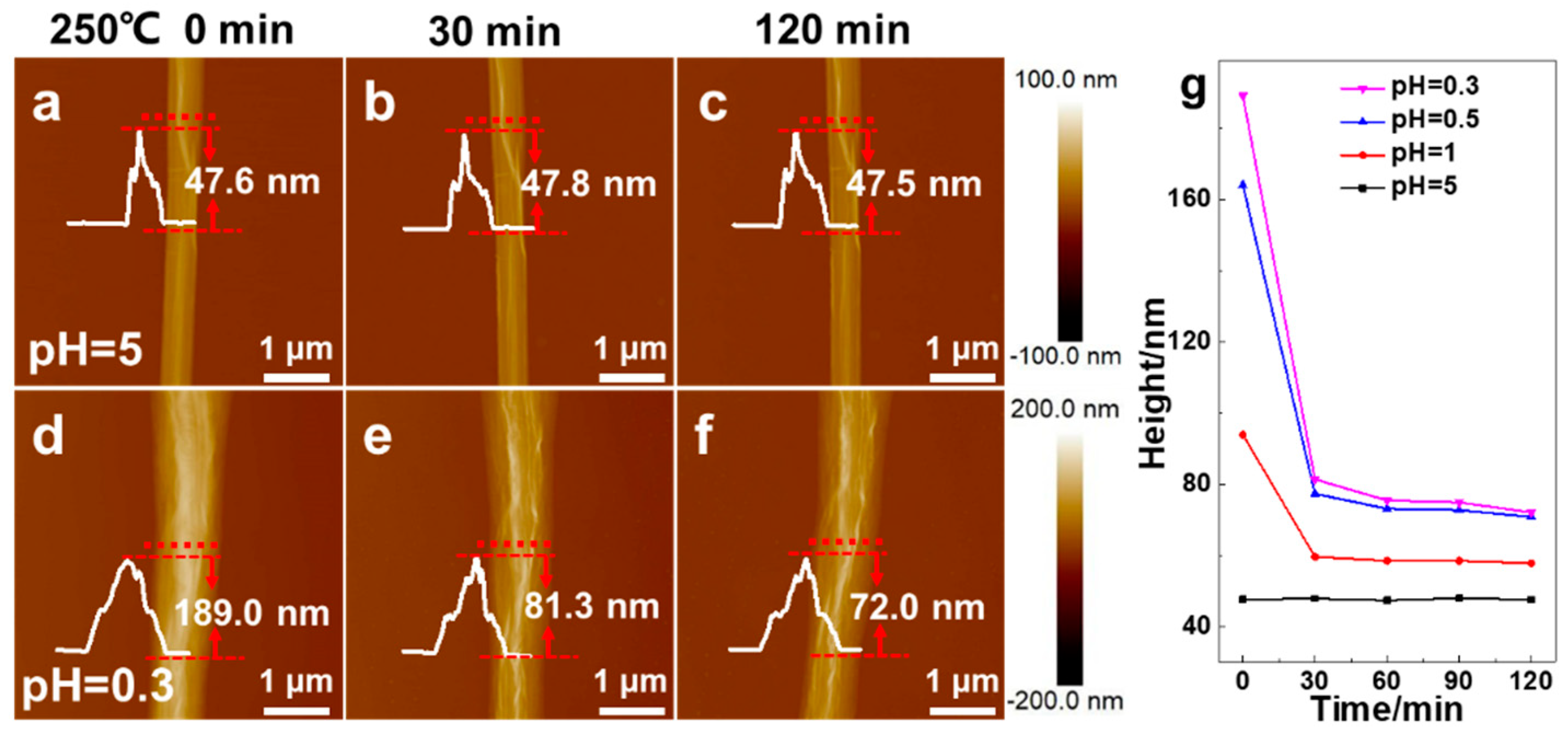

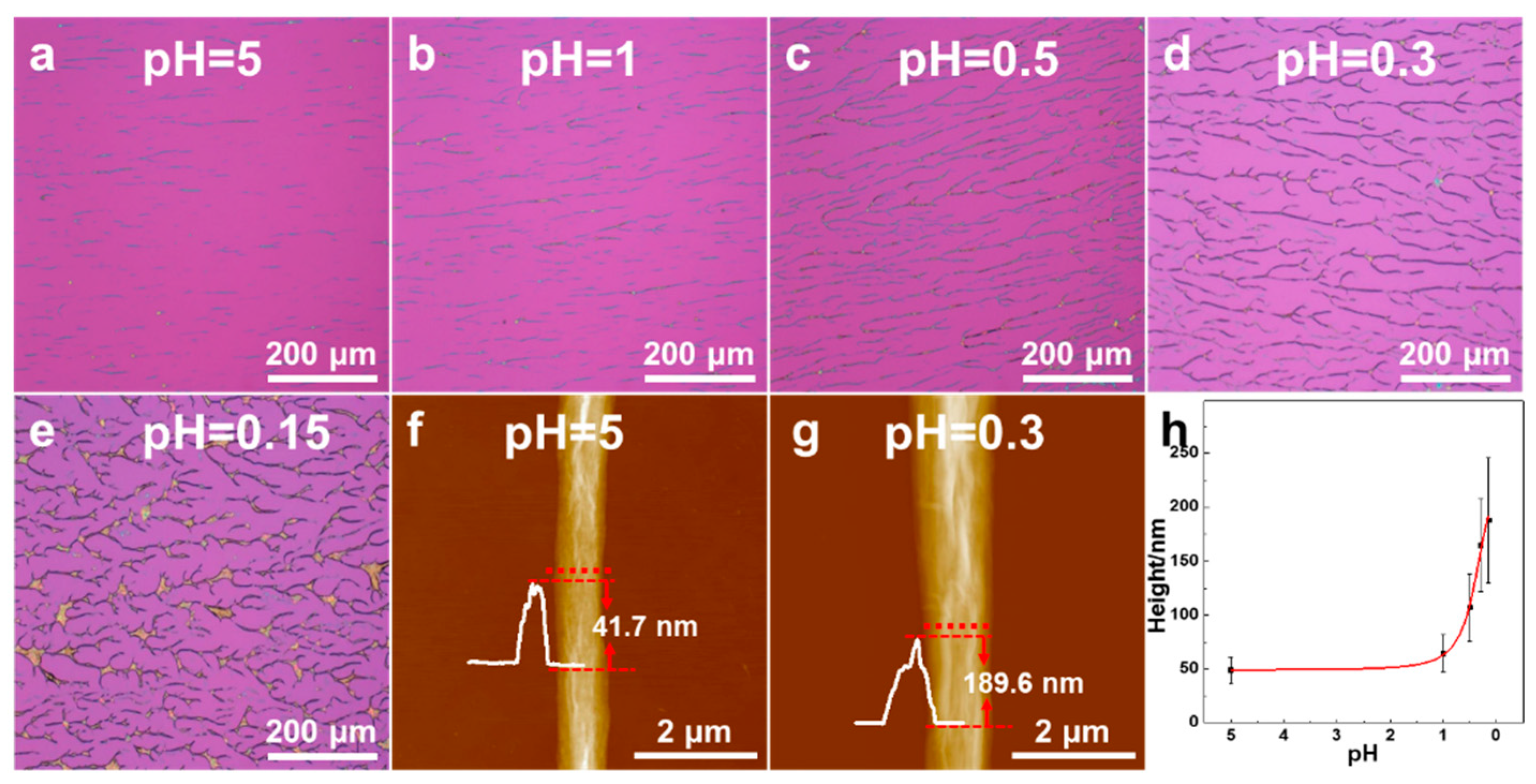

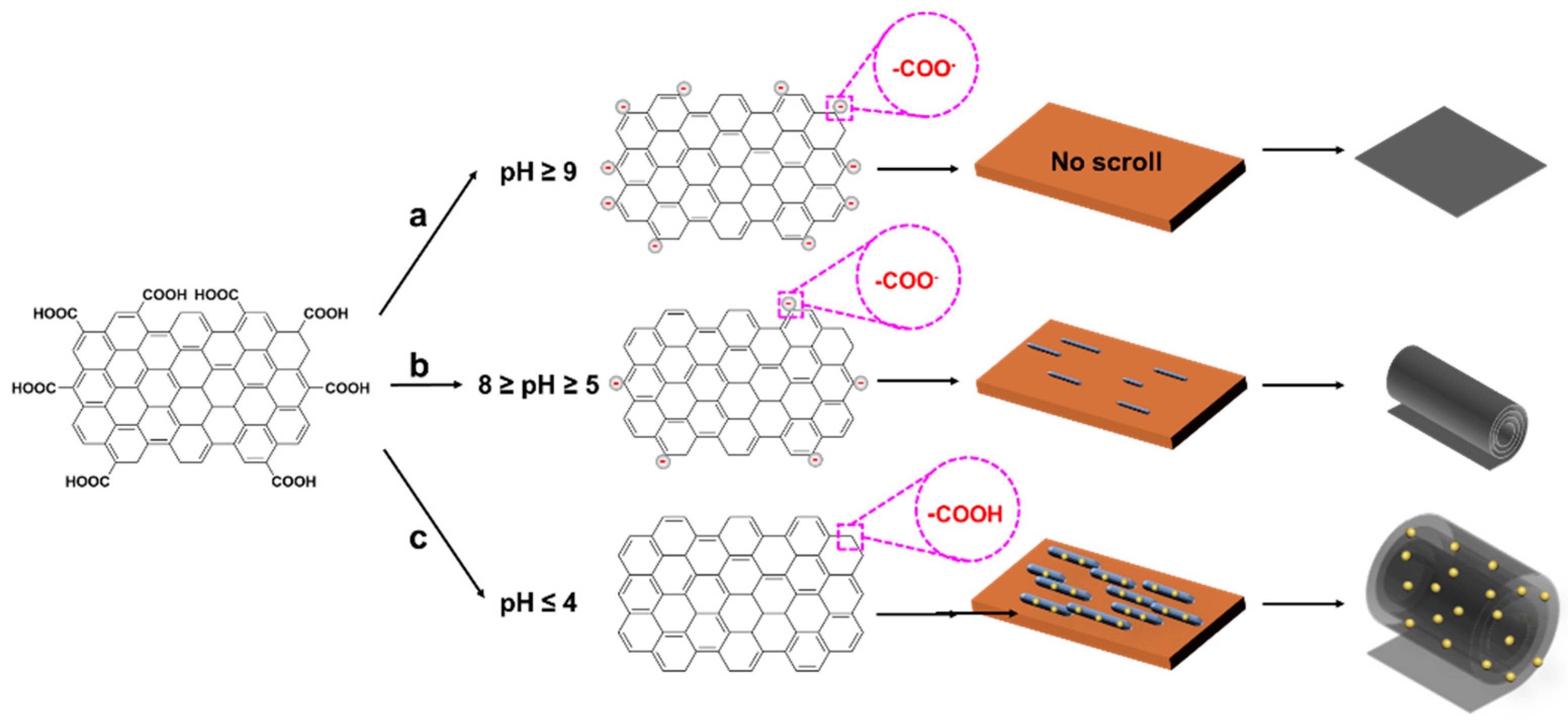

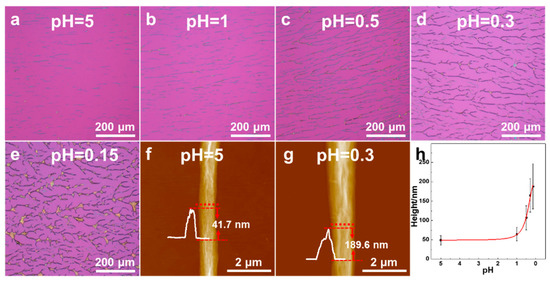

Recently, graphene oxide nanoscroll (GONS) has attracted much attention due to its excellent properties. Encapsulation of nanomaterials in GONS can greatly enhance its performance while ion encapsulation is still unexplored. Herein, various ions including hydronium ion (H3O+), Fe3+, Au3+, and Zn2+ were encapsulated in GONSs by molecular combing acidic graphene oxide (GO) solution. No GONS was obtained when the pH of the GO solution was greater than 9. A few GONSs without encapsulated ion were obtained at the pH of 5–8. When the pH decreased from 5 to 0.15, high-density GONSs with encapsulated ions were formed and the average height of GONS was increased from ~50 to ~190 nm. These results could be attributed to the varied repulsion between carboxylic acid groups located at the edges of GO nanosheets. Encapsulated metal ions were converted to nanoparticles in GONS after high-temperature annealing. The resistance-type device based on reduced GONS (rGONS) mesh with encapsulated H3O+ showed good response for applied pressure from 600 to 8700 Pa, which manifested much better performance compared with that of a device based on rGONS mesh without H3O+. View Full-Text
Keywords: graphene oxide nanoscroll; pH value; ion encapsulation; mesh structure; pressure sensing graphene oxide nanoscroll; pH value; ion encapsulation; mesh structure; pressure sensing
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
