Improved Electrochemical Hydrogen Peroxide Detection Using a Nickel(II) Phthalimide-Substituted Porphyrazine Combined with Various Carbon Nanomaterials

by
Amanda Leda
1,
Mina Hassani
2,
Tomasz Rebis
1,*,
Michal Falkowski
2,*,
Jaroslaw Piskorz
3,
Dariusz T. Mlynarczyk
4,
Peter McNeice
5 and
Grzegorz Milczarek
1
1
Institute of Chemistry and Technical Electrochemistry, Faculty of Chemical Technology, Poznan University of Technology, Berdychowo 4, 60-965 Poznan, Poland
2
Department of Medicinal Chemistry, Collegium Medicum in Bydgoszcz, Faculty of Pharmacy, Nicolaus Copernicus University in Torun, Dr. A. Jurasza 2, 85-089 Bydgoszcz, Poland
3
Chair and Department of Inorganic and Analytical Chemistry, Poznan University of Medical Sciences, Rokietnicka 3, 60-806 Poznan, Poland
4
Chair and Department of Chemical Technology of Drugs, Poznan University of Medical Sciences, Grunwaldzka 6, 60-780 Poznan, Poland
5
Faculty of Science and Engineering, Synthetic Organic Chemistry—Stratingh Institute of Chemistry and Chemical Building Blocks Consortium (CBBC), Nijenborgh 4, 9747 AG Groningen, The Netherlands
*
Authors to whom correspondence should be addressed.
Nanomaterials 2023, 13(5), 862; https://doi.org/10.3390/nano13050862
Submission received: 3 February 2023 / Revised: 16 February 2023 / Accepted: 23 February 2023 / Published: 25 February 2023
(This article belongs to the Special Issue Synthesis of Functionalized Carbon Nanostructures and Their Electrochemical Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
A metal-free porphyrazine derivative with peripheral phthalimide substituents was metallated with a nickel(II) ion. The purity of the nickel macrocycle was confirmed using HPLC, and characterized by MS, UV–VIS, and 1D (1H, 13C) and 2D (1H–13C HSQC, 1H–13C HMBC, 1H–1H COSY) NMR techniques. The novel porphyrazine was combined with various carbon nanomaterials, such as carbon nanotubes—single walled (SWCNTs) and multi-walled (MWCNTs), and electrochemically reduced graphene oxide (rGO), to create hybrid electroactive electrode materials. The carbon nanomaterials’ effect on the electrocatalytic properties of nickel(II) cations was compared. As a result, an extensive electrochemical characterization of the synthesized metallated porphyrazine derivative on various carbon nanostructures was carried out using cyclic voltammetry (CV), chronoamperometry (CA), and electrochemical impedance spectroscopy (EIS). An electrode modified with carbon nanomaterials GC/MWCNTs, GC/SWCNTs, or GC/rGO, respectively, was shown to have a lower overpotential than a bare glassy carbon electrode (GC), allowing for the measurement of hydrogen peroxide in neutral conditions (pH 7.4). It was shown that among the tested carbon nanomaterials, the modified electrode GC/MWCNTs/Pz3 exhibited the best electrocatalytic properties in the direction of hydrogen peroxide oxidation/reduction. The prepared sensor was determined to enable a linear response to H2O2 in concentrations ranging between 20–1200 µM with the detection limit of 18.57 µM and sensitivity of 14.18 µA mM−1 cm−2. As a result of this research, the sensors produced here may find use in biomedical and environmental applications.

1. Introduction

Hydrogen peroxide is a molecule that has gained a lot of attention due to its significant role in biological signaling and as a side product of some of the oxidative processes in cell metabolism [1]. It is also an important factor in industry and manufacturing, including textiles, foodstuffs, and mining [2]. Hydrogen peroxide can be detected and monitored by a series of methods: spectral analysis, colorimetry, fluorescence and luminescence analyses, and various chromatographic, titrimetric, and electrochemical methods [3,4]. Among these methods, electrochemical sensing offers certain advantages, such as a low manufacturing cost of the sensors and high sensitivity and selectivity. Unfortunately, current sensors often suffer from slow kinetics and are vulnerable to interference induced by other electroactive substances in real-life samples. Hence, the development of functional hybrid nanomaterials for the determination of hydrogen peroxide is a challenging task.
Many macrocyclic compounds have been tested for their ability to modify sensors. A comparison between different phthalocyanine complexes showed that a Ni(II)-based complex was sensitive to vapor phase electron donor sensing [5], and NiPc was confirmed to be an efficient component in devices detecting biologically important molecules [6,7]. Although the electrochemical properties of nickel(II)-containing porphyrazines (Pzs), especially sulfanyl porphyrazines, are promising, they are rarely studied [8,9]. Porphyrazines are tetrapyrrolic molecules that offer unique spectral, biological, and electrochemical features [10]. Among them, sulfanyl porphyrazines were found in recent years to exhibit interesting optical [11], photochemical [12,13], photocatalytic [14,15,16], biological [17,18,19], and electronic properties [20,21]. Their advantages include a relative ease of preparation, good solubility, and electrochemical activity [22,23]. As for the latter, porphyrinoids are well-known as potent electrocatalysts suitable for the electrochemical determination of many compounds and molecules, including H2O2, dopamine, and L-cysteine, which are known to be important for the proper functioning of the human body [24,25,26]. The aforementioned electrocatalytic features are strongly related to the metal ion in the central cavity of the macrocycle (e.g., Mn, Co, Fe, Ni). Various porphyrinoids can be covalently linked or immobilized on the surface of carbon nanostructures, including SWCNTs, MWCNTs, or graphene layers. An effective and simple strategy to boost the electrocatalytic properties of carbon nanomaterials is the non-covalent (adsorptive) attachment of a porphyrinoid macrocycle. The π-conjugative structure of carbon-based nanomaterials facilitates its interaction with porphyrinoids due to the strong π–π electronic interactions.
Taking all the above into account, the aim of this study was to fabricate an amperometric sensor for hydrogen peroxide detection. This was achieved by synthesizing a Ni(II) complex of a phthalimide-decorated sulfanyl porphyrazine, which was used to modify the electrode alongside different carbon nanomaterials, including multi-walled carbon nanotubes, single-walled carbon nanotubes, and reduced graphene oxide, among others. Based on the obtained electrochemical data, the developed sensor seems to be a promising candidate for potential biological hydrogen peroxide sensing. The proposed hybrid nanomaterials can be considered as a long-term and prospective platform for electrocatalytic hydrogen peroxide determination.

2. Materials and Methods

2.1. Synthetic Procedure for the Preparation of Metallated Porphyrazine

2,3,7,8,12,13,17,18-Octakis[(N-ethylphthalimide)thio]porphyrazinato magnesium(II) (Pz1) and 2,3,7,8,12,13,17,18-octakis[(N-ethylphthalimide)thio]porphyrazine (Pz2) were synthesized following an earlier reported procedure [27].
2,3,7,8,12,13,17,18-Octakis[(N-ethylphthalimide)thio]porphyrazinato nickel(II) (Pz3)
Nickel(II) acetate tetrahydrate (76 mg, 0.305 mmol) and Pz2 (120 mg, 0.061 mmol) were stirred in N,N-dimethylformamide (DMF, 15 mL) at 75 °C for 24 h. Next, after cooling to room temperature, the reaction mixture was filtered through Celite and washed with dichloromethane (150 mL). The combined filtrates were evaporated to dryness, and a dark blue residue was subjected to column chromatography: first, in the normal phase (eluents: dichloromethane/methanol, 100:1 to 20:1, v/v); then, on alumina (eluents: methanol, then methanol/dichloromethane 9:1 to 1:1, v/v) to give compound Pz3 as a dark blue film (20 mg, 16% yield). Rf (dichloromethane/methanol, 100:1, v/v) 0.15. UV–VIS (dichloromethane) λmax nm (log ε) 303 (4.54), 352 (4.56), 667 (4.58). 1H NMR (400 MHz, CDCl3) δ, ppm: 7.27 (dd, J = 5.5, 3.0 Hz; C2, C5, ArH), 7.12 (dd, J = 5.5, 3.0 Hz; 16H, C3, C4, ArH), 4.34 (t, J = 6.5 Hz, 16H, SCH2), 4.19 (t, J = 6.5 Hz, 16H, NCH2). 13C NMR (100 MHz, CDCl3) δ, ppm: 167.8 (C=O), 148.6 (C2, C4, pyrrole C), 140.5 (C2, C3, pyrrole C), 133.7 (C3, C4, ArC), 131.5 (C1, C6, ArC), 122.9 (C2, C5, ArC), 38.3 (NCH2), 32.0 (SCH2). MS (MALDI) m/z: found 2011.1876, [M+H]+ C96H65N16NiO16S8 requires 2011.1878. HPLC purity 98.5–100.0% (see Supplementary Materials).

2.2. Fabrication of GC/MWCNTs, GC/MWCNTs/Pz3, GC/SWCNTs, GC/SWCNTs/Pz3, GC/rGO, and GC/rGO/Pz3 Modified Electrodes

All materials and reagents used for the electrochemical testing are described in detail in the Supplementary Materials, which also includes information about the apparatus and electrodes.
Prior to each electrochemical experiment, the GC electrode was polished on a polishing cloth with an aqueous suspension of Al2O3 (Buehler, 50 nm average diameter), and any impurities were subsequently removed using an ultrasonic bath containing an acetone/water solution (1:1, v/v). Afterwards, the cleaned surface of the GC electrode was drop-cast with 2 μL of either MWCNTs or SWCNTs dispersion (1 mg mL−1 in DMF), followed by oven-drying of the electrode at 60 °C until the solvent evaporated. In the case of the graphene oxide-modified electrode, initially 2 µL of the graphene oxide aqueous dispersion were drop-cast onto the electrode surface and evaporated under the same conditions. Then graphene oxide (GO) was electrochemically reduced to reduced graphene oxide (rGO) in a KH2PO4/K2HPO4 buffer (pH 7.4) in the potential ranging from 0.4 to −1.3 V (scanning rate 50 mV s−1). The electrochemical reduction of GO to rGO on the surface of the GC electrode is shown in Figure S4. The resulting GC/MWCNTs, GC/SWCNTs, and GC/rGO electrodes were dipped into the Pz3 solution in dichloromethane (1 mg mL−1). The porphyrazines were non-covalently immobilized by soaking the respective electrodes in the Pz3 solution. All electrodes were positioned in the desired electrolyte to conduct electrochemical testing. The glass cell holding the electrolyte was deoxygenated prior to the experiments with N2 gas. All electrochemical tests were performed at room temperature (around 25 °C).

3. Results and Discussion

3.1. Synthesis and Physicochemical Characterization

Phthalimide-substituted magnesium(II) Pz (1) and its metal-free derivative (2) were prepared using a previously reported three-step synthetic pathway [27]. Next, by modifying a procedure from the literature [28], a Ni2+ cation was introduced into the Pz2 macrocyclic core by heating Pz2 and nickel(II) acetate tetrahydrate in DMF, which led to the formation of nickel(II) symmetrical porphyrazine Pz3 (Scheme 1). The compounds obtained were isolated chromatographically and their properties evaluated by spectral methods—mass spectrometry and UV–VIS spectroscopy. NMR experiments were performed to confirm the structure of Pz3. The 1H and 13C NMR resonances were unambiguously assigned using a combination of one-dimensional (1H, 13C) and two-dimensional (1H–13C HSQC, 1H–13C HMBC and 1H–1H COSY) experiments. A detailed analysis of the NMR spectra can be found in Figures S1–S3 and Table S1. The signals at 4.34 ppm were assigned to the SCH2 groups based on their correlation with the C2 and C3 pyrrole carbons at 140.5 ppm in the 1H–13C HMBC spectrum. The correlations between carbonyl carbon signals at 167.8 ppm and hydrogen atom signals at 4.19 ppm and 7.27 ppm allowed to assign the NCH2 hydrogen atoms of the ethylsulfanyl linker and phthalimide protons, respectively. The identification of aromatic proton resonances of the phthalimide moieties, as well as protons of the ethylene groups, was supported by the two-dimensional experiments (Table S1). Furthermore, HPLC assessment of Pz3, performed in three different eluent systems, confirmed the purity of the new macrocycle as exceeding 98%, with detection simultaneously at 380 nm and 670 nm (see Supplementary Materials).
The UV–VIS spectra of nickel(II) porphyrazine Pz3 revealed the absorption maxima at 667 nm in dichloromethane and N,N-dimethylformamide, and 668 nm in dimethylsulfoxide (Figure 1). The calculated values of logarithms of the molar absorption coefficients (log ε) for these bands were 4.58 for dichloromethane and N,N-dimethylformamide and 4.57 in the case of dimethylsulfoxide (Table S2). The comparison of the absorption spectra of Pz3 with that of the previously obtained magnesium(II) porphyrazine 1 and demetallated analog 2 is shown in Figure 1b [27]. Notably, the Q-band absorption of nickel(II) porphyrazine Pz3 was slightly hypsochromically shifted and much less intense than that of the magnesium(II) derivative 1 (the absorption maximum in dichloromethane reached 667 nm for Pz3 and 674 nm for Pz1, while the log ε values equaled 4.58 and 4.83 for Pz3 and Pz1, respectively). However, for both complexes, the Q-band was sharp and single in contrast to the broad and divided band of the demetallated derivative 2 (Figure 1b) [27].

3.2. Electrochemical Study of Pz3 Deposited on MWCNTs, SWCNTs, and rGO

The voltammetric responses of the assigned hybrid electrodes are shown in Figure 2 for the three distinct carbon nanomaterials (MWCNTs, SWCNTs, and rGO) on which the produced porphyrazine was individually immobilized. To determine the electrochemical activity, voltammetric measurements were made in a buffered (pH 7.4) water-based electrolyte. For the bare GC electrode and MWCNTs-modified electrode, the cyclic voltamperograms acquired between −1.0 and 0.8 V vs. Ag/AgCl show conventional capacitive characteristics. The peak couples observed for GC/SWCNTs and GC/rGO at ca. 0.0 V can be ascribed to surface-confined processes involving oxygen groups attached to the surface, especially since rGO is not fully reduced and can contain various oxygen-based groups, such as quinones. After the immobilization of Pz3, only slight changes of CV response can be observed. However, no additional redox peaks are present. Unlike GC/SWCNTs/Pz3 and GC/rGO/Pz3, the MWCNTs/Pz3 presents significant redox features formed in the cathodic and anodic range. These redox pairs line up with the electrochemical transition of the phthalimides substituents. In our previous work, we observed the redox transition of the phtalimide groups at ca. −0.4 V in phosphate buffer electrolyte [27]. The minor peak at ca. 0.4 V should then be assigned to the oxidation of Ni2+ to Ni3+. The obtained data suggest that Pz3 exhibits electrochemical activity only on the surface of MWCNTs. The loading of nickel can be calculated based on the charge corresponding to the voltammetric peak at ca. 0.4 V. After the integration of the anodic peak corresponding to the Ni2+ to Ni3+ transition, we estimated the metal loadings to be 11.1 ng. We can tentatively assume that the aromatic system of phthalimide offers additional π–π interactions between the porphyrazine and the MWCNT, thus attaching the Pz3 more firmly on the surface of the modified electrode, resulting in efficient electron transfer.
Cyclic voltamperometry measurements were performed at scanning rates ranging from 10 to 100 mV s−1 to evaluate the kinetics of electron transport on the surface of the electrodes modified with GC/MWCNTs/Pz3 (Figure 3). Peak currents increased linearly with scanning rate, pointing to redox activities occurring at the surface. Surface-limited redox characterization is made possible by the π–π stacking of the conjugated porphyrazine macroring with the highly delocalized π-bonding network of carbon nanomaterials.
Comparative CVs for the hybrid materials functionalized with Pz3 (MWCNTs/Pz3, SWCNTs/Pz3, and rGO/Pz3) employed in this study are shown in Figure 4 in the presence of the [Fe(CN)6]3−/4− redox couple. As seen in Figure 4A, for the GC/Pz3 electrode, a decrease in peak current was observed in relation to the bare GC electrode. In addition, a significant increase of peak-to-peak separation from 84 to 155 mV was observed at GC/Pz3 when compared to bare GC. This suggests hampered electron transfer kinetics at GC/Pz3, probably due to the insulating nature of Pz3. The modification of the MWCNTs resulted in an increase in the peak currents (compared to the bare GC electrode). It is well-known that MWCNTs have a highly porous structure and good electron transfer characteristics [29]. After the addition of porphyrazine to the GC/MWCNTs system, the peak-to-peak separation increased slightly. Additionally, the peak currents of the [Fe(CN)6]3−/4− redox couple remained almost unchanged for MWCNTs/Pz3. Such behavior suggests that Pz3 can strongly interact with the surface of MWCNTs via π–π stacking. As a result, electron transfer kinetics at MWCNTs/Pz3 are fast, which is crucial for electrocatalytic sensing applications. In the case of the GC/SWCNTs/Pz3 modified electrode, there was a decrease in both the peak current and capacitance in relation to the GC/SWCNTs electrode (Figure 4B). The same dependence can be observed for the GC/rGO and GC/rGO/Pz3 modified electrodes (Figure 4C). Deterioration of the electrochemical properties at these two electrodes was thus observed. Table 1 summarizes the separation peak values for all tested electrodes.
The electroactive surface area was calculated by applying the Randles–Sevcik equation [30]:
Ip = 2.69⋯105 AD1/2 n3/2 Cv1/2
where, Ip represents peak current [A]; A is the electroactive surface area of the electrode [cm2]; D represents diffusion coefficient (7.3 × 10−6 cm2 s−1 for [Fe(CN)6]3−); n is the transferred electron number (n = 1); v represents the scan rate [V s−1]; and C is the analyte concentration [mol cm−3]. Table 2 presents the results of the calculated electroactive surface areas for the modified electrodes. We can conclude that by modifying the surface of the GC electrode with the studied nanomaterials, its surface area increases. However, covering nanomaterials with Pz3 causes a decrease in porosity, and a decrease in the electroactive surface of the electrodes is also observed.
The EIS measurements (Nyquist plots) for all the tested electrodes are shown in Figure 4D–F. The high-frequency area (semicircle in Nyquist plots) is responsible for the charge transfer resistance on the electrode surface. The relatively large semicircle observed for the GC and GC/Pz3 electrodes (black and red lines, respectively) indicates slow electron transfer. The absence of a semicircle in Figure 4D for the GC/MWCNTs and GC/MWCNTs/Pz3 electrodes indicates fast electron transfer, which in turn improves the electrocatalytic properties. The results are in good agreement with the cyclic voltammograms displayed in Figure 4A–C. In addition, for the electrodes GC/SWCNTs and GC/SWCNTs/Pz3, as well as GC/rGO and GC/rGO/Pz3, smaller semicircles were observed in comparison to bare GC and GC/Pz3.

3.3. The Influence of Hydrogen Peroxide on the GC, GC/Pz3, GC/MWCNTs, GC/MWCNTs/Pz3, GC/SWCNTs, GC/SWCNTs/Pz3, GC/rGO, and GC/rGO/Pz3 Electrodes

It is acknowledged that porphyrazines with transition metal ion centers are interesting candidates for the electrocatalysis of hydrogen peroxide oxidation/reduction [23]. Thus, the electrocatalytic performance of nickel(II)-containing porphyrazine (Pz3) was investigated in the presence of H2O2 ( Figure 5). The efficiency of the constructed hybrid platforms (GC/MWCNTs/Pz3, GC/SWCNTs/Pz3, and GC/rGO/Pz3) was compared with those of bare GC, GC/Pz3, GC/MWCNTs, GC/SWCNTs, and GC/rGO electrodes. The reduction of H2O2 may occur on unmodified GC at a very negative overpotential (Figure 5A), while the measured reductive current was rather small; an even smaller reduction current was observed in the case of the GC/Pz3 electrode (Figure 5B). When a GC/MWCNTs electrode was employed, a slight improvement in the H2O2 redox behavior was observed (Figure 5C). In this case, both cathodic and anodic current waves were seen. Significant electrocatalytic activity was observed for the hybrid electrode of GC/MWCNTs/Pz3. Figure 5D (curve b) illustrates how the redox peaks were greatly enhanced when 2 mM H2O2 was added. At GC/MWCNTs/Pz3, hydrogen peroxide was shown to be reduced and oxidized using a small overpotential and high current. This result indicates that GC/MWCNTs/Pz3 is a suitable electrode for hydrogen peroxide electrocatalysis. A well-defined H2O2 anode peak current was also observed, suggesting that GC/MWCNTs/Pz3 has good electrocatalytic performance. Regarding electrode modifications, a comparison of SWCNTs and rGO (Figure 5E,G) with SWCNTs/Pz3 and rGO/Pz3 (Figure 5F,H) showed only a slight amplification of the peak cathode and anode currents, which indicates that SWCNTs and rGO are not promising platforms for Pz3 immobilization in the context of H2O2 electrocatalysis.

3.4. Chronoamperometric Measurements of GC/MWCNTs/Pz3, GC/SWCNTs/Pz3, and GC/rGO/Pz3 Electrodes in the Presence of H2O2

Furthermore, under stirring conditions, chronoamperometric measurements were made for GC/MWCNTs/Pz3, GC/SWCNTs/Pz3, and GC/rGO/Pz3. The oxidation of H2O2 at the electrodes was driven by the applied anodic potential of +0.6 V. Figure 6A shows the increase of the amperometric signal after the addition of small amounts of H2O2. The GC/MWCNTs/Pz3 electrode expressed linearity within 20–1200 µM of H2O2. For GC/SWCNTs/Pz3, linearity was seen in the H2O2 concentration range of 10 to 980 µM. For the GC/rGO/Pz3 electrode, linearity was noted in the range of analyte concentrations from 20 to 750 µM. Figure 6B,E,H also show the amperometry results recorded for the electrode modified with only carbon-based nanomaterials—MWCNTs, SWCNTs, and rGO, respectively. In connection with the above, it was shown that the linearity in the widest range of hydrogen peroxide concentrations was recorded for the GC/MWCNTs/Pz3 electrode. In addition, in the case of carbon nanomaterials (SWCNTs and rGO), a decrease in the current signal was observed after Pz3 adsorption (Figure 6F,I). The estimated limits of detection (LODs) were 18.57, 9.42, and 9.15 µM for GC/MWCNTs/Pz3, GC/SWCNTs/Pz3 and GC/rGO/Pz3, respectively, when the signal-to-noise ratio of 3 was taken into account. The limits of quantification (LOQs), which were 56.27, 28.56, and 58.04 µM, respectively, were also compared.
In Table 3, the performance of the investigated electrodes for hydrogen peroxide electroanalysis is compared with other electrodes found in the literature.
To assess the selectivity of the GC/MWCNTs/Pz3 electrode, the amperometric response was monitored in the presence of different interferents that can commonly occur in a variety of bodily fluids (in this work: glucose, fructose, lactose, maltose, saccharose, caffeine, and sodium chloride) at +0.6 V with stirring (Figure 7). While H2O2 addition gave a fast current response, none of the inserted interferents resulted in a current reply. Therefore, the obtained sensor has a satisfactory selectivity. In addition, analogous tests were carried out for the modified electrodes: GC/SWCNTs/Pz3 and GC/rGO/Pz3. The results of these analyses are shown in Figure S5. As in the case of the GC/MWCNTs/Pz3 electrode, no interference effect was observed. A decrease in the current signal was observed over time.

4. Conclusions

In this study, a new phthalimide-substituted sulfanyl porphyrazine derivative possessing an Ni(II) ion in the core was obtained via chemical synthesis. The formation of this molecule was confirmed using spectral techniques, including NMR spectroscopy, mass spectrometry, and UV–VIS spectrophotometry. Additionally, detailed UV–VIS spectral studies were performed. The Pz3 was subsequently used to etch glassy carbon electrodes, modified earlier with either multi-walled carbon nanotubes, single-walled carbon nanotubes, or reduced graphene oxide. Among the studied carbon nanomaterials, it was found that multi-walled carbon nanotubes constitute a suitable matrix for the immobilization of Pz3 porphyrazine on the surface of the GC electrode. It has been shown that the GC/MWCNTs/Pz3 modified electrode has excellent electrocatalytic properties in the detection of hydrogen peroxide oxidation/reduction (LOD: 18.57 μM; linear range: 20–1200 μM) and may be regarded as a potential sensor of this important molecule. The results obtained in this study show that a determination of the appropriate conductive material for electrode modification is crucial to achieving the synergistic effect and satisfactory electrocatalytic properties.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano13050862/s1. Figure S1: NMR data of Pz3. Table S1: 1H and 13C NMR data obtained for Pz3. Figure S2: 1H NMR spectrum of Pz3 (400 MHz, chloroform-d1, 298 K). Figure S3: 13C NMR spectrum recorded for Pz3 (100 MHz, chloroform-d1, 298 K). Table S2: UV–VIS absorption maxima (λAbs) and logarithms of molar absorption coefficients (logε) of Pz3 in selected organic solvents. Figure S4: Electrochemical reduction of GC/GO to GC/rGO in phosphate buffer (PB, pH 7.4) in the potential range from 0.4 to −1.3 V (scanning rate 50 mV s−1). Figure S5: Chronoamperometric responses recorded at (A) GC/SWCNTs/Pz3 and (B) GC/rGO/Pz3 sensor upon addition of 100 μM H2O2 and selected interferents. The applied potential was +0.6 V. The supporting electrolyte was PB (pH 7.4).

Author Contributions

Conceptualization, A.L., T.R. and M.F.; methodology, A.L. and T.R.; formal analysis, A.L. and T.R.; investigation, A.L., M.H., T.R., M.F. and D.T.M.; writing—original draft preparation, A.L., M.H., T.R., M.F., J.P. and D.T.M.; writing—review and editing, A.L., T.R., D.T.M., G.M. and P.M.; supervision, T.R. and G.M.; funding acquisition, T.R. and M.F. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the National Science Centre, Poland, under grant no. 2017/25/N/NZ7/01705. A.L. and T.R. acknowledge the financial support of the Polish Ministry of Science, grant no. 0911/SBAD/2207. M.F. acknowledges the Polish National Agency for Academic Exchange for the Bekker programme no PPN/BEK/2020/1/00357. M.H. is member of the Center of Excellence “Towards Personalized Medicine” operating under the Excellence Initiative—Research University at Nicolaus Copernicus University in Torun, Poland.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, W.; Cai, S.; Ren, Q.-Q.; Wen, W.; Zhao, Y.-D. Recent Advances in Electrochemical Sensing for Hydrogen Peroxide: A Review. Analyst 2012, 137, 49–58. [Google Scholar] [CrossRef]
  2. Ciriminna, R.; Albanese, L.; Meneguzzo, F.; Pagliaro, M. Hydrogen Peroxide: A Key Chemical for Today’s Sustainable Development. ChemSusChem 2016, 9, 3374–3381. [Google Scholar] [CrossRef]
  3. Patel, V.; Kruse, P.; Selvaganapathy, P.R. Solid State Sensors for Hydrogen Peroxide Detection. Biosensors 2021, 11, 9. [Google Scholar] [CrossRef]
  4. Trujillo, R.M.; Barraza, D.E.; Zamora, M.L.; Cattani-Scholz, A.; Madrid, R.E. Nanostructures in Hydrogen Peroxide Sensing. Sensors 2021, 21, 2204. [Google Scholar] [CrossRef] [PubMed]
  5. Bohrer, F.I.; Colesniuc, C.N.; Park, J.; Ruidiaz, M.E.; Schuller, I.K.; Kummel, A.C.; Trogler, W.C. Comparative Gas Sensing in Cobalt, Nickel, Copper, Zinc, and Metal-Free Phthalocyanine Chemiresistors. J. Am. Chem. Soc. 2009, 131, 478–485. [Google Scholar] [CrossRef]
  6. Liu, C.J.; Shih, J.J.; Ju, Y.H. Surface Morphology and Gas Sensing Characteristics of Nickel Phthalocyanine Thin Films. Sens. Actuators B Chem. 2004, 99, 344–349. [Google Scholar] [CrossRef]
  7. de Oliveira, M.S.; Farias, E.A.D.O.; de Sousa, A.M.S.; Dionísio, N.A.; Teixeira, P.R.S.; Teixeira, A.S.D.N.M.; da Silva, D.A.; Eiras, C. Composite Films Based on Copper Nanoparticles and Nickel Phthalocyanine as Electrochemical Sensors for Serotonin Detection. Surf. Interfaces 2021, 25, 101245. [Google Scholar] [CrossRef]
  8. Kumar, A.; Prasad, R.; Gupta, V.K. Fabrication of PVC Based Membrane Using Nickel Porphyrazine as Ionophore in the Screening of Thiocyanate Ion in Aqueous and Real Samples. Comb. Chem. High Throughput Screen. 2004, 7, 367–374. [Google Scholar] [CrossRef] [PubMed]
  9. Keskin, B.; Denktaş, C.; Altındal, A.; Avcıata, U.; Gül, A. Synthesis of Ni(II) Porphyrazine Peripherally Octa-Substituted with the 4-Tert-Butylbenzylthio Moiety and Electronic Properties of the Al/Ni(II)Pz/p-Si Schottky Barrier Diode. Polyhedron 2012, 38, 121–125. [Google Scholar] [CrossRef]
  10. Rodríguez-Morgade, M.S.; Stuzhin, P.A. The Chemistry of Porphyrazines: An Overview. J. Porphyr. Phthalocyanines 2004, 8, 1129–1165. [Google Scholar] [CrossRef]
  11. Porolnik, W.; Kasprzycka, M.; Teubert, A.; Piskorz, J. Serendipitous Synthesis of Unsymmetrical Porphyrazine: Incomplete Transesterification during Macrocyclization. Inorg. Chem. Commun. 2021, 133, 108953. [Google Scholar] [CrossRef]
  12. Koza, P.; Koczorowski, T.; Mlynarczyk, D.T.; Goslinski, T. Zinc(II) Sulfanyltribenzoporphyrazines with Bulky Peripheral Substituents—Synthesis, Photophysical Characterization, and Potential Photocytotoxicity. Appl. Sci. 2022, 12, 6825. [Google Scholar] [CrossRef]
  13. Mlynarczyk, D.T.; Piskorz, J.; Popenda, L.; Stolarska, M.; Szczolko, W.; Konopka, K.; Jurga, S.; Sobotta, L.; Mielcarek, J.; Düzgüneş, N.; et al. S-Seco-Porphyrazine as a New Member of the Seco-Porphyrazine Family—Synthesis, Characterization and Photocytotoxicity against Cancer Cells. Bioorganic Chem. 2020, 96, 103634. [Google Scholar] [CrossRef]
  14. Koczorowski, T.; Szczolko, W.; Teubert, A.; Goslinski, T. Sulfanyl Porphyrazines with Morpholinylethyl Periphery—Synthesis, Electrochemistry, and Photocatalytic Studies after Deposition on Titanium(IV) Oxide P25 Nanoparticles. Molecules 2021, 26, 2280. [Google Scholar] [CrossRef]
  15. Ge, Y.; Zhang, Q.; Yang, C.; Zhang, B.; Deng, K. Efficient Visible-Light-Driven Selective Conversion of Glucose to High-Value Chemicals over Bi2WO6/Co-Thioporphyrazine Composite in Aqueous Media. Appl. Catal. A Gen. 2021, 623, 118265. [Google Scholar] [CrossRef]
  16. Yin, J.; Zhang, Q.; Yang, C.; Zhang, B.; Deng, K. Highly Selective Oxidation of Glucose to Gluconic Acid and Glucaric Acid in Water Catalyzed by an Efficient Synergistic Photocatalytic System. Catal. Sci. Technol. 2020, 10, 2231–2241. [Google Scholar] [CrossRef]
  17. Mlynarczyk, D.T.; Dlugaszewska, J.; Falkowski, M.; Popenda, L.; Kryjewski, M.; Szczolko, W.; Jurga, S.; Mielcarek, J.; Goslinski, T. Tribenzoporphyrazines with Dendrimeric Peripheral Substituents and Their Promising Photocytotoxic Activity against Staphylococcus Aureus. J. Photochem. Photobiol. B Biol. 2020, 204, 111803. [Google Scholar] [CrossRef] [PubMed]
  18. Stolarska, M.; Glowacka-Sobotta, A.; Ziental, D.; Dlugaszewska, J.; Falkowski, M.; Mielcarek, J.; Goslinski, T.; Sobotta, L. Photochemical Properties and Photocytotoxicities against Wound Bacteria of Sulfanyl Porphyrazines with Bulky Peripheral Substituents. J. Organomet. Chem. 2021, 934, 121669. [Google Scholar] [CrossRef]
  19. Piskorz, J.; Lijewski, S.; Gierszewski, M.; Gorniak, K.; Sobotta, L.; Wicher, B.; Tykarska, E.; Düzgüneş, N.; Konopka, K.; Sikorski, M.; et al. Sulfanyl Porphyrazines: Molecular Barrel-like Self-Assembly in Crystals, Optical Properties and in Vitro Photodynamic Activity towards Cancer Cells. Dye. Pigment. 2017, 136, 898–908. [Google Scholar] [CrossRef]
  20. Medina, D.-P.; Fernández-Ariza, J.; Urbani, M.; Sauvage, F.; Torres, T.; Rodríguez-Morgade, M.S. Tuning the Acceptor Unit of Push–Pull Porphyrazines for Dye-Sensitized Solar Cells. Molecules 2021, 26, 2129. [Google Scholar] [CrossRef]
  21. Fernández-Ariza, J.; Urbani, M.; Rodríguez-Morgade, M.S.; Torres, T. Panchromatic Photosensitizers Based on Push–Pull, Unsymmetrically Substituted Porphyrazines. Chem. A Eur. J. 2018, 24, 2618–2625. [Google Scholar] [CrossRef] [PubMed]
  22. Mlynarczyk, D.T.; Ziental, D.; Kolasinski, E.; Sobotta, L.; Koczorowski, T.; Mielcarek, J.; Goslinski, T. Nipagin-Functionalized Porphyrazine and Phthalocyanine—Synthesis, Physicochemical Characterization and Toxicity Study after Deposition on Titanium Dioxide Nanoparticles P25. Molecules 2021, 26, 2657. [Google Scholar] [CrossRef] [PubMed]
  23. Falkowski, M.; Leda, A.; Rebis, T.; Piskorz, J.; Popenda, L.; Hassani, M.; Mlynarczyk, D.T.; Marszall, M.P.; Milczarek, G. A Synergistic Effect of Phthalimide-Substituted Sulfanyl Porphyrazines and Carbon Nanotubes to Improve the Electrocatalytic Detection of Hydrogen Peroxide. Molecules 2022, 27, 4409. [Google Scholar] [CrossRef] [PubMed]
  24. Koczorowski, T.; Rębiś, T.; Szczolko, W.; Antecka, P.; Teubert, A.; Milczarek, G.; Goslinski, T. Reduced graphene oxide/iron(II) porphyrazine hybrids on glassy carbon electrode for amperometric detection of NADH and L-cysteine. J. Electroanal. Chem. 2019, 848, 11322. [Google Scholar] [CrossRef]
  25. Falkowski, M.; Rebis, T.; Piskorz, J.; Popenda, L.; Jurga, S.; Mielcarek, J.; Milczarek, G.; Goslinski, T. Improved Electrocatalytic Response toward Hydrogen Peroxide Reduction of Sulfanyl Porphyrazine/Multiwalled Carbon Nanotube Hybrids Deposited on Glassy Carbon Electrodes. Dye. Pigment. 2016, 134, 569–579. [Google Scholar] [CrossRef]
  26. Paulraj, P.; Umar, A.; Rajendran, K.; Manikandan, A.; Kumar, R.; Manikandan, E.; Pandian, K.; Mahnashi, M.H.; Alsaiari, M.A.; Ibrahim, A.A.; et al. Solid-State Synthesis of Ag-Doped PANI Nanocomposites for Their End-Use as an Electrochemical Sensor for Hydrogen Peroxide and Dopamine. Electrochim. Acta 2020, 363, 137158. [Google Scholar] [CrossRef]
  27. Falkowski, M.; Kucinska, M.; Piskorz, J.; Wieczorek-Szweda, E.; Popenda, L.; Jurga, S.; Sikora, A.; Mlynarczyk, D.T.; Murias, M.; Marszall, M.P.; et al. Synthesis of Sulfanyl Porphyrazines with Bulky Peripheral Substituents—Evaluation of Their Photochemical Properties and Biological Activity. J. Photochem. Photobiol. A Chem. 2021, 405, 112964. [Google Scholar] [CrossRef]
  28. Rębiś, T.; Falkowski, M.; Kryjewski, M.; Popenda, L.; Sobotta, L.; Jurga, S.; Marszall, M.P.; Mielcarek, J.; Milczarek, G.; Goslinski, T. Single-Walled Carbon Nanotube/Sulfanyl Porphyrazine Hybrids Deposited on Glassy Carbon Electrode for Sensitive Determination of Nitrites. Dye. Pigment. 2019, 171, 107660. [Google Scholar] [CrossRef]
  29. Wildgoose, G.; Banks, C.; Compton, R. Metal nanoparticles and related materials supported on carbon nanotubes: Methods and applications. Small 2006, 2, 182–193. [Google Scholar] [CrossRef]
  30. Allen, B.; Faulkner, L.R.; White, H.S. Electrochemical Methods: Fundamentals and Applications; John Wiley & Sons: Hoboken, NJ, USA, 2022. [Google Scholar]
  31. Shu, Y.; Li, B.; Xu, Q.; Gu, P.; Xiao, X.; Liu, F.; Yu, L.; Pang, H.; Hu, X. Cube-like CoSn(OH)6 nanostructure for sensitive electrochemical detection of H2O2 in human serum sample. Sens. Actuators B Chem. 2017, 241, 528–533. [Google Scholar] [CrossRef]
  32. Welch, C.M.; Banks, C.E.; Simm, A.O.; Compton, R.G. Silver Nanoparticle Assemblies Supported on Glassy-Carbon Electrodes for the Electro-Analytical Detection of Hydrogen Peroxide. Anal. Bioanal. Chem. 2005, 382, 12–21. [Google Scholar] [CrossRef]
  33. Koposova, E.; Shumilova, G.; Ermolenko, Y.; Kisnerb, A.; Offenhäusser, A.; Mourzina, Y. Direct electrochemistry of cyt c and hydrogen peroxide biosensing on oleylamine-and citrate-stabilized gold nanostructures. Sens. Actuators B Chem. 2015, 207, 1045–1052. [Google Scholar] [CrossRef]
  34. Nandini, S.; Nalini, S.; Manjunatha, R.; Shanmugam, S.; Melo, J.S.; Suresh, G.S. Electrochemical biosensor for the selective determination of hydrogen peroxide based on the co-deposition of palladium, horseradish peroxidase on functionalized-graphene modified graphite electrode as composite. J. Electroanal. Chem. 2013, 689, 233–242. [Google Scholar] [CrossRef]
  35. Płócienniczak, P.; Rębiś, T.; Nowicki, M.; Milczarek, G. A Green Approach for Hybrid Material Preparation Based on Carbon Nanotubes/Lignosulfonate Decorated with Silver Nanostructures for Electrocatalytic Sensing of H2O2. J. Electroanal. Chem. 2021, 880, 114896. [Google Scholar] [CrossRef]
  36. Hu, J.; Lin, Y.; Liao, Y. Inkjet Printed Prussian Blue Films for Hydrogen Peroxide Detection. Anal. Sci. 2012, 28, 135–140. [Google Scholar] [CrossRef] [Green Version]
  37. Lin, K.; Tsai, T.; Chen, S. Performing enzyme-free H2O2 biosensor and simultaneous determination for AA, DA, and UA by MWCNT–PEDOT film. Biosens. Bioelectron. 2010, 26, 608–614. [Google Scholar] [CrossRef] [PubMed]
  38. Achraf Ben Njima, M.; Legrand, L. Ag Nanoparticles-Oxidized Green Rust Nanohybrids for Novel and Efficient Non-Enzymatic H2O2 Electrochemical Sensor. J. Electroanal. Chem. 2022, 906, 116015. [Google Scholar] [CrossRef]
Nanomaterials 13 00862 sch001 550

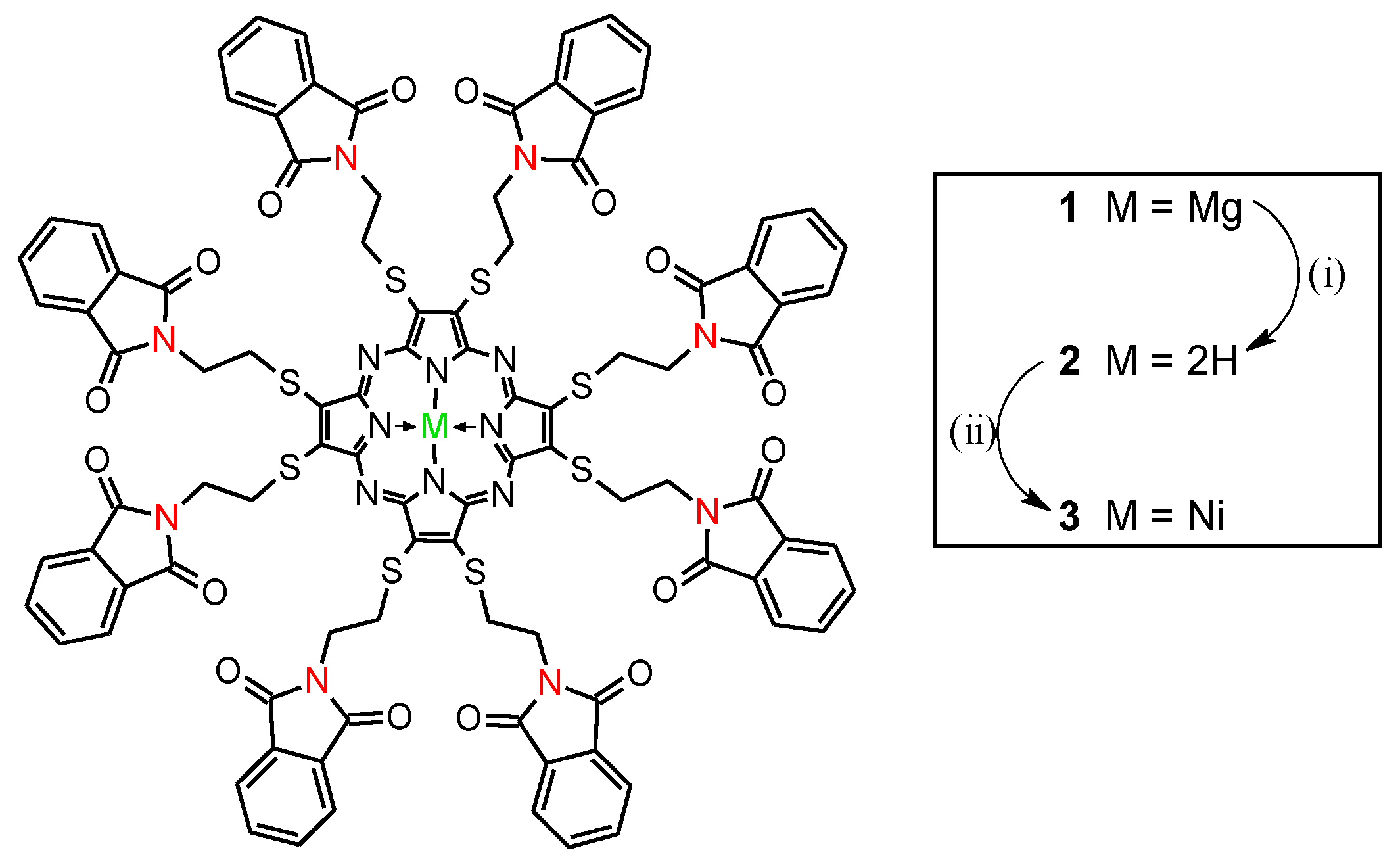

Scheme 1. Synthesis of Pz3. Reaction conditions: (i) TFA, 25 °C, 0.5 h; (ii) Ni(OAc)2 × 4H2O, DMF, 75 °C.
Scheme 1. Synthesis of Pz3. Reaction conditions: (i) TFA, 25 °C, 0.5 h; (ii) Ni(OAc)2 × 4H2O, DMF, 75 °C.
Nanomaterials 13 00862 sch001
Nanomaterials 13 00862 g001 550

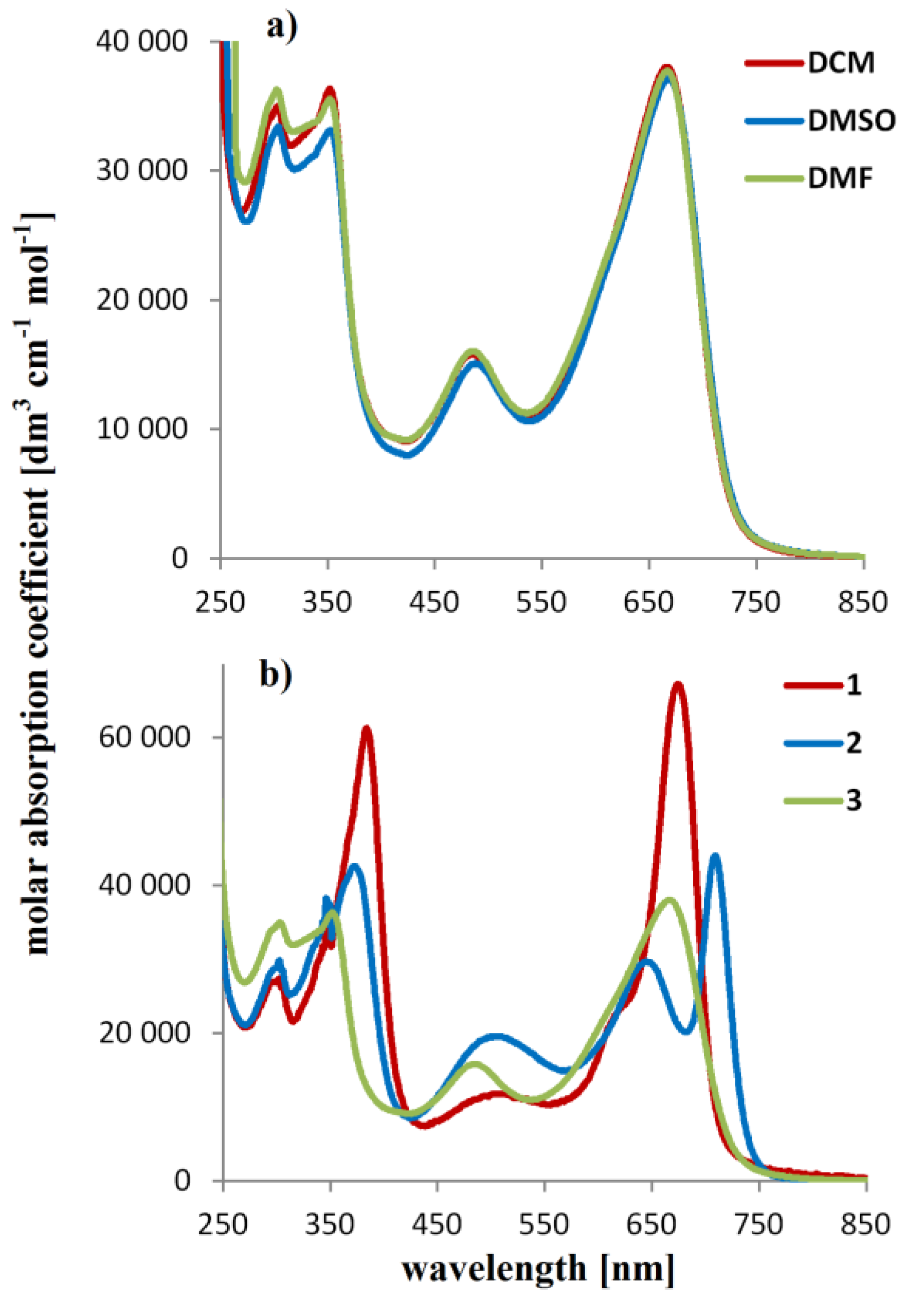

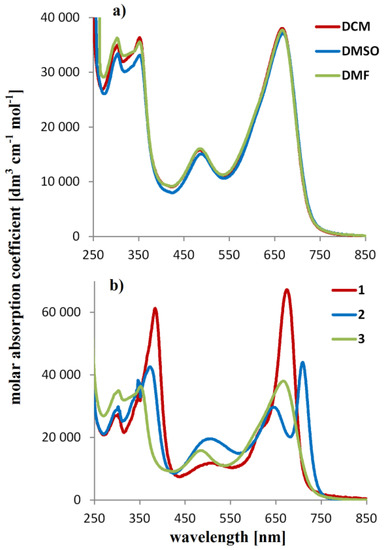

Figure 1. UV–VIS spectra of (a) Pz3 in dichloromethane (DCM), dimethylsulfoxide (DMSO), and N,N-dimethylformamide (DMF); (b) Pzs 1–3 in dichloromethane.
Figure 1. UV–VIS spectra of (a) Pz3 in dichloromethane (DCM), dimethylsulfoxide (DMSO), and N,N-dimethylformamide (DMF); (b) Pzs 1–3 in dichloromethane.
Nanomaterials 13 00862 g001
Nanomaterials 13 00862 g002 550

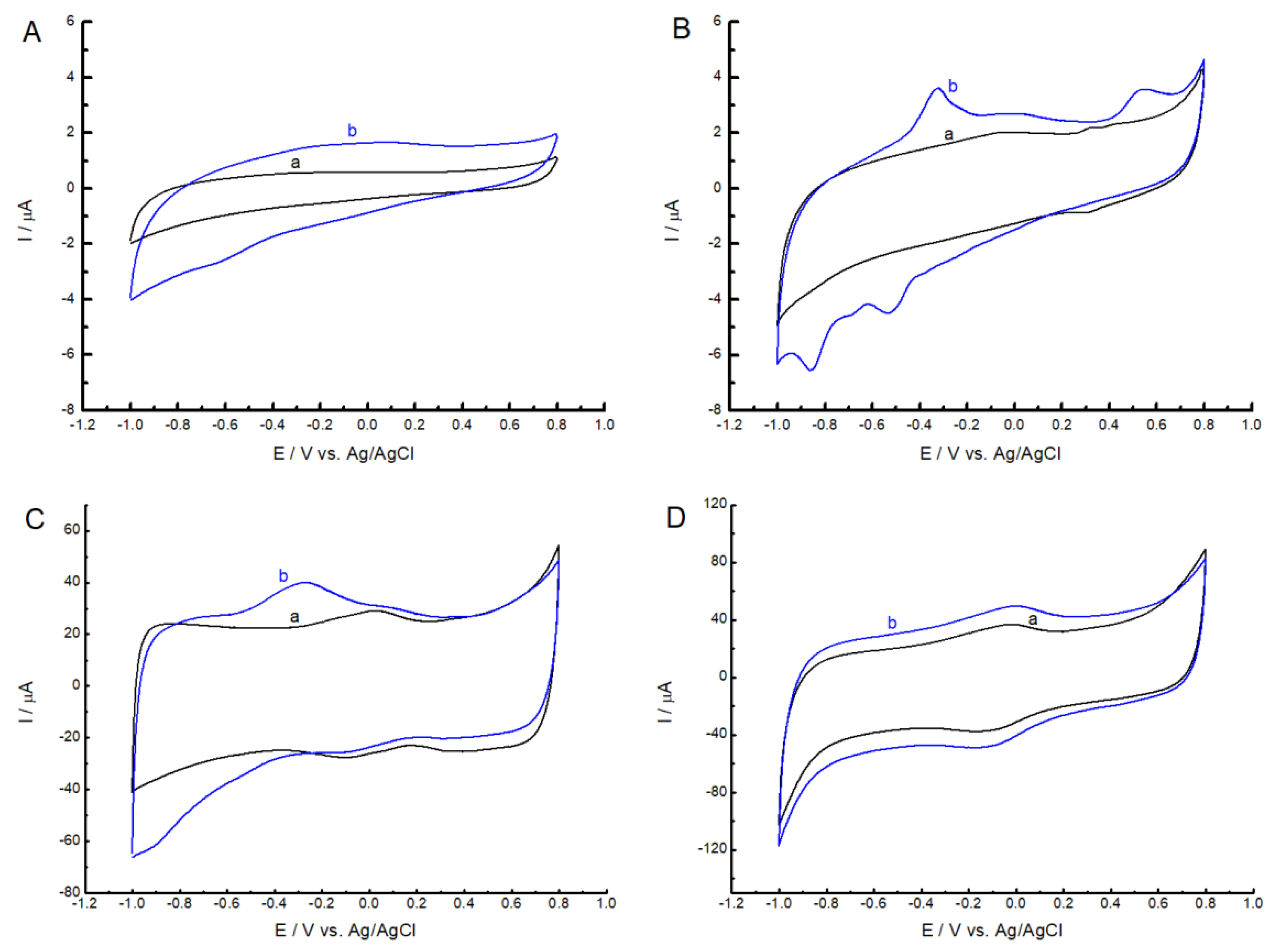

Figure 2. Cyclic voltammograms of hybrid materials recorded in phosphate buffer (pH 7.4). Scan rate 50 mV s−1. The black line (a) corresponds to the GC electrode without Pz3, and the blue line (b) to the GC electrode with Pz3, respectively for: (A) GC; (B) GC/MWCNTs; (C) GC/SWCNTs; and (D) GC/rGO.
Figure 2. Cyclic voltammograms of hybrid materials recorded in phosphate buffer (pH 7.4). Scan rate 50 mV s−1. The black line (a) corresponds to the GC electrode without Pz3, and the blue line (b) to the GC electrode with Pz3, respectively for: (A) GC; (B) GC/MWCNTs; (C) GC/SWCNTs; and (D) GC/rGO.
Nanomaterials 13 00862 g002
Nanomaterials 13 00862 g003 550

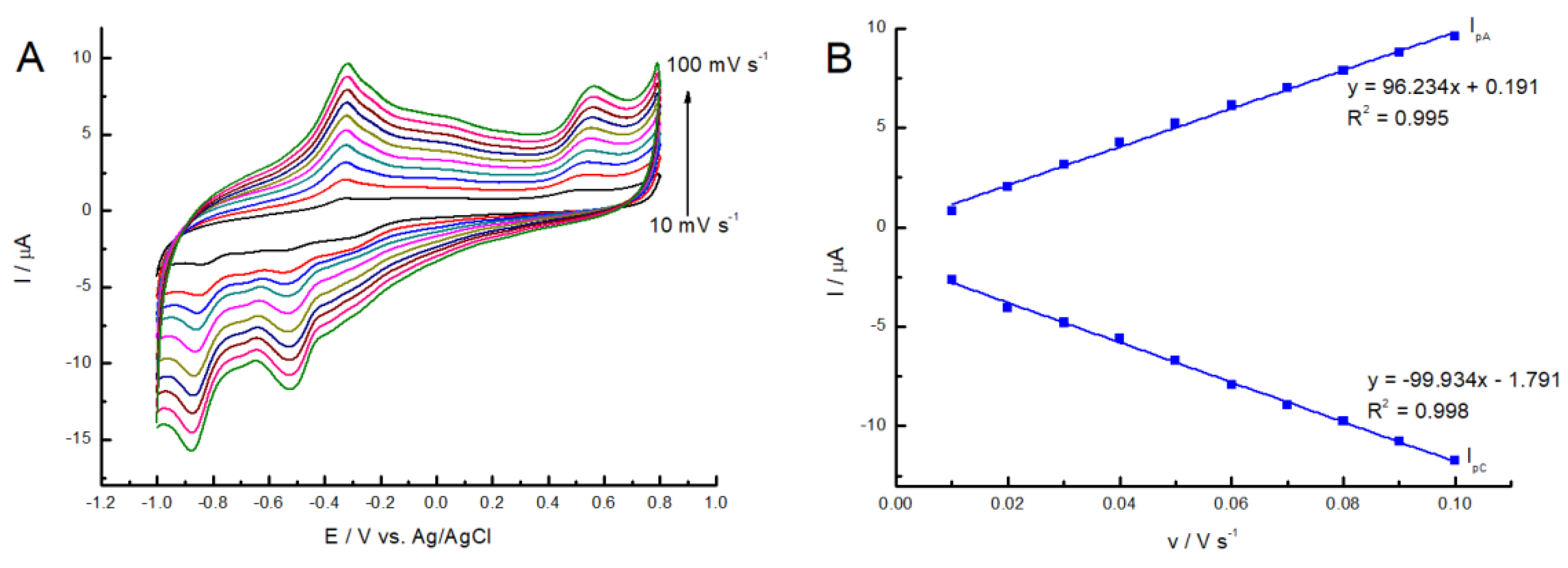

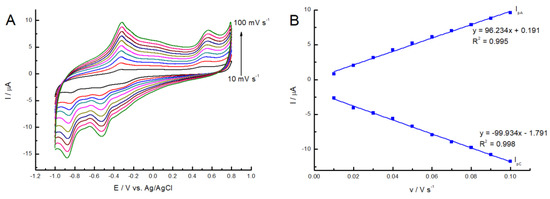

Figure 3. (A) Cyclic voltammograms of GC/MWCNTs/Pz3 modified electrodes in phosphate buffer (pH 7.4) at 10–100 mV s−1 scan rate. (B) Dependence of the scanning rate on the peak current Ip.
Figure 3. (A) Cyclic voltammograms of GC/MWCNTs/Pz3 modified electrodes in phosphate buffer (pH 7.4) at 10–100 mV s−1 scan rate. (B) Dependence of the scanning rate on the peak current Ip.
Nanomaterials 13 00862 g003
Nanomaterials 13 00862 g004 550

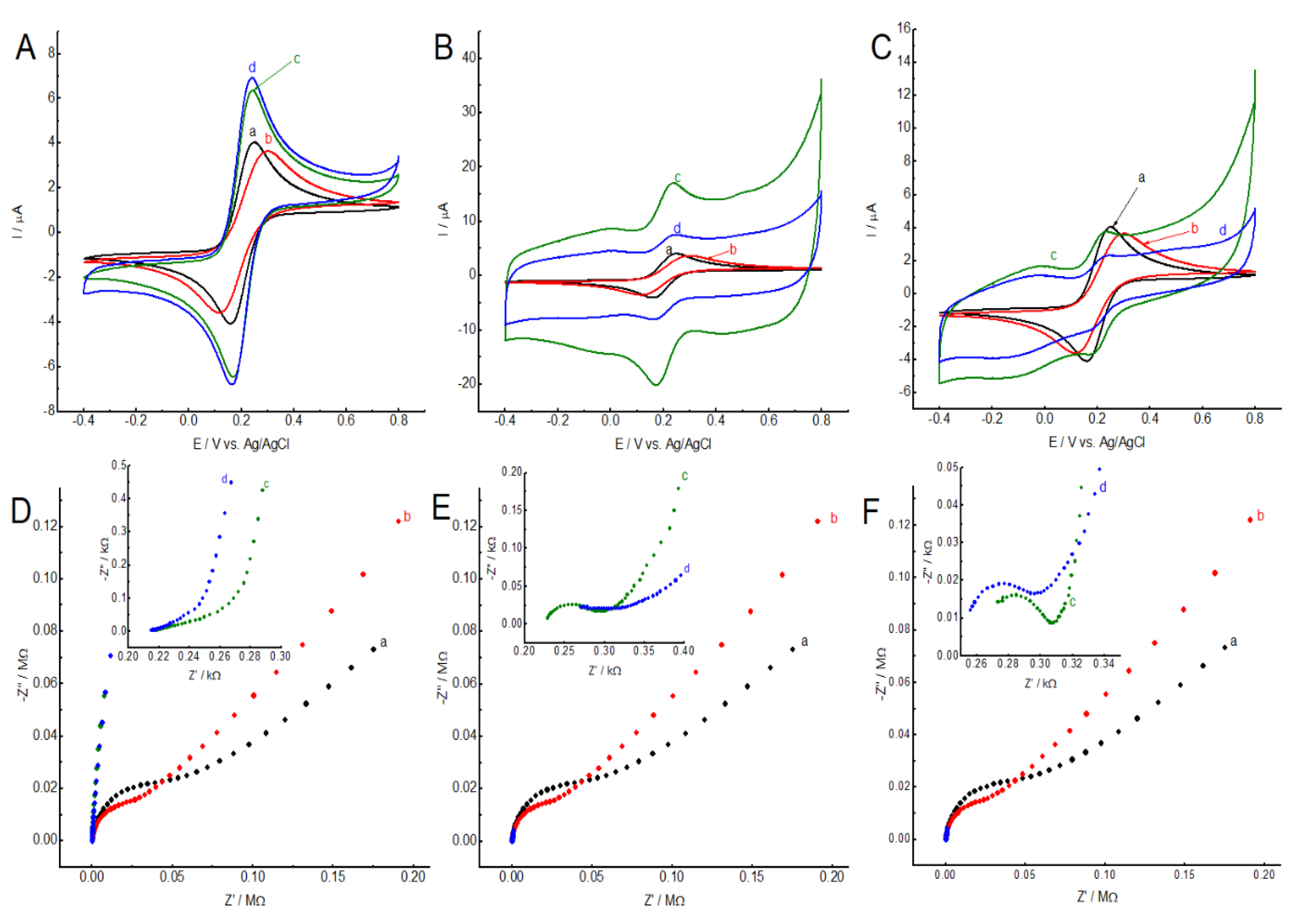

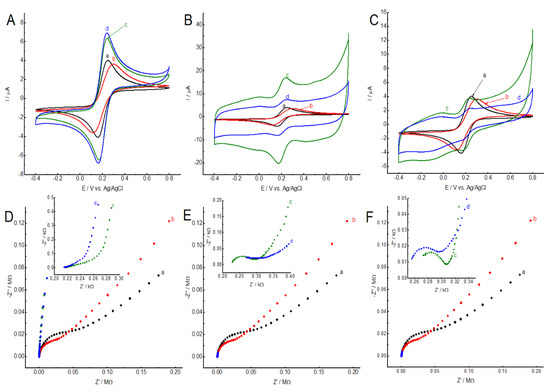

Figure 4. (A) Cyclic voltammograms of GC (a, black line), GC/Pz3 (b, red line), GC/MWCNTs (c, green line), GC/MWCNTs/Pz3 (d, blue line); (B) CVs of GC (a, black line), GC/Pz3 (b, red line), GC/SWCNTs (c, green line), GC/SWCNTs/Pz3 (d, blue line); (C) CVs of GC (a, black line), GC/Pz3 (b, red line), GC/rGO (c, green line), GC/rGO/Pz3 (d, blue line). All CVs were recorded in a phospahate buffer (pH 7.4) containing 1 mM [Fe(CN)6]3− at a scan rate of 10 mV s−1. (D–F) Nyquist diagrams of respectively modified electrodes in a phospahate buffer (pH 7.4) containing 1 mM [Fe(CN)6]3−/4−.
Figure 4. (A) Cyclic voltammograms of GC (a, black line), GC/Pz3 (b, red line), GC/MWCNTs (c, green line), GC/MWCNTs/Pz3 (d, blue line); (B) CVs of GC (a, black line), GC/Pz3 (b, red line), GC/SWCNTs (c, green line), GC/SWCNTs/Pz3 (d, blue line); (C) CVs of GC (a, black line), GC/Pz3 (b, red line), GC/rGO (c, green line), GC/rGO/Pz3 (d, blue line). All CVs were recorded in a phospahate buffer (pH 7.4) containing 1 mM [Fe(CN)6]3− at a scan rate of 10 mV s−1. (D–F) Nyquist diagrams of respectively modified electrodes in a phospahate buffer (pH 7.4) containing 1 mM [Fe(CN)6]3−/4−.
Nanomaterials 13 00862 g004
Nanomaterials 13 00862 g005 550

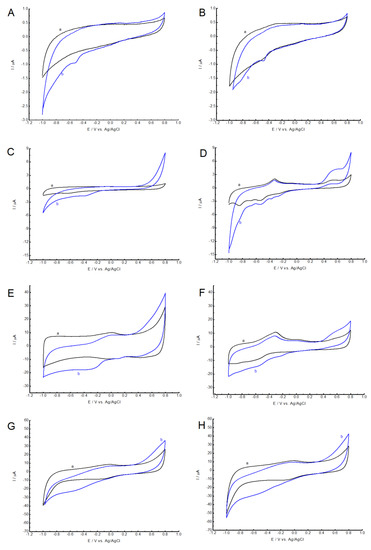

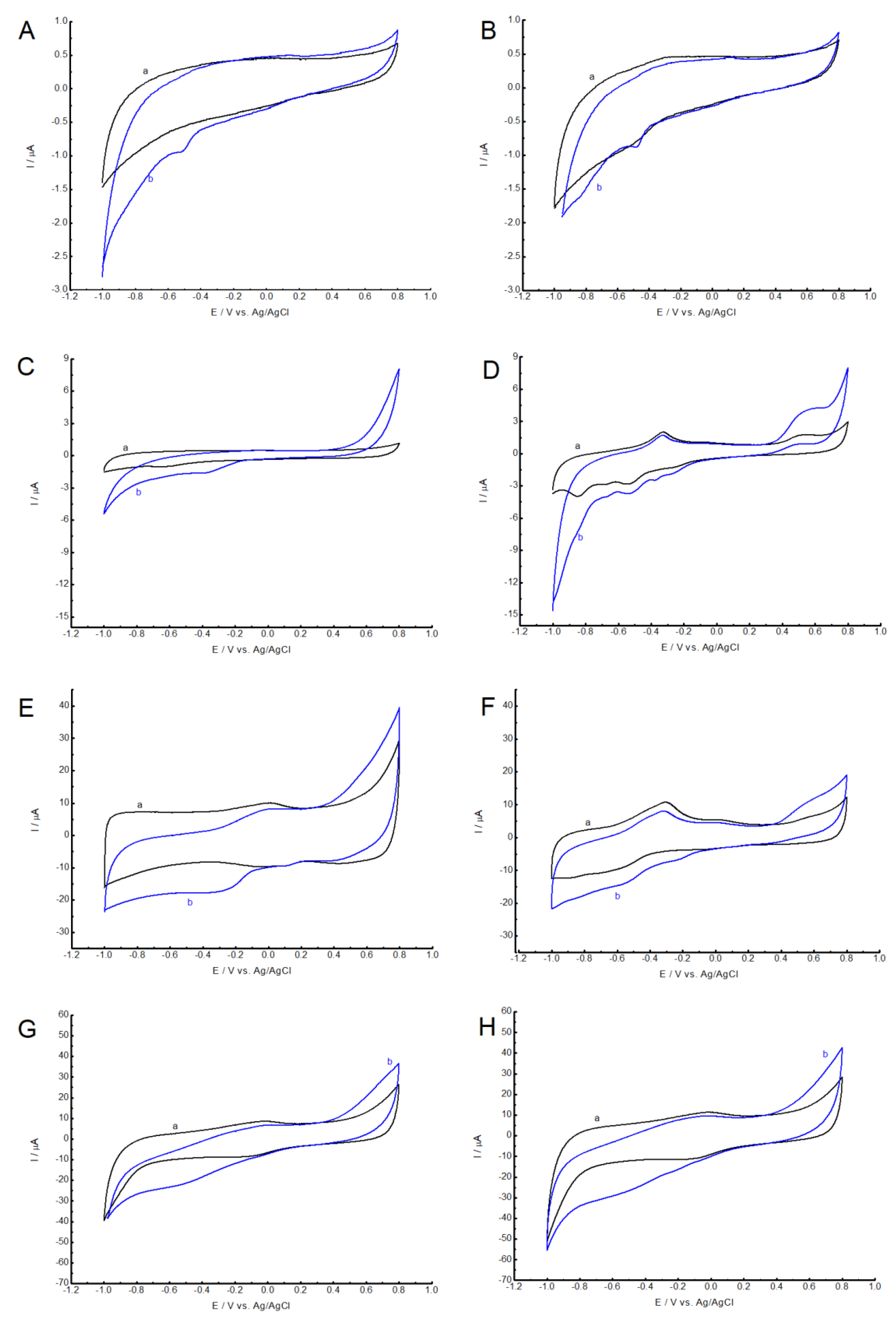

Figure 5. Cyclic voltammograms recorded for (A) bare GC, (B) GC/Pz3, (C) GC/MWCNTs, (D) GC/MWCNTs/Pz3, (E) GC/SWCNTs, (F) GC/SWCNTs/Pz3, (G) GC/rGO, and (H) GC/rGO/Pz3. Experiments were performed in a phosphate buffer (pH 7.4) before (a, black line) and after (b, blue line) adding 2 mM of hydrogen peroxide. A scan rate of 10 mV s−1 was used.
Figure 5. Cyclic voltammograms recorded for (A) bare GC, (B) GC/Pz3, (C) GC/MWCNTs, (D) GC/MWCNTs/Pz3, (E) GC/SWCNTs, (F) GC/SWCNTs/Pz3, (G) GC/rGO, and (H) GC/rGO/Pz3. Experiments were performed in a phosphate buffer (pH 7.4) before (a, black line) and after (b, blue line) adding 2 mM of hydrogen peroxide. A scan rate of 10 mV s−1 was used.
Nanomaterials 13 00862 g005
Nanomaterials 13 00862 g006 550

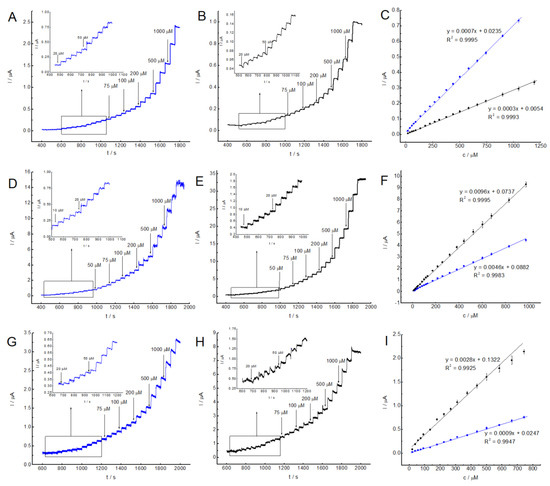

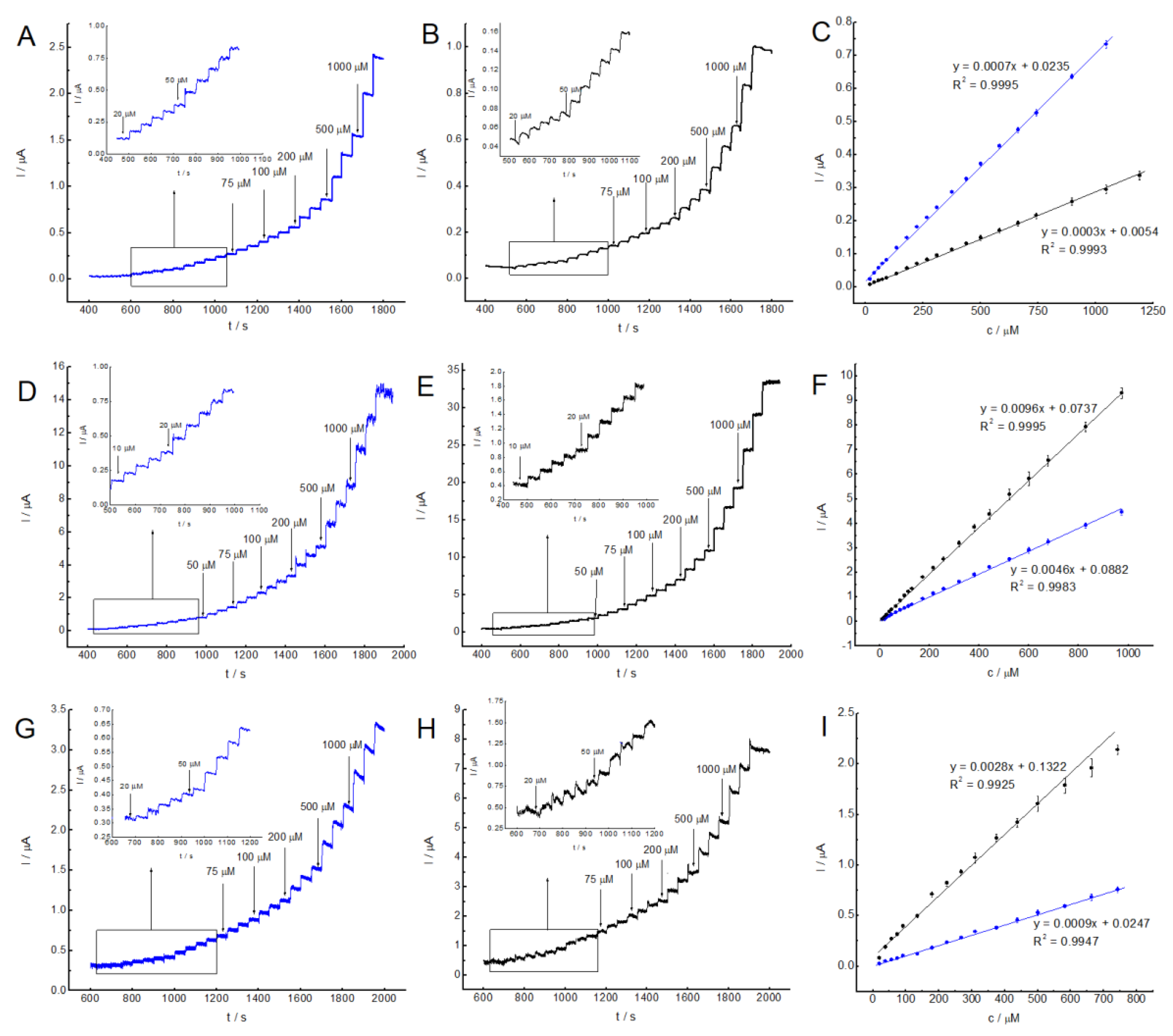

Figure 6. Chronoamperometric analysis of H2O2 determination for (A) GC/MWCNTs/Pz3, (B) GC/MWCNTs, (D) GC/SWCNTs/Pz3, (E) GC/SWCNTs, (G) GC/rGO/Pz3, and (H) GC/rGO electrodes at stirring conditions. The operation potential was +0.6 V. (C–I) The dependence of the amperometric current responses on the concentration of hydrogen peroxide for the modified electrodes.
Figure 6. Chronoamperometric analysis of H2O2 determination for (A) GC/MWCNTs/Pz3, (B) GC/MWCNTs, (D) GC/SWCNTs/Pz3, (E) GC/SWCNTs, (G) GC/rGO/Pz3, and (H) GC/rGO electrodes at stirring conditions. The operation potential was +0.6 V. (C–I) The dependence of the amperometric current responses on the concentration of hydrogen peroxide for the modified electrodes.
Nanomaterials 13 00862 g006
Nanomaterials 13 00862 g007 550

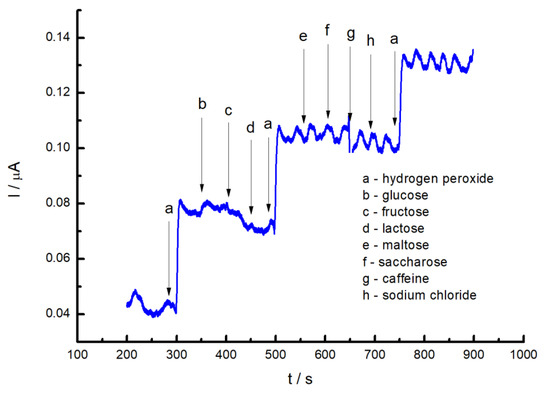

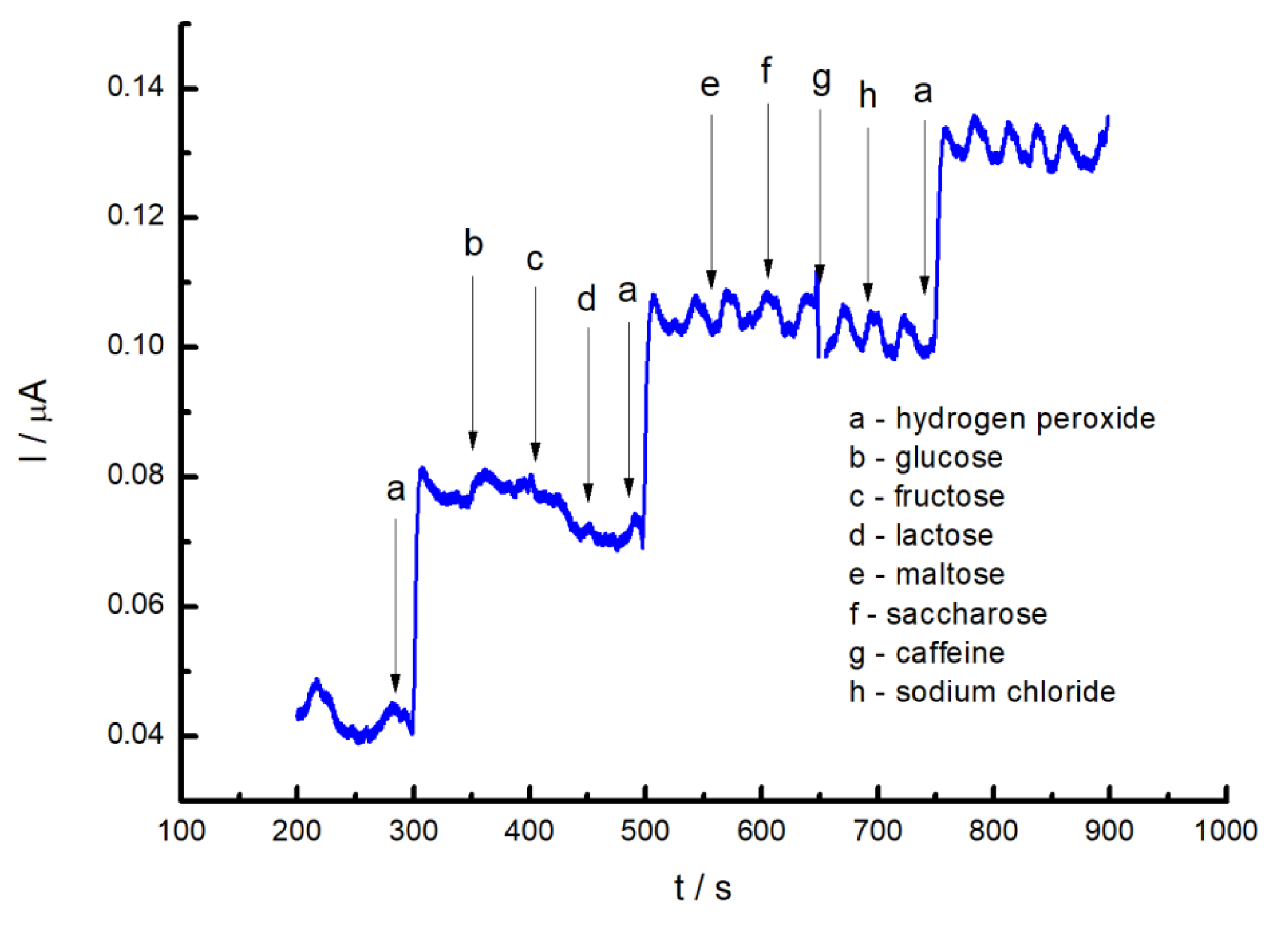

Figure 7. Chronoamperometric responses recorded at the GC/MWCNTs/Pz3 sensor upon addition of 100 μM H2O2 and selected interferents. The applied potential was +0.6 V. The supporting electrolyte was phosphate buffer (pH 7.4).
Figure 7. Chronoamperometric responses recorded at the GC/MWCNTs/Pz3 sensor upon addition of 100 μM H2O2 and selected interferents. The applied potential was +0.6 V. The supporting electrolyte was phosphate buffer (pH 7.4).
Nanomaterials 13 00862 g007
Table
Table 1. Comparison of separation peaks for all tested electrodes.
Table 1. Comparison of separation peaks for all tested electrodes.
ElectrodePeak Separation [mV]ElectrodePeak Separation [mV]
GC84GC/SWCNTs82
GC/Pz3155GC/SWCNTs/Pz389
GC/MWCNTs69GC/rGO42
GC/MWCNTs/Pz376GC/rGO/Pz387
Table
Table 2. Comparison of electroactive surface areas for the modified electrodes.
Table 2. Comparison of electroactive surface areas for the modified electrodes.
ElectrodeElectroactive Surface Area [cm2]ElectrodeElectroactive Surface Area [cm2]
GC0.0198GC/SWCNTs0.3090
GC/Pz30.0178GC/SWCNTs/Pz30.2503
GC/MWCNTs0.0577GC/rGO0.0998
GC/MWCNTs/Pz30.0494GC/rGO/Pz30.0763
Table
Table 3. Analytical parameters of the studied electrodes as compared to other reported H2O2 sensors.
Table 3. Analytical parameters of the studied electrodes as compared to other reported H2O2 sensors.
Electrode CompositionSensitivity [μA mM−1 cm−2]LOD[μM]Linear Range[μM]Ref.
GC/MWCNTs/FePz6360.201−90[23]
GC/MWCNTs/CoPz6400.181−90[23]
GCE/CoSn(OH)6-Nafion0.0191.004−400[31]
AgNPs/GC1692.005−50[32]
Au/AuNW/HRP0.0315.0018−500[33]
HRP-Pd/f-GE92.820.050.025−3.5[34]
MWCNTs/LS/NAg2521.176−486[35]
PBNPs (100 nm)-SPE0.16420.0020−700[36]
MWCNT-PEDOT94350.00100−9800[37]
Ag-exGRc-Cl/StS1155.00100−8000[38]
GC/MWCNTs/Pz314.1818.5720−1200This work
GC/SWCNTs/Pz318.389.4210−980This work
GC/rGO/Pz313.119.1520−750This work
Abbreviations: FePz—2,3,7,8,12,13,17,18-octakis[(N-ethylphthalimide)thio]porphyrazinato iron(II); CoPz—2,3,7,8,12,13,17,18-octakis[(N-ethylphthalimide)thio]porphyrazinato cobalt(II); AgNPs—silver nanoparticles; AuNW—silver nanowires; HRP—horseradish peroxidase; LS—lignosulfonate; PBNPs—Prussian blue nanoparticles; SPE—screen printed electrode; PEDOT—poly(3,4-ethylendioxythiophene); exGRc—oxidized carbonate green rust particles; StS—stainless steel.
