Over- and Undercoordinated Atoms as a Source of Electron and Hole Traps in Amorphous Silicon Nitride (a-Si_{3}N_{4})

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Computational Setup

#### 2.2. Structure Creation and Characterization

^{−3}, which is in the range of experimental values varying from 2.3 to 3.0 g cm

^{−3}[31].

#### 2.3. Charge Trapping Model

## 3. Results and Discussion

#### 3.1. Trapping Sites

#### 3.1.1. Hole Traps

#### 3.1.2. Electron Traps

#### 3.1.3. Defect States

#### 3.1.4. Inverse Participation Ratio

#### 3.2. Defect Characterization

#### 3.2.1. Charge Transition Level

#### 3.2.2. Relaxation Energy

#### 3.2.3. Energy Barriers

## 4. Discussion and Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Gritsenko, V.A. Silicon Nitride on Si: Electronic Structure for Flash Memory Devices. In Thin Films on Silicon; World Scientific: Singapore, 2016; Chapter 6; pp. 273–322. [Google Scholar] [CrossRef]
- Kim, T.H.; Park, I.H.; Lee, J.D.; Shin, H.C.; Park, B.G. Electron trap density distribution of Si-rich silicon nitride extracted using the modified negative charge decay model of silicon-oxide-nitride-oxide-silicon structure at elevated temperatures. Appl. Phys. Lett.
**2006**, 89, 063508. [Google Scholar] [CrossRef] - Kim, D.H.; Cho, S.; Li, D.H.; Yun, J.G.; Lee, J.H.; Lee, G.S.; Kim, Y.; Shim, W.B.; Park, S.H.; Kim, W.; et al. Program/Erase Model of Nitride-Based NAND-Type Charge Trap Flash Memories. Jpn. J. Appl. Phys.
**2010**, 49, 084301. [Google Scholar] [CrossRef] - Lue, H.T.; Lai, S.C.; Hsu, T.H.; Hsiao, Y.H.; Du, P.Y.; Wang, S.Y.; Hsieh, K.Y.; Liu, R.; Lu, C.Y. A Critical Review of Charge-Trapping NAND Flash Devices. In Proceedings of the 2008 9th International Conference on Solid-State and Integrated-Circuit Technology, Beijing, China, 20–23 October 2008. [Google Scholar] [CrossRef]
- Robertson, J.; Powell, M.J. Gap states in silicon nitride. Appl. Phys. Lett.
**1984**, 44, 415–417. [Google Scholar] [CrossRef] - Krick, D.T.; Lenahan, P.M.; Kanicki, J. Electrically active point defects in amorphous silicon nitride: An illumination and charge injection study. J. Appl. Phys.
**1988**, 64, 3558–3563. [Google Scholar] [CrossRef] - Vedula, R.P.; Palit, S.; Alam, M.A.; Strachan, A. Role of atomic variability in dielectric charging: A first-principles-based multiscale modeling study. Phys. Rev. B
**2013**, 88, 205204. [Google Scholar] [CrossRef] [Green Version] - Kang, G.; Lee, D.; Lee, K.; Kim, J.; Han, S. First-principles study on the negative-U behavior of K centers in amorphous Si
_{3}N_{4−x}. Phys. Rev. Appl.**2018**, 10, 064052. [Google Scholar] [CrossRef] - Warren, W.L.; Kanicki, J.; Robertson, J.; Poindexter, E.H.; McWhorter, P.J. Electron paramagnetic resonance investigation of charge trapping centers in amorphous silicon nitride films. J. Appl. Phys.
**1993**, 74, 4034–4046. [Google Scholar] [CrossRef] - Warren, W.L.; Seager, C.H.; Kanicki, J.; Crowder, M.S.; Sigari, E. Ultraviolet light induced annihilation of silicon dangling bonds in hydrogenated amorphous silicon nitride films. J. Appl. Phys.
**1995**, 77, 5730–5735. [Google Scholar] [CrossRef] - Vedula, R.P.; Anderson, N.L.; Strachan, A. Effect of topological disorder on structural, mechanical, and electronic properties of amorphous silicon nitride: An atomistic study. Phys. Rev. B
**2012**, 85, 205209. [Google Scholar] [CrossRef] [Green Version] - Hintzsche, L.E.; Fang, C.M.; Marsman, M.; Jordan, G.; Lamers, M.W.P.E.; Weeber, A.W.; Kresse, G. Defects and defect healing in amorphous Si
_{3}N_{4−x}H_{y}: An ab initio density functional theory study. Phys. Rev. B**2013**, 88, 155204. [Google Scholar] [CrossRef] - Hintzsche, L.E.; Fang, C.M.; Watts, T.; Marsman, M.; Jordan, G.; Lamers, M.W.P.E.; Weeber, A.W.; Kresse, G. Density functional theory study of the structural and electronic properties of amorphous silicon nitrides: Si
_{3}N_{4−x}:H. Phys. Rev. B**2012**, 86, 235204. [Google Scholar] [CrossRef] [Green Version] - Wilhelmer, C.; Waldhoer, D.; Jech, M.; El-Sayed, A.M.B.; Cvitkovich, L.; Waltl, M.; Grasser, T. Ab Initio Investig. Amorph. Silicon Dioxide: Propos. A Multi-State Defect Model Electron Hole Capture. Microelectron. Reliab.
**2022**, 139, 114801. [Google Scholar] [CrossRef] - Lundgren, C.; Kakanakova-Georgieva, A.; Gueorguiev, G.K. A perspective on thermal stability and mechanical properties of 2D Indium Bismide from ab initio molecular dynamics. Nanotechnology
**2022**, 33, 335706. [Google Scholar] [CrossRef] [PubMed] - Schanovsky, F.; Baumgartner, O.; Sverdlov, V.; Grasser, T. A multi scale modeling approach to non-radiative multi phonon transitions at oxide defects in MOS structures. J. Comput. Electron.
**2012**, 11, 218–224. [Google Scholar] [CrossRef] - Grasser, T. Stochastic charge trapping in oxides: From random telegraph noise to bias temperature instabilities. Microelectron. Reliab.
**2012**, 52, 39–70. [Google Scholar] [CrossRef] - Bartók, A.P.; Payne, M.C.; Kondor, R.; Csányi, G. Gaussian Approximation Potentials: The Accuracy of Quantum Mechanics, without the Electrons. Phys. Rev. Lett.
**2010**, 104, 136403. [Google Scholar] [CrossRef] [Green Version] - Milardovich, D.; Wilhelmer, C.; Waldhoer, D.; Cvitkovich, L.; Sivaraman, G.; Grasser, T. Machine learning interatomic potential for silicon-nitride (Si
_{3}N_{4}) by active learning. J. Chem. Phys.**2023**, 158, 194802. [Google Scholar] [CrossRef] [PubMed] - Sivaraman, G.; Krishnamoorthy, A.N.; Baur, M.; Holm, C.; Stan, M.; Csányi, G.; Benmore, C.; Vázquez-Mayagoitia, Á. Machine-learned interatomic potentials by active learning: Amorphous and liquid hafnium dioxide. Npj Comput. Mater.
**2020**, 6, 104. [Google Scholar] [CrossRef] - Deringer, V.L.; Csányi, G. Machine learning based interatomic potential for amorphous carbon. Phys. Rev. B
**2017**, 95, 094203. [Google Scholar] [CrossRef] [Green Version] - Thompson, A.P.; Aktulga, H.M.; Berger, R.; Bolintineanu, D.S.; Brown, W.M.; Crozier, P.S.; in ’t Veld, P.J.; Kohlmeyer, A.; Moore, S.G.; Nguyen, T.D.; et al. LAMMPS—A flexible simulation tool for particle-based materials modeling at the atomic, meso, and continuum scales. Comput. Phys. Commun.
**2022**, 271, 108171. [Google Scholar] [CrossRef] - Kühne, T.D.; Iannuzzi, M.; Del Ben, M.; Rybkin, V.V.; Seewald, P.; Stein, F.; Laino, T.; Khaliullin, R.Z.; Schütt, O.; Schiffmann, F.; et al. CP2K: An electronic structure and molecular dynamics software package-Quickstep: Efficient and accurate electronic structure calculations. J. Chem. Phys.
**2020**, 152, 194103. [Google Scholar] [CrossRef] - Guidon, M.; Hutter, J.; Van de Vondele, J. Robust Periodic Hartree-Fock Exchange for Large-Scale Simulations Using Gaussian Basis Sets. J. Chem. Theory Comput.
**2009**, 5, 3010–3021. [Google Scholar] [CrossRef] - Elmaslmane, A.R.; Watkins, M.B.; McKenna, K.P. First-Principles Modeling of Polaron Formation in TiO
_{2}Polymorphs. J. Chem. Theory Comput.**2018**, 14, 3740–3751. [Google Scholar] [CrossRef] - Chagarov, E.A.; Kummel, A.C. Ab Initio Molecular Dynamics Simulations of Properties of a-Al
_{2}O_{3}/vacuum A-ZrO_{2}/vacuum Vs A-Al_{2}O_{3}/Ge(100)(2×1) A-ZrO_{2}/Ge(100)(2×1) Interfaces. J. Chem. Phys.**2009**, 130, 124717. [Google Scholar] [CrossRef] - Strand, J.; Kaviani, M.; Afanas’ev, V.V.; Lisoni, J.G.; Shluger, A.L. Intrinsic electron trapping in amorphous oxide. Nanotechnology
**2018**, 29, 125703. [Google Scholar] [CrossRef] - Misawa, M.; Fukunaga, T.; Niihara, K.; Hirai, T.; Suzuki, K. Structure characterization of CVD amorphous Si
_{3}N_{4}by pulsed neutron total scattering. J. Non-Cryst. Solids**1979**, 34, 313–321. [Google Scholar] [CrossRef] - Aiyama, T.; Fukunaga, T.; Niihara, K.; Hirai, T.; Suzuki, K. An X-ray diffraction study of the amorphous structure of chemically vapor-deposited silicon nitride. J. Non-Cryst. Solids
**1979**, 33, 131–139. [Google Scholar] [CrossRef] - Giacomazzi, L.; Umari, P. First-principles investigation of electronic, structural, and vibrational properties of a-Si
_{3}N_{4}. Phys. Rev. B**2009**, 80, 144201. [Google Scholar] [CrossRef] - Kaloyeros, A.E.; Pan, Y.; Goff, J.; Arkles, B. Review—Silicon Nitride and Silicon Nitride-Rich Thin Film Technologies: State-of-the-Art Processing Technologies, Properties, and Applications. ECS J. Solid State Sci.
**2020**, 9, 063006. [Google Scholar] [CrossRef] - Garza, A.J.; Scuseria, G.E. Predicting Band Gaps with Hybrid Density Functionals. J. Phys. Chem. Lett.
**2016**, 7, 4165–4170. [Google Scholar] [CrossRef] [Green Version] - Gös, W.; Wimmer, Y.; El-Sayed, A.M.; Rzepa, G.; Jech, M.; Shluger, A.L.; Grasser, T. Identification of Oxide Defects in Semiconductor Devices: A Systematic Approach Linking DFT to Rate Equations and Experimental Evidence. Microelectron. Reliab.
**2018**, 87, 286–320. [Google Scholar] [CrossRef] [Green Version] - Henry, C.H.; Lang, D.V. Nonradiative capture and recombination by multiphonon emission in GaAs and GaP. Phys. Rev. B
**1977**, 15, 989–1016. [Google Scholar] [CrossRef] - Waldhoer, D.; Wimmer, Y.; El-Sayed, A.M.; Goes, W.; Waltl, M.; Grasser, T. Minimum Energy Paths for Non-Adiabatic Charge Transitions in Oxide Defects. In Proceedings of the 2019 IEEE International Integrated Reliability Workshop (IIRW), South Lake Tahoe, CA, USA, 13–17 October 2019; pp. 1–5. [Google Scholar] [CrossRef]
- Rzepa, G.; Franco, J.; O’Sullivan, B.; Subirats, A.; Simicic, M.; Hellings, G.; Weckx, P.; Jech, M.; Knobloch, T.; Waltl, M.; et al. Comphy—A compact-physics framework for unified modeling of BTI. Microelectron. Reliab.
**2018**, 85, 49–65. [Google Scholar] [CrossRef] - Freysoldt, C.; Neugebauer, J.; Van de Walle, C.G. Fully Ab Initio Finite-Size Correct. Charg.-Defect Supercell Calc. Phys. Rev. Lett.
**2009**, 102, 016402. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Kärcher, R.; Ley, L.; Johnson, R.L. Electronic structure of hydrogenated and unhydrogenated amorphous SiN
_{x}(0 ≤ x ≤ 1.6): A photoemission study. Phys. Rev. B**1984**, 30, 1896–1910. [Google Scholar] [CrossRef] - Keister, J.W.; Rowe, J.E.; Kolodziej, J.J.; Niimi, H.; Madey, T.E.; Lucovsky, G. Band offsets for ultrathin SiO
_{2}and Si_{3}N_{4}films on Si(111) and Si(100) from photoemission spectroscopy. J. Vac. Sci. Technol. B**1999**, 17, 1831–1835. [Google Scholar] [CrossRef] - Midya, K.; Dhar, S.; Kottantharayil, A. Trap characterization of silicon nitride thin films by a modified trap spectroscopy technique. J. Appl. Phys.
**2013**, 114, 154101. [Google Scholar] [CrossRef] - Suhane, A.; Arreghini, A.; Degraeve, R.; Van den bosch, G.; Breuil, L.; Zahid, M.B.; Jurczak, M.; De Meyer, K.; Van Houdt, J. Validation of Retention Modeling as a Trap-Profiling Technique for SiN-Based Charge-Trapping Memories. IEEE Electron Device Lett.
**2010**, 31, 77–79. [Google Scholar] [CrossRef]

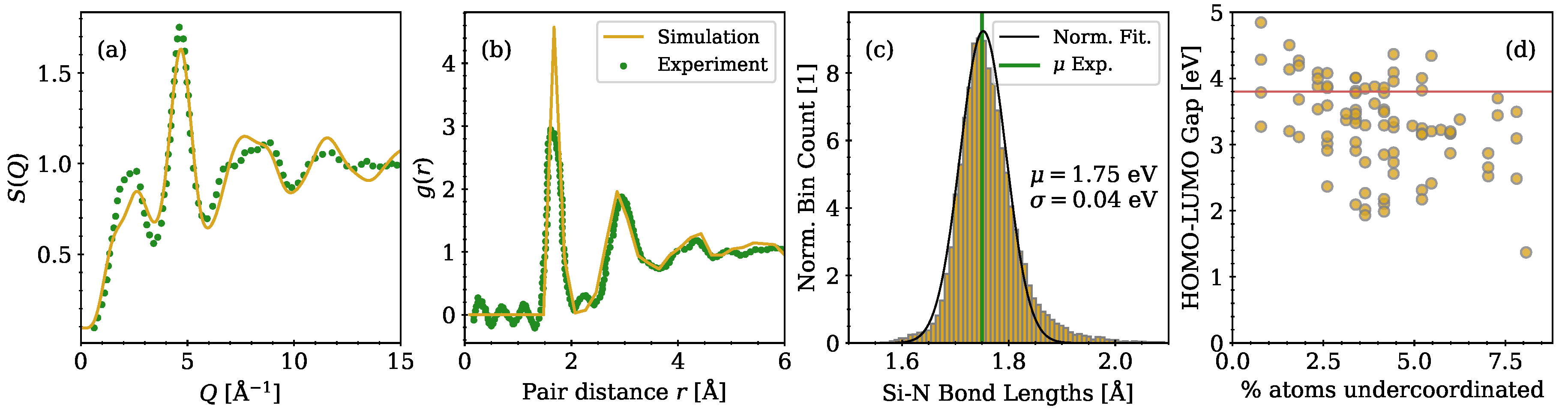

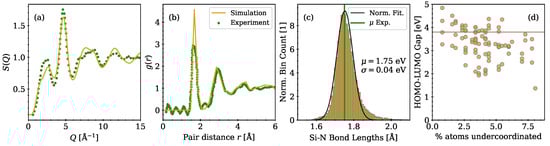

**Figure 1.**Structural properties of amorphous Si${}_{3}$N${}_{4}$ model structures compared with experimental data [28,29]. (

**a**) Structure factor; (

**b**) radial distribution function; (

**c**) Si-N bond length distribution of all structures combined with a fitted normal distribution without stretched Si-N bonds > 1.85 Å. Fitting parameters are given in the plot and the green line denotes the mean bond length from experimental data. (

**d**) Energy gaps between highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) as a function of the relative number of undercoordinated atoms in the respective structure. Only structures with band gaps above 3.8 eV, as denoted with a red horizontal line, were further investigated.

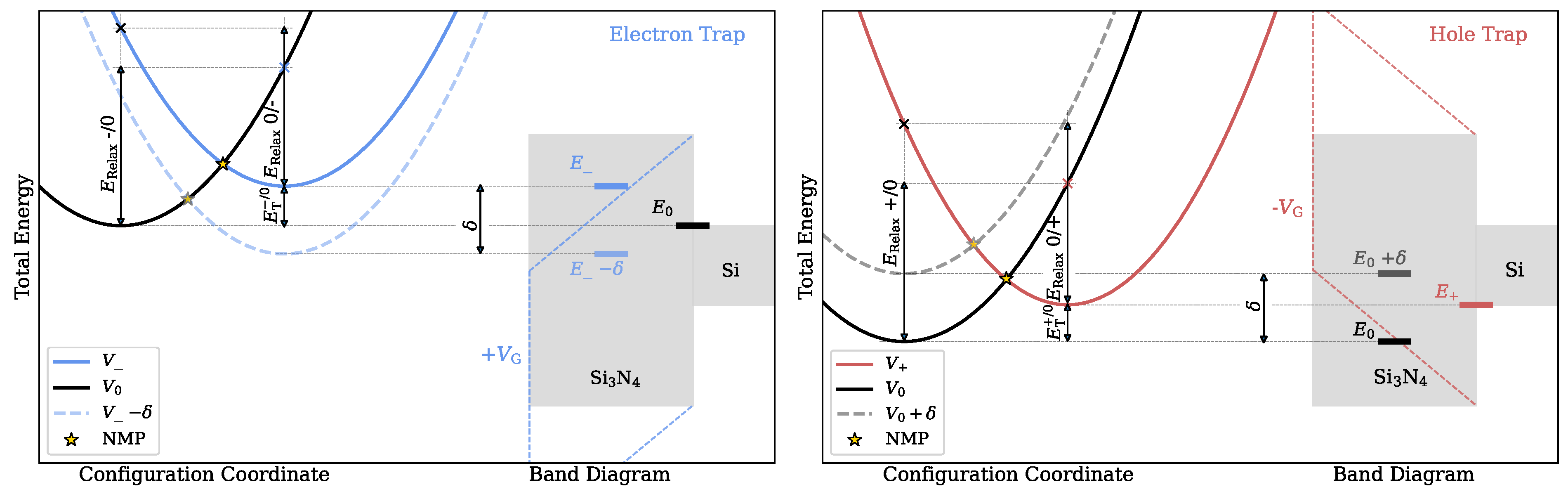

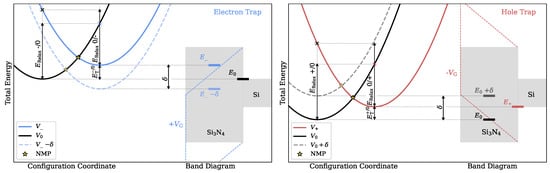

**Figure 2.**Schematics of potential energy curves as a function of the configuration coordinate for a Si${}_{3}$N${}_{4}$ system in two charge states in the context of a Si/Si${}_{3}$N${}_{4}$ band diagram to explain the charge transfer mechanism of electron traps (

**left**) and hole traps (

**right**). Applying a gate voltage shifts the trap level by $\delta $ as outlined with the dashed colored lines for positive (

**left**) and negative (

**right**) bias.

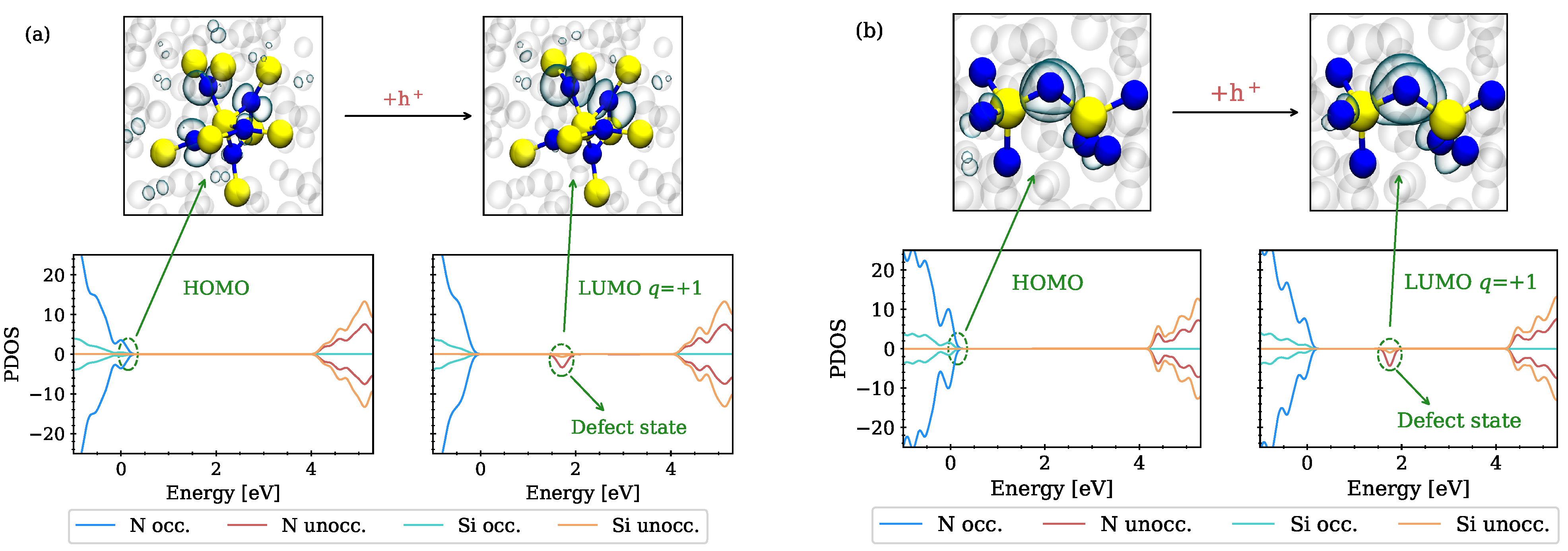

**Figure 3.**Hole trapping near intrinsic sites in a-Si${}_{3}$N${}_{4}$ with the localized wave functions (

**top**) and the projected density of states of the structure (

**bottom**). Silicon atoms are shown in yellow, nitrogen atoms in blue. (

**a**) Semi-localized HOMO around N adjacent to a five-fold coordinated Si (

**top left**). After trapping a hole, the state localizes at two of these N due to structural relaxations (

**top right**), shifting the now unoccupied state near the middle of the band gap. (

**b**) HOMO localized at twofold coordinated N (

**top left**), with an additional hole localized at this site (

**top right**). After trapping the hole, the amorphous network undergoes small structural relaxations and the state, now unoccupied, is shifted towards the middle of the band gap.

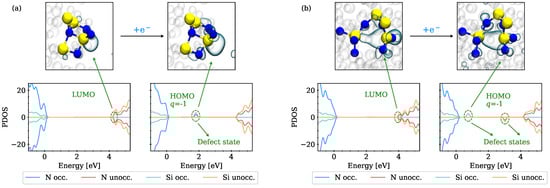

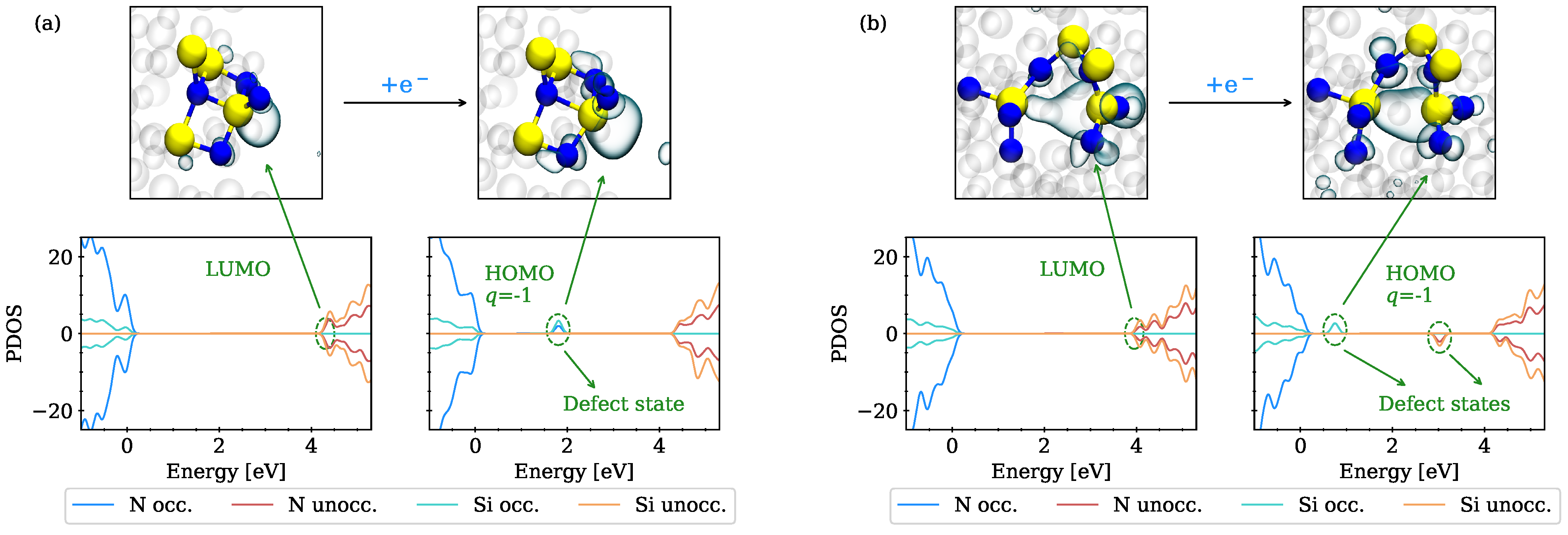

**Figure 4.**Electron trapping near intrinsic sites in a-Si${}_{3}$N${}_{4}$ with the localized wave functions (

**top**) and the according projected density of states (

**bottom**). Silicon atoms are shown in yellow, nitrogen in blue. (

**a**) LUMO localized at Si adjacent to a four-fold coordinated N. After trapping an electron, the Si relaxes away from the N, thereby shifting the state, now occupied, towards the middle of the band gap. (

**b**) LUMO hybridized between an undercoordinated and a fully coordinated Si (

**top left**). An additional electron localizes at this site, thereby moving the undercoordinated Si towards the other (

**top right**) and introducing one unoccupied and one occupied state in the band gap.

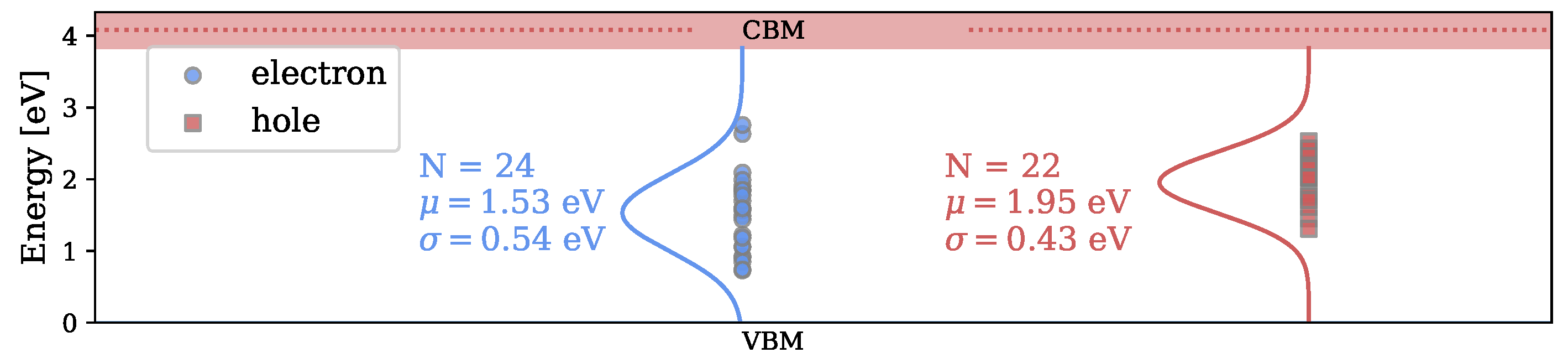

**Figure 5.**Energy levels of the electronic defect states introduced in the band gap after an electron (occupied state) or a hole (unoccupied state) is trapped in a-Si${}_{3}$N${}_{4}$.

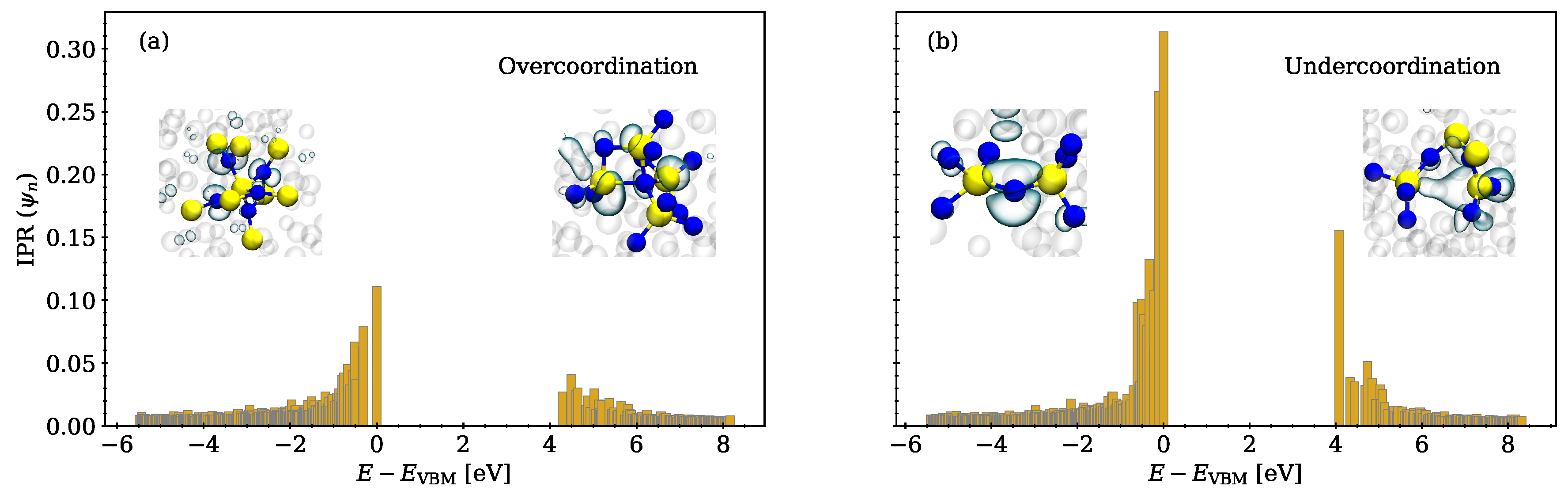

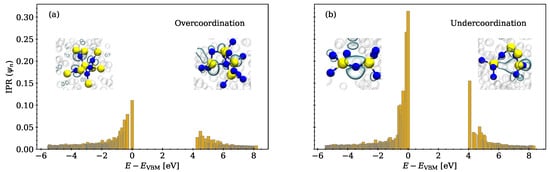

**Figure 6.**Inverse participation ratio of two different a-Si${}_{3}$N${}_{4}$ structures with the HOMO and the LUMO shown at an isovalue of 0.05 e/Å${}^{3}$ for the respective structures as an inset. Silicon atoms are shown in yellow, nitrogen atoms in blue. The IPR is a measure of the localization of an orbital, showing that the band edge states are (semi)localized. (

**a**) States at the band edges introduced by overcoordinated atoms. (

**b**) States at the band edges introduced by undercoordinated atoms or dangling bonds.

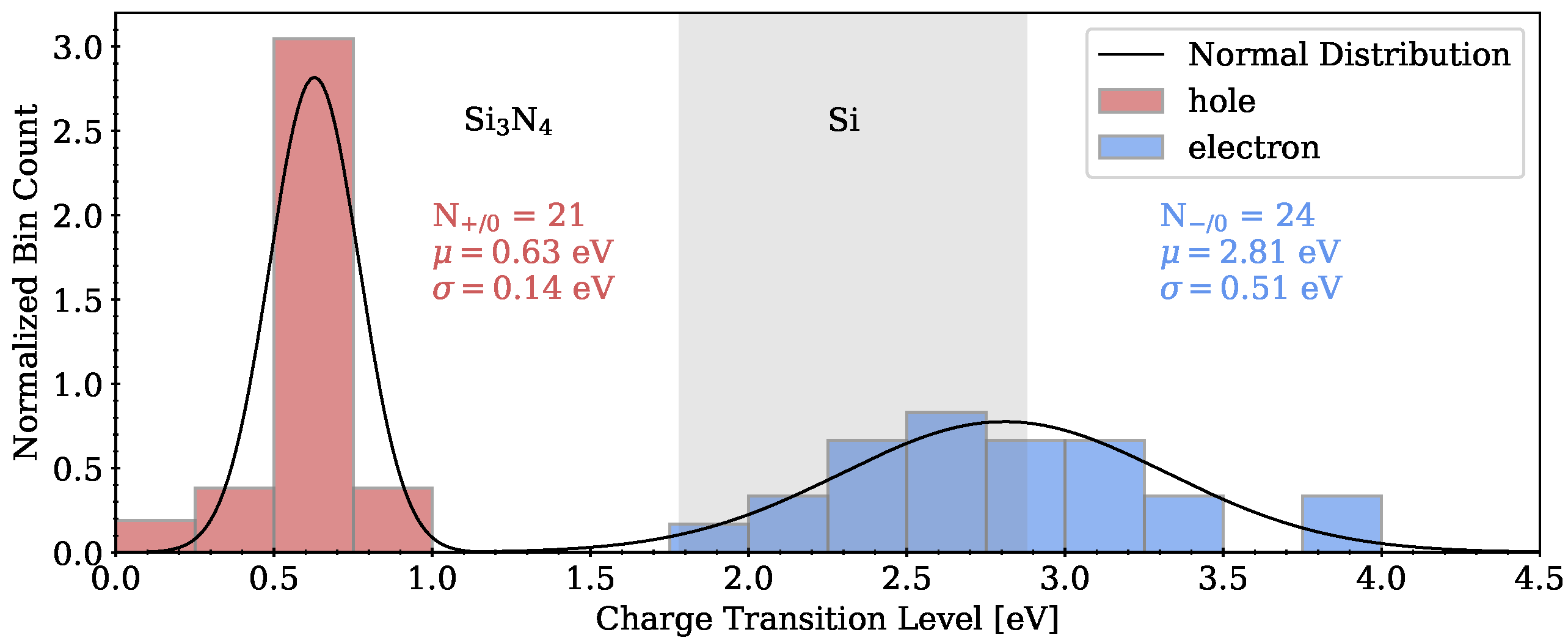

**Figure 7.**Charge transition levels of intrinsic hole and electron traps of several a-Si${}_{3}$N${}_{4}$ structures. CTLs are given with respect to the VBM of the according a-Si${}_{3}$N${}_{4}$ structure and shown in the context of a Si/Si${}_{3}$N${}_{4}$ band diagram with valence band offsets from experimental data.

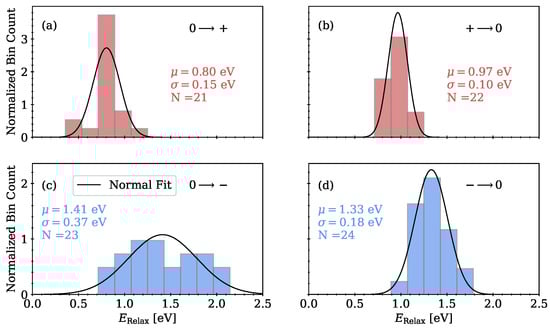

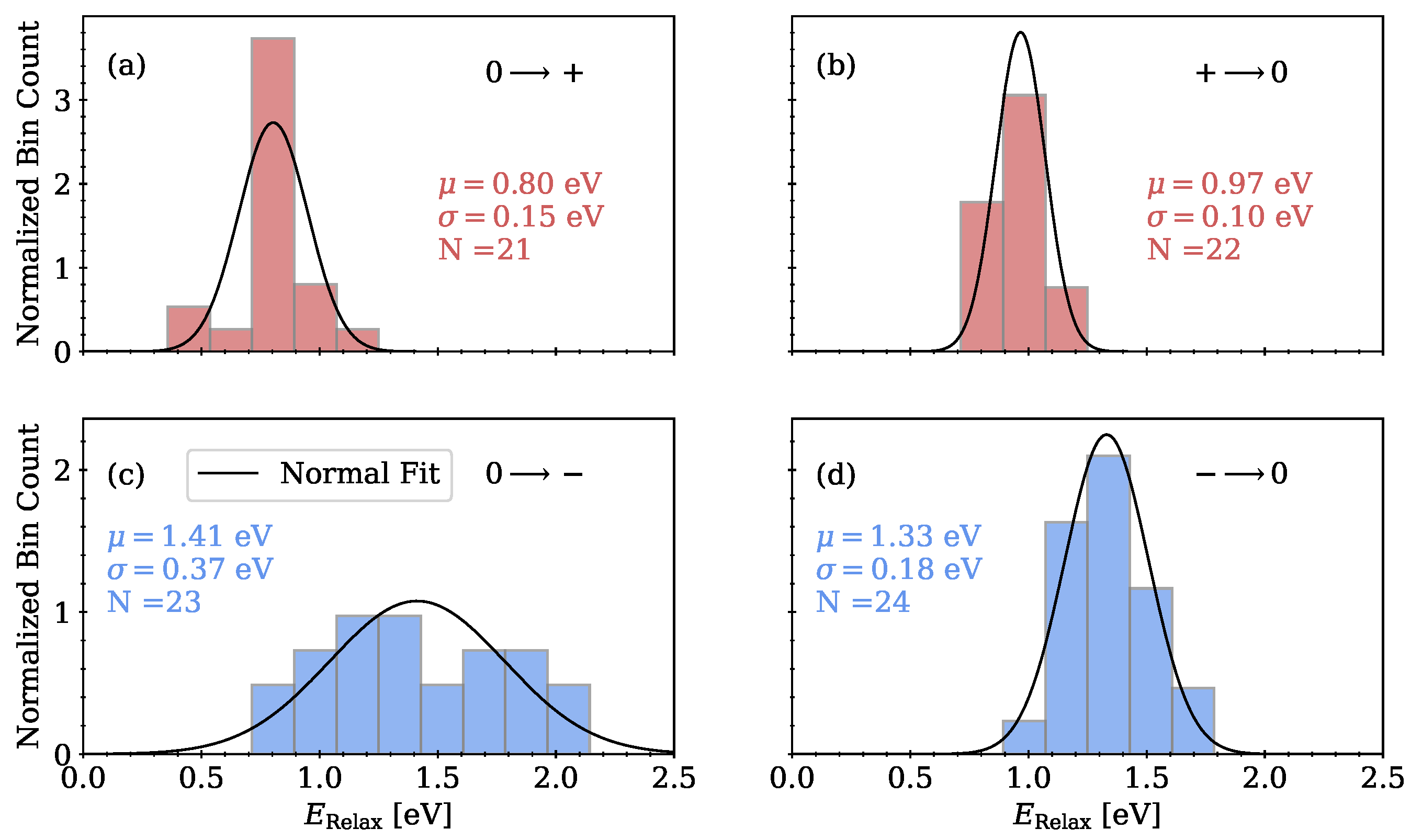

**Figure 8.**Relaxation energies according to the NMP model for different charge transfer processes with the fitting parameters of a normal distribution given in the plots. (

**a**) Hole capture, (

**b**) hole emission, (

**c**) electron capture, (

**d**) electron emission.

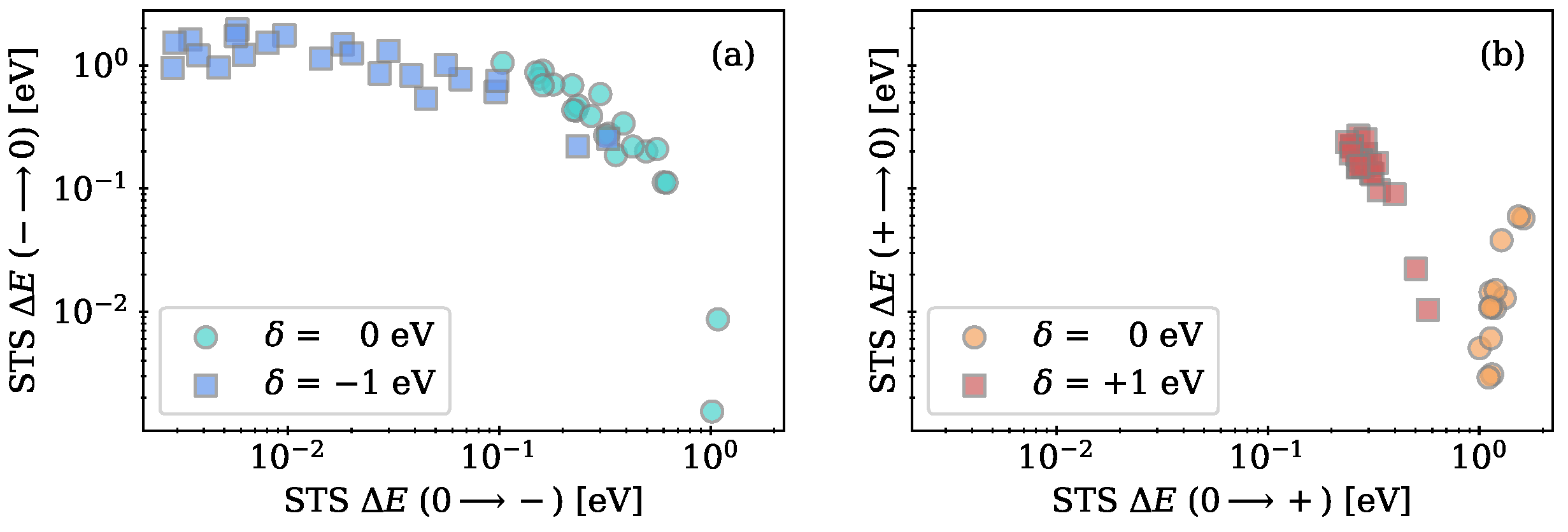

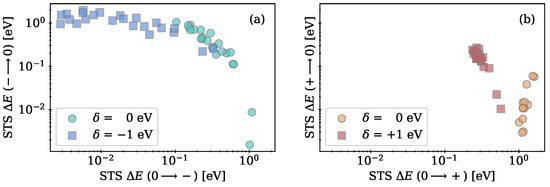

**Figure 9.**(

**a**) Energy barriers in logarithmic scale from minimum energy configurations to the crossing point of the PECs for electron emission vs. electron capture with the CBM of a Si substrate acting as an electron reservoir. Energy values are shown for initial conditions and after shifting the trap level by $\delta =-1$ eV after applying a positive voltage. (

**b**) Energy barriers in logarithmic scale from minimum energy configurations to the crossing point of the PECs for hole emission vs. hole capture with the VBM of a Si substrate acting as a hole reservoir. Energy values are plotted for initial conditions and after decreasing the Fermi level by $\delta =+1$ eV by applying a negative voltage.
