Enhanced Photocatalytic Activity and Stability of Bi2WO6 – TiO2-N Nanocomposites in the Oxidation of Volatile Pollutants

by
Nikita Kovalevskiy
1,2,
Svetlana Cherepanova
1,
Evgeny Gerasimov
1,
Mikhail Lyulyukin
1,
Maria Solovyeva
1,
Igor Prosvirin
1,
Denis Kozlov
1 and
Dmitry Selishchev
1,2,*
1
Boreskov Institute of Catalysis, 630090 Novosibirsk, Russia
2
Research and Educational Center “Institute of Chemical Technologies”, Novosibirsk State University, 630090 Novosibirsk, Russia
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(3), 359; https://doi.org/10.3390/nano12030359
Submission received: 4 December 2021 / Revised: 17 January 2022 / Accepted: 19 January 2022 / Published: 23 January 2022
(This article belongs to the Special Issue Metallic and Metal Oxide Nanoparticles and Their Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
The development of active and stable photocatalysts for the degradation of volatile organic compounds under visible light is important for efficient light utilization and environmental protection. Titanium dioxide doped with nitrogen is known to have a high activity but it exhibits a relatively low stability due to a gradual degradation of nitrogen species under highly powerful radiation. In this paper, we show that the combination of N-doped TiO2 with bismuth tungstate prevents its degradation during the photocatalytic process and results in a very stable composite photocatalyst. The synthesis of Bi2WO6–TiO2-N composites is preformed through the hydrothermal treatment of an aqueous medium containing nanocrystalline N-doped TiO2, as well as bismuth (III) nitrate and sodium tungstate followed by drying in air. The effect of the molar ratio between the components on their characteristics and photocatalytic activity is discussed. In addition to an enhanced stability, the composite photocatalysts with a low content of Bi2WO6 also exhibit an enhanced activity that is substantially higher than the activity of individual TiO2-N and Bi2WO6 materials. Thus, the Bi2WO6–TiO2-N composite has the potential as an active and stable photocatalyst for efficient purification of air.

1. Introduction

Photocatalytic oxidation is a convenient method for removing volatile contaminants from air via their complete degradation. TiO2 is the most used photocatalyst for the oxidative degradation of pollutants due to its high activity, stability, and safety for living organisms [1,2]. A high activity of TiO2 results from the positions of its valence band (VB) and conduction band (CB) that are appropriate for the generation of charge carriers with high redox potentials, an extended surface area, and surface chemistry [3,4]. The potentials of photogenerated electrons and holes are high enough for the formation of reactive oxygen species, which can provide oxidative degradation of various types of pollutants [5,6]. The degradation of aromatics, ketones, aldehydes, alcohols, carboxylic acids, alkanes, alkenes, and heterocompounds was investigated and discussed in the previously published papers [7,8,9,10,11,12,13,14]. However, a wide band gap of TiO2 (3.0–3.2 eV) does not allow for efficient utilization of sunlight because TiO2 can absorb radiation with wavelengths shorter than 400 nm (i.e., UV light) that corresponds to less 5% of the total solar light [15]. Room light sources also have a low impact on TiO2 because they emit photons in the visible region of spectrum. Therefore, the development of active and stable photocatalysts, which can efficiently utilize light in a wide range, is important for environmental protection and human safety.
One of the promising photocatalysts for pollutant degradation both under UV and visible light is TiO2 doped with nitrogen [16,17,18,19]. Energy levels of nitrogen impurities are located in the band gap of TiO2 above its VB and lead to a reduction in the energy required for the excitation of electrons [20]. The potential of photogenerated holes localized in nitrogen levels is still high enough for the direct oxidation of organic molecules adsorbed on the surface of the photocatalyst [21]. As a result, N-doped TiO2 is able to completely oxidize organic pollutants under radiation with wavelengths up to 500–530 nm and exhibits high values of quantum efficiency [22]. N-doped TiO2 can be prepared using inexpensive inorganic precursors through simple routes that make it significant for practical application [23].
However, the efficiency of light utilization by N-doped TiO2 in the visible region of the spectrum is still far from the corresponding value for the utilization of the UV light attributed to the band-to-band excitation of electrons in TiO2 [19,24]. An increase in the values of quantum efficiency in the visible region is required for better utilization of solar light by this type of photocatalysts. It stimulates further studies on the modification of N-doped TiO2 to enhance its photocatalytic activity. Another aspect of N-doped TiO2 is that a gradual decrease in its visible-light activity occurs under long-term irradiation. This deactivation results from the oxidation of nitrogen species in the TiO2 lattice by the photogenerated holes that do not migrate to the surface of the photocatalyst and do not participate in the redox reactions with adsorbed molecules [25]. Fast transfer of holes from the TiO2 phase may help to prevent the degradation of nitrogen species and deactivation of the photocatalyst.
The surface modification of N-doped TiO2 may solve both the mentioned problems via an enhanced interface transfer of photogenerated charge carriers that would improve their separation and prevent fast recombination. Surface modification with transition metals, especially noble metals, is an efficient way to suppress the recombination of charge carriers [26]. However, this approach commonly affects the pathway of photogenerated electrons only because an interface transfer of electrons from the CB of TiO2 to the metal species occurs in the metal-modified photocatalyst. As a result, the modification with metals leads to an increase in the efficiency of light utilization but it has a low effect on the stability of N-doped TiO2 [27].
Another approach to enhance the separation of charge carries is the combination of TiO2 with other semiconductors. When two semiconductors are in contact, different types of heterojunctions can occur [28,29,30]. The type of heterojunction depends on the characteristics of semiconductors that include their band gaps, potentials of VB and CB, and work functions [31,32]. A good cocatalyst for N-doped TiO2 would be a semiconductor with a band gap that is narrower than the band gap of TiO2, while the position of its VB would be close to the VB of TiO2. These parameters would give a possibility to obtain a composite material, which is able to generate holes with a potential high enough for the formation of OH• species and direct oxidation of organic compounds [4].
Bismuth and tungsten oxides with a band gap of 2.6–2.8 eV correspond to the mentioned requirements [33]. Both type II [34] and S-scheme [35] heterojunctions were proposed for the composite Bi2O3–TiO2 system. Similarly, a heterojunction of type II [36] or Z-scheme [37] was proposed for the WO3–TiO2 composite. An increased photocatalytic activity in all cases was attributed to an enhanced separation of charge carriers due to interface transfer.
Bismuth tungstate (Bi2WO6) is also regarded as one of the promising semiconductors which can enhance the characteristics of TiO2 and N-doped TiO2 on the efficiency of light utilization. Bi2WO6 absorbs light with wavelengths up to 450 nm and has a photocatalytic activity in the oxidation of organic pollutants both under UV and visible light [38]. On the other hand, the potential of photogenerated electrons in Bi2WO6 is not high enough for efficient transfer to oxygen molecules if compared with TiO2-based photocatalysts. As a result, pristine Bi2WO6 does not exhibit superior values of photocatalytic activity in the degradation of pollutants. The composite Bi2WO6–TiO2 photocatalysts was previously shown to exhibit substantially higher activity than parent semiconductors [39,40,41,42]. In contrast to photocatalytic activity, no information concerning the effect of Bi2WO6 on the stability of N-doped TiO2 was found by the authors during the literature review. It was our motivation to perform this study and investigate the stability of Bi2WO6–TiO2-N composites under long-term exposure to powerful radiation.
In this paper, we show the effect of the ratio between Bi2WO6 and N-doped TiO2 components on the activity of the composite system and its stability during long-term experiments. The synthesis of bismuth tungstate and composites with N-doped TiO2 was performed using the hydrothermal method. The experimental data shows that the combination of N-doped TiO2 with bismuth tungstate via this method results in a stable composite photocatalyst due to the prevention in the degradation of nitrogen species in TiO2 during the photocatalytic process. In addition to an enhanced stability, the composite photocatalysts with a low content of Bi2WO6 also exhibit an enhanced activity that is substantially higher than the activity of the pristine N-doped TiO2 and Bi2WO6 photocatalysts.

2. Materials and Methods

2.1. Synthesis of Photocatalysts

High purity grade titanium(IV) oxysulfate (TiOSO4), bismuth(III) nitrate pentahydrate (Bi(NO3)3·5H2O), and sodium tungstate dihydrate (Na2WO4·2H2O), purchased from Sigma-Aldrich (Saint Louis, MO, USA), as well as reagent grade ammonium hydroxide solution (NH4OH, 25%) and nitric acid (HNO3, 65%) purchased from AO Reachem Inc. (Moscow, Russia), were used for the synthesis as received without further purification.
N-doped TiO2 (TiO2-N) was prepared from an aqueous solution of TiOSO4 via the precipitation using ammonia according to our previously published technique [22]. Briefly, the solutions of titanium oxysulfate (1 M, 150 mL) and ammonium hydroxide (4 M) were simultaneously added dropwise to deionized water (200 mL) under vigorous stirring. The pH during the precipitation was adjusted at 7 by tuning the flows of reagents. After storing for 48 h in mother liquor, the precipitate was separated by centrifugation and washed with deionized water. Finally, it was calcined in air at 450 °C for 3 h and grinded using an agate mortar. Large particles were separated using a sieve to get a fraction of fine particles.
The synthesis of Bi2WO6 and its composites with N-doped TiO2 was performed via the precipitation from an acidic solution of Bi(NO3)3 using Na2WO4 followed by the hydrothermal treatment. The molar ratio between the components was varied in a wide range. Table 1 shows the mass values of all the precursors used during the synthesis of samples. Bismuth nitrate (m(X) g) was dissolved in nitric acid solution (1 M, 40 mL) and prepared TiO2-N (m(Z) g) was suspended in this solution. Then, a solution of Na2WO4 (m(Y) g in 10 mL deionized water) was added dropwise to the prepared suspension under continuous stirring. The suspension was transferred to a Teflon-lined autoclave and thermally treated at 160 °C for 10 h. After hydrothermal treatment, the precipitate was separated by centrifugation and washed with deionized water followed by final drying and grinding. Actual Bi2WO6 contents estimated using X-ray fluorescence analysis corresponded to the loading of components. The Bi2WO6 photocatalyst was synthesized similarly without the addition of TiO2-N.

2.2. Characterization Techniques

Powder X-ray diffraction (XRD) was used for analysis of crystal phases in the prepared photocatalysts. The data were collected using a D8 Advance diffractometer (Bruker, Billerica, MA, USA), which was equipped with a CuKα radiation source and a LynxEye position sensitive detector, in the 2θ range of 10–75° with a step of 0.05° and a collection time of 3 s. The average size of TiO2 crystallites was estimated from the collected XRD patterns using TOPAS software (Bruker, Billerica, MA, USA). The specific surface area of the samples was determined by BET analysis of N2 isotherms measured at 77 K using an Autosorb-6B-Kr (Quantachrome Instruments, Boynton Beach, FL USA). Before the measurements, the samples were outgassed in a vacuum at 150 °C for 17–23 h. The pore volume in the samples was estimated from the isotherms using the BJH method as a cumulative desorption pore volume. The morphology of individual components and composite photocatalysts was investigated using scanning electron microscopy (SEM). SEM micrographs were received using an ultra-high resolution Field-Emission SEM (FE-SEM) Regulus 8230 (Hitachi, Tokyo, Japan) at an accelerating voltage of 5 kV. The local structure was investigated by transmission electron microscopy (TEM) using a JEOL-2010 microscope (JEOL, Tokyo, Japan) at 200 kV and a resolution of 0.14 nm. The surface composition was investigated by X-ray photoelectron spectroscopy (XPS) using a SPECS photoelectron spectrometer (SPECS Surface Nano Analysis GmbH, Berlin, Germany) equipped with a PHOIBOS-150 hemi-spherical energy analyzer and an AlKα radiation source (hν = 1486.6 eV, 150 W). The scale of binding energy (BE) was pre-calibrated using the photoelectron lines of Au4f7/2 (84.0 eV) and Cu2p3/2 (932.67 eV) from metallic gold and copper foils. Peak fitting in the collected spectra was performed using XPSPeak 4.1 software (Informer Technologies Inc., Los Angeles, CA, USA). The optical properties of the samples were analyzed at room temperature using UV-Vis diffuse reflectance spectroscopy (DRS). The spectra were recorded in the range of 250–850 nm on a Cary 300 UV-Vis spectrophotometer from Agilent Technologies Inc. (Santa Clara, CA, USA) equipped with a DRA-30I diffuse reflectance accessory and special pre-packed polytetrafluoroethylene (PTFE) as a reflectance standard. The optical band gap was estimated using the Tauc method based on an assumption of indirect allowed excitations.

2.3. Photocatalytic Experiments

Long-term photocatalytic experiments were performed in a continuous-flow setup using acetone as a test volatile organic compound. The schematic diagram of this setup and details on the operation process can be found in Supplementary (Figure S1). Validation of the setup was previously performed during the investigation of functional properties of various photocatalytic systems [43,44,45,46]. The rate of air flow was 67 ± 1 mL min−1 and the inlet concentration of acetone vapor was ca. 32 µmol L−1. The relative humidity during experiments was adjusted at 19 ± 1% by tunning the flows of dry and humidified air. The experiments were performed with a thick layer of photocatalyst at a geometric area of 9.1 cm2 and its area density was 20 mg cm−2 to absorb the maximum number of photons. A UV light-emitting diode (LED) with a maximum at 371 nm and a blue LED with a maximum at 450 nm (see Figure S2 in Supplementary) were used for the irradiation of photocatalysts and for the evaluation of their activity in both UV and visible regions, respectively. Specific radiation powers measured using an ILT950 spectroradiometer (International Light Technology, Peabody, MA, USA) were 10 and 160 mW cm−2 for UV and blue lights, respectively. Analysis of acetone and oxidation products in the gas phase was performed using in situ IR spectroscopy on an FTIR spectrometer FT-801 (Simex LLC, Novosibirsk, Russia) equipped with an IR long-path gas cell (Infrared Analysis Inc., Anaheim, CA, USA). The concentrations of volatile compounds were determined from the collected IR spectra using the Beer-Lambert law. The photocatalytic activity of materials was estimated as the steady-state rate of CO2 formation (μmol min−1), which was the final oxidation product. Based on the statistics of many experiments, a relative error estimated using the confidence interval for the probability of 95% during the measurement of photocatalytic activity in the setup did not exceed 5%. This error value was used for all tested samples to evaluate statistically significant differences in their activity.

3. Results and Discussion

Composite photocatalysts containing Bi2WO6 were synthesized using a wet process with the purpose to enhance the activity and stability of N-doped TiO2 as a photocatalyst for the degradation of volatile organic pollutants under visible light. Correlations between physicochemical characteristics of the materials and their functional properties are discussed below.

3.1. Characteristics

Phase composition, morphology, and textural and optical properties commonly have a strong effect on the photocatalytic ability of semiconducting materials. Therefore, these properties were investigated for the synthesized samples using corresponding techniques.
Figure 1a shows the XRD patterns of single photocatalysts and certain samples from a series of synthetized composites. TiO2-N prepared from an aqueous solution of titanium oxysulfate had the crystal structure of anatase because all peaks in its XRD pattern are coincided with the reflexes attributed to anatase. Main reflection peaks at 2Θ of 25.3, 37.8, 48.0, 53.9, and 55.1° correspond to the (101), (004), (200), (105), and (211) diffraction planes of anatase TiO2, respectively. No peaks attributed to the rutile phase were detected. Formation of anatase phase at relatively low temperatures is typical for the preparation of TiO2 from the titanium oxysulfate precursor [47,48]. An averaged size of anatase crystallites in the TiO2-N sample was estimated as 20 nm. SEM micrographs in Figure 2a illustrate this fact and show that large agglomerates in TiO2-N consist of adherent nanosized spherical and oval particles, wherein the space between forms a porous structure. Consequently, this sample had a high surface area (98 m2 g−1) and pore volume (0.54 cm3 g−1) that positively affected its photocatalytic ability.
As expected, the applied technique via hydrothermal treatment of aqueous solutions of bismuth nitrate and sodium tungstate resulted successfully in a formation of orthorhombic bismuth tungstate (Bi2WO6, PDF#39-0256). The main reflection peak at 2Θ of 28.3° corresponds to the (131) plane of orthorhombic Bi2WO6, while the peaks with maxima at 32.9 and 47.2° result from a series of reflexes: {(200), (002), (060)} and {(202), (260)}, respectively. No marked peaks attributed to the individual bismuth and tungsten oxides were detected. On the other hand, an asymmetry of peaks attributed to multiplied reflexes of Bi2WO6 was observed in the XRD pattern of the synthesized Bi2WO6 sample (Figure 1b). This fact indicates an anisotropy in the shape of its particles (see Supplementary for details). The results of microscopic study using the SEM technique confirms this statement. Figure 2b shows that the Bi2WO6 sample has a lamellar structure and its agglomerates consist of adherent nanoplates, which have a thickness lower than 20 nm (see the bottom micrograph received at a high magnification). To illustrate the effect of anisotropic sizes of crystallites on XRD patterns, Figure 1c shows the XRD pattern simulated for the nano-crystallites of Bi2WO6, which have the shape of disks (see Supplementary for details). A good accordance with the experimental pattern was observed for the model corresponding to a small thickness of disks (6.6 nm) but a large diameter (30 nm). These values characterize the relative sizes of crystallites in the Bi2WO6 sample at different crystallographic axes. Saha et al. [49] have recently shown using in situ X-ray techniques the mechanism of nucleation and growth of Bi2WO6 crystallites, describing the predominant formation of nanoplatelets.
In the case of Bi2WO6–TiO2-N composites, the phase composition was influenced by the content of Bi2WO6. Only the peaks attributed to the anatase phase were observed in the XRD pattern of the sample with a Bi2WO6:TiO2-N molar ratio of 1:100 and no additional peaks were detected. Additionally, the volume of the TiO2 unit cell did not change compared to pristine TiO2-N, which indicates no doping TiO2 lattice with Bi or W-species. This means that at low amounts of Bi and W-precursors, the formation of Bi2WO6 crystallites in a high number does not occur and they seem to be in the form of clusters on the extended surface of TiO2-N particles.
An increase in the molar ratio up to 5:100 resulted in the appearance of the orthorhombic phase of Bi2WO6 in the composition (Figure 1a). This means that the amounts of Bi and W-precursors in this case are high enough for the formation of Bi2WO6 crystallites in a high number. Figure 2c shows a hybrid structure of the Bi2WO6–TiO2-N (5:100) sample, where small TiO2 nanoparticles are located on the surface of Bi2WO6 nanosheets of big size, and they together form large porous agglomerates. In addition, Figure 3 shows a local structure of the Bi2WO6–TiO2-N (5:100) composite studied using the TEM technique. A high number of nano-crystallites with a lattice spacing of 0.35 nm attributed to the (101) plane of anatase TiO2 was observed on the surface of sheet-like particles of Bi2WO6.
The results of XPS analysis also confirm the presence of bismuth and tungstate elements on the surface of the Bi2WO6–TiO2-N (5:100) sample. According to the peak positions (Figure 4a,b), they have high charge states (i.e., +3 for Bi and +6 for W), which correspond to the states in the chemical composition of Bi2WO6. No additional lines attributed to the other charge states of these elements were detected in corresponding spectral regions. These data support the results of other characterization techniques on the formation of the Bi2WO6 semiconductor, which forms a composite system with TiO2-N. The structure of the synthesized Bi2WO6–TiO2-N composite indicates a possibility for a heterojunction of photogenerated charge carriers between the Bi2WO6 and TiO2-N semiconducting components under irradiation and for an enhancement in its photocatalytic ability, as will be discussed later.
All samples with a molar ratio of higher than 5:100 had the crystal phases of both components (i.e., orthorhombic bismuth tungstate and anatase). An increase in the content of Bi2WO6 led to an increase in the fraction of the Bi2WO6 crystal phase and, consequently, to a decrease in the textural characteristics of composites because synthesized Bi2WO6 had substantially worse textural properties than TiO2-N due to a lamellar structure. As mentioned above, the synthesized TiO2-N sample had a high surface area (98 m2 g−1) and pore volume (0.54 cm3 g−1) due to an extended pore structure formed between adherent nanosized particles of TiO2. The specific surface area and pore volume of Bi2WO6 were 34 m2 g−1 and 0.20 cm3 g−1, respectively, which corresponds to high values for the concerned material [41,42]. As the molar ratio between Bi2WO6 and TiO2-N was increased, the textural characteristics of composites monotonically decreased down to the values attributed to pristine Bi2WO6 because the content of the superfine component was decreased (Figure 5). Commonly, photocatalysts with an extended surface area exhibit higher photocatalytic activity due to the higher number of sites for adsorption of oxidizing compounds. Therefore, the Bi2WO6–TiO2-N composites with a low content of Bi2WO6 would be preferable in this aspect.
It is important to note that in addition to the main elements (Bi, W, Ti, and O) in the chemical composition of Bi2WO6–TiO2-N (5:100), XPS analysis of this sample shows a signal in the N1s spectral region at 399.8 eV attributed to nitrogen species (Figure 4c). We have previously shown [22] that this value of binding energy corresponds to nitrogen that is placed in an interstitial position in the TiO2 lattice and has a weak positive charge due to interactions with lattice O atoms. The formed nitrogen species result in the appearance of additional energy levels (π* N-O) in the band gap of TiO2, above its VB [50], and provide the absorption of light in the visible region of the spectrum due to the excitation of electrons from these levels to the CB of TiO2. In the UV-vis spectrum of synthesized TiO2-N (Figure 6a), it appears as a shoulder of absorption in the region of 390–530 nm in addition to fundamental (i.e., band-to-band) absorption in TiO2-N. Approximation of the Tauc plot for this sample (Figure 6b) gives a value of 3.18 eV, attributed to the band gap of anatase, but light absorption also occurs in the low-energy region until 2.32 eV (i.e., 535 nm). This value corresponds to a minimum energy required for the photoexcitation of electrons in N-doped TiO2 and can be used for an estimation of the position of nitrogen energy levels compared to the bands of TiO2.
Bi2WO6 has a narrower band gap than TiO2 and can absorb the light of the visible region up to 450 nm due to the band-to-band excitation of electrons. An estimated value of its optical band gap was 2.80 eV (Figure 6b). Considering the ability of single materials to absorb the light of the blue region, Figure 6a shows that TiO2-N can absorb a much higher number of photons in this region than Bi2WO6. This can be a reason for the higher rate in the photocatalytic oxidation of acetone vapor over TiO2-N compared to the Bi2WO6 photocatalyst, as will be discussed in the next section.
In contrast to pristine Bi2WO6, UV-vis spectra of composite Bi2WO6–TiO2-N photocatalysts had a form that is similar to the spectrum of TiO2-N (Figure 6a). The samples with a low content of Bi2WO6 (i.e., molar ratio of 1:100 and 5:100) exhibited even higher absorption of blue light due to a combination with Bi2WO6 and a greater depth for the penetration of light. Further increase in the content of Bi2WO6 led to lower values of absorption due to a decrease in the content of TiO2-N, which better absorbed light in this region. However, for all these composite photocatalysts, the minimum energy required for the photoexcitation of electrons was ca. 2.3 eV, which is similar to TiO2-N. This indicates that the proposed Bi2WO6–TiO2-N composite system has the potential to perform the photocatalytic reactions under solar radiation, which has the major content in the visible region.
All synthesized photocatalysts absorb light both in UV and blue regions but different pathways of excitation are realized. Therefore, their photocatalytic activity was investigated independently in each region to correctly analyze the effect of composition on the functional properties of materials.

3.2. Photocatalytic Activity

TiO2-mediated photocatalytic oxidation of pollutants in oxygen-contained mediums has no selectivity due to the formation of reactive species on the irradiated surface of photocatalysts. As a result, almost all organic compounds can be photocatalytically oxidized. We selected acetone as a volatile organic compound for testing the synthesized materials because it does not cause itself the deactivation of photocatalysts and, consequently, is suitable for long-term experiments to evaluate their stability in the view of photocatalytic ability. In this case, a change in the rate of photocatalytic oxidation, that would be observed during experiments, can be reliably attributed to a change in photocatalyst itself due to its transformation.
Bismuth tungstate prepared via the hydrothermal method from bismuth nitrate and sodium tungstate was able to provide the oxidation of acetone vapor both under UV (371 nm) and visible light (450 nm). Carbon dioxide was the major oxidation product but small amounts of intermediate products, namely formaldehyde and formic acid, were also detected in the gas phase during experiments using IR spectroscopy. These products of incomplete oxidation have low threshold limits and are harmful for human health [12]. Formation of intermediates during the oxidation of pollutants over Bi2WO6 is a drawback for its application as a single-phase photocatalyst. In contrast to Bi2WO6, N-doped TiO2 prepared from titanium oxysulfate using ammonia as a nitrogen source resulted in the complete oxidation of acetone without the formation of gaseous intermediates under the radiation in both spectral regions. The photocatalytic activity of TiO2-N under UV attributes to the excitation of electrons from VB to the CB of anatase TiO2. Under visible light, the excitation occurs using intermediate energy levels of nitrogen species in the TiO2 lattice that are located higher than the VB of TiO2. Therefore, a lower energy of photons is required for the excitation of electrons compared to the band-to-band excitation. As mentioned above, the redox potentials of charge carriers photogenerated under visible light remain high enough to provide the complete oxidation of pollutants with a high rate. Considering single materials, TiO2-N is more active than Bi2WO6 in both spectral regions: in four times under UV and in 1.6 times under blue light (Figure 7). A high surface area of TiO2-N and a high amount of light absorbed in the visible region give positive effects on its activity and ability for complete oxidation. It should be noted that one of the best commercially available photocatalysts for visible light, namely KRONOClean® 7000 from Kronos Worldwide Inc. (Dallas, TX, USA), exhibited the visible-light activity of 0.07 μmol min−1 under the same conditions that is much lower than the corresponding values for Bi2WO6 (0.45 μmol min−1) and TiO2-N (0.70 μmol min−1). This fact confirms the high level of activity achieved for the synthesized materials.
An enhanced activity was achieved for the synthesized Bi2WO6–TiO2-N composites compared to the parent single-phase materials. It corresponds to the previously published results on an enhanced activity of Bi2WO6–TiO2 composites in the degradation of organic dyes, 2-nitrophenol, and acetaldehyde [51,52]. Similar trends both under UV and visible light were observed for the synthesized Bi2WO6–TiO2-N samples. The photocatalytic activity increased as the content of Bi2WO6 in composites was increased, but at a further increase in the Bi2WO6 content, activity began to decrease until the level for single Bi2WO6. Figure 7 clearly shows this dome-shaped dependance with a maximum at the molar ratio of 5:100 between the components for both spectral regions. The UV-light activity of this composite was higher than the activities of single TiO2-N and Bi2WO6 in 1.6 and six times, respectively. Under visible light, initial activity was increased in 1.4 and 2.2 times compared to TiO2-N and Bi2WO6, respectively.
An enhanced activity of Bi2WO6–TiO2-N composites results from the efficient separation of photogenerated charge carriers due to a heterojunction between the semiconductors. According to the estimations using an empirical equation based on the electronegativity and band gap of semiconductors, the energy bands of Bi2WO6 are located lower than the bands of TiO2. As a result, the heterojunction of type II, when the electrons photogenerated in the CB of TiO2 are transferred to the CB of Bi2WO6, while the holes migrate backwards from the VB of Bi2WO6 to the VB of TiO2, is commonly proposed for the Bi2WO6–TiO2 system [41,53]. An increase in the content of Bi2WO6 leads to an increase in the number of contacts between Bi2WO6 and TiO2-N nanoparticles, which has a positive effect on the photocatalytic activity. At a high content, Bi2WO6 begins to prevail and the system goes to its characteristics that are substantially lower compared to TiO2-N. Therefore, the Bi2WO6–TiO2-N composites with a low content of Bi2WO6 exhibit the highest activity.
In addition to a high activity, the stability of photocatalyst under long-term irradiation is also important for its practical application. N-doped TiO2 containing nitrogen impurities in the interstitial positions of the TiO2 lattice has a drawback in this aspect because a gradual decrease in its activity occurs under highly powerful radiation. Figure 8 illustrates this behavior of TiO2-N under visible light. The photocatalytic activity of pristine TiO2-N decreased by 47% compared to the initial level after 16 h of irradiation with blue light having a specific radiation power of 160 mW cm−2. This deactivation results from a partial oxidation of nitrogen species in the TiO2 lattice by the photogenerated holes that do not migrate to the surface of the photocatalyst and do not participate in the redox reactions with adsorbed molecules [25]. It is important to note that after longer irradiation for 2–3 days, the activity of TiO2-N reached a permanent level, namely 50% of the initial value, and did not change over further time (see Figure S4).
In contrast to TiO2-N, the synthesized Bi2WO6 exhibited a high stability from the first moment because no decrease in the values of the oxidation rate was observed during the irradiation under the same conditions (Figure 8a). Stability of Bi2WO6 arises from the fact that, in contrast to TiO2-N, it has a narrower band gap and the absorption of blue light corresponds to the band-to-band excitation of electrons. No substantial change in the chemical composition of semiconductors occurs in this situation. Similar behavior was achieved for the Bi2WO6–TiO2-N composites. The visible-light activity of composites with the Bi2WO6:TiO2-N molar ratio of 5:100 and higher did not decrease during long-term irradiation but even slightly increased similarly to Bi2WO6 (Figure 8a).
Deactivation of TiO2-N results from the oxidation of nitrogen species in the TiO2 lattice by the photogenerated holes. Therefore, the fast transfer of holes from the TiO2 phase may suppress the degradation of nitrogen species and, consequently, deactivation of the photocatalyst. An enhanced transfer of photogenerated holes can be realized in heterojunction systems when the position of VB in the second semiconductor is higher than the level of holes in TiO2 (type II) or when the holes recombine with the photogenerated electrons of the second semiconductor (Z-scheme). As mentioned above, the heterojunction of type II is commonly proposed for the Bi2WO6–TiO2 system (Figure 9a) but the energy bands of Bi2WO6 are located lower than the bands of TiO2, which prevents the transfer of holes from TiO2. At the same time, the energy levels of nitrogen species in TiO2-N are located substantially higher than the VB of TiO2 [54] and a Z-scheme heterojunction, when the photogenerated electrons from the CB of Bi2WO6 would interact with the photogenerated holes from nitrogen levels of TiO2 (Figure 9b), can be proposed for Bi2WO6–TiO2-N similarly to other systems [55,56,57]. Therefore, this junction can promote a removal of photogenerated holes from the nitrogen energy levels and suppress the degradation of nitrogen impurities by these holes.
In contrast to the samples mentioned above, the visible-light activity of the Bi2WO6–TiO2-N composite with a lower content of Bi2WO6 (i.e., molar ratio of 1:100) decreased during long-term irradiation, but this effect was much weaker than for pristine TiO2-N. For a detailed comparison, Figure 8b shows the relative values of activity, which were recalculated by normalization to the initial value of activity for each photocatalyst. After the first 9 h of irradiation, the activity of the Bi2WO6–TiO2-N (1:100) sample decreased by 17% compared to the initial value, but no substantial change was observed after further irradiation. No crystal phase of Bi2WO6 in the samples with low Bi2WO6 content can be a reason for the lower stability of these samples. This once again underlines the importance of the efficient heterojunction of charge carries between the semiconducting components in the composite system. Considering the data on the activity and stability for composite photocatalysts, as shown in Figure 7 and 8, a molar content of ca. 5% can be selected as an optimum content of Bi2WO6 in this system because at this value, a high activity and a high stability are achieved simultaneously.
The results described above show that the Bi2WO6–TiO2-N composite system exhibits an enhanced activity and stability compared to TiO2-N photocatalysts alone and has the potential for application in air purification using the photocatalytic oxidation method.

4. Conclusions

N-doped TiO2 (anatase, 98 m2 g−1) prepared from titanium oxysulfate using ammonia as a nitrogen source and bismuth tungstate (Bi2WO6, 34 m2 g−1) prepared via the hydrothermal method from bismuth nitrate and sodium tungstate are able to provide the complete oxidation of volatile organic compounds in air both under UV and visible light. N-doped TiO2 is more active than Bi2WO6 in both regions. A combination of TiO2-N and Bi2WO6 results in a synergistic effect because the composite with a low content of Bi2WO6 (5 mol.%) exhibits the photocatalytic activity that is substantially higher than activity of each component. A dome-shaped dependance of activity on the content of Bi2WO6 was found and the Bi2WO6–TiO2-N composite with a molar ratio of 5:100 had the highest activity among all the studied samples both under UV and visible light. In addition to an enhanced activity, Bi2WO6 in composites promotes N-doped TiO2 and prevents the degradation of nitrogen impurities in the TiO2 lattice by holes during the photocatalytic process. As a result, Bi2WO6–TiO2-N composites exhibit stable values of photocatalytic activity under highly powerful radiation (160 mW cm−2), while the activity of N-doped TiO2 is decreased by two times in 16 h under the same conditions. The enhanced activity and stability of Bi2WO6–TiO2-N composites result from an efficient separation of photogenerated charge carriers due to a heterojunction between the semiconductors. Therefore, the Bi2WO6–TiO2-N composite system has the potential for efficient purification of air using the photocatalytic oxidation method.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/nano12030359/s1, Figure S1: Schematic diagram of the set-up used for the photocatalytic experiments; Figure S2: Emission spectra of the diodes used for irradiation of photocatalysts; Figure S3: Analysis of XRD patterns; and Figure S4: Long-term stability of TiO2-N under blue light of 160 mW cm−2. References [58,59] are cited in the supplementary materials.

Author Contributions

Conceptualization, N.K. and D.S.; methodology, N.K.; validation, S.C., M.L., M.S. and D.S.; investigation, N.K., S.C., E.G. and I.P.; resources, M.L. and D.S.; writing—original draft preparation, N.K., S.C. and D.S.; writing—review and editing, D.S.; visualization, M.L., M.S. and D.S.; supervision, D.K.; project administration, D.S.; funding acquisition, D.S. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the Ministry of Science and High Education of the Russian Federation according to the project AAAA-A21-121011390006-0 at the Boreskov Institute of Catalysis. D.S. and N.K. thank the Council on Grants of the President of the Russian Federation (grant number 075-15-2021-457 (MK-5634.2021.1.3)) and the Russian Foundation for Basic Research (grant number 20-33-90309) for financial support.

Data Availability Statement

The data presented in this study are available upon request from the corresponding author. The data are not publicly available due to privacy.

Acknowledgments

The research was performed using equipment of the Shared-Use Center “National Center for the Study of Catalysts” at the Boreskov Institute of Catalysis.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Yu, Q.; Brouwers, H. Indoor air purification using heterogeneous photocatalytic oxidation. Part I: Experimental study. Appl. Catal. B Environ. 2009, 92, 454–461. [Google Scholar] [CrossRef]
  2. Chen, X.; Mao, S.S. Titanium dioxide nanomaterials: Synthesis, properties, modifications, and applications. Chem. Rev. 2007, 107, 2891–2959. [Google Scholar] [CrossRef] [PubMed]
  3. Ren, H.; Koshy, P.; Chen, W.-F.; Qi, S.; Sorrell, C.C. Photocatalytic materials and technologies for air purification. J. Hazard. Mater. 2017, 325, 340–366. [Google Scholar] [CrossRef] [PubMed]
  4. Fujishima, A.; Zhang, X.; Tryk, D.A. TiO2 photocatalysis and related surface phenomena. Surf. Sci. Rep. 2008, 63, 515–582. [Google Scholar] [CrossRef]
  5. Nakata, K.; Fujishima, A. TiO2 photocatalysis: Design and applications. J. Photochem. Photobiol. C Photochem. Rev. 2012, 13, 169–189. [Google Scholar] [CrossRef]
  6. Selishchev, D.; Kolinko, P.; Kozlov, D. Adsorbent as an essential participant in photocatalytic processes of water and air purification: Computer simulation study. Appl. Catal. A Gen. 2010, 377, 140–149. [Google Scholar] [CrossRef]
  7. Dong, W.; Lee, C.W.; Lu, X.; Sun, Y.; Hua, W.; Zhuang, G.; Zhang, S.; Chen, J.; Hou, H.; Zhao, D. Synchronous role of coupled adsorption and photocatalytic oxidation on ordered mesoporous anatase TiO2–SiO2 nanocomposites generating excellent degradation activity of RhB dye. Appl. Catal. B Environ. 2010, 95, 197–207. [Google Scholar] [CrossRef]
  8. Gaya, U.I.; Abdullah, A.H. Heterogeneous photocatalytic degradation of organic contaminants over titanium dioxide: A review of fundamentals, progress and problems. J. Photochem. Photobiol. C Photochem. Rev. 2008, 9, 1–12. [Google Scholar] [CrossRef]
  9. Pichat, P. Some views about indoor air photocatalytic treatment using TiO2: Conceptualization of humidity effects, active oxygen species, problem of C1–C3 carbonyl pollutants. Appl. Catal. B Environ. 2010, 99, 428–434. [Google Scholar] [CrossRef]
  10. Selishchev, D.; Kolobov, N.; Pershin, A.; Kozlov, D. TiO2 mediated photocatalytic oxidation of volatile organic compounds: Formation of CO as a harmful by-product. Appl. Catal. B Environ. 2017, 200, 503–513. [Google Scholar] [CrossRef]
  11. Fujimoto, T.M.; Ponczek, M.; Rochetto, U.L.; Landers, R.; Tomaz, E. Photocatalytic oxidation of selected gas-phase VOCs using UV light, TiO2, and TiO2/Pd. Environ. Sci. Pollut. Res. 2017, 24, 6390–6396. [Google Scholar] [CrossRef] [PubMed]
  12. Lyulyukin, M.; Kolinko, P.; Selishchev, D.; Kozlov, D. Hygienic aspects of TiO2-mediated photocatalytic oxidation of volatile organic compounds: Air purification analysis using a total hazard index. Appl. Catal. B Environ. 2018, 220, 386–396. [Google Scholar] [CrossRef]
  13. Rochetto, U.L.; Tomaz, E. Degradation of volatile organic compounds in the gas phase by heterogeneous photocatalysis with titanium dioxide/ultraviolet light. J. Air Waste Manag. Assoc. 2015, 65, 810–817. [Google Scholar] [CrossRef] [Green Version]
  14. Sansotera, M.; Kheyli, S.G.M.; Baggioli, A.; Bianchi, C.; Pedeferri, M.; Diamanti, M.V.; Navarrini, W. Absorption and photocatalytic degradation of VOCs by perfluorinated ionomeric coating with TiO2 nanopowders for air purification. Chem. Eng. J. 2019, 361, 885–896. [Google Scholar] [CrossRef] [Green Version]
  15. ASTM G173-03; Standard Tables for Reference Solar Spectral Irradiances: Direct Normal and Hemispherical on 37° Tilted Surface. ASTM International: West Conshohocken, PA, USA, 2020.
  16. Di Valentin, C.; Pacchioni, G. Trends in non-metal doping of anatase TiO2: B, C, N and F. Catal. Today 2013, 206, 12–18. [Google Scholar] [CrossRef]
  17. Pelaez, M.; Nolan, N.T.; Pillai, S.C.; Seery, M.K.; Falaras, P.; Kontos, A.G.; Dunlop, P.S.M.; Hamilton, J.W.J.; Byrne, J.A.; O’Shea, K.; et al. A review on the visible light active titanium dioxide photocatalysts for environmental applications. Appl. Catal. B Environ. 2012, 125, 331–349. [Google Scholar] [CrossRef] [Green Version]
  18. Bakar, S.A.; Ribeiro, C. Nitrogen-doped titanium dioxide: An overview of material design and dimensionality effect over modern applications. J. Photochem. Photobiol. C Photochem. Rev. 2016, 27, 1–29. [Google Scholar] [CrossRef]
  19. Asahi, R.; Morikawa, T.; Irie, H.; Ohwaki, T. Nitrogen-doped titanium dioxide as visible-light-rensitive photocatalyst: Designs, developments, and prospects. Chem. Rev. 2014, 114, 9824–9852. [Google Scholar] [CrossRef]
  20. Di Valentin, C.; Pacchioni, G.; Selloni, A.; Livraghi, S.; Giamello, E. Characterization of paramagnetic species in N-doped TiO2 powders by EPR spectroscopy and DFT calculations. J. Phys. Chem. B 2005, 109, 11414–11419. [Google Scholar] [CrossRef]
  21. Reid, L.M.; Li, T.; Cao, Y.; Berlinguette, C.P. Organic chemistry at anodes and photoanodes. Sustain. Energy Fuels 2018, 2, 1905–1927. [Google Scholar] [CrossRef]
  22. Kovalevskiy, N.; Selishchev, D.; Svintsitskiy, D.; Selishcheva, S.; Berezin, A.; Kozlov, D. Synergistic effect of polychromatic radiation on visible light activity of N-doped TiO2 photocatalyst. Catal. Commun. 2020, 134, 105841. [Google Scholar] [CrossRef]
  23. Ansari, S.A.; Khan, M.M.; Ansari, M.O.; Cho, M.H. Nitrogen-doped titanium dioxide (N-doped TiO2) for visible light photocatalysis. New J. Chem. 2016, 40, 3000–3009. [Google Scholar] [CrossRef]
  24. Kitano, M.; Matsuoka, M.; Ueshima, M.; Anpo, M. Recent developments in titanium oxide-based photocatalysts. Appl. Catal. A Gen. 2007, 325, 1–14. [Google Scholar] [CrossRef]
  25. Chen, X.; Wang, X.; Hou, Y.; Huang, J.; Wu, L.; Fu, X. The effect of postnitridation annealing on the surface property and photocatalytic performance of N-doped TiO2 under visible light irradiation. J. Catal. 2008, 255, 59–67. [Google Scholar] [CrossRef]
  26. Weon, S.; He, F.; Choi, W. Status and challenges in photocatalytic nanotechnology for cleaning air polluted with volatile organic compounds: Visible light utilization and catalyst deactivation. Environ. Sci. Nano 2019, 6, 3185–3214. [Google Scholar] [CrossRef]
  27. Takai, A.; Kamat, P.V. Capture, store, and discharge. Shuttling photogenerated electrons across TiO2–silver interface. ACS Nano 2011, 5, 7369–7376. [Google Scholar] [CrossRef]
  28. Wei, L.; Yu, C.; Zhang, Q.; Liu, H.; Wang, Y. TiO2-based heterojunction photocatalysts for photocatalytic reduction of CO2 into solar fuels. J. Mater. Chem. A 2018, 6, 22411–22436. [Google Scholar] [CrossRef]
  29. Wang, H.; Zhang, L.; Chen, Z.; Hu, J.; Li, S.; Wang, Z.; Liu, J.; Wang, X. Semiconductor heterojunction photocatalysts: Design, construction, and photocatalytic performances. Chem. Soc. Rev. 2014, 43, 5234–5244. [Google Scholar] [CrossRef]
  30. Xu, Q.; Zhang, L.; Yu, J.; Wageh, S.; Al-Ghamdi, A.A.; Jaroniec, M. Direct Z-scheme photocatalysts: Principles, synthesis, and applications. Mater. Today 2018, 21, 1042–1063. [Google Scholar] [CrossRef]
  31. Liu, J.; Ma, N.; Wu, W.; He, Q. Recent progress on photocatalytic heterostructures with full solar spectral responses. Chem. Eng. J. 2020, 393, 124719. [Google Scholar] [CrossRef]
  32. Xu, Q.; Zhang, L.; Cheng, B.; Fan, J.; Yu, J. S-scheme heterojunction photocatalyst. Chem 2020, 6, 1543–1559. [Google Scholar] [CrossRef]
  33. Wang, Y.; Wang, Q.; Zhan, X.; Wang, F.; Safdar, M.; He, J. Visible light driven type II heterostructures and their enhanced photocatalysis properties: A review. Nanoscale 2013, 5, 8326–8339. [Google Scholar] [CrossRef] [PubMed]
  34. Correia, F.; Calheiros, M.; Marques, J.; Ribeiro, J.; Tavares, C. Synthesis of Bi2O3/TiO2 nanostructured films for photocatalytic applications. Ceram. Int. 2018, 44, 22638–22644. [Google Scholar] [CrossRef]
  35. Rongan, H.; Haijuan, L.; Huimin, L.; Difa, X.; Liuyang, Z. S-scheme photocatalyst Bi2O3/TiO2 nanofiber with improved photocatalytic performance. J. Mater. Sci. Technol. 2020, 52, 145–151. [Google Scholar] [CrossRef]
  36. Rhaman, M.; Ganguli, S.; Bera, S.; Rawal, S.B.; Chakraborty, A.K. Visible-light responsive novel WO3/TiO2 and Au loaded WO3/TiO2 nanocomposite and wastewater remediation: Mechanistic inside and photocatalysis pathway. J. Water Process Eng. 2020, 36, 101256. [Google Scholar] [CrossRef]
  37. Liu, Y.; Zeng, X.; Easton, C.D.; Li, Q.; Xia, Y.; Yin, Y.; Hu, X.; Hu, J.; Xia, D.; McCarthy, D.; et al. An in situ assembled WO3–TiO2 vertical heterojunction for enhanced Z-scheme photocatalytic activity. Nanoscale 2020, 12, 8775–8784. [Google Scholar] [CrossRef]
  38. Tang, J.; Zou, Z.; Ye, J. Photocatalytic Decomposition of Organic Contaminants by Bi2WO6Under Visible Light Irradiation. Catal. Lett. 2004, 92, 53–56. [Google Scholar] [CrossRef]
  39. Tian, J.; Sang, Y.; Yu, G.; Jiang, H.; Mu, X.; Liu, H. A Bi2WO6-Based Hybrid Photocatalyst with Broad Spectrum Photocatalytic Properties under UV, Visible, and Near-Infrared Irradiation (Adv. Mater. 36/2013). Adv. Mater. 2013, 25, 5074. [Google Scholar] [CrossRef]
  40. Li, W.; Ding, X.; Wu, H.; Yang, H. In-situ hydrothermal synthesis of TiO2/Bi2WO6 heterojunction with enhanced photocatalytic activity. Mater. Lett. 2018, 227, 272–275. [Google Scholar] [CrossRef]
  41. Wang, R.; Xu, M.; Xie, J.; Ye, S.; Song, X. A spherical TiO2-Bi2WO6 composite photocatalyst for visible-light photocatalytic degradation of ethylene. Colloids Sur. A Physicochem. Eng. Asp. 2020, 602, 125048. [Google Scholar] [CrossRef]
  42. Sharma, S.; Ibhadon, A.O.; Francesconi, M.G.; Mehta, S.K.; Elumalai, S.; Kansal, S.K.; Umar, A.; Baskoutas, S. Bi2WO6/C-dots/TiO2: A novel Z-scheme photocatalyst for the degradation of fluoroquinolone levofloxacin from aqueous medium. Nanomaterials 2020, 10, 910. [Google Scholar] [CrossRef]
  43. Filippov, T.; Svintsitskiy, D.; Chetyrin, I.; Prosvirin, I.; Selishchev, D.; Kozlov, D. Photocatalytic and photochemical processes on the surface of uranyl-modified oxides: An in situ XPS study. Appl. Catal. A Gen. 2018, 558, 81–90. [Google Scholar] [CrossRef]
  44. Kovalevskiy, N.; Selishcheva, S.; Solovyeva, M.; Selishchev, D. In situ IR spectroscopy data and effect of the operational parameters on the photocatalytic activity of N-doped TiO2. Data Brief 2019, 24, 103917. [Google Scholar] [CrossRef] [PubMed]
  45. Solovyeva, M.; Selishchev, D.; Cherepanova, S.; Stepanov, G.; Zhuravlev, E.; Richter, V.; Kozlov, D. Self-cleaning photoactive cotton fabric modified with nanocrystalline TiO2 for efficient degradation of volatile organic compounds and DNA contaminants. Chem. Eng. J. 2020, 388, 124167. [Google Scholar] [CrossRef]
  46. Lyulyukin, M.; Filippov, T.; Cherepanova, S.; Solovyeva, M.; Prosvirin, I.; Bukhtiyarov, A.; Kozlov, D.; Selishchev, D. Synthesis, characterization and visible-light photocatalytic activity of solid and TiO2-supported uranium oxycompounds. Nanomaterials 2021, 11, 1036. [Google Scholar] [CrossRef]
  47. Hidalgo, M.; Bahnemann, D. Highly photoactive supported TiO2 prepared by thermal hydrolysis of TiOSO4: Optimisation of the method and comparison with other synthetic routes. Appl. Catal. B Environ. 2005, 61, 259–266. [Google Scholar] [CrossRef]
  48. Selishchev, D.; Kozlov, D. Photocatalytic oxidation of diethyl sulfide vapor over TiO2-based composite photocatalysts. Molecules 2014, 19, 21424–21441. [Google Scholar] [CrossRef] [Green Version]
  49. Saha, D.; Bøjesen, E.D.; Mamakhel, A.H.; Iversen, B.B. Why does Bi2WO6 visible-light photocatalyst always form as nanoplatelets? Inorg. Chem. 2020, 59, 9364–9373. [Google Scholar] [CrossRef]
  50. Etacheri, V.; Di Valentin, C.; Schneider, J.; Bahnemann, D.B.D.; Pillai, S.C. Visible-light activation of TiO2 photocatalysts: Advances in theory and experiments. J. Photochem. Photobiol. C Photochem. Rev. 2015, 25, 1. [Google Scholar] [CrossRef] [Green Version]
  51. Shang, M.; Wang, W.; Zhang, L.; Sun, S.; Wang, L.; Zhou, L. 3D Bi2WO6/TiO2 Hierarchical heterostructure: Controllable synthesis and enhanced visible photocatalytic degradation performances. J. Phys. Chem. C 2009, 113, 14727–14731. [Google Scholar] [CrossRef]
  52. Deng, F.; Liu, Y.; Luo, X.; Chen, D.; Wu, S.; Luo, S. Enhanced photocatalytic activity of Bi2WO6/TiO2 nanotube array composite under visible light irradiation. Sep. Purif. Technol. 2013, 120, 156–161. [Google Scholar] [CrossRef]
  53. Yang, C.; Huang, Y.; Li, F.; Li, T. One-step synthesis of Bi2WO6/TiO2 heterojunctions with enhanced photocatalytic and superhydrophobic property via hydrothermal method. J. Mater. Sci. 2016, 51, 1032–1042. [Google Scholar] [CrossRef]
  54. Peng, F.; Cai, L.; Yu, H.; Wang, H.; Yang, J. Synthesis and characterization of substitutional and interstitial nitrogen-doped titanium dioxides with visible light photocatalytic activity. J. Solid State Chem. 2008, 181, 130–136. [Google Scholar] [CrossRef]
  55. Truc, N.T.T.; Bach, L.G.; Hanh, N.T.; Pham, T.-D.; Le Chi, N.T.P.; Tran, D.T.; Nguyen, M.V.; Nguyen, V.N. The superior photocatalytic activity of Nb doped TiO2/g-C3N4 direct Z-scheme system for efficient conversion of CO2 into valuable fuels. J. Colloid Interface Sci. 2019, 540, 1–8. [Google Scholar] [CrossRef] [PubMed]
  56. Kong, L.; Zhang, X.; Wang, C.; Xu, J.; Du, X.; Li, L. Ti3+ defect mediated g-C3N4/TiO2 Z-scheme system for enhanced photocatalytic redox performance. Appl. Surf. Sci. 2018, 448, 288–296. [Google Scholar] [CrossRef]
  57. Ebihara, M.; Ikeda, T.; Okunaka, S.; Tokudome, H.; Domen, K.; Katayama, K. Charge carrier mapping for Z-scheme photocatalytic water-splitting sheet via categorization of microscopic time-resolved image sequences. Nat. Commun. 2021, 12, 1–9. [Google Scholar] [CrossRef]
  58. Cherepanova, S.; Tsybulya, S. Simulation of X-ray powder diffraction patterns for one-dimensionally disordered crystals. Mater. Sci. Forum 2004, 443–444, 87–90. [Google Scholar] [CrossRef]
  59. Cherepanova, S.V. X-ray scattering on one-dimensional disordered structures. J. Struct. Chem. 2012, 53, 109–132. [Google Scholar] [CrossRef]
Nanomaterials 12 00359 g001 550

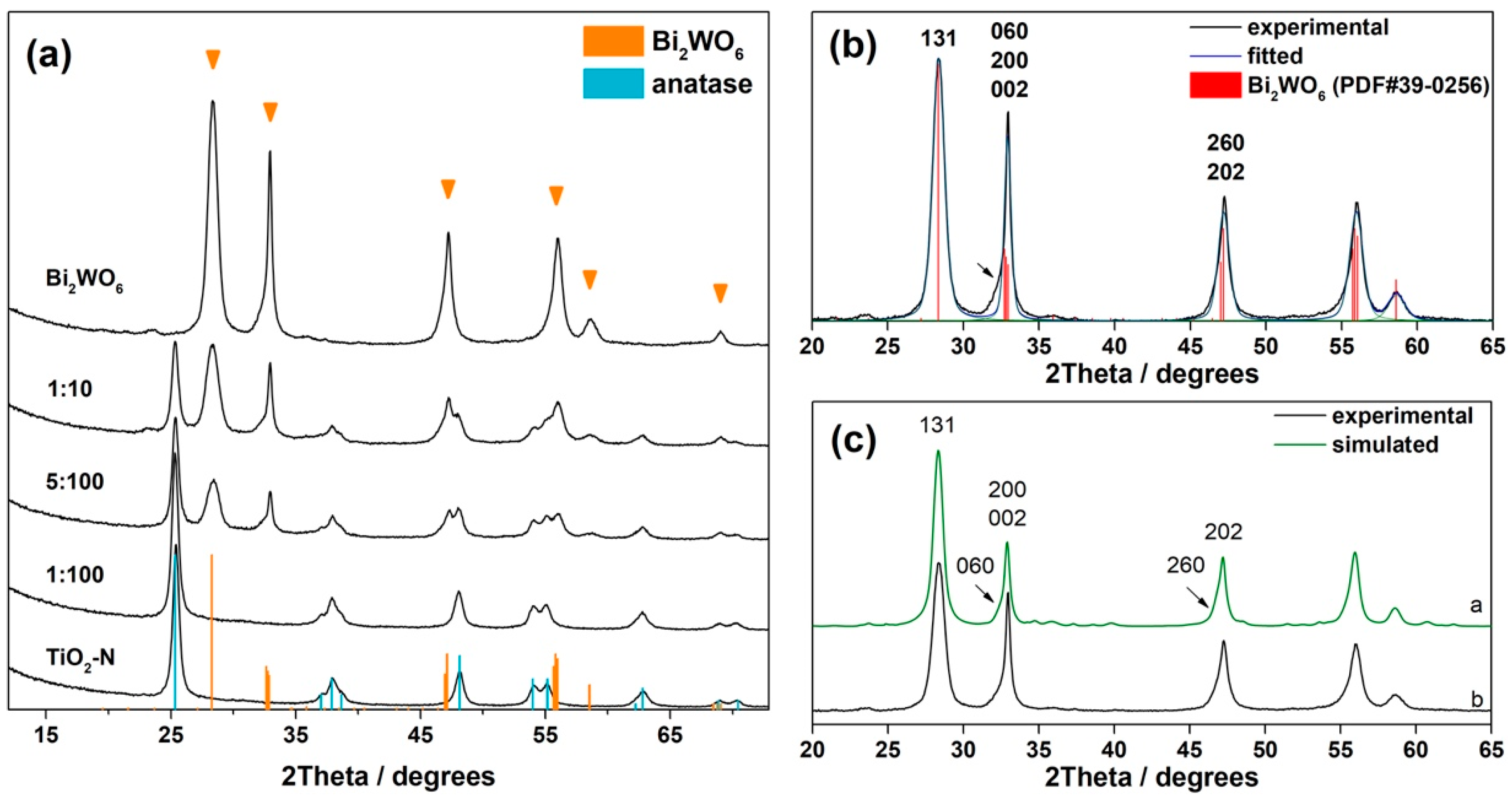

Figure 1. XRD patterns of the synthesized TiO2-N, Bi2WO6, and composite photocatalysts (a). Analysis (b) and simulation (c) of XRD pattern of Bi2WO6 sample.
Figure 1. XRD patterns of the synthesized TiO2-N, Bi2WO6, and composite photocatalysts (a). Analysis (b) and simulation (c) of XRD pattern of Bi2WO6 sample.
Nanomaterials 12 00359 g001
Nanomaterials 12 00359 g002 550

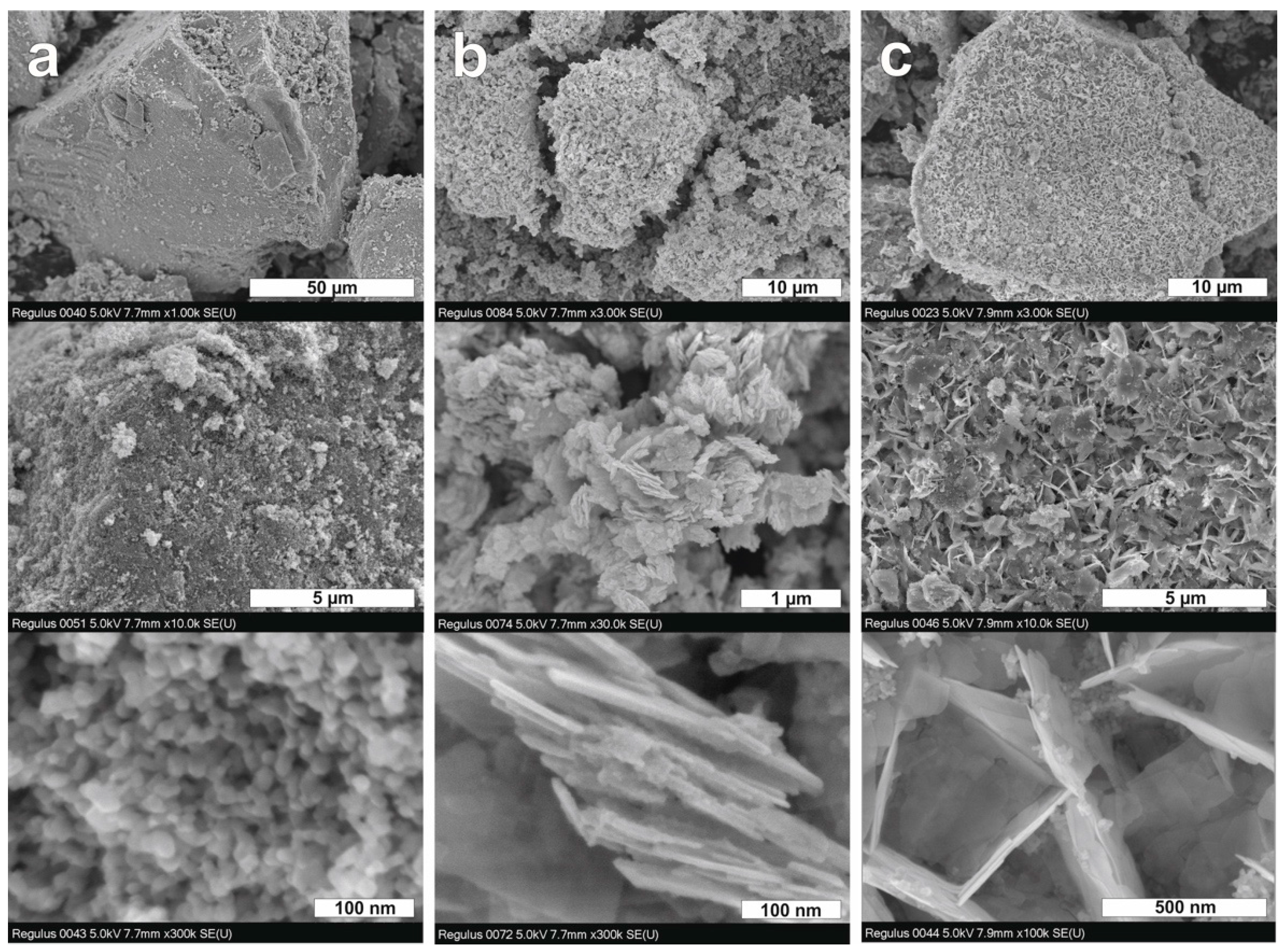

Figure 2. SEM micrographs of TiO2-N (a), Bi2WO6 (b), and Bi2WO6–TiO2-N (5:100) composites (c) at different magnifications.
Figure 2. SEM micrographs of TiO2-N (a), Bi2WO6 (b), and Bi2WO6–TiO2-N (5:100) composites (c) at different magnifications.
Nanomaterials 12 00359 g002
Nanomaterials 12 00359 g003 550

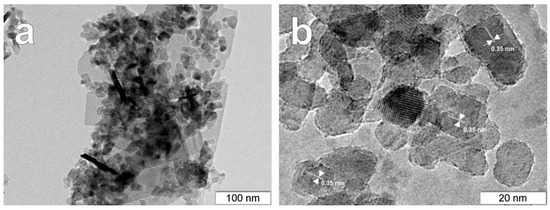

Figure 3. TEM images of Bi2WO6–TiO2-N (5:100) sample at different magnifications (a,b).
Figure 3. TEM images of Bi2WO6–TiO2-N (5:100) sample at different magnifications (a,b).
Nanomaterials 12 00359 g003
Nanomaterials 12 00359 g004 550

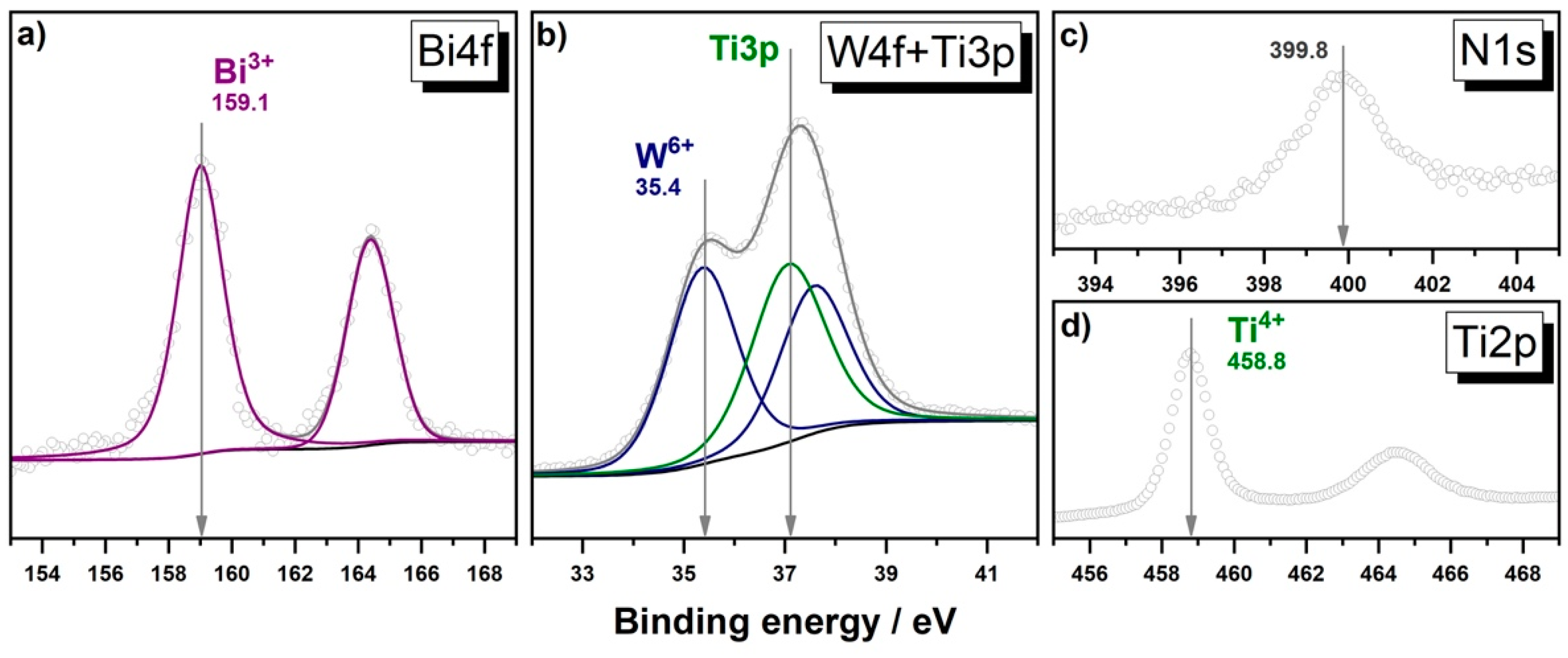

Figure 4. Photoelectron Bi4d (a), W4f (b), N1s (c), and Ti2p (d) spectral regions for the sample of Bi2WO6–TiO2-N (5:100).
Figure 4. Photoelectron Bi4d (a), W4f (b), N1s (c), and Ti2p (d) spectral regions for the sample of Bi2WO6–TiO2-N (5:100).
Nanomaterials 12 00359 g004
Nanomaterials 12 00359 g005 550

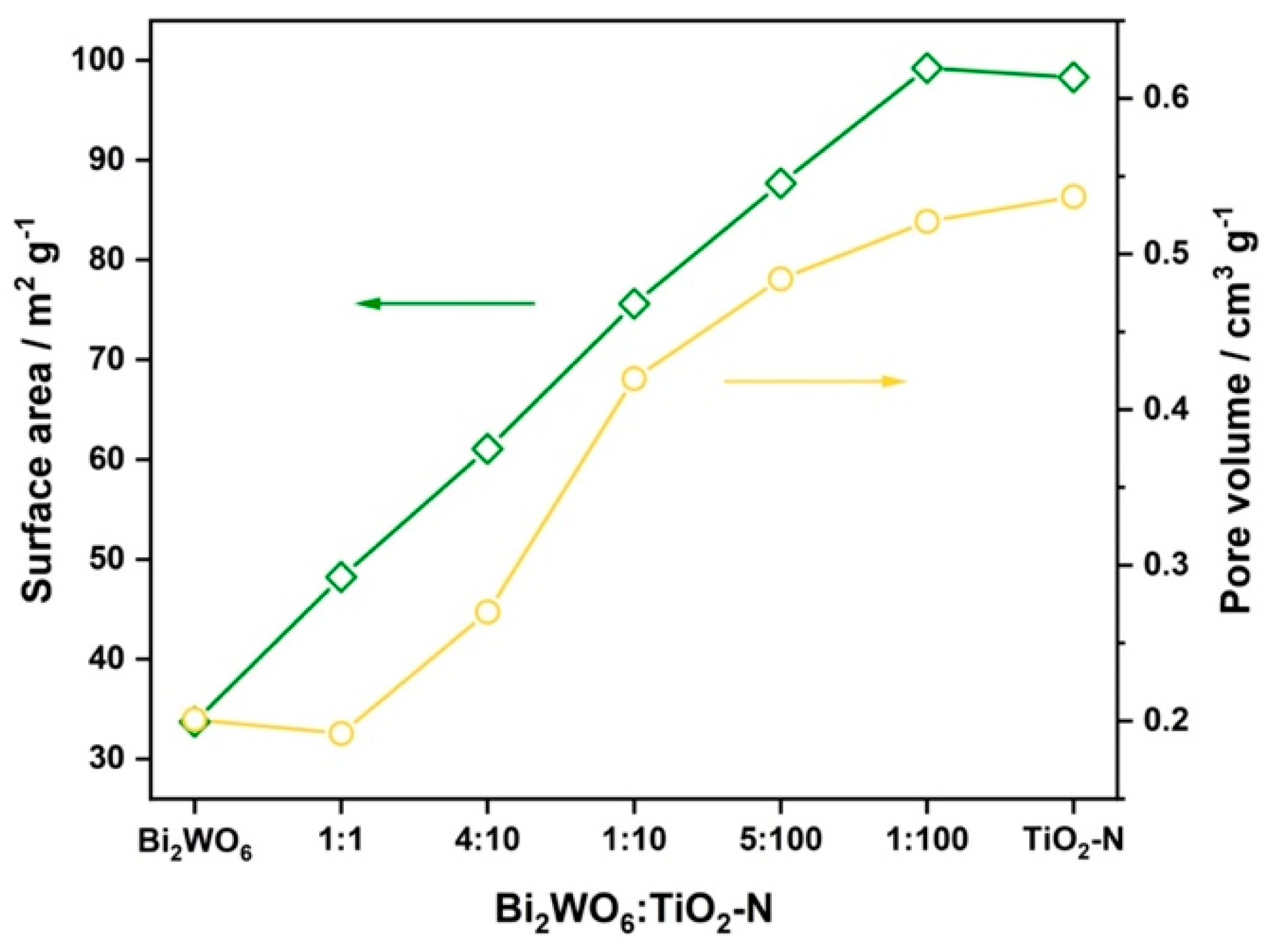

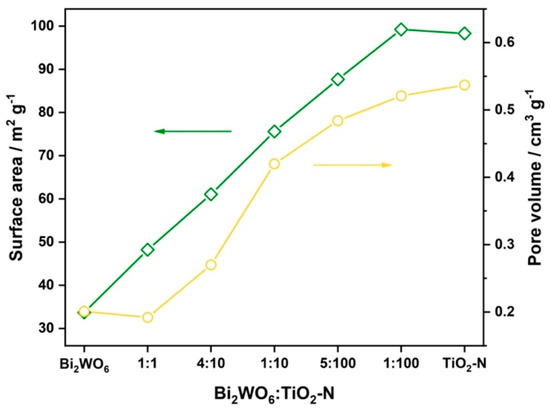

Figure 5. Effect of Bi2WO6:TiO2-N molar ratio on the textural characteristics of materials.
Figure 5. Effect of Bi2WO6:TiO2-N molar ratio on the textural characteristics of materials.
Nanomaterials 12 00359 g005
Nanomaterials 12 00359 g006 550
Figure 6. UV-vis DRS spectra of the synthesized materials (a) and corresponding Tauc plots (b).
Figure 6. UV-vis DRS spectra of the synthesized materials (a) and corresponding Tauc plots (b).
Nanomaterials 12 00359 g006
Nanomaterials 12 00359 g007 550

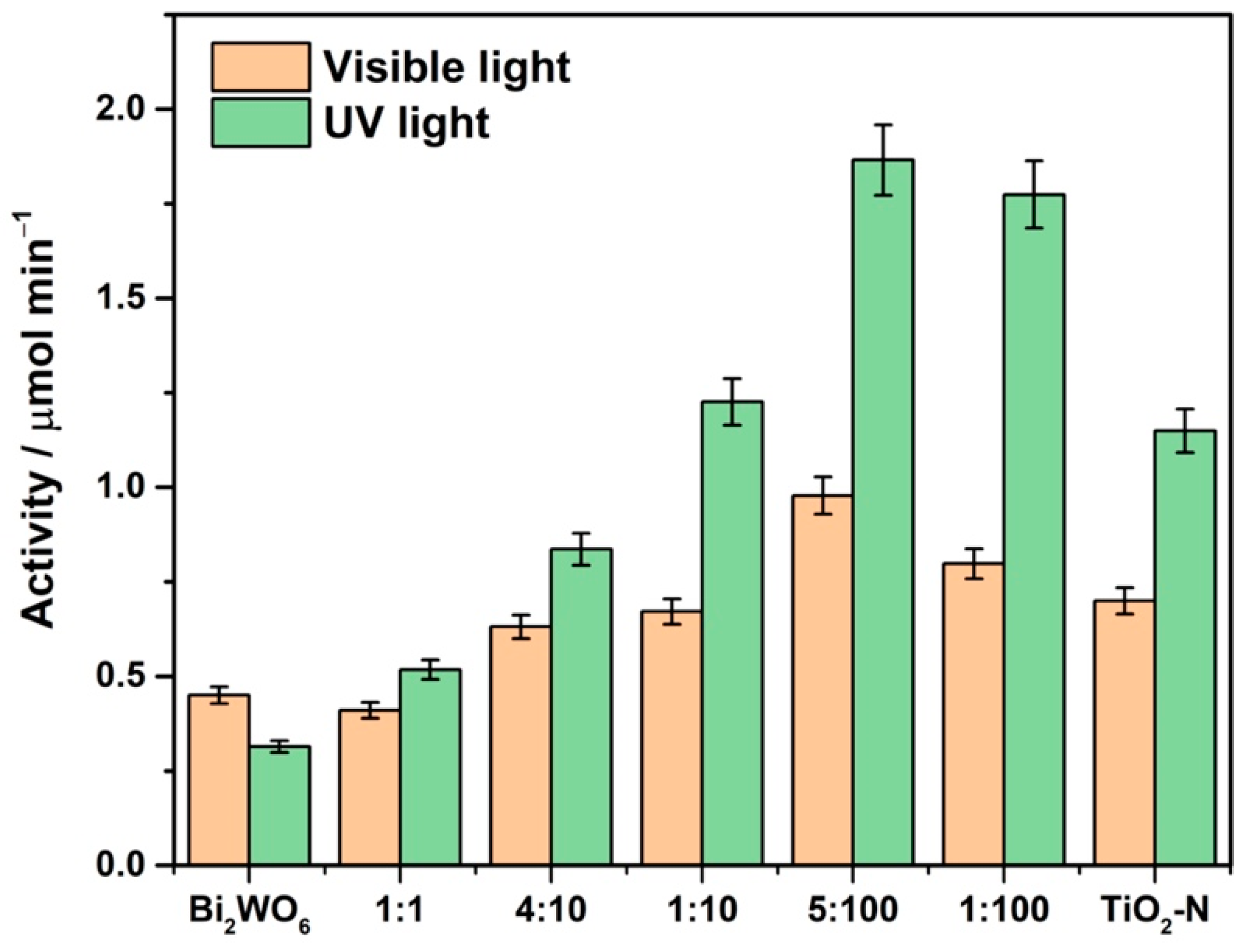

Figure 7. Effect of Bi2WO6:TiO2-N ratio on the photocatalytic activity of composites under UV and visible light.
Figure 7. Effect of Bi2WO6:TiO2-N ratio on the photocatalytic activity of composites under UV and visible light.
Nanomaterials 12 00359 g007
Nanomaterials 12 00359 g008 550

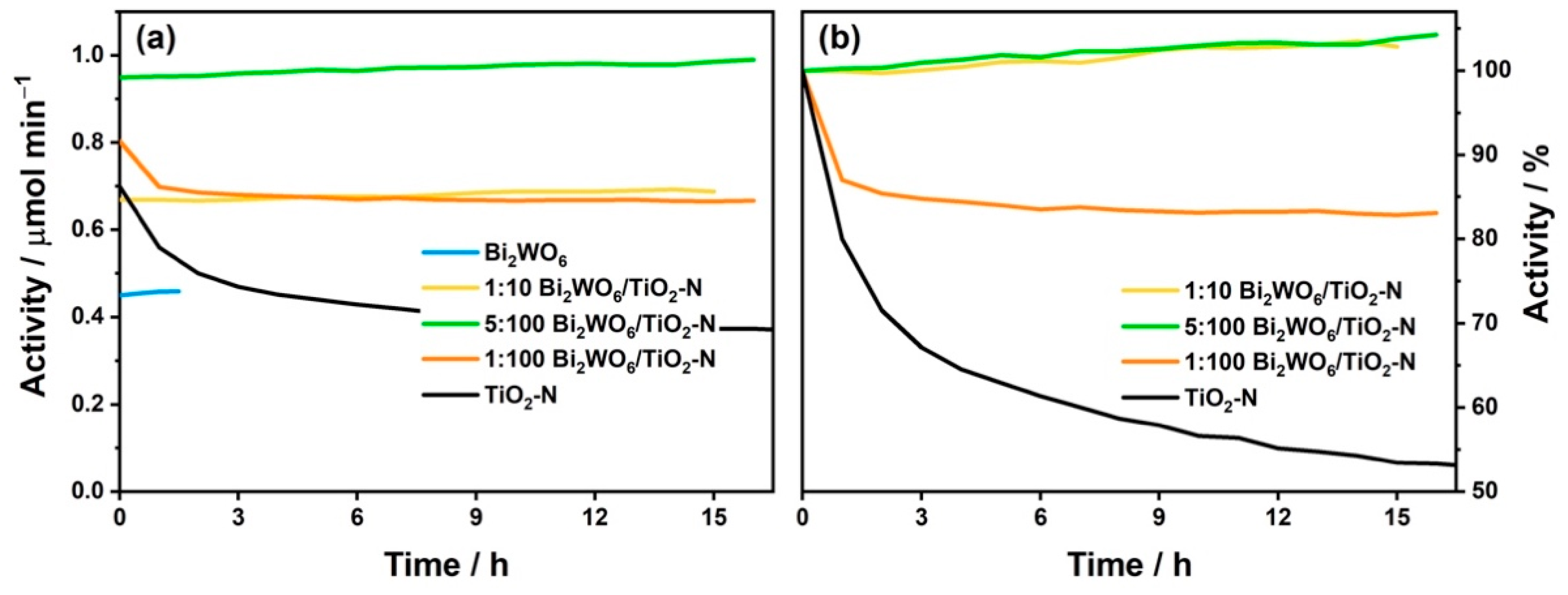

Figure 8. Figure 8. Effect of irradiation time on visible-light activity of the prepared materials in absolute (a) and relative (b) units.
Figure 8. Figure 8. Effect of irradiation time on visible-light activity of the prepared materials in absolute (a) and relative (b) units.
Nanomaterials 12 00359 g008
Nanomaterials 12 00359 g009 550
Figure 9. Proposed pathways of photogenerated charge carriers in Bi2WO6–TiO2 (a) and Bi2WO6–TiO2-N (b) systems.
Figure 9. Proposed pathways of photogenerated charge carriers in Bi2WO6–TiO2 (a) and Bi2WO6–TiO2-N (b) systems.
Nanomaterials 12 00359 g009
Table
Table 1. Content of precursors during the synthesis of photocatalysts.
Table 1. Content of precursors during the synthesis of photocatalysts.
Bi2WO6:TiO2-N
(Molar Ratio)		m(X), g
(Bi(NO3)3·5H2O)		m(Y),
(Na2WO4·2H2O)		m(Z), g
(TiO2-N)
1:0
(Bi2WO6)		2.42
(2.5 mmol)		0.82
(1.25 mmol)		-
1:13.03
(6.25 mmol)		1.03
(3.125 mmol)		0.25
(3.125 mmol)
4:101.21
(2.5 mmol)		0.41
(1.25 mmol)		0.25
(3.125 mmol)
1:101.21
(2.5 mmol)		0.41
(1.25 mmol)		1
(12.5 mmol)
5:1000.6
(1.25 mmol)		0.2
(0.625 mmol)		1
(12.5 mmol)
1:1000.12
(0.25 mmol)		0.04
(0.125 mmol)		1
(12.5 mmol)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kovalevskiy, N.; Cherepanova, S.; Gerasimov, E.; Lyulyukin, M.; Solovyeva, M.; Prosvirin, I.; Kozlov, D.; Selishchev, D. Enhanced Photocatalytic Activity and Stability of Bi2WO6 – TiO2-N Nanocomposites in the Oxidation of Volatile Pollutants. Nanomaterials 2022, 12, 359. https://doi.org/10.3390/nano12030359

AMA Style

Kovalevskiy N, Cherepanova S, Gerasimov E, Lyulyukin M, Solovyeva M, Prosvirin I, Kozlov D, Selishchev D. Enhanced Photocatalytic Activity and Stability of Bi2WO6 – TiO2-N Nanocomposites in the Oxidation of Volatile Pollutants. Nanomaterials. 2022; 12(3):359. https://doi.org/10.3390/nano12030359

Chicago/Turabian Style

Kovalevskiy, Nikita, Svetlana Cherepanova, Evgeny Gerasimov, Mikhail Lyulyukin, Maria Solovyeva, Igor Prosvirin, Denis Kozlov, and Dmitry Selishchev. 2022. "Enhanced Photocatalytic Activity and Stability of Bi2WO6 – TiO2-N Nanocomposites in the Oxidation of Volatile Pollutants" Nanomaterials 12, no. 3: 359. https://doi.org/10.3390/nano12030359

APA Style

Kovalevskiy, N., Cherepanova, S., Gerasimov, E., Lyulyukin, M., Solovyeva, M., Prosvirin, I., Kozlov, D., & Selishchev, D. (2022). Enhanced Photocatalytic Activity and Stability of Bi2WO6 – TiO2-N Nanocomposites in the Oxidation of Volatile Pollutants. Nanomaterials, 12(3), 359. https://doi.org/10.3390/nano12030359

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
