Generating Self-Shaped 2D Aluminum Oxide Nanopowders

by
Meng-Ying Lee
,
Fu-Su Yen
* and
Hsing-I Hsiang
Department of Resources Engineering, National Cheng Kung University, Tainan 70101, Taiwan
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(17), 2955; https://doi.org/10.3390/nano12172955
Submission received: 1 August 2022 / Revised: 22 August 2022 / Accepted: 23 August 2022 / Published: 26 August 2022
(This article belongs to the Special Issue Micro/Nano-Machining: Fundamentals and Recent Advances)
Browse Figures
Review Reports Versions Notes

Abstract

:
The thermal-assisted exfoliation phenomena of boehmite particles under moderate heating rates were examined. The exfoliation that generated flakes of 5–6 nm in thickness can be achieved because of the perfect cleavage on the boehmite particles that are stripped when thermal treatments bring about dehydration and γ-Al2O3 formation in sequential phase transformation of boehmite. Examinations of the exfoliation effects were carried out on calcined boehmite single crystal particles, which were about 500 nm in diameter, and obtained at three heating rates 0.5, 1.0, and 2.0 °C/min with the heating schedules. The TEM techniques, BET-N2 measurements, XRD-Scherrer equation, and AFM images were employed in the examination. That the BET values increased as increasing of exfoliated flakes reflected two stages of exfoliation. In the beginning stage, during which the BET values were <40 m2/g, the exfoliation resulted from the stress produced by dehydration. In the second stage, the increased rate of surface area was due to the additional force, which originated from the γ-Al2O3 formation. Exfoliation occurred on the cleavage planes {010}, the side pinacoid of the boehmite particle. The generation of flakes resulted in the thinning of boehmite particles. Some of the flakes preserved the external form of boehmite crystals. From the surface energy evaluations of boehmite and γ-Al2O3, it can be inferred that exfoliation is a natural way of thermal treatment.

1. Introduction

Ultrathin two-dimensional (2D) nanomaterials, with their unique and indispensable high specific surface area [1] and relatively large lateral size, offer some novel physical, chemical, and electronic properties due to their electron confinement in 2D [2]. A wide range of applications was developed, such as electronics/optoelectronics [3,4], catalysis [5,6], and thermal wear coatings [7,8]. The preparation methods of ultrathin 2D nanomaterials can be categorized into top-down and bottom-up two approaches. Top-down approaches were applied to those layered compounds, such as graphene [9,10,11,12], h-BN [13,14,15,16], and MoS2 [17,18,19]. Most of the compounds display good cleavage planes that can be exfoliated using Scotch tape [20] or other microchemical cleavage techniques [21,22,23], including electrochemical exfoliation [18,24,25,26] and thermal treatments [10,11,27,28] depending on voltage-driven or released gas between interlayers or sheets followed by expansion and finally exfoliation. It is non-destructive but normally has high technical requirements. Bottom-up approaches have been used to produce inorganic 2D nanomaterials [29], such as transition metal oxides (e.g., TiO2, ZnO, Co3O4) [30] and metal chalcogenides (e.g., PbS, CuS, CuSe, SnSe) [31], etc. CVD techniques [19,32,33] and other wet-chemical synthesis methods [34,35,36] were adopted. However, these methods are complicated in technique and relatively high cost.
The concept offered in this study is the utilization of autogenous forces originating from thermal treatment so as to break the cleavage planes to produce flakes. The raw material used in this study is an aluminum hydroxide mineral, boehmite, which is a lamellar-structured mineral with the prominent perfect cleavage {010}b(side pinacoid) on the particles [37]. Boehmite is transformed to γ-Al2O3 when the temperature reaches 450 °C and boehmite undergoes a topotactic transformation to another layered oxide, γ-Al2O3 [38]. The side pinacoid {010}b of boehmite and the tetragonal prism {110}γ of γ-Al2O3 are the most relevant crystallographic orientations [39,40,41,42], representing the same and preferentially exposed surface on the particle.
The phase transformation to γ-Al2O3 provokes the release of structural water and an increase in molar density from 3.07 to 3.71 g/cm3. The former generates water vapor pressure between the cleavage planes [43,44]. The latter results in dimension difference between boehmite and the new-formed γ-Al2O3 [45,46], which may trigger displacement on either side of the cleavage planes [47].
Table 1 lists the orientation relationship between boehmite and γ-Al2O3 and schematically illustrates the views of cleavage surfaces {010}b and {110}γ to emphasize that these two cleavage planes are equivalent. Diffraction data from the powder diffraction file [48] (In text: PDF 21-1307 and PDF 29-0063) were used to simulate the characteristic morphology. If boehmite is converted to γ-Al2O3, the axial lengths of a- and c- of boehmite vary by +7.1% and −2.3%, respectively. The interfacial angles constituting the cleavage planes {010}b and {110}γ are 75.5° (boehmite{101}Ʌ{101}) and 70.5° (γ-Al2O3 {111}Ʌ{111}). The dimension difference induces a displacement force on either side of the cleavage planes, resulting in the occurrence of exfoliation.
Bearing this in mind, it is of great importance to offer the concept from this topic that the hydroxide minerals with a laminated structure have the basis for the generation of flake powders. The process does not have complex steps and is environmentally friendly, and the operation method can be further improved to make flake powder with a high specific surface area. In addition to extending the current understanding of boehmite, the results will be applicable to other similar and related systems such as gibbsite [49,50], γ-FeOOH [51], Co(OH)2 [26,52], and Cd(OH)2 [53,54].
In this paper, the exfoliation of boehmite under moderate thermal treatment was investigated. Particle size (especially thickness), morphology, and the mechanism of flake formation were also evaluated. The examination was carried out on calcined boehmite single crystal particles with a diameter of about 500 nm at three heating rates of 0.5, 1.0, and 2.0 °C/min at predetermined temperatures using TEM techniques. The thickness of the flakes was estimated by BET-N2 measurements and XRD-Scherrer equation and finally compared with AFM images.

2. Experimental Procedure

2.1. Material

High purity (>99.9%) boehmite powders, γ-AlO(OH) (Shandong Gemsung Crystal Technology Co., Ltd. Zibo City, China) were used in this study. The as-received powders were de-agglomerated using ball milling in deionized water (solid content of ~30 wt%, pH = 4.0 adjusted by 2N HNO3) using 3 mm diameter alumina balls. The milled slurry was passed through a 400-mesh standard sieve (<38 μm). After drying in a microwave oven, the dried powder was thermally treated at predetermined heating schedules to obtain test samples. The basic properties and characteristics of the starting boehmite powders are shown in Table 2 and Figure 1 and Figure 2.
By heating the starting boehmite powders at the heating rates of 0.5 °C/min (450 °C~510 °C), 1.0 °C/min (460 °C~520 °C), and 2.0 °C/min (470 °C~530 °C). The calcined samples (2–3 g each) were collected every 5~10 °C to examine exfoliation effects and the transformation process. The predetermined temperature ranges shown in parentheses were obtained using the DTA technique under heating rates of 0.5, 1.0, and 2.0 °C/min, respectively. When the set temperature was reached, the sample was removed directly from the furnace and allowed to cool to room temperature (cooling rate > 150 °C/min). Please refer to Appendix A: Figure A1 for the phase transformation under each condition.

2.2. Characterization

The differential thermal analysis (DTA, Labsys evo, Setaram, Lyon, France) technique under the above three heating rates was employed to determine the endothermic temperature ranges induced by dehydration of boehmite and the temperature of boehmite transition to γ-Al2O3. The weight losses (%) of samples before and after the thermal treatments were recorded ((Wbefore − Wafter) × 100%/Wbefore). The fractions of boehmite and γ-Al2O3 in the calcined samples were determined by quantitative XRD (Rigaku MiniFlex, Rigaku Corp, Tokyo, Japan) method using Ni-filtered CuKα radiation with CaF2 (10 wt%) as the internal standard. The integrated intensities of boehmite: (010)b (2θ = 14.45°), γ-Al2O3:(222)γ (2θ = 39.36°), and CaF2:(111) (2θ = 28.27°) were measured. Their ratios were then compared with the boehmite/γ-Al2O3-CaF2 calibration curves. The variation of specific surface area values [55] of the powder system was measured by BET (Micromeritics Gemini 2390, Norcross, GA, USA) to identify the exfoliation progress. Morphological investigations including cross-sectional sizes (Feret’s diameter [56]) distribution of the calcined samples in each stage were performed by TEM (FEG-TEM, Tecnai G2 F20, FEI, Hillsboro, OR, USA) and AFM (JPK Nanowizard AFM, Axiovert 200, Berlin, Germany) analysis.
In this study, measurements of the thickness of the obtained powders after thermal treatments were carried out in three ways:
  • Mean thicknesses of the calcined boehmite/γ-Al2O3 flakes
The mean thicknesses of calcined boehmite/γ-Al2O3 flakes were derived by measuring the BET-specific surface area values and expressed in terms of tBET. It was assumed that the calcined powder is composed of flake particles with a mean cross-sectional diameter of D (in this case, about 450 nm). The thickness tBET was then calculated by (Equation (1)) (Appendix B, Figure A2).
t B E T nm = 2 D ρ × D × B E T   S . S . A .   × 10 − 3 − 4
where D: Diameter in average of the cross-sectional area (450 nm)
ρ: Density of boehmite/γ-Al2O3 (g/cm3)
and S.S.A. (Specific surface area): BET specific surface area value (m2/g)
2.
Thickness of boehmite and γ-Al2O3 flakes
The thickness of boehmite and γ-Al2O3 flakes were calculated by the XRD-Scherrer equation [57],
D hkl = K λ B cos θ
where Dhkl is the crystallite size in the direction perpendicular to the lattice planes, K is a numerical factor and is usually taken as about 0.89, λ is the wavelength of the X-rays (Cu Kα1 radiation ((1.540562 Å)), B is the Full width at half maximum (FWHM) in radians, and θ is the Bragg angle. The reflection peaks of boehmite: (020)b(2θ = 14.5°) and γ-Al2O3:(440)γ(2θ = 66.7°) were used in the cleavage directions, and the 2θ of 13.5°–15.5° for boehmite and 64°–70° for γ-Al2O3 with a scanning rate of 0.5°/min were applied. The peak widths of the instrument were calibrated with well-crystallized silicon powder. Data calculations were performed with the assistance of software, XRD pattern processing, and identification, Jade for Windows, Version 5.0. The obtained thickness of boehmite and γ-Al2O3 flakes are expressed in terms of tB{010} and tγ{110}.
3.
AFM

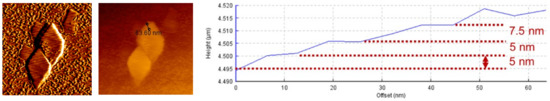

Samples were imaged by AFM in intermittent contact mode. The probe was a Tap 150Al-G silicon probe.

3. Results and Discussion

3.1. The Effects of Thermal Treatment on Boehmite

The thermal treatment on boehmite brings about its dehydration and the phase transformation into γ-Al2O3. As the heating proceeded, the weight loss was accompanied by an increase in the specific surface area (BET-N2), which is related to the exfoliation of the calcined boehmite. Figure 3 illustrates the BET values (Figure 3a) and mineral phase changes (Figure 3b) in relation to the weight loss for samples prepared at three heating rates. At the beginning of the thermal treatment, the dehydration induced a 2% weight loss of physically absorbed water; it was then followed by a 13% weight loss of the structural water. Further heating at temperatures above 600 °C resulted in a weight loss of about 2%.
In Figure 3a, the relationship of specific surface area with the weight loss showed a turning point at 40 m2/g or about 7% of the weight loss, and then the slope became steeper until the specific surface area reached 100 m2/g. Figure 3b shows the disappearance of boehmite and the formation of γ-Al2O3 in relation to weight loss. It can be seen that the boehmite content began to decrease when the weight loss reached 2%. However, the formation of γ-Al2O3did not start until the weight loss reached 7% or the BET value reached 40 m2/g, which is comparable to the turning point shown in Figure 3a.
If the increase in BET value is related to the exfoliation of boehmite particles, from the BET value turning point in Figure 3a,b, it is assumed that the surface area increase can be divided into two stages, each of which was dominated by different operating forces. In the beginning, the operating force was mainly contributed by dehydration until the BET value reached 40 m2/g. The increased rate suggested that in the second stage, an additional force was derived from the dimension difference of the cleavage planes due to the presence of γ-Al2O3. The exfoliation was first caused by the water vapor pressure generated by the release of structural water of boehmite and was completely controlled solely by water vapor. As the weight loss increased to 7% or the BET value reached 40 m2/g, the dimension difference, which occurred from the phase change to γ-Al2O3, added another operating force to the process.
The quantitative phase analysis (Figure 3b) showed that the disappearance of boehmite and the formation of γ-Al2O3 did not carry on synchronously during the phase transformation. It can be seen that the γ-Al2O3 phase started to appear after nearly 30% of the boehmite disappeared. It is worthwhile to note that this 30% of the boehmite actually transformed to boehmite-derivative before the appearance of γ-Al2O3, which is characterized by the released or partially released structural water. The boehmite-derivative may be a transition state between structurally collapsed boehmite and structurally established γ-Al2O3 [58]. The morphology of the {010}b cleavage plane inherited from boehmite is easily found by TEM (Figure 4). In this study, this derivative is tentatively designated as meta-γ. The meta-γ content decreased with the increase of thermal treatment temperature. When boehmite disappeared completely, the meta-γ content was also close to zero, and γ-Al2O3 content was close to 100%.

3.2. The Characteristics of Flakes

3.2.1. Four Types of Flakes Particles

For the calcined samples, four types of lamellar particles can be observed. Figure 4a shows the morphology of boehmite, which was classified as a powder system with a BET value of less than 40 m2/g. Figure 4b shows the morphology of meta-γ, which verified that the ratio of d-values (obtained by SAED) in both directions of the cleavage planes lies between boehmite and γ-Al2O3 (Table A1). The highest ratio, about 30%, can be found in samples with BET values of around 40 m2/g. Figure 4) shows γ-Al2O3 particles existed in a pseudomorph form after boehmite. This is usually found in calcined samples with BET values from 40 to 80 m2/g. Figure 4d shows the γ-Al2O3 flakes per se and the complete structure and morphology. The γ-Al2O3 flakes are mainly present in calcined samples with BET values above 80 m2/g (Table A2).

3.2.2. The Thickness Evolution of Particles

Figure 4 shows the average thickness tBET, which was calculated by Equation (1), as well as the BET values of the calcined boehmite. The same figure also shows the thickness of boehmite, tB{010}, γ-Al2O3, tγ{110}, and meta-γ, tmeta(BET) in the calcined samples at the corresponding BET values. The thickness tB{010} and tγ{110} were calculated by the XRD-Scherrer equation (Equation (2)), and tmeta(BET) was calculated by Equation (1) based on the phase content ratios and the thickness of coexisting boehmite and γ-Al2O3. According to the results, tmeta(BET) has an average value of ~6 nm, which is comparable to the value of tγ{110}. It is worthwhile to mention that the thickness of γ-Al2O3 was from 5 to 6 nm after its appearance (estimated by Equation (1) or Equation (2)). Therefore, the thicknesses of γ-Al2O3 and meta-γ can be considered equivalent.

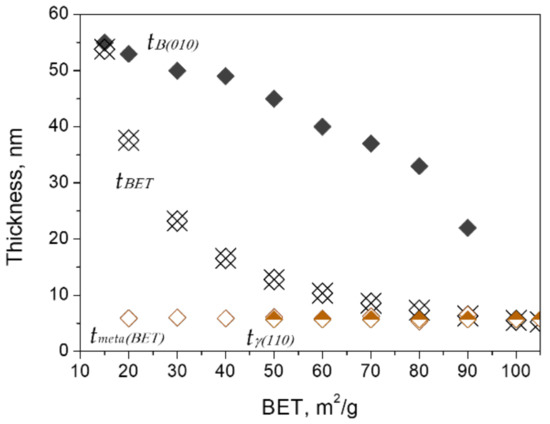

From the thickness data shown in Figure 5, it can be deduced that the thinning process of boehmite started from the initial tB{010} values of 55–49 nm before the appearance of γ-Al2O3. After that, the thinning process accelerated until tB{010} reached the final minimum value of 22nm. While both γ-Al2O3 and meta-γ as exfoliated products exhibited almost the same thickness, 5–6 nm, and remained essentially constant throughout the phase transition. Further examination using the AFM technique also confirmed the above results (see Figure 6).
It is clear that thermal treatments on boehmite can produce exfoliation effects on boehmite particles and bring about an increase in specific surface area (BET values). Table 3 demonstrates the changes of calcined samples in mineral phase content, particle shape ratio, and thickness of flakes for samples of BET values of 40, 70, 90, and 100 m2/g. The exfoliation of boehmite particles, depicted by the BET values, continued as the thermal treatment proceeded. The BET values are contributed by residual boehmite particles and newly formed γ-Al2O3 and meta-γ flakes. The boehmite particles gradually became thinner due to exfoliation, and the γ-Al2O3 and meta-γ flakes remained at a constant thickness of 5–6 nm. When boehmite was completely transformed, flake powders of γ-Al2O3 with a thickness of 5–6 nm were obtained.

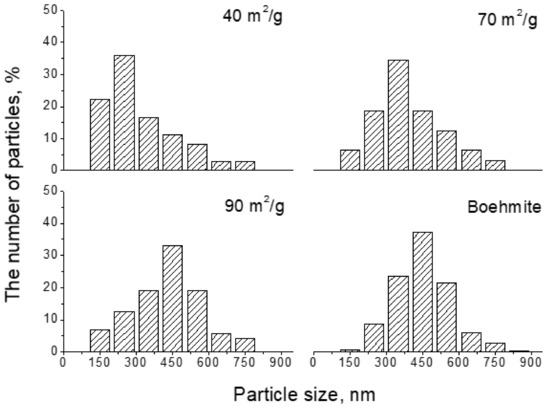

Figure 7 demonstrates that at a moderate heating rate, the thermal treatment to produce exfoliation may begin from small particles. A rough statistical sampling of the number of flakes with different cross-sectional sizes was carried out on TEM images of samples with BET values of 40, 70, and 90 m2/g. It reveals that in the early stage (40 m2/g), exfoliation mainly occurred on small-sized particles, resulting in a high percentage of small flakes. As the BET values increased, i.e., in the later stage, relatively large flakes appeared.

3.2.3. Boehmite Relics in γ-Al2O3 Flakes

Because thermal-assisted exfoliation occurs on the cleavage plane {010}b of boehmite, the generated γ-Al2O3 flakes should possess the topotactic nature of boehmite. These γ-Al2O3 flakes apparently inherited the morphology or particle shape of boehmite, forming a pseudomorph after boehmite (Figure 4c). Apparently, at higher temperatures, some of the flakes transformed into γ-phase morphology (Figure 4d). Samples with high BET values have the possibility to contain more γ-Al2O3 flakes with γ-Al2O3 morphology. Detailed examination reveals that the flakes in pseudomorphism decreased from 48 to 42% as the BET values increased from 70 to 90 m2/g (Table 3). When the BET value approached 100 m2/g, about 35% of γ-Al2O3 in the powder system showed pseudomorph after boehmite (Table 3). It is known that the thermal treatment of the boehmite particles causes the release of structural water, which will initiate the exfoliation of boehmite particles. The exfoliation occurs only on the cleavage plane {010}b, i.e., the planes of symmetry at the ends of the boehmite particles in the b-axis direction.
The generated γ-Al2O3 flakes showed a thickness of 5–6 nm with a slight shrink in size and preserved the appearance of boehmite (external form). This is significant because it causes the thinning of boehmite particles. Higher processing temperatures promote the appearance of γ-Al2O3 flakes. In addition, the increase in BET value and γ-Al2O3 content is accompanied by a decrease in meta-γ, indicating the energy input is crucial for the phase transformation and favors the formation of large-sized flakes.

3.3. Exfoliation Model

3.3.1. Two-Staged Procedures

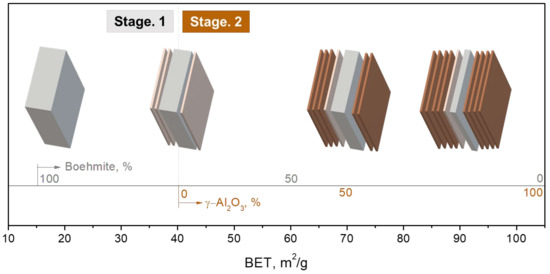

The exfoliation process can be divided into two stages according to where the dominating operating forces originated from. The first stage occurred before the BET value reached 40 m2/g. In the early stage of the phase transformation, the operating force came from the dehydration caused by the thermal treatments. The water vapor ejected from boehmite particles during dehydration broke the cleavage planes of the boehmite. This force dominated in the first-stage exfoliation. The second stage began when BET value was greater than 40 m2/g. When the new phase γ-Al2O3 appeared, the strain due to shrinkage in dimension arising on the interface (cleavage plane) between the boehmite and γ-Al2O3 became an additional force. Therefore, in the second stage, both shrinkage strain and water vapor pressure coexisted, leading to the exfoliation.

3.3.2. Exfoliation Details

Stage One

As dehydration continued, boehmite vanished, and its content dropped to ~70%. The meta-γ with a thickness of 6 nm was formed. The powder system consisted of boehmite and the newly formed meta-γ flakes, which are stripped from the cleavage planes {010}b, the side pinacoid of the boehmite particle. In this stage, the average thickness of the boehmite particles was getting thinner, from 55 nm to 49 nm. When the BET value reached 40 m2/g, the meta-γ content was about 30%, and the γ-Al2O3 flakes, which had been converted from meta-γ flakes, appeared. This is the end of the first stage of exfoliation.

Stage Two

In the second stage, γ-Al2O3 appeared, and the BET value exceeded 40 m2/g. As the temperature further increased, the content of boehmite decreased and finally became null. The higher temperature favored the formation of meta-γ and its conversion to γ-Al2O3. The boehmite content continued to be decreased, and the average thickness decreased from 49 to 22 nm. The meta-γ flakes, as formed in the first stage, exfoliated from the side pinacoid of the boehmite particle and left the relics of boehmite. In addition, the formation and conversion rate of meta-γ accelerated, resulting in a high percentage of γ-Al2O3 formation and nearly absence of meta-γ. Finally, 2D alumina flake powders with a mean thickness of 5–6 nm were obtained while the BET value reached ~100 m2/g. Figure 8 illustrates the interpretation of the exfoliation model that occurred in this study.

3.3.3. Thermodynamics of the Flake Formation

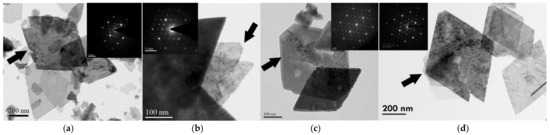

Figure 4 demonstrates the TEM micrographs of the four types of flake particles observed in this study. It is interesting to note that all particles show similar morphology and obviously are the derivatives of boehmite {010}b cleavage planes. The calculated and measured thickness of the meta-γ and γ-Al2O3 flakes were 5–6 nm. Meanwhile, the final thickness of boehmite was 22 nm (calculated from BET value ~90 m2/g), which is close to 3 or 4 times 6nm. The calculations in Table 4 show that the γ-Al2O3 particles with D50 of 450 nm and thickness of 5.7 nm and the boehmite particles with D50 of 450 nm and thickness of 22 nm have similar surface equivalent energies per unit flake (boehmite: 2.38 × 10−10 mJ/flake, γ-Al2O3: 5.05 × 10−10 mJ/flake). This suggests that 2D powders can be generated in a natural way, cleaving or exfoliating during thermal treatment.

4. Conclusions

In summary, applying the thermal treatment to boehmite particles can produce exfoliation effects on it. Since boehmite exhibits perfect cleavage on the side pinacoid, {010}, by which boehmite has the potential to be stripped into flakes or exfoliation. In the thermal treatment, boehmite is transformed to γ-Al2O3. The complete transformation process includes the dehydration and γ-Al2O3 formation, in which the water vapor pressure and shrink strain were induced, respectively. From the surface energy evaluations of boehmite and γ-Al2O3 and the results that the exfoliated flakes preserve the relics of boehmite, except for a reduced thickness of 5–6 nm (from the original 55 nm), it can be inferred that the exfoliation is a natural way of thermal treatment.

Author Contributions

Conceptualization, M.-Y.L. and F.-S.Y.; methodology, M.-Y.L.; software, M.-Y.L.; validation, M.-Y.L.; formal analysis, M.-Y.L.; investigation, M.-Y.L. and F.-S.Y.; resources, F.-S.Y. and H.-I.H.; data curation, M.-Y.L. and F.-S.Y.; writing—original draft preparation, M.-Y.L.; writing—review and editing, M.-Y.L.; F.-S.Y. and H.-I.H.; visualization, M.-Y.L.; supervision, F.-S.Y. and H.-I.H.; project administration, F.-S.Y. and H.-I.H.; funding acquisition, F.-S.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by LEATEC Fine Ceramics Co., Ltd. (project 110S068).

Data Availability Statement

Not applicable.

Acknowledgments

We would like to thank Ray from the Department of Resources Engineering at National Cheng-Kung University for providing many useful comments that helped to improve this study. We also extend our sincere appreciation to Wang and Wang at National Sun Yat-Sen University for serving as scientific advisors and data collection for FEGTEM (Tecnai F20 ID: EM0000011300) and Lee at National Cheng Kung University for data collection for AFM.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A. XRD Results Reveal the Phase Transformation during the Thermal Treatment

Nanomaterials 12 02955 g0a1 550

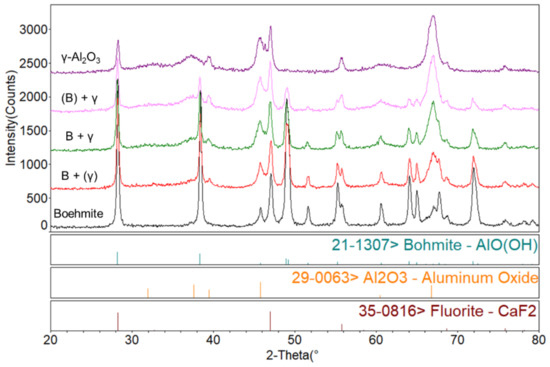

Figure A1. XRD qualitative analysis in phase transformation process.
Figure A1. XRD qualitative analysis in phase transformation process.
Nanomaterials 12 02955 g0a1

Appendix B. Mean Thickness tBET of the Calcined Boehmite/γ-Al2O3 Flakes

This equation comes from two assumptions. First, the flake has a circular cross-sectional area with a diameter of D50 and thickness t. Second, all the newly generated surfaces increase in the direction of the cleavage plane. Therefore, the thickness t is related to the specific surface area value in this way.
Nanomaterials 12 02955 g0a2 550

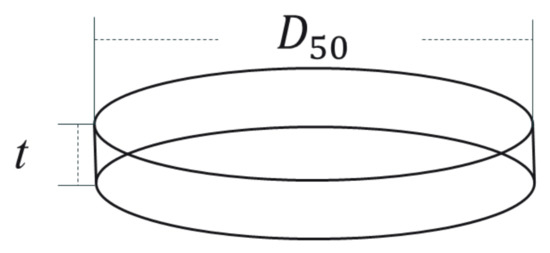

Figure A2. Schematic diagram of morphology assumptions for calculating the thickness of flake.
Figure A2. Schematic diagram of morphology assumptions for calculating the thickness of flake.
Nanomaterials 12 02955 g0a2
B E T   S . S . A .   m 2 g = S u r f a c e   a r e a   m 2 W e i g h t   g = π × D 2 × D + 2 t W   g
W g = ρ × V = ρ × π × D 2 4 × t
B E T   S . S . A . = π × D 2 × D + 2 t ρ × π × D 2 4 × t = 2 D + 4 t ρ × D × t = 1 ρ 2 t + 4 D
ρ × B E T   S . S . A . = 2 t + 4 D ,   1 t = ρ × D × B E T   S . S . A . × 10 − 3 − 4 2 D
∴ t B E T n m = 2 D ρ × D × B E T   S . S . A . × 10 − 3 − 4

Appendix C. SAED Results of Boehmite/Meta-γ/γ-Al2O3

Table
Table A1. Ratio of d values in the two directions of the cleavage plane obtained by SAED.
Table A1. Ratio of d values in the two directions of the cleavage plane obtained by SAED.
D-SpacingNanomaterials 12 02955 i001
#1#2#1/#2
Boehmite1.4441.9880.7264
meta-γ1.4432.0030.7204
γ-Al2O31.4312.0020.7148
Table
Table A2. SAED results and the associated morphology of boehmite and γ-Al2O3 in this study.
Table A2. SAED results and the associated morphology of boehmite and γ-Al2O3 in this study.
Boehmite γ-Al2O3
a3.976→½ cγ−4.004
c2.888→ ½   d 1 1 ¯ 0 −2.862
{010}bNanomaterials 12 02955 i002 {110}γNanomaterials 12 02955 i003

References

  1. Tan, C.; Cao, X.; Wu, X.-J.; He, Q.; Yang, J.; Zhang, X.; Chen, J.; Zhao, W.; Han, S.; Nam, G.-H.; et al. Recent Advances in Ultrathin Two-Dimensional Nanomaterials. Chem. Rev. 2017, 117, 6225–6331. [Google Scholar] [CrossRef] [PubMed]
  2. Lin, Y.; Williams, T.; Connell, J.W. Soluble, Exfoliated Hexagonal Boron Nitride Nanosheets. J. Phys. Chem. Lett. 2009, 1, 277–283. [Google Scholar] [CrossRef]
  3. Fiori, G.; Bonaccorso, F.; Iannaccone, G.; Palacios, T.; Neumaier, D.; Seabaugh, A.; Banerjee, S.K.; Colombo, L. Electronics based on two-dimensional materials. Nat. Nanotechnol. 2014, 9, 768–779, Erratum in Nat. Nanotechnol. 2014, 9, 1063. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, Q.H.; Kalantar-Zadeh, K.; Kis, A.; Coleman, J.N.; Strano, M.S. Electronics and optoelectronics of two-dimensional transition metal dichalcogenides. Nat. Nanotechnol. 2012, 7, 699–712. [Google Scholar] [CrossRef]
  5. Perez-Page, M.; Sahoo, M.; Holmes, S.M. Single Layer 2D Crystals for Electrochemical Applications of Ion Exchange Membranes and Hydrogen Evolution Catalysts. Adv. Mater. Interfaces 2019, 6. [Google Scholar] [CrossRef]
  6. Knözinger, H.; Ratnasamy, P. Catalytic Aluminas: Surface Models and Characterization of Surface Sites. Catal. Rev. 1978, 17, 31–70. [Google Scholar] [CrossRef]
  7. Wetzel, B.; Haupert, F.; Friedrich, K.; Zhang, M.Q.; Rong, M.Z. Impact and wear resistance of polymer nanocomposites at low filler content. Polym. Eng. Sci. 2002, 42, 1919–1927. [Google Scholar] [CrossRef]
  8. Coleman, J.N.; Khan, U.; Blau, W.J.; Gun’Ko, Y.K. Small but strong: A review of the mechanical properties of carbon nanotube–polymer composites. Carbon 2006, 44, 1624–1652. [Google Scholar] [CrossRef]
  9. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Zhang, Y.; Dubonos, S.V.; Grigorieva, I.V.; Firsov, A.A. Electric field effect in atomically thin carbon films. Science 2004, 306, 666–669. [Google Scholar] [CrossRef]
  10. Schniepp, H.C.; Li, J.-L.; McAllister, M.J.; Sai, H.; Herrera-Alonso, M.; Adamson, D.H.; Prud’Homme, R.K.; Car, R.; Saville, D.A.; Aksay, I.A. Functionalized Single Graphene Sheets Derived from Splitting Graphite Oxide. J. Phys. Chem. B 2006, 110, 8535–8539. [Google Scholar] [CrossRef] [Green Version]
  11. Wei, W.; Guan, T.; Li, C.; Shen, L.; Bao, N. Heating Rate-Controlled Thermal Exfoliation for Foldable Graphene Sponge. Ind. Eng. Chem. Res. 2020, 59, 2946–2952. [Google Scholar] [CrossRef]
  12. Mayorov, A.S.; Gorbachev, R.V.; Morozov, S.V.; Britnell, L.; Jalil, R.; Ponomarenko, L.A.; Blake, P.; Novoselov, K.S.; Watanabe, K.; Taniguchi, T.; et al. Micrometer-Scale Ballistic Transport in Encapsulated Graphene at Room Temperature. Nano Lett. 2011, 11, 2396–2399. [Google Scholar] [CrossRef]
  13. Geim, A.K.; Novoselov, K.S. The rise of graphene. In Nanoscience and Technology; World Scientific: Singapore, 2009; pp. 11–19. [Google Scholar]
  14. Pacile, D.; Meyer, J.; Girit, Ç.Ö.; Zettl, A. The two-dimensional phase of boron nitride: Few-atomic-layer sheets and suspended membranes. Appl. Phys. Lett. 2008, 92, 133107. [Google Scholar] [CrossRef]
  15. Alem, N.; Erni, R.; Kisielowski, C.; Rossell, M.D.; Gannett, W.; Zettl, A. Atomically thin hexagonal boron nitride probed by ultrahigh-resolution transmission electron microscopy. Phys. Rev. B 2009, 80, 155425. [Google Scholar] [CrossRef]
  16. Cui, Z.; Oyer, A.J.; Glover, A.J.; Schniepp, H.C.; Adamson, D.H. Large Scale Thermal Exfoliation and Functionalization of Boron Nitride. Small 2014, 10, 2352–2355. [Google Scholar] [CrossRef]
  17. Li, H.; Wu, J.; Yin, Z.; Zhang, H. Preparation and Applications of Mechanically Exfoliated Single-Layer and Multilayer MoS2 and WSe2 Nanosheets. Accounts Chem. Res. 2014, 47, 1067–1075. [Google Scholar] [CrossRef]
  18. Li, L.; Zhang, D.; Gao, Y.; Deng, J.; Gou, Y.; Fang, J. Electric field driven exfoliation of MoS2. J. Alloy. Compd. 2021, 862, 158551. [Google Scholar] [CrossRef]
  19. Li, M.-Y.; Shi, Y.; Cheng, C.-C.; Lu, L.-S.; Lin, Y.-C.; Tang, H.-L.; Tsai, M.-L.; Chu, C.-W.; Wei, K.-H.; He, J.-H.; et al. Epitaxial growth of a monolayer WSe2-MoS2 lateral p-n junction with an atomically sharp interface. Science 2015, 349, 524–528. [Google Scholar] [CrossRef]
  20. Gerstner, E. Nobel Prize 2010: Andre Geim & Konstantin Novoselov. Nat. Phys. 2010, 6, 836. [Google Scholar] [CrossRef]
  21. Novoselov, K.S.; Jiang, D.; Schedin, F.; Booth, T.J.; Khotkevich, V.V.; Morozov, S.V.; Geim, A.K. Two-dimensional atomic crystals. Proc. Natl. Acad. Sci. USA 2005, 102, 10451–10453. [Google Scholar] [CrossRef] [Green Version]
  22. Ciesielski, A.; Samorì, P. Graphene via sonication assisted liquid-phase exfoliation. Chem. Soc. Rev. 2014, 43, 381–398. [Google Scholar] [CrossRef] [PubMed]
  23. Coleman, J.N. Liquid-Phase Exfoliation of Nanotubes and Graphene. Adv. Funct. Mater. 2009, 19, 3680–3695. [Google Scholar] [CrossRef]
  24. Agrawal, A.; Yi, G.-C. Sample pretreatment with graphene materials. Compr. Anal. Chem. 2020, 91, 21–47. [Google Scholar] [CrossRef]
  25. Nagyte, V.; Kelly, D.J.; Felten, A.; Picardi, G.; Shin, Y.; Alieva, A.; Worsley, R.E.; Parvez, K.; Dehm, S.; Krupke, R.; et al. Raman Fingerprints of Graphene Produced by Anodic Electrochemical Exfoliation. Nano Lett. 2020, 20, 3411–3419. [Google Scholar] [CrossRef]
  26. Dileep, N.P.; Vineesh, T.V.; Sarma, P.V.; Chalil, M.V.; Prasad, C.S.; Shaijumon, M.M. Electrochemically Exfoliated β-Co(OH)2 Nanostructures for Enhanced Oxygen Evolution Electrocatalysis. ACS Appl. Energy Mater. 2020, 3, 1461–1467. [Google Scholar] [CrossRef]
  27. Zhang, H.-B.; Wang, J.-W.; Yan, Q.; Zheng, W.-G.; Chen, C.; Yu, Z.-Z. Vacuum-assisted synthesis of graphene from thermal exfoliation and reduction of graphite oxide. J. Mater. Chem. 2011, 21, 5392–5397. [Google Scholar] [CrossRef]
  28. Botas, C.; Álvarez, P.; Blanco, C.; Santamaria, R.; Granda, M.; Gutiérrez, M.D.; Rodriguez-Reinoso, F.; Menéndez, R. Critical temperatures in the synthesis of graphene-like materials by thermal exfoliation–reduction of graphite oxide. Carbon 2013, 52, 476–485. [Google Scholar] [CrossRef]
  29. Tan, C.; Zhang, H. Wet-chemical synthesis and applications of non-layer structured two-dimensional nanomaterials. Nat. Commun. 2015, 6, 7873. [Google Scholar] [CrossRef]
  30. Sun, Z.; Liao, T.; Dou, Y.; Hwang, S.M.; Park, M.-S.; Jiang, L.; Kim, J.H.; Dou, S.X. Generalized self-assembly of scalable two-dimensional transition metal oxide nanosheets. Nat. Commun. 2014, 5, 3813. [Google Scholar] [CrossRef]
  31. Sun, Y.; Sun, Z.; Gao, S.; Cheng, H.; Liu, Q.; Piao, J.; Yao, T.; Wu, C.; Hu, S.; Wei, S.; et al. Fabrication of flexible and freestanding zinc chalcogenide single layers. Nat. Commun. 2012, 3, 1057. [Google Scholar] [CrossRef]
  32. Lee, Y.-H.; Zhang, X.-Q.; Zhang, W.; Chang, M.-T.; Lin, C.-T.; Chang, K.-D.; Yu, Y.-C.; Wang, J.T.-W.; Chang, C.-S.; Li, L.-J.; et al. Synthesis of Large-Area MoS2Atomic Layers with Chemical Vapor Deposition. Adv. Mater. 2012, 24, 2320–2325. [Google Scholar] [CrossRef]
  33. Ji, Q.; Zhang, Y.; Zhang, Y.; Liu, Z. Chemical vapour deposition of group-VIB metal dichalcogenide monolayers: Engineered substrates from amorphous to single crystalline. Chem. Soc. Rev. 2014, 44, 2587–2602. [Google Scholar] [CrossRef]
  34. Mahler, B.; Hoepfner, V.; Liao, K.; Ozin, G.A. Colloidal Synthesis of 1T-WS2 and 2H-WS2 Nanosheets: Applications for Photocatalytic Hydrogen Evolution. J. Am. Chem. Soc. 2014, 136, 14121–14127. [Google Scholar] [CrossRef]
  35. Yin, A.-X.; Liu, W.-C.; Ke, J.; Zhu, W.; Gu, J.; Zhang, Y.-W.; Yan, C.-H. Ru Nanocrystals with Shape-Dependent Surface-Enhanced Raman Spectra and Catalytic Properties: Controlled Synthesis and DFT Calculations. J. Am. Chem. Soc. 2012, 134, 20479–20489. [Google Scholar] [CrossRef]
  36. Yin, X.-L.; Li, L.-L.; Jiang, W.-J.; Zhang, Y.; Zhang, X.; Wan, L.-J.; Hu, J.-S. MoS2/CdS Nanosheets-on-Nanorod Heterostructure for Highly Efficient Photocatalytic H2 Generation under Visible Light Irradiation. ACS Appl. Mater. Interfaces 2016, 8, 15258–15266. [Google Scholar] [CrossRef]
  37. Bowles, J.F.W. Hydroxides. In Encyclopedia of Geology (Second Edition); Alderton, D., Elias, S.A., Eds.; Academic Press: Oxford, UK, 2021; Volume 1, pp. 442–451. [Google Scholar]
  38. Wefers, K.; Misra, C. Oxides and Hydroxides of Aluminum; Alcoa Laboratories: Pittsburgh, PA, USA, 1987; Volume 19. [Google Scholar]
  39. Wilson, S. The dehydration of boehmite, γ-AlOOH, to γ-Al2O3. J. Solid State Chem. 1979, 30, 247–255. [Google Scholar] [CrossRef]
  40. Wilson, S.; Mc Connell, J. A kinetic study of the system γ-AlOOHAl2O3. J. Solid State Chem. 1980, 34, 315–322. [Google Scholar] [CrossRef]
  41. Tsuchida, T.; Furuichi, R.; Ishii, T. Kinetics of the dehydration of boehmites prepared under different hydrothermal conditions. Thermochim. Acta 1980, 39, 103–115. [Google Scholar] [CrossRef]
  42. Volpe, L.; Boudart, M. Topotactic Preparation of Powders with High Specific Surface Area. Catal. Rev. 1985, 27, 515–538. [Google Scholar] [CrossRef]
  43. Tertian, R.; Papée, D. Transformations thermiques et hydrothermiques de l’alumine. J. Chim. Phys. 1958, 55, 341–353. [Google Scholar] [CrossRef]
  44. De Boer, J.H.; Fortuin, J.M.H.; Steggerda, J.J. The dehydration of alumina hydrates. Proc. K. Ned. Akad. Wet. B 1954, 57, 170–180. [Google Scholar]
  45. Gitzen, W.H. Alumina as a Ceramic Material; American Ceramic Society: Columbus, OH, USA, 1970. [Google Scholar]
  46. Hart, L.R.D.; Lense, E. Alumina Chemicals: Science and Technology Handbook; The American Ceramic Society: Westerville, OH, USA, 1990. [Google Scholar]
  47. Van Gog, H. First-principles study of dehydration interfaces between diaspore and corundum, gibbsite and boehmite, and boehmite and γ-Al2O3: Energetic stability, interface charge effects, and dehydration defects. Appl. Surf. Sci. 2020, 541, 148501. [Google Scholar] [CrossRef]
  48. Gates-Rector, S.; Blanton, T. The Powder Diffraction File: A quality materials characterization database. Powder Diffr. 2019, 34, 352–360. [Google Scholar] [CrossRef]
  49. Kim, D.; Jung, J.H.; Ihm, J. Theoretical Study of Aluminum Hydroxide as a Hydrogen-Bonded Layered Material. Nanomaterials 2018, 8, 375. [Google Scholar] [CrossRef]
  50. Conroy, M.; Soltis, J.A.; Wittman, R.S.; Smith, F.N.; Chatterjee, S.; Zhang, X.; Ilton, E.S.; Buck, E.C. Importance of interlayer H bonding structure to the stability of layered minerals. Sci. Rep. 2017, 7, 13274. [Google Scholar] [CrossRef]
  51. Yang, Y.; Zhong, Y.; Wang, X.; Ma, Y.; Yao, J. Facile Synthesis of Ultrathin Lepidocrocite Nanosheets from Layered Precursors. Chem. Asian J. 2014, 9, 1563–1569. [Google Scholar] [CrossRef]
  52. McAteer, D.; Godwin, I.J.; Ling, Z.; Harvey, A.; He, L.; Boland, C.S.; Vega-Mayoral, V.; Szydłowska, B.; Rovetta, A.A.; Backes, C.; et al. Liquid Exfoliated Co(OH)2 Nanosheets as Low-Cost, Yet High-Performance, Catalysts for the Oxygen Evolution Reaction. Adv. Energy Mater. 2018, 8, 1702965. [Google Scholar] [CrossRef]
  53. Schmidt, M.; Lutz, H. γ-Cd(OH)2, a common hydroxide or an aquoxy-hydroxide? Mater. Res. Bull. 1991, 26, 605–612. [Google Scholar] [CrossRef]
  54. Nonat, A.; Mutin, J. Evolution des dimensions des cristallites des phases initiale et finale au cours de la deshydratation mecanique: Cd(OH)2 →CdO + H2O. Mater. Chem. 1982, 7, 479–498. [Google Scholar] [CrossRef]
  55. Lowell, S.; Shields, J.E. The single point BET method. In Powder Surface Area and Porosity; Springer: Dordrecht, The Netherlands, 1984; pp. 30–35. [Google Scholar] [CrossRef]
  56. Walton, W.H. Feret’s Statistical Diameter as a Measure of Particle Size. Nature 1948, 162, 329–330. [Google Scholar] [CrossRef]
  57. Holzwarth, U.; Gibson, N. The Scherrer equation versus the ‘Debye-Scherrer equation’. Nat. Nanotechnol. 2011, 6, 534. [Google Scholar] [CrossRef]
  58. Krokidis, X.; Raybaud, P.; Gobichon, A.-E.; Rebours, B.; Euzen, P.; Toulhoat, H. Theoretical Study of the Dehydration Process of Boehmite to γ-Alumina. J. Phys. Chem. B 2001, 105, 5121–5130. [Google Scholar] [CrossRef]
  59. Digne, M. Use of DFT to achieve a rational understanding of acid?basic properties of ?-alumina surfaces. J. Catal. 2004, 226, 54–68. [Google Scholar] [CrossRef]
  60. Raybaud, P.; Digne, M.; Iftimie, R.; Wellens, W.; Euzen, P.; Toulhoat, H. Morphology and Surface Properties of Boehmite (γ-AlOOH): A Density Functional Theory Study. J. Catal. 2001, 201, 236–246. [Google Scholar] [CrossRef]
Nanomaterials 12 02955 g001 550

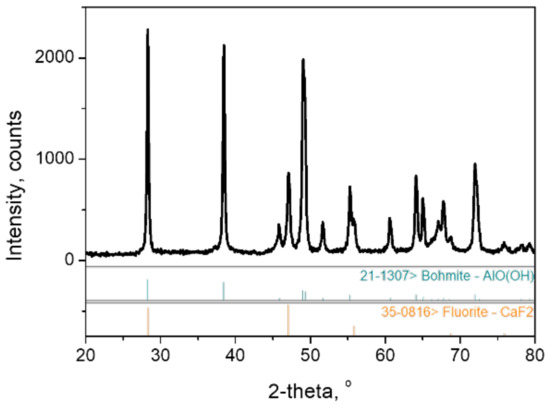

Figure 1. XRD patterns of starting boehmite powders used in this study.
Figure 1. XRD patterns of starting boehmite powders used in this study.
Nanomaterials 12 02955 g001
Nanomaterials 12 02955 g002 550

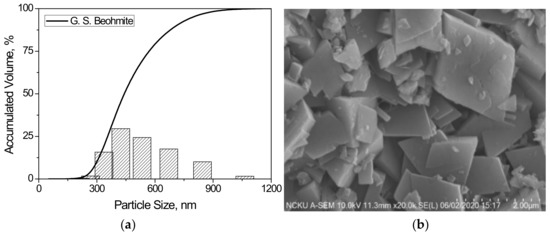

Figure 2. (a) Particle size distribution and (b) SEM micrograph of starting boehmite powders used in this study.
Figure 2. (a) Particle size distribution and (b) SEM micrograph of starting boehmite powders used in this study.
Nanomaterials 12 02955 g002
Nanomaterials 12 02955 g003 550

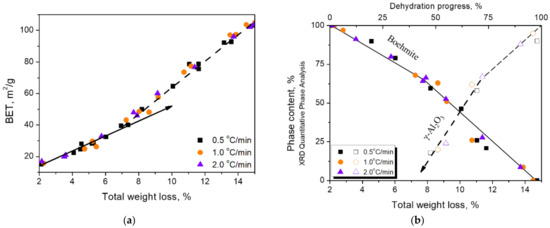

Figure 3. Two stages of BET value increments with the weight loss (a). Correlation between the phase contents of boehmite and γ-Al2O3 and weight loss (b).
Figure 3. Two stages of BET value increments with the weight loss (a). Correlation between the phase contents of boehmite and γ-Al2O3 and weight loss (b).
Nanomaterials 12 02955 g003
Nanomaterials 12 02955 g004 550
Figure 4. TEM micrographs and diffraction patterns of thermally treated boehmite, (a) boehmite particles, (b) meta-γ particles, (c) γ-Al2O3 particles pseudomorph after boehmite, and (d) γ-Al2O3 particles.
Figure 4. TEM micrographs and diffraction patterns of thermally treated boehmite, (a) boehmite particles, (b) meta-γ particles, (c) γ-Al2O3 particles pseudomorph after boehmite, and (d) γ-Al2O3 particles.
Nanomaterials 12 02955 g004
Nanomaterials 12 02955 g005 550
Figure 5. Variations of the average thickness of calcined boehmite samples (tBET) and flakes of boehmite (tB{010}), γ-Al2O3 (tγ{110}), and meta-γ (tmeta(BET)) with exfoliation.
Figure 5. Variations of the average thickness of calcined boehmite samples (tBET) and flakes of boehmite (tB{010}), γ-Al2O3 (tγ{110}), and meta-γ (tmeta(BET)) with exfoliation.
Nanomaterials 12 02955 g005
Nanomaterials 12 02955 g006 550
Figure 6. AFM results show the exfoliated flakes displayed approximate thickness of 5 nm.
Figure 6. AFM results show the exfoliated flakes displayed approximate thickness of 5 nm.
Nanomaterials 12 02955 g006
Nanomaterials 12 02955 g007 550
Figure 7. Cross-sectional size distribution of the exfoliated flakes. As the BET value increased, relatively large flakes appeared.
Figure 7. Cross-sectional size distribution of the exfoliated flakes. As the BET value increased, relatively large flakes appeared.
Nanomaterials 12 02955 g007
Nanomaterials 12 02955 g008 550
Figure 8. Schematic diagram of the powder exfoliation process at each stage.
Figure 8. Schematic diagram of the powder exfoliation process at each stage.
Nanomaterials 12 02955 g008
Table
Table 1. The orientation relationships between boehmite and γ-Al2O3.
Table 1. The orientation relationships between boehmite and γ-Al2O3.
Boehmite γ-Al2O3Relative Difference
a3.700→½ cγ3.962+7.1%
b12.227 2 d 110 11.2−8.4%
c2.868→½ d 1 1 ¯ 0 2.802−2.3%
{010}bNanomaterials 12 02955 i004 {110}γNanomaterials 12 02955 i005{010}b/{110}γNanomaterials 12 02955 i006
Table
Table 2. Basic properties and characteristics of the starting boehmite powder.
Table 2. Basic properties and characteristics of the starting boehmite powder.
Specific surface aream2/g15
D50nm450
L.O.I. (loss on ignition)%15 + 2 (physical adsorbed)
Table
Table 3. Property variations of calcined boehmite samples.
Table 3. Property variations of calcined boehmite samples.
BET, m2/gPhase Contents, %Particle Shape, %/Thickness, (nm)Pseudomorph (%, est.)
Boehmite /(Meta-γ)/γ-Al2O3BoehmiteMeta-γγ-Al2O3
4070/(30)/0100/(49) 2--/(5.9) 10/(5.8) 1--
7037/(13)/5074/(37) 2--/(6.2) 126/(5.7) 248
9012/(5)/8352/(22) 2--/(6.5) 148/(5.7) 242
1000/(0)/10035/----/--65/(5.7) 235
1: thickness via Equation (1); 2: thickness via Equation (2).
Table
Table 4. Thermodynamics data.
Table 4. Thermodynamics data.
SurfaceSurface Area,Surface Energy, Energy/(Flake),
m2mJ/m2mJ
Boehmite−103.18 × 10−13455 a,*,**2.38 × 10−10
−1013.11 × 10−144585 a,*–3000 a,**
γ-Al2O3−1103.18 × 10−132590 b,*–1540 b,**5.05 × 10−10
−1118.06 × 10−154480 b,*–1970 b,**
a Reference [59]. b Reference [60]. * Unrelaxed surface energy in vacuum. ** Relaxed surface energy in vacuum. (Adopted for calculation).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lee, M.-Y.; Yen, F.-S.; Hsiang, H.-I. Generating Self-Shaped 2D Aluminum Oxide Nanopowders. Nanomaterials 2022, 12, 2955. https://doi.org/10.3390/nano12172955

AMA Style

Lee M-Y, Yen F-S, Hsiang H-I. Generating Self-Shaped 2D Aluminum Oxide Nanopowders. Nanomaterials. 2022; 12(17):2955. https://doi.org/10.3390/nano12172955

Chicago/Turabian Style

Lee, Meng-Ying, Fu-Su Yen, and Hsing-I Hsiang. 2022. "Generating Self-Shaped 2D Aluminum Oxide Nanopowders" Nanomaterials 12, no. 17: 2955. https://doi.org/10.3390/nano12172955

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
