Cellulose Paper Modified by a Zinc Oxide Nanosheet Using a ZnCl2-Urea Eutectic Solvent for Novel Applications

by
Changmei Lin
1,
Duo Chen
2,
Zifeng Hua
1,
Jun Wang
1,
Shilin Cao
1,* and
Xiaojuan Ma
1,*
1
College of Materials Engineering, Fujian Agriculture and Forestry University, Fuzhou 350002, China
2
International School for Optoelectronic Engineering, Qilu University of Technology (Shandong Academy of Science), Jinan 250353, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(5), 1111; https://doi.org/10.3390/nano11051111
Submission received: 6 April 2021 / Revised: 21 April 2021 / Accepted: 23 April 2021 / Published: 25 April 2021
Browse Figures
Review Reports Versions Notes

Abstract

:
Cellulose paper has been functionalized by nanoparticles such as Ag nanoparticles, TiO2, and BaTiO3 for versatile applications including supercapacitor, sensors, photoactivity, and packaging. Herein, zinc oxide (ZnO) nanosheet-modified paper (ZnO@paper) with excellent antibacterial properties was fabricated via a mild ZnCl2-urea eutectic solvent. In this proposed method, cellulose fibers as the raw material for ZnO@paper were treated by an aqueous solvent of ZnCl2-urea; the crystalline region was destroyed and [ZnCl]+-based cations were adsorbed on the surface of cellulose fibers, facilitating more ZnO growth on ZnO@paper. A flexible paper-based triboelectric nanogenerator (P-TENG) was made of ZnO@paper paired with a PTFE film. The P-TENG presents high triboelectric output performance and antibacterial activity. For instance, the output voltage and current of the P-TENG were 77 V and 0.17 μA, respectively. ZnO@paper showed excellent antibacterial activity against E. coli and S. aureus, suggesting that a P-TENG can restrain and kill the bacteria during the working process. The results also indicated that ZnO could improve the surface roughness of cellulose paper, enhancing the output performance of a flexible P-TENG. In addition, the potential application of a P-TENG-based pressure sensor for determining human motion information was also reported. This study not only produced a high-performance P-TENG for fabricating green and sustainable electronics, but also provides an effective and novel method for ZnO@paper preparation.

Graphical Abstract

1. Introduction

Cellulose paper, a common commodity in daily life, has been extensively used in the fields of food package, supercapacitors, lithium-ion batteries, and solar cells because it is abundant, biodegradable, lightweight, recyclable, and environmentally friendly [1,2,3,4,5,6,7]. In recent years, the applications of cellulose paper in nanogenerators such as triboelectric nanogenerators and piezoelectric nanogenerators have also been reported [8,9].
Triboelectric nanogenerator (TENG) is a novel technology for harvesting mechanical energy from human motions, sounds, and structure vibrations, and has attracted much attention due to its wide availability [10,11]. It is a device that utilizes electrostaticity and triboelectricity to convert mechanical energy into electricity, and its fundamental theoretical origin is Maxwell’s displacement current [12,13,14,15]. It also has been intensely followed with interest among researchers because TENG has the advantages of low cost, high energy conversion, abundant material choices, and a simple fabrication process.
As an electron-donating material, cellulose paper has already been employed to construct TENG, which has the advantages of being cheap, lightweight, flexible, eco-friendly, and disposable [8,16,17]. However, traditional papers used to prepare TENG, such as hard paper, print paper, paper cards, rice paper, and crepe paper, are commercial and non-antibacterial, limiting the application of a P-TENG due to the low flexibility and incapability against bacteria of these papers [8,18,19,20,21,22]. Besides, in the fabrication process of P-TENG, the surface modification of cellulose fibers to prepare cellulose paper is always neglected. Therefore, it is vital to prepare a P-TENG using composite paper that is composed of surface-modified cellulose fibers.
On the other hand, ZnO is a semiconductor that possesses a wide bandgap (3.37 eV) and high exciton binding energy (60 meV) [23]. It has been widely used in the field of piezoelectric devices, optical devices, solar cells, transparent electrodes, sensors, photocatalysts, and antiseptics due to the unique characteristics of ZnO [24,25,26,27,28,29,30]. To prepare a ZnO-modified cellulose composite, one method is to disperse ZnO nanoparticles into a cellulose suspension [31,32,33]. However, due to the low bonding strength between ZnO and cellulose fibers, ZnO would detach from the cellulose fibers, causing environmental pollution during the application of a ZnO-modified cellulose composite. Another method is to immerse the paper or cellulose fibers of which the paper is made into the solutions containing Zn2+ (ZnO precursor) such as zinc chloride (ZnCl2), zinc nitrate (Zn(NO3)2), zinc acetate (Zn(CH3COO)2), or zinc sulfate (ZnSO4), and the paper is treated with sodium hydroxide (NaOH), potassium hydroxide (KOH), or ammonium hydroxide (NH4OH), inducing the nucleation and growth of a ZnO crystal on cellulose fibers [34,35,36,37,38]. In spite of the successful preparation of a ZnO-modified cellulose composite by the latter method, the fabrication process was complicated, and the ZnO deposited on paper or cellulose fibers was low due to the poor accessibility between the ZnO precursor and cellulose fibers (namely, the ZnO precursor is difficult to get to the hydroxyl groups on cellulose), limiting the ZnO-modified cellulose paper to industrial production. In consequence, it is significant to develop a new route for preparing ZnO-functionalized cellulose paper. Furthermore, as mentioned, ZnO@paper has versatile applications, for example, as sensors and packaging [7,39], but there are few reports concerning ZnO@paper used as a friction layer for a P-TENG.
In this work, we report a novel method for the preparation of ZnO@paper. The preparation mechanism of ZnO@paper is investigated. Furthermore, the potential application of ZnO@paper in a P-TENG for energy harvesting and as a pressure sensor is also demonstrated.

2. Materials and Methods

2.1. Materials

Dissolving pulp with cellulose content of 91.9 wt.% and hemicellulose content of 8.1 wt.% prepared from softwood was provided by Qingshan Paper Co., Ltd. (Sanming, China). Zinc chloride (ZnCl2, 96%) and urea (CO(NH2)2, 99%) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China) and Aladdin (Shanghai, China), respectively. Agar, Escherichia coli, and Staphylococcus aureus were provided by Qingdao Haibo Biological Technology Co., Ltd. (Qingdao, China).

2.2. Preparation of ZnO@paper

2.2.1. ZnO@paper Preparation Process

Dissolving pulp was dispersed using a homogenizing and defibration device (ZQS4, Xianyang Tongda Light Industrial Equipment Co., Ltd., Xianyang, China). The eutectic solvent composed of ZnCl2 and CO(NH2)2 was fabricated at 110 °C with an amount of substance ratio of 1:3 by magnetic stirring. After melting the ZnCl2 and CO(NH2)2, the eutectic solvent was cooled to 55 °C. Then 500 mL distilled water and 10 g pulp were added into the eutectic solvents and stirred 10 min to form suspension at 55 °C. Later, the temperature was increased to 85°C for the nucleation and growth of ZnO. After 2 h, the reaction product was filtered and washed with distilled water until the Cl− was no longer present in the filter. Finally, ZnO@paper with a grammage of 60 g/m2 was fabricated using a papermaking device equipped with a filter device of 10 cm radius (FRANK-PTI, S958540014, Birkenau, Germany). The grammage of the ZnO@paper is expressed as the mass of ZnO-modified cellulose fibers divided by the filter area of the papermaking device. Then the ZnO@paper was dried by squeezing, using the drying device of the papermaking device under pressure from a heavy plate. Meanwhile, blank paper was also prepared from cellulose fibers without ZnO modification. To control the mass of ZnO deposited on the ZnO@paper and according to the mass ratio of ZnO by fully formed Zn2+ to the cellulose fibers, the amount of ZnCl2 was set at 0.01 mol, 0.03 mol, 0.05 mol, 0.07 mol, and 0.1mol, respectively. The amount of CO(NH2)2 was also adjusted with the amount of ZnCl2 to maintain the 1:3 ratio. The samples were marked as ZnO@paper-1, ZnO@paper-2, ZnO@paper-3, ZnO@paper-4, and ZnO@paper-5.

2.2.2. The Mechanism of ZnO@paper Preparation

It has been reported that the high degree of crystallinity of cellulose is a barrier for sufficient ZnO assembling on cellulose fibers [34,37,40]. Thus, destroying the crystallinity region is beneficial for more ZnO growing on cellulose fibers. The ZnCl2-urea eutectic solvent consists of [ZnCl]+-based cations including [ZnCl (urea)]+, [ZnCl (urea)2]+, [ZnCl(urea)3]+, and anion [ZnCl3]− [41,42]. When water is added into the ZnCl2-urea eutectic solvent, the urea composition is dissolved and the hydrogen bonds are destroyed; resulting in the disruption of the structure of the above cations and, therefore, ZnO precipitation. The chemical reaction is shown as follows:
CO ( NH 2 ) 2 +   H 2 O → Δ 2 NH 3 ↑ +   CO 2 ↑
NH3 + H2O → NH4+ + OH−
[ZnCl]+ + 4OH− → Zn(OH)42− + Cl−
[ZnCl3]− + 4OH− → Zn(OH)42− + 3Cl−
Zn(OH)42− → ZnO + H2O + OH−
Inspired by the above reaction sequence, we designed a route for ZnO@paper preparation. In the first step, ZnCl2 and CO(NH2)2 were mixed at 110 °C until they were completely melted. Next, distilled water and cellulose fibers were added subsequently into the above ZnCl2-urea eutectic solvent; in this instance, the [ZnCl]+-based cations and anion [ZnCl3]− reacted with the OH− from urea dissolving in water by thermal treatment, and the [ZnCl]+ and [ZnCl3]− transforming into Zn(OH)42−. The Zn(OH)42− further converted into ZnO owing to the dehydration reaction. Hence, ZnO was deposited on the surface of cellulose fibers by hydrogen bonding with hydroxyl groups of cellulose. Finally, the paper was modified by ZnO with the aid of the hydrogen bonding between hydroxyl groups on cellulose fibers and ZnO, as illustrated in Figure 1. The [ZnCl]+-based cations would be adsorbed on their surface because of the negative charges of cellulose fibers. Besides, the crystalline region would be destroyed by the OH−. Thus, ZnCl2-urea could facilitate more ZnO growing on the surface of cellulose fibers.

2.3. Integration of the Arch-Shaped P-TENG

To fabricate the P-TENG, at first, ZnO@paper (thickness of 125 μm) and polytetrafluoroethylene (PTFE) (thickness of 50 μm) with an area of 6 × 6 cm2 were coated with a thin gold film as the electrode by using sputtering (MC1000, Japan Hitachi Nake high-tech enterprise, Tokyo, Japan) in a vacuum and a current of 40 mA for 5 min, making their surface resistance below10 Ω. Secondly, the gold film sputtered onto the ZnO@paper was affixed at the center of print paper (A4 paper used for printing ) (7 cm × 8 cm) using 3M tape, while the PTFE film was also pasted onto print paper with an area of 7 cm × 10 cm adopting 3M tape. Finally, the edges of these two print papers were jointed together using Kapton tape for the reutilization of PTFE because Kapton tape was easy to be peel off, forming an arch-shaped device. The arch-shaped P-TENG could maintain a proper restoring force when it was subjected to an external force, which was beneficial for contact-separation of the P-TENG, as showing in Figure 2a.
The fabrication of the pressure sensor was similar to that of the P-TENG except that the effective size of the ZnO@paper and PTFE was 3 cm × 3 cm. The ZnO@paper and PTFE were pasted onto print paper with an area of 4 cm × 5 cm and 4 cm × 7 cm, respectively.
The operating principle of the P-TENG is shown in Figure 2b [43,44]. When the ZnO@paper and PTFE film are brought into contact with each other, electrons are injected from the ZnO@paper to the PTFE film, leading to the surface of the ZnO@paper obtaining positive charges while the PTFE film obtains negative charges, which are named as triboelectric charges. When the gap between ZnO@paper-4 and PTFE became zero, the triboelectric charges on the surfaces of the ZnO@paper and PTFE film are in electrical equilibrium (Stage Ⅱ). At the disconnecting stage, the surfaces of the ZnO@paper and PTFE film would automatically diverge, and the triboelectric charges would generate an electrical field between the surfaces of the ZnO@paper and PTFE film, creating an electric potential difference between Au electrodes (Stage Ⅲ). When the separating distance reaches the biggest value in a full contact-separation cycle, it will achieve a new electrical equilibrium (Stage Ⅳ). Subsequently, once the ZnO@paper is compressed toward the PTFE surface again, the induced charges in two Au electrodes become unbalanced (Stage Ⅴ). As a result, the electrons flow between Au electrodes through an external circuit, producing an alternating signal voltage and current as the periodic mechanical force, as illustrated in Figure 2c,d).

2.4. Structure Characterization of ZnO@paper

X-ray diffraction patterns (XRD) was performed to show that the product formed on the ZnO@paper was ZnO rather than other zinc compounds by using an X-ray diffractometer (Ultima IV, Japan) with Cu Kα radiation (λ = 0.1542 nm) at 40 kV and 40 mA in the diffraction angle (2θ) range of 5–80°. The morphologies of the samples were recorded on a scanning electron microscope (SEM) (Verios G4 UC, FEI, Hillsboro, OR, USA) with elemental analysis observed by energy-dispersive X-ray spectroscopy (EDS) operating at 2 kV, and the samples were coated with a thin layer of gold using sputtering (MC1000, Japan Hitachi Nake high-tech enterprise, Tokyo, Japan) prior to the observation. The chemical bonding states of both cellulose fibers and the ZnO-forming ZnO@paper were determined by an X-ray photoelectron spectrometer (XPS) (ESCALAB 250; Thermo Scientific, Waltham, MA, USA).

2.5. Antibacterial Determination of ZnO@paper

In our study, Escherichia coli (typical gram-negative bacteria) and Staphylococcus aureus (a type of gram-positive bacteria) were used to assess the antibacterial properties of ZnO@paper. The culture medium was prepared by agar. In brief, 33 g of agar was dissolved in 1000 mL distilled water, and the solution was heated until it became transparent. Before the experiment, LB broth (lysogeny broth), the medium, and apparatus (including beaker, pipette tips, test tube, test tube holder, and so on) were sterilized using an autoclave (SYQ-DSX-2808, Shanghai Shenan Medical Instrument Factory, Shanghai, China) under a pressure of 0.1 MPa and the temperature was maintained at 121 °C for 15 min. Then E. coli and S. aureus with concentrations of 105 CFU were added into 10 mL LB broth, respectively. Next, a 0.1 g sample cut into small pieces was added to the LB broth. Finally, the LB broth was cultivated for 24 h at 37 °C with shaking at 140 rpm. After cultivation, the bacterial suspensions were diluted by 10 to 107 times by using 0.5 wt.% NaCl, and then 0.1 mL different dilutions were spread on the agar plates, and the dishes were placed in an incubator for 24 h at 37 °C. The antibacterial activity was evaluated by counting the number of colony-forming units (CFU) from the culture medium distributed uniformly by the bacterial suspensions diluted 100 times using the plate colony-counting method. To further show intuitively the antibacterial properties of ZnO@paper, the culture medium was also recorded by a camera. The antibacterial ratio was expressed as follows:
Antibacterial   ratio ( % ) = CFU blank   paper   -   CFU ZnO @ paper CFU blank   paper   ×   100 %

2.6. Measurements of the P-TENG as a Pressure Sensor

The open-circuit voltage (VOC) of the P-TENG was measured by an electrometer with an input resistance of 200 TΩ (6517B, Keithley). The short-circuit current (ISC) was observed using a low noise current preamplifier (SR570, Stanford Research Systems). A mechanical linear motor (HF01-37, Linmot) was employed to provide different external forces for driving the P-TENG. All measurements for the P-TENG were observed using a contact-separation frequency of 1 Hz. The response signal of the pressure sensor was carried out by an LCR meter (TH2832, Changzhou, China).

3. Results and Discussion

3.1. Characterizations of ZnO@paper

To prove the successful formation of ZnO nanosheets in ZnO@paper, ZnO@paper-4 was used as the typical example for analysis.
The XRD spectra of blank paper and ZnO@paper-4 are given in Figure 3. As shown in Figure 3a, the spectrum of ZnO@paper-4 presents peaks at 15.6°, 22.6°, and 34.5°, assigning to (101), (002), and (004) crystallographic plane, respectively; it has a similar diffraction pattern to blank paper which is cellulose I [45]. Additionally, the crystalline index (CrI) of the ZnO@paper-4 is lower than blank paper becauseZnCl2 with a concentration lower than 65 wt.% can penetrate into the crystalline region of cellulose, swelling cellulose and decreasing the crystallinity of cellulose due to the high polarity [46,47]. Cellulose has many hydroxyl groups which can promote the formation of ZnO. However, the high CrI is a barrier for Zn2+ (ZnO precursor) to penetrate into crystallinity regions of cellulose, so that hydroxyl groups on cellulose cannot be fully utilized leading to it is very difficult to assemble much more ZnO on cellulose fibers [34,37,47]. Therefore, decreasing the CrI could facilitate more ZnO deposited on ZnO@paper.
Furthermore, compared with blank paper, the XRD spectra of ZnO@paper-4 shows new characteristic peaks at 2θ value of 31.8° (100), 33.5° (002), 38.1° (101), 45.7° (102), 54.5° (110), 61.5° (103), 66.5° (200), 67.9° (112) and 69.7° (201), as illustrated in Figure 3b. The results suggest that ZnO in paper has a hexagonal structure [35,40]. However, the peaks of the ZnO@paper at 30–80° of 2θ value are weak. Therefore, further demonstration was completed using EDS and XPS.
It is apparent that ZnO@paper-4 is composed of C, O, and Zn elements while blank paper just contains C and O elements (Figure 4). The EDS results further suggests the successful preparation of ZnO@paper.
As a comparison, Table 1 lists the content of the Zn element in the ZnO/cellulose composite prepared by reported methods and our method. Zn content is in a range of 2.1–7.02% by using a precipitation and blending method. In our work, the Zn content is much higher than that of the other methods, which is up to 13.67%. The results confirmed that more ZnO assembled on cellulose fibers since the hydroxyl groups in cellulose could be fully utilized owing to the decrease of cellulose CrI [34,37,40].
The XPS analysis of blank paper and ZnO@paper-4 demonstrates the chemical bonding states to confirm the presence of ZnO in ZnO@paper. The survey spectra (Figure 5a) of blank paper and ZnO@paper-4 show that there is an adventitious Zn element in ZnO@paper-4, which is consistent with EDS results. The Zn2p regions of the XPS spectra (Figure 5b) indicate that ZnO@paper-4 has two peaks at 1020.7 eV and 1043.8 eV, which are attributed to Zn2p3/2 and Zn2p1/2 respectively, suggesting that Zn2+ exists in ZnO@paper-4 [49,50]. Furthermore, the binding energy gap between Zn2p3/2 and Zn2p1/2 is 23.15 eV, showing that the Zn atoms are in a completely oxidized state [51]. In addition, the O1s spectra of blank paper (Figure 5c) only consist of a peak centered at 531.3 eV, attributed to the C-O of cellulose, while the O1s spectra of ZnO@paper-4 deconvolution leads to two new signals at a binding energy of 529.4 eV corresponding to lattice oxygen and 532.5 eV attributed to vacancy oxygen [52,53,54]. For the C1s, the two samples can be deconvoluted into three peaks at ~284.5 eV, ~286.3 eV, and 287.5 eV, which are ascribed to the C-C, C-O, and C=O of cellulose, respectively [53].
SEM analysis of blank paper and ZnO@paper-4 was performed to investigate the morphology of ZnO, as illustrated in Figure 6a–d. As clearly seen from Figure 6b,d, the surface of cellulose fibers forming the paper was covered by the ZnO nanosheet. Additionally, in comparison with blank paper, the cellulose fibers of ZnO@paper-4 became rougher due to the presence of ZnO nanosheet, which may enhance the output properties of the P-TENG, as illustrated in Figure S1. Besides, the EDX elemental mapping was investigated to further confirm that the ZnO nanosheet had adhered to cellulose paper. As shown in Figure 6e–g, C, O, and Zn were uniformly distributed on the surface of cellulose fibers. The C element was assigned to cellulose composed of C, O, and H. The O element resulted from both cellulose and ZnO. The presence of Zn indicated that ZnO had successfully attached to the cellulose fibers of the paper. It also further showed the uniform distribution of ZnO on the ZnO@paper because the Zn element is homogeneously distributed.
As discussed above, the results proved that ZnO@paper could be prepared using a ZnCl2-urea eutectic solvent.

3.2. Antibacterial Activity

To monitor the human movement state, from hand, arm, foot, etc., the P-TENG must be in contact with human skin for a long time and exposed to the air environment, which will lead to bacterial germination. Thus, the antibacterial property of cellulose paper is an important prerequisite for a TENG used as a pressure sensor fixed on the human body to detect human motion. Furthermore, it was also reported that the bacteria in the friction material may decrease the electrical output of a TENG, impacting the effectiveness of the TENG for monitoring human motion [55,56]. Therefore, it is very important to investigate the antibacterial activity of ZnO@paper.
ZnO is an efficient antibacterial agent that could kill Gram-positive and Gram-negative bacterial [55,57,58]. It can be seen from Table 2 that the antibacterial ratio of all ZnO@papers against E. coli and S. aureus was above 99.99%, indicating that ZnO@paper prepared in the proposed method had excellent antibacterial efficiency. As shown in Figure 7, compared to blank paper, the surviving colonies number of both E. coli and S. aureus are almost absent in the culture medium of all ZnO@papers. Therefore, it can be concluded that both E. coli and S. aureus were killed under the action of ZnO@paper. Due to the excellent antibacterial activity of ZnO@paper, the P-TENG prepared by our ZnO@paper could restrain and kill the microorganisms during the operating time.

3.3. Electrical Output Performance of the P-TENG

The properties of a TENG are mainly dependent on the surface charge density of friction layers, which was affected by the roughness and triboelectricity of friction materials [59]. Herein, the ZnO content (0–20.3 wt.%) of the ZnO@paper added with the increase of ZnCl2 dosage in eutectic solvents, which may enhance the triboelectricity of ZnO@paper, as shown in Table S1. In the tested range, the VOC (~35 V) of the P-TENG remained unchanged when the ZnO content of the ZnO@paper was lower than 10 wt.% (the ZnCl2 dosage ranged from 0 to 0.03 mol); further increasing the ZnO content to 16.3 wt.% (increasing ZnCl2 dosage to 0.07 mol) could significantly increase the VOC, and the maximin VOC is 77 V, as shown in Figure 8a. However, the VOC decreased to 30 V when the ZnO content of the ZnO@paper was over 20.3 wt.% (the ZnCl2 dosage was beyond 0.1 mol). The ISC increased from 0.05 μA to 0.17 μA as the ZnO content was increased from 0 to 8 wt.%, and it remained at 0.17 μA when the ZnO content ranged from 8 wt.% to 16.3 wt.% (the ZnCl2 dosage increases from 0.01 to 0.07 mol). However, the ISC of the P-TENG declined when the ZnO content was over 20.3 wt.% (Figure 8c). The change tendency of the VOC and ISC may be related to the surface roughness of ZnO@paper. The high surface roughness could increase the contact area of ZnO@paper, resulting in the generation of more triboelectric charges [12,60,61]. Thus, increasing the ZnO@paper roughness may enhance the output properties of the P-TENG. The surface roughness of the ZnO@paper increased when the ZnO content was increased from 0 to 16.3 wt.%, and then decreased as the ZnO content was up to 20.3 wt.%, as shown in SEM images and Figure S1. Thus, the electrical output performance of the P-TENG decreased when the ZnO content of ZnO@paper reached 20.3 wt.%. Furthermore, to measure the effect of the external compression force applied by the linear motor on the performance of the P-TENG (prepared by ZnO@paper-4), the force was designed from 10 N to 50 N, and the VOC and Isc are shown in Figure 8b,d. Increasing the external force could reduce local gaps or voids introduced by surface roughness and the shape deformation, leading to ZnO@paper and PTFE contacted more closely. Thus, the triboelectric charges would change by increasing the external force. It has been also reported that high enough triboelectric charges generate on the surface of the friction layers under the corresponding external force [62]. The results indicated clearly that the VOC and ISC values increased greatly when the external force was below 20 N and remained practically unchanged with further external force growth (30 N–50 N). Namely, the external force of 20 N is sufficient to produce the maximum VOC and ISCof a P-TENG. It was mainly due to the high enough triboelectric charges on the surface of the ZnO@paper under the external force of 20 N due to the close contact of the ZnO@paper and PTFE. Further increasing the external force, the local gaps or voids introduced by surface roughness and the shape deformation could be not increased, thus the output performances of the P-TENG remain unchanged by increasing the external force to 30, 40, and 50 N.
However, the VOC and ISC are much lower compared to the related reports despite the ability to obtain the high output voltage and current for the P-TENG. For instance, Mi et al. fabricated a type of TENG consisting of polyamide nanofiber mats and polyimide (PI) aerogel films, which achieved a VOC of 115 V and ISC of 9 µA [63]. Chen et al. also demonstrated a TENG with a Voc and Isc of 196.8 V and 31.5 μA, respectively. This TENG was prepared using crepe cellulose paper and nitrocellulose membrane as the friction layers [8]. On the one hand, the releasing electron ability of paper is much weaker compared with other materials such as nylon and polyamide, leading to induce less triboelectric charges. On the other hand, the high contact-separation rate of the friction layer would produce more triboelectric charges [64]. In our study, the contact-separation frequency of the P-TENG was 1 Hz; thus, the rate may be too slow to generate less triboelectric charges, leading to the low output performance. In addition, the thickness of the friction layer is another important influence factor for the TENG. A friction layer that is too thick would increase the distance between the friction surface and the electrode; hence, a greater induction distance would yield fewer induced charges due to the edge effect of electrostatic induction [65]. The thickness of our ZnO@paper is over 125 μm, thus it may be too thick for the TENG. Fortunately, our P-TENG has the advantages of flexibility and biodegradability due to the application of the ZnO@paper made of cellulose fibers, which are flexible and biodegradable.

3.4. The P-TENG-Based Pressure Sensor

To show that a P-TENG can be applied in a sensor for monitoring the human motions, the P-TENG prepared by ZnO@paper-4 was used as the typical example for the pressure sensor because its output performance is the highest.
The P-TENG operating principle to generate electric energy in an external circuit is combining the triboelectric effect and electrostatic induction between the ZnO@paper and PTFE in periodic contact and separation. It has also been reported that the TENG sensor is based on the triboelectric effect and electrostatic induction, and it can yield capacitance, voltage, and current in response to external pressure [66,67]. Hence, the P-TENG-based pressure sensor can be in response to external pressure. It was also reported that the output signal response of the TENG sensor to pressure could be non-linearity in the whole pressure region, but it exhibited different linear with pressure in different pressure regions [68]. The sensitivity of the P-TENG-based pressure sensor was precisely carried out at 1–100 N of pressure by dropping different counterweights freely from a height of 3 cm to the central area of the pressure sensor. The peak of the response signal and output signal obtained from different pressure were given in Figure 9 and Figure S2, respectively. Figure 9 indicates that the signal response is exhibited in three distinct pressure regions: the tiny-pressure region (1–5 N) with a pressure sensitivity of 0. 0498 pF N−1, the low-pressure region (5–40 N) with a pressure sensitivity of 0.1811 pF N−1, and the high-pressure region (40–100 N) with a pressure sensitivity of 0.0488 pF N−1, indicating that the P-TENG-based pressure sensor possesses different sensitivity in different pressure regions.
The P-TENG-based pressure sensor has potential applications in the detection of human motion, as shown in Figure 10. Here, when a hand touched the surface of the P-TENG prepared by ZnO@paper-4, the gap between the ZnO@paper-4 and PTFE became narrow, leading to a detectable signal output, as illustrated in Figure 10a. The P-TENG was also fixed on the arm by medical tape to further demonstrate that it could detect human motion information. As the arm was repeatedly bent and relaxed, the P-TENG had contact and separation, generating the responded signal, as presented in Figure 10b. As shown in the inset of Figure 10c, the P-TENG-based sensor was located on the back of a t-shirt and further employed to harvest the mechanical energy while a human was leaning back on a wood chair. Consequently, the P-TENG-based sensor exhibited a good response signal. This phenomenon also occurs in the process of walking, which is shown in Figure 10d. The fabricated P-TENG-based sensor was placed on the sole of a foot to monitor its movement. When the foot stands alone, the response signal generated by human body pressure reaches the highest value. If the foot is raised, the sensor signal value returns to the microampere level. The results indicated that not only can our P-TENG harvest energy from human motion, but also it can also be applied as a sensor for obtaining the human motion information.

4. Conclusions

In the present work, a facile method has been successfully demonstrated to fabricate ZnO@paper. In the proposed method, ZnCl2-urea eutectic was first introduced to swell and cleave the hydrogen bonds in the cellulose structure by water destruction; while the exposed hydroxyl group would be hydroxyl bonded with ZnO that was converted by the dehydration of Zn(OH)42−, which endowed the ZnO@paper with excellent antibacterial activity. In addition, the ZnO@paper also has potential application in the P-TENG as a friction layer and in print paper as a substrate, which generates the maximum VOC of 77 V and ISC of 0.17 μA by harvesting external force. The results indicate that the presence of nanosheet ZnO in cellulose paper is beneficial for the electrical output performance of a P-TENG. Furthermore, the P-TENG prepared using ZnO@paper could impede the accumulation of bacteria during the longtime work process owing to the excellent antibacterial activity of ZnO@paper, which could be applied in a wearable sensor for harvesting energy from human motion and detecting human motion information.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/nano11051111/s1, Table S1: The ZnO content of different ZnO@paper, Figure S1: AFM image of (a) blank paper, (b) ZnO@paper-2, (c) ZnO@paper-4, (d) ZnO@paper-5, Figure S2: The output signal of the pressure sensor in response to applied pressure.

Author Contributions

Conceptualization, C.L., S.C. and X.M.; methodology, C.L. and D.C.; validation, C.L. and J.W.; formal analysis, C.L.; investigation, C.L. and Z.H.; data curation, S.C., X.M. and C.L.; writing—original draft preparation, C.L.; writing-review and editing, C.L. and X.M.; visualization, C.L., Z.H., and J.W.; supervision, S.C.; project administration, S.C. and X.M.; funding acquisition, X.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (31770632).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Brunetti, F.; Operamolla, A.; Castro-Hermosa, S.; Lucarelli, G.; Manca, V.; Farinola, G.M.; Brown, T.M. Printed solar cells and energy storage devices on paper substrates. Adv. Funct. Mater. 2019, 29, 1806798. [Google Scholar] [CrossRef] [Green Version]
  2. David, L.; Bhandavat, R.; Barrera, U.; Singh, G. Silicon oxycarbide glass-graphene composite paper electrode for long-cycle lithium-ion batteries. Nat. Commun. 2016, 7, 10998. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Pang, X.; Chen, Y.Z.; Zhang, Z.J. Study on the antibacterial paper coated by ZnO/MFC for food packaging. Appl. Mech. Mater. 2015, 731, 457–461. [Google Scholar] [CrossRef]
  4. Hu, L.; Choi, J.W.; Yang, Y.; Jeong, S.; La Mantia, F.; Cui, L.F.; Cui, Y. Highly conductive paper for energy-storage devices. Proc. Natl. Acad. Sci. USA 2009, 106, 21490–21494. [Google Scholar] [CrossRef] [Green Version]
  5. Hu, L.; Cui, Y. Energy and environmental nanotechnology in conductive paper and textiles. Energy Environ. Sci. 2012, 5, 6423. [Google Scholar] [CrossRef]
  6. Zhang, X.; Lin, Z.; Chen, B.; Sharma, S.; Wong, C.-P.; Zhang, W.; Deng, Y. Solid-state, flexible, high strength paper-based supercapacitors. J. Mater. Chem. A 2013, 1, 5835. [Google Scholar] [CrossRef]
  7. Zhang, H.; Hortal, M.; Jordá-Beneyto, M.; Rosa, E.; Lara-Lledo, M.; Lorente, I. ZnO-PLA nanocomposite coated paper for antimicrobial packaging application. LWT 2017, 78, 250–257. [Google Scholar] [CrossRef]
  8. Chen, S.; Jiang, J.; Xu, F.; Gong, S. Crepe cellulose paper and nitrocellulose membrane-based triboelectric nanogenerators for energy harvesting and self-powered human-machine interaction. Nano Energy 2019, 61, 69–77. [Google Scholar] [CrossRef]
  9. Qiu, Y.; Yang, D.; Lei, J.; Zhang, H.; Ji, J.; Yin, B.; Bian, J.; Zhao, Y.; Hu, L. Controlled growth of ZnO nanorods on common paper substrate and their application for flexible piezoelectric nanogenerators. J. Mater. Sci. Mater. Electron. 2014, 25, 2649–2656. [Google Scholar] [CrossRef]
  10. Li, X.; Yeh, M.-H.; Lin, Z.-H.; Guo, H.; Yang, P.-K.; Wang, J.; Wang, S.; Yu, R.; Zhang, T.; Wang, Z.L. Self-powered triboelectric nanosensor for microfluidics and cavity-confined solution chemistry. ACS Nano 2015, 9, 11056–11063. [Google Scholar] [CrossRef]
  11. Wu, C.; Wang, A.C.; Ding, W.; Guo, H.; Wang, Z.L. Triboelectric nanogenerator: A foundation of the energy for the new era. Adv. Energy Mater. 2019, 9, 1802906. [Google Scholar] [CrossRef]
  12. Dudem, B.; Huynh, N.D.; Kim, W.; Kim, D.H.; Hwang, H.J.; Choi, D.; Yu, J.S. Nanopillar-array architectured PDMS-based triboelectric nanogenerator integrated with a windmill model for effective wind energy harvesting. Nano Energy 2017, 42, 269–281. [Google Scholar] [CrossRef]
  13. Shao, J.; Willatzen, M.; Jiang, T.; Tang, W.; Chen, X.; Wang, J.; Wang, Z.L. Quantifying the power output and structural figure-of-merits of triboelectric nanogenerators in a charging system starting from the Maxwell’s displacement current. Nano Energy 2019, 59, 380–389. [Google Scholar] [CrossRef]
  14. Wang, Z.L. On Maxwell’s displacement current for energy and sensors: The origin of nanogenerators. Mater. Today 2017, 20, 74–82. [Google Scholar] [CrossRef]
  15. Zhang, H.; Yang, Y.; Su, Y.; Chen, J.; Adams, K.; Lee, S.; Hu, C.; Wang, Z.L. Triboelectric nanogenerator for harvesting vibration energy in full space and as self-powered acceleration sensor. Adv. Funct. Mater. 2014, 24, 1401–1407. [Google Scholar] [CrossRef]
  16. Yang, W.; Cao, R.; Zhang, X.; Li, H.; Li, C. Air-permeable and washable paper-based triboelectric nanogenerator based on highly flexible and robust paper electrodes. Adv. Mater. Technol. 2018, 3, 1800178. [Google Scholar] [CrossRef]
  17. Zhong, Q.; Zhong, J.; Hu, B.; Hu, Q.; Zhou, J.; Wang, Z.L. A paper-based nanogenerator as a power source and active sensor. Energy Environ. Sci. 2013, 6, 1779. [Google Scholar] [CrossRef]
  18. Guo, H.; Yeh, M.H.; Zi, Y.; Wen, Z.; Chen, J.; Liu, G.; Hu, C.; Wang, Z.L. Ultralight cut-paper-based self-charging power unit for self-powered portable electronic and medical systems. ACS Nano 2017, 11, 4475–4482. [Google Scholar] [CrossRef]
  19. He, X.; Zi, Y.; Yu, H.; Zhang, S.L.; Wang, J.; Ding, W.; Zou, H.; Zhang, W.; Lu, C.; Wang, Z.L. An ultrathin paper-based self-powered system for portable electronics and wireless human-machine interaction. Nano Energy 2017, 39, 328–336. [Google Scholar] [CrossRef]
  20. Mao, Y.; Zhang, N.; Tang, Y.; Wang, M.; Chao, M.; Liang, E. A paper triboelectric nanogenerator for self-powered electronic systems. Nanoscale 2017, 9, 14499–14505. [Google Scholar] [CrossRef]
  21. Zhang, L.; Xue, F.; Du, W.; Han, C.; Zhang, C.; Wang, Z. Transparent paper-based triboelectric nanogenerator as a page mark and anti-theft sensor. Nano Res. 2014, 7, 1215–1223. [Google Scholar] [CrossRef]
  22. Zhang, X.-S.; Su, M.; Brugger, J.; Kim, B. Penciling a triboelectric nanogenerator on paper for autonomous power MEMS applications. Nano Energy 2017, 33, 393–401. [Google Scholar] [CrossRef]
  23. Özgür, Ü.; Alivov, Y.I.; Liu, C.; Teke, A.; Reshchikov, M.A.; Doğan, S.; Avrutin, V.; Cho, S.J.; Morkoç, H. A comprehensive review of ZnO materials and devices. J. Appl. Phys. 2005, 98, 041301. [Google Scholar] [CrossRef] [Green Version]
  24. Lee, Y.P.; Lin, C.C.; Hsiao, C.C.; Chou, P.A.; Cheng, Y.Y.; Hsieh, C.C.; Dai, C.A. Nanopiezoelectric devices for energy generation based on ZnO nanorods/flexible-conjugated copolymer hybrids using all wet-coating processes. Micromachines 2019, 11, 14. [Google Scholar] [CrossRef] [Green Version]
  25. Ramamoorthy, K.; Arivanandhan, M.; Sankaranarayanan, K.; Sanjeeviraja, C. Highly textured ZnO thin films: A novel economical preparation and approachment for optical devices, UV lasers and green LEDs. Mater. Chem. Phys. 2004, 85, 257–262. [Google Scholar] [CrossRef]
  26. Bouhjar, F.; Derbali, L.; Marí, B. High performance novel flexible perovskite solar cell based on a low-cost-processed ZnO:Co electron transport layer. Nano Res. 2020, 13, 2546–2555. [Google Scholar] [CrossRef]
  27. Zheng, Z.Q.; Yao, J.D.; Wang, B.; Yang, G.W. Light-controlling, flexible and transparent ethanol gas sensor based on ZnO nanoparticles for wearable devices. Sci. Rep. 2015, 5, 11070. [Google Scholar] [CrossRef] [PubMed]
  28. Mukhtar Mohammed, A.; Mohtar, S.S.; Aziz, F.; Aziz, M.; Usman Nasir, M. Effects of oxidants on the in-situ polymerization of aniline to form Cu2O/ZnO/PANI composite photocatalyst. Mater. Today Proc. 2021. [Google Scholar] [CrossRef]
  29. Kyomuhimbo, H.D.; Michira, I.N.; Mwaura, F.B.; Derese, S.; Feleni, U.; Iwuoha, E.I. Silver–zinc oxide nanocomposite antiseptic from the extract of bidens pilosa. SN Appl. Sci. 2019, 1. [Google Scholar] [CrossRef] [Green Version]
  30. Abdel-Galil, A.; Hussien, M.S.A.; Yahia, I.S. Synthesis and optical analysis of nanostructured F-doped ZnO thin films by spray pyrolysis: Transparent electrode for photocatalytic applications. Opt. Mater. 2021, 114, 110894. [Google Scholar] [CrossRef]
  31. Gimenez, A.J.; Yáñez-Limón, J.M.; Seminario, J.M. ZnO-cellulose composite for UV sensing. IEEE Sens. J. 2013, 13, 1301–1306. [Google Scholar] [CrossRef]
  32. Ko, H.-U.; John, A.; Mun, S.; Im, J.; Kim, J. Preparation and characterization of Cellulose-ZnO nanolayer film by blending method. Macromol. Res. 2015, 23, 814–818. [Google Scholar] [CrossRef]
  33. Lizundia, E.; Urruchi, A.; Vilas, J.L.; Leon, L.M. Increased functional properties and thermal stability of flexible cellulose nanocrystal/ZnO films. Carbohydr. Polym. 2016, 136, 250–258. [Google Scholar] [CrossRef]
  34. Goncalves, G.; Marques, P.A.A.P.; Neto, C.P.; Trindade, T.; Peres, M.; Monteiro, T. Growth, structural, and optical characterization of ZnO-coated cellulosic fibers. Cryst. Growth Des. 2009, 9, 386–390. [Google Scholar] [CrossRef]
  35. John, A.; Ko, H.-U.; Kim, D.-G.; Kim, J. Preparation of cellulose-ZnO hybrid films by a wet chemical method and their characterization. Cellulose 2011, 18, 675–680. [Google Scholar] [CrossRef]
  36. Ma, J.; Zhu, W.; Min, D.; Wang, Z.; Zhou, X. Preparation of antibacterial self-reinforced zinc oxide–cellulose composite by the synthesis of ZnO in partially dissolved cellulose. Cellulose 2016, 23, 3199–3208. [Google Scholar] [CrossRef]
  37. Shen, B.; Chen, N.; Wang, M.; Xu, C.; Wang, Y. Preparation and optical properties of ZnO-cellulose nanocomposites. Nanosci. Nanotechnol. Lett. 2013, 5, 309–313. [Google Scholar] [CrossRef]
  38. Zhang, G.; Morikawa, H.; Chen, Y.; Miura, M. In-situ synthesis of ZnO nanoparticles on bamboo pulp fabric. Mater. Lett. 2013, 97, 184–186. [Google Scholar] [CrossRef]
  39. Gimenez, A.J.; Yáñez-Limón, J.M.; Seminario, J.M. ZnO-paper based photoconductive UV sensor. J. Phys. Chem. C 2011, 115, 281–287. [Google Scholar] [CrossRef]
  40. Ghule, K.; Ghule, A.V.; Chen, B.-J.; Ling, Y.-C. Preparation and characterization of ZnO nanoparticles coated paper and its antibacterial activity study. Green Chem. 2006, 8, 1034–1041. [Google Scholar] [CrossRef] [Green Version]
  41. Abbott, A.P.; Barron, J.C.; Ryder, K.S.; Wilson, D. Eutectic-based ionic liquids with metal-containing anions and cations. Chem. Eur. J. 2007, 13, 6495–6501. [Google Scholar] [CrossRef]
  42. Xu, C.; Wu, Q.; Hua, Y.; Li, J. The electrodeposition of Zn-Ti alloys from ZnCl2-urea deep eutectic solvent. J. Solid State Electrochem. 2014, 18, 2149–2155. [Google Scholar] [CrossRef]
  43. Fan, F.-R.; Tian, Z.-Q.; Lin Wang, Z. Flexible triboelectric generator. Nano Energy 2012, 1, 328–334. [Google Scholar] [CrossRef]
  44. Zhu, G.; Pan, C.; Guo, W.; Chen, C.Y.; Zhou, Y.; Yu, R.; Wang, Z.L. Triboelectric-generator-driven pulse electrodeposition for micropatterning. Nano Lett. 2012, 12, 4960–4965. [Google Scholar] [CrossRef] [PubMed]
  45. French, A.D. Idealized powder diffraction patterns for cellulose polymorphs. Cellulose 2013, 21, 885–896. [Google Scholar] [CrossRef]
  46. Xiong, J.; Ye, J.; Zhao, X. Solubility of cellulose in ZnCl2 aqueous solution and structure of regenerated cellulose. J. South China Univ. Technol. 2013, 2, 23–27. [Google Scholar]
  47. Xiong, J.; Yu, S.; Zhu, H.; Wang, S.; Chen, Y.; Liu, S. Dissolution and structure change of bagasse cellulose in zinc chloride solution. Bioresources 2016, 11, 3813–3824. [Google Scholar] [CrossRef] [Green Version]
  48. Abdalkarim, S.Y.H.; Yu, H.-Y.; Wang, C.; Yang, L.; Guan, Y.; Huang, L.; Yao, J. Sheet-like Cellulose nanocrystal-ZnO nanohybrids as multifunctional reinforcing agents in biopolyester composite nanofibers with ultrahigh UV-shielding and antibacterial performances. ACS Appl. Biomater. 2018, 1, 714–727. [Google Scholar] [CrossRef]
  49. Kadam, A.N.; Bhopate, D.P.; Kondalkar, V.V.; Majhi, S.M.; Bathula, C.D.; Tran, A.-V.; Lee, S.-W. Facile synthesis of Ag-ZnO core–shell nanostructures with enhanced photocatalytic activity. J. Ind. Eng. Chem. 2018, 61, 78–86. [Google Scholar] [CrossRef]
  50. Xu, Y.; Wu, S.; Li, X.; Meng, H.; Zhang, X.; Wang, Z.; Han, Y. Ag nanoparticle-functionalized ZnO micro-flowers for enhanced photodegradation of herbicide derivatives. Chem. Phys. Lett. 2017, 679, 119–126. [Google Scholar] [CrossRef]
  51. Kumar, V.; Singh, F.; Ntwaeaborwa, O.M.; Swart, H.C. Effect of Br+6 ions on the structural, morphological and luminescent properties of ZnO/Si thin films. Appl. Surf. Sci. 2013, 279, 472–478. [Google Scholar] [CrossRef]
  52. Cao, H.; Liu, Z.; Liu, T.; Duo, S.; Huang, L.; Yi, S.; Cai, L. Well-organized assembly of ZnO hollow cages and their derived Ag/ZnO composites with enhanced photocatalytic property. Mater. Charact. 2020, 160, 110125. [Google Scholar] [CrossRef]
  53. Dahle, S.; Meuthen, J.; Viöl, W.; Maus-Friedrichs, W. Adsorption of silver on cellobiose and cellulose studied with MIES, UPS, XPS and AFM. Cellulose 2013, 20, 2469–2480. [Google Scholar] [CrossRef]
  54. Wang, S.; Kuang, P.; Cheng, B.; Yu, J.; Jiang, C. ZnO hierarchical microsphere for enhanced photocatalytic activity. J. Alloy. Compd. 2018, 741, 622–632. [Google Scholar] [CrossRef]
  55. Holt, B.A.; Gregory, S.A.; Sulchek, T.; Yee, S.; Losego, M.D. Aqueous zinc compounds as residual antimicrobial agents for textiles. ACS Appl. Mater. Interface 2018, 10, 7709–7716. [Google Scholar] [CrossRef]
  56. Cui, N.; Liu, J.; Gu, L.; Bai, S.; Chen, X.; Qin, Y. Wearable triboelectric generator for powering the portable electronic devices. ACS Appl. Mater. Interface 2015, 7, 18225–18230. [Google Scholar] [CrossRef]
  57. Rimbu, C.; Vrinceanu, N.; Broasca, G.; Farima, D.; Ciocoiu, M.; Campagne, C.; Suchea, M.P.; Nistor, A. Zinc oxide application in the textile industry: Surface tailoring and water barrier attributes as parameters with direct implication in comfort performance. Text. Res. J. 2013, 83, 2142–2151. [Google Scholar] [CrossRef]
  58. Xie, Y.; He, Y.; Irwin, P.L.; Jin, T.; Shi, X. Antibacterial activity and mechanism of action of zinc oxide nanoparticles against Campylobacter jejuni. Appl. Environ. Microbiol. 2011, 77, 2325–2331. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Dudem, B.; Mule, A.R.; Patnam, H.R.; Yu, J.S. Wearable and durable triboelectric nanogenerators via polyaniline coated cotton textiles as a movement sensor and self-powered system. Nano Energy 2019, 55, 305–315. [Google Scholar] [CrossRef]
  60. Fan, F.R.; Lin, L.; Zhu, G.; Wu, W.; Zhang, R.; Wang, Z.L. Transparent triboelectric nanogenerators and self-powered pressure sensors based on micropatterned plastic films. Nano Lett. 2012, 12, 3109–3114. [Google Scholar] [CrossRef] [Green Version]
  61. Ko, Y.H.; Lee, S.H.; Leem, J.W.; Yu, J.S. High transparency and triboelectric charge generation properties of nanopatterned PDMS. RSC Adv. 2014, 4, 10216. [Google Scholar] [CrossRef]
  62. Chun, J.; Ye, B.U.; Lee, J.W.; Choi, D.; Kang, C.Y.; Kim, S.W.; Wang, Z.L.; Baik, J.M. Boosted output performance of triboelectric nanogenerator via electric double layer effect. Nat. Commun. 2016, 7, 12985. [Google Scholar] [CrossRef] [Green Version]
  63. Mi, H.Y.; Jing, X.; Meador, M.A.B.; Guo, H.; Turng, L.S.; Gong, S. Triboelectric nanogenerators made of porous polyamide nanofiber mats and polyimide aerogel film: Output optimization and performance in circuits. ACS Appl. Mater. Interface 2018, 10, 30596–30606. [Google Scholar] [CrossRef] [PubMed]
  64. Mao, Y.; Geng, D.; Liang, E.; Wang, X. Single-electrode triboelectric nanogenerator for scavenging friction energy from rolling tires. Nano Energy 2015, 15, 227–234. [Google Scholar] [CrossRef] [Green Version]
  65. Lu, Y.; Wang, X.; Wu, X.; Qin, J.; Lu, R. A non-resonant, gravity-induced micro triboelectric harvester to collect kinetic energy from low-frequency jiggling movements of human limbs. J. Micromech. Microeng. 2014, 24, 065010. [Google Scholar] [CrossRef]
  66. Wu, Z.; Zhang, B.; Zou, H.; Lin, Z.; Liu, G.; Wang, Z.L. Multifunctional sensor based on translational-rotary triboelectricnanogenerator. Adv. Energy Mater. 2019, 9, 1901124. [Google Scholar] [CrossRef]
  67. Sala de Medeiros, M.; Chanci, D.; Moreno, C.; Goswami, D.; Martinez, R.V. Waterproof, breathable, and antibacterial self-powered e-textiles based on omniphobic triboelectric nanogenerators. Adv. Funct. Mater. 2019, 29, 1904350. [Google Scholar] [CrossRef]
  68. Jiang, Y.; Dong, K.; An, J.; Liang, F.; Yi, J.; Peng, X.; Ning, C.; Ye, C.; Wang, Z.L. UV-protective, self-cleaning, and antibacterial nanofiber-based triboelectric nanogenerators for self-powered human motion monitoring. ACS Appl. Mater. Interface. 2021, 13, 11205–11214. [Google Scholar] [CrossRef]
Nanomaterials 11 01111 g001 550

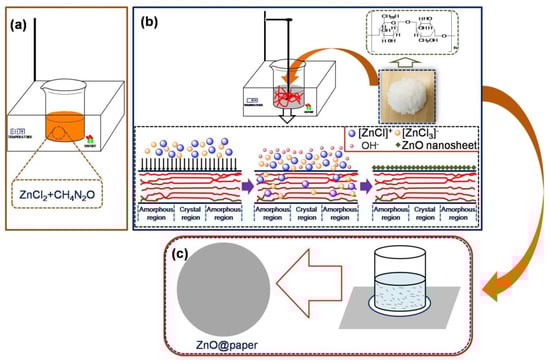

Figure 1. The preparation process of ZnO@paper. (a) The fabrication of eutectic solvent; (b) The ZnO-modified cellulose fibers; (c) The ZnO@paper preparation.
Figure 1. The preparation process of ZnO@paper. (a) The fabrication of eutectic solvent; (b) The ZnO-modified cellulose fibers; (c) The ZnO@paper preparation.
Nanomaterials 11 01111 g001
Nanomaterials 11 01111 g002 550

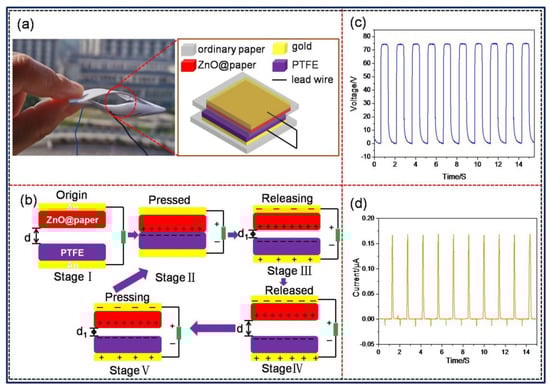

Figure 2. The structure, working mechanism, and electrical outputs of the P-TENG in a vertical contact-separation mode. (a) The structure and (b) schematic working principle of the P-TENG. Electrical outputs of the P-TENG: (c) open-circuit voltage (VOC) and (d) short-circuit current (ISC).
Figure 2. The structure, working mechanism, and electrical outputs of the P-TENG in a vertical contact-separation mode. (a) The structure and (b) schematic working principle of the P-TENG. Electrical outputs of the P-TENG: (c) open-circuit voltage (VOC) and (d) short-circuit current (ISC).
Nanomaterials 11 01111 g002
Nanomaterials 11 01111 g003 550

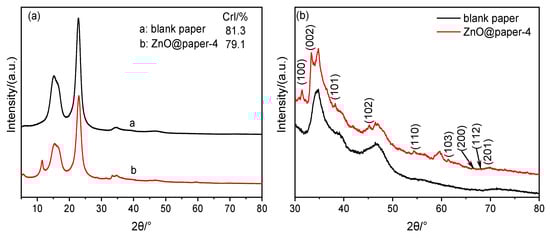

Figure 3. XRD patterns of blank paper and ZnO@paper. (a) total spectrogram; (b) partial spectrogram.
Figure 3. XRD patterns of blank paper and ZnO@paper. (a) total spectrogram; (b) partial spectrogram.
Nanomaterials 11 01111 g003
Nanomaterials 11 01111 g004 550
Figure 4. EDS patterns. (a) blank paper; (b) ZnO@paper-4.
Figure 4. EDS patterns. (a) blank paper; (b) ZnO@paper-4.
Nanomaterials 11 01111 g004
Nanomaterials 11 01111 g005a 550Nanomaterials 11 01111 g005b 550

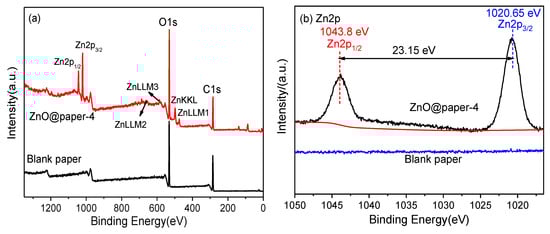

Figure 5. XPS spectra of blank paper and ZnO@paper-4: (a) survey scan; (b) high-resolution Zn2p spectra; (c) O1s peaks, (d) C1s peak of blank paper and ZnO@paper-4.
Figure 5. XPS spectra of blank paper and ZnO@paper-4: (a) survey scan; (b) high-resolution Zn2p spectra; (c) O1s peaks, (d) C1s peak of blank paper and ZnO@paper-4.
Nanomaterials 11 01111 g005aNanomaterials 11 01111 g005b
Nanomaterials 11 01111 g006 550

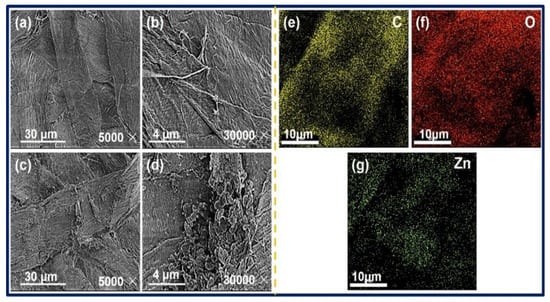

Figure 6. SEM image of blank paper (a,b), ZnO@paper-4 (c,d); EDX elemental mapping results of ZnO@paper-4 (e–g).
Figure 6. SEM image of blank paper (a,b), ZnO@paper-4 (c,d); EDX elemental mapping results of ZnO@paper-4 (e–g).
Nanomaterials 11 01111 g006
Nanomaterials 11 01111 g007 550

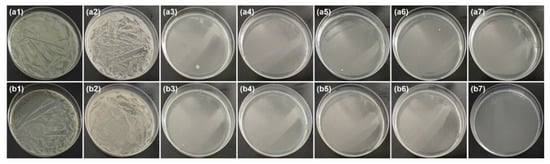

Figure 7. Culture medium under bacterial suspensions diluted 100 times. From left to right, the sample is the control group, blank paper, ZnO@paper-1, ZnO@paper-2, ZnO@paper-3, ZnO@paper-4, and ZnO@paper-5, respectively. (a) E. coli, (b) S. aureus.
Figure 7. Culture medium under bacterial suspensions diluted 100 times. From left to right, the sample is the control group, blank paper, ZnO@paper-1, ZnO@paper-2, ZnO@paper-3, ZnO@paper-4, and ZnO@paper-5, respectively. (a) E. coli, (b) S. aureus.
Nanomaterials 11 01111 g007
Nanomaterials 11 01111 g008 550

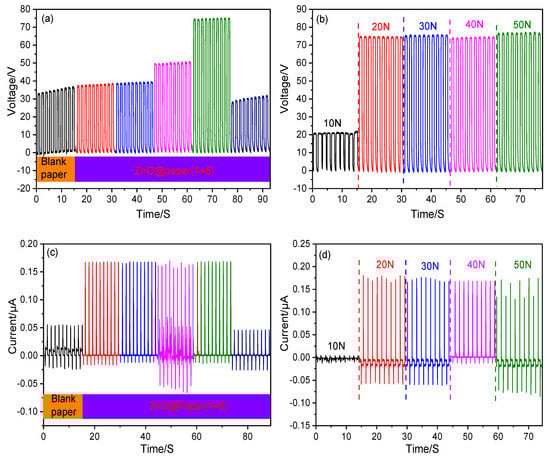

Figure 8. The electrical output performance of the P-TENG fabricated by ZnO@paper. (a,c) VOC and ISC of the P-TENG; (b,d) VOC and ISC at variable external force.
Figure 8. The electrical output performance of the P-TENG fabricated by ZnO@paper. (a,c) VOC and ISC of the P-TENG; (b,d) VOC and ISC at variable external force.
Nanomaterials 11 01111 g008
Nanomaterials 11 01111 g009 550

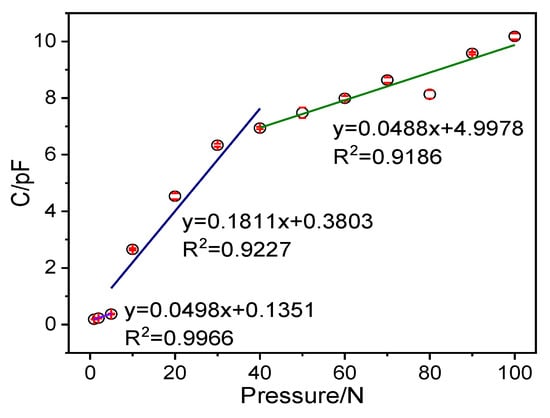

Figure 9. The maximum peak of the output signal of the pressure sensor in response to applied pressure.
Figure 9. The maximum peak of the output signal of the pressure sensor in response to applied pressure.
Nanomaterials 11 01111 g009
Nanomaterials 11 01111 g010 550

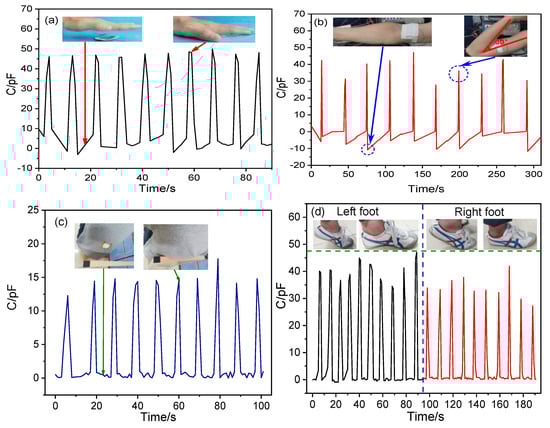

Figure 10. Application of the P-TENG-based pressure sensor in human motion information such as (a) hand flapping, (b) leaning back, (c) arm bending, and (d) walking.
Figure 10. Application of the P-TENG-based pressure sensor in human motion information such as (a) hand flapping, (b) leaning back, (c) arm bending, and (d) walking.
Nanomaterials 11 01111 g010
Table
Table 1. Summary of studies investigating various preparation methods of ZnO/cellulose composite.
Table 1. Summary of studies investigating various preparation methods of ZnO/cellulose composite.
MaterialsPreparation MethodC/(wt.%)O/(wt.%)Zn/(wt.%)Ref.
Filter paper, ZnCl2, NaOHPrecipitation 60.1737.472.1[36]
Cotton pulp, ZnO nanoparticlesBlending42.5748.976.72[32]
CNC, ZnCl2, NaOHPrecipitation57.97357.02[48]
Dissolving pulp, ZnCl2, CO(NH2)2 47.2839.0513.67Our work
Table
Table 2. The CFU of the control group, blank paper, and ZnO@paper, and antibacterial ratio of ZnO@paper tested against E. coli and S. aureus.
Table 2. The CFU of the control group, blank paper, and ZnO@paper, and antibacterial ratio of ZnO@paper tested against E. coli and S. aureus.
E. coli (Gram−)S. aureus (Gram+)
CFUAntibacterial Ratio (%)CFUAntibacterial Ratio (%)
Control group103 × 1070109 × 1060
Blank paper160 × 1070102 × 1060
ZnO@paper-11 × 1021001 × 10299.99
ZnO@paper-201000100
ZnO@paper-301000100
ZnO@paper-401000100
ZnO@paper-501000100
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lin, C.; Chen, D.; Hua, Z.; Wang, J.; Cao, S.; Ma, X. Cellulose Paper Modified by a Zinc Oxide Nanosheet Using a ZnCl2-Urea Eutectic Solvent for Novel Applications. Nanomaterials 2021, 11, 1111. https://doi.org/10.3390/nano11051111

AMA Style

Lin C, Chen D, Hua Z, Wang J, Cao S, Ma X. Cellulose Paper Modified by a Zinc Oxide Nanosheet Using a ZnCl2-Urea Eutectic Solvent for Novel Applications. Nanomaterials. 2021; 11(5):1111. https://doi.org/10.3390/nano11051111

Chicago/Turabian Style

Lin, Changmei, Duo Chen, Zifeng Hua, Jun Wang, Shilin Cao, and Xiaojuan Ma. 2021. "Cellulose Paper Modified by a Zinc Oxide Nanosheet Using a ZnCl2-Urea Eutectic Solvent for Novel Applications" Nanomaterials 11, no. 5: 1111. https://doi.org/10.3390/nano11051111

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
