# High Surface Phonon-Polariton in-Plane Thermal Conductance along Coupled Films

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Method and Model

## 3. Results

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Semenov, O.; Vassighi, A.; Sachdev, M. Impact of self-heating effect on long-term reliability and performance degradation in CMOS circuits. IEEE Trans. Device Mater. Reliab.
**2006**, 6, 17–27. [Google Scholar] [CrossRef] [Green Version] - Nomura, M.; Shiomi, J.; Shiga, T.; Anufriev, R. Thermal phonon engineering by tailored nanostructures. Jpn. J. Appl. Phys.
**2018**, 57, 080101. [Google Scholar] [CrossRef] - Volz, S.; Shiomi, J.; Nomura, M.; Miyazaki, K. Heat conduction in nanostructured materials. J. Therm. Sci. Technol.
**2016**, 11, JTST0001. [Google Scholar] [CrossRef] [Green Version] - Cahill, D.G.; Ford, W.K.; Goodson, K.E.; Mahan, G.D.; Majumdar, A.; Maris, H.J.; Merlin, R.; Phillpot, S.R. Nanoscale thermal transport. J. Appl. Phys.
**2002**, 93, 793–818. [Google Scholar] [CrossRef] [Green Version] - Giri, A.; Hopkins, P.E. A Review of Experimental and Computational Advances in Thermal Boundary Conductance and Nanoscale Thermal Transport across Solid Interfaces. Adv. Funct. Mater.
**2020**, 30, 1903857. [Google Scholar] [CrossRef] - Chen, G. Nanoscale Energy Transport and Conversion: A Parallel Treatment of Electrons, Molecules, Phonons, and Photons; Google-Books-ID: M3n3lUJpYDYC; Oxford University Press: Oxford, UK, 2005. [Google Scholar]
- Braun, J.L.; Baker, C.H.; Giri, A.; Elahi, M.; Artyushkova, K.; Beechem, T.E.; Norris, P.M.; Leseman, Z.C.; Gaskins, J.T.; Hopkins, P.E. Size effects on the thermal conductivity of amorphous silicon thin films. Phys. Rev. B
**2016**, 93, 140201. [Google Scholar] [CrossRef] [Green Version] - Volz, S.; Ordonez-Miranda, J.; Shchepetov, A.; Prunnila, M.; Ahopelto, J.; Pezeril, T.; Vaudel, G.; Gusev, V.; Ruello, P.; Weig, E.M.; et al. Nanophononics: State of the art and perspectives. Eur. Phys. J. B
**2016**, 89, 15. [Google Scholar] [CrossRef] [Green Version] - Yang, F.; Sambles, J.R.; Bradberry, G.W. Long-range surface modes supported by thin films. Phys. Rev. B
**1991**, 44, 5855–5872. [Google Scholar] [CrossRef] - Greffet, J.J.; Carminati, R.; Joulain, K.; Mulet, J.P.; Mainguy, S.; Chen, Y. Coherent emission of light by thermal sources. Nature
**2002**, 416, 61–64. [Google Scholar] [CrossRef] - Chen, D.Z.A.; Narayanaswamy, A.; Chen, G. Surface phonon-polariton mediated thermal conductivity enhancement of amorphous thin films. Phys. Rev. B
**2005**, 72, 155435. [Google Scholar] [CrossRef] [Green Version] - Chen, D.Z.A.; Chen, G. Measurement of silicon dioxide surface phonon-polariton propagation length by attenuated total reflection. Appl. Phys. Lett.
**2007**, 91, 121906. [Google Scholar] [CrossRef] - Chen, D.Z.A.; Chen, G. Heat flow in thin films via surface phonon-polaritons. Front. Heat Mass Transf.
**2010**, 1, 2. [Google Scholar] [CrossRef] - Huber, A.J.; Deutsch, B.; Novotny, L.; Hillenbrand, R. Focusing of surface phonon polaritons. Appl. Phys. Lett.
**2008**, 92, 203104. [Google Scholar] [CrossRef] [Green Version] - Francoeur, M.; Mengüç, M.P.; Vaillon, R. Local density of electromagnetic states within a nanometric gap formed between two thin films supporting surface phonon polaritons. J. Appl. Phys.
**2010**, 107, 034313. [Google Scholar] [CrossRef] - Joulain, K.; Ezzahri, Y.; Drevillon, J.; Rousseau, B.; Meneses, D.D.S. Radiative thermal rectification between SiC and SiO
_{2}. Opt. Express**2015**, 23, A1388–A1397. [Google Scholar] [CrossRef] [Green Version] - Gluchko, S.; Ordonez-Miranda, J.; Tranchant, L.; Antoni, T.; Volz, S. Focusing of surface phonon-polaritons along conical and wedge polar nanostructures. J. Appl. Phys.
**2015**, 118, 064301. [Google Scholar] [CrossRef] - Gluchko, S.; Palpant, B.; Volz, S.; Braive, R.; Antoni, T. Thermal excitation of broadband and long-range surface waves on SiO2 submicron films. Appl. Phys. Lett.
**2017**, 110, 263108. [Google Scholar] [CrossRef] [Green Version] - Ordonez-Miranda, J.; Tranchant, L.; Tokunaga, T.; Kim, B.; Palpant, B.; Chalopin, Y.; Antoni, T.; Volz, S. Anomalous thermal conductivity by surface phonon-polaritons of polar nano thin films due to their asymmetric surrounding media. J. Appl. Phys.
**2013**, 113, 084311. [Google Scholar] [CrossRef] - Zhao, B.; Zhang, Z. Enhanced photon tunneling by surface plasmon–phonon polaritons in Graphene/hBN heterostructures. J. Heat Transf.
**2017**, 139, 022701. [Google Scholar] [CrossRef] - Zhang, Q.; Zhen, Z.; Yang, Y.; Gan, G.; Jariwala, D.; Cui, X. Hybrid phonon-polaritons at atomically-thin van der Waals heterointerfaces for infrared optical modulation. Opt. Express
**2019**, 27, 18585–18600. [Google Scholar] [CrossRef] - Nikitin, A.Y.; Yoxall, E.; Schnell, M.; Vélez, S.; Dolado, I.; Alonso-Gonzalez, P.; Casanova, F.; Hueso, L.E.; Hillenbrand, R. Nanofocusing of hyperbolic phonon polaritons in a tapered boron nitride slab. ACS Photonics
**2016**, 3, 924–929. [Google Scholar] [CrossRef] [Green Version] - Yang, J.; Mayyas, M.; Tang, J.; Ghasemian, M.B.; Yang, H.; Watanabe, K.; Taniguchi, T.; Ou, Q.; Li, L.H.; Bao, Q.; et al. Boundary-Induced Auxiliary Features in Scattering-Type Near-Field Fourier Transform Infrared Spectroscopy. ACS Nano
**2019**, 14, 1123–1132. [Google Scholar] [CrossRef] [PubMed] - Tranchant, L.; Hamamura, S.; Ordonez-Miranda, J.; Yabuki, T.; Vega-Flick, A.; Cervantes-Alvarez, F.; Alvarado-Gil, J.J.; Volz, S.; Miyazaki, K. Two-Dimensional Phonon Polariton Heat Transport. Nano Lett.
**2019**, 19, 6924–6930. [Google Scholar] [CrossRef] [PubMed] - Ordonez-Miranda, J.; Tranchant, L.; Chalopin, Y.; Antoni, T.; Volz, S. Thermal conductivity of nano-layered systems due to surface phonon-polaritons. J. Appl. Phys.
**2014**, 115, 054311. [Google Scholar] [CrossRef] [Green Version] - Lim, M.; Ordonez-Miranda, J.; Lee, S.S.; Lee, B.J.; Volz, S. Thermal-Conductivity Enhancement by Surface Electromagnetic Waves Propagating along Multilayered Structures with Asymmetric Surrounding Media. Phys. Rev. Appl.
**2019**, 12, 034044. [Google Scholar] [CrossRef] - Yeh, C.; Shimabukuro, F. The Essence of Dielectric Waveguides; Springer: New York, NY, USA, 2008. [Google Scholar] [CrossRef]
- Palik, E.D. Handbook of Optical Constants of Solids; OCLC: 11068280; Academic Press: Orlando, FL, USA, 1985. [Google Scholar]

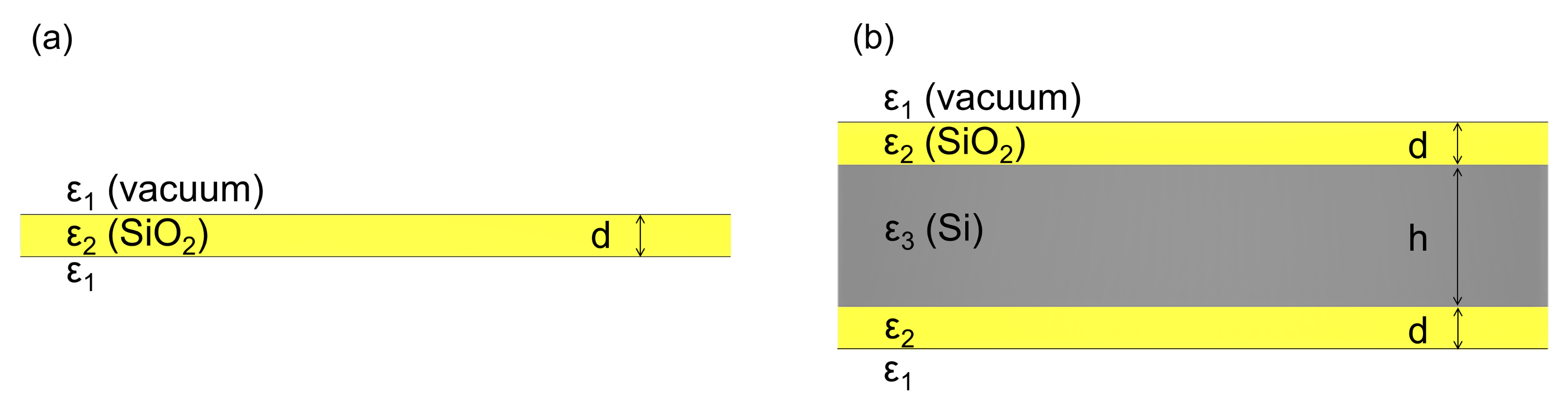

**Figure 1.**Scheme of (

**a**) a single SiO${}_{2}$ film and (

**b**) a three-layer structure (SiO${}_{2}$/Si/SiO${}_{2}$).

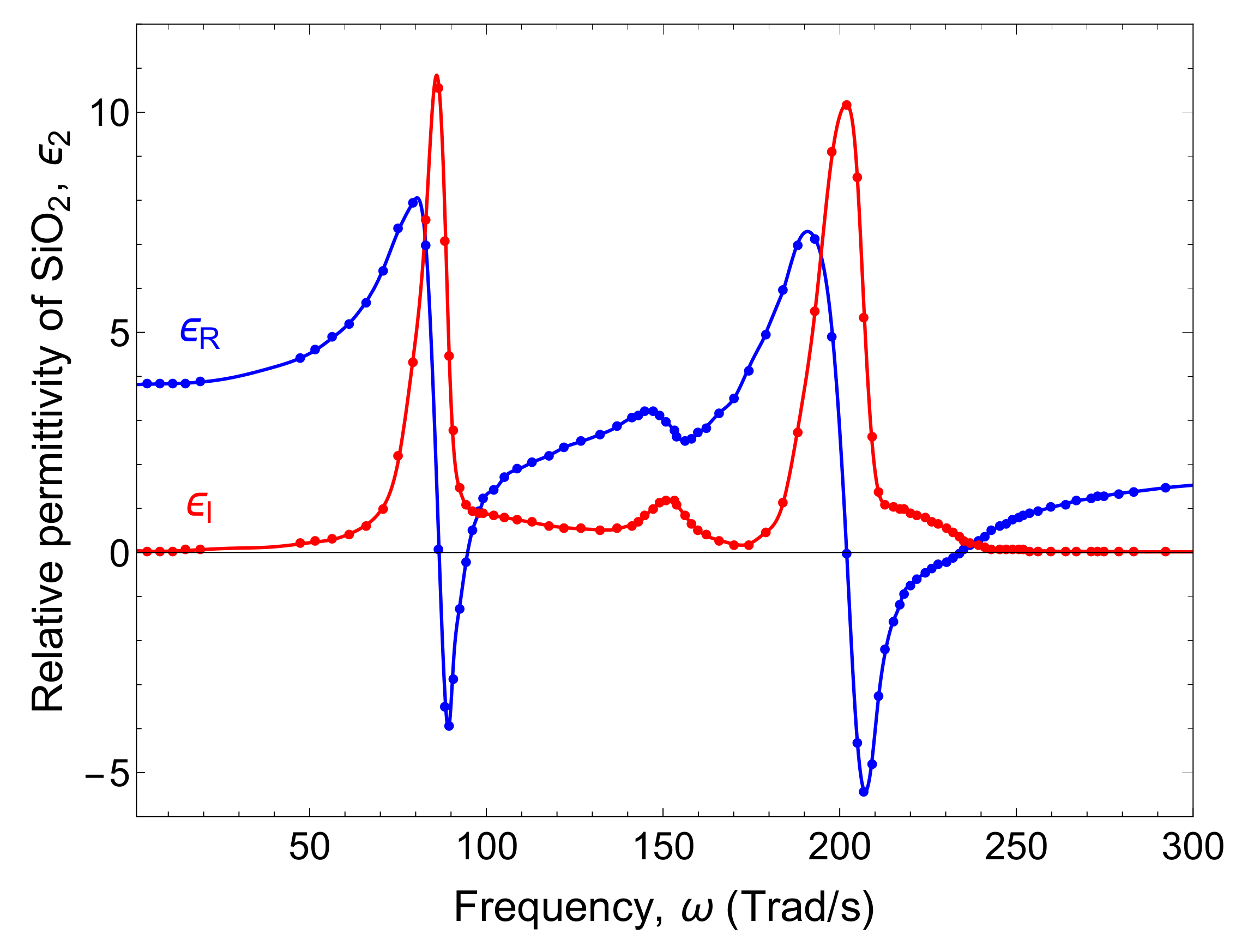

**Figure 2.**Real and imaginary parts of the relative permittivity of SiO${}_{2}$ reported in Ref [28].

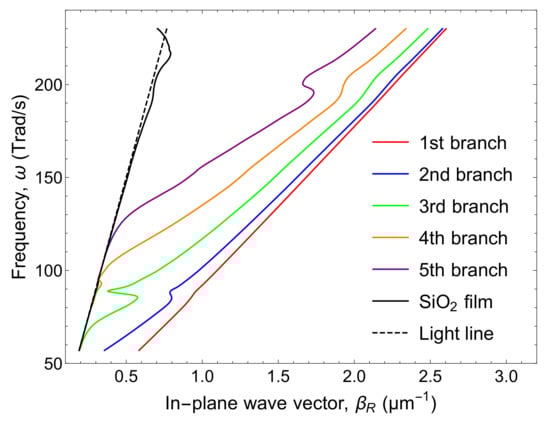

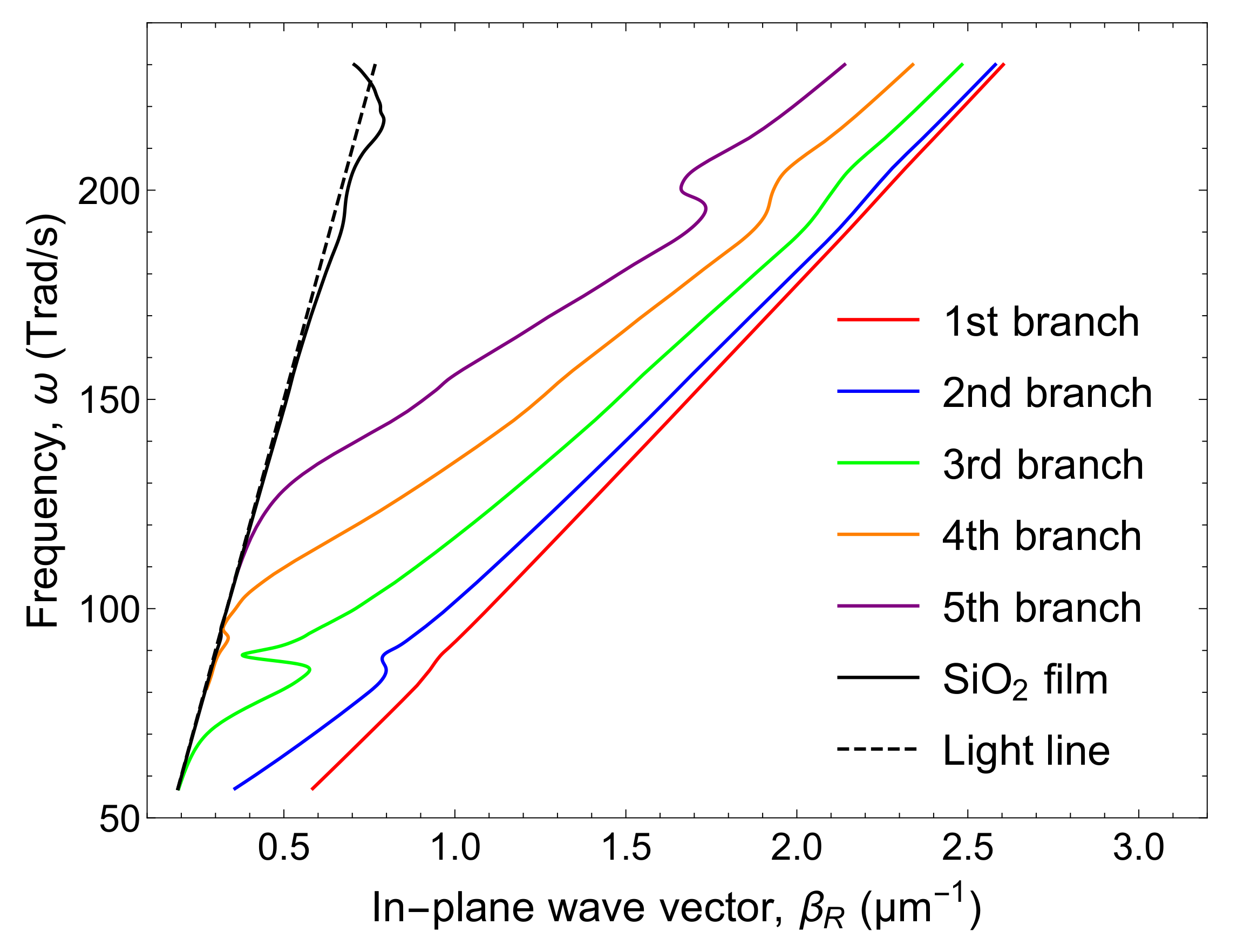

**Figure 3.**Dispersion relations of SPhPs propagating along a SiO${}_{2}$ (1 $\mathsf{\mu}$m)/Si (10 $\mathsf{\mu}$m)/SiO${}_{2}$ (1 $\mathsf{\mu}$m) structure.

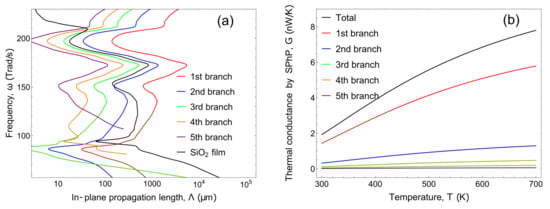

**Figure 4.**(

**a**) The in-plane propagation length and (

**b**) thermal conductance of SPhPs. The structure consists of the layered system, SiO${}_{2}$ (1 $\mathsf{\mu}$m)/Si (10 $\mathsf{\mu}$m)/SiO${}_{2}$ (1 $\mathsf{\mu}$m).

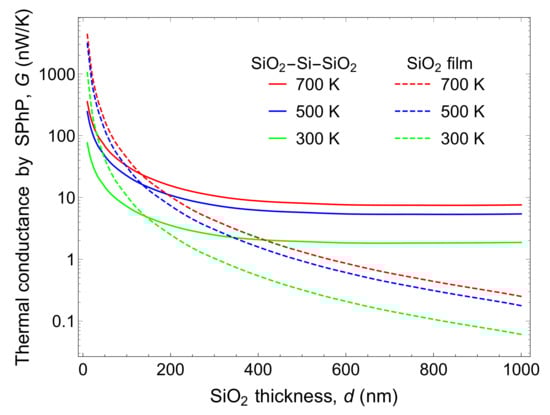

**Figure 5.**A comparison of the SPhPs thermal conductances of the SiO${}_{2}$/Si (10 $\mathsf{\mu}$m)/SiO${}_{2}$ three-layer structure and of a single SiO${}_{2}$ film at 300, 500 and 700 K, for different SiO${}_{2}$ thicknesses.

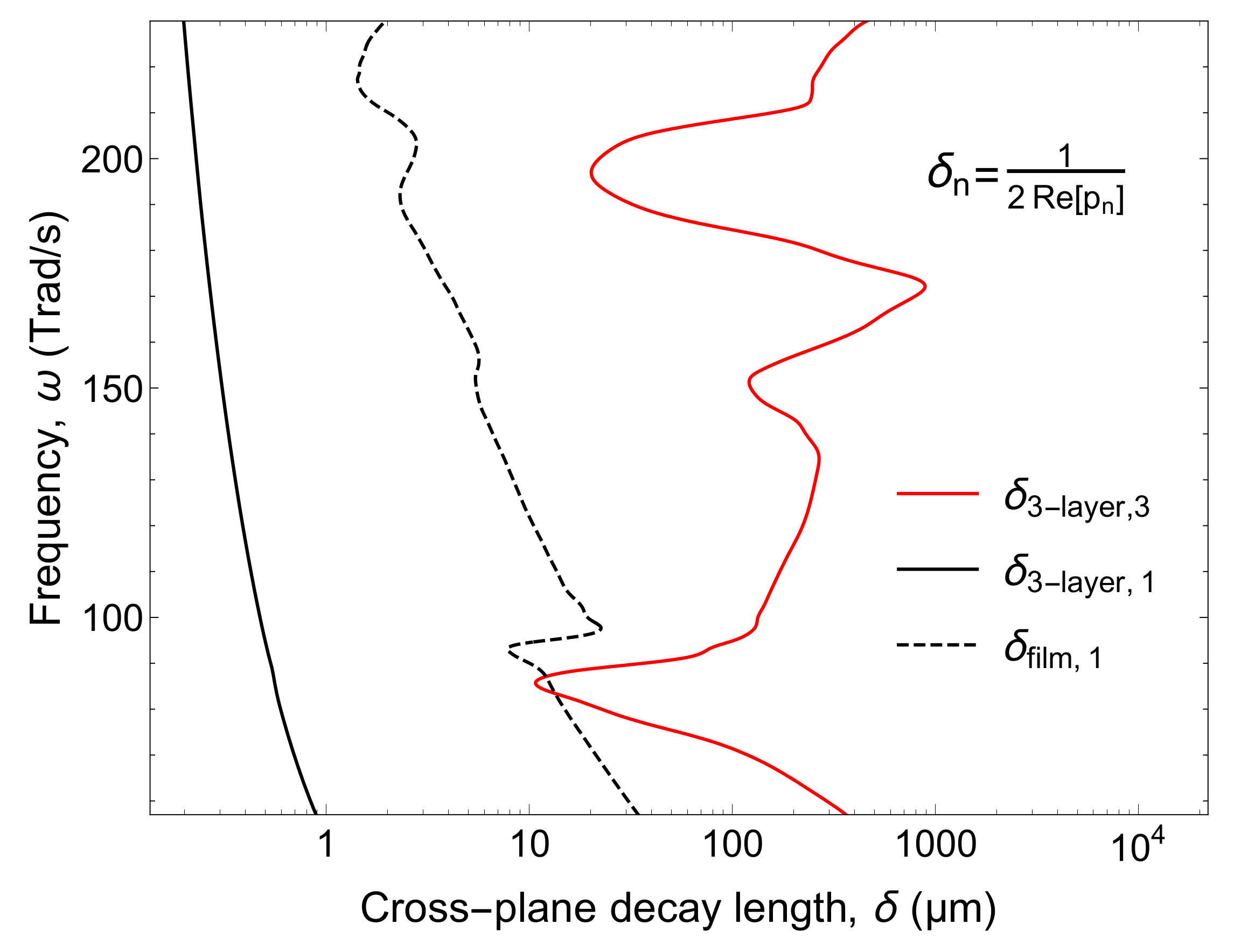

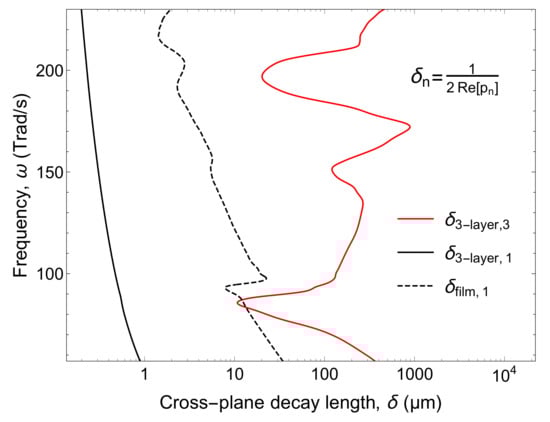

**Figure 6.**Cross-plane decay length in different media: Si (red solid line) and vacuum (black solid line) of the three-layer structure, and vacuum in the vicinity of the single film structure (black dashed line).

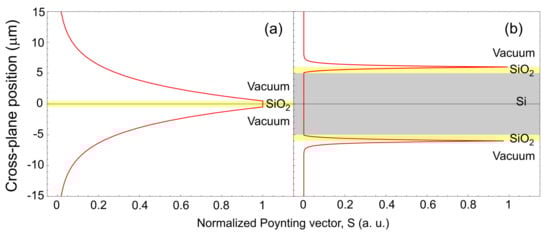

**Figure 7.**Normalized Poynting vector along the cross-plane direction for (

**a**) the single SiO${}_{2}$ film and (

**b**) the three-layer structure surrounded by vacuum.
