Benchmark Investigation of Band-Gap Tunability of Monolayer Semiconductors under Hydrostatic Pressure with Focus-On Antimony

by
Xiangyu Dai
1,
Zhengfang Qian
1,*,
Qiaolu Lin
1,
Le Chen
2,*,
Renheng Wang
1 and
Yiling Sun
1
1
Key Laboratory of Optoelectronic Devices and Systems of Ministry of Education and Guangdong Province, College of Physics and Optoelectronic Engineering, Shenzhen University, Shenzhen 518060, China
2
School of Physics and Telecommunication Engineering, Guangxi Colleges and Universities Key Lab of Complex System Optimization and Big Data Processing, Yulin Normal University, Yulin 537400, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2020, 10(11), 2154; https://doi.org/10.3390/nano10112154
Submission received: 9 October 2020 / Revised: 22 October 2020 / Accepted: 26 October 2020 / Published: 29 October 2020
(This article belongs to the Special Issue 2D Materials for Nanoelectronics)
Browse Figures
Versions Notes

Abstract

:
In this paper, the band-gap tunability of three monolayer semiconductors under hydrostatic pressure was intensively investigated based on first-principle simulations with a focus on monolayer antimony (Sb) as a semiconductor nanomaterial. As the benchmark study, monolayer black phosphorus (BP) and monolayer molybdenum disulfide (MoS2) were also investigated for comparison. Our calculations showed that the band-gap tunability of the monolayer Sb was much more sensitive to hydrostatic pressure than that of the monolayer BP and MoS2. Furthermore, the monolayer Sb was predicted to change from an indirect band-gap semiconductor to a conductor and to transform into a double-layer nanostructure above a critical pressure value ranging from 3 to 5 GPa. This finding opens an opportunity for nanoelectronic, flexible electronics and optoelectronic devices as well as sensors with the capabilities of deep band-gap tunability and semiconductor-to-metal transition by applying mechanical pressure.

1. Introduction

Recently, two-dimensional (2D) nanomaterials have exceptional properties for optoelectronic nanodevices [1,2,3,4,5]. Among them, graphene has attracted a lot of attention, with limited device applications in electronics and optoelectronics due to its zero band-gap [6,7,8].
Besides graphene, atomically thin 2D forms of layered transition metal dichalcogenides (TMDs) have recently attracted remarkable scientific and technical interest [9,10,11,12,13,14] due to their wide range of band-gaps. Among various TMDs, molybdenum disulfide (MoS2) has been the most extensively studied in 2D forms because of its stability at room temperature in air [10], alternative preparation methods [14,15,16], and outstanding electronic properties [17,18]. In contrast, black phosphorus (BP), a kind of bulk counterpart of phosphorus with a layered structure, has also been widely investigated [19,20,21,22]. As reported, monolayer antimony (Sb), i.e., antimonene, was synthesized on germanium in 2017 [23]. It is a semiconductor with a wide band-gap and special physical properties [24]. It should be emphasized that Sb-based compounds are also interesting for optoelectronics, such as Sb halide perovskites and their derivatives [25].
There are many interesting layer-dependent properties in 2D nanomaterials [17,18,19], which differ greatly from the properties of their bulk materials. Especially, the indirect band-gap of 1.3 eV for bulk MoS2 increases to a direct band-gap of 1.8 eV in single-layer form. Moreover, monolayer BP shows great mobility and in-plane anisotropy, which makes BP a potential material in the optoelectronic and energy device field. In contrast, antimony (Sb) in bulk is a typical metalloid element with metallic luster. Therefore, single-layer semiconductors as novel nanomaterials deserve to be deeply investigated, especially for novel electronic and optoelectronic device applications.
Recently, the band-gap engineering of 2D semiconductors has attracted more research interest by means of chemical functionalization [26,27,28], in-plane strain [29,30,31,32], or by applying an external electric field. However, the band-gap engineering for monolayer Sb under hydrostatic pressure has not been investigated so far. The hydrostatic pressure can isotropically provide both in-plane and out-of-plane stresses to single-layer structures, which can affect the chemical bond of monolayer semiconductors. Applying hydrostatic pressure has been proven effective to tune the electronic structures of 2D semiconductors [33].
This paper investigated the band-gaps of three single-layer semiconductors, i.e., MoS2, BP, and Sb, based on first-principle calculations, focusing on the band-gap tunability of single-layer semiconductors under hydrostatic pressure. In this paper, the band-gap changes of the monolayer semiconductors of Sb, BP, and MoS2 under hydrostatic pressure were systematically investigated for exploring the band-gap tunability. We found that the band-gap value of the monolayer Sb could be well controlled by applying hydrostatic pressure. Its pressure sensitivity and band-gap tunability were more effective than that of the monolayer MoS2 and BP. Moreover, the electrical structures of the monolayer Sb were also studied under different hydrostatic pressures. The breakage of bonds and the phase transition were predicted to occur above a critical hydrostatic pressure ranging from 3 to 5 GPa. This finding opens a new opportunity for device applications of monolayer Sb to nanoelectronics, MEMS, and sensors.

2. Materials and Methods

The atomic structure of monolayer Sb is similar to that of monolayer MoS2 and BP with buckled honeycombs under ambient conditions [34,35]. The atomic models of the monolayer MoS2, BP, and Sb are shown in Figure 1a–c, respectively. The parameters of a and b represent the in-plane lattice parameters of the monolayer semiconductors, while the parameter of d represents the out-of-plane lattice parameter, i.e., the thickness of the monolayer structures. The atomic models and lattice parameters of BP and MoS2 were provided by the Cambridge Crystallographic Data Center (CCDC). The lattice parameters of the Sb monolayer were calculated, and a = b = 4.141 Å and d = 3.0 Å were obtained after relaxation. When performing first-principle simulations for monolayer materials, a vacuum layer in the z-direction between two monolayers is commonly used for isolating self-interaction and interlayer effects. A vacuum layer thickness ranging from 15 to 20 Å is usually adopted in the literature [33,36].
In this benchmark study, all first-principle calculations were carried out by both the Vienna Abinitio Simulation Package (VASP, version: 5.4.4, developers: Hafner Research Group, location of the manufacturer: University of Vienna, Vienna.) [37] and the Cambridge Sequential Total Energy Package (CASTEP, version: 7.0, name of developers: Accelrys, now BIOVIA, location of the manufacturer: San Diego, California.) based on density functional theory (DFT) for comparison. There is no difference between CASTEP and VASP in the description of electron interaction; however, they build the atomic structures by applying pressure in different ways. The hydrostatic pressure is isotropically applied in 3D. In VASP, the target pressure is applied to the primary diagonals of the residual stress matrix of the atomic structure. It is then processed by optimizing the atomic structure until the residual stress components are decreased to zero. Alternatively, in CASTEP, the x, y, and z coordinates of each atom are scaled by the factor that is determined by applied pressure. Moreover, the pressure on the atomic structure is calculated and updated at each ion iteration step according to the diagonals of the residual stress matrix.
Furthermore, in the VASP simulation, the ultrasoft pseudopotential (USPP) is applied and the generalized gradient approximation (GGA) with the parameterized Perdew–Burke–Ernzerh (PBE) functional is adopted as the exchange correlation function. For the USPP, to reduce the plane wave basis set and cut-off radius, the closely interacting electrons in the atomic core region are removed by generalized orthogonal conditions. Because only the close interaction electron orbitals in the atomic core region need high cut-off energy, with less sacrifice of calculation accuracy, the calculation efficiency is greatly improved when the USPP is used, and it is easier to find geometric stable states under pressure conditions. Kohn–Sham schemes based on GGA functionals can describe the total energy and related properties of crystals and molecules accurately but underestimate the band-gap. In CASTEP, GGA with Heyd–Scuseria–Ernzerh screened hybrid functional (HSE06) is applied as the exchange correlation function, which includes an empirical scissors correction based on a screened Coulomb potential [38]. The empirical scissors correction is effectively a rigid shift of the conduction band with respect to the valence band in semiconductors and insulators and can expand the underestimated band-gap calculated by the GGA functional [39,40]. However, the correction value of the scissors operator to the energy band is inversely proportional to the square of the charge distance, so when the structure is deformed under pressure, the correction value of the scissors operator fluctuates, resulting in a change in the shape of the energy band.
As explained in above section, there are large differences of the PBE and HSE06 calculated band-gaps reported in the literature [39,40]. Therefore, we simultaneously performed and compared the results using the VASP and CASTEP packages with PBE and HSE06 functionals, respectively, to validate the results under hydrostatic pressure and to obtain more reliable data as well as a range of band-gap tunability.
Moreover, in the simulation model, the plane wave energy cut-off was set to 550 eV and the K-space was divided by a 15 × 15 × 1 mesh along the directions of a, b, and c, respectively. The conjugate gradient algorithm was used for ion iteration and ion coordinates during the process of geometry optimization. The cell volume and cell size were not constrained.

3. Results

3.1. Benchmark Study of the Band-Gap Calculations of the Three Monolayer Semiconductors

Band-gap is a fundamental physical parameter for semiconductors, which is not only related to bonding properties and crystal structures, but also to photon and electron transport properties.
A band-gap benchmark study of the monolayer Sb was performed using different Hamiltonians. The calculated results are listed in Table 1 for the comparison of the GGA combinations of the local density approximation (LDA), PBE, and HSE06 functionals. A band-gap of 1.21 was predicted by LDA, which is well known to underestimate the band-gap, and a band-gap of 1.27 eV was obtained using the GGA-PBE functional. A much higher value of 1.87 eV was obtained using GGA with the HSE06 functional by using VASP. However, it is still lower than the 2.28 eV that was obtained using CASTEP with the HSE06 functional [24]. We also verified that a very close band-gap value of 2.26 eV for the monolayer Sb was obtained by using the same package of CASTEP with the HSE06 functional. Based on the benchmark, VASP-GGA-PBE, VASP-GGA-HSE06, and CASTEP-GGA-HSE06 were used to perform DFT calculations for a comprehensive band-gap study of the three monolayer semiconductors, specifically the monolayers of Sb, BP, and MoS2 under hydrostatic pressure loadings.
VASP: Vienna Abinitio Simulation Package; CASTEP: Cambridge Sequential Total Energy Package; LDA: local density approximation; GGA: generalized gradient approximation; PBE: Perdew-Burke-Ernzerh functional; HSE06: Heyd-Scuseria-Ernzerh screened hybrid functionalFurthermore, the first-principle simulation results are listed in Table 2 for the monolayer BP and MoS2 with a comparison of the experimental (EXP) data available from literature [18,41]. As shown in Table 2, three monolayer semiconductors under investigation were consistently obtained using VASP-GGA with PBE, acting as a lower bound of band-gap values. Higher values were also consistently obtained by using CASTEP-GGA with HSE06, acting as the upper bound of band-gap values. The average values of VASP-GGA-PBE (V-P) and CASTEP-GGA-HSE06 (C-H) were then calculated as the average V-P/C-H. The relative deviation of the average V-P/C-H with experimental data from [18,41] was calculated as values of −5.59% and 4.26% for BP and MoS2, respectively. The deviation around 5% is reasonably close to the experimental results. At this time, the experimental data for the monolayer Sb are not available (NA). However, its band-gap can be predicted around the value of 1.775 eV based on our benchmark calculations. In contrast, the relative deviation of VASP-GGA-HSE06 (V-H) with the experimental data from [18,41] was calculated as relative values of 13.79% and 5.79% for BP and MoS2, respectively, which indicates the V-H can be a reasonable model for band-gap calculations.
Figure 2, furthermore, depicts the absolute (ABS) deviation percentage between the simulation results and the EXP data. Compared to VASP-GGA-PBE (V-P) and CASTEP-GGA-HSE06 (C-H), the results based onVASP-GGA-HSE06 (V-H) are closer to the EXP data. The comparison of the average V-P/C-H with the EXP data is surprisingly good, which suggests that the band-gap calculations are likely bounded by the V-P and C-H. Although the lower and upper bonds of the band-gap calculations of the monolayer semiconductors need further investigation from both theory and extensive calculations, in this paper, using both V-P and C-H for band-gap calculations can serve as a more reliable band-gap analysis and a range of band-gap tunability for benchmark investigation.

3.2. Band-Gap Tunability by Applying Hydrostatic Pressure

The band-gaps of the monolayer semiconductors of Sb, BP, and MoS2 were significantly changed by applying different values of hydrostatic pressure, based on our first-principle calculations. Figure 3 shows the evolution of the band structures of MoS2, BP, and Sb at 0, 1, 2, 3, and 4 GPa, respectively. Both MoS2 and BP show direct band-gaps, located at the high symmetry points K and Γ, respectively, at 0 GPa pressure. However, the monolayer Sb show indirect band-gaps. The global conduction band minimum (CBM) is located at points between the high symmetry points Γ and X, while the global valence band maximum (VBM) is located at the high symmetry point Γ. When the applied pressure was further increased to 2 GPa, the locations of the CBM of MoS2 and the VBM of BP changed. It is also shown that the band-gap eventually decreased to 0 eV at 4 GPa hydrostatic pressure for BP and Sb, but not MoS2, which requires much higher pressure for tuning the band-gap.
Further investigation was performed by applying different pressures from 0 to 8 GPa for 12 case studies based on VASP-GGA-PBE (V-P), VASP-GGA-HSE06 (V-H), and CASTEP-GGA-HSE06 (C-H). The extensive calculation results are summarized in Figure 4a–c for the band-gap evolution of the monolayer semiconductors of Sb, BP, and MoS2 under different hydrostatic pressures. The values of band-gaps calculated by V-P and C-H under different pressures ranging from 0 to 8 GPa are consistently shown in Figure 4a–c as upper and lower bonds, respectively.
However, the band-gap value of the monolayer MoS2 did not change monotonically with applied pressures. When the applied pressure was increased, the direct band-gap initially increased, up to the maximum value. The responding pressure values, however, were dependent on the computational functionals, as shown in Figure 4a. With the increasing pressure, the indirect band-gap became smaller than the direct band-gap. Based on the V-P results, the band-gap of the monolayer MoS2 initially increased from 1.83 eV to a maximum value around 2 eV at 2 GPa pressure. It then decreased with the increase in applied pressures above 2 GPa. Moreover, the critical hydrostatic pressure around 2 GPa of the MoS2 band-gap for the direct–indirect transition of the band structure is very much consistent with the literature, reported as 1.9 GHz from the experimental data [32]. Consistent values of the band-gaps for the monolayer MoS2 were obtained at each pressure from 2 to 8 GPa based on V-P, V-H, and C-H, as depicted in Figure 4a.
The band-gap values of the monolayer semiconductors of Sb and BP consistently decreased linearly with the increase in applied hydrostatic pressure. The band-gap values of BP decreased with the increase in hydrostatic pressures from 0 to 8 GPa, as shown in Figure 4b. The decrease slope is the same for the V-P, V-H, and C-H functionals. Moreover, a similar tendency was also found for the relationship between the band-gap and pressure for the monolayer Sb, as shown in Figure 4c. The critical pressures, denoted as Pcr-bg0, where the band-gaps reduced to zero are reported in Table 3. It is noticed that the average values of the critical pressures are 4 GPa for the monolayer Sb and 6.5 GPa for the monolayer BP.
Therefore, the monolayer Sb can be deeply tuned by applying much lower pressure, as compared to the monolayer BP and MoS2. Specifically, the band-gap of Sb can be tuned to zero at low pressure around 3 GPa, estimated from the average value, which is experimentally achievable for the nanostructure of the monolayer Sb.
The bulk MoS2 was reported by applying high pressure up to 40 GPa so that the 0.4 eV band-gap was reached from the first-principle calculations [42]. This can be explained in that the nanostructure of MoS2 is a compound semiconductor with much stiffer mechanical properties, as shown in Figure 4a,d. Therefore, it requires much higher pressure for deformation to tune its band-gap. This phenomenon can be explained from the energy-volume curves that are well developed in the literature [43,44].
In contrast, we investigated the lattice displacements of the monolayer MoS2, BP, and Sb for investigating the dynamical stability of the nanostructures. It is clearly shown that before critical pressure, the in-plane lattice parameters of a and b, as well as the out-of-plan lattice parameter d, were all stable with small displacements. However, after a critical pressure was reached, the in-plane lattice parameters of a changed relatively significantly and the out-of-plan lattice parameter d remained stable for the monolayer BP. Instead, after critical pressure of approximately 3 GPa, the out-of-plan lattice parameter d and the in-plane lattice parameters of a and b significantly changed for the monolayer Sb. Combined with analysis from Figure 5, we believe that the monolayer Sb became unstable and transformed from a semiconductor to a metal above the critical pressure of approximately 3 GPa.
Further investigation of the charge densities showed that the monolayer Sb can be completely transformed from a semiconductor to a metal. The 3D diagrams of the charge density distribution of the monolayer Sb under different pressures were prepared using VESTA, as shown in Figure 5. It is clearly depicted that under different pressures, the distributions of the charge density significantly changed. When the pressure was relatively low, a shared electron pair, i.e., a covalent bond, was formed between two Sb atoms. When the hydrostatic pressure was applied above the critical pressure up to 5 GPa, the covalent bond was completely broken, and the shared electron pair was not formed. Moreover, with the increasing pressure, the electron clouds of the shared electron pairs were squeezed, and the shared area became smaller. Finally, the shared electron pairs were destroyed, indicating a phase transition. Therefore, the crystal nanostructure of the monolayer Sb material correspondingly changed from a monolayer to a bilayer structure with different lattice parameters so that the metal property similar to bulk Sb was reassembled in nature. Therefore, the reassembled metallic characteristics from the single-layer semiconductor Sb was estimated at a critical pressure ranging from 3 to 5 GPa or 4 GPa on average from our calculations. This novel property opens a new opportunity for the band-gap engineering and tunability of monolayer Sb and BP nanomaterial applications to nanodevices and nanosensors by applying pressure.

4. Conclusions

In summary, the band-gap characteristics of the two-dimensional monolayer semiconductors of Sb, BP, and MoS2 were intensively investigated by applying different pressures from 0 to 8 GPa for case studies, based on the first-principle calculations of VASP-GGA-PBE, VASP-GGA-HSE06, and CASTEP-GGA-HSE06 functionals in this paper. This benchmark study indicates that the monolayer Sb exhibits semiconductor properties with an indirect band-gap and an estimated value of 1.77 eV. Moreover, the band-gap values of the monolayer semiconductors of Sb and BP decreased linearly with the increase in the applied hydrostatic pressures. However, the band-gap values of the monolayer MoS2 did not change monotonically with the applied pressures. A critical hydrostatic pressure around 2 GPa for the direct–indirect transition of the band structure of the monolayer MoS2 is very much consistent with the literature, reported as 1.9 GHz from the experiment data [34].
Further investigation of the charge densities showed that the monolayer Sb can be completely transformed from a semiconductor to a metal at a critical pressure ranging from 3 to 5 GPa or 4 GPa, as estimated from our calculations. Therefore, the monolayer Sb can be deeply tuned by applying a much lower pressure, compared to BP and MoS2. Specifically, the band-gap of Sb can be tuned to zero at a low pressure around 4 GPa, as estimated from our calculations, which is experimentally achievable for the nanostructure of the monolayer Sb. The band-gap tunability of the monolayer semiconductors of Sb, BP, and MoS2 under hydrostatic pressure opens new opportunities for potential applications to nanoelectronic, flexible electronics and optoelectronic devices, as well as sensors.

Author Contributions

X.D. and Q.L. performed the DFT calculations and equally contributed. X.D. and Z.Q. wrote the paper with support from L.C., R.W., and Y.S. All authors contributed to the technical discussions. All authors read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Key R&D Program of China (grant no. 2019YFB2204504), the Shenzhen Science and Technology Program (grant nos. KQTD20180412181422399 and JCYJ20180507181858539), the Science and Technology Innovation Commission of Shenzhen (grant nos. 20180123 and JCYJ20190808173815205), the Natural Science Foundation of Guangdong Province (grant no. 2019A1515012111), and the National Science Foundation of China (grant no. 51804199).

Acknowledgments

Thanks for the software packages provided by National Supercomputing Center in Shenzhen.

Conflicts of Interest

All authors of this manuscript directly participated in the planning, execution, and analysis of this study. The contents of this manuscript have not been copyrighted or published previously, and are not currently under consideration for publication elsewhere. The contents of this manuscript will not be copyrighted, submitted, or published elsewhere after acceptance by NANOMATERIALS.

References

  1. Yao, J.; Yang, G. 2D Material Broadband Photodetectors. Nanoscale 2020, 12, 454–476. [Google Scholar] [CrossRef]
  2. Li, M.; Tu, X.; Wang, Y.; Su, Y.; Hu, J.; Cai, B.; Lu, J.; Yang, Z.; Zhang, Y. Highly Enhanced Visible-Light-Driven Photoelectrochemical Performance of ZnO-Modified In2S3 Nanosheet Arrays by Atomic Layer Deposition. Nanomicro Lett. 2018, 10, 45. [Google Scholar] [CrossRef] [Green Version]
  3. Tian, W.C.; Liu, X.H.; Yu, W.B. Research Progress of Gas Sensor Based on Graphene and Its Derivatives: A Review. Appl. Sci. Basel 2018, 8, 1118. [Google Scholar] [CrossRef] [Green Version]
  4. Das, S.; Pandey, D.; Thomas, J.; Roy, T. The Role of Graphene and Other 2D Materials in Solar Photovoltaics. Adv. Mater. 2019, 31, e180272. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Yang, F.; Cheng, S.; Zhang, X.; Ren, X.; Li, R.; Dong, H.; Hu, W. 2D Organic Materials for Optoelectronic Applications. Adv. Mater. 2018, 30, 1702415. [Google Scholar] [CrossRef] [PubMed]
  6. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Zhang, Y.; Dubonos, S.V.; Grigorieva, I.V.; Firsov, A.A. Electric Field Effect in Atomically Thin Carbon Films. Science 2004, 306, 666–669. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Bao, Q.; Loh, K.P. Graphene Photonics, Plasmonics, and Broadband Optoelectronic Devices. ACS Nano 2012, 6, 3677–3694. [Google Scholar] [CrossRef] [PubMed]
  8. Chen, X.B.; Yang, P.Z. Synthesis and Characterization of Antimony-doped N-type Silicon Quantum Dots. Int. J. Mod. Phys. B 2017, 31, 1750110. [Google Scholar] [CrossRef]
  9. Berry, J.; Ristić, S.; Zhou, S.; Park, J.; Srolovitz, D.J. The MoSeS Dynamic Omnigami Paradigm for Smart Shape and Composition Programmable 2D Materials. Nat. Commun. 2019, 10, 5210. [Google Scholar] [CrossRef] [Green Version]
  10. Liu, G.B.; Xiao, D.; Yao, Y.; Xu, X.; Yao, W. Electronic Structures and Theoretical Modelling of Two-dimensional Group-VIB Transition Metal Dichalcogenides. Chem. Soc. Rev. 2015, 44, 2643–2663. [Google Scholar] [CrossRef] [Green Version]
  11. Wu, Z.; Zhou, B.T.; Cai, X.; Cheung, P.; Liu, G.B.; Huang, M.; Lin, J.; Han, T.; An, L.; Wang, Y.; et al. Intrinsic Valley Hall Transport in Atomically Thin MoS2. Nat. Commun. 2019, 10, 611. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Zeng, Z.; Yin, Z.; Huang, X.; Li, H.; He, Q.; Lu, G.; Boey, F.; Zhang, H. Single-Layer Semiconducting Nanosheets: High-Yield Preparation and Device Fabrication. Angew. Chem. 2011, 123, 11289–11293. [Google Scholar] [CrossRef]
  13. Coleman, J.N.; Lotya, M.; O’Neill, A.; Bergin, S.D.; King, P.J.; Khan, U.; Young, K.; Gaucher, A.; De, S.; Smith, R.J.; et al. Two-Dimensional Nanosheets Produced by Liquid Exfoliation of Layered Materials. Science 2011, 331, 568–571. [Google Scholar] [CrossRef] [Green Version]
  14. Geim, A.K.; Grigorieva, I.V. Van der Waals heterostructures. Nature 2013, 499, 419–425. [Google Scholar] [CrossRef]
  15. Liu, K.K.; Zhang, W.; Lee, Y.H.; Lin, Y.C.; Chang, M.T.; Su, C.Y.; Chang, C.S.; Li, H.; Shi, Y.; Zhang, H.; et al. Growth of Large-Area and Highly Crystalline MoS2 Thin Layers on Insulating Substrates. Nano Lett. 2012, 12, 1538–1544. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Zhan, Y.; Liu, Z.; Najmaei, S.; Ajayan, P.M.; Lou, J. Large-Area Vapor-Phase Growth and Characterization of MoS2 Atomic Layers on a SiO2 Substrate. Small 2012, 8, 966–971. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Wang, Q.H.; Kalantar-Zadeh, K.; Kis, A.; Coleman, J.N.; Strano, M.S. Electronics and Optoelectronics of Two-Dimensional Transition Metal Dichalcogenides. Nat. Nanotechnol. 2012, 7, 699–712. [Google Scholar] [CrossRef] [PubMed]
  18. Xu, X.; Yao, W.; Xiao, D.; Heinz, T.F. Spin and Pseudospins in Layered Transition Metal Dichalcogenides. Nat. Phys. 2014, 10, 343–350. [Google Scholar] [CrossRef]
  19. Liu, H.; Neal, A.T.; Zhu, Z.; Luo, Z.; Xu, X.; Tománek, D.; Ye, P.D. Phosphorene: An Unexplored 2D Semiconductor with a High Hole Mobility. ACS Nano 2014, 8, 4033–4341. [Google Scholar] [CrossRef] [Green Version]
  20. Warschauer, D.M. Electrical and Optical Properties of Crystalline Black Phosporus. J. Appl. Phys. 1963, 34, 1853–1860. [Google Scholar] [CrossRef]
  21. Li, Y.; Wang, R.H.; Luo, X.L.; Guo, Z.; Xiao, Z.; Wang, H.; Zhang, H. Emerging Two-Dimensional Nano-materials for Flexible Lithium-Ion Batteries: Opportunities and Challenges. J. Mater. Chem. A 2019, 7, 25227. [Google Scholar] [CrossRef]
  22. Wang, R.; Dai, X.; Qian, Z.; Zhong, S.; Chen, S.; Fan, S.; Zhang, H.; Wu, F. Boosting lithium storage in free-standing black phosphorus anode via multifunction of nanocellulose. ACS Appl. Mater. Inter. 2020, 2, 31628–31636. [Google Scholar] [CrossRef] [PubMed]
  23. Fortin-Deschênes, M.; Waller, O.; Mentes, T.O.; Locatelli, A.; Mukherjee, S.; Genuzio, F.; Levesque, P.L.; Hébert, A.; Martel, R.; Moutanabbir, O. Synthesis of Antimonene on Germanium. Nano Lett. 2017, 17, 4970–4975. [Google Scholar] [CrossRef]
  24. Zhang, S.; Yan, Z.; Li, Y.; Chen, Z.; Zeng, H. Atomically Thin Arsenene and Antimonene: Semimetal-Semiconductor and Indirect-Direct Band-Gap Transitions. Angew. Chem. 2015, 127, 3155–3158. [Google Scholar] [CrossRef]
  25. Jin, Z.; Zhang, Z.; Xiu, J.; Song, H.; Gatti, T.; He, Z. A Critical Review on Bismuth and Antimony Halide Based Perovskites and Their Derivatives for Photovoltaic Applications: Recent Advances and Challenges. J. Mater. Chem. A 2020, 8, 16166. [Google Scholar] [CrossRef]
  26. Slotman, G.; Rudenko, A.; van Veen, E.; Katsnelson, M.I.; Roldán, R.; Yuan, S. Plasmon Spectrum of Single-layer Antimonene. Phys. Rev. B 2018, 98, 155411. [Google Scholar] [CrossRef] [Green Version]
  27. Abutalib, M.M. A New Antimony Carbide Monolayer: An Indirect Semiconductor with a Tunable Band gap. Chem. Phys. Lett. 2018, 708, 188–193. [Google Scholar] [CrossRef]
  28. Wang, J.; Wang, Z.; Zhang, R.J.; Zheng, Y.X.; Chen, L.Y.; Wang, S.Y.; Tsoo, C.C.; Huang, H.J.; Su, W.S. A First-principles Study of the Electrically Tunable Band Gap in Few-layer Penta-graphene. Phys. Chem. Chem. Phys. 2018, 20, 18110–18116. [Google Scholar] [CrossRef]
  29. Pillai, S.B.; Narayan, S.; Dabhi, S.D.; Jha, P.K. First Principles Calculation of Two Dimensional Antimony and Antimony Arsenide. AIP Conf. Proc. 2016, 1731, 090024. [Google Scholar]
  30. Cheng, L.; Zhang, C.; Liu, Y. The Optimal Electronic Structure for High-Mobility 2D Semiconductors: Exceptionally High Hole Mobility in 2D Antimony. J. Am. Chem. Soc. 2019, 141, 16296–16302. [Google Scholar] [CrossRef]
  31. Niu, T.; Meng, Q.; Zhou, D.; Si, N.; Zhai, S.; Hao, X.; Zhou, M.; Fuchs, H. Large-Scale Synthesis of Strain-Tunable Semiconducting Antimonene on Copper Oxide. Adv. Mater. 2020, 32, e1906873. [Google Scholar] [CrossRef] [PubMed]
  32. Wu, X.; Shao, Y.; Liu, H.; Feng, Z.; Wang, Y.L.; Sun, J.T.; Liu, C.; Wang, J.O.; Liu, Z.L.; Zhu, S.Y.; et al. Epitaxial Growth and Air-Stability of Monolayer Antimonene on PdTe2. Adv. Mater. 2017, 29, 1605407. [Google Scholar] [CrossRef] [PubMed]
  33. Fu, L.; Wan, Y.; Tang, N.; Ding, Y.M.; Gao, J.; Yu, J.; Guan, H.; Zhang, K.; Wang, W.; Zhang, C.; et al. K-Λ Crossover Transition in the Conduction Band of Monolayer MoS2 Under Hydrostatic Pressure. Sci. Adv. 2017, 3, e1700162. [Google Scholar] [CrossRef] [Green Version]
  34. Gibaja, C.; Rodriguez-San-Miguel, D.; Ares, P.; Gómez-Herrero, J.; Varela, M.; Gillen, R.; Maultzsch, J.; Hauke, F.; Hirsch, A.; Abellán, G.; et al. Few-Layer Antimonene by Liquid-Phase Exfoliation. Angew. Chem. Int. Edit. 2016, 128, 14557–14561. [Google Scholar] [CrossRef] [Green Version]
  35. Wang, Y.L.; Ding, Y. Electronic Structure and Carrier Mobilities of Arsenene and Antimonene Nanoribbons: A First-Principle Study. Nanoscale Res. Lett. 2015, 10, 1–10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Ji, J.; Song, X.; Liu, J.; Yan, Z.; Huo, C.; Zhang, S.; Su, M.; Liao, L.; Wang, W.; Ni, Z.; et al. Two-dimensional Antimonene Single Crystals Grown by van der Waals Epitaxy. Nat. Commun. 2016, 7, 13352. [Google Scholar] [CrossRef] [Green Version]
  37. Kresse, G.; Furthmuller, J. Efficiency of Ab-initio Total Energy Calculations for Metals and Semiconductors using a Plane-wave Basis set. Comp. Mater. Sci. 1996, 6, 15–50. [Google Scholar]
  38. Heyd, J.; Scuseria, G.E.; Ernzerhof, M. Hybrid Functionals Based on a Screened Coulomb Potential. J. Chem. Phys. 2003, 118, 8207–8215. [Google Scholar] [CrossRef] [Green Version]
  39. Karlicky, F.; Otyepka, M. Band Gaps and Optical Spectra of Chlorographene, Fluorographeneand Graphane from G0W0, GW0 and GW Calculations on Top of PBE and HSE06 Orbitals. J. Chem. Theory Comput. 2013, 9, 4155–5164. [Google Scholar] [CrossRef]
  40. Ibragimova, R.; Ganchenkova, M.; Karazhanov, S.; Marstein, E.S. First-Principles Study of SnS Electronic Properties using LDA, PBE and HSE06 Functionals. Philos. Mag. 2017, 98, 1–17. [Google Scholar] [CrossRef]
  41. Mak, K.F.; Lee, C.; Hone, J.; Shan, J.; Heinz, T.F. Atomically Thin MoS2: A New Direct-Gap Semiconductor. Phys. Rev. Lett. 2010, 105, 136805. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Li, W.; Chen, J.-F.; He, Q.; Wang, T. Electronic and elastic properties of MoS2. Phys. B 2010, 405, 2498–2502. [Google Scholar]
  43. Wosylus, A.; Schwarz, U.; Akselrud, L.; Tucker, M.G.; Hanfland, M.; Rabia, K.; Kuntscher, C.; Von Appen, J.; Dronskowski, R.; Rau, D.; et al. High-pressure Phase Transition and Properties of Cu3N: An Experimental and Theoretical Study. Z. Anorg. Allg. Chem. 2009, 635, 1959–1968. [Google Scholar] [CrossRef] [Green Version]
  44. Cervinka, C.; Beran, G. Ab Initio Thermodynamic Properties and Their Uncertainties for Crystalline A-methanol. Phys. Chem. Chem. Phys. 2017, 19, 29940. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Nanomaterials 10 02154 g001 550

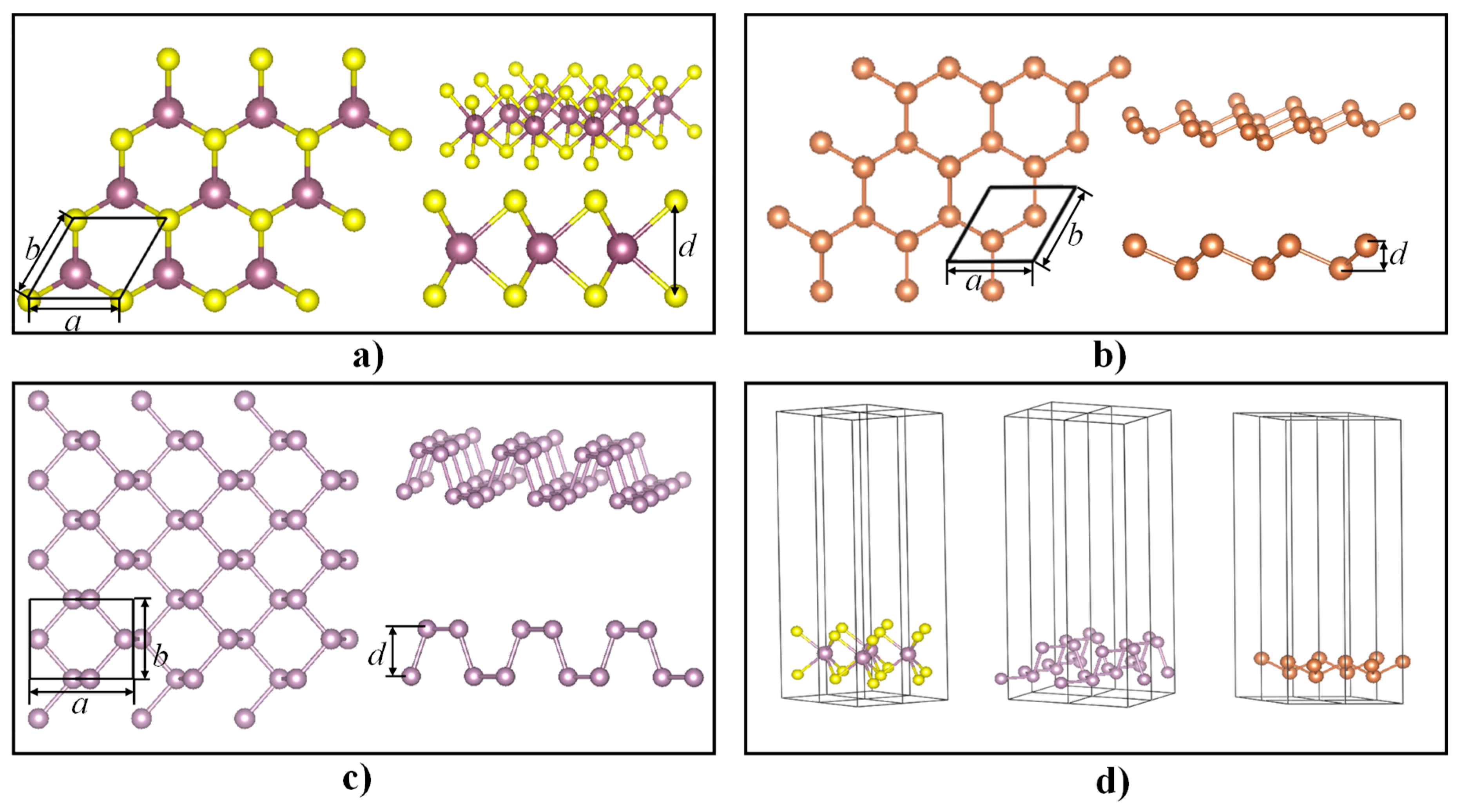

Figure 1. Schematic illustrations of atomic models: (a) monolayer molybdenum disulfide (MoS2), (b) monolayer black phosphorus (BP), (c) monolayer antimony (Sb), and (d) computational models with the vacuum layer.
Figure 1. Schematic illustrations of atomic models: (a) monolayer molybdenum disulfide (MoS2), (b) monolayer black phosphorus (BP), (c) monolayer antimony (Sb), and (d) computational models with the vacuum layer.
Nanomaterials 10 02154 g001
Nanomaterials 10 02154 g002 550

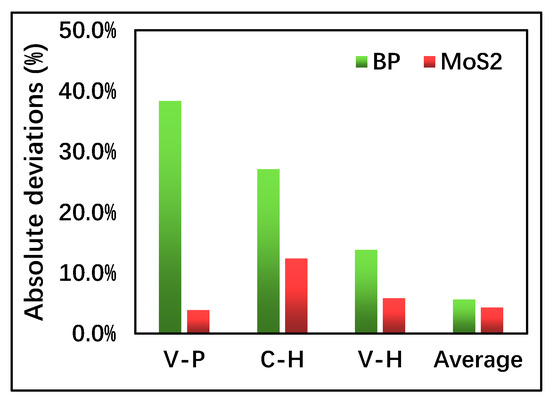

Figure 2. Statistics of the absolute deviations of the simulation results from the EXP data. V-P, C-H, and V-H represent the VASP-GGA-PBE, CASTEP-GGA-HSE06, and VASP-GGA-HSE06, respectively. “Average” represents the mean value of the V-P and C-H data.
Figure 2. Statistics of the absolute deviations of the simulation results from the EXP data. V-P, C-H, and V-H represent the VASP-GGA-PBE, CASTEP-GGA-HSE06, and VASP-GGA-HSE06, respectively. “Average” represents the mean value of the V-P and C-H data.
Nanomaterials 10 02154 g002
Nanomaterials 10 02154 g003 550

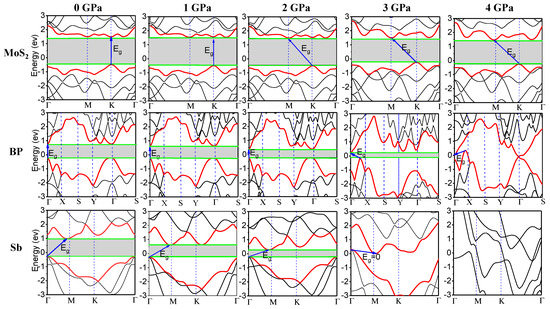

Figure 3. Evolution of the band structures of the monolayer semiconductors of MoS2, BP, and Sb under different hydrostatic pressures.
Figure 3. Evolution of the band structures of the monolayer semiconductors of MoS2, BP, and Sb under different hydrostatic pressures.
Nanomaterials 10 02154 g003
Nanomaterials 10 02154 g004 550

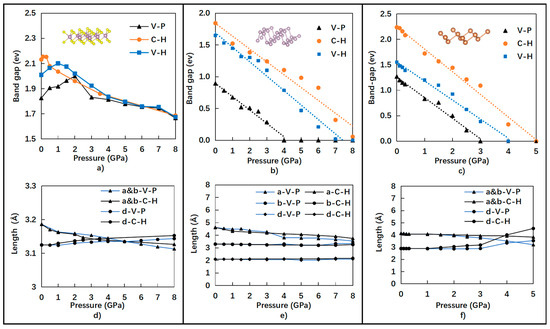

Figure 4. Relationships between band-gap (eV) and pressure (GPa) of (a) monolayer MoS2, (b) monolayer BP, and (c) monolayer Sb under different pressures, as well as the lattice parameters of (d) monolayer MoS2, (e) monolayer BP, and (f) monolayer Sb with applied pressure values.
Figure 4. Relationships between band-gap (eV) and pressure (GPa) of (a) monolayer MoS2, (b) monolayer BP, and (c) monolayer Sb under different pressures, as well as the lattice parameters of (d) monolayer MoS2, (e) monolayer BP, and (f) monolayer Sb with applied pressure values.
Nanomaterials 10 02154 g004
Nanomaterials 10 02154 g005 550

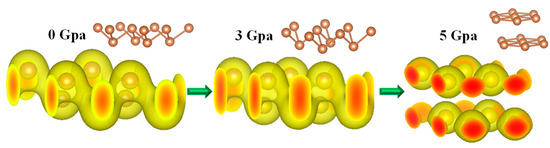

Figure 5. Charge densities of the monolayer Sb under pressures of 0 GPa, 3 GPa, and 5 GPa; phase transformation under the critical pressure around 5 GPa, where the monolayer transforms to a double-layer nanostructure.
Figure 5. Charge densities of the monolayer Sb under pressures of 0 GPa, 3 GPa, and 5 GPa; phase transformation under the critical pressure around 5 GPa, where the monolayer transforms to a double-layer nanostructure.
Nanomaterials 10 02154 g005
Table
Table 1. List of band-gap values obtained by using different Hamiltonians; * represents the data from [24].
Table 1. List of band-gap values obtained by using different Hamiltonians; * represents the data from [24].
HamiltonianBand-Gap (eV)
VASP-LDA1.21
VASP-GGA-PBE1.27
VASP-GGA-HSE061.87
CASTEP-GGA-HSE062.26
CASTEP-GGA-HSE06 *2.28
Table
Table 2. List of band-gap values by using different methods.
Table 2. List of band-gap values by using different methods.
MonolayerBPMoS2Sb
VASP-PBE (V-P)0.891.831.27
CASTEP-HSE06 (C-H)1.842.142.28
Average V-P/C-H1.371.981.78
EXP Data1.45 [18]1.90 [41]NA
Deviation (%) of Average V-P/C-H−5.594.26NA
VASP-HSE06 (V-H)1.652.011.87
Deviation (%) of V-H13.795.79NA
EXP: experimental.
Table
Table 3. List of the critical pressures, Pcr-bg0, by using different methods.
Table 3. List of the critical pressures, Pcr-bg0, by using different methods.
Pcr-bg0V-PC-HAverage V-P/C-H
BP4.0 GPa9.0 GPa6.5 GPa
Sb3.0 GPa5.0 GPa4.0 GPa
