# Investigating the Effect of Heterogeneous Hull Roughness on Ship Resistance Using CFD

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

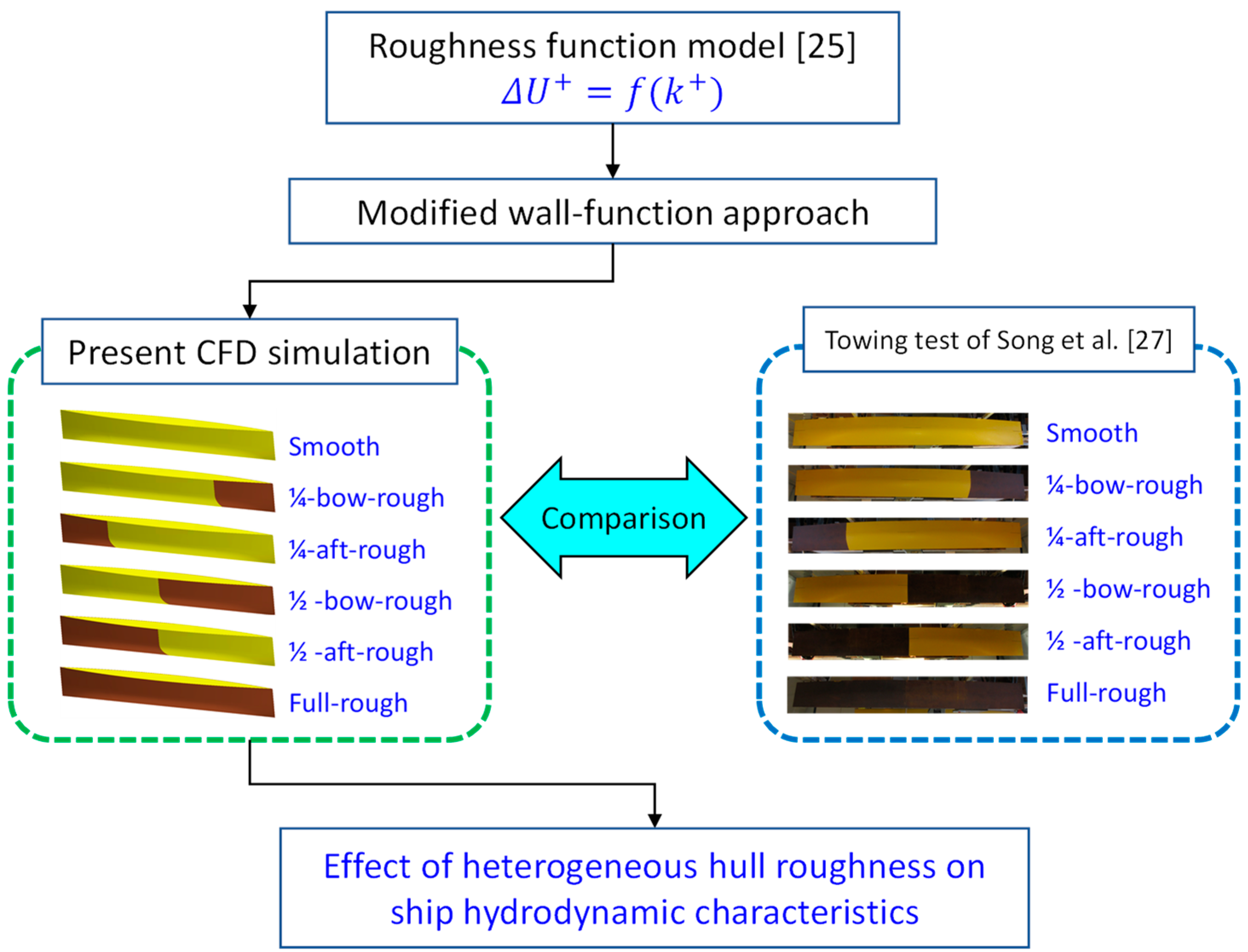

#### 2.1. Approach

#### 2.2. Numerical Modelling

#### 2.2.1. Mathematical Formulations

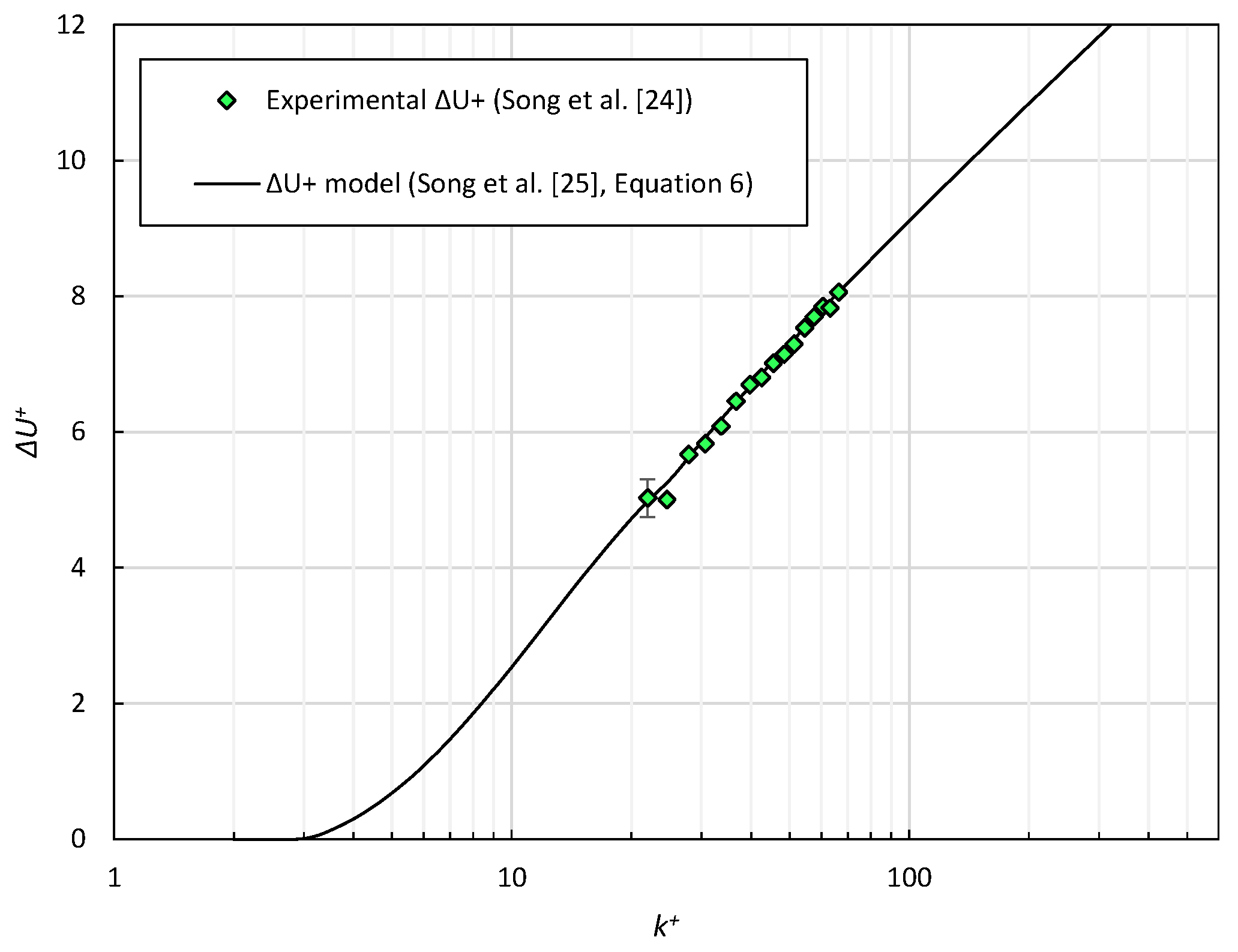

#### 2.2.2. Modified Wall-Function Approach

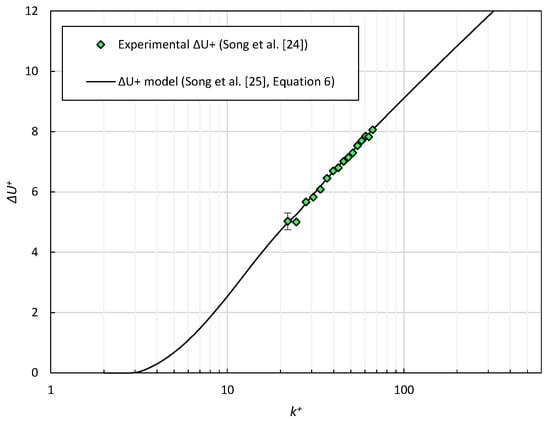

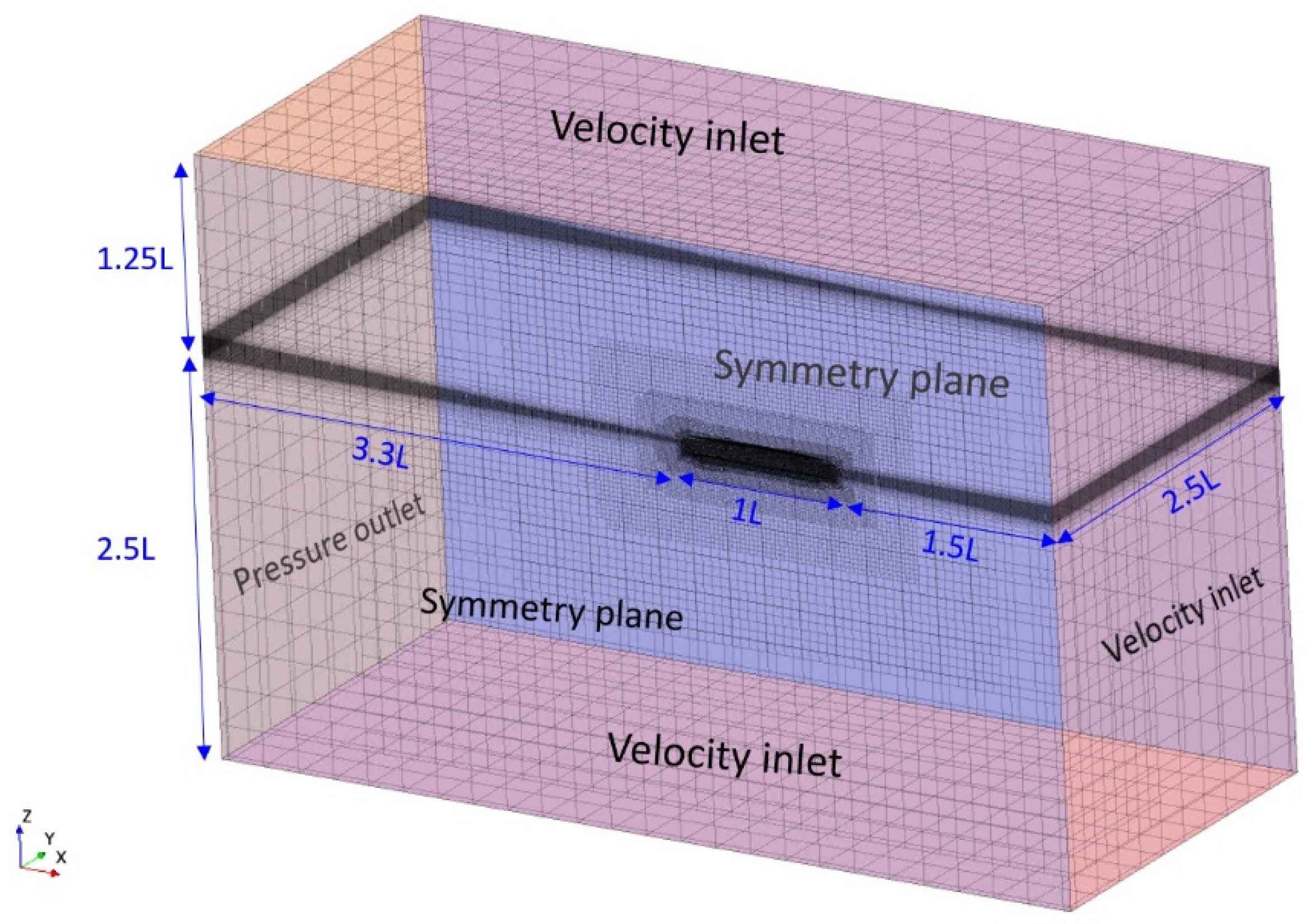

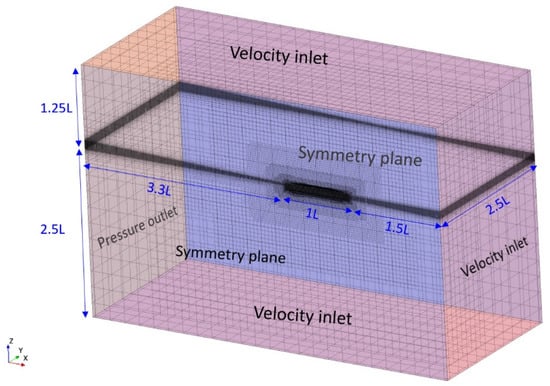

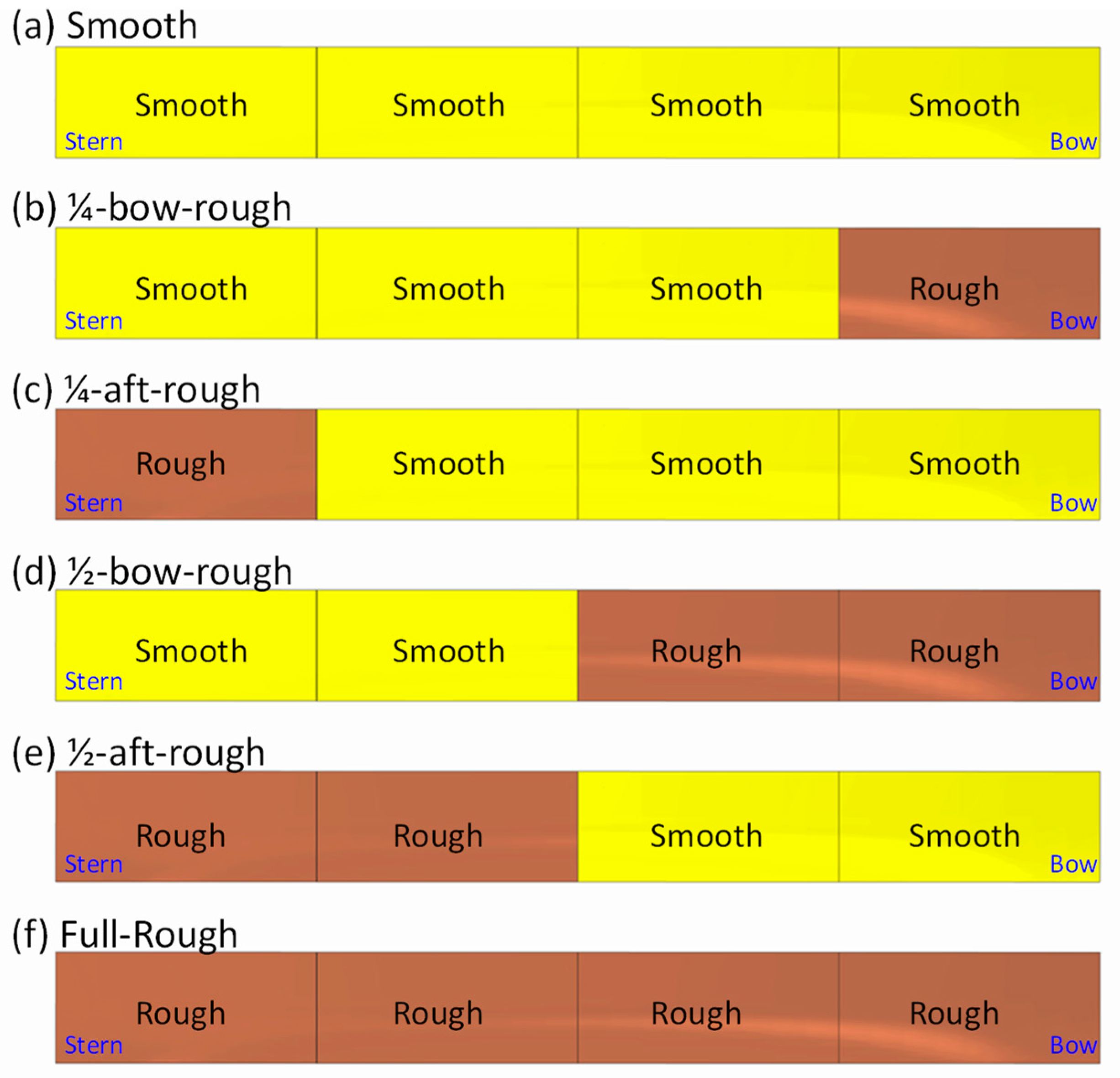

#### 2.2.3. Geometry and Boundary Conditions

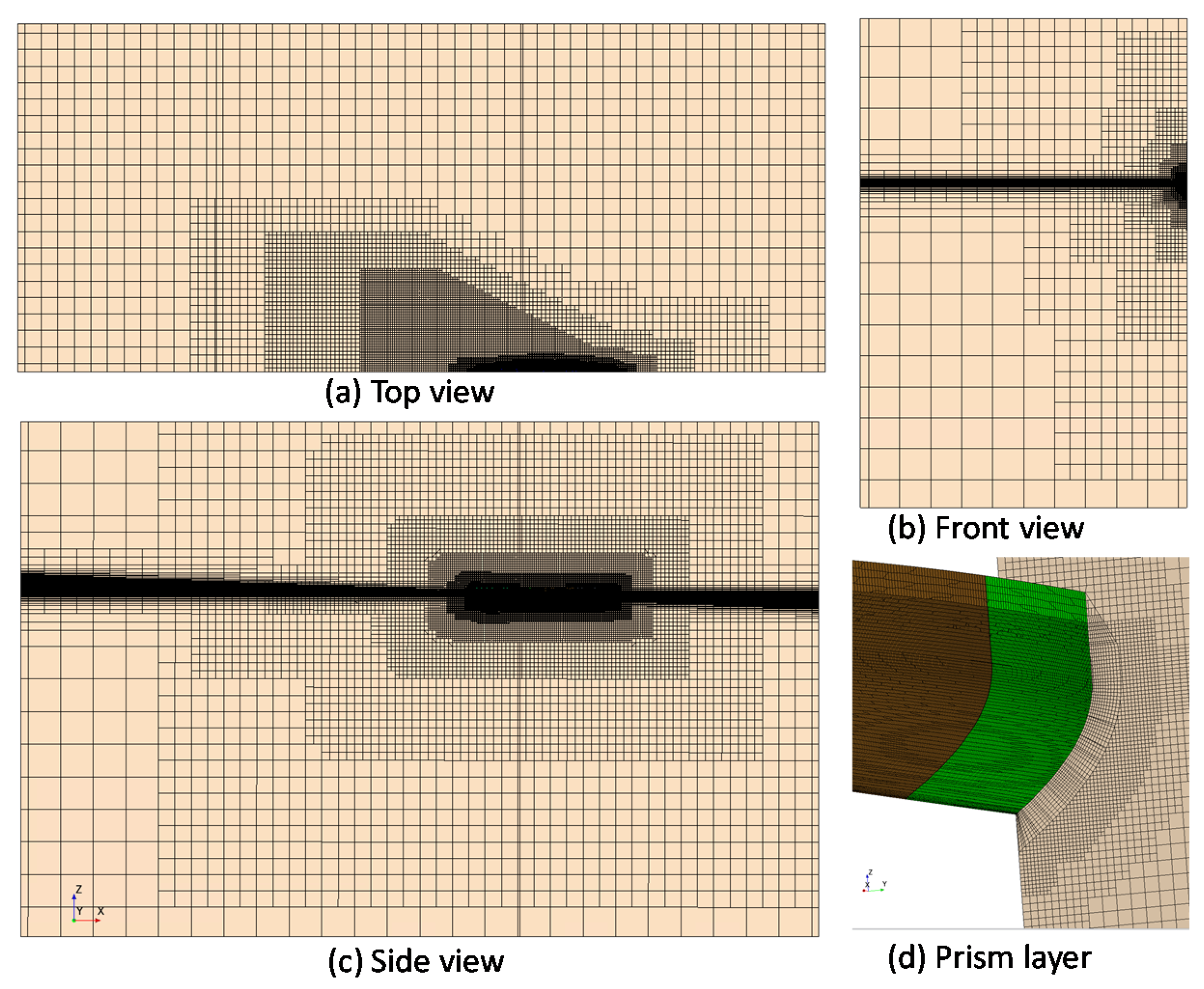

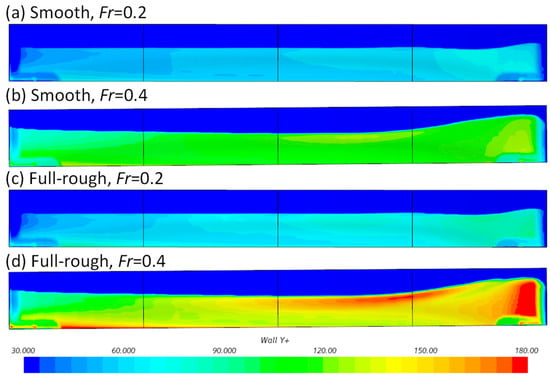

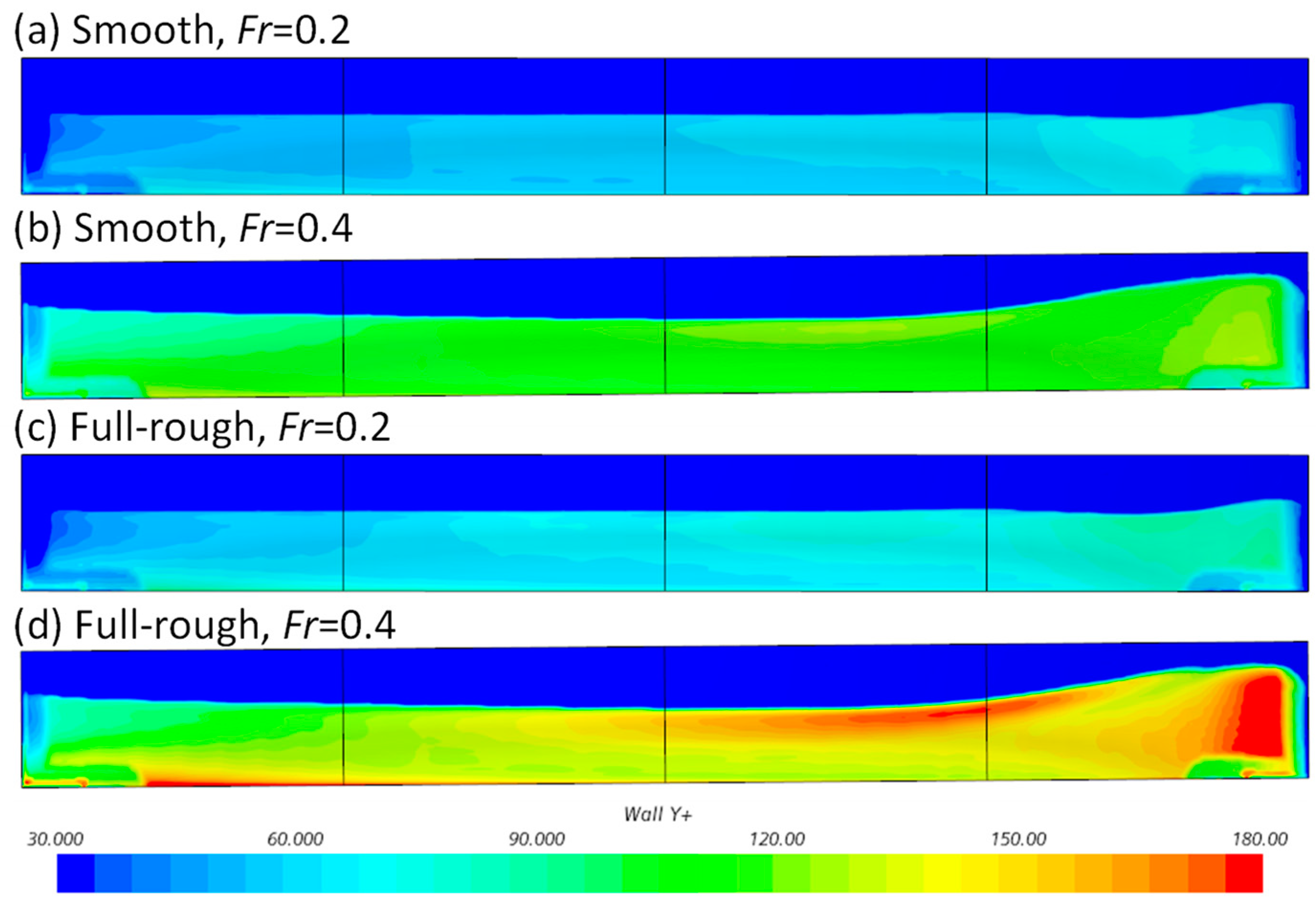

#### 2.2.4. Mesh Generation

## 3. Results

#### 3.1. Verification Study

#### 3.2. Effect of Heterogeneous Roughness on Ship Resistance

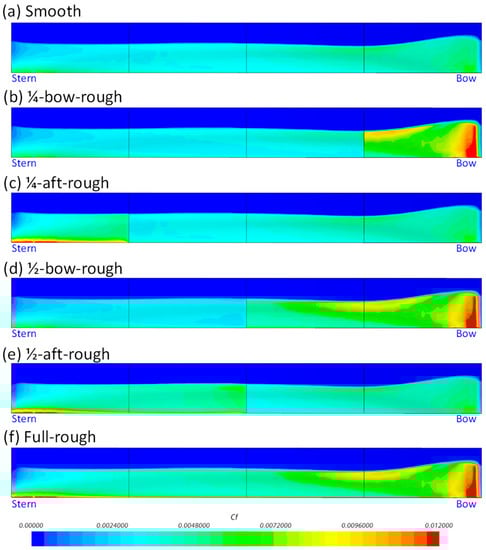

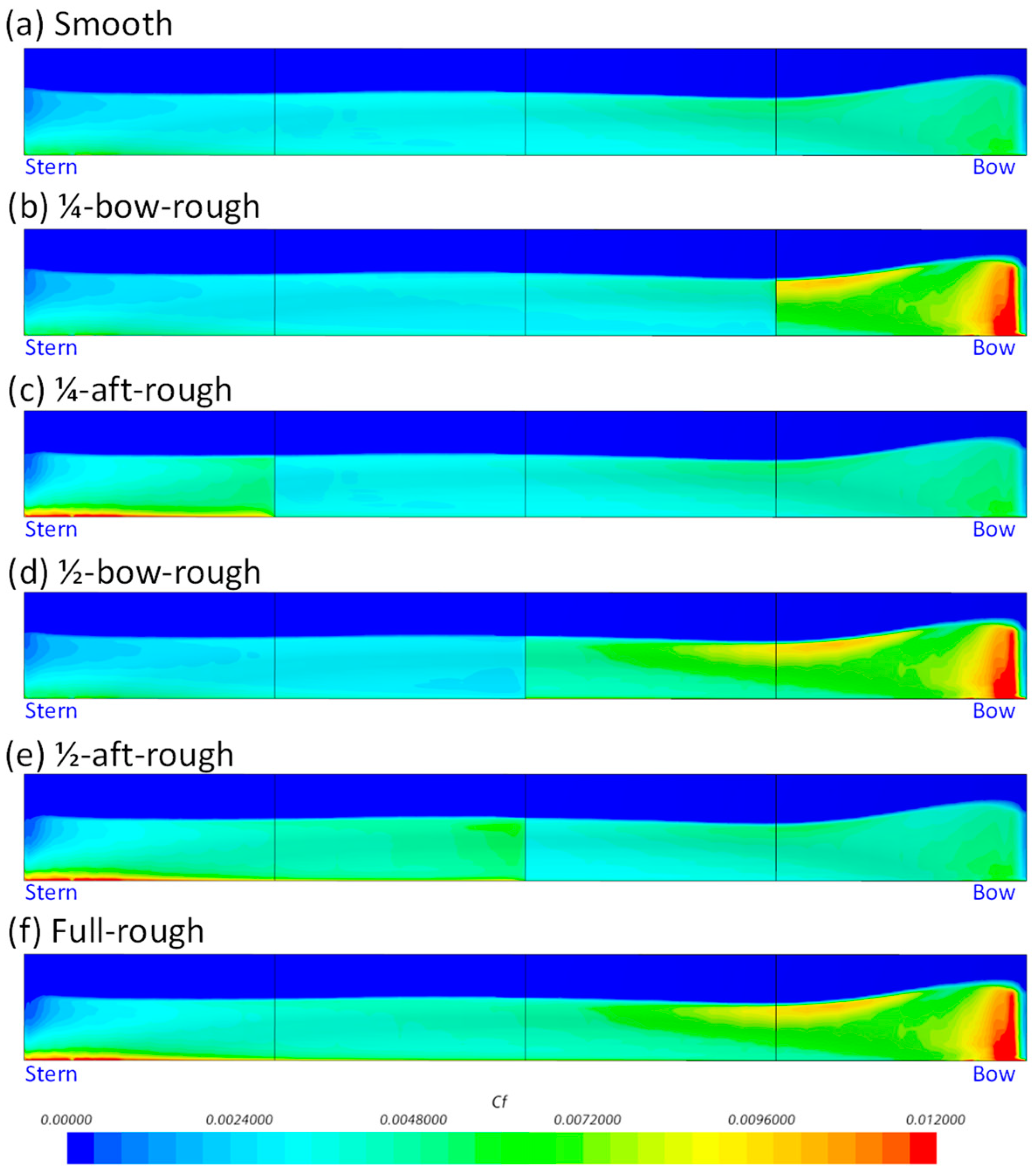

#### 3.3. Rationale behind the Effect of Heterogeneous Roughness

## 4. Concluding Remarks

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Acknowledgments

## Conflicts of Interest

## Appendix A

**Table A1.**Percentage differences between the current CFD simulations and the EFD result [27].

Smooth | 1/4-bow-rough | 1/4-aft-rough | |||||||

Fr | CFD | EFD | %D | CFD | EFD | %D | CFD | EFD | %D |

0.2 | 4.29 × 10^{−3} | 3.95 × 10^{−3} | −8.0% | 4.71 × 10^{−3} | 4.66 × 10^{−3} | −1.1% | 4.61 × 10^{−3} | 4.31 × 10^{−3} | −6.5% |

0.25 | 4.63 × 10^{−3} | 4.38 × 10^{−3} | −5.3% | 5.09 × 10^{−3} | 5.19 × 10^{−3} | 1.8% | 4.96 × 10^{−3} | 4.68 × 10^{−3} | −5.7% |

0.3 | 5.25 × 10^{−3} | 5.03 × 10^{−3} | −4.3% | 5.83 × 10^{−3} | 5.91 × 10^{−3} | 1.3% | 5.60 × 10^{−3} | 5.35 × 10^{−3} | −4.5% |

0.35 | 5.17 × 10^{−3} | 4.95 × 10^{−3} | −4.2% | 5.80 × 10^{−3} | 5.92 × 10^{−3} | 2.0% | 5.58 × 10^{−3} | 5.33 × 10^{−3} | −4.4% |

0.4 | 6.16 × 10^{−3} | 6.08 × 10^{−3} | −1.4% | 6.77 × 10^{−3} | 6.96 × 10^{−3} | 2.7% | 6.61 × 10^{−3} | 6.50 × 10^{−3} | −1.7% |

1/2-bow-rough | 1/2-aft-rough | Full-rough | |||||||

Fr | CFD | EFD | %D | CFD | EFD | %D | CFD | EFD | %D |

0.2 | 5.11 × 10^{−3} | 5.11 × 10^{−3} | −0.1% | 4.98 × 10^{−3} | 4.69 × 10^{−3} | −5.8% | 5.76 × 10^{−3} | 5.81 × 10^{−3} | 0.9% |

0.25 | 5.50 × 10^{−3} | 5.70 × 10^{−3} | 3.6% | 5.34 × 10^{−3} | 5.19 × 10^{−3} | −2.8% | 6.18 × 10^{−3} | 6.40 × 10^{−3} | 3.6% |

0.3 | 6.25 × 10^{−3} | 6.40 × 10^{−3} | 2.4% | 5.99 × 10^{−3} | 5.84 × 10^{−3} | −2.6% | 6.89 × 10^{−3} | 7.20 × 10^{−3} | 4.5% |

0.35 | 6.34 × 10^{−3} | 6.48 × 10^{−3} | 2.2% | 6.08 × 10^{−3} | 5.96 × 10^{−3} | −2.1% | 7.13 × 10^{−3} | 7.38 × 10^{−3} | 3.4% |

0.4 | 7.34 × 10^{−3} | 7.66 × 10^{−3} | 4.4% | 7.15 × 10^{−3} | 7.18 × 10^{−3} | 0.3% | 8.25 × 10^{−3} | 8.58 × 10^{−3} | 4.0% |

## References

- Townsin, R.L. The ship hull fouling penalty. Biofouling
**2003**, 19, 9–15. [Google Scholar] [CrossRef] - Tezdogan, T.; Demirel, Y.K. An overview of marine corrosion protection with a focus on cathodic protection and coatings. Brodogradnja
**2014**, 65, 49–59. [Google Scholar] - Granville, P.S. The frictional resistance and turbulent boundary layer of rough surfaces. J. Ship Res.
**1958**, 2, 52–74. [Google Scholar] [CrossRef] - Granville, P.S. Similarity-Law Characterization Methods for Arbitrary Hydrodynamic Roughnesses; Bethesda: Rockville, MD, USA, 1978. [Google Scholar]
- Schultz, M.P. The relationship between frictional resistance and roughness for surfaces smoothed by sanding. J. Fluids Eng.
**2002**, 124, 492–499. [Google Scholar] [CrossRef] - Schultz, M.P. Frictional resistance of antifouling coating systems. J. Fluids Eng.
**2004**, 126, 1039–1047. [Google Scholar] [CrossRef] [Green Version] - Schultz, M.P.; Flack, K.A. The rough-wall turbulent boundary layer from the hydraulically smooth to the fully rough regime. J. Fluid Mech.
**2007**, 580, 381–405. [Google Scholar] [CrossRef] [Green Version] - Flack, K.A.; Schultz, M.P. Review of hydraulic roughness scales in the fully rough regime. J. Fluids Eng.
**2010**, 132, 041203. [Google Scholar] [CrossRef] [Green Version] - Schultz, M.P.; Bendick, J.A.; Holm, E.R.; Hertel, W.H. Economic impact of biofouling on a naval surface ship. Biofouling
**2011**, 27, 87–98. [Google Scholar] [CrossRef] - Oliveira, D.; Larsson, A.I.; Granhag, L. Effect of ship hull form on the resistance penalty from biofouling. Biofouling
**2018**, 34, 262–272. [Google Scholar] [CrossRef] [Green Version] - Atlar, M.; Yeginbayeva, I.A.; Turkmen, S.; Demirel, Y.K.; Carchen, A.; Marino, A.; Williams, D. A rational approach to predicting the effect of fouling control systems on “in-service” ship performance. GMO J. Ship Mar. Technol.
**2018**, 24, 5–36. [Google Scholar] - Cella, U.; Cucinotta, F.; Sfravara, F. Sail plan parametric CAD model for an A-class catamaran numerical optimization procedure using open source tools. In Proceedings of the 16th Asian Congress of Fluid Mechanics, Bangalore, India, 13–17 December 2019; pp. 547–554. [Google Scholar]
- Cirello, A.; Cucinotta, F.; Ingrassia, T.; Nigrelli, V.; Sfravara, F. Fluid–structure interaction of downwind sails: A new computational method. J. Mar. Sci. Technol.
**2019**, 24, 86–97. [Google Scholar] [CrossRef] - Stern, F.; Wang, Z.; Yang, J.; Sadat-Hosseini, H.; Mousaviraad, M.; Bhushan, S.; Diez, M.; Sung-Hwan, Y.; Wu, P.-C.; Yeon, S.M.; et al. Recent progress in CFD for naval architecture and ocean engineering. J. Hydrodyn.
**2015**, 27, 1–23. [Google Scholar] [CrossRef] - Wang, J.; Wan, D. Application progress of computational fluid dynamic techniques for complex viscous flows in ship and ocean engineering. J. Mar. Sci. Appl.
**2020**, 19, 1–16. [Google Scholar] [CrossRef] - Demirel, Y.K.; Turan, O.; Incecik, A. Predicting the effect of biofouling on ship resistance using CFD. Appl. Ocean Res.
**2017**, 62, 100–118. [Google Scholar] [CrossRef] [Green Version] - Song, S.; Demirel, Y.K.; Atlar, M. An investigation into the effect of biofouling on the ship hydrodynamic characteristics using CFD. Ocean Eng.
**2019**, 175, 122–137. [Google Scholar] [CrossRef] [Green Version] - Song, S.; Demirel, Y.K.; Muscat-Fenech, C.D.M.; Tezdogan, T.; Atlar, M. Fouling effect on the resistance of different ship types. Ocean Eng.
**2020**, 216, 107736. [Google Scholar] [CrossRef] - Song, S.; Demirel, Y.K.; Atlar, M. Propeller performance penalty of biofouling: Computational fluid dynamics prediction. J. Offshore Mech. Arct. Eng.
**2020**, 142, 1–22. [Google Scholar] [CrossRef] - Farkas, A.; Degiuli, N.; Martić, I. The impact of biofouling on the propeller performance. Ocean Eng.
**2021**, 219, 108376. [Google Scholar] [CrossRef] - Song, S.; Demirel, Y.K.; Atlar, M. Penalty of hull and propeller fouling on ship self-propulsion performance. Appl. Ocean Res.
**2020**, 94, 102006. [Google Scholar] [CrossRef] - Farkas, A.; Song, S.; Degiuli, N.; Martić, I.; Demirel, Y.K. Impact of biofilm on the ship propulsion characteristics and the speed reduction. Ocean Eng.
**2020**, 199, 107033. [Google Scholar] [CrossRef] - Song, S.; Demirel, Y.K.; Atlar, M.; Shi, W. Prediction of the fouling penalty on the tidal turbine performance and development of its mitigation measures. Appl. Energy
**2020**, 276, 115498. [Google Scholar] [CrossRef] - Song, S.; Dai, S.; Demirel, Y.K.; Atlar, M.; Day, S.; Turan, O. Experimental and theoretical study of the effect of hull roughness on ship resistance. J. Ship Res.
**2020**, 1–10. [Google Scholar] [CrossRef] - Song, S.; Demirel, Y.K.; Atlar, M.; Dai, S.; Day, S.; Turan, O. Validation of the CFD approach for modelling roughness effect on ship resistance. Ocean Eng.
**2020**, 200, 107029. [Google Scholar] [CrossRef] [Green Version] - Demirel, Y.K.; Uzun, D.; Zhang, Y.; Fang, H.-C.; Day, A.H.; Turan, O. Effect of barnacle fouling on ship resistance and powering. Biofouling
**2017**, 33, 819–834. [Google Scholar] [CrossRef] [Green Version] - Song, S.; Ravenna, R.; Dai, S.; De Marco Muscat-Fenech, C.; Tani, G.; Demirel, Y.K.; Atlar, M.; Day, S.; Incecik, A. Ex-perimental investigation on the effect of heterogeneous hull roughness on ship resistance. Ocean Eng.
**2021**, in press. [Google Scholar] [CrossRef] - Östman, A.; Koushan, K.; Savio, L. Study on additional ship resistance due to roughness using CFD. In Proceedings of the 4th Hull Performance & Insight Conference (HullPIC’19), Gubbio, Italy, 6–8 May 2019. [Google Scholar]
- Vargas, A.; Shan, H.; Holm, E. Using CFD to predict ship resistance due to biofouling, and plan hull maintenance. In Proceedings of the 4th Hull Performance & Insight Conference (HullPIC’19), Gubbio, Italy, 6–8 May 2019. [Google Scholar]
- Menter, F.R. Two-equation eddy-viscosity turbulence models for engineering applications. AIAA J.
**1994**, 32, 1598–1605. [Google Scholar] [CrossRef] [Green Version] - Dogrul, A.; Song, S.; Demirel, Y.K. Scale effect on ship resistance components and form factor. Ocean Eng.
**2020**, 209, 107428. [Google Scholar] [CrossRef] - Siemens. STAR-CCM+, User Guide, Version 13.06.
- Celik, I.B.; Ghia, U.; Roache, P.J.; Freitas, C.J.; Coleman, H.; Raad, P.E. Procedure for estimation and reporting of uncertainty due to discretization in CFD applications. J. Fluids Eng.
**2008**, 130, 078001. [Google Scholar] [CrossRef] [Green Version]

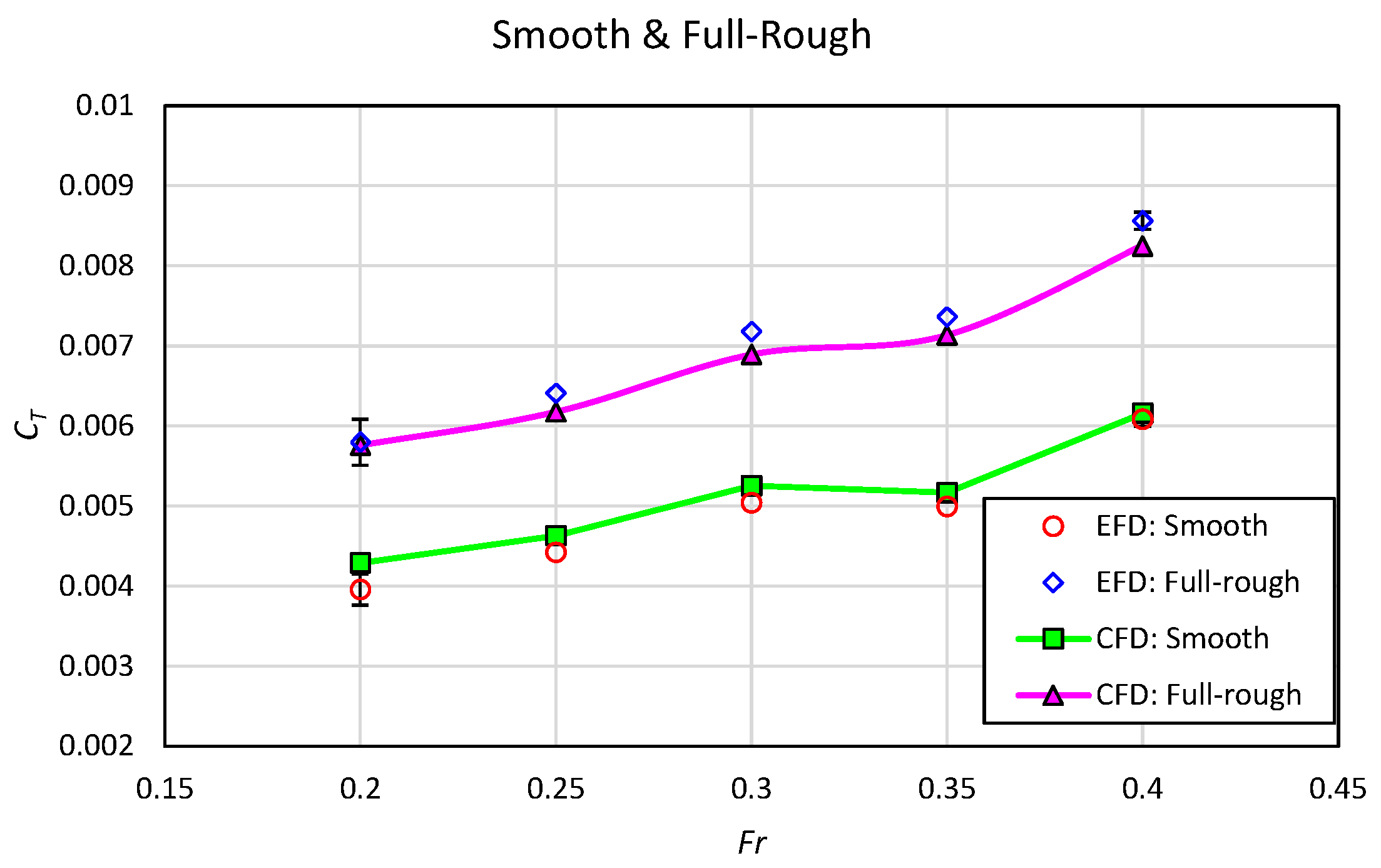

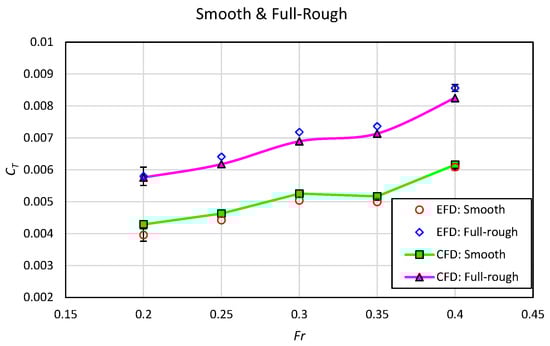

**Figure 7.**${C}_{T}$ of the Wigley hull with smooth and full-rough conditions obtained from the current Computational Fluid Dynamics (CFD) simulations and the Experimental Fluid Dynamics (EFD) result [27].

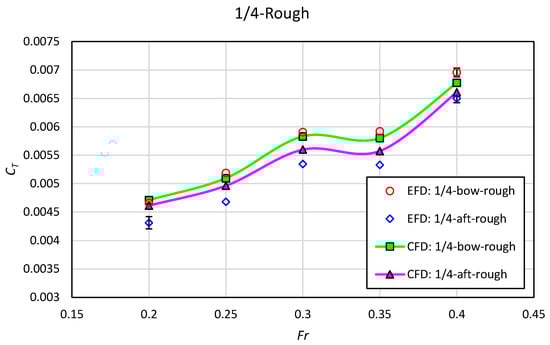

**Figure 8.**${C}_{T}$ of the Wigley hull with ¼-bow-rough and ¼-aft-rough conditions obtained from the current CFD simulations and the EFD result [27].

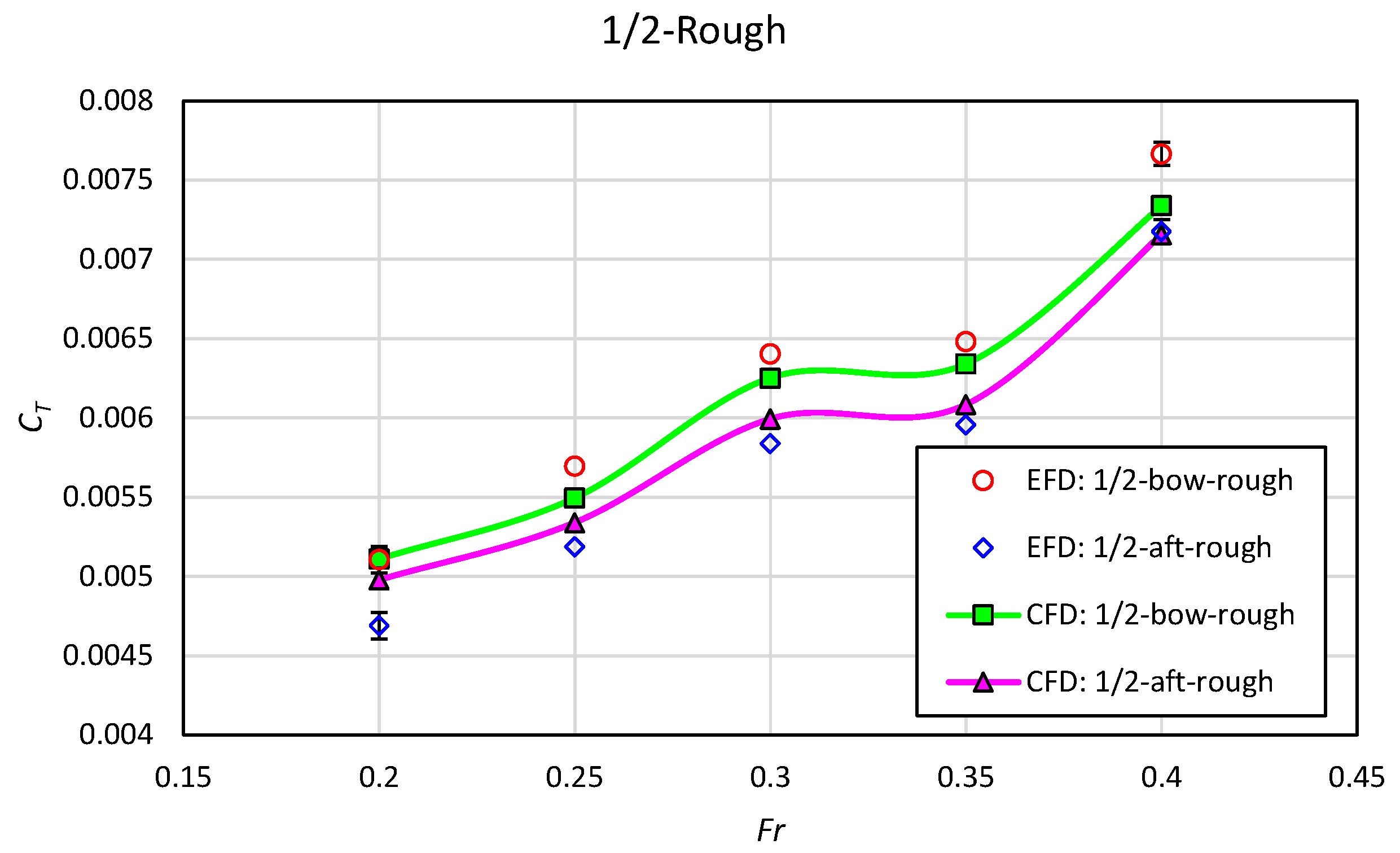

**Figure 9.**${C}_{T}$ of the Wigley hull with ½-bow-rough and ½-aft-rough conditions obtained from the current CFD simulations and the EFD result [27].

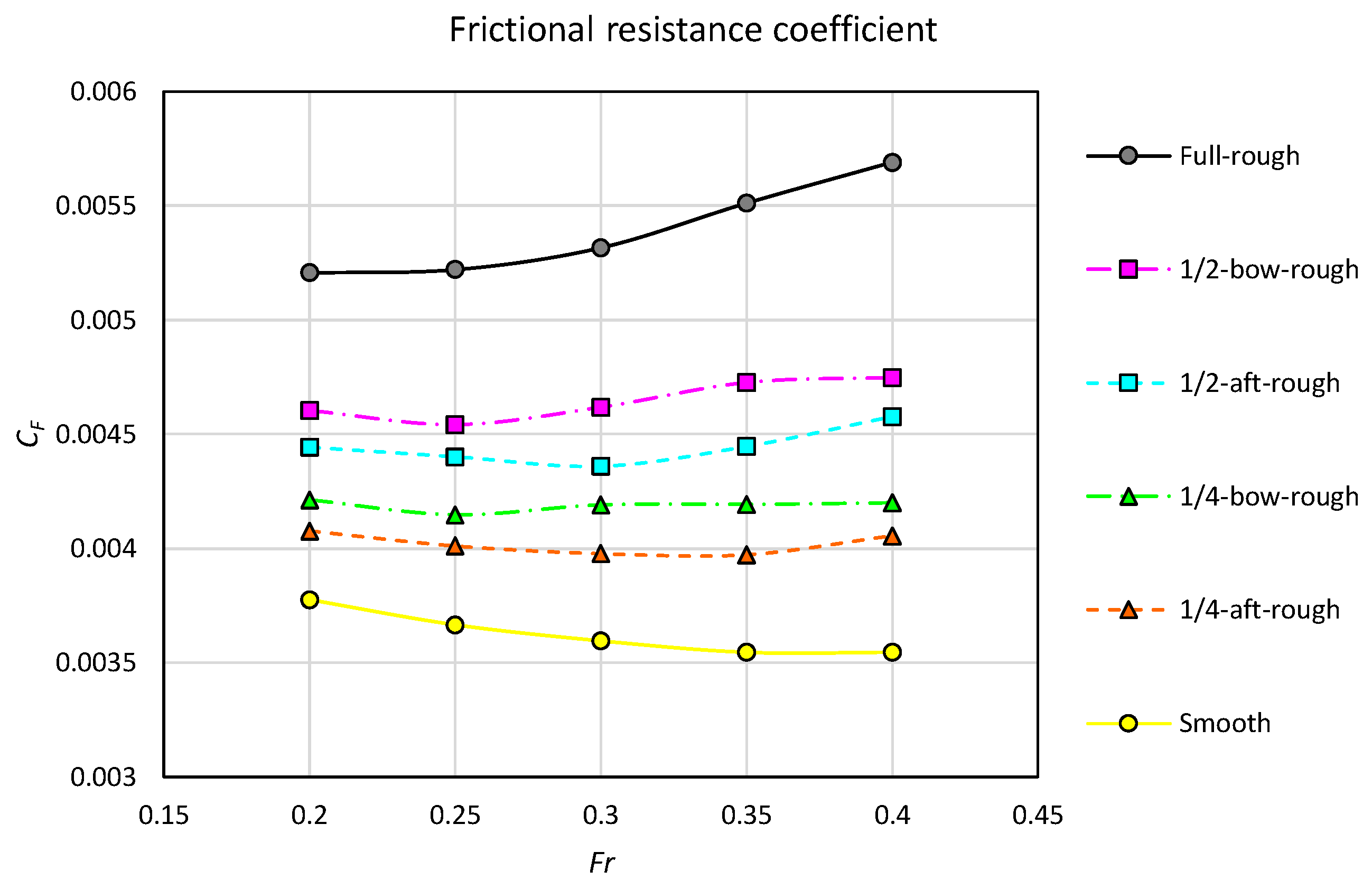

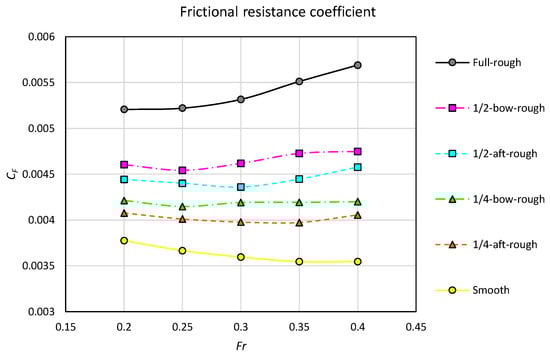

**Figure 10.**${C}_{F}$ of the Wigley hull with different hull conditions predicted from the current CFD simulations.

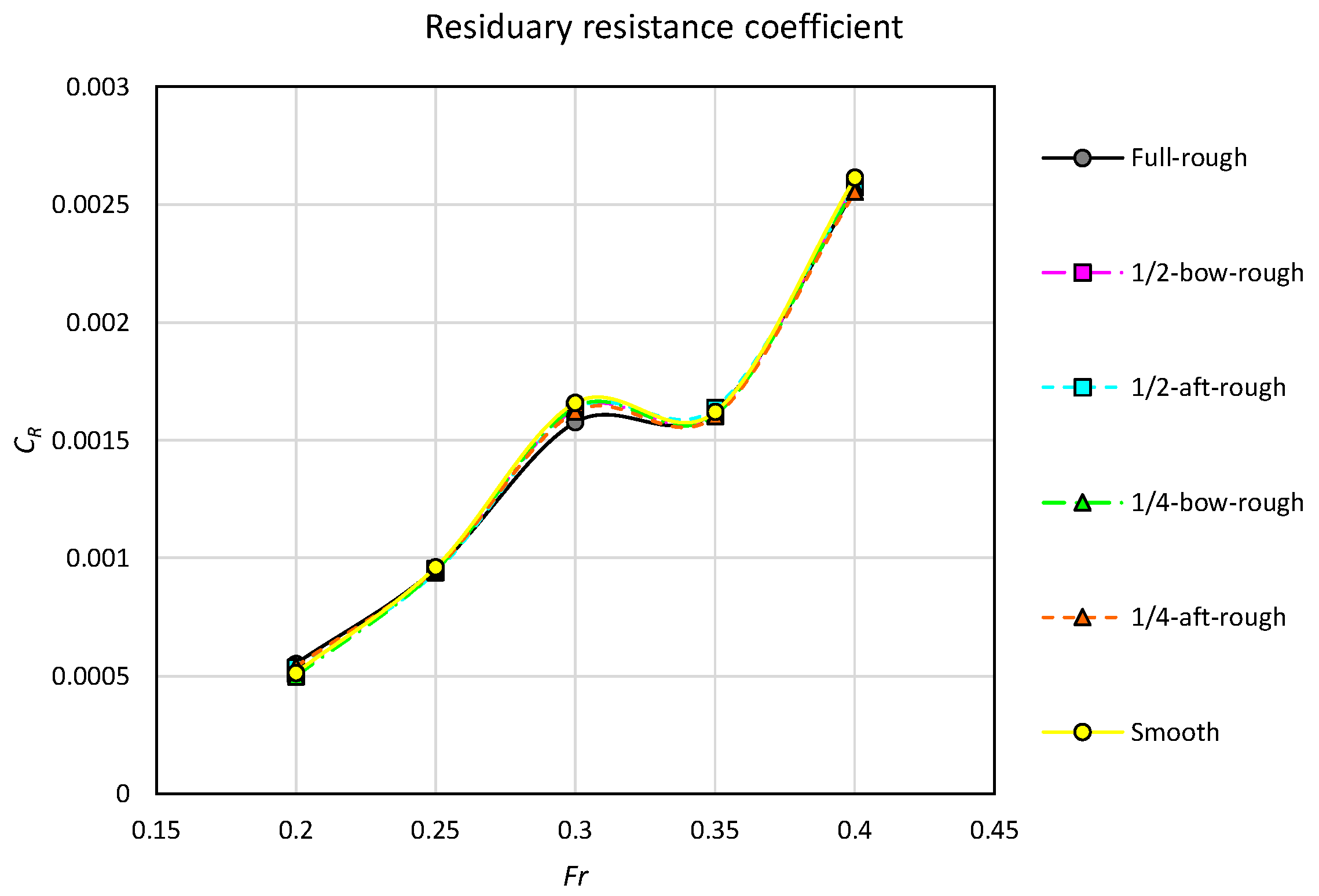

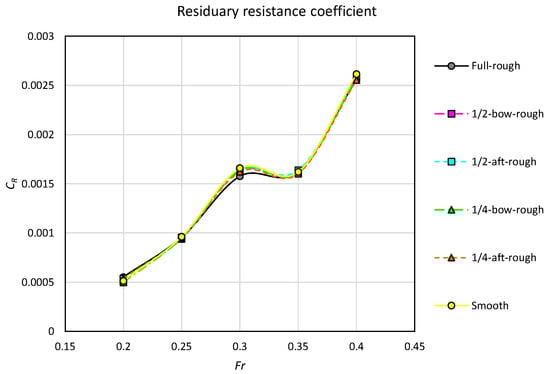

**Figure 11.**${C}_{R}$ of the Wigley hull with different hull conditions predicted from the current CFD simulations.

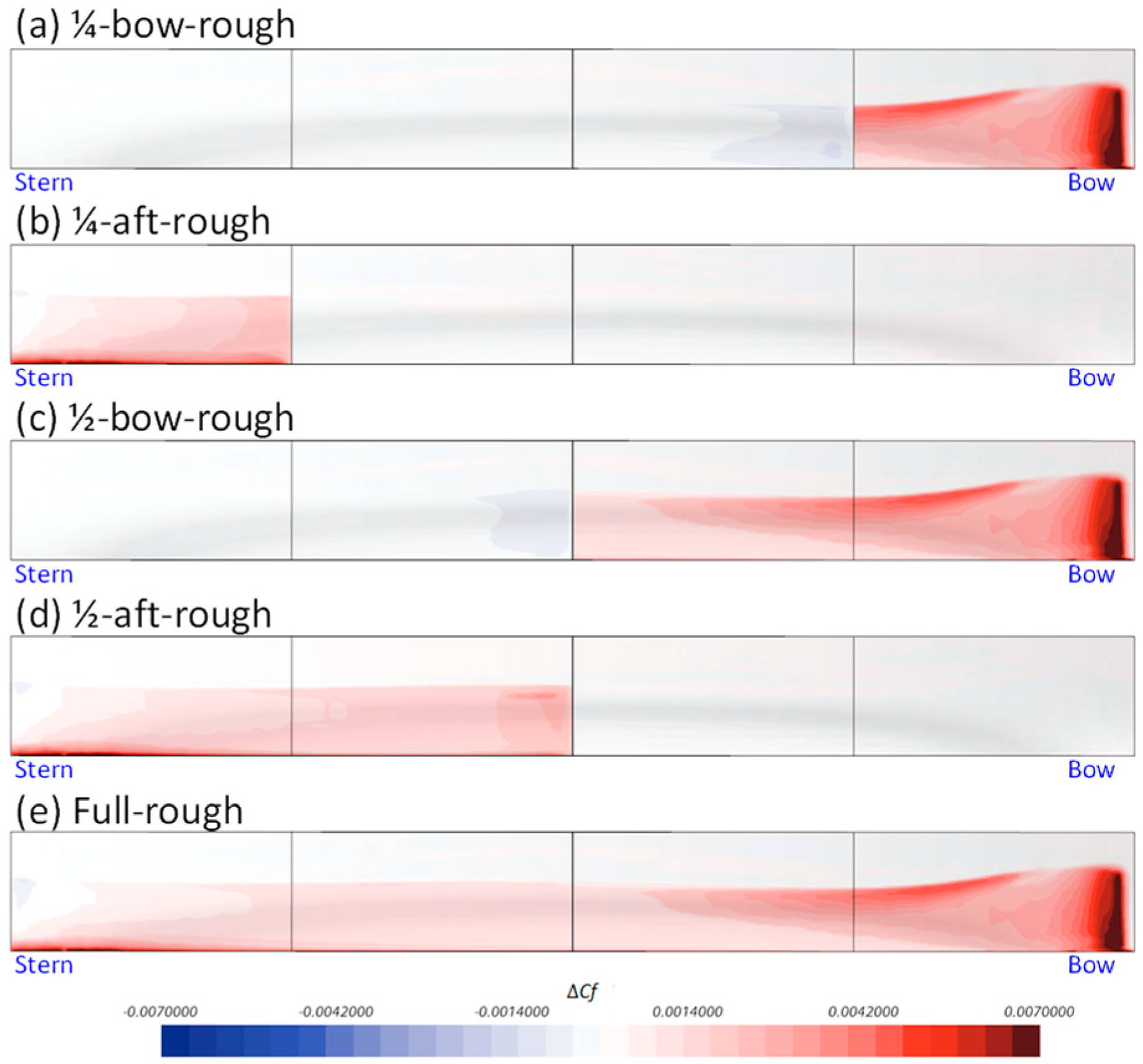

**Figure 13.**Increase in the ${C}_{f}$ on the Wigley hull ($\mathsf{\Delta}{C}_{f}={C}_{f,\text{}\mathrm{rough}}-{C}_{f,\text{}\mathrm{smooth}}$), $Fr=0.3$.

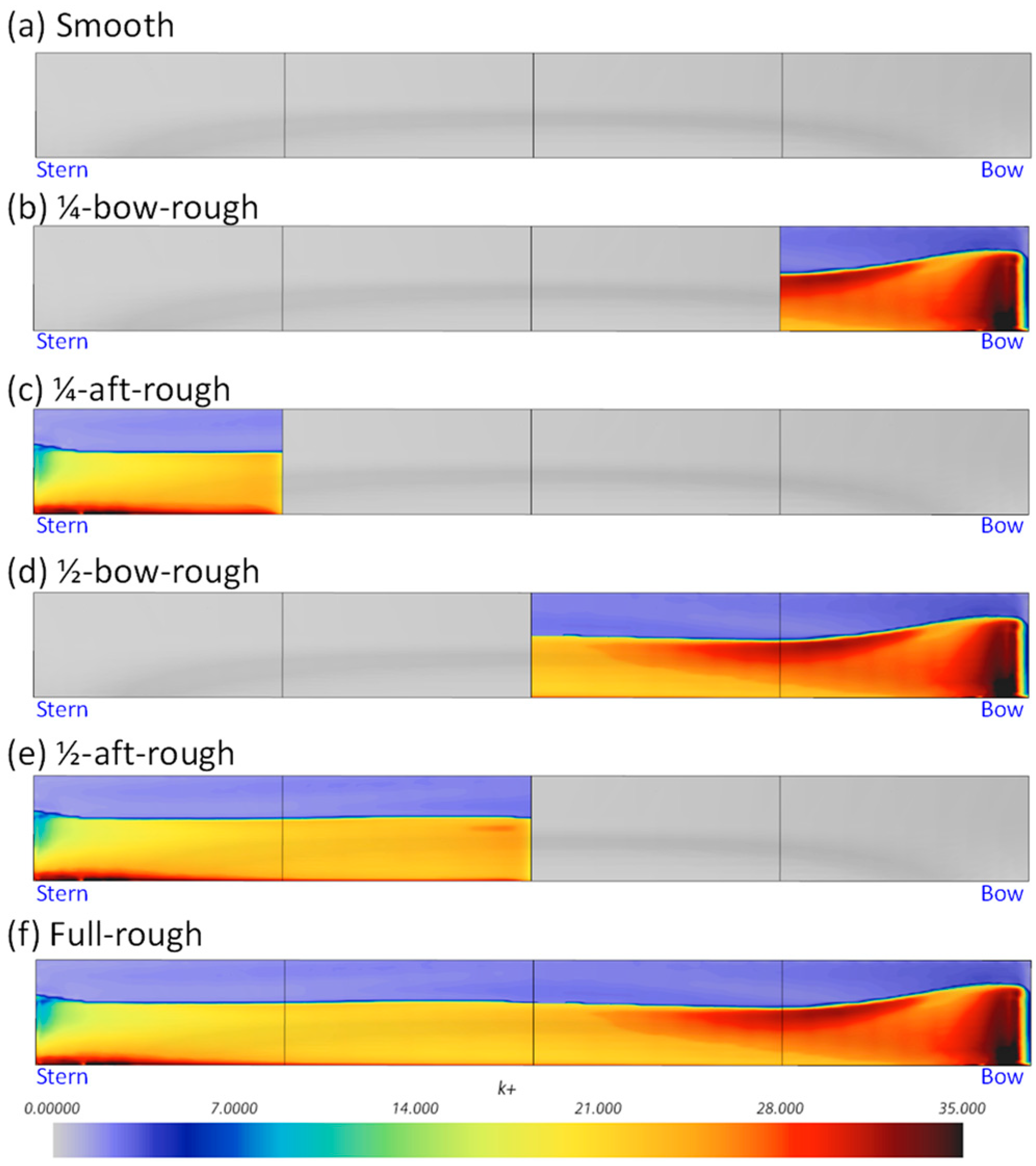

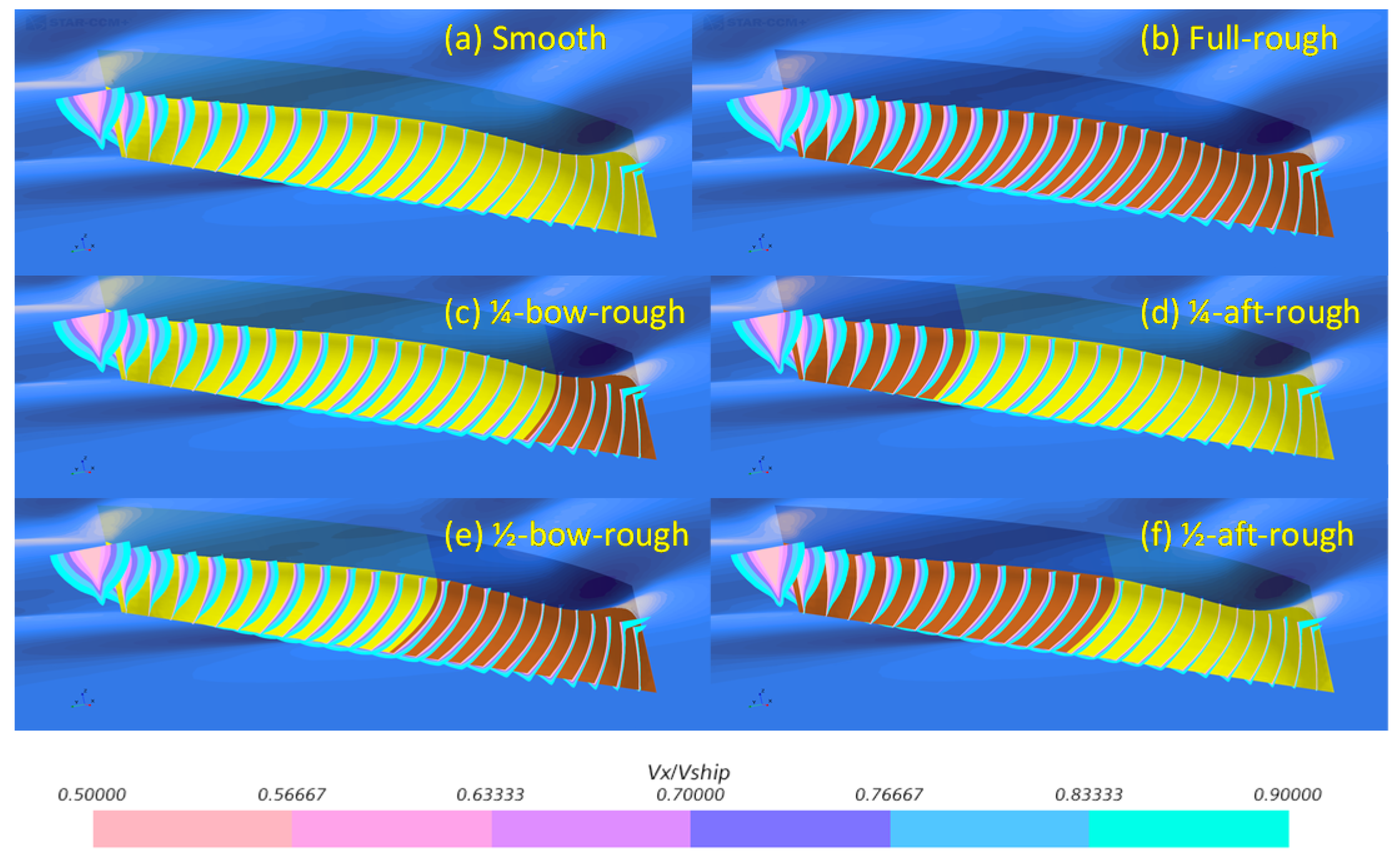

**Figure 15.**Boundary layer represented by slices limited to axial velocity (${V}_{x}/{V}_{ship}=0.9$), $Fr=0.3$.

Length | $L$ (m) | 3.00 |

Beam at waterline | $B$ (m) | 0.30 |

Draft | $T$ (m) | 0.1875 |

Beam/draft ratio | $B/T$ | 1.6 |

Total wetted surface area | $S$ (m^{2}) | 1.3383 |

Wetted surface area of first quarter | ${S}_{Q1}$ (m^{2}) | 0.3066 |

Wetted surface area of first half | ${S}_{H1}$ (m^{2}) | 0.6691 |

Displacement | $\nabla $ (m^{3}) | 0.0750 |

Block coefficient | ${C}_{B}$ | 0.4444 |

Towing speed | $\mathrm{V}$ (m/s) | 1.08–2.17 |

Froude number | $Fr$ | 0.2–0.4 |

Reynolds number | $R{e}_{L}$ | 2.6–5.3 × 106 |

Water temperature | ${T}_{w}$ (°C) | 12 |

**Table 2.**Spatial and temporal convergence study of the Wigley hull simulation, Fr = 0.3, smooth hull.

Spatial Convergence | No.Cells | $\Delta t$
(s) | ${\mathit{C}}_{\mathit{T}}$ | |

Coarse | 414,173 | 0.01 | 5.292 × 10^{−3} | |

Medium | 776,227 | 0.01 | 5.273 × 10^{−3} | |

Fine | 1,587,310 | 0.01 | 5.267 × 10^{−3} | |

${\mathit{U}}_{Grid}$
(Fine) | 0.053% | |||

Temporal Convergence | No.Cells | $\Delta t$
(s) | ${\mathit{C}}_{\mathit{T}}$ | |

Coarse | 1,587,310 | 0.04 | 5.169 × 10^{−3} | |

Medium | 1,587,310 | 0.02 | 5.258 × 10^{−3} | |

Fine | 1,587,310 | 0.01 | 5.267 × 10^{−3} | |

${\mathit{U}}_{\Delta t}$
(Fine) | 0.022% | |||

${\mathit{U}}_{Total}$ | 0.057% |
