Bridge Scour Identification and Field Application Based on Ambient Vibration Measurements of Superstructures

1
Department of Bridge Engineering, School of Transportation, Southeast University, Nanjing 211189, China
2
Department of Civil and Environmental Engineering, Louisiana State University, Baton Rouge, LA 70803, USA
3
Research Institute of Highway Ministry of Transport, Beijing 100088, China
4
School of Sustainable Engineering and the Built Environment, Arizona State University, Tempe, AZ 85281, USA
*
Author to whom correspondence should be addressed.
J. Mar. Sci. Eng. 2019, 7(5), 121; https://doi.org/10.3390/jmse7050121
Received: 16 March 2019 / Revised: 14 April 2019 / Accepted: 18 April 2019 / Published: 26 April 2019
(This article belongs to the Special Issue Coastal Geohazard and Offshore Geotechnics)

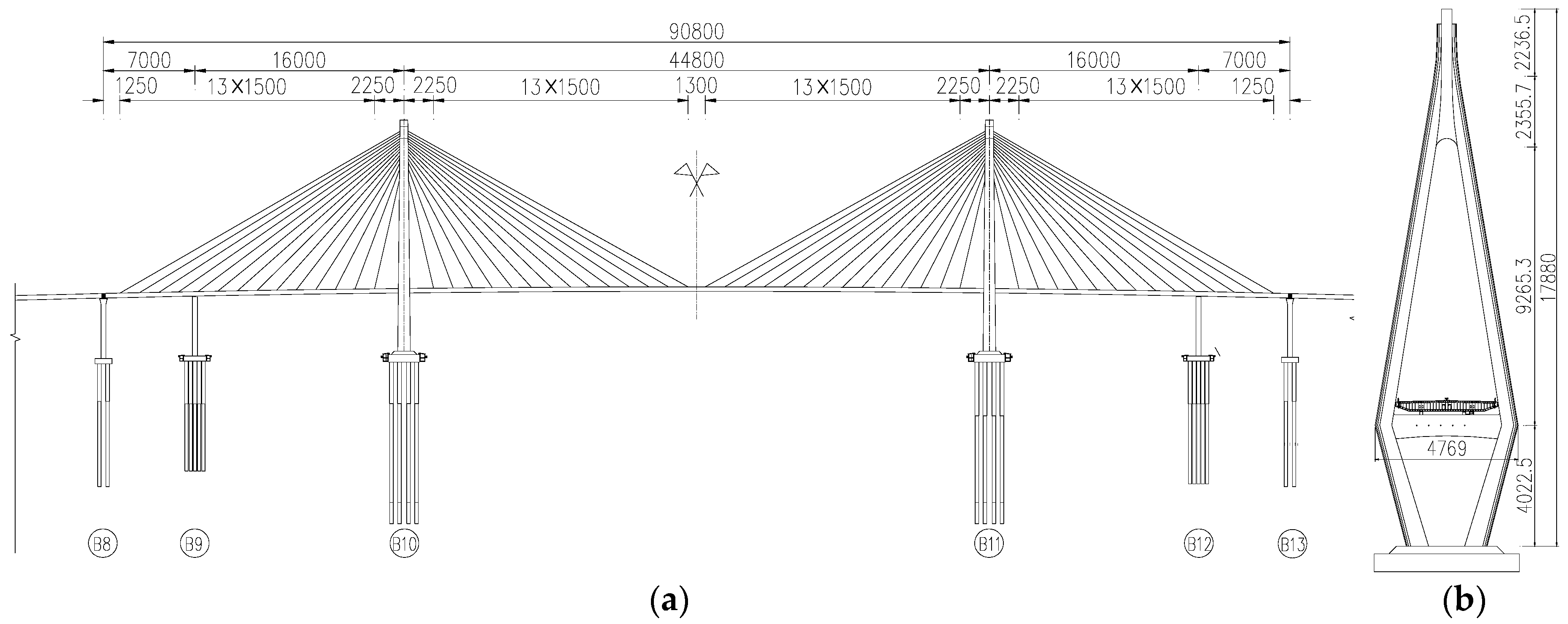

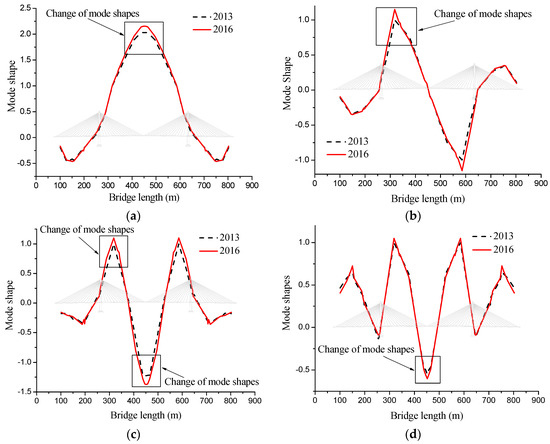

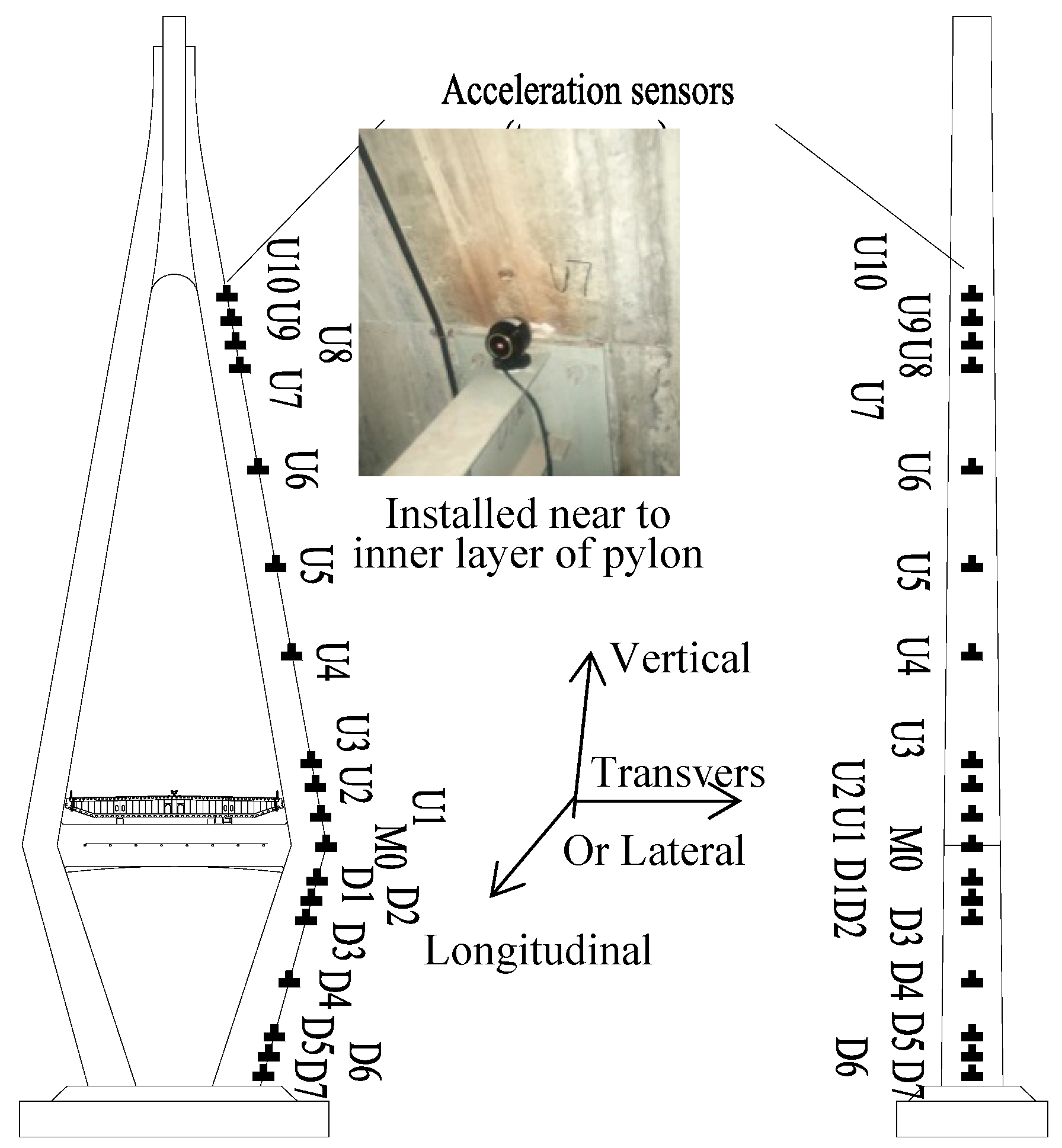

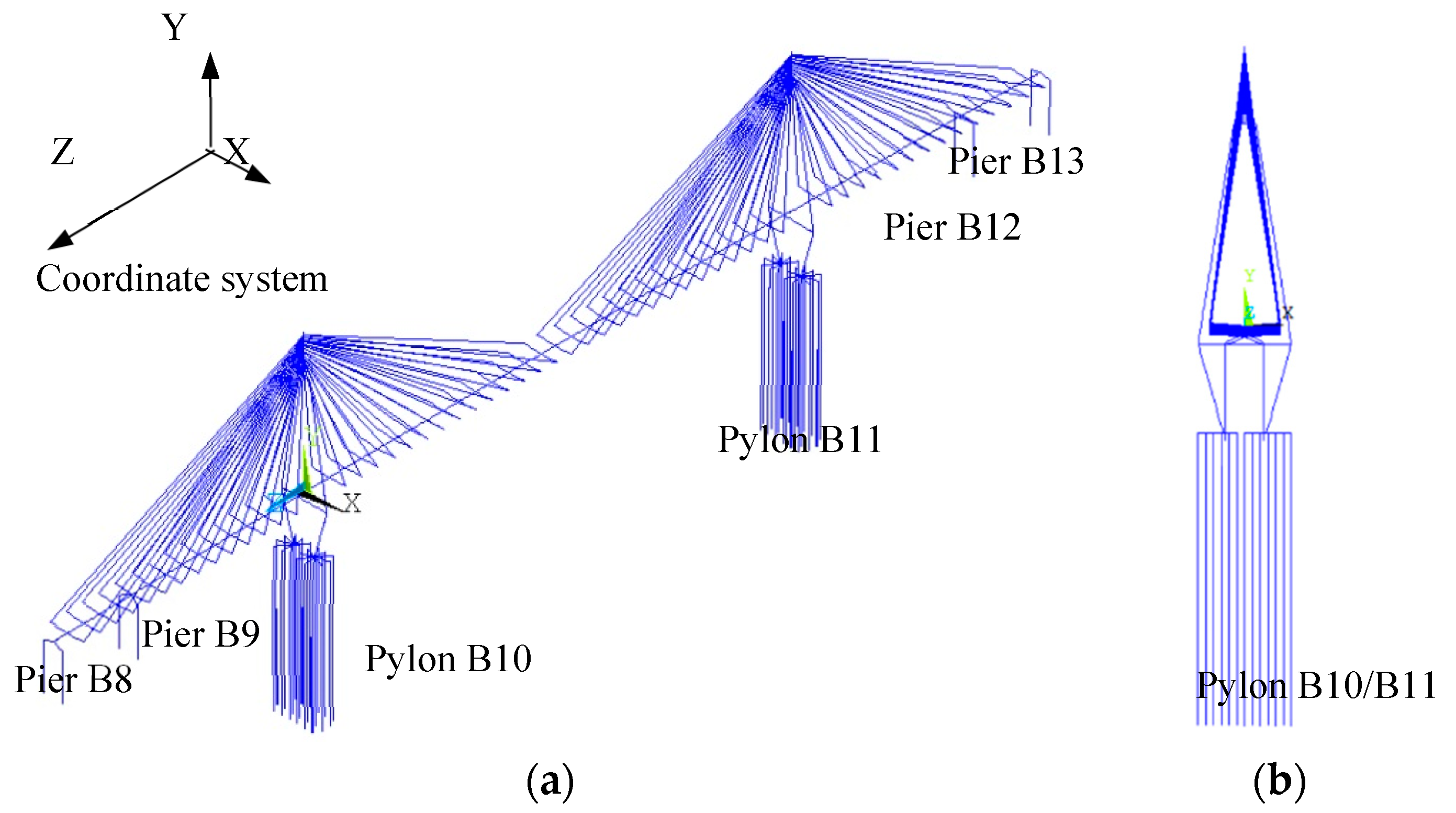

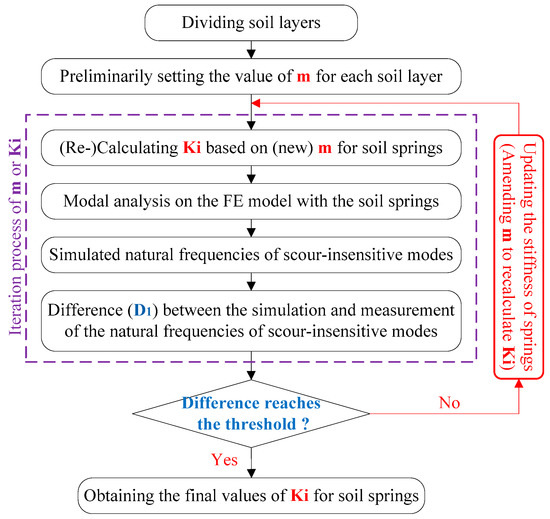

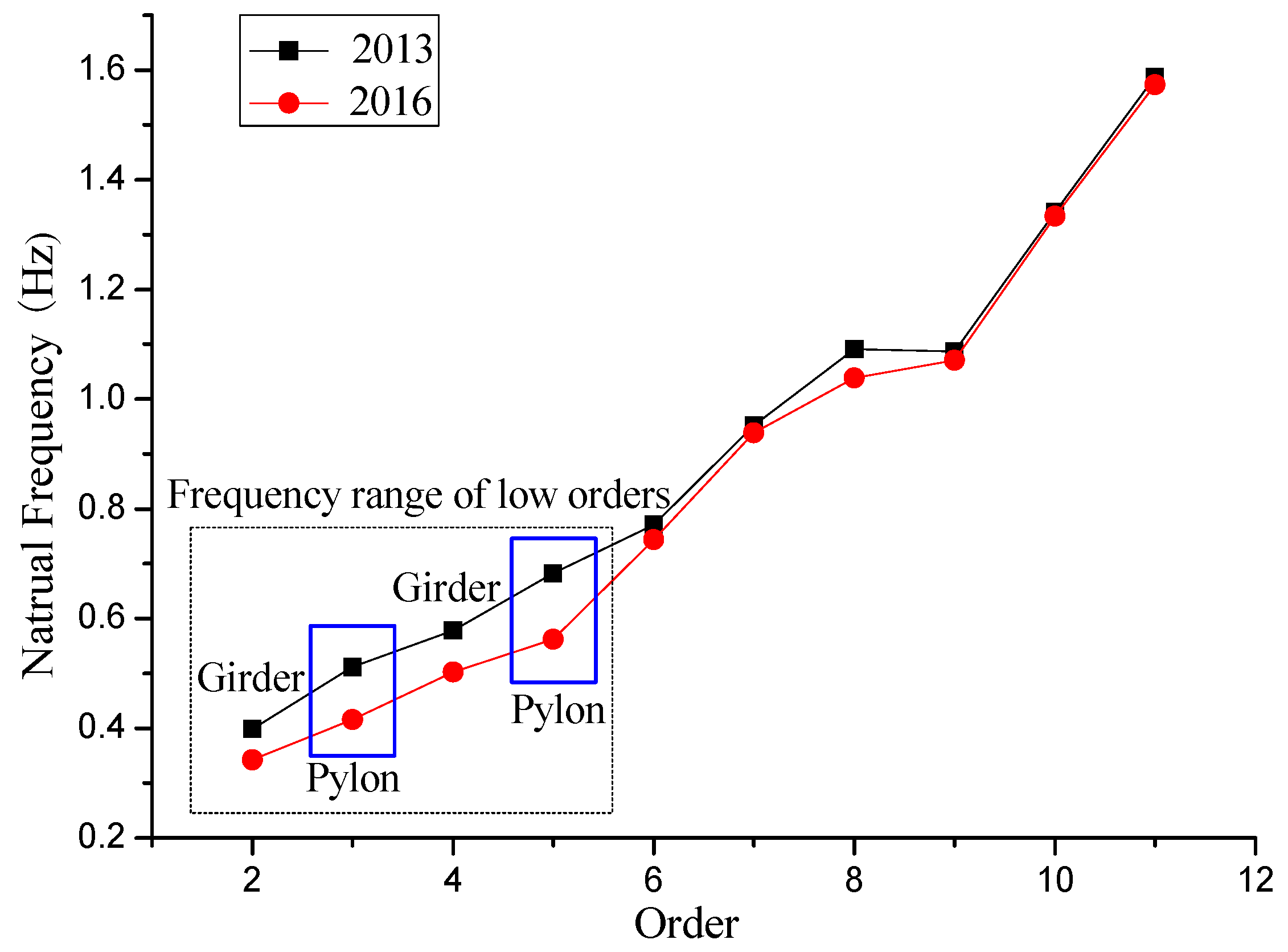

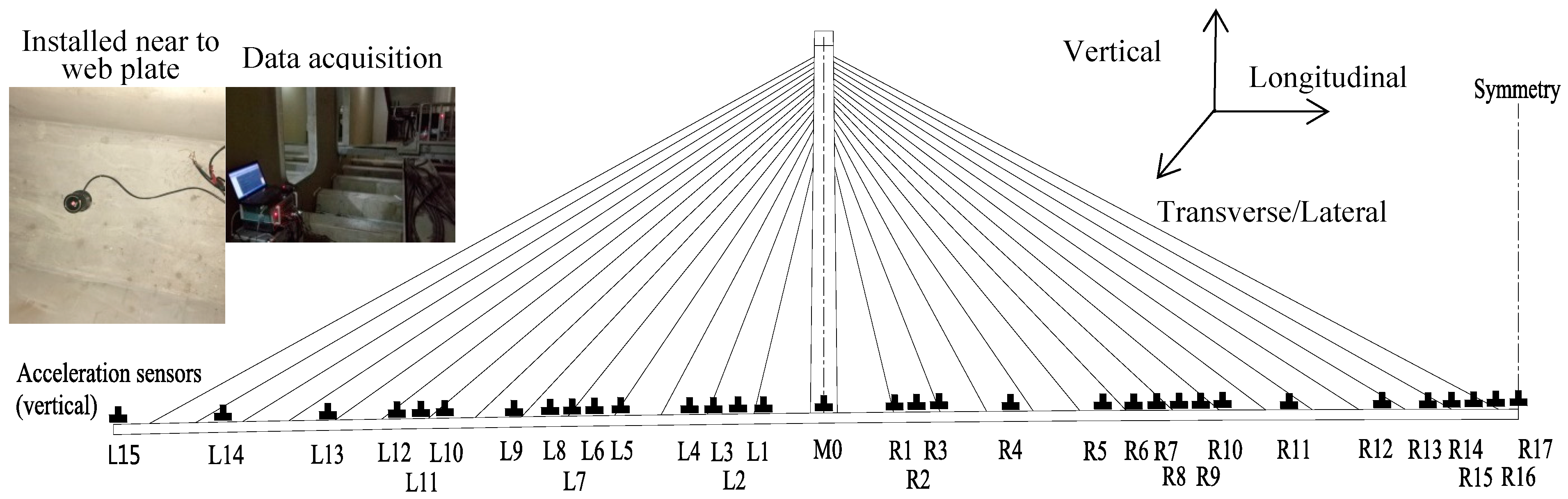

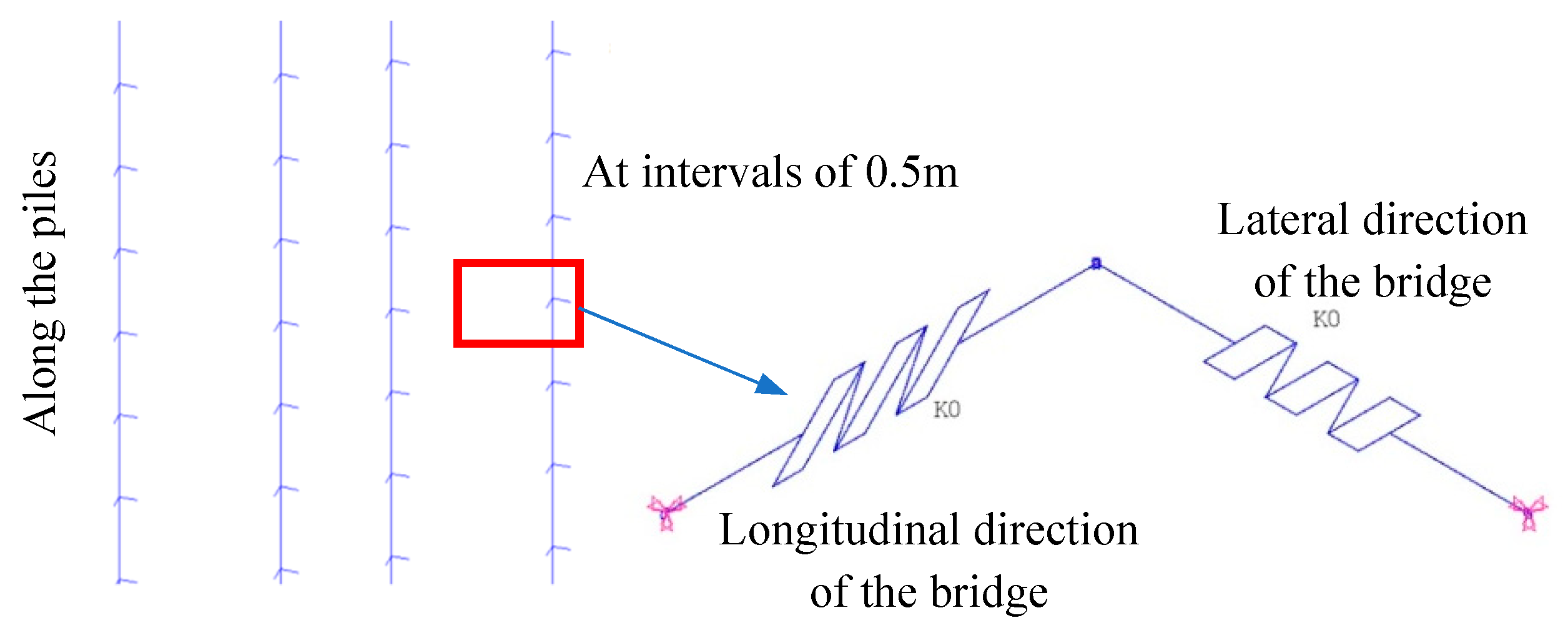

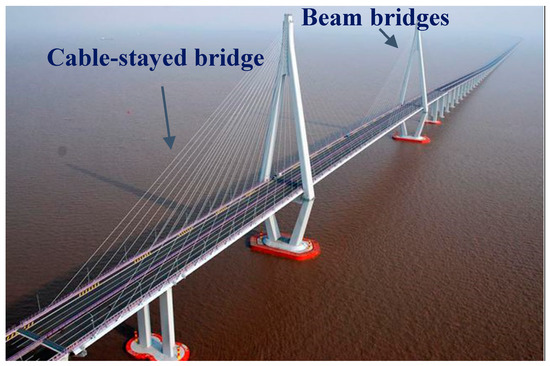

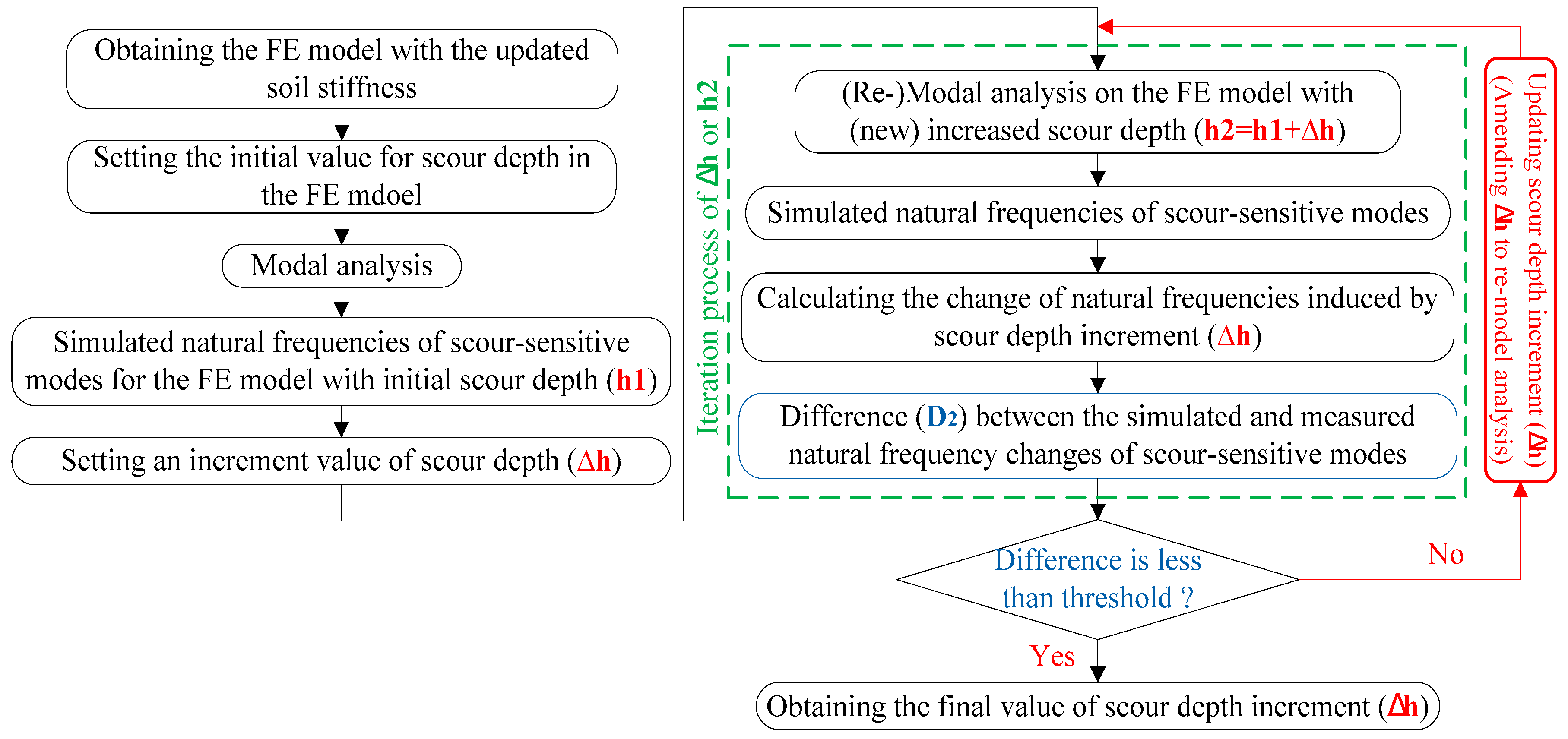

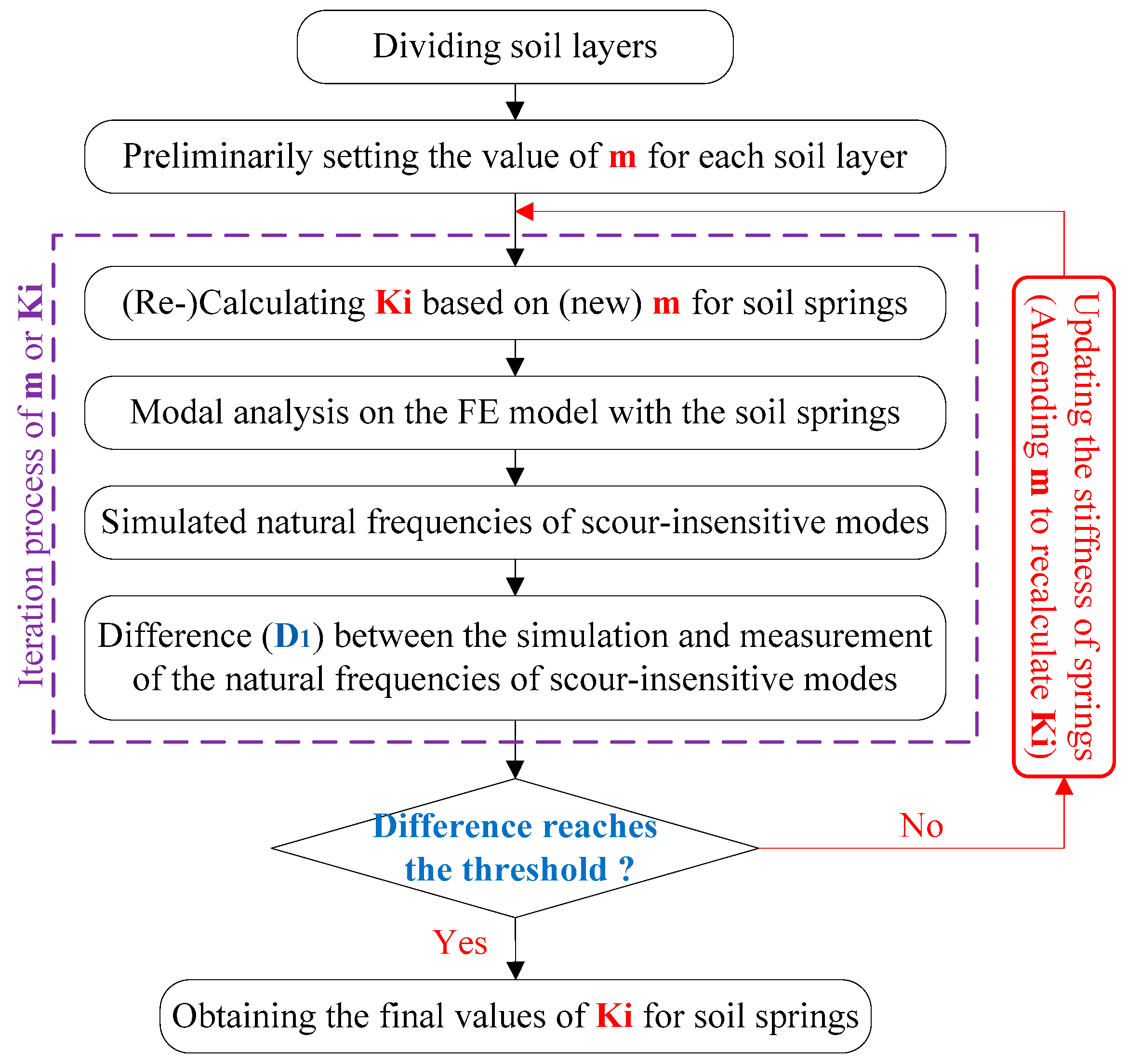

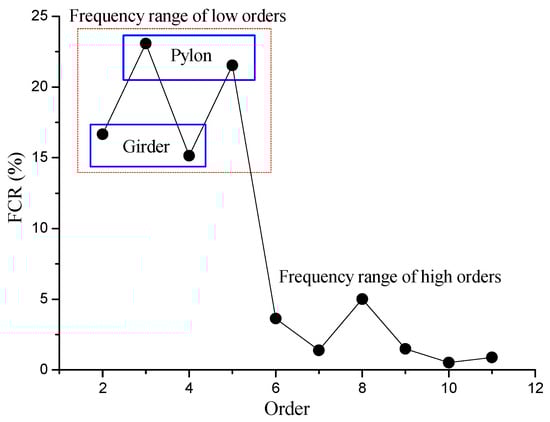

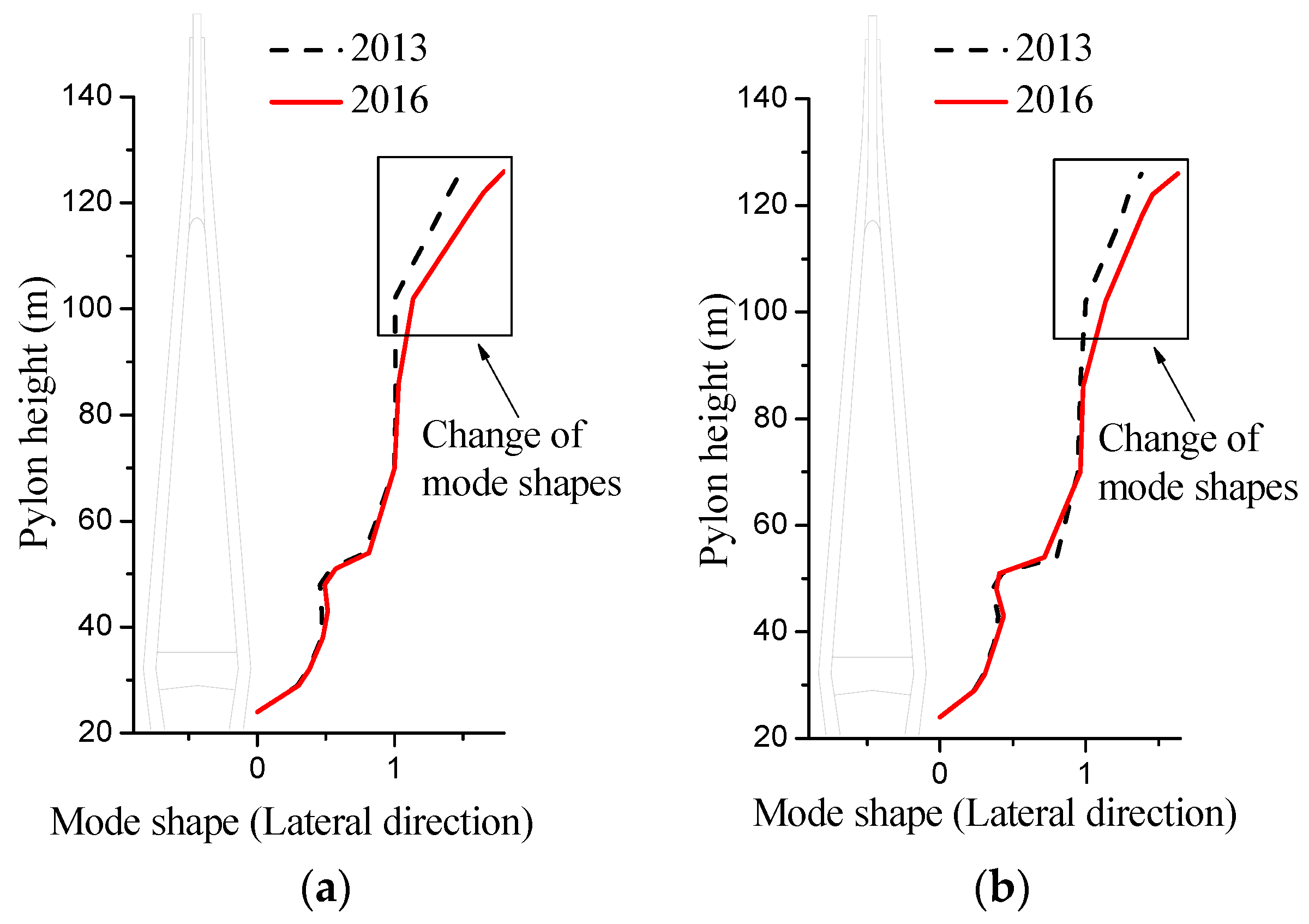

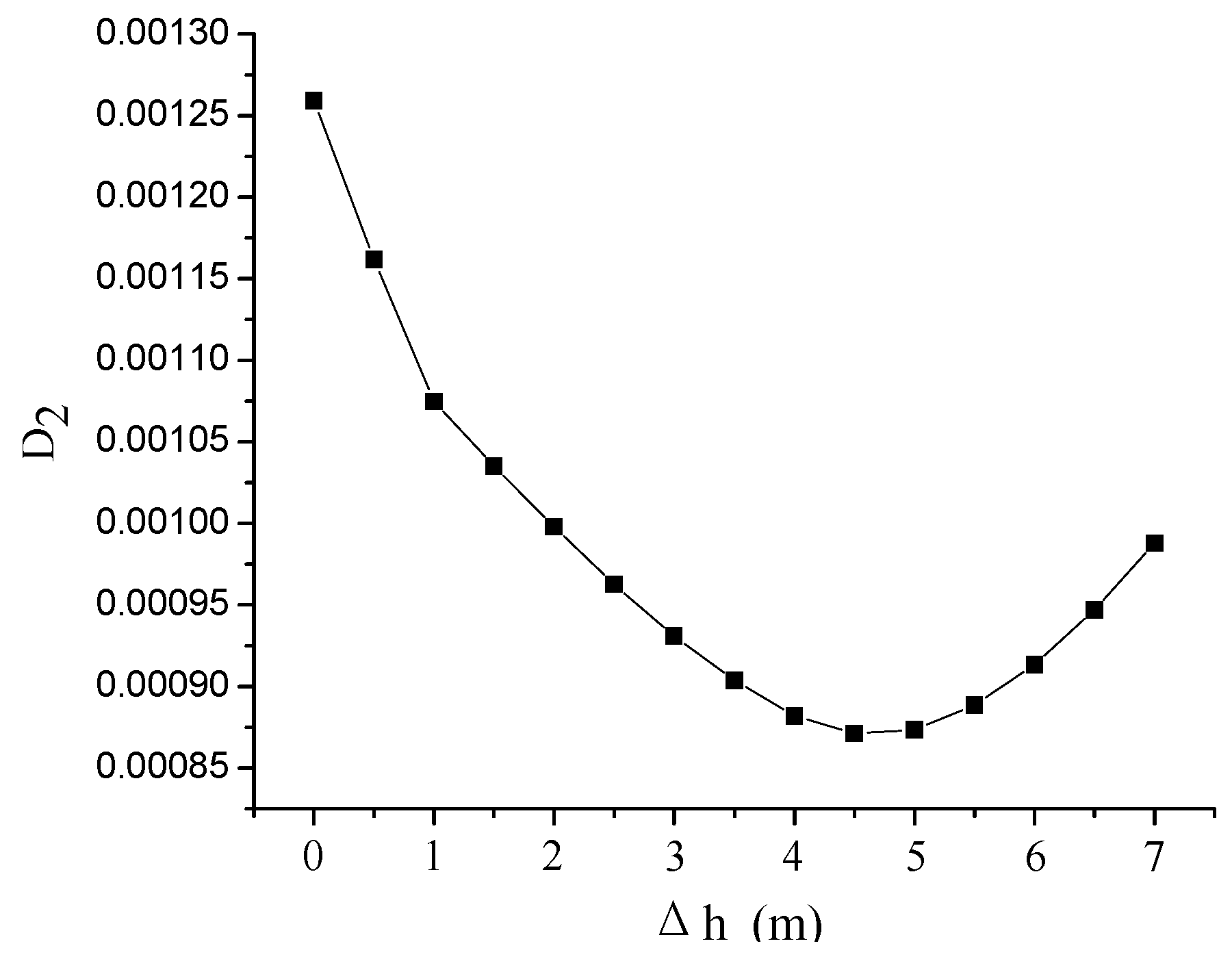

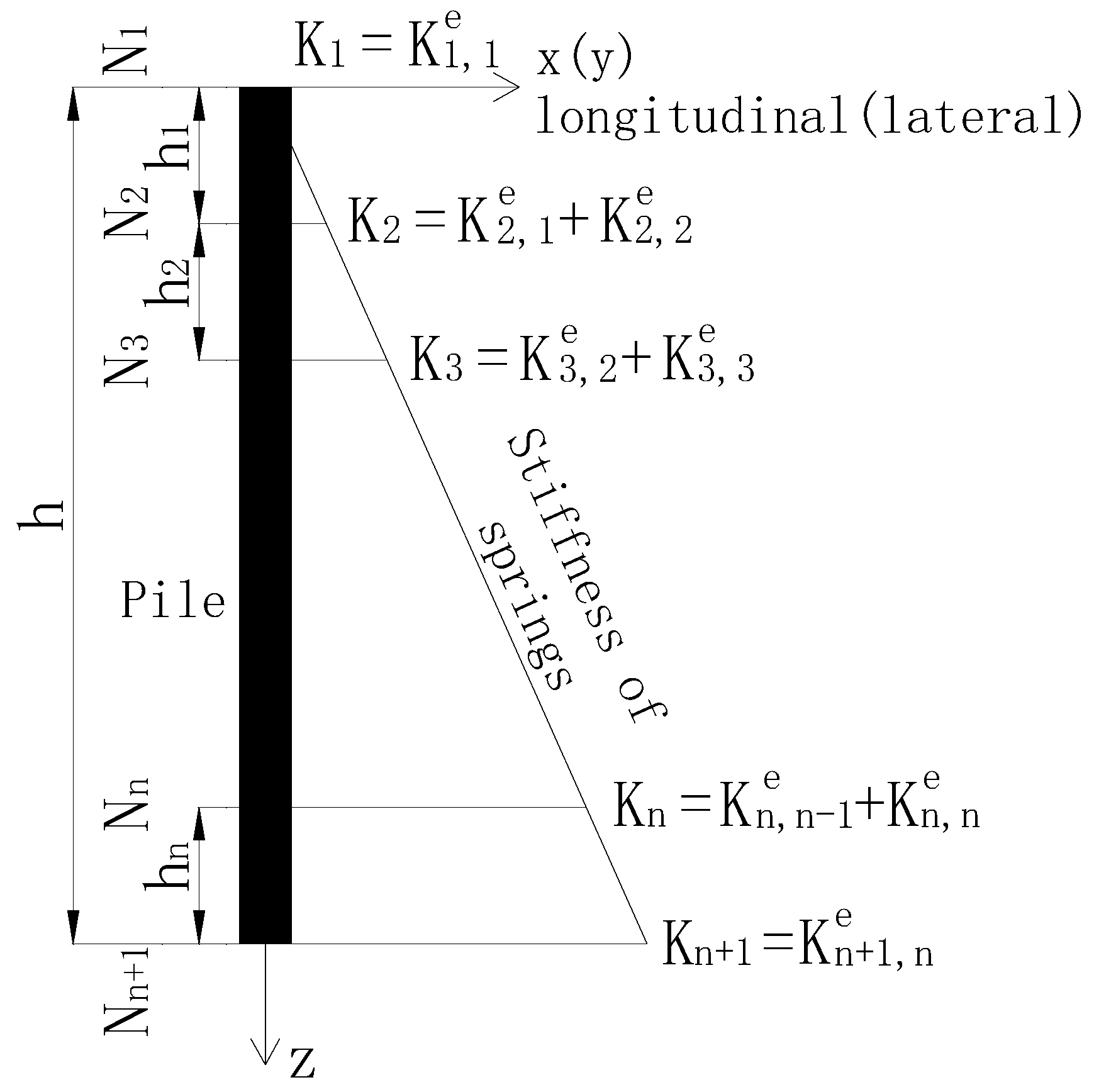

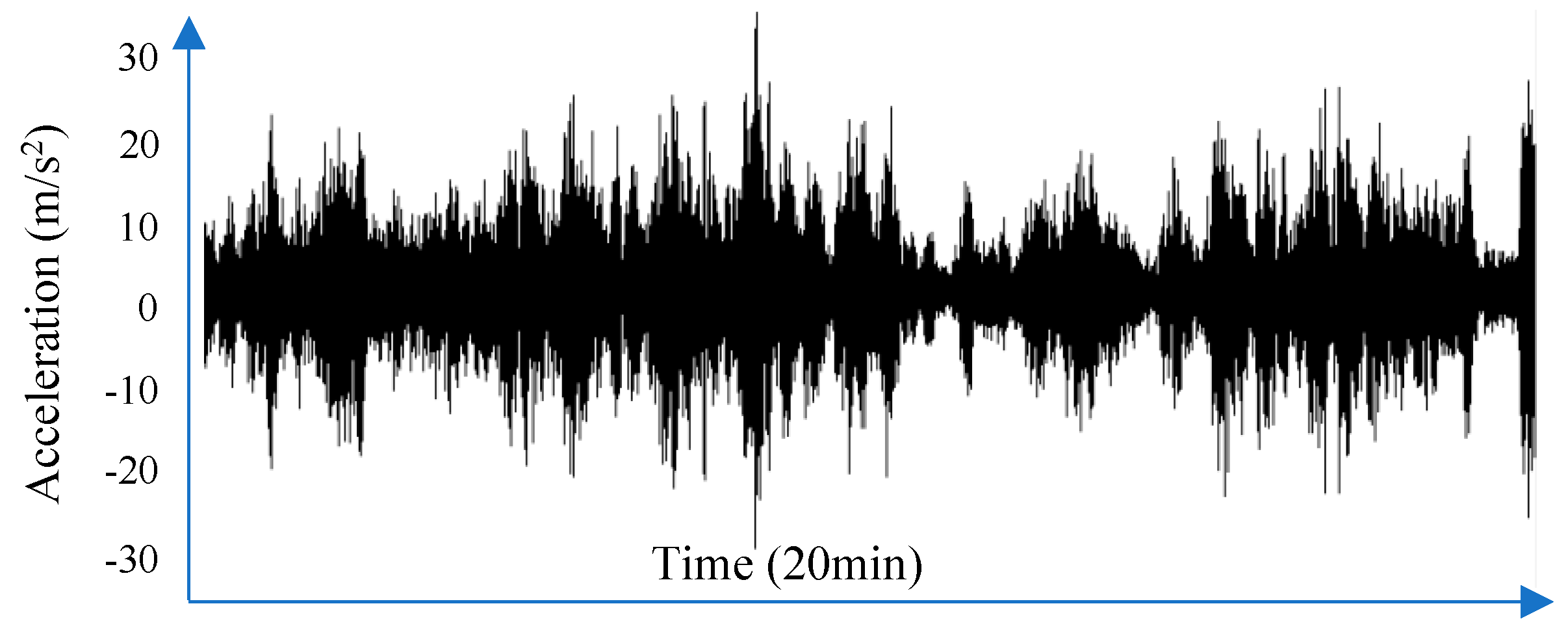

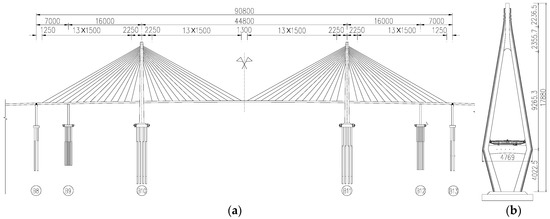

A scour identification method was developed based on the ambient vibration measurements of superstructures. The Hangzhou Bay Bridge, a cable-stayed bridge with high scour potential, was selected to illustrate the application of this method. Firstly, two ambient vibration measurements were conducted in 2013 and 2016 by installing the acceleration sensors on the girders and pylon. By modal analysis, the natural frequencies of the superstructures were calculated with respect to different mode shapes. Then, by tracing the change of dynamic features between two measurements in 2013 and 2016, the discrepancies of the support boundary conditions, i.e., at the foundation of the Hangzhou Bay Bridge, were detected, which, in turn, qualitatively identified the existence of bridge foundation scour. Secondly, an FE model of the bridge considering soil-pile interaction was established to further quantify the scour depth in two steps. (1) The stiffness of the soil springs representing the support boundary of the bridge was initially identified by the model updating method. In this step, the principle for a successful identification is to make the simulation results best fit the measured natural frequencies of those modes insensitive to the scour. (2) Then, using the updated FE model, the scour depth was identified by updating the depth of supporting soils. In this step, the principle of model updating is to make the simulation results best fit the measured natural frequency changes of those modes sensitive to the scour. Finally, a comparison to the underwater terrain map of the Hangzhou Bay Bridge was carried out to verify the accuracy of the predicted scour depth. Based on the study in this paper, it shows that the proposed method for identifying bridge scour based on the ambient vibration measurements of superstructures is effective and convenient. It is feasible to quickly assess scour conditions for a large number of bridges without underwater devices and operations. View Full-Text
Keywords: bridge scour; identification; ambient vibration; field application; natural frequency; mode shape; superstructure; cable-stayed bridge bridge scour; identification; ambient vibration; field application; natural frequency; mode shape; superstructure; cable-stayed bridge
Show Figures

Figure 1

MDPI and ACS Style

Xiong, W.; Cai, C.; Kong, B.; Zhang, X.; Tang, P. Bridge Scour Identification and Field Application Based on Ambient Vibration Measurements of Superstructures. J. Mar. Sci. Eng. 2019, 7, 121.
