Trajectory Tracking of the Operational Movement of a Deep-Sea Collector Based on Virtual Target Vehicle Reference

Abstract

In view of the requirements and characteristics of a deep-sea polymetallic nodule collector’s movements according to a planned path and speed during operation, a collector trajectory tracking system scheme based on virtual target vehicle reference is proposed. In this system, the virtual target vehicle moves according to the planned path and speed, thereby generating a dynamic target path and speed. A fuzzy controller calculates the collector’s angular-velocity command based on the lateral position deviation and the heading-angle deviation between the collector and the target vehicle, and a proportional controller calculates the collector’s body linear velocity control command based on the longitudinal position deviation between the collector and the target vehicle. By integrating these two commands, the collector tracks the target vehicle and thereby realizes trajectory tracking of the planned path and speed. A control system is designed, and simulation studies are carried out. The results show that the designed system enables the collector to track the planned path and speed well under operational conditions. The trajectory tracking method based on virtual target vehicle reference can also form an organic integration of path planning and trajectory tracking, generate dynamic planned paths and speeds for the entire mining area, and realize movement of the collector along the planned path and speed throughout the whole operation.

1. Introduction

Because deep-sea polymetallic nodules are rich in critical minerals such as nickel, cobalt, copper, and manganese, their exploitation has attracted significant international attention. Polymetallic nodules are potato-shaped and partially embedded in deep-sea sediments. During mining, a tracked collector moving over the seafloor sediments collects the nodules through mechanical or hydraulic methods and transports them to a conveying pipeline, which then pumps them to the mining vessel at the surface [1,2]. For this reason, deep-sea polymetallic nodule collectors are also often referred to as deep-sea mining robots [3]. To ensure thorough collection of nodules within the seabed mining area, the collector usually performs full-area traversal during operation, advancing in straight-line loops across the mining field, in a pattern analogous to that of a lawn-mowing operation [4,5]. Due to the length limitation of the flexible hose, the collector must turn back after moving in a straight line for approximately 600 m on the seabed. At the same time, because both the bearing capacity and shear strength of seabed sediments are relatively low [6,7], the collector generally performs turning maneuvers along circular-arc paths with a relatively large turning radius during each reversal [8,9], to prevent slipping and sinkage [10]. Before mining deep-sea polymetallic nodules, it is necessary to plan and design the collector’s movement path and speed according to the above requirements. Depending on the relative arrangement of the turning arcs and the straight outbound–return lines, the planned paths are mainly classified into two types: the “keyhole type” [11] and the “bulb type” [12]. During polymetallic nodule mining operations, the collector is required to move along the planned path; therefore, the collector’s movement during operation is also a process of tracking and executing the planned path and speed.

As a key technology in deep-sea polymetallic nodule mining, considerable research has been conducted on path tracking for the operational movement of collectors.

In terms of path tracking methods and strategies, Yoon et al. adopted a pure pursuit–based approach, in which preview points on the target path are continuously selected and updated, and the collector’s movement speed and angular velocity are adjusted to approach the preview points, yielding good simulation and experimental results [13]. Yeu et al. proposed a path-tracking algorithm for the collector to track a predefined path using a vector tracking method [14]. Mao et al., based on the principle of the Stanley method, proposed an algorithm that regulates the speed difference between the collector’s two tracks according to the heading deviation to perform target path tracking, and verified the feasibility of the method through simulations [15].

More studies have focused on control algorithms for reducing the deviation between the collector and the desired path. Commonly used methods include fuzzy control, model predictive control (MPC), and sliding mode control (SMC), as well as combined applications of different control approaches. Regulating the vehicle’s angular velocity according to the heading angle deviation and path deviation between the vehicle body and the target path is a common method for path tracking of tracked vehicles, and the dual-input, single-output structure of conventional fuzzy controllers fits this characteristic well. Therefore, fuzzy control algorithms have been widely applied in studies on collector path tracking [16,17,18]. To improve control accuracy, Li et al. adopted a variable-universe method in the design of the fuzzy controller [17], while Dai et al. applied a fuzzy adaptive PID control method to directly compute the collector’s track velocities and velocity ratio [18]. However, in the fuzzy PID controller designed by Mao for path tracking, the input variables were the heading angle deviation between the collector and the target path and its rate of change [15]. Cao [19] and Wu [20] conducted MPC-based studies on path tracking for deep-sea collectors. After linearizing and discretizing the kinematic model of the tracked collector, they constructed a predictive model by selecting the prediction horizon according to the MPC approach, formulated a quadratic performance evaluation function, performed rolling optimization, and carried out error correction. Simulation analyses verified the effectiveness of the proposed algorithms. Chen et al. combined SMC and MPC for the collector’s path tracking [21]. First, a sliding-mode control law was designed to enable rapid convergence of trajectory tracking errors, and then MPC was used to perform predictive optimization of the control law. Simulation results show that this combined control method can not only improve path tracking accuracy but also suppress the chattering caused by using sliding-mode control alone. In comparison, various control methods have their own advantages and disadvantages when applied to trajectory tracking of collector. The PID method is classic and mature, but it is not very convenient for handling multi-input issues in trajectory tracking; The SMC algorithms can achieve fast tracking by quickly converging within the sliding mode surface, but high-frequency chattering near the sliding mode surface will exacerbate vehicle slippage on the seabed. MPC can optimize control performance by predicting future conditions, but it is highly dependent on the accuracy of the system model and involves complex algorithms with large computational requirements. Fuzzy control does not rely on precise system mathematical models, making it more suitable for engineering applications. However, the inference rules are formulated based on experience, which makes it difficult to achieve high-precision tracking.

Some studies have paid attention to issues such as track slippage during the collector’s movement on seabed sediments, but most of them remain at the level of making corrections based on assumptions or estimations—for example, applying slip-ratio compensation to the computed track velocities [16,17], or limiting the collector’s maximum angular velocity [15,20]. Chen et al. proposed a path-tracking method that compensates for the collector’s longitudinal deviation. Based on the Stanley tracking principle, they used a PD control algorithm to correct the lateral deviation between the collector and the target path, while employing an unscented Kalman filter to estimate and compensate for longitudinal offsets caused by slippage and other factors. Simulation analysis demonstrated that this method can reduce longitudinal deviation and heading-angle deviation during path tracking [22]. Qihang Chen et al. established a collector dynamic model that accounts for nonlinear slip and random resistance, and designed a path-tracking controller based on the deep deterministic policy gradient algorithm. Through simulation and experimental studies, they showed that stable and rapid path-tracking performance can be achieved under conditions closer to actual mining operations [23].

Overall, considerable research has been conducted on path tracking for deep-sea collectors. Most of these studies are rooted in the foundations and developments of path-tracking research for land vehicles, verifying the feasibility of applying such methods to deep-sea collector path tracking, while also revealing issues that require further investigation. For example, regarding path-tracking methods, the pure pursuit method uses a circular-arc route to move toward preview points, which may provide smooth turning advantages when tracking straight-line paths [11]; however, during collector operations, large-curvature turning along circular arcs is frequently required, making the selection of preview points inconvenient. The Stanley tracking method, on the other hand, was originally proposed for wheeled vehicles and is not suitable for direct application to tracked collectors. In terms of control algorithms for reducing path deviation, sliding-mode control may exhibit robustness to certain uncertain variations in the system (such as disturbances caused by track slippage), but the high-frequency switching required near the sliding surface may aggravate track slippage on the seabed and increase disturbance to the sediment [24]. The model predictive control method improves path-tracking performance by predicting future states, but it relies heavily on the accuracy of the system model. The nonlinear characteristics of the collector’s movement dynamics make the model and algorithm complex, which affects their practical engineering application. On the other hand, although phenomena such as track slippage during seabed movement of collectors objectively exist [25], current research on the interaction between tracks and seabed sediments remains immature. Slip coefficients adopted based on assumptions cannot represent the varying slippage conditions, and some established dynamic models cannot accurately reflect the mechanisms and patterns of slippage. Moreover, the algorithms are complex and computationally intensive, making them difficult to apply to the real-time control of deep-sea collectors.

From the existing literature, most of these studies focus solely on eliminating the deviation between the vehicle body and the target path, which falls under path tracking in vehicle motion-control research. However, during deep-sea polymetallic nodule mining operations, the collector must maintain a certain speed during straight-line movement to ensure nodule production capacity [26], while the movement speed must be reduced during turning maneuvers to avoid slippage [27]. Therefore, the operational movement of deep-sea collectors must track not only the planned path but also the planned speed, which constitutes trajectory tracking of the planned path. From the perspective of planned path characteristics, polymetallic nodules are generally located on deep-sea plains below 4 km. Although features such as trenches or seamounts may also be present, the slope of actual mining areas is generally less than 5%, and the collector’s movement during operation is a planar motion. Regarding path characteristics, each outbound-and-return trip includes straight lines required by the traversal operation as well as turning arcs with large curvature. At the scale of the entire mining area, the collector moves repeatedly along the same planned path. In terms of movement control, GPS information is not available in the deep sea, and collectors rely on acoustic and inertial navigation technologies for positioning and navigation. The controllers and actuators must also meet the requirements of the deep-sea environment. As a result, the application of some advanced trajectory-tracking methods and technologies used in land vehicles is constrained when applied to deep-sea collectors.

Based on the characteristics of the planned movement path for collector mining operations and the operational conditions of the deep-sea environment, this paper proposes a trajectory-tracking method for the collector to track the planned path and speed, using virtual target vehicle reference. Fuzzy control and proportional control algorithms, which are convenient for engineering implementation, are employed to regulate the collector’s angular velocity and linear velocity, enabling the collector to move according to the planned path and speed throughout the entire operation.

2. Trajectory-Tracking Scheme for Implementing the Planned Path Based on Virtual Target Vehicle Reference

2.1. Trajectory-Tracking Method for the Planned Path Based on Virtual Target Vehicle Reference

The pure pursuit method, the Stanley method, and the vector tracking method all belong to geometric approaches. They perform path tracking by gradually selecting preview points along the target path and moving toward those points. Their basic idea can be summarized as the so-called “carrot-chasing method”: moving a carrot slowly in front of an animal to induce it to move toward the carrot’s position. As a geometric approach, these tracking methods do not consider the moving speed of the carrot, and as a point, it has neither a heading angle nor an angular velocity. Clearly, for trajectory tracking of a large collector operating along complex paths that require frequent turning, such information is insufficient. To address this issue, a trajectory-tracking scheme for implementing the planned path based on virtual target vehicle reference is proposed. In this scheme, on one hand, a virtual target vehicle with the same structure and performance characteristics as the collector is constructed. This virtual target vehicle moves according to the planned path and speed preset by the mining process, thereby forming the dynamic planned movement path and speed of the collector’s operation. On the other hand, the collector minimizes its position and heading-angle deviations from the target vehicle by adjusting its own movement speed and angular velocity according to the real-time deviations in position and heading angle between the two, thus achieving trajectory tracking of the planned path. Figure 1 illustrates the trajectory-tracking method for the planned path based on virtual target vehicle reference. In the figure, P_m(x_m,y_m,θ_m) and P_s(x_s,y_s,θ_s) represent the positions and heading angles of the target vehicle and the collector, respectively. Compared with geometric tracking methods, the virtual target vehicle is not just a moving geometric point; it can continuously provide the required angular velocity and heading angle for moving along the planned path. Additionally, the collector’s tracking and approach to the target vehicle are not only based on the positional deviation between the collector and the target path but also refer to the heading angle deviation between the collector and the target vehicle. The goal of trajectory tracking is no longer just a series of isolated preview points along the target path, but a continuously planned path formed according to the preset path and speed. Therefore, the method based on virtual target vehicle reference is expected to achieve better tracking performance.

2.2. Kinematic Model of the Collector and the Virtual Target Vehicle

Following the general practices in vehicle trajectory tracking research, a vehicle’s kinematic model can be established based on its own control and transmission structure by ignoring factors such as vehicle sliding or treating these factors as external disturbances. As introduced earlier, the collector typically uses track-type walking systems, and the underwater mining area can be considered a plane; therefore, the kinematic model of the collector during underwater operations is established as shown in Equation (1). Since it is assumed that the virtual target vehicle and the collector have the same structure and performance, they also have the same kinematic model.

$$\left\{\begin{array}{c}x\left(t\right)={\displaystyle {\int }_0^t{V}_0}(t)\cos \theta (t)\mathrm{d}t\\ y(t)={\displaystyle {\int }_0^t{V}_0}(t)\sin \theta (t)\mathrm{d}t\\ \theta (t)={\displaystyle {\int }_0^t{\omega }_0}(t)\mathrm{d}t\end{array}\right.$$

(1)

In the above equation, V₀ denotes the linear velocity at the collector’s center of mass, ω₀ denotes its angular velocity, and t represents time.

Both the collector and the target vehicle are tracked vehicles, whose straight-line moving or turning is controlled by the speed difference between the left and right tracks. As shown in Figure 2, when slippage is not considered, or when slippage is treated as an external disturbance in the control model, the relationship among the center velocity V₀, angular velocity ω₀, and the left and right track speeds V_L and V_R is given by

$$V_0={\displaystyle \frac{V_{\mathrm{L}}+V_{\mathrm{R}}}{2}}$$

(2)

$${\omega }_0={\displaystyle \frac{V_{\mathrm{R}}-V_{\mathrm{L}}}{D}}$$

(3)

In the above equations, D is the distance between the centers of the two tracks. From (2) and (3), it can be seen that once the center velocity and angular velocity of the collector are determined, the movement speeds of the left and right tracks are also determined. Therefore, in the motion control of the collector, its center velocity and angular velocity can be taken as the control variables.

2.3. Pose Deviation Between the Collector and the Virtual Target Vehicle

In Figure 1, P_s(x_s,y_s,θ_s) and P_m(x_m,y_m,θ_m) represent the positions and heading angles of the collector and the target vehicle in the geodetic coordinate system, respectively. Their position and heading-angle deviations can be expressed as

$$P=P_m-P_s=\left[\begin{array}{c}{x}_m-x_s\\ y_m-y_s\\ {\theta }_m-{\theta }_s\end{array}\right]$$

(4)

However, during trajectory tracking, since the onboard acoustic beacons, inertial navigation systems, side-scan sonars, controllers, hydraulic motors, and other actuators are all mounted on the collector, it is more convenient to make trajectory-tracking decisions and implement control from the collector’s perspective—namely, based on the position and heading-angle deviations between the collector and the target vehicle expressed in the collector’s body coordinate system. Therefore, the pose deviation between the collector and the target vehicle in the geodetic coordinate system must be transformed into the pose deviation between the two in the collector’s coordinate system. According to the transformation method of planar Cartesian coordinate systems, the position and heading-angle deviations between the collector and the target vehicle in the collector’s coordinate system can be expressed as

$$P_e=\left[\begin{array}{c}{x}_e\\ y_e\\ {\theta }_e\end{array}\right]=\left[\begin{array}{ccc}\cos \left({\theta }_s\right)& \sin \left({\theta }_s\right)& 0\\ -\sin \left({\theta }_s\right)& \cos \left({\theta }_s\right)& 0\\ 0& 0& 1\end{array}\right]\left[\begin{array}{c}{x}_m-\\ y_m-\\ {\theta }_m-\end{array}\begin{array}{c}{x}_s\\ y_s\\ {\theta }_s\end{array}\right]$$

(5)

where x_e, y_e and θ_e denote the position and heading-angle deviations between the collector and the target vehicle in the collector’s coordinate system.

2.4. Control Algorithms for Reducing Pose Deviation

In the tracking method proposed in this paper, the virtual target vehicle moves according to the planned path and speed. If tracking control enables the pose deviation between the collector and the virtual target vehicle to reach zero, trajectory tracking of the planned path is thereby achieved. According to Equation (5), the pose deviation consists of the longitudinal position deviation x_e, the lateral position deviation y_e, and the heading-angle deviation θ_e. Although, in principle, these three deviations could be used as input variables to design a trajectory-tracking controller, such a controller would inevitably become complex. From Figure 1, the lateral deviation y_e represents the distance between the collector and the planned path, while the heading-angle deviation θ_e is the key factor for path correction. The planned path can be tracked based on these two deviations. The longitudinal deviation x_e represents the distance between the collector and the target vehicle along the direction of the planned path. If x_e remains zero, it indicates that the collector and the target vehicle are moving at the same speed; therefore, x_e can be used to control the collector’s tracking of the planned speed. This approach—separately tracking the planned path and the planned speed—can substantially reduce the complexity of the controller.

Regarding control algorithms, although various approaches have been explored, limitations still exist when considering engineering applications in deep-sea mining operations. In comparison, the dual-input single-output structure of the conventional fuzzy controller is highly suitable for designing a controller that adjusts the collector’s angular velocity based on the lateral position deviation and heading-angle deviation. Moreover, this method directly computes control commands from the path and heading-angle deviations without relying on the dynamic model of the collector’s movement, providing good operability and robustness. On the other hand, adjusting the collector’s movement speed according to longitudinal position deviation is physically intuitive. From a control perspective, constructing a proportional controller that uses longitudinal position deviation as the input variable is not only simple but also efficient and practical.

2.5. Trajectory-Tracking System for the Planned Path Based on Virtual Target Vehicle Reference

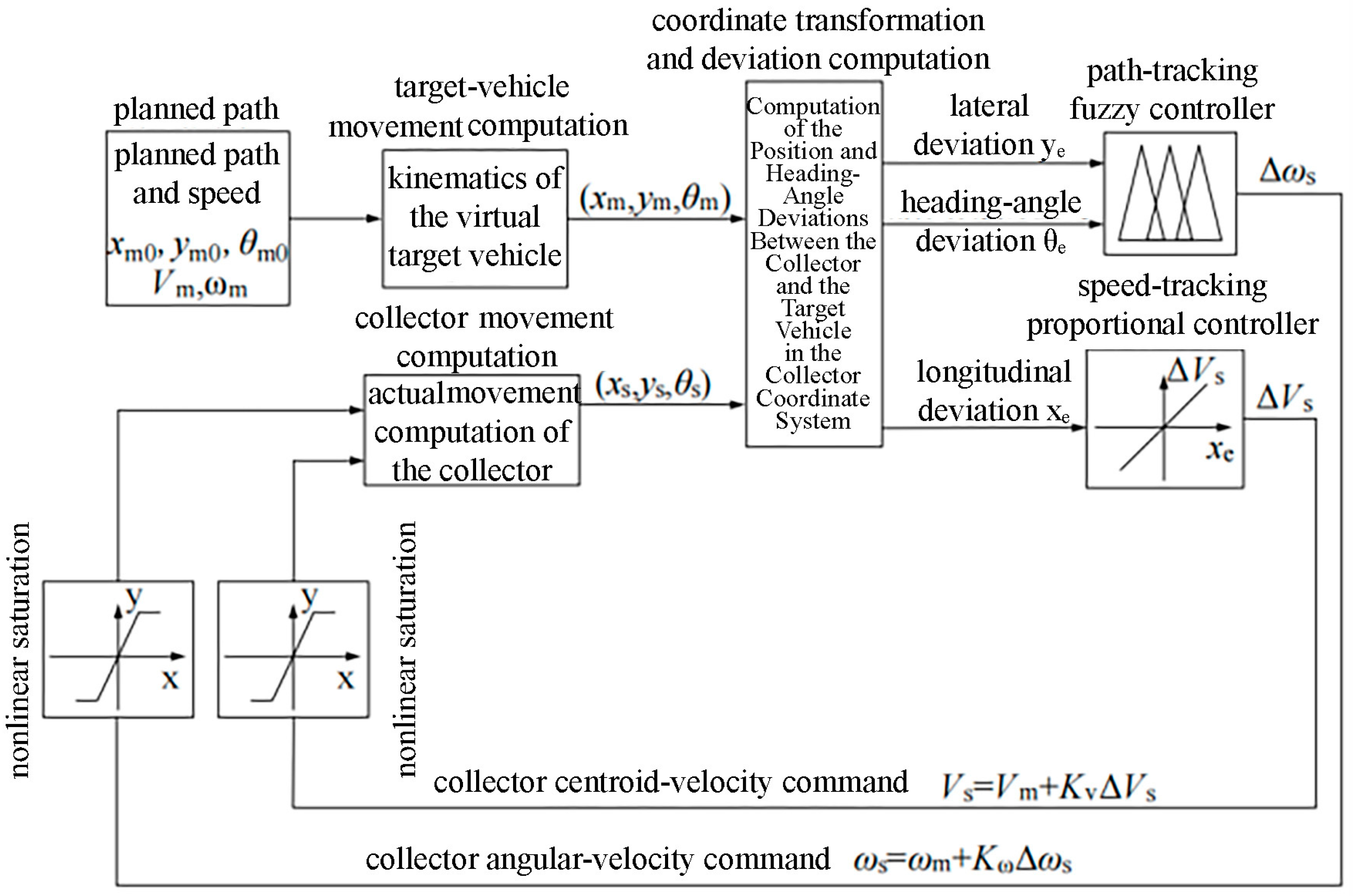

According to the proposed tracking method and the analysis of the control algorithms, a trajectory-tracking control system for the collector’s operational planned path based on virtual target vehicle reference can be constructed, as shown in Figure 3.

In this system, the predesigned planned path is stored in the “Planned Path” module in data form, and dynamic position and heading-angle information is generated through the “Target Vehicle Movement Computation” module. The “Coordinate Transformation and Deviation Computation” module calculates the pose deviation between the collector and the target vehicle in the collector’s body coordinate system based on their positions and heading angles in the geodetic coordinate system. The path-tracking and speed-tracking controllers compute the collector’s angular-velocity and linear-velocity commands, respectively, from this pose deviation, enabling the collector to perform trajectory tracking of the planned path and speed. To prevent sudden changes in speed from causing impact disturbances to the seabed sediment, incremental control commands are adopted for both the angular-velocity fuzzy controller and the speed proportional controller. Meanwhile, nonlinear saturation limits are applied to the speed and angular velocity based on the maximum track speed of the collector.

3. Controller Design and Control-Performance Analysis of the Trajectory-Tracking System

3.1. Design of the Angular-Velocity Fuzzy Controller for Path Tracking

According to Figure 3 and the related analysis, an angular-velocity fuzzy controller is designed by taking the lateral position deviation y_e and the heading-angle deviation θ_e as input variables, and the incremental angular velocity Δω_s of the collector as the output variable. Seven fuzzy subsets are defined for each input and output variable, namely NB (Negative Big), NM (Negative Medium), NS (Negative Small), ZE (Zero), PS (Positive Small), PM (Positive Medium), and PB (Positive Big). Regarding the selection of membership-function types, Gaussian membership functions are chosen for both the input and output variables to accelerate correction when deviations are large and to prevent overshoot when deviations are small. The universes of discourse are set as [−3, 3] for the lateral deviation y_e, and [−1, 1] for the heading-angle deviation θ_e and the angular-velocity increment Δω_s.

On this basis, fuzzy control rules are designed in the form of “if–then” logical reasoning according to the magnitude and sign of the lateral deviation and heading-angle deviation. The basic principles are as follows: If y_e and θ_e have the same sign, the collector’s heading angle deviates from the target path in the collector coordinate system; in this case, the collector should apply a positive (or negative) angular-velocity increment depending on whether y_e and θ_e are positive (or negative), with larger increments assigned for larger deviations. If y_e and θ_e have opposite signs, the collector’s direction of motion is already pointing toward the target path. When the position deviation is small but the heading-angle deviation is large, a small or moderate angular-velocity increment is chosen. When the position deviation is large but the heading-angle deviation is small, a small increment is applied or the angular velocity is kept unchanged to continue converging toward the target path. Following these principles, the control rules can be designed as shown in

Table 1. Fuzzy Inference Rule Table of the Angular-Velocity Controller.

Δωs		${\mathit{y}}_{\mathbf{e}}$
		NB	NM	NS	ZE	PS	PM	PB
${\theta }_{\mathrm{e}}$	NB	NB	NB	NM	NM	NS	NS	ZE
	NM	NB	NM	NM	NM	NS	ZE	PS
	NS	NM	NM	NS	NS	ZE	PS	PS
	ZE	NM	NM	NS	ZE	PS	PM	PM
	PS	NS	NS	ZE	PS	PS	PM	PM
	PM	NS	ZE	PS	PM	PM	PM	PB
	PB	ZE	PS	PS	PM	PM	PB	PB

.

By performing fuzzy logical inference according to the above rules and applying the defuzzification method, an exact value of Δω_s can be obtained. However, in practice, this exact value can only serve as a trend indication for the collector’s angular-velocity control. As shown in Figure 3, under the virtual target vehicle–based tracking method, the collector adjusts its angular velocity moderately based on the current lateral position deviation and heading-angle deviation relative to the target vehicle, while tracking the target vehicle’s position and motion. The control command is given by ω_s = ω_m + K_ωΔω_s. Here, the coefficient K_ω regulates the degree of influence of Δω_s. Its specific value is determined using the Trial and Error Method. Through extensive simulation calculations and result comparisons, under the condition of similar path correction speeds, cases with smoother angular velocity changes and smaller overshoot near the target value were selected as references to determine the coefficients. In this design, the value is set as K_ω = 4.

In addition, the collector is a heavy-duty operational device, and its maximum movement speed generally does not exceed 1 m/s, while the normal operational movement speed is 0.5–0.6 m/s, and the center velocity during turning is approximately 0.3 m/s [27]. If the distance between the two tracks of the vehicle body is D = 12 m [26], then, under a relatively extreme condition in which the inner-track speed is zero, Equations (2) and (3) indicate that the maximum angular velocity of the collector during turning should not exceed 0.05 rad/s. Therefore, in the tracking system shown in Figure 3, the upper and lower limits of the nonlinear saturation block for the collector’s angular velocity ω_s are set to ±0.045 rad/s.

3.2. Design of the Linear-Velocity Proportional Controller for Speed Tracking

As mentioned earlier, during actual operations, the collector must track not only the planned path but also the planned speed. In the previous analysis and system design, a scheme was proposed to track the planned speed by appropriately adjusting the collector’s velocity based on the longitudinal deviation, on the basis of the target vehicle’s center velocity. The specific control law is V_s = V_m + K_VΔV_s (as shown in Figure 3). The proportional coefficient K_V is also determined using the Trial and Error Method through simulation comparisons. Under the condition that the time required to reach the target speed is similar, the value is set to 2 based on the criterion that the collector accelerates more gently and does not overshoot near the target value. Meanwhile, according to the maximum movement speed of the collector described above, the upper and lower limits of the nonlinear saturation block for the collector’s center velocity V_s are set within the range [0, 1]. This system, which uses negative feedback proportional control based on the deviation between actual output and expected output, inherently has high stability and robustness. By adopting speed increment as the control variable and setting up a nonlinear saturation block, it further ensures that the system’s speed does not change too much even when underwater resistance varies or significant transient deviations occur, thereby guaranteeing the stable movement of the collector.

It should be noted that the fuzzy controller here calculates the desired angular velocity only based on the lateral deviation and heading angle deviation, while the linear velocity controller also performs proportional control only on the longitudinal deviation. There is no coupling problem between the two controllers, so they can be designed separately. However, on the other hand, although the control commands for the collector’s angular velocity and centroidal movement speed are provided by different controllers, these angular and linear velocities are substituted simultaneously into the collector’s movement kinematic model for computation, as shown in Figure 3. Therefore, to some extent, the collector’s movement motion is also coordinately controlled within the same kinematic model.

3.3. Simulation Verification of the Trajectory-Tracking Performance of the Designed System

Using the Fuzzy Logic Toolbox of MATLAB (R2021b), the angular-velocity fuzzy controller was designed, and the trajectory-tracking simulation system of the collector based on target-vehicle reference was constructed on the SIMULINK (R2021b) platform according to the structural diagram shown in Figure 3. Based on the operational movement characteristics of the collector, simulation calculations were carried out for straight-line path tracking and circular-arc path tracking as examples, to verify the performance of the proposed trajectory-tracking system and the feasibility of the simulation system.

(1)

Simulation Analysis of Straight-Line Path Tracking

In the geodetic coordinate system, the starting point of the target path is set as (12, 20), extending along the X-axis direction (with a heading angle of 0°), and the target speed is set to 0.6 m/s. The initial position of the collector is (8, 21), with an initial heading angle of 10°. The collector performs trajectory tracking of the target path and speed. The above target path and the collector’s related data are substituted into the Planned Path module, the Target Vehicle Movement Computation module, and the Collector Movement Computation module of the trajectory-tracking simulation system, respectively, as the target and initial conditions. Following the system structure shown in Figure 3, simulation analysis of the moving processes of the target vehicle and the collector is conducted to generate the dynamic target path and obtain the collector’s movement path, speed, and angular-velocity variations. The corresponding calculations and comparison results are presented in Figure 4.

From Figure 4a, it can be seen that although the initial positions of the collector and the target vehicle are separated by several meters, and the collector’s initial heading angle is oriented away from the target path, the collector is able to track the predetermined target path relatively quickly and smoothly under the control of the designed trajectory-tracking system. At approximately 30 s after the start of movement—when the target vehicle has moved about 18 m—the trajectories of the collector and the target vehicle have become essentially identical. Figure 4b shows the variation curves of angular velocity. At the beginning of movement, the collector is 1 m to the left of the target vehicle’s movement direction and its heading angle is oriented away from the target path; therefore, the controller commands the collector to approach the target path with the maximum possible angular velocity in the clockwise direction (−0.045 rad/s under the nonlinear saturation limit). Around the 8 s mark, the lateral position error between the collector and the target vehicle has decreased to about 0.7 m. To allow the collector to approach the target path smoothly, the controller commands the collector to begin approaching the target path in a counterclockwise circular-arc manner. As a result, the angular velocity gradually changes from −0.045 rad/s to approximately 0.035 rad/s, and then slowly decreases to the target angular velocity, i.e., 0 rad/s. The evolution of the lateral deviation in Figure 4c—featuring an initial rapid convergence followed by a slower final approach—also reflects the successful implementation of the angular-velocity controller’s control strategy. In terms of speed tracking, as shown in Figure 4d, because the initial position deviation is relatively large (4 m), the collector first tracks the target vehicle at its maximum speed (1 m/s). After approximately 10 s, the centroidal movement speed decreases rapidly—with a slight overshoot—to 0.6 m/s. Since external disturbances are not considered, and both the movement and steering speeds of the collector are very low, the collector has maintained synchronous motion with the target vehicle thereafter. There is no steady-state error in position and speed in the calculation analysis.

(2)

Simulation Analysis of Circular-Arc Path Tracking.

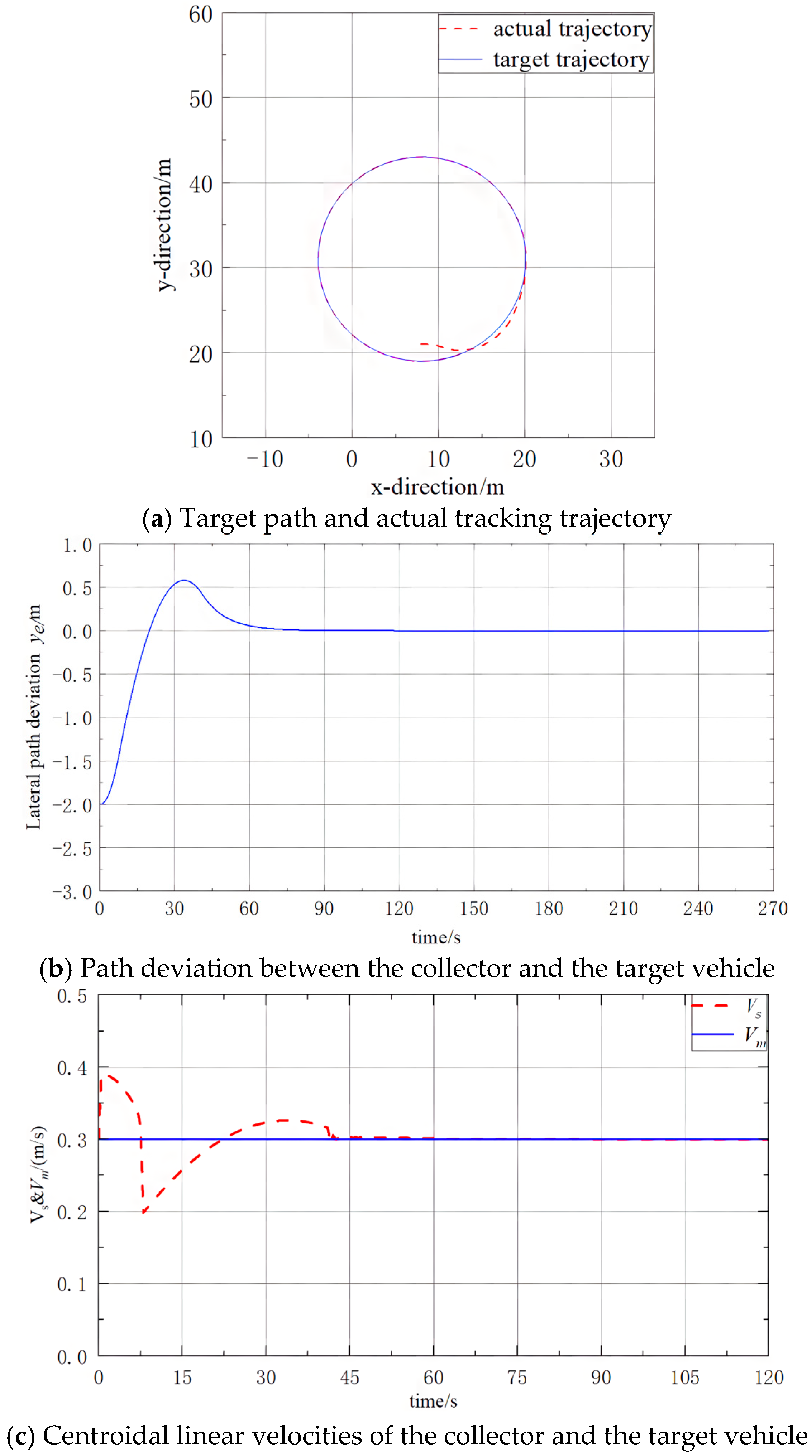

The target path is a circular arc with a radius of 12 m, with a target speed of 0.3 m/s and a target angular velocity of 0.025 rad/s. The collector starts movement from a point located on the inner side of the circle, with a lateral path deviation of 2 m and an initial speed of 0.3 m/s. Using the established trajectory-tracking simulation platform, simulation calculations were carried out for the collector’s trajectory tracking of the circular path. The time-history curves of the movement paths, centroidal movement speed, and path deviation of the target vehicle and the collector are obtained as shown in Figure 5.

From the analysis of Figure 5, it can be seen that the collector accelerates from the initial point to track the target vehicle. Upon reaching the target circular path, a slight overshoot occurs and is then corrected back to the target path. After approximately 40 s, the collector’s centroidal movement speed becomes essentially synchronized with that of the target vehicle. The path deviation between the collector and the target vehicle remains essentially zero after about 90 s, indicating that the designed trajectory-tracking system exhibits good tracking performance for circular paths.

3.4. Laboratory Simulation Test of the Trajectory-Tracking System Functions

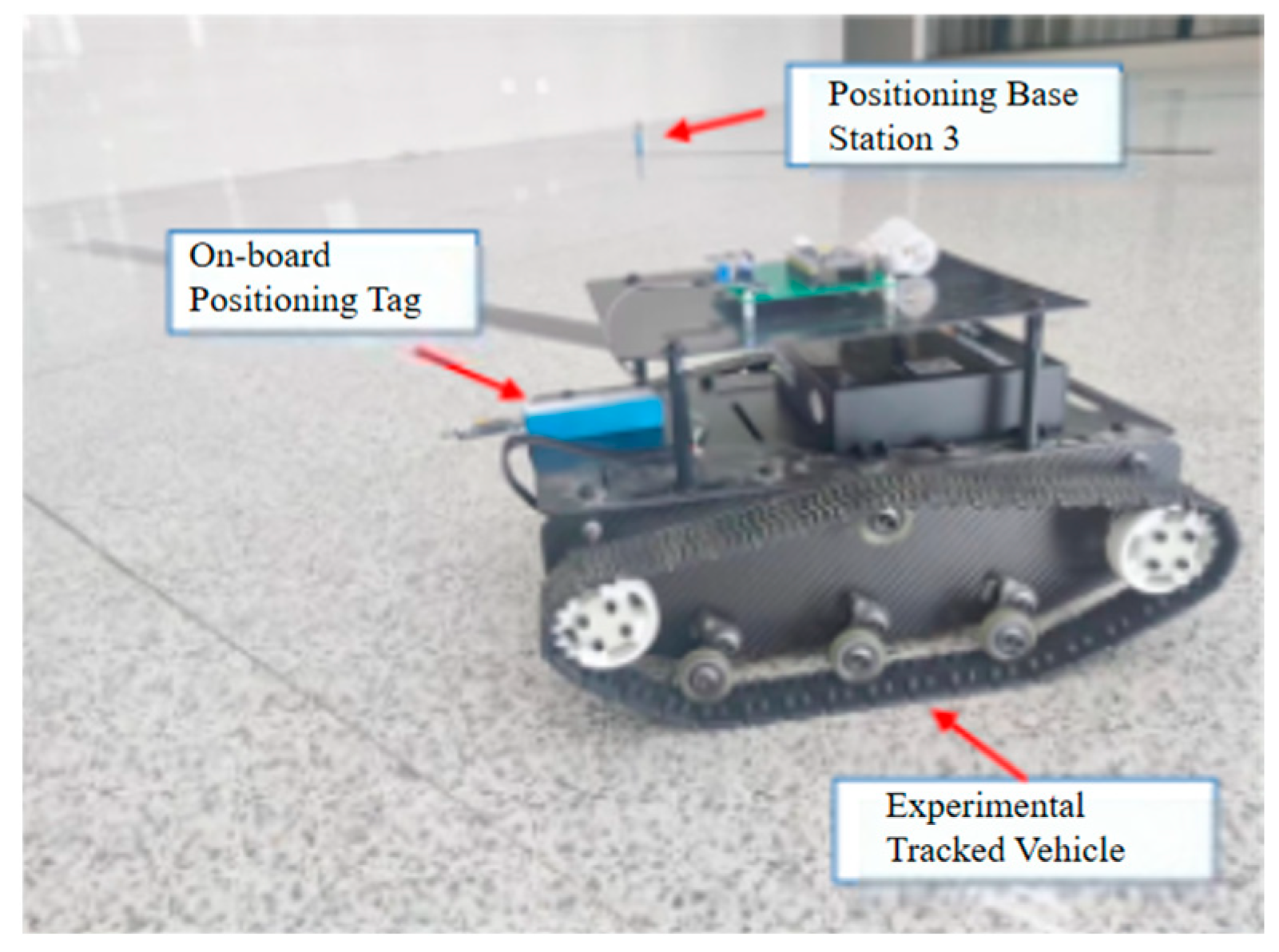

To verify the functionality of the designed trajectory-tracking system, a laboratory simulation test was conducted. The simulation test system mainly consists of a tracked model vehicle, a positioning system, and a control computer. The positioning system includes base stations and a mobile positioning tag. The positioning base stations are placed at the four corners of the test site, and the mobile positioning tag is mounted on the model vehicle. Through the transmission and reception of ultra-wideband pulse signals between the tag and the base stations, interactive communication is achieved, allowing the tag—and therefore the model vehicle—to be positioned. Both the positioning base stations and mobile positioning tags use the UWB high-precision real-time positioning sensor DW1000. In the experimental onsite environment, after algorithm enhancement, the ranging accuracy is 5 cm, and the maximum ranging distance is 50 m. The control computer is equipped with the backend software of the positioning system and the trajectory-tracking control system software. Based on the positional information provided by the positioning system and the attitude information transmitted from the attitude sensor (MPU6050) mounted on the model vehicle, the rotational-speed commands of the two track-driving motors are calculated and wirelessly transmitted to the vehicle’s control module for motion control of the model vehicle. Figure 6 shows photographs of the model vehicle and the positioning base stations arranged at the test site, while Figure 7 presents the simulation-test results of trajectory tracking for a circular target path.

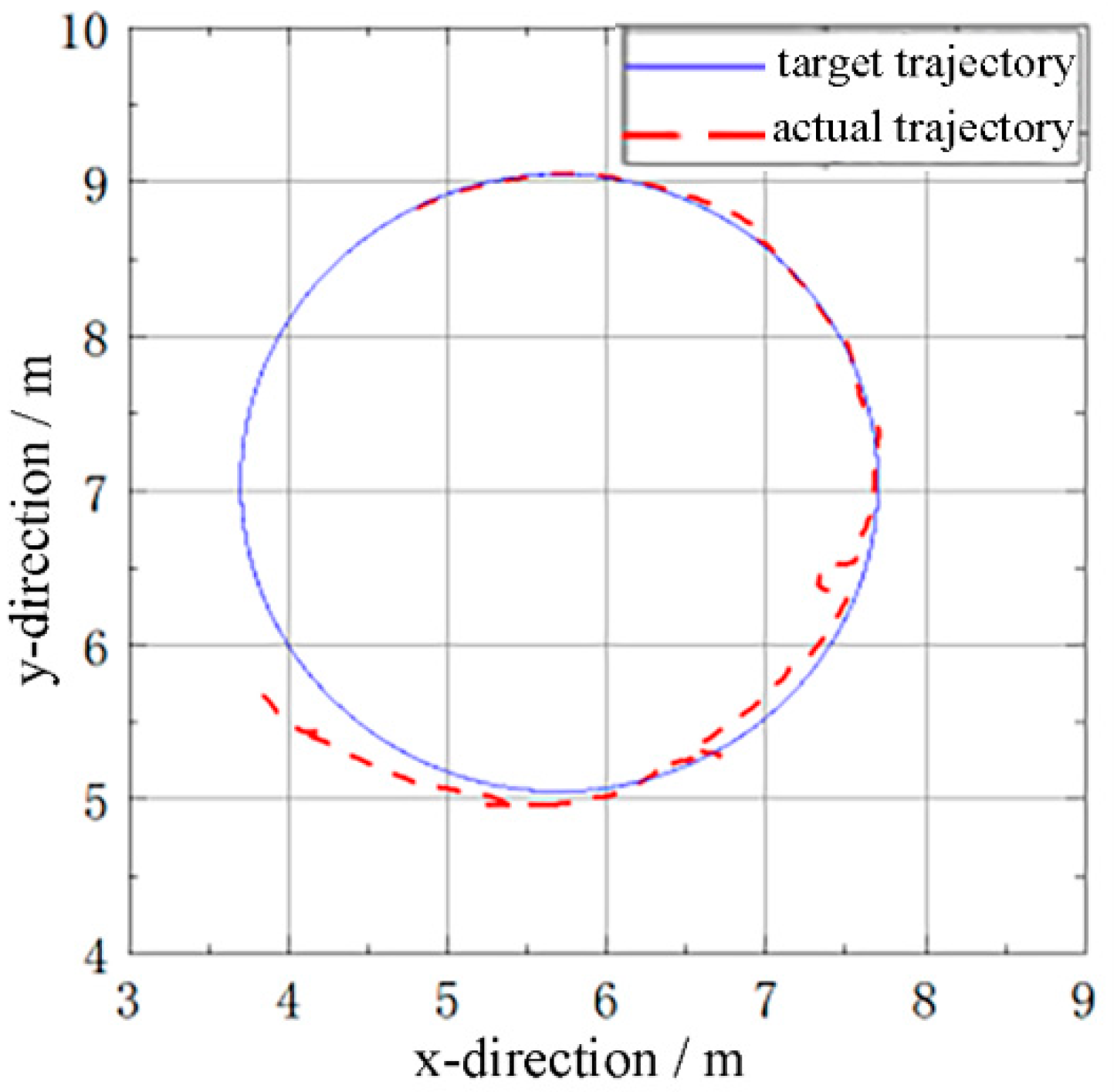

From Figure 7, it can be seen that the model vehicle tracks a circular target path with a diameter of 4 m, starting from an initial position with a radial distance of approximately 0.3 m. After moving about 2 m, it reaches the circular path, but continues moving forward beyond the preset arc before beginning to correct its deviation and return to the path. Thereafter, it essentially moves along the circular path. A noticeable short-term deviation appears on the trajectory curve of the model vehicle; analysis indicates that this deviation was caused by abnormal drifting of the onboard tag’s positional data during the experiment. Based on the simulation experiment results, although the experimental system and equipment are relatively simple, they still provide a certain degree of validation for the trajectory-tracking functionality of the designed controller.

4. Simulation Study on Trajectory Tracking of the Collector’s Operational Planned Path

Using the trajectory-tracking system based on virtual target vehicle reference, simulation analyses were carried out on the collector’s trajectory tracking of the planned path and speed during deep-sea polymetallic nodule mining operations.

4.1. Dynamic Generation of Typical Planned Paths and Realization of Trajectory Tracking

As mentioned earlier, during nodule collection operations, the collector moves along straight, back-and-forth traversal paths, and the spacing between adjacent paths should be equal to the collector’s width. According to system productivity, collector movement speed, and nodule abundance, the width of commercial collectors is generally around 12 m [26]. Therefore, the spacing between adjacent operational movement paths is also taken as 12 m. To avoid slippage, a relatively large turning radius is used for U-turn maneuvers, typically 2–3 times the vehicle width [27]. In this paper, the turning radius is set to 36 m. In addition, to prevent sudden directional changes at the junction between the circular-arc turning path and the straight path, a reverse transition arc with the same radius is used to connect the straight segment and the turning arc tangentially. Accordingly, based on the “keyhole-type” turning scheme, the planned path at the turning section for a commercial deep-sea polymetallic nodule collector can be designed as shown in Figure 8. Regarding movement speed, following typical design practices, the collector’s movement speed during straight-line collection operations is set to 0.6 m/s, and its center velocity during turning maneuvers is set to 0.3 m/s [27].

The planned path and the target vehicle’s position and velocity can be dynamically generated by applying the Planned Path module and the Target Vehicle Movement Computation module of the trajectory-tracking system proposed in this paper. First, according to the planned-path scheme, the spatial positions of the connection points between each straight segment, transition arc, and turning arc are determined, along with the corresponding velocities and angular velocities for each path segment. These data are stored in the Planned Path module in a time-sequenced format. Then, the Target Vehicle Movement Computation module reads the relevant data sequentially from the Planned Path module and, using time as the independent variable, allows the target vehicle to move from the starting point of each segment according to the specified velocity and angular velocity. Through the movement kinematic model, the planned path and velocity are dynamically generated. Figure 8 shows a segment of the target vehicle’s movement path generated using the above parameters and method. In the figure, starting from the initial point t₀ (50,30,0°), and based on the data stored in the Planned Path module, the target vehicle moves to t₁, t₂, t₃, and t₄ in sequence according to the given velocities, angular velocities, and movement times, forming a “straight–transition arc–turning arc–straight” keyhole-type turning path, as shown by the solid blue line.

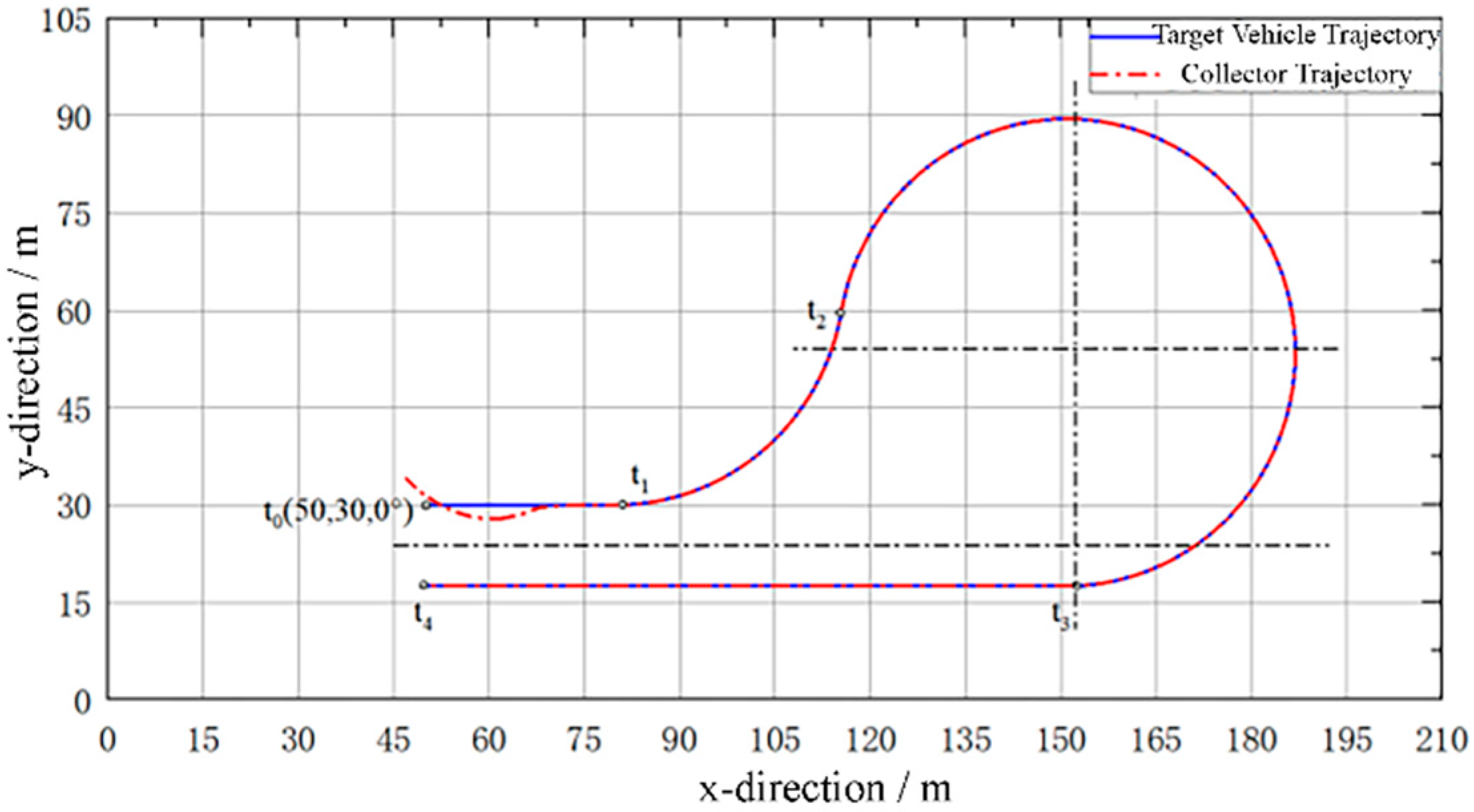

Furthermore, starting from the initial point (47, 33) with an initial heading angle of −45°, the collector tracks the target vehicle according to the control commands of centroidal movement speed and angular velocity provided by the control system. The simulated movement path of the collector obtained from the tracking process is shown as the red dashed line in Figure 9. A comparison between the collector’s movement path and the target vehicle’s movement path in the figure indicates that, after approximately 30 m of path convergence and speed adjustment, the collector essentially reaches the pose and speed of the target vehicle. Thereafter, in the absence of external disturbances, the collector is able to trace the target vehicle well on both straight segments and turning arcs, movement and turning according to the planned path and speed, demonstrating excellent trajectory-tracking control performance.

4.2. Formation of the Planned Path and Trajectory-Tracking Control During Mining Operations

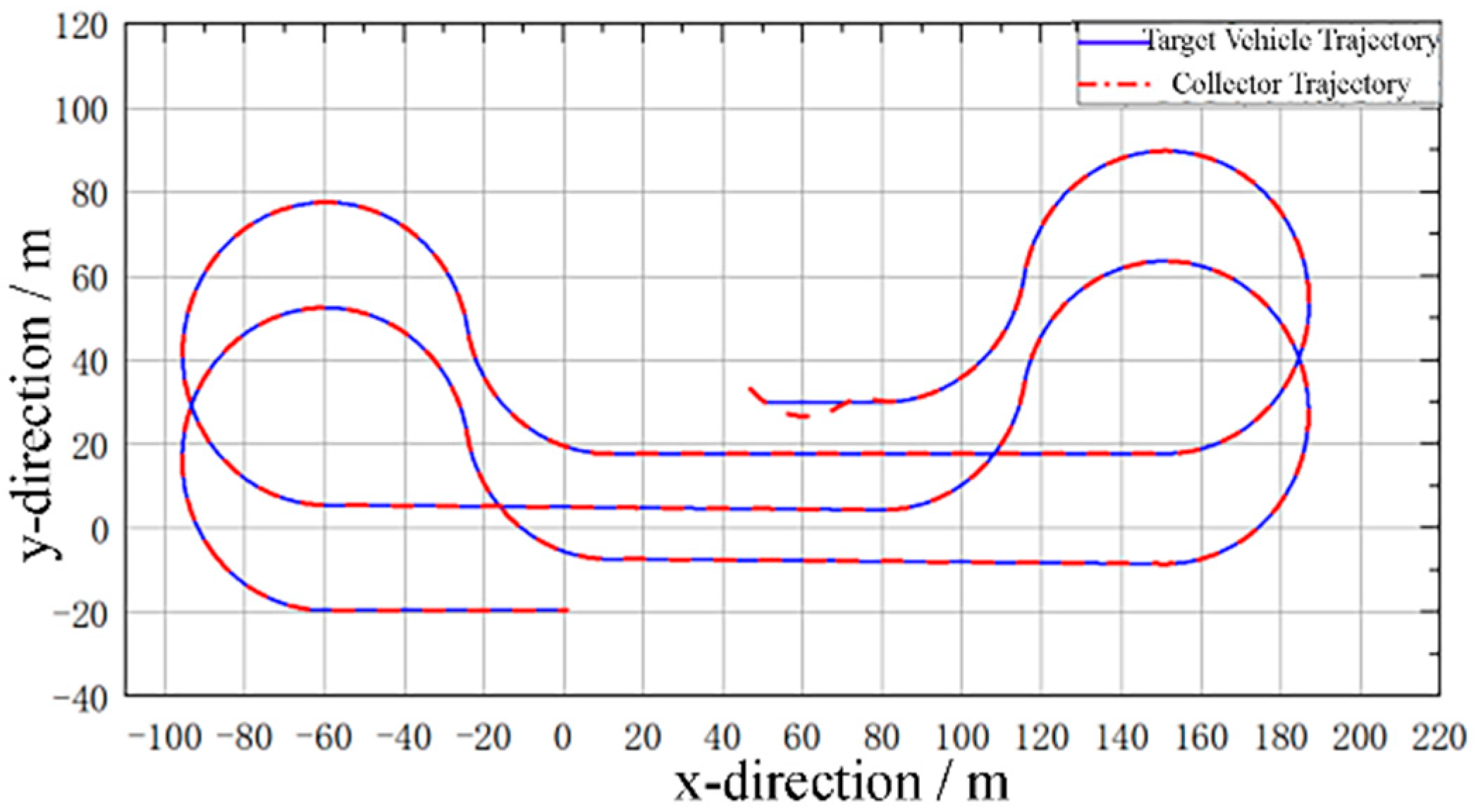

Since the planned path consists of straight, cyclic traversal lines covering the full area, the collector must move continuously and progressively along the designated outbound-and-return paths, one after another, in a looping manner [28]. For mining operations across the entire mining area, the planned path can be defined by a series of coordinate reference points in the geodetic coordinate system, the corresponding path shapes, and the vehicle’s movement speeds and angular velocities. These data can be organized into a time-sequenced dataset or database for representation. Based on these time-sequential data, the collector can move in an orderly manner on the seabed and complete the collection work according to the overall path planning. On the other hand, the shapes of these outbound-and-return movement paths are not complex, and the path shape of each cycle is identical. Therefore, a single outbound-and-return segment can be treated as a unit and executed sequentially, one after another, until the collector completes the planned path for the entire mining area or for the designated operational period.

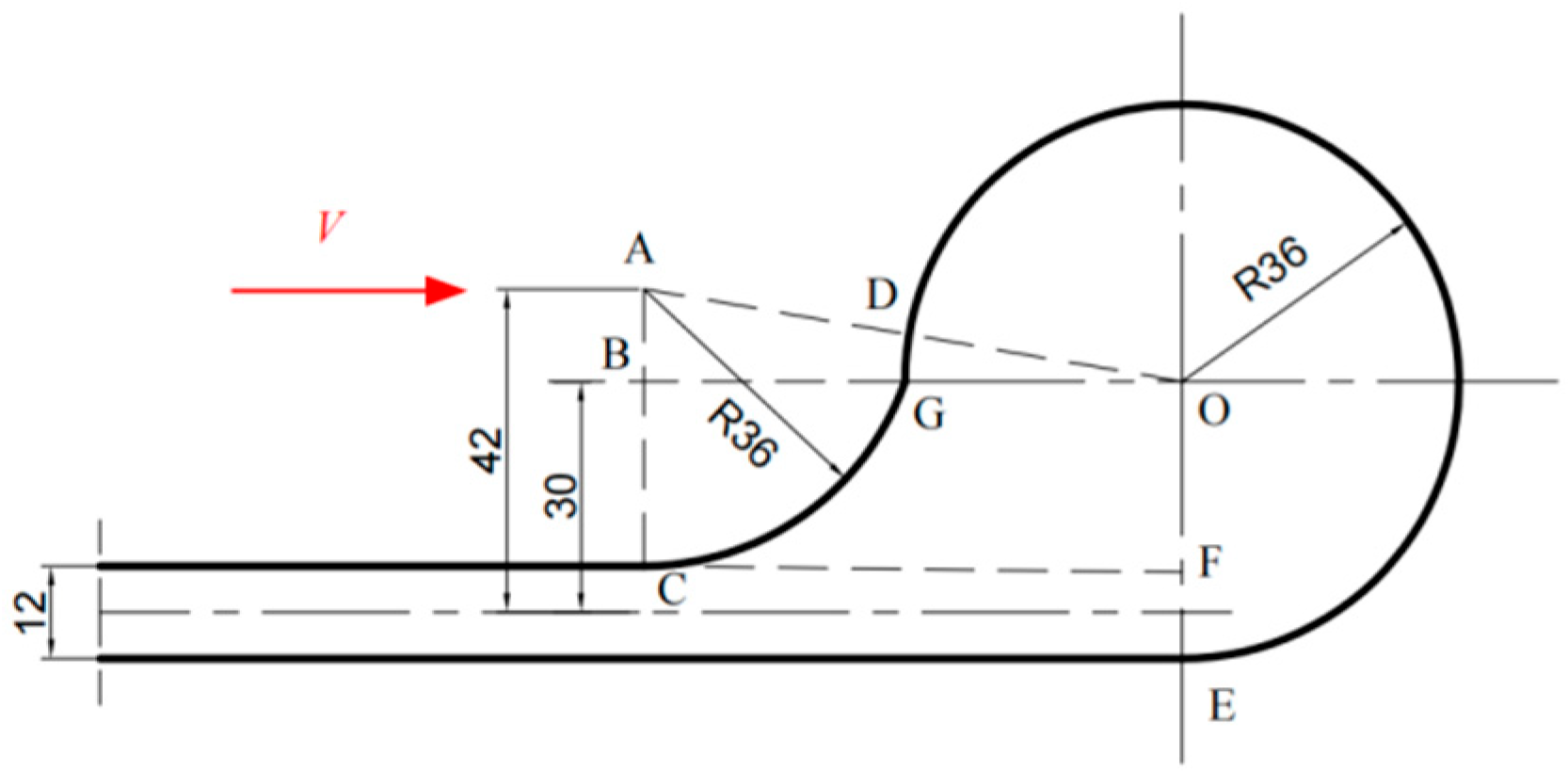

Taking the “keyhole-type” turning path for lateral return operations as an example, the target-path generation and trajectory-tracking simulation for one turning maneuver have already been completed in Section 3.1. In actual operations, one lateral outbound-and-return path consists of two straight movement segments and two turning paths. Therefore, by applying the same method as in Section 3.1, a complete keyhole-type lateral outbound-and-return target path and the corresponding movement speed can be generated. Furthermore, in the simulation platform or in the control system of actual engineering applications, this complete outbound-and-return target path and its corresponding speed can be encapsulated as a module. During simulation or real operation, this module can be repeatedly invoked by changing the initial position of the target vehicle, thereby dynamically generating the target path and speed throughout the collection area or operational period. The collector then performs trajectory tracking based on the control commands, executing mining operations along the planned path and speed within the designated area or timeframe. Figure 10 shows the simulation results of two cycles of the target path and the collector’s trajectory-tracking movement path generated using the above method. Because the purpose here is only to verify the feasibility of the method, the spacing between the two turning arcs in the figure does not adopt the approximately 600 m parameter used in actual engineering practice. Figure 10 indicates that, by applying the progressive looping method, the designed trajectory-tracking system can dynamically generate the planned path for a given area or time interval. The collector is also able to track the target path and speed effectively and perform operational movement according to the planned path. Therefore, the proposed trajectory-tracking method for the collector—based on virtual target vehicle reference—successfully achieves an effective integration of path planning and trajectory tracking in deep-sea polymetallic nodule collection operations. It should be noted that if the planned path needs to be modified beforehand or in real time due to external disturbances or other factors, online modification and adjustment in the Planned Path module can be carried out without difficulty.

5. Conclusions

During deep-sea polymetallic nodule mining operations, to ensure mineral recovery efficiency, the collector typically moves in a straight, back-and-forth manner to traverse the entire mining area and collect nodules. At the same time, to avoid track slippage, the collector must decelerate and move along large-curvature circular-arc paths during turning maneuvers. Therefore, the collector’s movement process on the seabed must track the planned path and speed required by the mining process. In this paper, considering the characteristics of the collector’s operational movement and the deep-sea working environment, a study on trajectory tracking for the operational movement of the deep-sea collector has been conducted, and the following conclusions have been obtained:

(1)

A trajectory-tracking scheme for the collector based on virtual target vehicle reference is proposed. The virtual target vehicle moves according to the planned path and speed to generate a dynamic target path and speed. The collector adjusts its movement speed and angular velocity according to the pose deviations between itself and the target vehicle, tracks the target vehicle, and thereby achieves trajectory tracking of the planned path and speed.

(2)

A scheme in which the control commands for path tracking and speed tracking are computed separately is proposed. Based on the lateral deviation and heading-angle deviation between the collector and the target vehicle, the collector’s angular velocity is regulated through fuzzy logic control. Based on the longitudinal deviation between the collector and the target vehicle, the collector’s centroidal movement speed is regulated through proportional control. These commands are coordinated within the same kinematic model of the collector to achieve path correction and speed tracking of the planned path.

(3)

The results show that the designed trajectory-tracking system exhibits strong capabilities in both path and speed tracking. Under the operational movement conditions of the collector, it can effectively track the planned movement and turning paths and speeds of the collector. The trajectory-tracking approach based on virtual target vehicle reference can also generate dynamic planned paths and speeds for the entire mining area and enable the collector to track the planned path and speed throughout the whole mining operation.
