Detecting Lameness in Dairy Cows Based on Gait Feature Mapping and Attention Mechanisms

Abstract

Lameness significantly compromises dairy cattle welfare and productivity. Early detection enables prompt intervention, enhancing both animal health and farm efficiency. Current computer vision approaches often rely on isolated lameness feature quantification, disregarding critical interdependencies among gait parameters. This limitation is exacerbated by the distinct kinematic patterns exhibited across lameness severity grades, ultimately reducing detection accuracy. This study presents an integrated computer vision and deep-learning framework for dairy cattle lameness detection and severity classification. The proposed system comprises (1) a Cow Lameness Feature Map (CLFM) model extracting holistic gait kinematics (hoof trajectories and dorsal contour) from walking sequences, and (2) a DenseNet-Integrated Convolutional Attention Module (DCAM) that mitigates inter-individual variability through multi-feature fusion. Experimental validation utilized 3150 annotated lameness feature maps derived from 175 Holsteins under natural walking conditions, demonstrating robust classification performance. The classification accuracy of the method for varying degrees of lameness was 92.80%, the sensitivity was 89.21%, and the specificity was 94.60%. The detection of healthy and lameness dairy cows’ accuracy was 99.05%, the sensitivity was 100%, and the specificity was 98.57%. The experimental results demonstrate the advantage of implementing lameness severity-adaptive feature weighting through hierarchical network architecture.

1. Introduction

Lameness in dairy cows severely impacts their daily activities and is a significant challenge in dairy farming, affecting both welfare and production [1,2]. Lameness in dairy cows primarily stems from infectious or non-infectious hoof disorders, causing limb injuries, altered behavior, reduced milk yield, and increased culling rates [3]. Early detection of lameness in dairy cows is essential for timely treatment, mitigating premature culling risks, lowering production costs, and improving farm profitability [4]. Conventional lameness detection relies on manual assessment, which is labor-intensive, time-consuming, and prone to subjectivity [5,6]. Automated lameness-detection systems are critical for eliminating subjective bias, optimizing detection efficiency, and enhancing cow welfare [7].

While contact sensors—including weighing platforms, pressure-sensitive pads [8,9,10], and accelerometers [11,12]—offer lameness-detection capabilities, their physical attachment risks device damage, displacement, and potential stress induction in cattle during monitoring [13]. Recent advances in computer vision have enabled its successful application to automated lameness detection. This technology offers non-invasive monitoring, eliminating physical stress on cattle while enhancing detection reliability and operational efficiency [14,15,16,17,18,19].

Hoof disease represents a primary etiology of lameness in dairy cattle, clinically manifested through gait abnormalities and asymmetric weight distribution across the extremities [20]. Researchers systematically characterized bovine gait kinematics to identify lameness-specific biomechanical markers for automated detection [21]. Song [22] demonstrated the feasibility of visually capturing hoof positions and evaluated the correlation between automatically computed hoof overlaps and visual motion scores. Wu [23] employed a deep-learning algorithm to detect cow leg positions and calculated the relative step lengths of cows to identify lameness. Kang [24,25] analyzed spatiotemporal gait characteristics of dairy cows and constructed a spatiotemporal gait map, which improved the accuracy of lameness detection. Li [26] proposed a spatiotemporal energy network that more comprehensively captures walking patterns by compressing walking videos into gait energy images and history energy images (the superimposition of multi-frame binarized images of a walking cow).

While abnormal gait characteristics are indicative of lameness severity, relying solely on gait information and ignoring other significant features of lameness can reduce detection accuracy. The characteristic arched back exhibited by lame dairy cattle serves as a clinically observable indicator of lameness severity. Bahr [27] used the curvature of the circle to represent the curvature of the cow’s back as an indicator of lameness. Poursaberi [28] improved the algorithm and introduced a new Body Movement Pattern (BMP) that assessed lameness using back curvature and head position. Myint [18] proposed a method to calculate back curvature and implemented a machine-learning-based method for lameness detection.

However, dairy cows exhibit individual variability in both gait and walking style, and lameness is also an individual expression [28,29,30]. Lameness manifestation in dairy cattle exhibits distinct kinematic patterns across severity levels, with varying degrees of postural adaptation and gait modification. Unimodal detection systems relying exclusively on either spinal curvature analysis or gait kinematics demonstrate limited diagnostic robustness due to inter-individual variability and pathological complexity. Combining multiple movement indicators helps overcome these challenges, improving both detection sensitivity and severity classification accuracy.

The effectiveness of multiple locomotion traits for lameness detection has been demonstrated [17,31]. However, the movements of each separate hoof in a dairy cow’s gait are coupled and interdependent; an affected hoof can lead to coordinated changes in the movement patterns of the other, healthy hooves [4]. The feature extraction and quantification step removes most of this interdependent information. Therefore, we hypothesized that extracting gait information and directly using it as input for the classification algorithm is a more comprehensive approach. Furthermore, research has confirmed that dairy cows with varying degrees of lameness exhibit different gait characteristics. Early lameness features are more pronounced in the hoof area [32,33,34], while changes in back posture become more apparent in later stages of the condition [31]. Therefore, adjustments need to be made to the focus of information according to different classification objectives.

In light of these challenges, this study presents a deep-learning-based lameness-detection framework that comprehensively analyzes bovine gait patterns while dynamically weighting discriminative features for severity classification, thereby enhancing detection robustness and diagnostic precision. The kernel of our model is as follows: a Cow Lameness Feature Maps (CLFM) model was used to extract comprehensive gait information of cows, including characteristics of both the hoof and back, from video data of cows walking. The gait information was fed into a DenseNet + Convolutional Block Attention classifier (DCAC) model to detect lameness in dairy cows, which aims to improve the interpretability and accuracy of lameness detection by reducing the effect of individual cow variability and integrating multiple lameness features. This study aims to develop an accurate, non-invasive lameness-detection method for dairy cows by (1) creating a unified feature representation that preserves critical relationships between hoof and back kinematics, and (2) implementing an attention-based deep-learning classifier that adapts to varying lameness severity patterns.

2. Materials and Methods

2.1. Dataset Acquisition

The study was conducted at Dingyuan Farm in Hebei Province, China, during September 2020. From a herd of 1000 lactating Holstein cows, a random sample of 300 multiparous individuals was selected for observation. After excluding cows that exhibited interrupted movement patterns due to stopping, crowding, or visual occlusion during recording, the final dataset comprised 175 cows with complete gait records.

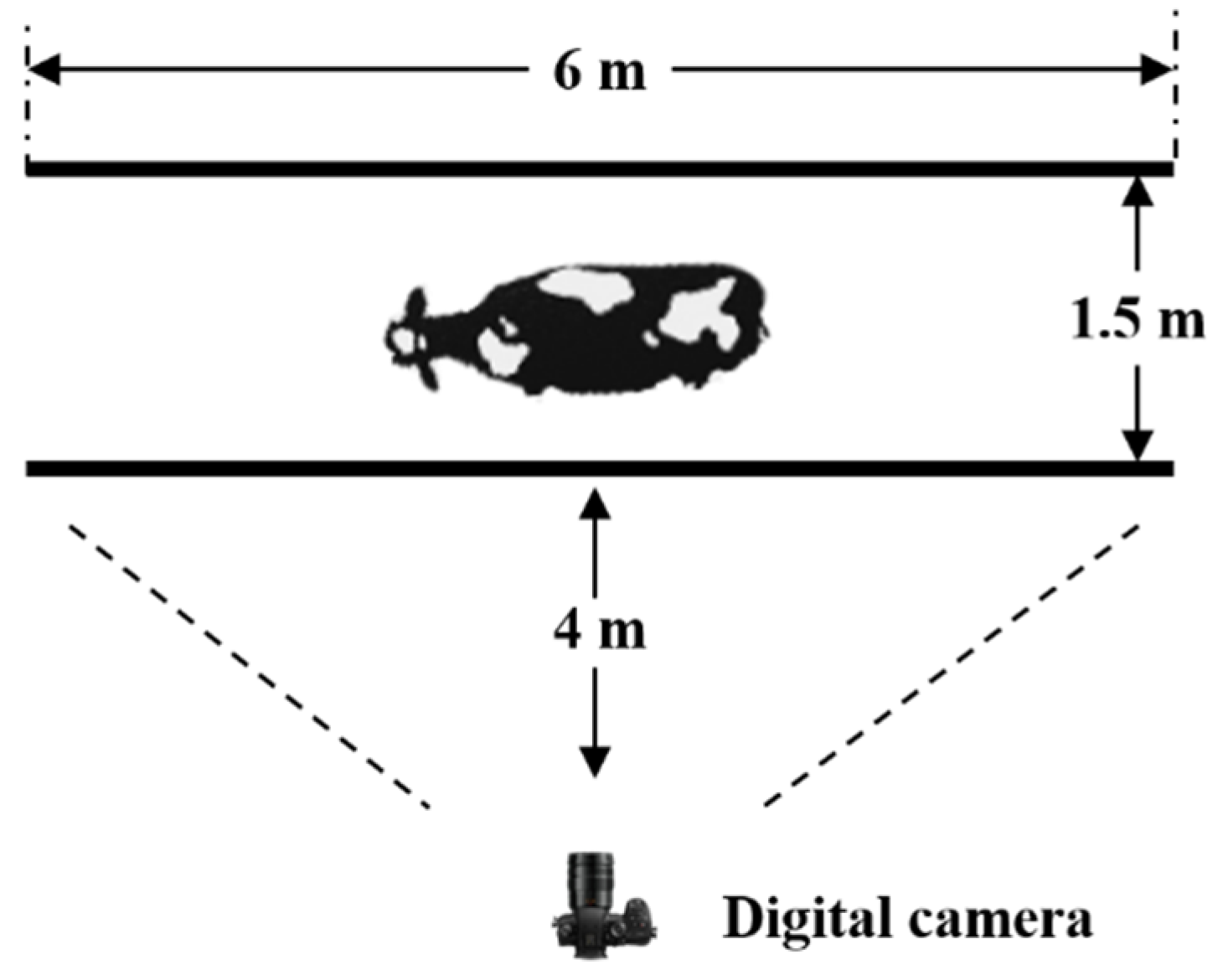

The data collection system featured a dedicated 6 m-long by 1.5 m-wide passageway positioned at the milking parlor exit. A high-resolution Panasonic DC-GH5S digital camera was mounted on a stabilized tripod system, positioned 4 m laterally from the walking alley at an optimal elevation and angle to capture full-body kinematic profiles. The setup ensured consistent video quality for subsequent gait analysis while minimizing disturbances to normal cow movement patterns (Figure 1).

Ethical approval was not required for this study, as the data collection process was entirely non-invasive. Video recordings were obtained using a stationary camera placed at a distance from the cows, ensuring that no physical contact or interference with the animals occurred.

The locomotion of the cows was scored by two observers trained in locomotion scoring at the passing alley. We used a simplified locomotion scoring system to categorize the cows’ movement into three scores: Score 1 indicates cows that are not lame, Score 2 indicates cows with mild lameness, and Score 3 indicates cows with severe lameness [35]. The description for each score is shown in

Table 1. Description of a 3-point lameness score for dairy cows.

Score	Description
1	The cow walks with a level-back posture. The gait is normal. No signs of head bob when the cow is walking.
2	In most cases, the back is arched when the cow is walking. The gait might be slightly uneven, and the cow may walk with short strides. In most cases, there are no signs of head bob when walking.
3	The back is visibly arched when the cow is walking. The cow is obviously lame on 1 or more legs. The cow is unable, unwilling, or very reluctant to bear weight on the affected leg. In most cases, head bob will be evident when walking.

. Each observer scored the cows at the passing alley located at the exit from the milking parlor and also scored the cows twice from the video recordings.

The videos were categorized into three groups according to the locomotion scores to create a dataset. Each video recording lasted between 5 and 10 s, and the data were divided into training and test sets with an 80%:20% ratio.

2.2. Methods

2.2.1. Model Architecture

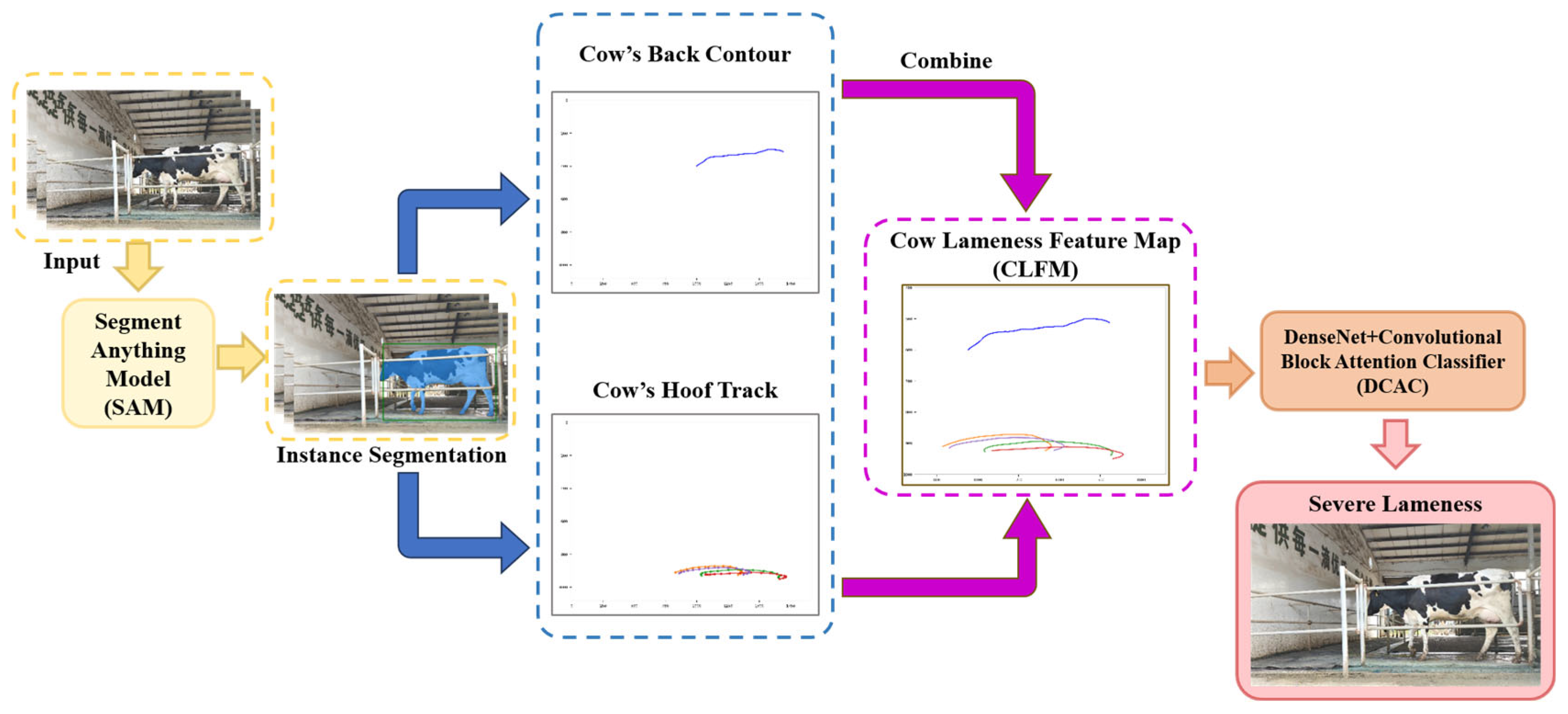

The overall architecture of the model, as shown in Figure 2, consists of two main parts. The first part is the Cow Lameness Feature Maps (CLFM) model. The input data is a 4D tensor sized 1920 × 1080 × 3 × f, and individual dairy cows are segmented using the Segment Anything algorithm [36]. The lameness feature extracts back contour and key gait information from the segmented binary images of the dairy cows using target detection techniques, and the extracted back contour features and key gait information are processed to generate lameness feature maps. The second part is the DenseNet + Convolutional Block Attention classifier (DCAC) model. The lameness feature map is categorized into three classes using the improved DenseNet algorithm, which divides the classification process into two steps, with the Convolutional Block Attention Module (CBAM) being incorporated into different network locations for classification in each step.

2.2.2. CLFM Model

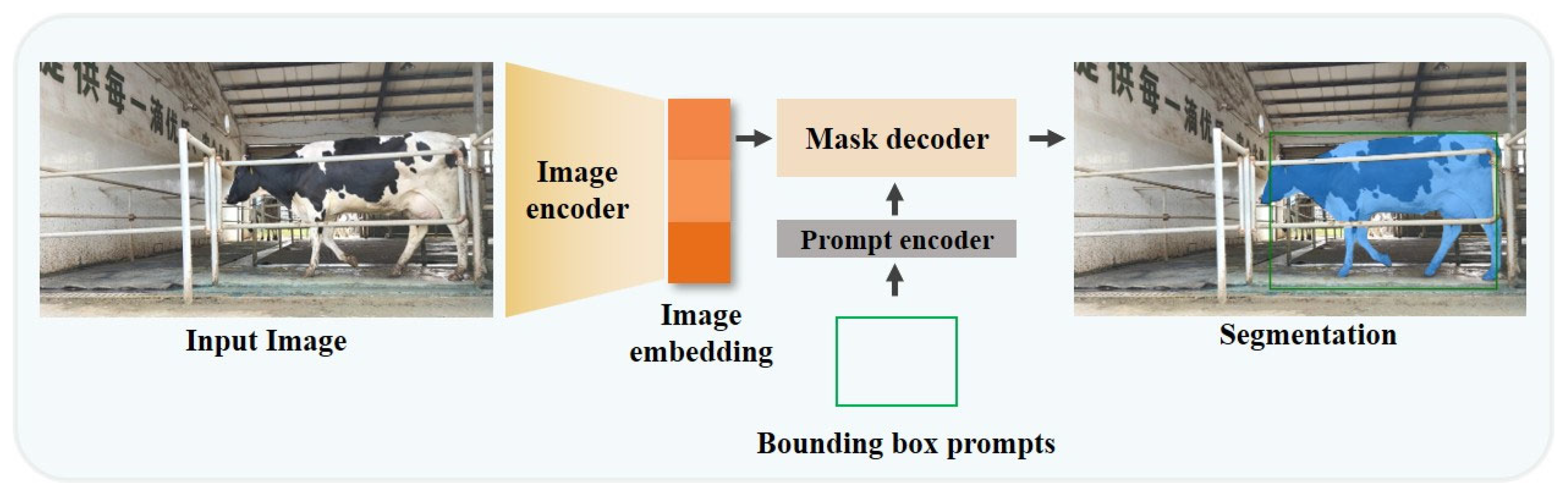

We used the Segment Anything Model (SAM)—an advanced image analysis tool—to isolate individual cows in video frames. SAM leverages the zero-shot and few-shot generalization capabilities demonstrated by large language models that have been pre-trained on web-scale datasets. It is intended to serve as a segmentation model that enables zero-shot transfer to a wide range of tasks through a prompting approach.

In this paper, SAM was employed for individual dairy cow segmentation. The video of a cow walking was decomposed into a sequence of frames. The model was then pre-trained using SAM, with the bounding box serving as input to the prompt encoder. This approach eliminates the need for additional model training and directly outputs the cow’s mask, as illustrated in Figure 3.

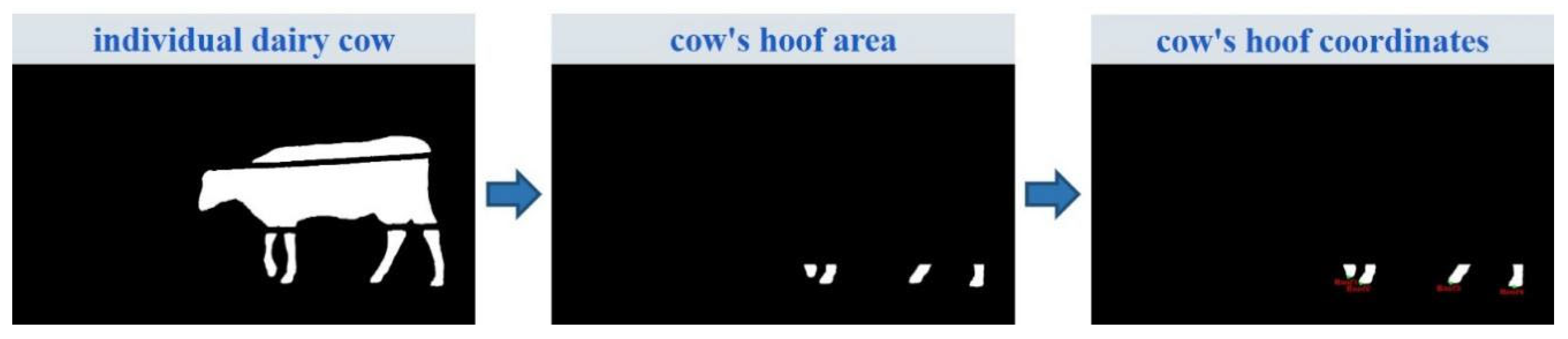

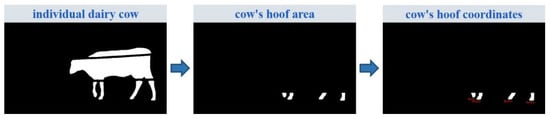

Lameness in dairy cows is primarily caused by hoof disease and is characterized by abnormalities in gait, back arching, and other signs. To capture the gait characteristics of dairy cows, we used an image processing algorithm to extract the positional coordinates of the cows’ hooves in the video frames. The process for obtaining the hoof coordinates of dairy cows is shown in Figure 4. This involves first obtaining the segmentation results for individual dairy cows and then identifying the lowest point in the connected domain space of the segmentation results as the hoof position. Each video frame of a cow was processed in the same way to generate a sequence of hoof coordinates.

To evaluate the accuracy of the extracted hoof coordinates, we selected 5309 images of stress-free, naturally walking dairy cows from the captured videos for analysis. The cow walking videos were processed using the hoof coordinate extraction algorithm described in this paper. The extracted hoof positions were manually labeled on the original images, and the distance in pixel units between the extracted hoof coordinates and the manually labeled points was calculated. The Euclidean distance between the coordinates extracted by the algorithm and the manually labeled points was used to establish a threshold, and the percentage of coordinates falling below this threshold was calculated to verify the accuracy of the cow hoof coordinate extraction algorithm.

To facilitate subsequent processing, the hoof coordinates were extracted, in order, from the front hoof to the back hoof of the cow, resulting in a sequence of coordinates represented as [(HF₁(x₁, y₁), HF₂(x₁, y₁), HF₃(x₁, y₁), HF₄(x₁, y₁)), (HF₁(x₂, y₂), HF₂(x₂, y₂), HF₃(x₂, y₂), HF₄(x₂, y₂))…(HF₁(x_n, y_n), HF₂(x_n, y_n), HF₃(x_n, y_n), HF₄(x_n, y_n))]. Due to occlusions of the cow’s hooves during walking, some of the extracted coordinates from each video frame may be missing, meaning not all frames contain four sets of coordinates. To accurately obtain the gait characteristics of the dairy cows, the extracted hoof coordinates need to be cleaned, and coordinates corresponding to the same hoof must be grouped together.

By observing the walking process in the video frames and combining it with preprocessing during the hoof coordinate extraction, the classification process is as follows: for frames with complete hoof coordinates, HF₁ and HF₂ correspond to the front hooves, while HF₃ and HF₄ correspond to the back hooves. In frames with two hooves obscured, the hooves are categorized by the horizontal position, with the smaller horizontal coordinate representing the front hooves and the larger one representing the back hooves. This allows for categorizing the hooves by classifying the front and back hooves separately.

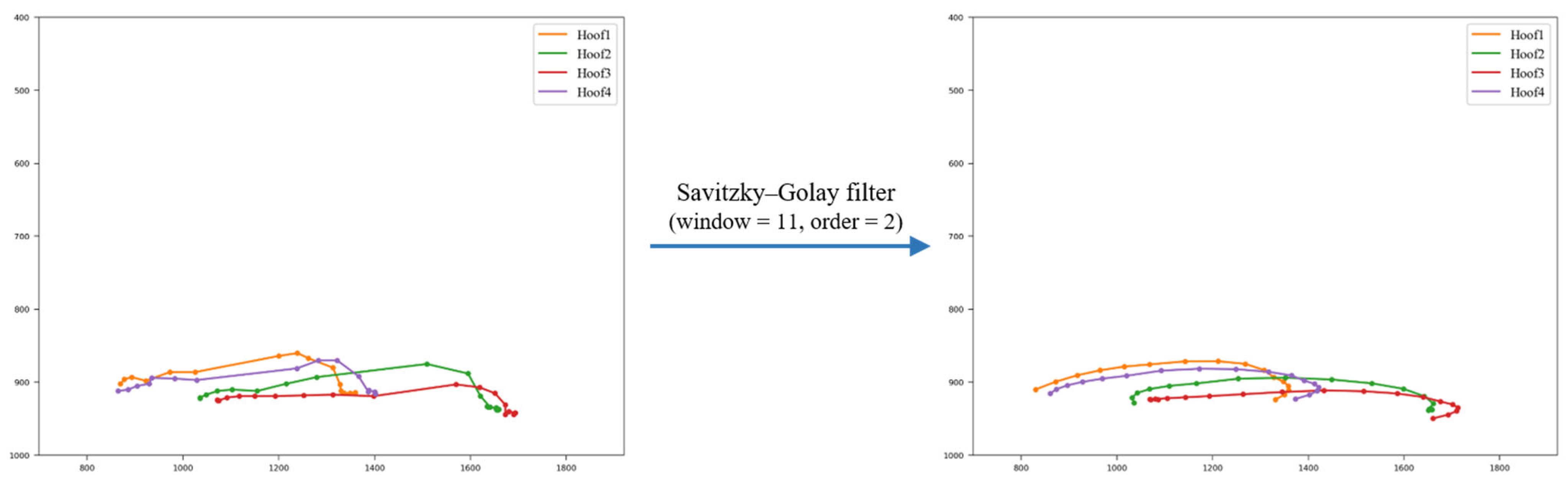

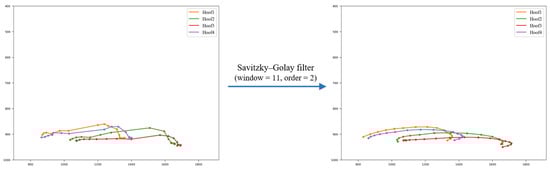

After categorizing the hooves, the acquired hoof coordinate sequences were plotted as trajectories. To further reduce errors in the hoof trajectories, we smoothed the trajectories using a smoothing algorithm (Savitzky–Golay filter) with optimized parameters (window size = 11, order = 2), as shown in Figure 5 [37].

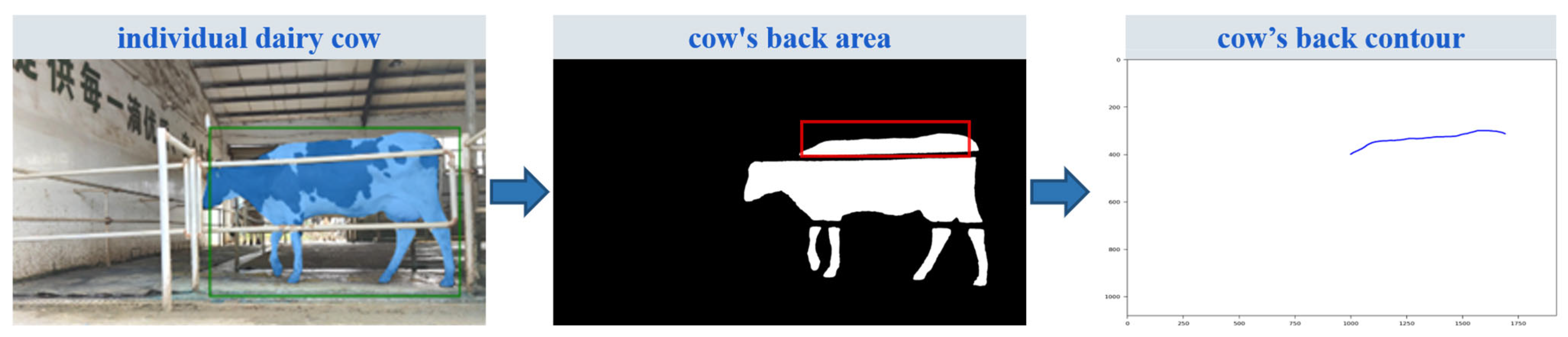

The back contour features of dairy cows are effective indicators for detecting lameness. To improve lameness detection, we used image processing methods to extract the back contour curve of dairy cows. The steps for extracting the back contour are shown in Figure 6.

First, individual dairy cows were segmented from the video using a segmentation network. Next, noise was removed from the image using erosion and dilation techniques. The back region of the cow was then extracted, starting from the point where the shoulder region first appears smooth in the image. After this, the highest point of each horizontal coordinate was identified within the space of the maximum connected domain of the back of the dairy cow, following the increasing order of the horizontal coordinates of the pixel points. Finally, the acquired sequence of coordinates was plotted on the image, and curve smoothing was applied to generate the back contour of the dairy cow.

Using image processing methods, we extracted the hoof tracks and back contour of the dairy cows from the video frames. The size of the feature map generated by combining these two features was 1920 × 1080. However, the hoof track was mainly concentrated in the lower-right section of the feature map, which did not effectively highlight the hoof-track characteristics. To address this, we optimized the feature map by cropping and resizing, repositioning the back contour in the upper section and the hoof tracks in the lower section, both centered within the feature map. After this optimization, the final size of the acquired lameness feature map was 500 × 370, which was then used as input for the subsequent image classification process. Through the feature extraction module, we transformed the walking video of dairy cows into lameness feature maps, so the classification model only needs to classify the resulting lameness feature map.

2.2.3. DCAC Model

The lameness feature map eliminates information unrelated to lameness, retaining only the visual representations of gait and back arch. Each feature map captures the hoof trajectory and back condition of a dairy cow while walking. Thus, lameness detection was transformed into a classification task of these feature maps. In this paper, we build upon the DenseNet121 classification model by integrating the Convolutional Block Attention Module (CBAM), resulting in the DCAC model for classifying lameness feature maps and enabling accurate lameness detection, as shown in Figure 7.

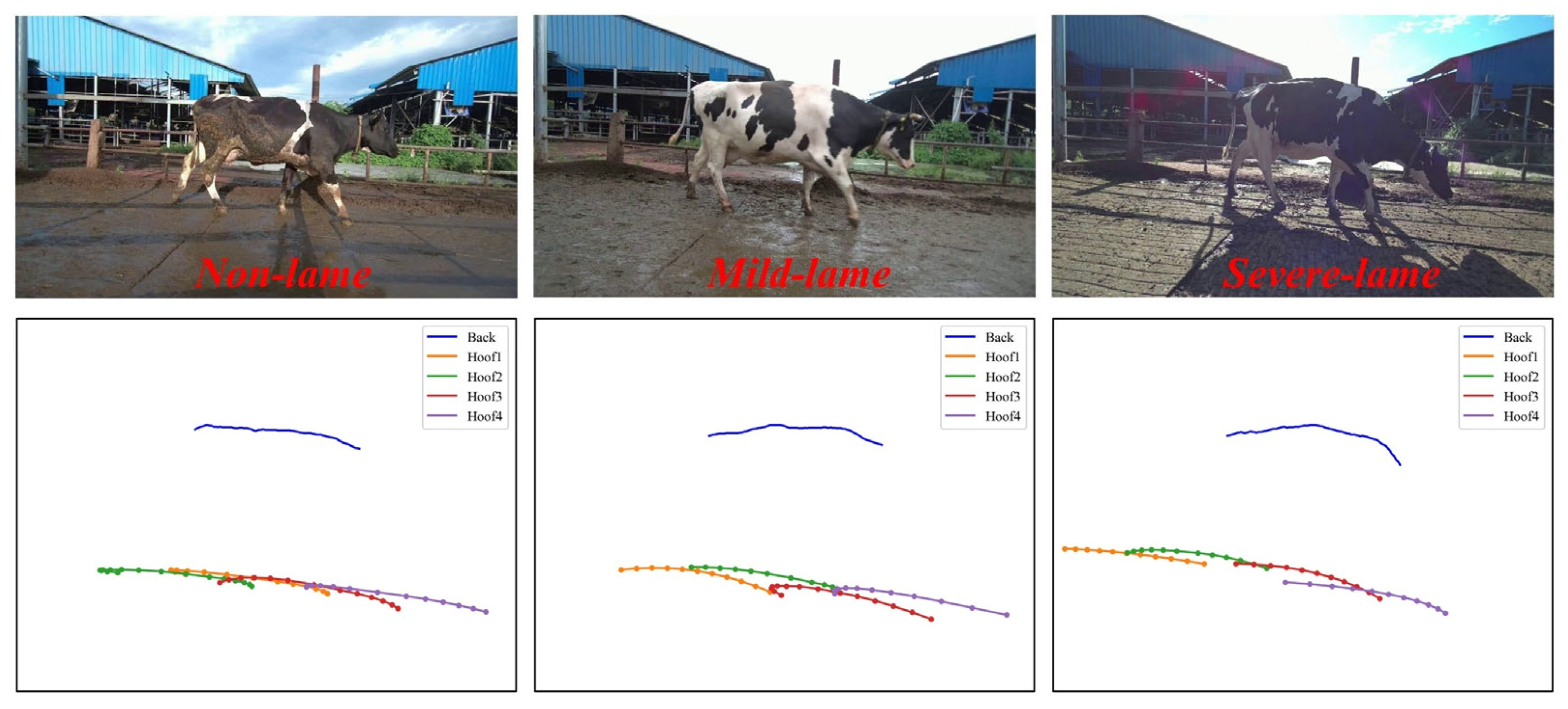

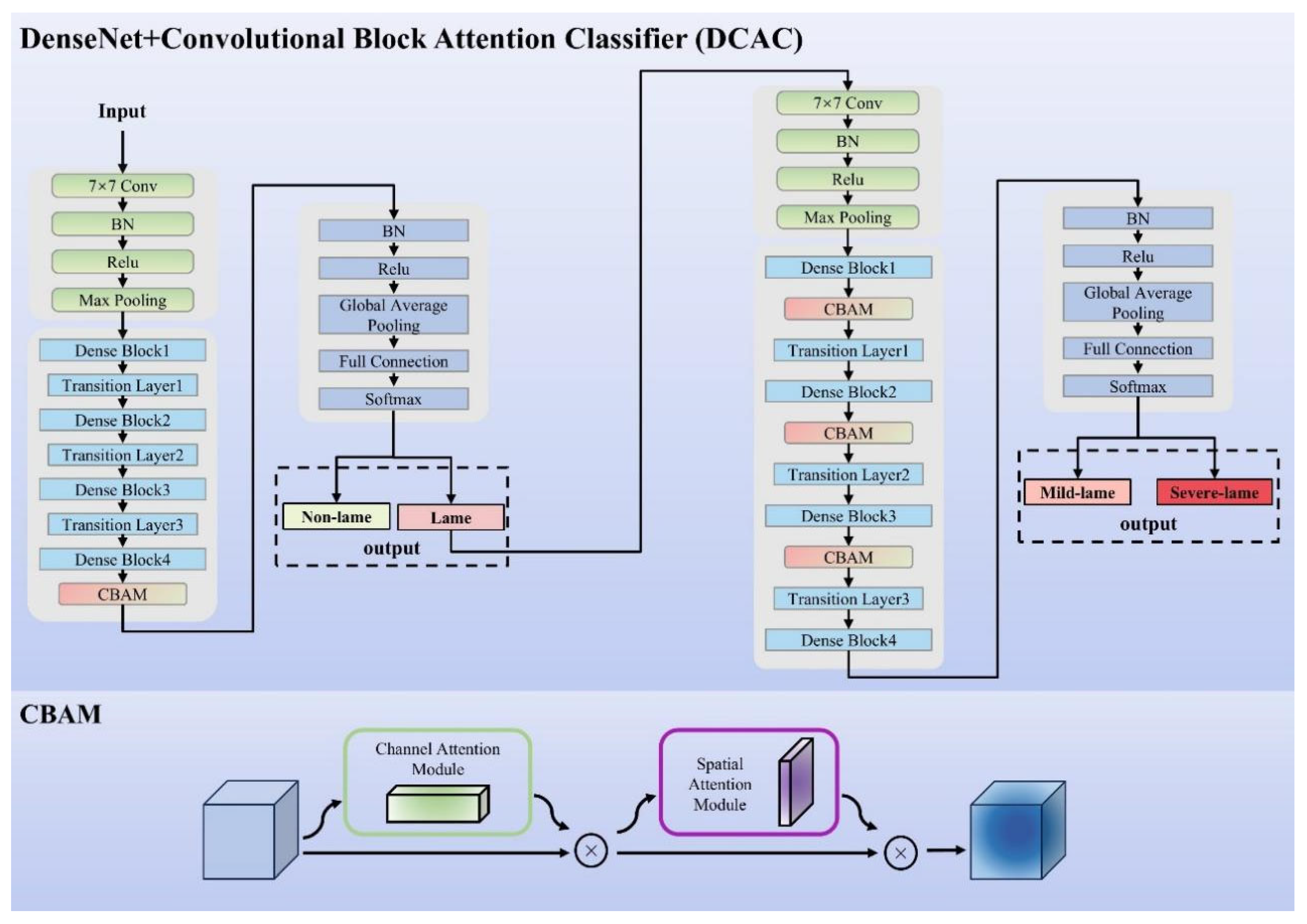

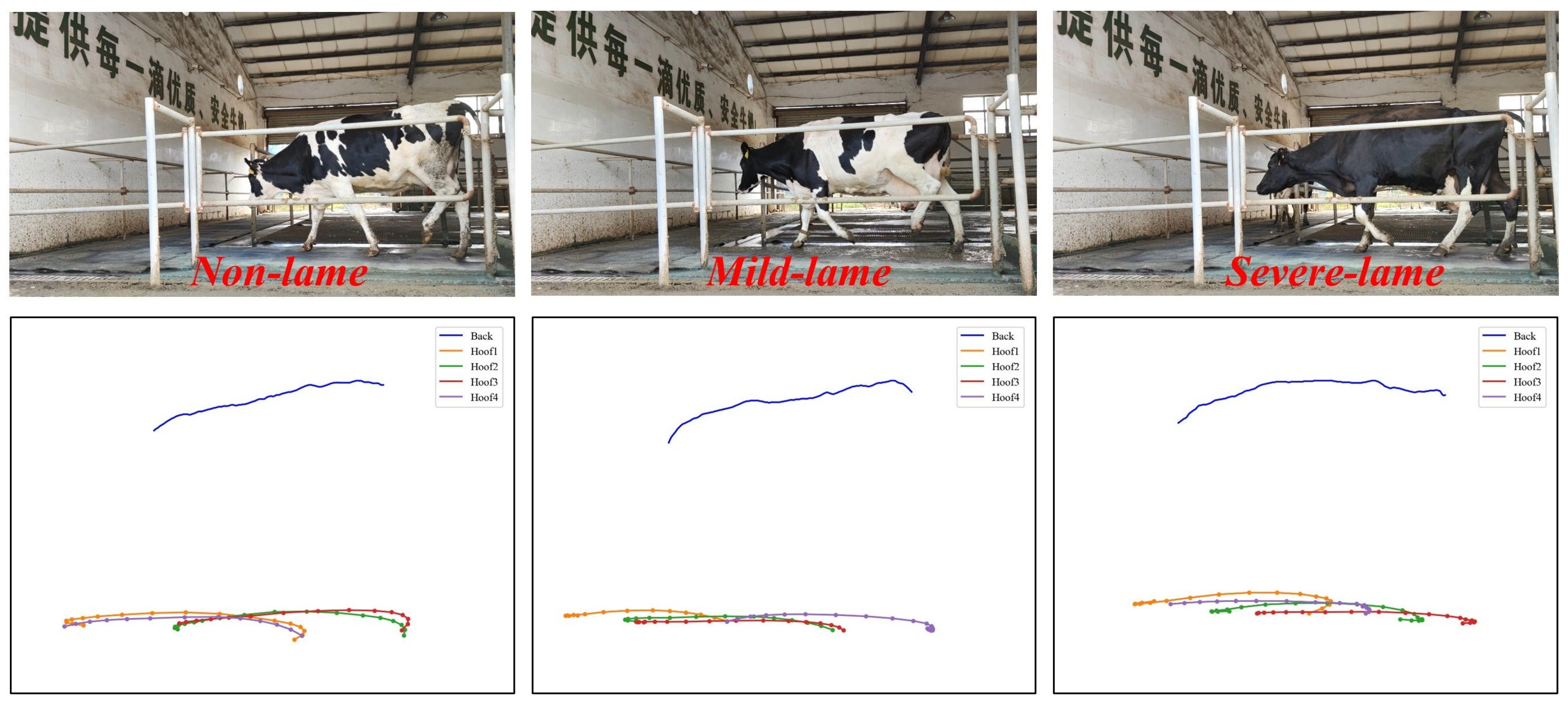

Our lameness feature map contains diverse information related to the severity of lameness in dairy cows (Figure 8). To extract and classify these features, we selected the DenseNet121 network and embedded the CBAM (Convolutional Block Attention Module) into its original structure. Given that different features influence the classification of dairy cows with varying degrees of lameness [4], we divided the classification process into two steps. First, a CBAM attention module was applied after the fourth Dense Block of the DenseNet121 network to classify the lameness feature map into healthy and lame categories. Then, a CBAM attention module was added after the first three Dense Blocks to further classify the lame cows from the first step into mild and severe lameness categories. The detection process through two-step translation, although more cumbersome compared to one-step classification methods, allows for the adjustment of the network’s attention to features, thereby improving detection accuracy.

We set the batch size to 16 and trained the model using the SGD optimizer with a momentum of 0.9 and an initial learning rate of 0.0001, reducing the learning rate by a factor of 10 every 1000 iterations. L2 regularization was applied to the loss function to prevent overfitting. After 3000 iterations, training was concluded. The input data consists of the feature maps generated by the lameness feature extraction process, with the output corresponding to the three levels of lameness. The model training in this study was conducted on an Ubuntu 20.04 operating system with the following hardware configuration: an Intel(R) Xeon(R) Platinum 8255C CPU @ 2.50 GHz, with 40 GB of RAM and an NVIDIA GeForce RTX 3080 GPU with 10 GB of memory. The system also utilized CUDA version 11.6. The deep-learning framework used for model development was PyTorch 1.13.0, and the programming language employed was Python 3.8.

3. Results

3.1. Extraction of Hoof

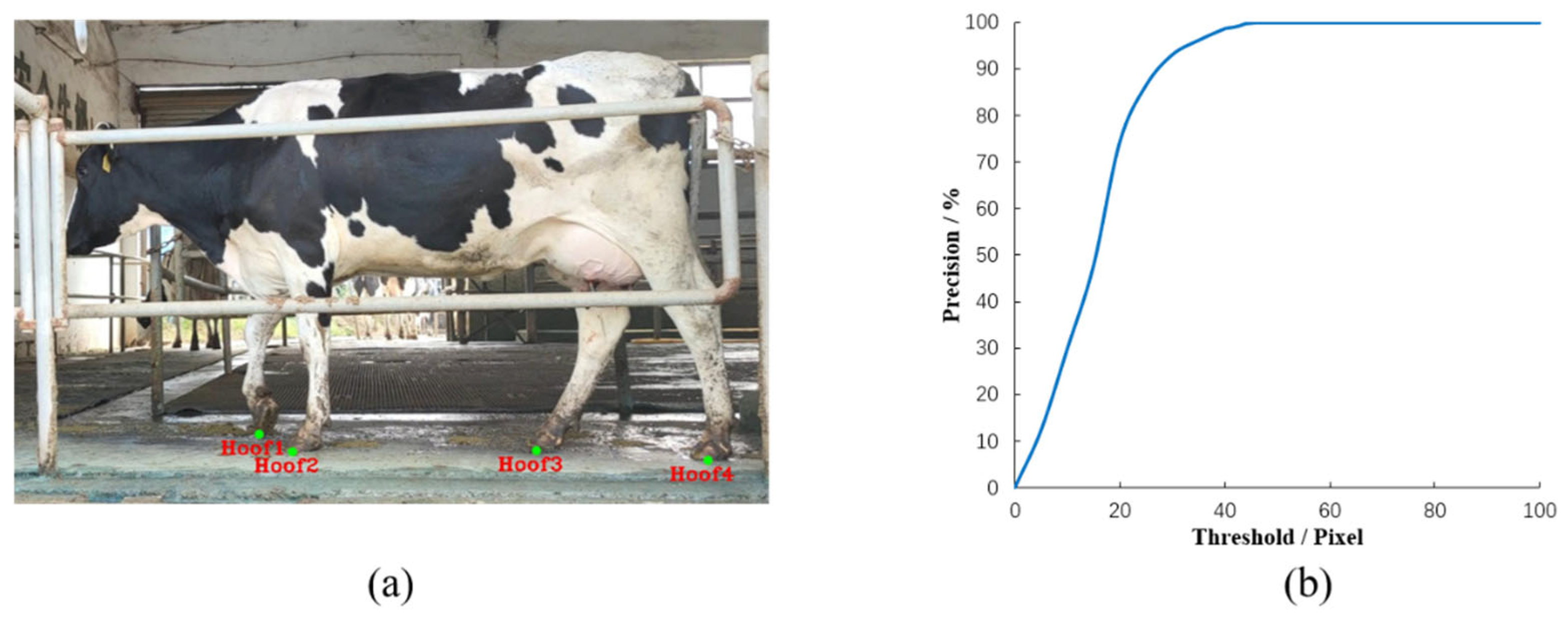

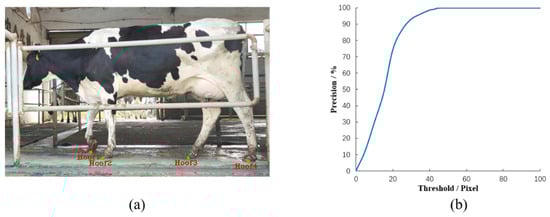

Accurate localization of dairy cows’ hooves is crucial for lameness detection, as it directly impacts the precision of lameness classification. A sample image illustrating the hoof localization of dairy cows is shown in Figure 9a, where the green-marked point represents the hoof position automatically generated by the algorithm. The results of the hoof localization accuracy measurements are presented in Figure 9b. As shown, 93.1% of the video frames exhibit a Euclidean distance of fewer than 30 pixels between the algorithm-extracted coordinates and the manually calibrated positions. Additionally, the Euclidean distance for all extracted coordinates is below 46 pixels. The average pixel distance for the hooves of the dairy cows is approximately 50 pixels. These results indicate that the algorithm used in this study can accurately localize the hooves of dairy cows.

3.2. Detection Results

To evaluate the classification performance of the DenseNet algorithm with the added attention module on the lameness feature map, we compared DenseNet121 with DCAC models. To maintain balance across different lameness classes in the dataset, we applied data augmentation by randomly fusing the extracted gait and back features of dairy cows. The models were tested on a dataset containing 3150 lameness feature maps, comprising 1050 healthy cows, 1050 mildly lame cows, and 1050 severely lame cows. Approximately 80% of the feature maps were used for training and validation, while the remaining 20% were reserved for testing.

To assess the effectiveness of the proposed classification algorithm, we used common evaluation metrics in classification tasks: accuracy, sensitivity, and specificity. The formulas for these metrics are as follows:

$$\mathrm{Accuracy}={\displaystyle \frac{\mathrm{TP}+\mathrm{TN}}{\mathrm{TP}+\mathrm{TN}+\mathrm{FP}+\mathrm{FN}}}$$

(1)

$$\mathrm{Sensitivity}={\displaystyle \frac{\mathrm{TP}}{\mathrm{TP}+\mathrm{FN}}}$$

(2)

$$\mathrm{Specificity}={\displaystyle \frac{\mathrm{TN}}{\mathrm{TN}+\mathrm{FP}}}$$

(3)

where TP is the number of true positive samples, TN is the number of true negative samples, FP is the number of false positive samples, and FN is the number of false negative samples.

The detection results for healthy and lame cows, using DenseNet121 and the improved DenseNet-CBAM classification algorithm, are summarized in

Table 2. Results of detection of healthy and lameness dairy cows.

Classification Model	Accuracy (%)	Sensitivity (%)	Specificity (%)
DenseNet121	95.08	95.71	94.76
DCAC	99.05	100	98.57

.

From the results shown in Table 2, it is clear that the lameness feature maps we extracted produced excellent classification results for both healthy and lame dairy cows. The DCAC model achieved a classification accuracy of 99.05%, with a sensitivity of 100% and specificity of 98.57%. In comparison, the DenseNet121 model achieved a classification accuracy of 95.08%, a sensitivity of 95.71%, and a specificity of 94.76%.

Further, as shown in

Table 3. Results of different lameness classification models on lameness feature maps.

Classification Model	Accuracy (%)	Sensitivity (%)	Specificity (%)
DenseNet121	88.99	83.49	91.75
DCAC	92.80	89.21	94.60

, the DCAC model demonstrated strong performance in classifying healthy, mildly lame, and severely lame cows, with a classification accuracy of 92.80%, sensitivity of 89.21%, and specificity of 94.60%. The conventional DenseNet121 model, on the other hand, achieved a classification accuracy of 88.99%, sensitivity of 83.49%, and specificity of 91.75%.

4. Discussion

Recent advances in computer vision have substantially progressed dairy cattle lameness detection, with deep learning demonstrating exceptional efficacy in both object localization and image classification tasks. This progress has greatly enhanced the accuracy of lameness detection in dairy cows. The method presented in this paper primarily consists of two components: a CLFM model for video processing and a DCAC model for lameness detection.

Several prior studies have established a strong correlation between specific motor characteristics, such as a bowed back and abnormal gait, and locomotion scores. However, relying on a single characteristic for lameness detection is prone to errors, including misdetection or underdetection [17,31]. To overcome these limitations, this study combined both the back contour and hoof trajectory features, thereby eliminating irrelevant information and retaining only the essential gait and back features. This approach enhances the model’s interpretability, reduces complexity, and improves classification accuracy.

However, despite the inclusion of features in the lameness feature map that can be used to distinguish between healthy, mild, and severe lameness, directly using the lameness feature map as input for three-class classification still results in numerous errors, because some features can interfere with the detection results. For example, the back arch is used to detect lame cows; however, some cows that are mildly lame do not exhibit an arched back, while some non-lame cows do [28]. Classification efficacy of distinct features varies significantly across lameness severity grades [31].

Therefore, the three-class lameness classification task was divided into two binary classification tasks: healthy vs. lame and mild lameness vs. severe lameness. For the first task, we used DenseNet121, a well-established classification model, and integrated the Convolutional Block Attention Module (CBAM) to adjust the model’s focus on lameness-specific features. For the classification of healthy versus lame cows, we placed the CBAM module after the fourth Dense Block to emphasize gait features. Through experimental comparison, we determined the optimal attention ratio to be 6:4, favoring gait over back features.

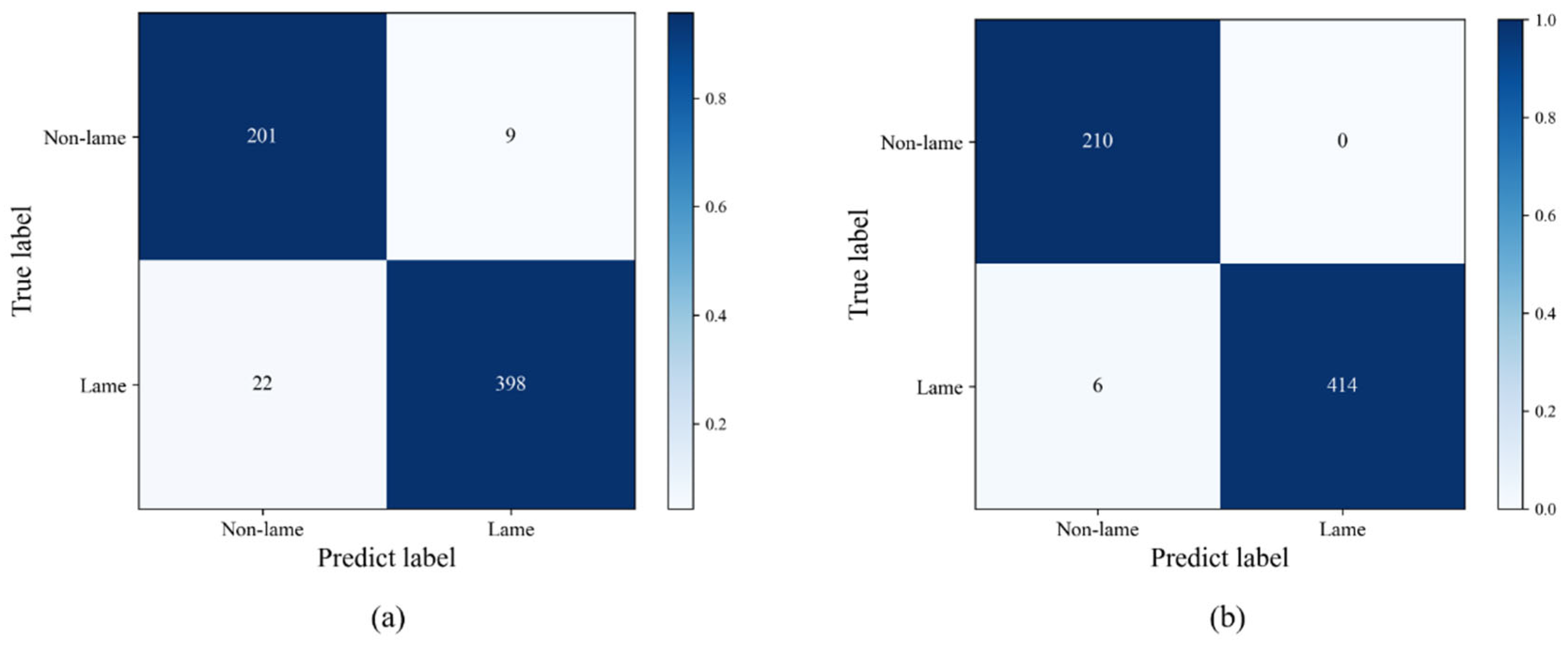

Figure 10 presents the confusion matrices comparing the binary classification results of healthy and lameness cows using both DenseNet121 and CLFM models: (a) shows the results of the DenseNet121 model, while (b) shows the results of the CLFM model. As seen in the figure, the CLFM model significantly reduces the misclassification of healthy cows as lame and vice versa. As shown, nine healthy cows that were misclassified as lame by DenseNet121 were correctly identified as non-lame by the CLFM models, indicating that CBAM played a role in reducing misclassification caused by the influence of back posture on lameness detection. Additionally, out of 22 lame cows misclassified as healthy by DenseNet121, 16 were correctly detected as lame by the CLFM models, suggesting that paying more attention to hoof features can reduce the rate of missed detection for lameness.

For the second classification task—distinguishing between mild and severe lameness in lame cows—we focused more on the bowed back feature, as it is key to differentiating between the two levels of lameness. To accomplish this, we added CBAM modules after the first three Dense Blocks and adjusted the attention ratio to 4:6, emphasizing back contour features. Using this improved classification network, we performed the binary classification task and present the results in

Table 4. Confusion matrix of the CLFM algorithm for classification results of lameness in dairy cows.

Locomotion Scores	Algorithm Classification			Total	Sensitivity (%)
	Score 1	Score 2	Score 3
Score 1	210	0	0	210	100
Score 2	6	175	29	210	83.33
Score 3	0	33	177	210	84.29
Specificity (%)	98.57	92.14	93.10

. The final classification results show that all motion scores were accurately predicted, with the motion score of 1 achieving the best classification results: a sensitivity of 100% and specificity of 98.57%. The motion score of 2, while having relatively lower specificity and sensitivity, still performed well with 92.14% sensitivity and 83.33% specificity.

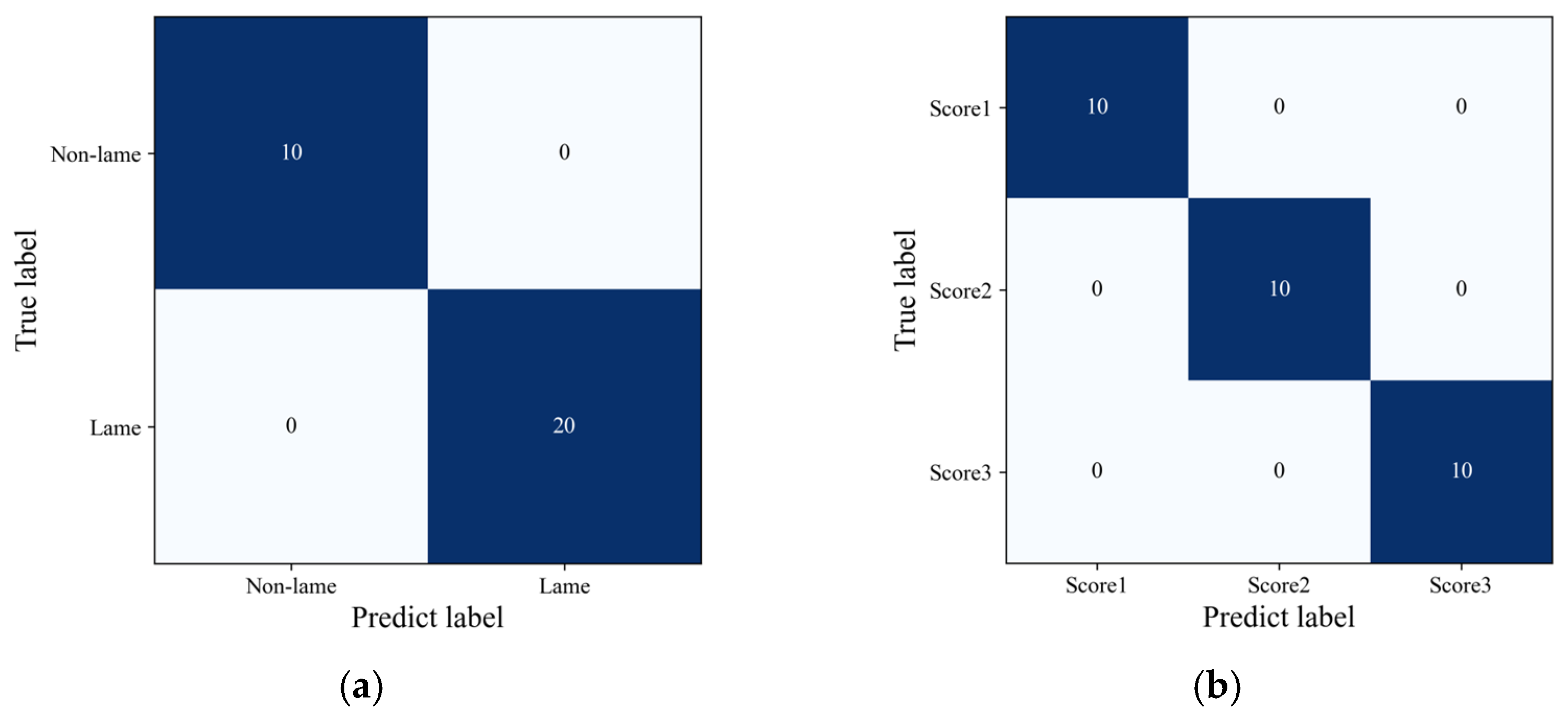

To address the potential limitations of using a single dataset, we applied our algorithm to detect lameness in cows from another farm. The test dataset comprised 30 walking cows (10 healthy, 10 mildly lame, and 10 severely lame), collected and locomotion-scored using essentially the same methodology as our primary dataset. As shown in Figure 11 (different levels of feature maps) and Figure 12 (confusion matrix of test results), our algorithm demonstrated good classification performance on this independent dataset, effectively distinguishing between healthy and lame cows as well as between mild and severe lameness cases, indicating strong robustness across different farm environments. However, we must acknowledge that our validation was still limited to a single cattle breed due to experimental constraints. Furthermore, few studies have investigated potential breed-specific differences in lameness-related movement characteristics, which is also a problem worthy of future research.

To demonstrate the lameness classification effect of the proposed method, it was compared with the research results of lameness classification in recent years. Some studies have extracted multiple features from videos (such as back posture measurement, head bobbing amplitude, tracking distance, stride length, stance duration, and swing duration) and combined them with machine-learning algorithms (including Decision Tree, Support Vector Machine, K-Nearest Neighbor, Random Forests, and Logistic Regression) to develop classification algorithms for cow lameness [17,18,38], as shown in

Table 5. Comparison with existing lameness classification methods.

Algorithm	Accuracy (%)	Sensitivity (%)	Specificity (%)
AdaBoost [18]	77.90	-	-
SVM-R [17]	80.07	76.78	81.15
Logistic Regression [38]	87.30	88.80	85.7
Ours	92.80	89.21	94.60

. As can be seen from Table 5, the lameness classification accuracy of the proposed method is 89.20%, sensitivity is 94.60%, and specificity is 89.21%. Compared to the results of recent studies on lameness classification, there are improvements.

In addition, some studies have used deep-learning networks to address the detection problem of whether dairy cows are lame, including YOLOv3 + LSTM [23], Siam-AM + SVM [39], and SOLOv2 + SVM [40], as well as deep-learning algorithms, including C3D [41], R3D, and R2plus1D [42], as shown in

Table 6. Comparison with existing lameness-detection methods.

Algorithm	Accuracy (%)	Sensitivity (%)	Specificity (%)
YOLOv3 + LSTM [23]	97.00	-	-
Siam-AM + SVM [39]	94.73	96.21	95.14
C3D [41]	75.68	81.08	70.27
R3D [42]	74.32	70.27	78.38
R2Plus1D [42]	67.57	75.68	59.46
SOLOv2 + SVM [40]	98.65	100	97.30
Ours	99.05	100	98.57

. As can be seen from Table 6, for the problem of lameness detection, the method proposed in this paper exhibits improved performance compared with existing lameness-detection methods. The lameness-detection accuracy of the proposed method is 99.05%, sensitivity is 100%, and specificity is 98.57%. The accuracy, sensitivity, and specificity of the C3D algorithm are 75.68%, 81.08%, and 70.27%, respectively. The accuracy, sensitivity, and specificity of the R3D algorithm are 74.32%, 70.27%, and 78.38%, respectively. The accuracy, sensitivity, and specificity of the R2Plus1D algorithm are 67.57%, 75.68%, and 59.46%, respectively. The accuracy using a deep-learning algorithm with video is less than 80%, which indicates that it is difficult to extract high-value lameness features directly using a deep-learning algorithm. It proves that the method combining feature extraction with a classification network demonstrates superior performance, and the method proposed in this paper can effectively retain the lameness features of cows and flexibly utilize these features to achieve lameness detection.

Although the overall results are promising, Table 4 reveals the misclassification, particularly between mild and severe lameness categories. The confusion matrix demonstrates that the model occasionally misclassifies mildly lame cows as severely lame, and vice versa. This inter-category confusion suggests that the current classification criteria lack sufficient discriminative power to reliably differentiate between these two severity levels, highlighting an important area for future refinement. We have analyzed the reasons behind these misclassifications, which are also issues to be addressed in our subsequent research. Firstly, lameness is a continuum rather than a binary concept [43]. The distinction between mild and severe lameness is subjective, as exemplified by descriptions such as a shortened stride and a noticeably arched back in locomotion scoring. Currently, there is no definitive research outlining the quantitative criteria for this distinction. Therefore, for the model to more accurately capture these descriptive differences between mild and severe lameness, it requires more data to learn and automatically quantify these distinctions. Secondly, cows are complex and individually different, and time-variant dynamic (CITD) systems [29] show lameness in different ways. Therefore, defining individual models can enhance classification accuracy. Determining lameness based on individual cow information rather than population data is also one of our future research directions. Lastly, our attempt to incorporate an attention mechanism for different features to adjust their weights of influence on classification results proved useful, but there is still room for improvement. Since cow lameness involves an overall gait change, methods such as cross-attention and feature fusion can effectively facilitate feature information interaction and improve feature representation. In the future, we will also explore more effective classification models based on cow locomotion theory.

5. Conclusions

This study developed an integrated deep-learning framework (CLFM-DCAC) that significantly advances automated lameness detection in dairy cattle through two key innovations: the Cow Lameness Feature Map (CLFM) model, which holistically captures interdependent gait kinematics, and the DenseNet-Integrated Convolutional Attention Module (DCAC), which adaptively weights features based on lameness severity. The system achieved exceptional performance while providing an interpretable, non-invasive solution compatible with standard farm equipment. By preserving critical biomechanical relationships often lost in conventional approaches and dynamically adjusting to severity-specific patterns, this framework offers dairy farmers and veterinarians a practical tool for early lameness intervention that can substantially improve animal welfare and farm productivity.
