Innominate Artery Graft Cannulation for Selective Antegrade Cerebral Perfusion in Aortic Surgery: Clinical Findings and Feasibility †
Abstract
:1. Introduction
2. Materials and Methods
2.1. Study Design and Patient Selection
2.2. Study Definitions

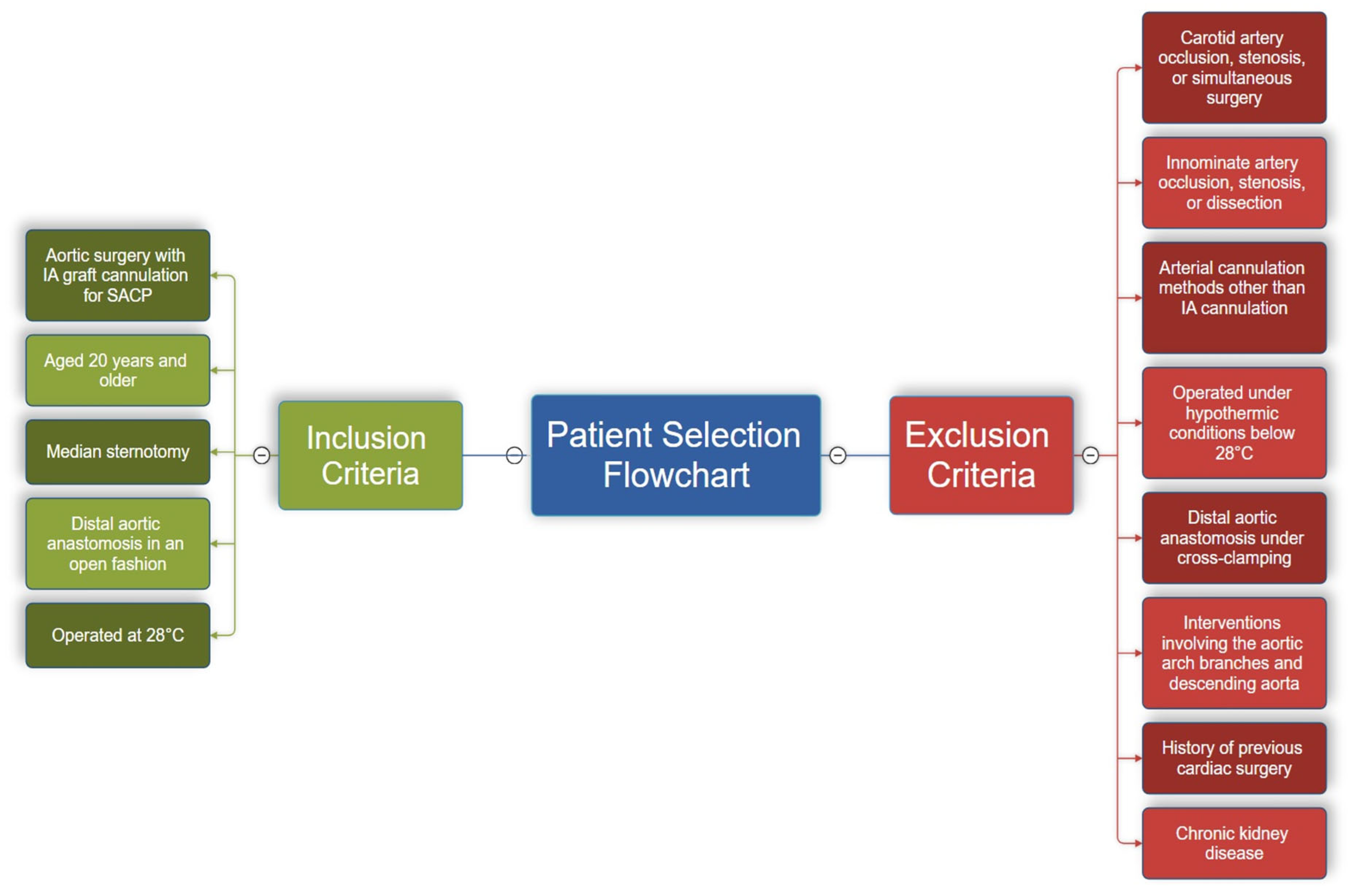

2.3. Inclusion and Exclusion Criteria (Figure 1)
2.3.1. Inclusion Criteria:
- Patients who underwent aortic surgery with IA graft cannulation for SACP.
- Patients aged 20 years and older.
- Patients who underwent distal aortic anastomosis in an open fashion, were operated on at 28 °C, and underwent median sternotomy.
2.3.2. Exclusion Criteria:
- Patients with occlusion or stenosis in the carotid arteries or those who underwent simultaneous carotid surgery.
- Patients with occlusion, stenosis, or dissection flap in the innominate artery.
- Patients who underwent arterial cannulation methods other than IA cannulation.
- Patients operated under hypothermic conditions below 28 °C.
- Patients who underwent distal aortic anastomosis under cross-clamping.
- Patients who underwent interventions involving the aortic arch branches and descending aorta.
- Patients with chronic kidney disease.
- Patients with a history of previous cardiac surgery.

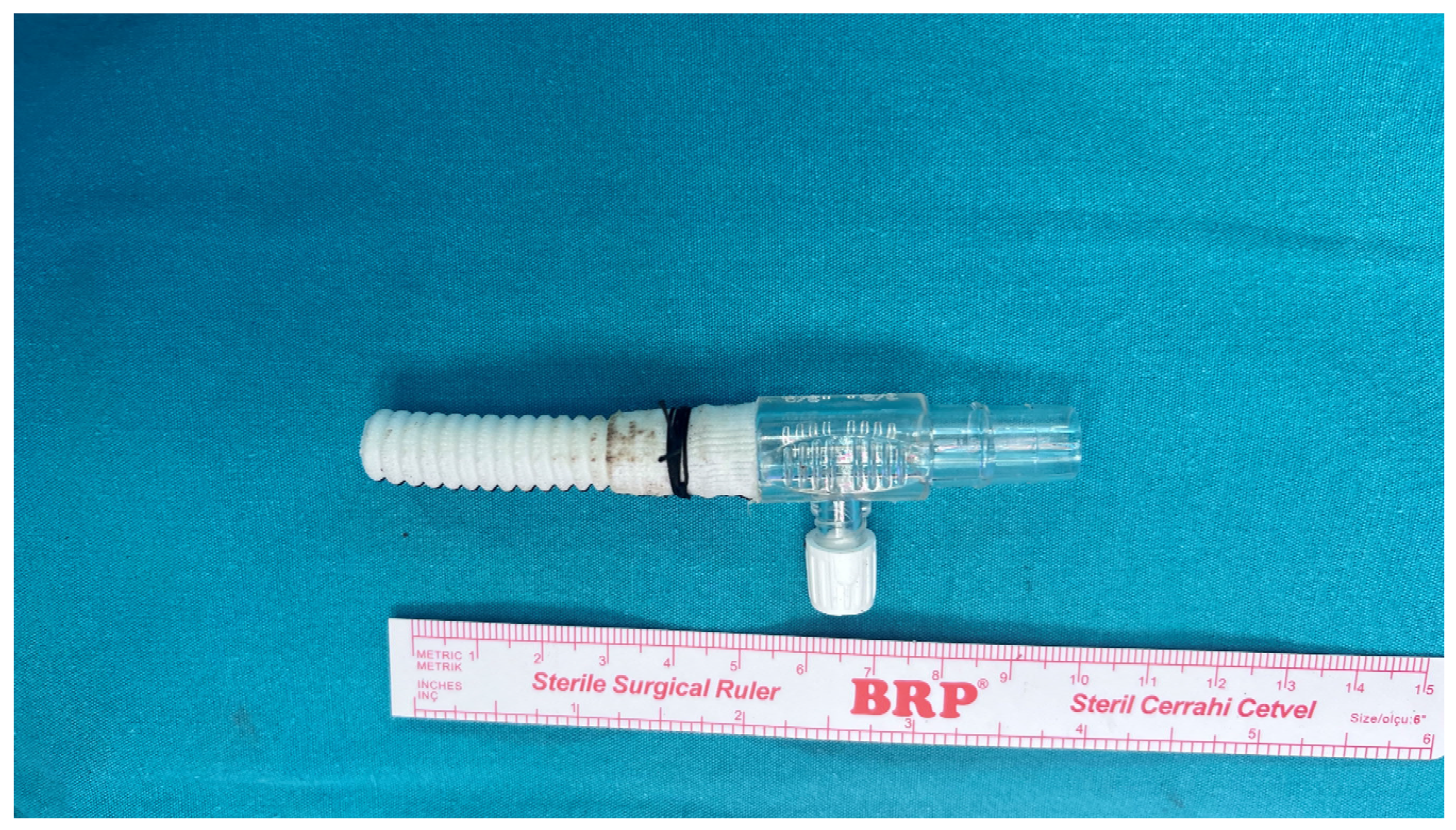

2.4. Surgical Protocol and Technique
2.5. Statistical Analysis
3. Results
3.1. Demographic Data
3.2. Intraoperative Data
3.3. Postoperative Data
3.4. TAAAD Patient Group
3.5. Marfan Syndrome Group
3.6. Overall Assessment
4. Discussion
5. Limitations
6. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
ACT | Activated clotting time |
ARF | Acute renal failure |
AX | Axillary artery |
AVR | Aortic valve replacement |
BMI | Body mass index |
BSA | Body surface area |
CAG | Coronary angiography |
CPB | Cardiopulmonary bypass |
COPD | Chronic obstructive pulmonary disease |
CTA | Computed tomographic angiography |
CT | Computed tomography |
CVE | Cerebrovascular events |
EF | Ejection fraction |
IA | Innominate artery |
ICU | Intensive care unit |
IQR | Interquartile range (25th–75th percentile) |
IV | Innominate vein |
MFS | Marfan syndrome |
MVR | Mitral valve replacement |
NIRS | Non-invasive near-infrared spectroscopy |
POAF | Postoperative atrial fibrillation |
SACP | Selective antegrade cerebral perfusion |
TAAAD | Type A acute aortic dissection |
References
- Harrington, D.K.; Fragomeni, F.; Bonser, R.S. Cerebral perfusion. Ann. Thorac. Surg. 2007, 83, S799–S804; discussion S824–S831. [Google Scholar] [PubMed]
- Perreas, K.; Samanidis, G.; Thanopoulos, A.; Georgiopoulos, G.; Antoniou, T.; Khoury, M.; Michalis, A.; Bairaktaris, A. Antegrade or retrograde cerebral perfusion in ascending aorta and hemiarch surgery? A propensity-matched analysis. Ann. Thorac. Surg. 2016, 101, 146–152. [Google Scholar] [PubMed]
- Khaladj, N.; Shrestha, M.; Meck, S.; Peterss, S.; Kamiya, H.; Kallenbach, K.; Winterhalter, M.; Hoy, L.; Haverich, A.; Hagl, C. Hypothermic circulatory arrest with selective antegrade cerebral perfusion in ascending aortic and aortic arch surgery: A risk factor analysis for adverse outcome in 501 patients. J. Thorac. Cardiovasc. Surg. 2008, 135, 908–914. [Google Scholar] [PubMed]
- Vallabhajosyula, P.; Jassar, A.S.; Menon, R.S.; Komlo, C.; Gutsche, J.; Desai, N.D.; Hargrove, W.C.; Bavaria, J.E.; Szeto, W.Y. Moderate versus deep hypothermic circulatory arrest for elective aortic transverse hemiarch reconstruction. Ann. Thorac. Surg. 2015, 99, 1511–1517. [Google Scholar] [CrossRef]
- Sabik, J.F.; Nemeh, H.; Lytle, B.W.; Blackstone, E.H.; Gillinov, A.M.; Rajeswaran, J.; Cosgrove, D.M. Cannulation of the axillary artery with a side graft reduces morbidity. Ann. Thorac. Surg. 2004, 77, 1315–1320. [Google Scholar]
- Chu, M.W.; Losenno, K.L.; Gelinas, J.J.; Garg, V.; Dickson, J.; Harrington, A.; Verma, P.; Peterson, M.D. Innominate and axillary cannulation in aortic arch surgery provide similar neuroprotection. Can. J. Cardiol. 2016, 32, 117–123. [Google Scholar] [CrossRef]
- Schachner, T.; Nagiller, J.; Zimmer, A.; Laufer, G.; Bonatti, J. Technical problems and complications of axillary artery cannulation. Eur. J. Cardiothorac. Surg. 2005, 27, 634–637. [Google Scholar]
- Banbury, M.K.; Cosgrove, D.M. Arterial cannulation of the innominate artery. Ann. Thorac. Surg. 2000, 69, 957. [Google Scholar]
- Preventza, O.; Price, M.D.; Spiliotopoulos, K.; Amarasekara, H.S.; Cornwell, L.D.; Omer, S.; de la Cruz, K.I.; Zhang, Q.; Green, S.Y.; LeMaire, S.A.; et al. In elective arch surgery with circulatory arrest, does the arterial cannulation site really matter? A propensity score analysis of right axillary and innominate artery cannulation. J. Thorac. Cardiovasc. Surg. 2018, 155, 1953–1960.e4. [Google Scholar]
- Eldeiry, M.; Ghincea, C.; Aftab, M.; Cleveland, J.C.; Fullerton, D.; Reece, T.B. Innominate versus axillary artery cannulation for the hemiarch repair. J. Surg. Res. 2018, 232, 234–239. [Google Scholar]
- Mert, B.; Boyacioglu, K.; Sacli, H.; Özkaynak, B.; Kara, I.; Polat, A. Innominate artery cannulation for proximal aortic surgery. Braz. J. Cardiovasc. Surg. 2023, 38, 252–258. [Google Scholar] [PubMed]
- Preventza, O.; Garcia, A.; Tuluca, A.; Henry, M.; Cooley, D.A.; Simpson, K.; Bakaeen, F.G.; Cornwell, L.D.; Omer, S.; Coselli, J.S. Innominate artery cannulation for proximal aortic surgery: Outcomes and neurological events in 263 patients. Eur. J. Cardiothorac. Surg. 2015, 48, 937–942. [Google Scholar] [CrossRef] [PubMed]
- Unal, M.; Yilmaz, O.; Akar, I.; Ince, I.; Aslan, C.; Koc, F.; Kafali, H. Brachiocephalic artery cannulation in proximal aortic surgery that requires circulatory arrest. Tex. Heart Inst. J. 2014, 41, 596–600. [Google Scholar] [CrossRef] [PubMed]
- Di Eusanio, M.; Ciano, M.; Labriola, G.; Lionetti, G.; Di Eusanio, G. Cannulation of the innominate artery during surgery of the thoracic aorta: Our experience in 55 patients. Eur. J. Cardiothorac. Surg. 2007, 32, 270–273. [Google Scholar] [CrossRef]
- Kong, X.; Ruan, P.; Yu, J.; Jiang, H.; Chu, T.; Ge, J. Innominate artery direct cannulation provides brain protection during total arch replacement for acute type A aortic dissection. J. Cardiothorac. Surg. 2022, 17, 165. [Google Scholar]
- Payabyab, E.C.; Hemli, J.M.; Mattia, A.; Kremers, A.; Vatsia, S.K.; Scheinerman, S.J.; Mihelis, E.A.; Hartman, A.R.; Brinster, D.R. The use of innominate artery cannulation for antegrade cerebral perfusion in aortic dissection. J. Cardiothorac. Surg. 2020, 15, 205. [Google Scholar] [CrossRef]
- Feier, H.; Grigorescu, A.; Braescu, L.; Falnita, L.; Sintean, M.; Luca, C.T.; Mocan, M. Systematic innominate artery cannulation strategy in acute type A aortic dissection: Better perfusion, better results. J. Clin. Med. 2023, 12, 2851. [Google Scholar] [CrossRef]
- Gergen, A.K.; Kemp, C.; Ghincea, C.V.; Feng, Z.; Ikeno, Y.; Aftab, M.; Reece, T.B. Direct innominate artery cannulation versus side graft for selective antegrade cerebral perfusion during aortic hemiarch replacement. Aorta 2022, 10, 26–31. [Google Scholar]
- Jassar, A.S.; Vallabhajosyula, P.; Bavaria, J.E.; Gutsche, J.; Desai, N.D.; Williams, M.L.; Milewski, R.K.; Hargrove, W.C.; Szeto, W.Y. Direct innominate artery cannulation: An alternate technique for antegrade cerebral perfusion during aortic hemiarch reconstruction. J. Thorac. Cardiovasc. Surg. 2016, 151, 1073–1078. [Google Scholar]
- Uchino, G.; Yunoki, K.; Sakoda, N.; Saiki, M.; Hisamochi, K.; Yoshida, H. Innominate artery cannulation for arterial perfusion during aortic arch surgery. J. Card. Surg. 2017, 32, 110–113. [Google Scholar]
- Türkmen, U.; Yiğit, G.; Tekin, K.A.; Çelikten, A.E.; Ünal, E.U. Innominate Artery Graft Cannulation for Selective Antegrade Cerebral Perfusion in Aortic Surgery: Innovation and Clinical Experiences. In Proceedings of the 18th Turkish Society of Cardiovascular Surgery Congress, Antalya, Turkey, 21–24 November 2024; p. 23. [Google Scholar]
- Slater, J.P.; Guarino, T.; Stack, J.; Vinod, K.; Bustami, R.T.; Brown, J.M., 3rd; Rodriguez, A.L.; Magovern, C.J.; Zaubler, T.; Freundlich, K.; et al. Cerebral oxygen desaturation predicts cognitive decline and longer hospital stay after cardiac surgery. Ann. Thorac. Surg. 2009, 87, 36–44. [Google Scholar] [CrossRef]
- Berretta, P.; Patel, H.J.; Gleason, T.G.; Sundt, T.M.; Myrmel, T.; Desai, N.; Korach, A.; Panza, A.; Bavaria, J.; Khoynezhad, A.; et al. IRAD experience on surgical type A acute dissection patients: Results and predictors of mortality. Ann. Cardiothorac. Surg. 2016, 5, 4. [Google Scholar]
Variables | All Patients (n = 196) | TAAAD Group (n = 36) | Marfan Syndrome Group (n = 23) |
---|---|---|---|
Female sex | 64 (32.65%) | 13 (36.11%) | 4 (17.39%) |
Age (years) | 63 (IQR: 53–70) | 57 (IQR: 52–69) | 45 (IQR: 38–52) |
BSA (kg/m2) | 1.89 ± 0.17 | 1.93 ± 0.15 | 1.93 ± 0.14 |
BMI | 29.4 (IQR: 26.3–33.2) | 28.5 (IQR: 26.2–31.2) | 26.7 (IQR: 24.6–29.5) |
EF % | 56.32 ± 7.37 | 53.6 ± 5.0 | 53.7± 8.1 |
Diabetes Mellitus | 70 (35.71%) | 9 (25%) | 6 (26.09%) |
TAAAD | 36 (18.37%) | 36 (100%) | 6 (26.09%) |
Hypertension | 120 (61.22%) | 33 (91.7%) | 10 (43.48%) |
COPD | 37 (18.8%) | 7 (19.4%) | 1 (4.35%) |
History of CVE | 3 (1.53%) | 0 (0%) | 0 (0%) |
Bicuspid Aortic Valve | 44 (22.45%) | 7 (19.4%) | 17 (73.91%) |
Aortic Valve Disease | |||
None | 125 (63.77%) | 29 (80.6%) | 6 (26.08%) |
Stenosis | 32 (16.33%) | 3 (8.3%) | 1 (4.35%) |
Regurgitation | 39 (19.90%) | 4 (11.1%) | 16 (69.57%) |
Marfan Syndrome | 23 (11.73%) | 6 (16.67%) | 23 (100%) |
Variables | All Patients (n = 196) | TAAAD Group (n = 36) | Marfan Syndrome Group (n = 23) |
---|---|---|---|

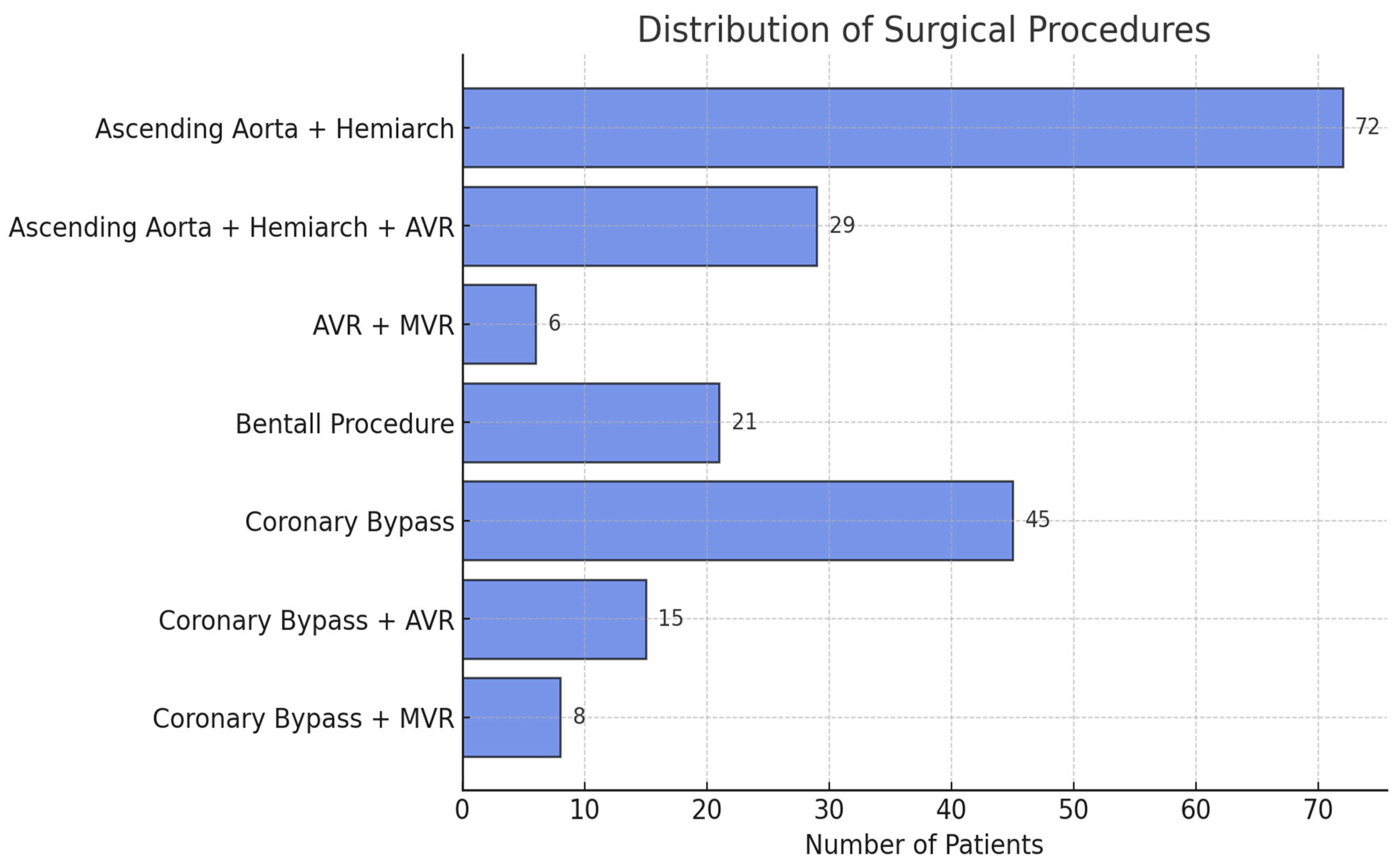

Type of Surgery (Additional Procedure) | |||
Ascending aorta and hemiarch replacement | 72 (36.74%) | 28 (77.77%) | 6 (26.08%) |
Ascending aorta and hemiarch replacement + AVR | 29 (14.80%) | 3 (8.33%) | 7 (30.44%) |
AVR + MVR | 6 (3.06%) | 0 (0%) | 0 (0%) |
Bentall Procedure | 21 (10.71%) | 3 (8.33%) | 10 (43.48%) |
Coronary bypass | 45 (22.96%) | 1 (2.78%) | 0 (0%) |
Coronary bypass + AVR | 15 (7.65%) | 1 (2.78%) | 0 (0%) |
Coronary bypass + MVR | 8 (4.08%) | 0 (0%) | 0 (0%) |
Cardiopulmonary Bypass Time (min) | 120.50 (IQR: 81.75–154) | 83.5 (IQR: 80.75–118.5) | 127 (IQR: 86–150) |
Cross-clamp Time (min) | 93 (IQR: 61–131.25) | 64 (IQR: 59.75–79) | 104 (IQR: 65–135) |
SACP Time (minutes) | 23 (IQR: 20.75–24.25) | 23 (IQR: 21–25.25) | 22 (IQR: 19.5–25) |
Perfusion Flow Rate (L/min) | 4.54 ± 0.42 | 4.62 ± 0.36 | 4.63 ± 0.33 |
Variables | All Patients (n = 196) | TAAAD Group (n = 36) | Marfan Syndrome Group (n = 23) |
---|---|---|---|
30-day Mortality | 6 (3.06%) | 3 (8.33%) | 1 (4.35%) |
Reoperation | 12 (6.12%) | 4 (11.11%) | 3 (13.04%) |
Stroke | 4 (2.04%) | 1 (2.78%) | 0 (0%) |
Postoperative Delirium | 18 (9.18%) | 6 (16.67%) | 3 (13.04%) |
Acute Renal Failure | 6 (3.06%) | 4 (11.11%) | 2 (8.7%) |
Sternal Infection | 2 (1.02%) | 0 (0%) | 0 (0%) |
POAF | 45 (22.96%) | 10 (27.78%) | 5 (21.26%) |
Intubation Duration (h) | 8 (IQR: 6–9) | 9.5 (IQR: 9–12) | 15 (IQR: 6–30) |
ICU Stay (days) | 2 (IQR: 2–3) | 3 (IQR: 3–3) | 2.7 (IQR: 2–3) |
Length of Stay in Postoperative Ward (days) | 9 (IQR: 8–9) | 10 (IQR: 9–10) | 8.4 (IQR: 8–10) |
Total Hospital Stay (days) | 11 (IQR: 10–12) | 13 (IQR: 12–13) | 11.1 (IQR: 10–12) |
