High-Performance Zeolite Membranes and Natural Gas Upgrading

Margarita Kuznetsova; Christophe Castel; Bernardetta Addis; Veronica Piccialli; Eric Favre

doi:10.3390/membranes15120372

,

and

¹

Université de Lorraine, CNRS, LRGP, F-54000 Nancy, France

²

Université de Lorraine, CNRS, LORIA, F-54000 Nancy, France

³

Dipartimento di Ingegneria Civile e Ingegneria Informatica, Università degli Studi di Roma Tor Vergata, Viale del Politecnico 1, 00133 Rome, Italy

^*

Author to whom correspondence should be addressed.

Membranes2025, 15(12), 372;https://doi.org/10.3390/membranes15120372

This article belongs to the Special Issue Membranes and Membrane Reactors for Gas Purification and Production: Towards More Sustainable Processes

Version Notes

Order Reprints

Abstract

Natural gas is currently increasingly used in an energy transition framework and systematically requires upgrading processes in order to respect pipeline specifications. Carbon dioxide, and in some case hydrogen sulfide removal, is the major target of the purification step and can be achieved thanks to gas liquid absorption with chemical solvents or membrane separation. A systematic comparison of the cheap, currently used polymeric membranes and an expensive, high-performance zeolite material is reported on a natural gas upgrading case study (CH₄/CO₂ mixture), thanks to a dedicated process synthesis and optimization code (MIND). The zeolite membrane is shown to offer a simple, cost-effective one-stage process, while polymeric materials require more expensive classical two-stage processes. In a second step the impact of concentration polarization is more specifically investigated, through a process simulation study. The zeolite membrane remains the simplest, best cost-effective and most interesting process (one stage without compression, expander or vacuum pump).

Keywords:

natural gas; membrane separation; zeolites; process optimization; concentration polarization; technic-economical analysis

1. Introduction

Natural gas (NG) is a key fossil energy resource, considered as the most attractive fuel for power generation in the transition to renewables in the next decades [1]. It corresponds to around 24% of the world’s primary resources of energy with an increasing demand of 40% [2]. NG from hydrocarbon fields is classically transported via pipelines. Two major processes are then required for that purpose in order to meet transport specifications: dehydration and sweetening, with a final target methane purity of 98% [3]. CO₂ removal is by far the major objective of the sweetening/upgrading step, given the quasi-systematic occurrence of CO₂ with CH₄ in gas fields, with contents ranging from less than 1% to 70% [4]. Other compounds such as H₂S, hydrocarbons (C₂ to C₅), nitrogen or helium can also be incidentally found. The CO₂ removal operation is the priority because it enhances the energy content, decreases the volume of gas to be transported and reduces pipeline corrosion. Over decades of research efforts on NG sweetening, different processes such as cryogeny, adsorption, absorption and membranes have been investigated, and applications have been found, amine absorption as the most developed commercial technology [5]. Nevertheless, the high energy requirement, solvent degradation and equipment corrosion issues of the amine units have stimulated the search for alternative upgrading technologies. To that respect, membrane separation is showing an increasing interest, showing the largest growth rate for NG upgrading today [6].

Polymeric materials are mainly used today for membrane gas separations, with two families for natural gas sweetening at industrial scale: cellulose acetate (CA) and polyimides (PIs) [3]. In order to limit methane losses, a two-stage process design, with a permeate-to-feed recycling loop is most often applied [7]. The need for increased CO₂/CH₄ selectivity has been recognized for decades in order to improve the energy and cost efficiency of membrane units [8]. Early molecular simulations have suggested that zeolites can show very high CO₂/CH₄ selectivities [9]. A large number of publications have indeed reported impressive permeances and selectivities with chabazite, including Si-CHA [10], SAPO-34 [11,12,13], SSZ-13 [14,15] or DDR zeolite materials [16,17]. Alternatively, several families of high-performance inorganic membrane materials, such as silica, Carbon Molecular Sieves (CMSs) and Metal Oxide Frameworks (MOFs), have been reported to show breakthrough improvements compared to existing NG purification polymeric membranes. A major issue for decades has been the production of large-scale zeolite membranes and modules; however, suppliers of zeolite membrane modules do exist today [17,18,19].

This situation logically raises the key question of the impact of high-performance membrane materials for NG upgrading. A close combination of materials and process design research is required in order to address this question [2]. A Process Systems Engineering (PSE) strategy is best suited in order to offer a systematic analysis of the potential of high-performance materials for NG sweetening, with a cost function as the ultimate objective. A limited number of studies recently explored the interest of carbon and CMS membranes for biogas and NG treatment [20,21].

The objective of this study is to evaluate the impact of a high-permeance/high-selectivity zeolite material, compared to currently used polymers (cellulose acetate and polyimides) for an NG upgrading case study. A rigorous tailor-made process synthesis program, making use of advanced superstructure optimisation computing methods, MIND, is used for that purpose [22]. The objective is to evaluate the impact of high-performance membranes in terms of process design, energy efficiency, surface and cost for NG treatment. The influence of concentration polarization effect is also presented.

2. Process Design Methodology

2.1. Membranes for CO₂/CH₄ Separation

The well-known permeability–selectivity trade-off for polymeric materials is illustrated by the Robeson plot in Figure 1 [23]. Among various materials synthetized and studied in the laboratory, only two glassy polymers are widely commercially employed for

{CO}_{2}

removal from NG—cellulose acetate and polyimide. They typically exhibit

{CO}_{2}

/

{CH}_{4}

selectivity in the range of 15–40 [24]. The upper-bound curve of the Robeson plot shows a current theoretical maximum of the polymeric membrane performances. However, materials such as zeolites surpass the upper bound showing simultaneously higher selectivities and permeabilities than conventional membranes, being placed in the upper right corner as it is shown in Figure 1 [25]. A thickness of a selective membrane layer of 1

µ m

is taken for the trade-off permeance calculation. Characteristic parameters of various zeolite membranes for CO₂/CH₄ separation are given in Table 1 [26]. Robeson plots for more zeolite structures are reviewed elsewhere [27].

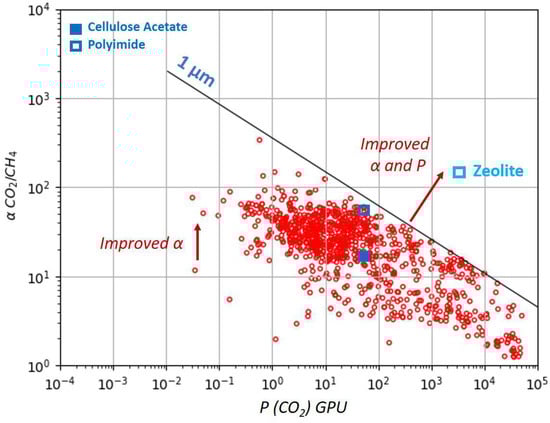

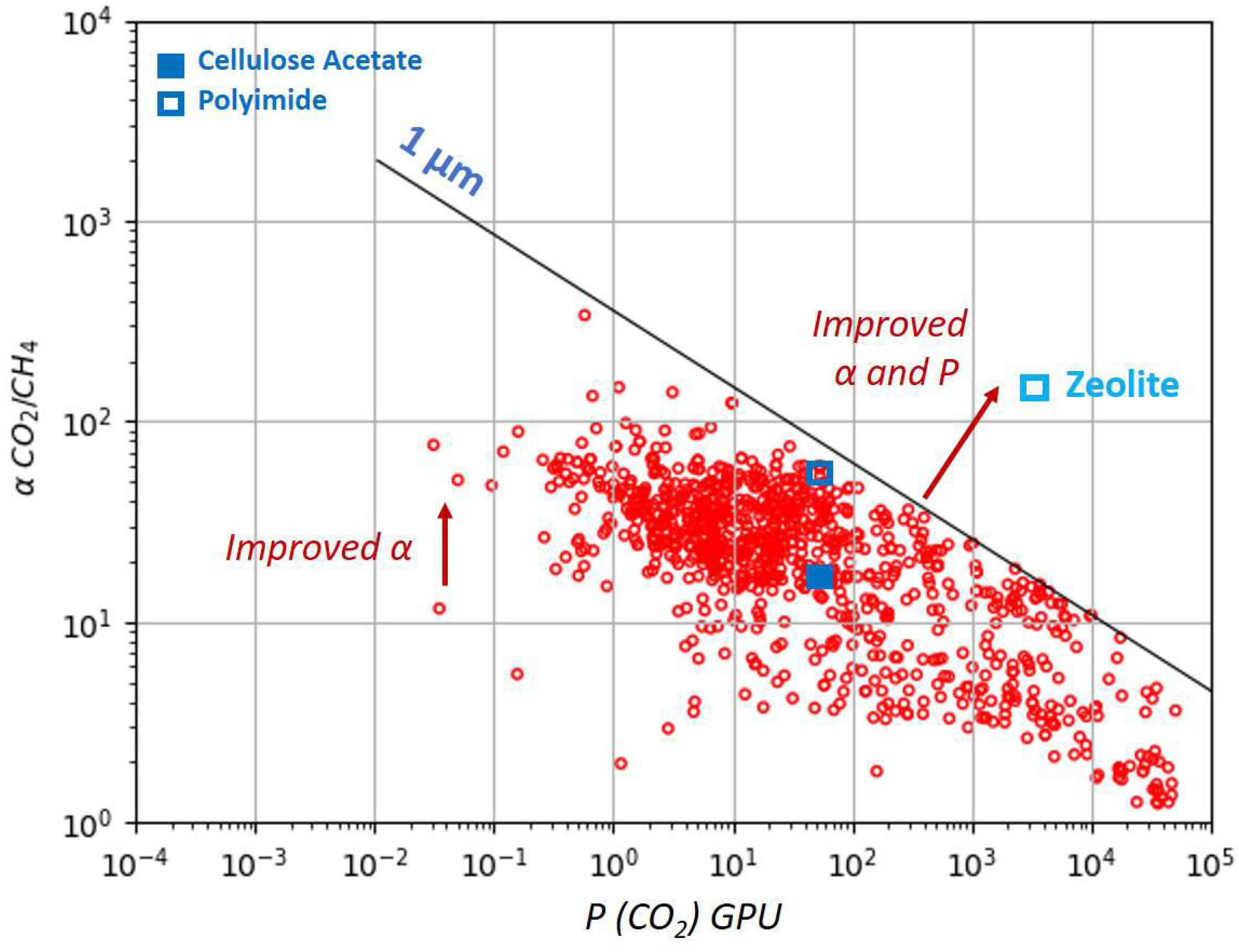

Figure 1. Trade-off curve for the CO₂/CH₄ gas pair based on permeability for different polymeric materials. The selectivity–permeance trade-off is shown assuming a skin-layer thickness of 1 µm (1 Barrer = 1 GPU), together with the performances of two polymeric membranes (polyimide and cellulose acetate) and one inorganic zeolite membrane. The figure is adapted from references [23,25].

Zeolites are advantageous because they generally possess greater chemical and thermal stability compared to conventional polymers. Moreover, zeolites can operate at harsh conditions [28]. They do not undergo swelling or plasticization, as well as have regular pore structure of molecular dimensions, allowing separation due to molecular sieving effect [29]. However, combination of high selectivity and permeability gives rise to concentration polarization (CP), reducing the separation performance of zeolite membranes. In gas separation, CP effect becomes significant with permeance of more than 1000 GPU (Gas Permeation Unit, 1 GPU =

3.348 \times 10^{- 10} mol m^{- 2} s Pa

) for the fastest compound, while selectivity is more than 100 [30]. It becomes significant when operating at high pressures [31]. The importance of accounting for CP in process design has been highlighted [32]. Therefore, the effect of CP in zeolite membranes is discussed, as well as its influence on process design of CO₂ removal from natural gas.

Table 1. Selectivity and permeability of zeolite membranes for CO₂/CH₄ separation. This table is adapted from reference [26].

Material	CO₂/CH₄ Selectivity (22–35 °C)	CO₂ Permeability (Barrer)	References
DD3R	500	687	[33]
DD3R	500	896	[34]
T	400	2746	[35]
AlPO-18	220	15,522	[36]
SSZ-13	406	5970	[37]
SAPO-34	170	1791	[12]

2.2. Optimization Method for Membrane Gas Separation

In this study, the optimization method aims to find optimal membrane configurations for the removal of CO₂ from the natural gas (binary CO₂/CH₄ mixture). The optimal process configurations presented in this paper have been obtained using a dedicated computational tool (MIND software version 1) specifically developed for membrane gas separation systems. Based on predefined separation specifications (feed composition, and permeate and/or retentate composition), the program determines the optimal process flowsheet and associated operating conditions through a global optimization algorithm employing an objective cost function. The tool relies on a rigorous mathematical framework for membrane module simulation, which can be extended to multicomponent mixtures [38]. Feasible interconnection schemes are systematically explored for configurations comprising one, two, or three stages, including both interstage and self-recycling loops. A distinctive feature of this program, compared with most methodologies available in the literature, lies in its capability to accommodate variable pressure ratios within each stage, with vacuum operation considered as a viable option. The range of admissible operating conditions (pressures, areas ...) is constrained by technological limitations. Compressors and vacuum pumps are incorporated into recycling loops whenever pressure variations occur across the interconnections. The global cost function described in Table 2, adopted as the objective function, integrates both capital expenditures (CAPEX)—including compressors, vacuum pumps, and membrane modules—and operating expenditures (OPEX), encompassing energy consumption, membrane replacement, and operation and maintenance costs. The comprehensive mathematical formulation and the corresponding optimization strategy are detailed in [22,25,39]. The optimization algorithm yields physically meaningful and technically feasible configurations combined with the minimal total separation cost, as the objective function. The cost functions used for the technic-economical analysis taken from Ramirez-Santos et al. [39] are listed in Table 2.

Table 2. Cost equations used in this study for technic-economical analysis to determine product separation cost.

2.3. Natural Gas Sweetening: Case Study

This case study considers a natural gas stream with a composition of 60/40 mol.% in CH₄/CO₂ and an inlet flowrate of 10 mol/s (807 N

m^{3} h^{- 1}

). It was assumed that the feed gas mixture has been previously dehydrated to remove any water vapour, which is a common operation in natural gas upgrading [6]. In addition, heavier hydrocarbons (C₂+) were presumed to be removed during the pre-treatment step. Therefore, the separation of a CH₄/CO₂ binary mixture was considered under an idealized dry-gas scenario. The studied feed composition corresponds to the natural gas reserves with low methane content [4]. The raw natural gas was naturally recovered from the sources at high pressure of 20–80 bar [40]. Therefore, the inlet pressure of 60 bar was considered for simulations with temperature of 298.15 K. The main goal is to recover CH₄ at the retentate with high purity exceeding 98% to meet the imposed regulatory requirements, with minimization of CH₄ losses as the optimization constraint (Figure 2). Process configuration includes from one to three membrane stages for each membrane material. The pressure ratio (

Ψ

) of each module varies in terms of downstream pressure allowed for optimization, while the upstream pressure was fixed and identical across all stages and configurations. The operating temperature was fixed and not included as an optimization variable. Isothermal conditions were assumed for all membrane stages [41,42], and Joule–Thompson effects due to gas expansion were not considered. In the present multi-objective optimization, temperature was treated as a secondary-level variable and could be incorporated as an additional parameter in future work.

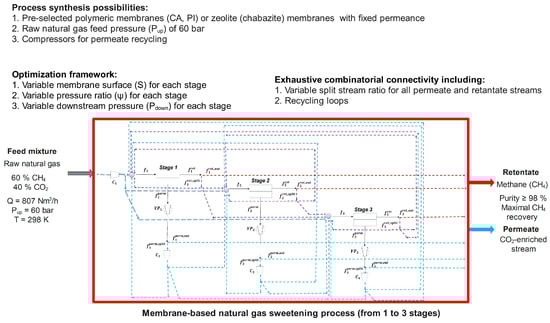

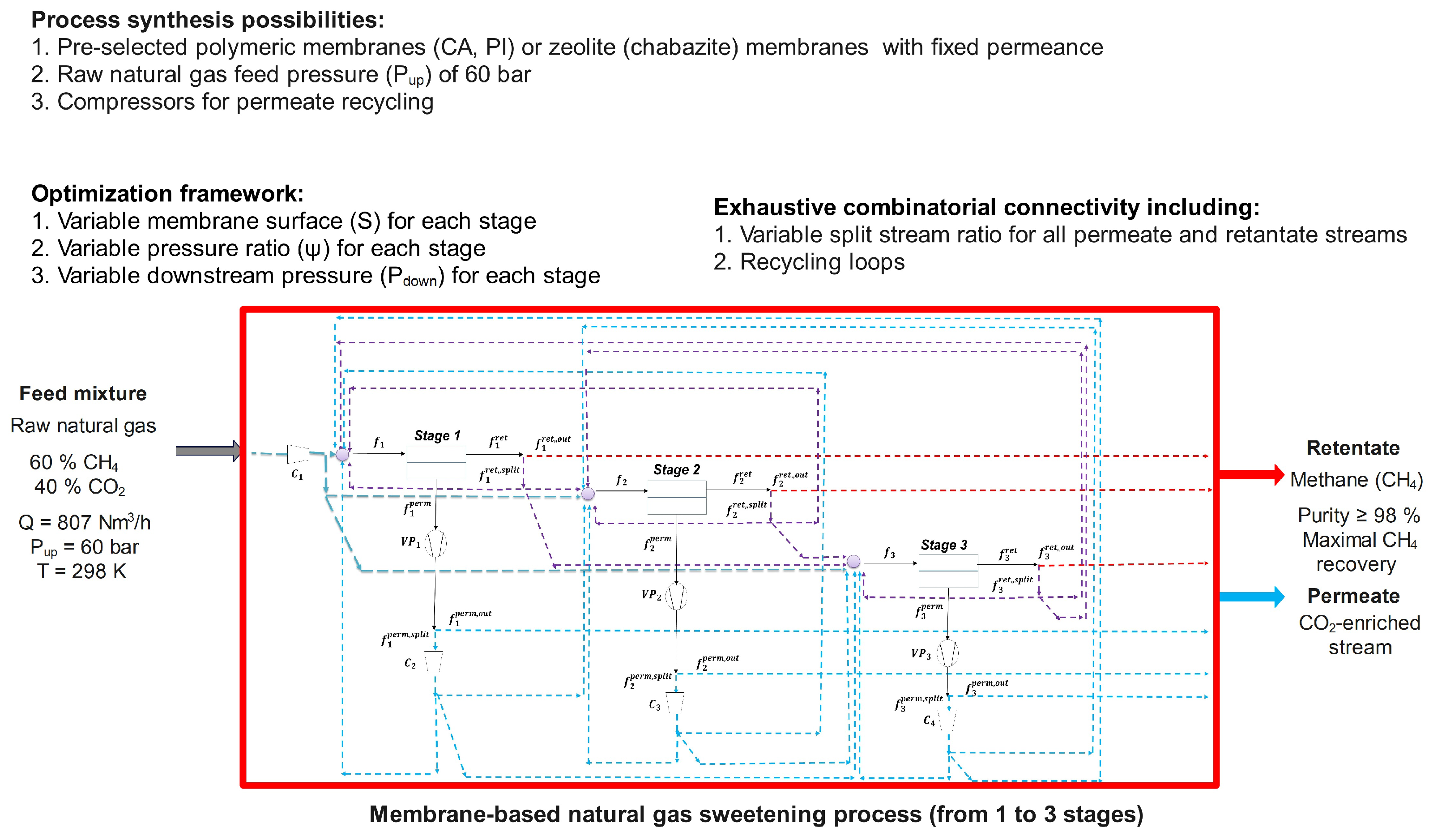

Figure 2. Overall process synthesis framework applied in this study. A membrane separation process including up to 3 stages with compressors is used. Multiple connection possibilities including recycling loops is applied to obtain pure methane. The different configuration possibilities and operating variables are taken into account in order to achieve the lowest production cost (i.e., objective function, detailed in corresponding Table 2 and Table 3).

Table 3. Cost parameters used in Table 2.

The main objective of this optimization case is to compare high-performant zeolite membranes with conventionally used polymers by identifying the most efficient process configurations, with fixed operating conditions by minimizing the cost. The final product, methane (CH₄), must meet the required specifications in terms of purity and maximum recovery, with respect to imposed optimization constraints. Therefore, CO₂-selective membranes, polymers (CA and PI) and high-performant zeolite membrane (chabazite) are considered for the process synthesis, and their characteristics are listed in Table 4. Polymeric membranes are known for their low production cost, while zeolites are significantly more expensive and have larger capital cost [43]. In our process optimization, a cost of EUR 50/m² was considered for polymers, while the cost of inorganic membranes typically varies from EUR 1000 [44] to EUR 5000/m² [45]. In this study, an estimated cost of EUR 2000/m² was used for the zeolite membrane. The trade-off between high performance and associated high cost are therefore discussed.

In the process optimization, recycling loops were allowed for both the retentate and permeate streams, with compressors used to efficiently recycle the downstream flows. The overall cost function (SC_CH₄) was minimized while targeting a methane purity above exceeding 98% and maximal recovery rate. A set of optimal configurations was generated by the simulator.

Table 4. Membrane characteristics used for the process synthesis in the current study.

Material	P_CO₂ (GPU)	P_CH₄ (GPU)	Cost (EUR/m²)	References	Comments
Cellulose acetate (CA)	60	3	50	[46]	First commercialised membrane material for CO₂/CH₄ separation
Polyimide (PI)	60	1	50	[46]	Second-generation polymeric membrane material (improved selectivity, close to trade-off limit)
Zeolite	3500	22	2000	[47]	High-performance inorganic membrane material (breakthrough permeance and selectivity)

2.4. Concentration Polarization: Post-Treatment Calculations

During the optimization procedure, the concentration polarization phenomena was not directly accounted for membranes during the process architecture optimization. This is related to the high complexity of integration of the CP in the process synthesis. Its influence is rigorously studied for the zeolite membrane module during subsequent computer simulations with considering different module geometries. An in-house software based on computational fluid dynamics (CFD) approach has been previously developed and reported by Abdul Majid et al. [48,49] to predict membrane separation characteristics considering local concentration polarization along a membrane fiber. The model and correlations are valid under laminar flow conditions, and concentration polarization is considered in the retentate side. This requires an estimation of the mass transfer coefficient

k_{r e t}

, which is strongly related to the hydrodynamics in membrane modules. It is classically estimated through dedicated correlations between Sherwood, Schmidt and Reynolds dimensionless numbers. A brief description is provided in Appendix A.

3. Results and Discussion

3.1. Process Configurations for Natural Gas Purification

Figure 3 shows the optimal solution for process configuration for CO₂ removal from NG with up to three membrane stages. Commercially available polymeric membranes, as well as high-performant zeolites have been considered and compared. Note that target CH₄ purity in the retentate of 98% with minimal methane loses are the optimization constraints.

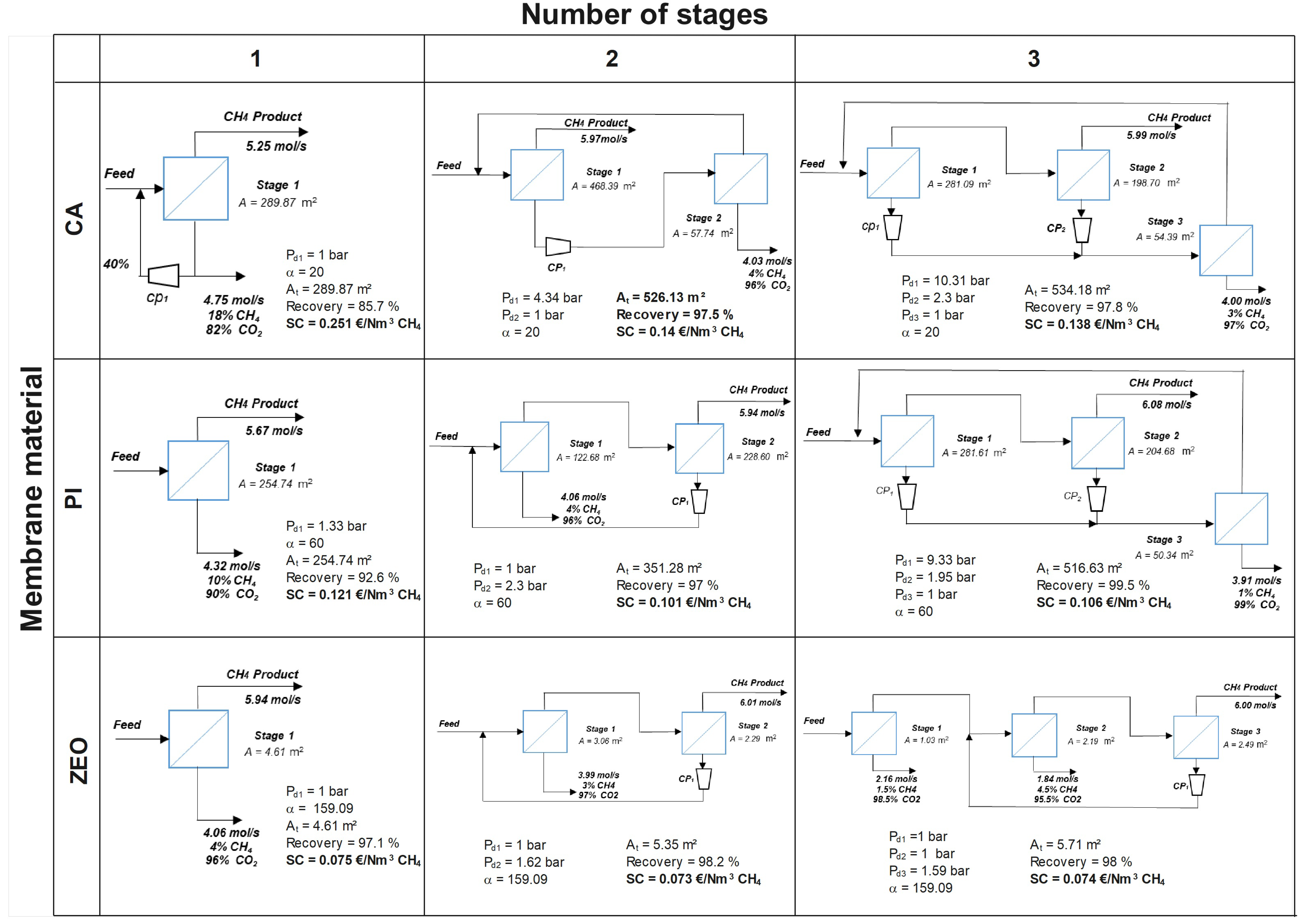

Figure 3. The best process configurations obtained with cellulose acetate (CA), polyimide (PI), and zeolite (ZEO) membranes for up to three stages.

As can be seen, for classical polymers, the desired methane purity can be theoretically achieved with a single-stage permeation unit. However, CH₄ losses are very high, achieving 7–14%, as methane also passes through the membrane. In the literature, losses of 12% for a single stage have been reported by Scholes et al. [4]. For first-generation CA membrane (

α = 20

), a significant recycling part of the permeate is required. Adding a compressor on the downstream side drastically increases the overall process cost. A more selective PI membrane (

α = 60

) can operate without recycling loops, which reduces the total process cost, but the methane recovery remains poor. Interestingly, with zeolite membranes, CH₄ conforming to the pipeline specifications with recovery of 97% can be theoretically obtained in only a one-stage process without any stream recycling. Higher selectivity (

α = 159.09

) allows the production of a gas with higher purity. Moreover, the very high CO₂ permeance results in less membrane area needed for NG upgrading: the separation is feasible with only 4.61 m² of zeolite. A factor of around 60 is thus gained in surface area compared to conventional polymers. In general, one stage configuration is simple to handle, has a low footprint and has no rotation parts which are easy in maintenance, which is associated with high methane losses [7].

The advantages of zeolite single-stage configurations are as follows: lower membrane area needed for the separation, lower associated membrane cost, and lower energy consumption as no recycling is needed. As a result, operation of single-stage zeolites is technically and economically interesting, reducing the cost of the membrane unit and simultaneously maximizing methane recovery. Nevertheless, remember that this configuration is generated by a mathematical optimization algorithm where concentration polarization is not taken into account. For rigorous process design, the influence of CP effect on separation performance depending on module geometry is discussed later.

Two-stage cascade configurations with polymeric membranes are typically used in industry for natural gas upgrading. In our analysis, the optimal process solutions include both so-called “fast” and “slow” configurations, depending on the membrane material (Figure 3). For the CA membrane, a fast-compound configuration is obtained: purified CH₄ is recovered in the retentate of the first stage, while the permeate is compressed and further treated in a second stage; the retentate from the second stage is recycled to the feed of the first stage. By contrast, for the PI and zeolite membranes, the best solution is a slow configuration. Here, the final product is recovered in the retentate on the second stage, while the permeate of this second stage is recompressed and recycled to the feed to improve methane recovery. The retentate from the first stage is directly fed to the second membrane module, and the collected permeate is enriched in CO₂. It is important to mention that both process designs, identified through process synthesis for two-stage configurations, are consistent with established industrial practice for natural gas upgrading. During the optimization, no partial recycling loops were proposed by the algorithm.

As shown, in the two-stage configuration with the CA membrane, a feasible solution is obtained that satisfied the imposed optimization constraints (methane purity and recovery). Purified CH₄ with the target purity of 98% is recovered in the retentate on the first stage. The permeate from the first stage is treated in the second module to reduce methane losses. A CH₄ recovery of 97.5% is achieved with a total membrane area of 526.13 m², consisting of 468.39 m² for the first module, and 57.74 m² for the second. It worth noting that, in multi-stage membrane systems (both with two- and three- stage configurations), the membrane surface area of each stage results directly from the optimization. As shown in Table 2, the membrane area (

A_{m s}

) is directly related to the CAPEX through the corresponding equations. This cost-based optimization provides an effective way to deal with the compromise between the membrane CAPEX, which is directly related to the membrane area, and the compressor cost (CAPEX and OPEX).

For PI and zeolite membranes, the best solution is the slow-compound configuration, where retentate from the first stage is directly fed into the second membrane module, and the final product is recovered in the retentate of the second stage. The permeate of the second stage is recompressed and recycled to improve methane recovery. PI membranes achieve a CH₄ recovery of 97%, whereas zeolites reach an excellent 98%. In this mode, the purification cost is more attractive: due to higher membrane selectivity, less area is needed, and a smaller volume of gas is recompressed. For the PI, the total membrane area is 351.28 m² (122.68 m² for the first stage and 228.60 m² for the second), whereas, for the highly efficient zeolites, only 5.35 m² of total membrane area is needed. Moreover, the techno-economic analysis shows that operating zeolite membranes is approximately twice as cost-effective as using CA membranes: EUR 0.073/Nm³ CH₄ for zeolites compared to EUR 0.14/Nm³ CH₄ for CA. Therefore, among the two-stage configurations, zeolite membranes operating in the slow configuration represent the most economically attractive option while offering advantageous operability. The capital and operating cost are higher for the two-stage configuration compared to the single-stage one due to two modules and recompression [40]. However, methane losses are minimized, and it can be efficiently recovered. Our process design simulations serve as a decision tool to make the best choice depending on the operating conditions and desired outcome.

At first glance, the three-stage configuration might seem more interesting; however, this is not the case. The two-staged slow-compound scheme proves to be more advantageous, offering almost the same separation efficiency with similar cost, but with reduced installation complexity and simpler operation. For zeolite membranes in particular, the differences between the two configurations are minimal. As observed, no expander or vacuum pump is included in the final configurations. However, these components were considered in the MIND framework with their corresponding cost functions (Table 2 and Table 3). The optimization results show that the solutions including these elements are not beneficial from the technic-economical point of view.

Interestingly, one of the optimization results for zeolite membranes includes a configuration with internal loops having no clear impact on process performance. This peculiar solution, depicted in Figure 4, appears to satisfy the imposed three-stage optimization constraint, with the third stage having a minimal membrane area of just 1 m². This underlines the strong capability of MIND to find non-standard solutions, including partial recycling loops, which satisfy the imposed constraints. However, this configuration is considered a forced solution and, from an engineering point of view, has no practical interest. It serves as further proof that efficient removal of CO₂ from raw natural gas can be achieved with zeolite membranes in two stages at minimal cost.

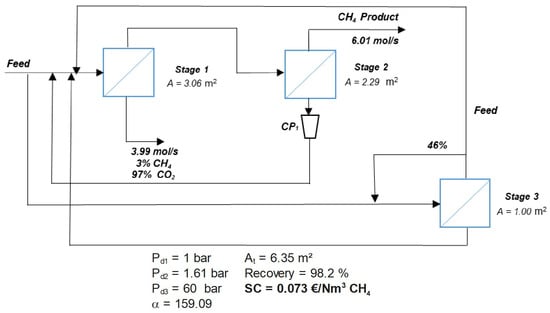

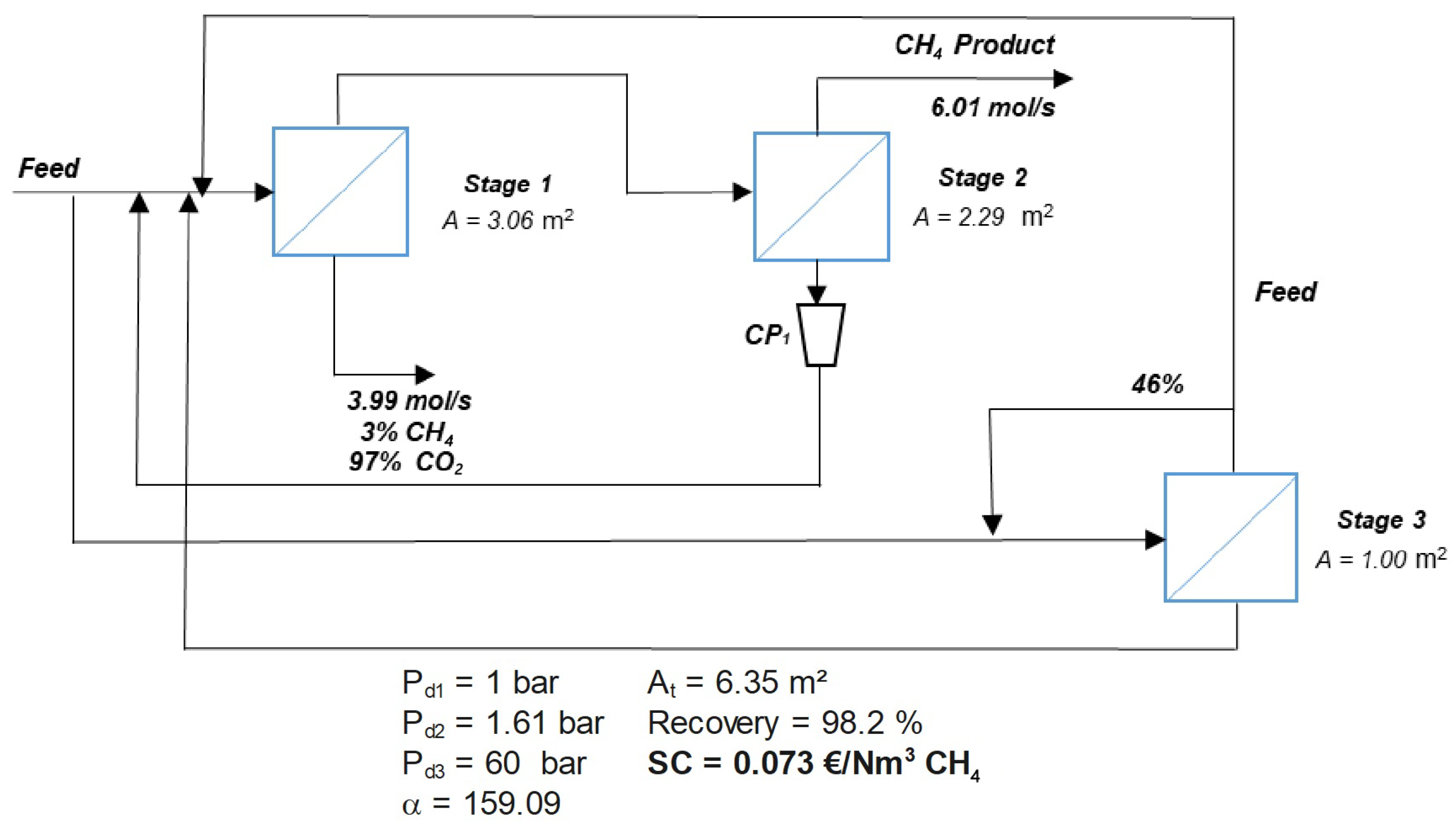

Figure 4. Example of a configuration obtained with MIND for zeolite membrane under imposed three-stage separation process. The solution includes partial recycling loops, and a minimal membrane area of 1 m² is respected for the third stage. Although this configuration has no engineering relevance, it highlights that the target separation can be achieved efficiently with only two stages.

3.2. Effect of Concentration Polarization

As seen, theoretically CO₂/CH₄ separation is feasible in one stage using high-performant zeolite membranes with the optimal membrane surface of 4.61 m² for our case study. The aim of further computer simulations is to evaluate the effect of concentration polarization on the process feasibility, productivity, separation performance, and economical interest. Within the scope of this study, we focus on the single-stage configuration to perform numerical simulations.

As there is no (or very few) industrial scale manufactures of zeolite membranes for gas separation, we take three different module geometries reported in the literature, notably, hollow fiber bundle [16], monolith [19], and tubular [47,50] membranes. The gas mixture is fed from the lumen side of a fiber membrane with “inside-out” feed. Geometric parameters are listed in Table 5. As observed, zeolite membranes have rather large diameters compared to the conventional hollow fiber polymers, which is explained by the differences in manufacturing procedures [48].

Table 5. Geometric parameters used to study concentration polarization effect in highly performant zeolite membranes.

3.2.1. Effect of Geometry

A single-stage configuration was considered with a fixed membrane area of 4.61 m², with numerous parallel fibers uniformly fed, and three different inner diameters listed in Table 5. The operating conditions were kept identical to those used in the case without CP. Since the total membrane area was fixed, the number of fibers varied with the inner diameter, resulting in different gas velocities inside the fibers. Nevertheless, the flow regime was maintained within the laminar regime (Re < 2000). Table 6 reports the effect of fiber diameter on the CH₄ composition on the retentate and on CH₄ recovery, subject to the initial optimization constraints. Note that, in the absence of concentration polarization (CP), the retentate methane purity is 98%, and the recovery is 97.1%. As observed, when CP is accounted for, the CH₄ purity decreases to 76.2% for the

d_{i n t}

of 7 mm, to 85.0% for

d_{i n t}

of 2.4 mm, and to 92.6% for the smallest

d_{i n t}

of 0.9 mm. The observation that the recovery rate remains almost the same for four different cases may seem surprising. This behaviour results from a compensation phenomenon: while CH₄ purity decreases in the retentate, the retentate flowrate increases as the permeate flowrate decreases due to CP. However, this trend is not a general rule but a particular solution for this set of constraints, feed composition, as well as permeance values.

Table 6. Effect of concentration polarization (CP) on the methane mole fraction in the retentate and on the methane recovery for different inner diameters of zeolite fibers (0.9, 2.4, and 7 mm) compared to the reference case without CP. The membrane area is 4.61 m² for all the cases.

As seen, the CP effect is more pronounced for larger fiber diameters and less significant for smaller ones. Therefore, effective separation with the same membrane surface of 4.61 m² and operating pressures is not achievable when CP is taken into account for zeolite membranes. Indeed, the driving force for permeation is altered by the accumulation of less permeable methane species in the boundary layer, leading to less effective separation. However, hollow fibers with diameters of approximately 0.9 mm appear particularly promising, as the concentration polarization effect is less pronounced. This can be attributed to their higher surface-to-volume ratio and improved convective mass transfer [51].

The effect of fiber length on concentration polarization, and consequently on overall separation performance, may seem counter-intuitive. If the inner diameter of fibers and operating conditions are kept constant (temperature, pressure), the most relevant parameter in not the fiber length L but the ratio between the initial velocity u and the length,

u / L

, which follows from the equations in Appendix A. In shorter fibers, velocity u is smaller, while, in longer fibers, velocity u is bigger, but the

u / L

ratio is the same for the same simulation conditions. Therefore, from purely concentration polarization point of view (neglecting the pressure drop, for example and other effects), the membrane area is the most important, and the fiber length itself does not impact the outcome.

3.2.2. Sensitivity Analysis

Since concentration polarization impacts the overall separation performance by decreasing the methane content in the retentate, a sensitivity analysis was provided to evaluate the feasibility of a single-stage separation with zeolite membranes considering CP. The membrane area was varied from 4.61 m² to 25 m² for all three fiber diameters. The results are presented in Figure 5. The black dotted lines correspond to the target performance obtained from process optimization (CH₄ purity of 98% and CH₄ recovery of 97%). As observed, this performance cannot be achieved under CP conditions. However, thin hollow fibers exhibit promising results, reaching CH₄ purity of 98% and a recovery rate of about 95% with the membrane area close to 8 m². This is considered the best-case scenario with CP.

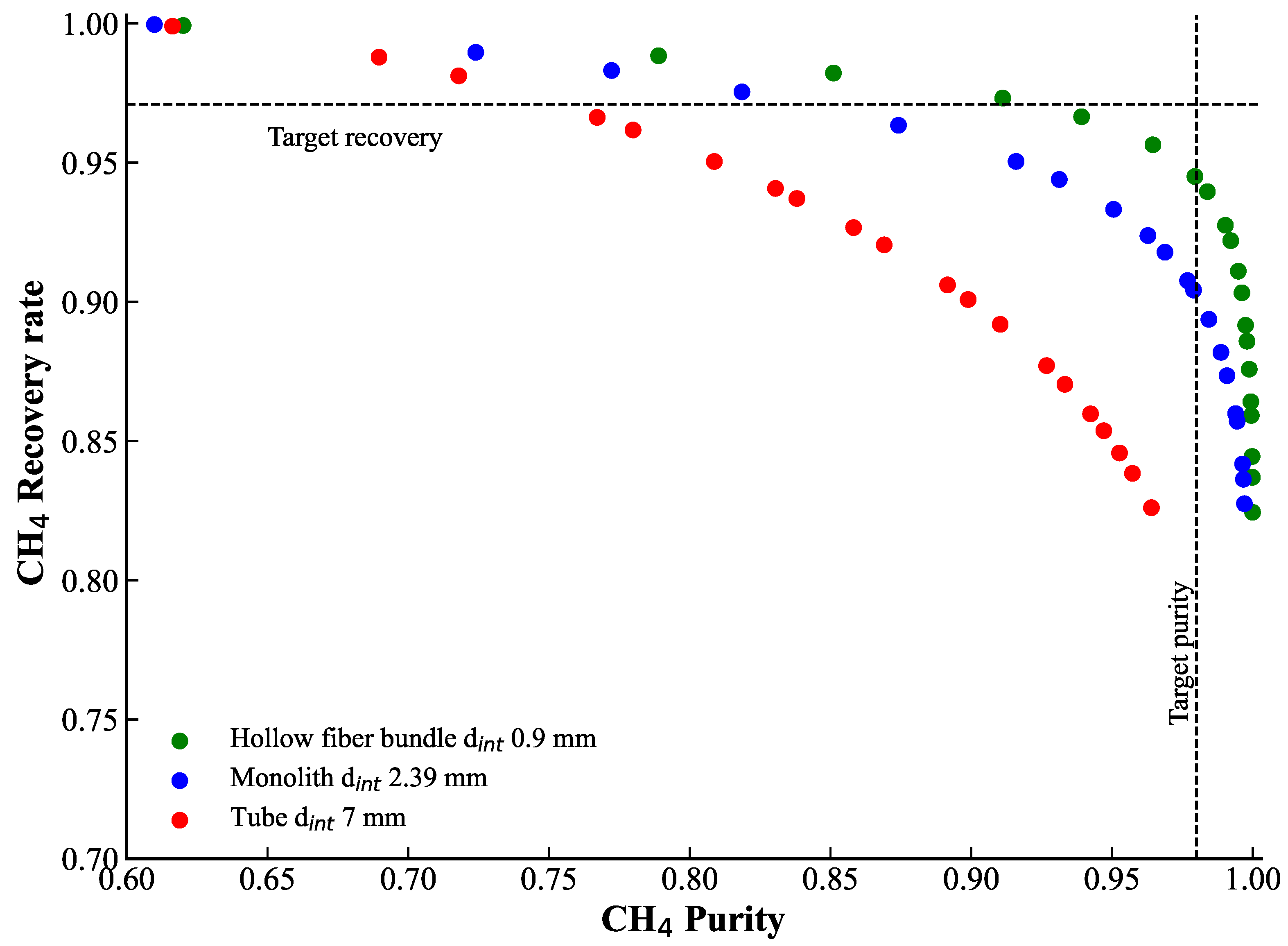

Figure 5. Results of the sensitivity analysis obtained by varying the membrane area from 4.61 m² to 25 m² for the three fiber diameters (0.9, 2.4, and 7 mm). The intersection of the dotted lines represents the reference case without considering concentration polarization.

As a result, CP may strongly affect the performance of membrane-based separation processes. It is therefore important to account for membrane geometry and hydrodynamic conditions; otherwise, the expected performance may be overestimated. For example, for three different module geometries with lumen-side feed, the initial characteristics obtained without considering CP cannot be recovered simply by increasing the membrane surface area.

3.3. Synopsis

A synopsis of the process configurations obtained from the optimization synthesis, followed by concentration polarization (CP) numerical simulations and sensitivity analysis, is presented below. As depicted in Figure 3, for polymeric membranes, the optimal two-stages solutions provided the best compromise between cost, complexity, and efficiency. These configurations included permeate recycle for cellulose acetate (CA) membranes and retentate recycle for polyimide (PI) membranes. Interestingly, for zeolite membranes, the best configuration corresponded to single-stage separation module of 4.61 m². Note that optimization constraints were CH₄ purity above 98% and maximum recovery.

However, concentration polarization (CP) effects can become severe for highly efficient zeolites. Post-treatment CP simulations showed that the target methane purity and recovery rate can not be achieved when CP is accounted for, considering existing membrane modules reported in the literature (lumen-side feed hollow fibers, monoliths, tubes). This analysis highlights the importance of improving the shaping and geometrical design of zeolite membranes to reduce CP impact. Even increasing the total membrane surface area does not fully restore the performance predicted without CP. The best-case scenario was obtained for hollow fibers with an internal diameter of 0.9 mm and a total membrane area of approximately 8 m². Thinner fibers experience weaker CP effects, whereas tubular geometries with diameters of 7 mm exhibit strong polarization. A techno-economic analysis, summarized in Figure 6, confirms that, although zeolite membranes are more expensive in terms of material cost, they offer significantly lower operational expenses. Overall, zeolite membranes demonstrate highly competitive specific separation costs, even when CP effects are considered.

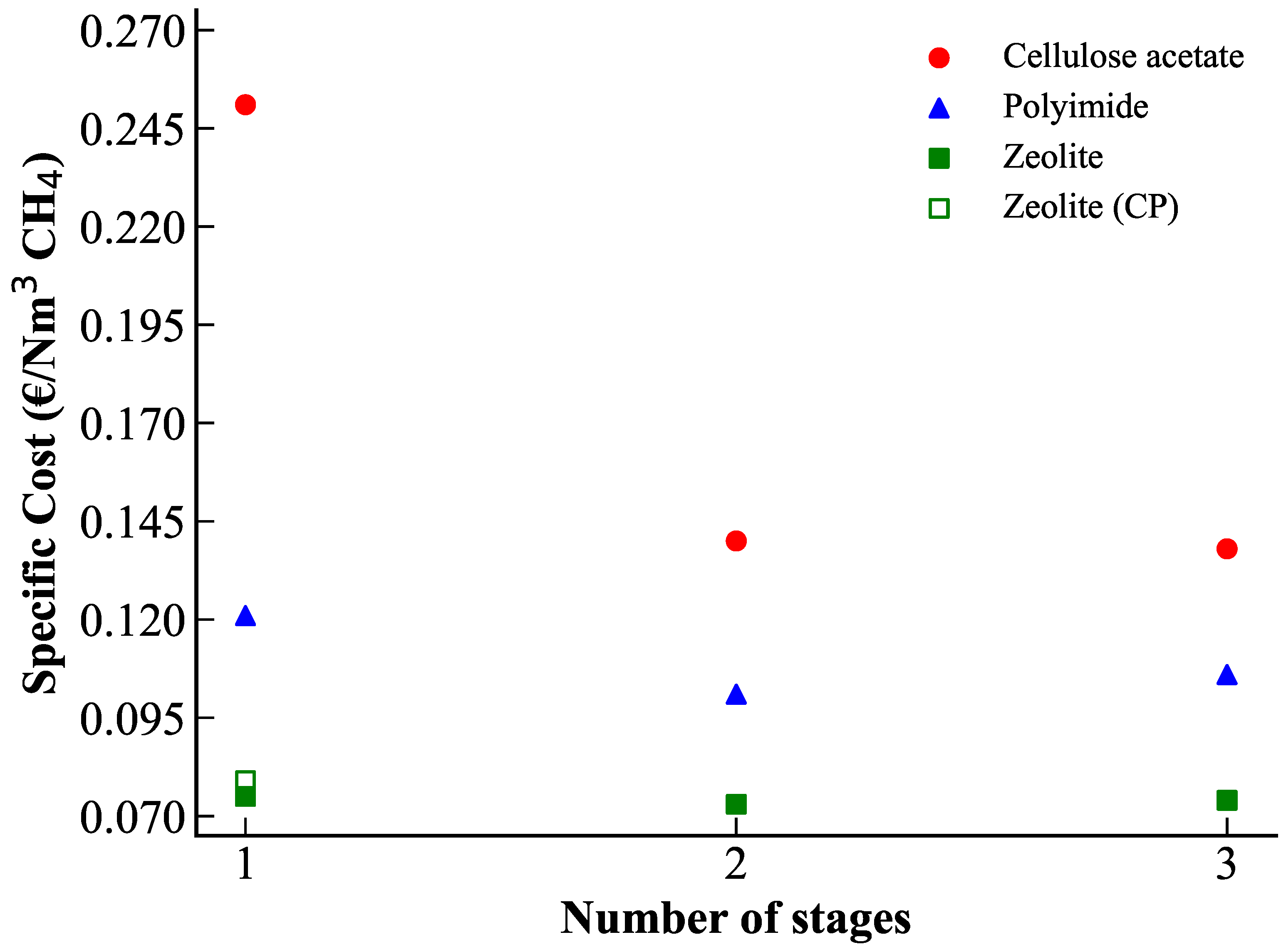

Figure 6. Specific cost of CH₄ purification for the optimal configurations obtained with different membrane types as a function of the number of stages. For zeolite membranes, both the cost without concentration polarization and the cost including CP (best-case scenario) are shown.

4. Conclusions

This study intended to rigorously evaluate the interest of high-performance inorganic membranes (zeolite) compared to the currently used first (CA) and second generation (PI) polymeric materials for natural gas upgrading. The high performances of zeolites, both in terms of permeance and selectivity, indeed offer attracting perspectives, at the expense, however, of a very high cost. A systematic process synthesis study, thanks to a tailor made optimization code (MIND), has been performed in order to identify the best cost-effective process designs with one, two or three stages for the three types of materials.

Zeolite membranes show the unique opportunity to achieve the target natural gas purification performances with one single stage showing the simplest design (no compression, no expander, no vacuum pump) at the lowest cost. The high performances thus compensate the high cost: a very low membrane surface area is needed thanks to the high permeance, and a high process selectivity is obtained thanks to the high material selectivity. Polymeric membranes require two-stage processes with a high overall cost. In that case, the optimal process designs generated by the optimization code are consistent with existing designs used for natural gas upgrading, showing that relevant process solutions are obtained by process synthesis.

In the second step, the impact of concentration polarization on the optimal zeolite design has been investigated with a tailor-made simulation code. Three different geometries have been compared, showing different separation performances. A minimal membrane diameter is needed in order to minimize concentration polarization. This result suggests dedicated efforts in order to promote production technologies leading to small-diameter inorganic membranes. Alternatively, turbulence promoters could be proposed for large-diameter tubular membranes. All in all, the zeolite membrane remains the most interesting solution, even when the concentration polarization penalty is included.

The pragmatic approach has been proposed here: process optimization without concentration polarization first, and dedicated process design with a simulation code taking into account concentration polarization in a second step. The combined process synthesis/concentration polarization optimization is clearly a perspective for future work. This requires, however, significant efforts, both in terms of methodology and computing effort: concentration polarization necessitates geometry and operating conditions to be defined (diameter, length, velocity), leading to a very large increase of the number of variables to be explored in the optimization space, with a complex combinatorial interplay. To our knowledge, no study has addressed this challenge up to now.

Finally, the simultaneous natural gas purification (retentate purity) and carbon capture (permeate purity) target, a major challenge of sustainable energy transition, could also be explored, ideally with a single-stage design, given the separation perspectives offered by zeolite and high-performance membrane materials. In our case, one strategy to push methane recovery beyond purification guidelines would be to apply a lost product price in the set of data. Moreover, the high CO₂ permeate purity that would result is likely to be of interest for (Carbon Capture and Use) or EOR (Enhanced Oil Recovery).

Author Contributions

Conceptualization, E.F. and C.C.; methodology, M.K., E.F. and C.C.; software, B.A., V.P. and C.C.; investigation, M.K.; data curation, B.A., V.P. and C.C.; writing—original draft preparation, M.K.; writing—review and editing, E.F. and C.C.; visualization, M.K.; supervision, E.F. and C.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors upon request.

Acknowledgments

The authors acknowledge the LRGP laboratory and the CNRS for their support and resources provided throughout this study.

Conflicts of Interest

The authors declare no conflicts of interest.

Nomenclature

Abbreviations
NG	Natural Gas
CA	Cellulose Acetate
PI	Polyimide
CMSs	Carbon Molecular Sieves
MOF	Metal Organic Framework
PSE	Process Systems Engineering
CP	Concentration Polarization
SC	Specific Cost
CAPEX	Capital Expenditure
OPEX	Operational Expenditure
CFD	Computational Fluid Dynamics
CCU	Carbon Capture and Use
EOR	Enhanced Oil Recovery
GPU	Gas Permeation Unit
Parameters
$C_{c}$	Compressor Base Cost [USD₁₉₆₈]
$C_{v p}$	Vacuum Pump Cost [EUR/kW]
$C_{e x p}$	Expander Base Cost [USD₂₀₀₀]
$K_{m}$	Unit Cost of Membrane Module [EUR/m²]
$K_{m f}$	Base Frame Cost [EUR]
$K_{e r}$	Exchange Rate [EUR/USD]
$M P F_{c}$	Material and Pressure Factor for Compressor [-]
$M F_{c}$	Module Factor for Compressor [-]
$U F_{2000}$	Update Factor [-]
$U F_{1968}$	Update Factor [-]
$ν$	Membrane Annual Replacement Rate [-]
$K_{m r}$	Membrane Replacement Cost [EUR/m²]
$t_{o p}$	Operation Time per Year [h/year]
$K_{e l}$	Electricity Cost Factor [EUR/kWh]
$K_{g p}$	Lost Product Price [EUR/Nm³]
i	Interest Rate [%]
z	Project Lifetime [years]
$η_{c}$	Isentropic Compressor Efficiency [-]
$Φ$	Mechanical Efficiency [-]
$γ$	Gas Expansion Coefficient [-]
R	Ideal Gas Constant [J mol⁻¹ K⁻¹]
T	Temperature [K]
$A_{m}$	Membrane Area [m²]

Appendix A

Governing equations used to account for concentration polarization (CP) during the post-treatment step. A detailed description of the model can be found in Abdul Majid et al. [48].

S h (z) = \frac{k_{r e t} (z) d}{D_{g a s}} \{\begin{matrix} = [3.6568 + 0.2249 G z^{0.4956} e x p (\frac{- 55.9857}{G z})] \dots \\ {[1 + 98.42 (1 + G z^{0.24}) t a n h (\frac{0.93}{S h_{w}})]}^{0.03} \dots \\ \dots {[1 + 0.004 (1 + t a n h (\frac{61.74}{S h_{w}})) \frac{G z}{S c}]}^{0.12} i f G z \leq 10^{3} \\ = (- 0.3856 + 1.022 G z^{0.3366}) \dots \\ {[1 + 98.42 (1 + G z^{0.24}) t a n h (\frac{0.93}{S h_{w}})]}^{0.03} \dots \\ \dots {[1 + 0.004 (1 + t a n h (\frac{61.74}{S h_{w}})) \frac{G z}{S c}]}^{0.12} i f G z \geq 10^{3} \end{matrix}

Therefore,

k_{r e t} = \frac{S h (z) D_{g a s}}{d}

(A1)

\begin{matrix} Sherwood number & S h_{w} = \frac{m a x ({P e r m e a n c e}_{i}) R_{g a s} T d}{D_{g a s}} \end{matrix}

(A2)

\begin{matrix} Graetz number & G z (z) = \frac{d S c R e (z)}{z} \end{matrix}

(A3)

\begin{matrix} Schmidt number & S c = \frac{µ}{ρ D_{g a s}} \end{matrix}

(A4)

\begin{matrix} Reynolds number & R e = \frac{ρ u d_{i n t}}{µ} \end{matrix}

(A5)

References

Adewole, J.K.; Ahmad, A.L.; Ismail, S.; Leo, C.P. Current Challenges in Membrane Separation of CO₂ from Natural Gas: A Review. Int. J. Greenh. Gas Control 2013, 17, 46–65. [Google Scholar] [CrossRef]
Karimi, I.A.; Khan, M.S. Special Issue on PSE Advances in Natural Gas Value Chain: Editorial. Ind. Eng. Chem. Res. 2018, 57, 5733–5735. [Google Scholar] [CrossRef]
Alcheikhhamdon, Y.; Hoorfar, M. Natural Gas Purification from Acid Gases Using Membranes: A Review of the History, Features, Techno-Commercial Challenges, and Process Intensification of Commercial Membranes. Chem. Eng.-Process.—Process Intensif. 2017, 120, 105–113. [Google Scholar] [CrossRef]
Scholes, C.A.; Stevens, G.W.; Kentish, S.E. Membrane Gas Separation Applications in Natural Gas Processing. Fuel 2012, 96, 15–28. [Google Scholar] [CrossRef]
Rufford, T.E.; Smart, S.; Watson, G.C.Y.; Graham, B.F.; Boxall, J.; Diniz da Costa, J.C.; May, E.F. The removal of CO₂ and N₂ from natural gas: A review of conventional and emerging process technologies. J. Pet. Sci. Eng. 2012, 94–95, 123–154. [Google Scholar] [CrossRef]
Baker, R.W.; Lokhandwala, K. Natural Gas Processing with Membranes: An Overview. Ind. Eng. Chem. Res. 2008, 47, 2109–2121. [Google Scholar] [CrossRef]
Baker, R.W. Membrane Technology and Applications; John Wiley & Sons: Hoboken, NJ, USA, 2004. [Google Scholar]
Baker, R.W.; Low, B.T. Gas Separation Membrane Materials: A Perspective. Macromolecules 2014, 47, 6999–7013. [Google Scholar] [CrossRef]
Krishna, R.; van Baten, J.M. Using molecular simulations for screening of zeolites for separation of CO₂/CH₄ mixtures. Chem. Eng. J. 2007, 133, 121–131. [Google Scholar] [CrossRef]
Sinaei Nobandegani, M.; Yu, L.; Hedlund, J. Zeolite Membrane Process for Industrial CO₂/CH₄ Separation. Chem. Eng. J. 2022, 446, 137223. [Google Scholar] [CrossRef]
Li, S.; Martinek, J.G.; Falconer, J.L.; Noble, R.D.; Gardner, T.Q. High-Pressure CO₂/CH₄ Separation Using SAPO-34 Membranes. Ind. Eng. Chem. Res. 2005, 44, 3220–3228. [Google Scholar] [CrossRef]
Li, S.; Falconer, J.L.; Noble, R.D. SAPO-34 membranes for CO₂/CH₄ separations: Effect of Si/Al ratio. Microporous Mesoporous Mater. 2008, 110, 310–317. [Google Scholar] [CrossRef]
Funke, H.H.; Chen, M.Z.; Prakash, A.N.; Falconer, J.L.; Noble, R.D. Separating Molecules by Size in SAPO-34 Membranes. J. Membr. Sci. 2014, 456, 185–191. [Google Scholar] [CrossRef]
Kosinov, N.; Auffret, C.; Gücüyener, C.; Szyja, B.M.; Gascon, J.; Kapteijn, F.; Hensen, E.J.M. High Flux High-Silica SSZ-13 Membrane for CO₂ Separation. J. Mater. Chem. A 2014, 2, 13083–13092. [Google Scholar] [CrossRef]
Song, S.; Gao, F.; Zhang, Y.; Li, X.; Zhou, M.; Wang, B.; Zhou, R. Preparation of SSZ-13 Membranes with Enhanced Fluxes Using Asymmetric Alumina Supports for N₂/CH₄ and CO₂/CH₄ Separations. Sep. Purif. Technol. 2019, 209, 946–954. [Google Scholar] [CrossRef]
Du, P.; Liang, X.; You, L.; Wang, X.; Zhang, J.; Ying, X.; Hong, Z.; Zhang, Y.; Gu, X. Fabrication of high-selective hollow fiber DD3R zeolite membrane modules for high-pressure CO₂/CH₄ separation. J. Membr. Sci. 2023, 679, 121703. [Google Scholar] [CrossRef]
Yu, L.; Kyriazidou, I.; Zhou, M.; Hedlund, J. Highly permeable DDR membranes. J. Membr. Sci. 2023, 687, 122039. [Google Scholar] [CrossRef]
Yu, L.; Hedlund, J. Large and Highly Selective and Permeable CHA Zeolite Membranes. Ind. Eng. Chem. Res. 2023, 62, 16058–16069. [Google Scholar] [CrossRef]
Okazaki, J.; Hasegawa, H.; Chikamatsu, N.; Yajima, K.; Shimizu, K.; Niino, M. DDR-type zeolite membrane: A novel CO₂ separation technology for enhanced oil recovery. Sep. Purif. Technol. 2019, 218, 200–205. [Google Scholar] [CrossRef]
Chu, Y.; He, X. Process Simulation and Cost Evaluation of Carbon Membranes for CO₂ Removal from High-Pressure Natural Gas. Membranes 2018, 8, 118. [Google Scholar] [CrossRef]
Rahimalimamaghani, A.; Ramezani, R.; Tanaka, D.A.P.; Gallucci, F. Carbon Molecular Sieve Membranes for Selective CO₂/CH₄ and CO₂/N₂ Separation: Experimental Study, Optimal Process Design, and Economic Analysis. Ind. Eng. Chem. Res. 2023, 62, 19116–19132. [Google Scholar] [CrossRef]
Bozorg, M.; Addis, B.; Piccialli, V.; Ramirez-Santos, A.A.; Castel, C.; Pinnau, I.; Favre, E. Polymeric membrane materials for nitrogen production from air: A process synthesis study. Chem. Eng. Sci. 2019, 207, 1196–1213. [Google Scholar] [CrossRef]
Robeson, L.M. The Upper Bound Revisited. J. Membr. Sci. 2008, 320, 390–400. [Google Scholar] [CrossRef]
Castel, C.; Bounaceur, R.; Favre, E. Engineering of Membrane Gas Separation Processes: State of the Art and Prospects. J. Membr. Sci. Res. 2020, 6, 295–303. [Google Scholar] [CrossRef]
Bozorg, M.; Ramirez-Santos, A.A.; Addis, B.; Piccialli, V.; Castel, C.; Favre, E. Optimal Process Design of Biogas Upgrading Membrane Systems: Polymeric vs High Performance Inorganic Membrane Materials. Chem. Eng. Sci. 2020, 225, 115769. [Google Scholar] [CrossRef]
Zito, P.F.; Brunetti, A.; Barbieri, G. Selective Mass Transport of CO₂ Containing Mixtures through Zeolite Membranes. J. Membr. Sci. Res. 2020, 6, 333–343. [Google Scholar] [CrossRef]
Cao, Z.; Anjikar, N.D.; Yang, S. Small-Pore Zeolite Membranes: A Review of Gas Separation Applications and Membrane Preparation. Separations 2022, 9, 47. [Google Scholar] [CrossRef]
Teixeira Cardoso, A.R.; Ambrosi, A.; Di Luccio, M.; Hotza, D. Membranes for Separation of CO₂/CH₄ at Harsh Conditions. J. Nat. Gas Sci. Eng. 2022, 98, 104388. [Google Scholar] [CrossRef]
Silva, A.M.A.; Britto de Faria, A.C.; de Lima Ribeiro, C.; Athayde, D.D.; Paulo da Silva, E.; Magalhães dos Santos, G.; Fernando de Sousa Lima, L.; Nunes de Souza, R.; Pereira da Silva, S.L.; Mohallem, N.D.S. Review of Zeolite Membranes for Natural Gas Processing and Treatment: State of the Art and Future Perspectives. Gas Sci. Eng. 2023, 117, 205056. [Google Scholar] [CrossRef]
Mourgues, A.; Sanchez, J. Theoretical analysis of concentration polarization in membrane modules for gas separation with feed inside the hollow-fibers. J. Membr. Sci. 2005, 252, 133–144. [Google Scholar] [CrossRef]
Avila, A.M.; Funke, H.H.; Zhang, Y.; Falconer, J.L.; Noble, R.D. Concentration Polarization in SAPO-34 Membranes at High Pressures. J. Membr. Sci. 2009, 335, 32–36. [Google Scholar] [CrossRef]
He, G.; Mi, Y.; Lock Yue, P.; Chen, G. Theoretical study on concentration polarization in gas separation membrane processes. J. Membr. Sci. 1999, 153, 243–258. [Google Scholar] [CrossRef]
Wang, L.; Zhang, C.; Gao, X.; Peng, L.; Jiang, J.; Gu, X. Preparation of defect-free DDR zeolite membranes by eliminating template with ozone at low temperature. J. Membr. Sci. 2017, 539, 152–160. [Google Scholar] [CrossRef]
van den Bergh, J.; Zhu, W.; Gascon, J.; Moulijn, J.A.; Kapteijn, F. Separation and Permeation Characteristics of a DD3R Zeolite Membrane. J. Membr. Sci. 2008, 316, 35–45. [Google Scholar] [CrossRef]
Cui, Y.; Kita, H.; Okamoto, K.I. Preparation and gas separation performance of zeolite T membrane. J. Mater. Chem. 2004, 14, 924–932. [Google Scholar] [CrossRef]
Wang, B.; Hu, N.; Wang, H.; Zheng, Y.; Zhou, R. Improved AlPO-18 membranes for light gas separation. J. Mater. Chem. A 2015, 3, 12205–12212. [Google Scholar] [CrossRef]
Wang, B.; Zheng, Y.; Zhang, J.; Zhang, W.; Zhang, F.; Xing, W.; Zhou, R. Separation of light gas mixtures using zeolite SSZ-13 membranes. Microporous Mesoporous Mater. 2019, 275, 191–199. [Google Scholar] [CrossRef]
Bounaceur, R.; Berger, E.; Pfister, M.; Ramirez Santos, A.A.; Favre, E. Rigorous variable permeability modelling and process simulation for the design of polymeric membrane gas separation units: MEMSIC simulation tool. J. Membr. Sci. 2017, 523, 77–91. [Google Scholar] [CrossRef]
Ramirez-Santos, A.A.; Bozorg, M.; Addis, B.; Piccialli, V.; Castel, C.; Favre, E. Optimization of Multistage Membrane Gas Separation Processes: Example of Application to CO₂ Capture from Blast Furnace Gas. J. Membr. Sci. 2018, 566, 346–366. [Google Scholar] [CrossRef]
Puri, P.S. Chapter 8. Commercial Applications of Membranes in Gas Separations. In Membrane Engineering for the Treatment of Gases: Gas-Separation Problems with Membranes; RSC Publishing: Cambridge, UK, 2011; pp. 215–244. [Google Scholar] [CrossRef]
Chu, Y.; Lindbråthen, A.; Lei, L.; He, X.; Hillestad, M. Mathematical modeling and process parametric study of CO₂ removal from natural gas by hollow fiber membranes. Chem. Eng. Res. Des. 2019, 148, 45–55. [Google Scholar] [CrossRef]
Ahmad, F.; Lau, K.K.; Shariff, A.M.; Murshid, G. Process Simulation and Optimal Design of Membrane Separation System for CO₂ Capture from Natural Gas. Comput. Chem. Eng. 2012, 36, 119–128. [Google Scholar] [CrossRef]
Sidhikku Kandath Valappil, R.; Ghasem, N.; Al-Marzouqi, M. Current and future trends in polymer membrane-based gas separation technology: A comprehensive review. J. Ind. Eng. Chem. 2021, 98, 103–129. [Google Scholar] [CrossRef]
Medrano, J.A.; Llosa-Tanco, M.A.; Cechetto, V.; Pacheco-Tanaka, D.A.; Gallucci, F. Upgrading Biogas with Novel Composite Carbon Molecular Sieve (CCMS) Membranes: Experimental and Techno-Economic Assessment. Chem. Eng. J. 2020, 394, 124957. [Google Scholar] [CrossRef]
Julbe, A. Chapter 6—Zeolite Membranes—Synthesis, Characterization and Application. In Studies in Surface Science and Catalysis; Čejka, J., van Bekkum, H., Corma, A., Schüth, F., Eds.; Elsevier: Amsterdam, The Netherlands, 2007; Volume 168, pp. 181–219. [Google Scholar] [CrossRef]
Scholz, M.; Alders, M.; Lohaus, T.; Wessling, M. Structural Optimization of Membrane-Based Biogas Upgrading Processes. J. Membr. Sci. 2015, 474, 1–10. [Google Scholar] [CrossRef]
Kida, K.; Maeta, Y.; Yogo, K. Pure silica CHA-type zeolite membranes for dry and humidified CO₂/CH₄ mixtures separation. Sep. Purif. Technol. 2018, 197, 116–121. [Google Scholar] [CrossRef]
Abdul Majid, O.; Hreiz, R.; Castel, C.; Favre, E. Impact of concentration polarization on membrane gas separation processes: From 1D modelling to detailed CFD simulations. Chem. Eng. Sci. 2023, 281, 119128. [Google Scholar] [CrossRef]
Abdul Majid, O.; Kuznetsova, M.; Castel, C.; Favre, E.; Hreiz, R. Impact of Concentration Polarization Phenomena on Gas Separation Processes with High-Performance Zeolite Membranes: Experiments vs. Simulations. Membranes 2024, 14, 41. [Google Scholar] [CrossRef] [PubMed]
Yu, L.; Nobandegani, M.S.; Hedlund, J. Industrially relevant CHA membranes for CO₂/CH₄ separation. J. Membr. Sci. 2022, 641, 119888. [Google Scholar] [CrossRef]
Abdul Majid, O.; Hreiz, R. Impact of Concentration Polarization on the Performance of Membrane Gas Separation Processes: Application to Biogas Upgrading. Chem. Eng. Res. Des. 2024, 210, 543–557. [Google Scholar] [CrossRef]

Figure 1. Trade-off curve for the CO₂/CH₄ gas pair based on permeability for different polymeric materials. The selectivity–permeance trade-off is shown assuming a skin-layer thickness of 1 µm (1 Barrer = 1 GPU), together with the performances of two polymeric membranes (polyimide and cellulose acetate) and one inorganic zeolite membrane. The figure is adapted from references [23,25].

Figure 3. The best process configurations obtained with cellulose acetate (CA), polyimide (PI), and zeolite (ZEO) membranes for up to three stages.

Figure 4. Example of a configuration obtained with MIND for zeolite membrane under imposed three-stage separation process. The solution includes partial recycling loops, and a minimal membrane area of 1 m² is respected for the third stage. Although this configuration has no engineering relevance, it highlights that the target separation can be achieved efficiently with only two stages.

Figure 5. Results of the sensitivity analysis obtained by varying the membrane area from 4.61 m² to 25 m² for the three fiber diameters (0.9, 2.4, and 7 mm). The intersection of the dotted lines represents the reference case without considering concentration polarization.

Figure 6. Specific cost of CH₄ purification for the optimal configurations obtained with different membrane types as a function of the number of stages. For zeolite membranes, both the cost without concentration polarization and the cost including CP (best-case scenario) are shown.

Table 2. Cost equations used in this study for technic-economical analysis to determine product separation cost.

Equipment cost
$I_{m_{s}} = A_{m_{s}} \cdot K_{m}$	(1)	Membrane cost
$I_{m f_{s}} = {(A_{m_{s}} / 2000)}^{0.7} \cdot K_{m f} \cdot {(p^{u p} / 55)}^{0.875}$	(2)	Membrane frame cost
$I_{c_{s}} = C_{c} \cdot {(W_{{c p}_{s}} / 74.6)}^{0.77} \cdot (M P F_{c} + M F_{c} - 1) \cdot U F_{1968} \cdot K_{e r}$	(3)	Stage compressor cost
$I_{c_{f}} = C_{c} \cdot {(W_{{c p}_{f}} / 74.6)}^{0.77} \cdot (M P F_{c} + M F_{c} - 1) \cdot U F_{1968} \cdot K_{e r}$	(4)	Feed compressor cost
$I_{c_{p r o d}} = C_{c} \cdot {(W_{{c p}_{p r o d}} / 74.6)}^{0.77} \cdot (M P F_{c} + M F_{c} - 1) \cdot U F_{1968} \cdot K_{e r}$	(5)	Retentate compressor cost
$I_{e x p} = C_{e x p} \cdot {(W_{e x p} / 0.746)}^{0.81} \cdot (M P F_{c} + M F_{c} - 1) \cdot U F_{2000} \cdot K_{e r}$	(6)	Expander cost
$I_{v p_{s}} = C_{v p} \cdot (W_{v p_{s}})$	(7)	Vacuum pump cost
Capital expenditures
$P F C = I_{c_{f}} + I_{c_{p r o d}} o r I_{e x p} + \sum_{s \in S} I_{m_{s}} + I_{m f_{s}} + I_{c_{s}} + I_{v p_{s}}$	(8)	Process facilities capital
$B P C = 1.12 \cdot P F C$	(9)	Base plant cost
$P C = 0.2 \cdot B P C$	(10)	Contingency cost
$T F I = B P C + P C$	(11)	Total facility investment
$S T C = 0.10 \cdot O P E X$	(12)	Start up cost
$C A P E X = T F I + S T C$	(13)	Total capital cost
Operational expenditures
$C M C = 0.05 \cdot T F I$	(14)	Contract and material maintenance cost
$L T I = 0.15 \cdot T F I$	(15)	Local taxes and insurance
$D L = 11 \cdot t_{o p}$	(16)	Direct labor
$L O C = 1.15 \cdot D L$	(17)	Labor overhead cost
$E C = t_{o p} \cdot W_{t o t} \cdot K_{e l}$	(18)	Energy cost
$M R C = \sum_{s \in S} A_{m_{s}} \cdot ν \cdot K_{m r}$	(19)	Membrane replacement cost
$O P E X = C M C + L T I + D L + L O C + E C + M R C$	(20)	Total operational expenditures
Annual and specific separation costs
$A P L = F^{P E R M} \cdot 3600 \cdot 0.0224 \cdot K_{g p} \frac{X_{C H_{4}}^{P E R M}}{X_{C H_{4}}^{R E T}}$	(21)	Annual CH₄ losses
$T A C = C A P E X \cdot \frac{i \cdot {(1 + i)}^{z - 1}}{{(1 + i)}^{z} - 1} + O P E X + A P L$	(22)	Total annual costs
$S C_{C H_{4}} = T A C / (F^{R E T} \cdot 3600 \cdot t_{o p} \cdot 0.0224)$	(23)	Specific CH₄ separation cost

Table 3. Cost parameters used in Table 2.

Capital cost parameters
$C_{c}$	1 × 23,000	${USD}_{1968}$
$C_{v p}$	1000	EUR/kW
$C_{e x p}$	420	${USD}_{2000}$
$K_{m} (p o l y m e r)$	50	$EUR / m^{2}$
$K_{m} (z e o l i t e)$	2000	$EUR / m^{2}$
$K_{m f}$	$2.86 \times 10^{5}$	EUR
$K_{e r}$	$0.9$	EUR/USD
$M P F_{c}$	2.9	-
$M F_{c}$	5.11	-
$U F_{2000}$	1.44	-
$U F_{1968}$	4.99	-
Operational and annual cost parameters
$ν$	0.25	-
$K_{m r} (p o l y m e r)$	25	$EUR / m^{2}$
$K_{m r} (z e o l i t e)$	2000	$EUR / m^{2}$
$t_{o p}$	8322	h/year
$K_{e l}$	0.08	EUR/kWh
$K_{g p}$	0	$EUR / {Nm}^{3}$
i	0.08	-
z	15	years
$η_{c}$	0.85	-
$Φ$	0.95	-
$γ$	1.36	-
R	8.314	J/(K $\cdot$ mol)
T	293.15	K

Table 5. Geometric parameters used to study concentration polarization effect in highly performant zeolite membranes.

N	Inner Diameter, mm	Module Type	References
Case 1	0.9	Hollow fiber	[16]
Case 2	2.4	Monolith	[19]
Case 3	7	Tubular	[47,50]

Table 6. Effect of concentration polarization (CP) on the methane mole fraction in the retentate and on the methane recovery for different inner diameters of zeolite fibers (0.9, 2.4, and 7 mm) compared to the reference case without CP. The membrane area is 4.61 m² for all the cases.

Case	CP	Inner Diameter, mm	CH₄ Purity, %	CH₄ Recovery Rate, %
Reference	No	—	98.2	97.1
Case 1	Yes	0.9	92.6	97.0
Case 2	Yes	2.4	85.0	97.0
Case 3	Yes	7	76.2	96.9

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

© 2025 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

High-Performance Zeolite Membranes and Natural Gas Upgrading

Abstract

1. Introduction
