In-Situ Combination of Bipolar Membrane Electrodialysis with Monovalent Selective Anion-Exchange Membrane for the Valorization of Mixed Salts into Relatively High-Purity Monoprotic and Diprotic Acids

1
CAS Key Laboratory of Soft Matter Chemistry, Collaborative Innovation Center of Chemistry for Energy Materials, School of Chemistry and Material Science, University of Science and Technology of China, Hefei 230026, China
2
Hefei ChemJoy Polymer Materials, Co., Ltd., Hefei 230601, China
*
Authors to whom correspondence should be addressed.
These authors contribute equally to this work.
Membranes 2020, 10(6), 135; https://doi.org/10.3390/membranes10060135
Received: 31 May 2020 / Revised: 23 June 2020 / Accepted: 23 June 2020 / Published: 26 June 2020
(This article belongs to the Special Issue Membranes: 10th Anniversary)

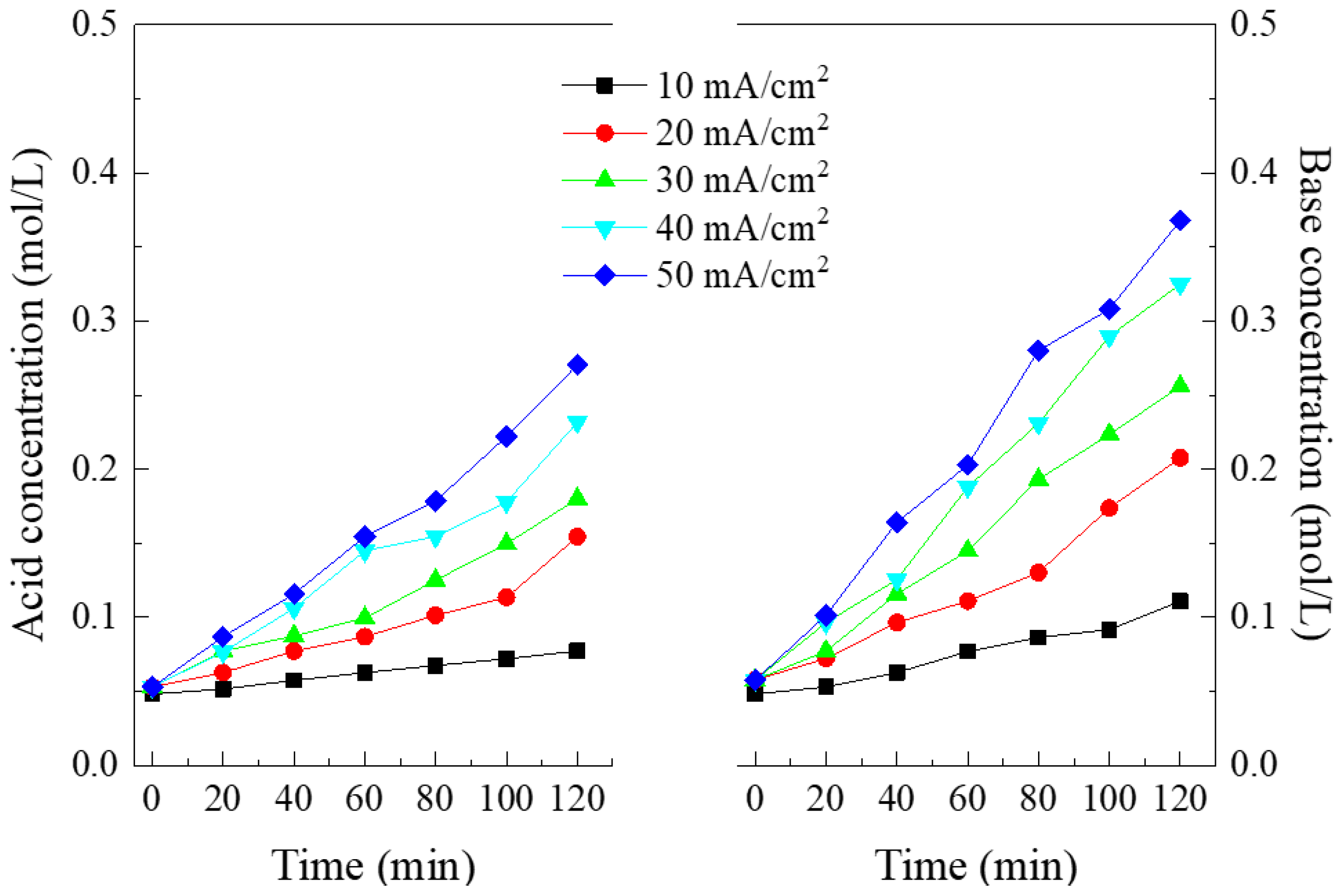

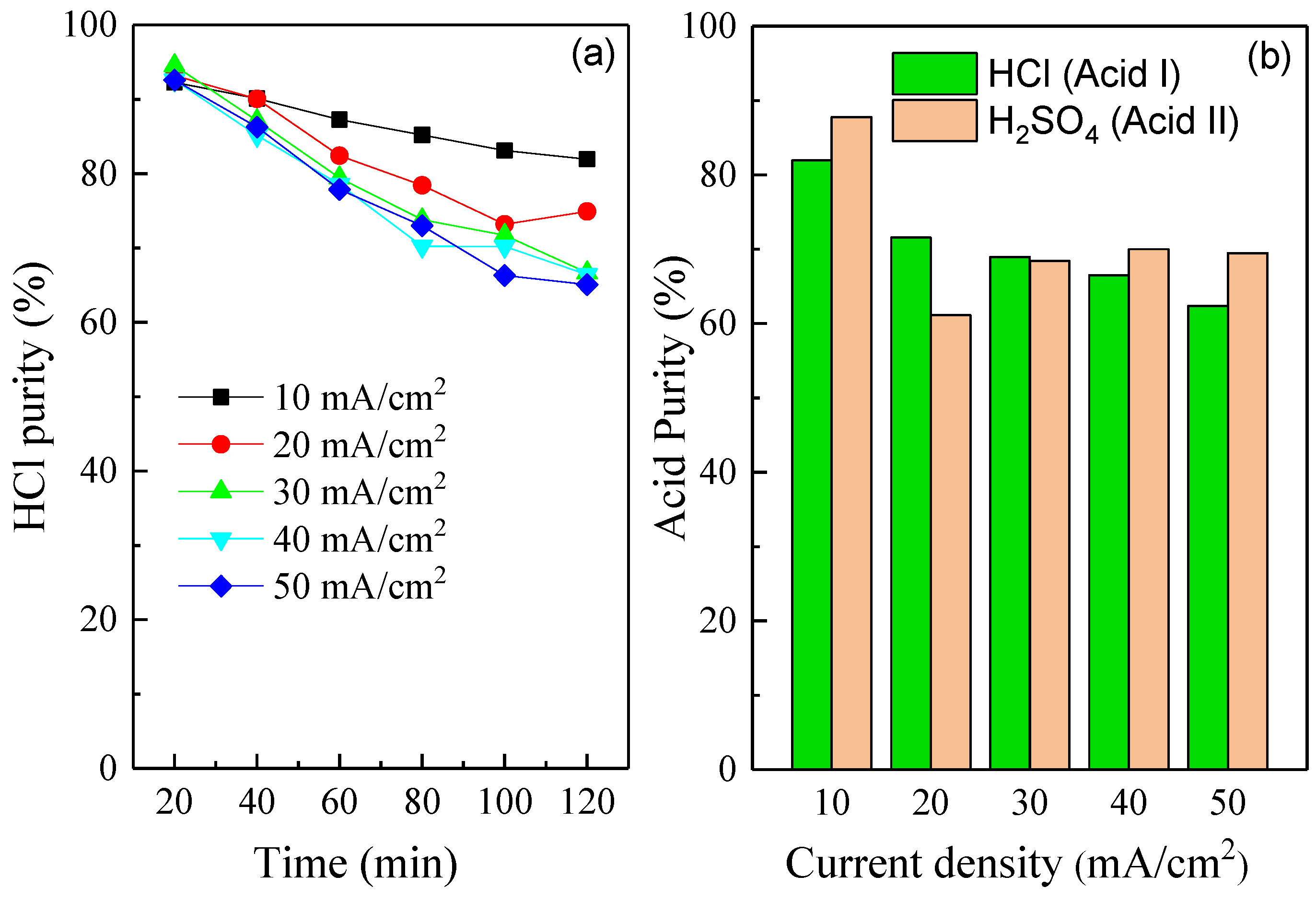

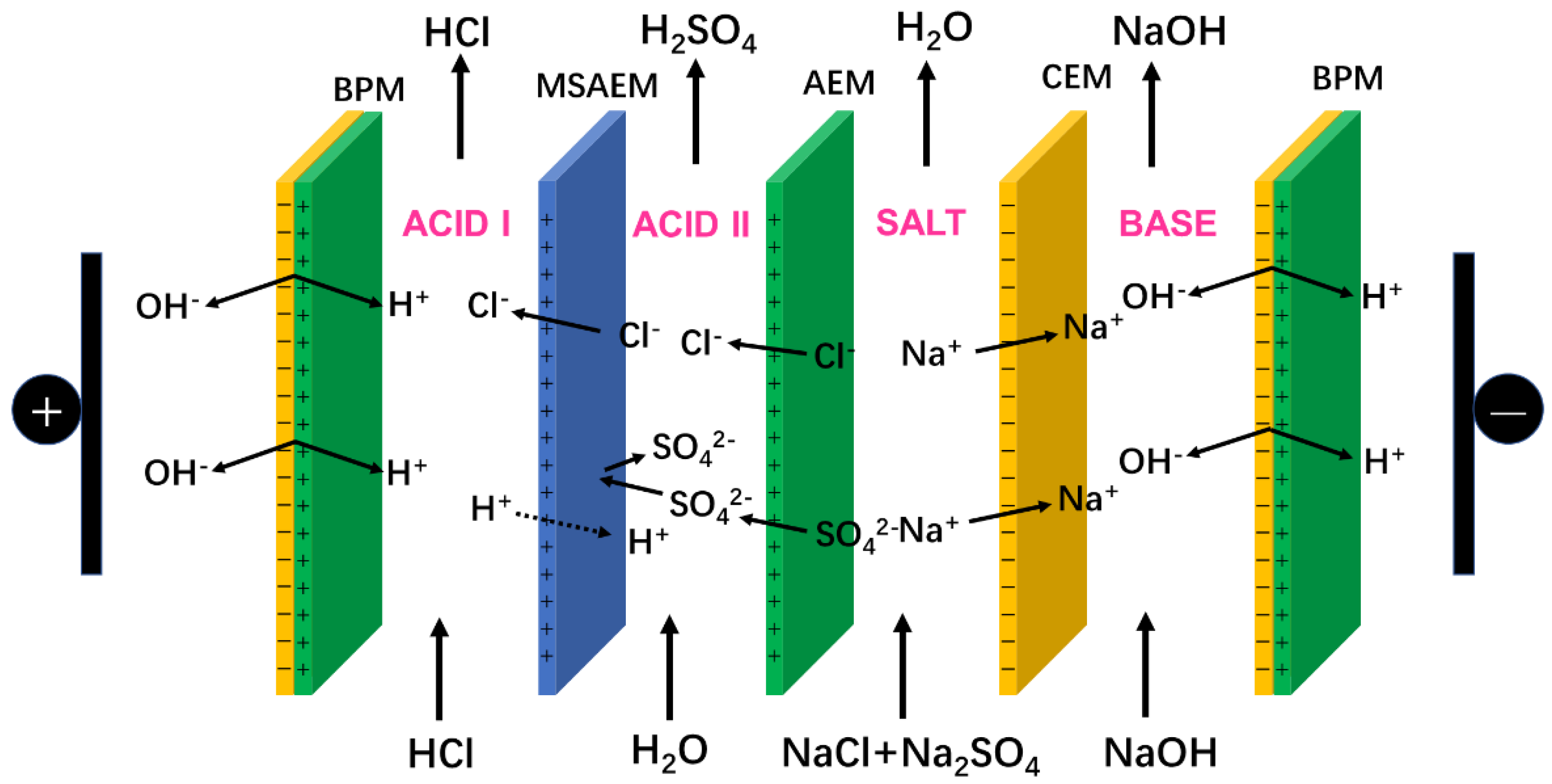

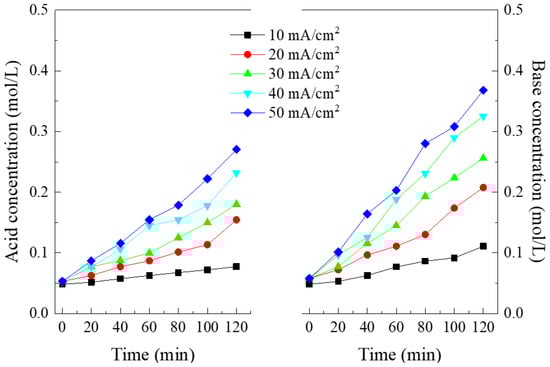

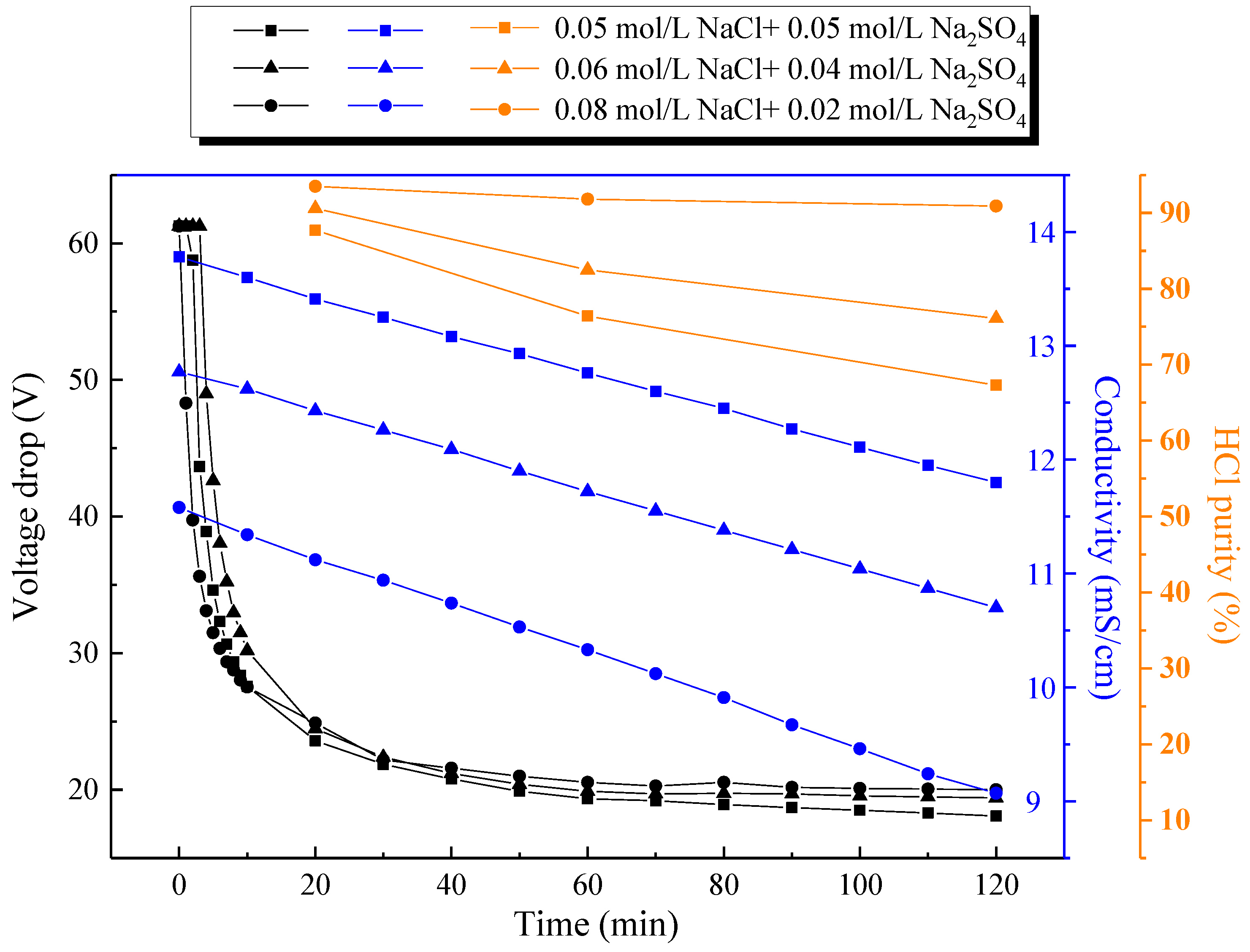

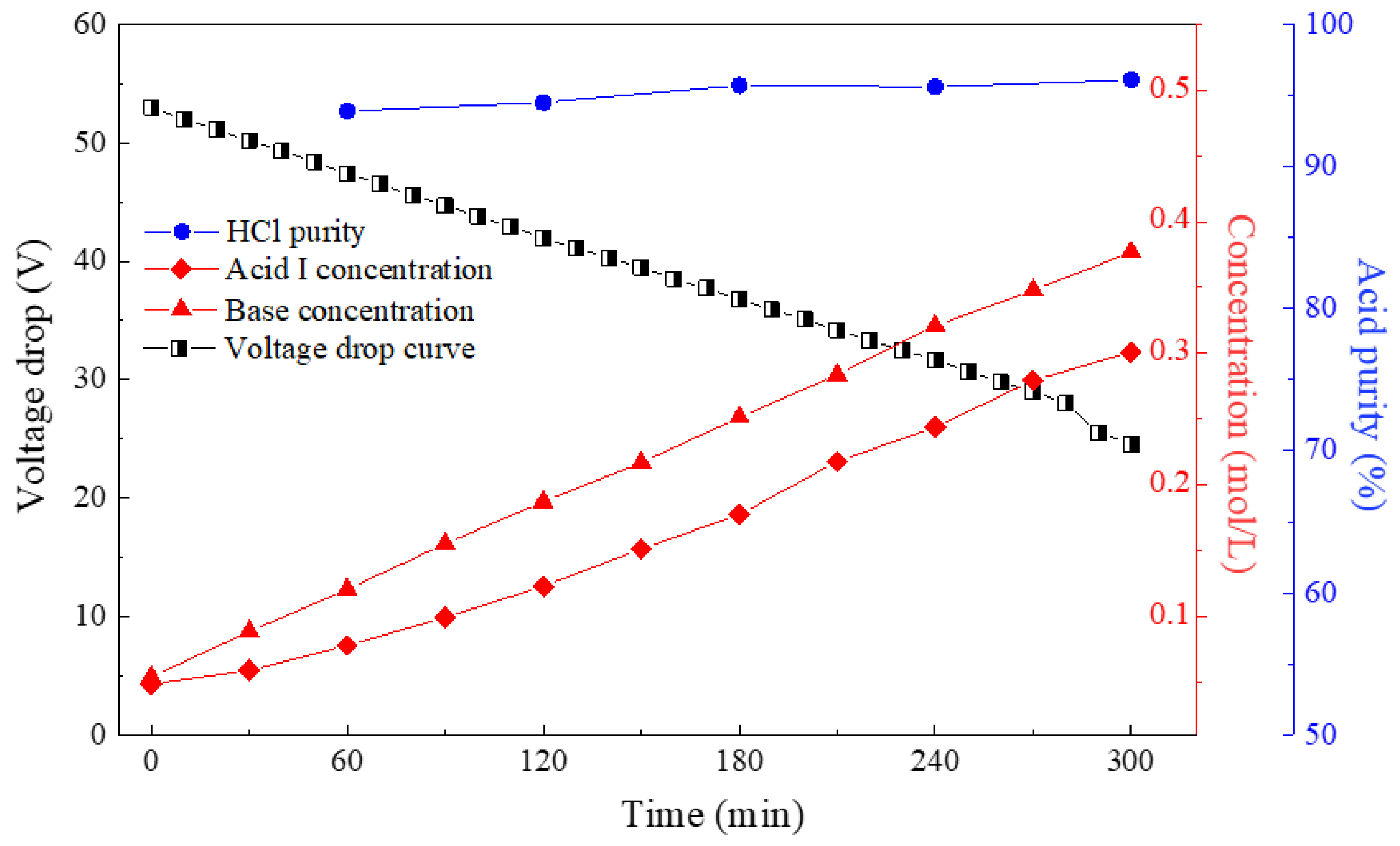

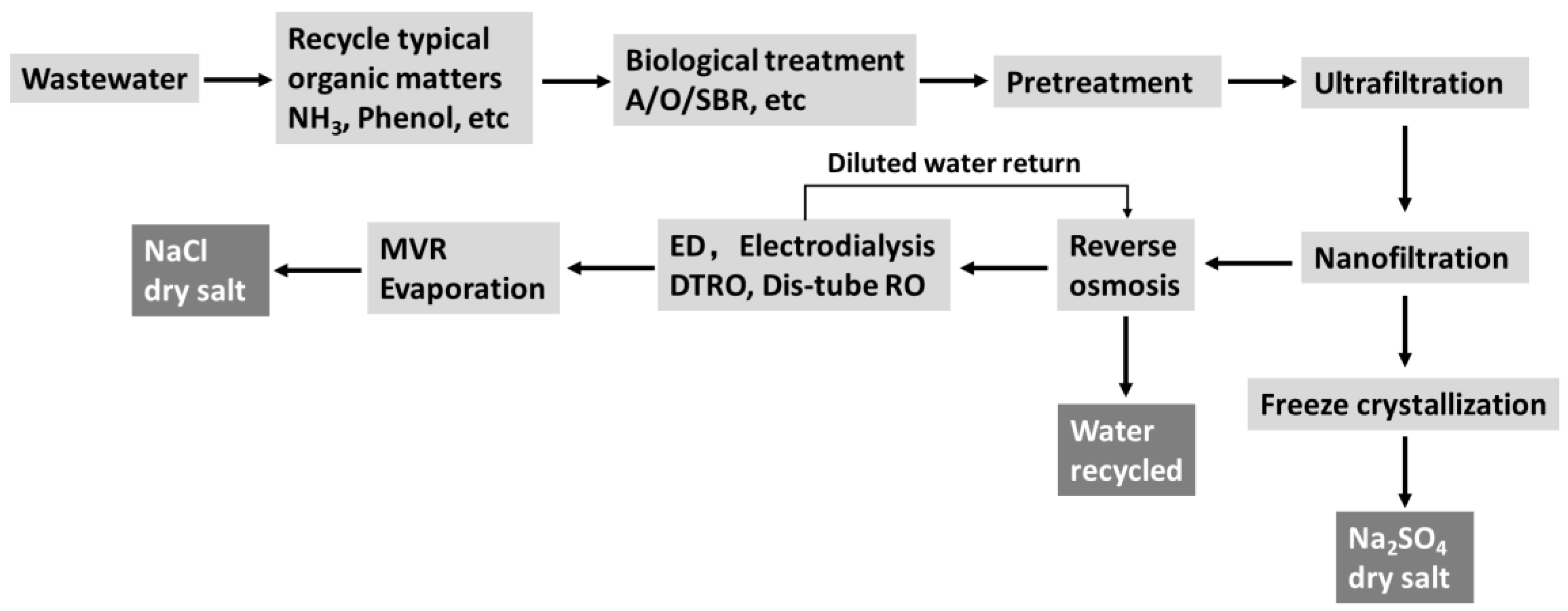

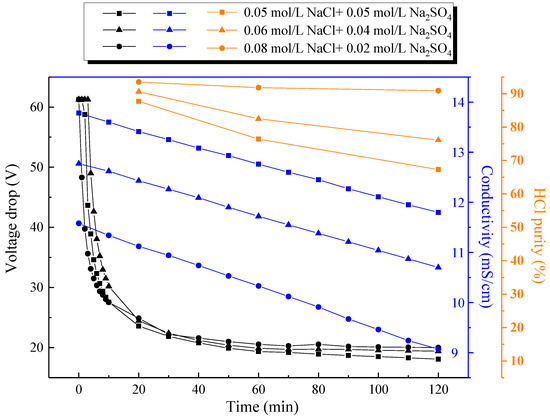

The crystalized mixed salts from the zero liquid discharge process are a hazardous threat to the environment. In this study, we developed a novel electrodialysis (SBMED) method by assembling the monovalent selective anion-exchange membrane (MSAEM) into the bipolar membrane electrodialysis (BMED) stack. By taking the advantages of water splitting in the bipolar membrane and high perm-selectivity of MSAEM for the Cl ions against the SO42− ions, this combination allows the concurrent separation of Cl/SO42− and conversion of mixed salts into relatively high-purity monoprotic and diprotic acids. The current density has a significant impact on the acid purity. Both the monoprotic and diprotic acid purities were higher than 80% at a low current density of 10 mA/cm2. The purities of the monoprotic acids decreased with an increase in the current density, indicating that the perm-selectivity of MSAEM decreases with increasing current density. An increase in the ratio of monovalent to divalent anions in the feed was beneficial to increase the purity of monoprotic acids. High-purity monoprotic acids in the range of 93.9–96.1% were obtained using this novel SBMED stack for treating simulated seawater. Therefore, it is feasible for SBMED to valorize the mixed salts into relatively high-purity monoprotic and diprotic acids in one step. View Full-Text
Keywords: bipolar membrane; electrodialysis; monovalent selective anion-exchange membranes; zero liquid discharge; coal mining industry bipolar membrane; electrodialysis; monovalent selective anion-exchange membranes; zero liquid discharge; coal mining industry
Show Figures

Figure 1

MDPI and ACS Style

Yan, H.; Li, W.; Zhou, Y.; Irfan, M.; Wang, Y.; Jiang, C.; Xu, T. In-Situ Combination of Bipolar Membrane Electrodialysis with Monovalent Selective Anion-Exchange Membrane for the Valorization of Mixed Salts into Relatively High-Purity Monoprotic and Diprotic Acids. Membranes 2020, 10, 135.
