Article

A Novel Double Mosaic Virus-like Particle-Based Vaccine against SARS-CoV-2 Incorporates Both Receptor Binding Motif (RBM) and Fusion Domain

1
Department of Rheumatology and Immunology, University Hospital Bern, 3010 Bern, Switzerland
2
Department of BioMedical Research, University of Bern, 3012 Bern, Switzerland
3
Latvian Biomedical Research & Study Center, Ratsupites 1, LV-1067 Riga, Latvia
4
Saiba GmbH, 8808 Pfäffikon, Switzerland
5
International Immunology Centre, Anhui Agricultural University, Hefei 230036, China
6
Jenner Institute, University of Oxford, Oxford OX3 7BN, UK
*
Author to whom correspondence should be addressed.
Vaccines 2021, 9(11), 1287; https://doi.org/10.3390/vaccines9111287
Submission received: 1 October 2021 / Revised: 29 October 2021 / Accepted: 31 October 2021 / Published: 5 November 2021
(This article belongs to the Special Issue VLP Based Coronavirus Vaccines)

Abstract

:
COVID-19 has emerged, and has rapidly become a major health problem worldwide, causing millions of mortalities. Vaccination against COVID-19 is the most efficient way to stop the pandemic. The goal of vaccines is to induce neutralizing antibodies against SARS-CoV-2 virus. Here, we present a novel double mosaic virus-like particle (VLP) displaying two independent neutralizing epitopes, namely the receptor binding motif (RBM) located in S1 and the fusion peptide (AA 817–855) located in S2. CuMVTT virus-like particles were used as VLP scaffold and both domains were genetically fused in the middle of CuMVTT subunits, which co-assembled into double mosaic particles (CuMVTT-DF). A single fusion mosaic particle (CuMVTT-FP) containing the fusion peptide only was used for comparison. The vaccines were produced in E. coli, and electron microscopy and dynamic light scattering confirmed their integrity and homogeneity. In addition, the CuMVTT-DF vaccine was well recognized by ACE2 receptor, indicating that the RBM was in native conformation. Both CuMVTT-FP and CuMVTT-DF vaccines induced high levels of high avidity IgG antibodies as well as IgA recognizing spike and RBD in the case of CuMVTT-DF. Both vaccine candidates induced virus-neutralizing antibodies indicating that the fusion peptide can independently induce virus-neutralizing antibodies. In contrast, CuMVTT-DF containing both RBM and fusion peptide induced a higher level of neutralizing antibodies suggesting that the new double mosaic vaccine candidate CuMVTT-DF consisting of two antigens in one VLP maybe an attractive candidate for scale-up in a bacterial fermentation process for clinical development.

1. Introduction

Severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2), the cause of the COVID-19 pandemic, was first reported in Wuhan, China [1]. Meanwhile, the virus has infected over 200 million people worldwide and caused more than 4 million fatalities [2]. Despite extensive attempts to treat the disease, there is no curable medication available [3,4]. Therefore, global vaccination programs that aim to provide herd immunity are an ideal long-term solution for control of the pandemic.
SARS-CoV-2 utilizes the receptor binding domain (RBD) on spike protein to invade host cells. Like the SARS-CoV-1 virus, RBD of SARS-CoV-2 binds to the angiotensin-converting enzyme 2 (ACE2) receptor and is proteolytically cleaved to allow cellular entry of the virus [5]. This offers at least two points of attack for neutralizing antibodies: blocking the interaction of the receptor binding motif (RBM) within RBD with ACE2 [6], or blocking the proteolytic cleavage. There are currently more than 300 vaccine candidates in clinical and preclinical development [7], almost all of which target the spike protein [8,9] except for attenuated or inactivated whole virus [10,11,12,13]. There are several vaccines licensed for emergency usage, which are mostly based on nanoparticle-formulated mRNA, inactivated whole virus, or Adenovirus vectors [14].
While all these vaccine platforms have their clear advantages, they also have technical limitations. The main issue for mRNA vaccine is shortage of supply and the very low temperature required for long-term storage [15]. Vaccines based on inactivated whole virus are produced by conventional techniques. However, in the case of SARS-CoV-2, they induce rather low neutralizing responses, an observation compatible with the fact that most individuals infected with virus mount relatively low antibody responses despite sometimes rather high viral load. The same argument extends to attenuated viruses [16,17,18]. Adenoviruses-based vaccines targeting COVID-19 can easily be produced at large scale and can also be stored at conventional temperature (4 °C). However, it is difficult to apply more than one vaccine injection, which renders it challenging to maintain long-term antibody responses. In an interesting new development, recent studies have demonstrated that “mix and match” vaccines (ChAdOx1 nCoV-19 and BNT162b2) could elicit strong immune responses [19], which suggests that combining different vaccines may overcome drawbacks of individual vaccines. Therefore, more vaccine candidates would increase the chance to meet the demand of global vaccination.
Generally, neutralizing antibodies serve a predominant role in defending viral infections, in particular after vaccination [20,21]. In fact, studies have demonstrated that neutralizing antibodies protect animals and humans from SARS-CoV-2 infection [20,22,23]. Recently, clinical trials using neutralizing IgG antibodies such as cocktail REGN-COV2 [24] and LY-CoV555 [25] have shown positive results in treating COVID-19. In addition to IgG antibodies, IgA antibodies may dominate the mucosal defense in the respiratory tract [26]. Indeed, IgA has been shown to be important for neutralizing SARS-CoV-2 in infected patients [27,28,29]. Therefore, a good vaccine candidate should elicit strong neutralizing IgG as well as IgA antibody responses.
Interestingly, a study aiming to identify IgG immunodominant epitopes in spike protein claimed that two linear epitopes (AA 562–579 and AA 818–830) were recognized by convalescent patient sera [30]. Epitope AA 562–579 sits in RBD, but outside of the RBM region and represents a classical neutralizing epitope. Surprisingly, the second epitope AA 818–830 peptide is located in S2 protein and constitutes an important part of the previously described fusion peptides (AA 816–833) [5,31]. We therefore reasoned that it might be possible to generate a more effective vaccine candidate if such an epitope was to be included in addition to the classical RBD/RBM epitope.
CuMVTT VLPs are optimized to activate T helper cells by incorporating a universal tetanus toxin (TT) epitope recognized by memory Th cells of almost every individual due to universal recognition as well as prior vaccination against TT. This epitope has been genetically fused internally to CuMV (cucumber mosaic virus) particles, which has created a powerful vaccine platform currently used for development of prophylactic and therapeutic vaccines in companion animals and humans [32,33,34,35]. Since the VLPs are produced by E. coli fermentation, one major advantage of vaccines based on CuMVTT is their cost-effectiveness and scalability. Furthermore, CuMVTT packages E. coli derived RNA, which represents the best stimulator of TLR7/8 in B cells [36].
To generate a vaccine candidate that effectively protects against SARS-CoV-2 virus, we produced a double mosaic particle by genetically fusing into individual CuMVTT subunits the fusion peptide (AA 817–855) and RBM. This double mosaic particle represents a next generation version of the recently reported CuMVTT-RBD and CuMVTT-RBM vaccine candidates, which already demonstrated potent immunogenicity in vaccinated mice [37,38]. In contrast to these previously described VLP-based vaccines, the new CuMVTT-DF vaccine candidate targets the RBD-ACE2 interaction interface as well as epitope required for fusion of the virus with the endosomal membrane. The CuMVTT-DF immunized mice showed strong IgG and IgA antibody responses, which could effectively neutralize SARS-CoV-2 virus. To our knowledge, this is the first time two different epitopes have been displayed on a single VLP by genetic fusion, extending the potential of VLPs as a better vaccine platform.

2. Materials and Methods

2.1. Ethics Statements

All studies involving animal were subject to prior approval by the respective local ethics committees. For studies using mice, methods were performed in accordance with regulations and guidelines of the Cantonal Veterinary Office Bern, Switzerland. Methods were approved by the animal ethics research committee of the Cantonal Veterinary Office Bern, Switzerland as part of the standard operating procedure for study approval for project (license BE70/18). No human material was used in this study.

2.2. Vaccine Production and Characterization

E. coli ER2566 containing pETDu-CMV3d-nCoV-FP-CMVtt or pET28-CMVB3d-nCoV-M-CMV-FP were used to produce CuMVTT-FP and CuMVTT-DF vaccines, respectively. Bacteria were cultured in 2TY medium (1.6% tryptone, 1% yeast extract, 0.5% NaCl) with 100 mg/L Ampicillin at 30 °C until OD600 = 0.8. Then 0.2 mM IPTG (Isopropyl β-D-1-thiogalactopyranoside) and 5 mM MgCl2 were added to induce protein expression at 20 °C. Biomass was harvested by centrifugation 18 h after induction, and suspended in lysis buffer (20 mM Tris, 5 mM EDTA, 5 mM Et-SH, 5% glycerol, 10% sucrose, pH 8.0). VLP vaccines were purified as described previously with minor adjustment [32]. Briefly, bacteria were disrupted with sonication and the lysate was then rotated at 10 rpm, 4 °C overnight. Afterwards, VLP-containing supernatants were separated from cell debris with 10,000 rpm centrifugation for 10 min.
VLPs were purified by applying the supernatant to sucrose gradients (20–60% sucrose in buffer: 20 mM Tris, 2 mM EDTA, 5% glycerol, 0.5% Triton X100) and then centrifuged for 6 h at 25,500 rpm, 18 °C (Beckman SW32). Afterwards, fractions were collected and analyzed on SDS-PAGE gel, and VLP-containing fractions were 1:1 diluted in buffer (20 mM Tris-HCl, 2mM EDTA, 5% glycerol) and then sedimented using 50,000 rpm centrifugation for 4 h at 4 °C. Finally, VLPs were obtained by dissolving pellets in buffer (20 mM Tris-HCl, 5 mM EDTA, 5% glycerol). The quality and purity of VLPs were examined by means of SDS-PAGE gel analysis, agarose gel analysis, dynamic light scattering (DLS) and transmission electron microscope (TEM).
The average size of particles was determined by DLS. Briefly, VLPs were diluted to 1 mg/mL and analyzed by a Zetasizer Nano ZS instrument (Malvern Instruments Ltd., Malvern, UK) [32]. Three repeats were performed.
VLP samples were negatively stained before TEM observation. Firstly, 5 ul of each suspension were adsorbed on glow discharged and carbon coated 400 mesh copper grids (Plano, Wetzlar; Germany) for 1 min. After washing 3 times by dipping in H2O, grids were stained with 2% uranyl acetate solution (Electron Microscopy Sciences, Hatfield, PA, USA) for 45 s. The excess fluid was removed by gently pushing them sideways to filter paper. Stained samples were then examined with a transmission electron microscope (Tecnai Spirit, FEI, Hillsboro, OR, USA) at 80 kV and equipped with a digital camera (Veleta, Olympus, Münster, Germany).

2.3. Mice Immunization

BALB/claHsd (Envigo, Horst, The Netherlands) mice were purchased and kept in SPF animal facility (Department of Biomedical Research, University of Bern, Bern, Switzerland) according to Cantonal Veterinary guidelines of Bern. Female mice (8–12 weeks) were immunized subcutaneously with 100 ug purified CuMVTT-FP, CuMVTT-DF vaccine and boosted with same dose at 21 days after priming. Serum samples were collected every week until d49. Five mice were used per group.

2.4. Recombinant Receptor Binding Domain (RBD) of Spike Protein Production

Gene encoding the RBD protein (319R-541F, 223 AA) with a His-tag in C-terminus was synthesized by Twist Bioscience HQ (South San Francisco, CA, USA) and cloned into eukaryotic expression plasmid pTwist CMV BetaGlobin WPRE Neo. The expression plasmid was amplified in XL-1 Blue electro-competent cells and then extracted with PureLink™ HiPure Plasmid Filter Maxiprep Kit (Invitrogen, catalog K210016, Waltham, MA, USA) in accordance with product manual. The Expi293F cells (50 mL, 3 × 106 cells/mL) were transfected with 50 ug DNA using transit ExpiFectamine 293 transfection kit (Gibco, catalog A14524, Amarillo, TX, USA). Cell culture supernatants containing RBD protein were collected by 4000 rpm, 20 min centrifugation. RBD protein was purified from the supernatants by passing through His-Trap HP column (GE Healthcare, catalog 17-5248-01, Marlborough, MA, USA) after 0.22 um filtering. Then the purified RBD protein was analyzed in SDS-PAGE gel and stored at −20 °C.

2.5. ELISA and Avidity ELISA

ELISA was performed to determine the immunogenicity of vaccines. Corning half area 96-well plates were coated with 1 ug/mL recombinant RBD protein, spike protein (Sino Biological, catalog 40589-V08H4) or spike S2 protein (Sino Biological, catalog 40590-V08B) overnight at 4 °C. Then plates were blocked with PBS-0.15% Casein for 2 h at room temperature, after which mice sera were added and 1:3 serial diluted starting from 1:20 dilution in PBS-0.15% Casein. After incubation at room temperature for one hour, goat anti-mouse IgG-POX antibody (Jackson Immunoresearch, catalog 115-035-071) was added and incubated for one hour. Finally, plates were developed with tetramethylbenzidine (TMB) in citrate buffer, stopped with 1 M H2SO4 solution and read at OD450nm.
Same procedures were applied to determine spike-specific IgA antibodies, with exception of goat anti-mouse IgA-POX antibody (ICN Cappel, catalog 55549) as secondary antibody. To eliminate the interference of IgG antibodies to IgA determination, IgG antibodies were removed from serum samples by incubating serum with Protein G magnetic beads (Thermo Scientific, catalog 88847) at room temperature for 10 min.
To determine if the vaccines were able to be recognized by angiotensin-converting enzyme 2 (ACE2) receptor, the plate was coated with recombinant ACE2-His tag (Sino Biological, catalog 10108-H08H). Then vaccines were added and diluted after blocking the plate with PBS-0.15% Casein. Afterwards, mouse anti-CuMVTT IgG (home-made from hybridomas) was used to detect the bound vaccine, followed by adding sheep anti-mouse IgG-POX antibody (ICN Cappel, catalog 55558). Finally, the plate was developed and stopped as described above.
To analyze the binding of monoclonal anti-RBD antibody to RBM peptides in CuMVTT-DF, half-well Corning plate was coated with anti-CuMVTT antibody overnight at 4 °C. Then plate was blocked with PBS-0.15% Casein for 2 h at room temperature, after which CuMVTT-DF (CuMVTT as a control) vaccine was added to plate and serially diluted. After incubation at room temperature for an hour, human anti-RBD antibody (Sanyou biopharmaceuticals, catalog AHA004, Shanghai, China) was added and incubated for one hour. Finally, goat anti-human IgG conjugated with POX (Nordic MUbio, catalog GAHu/IgG(Fc)/PO, Susteren, The Netherlands) was used as detection antibody. After an hour incubation, plate was developed with TMB and stopped with 1 M H2SO4.
To test the affinity of specific antibodies in immunized mouse serum, avidity ELISA was performed. To this end, two parallel plates were performed as above, except one washing step before adding secondary antibody. One plate was washed with PBS-0.05% Tween-7 M urea 3 times, while the other with PBS-0.05% Tween only, in between which plates were washed with PBS-0.01% Tween. The weakly bound antibodies are washed away with 7 M urea. Avidity index was calculated as ratio of OD (PBS-0.05% Tween-7 M urea) to OD (PBS-0.05% Tween) with same dilution [39].

2.6. SARS-CoV-2 Virus Neutralization Assay

Viral neutralization assays were performed as described previously [37]. In brief, serum samples were firstly heat-inactivated at 56 °C for 30 min. Subsequently, the samples were diluted 2-fold starting from 1:20 dilution until 1:160. 100 TCID50 of SARS-CoV-2/ABS/NL20 was added to each diluted serum and incubated for 1 h at 37 °C. Afterwards, the mixtures were added on a monolayer of Vero cells and incubated for additional 4 days at 37 °C. Finally, the wells were inspected for presence of cytopathic effect (CPE). Titer was expressed as the highest dilution of the serum that fully inhibits the formation of CPE.

3. Results

3.1. Purified CuMVTT-FP and CuMVTT-DF Vaccines Are of Homogenous Composition, Packaged with RNA, and in Correct Conformation

The engineered CuMVTT-FP and CuMVTT-DF vaccines were designed to be mosaic particles, which consist of two different subunits as illustrated in Figure 1A: mosaic particle consisting of wild type CuMVTT and CuMVTT fused with fusion peptide (AA 817–855) (CuMVTT-FP); or double mosaic particle consisting of CuMVTT fused with RBM (AA 437–508) and CuMVTT fused with the fusion peptide (AA 817–855) (CuMVTT-DF). This latter mosaic particle contains no wild-type subunit. Briefly, we could yield 2.7 mg CuMVTT-DF VLPs per gram biomass. We have shown previously for CuMVTT-RBM that yields were approximately 50-fold higher in bioreactors [38]. As shown in Figure 1B, SDS-PAGE gel demonstrated the correct sizes of the purified subunits of CuMVTT-FP (25 kD and 31.4 kD) and CuMVTT-DF (31.4 kD and 35.3 kD) vaccines. According to densitometric analysis, we conclude that RBM epitope accounted for 57% subunits and FP epitope for 43% in CuMVTT-DF vaccine, indicating that there are 103 RBM and 77 FP epitopes in each particle approximately. In addition, the self-assembled VLPs spontaneously pack negatively-charged prokaryotic ssRNA which stabilizes the viral structure. Accordingly, Figure 1C shows in agarose gel analysis that both CuMVTT-FP and CuMVTT-DF vaccines incorporate RNA, resulting in stable VLP vaccines and capacity to stimulate innate pattern receptors TLR7/8 [36]. The long-term stability of CuMVTT-DF vaccine was confirmed by SDS-PAGE and agarose gel after storing the vaccine at 4 °C for 6 months (Supplementary file: Figure S1). In addition, we analyzed the CuMVTT-DF vaccine after 12 months storage at 4 °C. TEM image in Figure S1C illustrates that CuMVTT-DF shows intact spherical viral structure identical to newly produced VLPs. Similarly, DLS also demonstrates homogeneous particles with an apparent diameter of 70 nm. These results indicate that CuMVTT-DF vaccine is stable at 4 °C for at least one year.
Furthermore, the purified vaccines were found to be homogenous by DLS and the majority VLPs were approximately 70 nm in diameter (Figure 1D). Similarly, transmission electron microscopy (TEM) analysis illustrated the vaccines were in typical spherical virus shape (Figure 1E). Taken together, the E. coli produced CuMVTT-FP and CuMVTT-DF vaccines successfully formed intact and stable virus-like particles that incorporated RNA.
To further characterize the vaccine candidates, the ability to bind to the viral receptor ACE2 was examined by ELISA. The RBM-containing CuMVTT-DF vaccine was recognized and bound by ACE2 (Figure 1F), suggesting the RBM was in natural conformation. As expected, CuMVTT-FP vaccine did not show binding to ACE2. Similarly, monoclonal anti-RBD antibody could recognize CuMVTT-DF (Figure 1G), confirming the fact that RBM in CuMVTT-DF vaccine is in native conformation.

3.2. CuMVTT-FP and CuMVTT-DF Vaccines Demonstrated High Immunogenicity in Mice

To examine the immunogenicity of vaccines in vivo, BALB/c mice were immunized and serum samples were collected as shown in Figure 2A. Our previous work on another VLP vaccine CuMVTT-RBM demonstrated that 100 μg VLP vaccine elicits the best antibody responses [38]. Therefore, we performed our immunization with this dose as well. As expected, CuMVTT-FP failed to induce RBD-specific antibodies in immunized mice. In contrast, mice immunized with CuMVTT-DF generated antibodies against RBD, and the titers further increased after booster vaccination (Figure 2B). Consistently, both CuMVTT-FP and CuMVTT-DF vaccines induced spike S2 protein-specific IgG antibodies in mice and the titers increased with time, in particular after booster immunization (Figure 2C). Furthermore, strong spike protein-specific antibodies were induced by both CuMVTT-FP and CuMVTT-DF (Figure 2D). Titers induced by CuMVTT-DF at d49 were higher than those induced by CuMVTT-FP immunization, indicating the CuMVTT-DF induces overall better anti-viral responses. In summary, both CuMVTT-FP and CuMVTT-DF vaccines were able to induce potent IgG antibody responses against SARS-CoV-2.
High affinity antibodies are needed for good viral neutralization. To examine the avidity of IgG antibodies induced by CuMVTT-FP and CuMVTT-DF vaccines, avidity ELISA assays were performed. As shown in Figure 3, levels of high-avidity antibodies against RBD (Figure 3B), S2 protein (Figure 3D) and spike protein (Figure 3F) in sera from CuMVTT-DF immunized mice were elevated in particular after booster immunization. Similarly, avidity indexes against S2 protein (Figure 3C) and spike (Figure 3E) were significantly increased after boosting. Importantly, around 50% of IgG antibodies remain bound to spike protein after 7 M urea wash, indicating the vaccine-elicited IgG antibodies are of very high avidities. Therefore, in addition to high antibody titers, CuMVTT-FP and CuMVTT-DF vaccines induce antibodies of high avidity to SARS-CoV-2.
Finally, IgA antibodies which typically dominate local anti-viral infections in the respiratory tract were determined. As shown in Figure 4, IgA antibodies were high after booster vaccination and stayed at high levels at least until d49. Taken together, CuMVTT-FP and CuMVTT-DF vaccines are highly immunogenic and induce IgG antibodies of high avidity and IgA in mice.

3.3. CuMVTT-DF Vaccine Induced Neutralizing Antibodies in Mice

After confirming the potent immunogenicity of CuMVTT-FP and CuMVTT-DF vaccines, we next tested the efficiency of the antibodies to neutralize SARS-CoV-2 virus. Figure 5 shows that neutralization titers induced by both CuMVTT-FP and CuMVTT-DF were significantly higher than control sera (buffer and CuMVTT immunized mice [38]), demonstrating that both CuMVTT-FP and CuMVTT-DF vaccines were able to induce neutralizing antibodies. In addition, titers of CuMVTT-DF immunized mice were higher than those from CuMVTT-FP immunized mice, suggesting that RBM is essential for a vaccine to induce high levels of neutralizing antibodies but that peptide AA 817–855 alone is also able to do so. We have shown previously that CuMVTT-RBM vaccine, which incorporates wild type CuMVTT and CuMVTT-RBM subunit, elicited comparable neutralization levels, indicating that RBM is the major contributor to neutralization [38]. Nevertheless, the neutralizing anti-FP antibodies may help avoid viral escape from neutralizing antibodies recognizing RBM alone. In summary, CuMVTT-DF vaccine could induce antibodies that efficiently neutralize SARS-CoV-2, and thus be an alternative COVID19 vaccine candidate for further clinical development.

4. Discussion

Several vaccine candidates based on VLPs against SARS-CoV-2 virus have been tested by us, all of which aimed to induce neutralizing antibodies. The CuMVTT-RBD was our first successful vaccine candidate generated by chemical coupling of RBD protein in native conformation from eukaryotic expression to CuMVTT particles, which induced high neutralizing antibodies in immunized mice [37], similarly to RBD displayed on AP205 VLPs by the Spy-Catcher method [40]. On this premise, we next genetically fused the RBM, which has no post-transcriptional modifications, into the middle of CuMVTT subunit and produced the mosaic CuMVTT-RBM vaccine in E. coli. For this vaccine candidate, we could show that it can be produced at large scale from a stable E. coli fermentation process at low costs in short time [38]. Notably, the CuMVTT-RBM vaccine demonstrated as high an immunogenicity as CuMVTT-RBD, even several months post vaccination and induced high levels of neutralizing antibodies. In addition, another vaccine candidate based on AP205 VLPs C-terminally fused to RBM (AP205-RBM) demonstrated potent immunogenicity in mice and induced neutralizing antibodies [41].
Even though RBM/RBD are the main neutralizing epitopes on the spike protein, there are additional “minor” epitopes. Even though they are less potent epitopes, they are completely independent of RBM/RBD and therefore may add to more robust neutralization. We therefore combined the minor epitope AA 817–855 situated in S2 with RBM, located in S1 forming a “double fusion” CuMVTT-DF. Such a vaccine may elicit neutralizing antibodies that block spike-ACE2 interaction as well as blocking fusion of the virion with endosomal membrane. To assess whether AA 717–855 alone can induce neutralizing antibodies, CuMVTT-FP that incorporates this peptide alone was generated and shown to induce neutralizing antibodies, albeit at moderate levels. Thus, CuMVTT-DF induces neutralizing antibodies against two independent epitopes, both conferring neutralization of SARS-CoV-2, and likely reducing the likelihood of viral escape.
Recently, Cohen et al. reported the Spy/Catcher system to convey RBDs from SARS-CoV-2 and other Sarbecoviruses on the VLP scaffold, which induced cross-reactive immune responses in mice [42]. Here, instead, we present a direct technique by genetically fusing independent epitopes into one particle. This potential of displaying several antigens on a single VLP may be employed to a variety of novel vaccine candidates. For example, Cervarix and Gardasil vaccines may be optimized to be a “multi-fusion” vaccine [43], instead of mixing individual Human Papillomavirus type 16 and type 18 VLPs together.
Although the CuMVTT-FP vaccine candidate was able to induce antibodies against spike protein in mice, the mice sera neutralized SARS-CoV-2 at low levels in vitro, indicating the chosen epitope was indeed “minor” and not as potent as anti-RBM antibodies. In contrast, sera of mice immunized with CuMVTT-DF vaccine were able to completely neutralize SARS-CoV-2 virus, indicating that RBM was a key epitope to be included in vaccine candidates. The IgG antibodies elicited by CuMVTT-DF vaccine were of high avidity to the spike protein after the booster, and firmly bound to the spike protein, even after 7M urea wash. This might be an advantage over natural infection, after which the antibodies in blood of convalescent patients only bound RBD weakly to the RBD/spike [17,44] and exhibited much lower avidity to the spike protein than antibodies induced by RNA vaccination [18]. One plausible reason for the better quantity and quality after CuMVTT-DF vaccination than SARS-CoV-2 virus could be its structural features [45]. The long distance (25 nm) between spikes on the surface of SARS-CoV-2 virus is too large for optimal B cell activation; indeed, optimal antibody responses are induced by epitopes that are rigidly spaced by 5–10 nm, a distance that is found on almost all other viruses [46] and is recognized as pathogen-associated structure patterns (PASP) [47]. In contrast to the virus SARS-CoV-2, the CuMVTT-DF vaccine candidate here presents two epitopes in a repetitive and rigid pattern with an optimal distance of 5–10 nm, as described above to be optimal.
In addition to strong IgG antibodies, IgA was found in immunized mice sera and significantly enhanced after booster immunization. High titers of IgA antibodies in combination with IgG has been correlated to robust SARS-CoV-2 neutralization in infected humans [44]. The presence of serum IgA is, however, not always linked to mucosal IgA and it is necessary to establish whether our vaccine candidate induces mucosal IgA in humans.

5. Conclusions

Here we report for the first time a VLP-based vaccine candidate, which displays two different genetically introduced antigens on the surface. With this method, both the major neutralizing RBM epitope in S1 and the independent minor epitope AA817–855 on S2 protein were successfully incorporated in CuMVTT, resulting in CuMVTT-DF vaccine. The CuMVTT-DF vaccine was shown to be stable, homogenous, and packaged with RNA. In addition, it demonstrated strong immunogenicity and induced robust neutralizing antibodies in mice. Moreover, it may be expected that antibodies are less susceptible to viral escape as both epitopes are independent. In conclusion, CuMVTT-DF vaccine may not only represent an attractive candidate for a COVID19 vaccine, but also be a pioneer for VLPs displaying multiple antigens by genetic fusion.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/vaccines9111287/s1, Figure S1: SDS-PAGE (A) and agarose (B) gel analysis of CuMVTT-DFvaccine after storage at 4 °C for 6 months; TEM (C) and DLS (D) analysis of CuMVTT-DFvaccine after storage at 4 °C for 12 months.

Author Contributions

X.C., M.V. and M.F.B. wrote and reviewed the manuscript; A.Z. designed and produced the vaccines; M.O.M. and Z.G. performed mouse experiments; X.C. and X.L. performed and analyzed ELISA experiments; L.Z. provided proteins; S.W. coordinated the project. All authors have read and agreed to the published version of the manuscript.

Funding

The work was supported by Saiba AG and the Swiss National Science Foundation (SNF grants 31003A 149925 and 310030-179459).

Institutional Review Board Statement

The study was conducted according to the Cantonal Veterinary guidelines of Bern, Switzerland, and all experiments were performed in accordance with ethical principles and guidelines of the Cantonal Veterinary Office Bern, Switzerland (protocol code BE70/18 and date of approval 1 September 2018).

Informed Consent Statement

Not applicable.

Data Availability Statement

All data generated or analyzed during this study are included in this published article (and its Supplementary Information files).

Conflicts of Interest

M.F.B. declares to be involved in several companies developing vaccines for allergic diseases. The other authors declare no further conflict of interests.

References

  1. Ramanathan, K.; Antognini, D.; Combes, A.; Paden, M.; Zakhary, B.; Ogino, M.; Maclaren, G.; Brodie, D. Clinical features of patients infected with 2019 novel coronavirus in Wuhan, China. Lancet 2020, 395, 497–506. [Google Scholar]
  2. Centro de Recursos Sobre el Coronavirus de la Universidad Johns Hopkins Map @ Coronavirus.Jhu.Edu. Panel Control COVID-19 del Cent. Cienc. e Ing. Sist. 2020. Available online: https://coronavirus.jhu.edu/map.html (accessed on 31 October 2021).
  3. Liu, J.; Jiang, Y.; Liu, Y.; Pu, L.; Du, C.; Li, Y.; Wang, X.; Ren, J.; Liu, W.; Yang, Z.; et al. Yindan Jiedu Granules, a Traditional Chinese Medicinal Formulation, as a Potential Treatment for Coronavirus Disease 2019. Front. Pharmacol. 2021, 11, 1–13. [Google Scholar] [CrossRef]
  4. Jin, Y.H.; Cai, L.; Cheng, Z.S.; Cheng, H.; Deng, T.; Fan, Y.P.; Fang, C.; Huang, D.; Huang, L.Q.; Huang, Q.; et al. A rapid advice guideline for the diagnosis and treatment of 2019 novel coronavirus (2019-nCoV) infected pneumonia (standard version). Mil. Med. Res. 2020, 45, 1–20. [Google Scholar] [CrossRef] [Green Version]
  5. Shang, J.; Wan, Y.; Luo, C.; Ye, G.; Geng, Q.; Auerbach, A.; Li, F. Cell entry mechanisms of SARS-CoV-2. Proc. Natl. Acad. Sci. USA 2020, 117, 11727–11734. [Google Scholar] [CrossRef]
  6. Wan, Y.; Shang, J.; Graham, R.; Baric, R.S.; Li, F. Receptor Recognition by the Novel Coronavirus from Wuhan: An Analysis Based on Decade-Long Structural Studies of SARS Coronavirus. J. Virol. 2020, 94, e00127-20. [Google Scholar] [CrossRef] [Green Version]
  7. The COVID-19-Vaccine-Race. Available online: https://www.gavi.org/vaccineswork/covid-19-vaccine-race (accessed on 1 September 2021).
  8. Yang, J.; Wang, W.; Chen, Z.; Lu, S.; Yang, F.; Bi, Z.; Bao, L.; Mo, F.; Li, X.; Huang, Y.; et al. A vaccine targeting the RBD of the S protein of SARS-CoV-2 induces protective immunity. Nature 2020, 586, 572–577. [Google Scholar] [CrossRef] [PubMed]
  9. Su, Q.D.; Zou, Y.N.; Yi, Y.; Shen, L.P.; Ye, X.Z.; Zhang, Y.; Wang, H.; Ke, H.; Song, J.D.; Hu, K.P.; et al. Recombinant SARS-CoV-2 RBD with a built in T helper epitope induces strong neutralization antibody response. Vaccine 2021, 39, 1241–1247. [Google Scholar] [CrossRef] [PubMed]
  10. Seo, S.H.; Jang, Y. Cold-adapted live attenuated SARS-CoV-2 vaccine completely protects human ACE2 transgenic mice from SARS-CoV-2 infection 2 Laboratory of Influenza Research College of Veterinary Medicine Institute of Influenza Virus. bioRxiv 2020, 8, 584. [Google Scholar]
  11. Sanchez-Felipe, L.; Vercruysse, T.; Sharma, S.; Ma, J.; Lemmens, V.; Van Looveren, D.; Javarappa, M.P.A.; Boudewijns, R.; Malengier-Devlies, B.; Liesenborghs, L.; et al. A single-dose live-attenuated YF17D-vectored SARS-CoV-2 vaccine candidate. Nature 2020, 590, 320–325. [Google Scholar] [CrossRef]
  12. Xia, S.; Zhang, Y.; Wang, Y.; Wang, H.; Yang, Y.; Gao, G.F.; Tan, W.; Wu, G.; Xu, M.; Lou, Z.; et al. Safety and immunogenicity of an inactivated SARS-CoV-2 vaccine, BBIBP-CorV: A randomised, double-blind, placebo-controlled, phase 1/2 trial. Lancet Infect. Dis. 2021, 21, 39–51. [Google Scholar] [CrossRef]
  13. Zhang, Y.; Zeng, G.; Pan, H.; Li, C.; Hu, Y.; Chu, K.; Han, W.; Chen, Z.; Tang, R.; Yin, W.; et al. Safety, tolerability, and immunogenicity of an inactivated SARS-CoV-2 vaccine in healthy adults aged 18–59 years: A randomised, double-blind, placebo-controlled, phase 1/2 clinical trial. Lancet Infect. Dis. 2021, 21, 181–192. [Google Scholar] [CrossRef]
  14. Available online: https://[email protected] (accessed on 1 September 2021).
  15. Simmons-Duffin, S. Why Does Pfizer’s COVID-19 Vaccine Need to Be Kept Colder than Antarctica? Available online: https://www.capradio.org/news/npr/story?storyid=935563377 (accessed on 17 November 2020).
  16. Lutz, H.; Popowski, K.D.; Dinh, P.-U.C.; Cheng, K. Advanced Nanobiomedical Approaches to Combat Coronavirus Disease of 2019. Adv. Nanobiomed. Res. 2021, 1, 2000063. [Google Scholar] [CrossRef]
  17. Isho, B.; Abe, K.T.; Zuo, M.; Jamal, A.J.; Rathod, B.; Wang, J.H.; Li, Z.; Chao, G.; Rojas, O.L.; Bang, Y.M.; et al. Persistence of serum and saliva antibody responses to SARS-CoV-2 spike antigens in COVID-19 patients. Sci. Immunol. 2020, 5, 1–21. [Google Scholar] [CrossRef] [PubMed]
  18. Chang, X.; Augusto, G.S.; Liu, X.; Kündig, T.M.; Vogel, M.; Mohsen, M.O.; Bachmann, M.F. BNT162b2 mRNA COVID-19 vaccine induces antibodies of broader cross-reactivity than natural infection but recognition of mutant viruses is up to 10-fold reduced. bioRxiv 2021. [Google Scholar] [CrossRef]
  19. Shaw, R.H.; Stuart, A.; Greenland, M.; Liu, X.; Van-Tam, J.S.N.; Snape, M.D. Heterologous prime-boost COVID-19 vaccination: Initial reactogenicity data. Lancet 2021, 397, 2043–2046. [Google Scholar] [CrossRef]
  20. Zost, S.J.; Gilchuk, P.; Case, J.B.; Binshtein, E.; Chen, R.E.; Nkolola, J.P.; Schäfer, A.; Reidy, J.X.; Trivette, A.; Nargi, R.S.; et al. Potently neutralizing and protective human antibodies against SARS-CoV-2. Nature 2020, 584, 443–449. [Google Scholar] [CrossRef]
  21. Murin, C.D.; Wilson, I.A.; Ward, A.B. Antibody responses to viral infections: A structural perspective across three different enveloped viruses. Nat. Microbiol. 2019, 4, 734–747. [Google Scholar] [CrossRef] [PubMed]
  22. Baum, A.; Copin, R.; Ajithdoss, D.; Zhou, A.; Lanza, K.; Negron, N.; Ni, M.; Wei, Y.; Atwal, G.S.; Oyejide, A.; et al. REGN-COV2 antibody cocktail prevents and treats SARS-CoV-2 infection in rhesus macaques and hamsters. Science 2020, 1115, 1110–1115. [Google Scholar] [CrossRef] [PubMed]
  23. Rogers, T.F.; Zhao, F.; Huang, D.; Beutler, N.; Burns, A.; He, W.-H.; Limbo, O.; Smith, C.; Song, G.; Woehl, J.; et al. Isolation of potent SARS-CoV-2 neutralizing antibodies and protection from disease in a small animal model. Science 2020, 963, 956–963. [Google Scholar]
  24. Weinreich, D.M.; Sivapalasingam, S.; Norton, T.; Ali, S.; Gao, H.; Bhore, R.; Musser, B.J.; Soo, Y.; Rofail, D.; Im, J.; et al. REGN-COV2, a Neutralizing Antibody Cocktail, in Outpatients with COVID-19. N. Engl. J. Med. 2021, 384, 238–251. [Google Scholar] [CrossRef]
  25. Chen, P.; Nirula, A.; Heller, B.; Gottlieb, R.L.; Boscia, J.; Morris, J.; Huhn, G.; Cardona, J.; Mocherla, B.; Stosor, V.; et al. SARS-CoV-2 Neutralizing Antibody LY-CoV555 in Outpatients with COVID-19. N. Engl. J. Med. 2021, 384, 229–237. [Google Scholar] [CrossRef]
  26. Woof, J.M.; Ken, M.A. The function of immunoglobulin A in immunity. J. Pathol. 2006, 208, 270–282. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Sterlin, D.; Mathian, A.; Miyara, M.; Mohr, A.; Anna, F.; Claër, L.; Quentric, P.; Fadlallah, J.; Ghillani, P.; Gunn, C.; et al. IgA dominates the early neutralizing antibody response to SARS-CoV-2. Sci. Transl. Med. 2020, 2223. [Google Scholar] [CrossRef]
  28. Wang, Z.; Lorenzi, J.C.C.; Muecksch, F.; Finkin, S.; Viant, C.; Gaebler, C.; Cipolla, M.; Hoffmann, H.-H.; Oliveira, T.Y.; Oren, D.A.; et al. Enhanced SARS-CoV-2 neutralization by dimeric IgA. Sci. Transl. Med. 2021, 13, eabf1555. [Google Scholar] [CrossRef]
  29. Cervia, C.; Nilsson, J.; Zurbuchen, Y.; Valaperti, A.; Schreiner, J.; Wolfensberger, A.; Raeber, M.E.; Adamo, S.; Weigang, S.; Emmenegger, M.; et al. Systemic and mucosal antibody responses specific to SARS-CoV-2 during mild versus severe COVID-19. J. Allergy Clin. Immunol. 2021, 147, 545–557.e9. [Google Scholar] [CrossRef]
  30. Poh, C.M.; Carissimo, G.; Wang, B.; Amrun, S.N.; Lee, C.Y.P.; Chee, R.S.L.; Fong, S.W.; Yeo, N.K.W.; Lee, W.H.; Torres-Ruesta, A.; et al. Two linear epitopes on the SARS-CoV-2 spike protein that elicit neutralising antibodies in COVID-19 patients. Nat. Commun. 2020, 11, 1–7. [Google Scholar] [CrossRef] [PubMed]
  31. Pal, D. Spike protein fusion loop controls SARS-CoV-2 fusogenicity and infectivity. J. Struct. Biol. 2021, 213, 107713. [Google Scholar] [CrossRef]
  32. Zeltins, A.; West, J.; Zabel, F.; El Turabi, A.; Balke, I.; Haas, S.; Maudrich, M.; Storni, F.; Engeroff, P.; Jennings, G.T.; et al. Incorporation of tetanus-epitope into virus-like particles achieves vaccine responses even in older recipients in models of psoriasis, Alzheimer’s and cat allergy. NPJ Vaccines 2017, 2, 1–12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Thoms, F.; Jennings, G.T.; Maudrich, M.; Vogel, M.; Haas, S.; Zeltins, A.; Hofmann-Lehmann, R.; Riond, B.; Grossmann, J.; Hunziker, P.; et al. Immunization of cats to induce neutralizing antibodies against Fel d 1, the major feline allergen in human subjects. J. Allergy Clin. Immunol. 2019, 144, 193–203. [Google Scholar] [CrossRef] [Green Version]
  34. Thoms, F.; Haas, S.; Erhart, A.; Nett, C.S.; Rüfenacht, S.; Graf, N.; Strods, A.; Patil, G.; Leenadevi, T.; Fontaine, M.C.; et al. Immunization of cats against fel d 1 results in reduced allergic symptoms of owners. Viruses 2020, 12, 288. [Google Scholar] [CrossRef] [Green Version]
  35. Storni, F.; Zeltins, A.; Balke, I.; Heath, M.D.; Kramer, M.F.; Skinner, M.A.; Zha, L.; Roesti, E.; Engeroff, P.; Muri, L.; et al. Vaccine against peanut allergy based on engineered virus-like particles displaying single major peanut allergens. J. Allergy Clin. Immunol. 2020, 145, 1240–1253.e3. [Google Scholar] [CrossRef]
  36. Gomes, A.C.; Roesti, E.S.; El-Turabi, A.; Bachmann, M.F. Type of RNA packed in VLPs impacts IgG class switching—implications for an influenza vaccine design. Vaccines 2019, 7, 47. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Zha, L.; Chang, X.; Zhao, H.; Mohsen, M.O.; Hong, L.; Zhou, Y.; Chen, H.; Liu, X.; Zhang, J.; Li, D.; et al. Development of a vaccine against SARS-CoV-2 based on the receptor-binding domain displayed on virus-like particles. Vaccines 2021, 9, 395. [Google Scholar] [CrossRef]
  38. Mohsen, M.; Balke, I.; Zinkhan, S.; Zeltina, V.; Liu, X.; Chang, X.; Krenger, P.S.; Plattner, K.; Gharailoo, Z.; Vogt, A.S.; et al. A scalable and highly immunogenic virus-like particle-based vaccine against SARS-CoV-2. Allergy 2021, 1–22. [Google Scholar] [CrossRef]
  39. Krueger, C.C.; Thoms, F.; Keller, E.; Leoratti, F.M.S.; Vogel, M.; Bachmann, M.F. RNA and toll-like receptor 7 license the generation of superior secondary plasma cells at multiple levels in a B cell intrinsic fashion. Front. Immunol. 2019, 10, 736. [Google Scholar] [CrossRef]
  40. Fougeroux, C.; Goksøyr, L.; Idorn, M.; Soroka, V.; Myeni, S.K.; Dagil, R.; Janitzek, C.M.; Søgaard, M.; Aves, K.L.; Horsted, E.W.; et al. Capsid-like particles decorated with the SARS-CoV-2 receptor-binding domain elicit strong virus neutralization activity. Nat. Commun. 2021, 12, 1–11. [Google Scholar] [CrossRef]
  41. Liu, X.; Chang, X.; Rothen, D.; Derveni, M.; Krenger, P.; Roongta, S.; Wright, E.; Vogel, M.; Tars, K.; Mohsen, M.O.; et al. AP205 VLPs based on dimerized capsid proteins accommodate RBM domain of SARS-CoV-2 and serve as an attractive vaccine candidate. Vaccines 2021, 9, 403. [Google Scholar] [CrossRef] [PubMed]
  42. Cohen, A.A.; Gnanapragasam, P.N.P.; Lee, Y.E.; Hoffman, P.R.; Ou, S.; Kakutani, L.M.; Keeffe, J.R.; Wu, H.J.; Howarth, M.; West, A.P.; et al. Mosaic nanoparticles elicit cross-reactive immune responses to zoonotic coronaviruses in mice. Science 2021, 371, 735–741. [Google Scholar] [CrossRef]
  43. Harper, D.M.; DeMars, L.R. HPV vaccines—A review of the first decade. Gynecol. Oncol. 2017, 146, 196–204. [Google Scholar] [CrossRef] [Green Version]
  44. Noval, M.G.; Kaczmarek, M.E.; Koide, A.; Rodriguez-Rodriguez, B.A.; Louie, P.; Tada, T.; Hattori, T.; Panchenko, T.; Romero, L.A.; Teng, K.W.; et al. Antibody isotype diversity against SARS-CoV-2 is associated with differential serum neutralization capacities. Sci. Rep. 2021, 11, 5538. [Google Scholar] [CrossRef]
  45. Bachmann, M.F.; Mohsen, M.O.; Zha, L.; Vogel, M.; Speiser, D.E. SARS-CoV-2 structural features may explain limited neutralizing-antibody responses. NPJ Vaccines 2021, 6, 1–5. [Google Scholar] [CrossRef] [PubMed]
  46. Bachmann, M.F.; Zinkernagel, R.M. The influence of virus structure on antibody responses and virus serotype formation. Immunol. Today 1996, 17, 553–558. [Google Scholar] [PubMed]
  47. Bachmann, M.F.; Jennings, G.T. Vaccine delivery: A matter of size, geometry, kinetics and molecular patterns. Nat. Rev. Immunol. 2010, 10, 787–796. [Google Scholar] [CrossRef] [PubMed]

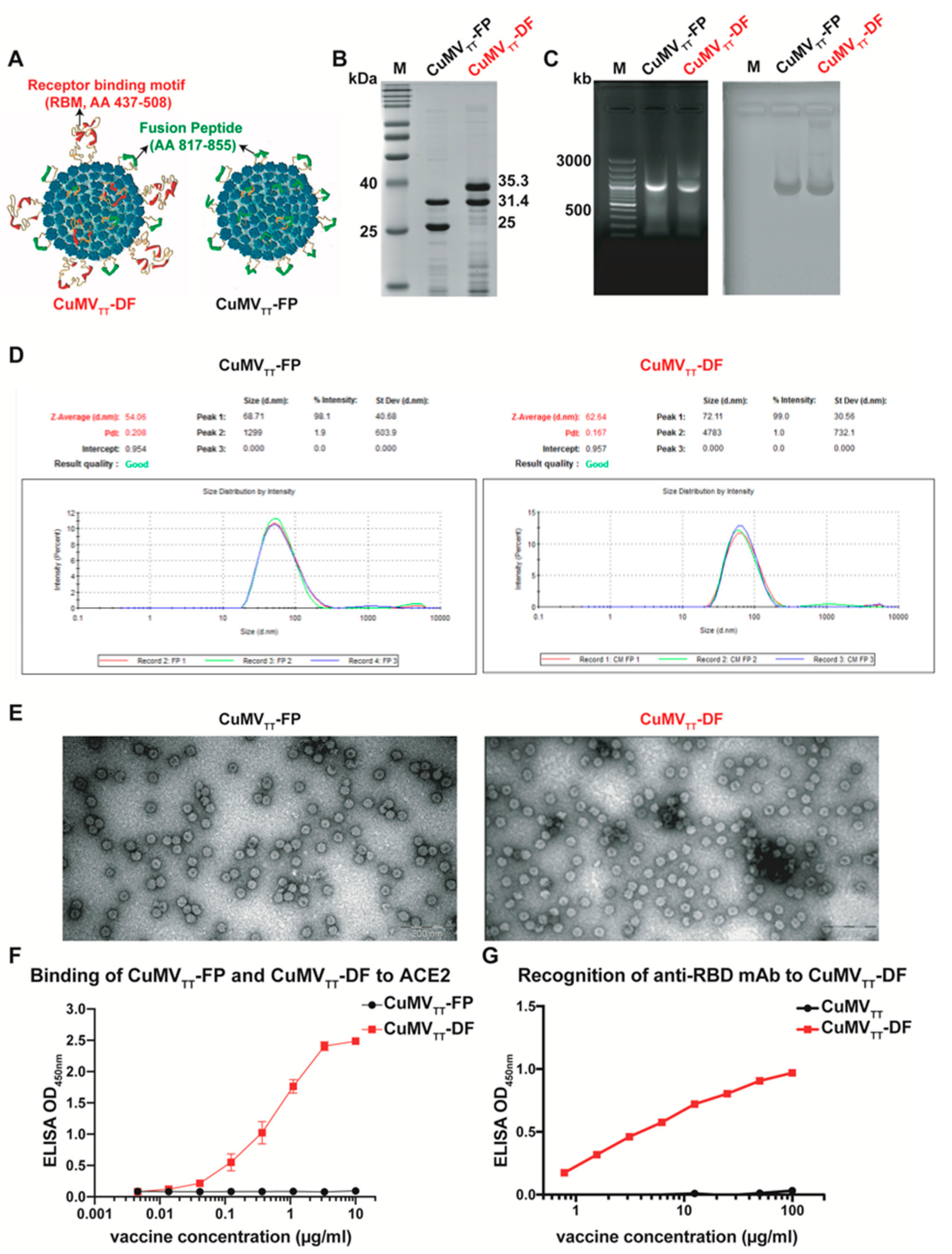

Figure 1. Characterization of CuMVTT-FP and CuMVTT-DF vaccines. (A): Design illustrations of CuMVTT-FP and CuMVTT-DF vaccines; (B): Analysis of purified CuMVTT-FP and CuMVTT-DF vaccine on SDS-PAGE gel; (C): Analysis of prokaryotic RNA incorporated in CuMVTT-FP and CuMVTT-DF VLPs on agarose gel, which was recorded under UV light (left) and afterwards, stained with Coomassie blue (right); (D): Determination of size distribution of CuMVTT-FP and CuMVTT-DF vaccine particles with dynamic light scattering; (E): Transmission electron microscopy analysis of CuMVTT-FP and CuMVTT-DF vaccines; (F): Binding of CuMVTT-FP and CuMVTT-DF vaccines to ACE2 receptor assessed by Sandwich ELISA; duplicates were performed. (G): Binding of anti-RBD monoclonal antibody to CuMVTT-DF vaccine assessed by Sandwich ELISA. OD450nm are displayed for serially diluted vaccine solutions.
Figure 1. Characterization of CuMVTT-FP and CuMVTT-DF vaccines. (A): Design illustrations of CuMVTT-FP and CuMVTT-DF vaccines; (B): Analysis of purified CuMVTT-FP and CuMVTT-DF vaccine on SDS-PAGE gel; (C): Analysis of prokaryotic RNA incorporated in CuMVTT-FP and CuMVTT-DF VLPs on agarose gel, which was recorded under UV light (left) and afterwards, stained with Coomassie blue (right); (D): Determination of size distribution of CuMVTT-FP and CuMVTT-DF vaccine particles with dynamic light scattering; (E): Transmission electron microscopy analysis of CuMVTT-FP and CuMVTT-DF vaccines; (F): Binding of CuMVTT-FP and CuMVTT-DF vaccines to ACE2 receptor assessed by Sandwich ELISA; duplicates were performed. (G): Binding of anti-RBD monoclonal antibody to CuMVTT-DF vaccine assessed by Sandwich ELISA. OD450nm are displayed for serially diluted vaccine solutions.
Vaccines 09 01287 g001

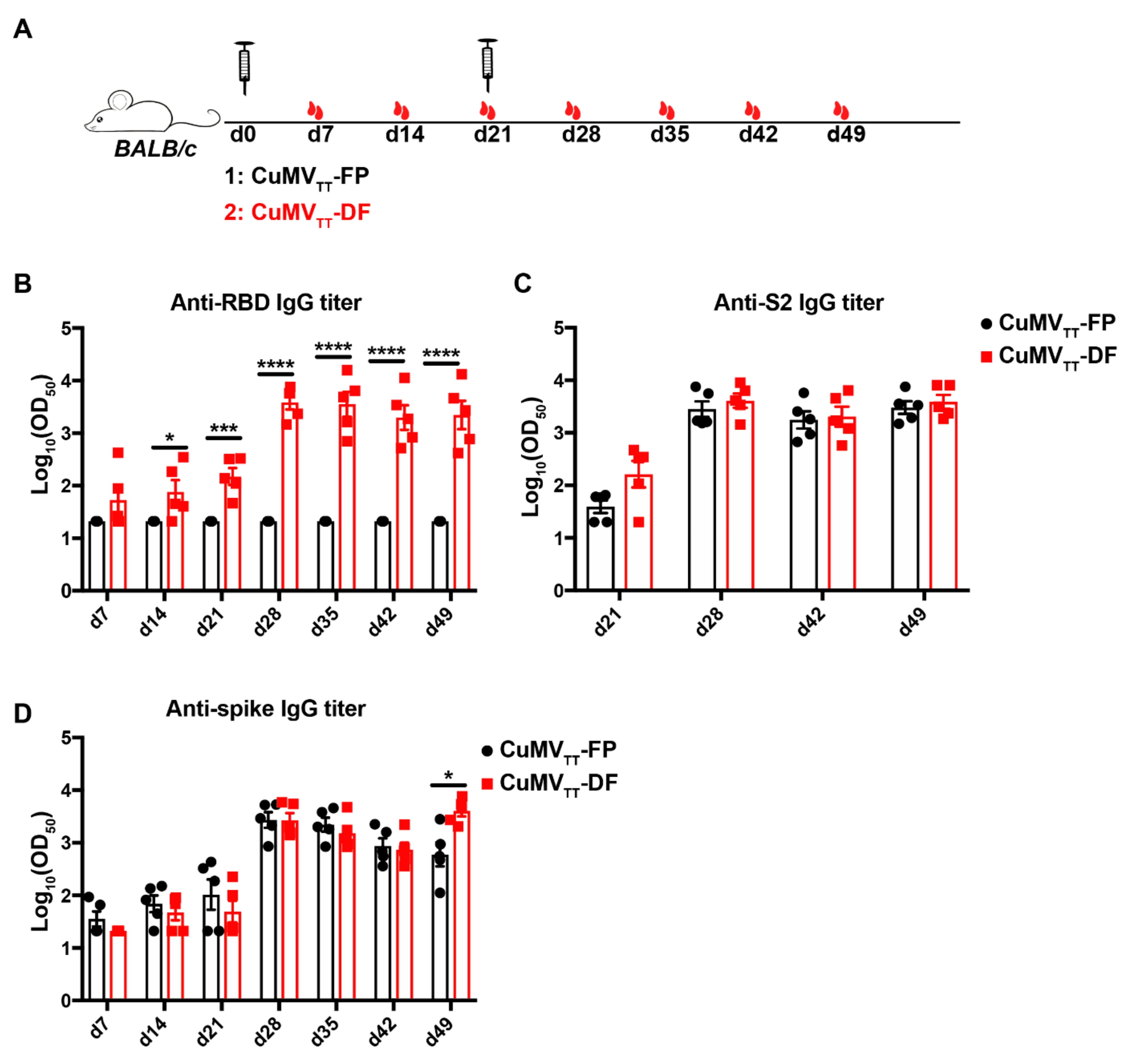

Figure 2. Immunogenicity examination of CuMVTT-FP and CuMVTT-DF vaccines in mice. (A): Immunization regimen: BALB/c mice were subcutaneously injected with 100 ug CuMVTT-FP or CuMVTT-DF vaccine at d0 and d21. Serum samples were collected every week until d49 (n = 5). (BD): IgG antibody titers of immunized mice against RBD (B), S2 protein (C) and spike protein (D). Unpaired t-test analysis was performed in GraphPad Prism 7. α = 0.05 and statistical significance were displayed as p ≤ 0.05 (*), p ≤ 0.005 (***), p ≤ 0.001 (****).
Figure 2. Immunogenicity examination of CuMVTT-FP and CuMVTT-DF vaccines in mice. (A): Immunization regimen: BALB/c mice were subcutaneously injected with 100 ug CuMVTT-FP or CuMVTT-DF vaccine at d0 and d21. Serum samples were collected every week until d49 (n = 5). (BD): IgG antibody titers of immunized mice against RBD (B), S2 protein (C) and spike protein (D). Unpaired t-test analysis was performed in GraphPad Prism 7. α = 0.05 and statistical significance were displayed as p ≤ 0.05 (*), p ≤ 0.005 (***), p ≤ 0.001 (****).
Vaccines 09 01287 g002

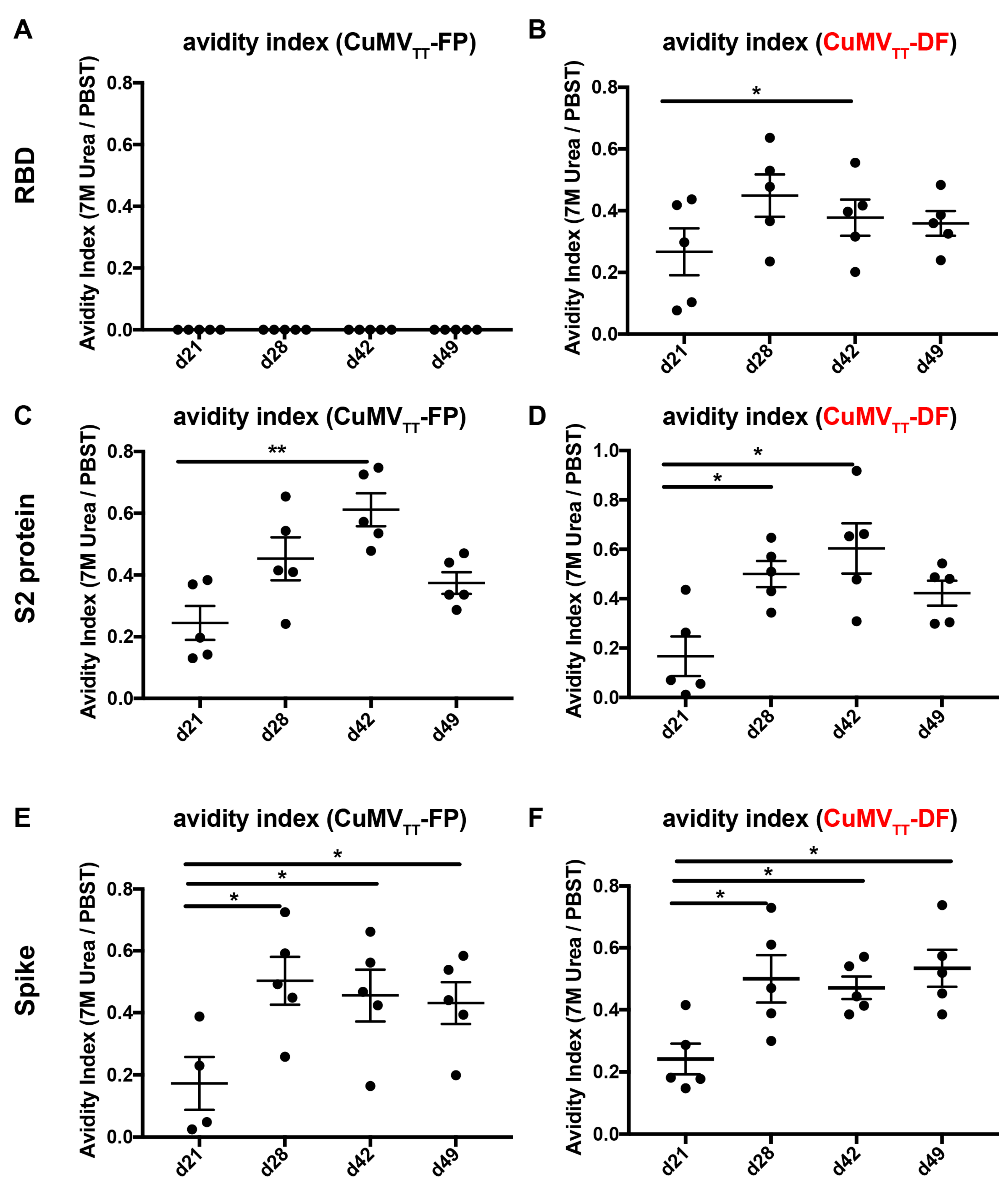

Figure 3. Avidity indexes of IgG antibodies in mice before and after booster immunization of CuMVTT-FP and CuMVTT-DF (right panel, indicated as red) measured by avidity ELISA (n = 5). (A,B): Avidity indexes of IgG antibodies for RBD from CuMVTT-FP (A) or CuMVTT-DF (B) immunized mice; (C,D): Avidity indexes for spike S2 protein of CuMVTT-FP (C) or CuMVTT-DF (D) elicited IgG antibodies; (E,F): Avidity indexes for spike S2 protein of CuMVTT-FP (E) or CuMVTT-DF (F) stimulated IgG antibodies. Paired t-test in GraphPad Prism 7 was used for statistical analysis. α = 0.05 and statistical significance were displayed as p ≤ 0.05 (*), p ≤ 0.01 (**).
Figure 3. Avidity indexes of IgG antibodies in mice before and after booster immunization of CuMVTT-FP and CuMVTT-DF (right panel, indicated as red) measured by avidity ELISA (n = 5). (A,B): Avidity indexes of IgG antibodies for RBD from CuMVTT-FP (A) or CuMVTT-DF (B) immunized mice; (C,D): Avidity indexes for spike S2 protein of CuMVTT-FP (C) or CuMVTT-DF (D) elicited IgG antibodies; (E,F): Avidity indexes for spike S2 protein of CuMVTT-FP (E) or CuMVTT-DF (F) stimulated IgG antibodies. Paired t-test in GraphPad Prism 7 was used for statistical analysis. α = 0.05 and statistical significance were displayed as p ≤ 0.05 (*), p ≤ 0.01 (**).
Vaccines 09 01287 g003

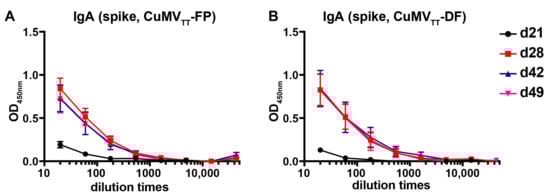

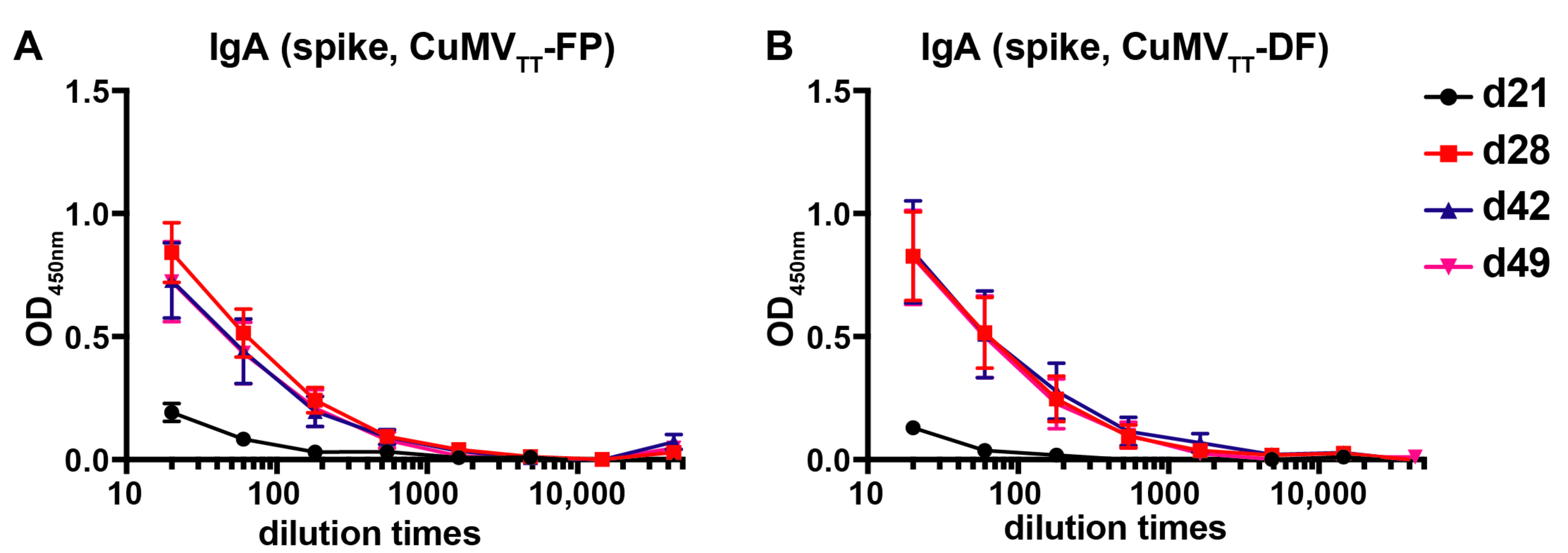

Figure 4. IgA antibodies in CuMVTT-FP (A) and CuMVTT-DF (B) immunized mice sera against spike protein (n = 5) before and after booster immunization. Shown are curves of ELISA OD450nm values according to serum dilution, mean ± SEM.
Figure 4. IgA antibodies in CuMVTT-FP (A) and CuMVTT-DF (B) immunized mice sera against spike protein (n = 5) before and after booster immunization. Shown are curves of ELISA OD450nm values according to serum dilution, mean ± SEM.
Vaccines 09 01287 g004

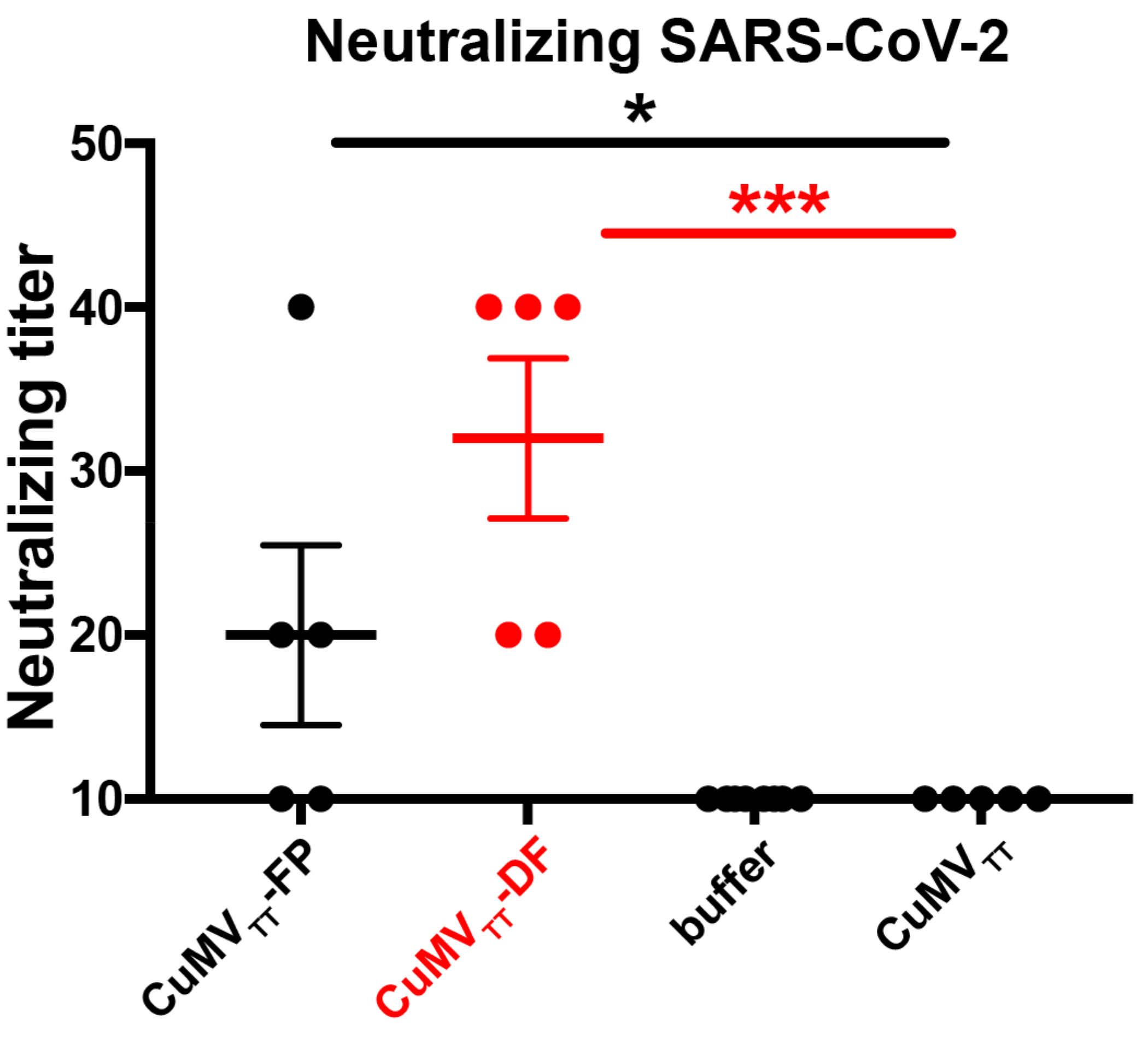

Figure 5. Titers of mice sera at d49 after CuMVTT-FP (n = 5), CuMVTT-DF (n = 5), buffer (n = 7) or CuMVTT (n = 5) [38] immunization to neutralize SARS-CoV-2 virus. The titer was expressed as highest serum dilution times to inhibit 100% cytopathogenic effect (CPE) of cells infected with SARS-CoV-2 virus. Unpaired t-test analysis was performed in GraphPad Prism 7. α = 0.05 and statistical significance were displayed as p ≤ 0.05 (*), p ≤ 0.005 (***).
Figure 5. Titers of mice sera at d49 after CuMVTT-FP (n = 5), CuMVTT-DF (n = 5), buffer (n = 7) or CuMVTT (n = 5) [38] immunization to neutralize SARS-CoV-2 virus. The titer was expressed as highest serum dilution times to inhibit 100% cytopathogenic effect (CPE) of cells infected with SARS-CoV-2 virus. Unpaired t-test analysis was performed in GraphPad Prism 7. α = 0.05 and statistical significance were displayed as p ≤ 0.05 (*), p ≤ 0.005 (***).
Vaccines 09 01287 g005
