Article

Effect of Marine Bacteria and Ulvan on the Activity of Antioxidant Defense Enzymes and the Bio-Protection of Papaya Fruit against Colletotrichum gloeosporioides

by
Roberto G. Chiquito-Contreras
1,
Bernardo Murillo-Amador
2,
Saul Carmona-Hernandez
1,
Cesar J. Chiquito-Contreras
1 and
Luis G. Hernandez-Montiel
2,*
1
Facultad de Ciencias Agrícolas, Universidad Veracruzana, Campus Xalapa, Circuito Universitario Gonzalo Aguirre Beltrán s/n, Zona Universitaria, Xalapa 91090, Ver., Mexico
2
Centro de Investigaciones Biológicas del Noroeste (CIBNOR), Calle Instituto Politécnico Nacional 195, Col. Playa Palo de Santa Rita Sur, La Paz 23096, B.C.S., Mexico
*
Author to whom correspondence should be addressed.
Antioxidants 2019, 8(12), 580; https://doi.org/10.3390/antiox8120580
Submission received: 11 October 2019 / Revised: 12 November 2019 / Accepted: 20 November 2019 / Published: 23 November 2019
Browse Figures
Versions Notes

Abstract

:
Anthracnose, caused by Colletotrichum gloeosporioides, is one of the most important diseases in papaya fruit. Its control has been achieved with synthetic fungicides, but the application of marine bacteria and the sulphated polysaccharide ulvan (structural description: β[1,4]-D-GlcA-α[1,4]-L-Rha 3 sulfate, β[1,4]-L-IdoA-α[1,4]-L-Rha 3 sulfate, β[1,4]-D-Xyl-α[1,4]-L-Rha 3 sulfate, and β[1,4]-D-Xyl 2-sulfate-α[1,4]-L-Rha 3 sulfate) from Ulva sp. can be an alternative in the use of agrochemicals. Thus, the objective of this study was to assess the effect in vitro and in vivo of two marine bacteria, Stenotrophomonas rhizophila and Bacillus amyloliquefaciens, and ulvan in papaya fruit’s bio-protection against C. gloeosporioides. The capacity of marine bacteria to inhibit mycelial growth and phytopathogen spore germination in vitro through volatile organic compounds (VOCs) and carbohydrate competition was evaluated. Fruit was inoculated with bacteria, ulvan, and C. gloeosporioides and incubated at 25 °C and 90% of relative humidity (RH) for seven days. Disease incidence (%), lesion diameter (mm), and antioxidant defense enzyme activity (such as superoxide dismutase (SOD), catalase (CAT), and peroxidase (POD) were quantified. In vitro, C. gloeosporioides was inhibited by S. rhizophila and B. amyloliquefaciens. In vivo, disease incidence and the lesion diameter of anthracnose on papaya fruit were significantly reduced by marine bacteria and ulvan. Antioxidant defense enzyme activity played an important role in fruit bio-protection against C. gloeosporioides. The application of marine bacteria and ulvan can be an alternative in the sustainable postharvest management of papaya.

1. Introduction

Worldwide, the loss of fruit at postharvest caused by phytopathogens is estimated to reach 50% of total production [1]. Papaya is a fruit with high demand in the world market; however, due to its water content, it is susceptible to fungal diseases, of which anthracnose is one of the main diseases causing economic losses [2]. The fungus Colletotrichum gloeosporioides is the causal agent of anthracnose, occupying eighth place in the classification of important plant phytopathogens [3,4].
Synthetic fungicides constitute the main method of controlling anthracnose; nevertheless, the use of these agrochemicals generates resistance to phytopathogens, besides the adverse effects on the environment and human and animal health [5]. The presence of synthetic fungicide residuals on food has led to the search for alternatives to control phytopathogens, where the use of microorganisms as biocontrol agents and the application of algae as resistance inductors in plants is an important option to reduce or replace agrochemicals [6,7].
The use of bacteria as biocontrol agents has been increasing because of their capacity to decrease diseases caused in fruit by fungi [8]. Antagonist bacteria are generally isolated from plants, fruit, or soil [9], but the isolation of antagonistic microorganisms in extreme environments has been studied little. Bibi et al. [10,11] mentioned that bacteria isolated from marine environments play an important role in plant protection against phytopathogens because of their capacity to produce diverse antimicrobial substances and induce host resistance. Some reports have indicated the efficiency of bacteria, such as Stenotrophomonas rhizophila and Bacillus amyloliquefaciens, in the biocontrol of phytopathogen fungi in peach [12], mango [13], and apple [14] postharvest. Within the main antagonistic mechanisms of bacteria against phytopathogens is the competition for carbon sources, volatile organic compounds (VOCs), induction of host defense antioxidants, lytic enzyme production, and siderophores, among others [15]. On the other hand, in the last years, the intensity of the search for new marine bio-active compounds has increased [16], mainly those coming from diverse marine algae, which have had different applications within the food, cosmetology, and pharmaceutical industries [17,18] because of their polysaccharide activities as anticoagulants, antiviral, antitumoral, and immunomodulators, among others [19]. Algal polysaccharides are probably the most abundant molecules in the ocean, with great molecular biodiversity and different biological activities that have been little studied for their application in agriculture [20], as antifungal agents against disease or spoilage organisms of economic importance [16].
Ulva sp. is a green marine alga that has been studied for its polysaccharide activities, such as antiviral [21], antibacterial [22], antioxidant [23], antiparasitic, larvicidal [24,25], anti-inflammatory [26], and anti-coagulant activity [27], among others. In agriculture, different species of Ulvan have been used as growth promoters of different plants [28,29] and their antifungal effects have been generally assessed in vitro [30]. Several studies are available on the protector effects of polysaccharide ulvan in vivo on plants or fruits; for example, it reduced the leaf spot caused by C. gloeosporioides in apples [31], decreased rotting in melon fruit caused by Fusarium proliferatum [32], and protected Medicago trucantula against C. trifolii [33]. Ulvan polysaccharide protects fruit because it induces the acquired resistance system (ARS), increasing compounds in the host, such as catalase, peroxidase, oxidase polyphenol activity, phenolic compounds, and pathogenesis-related (PR) proteins [34,35].
Despite the efficient bio-protection performed individually by marine bacteria and ulvan against different phytopathogens in different hosts and as alternative treatments to the use of synthetic fungicides, to our knowledge, no study has been undertaken yet that deals with their effect on papaya fruit conservation. Therefore, the objective of this study was to assess the effect of marine bacteria and ulvan in postharvest on the antioxidant defense enzyme activity in the host and the bio-protection capacity of papaya against anthracnose caused by C. gloeosporioides.

2. Materials and Methods

2.1. Colletotrichum Gloeosporioides

The phytopathogen fungus was isolated previously from papaya fruit with anthracnose [36] and provided by the Phytopathology Laboratory at Centro de Investigaciones Biológicas del Noroeste (CIBNOR). The fungus was activated in potato dextrose agar (PDA, Merck, Germany) at 25 °C for seven days. The C. gloeosporioides concentration was adjusted to 1 × 104 spores/mL using a haemocytometer.

2.2. Marine Bacteria

Two marine bacteria, Bacillus amyloliquefaciens (strain 1R1CB) and Stenotrophomonas rhizophila (strain KM02) [13], were provided by CIBNOR Phytopathology Laboratory. Bacteria were cultured in trypticase soy broth (TSB, Difco, BD, Franklin Lakes, NJ, USA) at 25 °C and 125 rpm for 24 h. The concentration of each bacterium was adjusted to 1 × 106 cell/mL using a digital spectrophotometer (Thermo Spectronic Genesys 20, Thermo Fisher Scientific, Inc., Waltham, MA, USA) calibrated to a 660-nm wavelength and an absorbance of 1.0.

2.3. Polysaccharide Ulvan

The ulvan (#ULV010, obtained from U. armoricana polysaccharide hydrolysis, OligoTech®, Elicityl Ltd., Crolles, France) solution was prepared at 2 mg/mL using sterile deionized water [32].

2.4. Effect of Ulvan on Spore Germination of C. gloeosporioides

Erlenmeyer flasks containing 50 mL of potato dextrose broth (PDB, Difco, BD, Franklin Lakes, NJ, USA) were inoculated with 500 µL of a suspension adjusted to 1 × 104 spores/mL of C. gloeosporioides and 2 µL of ulvan. Flasks were incubated at 25 °C and 125 rpm. Aliquots of 10 µL were collected from each flask at 6, 12, 18, and 24 h to determine the spore germination rate of C. gloeosporioides with an optical microscope (CARL ZEISS, Primo Star, Oberkochen, Germany). In total, 100 spores were observed per treatment, and a spore was considered germinated when the germ tube was equal to or greater than the spore size. Ten replicates were performed per treatment, and the experiment was repeated twice.

2.5. In Vitro Antagonistic Activity of Marine Bacteria to C. gloeosporioides

2.5.1. Antifungal Activity

Plugs from a 7-day culture of C. gloeosporioides in PDA were deposited in the center of a Petri dish with PDA; subsequently, marine bacteria cells were placed beside the mycelial plug at a distance of 2 cm. A group of Petri dishes were inoculated with the phytopathogen fungus and a synthetic fungicide benomyl (Benlate) at a concentration of 1000 ppm, and another group was inoculated only with C. gloeosporioides. The Petri dishes were incubated at 25 °C for seven days. The mycelial growth of the phytopathogen was calculated in mm, as well as the inhibition percentage with the formula described by Ezziyyani et al. [37]: PI = (R1 − R2)/R1 × 100, where “PI” is the mycelial growth inhibition percentage; “R1” is the average radius value of the colony as a reference; and “R2” is the average radius value of the colony inhibited by the marine bacteria. Ten replicates were used per treatment, and the experiment was repeated twice.

2.5.2. Inhibition of C. gloeosporioides for VOCs

The experimental assay was based on the mouth-to-mouth method proposed by Rouissi et al. [38]. Petri dishes with tryptic soy agar (TSA, Difco, BD, Franklin Lakes, NJ, USA) were inoculated in the center with a fungus plug from a 7-day fungus culture in PDA. At the same time, 30 μL of B. amyloliquefaciens and S. rhizophila (1 × 106 cells/mL) were individually streaked in other dishes containing the same media. The plate was placed mouth-to-mouth, sealed (parafilm), and incubated at 25 °C for seven days. The growth diameter of C. gloeosporioides was quantified (mm), and the radial growth reduction was calculated with the equation, I (%) = DC-DT/DC × 100, where I% = mycelium growth inhibition in percentage, DC = mycelium measured in control treatment, and DT = mycelium diameter in the presence of the marine bacterium treatment. The control treatment was represented by Petri dishes inoculated only with C. gloeosporioides. Ten replicates were used per treatment, and the experiment was repeated twice.

2.5.3. Competition for Carbohydrates

Starting from fruit at commercial maturity, a concentrate of papaya var. Maradol was made and diluted 1:10 with distilled water and then sterilized in an autoclave at 120 °C for 15 min; after that, 50 mL of the sterile papaya juice medium (SPJ) were placed in Erlenmeyer flasks and inoculated with 500 µL of a suspension of each marine bacteria (1 × 106 cell/mL) and 500 µL of a suspension of C. gloeosporioides (1 × 104 spores/mL). The Erlenmeyer flasks were incubated at 25 °C and 125 rpm for 24 h; 5-mL aliquots were taken to determine total carbohydrates (anthrone method [39]), sucrose (3,5-Dinitrosalicylic acid (DNS) method [40]), glucose (glucose oxidase-phenol and 4 aminophenazone GOD/PAP [41]), and fructose (tryptamine hydrochloride [42]). The percentage of germinated C. gloeosporioides spores was calculated in 100 spores. Ten replicates were used per treatment, and the experiment was repeated twice.

2.6. Effect of B. amyloliquefaciens, S. rhizophila, and Ulvan on the Control of Papaya Fruit Anthracnose

Papaya var. Maradol fruit at commercial maturity was disinfected with sodium hypochlorite at 2% for three minutes, then washed with sterile distilled water and dried in a laminar air flow bench for two hours. Three lesions (3 mm in depth each) were made in each fruit with a sterile needle. Subsequently, each wound was inoculated with 20 µL of each bacterium (1 × 106 cell/mL) and ulvan. They were left to dry for two hours, and then each wound was inoculated with 20 µL of a fungus spore suspension (1 × 104 spores/mL). A fruit group was inoculated with C. gloeosporioides, and treated with the synthetic fungicide benomyl at a concentration of 1000 ppm. Another group was inoculated only with the phytopathogen. The fruit was placed in sterile plastic containers at 25 °C and 90% relative humidity (RH) for seven days. The disease incidence (%) and lesion diameter (mm) were quantified. Ten replicates were used per treatment, and the experiment was repeated twice.

2.6.1. Antioxidant Defense Enzymes

Sample Collection

After the papaya was inoculated with marine bacteria, ulvan, and/or C. gloeosporioides, 1 g of fruit tissues at 6, 12, and 24 h was collected. Samples were deposited in Eppendorf flasks, adding 2 mL of phosphate buffer (pH 7.8), and the tissues was homogenized with a Polytron tissue homogenizer (Brinkman Instruments) for 60 s. Subsequently, they were centrifuged at 8000 rpm at 5 °C for 15 min. After that, the supernatant was recovered, placed in Eppendorf flasks, and stored at −40 °C for subsequent analysis. Catalase (CAT), superoxide dismutase (SOD), and peroxidase (POD) activities were expressed in units (U) per gram of protein (U/g protein). The protein content was quantified by the method described in [43], using bovine serum albumin (BSA) as a standard. Ten replicates were used per treatment, and the experiment was repeated twice.

Catalase (CAT) Activity

Catalase activity was quantified in 96-well microplates; 10 µL of phosphate buffer of 100 nM (pH 7.0) and 20 µL of the supernatant were deposited in each well and incubated for six minutes. After that, 20 µL of H2O2 (8.82 M) were added and incubated at room temperature for 20 min. A unit of CAT was defined as the decomposition of 1 µmol of H2O2 per min. The samples were quantified in a spectrophotometer at an absorbance of 240 nm [44].

Superoxide Dismutase (SOD) Activity

The SOD activity was quantified at pH 7.8 in Tris-HCl 0.2 M and sodium carbonate 50 Mm (pH 10), adding 20 µL of the supernatant and 20 µL of xanthine/xanthine oxidase. The superoxide generated by the xanthine/xanthine oxidase was detected by controlling the reduction of nitro blue tetrazolium (NAT) and determined in a spectrophotometer at an absorbance of 505 nm. One unit of SOD was defined as the amount of enzyme that causes an inhibition of 50% in the reduction of NAT [45].

Peroxidase (POD) Activity

In 96-well plates, 10 µL of the supernatant and 50 µL guaiacol solution (100 mM of sodium phosphate, pH 6.4, and guaiacol 8 mM) were placed and incubated at 30 °C for 5 min. One unit of POD was defined as an increase of one unit of absorbance per minute under the conditions of the assay. Samples were quantified in a spectrophotometer at an absorbance of 460 nm [46].

2.7. Statistical Analysis

Data were processed by a one-way analysis of variance (ANOVA) and Tukey’s test with a significance level of 5%, using the software STATISTICA (version 8.0.360.0 StatSoft Inc., Tulsa, USA) for Windows.

3. Results

3.1. Inhibition of C. gloeosporioides Spore Germination by Ulvan

Ulvan did not affect the germination of the phytopathogen fungus spores in any of the time intervals assessed (6, 12, 18, and 24 h). At the end of the experiment, C. gloeosporioides reached 82% of germinated spores, and phytopathogen fungus and ulvan treatment was 83%; thus, no significant differences were found between treatments with and without ulvan + C. gloeosporioides.

3.2. In Vitro Antifungal Activity of Marine Bacteria to Phytopathogen Fungus

A significant inhibition was observed in the mycelial growth of C. gloeosporioides by the effect of S. rhizophila, B. amyloliquefaciens, and the synthetic fungicide (Figure 1A). C. gloeosporioides reduced its growth in 72% by the antagonism of S. rhizophila. The marine bacteria were more efficient in terms of the mycelial growth of the phytopathogen fungus compared with the synthetic fungicide.

3.3. Inhibition of C. gloeosporioides by VOCs

S. rhizophila and B. amyloliquefaciens inhibited the mycelial growth of C. gloeosporioides significantly through VOCs (Figure 1B). The greatest growth inhibition (65%) of the phytopathogen fungus was achieved by the marine bacteria S. rhizophila.

3.4. Carbohydrate Competition between Marine Bacteria and C. gloeosporioides

Sucrose, glucose, and fructose decreased rapidly in content in the sterile papaya juice medium (SPJ) when inoculated with the marine bacteria and phytopathogen fungus compared with the medium only with each microorganism (Figure 2). At 24 h, the sucrose content decreased by 81% and fructose by 65% when SPJ was inoculated with B. amyloliquefaciens and C. gloeosporioides. Glucose reduced by 73% in the presence of S. rhizophila and C. gloeosporioides.
The spore germination inhibition of C. gloeosporioides by S. rhizophila and B. amyloliquefaciens was quantified at 73% and 65%, respectively. The treatment with only the phytopathogen fungus showed 94% of spore germination at 24 h of inoculation of the SPJ medium.

3.5. Bio-Protection of Papaya Fruit Inoculated with Marine Bacteria and Ulvan to Anthracnose

The fruit inoculated with the phytopathogen fungus, marine bacteria, ulvan, and synthetic fungicide showed significantly lower levels of incidence and lesion diameter (mm) of anthracnose compared with the fruit with only C. gloeosporioides (Figure 3). A reduction of 80% was quantified in incidence and 97% in lesion diameter (mm) in fruit inoculated with the phytopathogen fungus and S. rhizophila. The application of marine bacteria and ulvan on fruit was more efficient in the control group of anthracnose than in the treatment with synthetic fungicide.

3.6. Antioxidant Defense Enzyme Activity in Papaya Fruit Inoculated with Marine Bacteria and Ulvan

The SOD activity showed the highest levels at 6, 12, and 24 h after fruit inoculation with marine bacteria and ulvan, and the phytopathogen fungus showed the highest level in relation to the fruit without microorganisms and ulvan (Figure 4). At 6 h, the highest SOD values were observed in fruit with C. gloeosporioides and B. amyloliquefaciens; at 12 h, the treatment with the phytopathogen fungus and S. rhizophila; and at 24 h, the highest values were observed in the fruit with C. gloeosporioides and ulvan.
The CAT activity showed the highest levels in relation to fruit without microorganisms and ulvan at 6, 12, and 24 h after fruit was inoculated with marine bacteria, ulvan, and the phytopathogen fungus (Figure 5). At 6 and 12 h, the highest CAT values were observed in fruit with C. gloeosporioides and S. rhizophila, and at 24 h, the highest values were observed for treatments with the phytopathogen and each marine bacterium and ulvan.

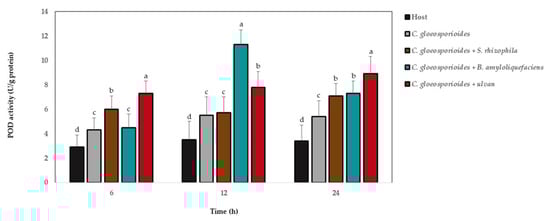

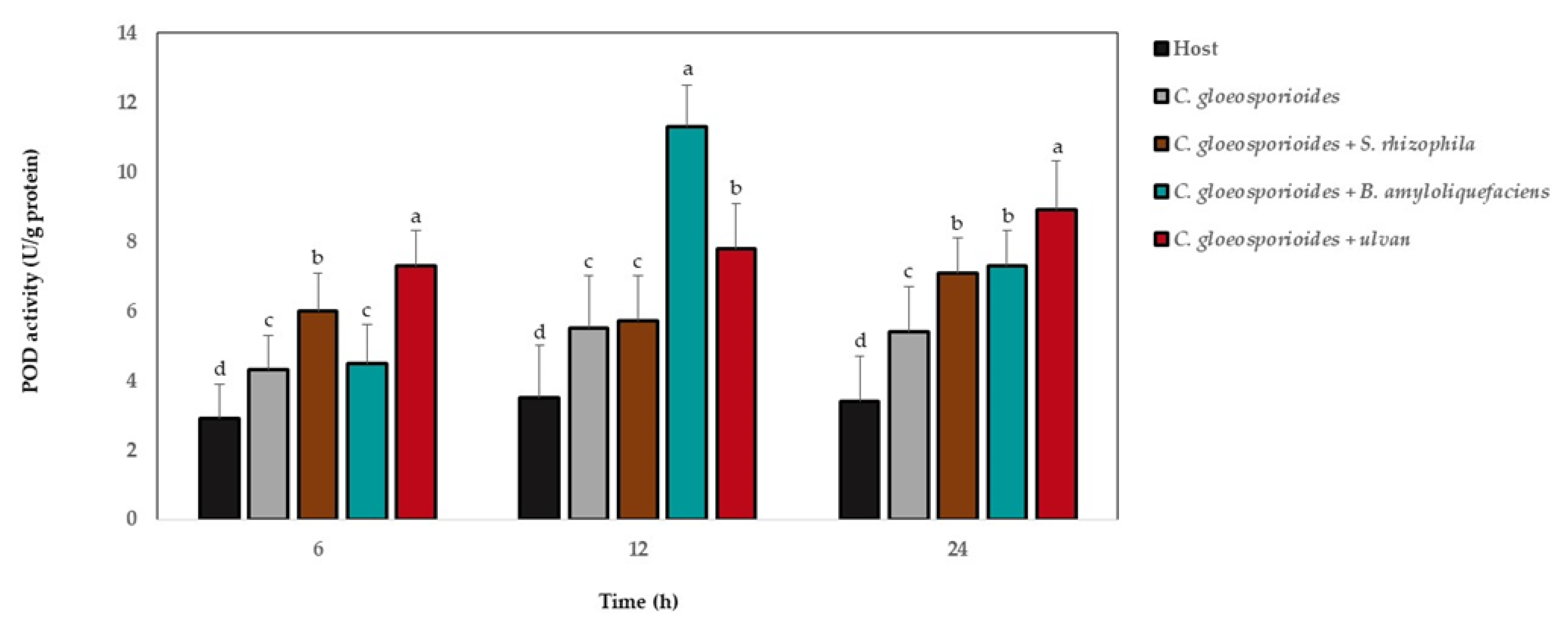

The POD activity showed the highest levels in relation to those without microorganism and ulvan at 6, 12, and 24 h after fruit was inoculated with marine bacteria, ulvan, and the phytopathogen fungus (Figure 6). At 6 h, the highest POD values were observed in fruit with C. gloeosporioides and ulvan; at 12 h, this was true for the treatment with the phytopathogen fungus and B. amyloliquefaciens; and at 24 h, the highest values were observed for fruit with C. gloeosporioides and ulvan.

4. Discussion

The biological control of postharvest diseases in fruit using antagonistic microorganisms and ulvan as resistance inductors in plants has been an efficient alternative to the use of synthetic fungicides [32,47].
The marine bacteria S. rhizophila and B. amyloliquefaciens inhibited in vitro mycelial growth of C. gloeosporioides. Particularly, the in vitro antagonism of different phytopathogens by Stenotrophomonas spp. is related to diverse antagonistic mechanisms that have already been described for some species of this bacterium, of which the production of antimycotic antibiotics, such as maltophilin and xanthobaccins, are macrocyclic lactams that inhibit phytopathogen growth [48,49,50]. A mechanism of S. rhizophila is lytic enzyme production, such as proteases, chitinases, and β-1,3-glucanasas, which eliminate fungi when they break the links of mannoproteins, chitin, and glucan contained in their cell wall [51]. Stenotrophomonas spp. also inhibit phytopathogens by siderophore synthesis (from Greek sideros phoros “iron bearer or carrier”), which are low molecular-weight molecules that act as specific iron chelators, minimizing availability toward other microorganisms that need this essential micronutrient for cellular metabolism, oxygen transport, respiration, and DNA synthesis, among others [52]. The volatile organic compounds produced by Stenotrophomonas spp. as β-phenylethanol showed an antimicrobial effect, altering the plasmatic membrane permeability in fungi and sugar and amino acid transport processes [53].
Bacillus amyloliquefaciens is a bacterium with a high capacity in vitro to control several phytopathogens [54,55]. The inhibition of C. gloeosporioides by this bacillus is related to diverse antagonistic mechanisms, mainly the production of several metabolites, such as 2-propanona and 2-methylpiridine—both VOCs that inhibit fungus growth and stimulate host resistance induction [56,57,58]. Other antimicrobial compounds that this bacillus produces are lytic enzymes, such as β-1,3-glucanases and cellulose, capable of degrading the fungus cell wall [59], antibiotics; polyketides, and cyclic lipopeptides (LPs), mainly from the surfactin, iturin, and fenesin families, which can easily be combined with the lipid layer of the phytopathogen cell membrane, damaging membrane integrity [60,61,62].
In vivo, anthracnose control in papaya fruit by S. rhizophila, B. amyloliquefaciens, and ulvan was more efficient in comparison to the protection exerted by the synthetic fungicide. The antagonistic microorganisms and ulvan were an alternative to the use and decrease in synthetic applications, which impact the environment and human and animal health negatively, and in the generation of phytopathogen resistance [5,32]. S. rhizophila and B. amyloliquefaciens share diverse antagonistic mechanisms (lytic enzyme production, VOCs, antibiotics, siderophores, among others) involved in the biocontrol in vivo of diseases in fruit; however, competition for space and nutrients and the induction of host resistance are two important mechanisms that both bacteria have for phytopathogen biocontrol [36]. In this study, the marine bacteria reduced C. gloeosporioides spore germination because of sucrose, glucose, and fructose, which were consumed rapidly by S. rhizophila and B. amyloliquefaciens, decreasing the content of strong carbon sources for their absorption by the phytopathogen. Carbohydrates are of great importance and are useful for spore germination and start the infection process of C. gloeosporioides to fruit [63].
On the other hand, bacteria and ulvan have been considered to be inductors of plant resistance [64] and a biotechnological control option of phytopathogens of agricultural importance [33]. In this study, S. rhizophila, B. amyloliquefaciens, and ulvan protected papaya fruit against anthracnose through the induction of defense antioxidant enzymes, such as SOD, CAT, and POD, whose activities (U/g protein) were higher in fruit treated with marine bacteria or ulvan in relation to the treatment with only the phytopathogen. Thus, the resistance inductors in plants play an important role in disease reduction [35,36]. The function of defense antioxidant enzymes is to protect the host from reactive oxygen species (ROS), such as superoxide anion (O2−), hydrogen peroxide (H2O2), and hydroxyl radical (OH−), caused by the phytopathogens in their infection process [65,66]. ROS can damage nucleic acids, proteins, carbohydrates, and lipids, and affect cell membrane integrity, directly inactivating key cell functions in plants [67]. For plants, the proportion between the generation and elimination of ROS is transcendental in all cells; thus, defense antioxidant enzymes play an important role in intracellular equilibrium. SOD is a detoxifying enzyme that allows the elimination of ROS in the cell [68]. With respect to POD, it is found in all host cells, protecting them against the destructive activity of H2O2 through the oxidation of phenolic and enodiolic co-substrates [69,70]. Finally, CAT is found in aerobic cells and protects them from H2O2, catalyzing its decomposition in O2 and H2O [71]. Although several studies of bacteria and ulvan exist for defense antioxidant enzyme induction (SOD, CAT, and POD) in plants for their bio-protection against different phytopathogens, such as Alternaria tenuis and Botrytis cinerea in peach [8], B. cinerea in pepper [43], C. gloeosporioides in lychee [72], C. acutatum in loquat [73], Penicillum expansum in apple [35], and C. trifolli in Medicago sp. [33], this is the first report of the marine bacteria S. rhizophila and B. amyloliquefaciens and ulvan as resistance inductors in papaya fruit against anthracnose caused by C. gloeosporioides.

5. Conclusions

S. rhizophila and B. amyloliquefaciens inhibited the in vitro growth of C. gloeosporioides; additionally, the application of both marine bacteria and ulvan on papaya fruit protected them against anthracnose. The mechanism that participated in fruit bio-protection by the antagonistic bacteria and ulvan was competition for sucrose, glucose, and fructose production by VOCs and defense antioxidant enzyme induction, such as SOD, CAT, and POD. Future studies assessing the efficiency of S. rhizophila, B. amyloliquefaciens, and ulvan at a greater scale should be performed on papaya fruit as an alternative to the use of synthetic fungicides and the sustainable management of agricultural products at postharvest.

Author Contributions

Conceptualization, L.G.H.-M.; methodology, R.G.C.-C., B.M.-A. and S.C.-H.; investigation, R.G.C.-C., B.M.-A., C.J.C.-C. and L.G.H.-M.; writing—original draft preparation, R.G.C.-C., S.C.-H. and L.G.H.-M.; writing—review and edition, C.J.C.-C., B.M.-A. and L.G.H.-M.; supervision, L.G.H.-M.; project administration, L.G.H.-M.; funding acquisition, R.G.C.-C. and L.G.H.-M.

Funding

This research was supported by the grant project Problemas Nacionales 2015-01-352 (Consejo Nacional de Ciencia y Tecnología (CONACYT, México) and CONACYT grant awarded to S. Carmona-Hernandez. We thank D. Fischer for editorial support.

Acknowledgments

The authors are thankful to Ernesto Diaz for his excellent technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Landero, V.N.; Nieto, A.D.; Téliz, O.D.; Alatorre, R.R.; Ortiz, G.C.F.; Orozco, S.M. Biological control of anthracnose by postharvest application of Trichoderma spp., on Maradol papaya fruit. Biol. Control 2015, 91, 88–93. [Google Scholar] [CrossRef]
  2. Lima, G.; Sanzani, S.M.; Curtis, F.; Ippolito, A. Biological control of postharvest diseases. In Advances in Postharvest Fruit and Vegetables Technology; Wills, R.B.H., Golding, J.B., Eds.; CRC Press: Boca Raton, FL, USA, 2015; pp. 65–81. [Google Scholar]
  3. Hu, Y.; Chen, J.; Hu, G.; Yu, J.; Zhu, X.; Lin, Y.; Chen, S.; Yuan, J. Statistical research on the bioactivity of new marine natural products discovered during the 28 years from 1985 to 2012. Mar. Drugs 2015, 13, 202–221. [Google Scholar] [CrossRef] [PubMed]
  4. Ali, A.; Noh, N.M.; Mustafa, M.A. Antimicrobial activity of chitosan enriched with lemongrass oil against anthracnose of bell pepper. Food Packag. Shelf Life 2015, 3, 56–61. [Google Scholar] [CrossRef]
  5. Kim, K.H.; Kabir, E.; Jahan, S.A. Exposure to pesticides and the associated human health effects. Sci. Total Environ. 2017, 575, 525–535. [Google Scholar] [CrossRef] [PubMed]
  6. Spadaro, D.; Droby, S. Development of biocontrol products for postharvest diseases of fruit: The importance of elucidating the mechanisms of action of yeast antagonists. Trends Food Sci. Technol. 2016, 47, 39–49. [Google Scholar] [CrossRef]
  7. Torres, M.J.; Pérez, B.C.; Petroselli, G.; Erra-Balsells, R.; Audisio, M.C. Antagonistic effects of Bacillus subtilis subsp. subtilis and B. amyloliquefaciens against Macrophomina phaseolina: SEM study of fungal changes and UV-MALDI-TOF MS analysis of their bioactive compounds. Microbiol. Res. 2016, 182, 31–39. [Google Scholar] [CrossRef]
  8. Zhang, S.; Zheng, Q.; Xu, B.; Liu, J. Identification of the fungal pathogens of postharvest disease on peach fruits and the control mechanisms of Bacillus subtilis JK-14. Toxins 2019, 11, 322. [Google Scholar] [CrossRef]
  9. Teixeira, B.; Marques, A.; Ramos, C.; Neng, R.N.; Nogueira, M.F.J.; Saravia, A.J.; Nunes, L.M. Chemical compositions and antibacterial and antioxidant properties of comercial essential oils. Ind. Crops Prod. 2013, 43, 587–595. [Google Scholar] [CrossRef]
  10. Bibi, F.; Imran, N.M.; Mohamed, H.A.; Yasir, M.; Khalaf, G.A.A.; Ibrahin, A.E. LC-MS based identification of secondary metabolites from marine antagonistic endophytic bacteria. Genet. Mol. Res. 2017, 17, 1–14. [Google Scholar] [CrossRef]
  11. Bibi, F.; Imran, N.M.; Mohamed, H.A.; Yasir, M.; Khalaf, G.A.A.; Ibrahin, A.E. Diversity and antagonistic potential of bacteria isolated from marine grass Halodule uninervis. Biotechnology 2018, 8, 48. [Google Scholar] [CrossRef]
  12. Aiello, D.; Restuccia, C.; Stefani, E.; Vitale, A.; Cirvilleri, G. Postharvest biocontrol ability of Pseudomonas synxantha against Monilinia fructicola and Monilinia fructigena on stone fruit. Postharvest Biol. Technol. 2019, 149, 83–89. [Google Scholar] [CrossRef]
  13. Hernandez-Montiel, L.G.; Zulueta, R.R.; Angulo, C.; Rueda, P.E.O.; Quiñonez, A.E.E.; Galicia, R. Marine yeasts and bacteria as biological control agents against anthracnose on mango. J. Phytopathol. 2017, 165, 833–840. [Google Scholar] [CrossRef]
  14. Chen, X.; Zhang, Y.; Fu, X.; Li, Y.; Wang, Q. Isolation and characterization of Bacillus amyloliquefaciens PG12 for the biological control of apple ring rot. Postharvest Biol. Technol. 2016, 115, 113–121. [Google Scholar] [CrossRef]
  15. Carmona-Hernandez, S.; Reyes-Pérez, J.J.; Chiquito-Contreras, R.G.; Rincon-Enriquez, G.; Cerdan-Cabrera, C.R.; Hernandez-Montiel, L.G. Biocontrol of postharvest fruit fungal diseases by bacterial antagonists: A review. Agronomy 2019, 9, 121. [Google Scholar] [CrossRef]
  16. Kolsi, R.B.A.; Gargouri, B.; Sassi, S.; Frikha, D.; Lassoued, S.; Belghith, K. In vitro biological propierties and health benedits of a novel sulfated polysaccharide isolated from Cymodocea nodosa. Lipids Health Dis. 2017, 16, 1–11. [Google Scholar] [CrossRef]
  17. Stadnik, M.J.; Freitas, M.B. Algal polysaccharide as source of plant resistance inducers. Trop. Plant Pathol. 2014, 39, 111–118. [Google Scholar] [CrossRef]
  18. Pankiewicz, R.; Leska, B.; Messyasz, B.; Fabrowska, J.; Soloducha, M.; Pikosz, M. First isolation of polysaccharides ulvans from the cell walls of freshwater algae. Algal Res. 2016, 19, 348–354. [Google Scholar] [CrossRef]
  19. Berri, M.; Slugocki, C.; Oliver, M.; Helloin, E.; Jacques, I.; Salmon, H.; Le Goff, M.; Collen, P.N. Marine sulfated polysaccharides extract of Ulva armoricana green algae exhibits an antimicrobial activity and stimulates cytokine expression by intestinal epithelial cell. J. Appl. Phycol. 2016, 28, 2999–3008. [Google Scholar] [CrossRef]
  20. Gadenne, V.; Lebrun, L.; Jouenne, T.; Thebault, P. Antiadhesive activity of ulvan polysaccharides covalently immobilized onto titanium surface. Colloid Surf. B 2013, 112, 229–236. [Google Scholar] [CrossRef]
  21. Tuney, İ.; Cadirci, B.H.; Dilek, Ü.; Sukatar, A. Antimicrobial activities of the extracts of marine algae from the coast of Urla (Izmir, Turkey). Turk. J. Biol. 2006, 30, 171–175. [Google Scholar]
  22. Esquer-Miranda, E.; Nieves-Soto, M.; Rivas-Vega, M.E.; Miranda-Baeza, A.; Pi, P. Effects of methanolic macroalgae extracts from Caulerpa sertularioides and Ulva lactuca on Litopenaeus vannamei survival in the presence of Vibrio bacteria. Fish Shellfish Immunol. 2016, 51, 346–350. [Google Scholar] [CrossRef]
  23. Yaich, H.; Garna, H.; Bchir, B.; Besbes, S.; Paquot, M.; Richel, A.; Blecker, C.; Attia, H. Chemical composition and functional properties of dietary fibre extracted by Englyst and Prosky methods from the alga Ulva lactuca collected in Tunisia. Algal Res. 2015, 9, 65–73. [Google Scholar] [CrossRef]
  24. Spavieri, J.; Kaiser, M.; Casey, R.; Hingley-Wilson, S.; Lalvani, A.; Blunden, G.; Tasdemir, D. Antiprotozoal, antimycobacterial and cytotoxic potential of some British green algae. Phytother. Res. 2010, 24, 1095–1098. [Google Scholar] [CrossRef]
  25. Abbassy, M.A.; Marzouk, M.A.; Rabea, E.I.; Abd-Elnabi, A.D. Insecticidal and fungicidal activity of Ulva lactuca Linnaeus (Chlorophyta) extracts and their fractions. Annu. Res. Rev. Biol. 2014, 4, 2252–2262. [Google Scholar] [CrossRef]
  26. Margret, R.J.; Kumaresan, S.; Ravikumar, S. A preliminary study on the anti-inflammatory activity of methanol extract of Ulva lactuca in rat. J. Environ. Biol. 2009, 30, 899–902. [Google Scholar]
  27. Mao, W.; Zang, X.; Li, Y.; Zhang, H. Sulfated polysaccharides from marine green algae Ulva conglobata and their anticoagulant activity. J. Appl. Phycol. 2006, 18, 9–14. [Google Scholar] [CrossRef]
  28. Hernández-Herrera, R.M.; Santacruz-Ruvalcaba, F.; Zañudo-Hernández, J.; Hernández-Carmona, G. Activity of seaweed extracts and polysaccharide-enriched extracts from Ulva lactuca and Padina gymnospora as growth promoters of tomato and mung bean plants. J. Appl. Phycol. 2016, 28, 2549–2560. [Google Scholar] [CrossRef]
  29. Abdel-Latif, H.H.; Shams El-Din, N.G.; Ibrahim, H.A. Antimicrobial activity of the newly recorded red alga Grateloupia doryphora collected from the Eastern Harbor, Alexandria, Egypt. J. Appl. Microbiol. 2018, 125, 1321–1332. [Google Scholar] [CrossRef]
  30. Barot, M.; Kumar, N.J.I.; Kumar, R.N. Bioactive compounds and antifungal activity of three different seaweed species Ulva lactuca, Sargassum tenerrimum and Laurencia obtusa collected from Okha coast, Western India. J. Coast. Life Med. 2016, 4, 284–289. [Google Scholar] [CrossRef]
  31. Araújo, L.; Stadnik, M.J. Cultivar-specific and ulvan-induced resistance of appleplants to Glomerella leaf spot are associated with enhanced activity of peroxi-dases. Acta Sci. Agron. 2013, 35, 287–293. [Google Scholar] [CrossRef]
  32. Rivas-Garcia, T.; Murillo-Amador, B.; Nieto-Garibay, A.; Chiquito-Contreras, R.; Rincon-Enriquez, G.; Hernandez-Montiel, L.G. Effect of ulvan on the biocontrol activity of Debaryomyces hansenii and Stenotrophomonas rhizophila against fruit rot of Cucumis melo L. Agronomy 2018, 8, 273. [Google Scholar] [CrossRef]
  33. Cluzet, S.; Torregrosa, C.; Jacquet, C.; Lafitte, C.; Fournier, J.; Mercier, L.; Salamagne, S.; Briand, X.; Esquerre-Tugaye, M.T.; Dumas, B. Gene expression profiling and protection of Medicago truncatula against a fungal infection in response to an elicitor from green algae Ulva spp. Plant Cell Environ. 2004, 27, 917–928. [Google Scholar] [CrossRef]
  34. Derksen, H.; Rampitsch, C.; Daayf, F. Signaling cross-talk in plant disease resistance. Plant Sci. 2013, 207, 79–87. [Google Scholar] [CrossRef]
  35. Abouraïcha, E.; El Alaoui-Talibi, Z.; El Boutachfaiti, R.; Petit, E.; Courtois, B.; Courtois, J.; El Modafar, C. Induction of natural defense and protection against Penicillium expansum and Botrytis cinerea in apple fruit in response to bioelicitors isolated from green algae. Sci. Hortic. 2015, 181, 121–128. [Google Scholar] [CrossRef]
  36. Hernandez-Montiel, L.G.; Gutierrez-Perez, E.D.; Murillo-Amador, B.; Vero, S.; Chiquito-Contreras, R.G.; Rincon-Enriquez, G. Mechanisms employed by Debaryomyces hansenii in biological control of anthracnose diseases on papaya fruit. Postharvest Biol. Technol. 2018, 139, 31–37. [Google Scholar] [CrossRef]
  37. Ezziyyani, M.; Pérez-Sánchez, C.; Requena, M.E.; Rubio, L.; Candela, M.E. Biocontrol por Streptomyces rochei-Ziyani-, de la podredumbre del pimiento (Capsicum annuum L.) causada por Phytophthora capsici. Anal. Biol. 2004, 26, 69–78. [Google Scholar]
  38. Rouissi, W.; Ugolini, L.; Martini, C.; Lazzeri, L.; Mari, M. Control of postharvest fungal pathogens by antifungal compounds from Penicillium expansum. J. Food Prot. 2013, 76, 1879–1886. [Google Scholar] [CrossRef]
  39. Hedge, J.E.; Hofreiter, B.T. Carbohydrate Chemistry; Whistler, R.L., Be Miller, J.N., Eds.; Academic Press: New York, NY, USA, 1962. [Google Scholar]
  40. Bruner, L.R. Determination of reducing value: 3,5 Dinitrosalicylic acid method. In Methods in Carbohydrate Chemistry; Whistler, R.L., Smith, R.J., BeMiller, J.N., Eds.; Academic Press: New York, NY, USA, 1964; Volume 4, p. 6771. [Google Scholar]
  41. Barham, D.; Trinder, P. An improved colour reagent for the determination of blood glucose by the oxidase system. Analyst 1972, 97, 142–145. [Google Scholar] [CrossRef]
  42. Taylor, K.A. A colorimetric fructose assay. Appl. Biochem. Biotechnol. 1995, 53, 215–227. [Google Scholar] [CrossRef]
  43. Bradford, M.M. A rapid and sensitive method for the quantitation of micro-gram quantities of protein utilizing the principle of protein-dye binding. Anal. Biochem. 1976, 72, 248–254. [Google Scholar] [CrossRef]
  44. Wang, Y.S.; Tian, S.P.; Xu, Y.; Qin, G.Z.; Yao, H.J. Changes in the activities of protein and antioxidant enzymes in peach fruit inoculated with Cryptococcus laurentii or Penicillium expansum at 0 or 20 C. Postharvest Biol. Technol. 2004, 34, 21–28. [Google Scholar] [CrossRef]
  45. Reverberi, M.; Fabbri, A.A.; Zjalic, S.; Ricelli, A.; Punelli, F.; Fanelli, C. Antioxidant enzymes stimulation in Aspergillus parasiticus by Lentinula edodes inhibits aflatoxin production. Appl. Microbiol. Biotechnol. 2005, 69, 207–215. [Google Scholar] [CrossRef]
  46. Yao, H.J.; Tian, S.P. Effect of pre- and post-harvest application of salicylic acid or methyl jasmonate on inducing disease resistance of sweet cherry fruit in storage. Postharvest Biol. Technol. 2005, 35, 253–262. [Google Scholar] [CrossRef]
  47. Jiang, C.H.; Liao, M.J.; Wang, H.K.; Zheng, M.Z.; Xu, J.J.; Guo, J.H. Bacillus velezensis, a potential and efficient biocontrol agent in control of pepper gray mold caused by Botrytis cinerea. Biol. Control 2018, 126, 147–157. [Google Scholar] [CrossRef]
  48. Jakobi, M.; Winkelmann, G.; Kaiser, D.; Kempter, C.; Jung, G.; Berg, G.; Bahl, H. Maltophilin, a new antifungal compound produced by Stenotrophomonas maltophilia R3089. J. Antibiot. 1996, 49, 1101–1104. [Google Scholar] [CrossRef] [Green Version]
  49. Hashidoko, Y.; Nakayama, T.; Homma, Y.; Tahara, S. Structure elucidation of xanthobaccin A, a new antibiotic produced from Stenotrophomonas sp. strain SB-K88. Tetrahedron Lett. 1999, 40, 2957–2960. [Google Scholar] [CrossRef]
  50. Nakayama, T.; Homma, Y.; Hashidoko, Y.; Mizutani, J.; Tahara, S. Possible Role of Xanthobaccins produced by Stenotrophomonas sp. strain SB-K88 in suppression of sugar beet damping-off disease. Appl. Environ. Microbiol. 1999, 65, 4334–4339. [Google Scholar]
  51. Reyes-Perez, J.J.; Hernandez-Montiel, L.G.; Vero, S.; Noa-Carrazana, J.C.; Quiñones-Aguilar, E.E.; Rincón-Enríquez, G. Postharvest biocontrol of Colletotrichum gloeosporioides on mango using the marine bacterium Stenotrophomonas rhizophila and its possible mechanisms of action. J. Food Sci. Technol. 2019, 56, 4992–4999. [Google Scholar] [CrossRef]
  52. Greenshields, L.D.; Guosheng, L.; Feng, J.; Selvaraj, G.; Wei, Y. The siderophore biosynthetic gene SID1, but not the ferroxidase gene FET3, is required for full Fusarium graminearum virulence. Mol. Plant Pathol. 2007, 8, 411–421. [Google Scholar] [CrossRef]
  53. Chandra, H.; Bishnoi, P.; Yadav, A.; Patni, B.; Mishra, A.; Nautiyal, A. Antimicrobial resistance and the alternative resources with special emphasis on plant-based antimicrobials-a review. Plants 2017, 6, 16. [Google Scholar] [CrossRef]
  54. Shen, L.; Wang, F.; Liu, Y.; Qian, Y.; Yang, J.; Sun, H. Suppression of tobacco mosaic virus by Bacillus amyloliquefaciens strain Ba33. J. Phytopathol. 2013, 161, 293–294. [Google Scholar] [CrossRef]
  55. Yang, P.; Sun, Z.X.; Liu, S.Y.; Lu, H.X.; Zhou, Y.; Sun, M. Combining antagonistic endophytic bacteria in different growth stages of cotton for control of Verticillium wilt. Crop Prot. 2013, 47, 17–23. [Google Scholar] [CrossRef]
  56. Blom, D.; Fabbri, C.; Connor, E.C.; Schiestl, F.P.; Klauser, D.R.; Boller, T.; Eberl, L.; Weisskopf, L. Production of plant growth modulating volatiles is widespread among rhizosphere bacteria and strongly depends on culture conditions. Environ. Microbiol. 2011, 13, 3047–3058. [Google Scholar] [CrossRef] [PubMed]
  57. Garbeva, P.; Hordijk, C.; Gerards, S.; de Boer, W. Volatile mediated interactions between phylogenetically different soil bacteria. Front. Microbiol. 2014, 5, 289. [Google Scholar] [CrossRef] [Green Version]
  58. Asari, S.; Matzén, S.; Petersen, M.A.; Bejai, S.; Meijer, J. Multiple effects of Bacillus amyloliquefaciens volatile compounds: Plant growth promotion and growth inhibition of phytopathogens. FEMS Microbiol. Ecol. 2016, 92, 1–11. [Google Scholar] [CrossRef] [Green Version]
  59. Syed-Ab-Rahman, S.F.; Omar, D. Development of bio-formulations of Piper sarmentosum extracts against bacterial rice diseases. Curr. Biotechnol. 2018, 7, 453–463. [Google Scholar] [CrossRef]
  60. Ongena, M.; Jacques, P. Bacillus lipopeptides: Versatile weapons for plant disease biocontrol. Trends Microbiol. 2008, 16, 115–125. [Google Scholar] [CrossRef]
  61. Dietel, K.; Beator, B.; Budiharjo, A.; Fan, B.; Borriss, R. Bacterial traits involved in colonization of Arabidopsis thaliana roots by Bacillus amyloliquefaciens FZB42. Plant Pathol. J. 2013, 29, 59–66. [Google Scholar] [CrossRef] [Green Version]
  62. Debois, D.; Jourdan, E.; Smargiasso, N.; Thonart, P.; De Pauw, E.; Ongena, M. Spatiotemporal monitoring of the antibiome secreted by Bacillus biofilms on plant roots using MALDI mass spectrometry imaging. Anal. Chem. 2014, 86, 4431–4438. [Google Scholar] [CrossRef]
  63. Liu, J.; Sui, Y.; Wisniewski, M.; Droby, S.; Liu, Y. Review: Utilization of antagonistic yeast to manage postharvest fungal. Int. J. Food Microbiol. 2013, 167, 153–160. [Google Scholar] [CrossRef]
  64. Côté, F.; Ham, K.S.; Hahn, M.G.; Bergmann, C.W. Oligosaccharide elicitors in host–pathogen interactions. Generation, perception, and signal transduction. In Subcellular Biochemistry; Plenum Publishing Corp: New York, NY, USA, 1998; pp. 385–432. [Google Scholar]
  65. Campo, S.; Carrascal, M.; Coca, M.; Abián, J.; San Segundo, B. The defense response of germinating maize embryos against fungal infection: A proteomics approach. Proteomics 2004, 4, 383–396. [Google Scholar] [CrossRef]
  66. Xu, X.B.; Tian, S.P. Reducing oxidative stress in sweet cherry fruit by Pichia membranaefaciens: A possible mode of action against Penicillium expansum. J. Appl. Microbiol. 2008, 105, 1170–1177. [Google Scholar] [CrossRef]
  67. Halliwell, B.; Gutteridge, J.M.C. Free Radicals in Biology and Medicine, 5th ed.; Oxford University Press: London, UK, 1999; p. 905. [Google Scholar]
  68. Hernandez, J.A.; Ferrer, M.A.; Jimenez, A.; Barcelo, A.R.; Sevilla, F. Antioxidant systems and O2−⁄H2O2 production in the apoplast of pea leaves. Its relation with salt-induced necrotic lesions in minor veins. Plant Physiol. 2001, 127, 827–831. [Google Scholar] [CrossRef]
  69. Asada, K. Ascorbate peroxidase: A hydrogen peroxidescavenging enzyme in plants. Plant Physiol. 1992, 85, 235–241. [Google Scholar] [CrossRef]
  70. Borsani, O.; Valpuesta, V.; Botella, M.A. Evidence for a role of salicylic acid in the oxidative damage generated by NaCl and osmotic stress in Arabidopsis seedlings. Plant Physiol. 2001, 126, 1024–1030. [Google Scholar] [CrossRef] [Green Version]
  71. Foyer, C.H.; Trebst, A.; Noctor, G. Signaling and integration of defense functions of tocopherol, ascorbate and glutathione. In Photoprotection, Photoinhibition, Gene Regulation, and Environment; Demmig-Adams, B., Adams, W.W., Mattoo, A.K., Eds.; Springer: Dordrecht, The Netherlands, 2008; pp. 241–268. [Google Scholar]
  72. Zhao, P.; Li, P.; Wu, S.; Zhou, M.; Zhi, R.; Gao, H. Volatile organic compounds (VOCs) from Bacillus subtilis CF-3 reduce anthracnose and elicit active defense responses in harvested litchi fruits. AMB Express 2019, 9, 119. [Google Scholar] [CrossRef] [Green Version]
  73. Wang, X.; Wang, L.; Wang, J.; Jin, P.; Liu, H.; Zheng, Y. Bacillus cereus AR156-induced resistance to Colletotrichum acutatum is associated with priming of defense responses in loquat fruit. PLoS ONE 2014, 9, e112494. [Google Scholar] [CrossRef]
Antioxidants 08 00580 g001 550
Figure 1. Effect in vitro of marine bacteria on the mycelial growth of Colletotrichum gloeosporioides. Inhibition percentage (%) of the phytopathogen fungus by (A) direct confrontation; (B) volatile organic compounds (VOCs). Data are presented as a mean ± SD (n = 10). Columns with different letters were significantly different according to Tukey’s test (p < 0.05).
Figure 1. Effect in vitro of marine bacteria on the mycelial growth of Colletotrichum gloeosporioides. Inhibition percentage (%) of the phytopathogen fungus by (A) direct confrontation; (B) volatile organic compounds (VOCs). Data are presented as a mean ± SD (n = 10). Columns with different letters were significantly different according to Tukey’s test (p < 0.05).
Antioxidants 08 00580 g001
Antioxidants 08 00580 g002 550

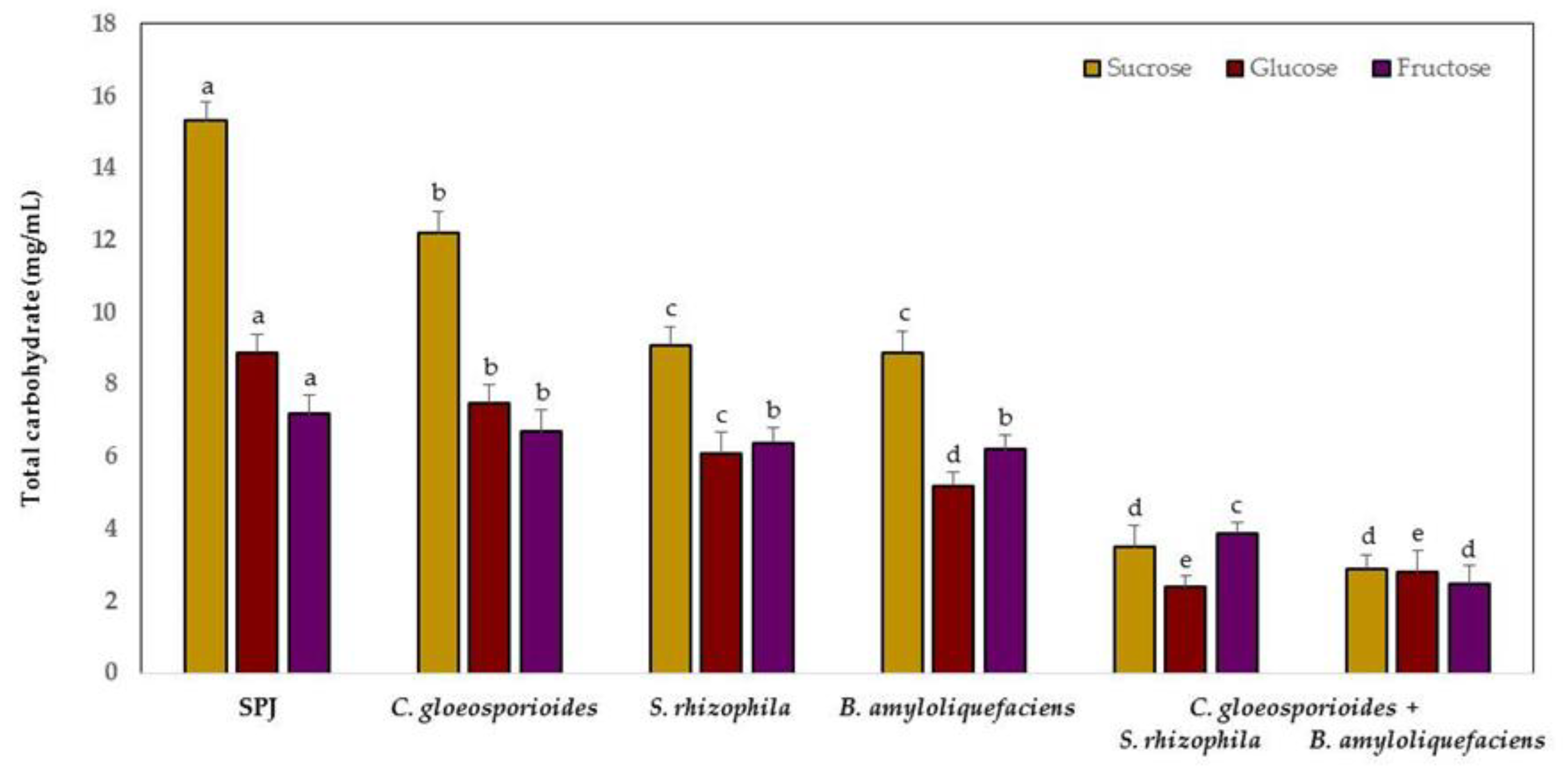

Figure 2. Sucrose, glucose, and fructose contents in sterile papaya juice medium (SPJ) inoculated with marine bacteria and Colletotrichum gloeosporioides. Data are presented as mean ± SD (n = 10). Columns with different letters were significantly different according to Tukey’s test (p < 0.05).
Figure 2. Sucrose, glucose, and fructose contents in sterile papaya juice medium (SPJ) inoculated with marine bacteria and Colletotrichum gloeosporioides. Data are presented as mean ± SD (n = 10). Columns with different letters were significantly different according to Tukey’s test (p < 0.05).
Antioxidants 08 00580 g002
Antioxidants 08 00580 g003 550

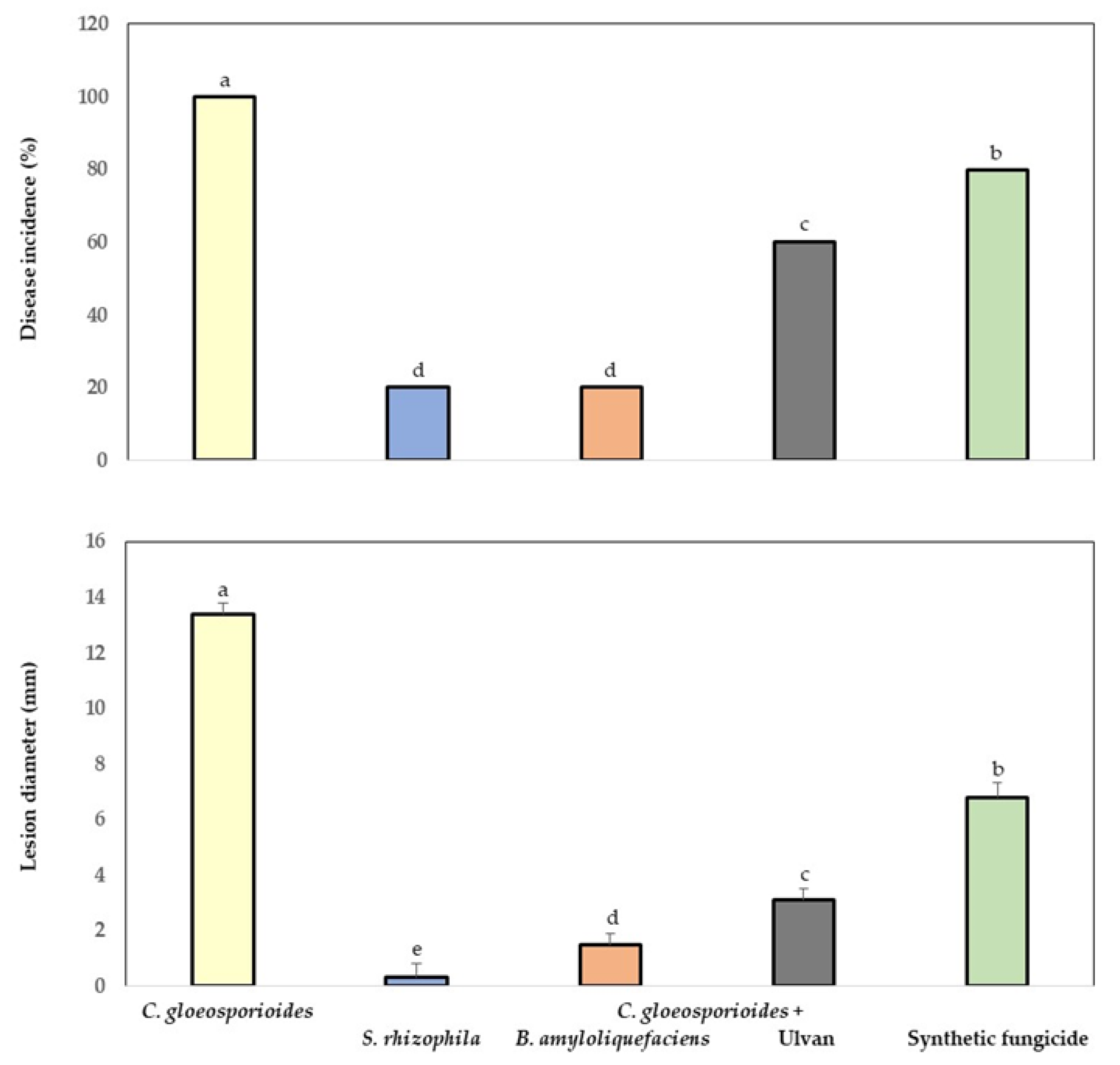

Figure 3. Incidence and lesion diameter caused by Colletotrichum gloeosporioides in fruit treated with marine bacteria, ulvan, and synthetic fungicide. Data are presented as a mean ± SD (n = 10). The columns with different letters were significantly different according to Tukey’s test (p < 0.05).
Figure 3. Incidence and lesion diameter caused by Colletotrichum gloeosporioides in fruit treated with marine bacteria, ulvan, and synthetic fungicide. Data are presented as a mean ± SD (n = 10). The columns with different letters were significantly different according to Tukey’s test (p < 0.05).
Antioxidants 08 00580 g003
Antioxidants 08 00580 g004 550

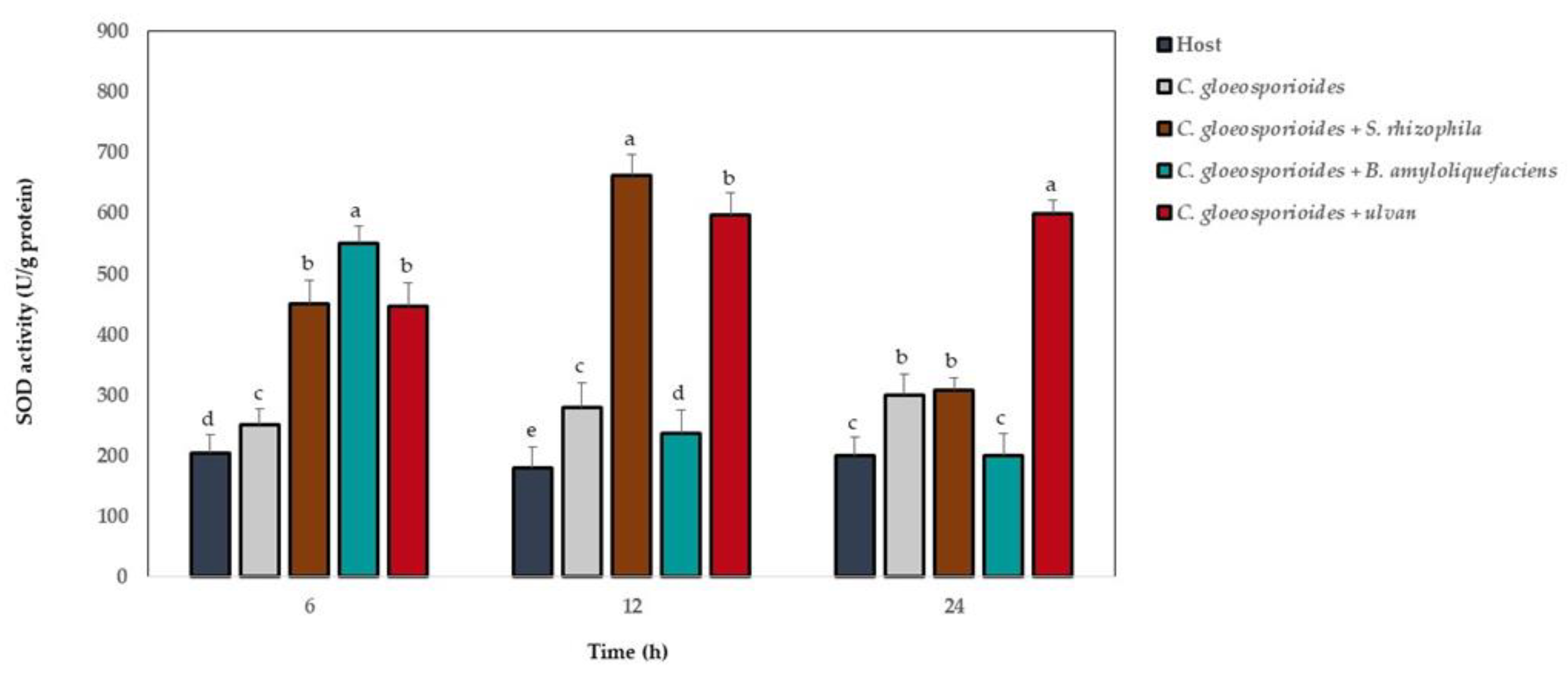

Figure 4. Superoxide dismutase (SOD) activity in papaya fruit inoculated with Colletotrichum gloeosporioides, marine bacteria, and ulvan. Data are presented as a mean ± SD (n = 10). The columns with different letters were significantly different according to Tukey’s (p < 0.05).
Figure 4. Superoxide dismutase (SOD) activity in papaya fruit inoculated with Colletotrichum gloeosporioides, marine bacteria, and ulvan. Data are presented as a mean ± SD (n = 10). The columns with different letters were significantly different according to Tukey’s (p < 0.05).
Antioxidants 08 00580 g004
Antioxidants 08 00580 g005 550

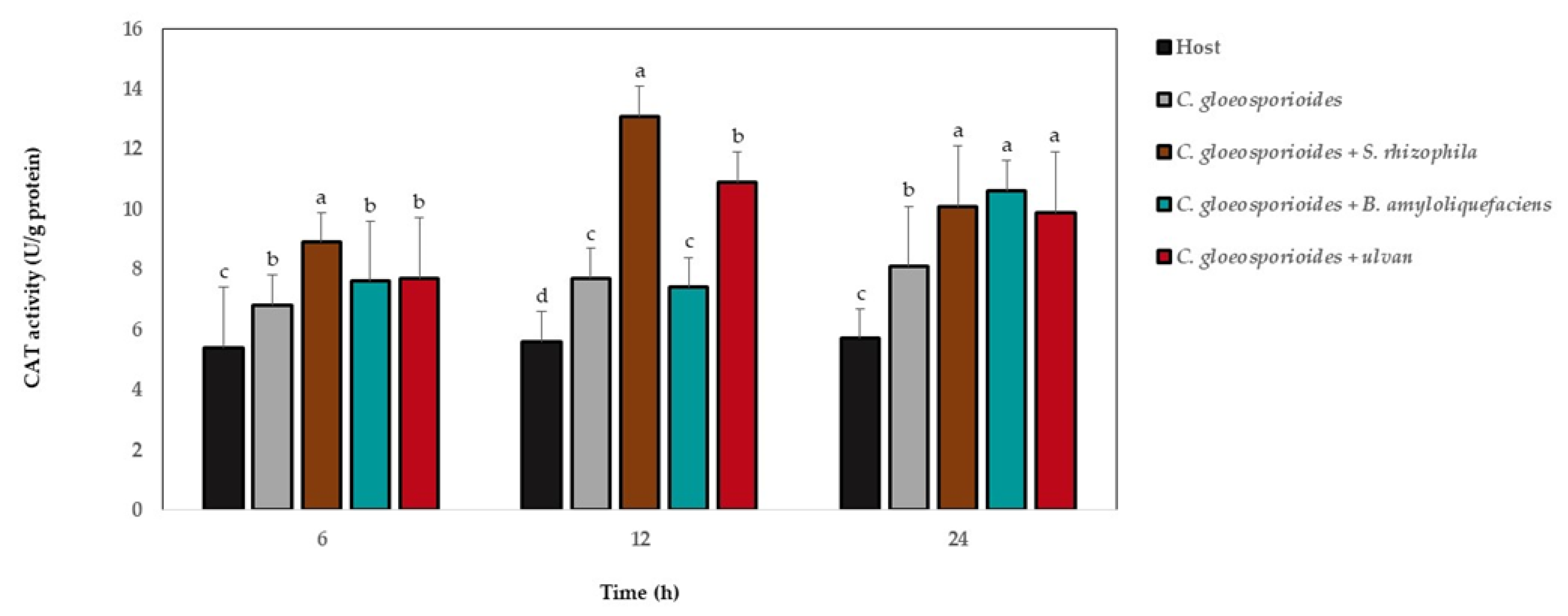

Figure 5. Catalase (CAT) activity in papaya fruit inoculated with Colletotrichum gloeosporioides, marine bacteria, and ulvan. Data are presented as a mean ± SD (n = 10). Columns with different letters were significantly different according to Tukey’s test (p < 0.05).
Figure 5. Catalase (CAT) activity in papaya fruit inoculated with Colletotrichum gloeosporioides, marine bacteria, and ulvan. Data are presented as a mean ± SD (n = 10). Columns with different letters were significantly different according to Tukey’s test (p < 0.05).
Antioxidants 08 00580 g005
Antioxidants 08 00580 g006 550
Figure 6. Peroxidase (POD) activity in papaya fruit inoculated with Colletotrichum gloeosporioides, marine bacteria, and ulvan. Data are presented as a mean ± SD (n = 10). Columns with different letters were significantly different according to Tukey’s test (p < 0.05).
Figure 6. Peroxidase (POD) activity in papaya fruit inoculated with Colletotrichum gloeosporioides, marine bacteria, and ulvan. Data are presented as a mean ± SD (n = 10). Columns with different letters were significantly different according to Tukey’s test (p < 0.05).
Antioxidants 08 00580 g006

Share and Cite

MDPI and ACS Style

Chiquito-Contreras, R.G.; Murillo-Amador, B.; Carmona-Hernandez, S.; Chiquito-Contreras, C.J.; Hernandez-Montiel, L.G. Effect of Marine Bacteria and Ulvan on the Activity of Antioxidant Defense Enzymes and the Bio-Protection of Papaya Fruit against Colletotrichum gloeosporioides. Antioxidants 2019, 8, 580. https://doi.org/10.3390/antiox8120580

AMA Style

Chiquito-Contreras RG, Murillo-Amador B, Carmona-Hernandez S, Chiquito-Contreras CJ, Hernandez-Montiel LG. Effect of Marine Bacteria and Ulvan on the Activity of Antioxidant Defense Enzymes and the Bio-Protection of Papaya Fruit against Colletotrichum gloeosporioides. Antioxidants. 2019; 8(12):580. https://doi.org/10.3390/antiox8120580

Chicago/Turabian Style

Chiquito-Contreras, Roberto G., Bernardo Murillo-Amador, Saul Carmona-Hernandez, Cesar J. Chiquito-Contreras, and Luis G. Hernandez-Montiel. 2019. "Effect of Marine Bacteria and Ulvan on the Activity of Antioxidant Defense Enzymes and the Bio-Protection of Papaya Fruit against Colletotrichum gloeosporioides" Antioxidants 8, no. 12: 580. https://doi.org/10.3390/antiox8120580

APA Style

Chiquito-Contreras, R. G., Murillo-Amador, B., Carmona-Hernandez, S., Chiquito-Contreras, C. J., & Hernandez-Montiel, L. G. (2019). Effect of Marine Bacteria and Ulvan on the Activity of Antioxidant Defense Enzymes and the Bio-Protection of Papaya Fruit against Colletotrichum gloeosporioides. Antioxidants, 8(12), 580. https://doi.org/10.3390/antiox8120580

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
