Article

Mitochondria-Targeted Antioxidants MitoQ and MitoTEMPO Do Not Influence BRAF-Driven Malignant Melanoma and KRAS-Driven Lung Cancer Progression in Mice

by
Kristell Le Gal
1,2,†,
Clotilde Wiel
1,3,†,
Mohamed X. Ibrahim
3,
Marcus Henricsson
4,
Volkan I. Sayin
1,2 and
Martin O. Bergo
3,*
1
Sahlgrenska Center for Cancer Research, Department of Surgery, Institute of Clinical Sciences, University of Gothenburg, 405 30 Gothenburg, Sweden
2
Wallenberg Centre for Molecular and Translational Medicine, University of Gothenburg, 405 30 Gothenburg, Sweden
3
Department of Biosciences and Nutrition, Karolinska Institutet, 123 43 Huddinge, Sweden
4
Wallenberg laboratory, Institute of Medicine, University of Gothenburg, 405 30 Gothenburg, Sweden
*
Author to whom correspondence should be addressed.
†
K.L.G. and C.W. contributed equally.
Antioxidants 2021, 10(2), 163; https://doi.org/10.3390/antiox10020163
Submission received: 16 December 2020 / Revised: 19 January 2021 / Accepted: 20 January 2021 / Published: 22 January 2021
(This article belongs to the Special Issue Cellular Redox Homeostasis)
Browse Figures
Versions Notes

Abstract

:
Cancer cells produce high levels of mitochondria-associated reactive oxygen species (ROS) that can damage macromolecules, but also promote cell signaling and proliferation. Therefore, mitochondria-targeted antioxidants have been suggested to be useful in anti-cancer therapy, but no studies have convincingly addressed this question. Here, we administered the mitochondria-targeted antioxidants MitoQ and MitoTEMPO to mice with BRAF-induced malignant melanoma and KRAS-induced lung cancer, and found that these compounds had no impact on the number of primary tumors and metastases; and did not influence mitochondrial and nuclear DNA damage levels. Moreover, MitoQ and MitoTEMPO did not influence proliferation of human melanoma and lung cancer cell lines. MitoQ and its control substance dTPP, but not MitoTEMPO, increased glycolytic rates and reduced respiration in melanoma cells; whereas only dTPP produced this effect in lung cancer cells. Our results do not support the use of mitochondria-targeted antioxidants for anti-cancer monotherapy, at least not in malignant melanoma and lung cancer.

1. Introduction

Reactive oxygen species (ROS) damage cellular structures and cause oxidative stress, but they also function as signaling molecules that regulate biological and pathological processes [1]. Mitochondria produce a substantial portion of cellular ROS, in particular superoxide (O2●), as a byproduct of oxidative phosphorylation in complexes I, II, and III of the electron transport chain (ETC) [2]. O2● is rapidly converted to hydrogen peroxide (H2O2) by the enzymatic activity of superoxide dismutases (SODs) located in the mitochondrial matrix [3]. The mitochondria-associated H2O2 can in turn stimulate intracellular signaling pathways by reversibly oxidizing cysteine residues in key proteins [4,5].
Cancer cells produce high levels of mitochondria-associated H2O2 that can promote growth and proliferation [6,7]. Indeed, oxidation-induced inactivation of the tumor suppressor protein PTEN increases PI3K signaling and stimulates cell growth and proliferation [8]. Mitochondrial superoxide production can also drive metastasis by activating SRC/PYK2 signaling [9]. Moreover, mutations in genes involved in the ETC, which result in increased production of mitochondrial ROS, have been found in several forms of cancer [10,11].
Consequently, it has been hypothesized that tumor cells can use increased mitochondrial ROS production to their advantage [12]. This idea prompted the development of mitochondria-targeted antioxidants, some of which have produced promising results [9,13,14,15]. However, few studies have addressed the impact of these antioxidants on tumor growth in vivo; to our knowledge, no studies have evaluated their impact on tumor progression in endogenous mouse models of cancer, where physiologic levels of oncogenes initiate tumors in mice with an intact immune system.
In the current study, we administered two well-studied mitochondria-targeted antioxidants, MitoQ and MitoTEMPO, to mice with BRAF-induced malignant melanoma and KRAS-induced lung cancer, and defined their impact on tumor progression and metastasis.

2. Materials and Methods

2.1. Mice and In Vivo Experiments

For the melanoma model, two-day-old BrafCA/+Ptenfl/fl Tyr-Cre+/0 mice (designated BPT) were painted with 4-hydroxytamoxifen (H6278, Sigma-Aldrich, Darmstadt, Germany) on the right flank skin to activate BRAF600E expression and inactivate PTEN expression in melanocytes, as described [16]. At 3 weeks of age, small nevi were visible on the skin, and littermate mice were randomized to cages with regular drinking water (Ctrl), water supplemented with MitoQ (500 µM), or water supplemented with the control compound decyl-triphenylphosphonium (dTPP, 500 µM) (MitoQ and dTPP were generously provided by Dr. M. Murphy). MitoTEMPO (SML0737, Sigma-Aldrich, Darmstadt, Germany; 1.25 mg/kg body weight in 200 µL PBS) was injected intraperitoneally every two days; control mice were injected with 200 µL PBS. Mice were killed when they became listless because of primary tumor burden, lost 10% of their weight, or when primary tumors ulcerated. BPT mice at autopsy exhibit primary tumors and distinct black lymph node metastases [16]. For the lung cancer model, six- to eight-week-old Kras2LSL/+ mice inhaled a Cre-adenovirus (5 × 107 plaque-forming units (pfu)) under general anesthesia, as described [17]. One week later, mice were randomized to receive MitoQ- or dTPP-containing water, or regular water; or injected with MitoTEMPO or PBS as outlined above. Mice with lung cancer were killed 10 weeks following Cre-adenovirus inhalation. MitoQ and dTPP administration did not influence body weight and water intake; neither did PBS and MitoTEMPO injections. Mice were on a C57BL/6 genetic background. Mouse experiments were approved by the Research Animal Ethics Committee in Gothenburg (#51-2015 and #52-2015).

2.2. Histology

For routine histology, primary tumors and lymph node metastases from BPT mice were fixed in paraformaldehyde and embedded in paraffin, and 5-µm sections were stained with hematoxylin and eosin. For lung histology, 4-µm sections of paraformaldehyde inflation– fixed and paraffin-embedded lungs were stained with hematoxylin and eosin. Immunohistochemical analyses were performed as described [16,17]. The sections were incubated with antibodies recognizing Ki67 (RTU (ready-to-use), RM-9106-R7, Thermo Scientific), γ-H2AX (1:1000, ab11174, Abcam, Cambridge, UK), and 8-hydroxyguanosine (1:1000, 48508, Abcam, Cambridge, UK), and then processed with the Vectastain Elite ABC Kit (PK6101) and the DAB Peroxidase Substrate Kit (SK4100, Vector Laboratories). Histological slides were scanned with a MIRAX SCAN microscope and processed with the MIRAX Control software (Zeiss). The scans were quantified with Visiopharm software (Visiopharm Integrator System version 2017.2.5.3857).

2.3. Mass Spectrometry

Liver and lung samples were dissected, weighed, snap-frozen, and stored at −80 °C. The content of MitoQ in the tissues was then quantified by liquid chromatography–tandem mass spectrometry (LC/MS/MS) as described [18].

2.4. Mitochondrial DNA Damage

Mitochondrial DNA damage was assessed by PCR as described [19]; with minor modifications. Genomic DNA, total RNA, and protein were extracted from tissues preserved with AllProtect Tissue Reagent (76405, Qiagen, Hilden, Germany) using the AllPrep DNA/RNA/protein mini kit (80004, Qiagen, Hilden, Germany) in a QiaCube machine. Up to 30 mg of tissue pieces from primary tumors and lymph node metastases were lysed in RLT buffer in a TissueLyser II (2 × 2-min rounds at 20 Hz). The lysate was centrifuged, and the supernatant transferred into a new 2-mL tube before further processing in the QiaCube. The resulting DNA solution was further cleaned with the Genomic DNA Clean & Concentrator (D4064, Zymo Research, Irvine, CA, USA), and the purity and concentration were assessed by Nanodrop analyses. The DNA was diluted to a concentration of 3 ng/µL, and 5 µL were used per amplification reaction along with 400 nM primer mix and 45 µL Platinum PCR SuperMix, High Fidelity (12532016, Thermo Fisher, Waltham, MA, USA) in a final volume of 54 μL. Duplicates were run for each sample tested along with non-template control samples. The concentrations of amplicons were quantified with Quant-iT PicoGreen dsDNA Assay Kit (P11496, Thermo Fisher, Waltham, MA, USA).

2.5. Cell Culture and Proliferation

Human malignant melanoma cell lines (A375 from the American Type Culture Collection; IPC-298 from the German Collection of Microorganisms and Cell Culture) were cultured in DMEM GlutaMAX High Glucose (4.5 g/L, 10569-010) supplemented with 10% fetal bovine serum (10270-106) and 1% penicillin/streptomycin (15070-063). Human lung cancer cell lines A549 and H838 were from the American Type Culture Collection and were cultured in DMEM GlutaMAX Low Glucose (1 g/L, 21885-108) supplemented with 10% fetal bovine serum (10270-106) and 1% penicillin/streptomycin (15070-063, Thermo Fisher, Waltham, MA, USA).
Antioxidant doses were selected based on results from viability assays, which were carried out by seeding 2 × 104 cells per well on 96-well plates. MitoQ, dTPP, and MitoTEMPO (SML0737, Sigma-Aldrich, Darmstadt, Germany) were added at 25, 50, 100, 250, 500, and 1000 nM. Viability was determined 6, 24, and 48 h later using PrestoBlue (A13262, Thermo Fisher, Waltham, MA, USA). The highest concentration that did not affect the viability of untransformed control cells (melanocytes and fibroblasts) was selected for subsequent experiments; this concentration was 100 nM. Real-time analysis of proliferation was assessed by seeding 104 cells per well in 96-well plates in 8 technical replicates each for control medium and medium supplemented with MitoQ, dTPP, or MitoTEMPO. Photomicrographs were taken every 2 h using an IncuCyte Zoom live cell imaging system (Essen Biosciences, Ann Arbor, MI, USA), and cell confluence was measured using the IncuCyte software (Essen Biosciences, Ann Arbor, MI, USA) over 72 h.

2.6. Metabolic Flux Analysis

The oxygen consumption rate (OCR) and extra-cellular acidification rate (ECAR) were measured in adherent cells with a XF96 Extracellular Flux Analyzer (Seahorse Bioscience, Agilent, Billerica, MA, USA) using the Seahorse XFCell MitoStress Kit (103015100, Seahorse Agilent, Billerica, MA, USA). Cells were seeded (6–8 replicates) in XF 96-well cell culture microplates (Seahorse Bioscience, Billerica, MA, USA) at a density of 2 × 104 cells/well in 200 μL of DMEM and incubated with MitoQ, dTPP, or MitoTEMPO for 16 h. The medium was replaced with 180 μL 37 °C pre-warmed bicarbonate-free Seahorse XF Base Medium (102353-100, Seahorse Agilent) supplemented with Glucose (5 or 10 mM for lung cancer and melanoma cells, respectively), 1 mM Glutamine, and 1 mM pyruvate. The cells were then incubated for 45 min before starting the assay procedure. After baseline measurements of OCR and ECAR, OCR was again measured after sequentially adding to each well oligomycin and carbonyl cyanide 4-(trifluoromethoxy) phenylhydrazone (FCCP), to reach concentrations of 1 μM. Rotenone/Antimycin A was added to reach a concentration of 0.5 µM. Data were normalized to numbers of viable cells obtained from additional wells using Presto Blue Cell viability. Basal respiration, proton leak, maximal respiration, and spare respiratory capacity were calculated using the MitoStress Test Report Generator.

2.7. Statistics

Values are presented as means ± standard error of the mean. GraphPad Prism software (versions 7.02 and 8.1, α < 0.05; San Diego, CA, USA) was used for statistical analyses. One-way ANOVA was used for in vivo analyses. For in vitro studies, one-way ANOVA was used except for cell proliferation, where two-way ANOVA was applied.

3. Results

To define effects of mitochondria-targeted antioxidants on the progression of malignant melanoma, we first used MitoQ, a MitoQuinone conjugated with the lipophilic triphenylphosphonium (TPP) cation that stimulates its accumulation in the inner mitochondrial membrane [20]. We administered MitoQ and its control compound decyl-TPP (dTPP) in the drinking water of 3-week-old BrafCA/+Ptenfl/flTyr-Cre0/+ mice (designated BPT mice) [16] with early stages of malignant melanoma (they had been painted with tamoxifen on the flank skin 2–3 days after birth to activate BRAFV600E expression and inactivate Pten in melanocytes). The dose and administration route of MitoQ—500 µM in the drinking water—was shown previously to protect against oxidative stress in mice [21,22,23,24,25,26,27] without causing toxicity [18] (Figure 1A,B). MitoQ administration had no significant impact on the number of primary tumors and lymph node metastases in BPT mice (Figure 1C,D); and no impact on survival, body weight, lymph metastasis size, and liver and spleen weights (Figure S1A–D). To determine whether MitoQ exerted a protective effect in the mitochondria, we analyzed mitochondrial DNA (mtDNA) damage from primary tumor and lymph node metastasis lysates by PCR. The levels of mtDNA damage in the three groups were similar (Figure 1E,F). Moreover, nuclear DNA damage, as judged by γH2AX and 8-hydroxyguanosine staining, remained unchanged with MitoQ administration (Figure 1G–J).
The outcome of the MitoQ melanoma experiments (Figure 1) prompted us to test the effects of MitoTEMPO, a mitochondrial superoxide scavenger, on malignant melanoma progression (Figure 2A,B). Similar to the MitoQ experiments, the dose chosen for the MitoTEMPO experiments was previously reported to protect against oxidative damage without causing toxicity [9,14]. The number of primary tumors and metastases in untreated mice and in mice injected with MitoTEMPO or vehicle did not differ (Figure 2C,D); and the drug did not influence body weight, lymph metastasis size, or liver and spleen weights (Figure S1E–H). Moreover, MitoTEMPO did not influence the levels of mitochondrial and nuclear DNA damage in primary tumors and metastases (Figure 2E–J).
To investigate the effects of mitochondria-targeted antioxidants on the progression of a different cancer form, we administered MitoQ, dTPP, or no drug, to Kras2LSL/+ mice one week following activation of KRASG12D expression in the lungs through intranasal inhalation of Cre-adenovirus [28] (Figure 3A). Lung tumor burden was similar in MitoQ-treated and untreated mice (Figure 3B,C); oddly however, the mean lung tumor burden was significantly higher in dTPP-treated than untreated mice, and tended to be higher than in MitoQ-treated mice (Figure 3B,C). Nevertheless, the proliferative index in tumors from the three groups of mice did not differ, as judged by Ki67 immunostaining (Figure 3D). MitoQ was detected in lung and liver tissue, as judged by mass spectrometry (Figure 3E). Similar to the results of the MitoQ experiments, MitoTEMPO administration did not significantly affect lung tumor burden (Figure 3F,G).
We next defined effects of MitoQ and MitoTEMPO on cultured human melanoma and lung cancer cells. The mitochondria-targeted antioxidants did not affect proliferation of the cancer cells; but the control compound dTPP reduced proliferation, particularly in lung cancer cells (Figure 4A,B). To determine whether the mitochondria-targeted antioxidants influence the mitochondrial electron transport chain, we measured the oxygen consumption rate (OCR) and the extracellular acidification rate (ECAR). Both dTPP and MitoQ reduced the basal respiration in melanoma cells, and increased the ECAR, when compared to untreated cells (Figure 4C); MitoTEMPO also increased the ECAR, but did not influence the mitochondrial respiration (Figure 4C). In lung cancer cells, dTPP produced similar effects as in melanoma cells, but MitoQ and MitoTEMPO had little or no discernible effects (Figure 4D). Thus, we find no reproducible effects of MitoQ and MitoTEMPO on cancer cell proliferation and metabolism.

4. Discussion

In this study, we found that MitoQ and MitoTEMPO administration had no impact on the number of primary tumors and lymph metastases in mice with BRAF-induced malignant melanoma and no impact on tumor burden in mice with KRAS-induced lung cancer. These results question the rationale of using these mitochondria-targeted antioxidants in anti-cancer therapy.
Even though MitoQ and MitoTEMPO had no impact on malignant melanoma, they actually tended to increase tumor burden compared with untreated mice with KRAS-induced lung cancer. Although this effect was not statistically significant, it is reminiscent of effects of the common antioxidants N-acetylcysteine and Vitamin E, which markedly increased lung cancer progression and metastasis in the same model [17,29]. However, the most marked effect was a statistically significant increase in lung tumor burden in dTPP-treated mice. There is no obvious explanation for this unexpected result, but it demonstrates the importance of using untreated controls in drug experiments; indeed, without the untreated controls, MitoQ would have seemed to reduce lung tumor burden by 50% compared with dTPP treatment.
The mitochondria-targeted antioxidants MitoQ and MitoTEMPO have been successfully used to improve some disease phenotypes of cardiovascular disease [21,27,30,31,32], inflammation [22,23], neurodegenerative disorders [33,34,35,36,37], and diabetes [38,39]. Thus, testing these compounds in other ROS-related disorders such as cancer is highly relevant, particularly as mitochondria-associated ROS are known to stimulate cell proliferation and tumor progression. Indeed, mitochondria-associated ROS can move into the cytosol and subsequently into the extracellular environment, where they can trigger different signaling cascades and pathways [1,3]. Moreover, mitochondrial ROS can target and mutate mitochondrial DNA and thereby contribute to carcinogenesis [10,40]. However, several reports show conflicting results on the efficiency of MitoQ and MitoTEMPO to limit tumor growth and metastasis [9,14,26,41]. Importantly, none of those studies used endogenous mouse models of cancer; and they used either orthotopic injections of melanoma cells [9,14] or chemically-induced hepatocarcinogenesis [26,41].
In our experiments, we used previously established treatment regimens of MitoQ and MitoTEMPO that were proven to suppress oxidative stress in several animal studies [21,22,23,24,25,26,27]. Although we cannot rule out the possibility that using higher doses could produce measurable effects on tumor progression, we were reluctant to use higher doses since this strategy would increase the risk of adverse general effects, as judged by the earlier studies. Moreover, the current doses tended to increase tumor growth, which also makes it unlikely that a higher dose would produce opposite effects that were significant. In line with a previous report [18], mass spectrometry analysis of tissue lysates confirmed the bioavailability of MitoQ, showing that the drug reached the tissue of interest. However, mitochondrial DNA damage remained unchanged across treatments and tissues, suggesting that mitochondria-targeted antioxidants had no protective effect on mitochondrial DNA damage in our studies. Moreover, we observed no differences in ROS-specific and nonspecific DNA damage, as judged by 8-hydroxyguanine and γ-H2AX staining (although these markers might not be able to detect local reduction of ROS and direct DNA damage in the mitochondria). Indeed, the availability of reliable tools to measure endogenous ROS with the sufficient spatial resolution in vivo is still one of the major limitations when studying redox in the biomedical field, although some progress has been recently made [42,43]. Of note, several studies indicate that mitochondria-targeted antioxidants reduce mitochondrial ROS and improve overall mitochondrial fitness [21,22,23,24,25,26,27], whereas others conclude that these compounds could act as pro-oxidants [44,45].
Using the highest dose that did not reduce viability of untransformed cells (fibroblasts, melanocytes), we found that MitoQ and MitoTEMPO did not influence proliferation of human malignant melanoma and lung cancer cells. Importantly, MitoQ increased the ECAR in all human cancer cell lines and markedly reduced the basal mitochondrial respiration in melanoma cells, suggesting that the drug can alter the metabolism of cancer cells. The effect can likely not be attributed to the antioxidant properties of MitoQ since similar results were observed with dTPP. One potential explanation is that accumulation of the cation moiety, which is common to both compounds, in the mitochondrial membrane contributed to the metabolic change. Interestingly, a glycolytic switch has been reported in other studies, where it was also proposed that this family of compounds could create a therapeutic vulnerability to glycolysis inhibitors [13]. The reduced mitochondrial respiration observed with MitoQ has also been linked to protection against ferroptosis [46]; however, that particular study did not use dTPP as control, making it unclear whether the protective effect is due to the quinone or the long alkyl chain. Indeed, several studies also reported deleterious effects of the triphenylphosphonium moiety itself on mitochondrial fitness including autophagy induction, disruption of the ETC, and mitochondrial depolarization [47,48,49,50]. In line with these observations, MitoTEMPO, which does not share the same molecular structure and lacks the long alkyl chain, did not induce metabolic changes.
Overall, our study suggests that the mitochondria-targeted antioxidants MitoQ and MitoTEMPO have little effect as monotherapy agents against malignant melanoma and lung cancer. However, we cannot rule out the possibility that alternative strategies to target mitochondrial ROS might be useful in the clinic, since mitochondria are a major source of cellular ROS [2]. Indeed, given the difficulties linked to the delivery of mitochondria-targeted compounds, there is an increasing need for the generation of endogenous mouse models that can help elucidate the importance of mitochondria-associated ROS in disease [51,52]. Moreover, since we did not observe any effects of these compounds on the tumors and metastases themselves, one possibility would be to explore whether mitochondria-targeted antioxidants instead exert a cytoprotective effect on normal tissues and alleviate off-target effects of standard-of-care treatments [53]. Some studies have also shown advantageous effects when similar antioxidant compounds have been combined with metabolic inhibitors [13], which opens up a possibility for the identification of new metabolic vulnerabilities and potential therapies. Altogether, further studies are needed to clarify the role of mitochondrial redox balance in cancer [54].
In conclusion, although the mitochondria-targeted antioxidants MitoQ and MitoTEMPO have shown promising and exciting results in other pathologies, they do not hinder malignant melanoma and lung cancer progression as monotherapy in our models. Based on these and previous findings [16,17,29,55,56], we warrant caution in the use of antioxidant compounds in cancer.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-3921/10/2/163/s1, Figure S1. The mitochondria-targeted antioxidants MitoQ and mitoTEMPO do not affect overall health parameters in a mouse model of malignant melanoma.

Author Contributions

Conceptualization, K.L.G., C.W., V.I.S., and M.O.B.; methodology, K.L.G., C.W., and V.I.S.; formal analysis, K.L.G. and C.W.; investigation, K.L.G., C.W., M.X.I., M.H.; writing—original draft preparation, K.L.G. and C.W.; writing—review and editing, K.L.G., C.W., V.I.S., and M.O.B.; visualization, C.W. and K.L.G.; supervision, C.W., K.L.G., V.I.S., and M.O.B.; funding acquisition, V.I.S. and M.O.B. All authors have read and agreed to the published version of the manuscript.

Funding

The study was supported by grants from the Knut and Alice Wallenberg Foundation, the Sjöberg Foundation, StratCan, Center for Innovative Medicine, the Swedish Cancer Society, Medical Research Council, and Children’s Cancer Fund (to M.O.B.); The Swedish Society for Medical Research, the Swedish Cancer Society, Medical Research Council, AG Fond, the Knut and Alice Wallenberg Foundation and Wallenberg Centre for Molecular and Translational Medicine (to V.I.S.); and the Alex and Eva Wallström Foundation (to C.W.). C.W. holds a Marie Slowdoska-Curie Individual Fellowship and a Swedish Cancer Society Fellowship. K.L.G. holds a Swedish Cancer Society Fellowship.

Institutional Review Board Statement

All animal procedures used in this study were approved by The Animal Research Ethics Committee in Gothenburg (Ethics numbers 51-2015 and 52-2015 approved 21st of April 2015) and The Animal Research Ethics Committee in Linköping (Ethics number 1279-2018 approved 13th of July 2018).

Informed Consent Statement

Not Applicable.

Data Availability Statement

Data available on request.

Acknowledgments

We thank O. Persson for help with mouse experiments, M. Murphy for providing MitoQ and helpful advice, and HistoCenter and the Feno Core facility at the department of Laboratory Medicine for histology.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Holmstrom, K.M.; Finkel, T. Cellular mechanisms and physiological consequences of redox-dependent signalling. Nat. Rev. Mol. Cell Biol. 2014, 15, 411–421. [Google Scholar] [CrossRef]
  2. Murphy, M.P. How mitochondria produce reactive oxygen species. Biochem. J. 2009, 417, 1–13. [Google Scholar] [CrossRef] [Green Version]
  3. Fridovich, I. Superoxide anion radical (O2−●), superoxide dismutases, and related matters. J. Biol. Chem. 1997, 272, 18515–18517. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. D’Autreaux, B.; Toledano, M.B. ROS as signalling molecules: Mechanisms that generate specificity in ROS homeostasis. Nat. Rev. Mol. Cell Biol. 2007, 8, 813–824. [Google Scholar] [CrossRef] [PubMed]
  5. Finkel, T. Signal transduction by reactive oxygen species. J. Cell Biol. 2011, 194, 7–15. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Schafer, Z.T.; Grassian, A.R.; Song, L.; Jiang, Z.; Gerhart-Hines, Z.; Irie, H.Y.; Gao, S.; Puigserver, P.; Brugge, J.S. Antioxidant and oncogene rescue of metabolic defects caused by loss of matrix attachment. Nature 2009, 461, 109–113. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Szatrowski, T.P.; Nathan, C.F. Production of large amounts of hydrogen peroxide by human tumor cells. Cancer Res. 1991, 51, 794–798. [Google Scholar]
  8. Lee, S.R.; Yang, K.S.; Kwon, J.; Lee, C.; Jeong, W.; Rhee, S.G. Reversible inactivation of the tumor suppressor PTEN by H2O2. J. Biol. Chem. 2002, 277, 20336–20342. [Google Scholar] [CrossRef] [Green Version]
  9. Porporato, P.E.; Payen, V.L.; Perez-Escuredo, J.; De Saedeleer, C.J.; Danhier, P.; Copetti, T.; Dhup, S.; Tardy, M.; Vazeille, T.; Bouzin, C.; et al. A mitochondrial switch promotes tumor metastasis. Cell Rep. 2014, 8, 754–766. [Google Scholar] [CrossRef] [Green Version]
  10. Chatterjee, A.; Mambo, E.; Sidransky, D. Mitochondrial DNA mutations in human cancer. Oncogene 2006, 25, 4663–4674. [Google Scholar] [CrossRef] [Green Version]
  11. Ishikawa, K.; Takenaga, K.; Akimoto, M.; Koshikawa, N.; Yamaguchi, A.; Imanishi, H.; Nakada, K.; Honma, Y.; Hayashi, J. ROS-generating mitochondrial DNA mutations can regulate tumor cell metastasis. Science 2008, 320, 661–664. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Chandel, N.S.; Tuveson, D.A. The promise and perils of antioxidants for cancer patients. N. Engl. J. Med. 2014, 371, 177–178. [Google Scholar] [CrossRef] [PubMed]
  13. Dilip, A.; Cheng, G.; Joseph, J.; Kunnimalaiyaan, S.; Kalyanaraman, B.; Kunnimalaiyaan, M.; Gamblin, T.C. Mitochondria-targeted antioxidant and glycolysis inhibition: Synergistic therapy in hepatocellular carcinoma. Anticancer Drugs 2013, 24, 881–888. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Nazarewicz, R.R.; Dikalova, A.; Bikineyeva, A.; Ivanov, S.; Kirilyuk, I.A.; Grigor’ev, I.A.; Dikalov, S.I. Does scavenging of mitochondrial superoxide attenuate cancer prosurvival signaling pathways? Antioxid. Redox Signal. 2013, 19, 344–349. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Weinberg, F.; Hamanaka, R.; Wheaton, W.W.; Weinberg, S.; Joseph, J.; Lopez, M.; Kalyanaraman, B.; Mutlu, G.M.; Budinger, G.R.; Chandel, N.S. Mitochondrial metabolism and ROS generation are essential for Kras-mediated tumorigenicity. Proc. Natl. Acad. Sci. USA 2010, 107, 8788–8793. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Le Gal, K.; Ibrahim, M.X.; Wiel, C.; Sayin, V.I.; Akula, M.K.; Karlsson, C.; Dalin, M.G.; Akyurek, L.M.; Lindahl, P.; Nilsson, J.; et al. Antioxidants can increase melanoma metastasis in mice. Sci. Transl. Med. 2015, 7, 308re8. [Google Scholar] [CrossRef]
  17. Sayin, V.I.; Ibrahim, M.X.; Larsson, E.; Nilsson, J.A.; Lindahl, P.; Bergo, M.O. Antioxidants accelerate lung cancer progression in mice. Sci. Transl. Med. 2014, 6, 221ra15. [Google Scholar] [CrossRef]
  18. Rodriguez-Cuenca, S.; Cocheme, H.M.; Logan, A.; Abakumova, I.; Prime, T.A.; Rose, C.; Vidal-Puig, A.; Smith, A.C.; Rubinsztein, D.C.; Fearnley, I.M.; et al. Consequences of long-term oral administration of the mitochondria-targeted antioxidant MitoQ to wild-type mice. Free Radic. Biol. Med. 2010, 48, 161–172. [Google Scholar] [CrossRef]
  19. Santos, J.H.; Meyer, J.N.; Mandavilli, B.S.; Van Houten, B. Quantitative PCR-based measurement of nuclear and mitochondrial DNA damage and repair in mammalian cells. Methods Mol. Biol. 2006, 314, 183–199. [Google Scholar] [CrossRef] [Green Version]
  20. Murphy, M.P.; Smith, R.A. Targeting antioxidants to mitochondria by conjugation to lipophilic cations. Annu. Rev. Pharmacol. Toxicol. 2007, 47, 629–656. [Google Scholar] [CrossRef]
  21. Adlam, V.J.; Harrison, J.C.; Porteous, C.M.; James, A.M.; Smith, R.A.; Murphy, M.P.; Sammut, I.A. Targeting an antioxidant to mitochondria decreases cardiac ischemia-reperfusion injury. FASEB J. 2005, 19, 1088–1095. [Google Scholar] [CrossRef] [PubMed]
  22. Dashdorj, A.; Jyothi, K.R.; Lim, S.; Jo, A.; Nguyen, M.N.; Ha, J.; Yoon, K.S.; Kim, H.J.; Park, J.H.; Murphy, M.P.; et al. Mitochondria-targeted antioxidant MitoQ ameliorates experimental mouse colitis by suppressing NLRP3 inflammasome-mediated inflammatory cytokines. BMC Med. 2013, 11, 178. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Formentini, L.; Santacatterina, F.; Nunez de Arenas, C.; Stamatakis, K.; Lopez-Martinez, D.; Logan, A.; Fresno, M.; Smits, R.; Murphy, M.P.; Cuezva, J.M. Mitochondrial ROS Production Protects the Intestine from Inflammation through Functional M2 Macrophage Polarization. Cell Rep. 2017, 19, 1202–1213. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Liu, Y.; Wang, Y.; Ding, W.; Wang, Y. Mito-TEMPO Alleviates Renal Fibrosis by Reducing Inflammation, Mitochondrial Dysfunction, and Endoplasmic Reticulum Stress. Oxid. Med. Cell Longev. 2018, 2018, 5828120. [Google Scholar] [CrossRef] [Green Version]
  25. Santini, E.; Turner, K.L.; Ramaraj, A.B.; Murphy, M.P.; Klann, E.; Kaphzan, H. Mitochondrial Superoxide Contributes to Hippocampal Synaptic Dysfunction and Memory Deficits in Angelman Syndrome Model Mice. J. Neurosci. 2015, 35, 16213–16220. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Shetty, S.; Kumar, R.; Bharati, S. Mito-TEMPO, a mitochondria-targeted antioxidant, prevents N-nitrosodiethylamine-induced hepatocarcinogenesis in mice. Free Radic. Biol. Med. 2019, 136, 76–86. [Google Scholar] [CrossRef]
  27. Supinski, G.S.; Murphy, M.P.; Callahan, L.A. MitoQ administration prevents endotoxin-induced cardiac dysfunction. Am. J. Physiol. Regul. Integr. Comp. Physiol. 2009, 297, R1095–R1102. [Google Scholar] [CrossRef] [Green Version]
  28. DuPage, M.; Dooley, A.L.; Jacks, T. Conditional mouse lung cancer models using adenoviral or lentiviral delivery of Cre recombinase. Nat. Protoc. 2009, 4, 1064–1072. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Wiel, C.; Le Gal, K.; Ibrahim, M.X.; Jahangir, C.A.; Kashif, M.; Yao, H.; Ziegler, D.V.; Xu, X.; Ghosh, T.; Mondal, T.; et al. BACH1 Stabilization by Antioxidants Stimulates Lung Cancer Metastasis. Cell 2019, 178, 330–345 e322. [Google Scholar] [CrossRef] [PubMed]
  30. Chandran, K.; Aggarwal, D.; Migrino, R.Q.; Joseph, J.; McAllister, D.; Konorev, E.A.; Antholine, W.E.; Zielonka, J.; Srinivasan, S.; Avadhani, N.G.; et al. Doxorubicin inactivates myocardial cytochrome c oxidase in rats: Cardioprotection by Mito-Q. Biophys. J. 2009, 96, 1388–1398. [Google Scholar] [CrossRef] [Green Version]
  31. Gioscia-Ryan, R.A.; LaRocca, T.J.; Sindler, A.L.; Zigler, M.C.; Murphy, M.P.; Seals, D.R. Mitochondria-targeted antioxidant (MitoQ) ameliorates age-related arterial endothelial dysfunction in mice. J. Physiol. 2014, 592, 2549–2561. [Google Scholar] [CrossRef] [PubMed]
  32. Graham, D.; Huynh, N.N.; Hamilton, C.A.; Beattie, E.; Smith, R.A.; Cocheme, H.M.; Murphy, M.P.; Dominiczak, A.F. Mitochondria-targeted antioxidant MitoQ10 improves endothelial function and attenuates cardiac hypertrophy. Hypertension 2009, 54, 322–328. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Kullmann, A.F.; Truschel, S.T.; Wolf-Johnston, A.S.; McDonnell, B.M.; Lynn, A.M.; Kanai, A.J.; Kessler, T.M.; Apodaca, G.; Birder, L.A. Acute spinal cord injury is associated with mitochondrial dysfunction in mouse urothelium. Neurourol. Urodyn. 2019, 38, 1551–1559. [Google Scholar] [CrossRef] [PubMed]
  34. Manabe, T.; Matsumura, A.; Yokokawa, K.; Saito, T.; Fujikura, M.; Iwahara, N.; Matsushita, T.; Suzuki, S.; Hisahara, S.; Kawamata, J.; et al. Evaluation of Mitochondrial Oxidative Stress in the Brain of a Transgenic Mouse Model of Alzheimer’s Disease by in vitro Electron Paramagnetic Resonance Spectroscopy. J. Alzheimers Dis. 2019, 67, 1079–1087. [Google Scholar] [CrossRef] [PubMed]
  35. Mao, P.; Manczak, M.; Shirendeb, U.P.; Reddy, P.H. MitoQ, a mitochondria-targeted antioxidant, delays disease progression and alleviates pathogenesis in an experimental autoimmune encephalomyelitis mouse model of multiple sclerosis. Biochim. Biophys. Acta 2013, 1832, 2322–2331. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. McManus, M.J.; Murphy, M.P.; Franklin, J.L. The mitochondria-targeted antioxidant MitoQ prevents loss of spatial memory retention and early neuropathology in a transgenic mouse model of Alzheimer’s disease. J. Neurosci. 2011, 31, 15703–15715. [Google Scholar] [CrossRef] [Green Version]
  37. Xi, Y.; Feng, D.; Tao, K.; Wang, R.; Shi, Y.; Qin, H.; Murphy, M.P.; Yang, Q.; Zhao, G. MitoQ protects dopaminergic neurons in a 6-OHDA induced PD model by enhancing Mfn2-dependent mitochondrial fusion via activation of PGC-1alpha. Biochim. Biophys. Acta Mol. Basis Dis. 2018, 1864, 2859–2870. [Google Scholar] [CrossRef]
  38. Lian, K.; Wang, Q.; Zhao, S.; Yang, M.; Chen, G.; Chen, Y.; Li, C.; Gao, H.; Li, C. Pretreatment of Diabetic Adipose-derived Stem Cells with mitoTEMPO Reverses their Defective Proangiogenic Function in Diabetic Mice with Critical Limb Ischemia. Cell Transpl. 2019, 28, 1652–1663. [Google Scholar] [CrossRef]
  39. Xiao, L.; Xu, X.; Zhang, F.; Wang, M.; Xu, Y.; Tang, D.; Wang, J.; Qin, Y.; Liu, Y.; Tang, C.; et al. The mitochondria-targeted antioxidant MitoQ ameliorated tubular injury mediated by mitophagy in diabetic kidney disease via Nrf2/PINK1. Redox Biol. 2017, 11, 297–311. [Google Scholar] [CrossRef]
  40. Chen, E.I. Mitochondrial dysfunction and cancer metastasis. J. Bioenerg. Biomembr. 2012, 44, 619–622. [Google Scholar] [CrossRef]
  41. Wang, B.; Fu, J.; Yu, T.; Xu, A.; Qin, W.; Yang, Z.; Chen, Y.; Wang, H. Contradictory effects of mitochondria- and non-mitochondria-targeted antioxidants on hepatocarcinogenesis by altering DNA repair in mice. Hepatology 2018, 67, 623–635. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Breckwoldt, M.O.; Pfister, F.M.; Bradley, P.M.; Marinkovic, P.; Williams, P.R.; Brill, M.S.; Plomer, B.; Schmalz, A.; St Clair, D.K.; Naumann, R.; et al. Multiparametric optical analysis of mitochondrial redox signals during neuronal physiology and pathology in vivo. Nat. Med. 2014, 20, 555–560. [Google Scholar] [CrossRef] [PubMed]
  43. Fujikawa, Y.; Roma, L.P.; Sobotta, M.C.; Rose, A.J.; Diaz, M.B.; Locatelli, G.; Breckwoldt, M.O.; Misgeld, T.; Kerschensteiner, M.; Herzig, S.; et al. Mouse redox histology using genetically encoded probes. Sci. Signal. 2016, 9, rs1. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Doughan, A.K.; Dikalov, S.I. Mitochondrial redox cycling of mitoquinone leads to superoxide production and cellular apoptosis. Antioxid. Redox Signal. 2007, 9, 1825–1836. [Google Scholar] [CrossRef]
  45. Pokrzywinski, K.L.; Biel, T.G.; Kryndushkin, D.; Rao, V.A. Therapeutic Targeting of the Mitochondria Initiates Excessive Superoxide Production and Mitochondrial Depolarization Causing Decreased mtDNA Integrity. PLoS ONE 2016, 11, e0168283. [Google Scholar] [CrossRef] [Green Version]
  46. Jelinek, A.; Heyder, L.; Daude, M.; Plessner, M.; Krippner, S.; Grosse, R.; Diederich, W.E.; Culmsee, C. Mitochondrial rescue prevents glutathione peroxidase-dependent ferroptosis. Free Radic. Biol. Med. 2018, 117, 45–57. [Google Scholar] [CrossRef]
  47. Bond, S.T.; Kim, J.; Calkin, A.C.; Drew, B.G. The Antioxidant Moiety of MitoQ Imparts Minimal Metabolic Effects in Adipose Tissue of High Fat Fed Mice. Front. Physiol. 2019, 10, 543. [Google Scholar] [CrossRef]
  48. Gottwald, E.M.; Duss, M.; Bugarski, M.; Haenni, D.; Schuh, C.D.; Landau, E.M.; Hall, A.M. The targeted anti-oxidant MitoQ causes mitochondrial swelling and depolarization in kidney tissue. Physiol. Rep. 2018, 6, e13667. [Google Scholar] [CrossRef]
  49. Leo, S.; Szabadkai, G.; Rizzuto, R. The mitochondrial antioxidants MitoE(2) and MitoQ(10) increase mitochondrial Ca(2+) load upon cell stimulation by inhibiting Ca(2+) efflux from the organelle. Ann. N. Y. Acad. Sci. 2008, 1147, 264–274. [Google Scholar] [CrossRef] [Green Version]
  50. Reily, C.; Mitchell, T.; Chacko, B.K.; Benavides, G.; Murphy, M.P.; Darley-Usmar, V. Mitochondrially targeted compounds and their impact on cellular bioenergetics. Redox Biol. 2013, 1, 86–93. [Google Scholar] [CrossRef] [Green Version]
  51. El-Khoury, R.; Kemppainen, K.K.; Dufour, E.; Szibor, M.; Jacobs, H.T.; Rustin, P. Engineering the alternative oxidase gene to better understand and counteract mitochondrial defects: State of the art and perspectives. Br. J. Pharmacol. 2014, 171, 2243–2249. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Szibor, M.; Dhandapani, P.K.; Dufour, E.; Holmstrom, K.M.; Zhuang, Y.; Salwig, I.; Wittig, I.; Heidler, J.; Gizatullina, Z.; Gainutdinov, T.; et al. Broad AOX expression in a genetically tractable mouse model does not disturb normal physiology. Dis. Models Mech. 2017, 10, 163–171. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Gorini, S.; De Angelis, A.; Berrino, L.; Malara, N.; Rosano, G.; Ferraro, E. Chemotherapeutic Drugs and Mitochondrial Dysfunction: Focus on Doxorubicin, Trastuzumab, and Sunitinib. Oxid. Med. Cell Longev. 2018, 2018, 7582730. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Jezek, J.; Cooper, K.F.; Strich, R. Reactive Oxygen Species and Mitochondrial Dynamics: The Yin and Yang of Mitochondrial Dysfunction and Cancer Progression. Antioxidants 2018, 7, 13. [Google Scholar] [CrossRef] [PubMed]
  55. Piskounova, E.; Agathocleous, M.; Murphy, M.M.; Hu, Z.; Huddlestun, S.E.; Zhao, Z.; Leitch, A.M.; Johnson, T.M.; DeBerardinis, R.J.; Morrison, S.J. Oxidative stress inhibits distant metastasis by human melanoma cells. Nature 2015, 527, 186–191. [Google Scholar] [CrossRef] [Green Version]
  56. Wang, H.; Liu, X.; Long, M.; Huang, Y.; Zhang, L.; Zhang, R.; Zheng, Y.; Liao, X.; Wang, Y.; Liao, Q.; et al. NRF2 activation by antioxidant antidiabetic agents accelerates tumor metastasis. Sci. Transl. Med. 2016, 8, 334ra51. [Google Scholar] [CrossRef] [Green Version]
Antioxidants 10 00163 g001 550

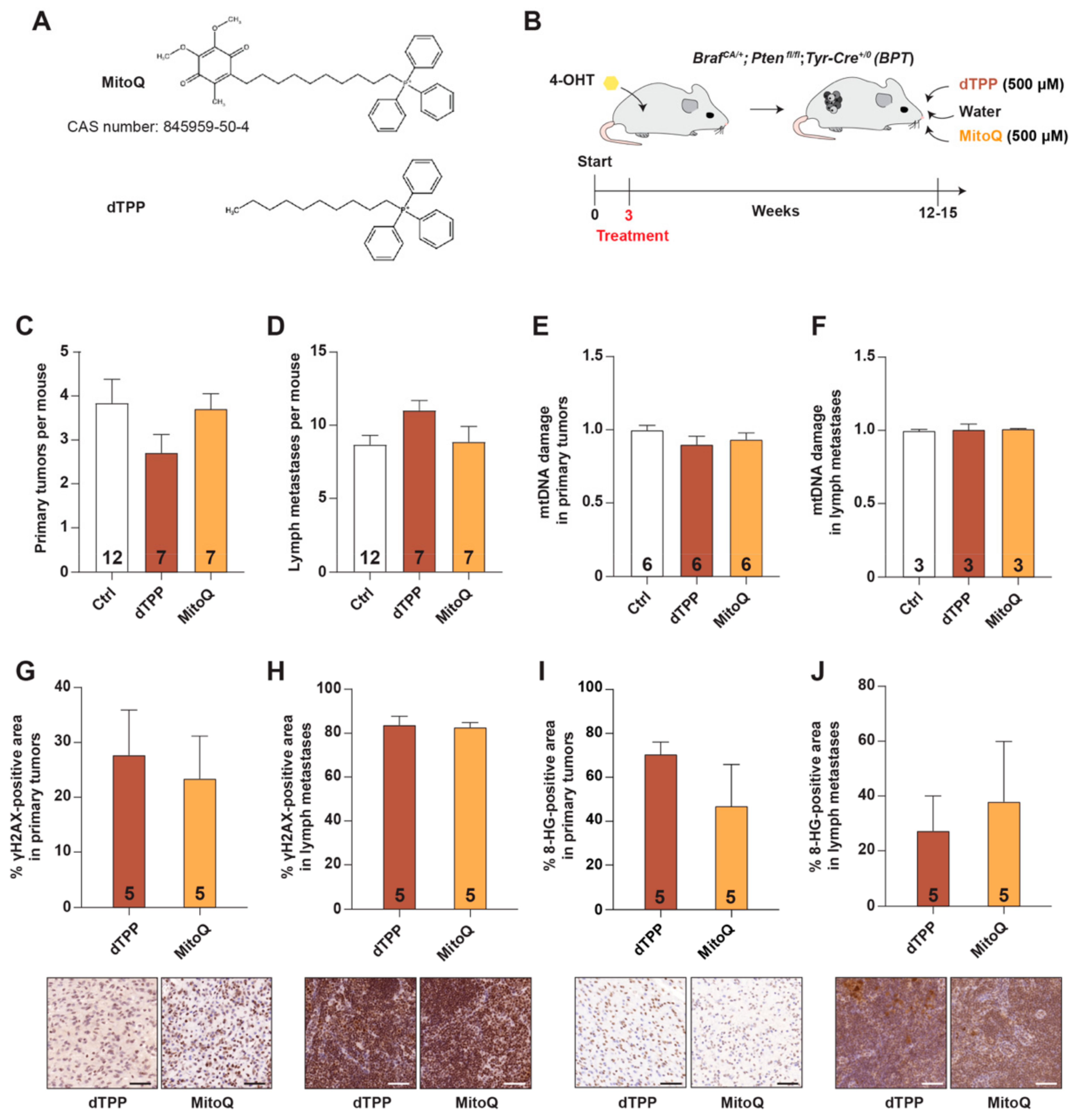

Figure 1. The mitochondria-targeted antioxidant MitoQ does not influence malignant melanoma progression in mice. (A) Structure of MitoQ and its control substance dTPP. (B) Schematic showing how two-day-old BrafCA/+Ptenfl/flTyr-Cre+/0 mice (designated BPT mice) were painted with 4-hydroxytamoxifen on the flank skin to activate BRAFV600E expression and inactivate PTEN expression in melanocytes (start). dTPP and MitoQ were administered in the drinking water to newly-weaned mice (3 weeks). (C) Number of primary tumors in BPT mice administered regular water (Ctrl), dTPP, or MitoQ. (D) Number of lymph node metastases in BPT mice administered regular water (Ctrl), dTPP, or MitoQ. (E,F) Quantification of mitochondrial DNA (mtDNA) damage in primary tumors (E) and lymph node metastases (F); data are normalized to Ctrl. (G,H) Top, percent H2AX-positive area in primary tumors (G) and lymph node metastases (H). Bottom, representative photographs of H2AX-stained sections. (I,J) Top, percent 8-HG-positive area in primary tumors (I) and lymph node metastases (J) of dTPP- and MitoQ-treated BPT mice. Bottom, representative photographs of 8-HG-stained sections. Numbers in bars = n. Scale bars = 50 µm.
Figure 1. The mitochondria-targeted antioxidant MitoQ does not influence malignant melanoma progression in mice. (A) Structure of MitoQ and its control substance dTPP. (B) Schematic showing how two-day-old BrafCA/+Ptenfl/flTyr-Cre+/0 mice (designated BPT mice) were painted with 4-hydroxytamoxifen on the flank skin to activate BRAFV600E expression and inactivate PTEN expression in melanocytes (start). dTPP and MitoQ were administered in the drinking water to newly-weaned mice (3 weeks). (C) Number of primary tumors in BPT mice administered regular water (Ctrl), dTPP, or MitoQ. (D) Number of lymph node metastases in BPT mice administered regular water (Ctrl), dTPP, or MitoQ. (E,F) Quantification of mitochondrial DNA (mtDNA) damage in primary tumors (E) and lymph node metastases (F); data are normalized to Ctrl. (G,H) Top, percent H2AX-positive area in primary tumors (G) and lymph node metastases (H). Bottom, representative photographs of H2AX-stained sections. (I,J) Top, percent 8-HG-positive area in primary tumors (I) and lymph node metastases (J) of dTPP- and MitoQ-treated BPT mice. Bottom, representative photographs of 8-HG-stained sections. Numbers in bars = n. Scale bars = 50 µm.
Antioxidants 10 00163 g001
Antioxidants 10 00163 g002 550

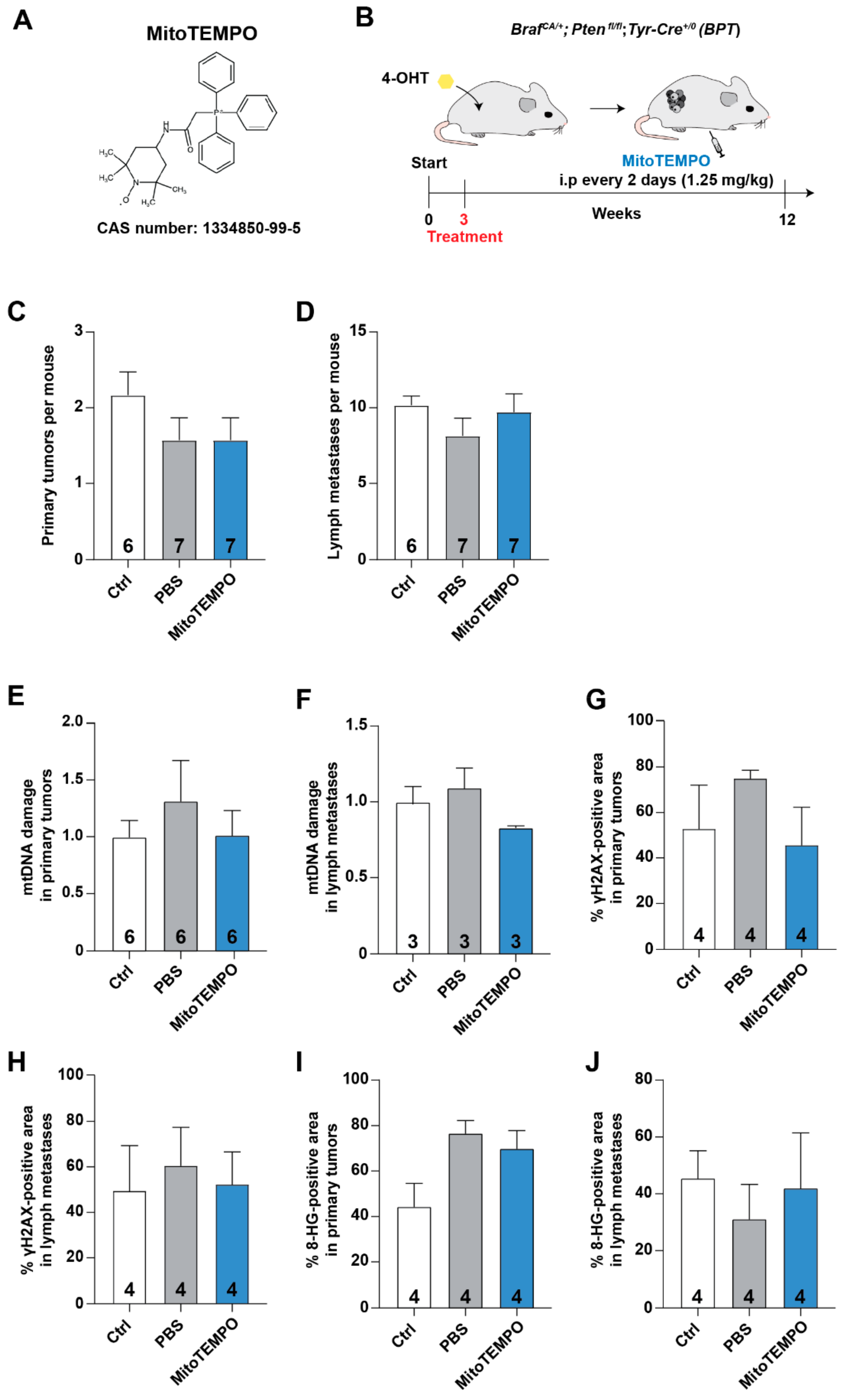

Figure 2. The mitochondria-targeted antioxidant MitoTEMPO does not influence malignant melanoma progression in mice. (A) Structure of MitoTEMPO. (B) Schematic showing how two-day-old BPT mice were painted with 4-hydroxytamoxifen on the flank skin to activate BRAF600E expression and inactivate PTEN expression in melanocytes (start). MitoTEMPO (1.25 mg/kg) or vehicle (PBS) were injected i.p.—starting at weaning (3 weeks)—every other day for a total of 30 injections; a separate group of mice were left untreated (Ctrl). (C) Number of primary tumors in Ctrl BPT mice and BPT mice injected with PBS or MitoTEMPO. (D) Number of lymph node metastases in Ctrl BPT mice and BPT mice injected with PBS or MitoTEMPO. (E,F) Quantification of mitochondrial DNA (mtDNA) damage in primary tumors (E) and lymph node metastases (F); data are normalized to Ctrl. (G,H) Percent γH2AX-positive area in primary tumors (G) and lymph node metastases (H). (I,J) Percent 8-HG-positive area in primary tumors (I) and lymph node metastases (J). Numbers in bars = n.
Figure 2. The mitochondria-targeted antioxidant MitoTEMPO does not influence malignant melanoma progression in mice. (A) Structure of MitoTEMPO. (B) Schematic showing how two-day-old BPT mice were painted with 4-hydroxytamoxifen on the flank skin to activate BRAF600E expression and inactivate PTEN expression in melanocytes (start). MitoTEMPO (1.25 mg/kg) or vehicle (PBS) were injected i.p.—starting at weaning (3 weeks)—every other day for a total of 30 injections; a separate group of mice were left untreated (Ctrl). (C) Number of primary tumors in Ctrl BPT mice and BPT mice injected with PBS or MitoTEMPO. (D) Number of lymph node metastases in Ctrl BPT mice and BPT mice injected with PBS or MitoTEMPO. (E,F) Quantification of mitochondrial DNA (mtDNA) damage in primary tumors (E) and lymph node metastases (F); data are normalized to Ctrl. (G,H) Percent γH2AX-positive area in primary tumors (G) and lymph node metastases (H). (I,J) Percent 8-HG-positive area in primary tumors (I) and lymph node metastases (J). Numbers in bars = n.
Antioxidants 10 00163 g002
Antioxidants 10 00163 g003 550

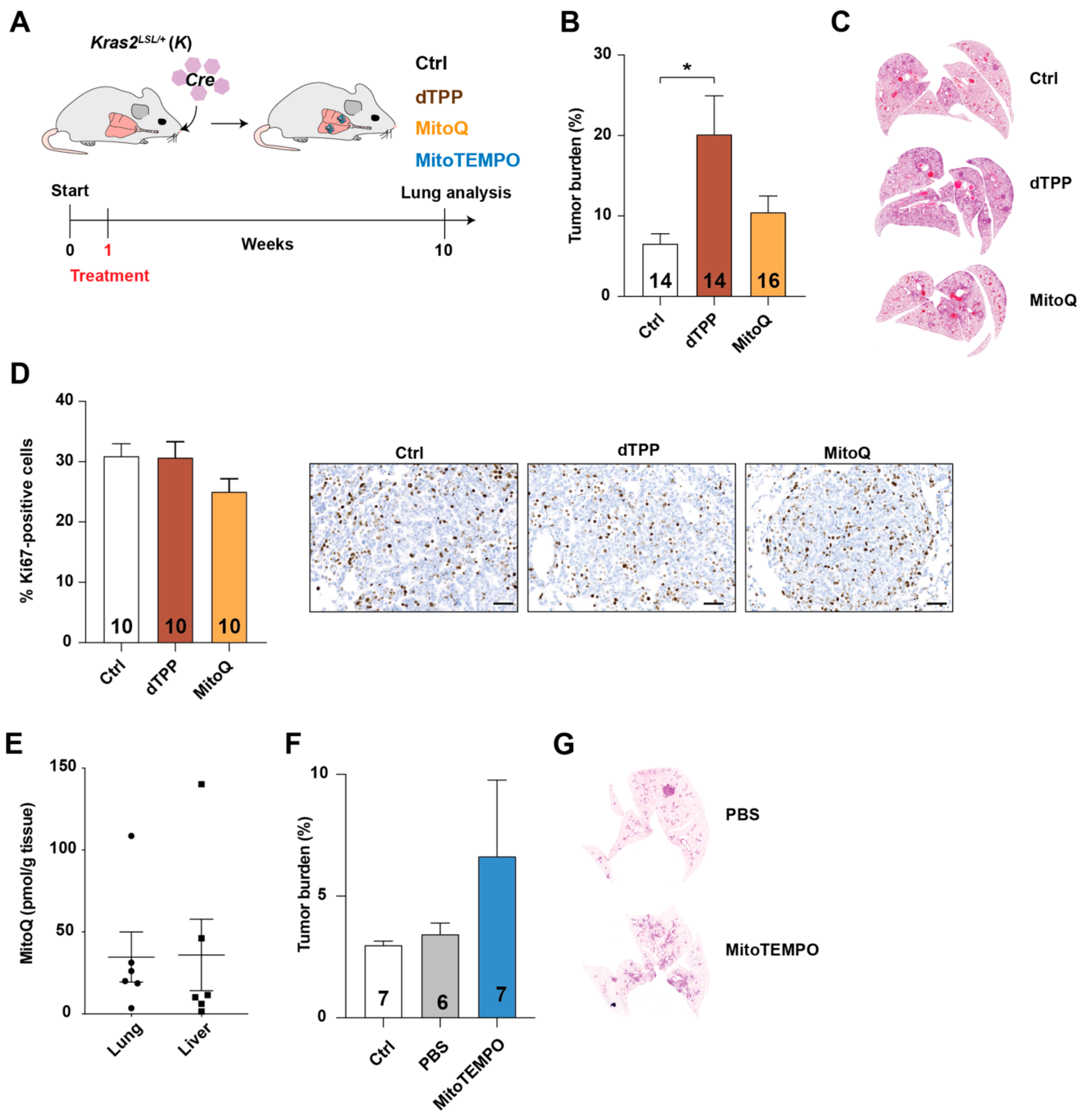

Figure 3. MitoQ and MitoTEMPO does not influence tumor growth in mice with lung cancer. (A) Schematic showing how a Cre-adenovirus given intranasally to 6–8-week-old Kras2LSL/+ mice activated KRASG12D expression in the lung (start). One week later, mice were given regular water (Ctrl) or water supplemented with MitoQ (500 µM) or dTPP (500 µM); in separate experiments, mice were left untreated or injected i.p. with MitoTEMPO (1.25 mg/kg) or PBS. (B) Tumor burden (percent tumor area per lung area) in lungs from Ctrl, dTPP-treated, and MitoQ–treated Kras2LSL/+ mice, 10 weeks after inhalation of Cre-adenovirus. (C) Representative hematoxylin and eosin–stained lung sections from mice in panel B. (D) Proliferation index (percent Ki67-positive cells). Right panels, representative photographs of Ki67-stained lung sections. (E) Mass spectrometry–based detection of MitoQ in lung and liver samples of tumor-bearing Kras2LSL/+ mice administered MitoQ in the drinking water for 10 weeks, as described in panels A and B. (F) Tumor burden (percent tumor area per lung area) in lungs from Ctrl and PBS- and MitoTEMPO-injected Kras2LSL/+ mice, 10 weeks after inhalation of Cre-adenovirus. (G) Representative hematoxylin and eosin–stained lung sections from mice in panel F. Numbers in bars = n. Scale bar = 50 µm. * p < 0.05.
Figure 3. MitoQ and MitoTEMPO does not influence tumor growth in mice with lung cancer. (A) Schematic showing how a Cre-adenovirus given intranasally to 6–8-week-old Kras2LSL/+ mice activated KRASG12D expression in the lung (start). One week later, mice were given regular water (Ctrl) or water supplemented with MitoQ (500 µM) or dTPP (500 µM); in separate experiments, mice were left untreated or injected i.p. with MitoTEMPO (1.25 mg/kg) or PBS. (B) Tumor burden (percent tumor area per lung area) in lungs from Ctrl, dTPP-treated, and MitoQ–treated Kras2LSL/+ mice, 10 weeks after inhalation of Cre-adenovirus. (C) Representative hematoxylin and eosin–stained lung sections from mice in panel B. (D) Proliferation index (percent Ki67-positive cells). Right panels, representative photographs of Ki67-stained lung sections. (E) Mass spectrometry–based detection of MitoQ in lung and liver samples of tumor-bearing Kras2LSL/+ mice administered MitoQ in the drinking water for 10 weeks, as described in panels A and B. (F) Tumor burden (percent tumor area per lung area) in lungs from Ctrl and PBS- and MitoTEMPO-injected Kras2LSL/+ mice, 10 weeks after inhalation of Cre-adenovirus. (G) Representative hematoxylin and eosin–stained lung sections from mice in panel F. Numbers in bars = n. Scale bar = 50 µm. * p < 0.05.
Antioxidants 10 00163 g003
Antioxidants 10 00163 g004 550

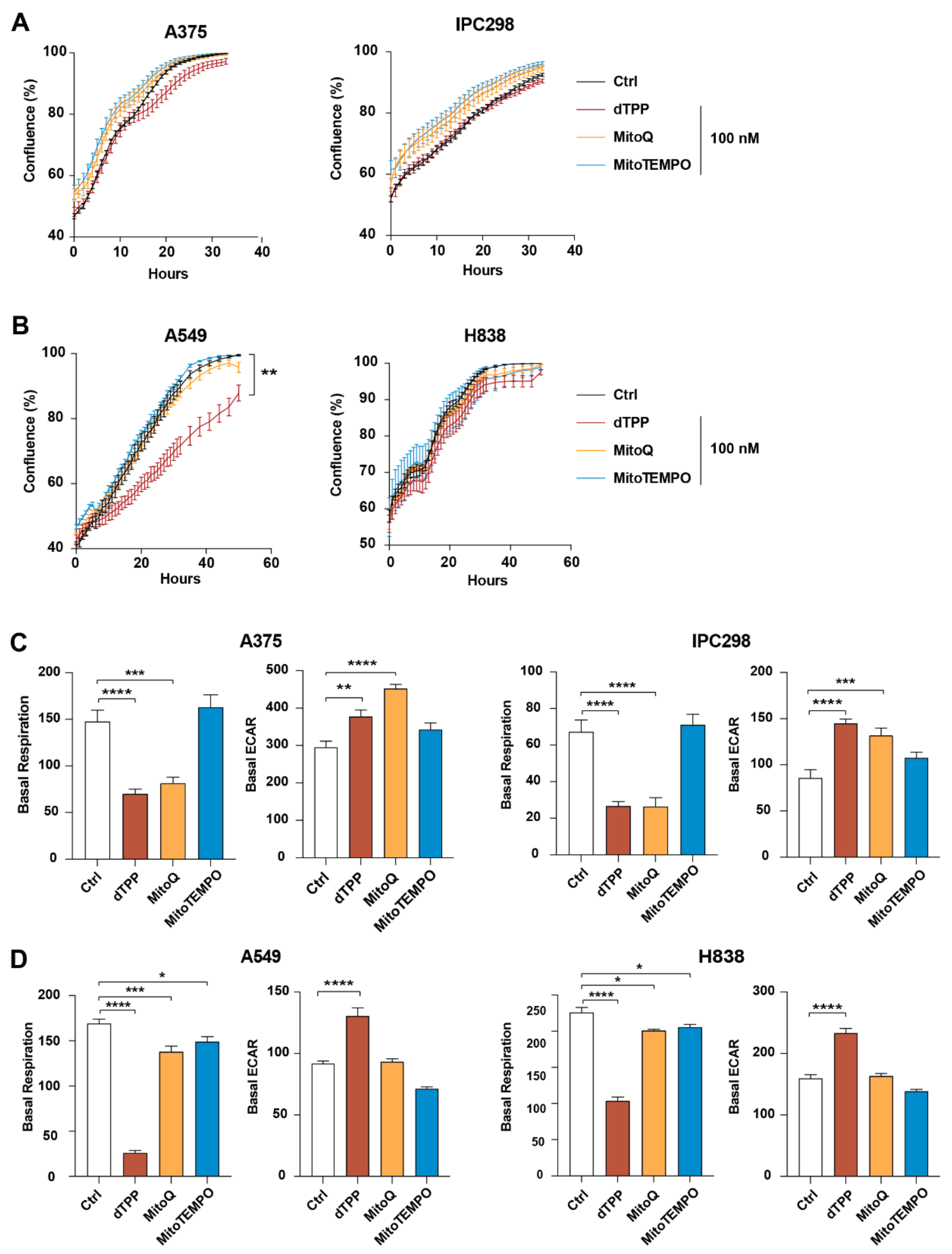

Figure 4. Mitochondria-targeted antioxidants have minimal effects on cell proliferation and inconsistent effects on metabolic parameters in vitro. (A) Proliferation of human malignant melanoma cell lines A375 and IPC298 incubated with the indicated compounds in an Incucyte Live-Cell Imaging system. Note Y-axis scale. (B) Proliferation of human lung cancer cell lines A549 and H838 incubated with the indicated compounds in an Incucyte live-cell imaging system. Note Y-axis scale. (C) Basal mitochondrial respiration and extracellular acidification rate (ECAR) of A375 and IPC298 melanoma cell lines. (D) Basal mitochondrial respiration and extracellular acidification rate (ECAR) of A549 and H838 lung cancer cell lines. * p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001.
Figure 4. Mitochondria-targeted antioxidants have minimal effects on cell proliferation and inconsistent effects on metabolic parameters in vitro. (A) Proliferation of human malignant melanoma cell lines A375 and IPC298 incubated with the indicated compounds in an Incucyte Live-Cell Imaging system. Note Y-axis scale. (B) Proliferation of human lung cancer cell lines A549 and H838 incubated with the indicated compounds in an Incucyte live-cell imaging system. Note Y-axis scale. (C) Basal mitochondrial respiration and extracellular acidification rate (ECAR) of A375 and IPC298 melanoma cell lines. (D) Basal mitochondrial respiration and extracellular acidification rate (ECAR) of A549 and H838 lung cancer cell lines. * p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001.
Antioxidants 10 00163 g004
